Delivery Pipeline for Windows Machines
The document discusses the creation of a delivery pipeline for Windows machines using various DevOps tools and practices such as Ansible, Jenkins, and Docker. It covers automation steps including provisioning, dependency installation, and service management while emphasizing the importance of familiar tools and avoiding unnecessary expenses. The text also highlights the compatibility of tools and methods across different operating systems while providing resources for further reading.
More Related Content
Similar to Delivery Pipeline for Windows Machines
Delivery Pipeline for Windows Machines
- 1. Delivery Pipeline for WindowsMachines 18.09.2017 @buzdin for fun and profit
- 2. Working as aconsultant • DevOps • Test Automation • Software Architecture (aka Microservices) • Java Development • Web Development (not JavaScript)
- 3. Continuous Delivery Getting acode change to production in a most efficient way (preferably automated)
- 5. Lets build adelivery pipeline!
- 6.

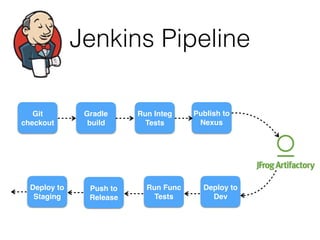

- 7. Jenkins Pipeline Git checkout Gradle build Run Integ Tests Publishto Nexus Deploy to Dev Run Func Tests Push to Release Deploy to Staging
- 9. Steps to Deploy •Generate SSH Certificate • Provision Linux via Ansible • Install dependencies via apt-get • Download artefact from Artifactory via curl • Start app as a service using systemd • Think about switching to Docker later
- 10. Things to Consider •Clustering – round-robin or hash-based? • Blue-green deployment strategy? • Should we take Kubernetes or simply Docker Swarm? VS
- 14. Mission Impossible 1. Don’tspend any money on licenses 2. Automate using familiar tools 3. You have a Mac 4. Don’t think about Docker all the time

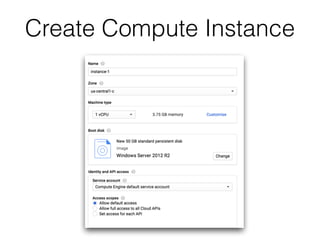

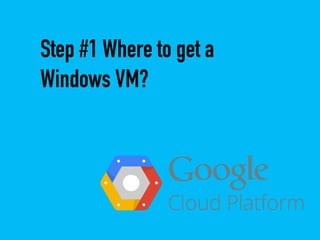

- 16. Step #1 Whereto get a Windows VM?
- 17.

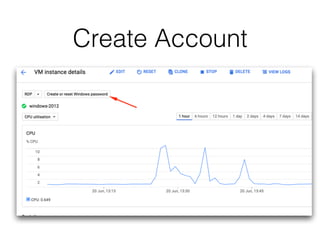

- 18.

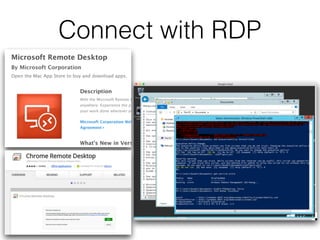

- 19.

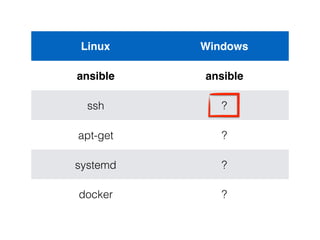

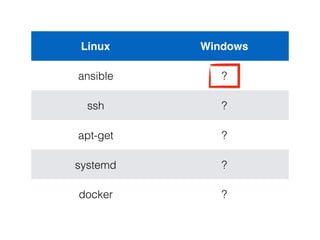

- 20. Linux Windows ansible ? ssh? apt-get ? systemd ? docker ?

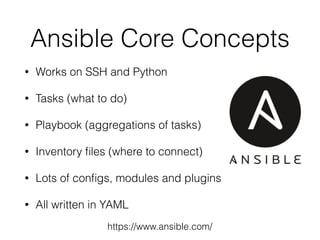

- 21. Ansible Core Concepts •Works on SSH and Python • Tasks (what to do) • Playbook (aggregations of tasks) • Inventory files (where to connect) • Lots of configs, modules and plugins • All written in YAML https://www.ansible.com/

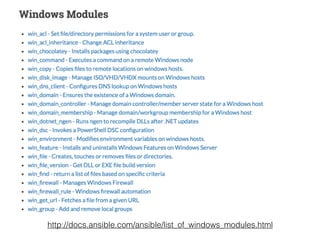

- 22.

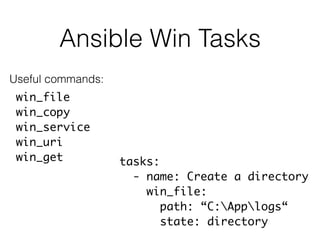

- 23. Ansible Win Tasks win_file win_copy win_service win_uri win_gettasks: - name: Create a directory win_file: path: “C:Applogs“ state: directory Useful commands:

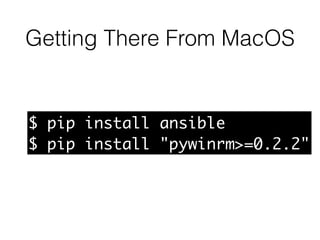

- 24. Getting There FromMacOS $ pip install ansible $ pip install "pywinrm>=0.2.2"

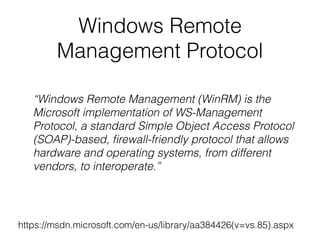

- 25. Windows Remote Management Protocol https://msdn.microsoft.com/en-us/library/aa384426(v=vs.85).aspx “WindowsRemote Management (WinRM) is the Microsoft implementation of WS-Management Protocol, a standard Simple Object Access Protocol (SOAP)-based, firewall-friendly protocol that allows hardware and operating systems, from different vendors, to interoperate.”
- 26. Linux Windows ansible ansible ssh? apt-get ? systemd ? docker ?
- 27.
- 28.

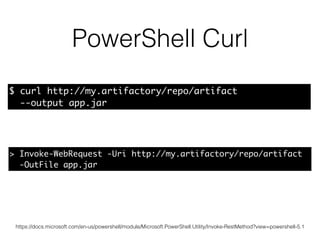

- 29. PowerShell Curl https://docs.microsoft.com/en-us/powershell/module/Microsoft.PowerShell.Utility/Invoke-RestMethod?view=powershell-5.1 > Invoke-WebRequest-Uri http://my.artifactory/repo/artifact -OutFile app.jar $ curl http://my.artifactory/repo/artifact --output app.jar

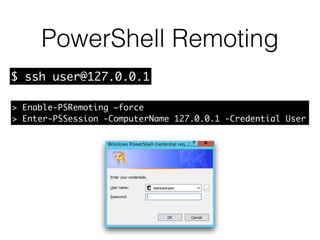

- 30. PowerShell Remoting > Enable-PSRemoting–force > Enter-PSSession -ComputerName 127.0.0.1 -Credential User $ ssh user@127.0.0.1
- 31.
- 32.
- 33.
- 34. PowerShell on MacOS https://github.com/PowerShell/PowerShell/ Workson MacOS 10.12 Sierra built on .NET Core
- 35. Linux Windows ansible ansible sshPowerShell apt-get ? systemd ? docker ?
- 36. $ sudo apt-getinstall java VS
- 37.

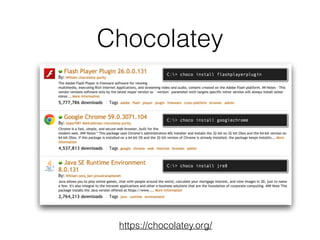

- 38. Install Package with Chocolatey >Set-ExecutionPolicy -ExecutionPolicy Unrestricted -Scope CurrentUser > choco install jdk8 -y -params 'installdir=c:java8' > Set-ExecutionPolicy AllSigned; iex ((New-Object System.Net.WebClient).DownloadString('https://chocolatey.org/ install.ps1'))

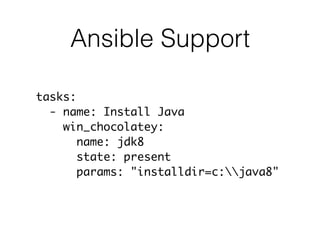

- 39. Ansible Support tasks: - name:Install Java win_chocolatey: name: jdk8 state: present params: "installdir=c:java8"
- 40. Linux Windows ansible ansible sshPowerShell apt-get Chocolatey systemd ? docker ?
- 41. $ sudo systemctlrestart apache2.service VS

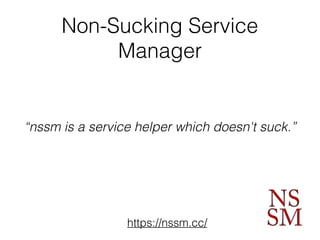

- 42. Non-Sucking Service Manager https://nssm.cc/ “nssm isa service helper which doesn't suck.”

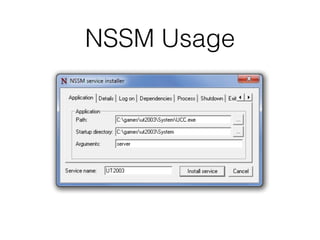

- 43.
- 44. Ansible Support tasks: win_nssm: name: “my_service" application:“c:java8binjavaw.exe” start_mode: manual state: started stdout_file: "{{logs_path}}stdout.log" stderr_file: "{{logs_path}}stderr.log" app_parameters_free_form: “{{java_opts}}"
- 45.

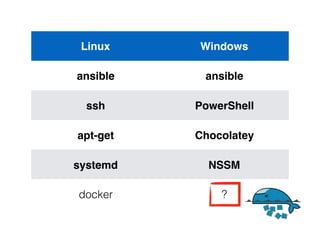

- 47. Linux Windows ansible ansible sshPowerShell apt-get Chocolatey systemd NSSM docker ?
- 49.

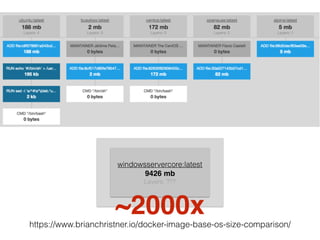

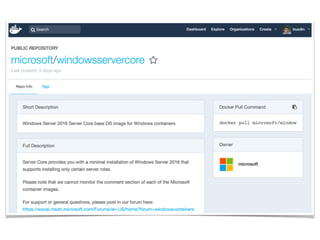

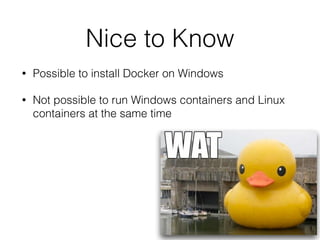

- 50. Nice to Know •Possible to install Docker on Windows • Not possible to run Windows containers and Linux containers at the same time
- 51. Linux Windows ansible ansible sshPowerShell apt-get Chocolatey systemd NSSM docker WAT?
- 52. What have welearned today?
- 53. Same Tools, Patterns& Practices Apply
