1. How to grow your own
Microservice?
Dmitry Buzdin

2. Started a small consultancy company
• DevOps
• Test Automation
• Software Architecture
• Java/JVM
• Other Stuff: Agile/Web/Mobile
@buzdin
About Presenter

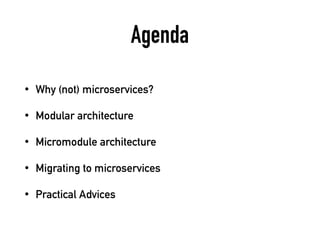

3. Agenda
• Why (not) microservices?
• Modular architecture
• Micromodule architecture
• Migrating to microservices
• Practical Advices

4. Welcome to the Wonderful World
of Microservices!

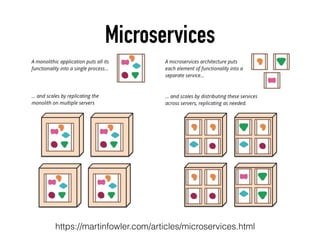

5. Microservices
https://martinfowler.com/articles/microservices.html

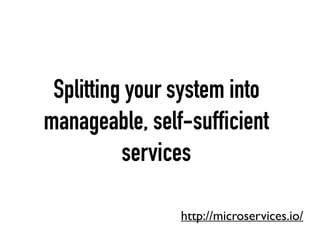

6. Splitting your system into
manageable, self-sufficient
services
http://microservices.io/

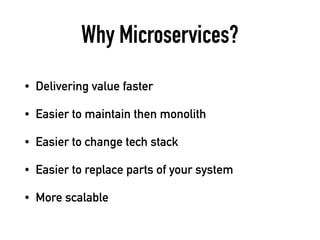

7. Why Microservices?
• Delivering value faster
• Easier to maintain then monolith
• Easier to change tech stack
• Easier to replace parts of your system
• More scalable

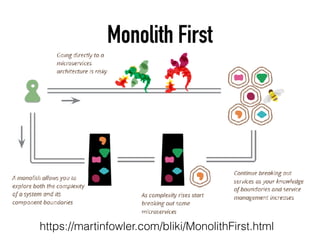

8. Monolith First
https://martinfowler.com/bliki/MonolithFirst.html

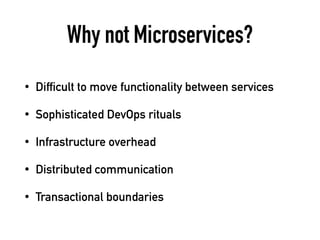

9. Why not Microservices?
• Difficult to move functionality between services
• Sophisticated DevOps rituals
• Infrastructure overhead
• Distributed communication
• Transactional boundaries

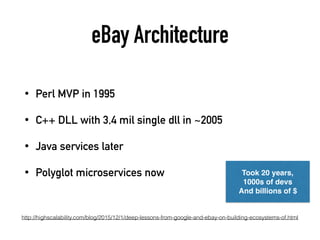

10. eBay Architecture
• Perl MVP in 1995
• C++ DLL with 3,4 mil single dll in ~2005
• Java services later
• Polyglot microservices now
http://highscalability.com/blog/2015/12/1/deep-lessons-from-google-and-ebay-on-building-ecosystems-of.html
Took 20 years,
1000s of devs
And billions of $

11. How do you start and improve an
Evolutionary Architecture?

12. Modular Architecture

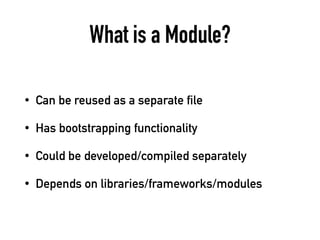

13. What is a Module?
• Can be reused as a separate file
• Has bootstrapping functionality
• Could be developed/compiled separately
• Depends on libraries/frameworks/modules

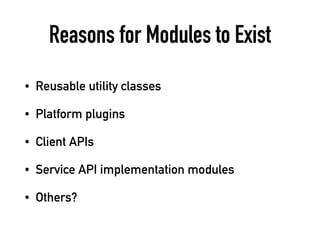

14. Reasons for Modules to Exist
• Reusable utility classes
• Platform plugins
• Client APIs
• Service API implementation modules
• Others?

15. Modular Architecture

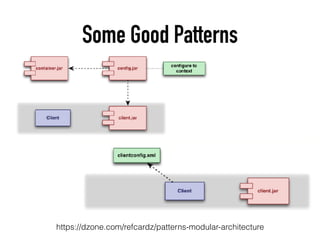

16. Some Good Patterns
https://dzone.com/refcardz/patterns-modular-architecture

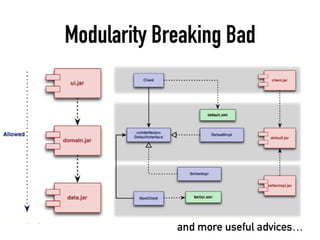

17. Modularity Breaking Bad
and more useful advices…

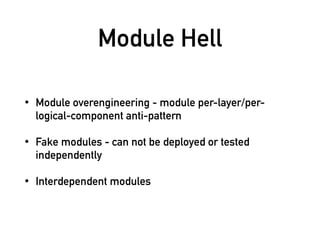

18. Module Hell
• Module overengineering - module per-layer/per-
logical-component anti-pattern
• Fake modules - can not be deployed or tested
independently
• Interdependent modules

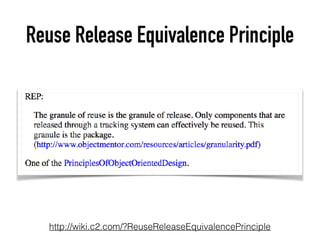

19. Reuse Release Equivalence Principle
http://wiki.c2.com/?ReuseReleaseEquivalencePrinciple

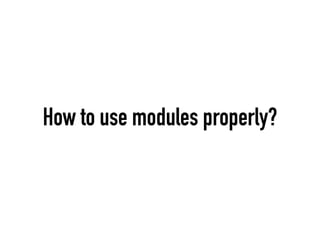

20. How to use modules properly?

21. Micromodules Architecture

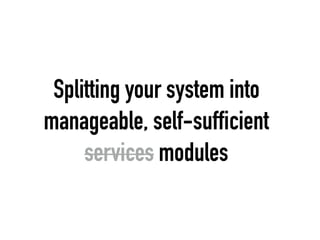

22. Splitting your system into
manageable, self-sufficient
services modules

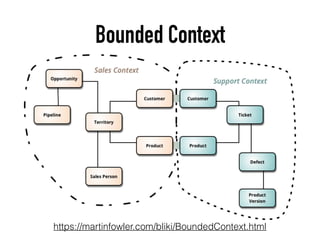

23. Bounded Context
https://martinfowler.com/bliki/BoundedContext.html

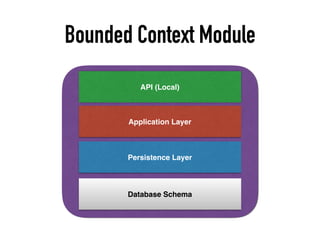

24. Bounded Context Module
Database Schema
Persistence Layer
Application Layer
API (Local)

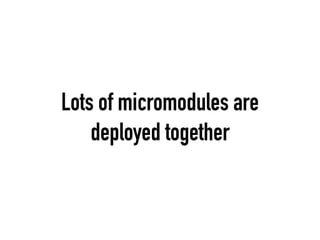

25. Lots of micromodules are
deployed together

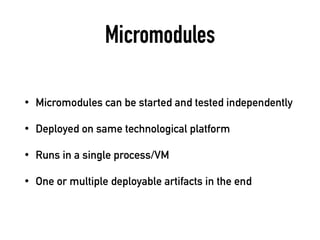

26. Micromodules
• Micromodules can be started and tested independently
• Deployed on same technological platform
• Runs in a single process/VM
• One or multiple deployable artifacts in the end

27. Same Storage
• Common database for many micromodules
• Separate schema for every bounded context
• Compatible approach for schema migrations

28. Module Types
• Bounded context (documents, users, payments)
• Aggregates
• Service provider interface modules
• Third-party integrations
• API Facade
• Client API
• Products

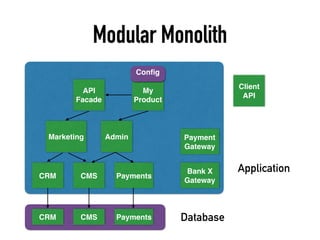

29. Modular Monolith
CRM CMS Payments
CRM CMS Payments
AdminMarketing
API
Facade
Database
Application
Payment
Gateway
Bank X
Gateway
Client
API
My
Product
Config

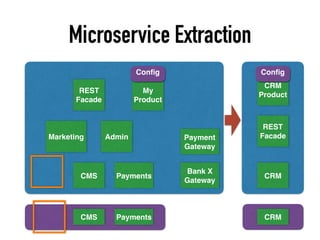

30. Microservice Extraction
CMS Payments
CRMCMS Payments
AdminMarketing
REST
Facade
Payment
Gateway
Bank X
Gateway
My
Product
Config
CRM
CRM
Product
REST
Facade
Config

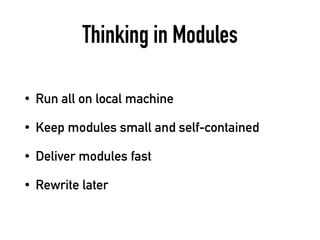

31. Thinking in Modules
• Run all on local machine
• Keep modules small and self-contained
• Deliver modules fast
• Rewrite later

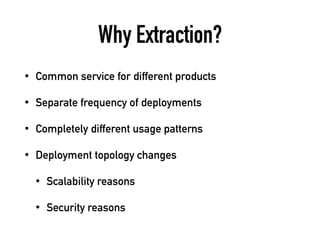

32. Why Extraction?
• Common service for different products
• Separate frequency of deployments
• Completely different usage patterns
• Deployment topology changes
• Scalability reasons
• Security reasons

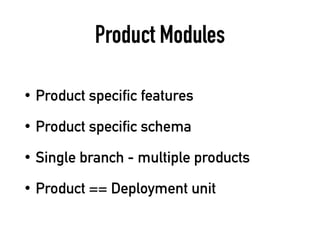

33. Product Modules
• Product specific features
• Product specific schema
• Single branch - multiple products
• Product == Deployment unit

34. Growing Microservices

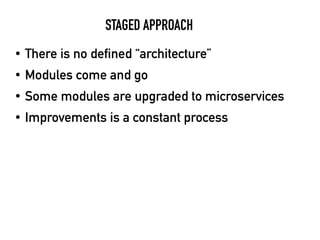

35. STAGED APPROACH
• There is no defined “architecture”
• Modules come and go
• Some modules are upgraded to microservices
• Improvements is a constant process

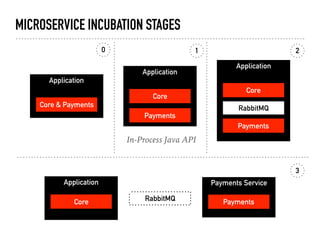

36. MICROSERVICE INCUBATION STAGES
Application
Core & Payments
Application
Payments
Core
RabbitMQ
Payments ServiceApplication
PaymentsCore RabbitMQ
0 1 2
3
Application
Payments
Core
In-Process Java API

37. Database
SEPARATION TO “MICRODATABASES”
Core
Core
0
2
Payments
Payments
Database
Core
Core
Payments
Payments
DatabaseDatabase
Core
Core
Payments
Payments
1

38. EVENTUAL CONSISTENCY

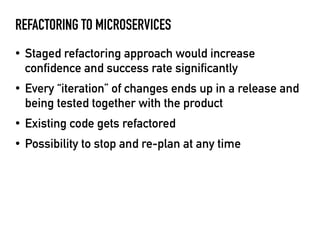

39. REFACTORING TO MICROSERVICES
• Staged refactoring approach would increase
confidence and success rate significantly
• Every “iteration” of changes ends up in a release and
being tested together with the product
• Existing code gets refactored
• Possibility to stop and re-plan at any time

40. Practical Advices

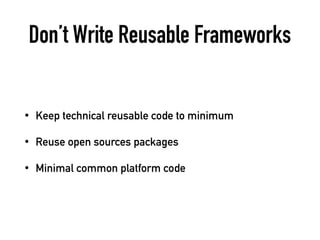

41. Don’t Write Reusable Frameworks
• Keep technical reusable code to minimum
• Reuse open sources packages
• Minimal common platform code

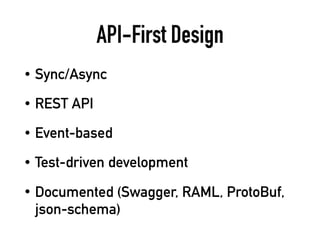

42. API-First Design
• Sync/Async
• REST API
• Event-based
• Test-driven development
• Documented (Swagger, RAML, ProtoBuf,
json-schema)

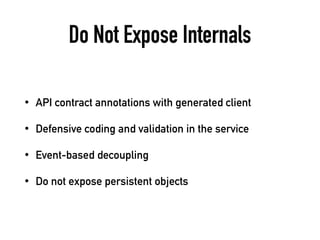

43. Do Not Expose Internals
• API contract annotations with generated client
• Defensive coding and validation in the service
• Event-based decoupling
• Do not expose persistent objects

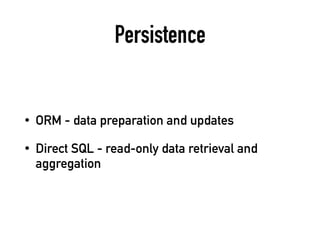

44. Persistence
• ORM - data preparation and updates
• Direct SQL - read-only data retrieval and
aggregation

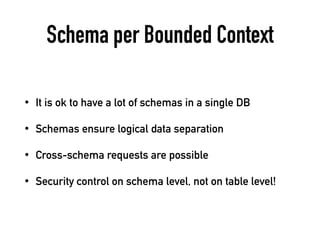

45. Schema per Bounded Context
• It is ok to have a lot of schemas in a single DB
• Schemas ensure logical data separation
• Cross-schema requests are possible
• Security control on schema level, not on table level!

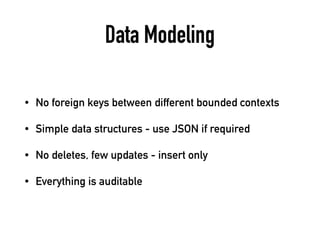

46. Data Modeling
• No foreign keys between different bounded contexts
• Simple data structures - use JSON if required
• No deletes, few updates - insert only
• Everything is auditable

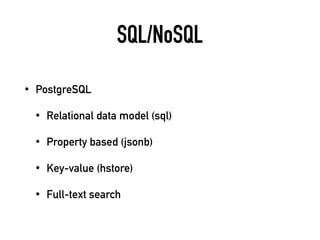

47. SQL/NoSQL
• PostgreSQL
• Relational data model (sql)
• Property based (jsonb)
• Key-value (hstore)
• Full-text search

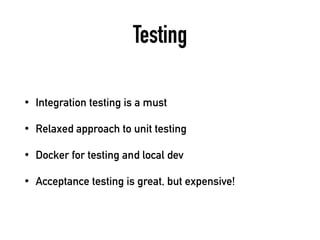

48. Testing
• Integration testing is a must
• Relaxed approach to unit testing
• Docker for testing and local dev
• Acceptance testing is great, but expensive!

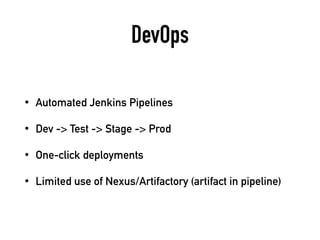

49. DevOps
• Automated Jenkins Pipelines
• Dev -> Test -> Stage -> Prod
• One-click deployments
• Limited use of Nexus/Artifactory (artifact in pipeline)

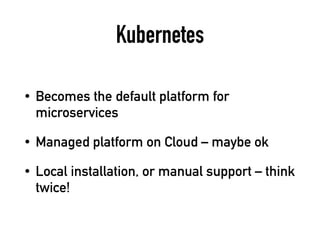

50. Kubernetes
• Becomes the default platform for
microservices
• Managed platform on Cloud – maybe ok
• Local installation, or manual support – think
twice!

51. Summary

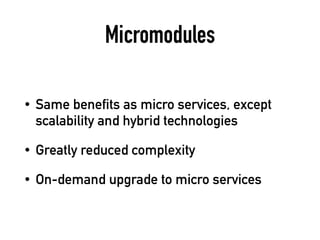

52. Micromodules
• Same benefits as micro services, except
scalability and hybrid technologies
• Greatly reduced complexity
• On-demand upgrade to micro services

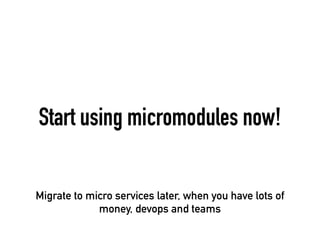

53. Start using micromodules now!
Migrate to micro services later, when you have lots of
money, devops and teams
