Riding Redis @ask.fm

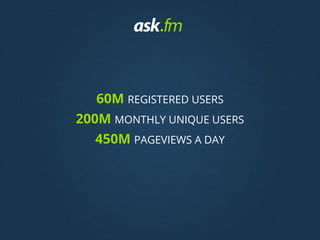

60M REGISTERED USERS
200M MONTHLY UNIQUE USERS
450M PAGEVIEWS A DAY

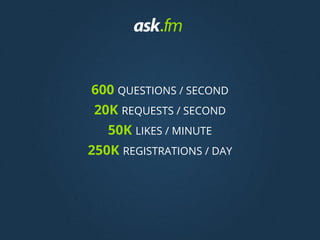

600 QUESTIONS / SECOND
20K REQUESTS / SECOND
50K LIKES / MINUTE
250K REGISTRATIONS / DAY

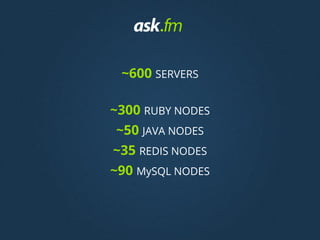

~600 SERVERS
~300 RUBY NODES
~50 JAVA NODES
~35 REDIS NODES
~90 MySQL NODES

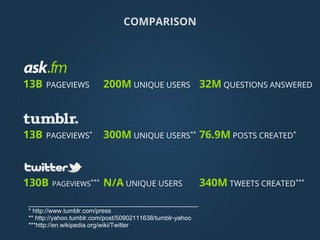

COMPARISON
13B PAGEVIEWS 200M UNIQUE USERS 32M QUESTIONS ANSWERED
13B PAGEVIEWS*
300M UNIQUE USERS**
76.9M POSTS CREATED*
130B PAGEVIEWS***
N/A UNIQUE USERS 340M TWEETS CREATED***
_________________________________________________
* http://www.tumblr.com/press
** http://yahoo.tumblr.com/post/50902111638/tumblr-yahoo
***http://en.wikipedia.org/wiki/Twitter

Open-source
Key-value database
In-memory
Data-structure server
REDIS

Salvatore Sanfilippo
@antirez
REDIS AUTHOR

TWITTER
INSTAGRAM
STACK-OVERFLOW
BLIZZARD
WHO IS USING REDIS?

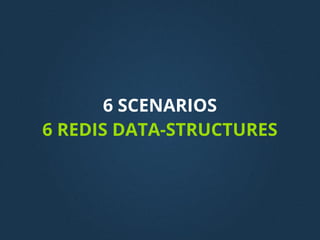

6 SCENARIOS
6 REDIS DATA-STRUCTURES

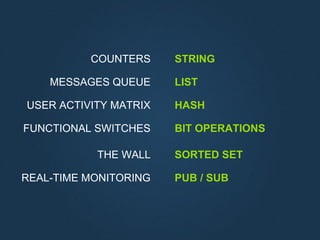

COUNTERS STRING
MESSAGES QUEUE LIST
USER ACTIVITY MATRIX HASH
FUNCTIONAL SWITCHES BIT OPERATIONS

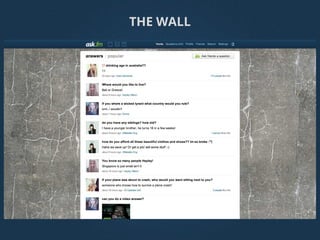

THE WALL SORTED SET
REAL-TIME MONITORING PUB / SUB

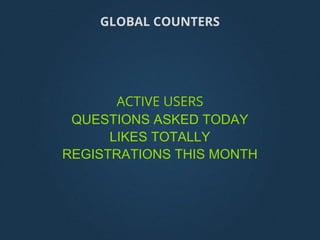

GLOBAL COUNTERS
ACTIVE USERS
QUESTIONS ASKED TODAY
LIKES TOTALLY
REGISTRATIONS THIS MONTH

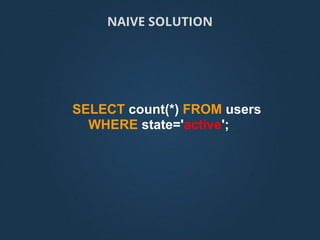

SELECT count(*) FROM users
WHERE state='active';
NAIVE SOLUTION

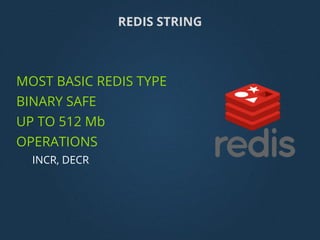

REDIS STRING
MOST BASIC REDIS TYPE
BINARY SAFE
UP TO 512 Mb
OPERATIONS
INCR, DECR

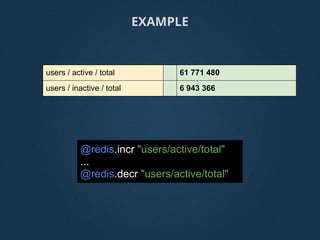

@redis.incr "users/active/total"
...
@redis.decr "users/active/total"
users / active / total 61 771 480
users / inactive / total 6 943 366
EXAMPLE

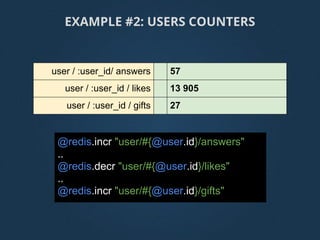

@redis.incr "user/#{@user.id}/answers"
..
@redis.decr "user/#{@user.id}/likes"
..
@redis.incr "user/#{@user.id}/gifts"
user / :user_id/ answers 57
user / :user_id / likes 13 905
user / :user_id / gifts 27

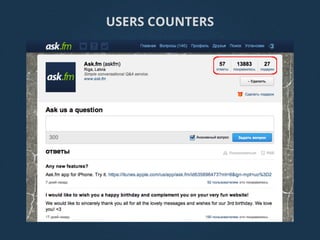

EXAMPLE #2: USERS COUNTERS

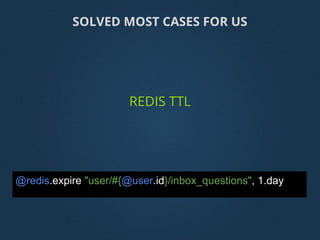

@redis.expire "user/#{@user.id}/inbox_questions", 1.day
SOLVED MOST CASES FOR US
REDIS TTL

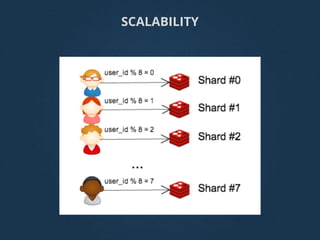

@redis_shard_map = {
0 => Redis.new(:host=>"redis_host_0"),
1 => Redis.new(:host=>"redis_host_1"),
...,
7 => Redis.new(:host=>"redis_host_7")
}
@redis = @redis_shard_map[@user.id % 8]
@redis.incr "user/#{@user.id}/answers"
SCALABILITY (2)

Resque to the rescue
https://github.com/resque/resque

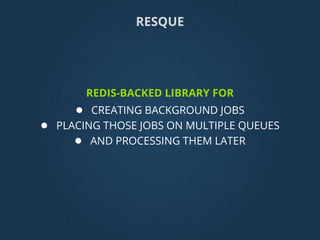

REDIS-BACKED LIBRARY FOR
● CREATING BACKGROUND JOBS
● PLACING THOSE JOBS ON MULTIPLE QUEUES
● AND PROCESSING THEM LATER
RESQUE

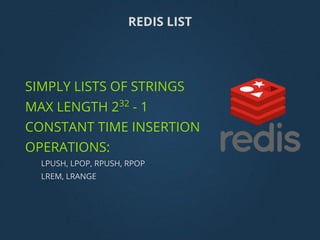

REDIS LIST
SIMPLY LISTS OF STRINGS
MAX LENGTH 232
- 1
CONSTANT TIME INSERTION
OPERATIONS:
LPUSH, LPOP, RPUSH, RPOP
LREM, LRANGE

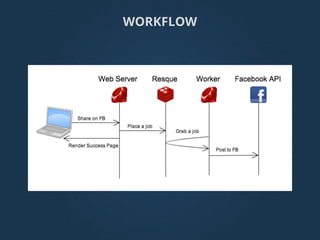

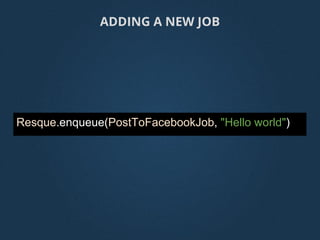

Resque.enqueue(PostToFacebookJob, "Hello world")
ADDING A NEW JOB

@redis.lpush 'queue:facebook',
'{
"class":"PostToFacebookJob",
"args":["Hello world"]
}'
O(1)
COMPLEXITY

@redis.rpop "queue:facebook"
O(1)
GETTING A JOB FROM QUEUE

Scenario 3 :
User activity matrix

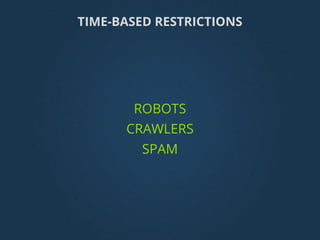

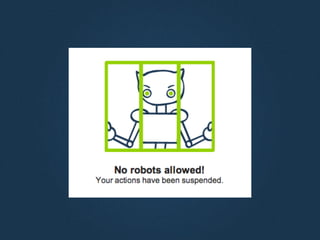

ROBOTS
CRAWLERS
SPAM
TIME-BASED RESTRICTIONS

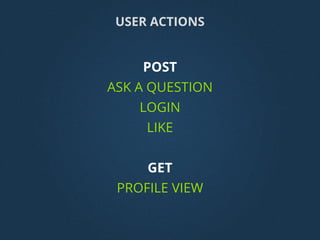

POST
ASK A QUESTION
LOGIN
LIKE
GET
PROFILE VIEW
USER ACTIONS

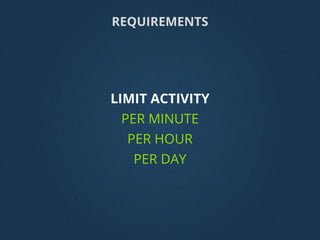

LIMIT ACTIVITY
PER MINUTE
PER HOUR
PER DAY
REQUIREMENTS

REDIS HASH
MAPS BETWEEN
STRING FIELDS AND VALUES
MAX PAIRS 232
- 1
OPERATIONS:
HGET, HGETALL
HSET, HDEL

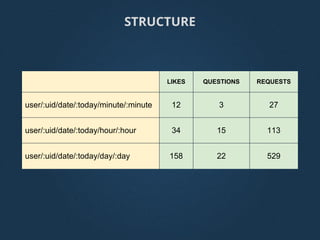

LIKES QUESTIONS REQUESTS
user/:uid/date/:today/minute/:minute 12 3 27
user/:uid/date/:today/hour/:hour 34 15 113
user/:uid/date/:today/day/:day 158 22 529
STRUCTURE

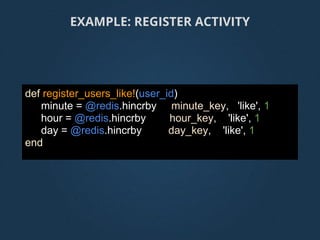

def register_users_like!(user_id)
minute = @redis.hincrby minute_key, 'like', 1
hour = @redis.hincrby hour_key, 'like', 1
day = @redis.hincrby day_key, 'like', 1
end
EXAMPLE: REGISTER ACTIVITY

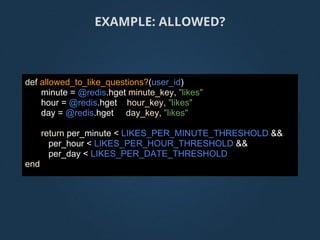

def allowed_to_like_questions?(user_id)
minute = @redis.hget minute_key, "likes"
hour = @redis.hget hour_key, "likes"
day = @redis.hget day_key, "likes"
return per_minute < LIKES_PER_MINUTE_THRESHOLD &&
per_hour < LIKES_PER_HOUR_THRESHOLD &&
per_day < LIKES_PER_DATE_THRESHOLD
end
EXAMPLE: ALLOWED?

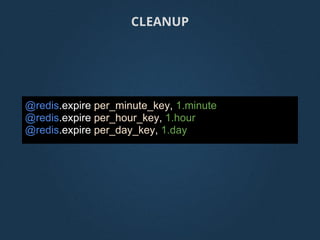

@redis.expire per_minute_key, 1.minute
@redis.expire per_hour_key, 1.hour
@redis.expire per_day_key, 1.day
CLEANUP

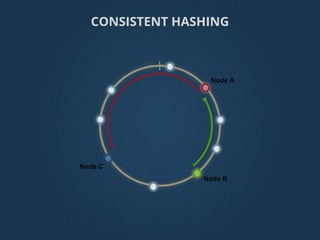

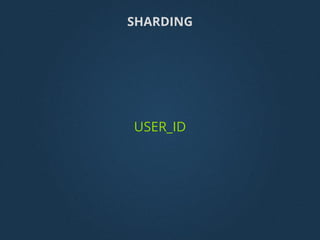

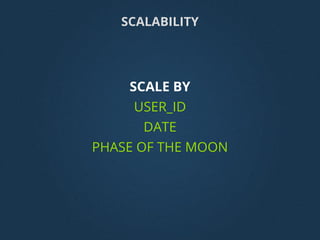

SCALABILITY
SCALE BY
USER_ID
DATE
PHASE OF THE MOON

Scenario 4 :
Functional switches

TURN ON/OFF ANY FEATURE ON SITE
REQUIREMENTS

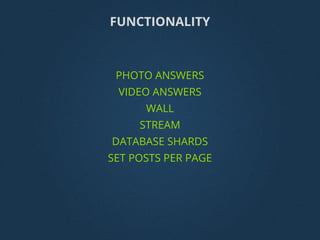

PHOTO ANSWERS
VIDEO ANSWERS
WALL
STREAM
DATABASE SHARDS
SET POSTS PER PAGE
FUNCTIONALITY

BIT OPERATIONS
BIT OPERATIONS
SETBIT, GETBIT
BITCOUNT

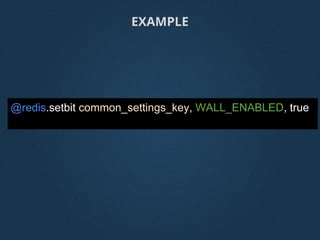

@redis.setbit common_settings_key, WALL_ENABLED, true
EXAMPLE

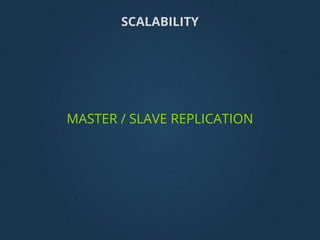

MASTER / SLAVE REPLICATION
SCALABILITY

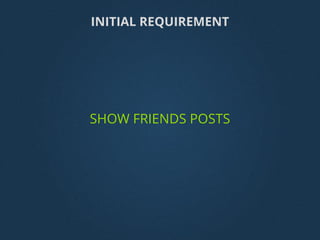

SHOW FRIENDS POSTS
INITIAL REQUIREMENT

SELECT * FROM questions q
LEFT JOIN followships f ON (q.user_id = f.friend_id)
WHERE f.user_id = :my_user_id
ORDER BY q.answered_at
LIMIT 0,25
SOLUTION

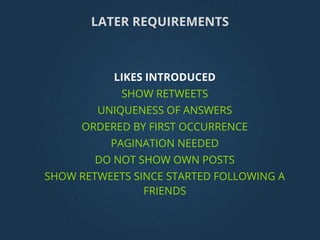

LATER REQUIREMENTS
LIKES INTRODUCED
SHOW RETWEETS
UNIQUENESS OF ANSWERS
ORDERED BY FIRST OCCURRENCE
PAGINATION NEEDED
DO NOT SHOW OWN POSTS
SHOW RETWEETS SINCE STARTED FOLLOWING A
FRIENDS

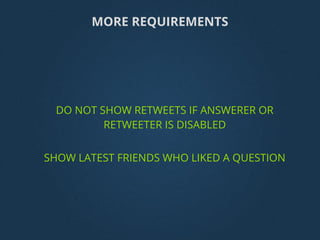

MORE REQUIREMENTS
DO NOT SHOW RETWEETS IF ANSWERER OR
RETWEETER IS DISABLED
SHOW LATEST FRIENDS WHO LIKED A QUESTION

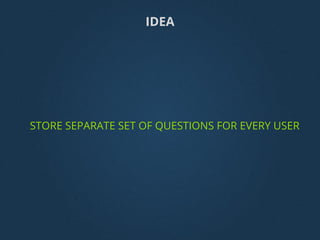

IDEA
STORE SEPARATE SET OF QUESTIONS FOR EVERY USER

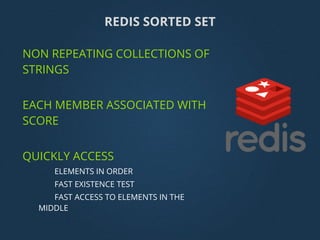

NON REPEATING COLLECTIONS OF
STRINGS
EACH MEMBER ASSOCIATED WITH
SCORE
QUICKLY ACCESS
ELEMENTS IN ORDER
FAST EXISTENCE TEST
FAST ACCESS TO ELEMENTS IN THE
MIDDLE
REDIS SORTED SET

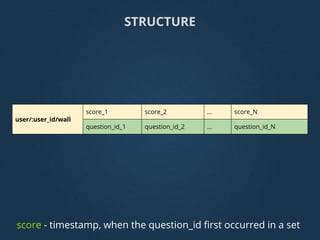

user/:user_id/wall
score_1 score_2 ... score_N
question_id_1 question_id_2 ... question_id_N
score - timestamp, when the question_id first occurred in a set
STRUCTURE

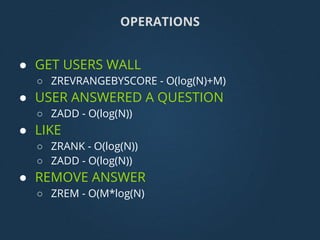

● GET USERS WALL
○ ZREVRANGEBYSCORE - O(log(N)+M)
● USER ANSWERED A QUESTION
○ ZADD - O(log(N))
● LIKE
○ ZRANK - O(log(N))
○ ZADD - O(log(N))
● REMOVE ANSWER
○ ZREM - O(M*log(N)
OPERATIONS

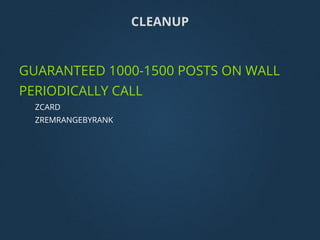

GUARANTEED 1000-1500 POSTS ON WALL
PERIODICALLY CALL
ZCARD
ZREMRANGEBYRANK
CLEANUP

Scenario 6 :

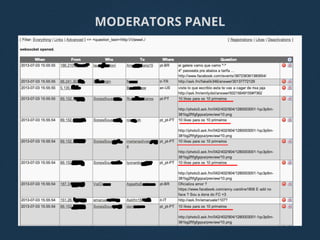

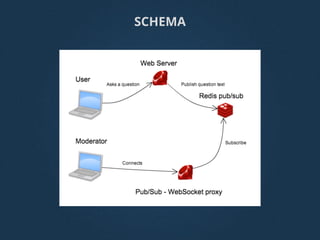

Real time monitoring

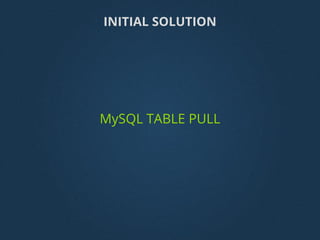

MySQL TABLE PULL
INITIAL SOLUTION

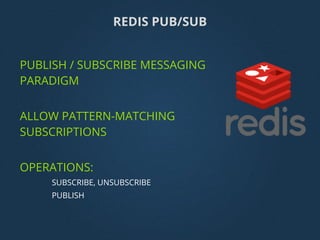

PUBLISH / SUBSCRIBE MESSAGING
PARADIGM
ALLOW PATTERN-MATCHING
SUBSCRIPTIONS
OPERATIONS:
SUBSCRIBE, UNSUBSCRIBE
PUBLISH
REDIS PUB/SUB

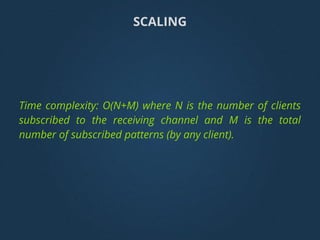

Time complexity: O(N+M) where N is the number of clients
subscribed to the receiving channel and M is the total
number of subscribed patterns (by any client).
SCALING

SIMPLE
FAST
FLEXIBLE
ROBUST
FREE
WHY REDIS?

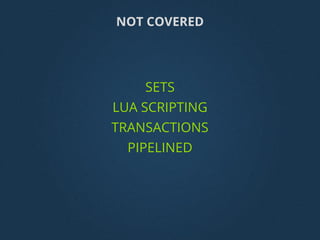

SETS
LUA SCRIPTING
TRANSACTIONS
PIPELINED
NOT COVERED
