What's New in Docker - February 2017
This document provides an overview of Container as a Service (CaaS) with Docker. It discusses key concepts like Docker containers, images, and orchestration tools. It also covers DevOps practices like continuous delivery that are enabled by Docker. Specific topics covered include Docker networking, volumes, and orchestration with Docker Swarm and compose files. Examples are provided of building and deploying Java applications with Docker, including Spring Boot apps, Java EE apps, and using Docker for builds. Security features of Docker like content trust and scanning are summarized. The document concludes by discussing Docker use cases across different industries and how Docker enables critical transformations around cloud, DevOps, and application modernization.
More Related Content
Similar to What's New in Docker - February 2017
More from Patrick Chanezon
What's New in Docker - February 2017
- 1. Patrick Chanezon, DockerInc. @chanezon Container as a Service with Docker February 2017
- 2. French Polyglot Platforms Software Plumber San Francisco DeveloperRelations @chanezon
- 3.
- 5.
- 6.
- 7.
- 10.
- 12. Low MTBIAMSH MTBIAMSH (MeanTime Between Idea And Making Stuff Happen)
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19. Devops • Cultural movement •Inspired by agile methods • People, Processes & Tools • Continuous delivery • Infrastructure as code • Cross silo collaboration • Small iterations • Feedback loop, measurement Image from Patrick Debois http://www.slideshare.net/jedi4ever/devops-the-war-is-over-if-you-want-it http://www.slideshare.net/jedi4ever/devopsdays-downundervfinal
- 20.
- 21.
- 22. 28 https://blog.docker.com/2014/12/dockercon-europe-keynote-continuous-delivery-in-the-enterprise-by-henk-kolk-ing/ Henk Kolk, ING,DockerCon EU 2014 People, Processes, Products deployment time: 9 months -> 15 min 1500 deployments/week
- 23.
- 24. The world needs toolsof mass innovation
- 25. A programmable Internetwould be the ultimate tool of mass innovation

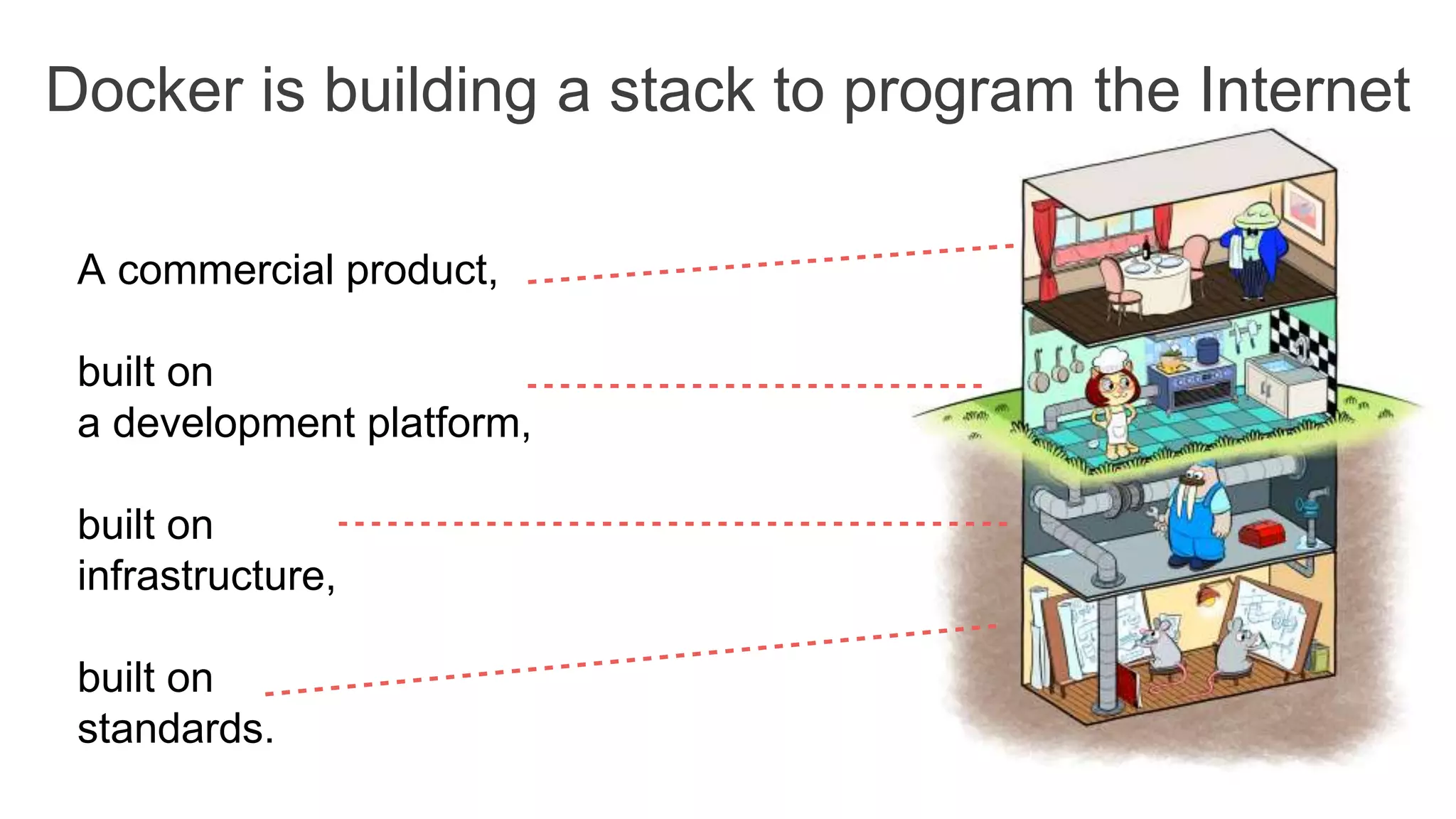

- 26. A commercial product, builton a development platform, built on infrastructure, built on standards. Docker is building a stack to program the Internet

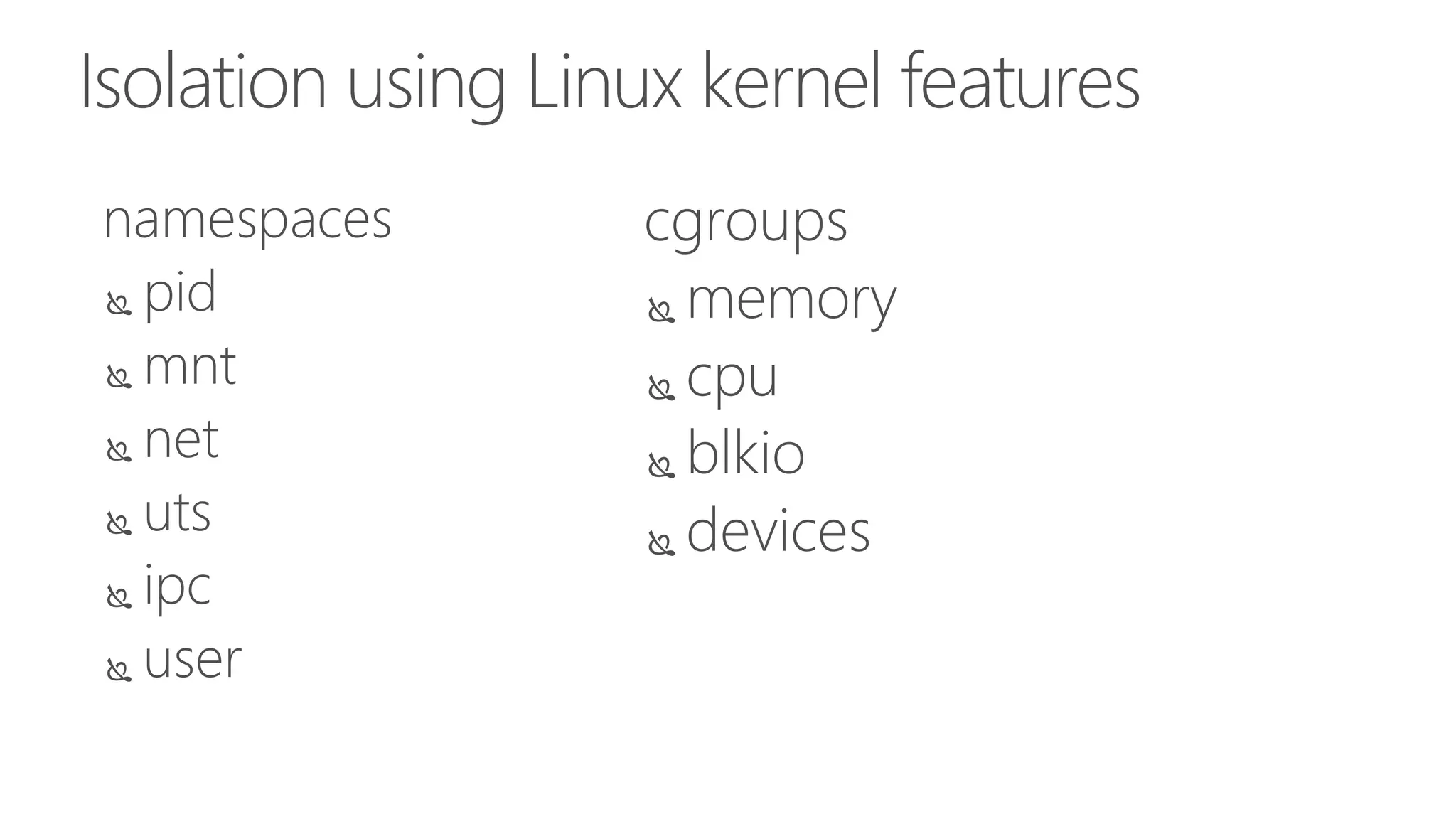

- 27. Isolation using Linuxkernel features namespaces pid mnt net uts ipc user cgroups memory cpu blkio devices
- 28.

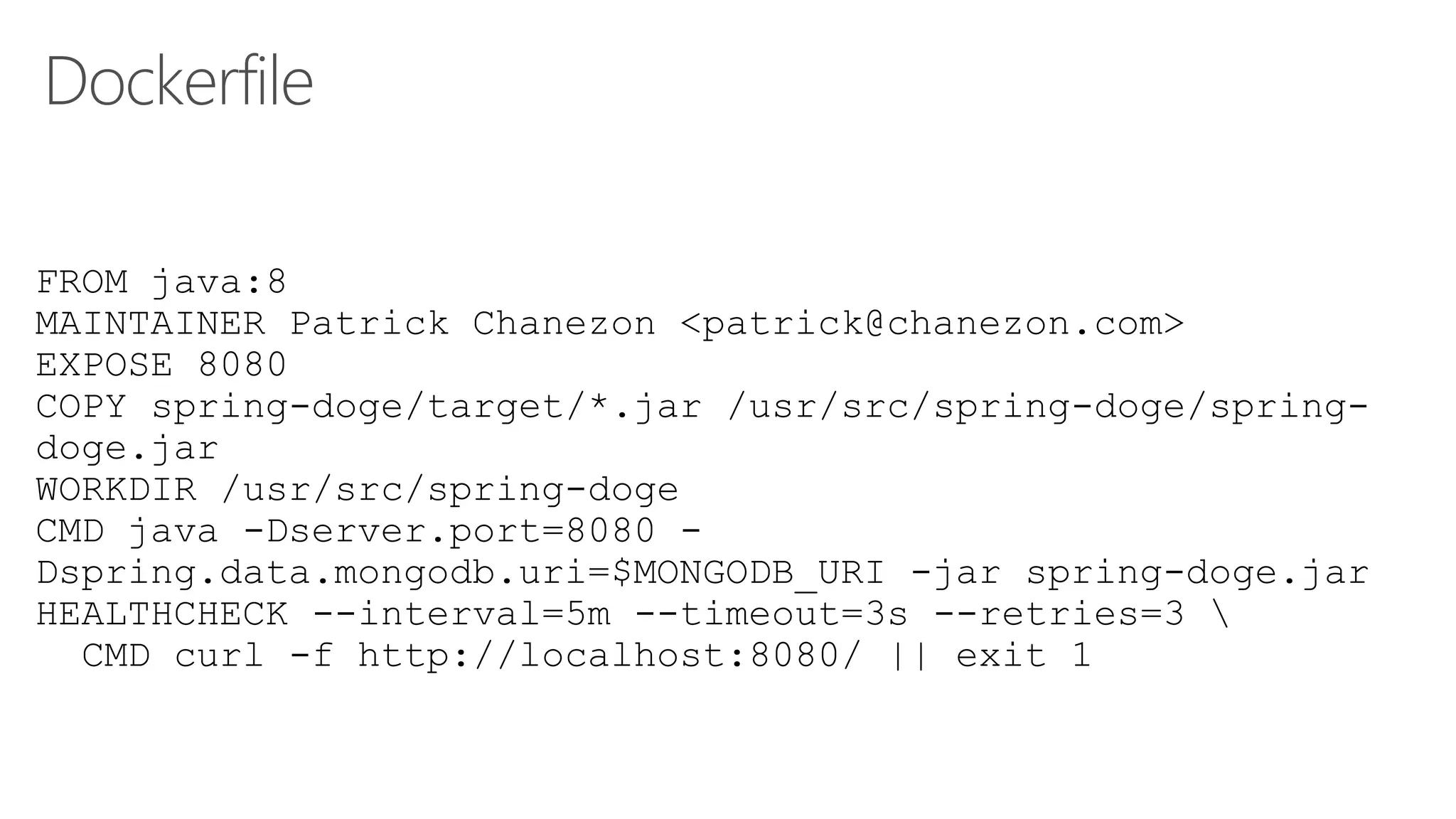

- 29. Dockerfile FROM java:8 MAINTAINER PatrickChanezon <patrick@chanezon.com> EXPOSE 8080 COPY spring-doge/target/*.jar /usr/src/spring-doge/spring- doge.jar WORKDIR /usr/src/spring-doge CMD java -Dserver.port=8080 - Dspring.data.mongodb.uri=$MONGODB_URI -jar spring-doge.jar HEALTHCHECK --interval=5m --timeout=3s --retries=3 CMD curl -f http://localhost:8080/ || exit 1

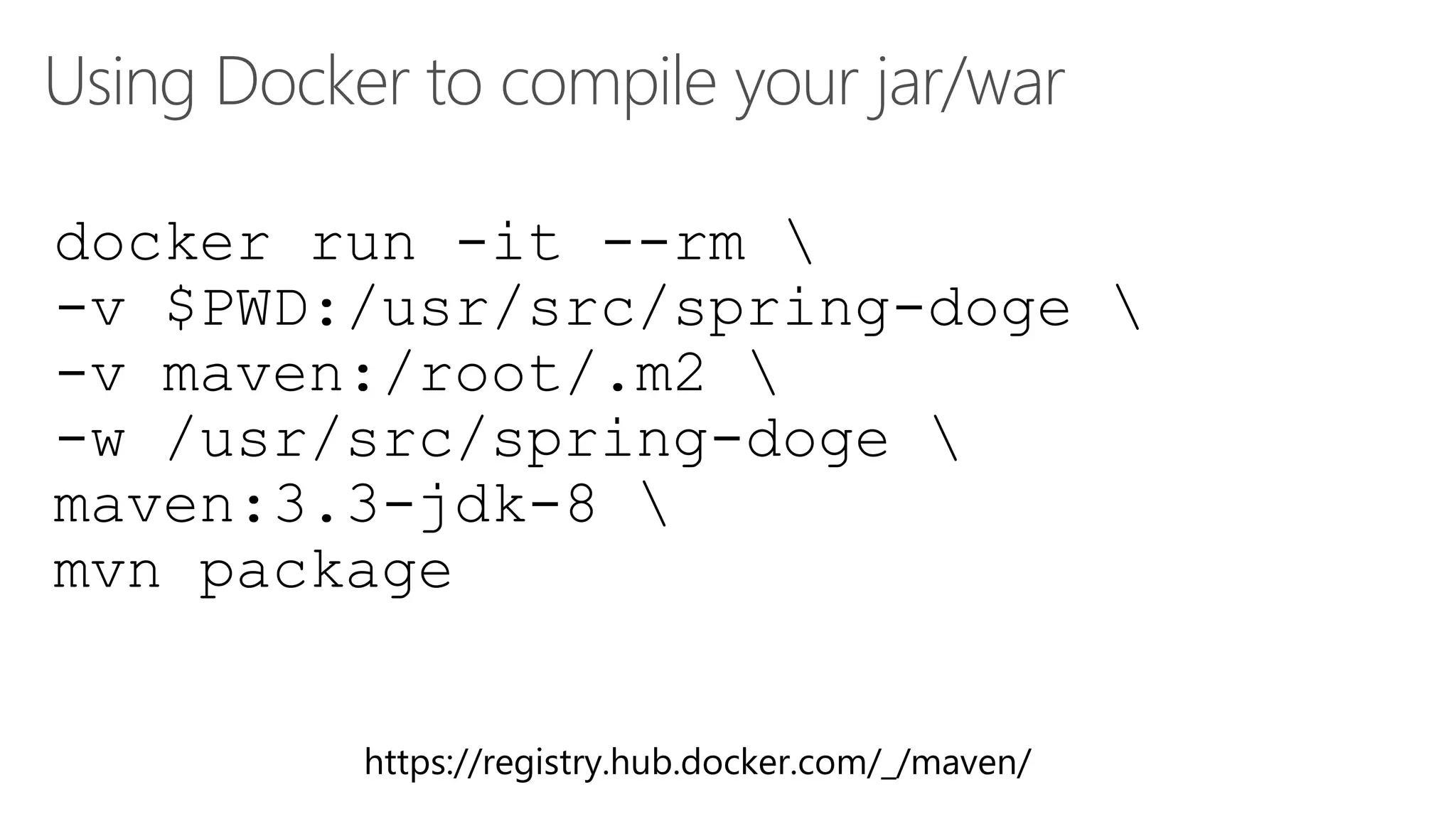

- 30. Using Docker tocompile your jar/war https://registry.hub.docker.com/_/maven/ docker run -it --rm -v $PWD:/usr/src/spring-doge -v maven:/root/.m2 -w /usr/src/spring-doge maven:3.3-jdk-8 mvn package

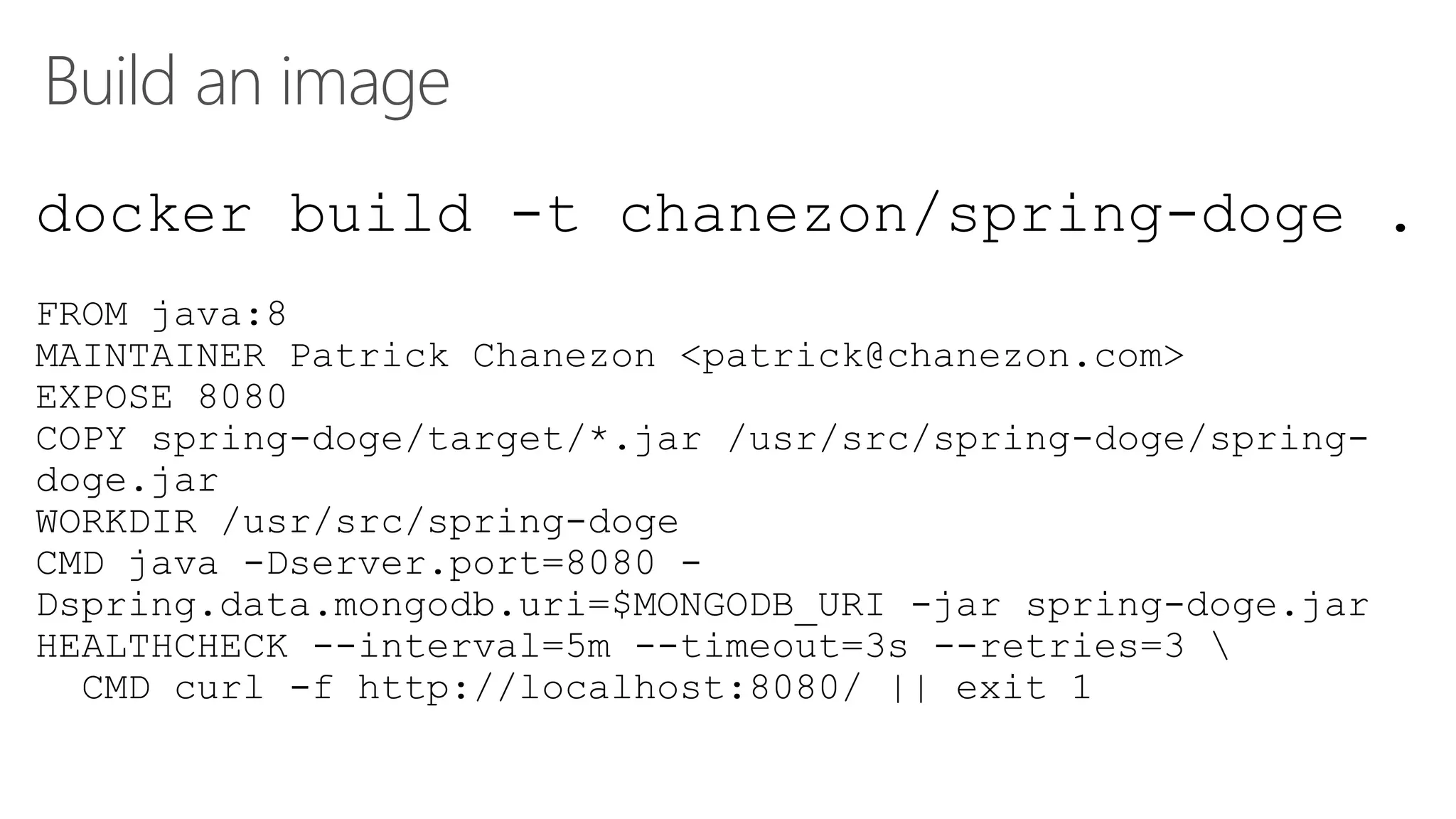

- 31. Build an image dockerbuild -t chanezon/spring-doge . FROM java:8 MAINTAINER Patrick Chanezon <patrick@chanezon.com> EXPOSE 8080 COPY spring-doge/target/*.jar /usr/src/spring-doge/spring- doge.jar WORKDIR /usr/src/spring-doge CMD java -Dserver.port=8080 - Dspring.data.mongodb.uri=$MONGODB_URI -jar spring-doge.jar HEALTHCHECK --interval=5m --timeout=3s --retries=3 CMD curl -f http://localhost:8080/ || exit 1

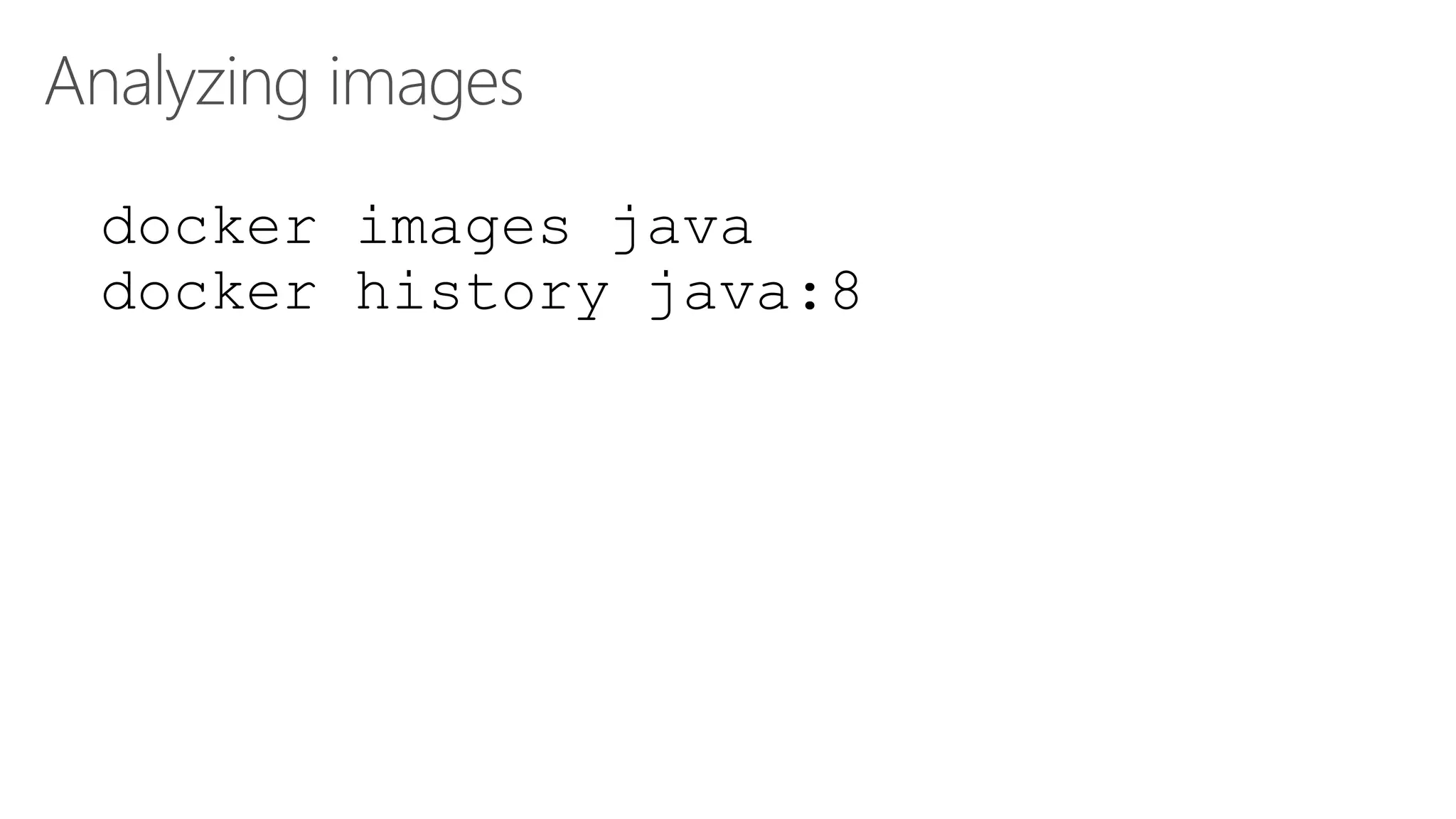

- 32. Analyzing images docker imagesjava docker history java:8

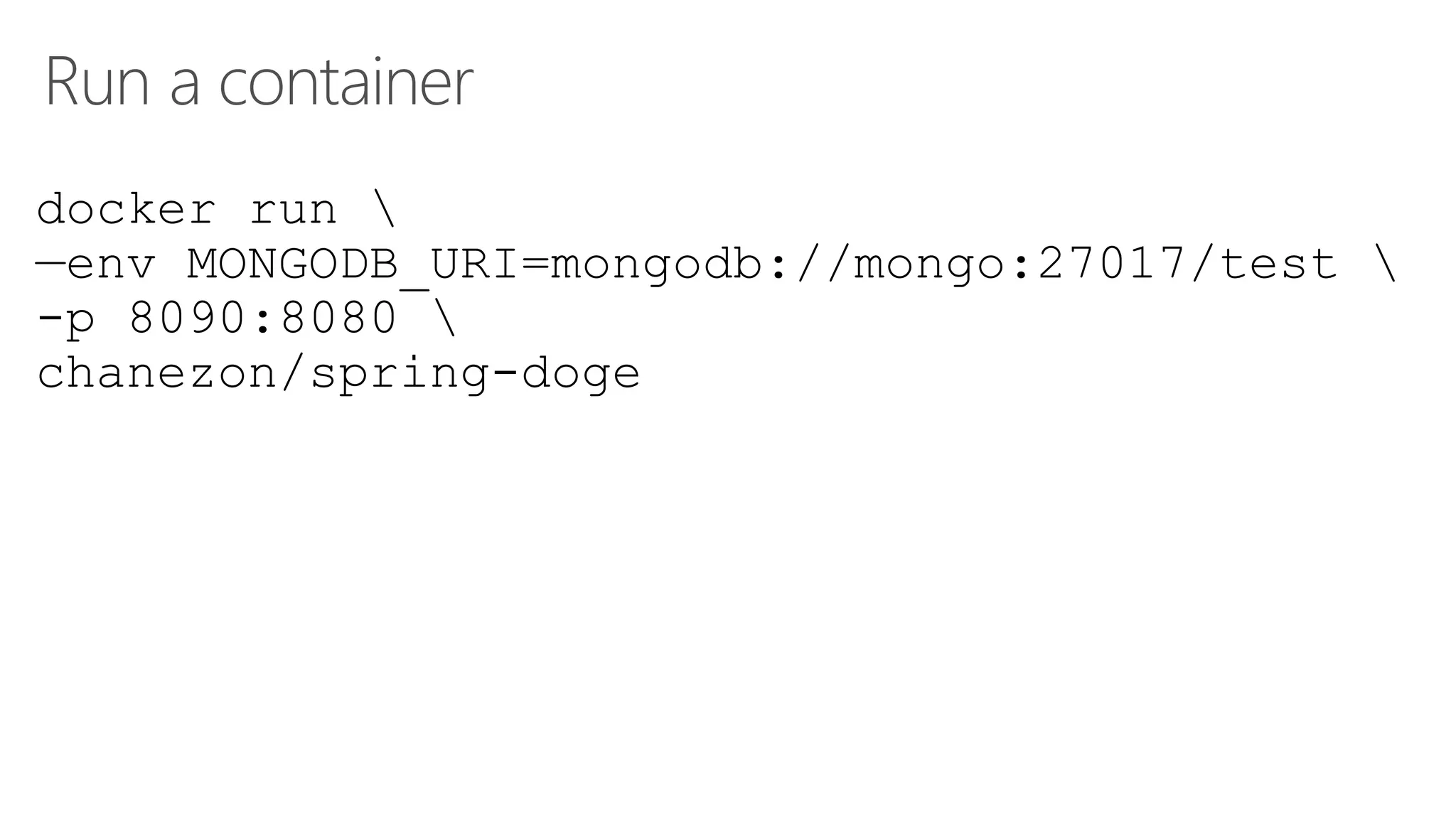

- 33. Run a container dockerrun —env MONGODB_URI=mongodb://mongo:27017/test -p 8090:8080 chanezon/spring-doge

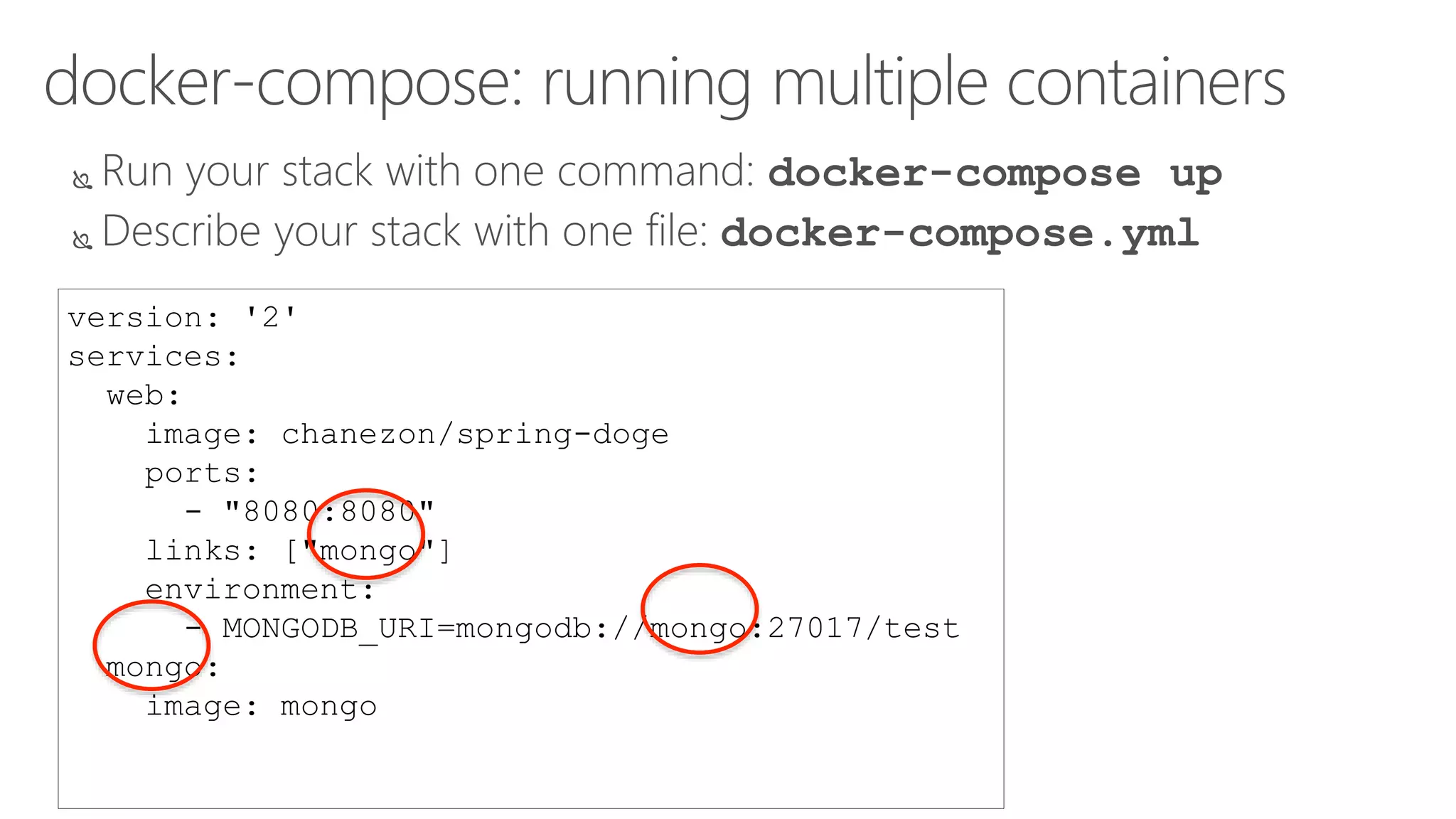

- 34. docker-compose: running multiplecontainers Run your stack with one command: docker-compose up Describe your stack with one file: docker-compose.yml version: '2' services: web: image: chanezon/spring-doge ports: - "8080:8080" links: ["mongo"] environment: - MONGODB_URI=mongodb://mongo:27017/test mongo: image: mongo

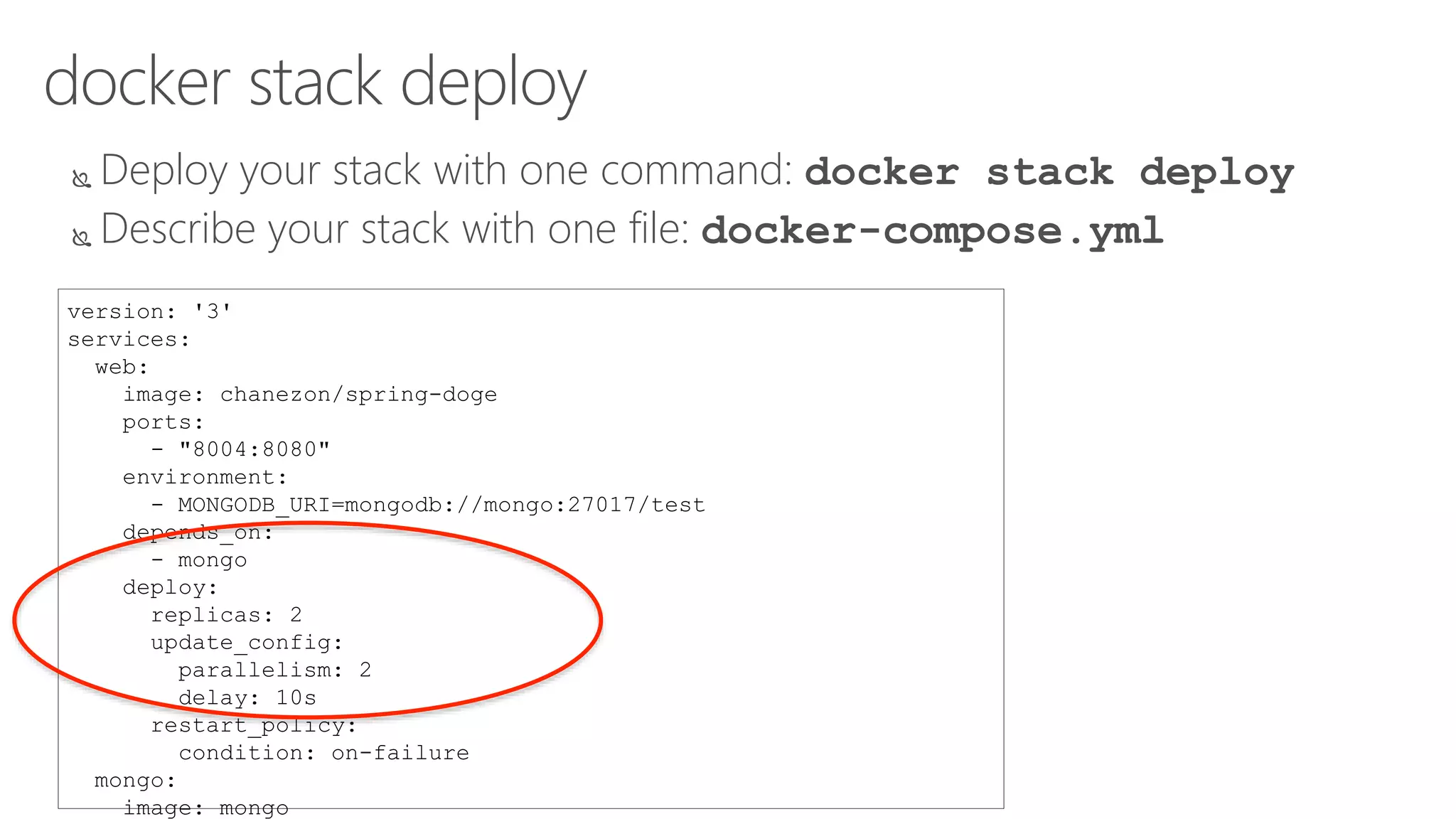

- 35. docker stack deploy Deploy your stack with one command: docker stack deploy Describe your stack with one file: docker-compose.yml version: '3' services: web: image: chanezon/spring-doge ports: - "8004:8080" environment: - MONGODB_URI=mongodb://mongo:27017/test depends_on: - mongo deploy: replicas: 2 update_config: parallelism: 2 delay: 10s restart_policy: condition: on-failure mongo: image: mongo
- 36.

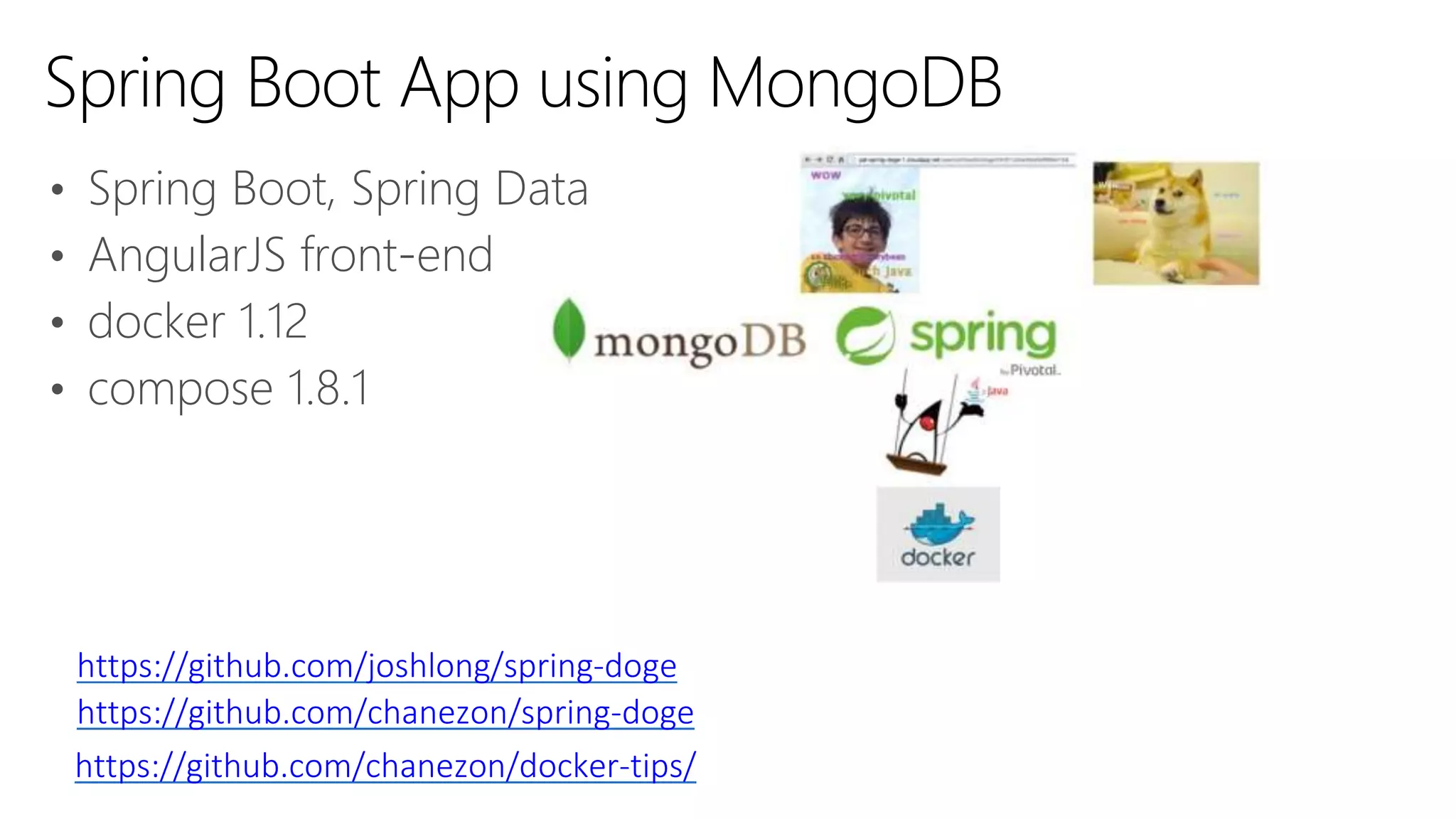

- 37. • Spring Boot,Spring Data • AngularJS front-end • docker 1.12 • compose 1.8.1 Spring Boot App using MongoDB https://github.com/joshlong/spring-doge https://github.com/chanezon/docker-tips/ https://github.com/chanezon/spring-doge

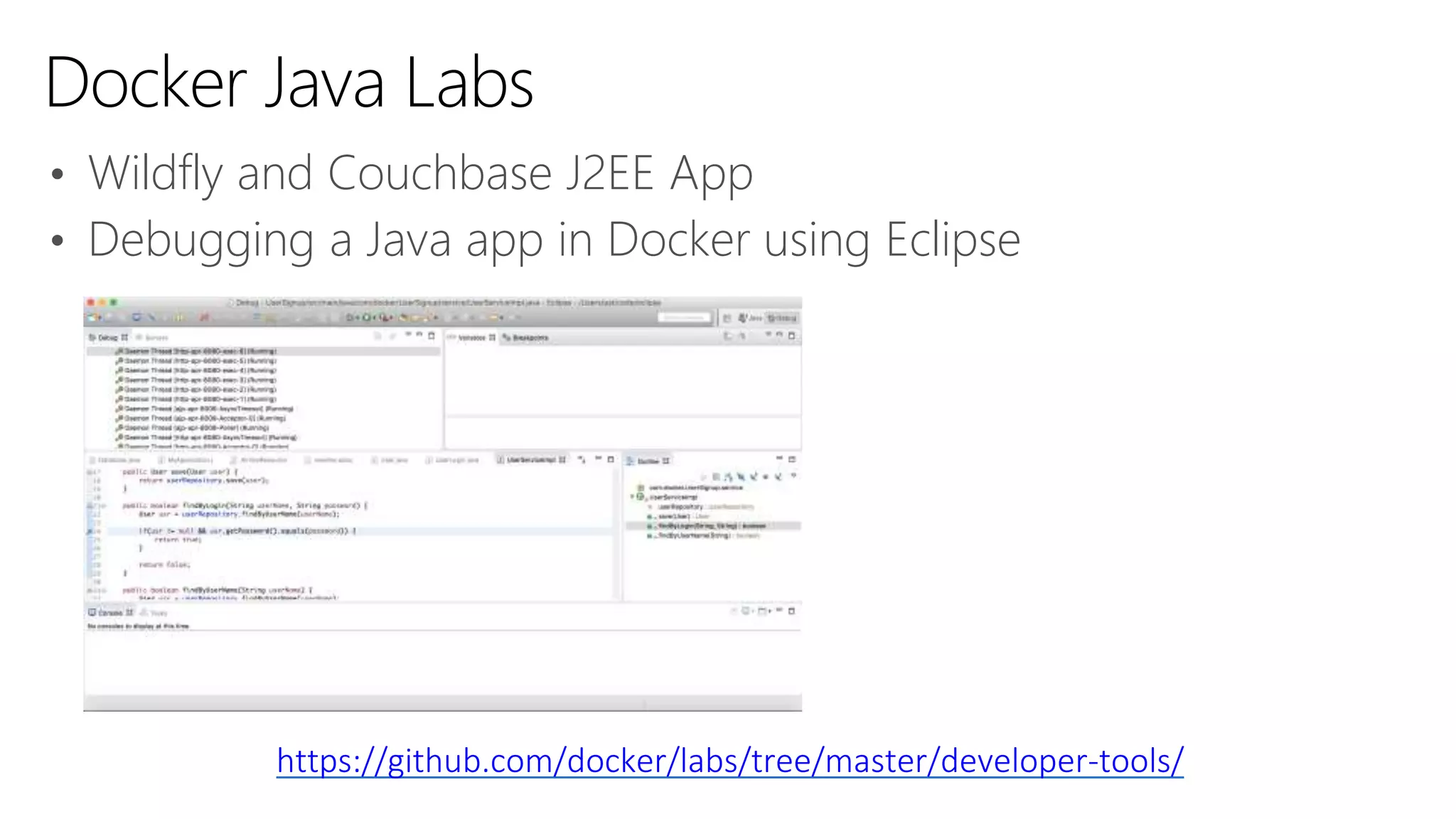

- 38. Docker Java Labs https://github.com/docker/labs/tree/master/developer-tools/ •Wildfly and Couchbase J2EE App • Debugging a Java app in Docker using Eclipse
- 39.
- 40.
- 41. 1. Get outof the way The best tools… 2. Adapt to you 3. Make the powerful simple
- 42. Docker for MacDocker for Windows
- 43.
- 44. ng the bestway to orchestrate Docke Docker 1.12: now with orchestration built-in.
- 45. Swarm mode Service API Cryptographicnode identity Built-in routing mesh Docker 1.12: now with orchestration built-in.
- 46. Using the beta?You already have 1.12 installed. > docker swarm init > docker service create
- 47.
- 48. Deep integration withnative load-balancers, templates, SSH keys, ACLs, scaling groups, firewall rules…

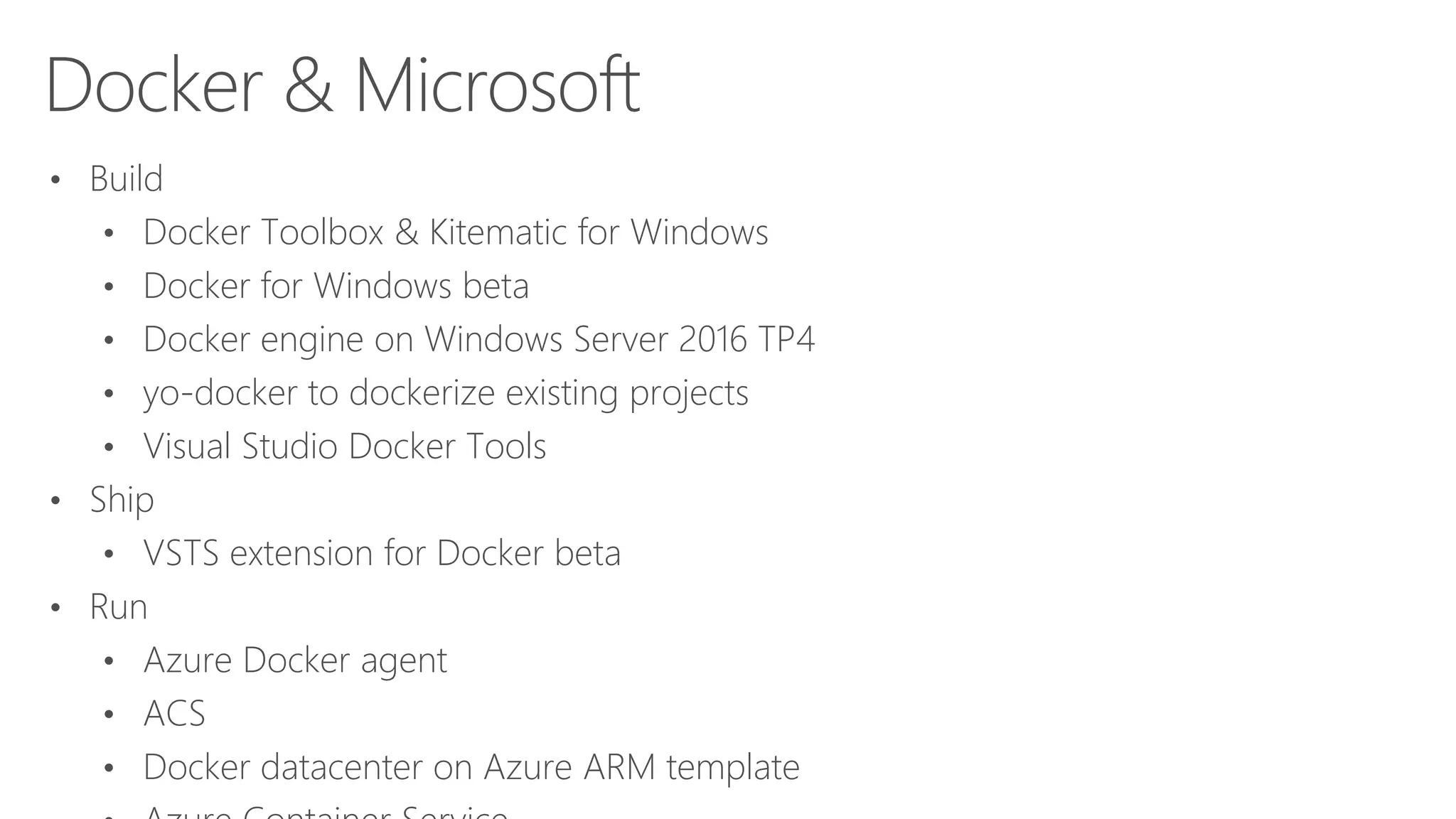

- 50. Docker & Microsoft •Build • Docker Toolbox & Kitematic for Windows • Docker for Windows beta • Docker engine on Windows Server 2016 TP4 • yo-docker to dockerize existing projects • Visual Studio Docker Tools • Ship • VSTS extension for Docker beta • Run • Azure Docker agent • ACS • Docker datacenter on Azure ARM template
- 51.

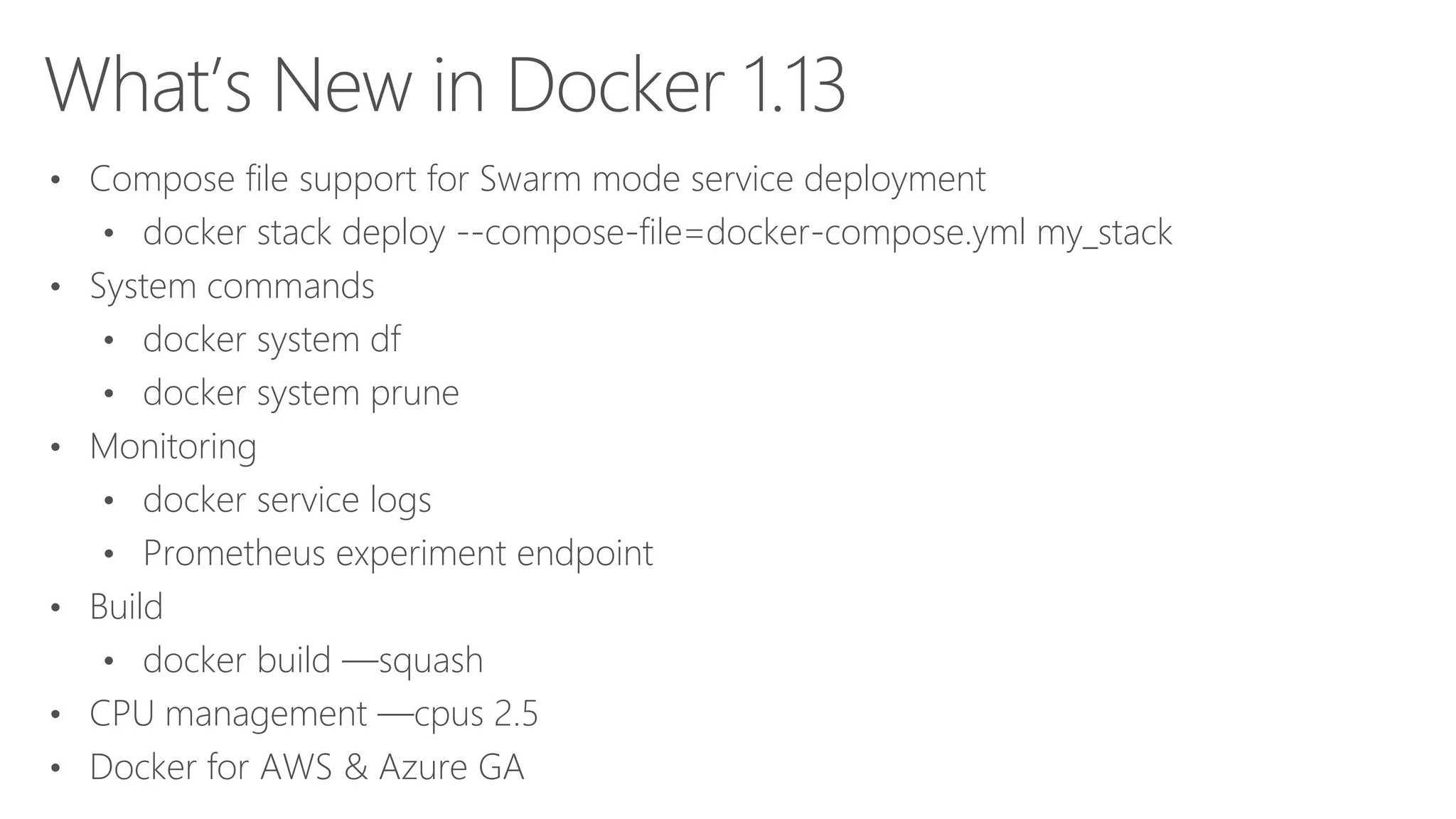

- 52. What’s New inDocker 1.13 • Compose file support for Swarm mode service deployment • docker stack deploy --compose-file=docker-compose.yml my_stack • System commands • docker system df • docker system prune • Monitoring • docker service logs • Prometheus experiment endpoint • Build • docker build —squash • CPU management —cpus 2.5 • Docker for AWS & Azure GA
- 53.

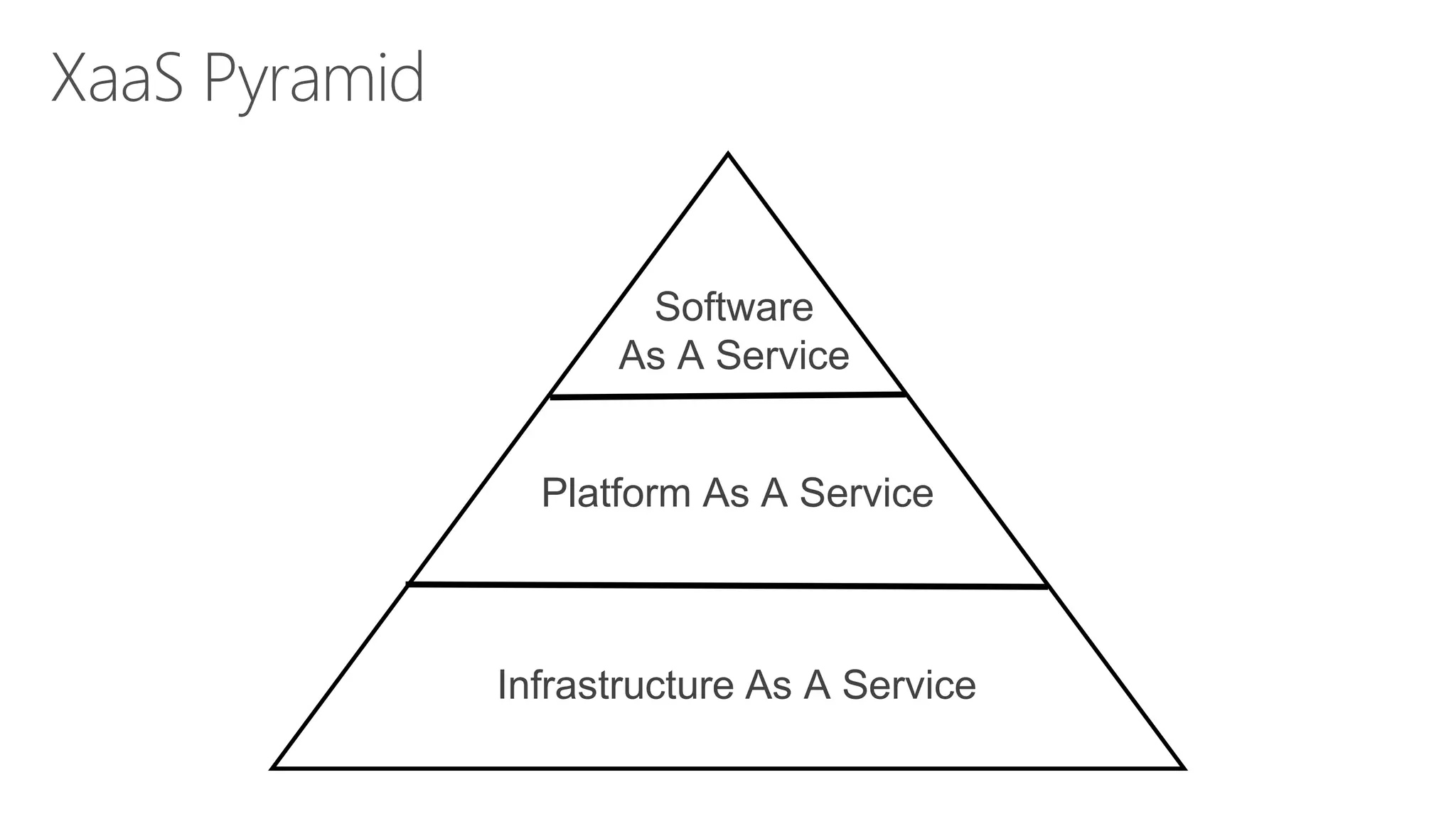

- 54. XaaS Pyramid Platform AsA Service Infrastructure As A Service Software As A Service
- 57. 5 Goldilocks and the3 XaaS Just rightToo highToo low IaaS PaaS CaaS
- 58. 5 Goldilocks and the3 XaaS Platform As A Service Infrastructure As A Service Software As A Service Too high Too low Just right Container As A Service
- 59. Example “- When doyou guys support FORT - Sorry it’s not supported by Cloud F
- 60.

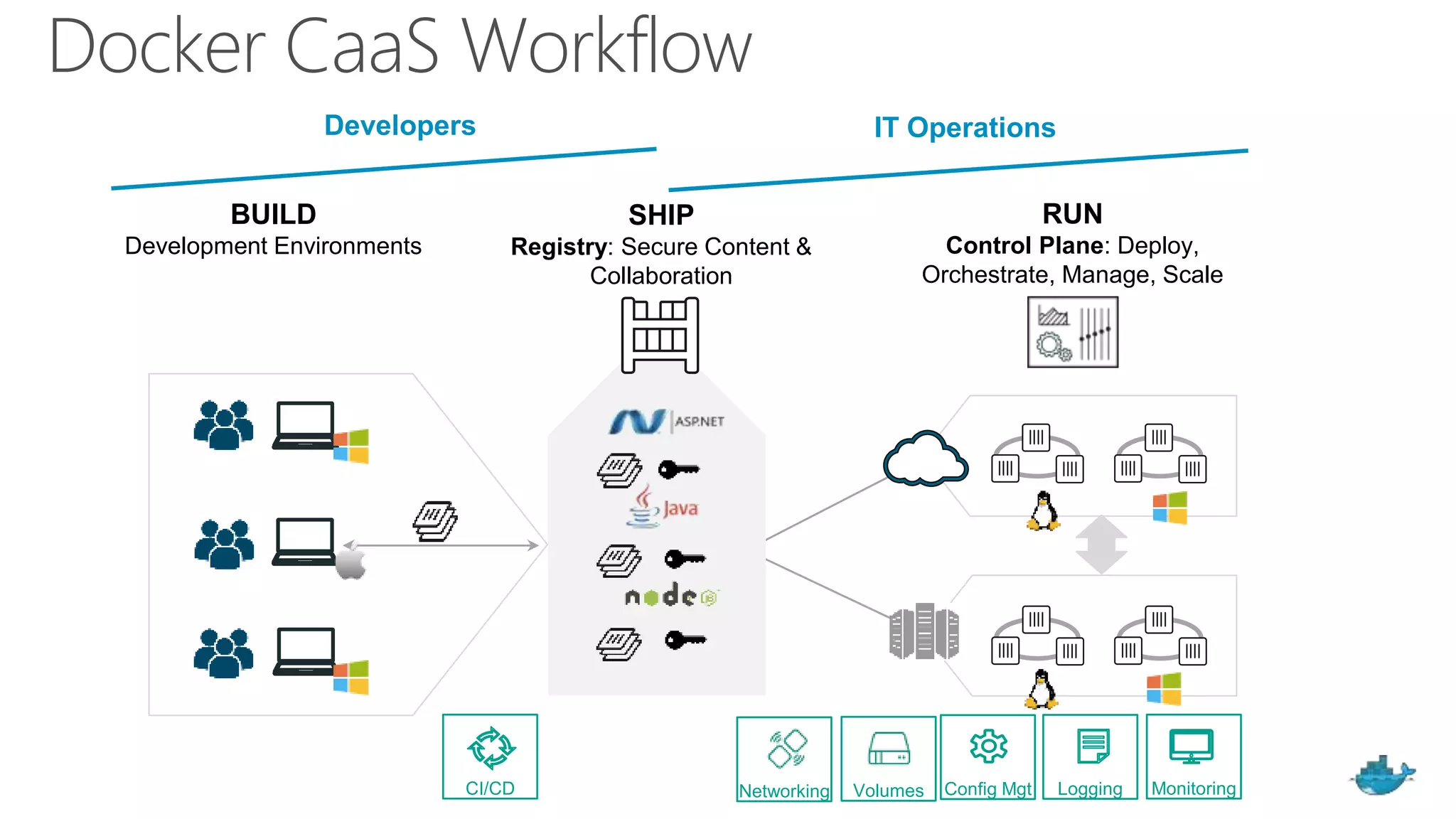

- 61. BUILD Development Environments SHIP Registry: SecureContent & Collaboration RUN Control Plane: Deploy, Orchestrate, Manage, Scale Networking Volumes MonitoringLoggingConfig MgtCI/CD IT Operations Developers IT Operations Docker CaaS Workflow

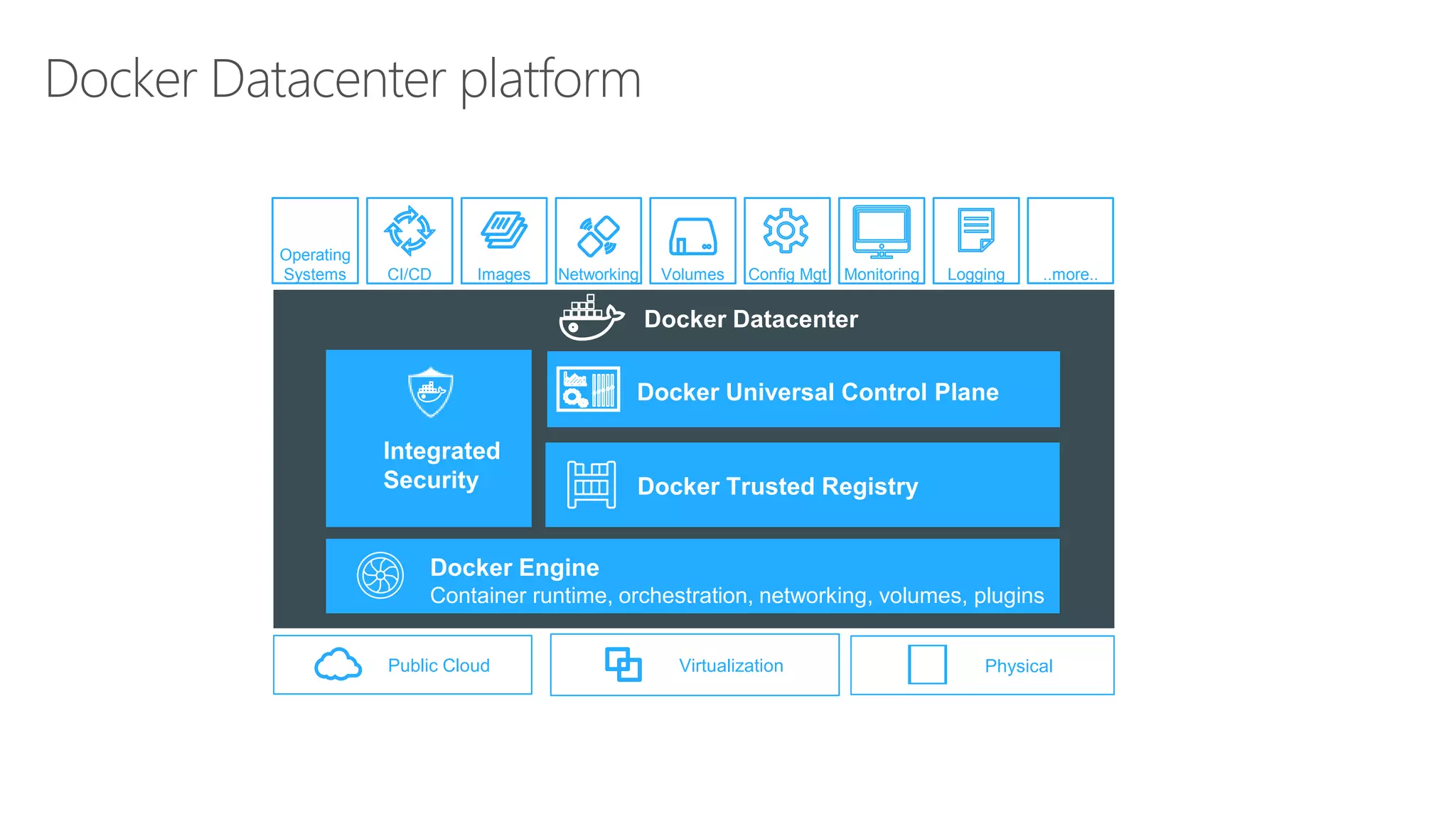

- 62. Docker Universal ControlPlane Integrated Security Docker Engine Container runtime, orchestration, networking, volumes, plugins Docker Trusted Registry Operating Systems Config Mgt Monitoring LoggingCI/CD ..more..Images Networking Volumes VirtualizationPublic Cloud Physical Docker Datacenter Docker Datacenter platform

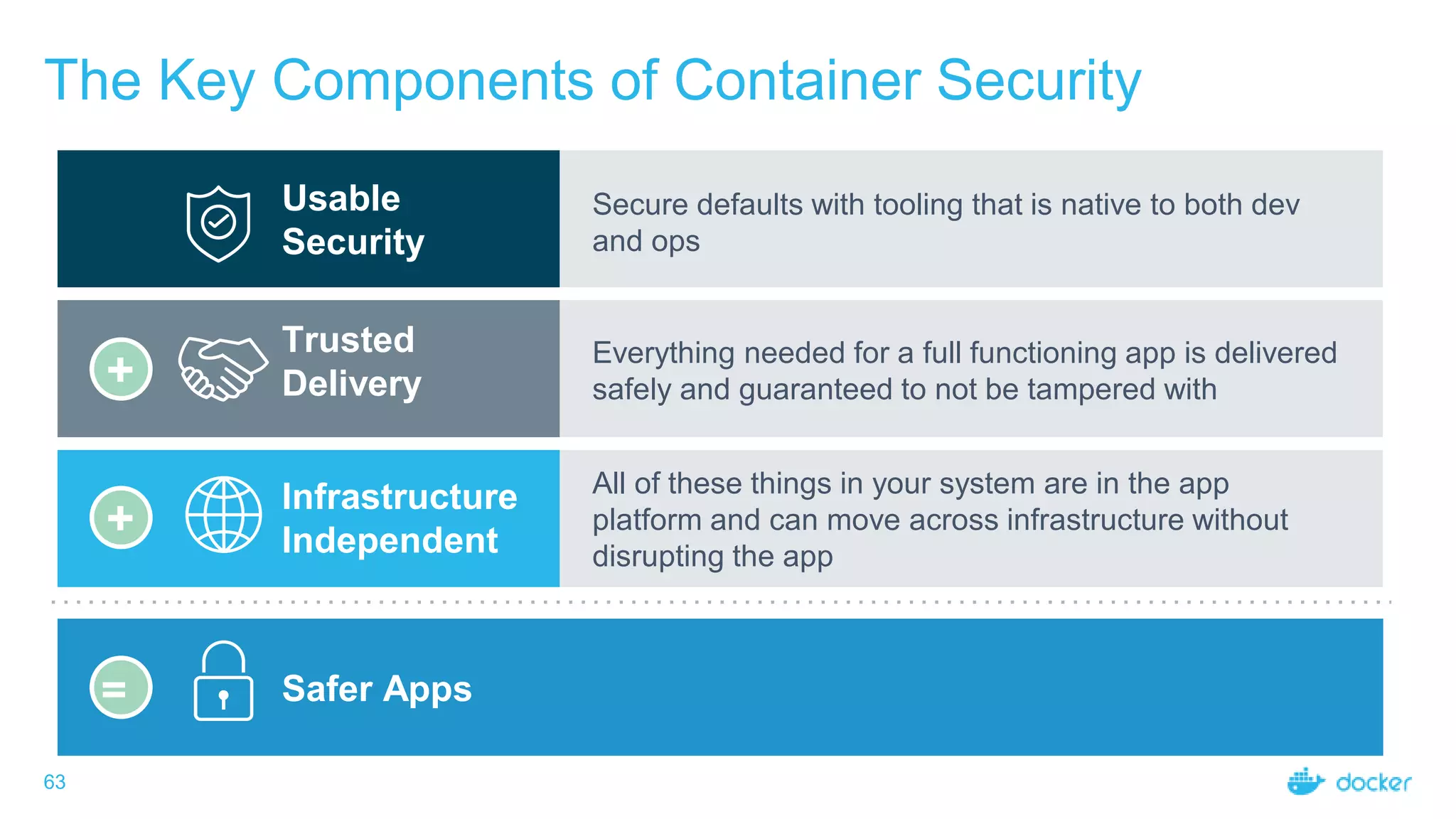

- 63. Usable Security Secure defaults withtooling that is native to both dev and ops The Key Components of Container Security 63 Infrastructure Independent Trusted Delivery Safer Apps Everything needed for a full functioning app is delivered safely and guaranteed to not be tampered with All of these things in your system are in the app platform and can move across infrastructure without disrupting the app + + =

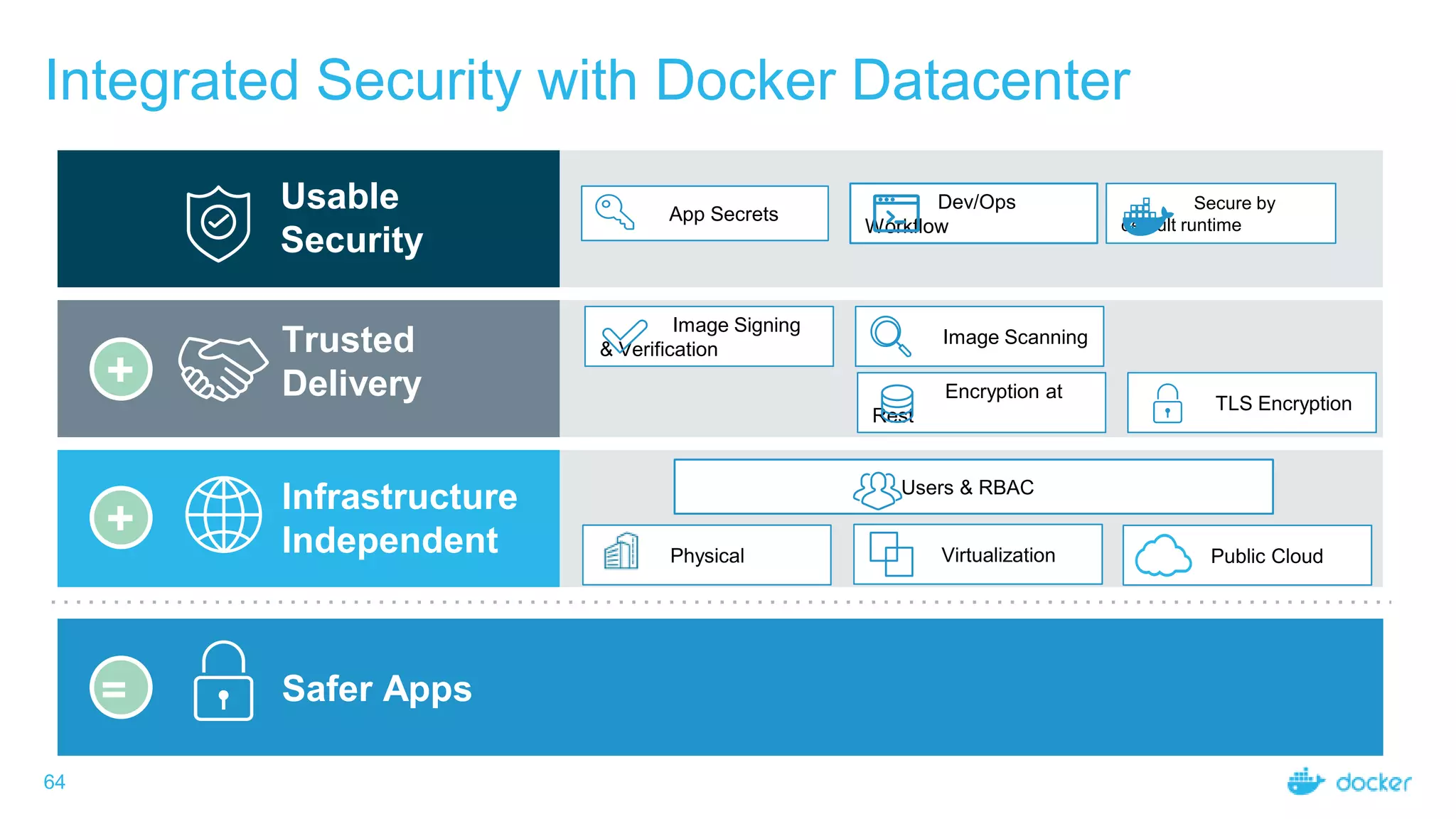

- 64. Usable Security Integrated Security withDocker Datacenter 64 Infrastructure Independent Trusted Delivery Safer Apps Image Scanning TLS Encryption Encryption at Rest App Secrets Image Signing & Verification Public CloudVirtualizationPhysical Users & RBAC Dev/Ops Workflow + + = Secure by default runtime
- 65.
- 66.
- 67. What’s New inDocker Datacenter

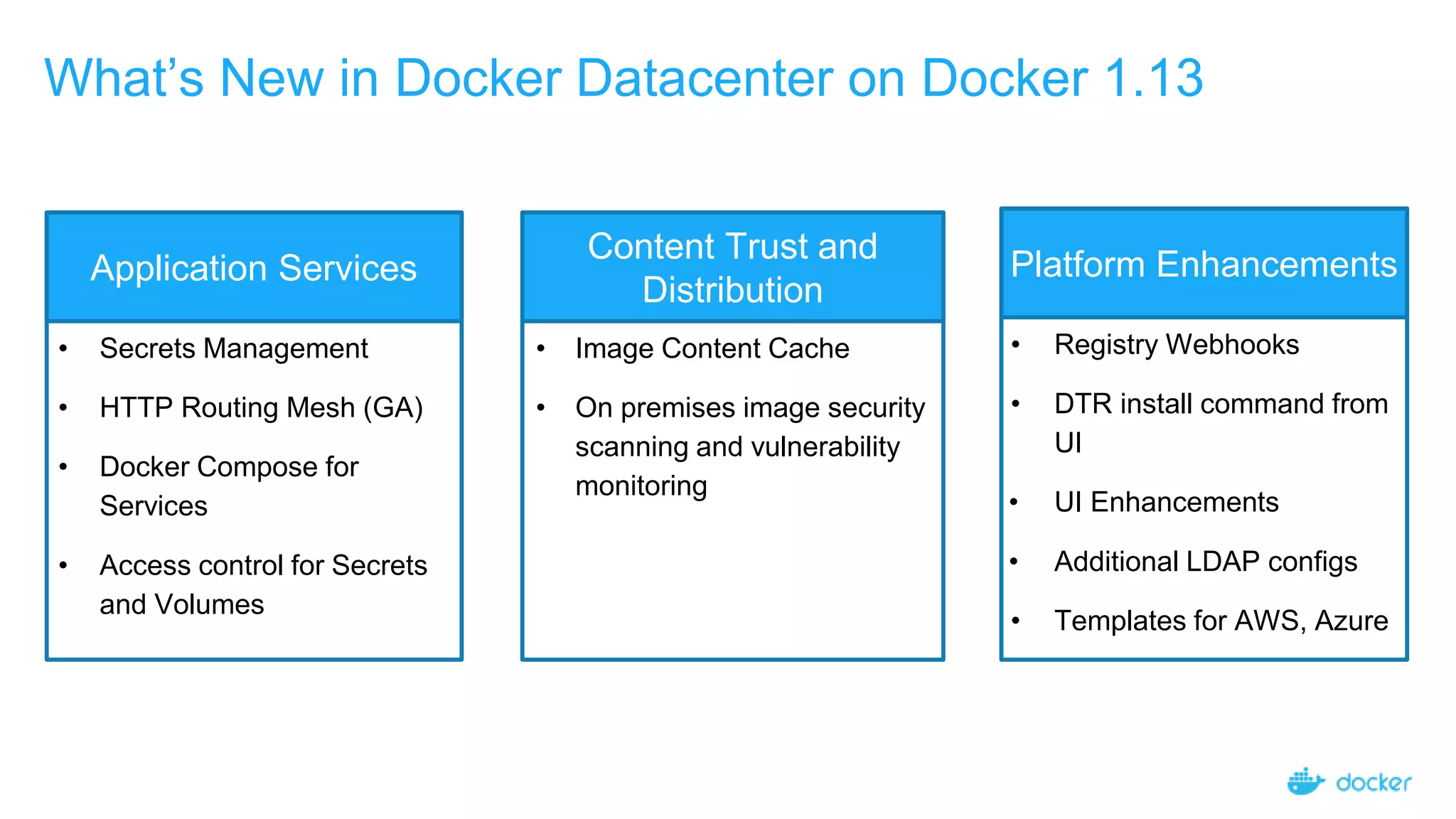

- 68. What’s New inDocker Datacenter on Docker 1.13 Application Services Content Trust and Distribution Platform Enhancements • Secrets Management • HTTP Routing Mesh (GA) • Docker Compose for Services • Access control for Secrets and Volumes • Image Content Cache • On premises image security scanning and vulnerability monitoring • Registry Webhooks • DTR install command from UI • UI Enhancements • Additional LDAP configs • Templates for AWS, Azure

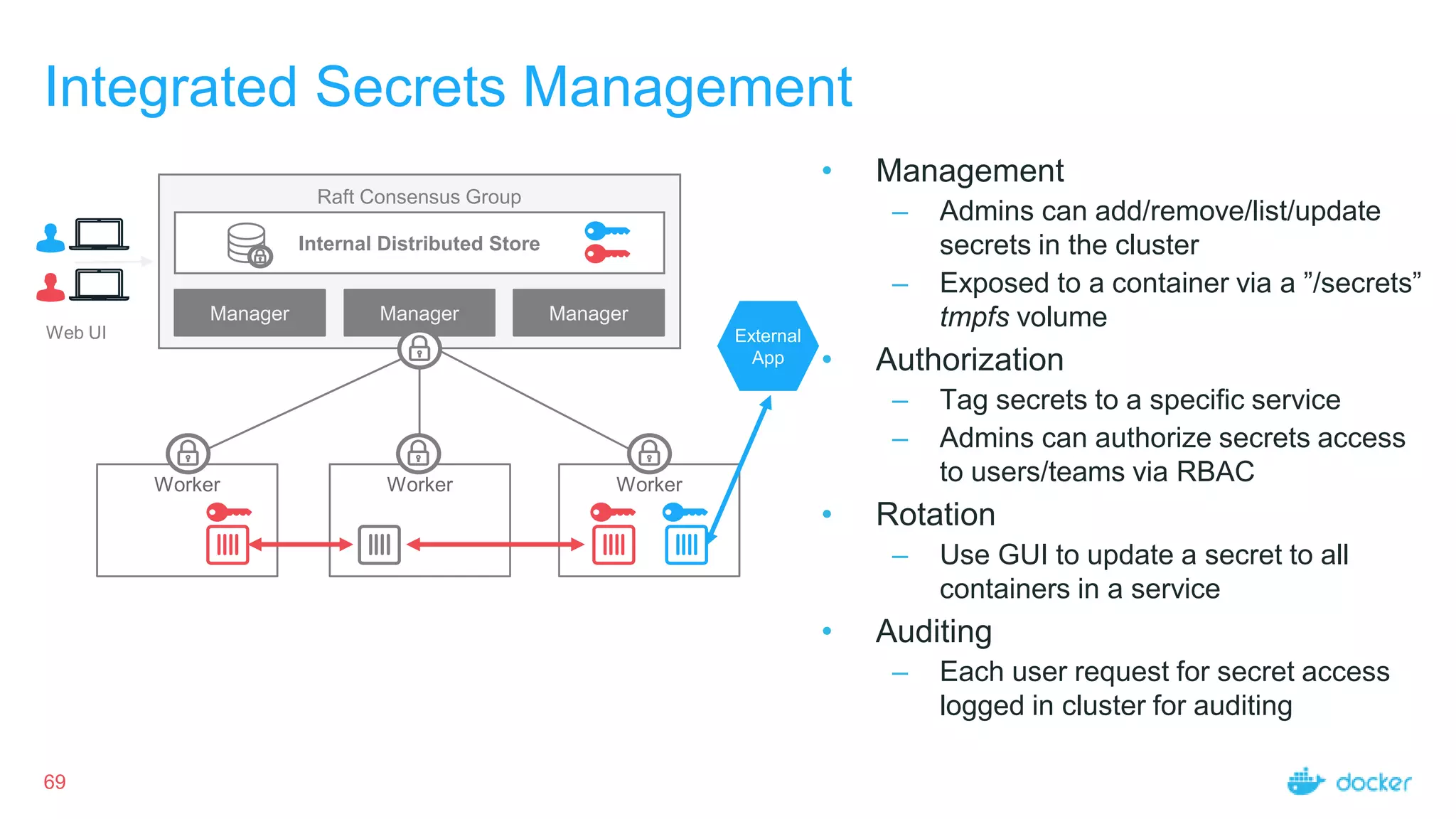

- 69. Integrated Secrets Management 69 WorkerWorker Manager InternalDistributed Store Raft Consensus Group ManagerManager Worker External App Web UI • Management – Admins can add/remove/list/update secrets in the cluster – Exposed to a container via a ”/secrets” tmpfs volume • Authorization – Tag secrets to a specific service – Admins can authorize secrets access to users/teams via RBAC • Rotation – Use GUI to update a secret to all containers in a service • Auditing – Each user request for secret access logged in cluster for auditing

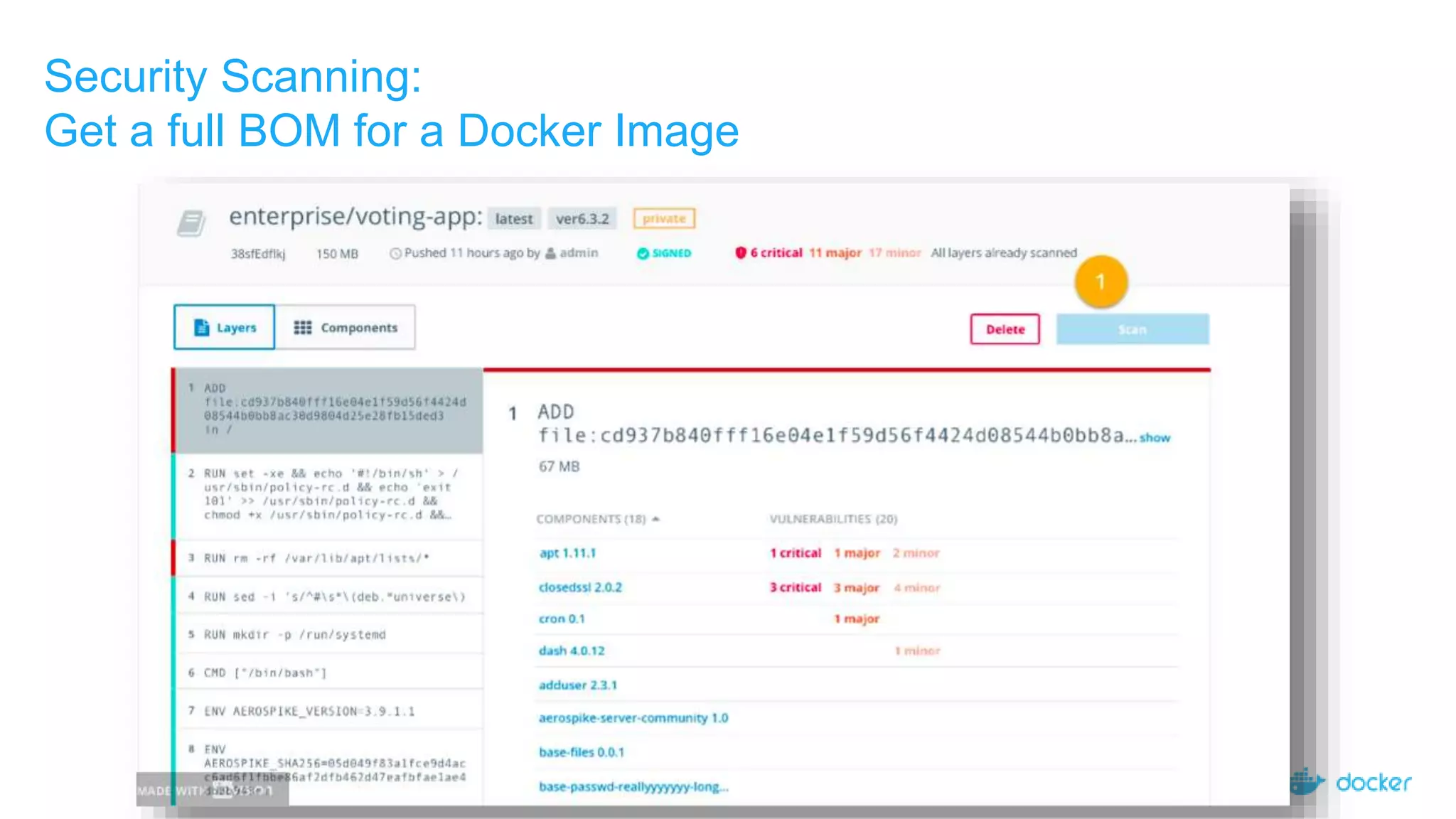

- 70. Security Scanning: Get afull BOM for a Docker Image

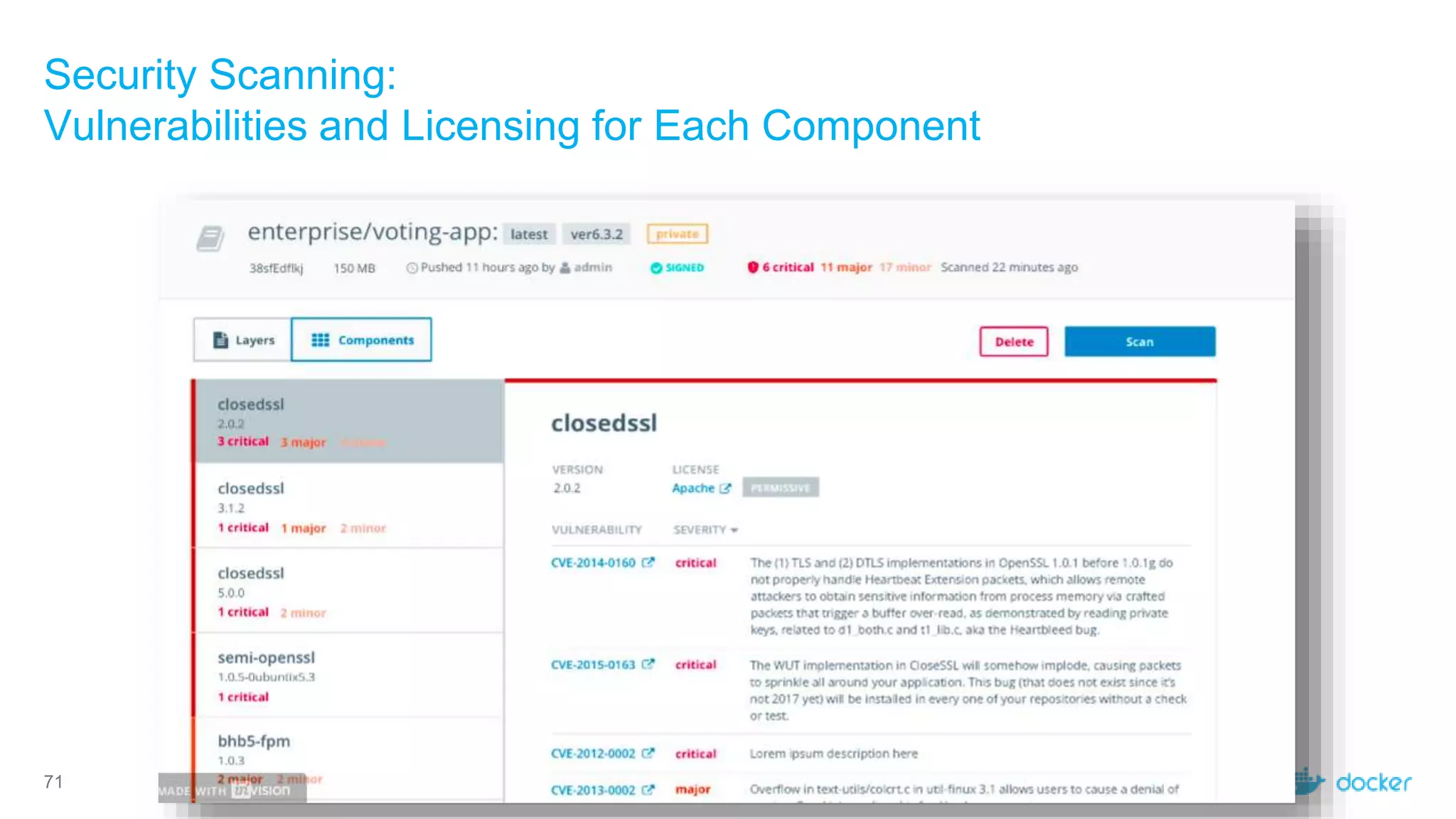

- 71. 71 Security Scanning: Vulnerabilities andLicensing for Each Component

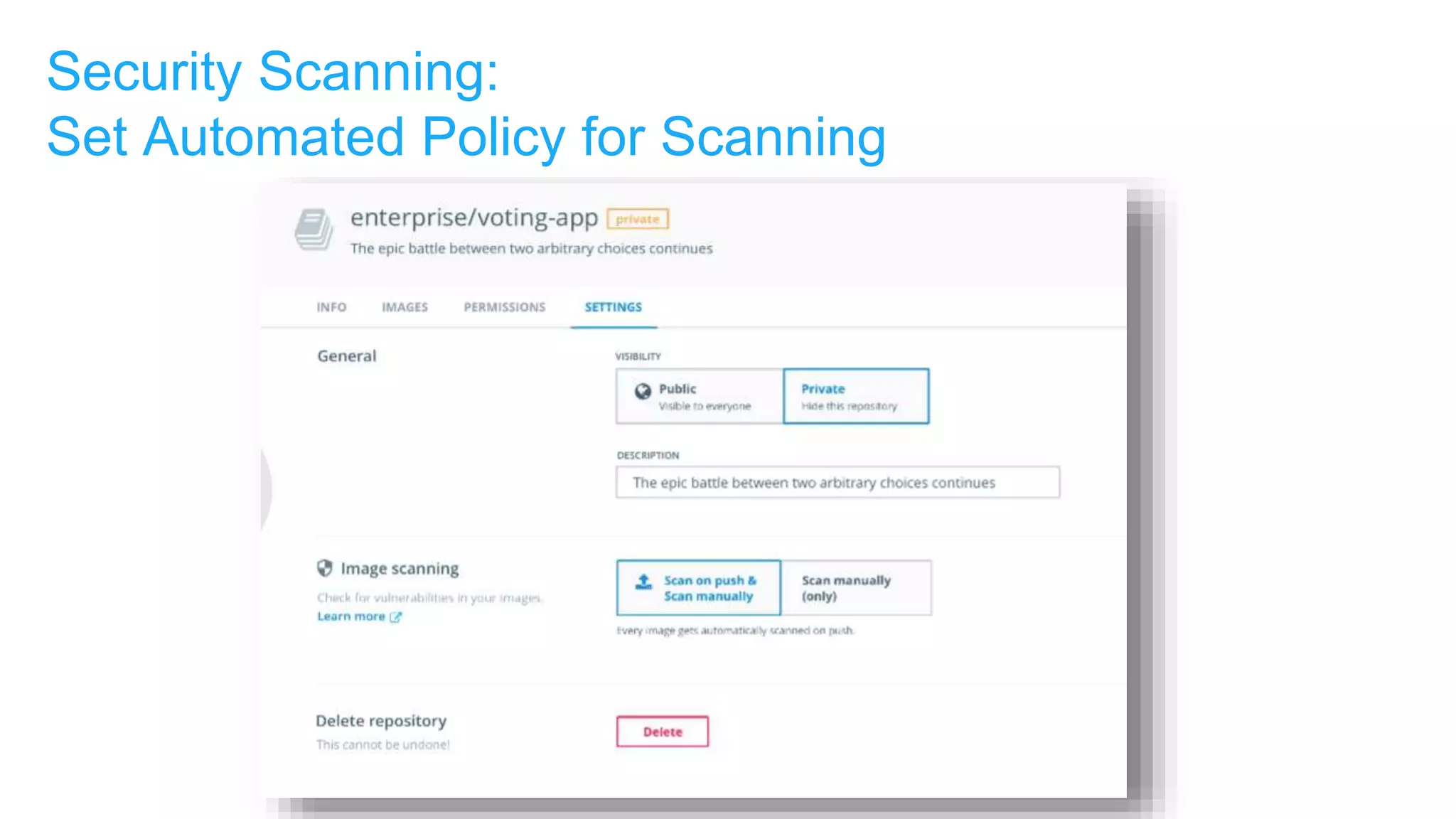

- 72. Security Scanning: Set AutomatedPolicy for Scanning

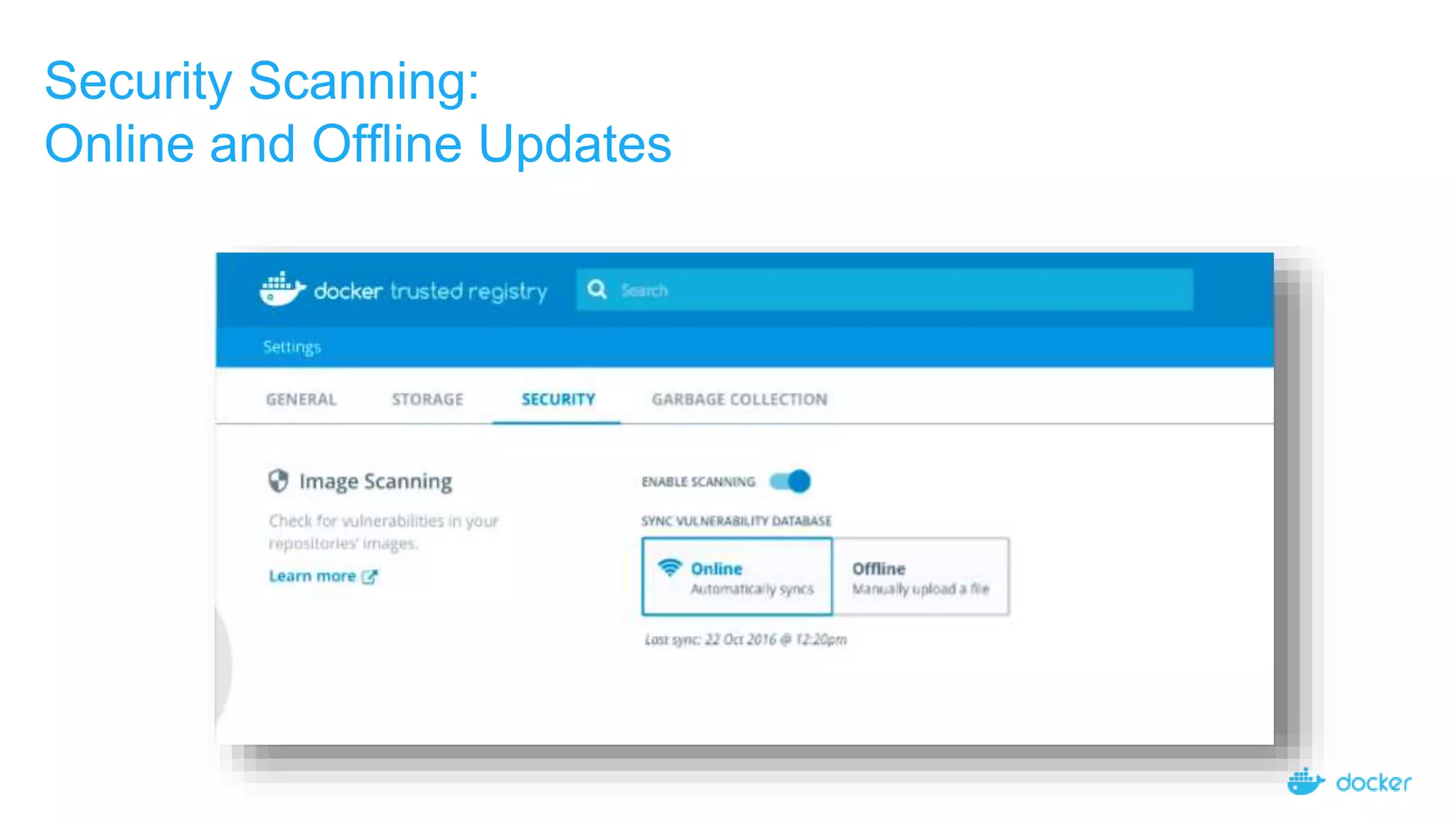

- 73. Security Scanning: Online andOffline Updates

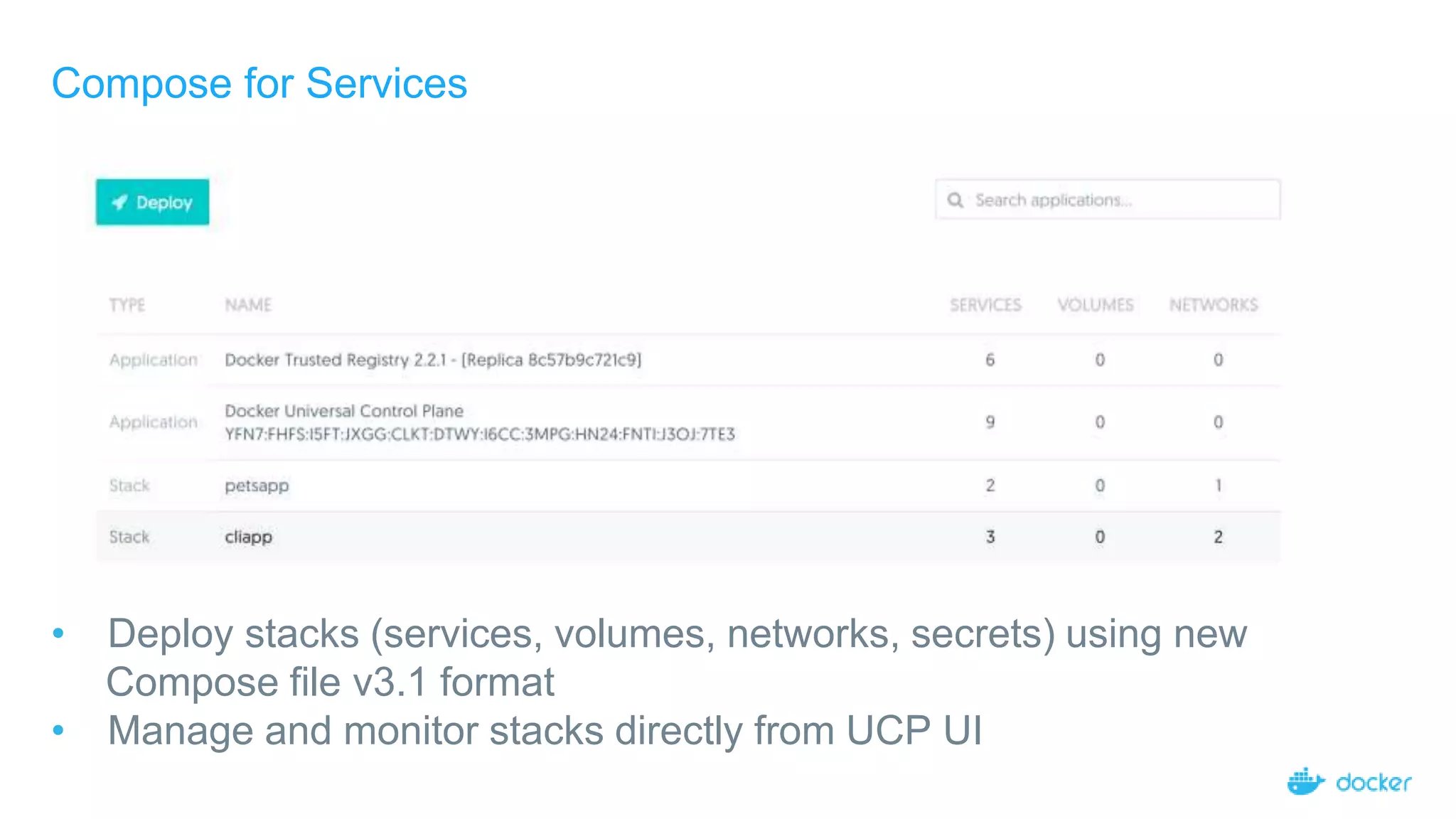

- 74. Compose for Services •Deploy stacks (services, volumes, networks, secrets) using new Compose file v3.1 format • Manage and monitor stacks directly from UCP UI

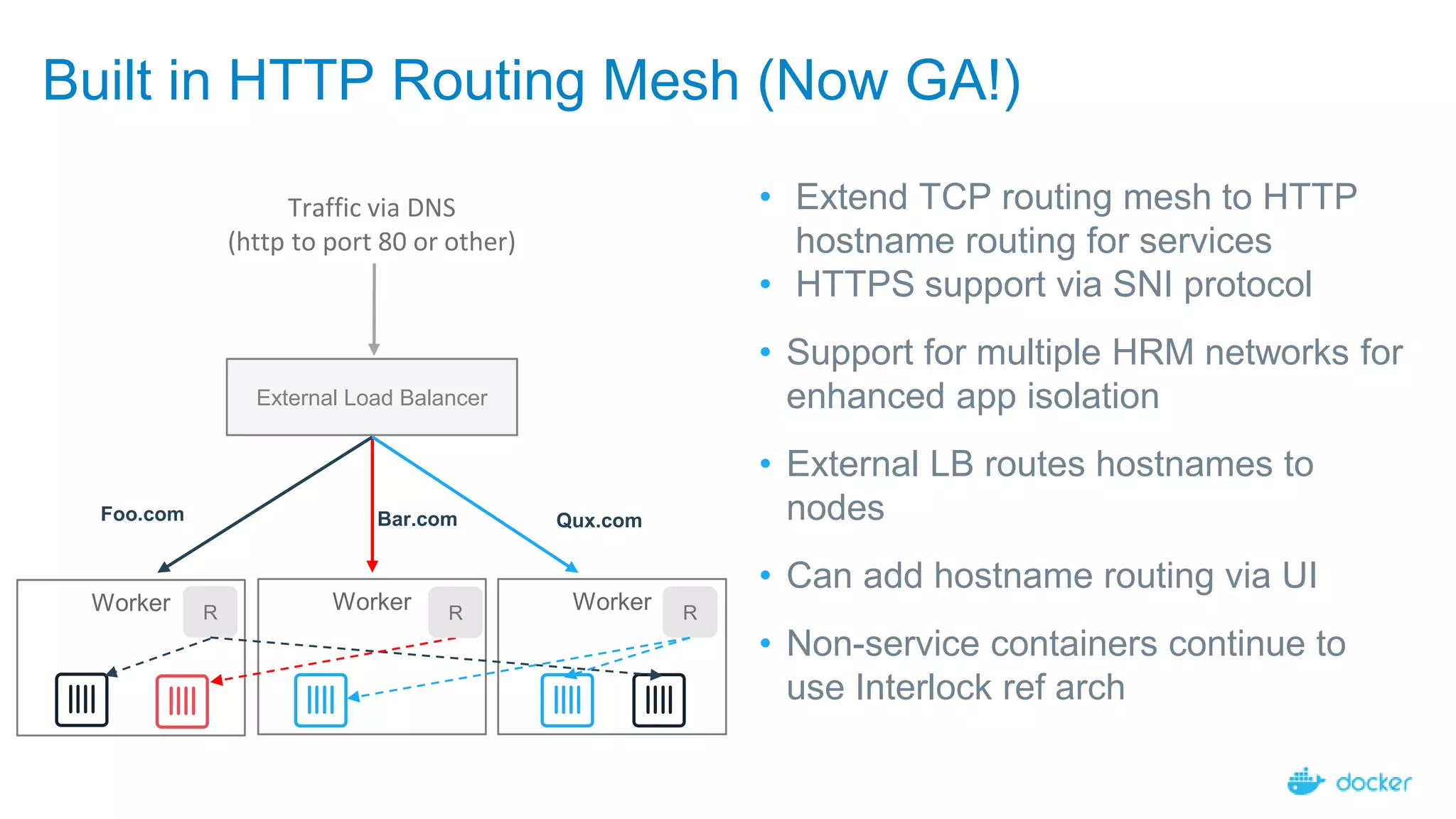

- 75. Built in HTTPRouting Mesh (Now GA!) • Extend TCP routing mesh to HTTP hostname routing for services • HTTPS support via SNI protocol • Support for multiple HRM networks for enhanced app isolation • External LB routes hostnames to nodes • Can add hostname routing via UI • Non-service containers continue to use Interlock ref arch WorkerWorkerWorker External Load Balancer Traffic via DNS (http to port 80 or other) Foo.com Bar.com Qux.com R RR
- 76.

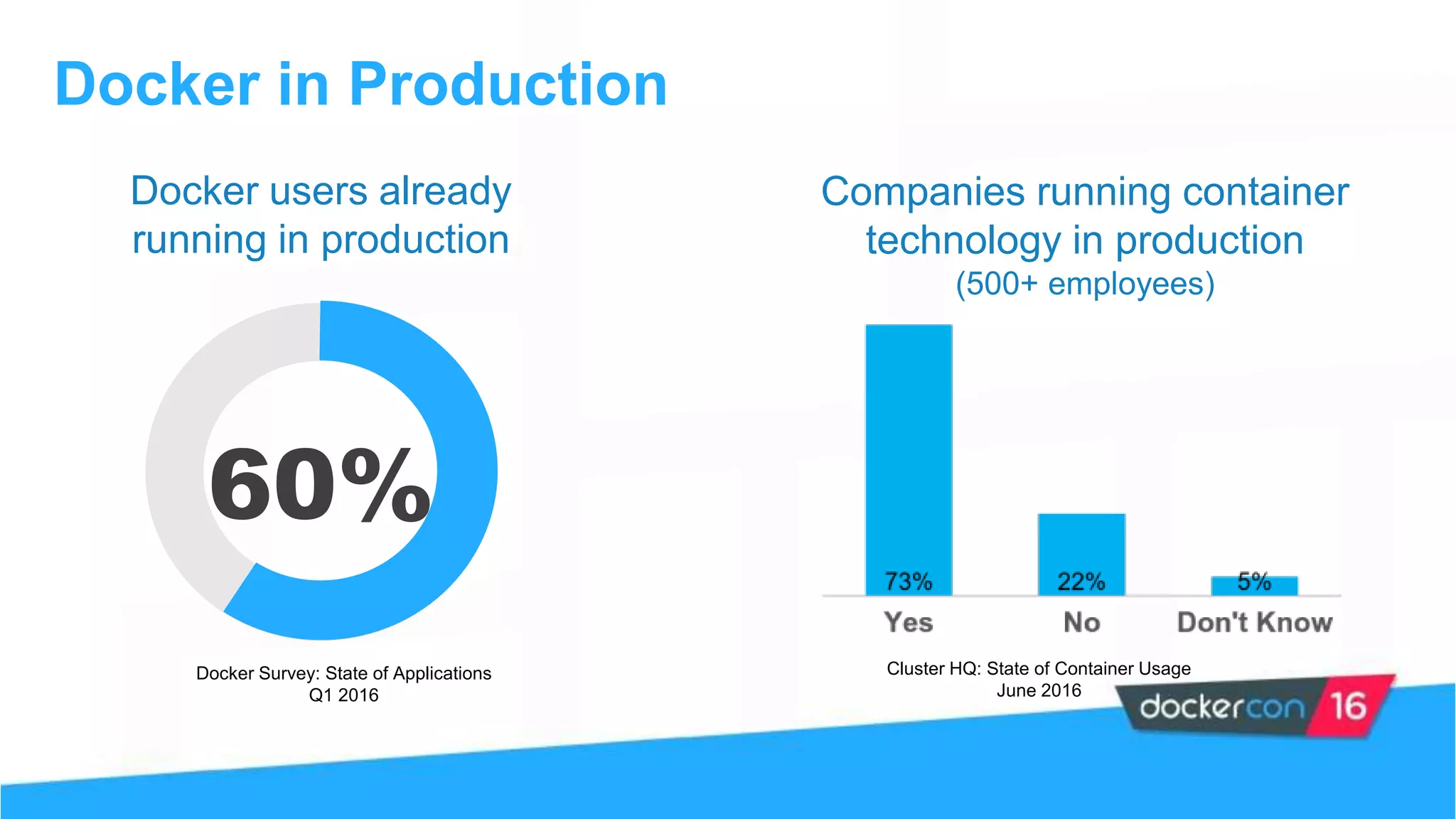

- 77. Docker users already runningin production 60% Docker in Production Docker Survey: State of Applications Q1 2016 Cluster HQ: State of Container Usage June 2016 Companies running container technology in production (500+ employees)
- 78. Across the Enterprise HealthcareMediaFinancial Services …And More E-commerce / Consumer Services TechGovernment

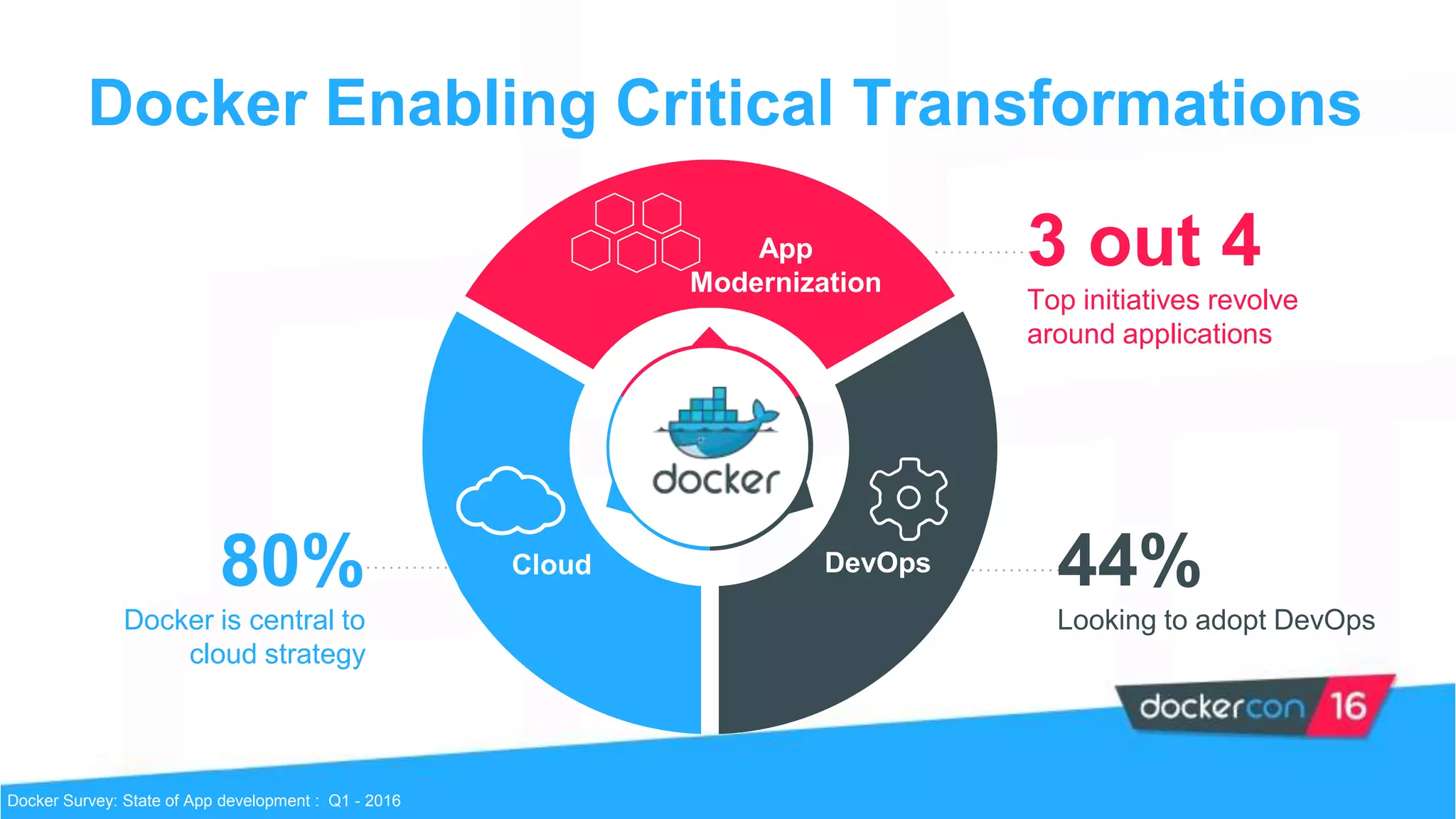

- 79. Docker Enabling CriticalTransformations 80% Docker is central to cloud strategy Docker Survey: State of App development : Q1 - 2016 3 out 4 Top initiatives revolve around applications 44% Looking to adopt DevOps App Modernization DevOpsCloud

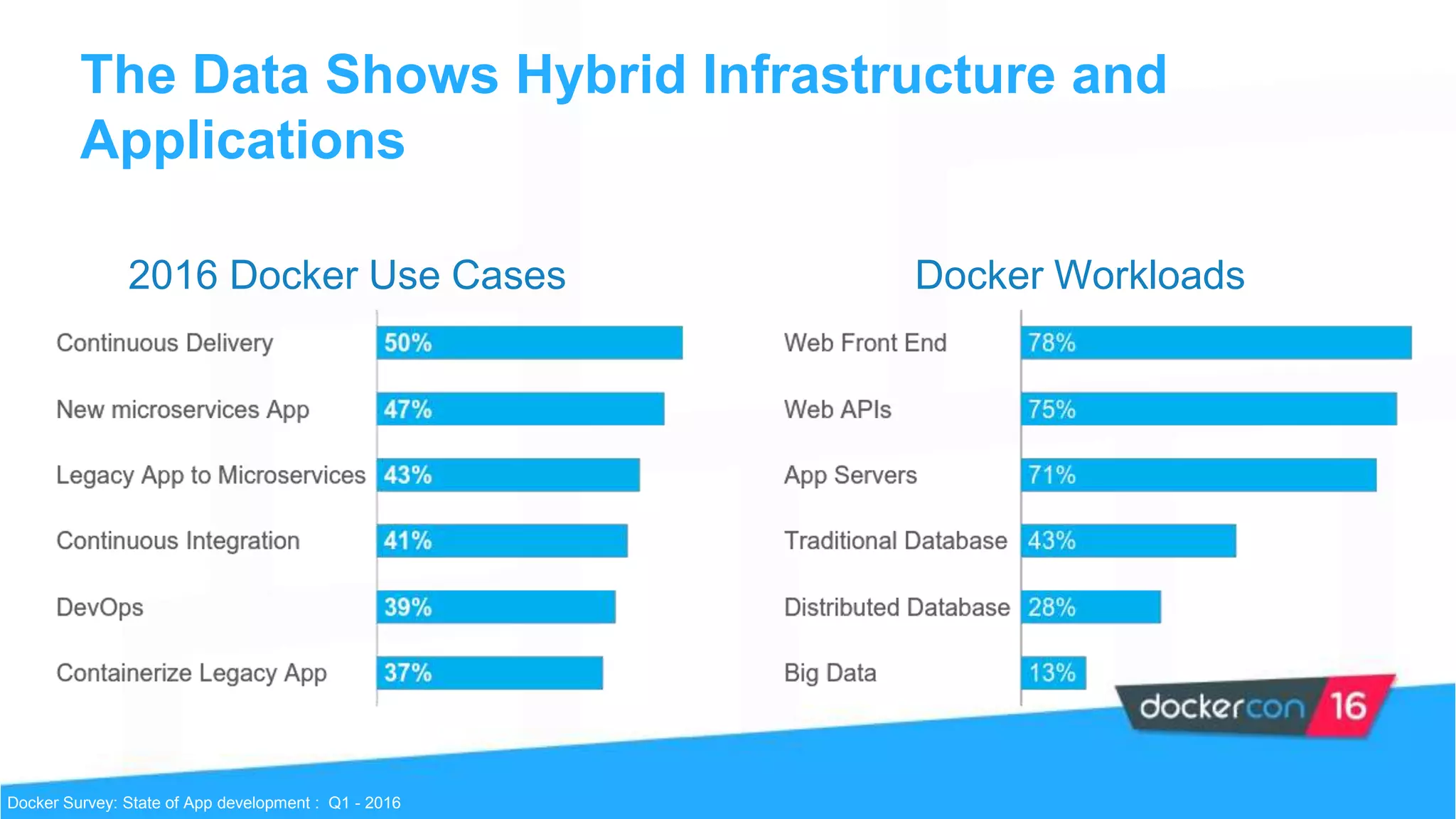

- 80. The Data ShowsHybrid Infrastructure and Applications 2016 Docker Use Cases Docker Survey: State of App development : Q1 - 2016 Docker Workloads

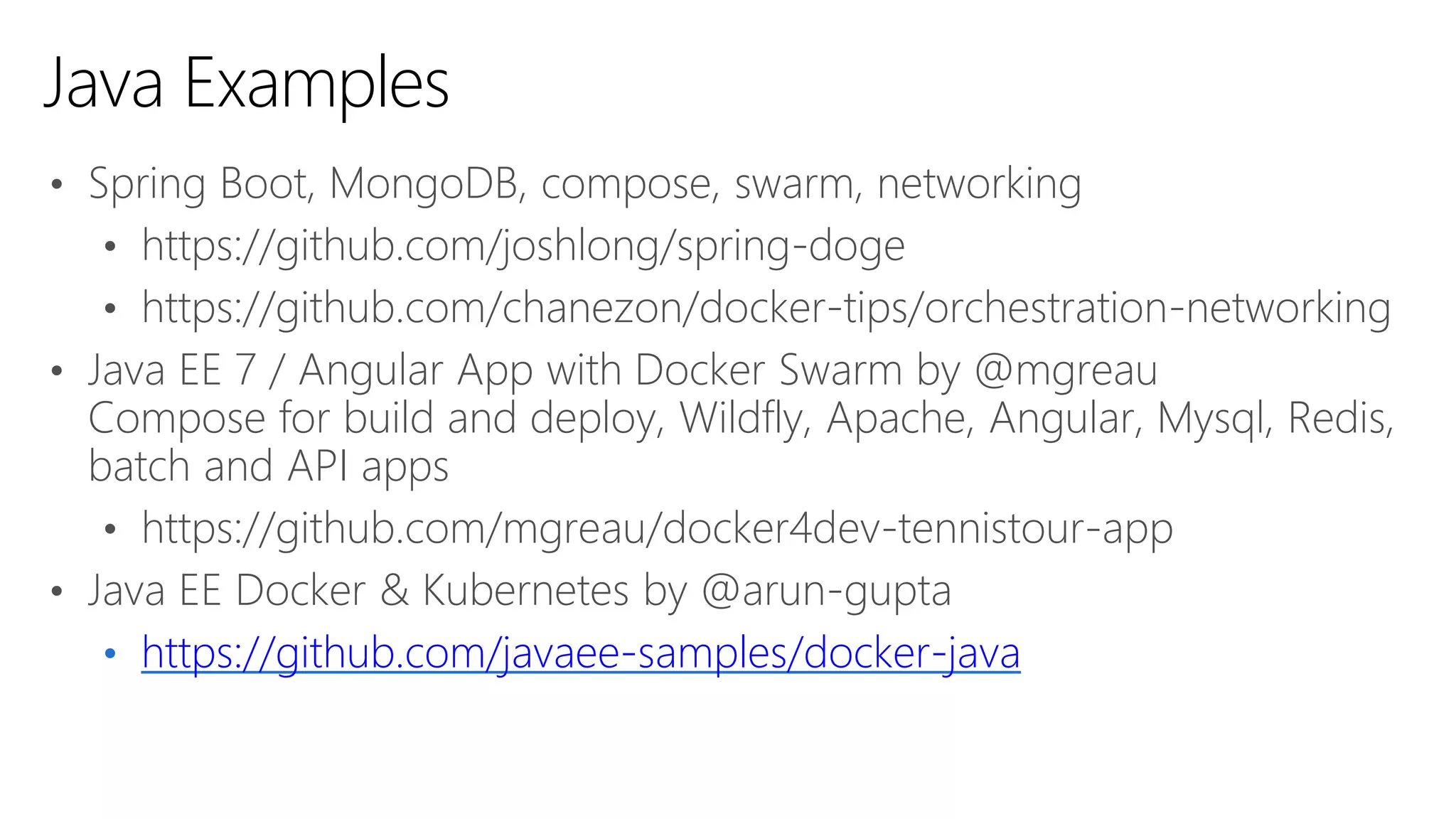

- 81. • Spring Boot,MongoDB, compose, swarm, networking • https://github.com/joshlong/spring-doge • https://github.com/chanezon/docker-tips/orchestration-networking • Java EE 7 / Angular App with Docker Swarm by @mgreau Compose for build and deploy, Wildfly, Apache, Angular, Mysql, Redis, batch and API apps • https://github.com/mgreau/docker4dev-tennistour-app • Java EE Docker & Kubernetes by @arun-gupta • https://github.com/javaee-samples/docker-java Java Examples
- 82.
Editor's Notes
- #62 Local development environments Self service app images Build, Test, Deploy applications Define app behavior and infra needs Registry services for image storage, management and distribution IT Ops maintains library of secure base content Manage role based access to repos/images Management consoles Provision, manage infrastructure resources Monitor, manage, scale infrastructure and applications
- #64 When approaching app containers and the security surrounding them, Docker believes there are three key components or characteristics that are critical. Usable security - This means that it has to be usable by both the people at both ends of the app pipeline. Secure by default with usable tooling that makes sense for developers and operators -- workflows that work for them Trusted Delivery - Meaning that apps move around, so you need ensure that it safely gets from point A to point B with proof that is hasn’t been tampered with. Securely delivered signed, encrypted --security that is required for delivering app Infrastructure independent - totally portable to whatever infrastructure you deliver it on. The security configurations are defined at the app and can then move from a developer’s workstation to a test in the cloud to a production datacenter without losing any of it’s security or requiring re-coding of the app to make it work. Build each point so the final slide has all 3 points. Safer apps mean that when you build and deploy your app in docker, it is intrinsically more secure TD is everything is needed for the full functioning of your app is delivered in a secure and trusted manner All of these things in your system are in the app platform itself and move across Secrets enable: secure API handshakes, encrypted communication what else? Assign secrets to services when they are ready to run and need to connect to other services (both internal and external)
- #65 Build each point so the final slide has all 3 points. Safer apps mean that when you build and deploy your app in docker, it is intrinsicly more secure TD is everything is needed for the full fucntioning of your app is delivered in a secure and trusted manner All of these things in your system are in the app platform itself and move across = usable = people are not leaning in to security Secrets enable: secure API handshakes, encrypted communication what else? Assign secrets to services when they are ready to run and need to connect to other services (both internal and external)
- #70 Docker delivers secrets management architected for containerized applications Usable Security: Integrated and designed with dev and ops workflows in mind Trusted Delivery: Encrypted storage and secure transit with TLS Infrastructure Independent: A portable security model across any infrastructure across the lifecycle All apps are safer - Only the assigned app can access the secret, even with multiple apps on the same cluster Docker Datacenter provides integrated secrets and container management with granular access controls for a secure software supply chain.
- #75 Local development environments Self service app images Build, Test, Deploy applications Define app behavior and infra needs Registry services for image storage, management and distribution IT Ops maintains library of secure base content Manage role based access to repos/images Management consoles Provision, manage infrastructure resources Monitor, manage, scale infrastructure and applications
- #76 The http routing mesh service uses these labels to route hostname pings to the correct service (e.g. “foo.com” → “S1”) Customer can set up an external LB of choice (e.g. F5, ELB) to route hostnames to nodes via DNS Services only; Interlock reference architecture for UCP 1.1.x should continue to function for non-service containers Each app service can have a label corresponding to a host address External LB routes hostnames to nodes Non services containers continue to use RA w/Interlock Now Generally Available Support for routing multiple hostnames to the same docker service HTTPS pass-through via SNI Sticky sessions (use named cookie to always route to same task) Support for multiple HRM networks for increased app isolation Increased stability during config loading and app routing failures Improved UI Configure hostname routing directly from service deploy/inspect pages View app routing configs status
