1. DEEP VEIN THROMBOSIS
DR. ANERI PATWARI
MPT-CARDIORESPIRATORY
03-01-2024 1

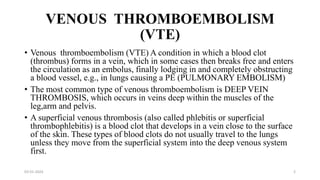

2. VENOUS THROMBOEMBOLISM
(VTE)
• Venous thromboembolism (VTE) A condition in which a blood clot
(thrombus) forms in a vein, which in some cases then breaks free and enters
the circulation as an embolus, finally lodging in and completely obstructing
a blood vessel, e.g., in lungs causing a PE (PULMONARY EMBOLISM)
• The most common type of venous thromboembolism is DEEP VEIN
THROMBOSIS, which occurs in veins deep within the muscles of the
leg,arm and pelvis.
• A superficial venous thrombosis (also called phlebitis or superficial
thrombophlebitis) is a blood clot that develops in a vein close to the surface
of the skin. These types of blood clots do not usually travel to the lungs
unless they move from the superficial system into the deep venous system
first.
03-01-2024 2

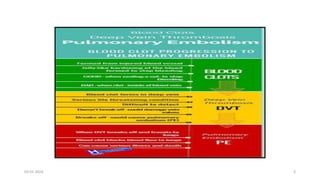

3. 03-01-2024 3

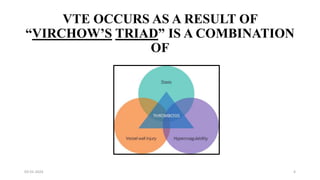

4. VTE OCCURS AS A RESULT OF
“VIRCHOW’S TRIAD” IS A COMBINATION
OF
03-01-2024 4

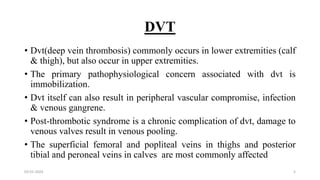

5. DVT
• Dvt(deep vein thrombosis) commonly occurs in lower extremities (calf
& thigh), but also occur in upper extremities.
• The primary pathophysiological concern associated with dvt is
immobilization.
• Dvt itself can also result in peripheral vascular compromise, infection
& venous gangrene.
• Post-thrombotic syndrome is a chronic complication of dvt, damage to
venous valves result in venous pooling.
• The superficial femoral and popliteal veins in thighs and posterior
tibial and peroneal veins in calves are most commonly affected
03-01-2024 5

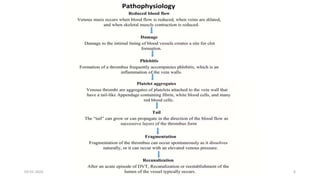

6. 03-01-2024 6

7. 03-01-2024 7

8. 03-01-2024 8

9. 03-01-2024 9

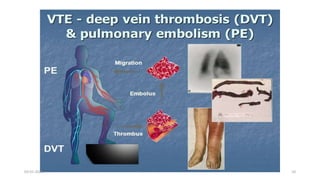

10. 03-01-2024 10

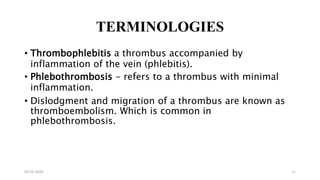

11. TERMINOLOGIES
• Thrombophlebitis a thrombus accompanied by
inflammation of the vein (phlebitis).
• Phlebothrombosis - refers to a thrombus with minimal
inflammation.
• Dislodgment and migration of a thrombus are known as
thromboembolism. Which is common in
phlebothrombosis.
03-01-2024 11

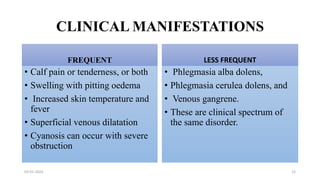

12. CLINICAL MANIFESTATIONS
FREQUENT
• Calf pain or tenderness, or both
• Swelling with pitting oedema
• Increased skin temperature and
fever
• Superficial venous dilatation
• Cyanosis can occur with severe
obstruction
LESS FREQUENT
• Phlegmasia alba dolens,
• Phlegmasia cerulea dolens, and
• Venous gangrene.
• These are clinical spectrum of
the same disorder.
03-01-2024 12

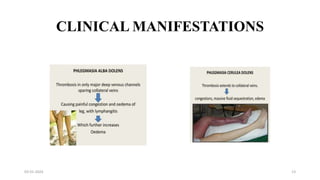

13. CLINICAL MANIFESTATIONS
03-01-2024 13

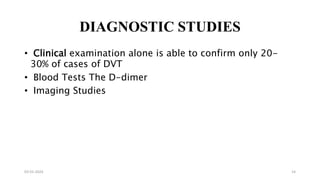

14. DIAGNOSTIC STUDIES
• Clinical examination alone is able to confirm only 20-
30% of cases of DVT
• Blood Tests The D-dimer
• Imaging Studies
03-01-2024 14

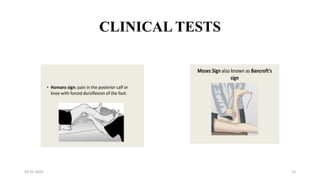

15. CLINICAL TESTS
03-01-2024 15

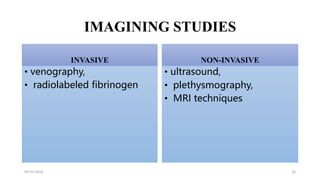

16. IMAGINING STUDIES
INVASIVE
• venography,
• radiolabeled fibrinogen
NON-INVASIVE
• ultrasound,
• plethysmography,
• MRI techniques
03-01-2024 16

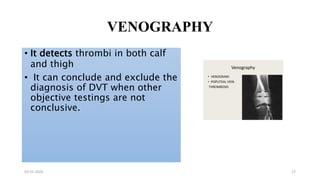

17. VENOGRAPHY
• It detects thrombi in both calf
and thigh
• It can conclude and exclude the
diagnosis of DVT when other
objective testings are not
conclusive.
03-01-2024 17

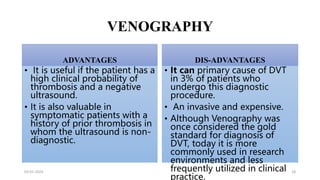

18. VENOGRAPHY
ADVANTAGES
• It is useful if the patient has a
high clinical probability of
thrombosis and a negative
ultrasound.
• It is also valuable in
symptomatic patients with a
history of prior thrombosis in
whom the ultrasound is non-
diagnostic.
DIS-ADVANTAGES
• It can primary cause of DVT
in 3% of patients who
undergo this diagnostic
procedure.
• An invasive and expensive.
• Although Venography was
once considered the gold
standard for diagnosis of
DVT, today it is more
commonly used in research
environments and less
frequently utilized in clinical
practice.
03-01-2024 18

19. RADIOLABELED FIBRINOGEN
• Because the radioactive isotope
incorporates into a growing
thrombus, this test can
distinguish new clot from an old
clot.
• Nuclear medicine studies done
with I125- labeled fibrinogen .
• More commonly used in
research.
03-01-2024 19

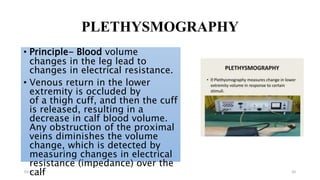

20. PLETHYSMOGRAPHY
• Principle- Blood volume
changes in the leg lead to
changes in electrical resistance.
• Venous return in the lower
extremity is occluded by
of a thigh cuff, and then the cuff
is released, resulting in a
decrease in calf blood volume.
Any obstruction of the proximal
veins diminishes the volume
change, which is detected by
measuring changes in electrical
resistance (impedance) over the
calf
03-01-2024 20

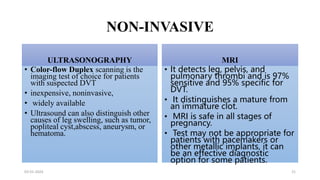

21. NON-INVASIVE
ULTRASONOGRAPHY
• Color-flow Duplex scanning is the
imaging test of choice for patients
with suspected DVT
• inexpensive, noninvasive,
• widely available
• Ultrasound can also distinguish other
causes of leg swelling, such as tumor,
popliteal cyst,abscess, aneurysm, or
hematoma.
MRI
• It detects leg, pelvis, and
pulmonary thrombi and is 97%
sensitive and 95% specific for
DVT.
• It distinguishes a mature from
an immature clot.
• MRI is safe in all stages of
pregnancy.
• Test may not be appropriate for
patients with pacemakers or
other metallic implants, it can
be an effective diagnostic
option for some patients.
03-01-2024 21

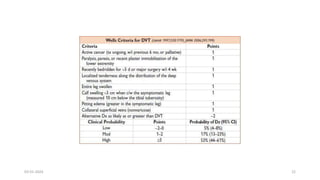

22. 03-01-2024 22

23. 03-01-2024 23

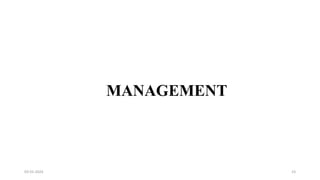

MANAGEMENT

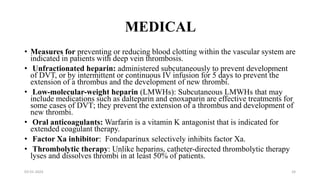

24. MEDICAL
• Measures for preventing or reducing blood clotting within the vascular system are
indicated in patients with deep vein thrombosis.
• Unfractionated heparin: administered subcutaneously to prevent development
of DVT, or by intermittent or continuous IV infusion for 5 days to prevent the
extension of a thrombus and the development of new thrombi.
• Low-molecular-weight heparin (LMWHs): Subcutaneous LMWHs that may
include medications such as dalteparin and enoxaparin are effective treatments for
some cases of DVT; they prevent the extension of a thrombus and development of
new thrombi.
• Oral anticoagulants: Warfarin is a vitamin K antagonist that is indicated for
extended coagulant therapy.
• Factor Xa inhibitor: Fondaparinux selectively inhibits factor Xa.
• Thrombolytic therapy: Unlike heparins, catheter-directed thrombolytic therapy
lyses and dissolves thrombi in at least 50% of patients.
03-01-2024 24

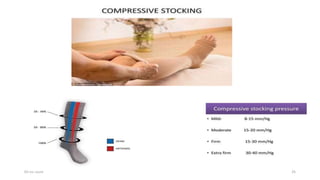

25. 03-01-2024 25

26. 03-01-2024 26

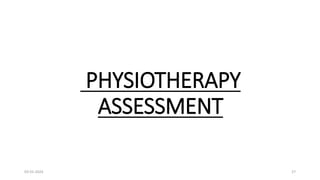

27. PHYSIOTHERAPY
ASSESSMENT
03-01-2024 27

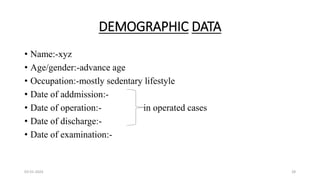

28. DEMOGRAPHIC DATA
• Name:-xyz
• Age/gender:-advance age
• Occupation:-mostly sedentary lifestyle
• Date of addmission:-
• Date of operation:- in operated cases
• Date of discharge:-
• Date of examination:-
03-01-2024 28

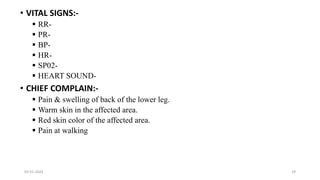

29. • VITAL SIGNS:-
 RR-
 PR-
 BP-
 HR-
 SP02-
 HEART SOUND-
• CHIEF COMPLAIN:-
 Pain & swelling of back of the lower leg.
 Warm skin in the affected area.
 Red skin color of the affected area.
 Pain at walking
03-01-2024 29

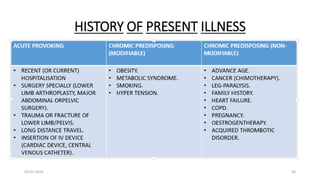

30. HISTORY OF PRESENT ILLNESS
03-01-2024 30

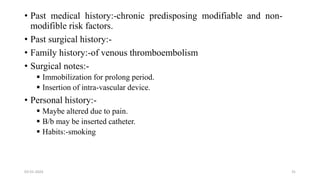

31. • Past medical history:-chronic predisposing modifiable and non-
modifible risk factors.
• Past surgical history:-
• Family history:-of venous thromboembolism
• Surgical notes:-
 Immobilization for prolong period.
 Insertion of intra-vascular device.
• Personal history:-
 Maybe altered due to pain.
 B/b may be inserted catheter.
 Habits:-smoking
03-01-2024 31

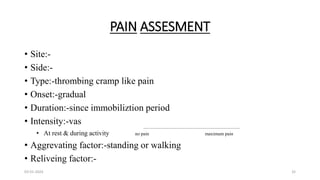

32. PAIN ASSESMENT
• Site:-
• Side:-
• Type:-thrombing cramp like pain
• Onset:-gradual
• Duration:-since immobiliztion period
• Intensity:-vas
• At rest & during activity no pain maximum pain
• Aggrevating factor:-standing or walking
• Reliveing factor:-
03-01-2024 32

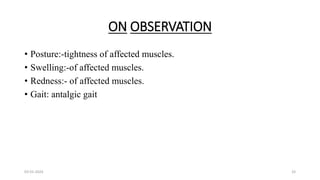

33. ON OBSERVATION
• Posture:-tightness of affected muscles.
• Swelling:-of affected muscles.
• Redness:- of affected muscles.
• Gait: antalgic gait
03-01-2024 33

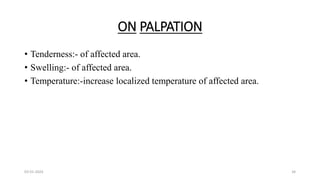

34. ON PALPATION
• Tenderness:- of affected area.
• Swelling:- of affected area.
• Temperature:-increase localized temperature of affected area.
03-01-2024 34

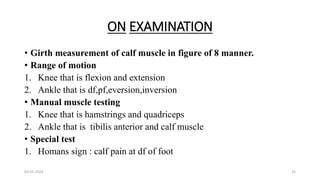

35. ON EXAMINATION
• Girth measurement of calf muscle in figure of 8 manner.
• Range of motion
1. Knee that is flexion and extension
2. Ankle that is df,pf,eversion,inversion
• Manual muscle testing
1. Knee that is hamstrings and quadriceps
2. Ankle that is tibilis anterior and calf muscle
• Special test
1. Homans sign : calf pain at df of foot
03-01-2024 35

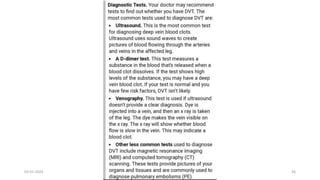

36. 03-01-2024 36

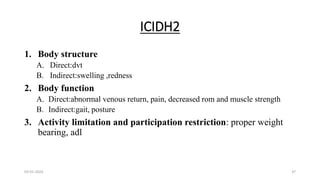

37. ICIDH2
1. Body structure
A. Direct:dvt
B. Indirect:swelling ,redness
2. Body function
A. Direct:abnormal venous return, pain, decreased rom and muscle strength
B. Indirect:gait, posture
3. Activity limitation and participation restriction: proper weight
bearing, adl
03-01-2024 37

38. PFD
• A 50+ OLD PATIENT HAVING PAIN,SWELLING,TIGHTNESS OF
MUSCLE,ANTALGIC GAIT,IMPAIRED ROM,STRENGTH ASSOSITED WITH
DEEP VEIN THROMBOSIS
03-01-2024 38

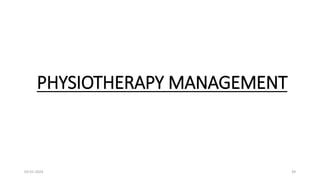

39. PHYSIOTHERAPY MANAGEMENT
03-01-2024 39

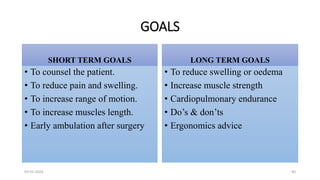

40. GOALS
SHORT TERM GOALS
• To counsel the patient.
• To reduce pain and swelling.
• To increase range of motion.
• To increase muscles length.
• Early ambulation after surgery
LONG TERM GOALS
• To reduce swelling or oedema
• Increase muscle strength
• Cardiopulmonary endurance
• Do’s & don’ts
• Ergonomics advice
03-01-2024 40

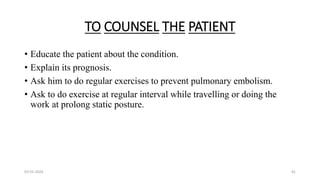

41. TO COUNSEL THE PATIENT
• Educate the patient about the condition.
• Explain its prognosis.
• Ask him to do regular exercises to prevent pulmonary embolism.
• Ask to do exercise at regular interval while travelling or doing the
work at prolong static posture.
03-01-2024 41

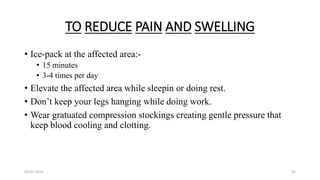

42. TO REDUCE PAIN AND SWELLING
• Ice-pack at the affected area:-
• 15 minutes
• 3-4 times per day
• Elevate the affected area while sleepin or doing rest.
• Don’t keep your legs hanging while doing work.
• Wear gratuated compression stockings creating gentle pressure that
keep blood cooling and clotting.
03-01-2024 42

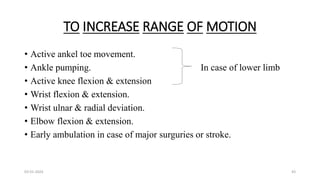

43. TO INCREASE RANGE OF MOTION
• Active ankel toe movement.
• Ankle pumping. In case of lower limb
• Active knee flexion & extension
• Wrist flexion & extension.
• Wrist ulnar & radial deviation.
• Elbow flexion & extension.
• Early ambulation in case of major surguries or stroke.
03-01-2024 43

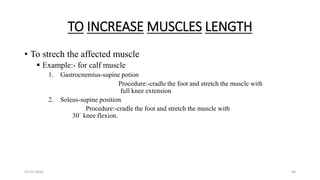

44. TO INCREASE MUSCLES LENGTH
• To strech the affected muscle
 Example:- for calf muscle
1. Gastrocnemius-supine potion
Procedure:-cradle the foot and stretch the muscle with
full knee extension
2. Soleus-supine position
Procedure:-cradle the foot and stretch the muscle with
30` knee flexion.
03-01-2024 44

45. 03-01-2024 45

46. 03-01-2024 46

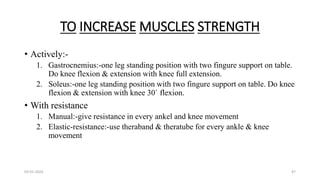

47. TO INCREASE MUSCLES STRENGTH
• Actively:-
1. Gastrocnemius:-one leg standing position with two fingure support on table.
Do knee flexion & extension with knee full extension.
2. Soleus:-one leg standing position with two fingure support on table. Do knee
flexion & extension with knee 30` flexion.
• With resistance
1. Manual:-give resistance in every ankel and knee movement
2. Elastic-resistance:-use theraband & theratube for every ankle & knee
movement
03-01-2024 47

48. 03-01-2024 48

49. 03-01-2024 49

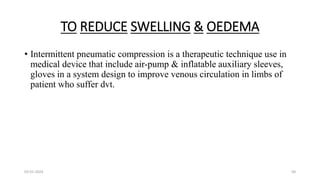

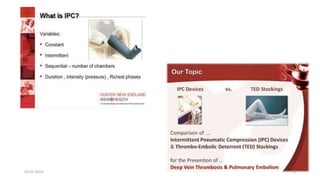

50. TO REDUCE SWELLING & OEDEMA

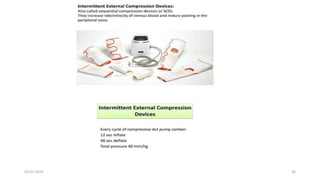

• Intermittent pneumatic compression is a therapeutic technique use in
medical device that include air-pump & inflatable auxiliary sleeves,
gloves in a system design to improve venous circulation in limbs of
patient who suffer dvt.
03-01-2024 50

51. 03-01-2024 51

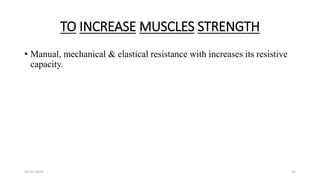

52. TO INCREASE MUSCLES STRENGTH
• Manual, mechanical & elastical resistance with increases its resistive
capacity.
03-01-2024 52

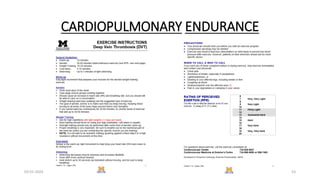

53. CARDIOPULMONARY ENDURANCE
03-01-2024 53

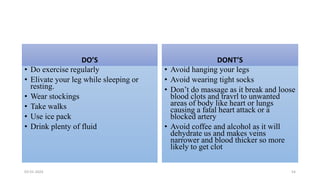

54. DO’S
• Do exercise regularly
• Elivate your leg while sleeping or
resting.
• Wear stockings
• Take walks
• Use ice pack
• Drink plenty of fluid
DONT’S
• Avoid hanging your legs
• Avoid wearing tight socks
• Don’t do massage as it break and loose
blood clots and travrl to unwanted
areas of body like heart or lungs
causing a fatal heart attack or a
blocked artery
• Avoid coffee and alcohol as it will
dehydrate us and makes veins
narrower and blood thicker so more
likely to get clot
03-01-2024 54

55. ERGONOMICS
• Do exercise on regular intervals.
• Use proper foot-rest.
• Don’t hang your legs.

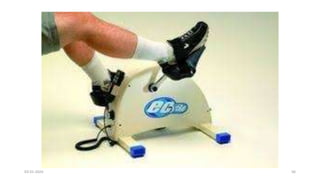

• Use leg ergometer
03-01-2024 55

56. 03-01-2024 56

57. 03-01-2024 57
