DCT image compression
- 1. DSP project -idea presentation 22.10.2015
- 2. DSP project -24.12.2015
- 3. DSP project -24.12.2015 Team members 1. Ibrahim Mahmoud Shoeer [14] 2. Ahmed Mohamed Nageeb [34] 3. Hossam Hassan Ramadan [88] 4. Sally Tarek Behairy [125] 5. Nada Moh. El-Attar [243 ] 6. Nashwa Ahmed ElKarargy [247] 7. Noha Magdy Nasr [252] 8. Youssef Mohamed Ramzy [281]
- 4. DSP project -24.12.2015 Why the selected project idea is important? • digital images require much storage space • compressed data takes up less storage space
- 5. DSP project -24.12.2015 Data compression is a process by which the file size is reduced by re-encoding the file data to use fewer bits of storage than the original file. The original file can then be recreated from the compressed representation using a reverse process called decompression.
- 6. DSP project -24.12.2015 Lossy vs. lossless compression LOSSLESS COMPRESSION LOSSY COMPRESSION • Enables recreation of the original file bit for bit • no data loss • keeps all information, discarding no information. • Ex. Representing recurring patterns with shorter abbreviations • discards some information • accepts some degradation in the image, as lower resolution • This decreasing resolution is not detected by the eye. • a certain amount of loss in quality
- 7. DSP project -24.12.2015 The Discrete Cosine Transform (DCT) • the human eye is most sensitive to low frequencies. • the image is divided into parts (according to frequencies) • important lower frequencies are kept • higher ones are discarded • It is a lossy algorithm
- 8. The Discrete CosineTransform (DCT) DSP project - idea presentation 22.10.2015
- 9. The Discrete CosineTransform (DCT) DSP project - idea presentation 22.10.2015
- 10. The Discrete CosineTransform (DCT) DSP project - idea presentation 22.10.2015
- 11. Example DSP project -idea presentation 22.10.2015
- 12. Example DSP project -idea presentation 22.10.2015
- 13. Example DSP project -idea presentation 22.10.2015
- 14. Example DSP project -idea presentation 22.10.2015
- 15. DSP project -24.12.2015 Mechanism
- 16. prompt = {'Enterthe exact name of the image file. Example:name.jpg'}; title = 'Image';answer = inputdlg (prompt, title); k = answer{1};A=imread(k); B= rgb2gray(A); DSP project - 24.12.2015 • The user is asked to upload the desired image that needs compression. The image should be stored in the same place as the Matlab code. • This is then converted into a grayscale image i.e. black-and-white image.
- 17. C=B-128; subplot(311)imshow(B) DSP project -24.12.2015 • In grayscale, images range between values 0 and 255, where 0 is pure black and 255 is pure white. • However DCT is designed to work on ranges between -128 and 12. • Thus we subtract 128. • This is when we show the original image using the command “imshow”.
- 18. DSP project -24.12.2015 Original file size: 7 kbytes
- 19. DSP project -24.12.2015 • There is a variety of levels for the image compression and image quality. • As the level of compression increases, the level of quality would decrease, and vice versa. • These levels span from 0 to 100. • Subjective experiments yielded the following matrix Q with quality level 50 as a standard quantization matrix.
- 20. DSP project -24.12.2015 • The level of quality varies. • The program therefore lets the user choose his preferred level of quality, a parameter to control the quality of the image and it compression, ranging from 0 to 100. • The entered value of quality alters the standard matrix accordingly.
- 21. DSP project -24.12.2015 • The Discrete Cosine Transform (DCT), which has the following equation: • N represents the size of divided blocks • x and y are the number of rows and columns. • It is common to divide the image into 8 by 8 blocks. This generates the following equation with N= 8:
- 22. DSP project -24.12.2015 • This results in the following matrix T: • We use the matrix T to perform the DCT on our desired image blocks. This is done through multiplication with the original block matrix M in the following manner: • • The original block M is multiplied first with the DCT matrix T to transform the rows and then with the transpose of the DCT matrix to transform the columns.
- 23. DSP project -24.12.2015 • Quantization is then performed by dividing each element of the transformed image matrix D by its corresponding element in the quantization matrix Q that we explained previously. • This is then rounded to get positive integer values.
- 24. DSP project -24.12.2015 As a result we have the lower frequencies in the upper-left corner, while the higher frequencies are represented with zeros, which can be discarded.
- 25. DSP project -24.12.2015 As we discard part of the original data of the image, this type of compression is considered a lossy compression. Only the non-zero coeefficients are used to reconstruct the image.
- 26. DSP project -24.12.2015 • As a last step the compressed file is decompressed again to retrieve the original image. • The reconstruction of the image is done by reversing all previous steps of compression: We divide the image again into 8×8 blocks and multiplying this time by the quantization matrix Q. IDCT is then applied to the resulting matrix to reverse the discrete cosine transform performed before and rounded again. The blocks are gathered into one matrix again and 128 are added to construct the decompressed format of the image.
- 27. DSP project -24.12.2015 By comparing the original file to the decompressed version: Original file size: 7 kbytes Decompressed file (at 70%) size: 4 kbytes
- 28. DSP project -24.12.2015 References [1] The Statistics Portal website [online] link: http://www.statista.com/chart/624/global-ip-traffic-per-month-from- 2011-to-2016/ [2] Cisco website [online] link: http://www.cisco.com/c/en/us/solutions/collateral/service- provider/visual-networking-index-vni/VNI_Hyperconnectivity_WP.html [3] Lost saloon website [online] link: http://www.lostsaloon.com/technology/what-is-data-compression- and-why-use-it/ [4] Prof. Dr.-Ing. Thomas Wiegand website [online] link: http://iphome.hhi.de/wiegand/assets/pdfs/DIC_JPEG_07.pdf
Editor's Notes

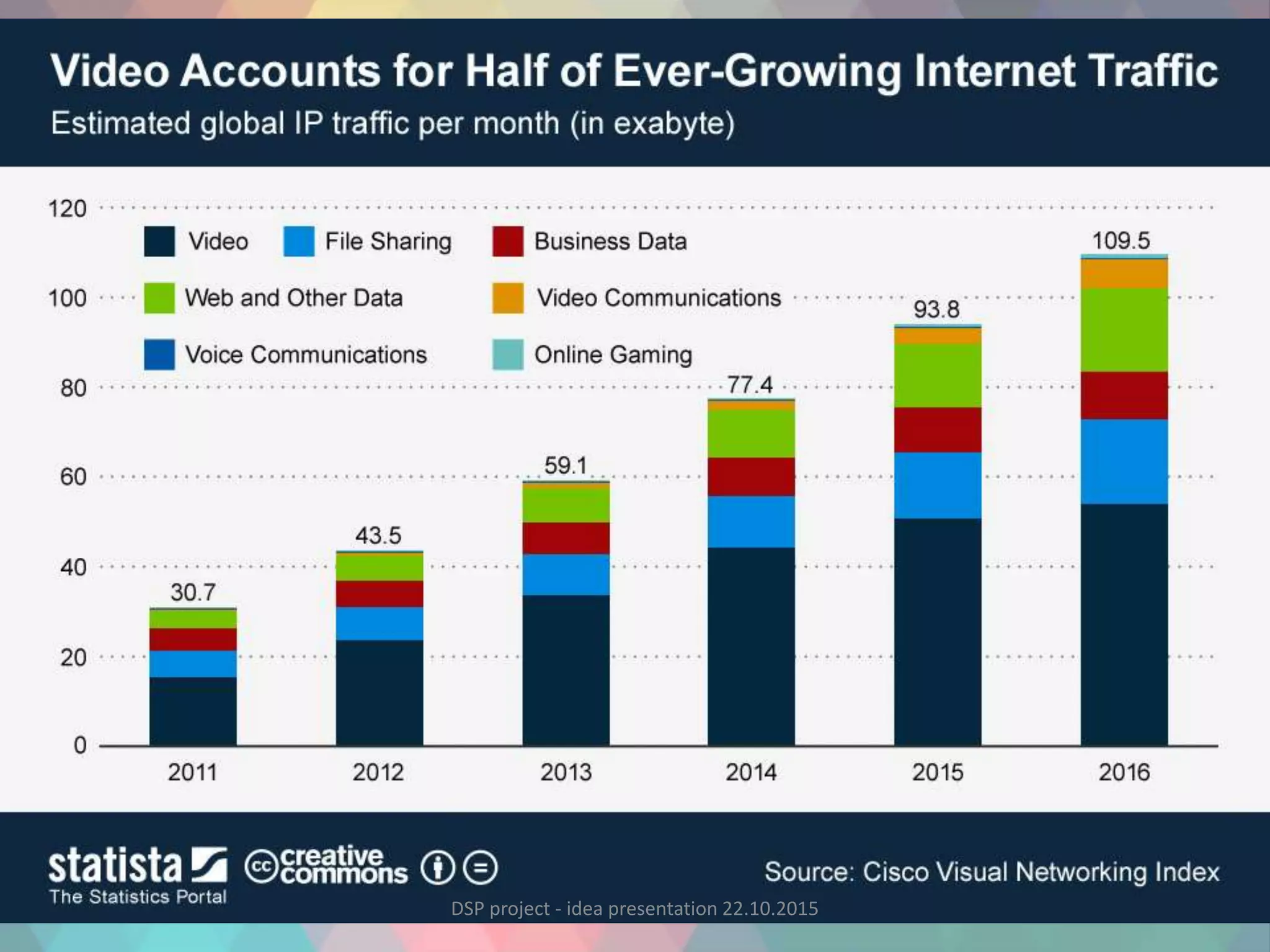

- #2 Intro With the advance of technology in recent years, it has been noticed that more than 50% of the network traffic is consumed with videos and images. This percentage is estimated to increase further to around 90% in the coming few years. Besides the required quality of these videos and images is increasing as the popularity for high definition (HD) grows. Thus technology demands a better coding standard with higher compression efficiency. Ever-increasing download speeds, file sharing and the growing adoption of high quality online video are expected to lead to a surge of global IP traffic in the next few years. Cisco expects global traffic to almost quadruple between 2011 and 2016. After file sharing had been the main contributor to global traffic for many years, online video is now the biggest data hog. In 2012, video (excluding video communication) is expected to account for 54 percent of global IP traffic. Web browsing and email only make up 13 percent of traffic, while voice over IP services and online gaming add less than one percent to the total.
