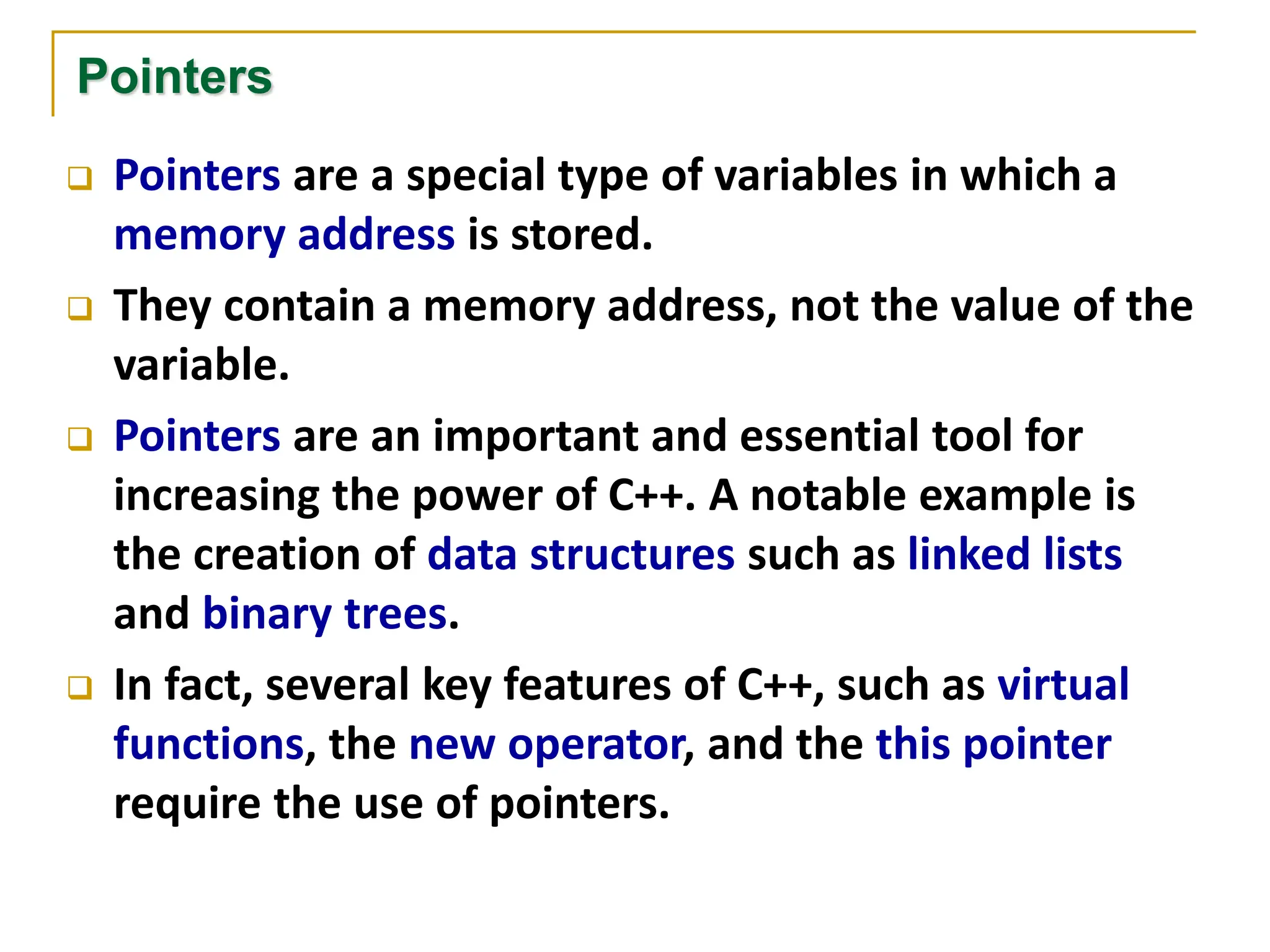

2. Pointers
Pointers are a special type of variables in which a
memory address is stored.
They contain a memory address, not the value of the
variable.
Pointers are an important and essential tool for
increasing the power of C++. A notable example is
the creation of data structures such as linked lists
and binary trees.
In fact, several key features of C++, such as virtual
functions, the new operator, and the this pointer
require the use of pointers.

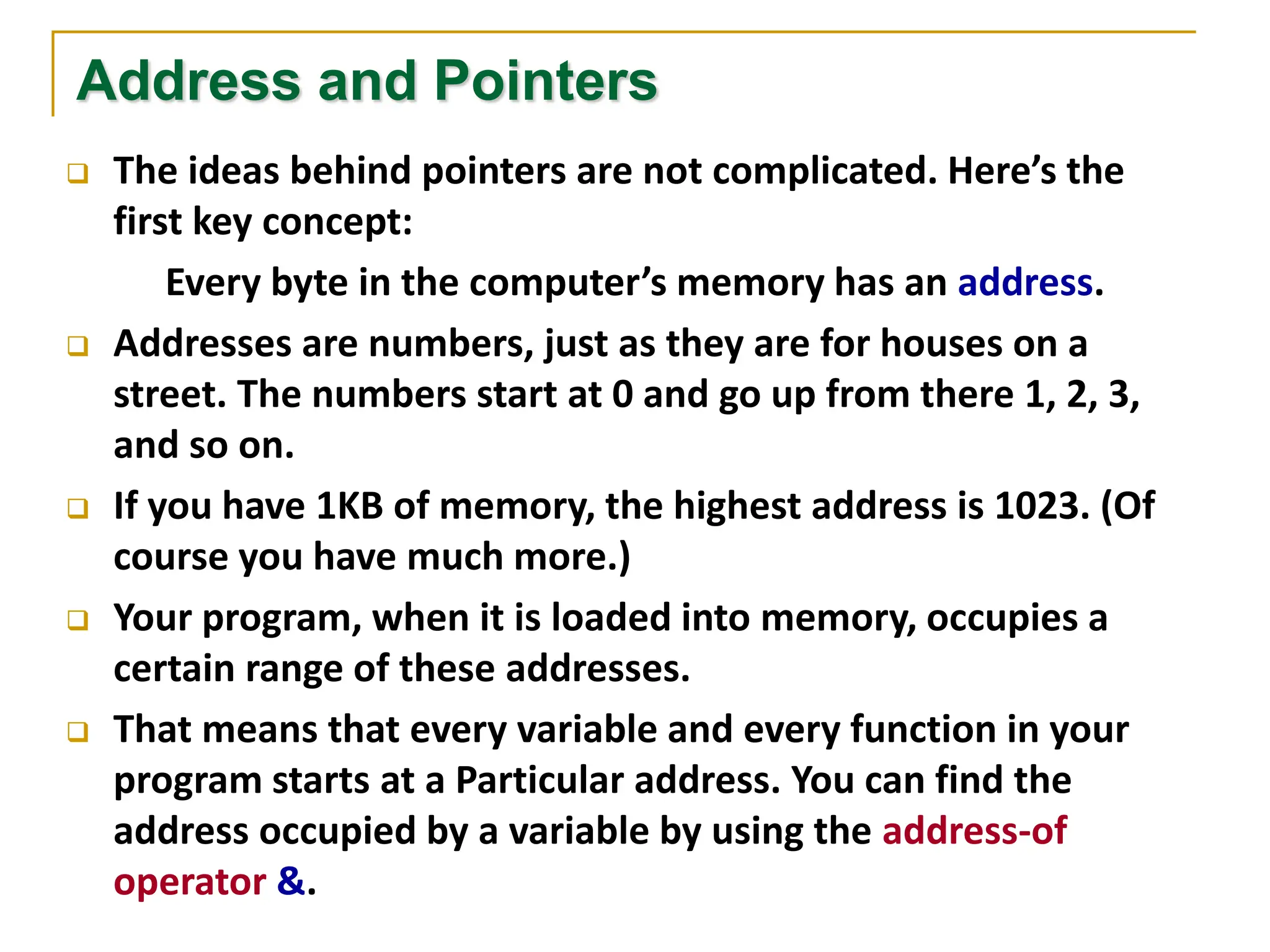

3. Address and Pointers
The ideas behind pointers are not complicated. Here’s the
first key concept:
Every byte in the computer’s memory has an address.
Addresses are numbers, just as they are for houses on a
street. The numbers start at 0 and go up from there 1, 2, 3,
and so on.
If you have 1KB of memory, the highest address is 1023. (Of
course you have much more.)
Your program, when it is loaded into memory, occupies a
certain range of these addresses.
That means that every variable and every function in your
program starts at a Particular address. You can find the
address occupied by a variable by using the address-of
operator &.

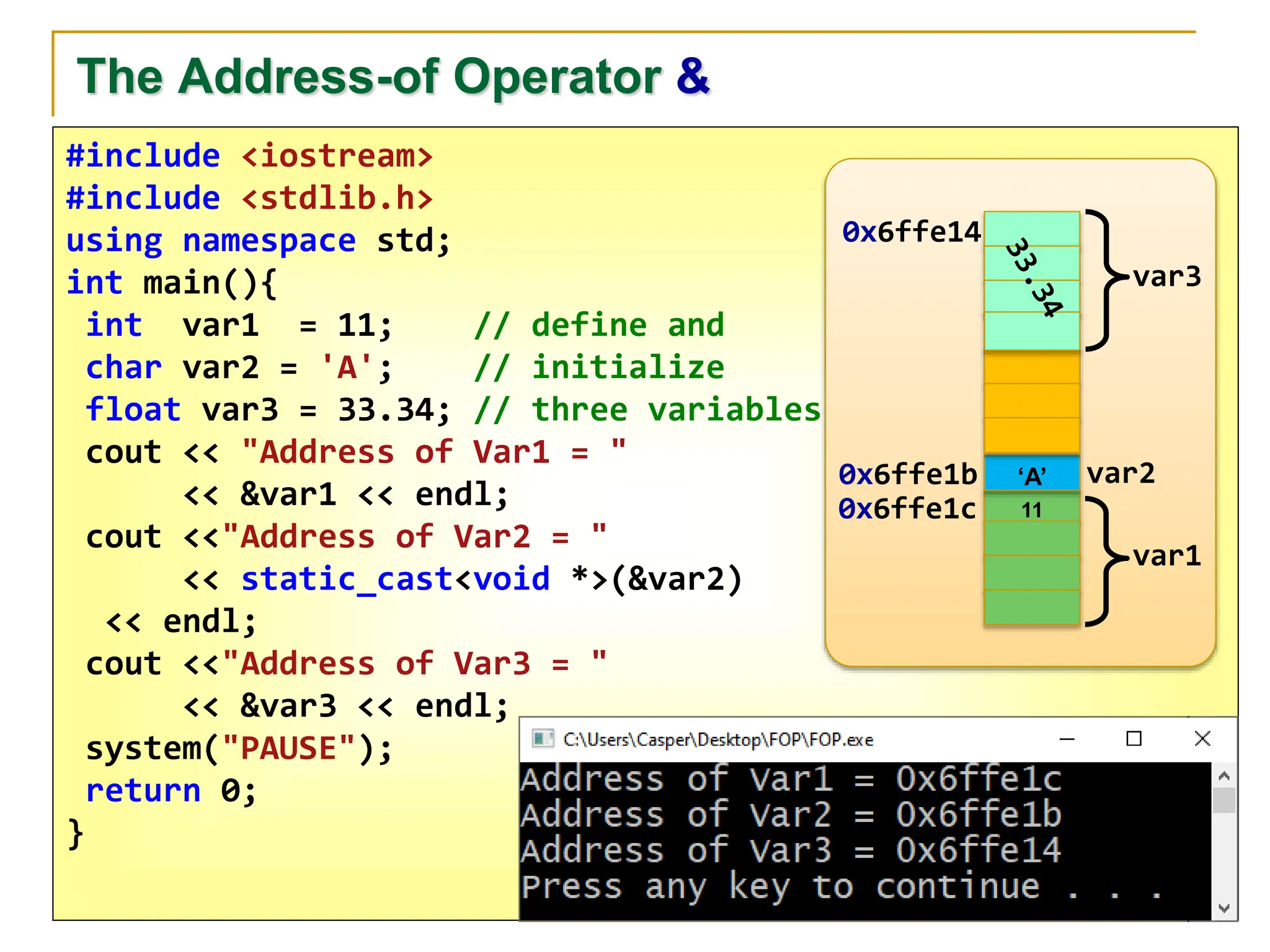

4. The Address-of Operator &
#include <iostream>
#include <stdlib.h>
using namespace std;
int main(){
int var1 = 11; // define and
char var2 = 'A'; // initialize
float var3 = 33.34; // three variables
cout << "Address of Var1 = "
<< &var1 << endl;
cout <<"Address of Var2 = "
<< static_cast<void *>(&var2)
<< endl;
cout <<"Address of Var3 = "
<< &var3 << endl;
system("PAUSE");
return 0;
}
11
var1
0x6ffe1c
‘A’
0x6ffe1b
0x6ffe14
var3
var2

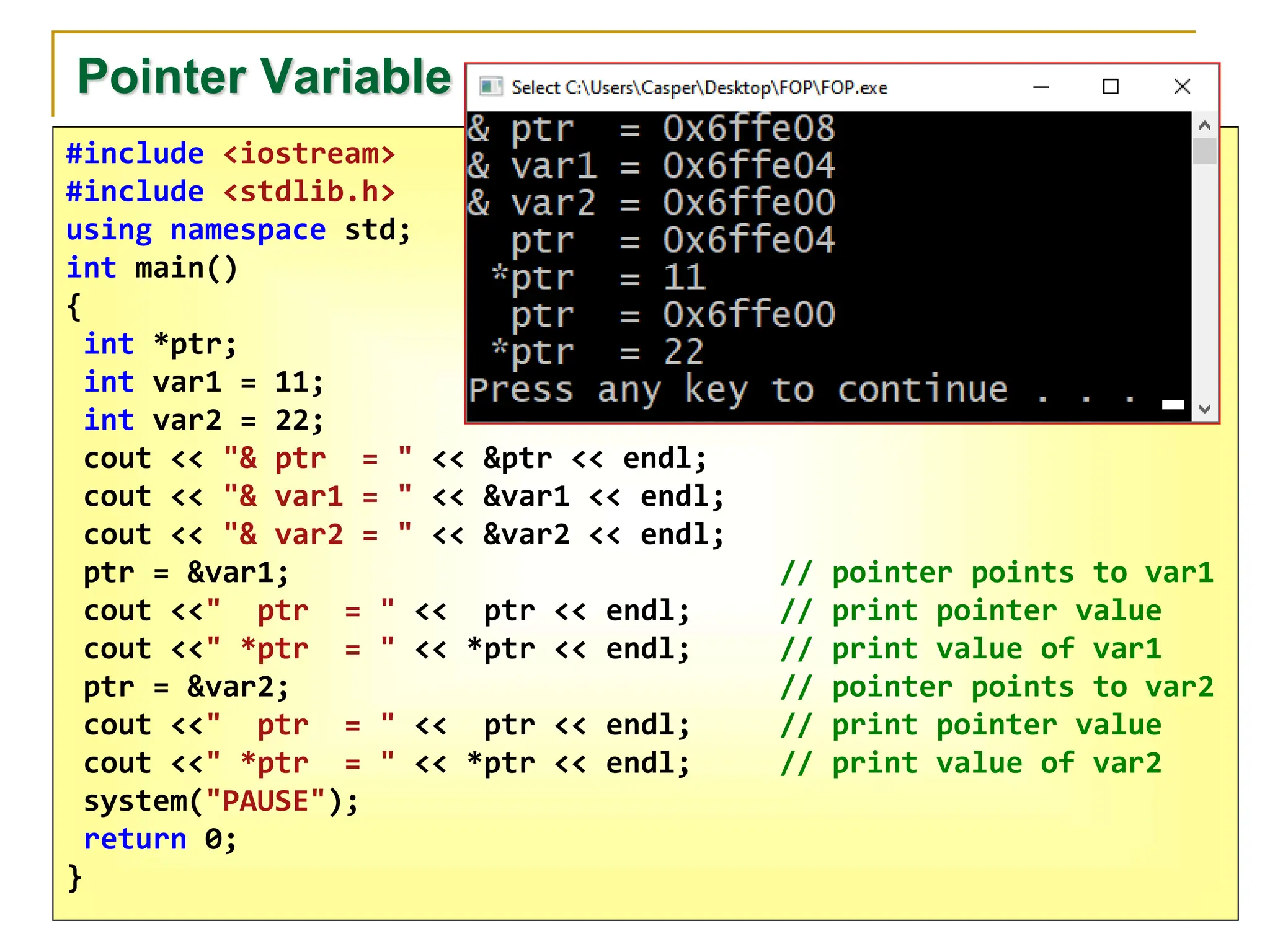

5. Pointer Variable
#include <iostream>
#include <stdlib.h>
using namespace std;
int main()
{
int *ptr;
int var1 = 11;
int var2 = 22;
cout << "& ptr = " << &ptr << endl;
cout << "& var1 = " << &var1 << endl;
cout << "& var2 = " << &var2 << endl;
ptr = &var1; // pointer points to var1
cout <<" ptr = " << ptr << endl; // print pointer value
cout <<" *ptr = " << *ptr << endl; // print value of var1
ptr = &var2; // pointer points to var2
cout <<" ptr = " << ptr << endl; // print pointer value
cout <<" *ptr = " << *ptr << endl; // print value of var2
system("PAUSE");
return 0;
}

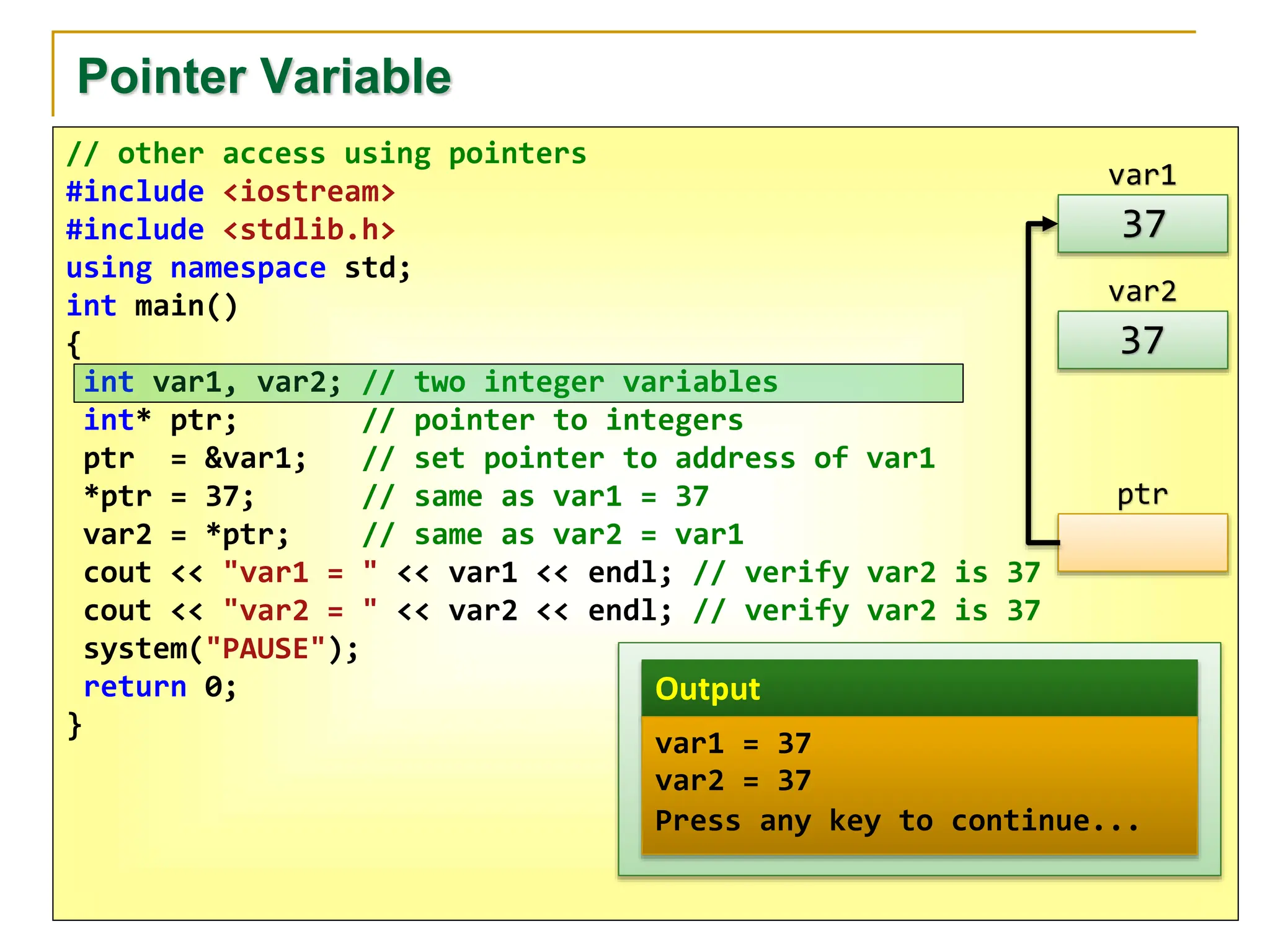

7. Pointer Variable
// other access using pointers
#include <iostream>
#include <stdlib.h>
using namespace std;
int main()
{
int var1, var2; // two integer variables
int* ptr; // pointer to integers
ptr = &var1; // set pointer to address of var1
*ptr = 37; // same as var1 = 37
var2 = *ptr; // same as var2 = var1
cout << "var1 = " << var1 << endl; // verify var2 is 37
cout << "var2 = " << var2 << endl; // verify var2 is 37
system("PAUSE");
return 0;
}
var1
var2
ptr
37
37
Output
var1 = 37
var2 = 37
Press any key to continue...

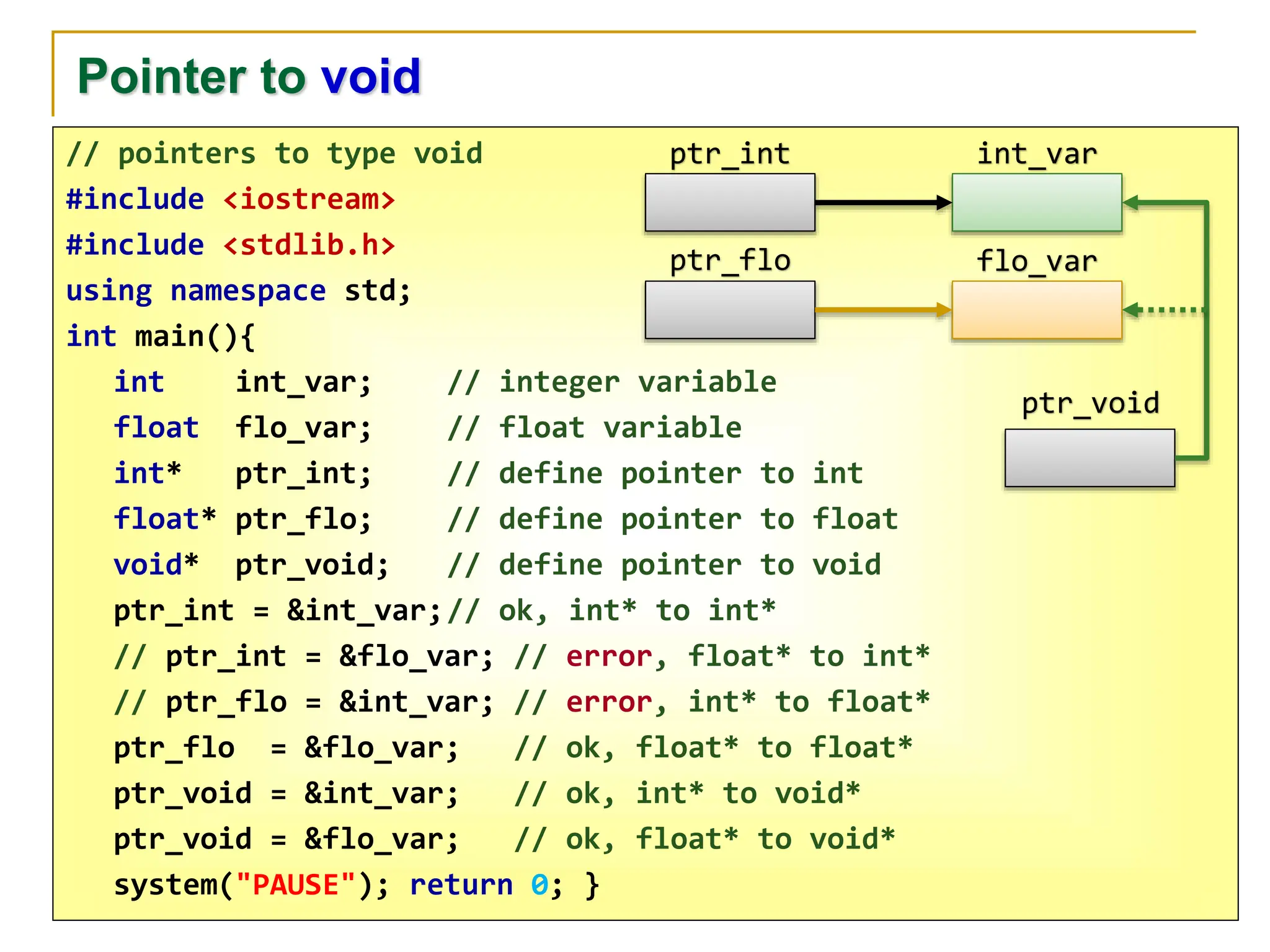

8. Pointer to void
// pointers to type void
#include <iostream>
#include <stdlib.h>
using namespace std;
int main(){
int int_var; // integer variable
float flo_var; // float variable
int* ptr_int; // define pointer to int
float* ptr_flo; // define pointer to float
void* ptr_void; // define pointer to void
ptr_int = &int_var;// ok, int* to int*
// ptr_int = &flo_var; // error, float* to int*
// ptr_flo = &int_var; // error, int* to float*
ptr_flo = &flo_var; // ok, float* to float*
ptr_void = &int_var; // ok, int* to void*
ptr_void = &flo_var; // ok, float* to void*
system("PAUSE"); return 0; }
int_var
flo_var
ptr_int
ptr_flo
ptr_void
9. Pointers and Arrays
// array accessed with pointer notation
#include <iostream>
#include <stdlib.h>
using namespace std;
int main()
{
int intarray[5] =
{ 31, 54, 77, 52, 93 };
for ( int j = 0 ; j < 5 ; j++ )
// print value
cout << *(intarray+j) << endl;
system("PAUSE");
return 0;
}
31
54
77
52
int_array
93
*(int_array
+
4)
*(int_array
+
3)

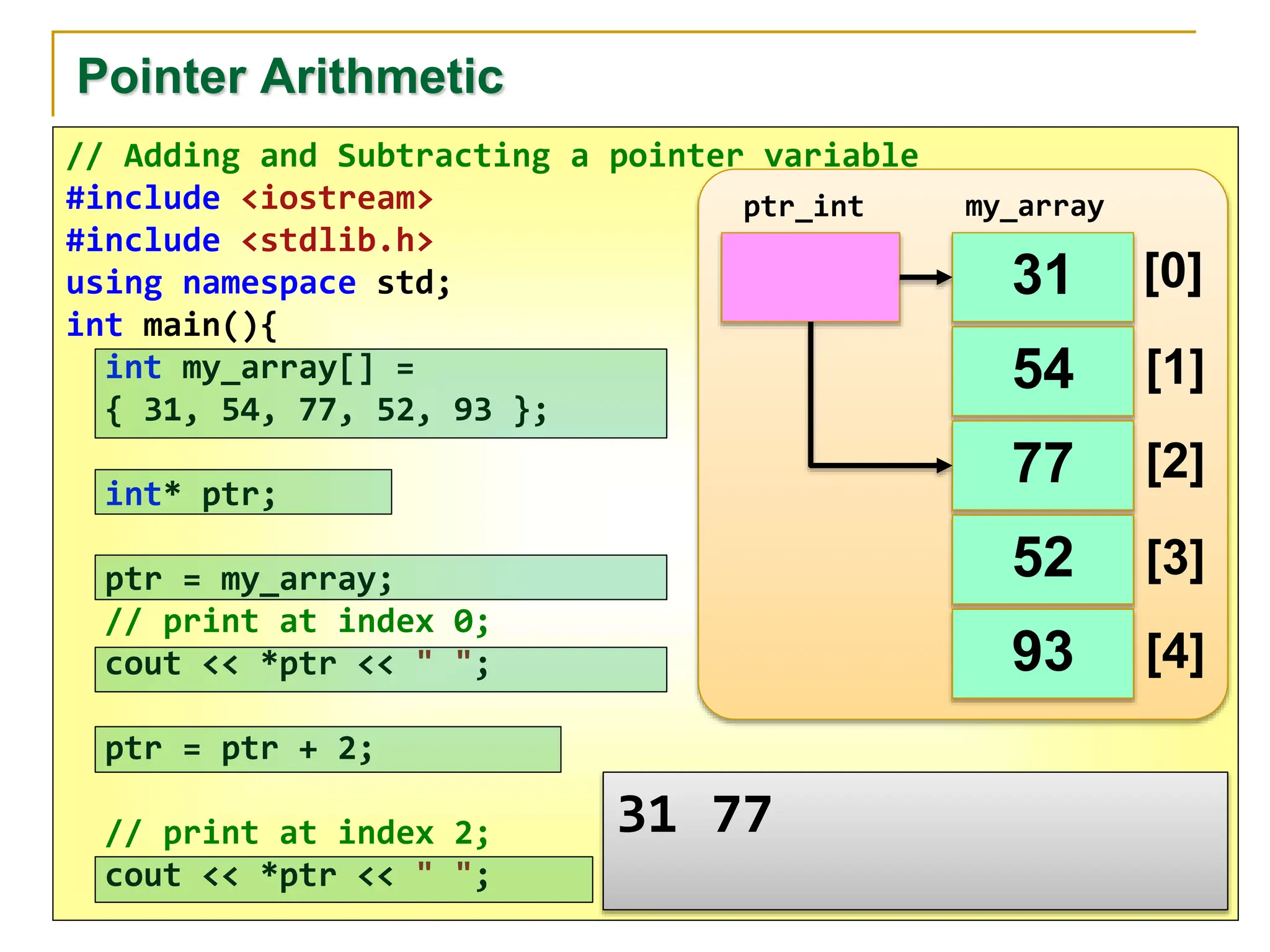

10. Pointer Arithmetic
// Adding and Subtracting a pointer variable
#include <iostream>
#include <stdlib.h>
using namespace std;
int main(){
int my_array[] =
{ 31, 54, 77, 52, 93 };
int* ptr;
ptr = my_array;
// print at index 0;
cout << *ptr << " ";
ptr = ptr + 2;
// print at index 2;
cout << *ptr << " ";
31 77
31
54
77
52
my_array
93
[0]
[1]
[2]
[3]
[4]
ptr_int

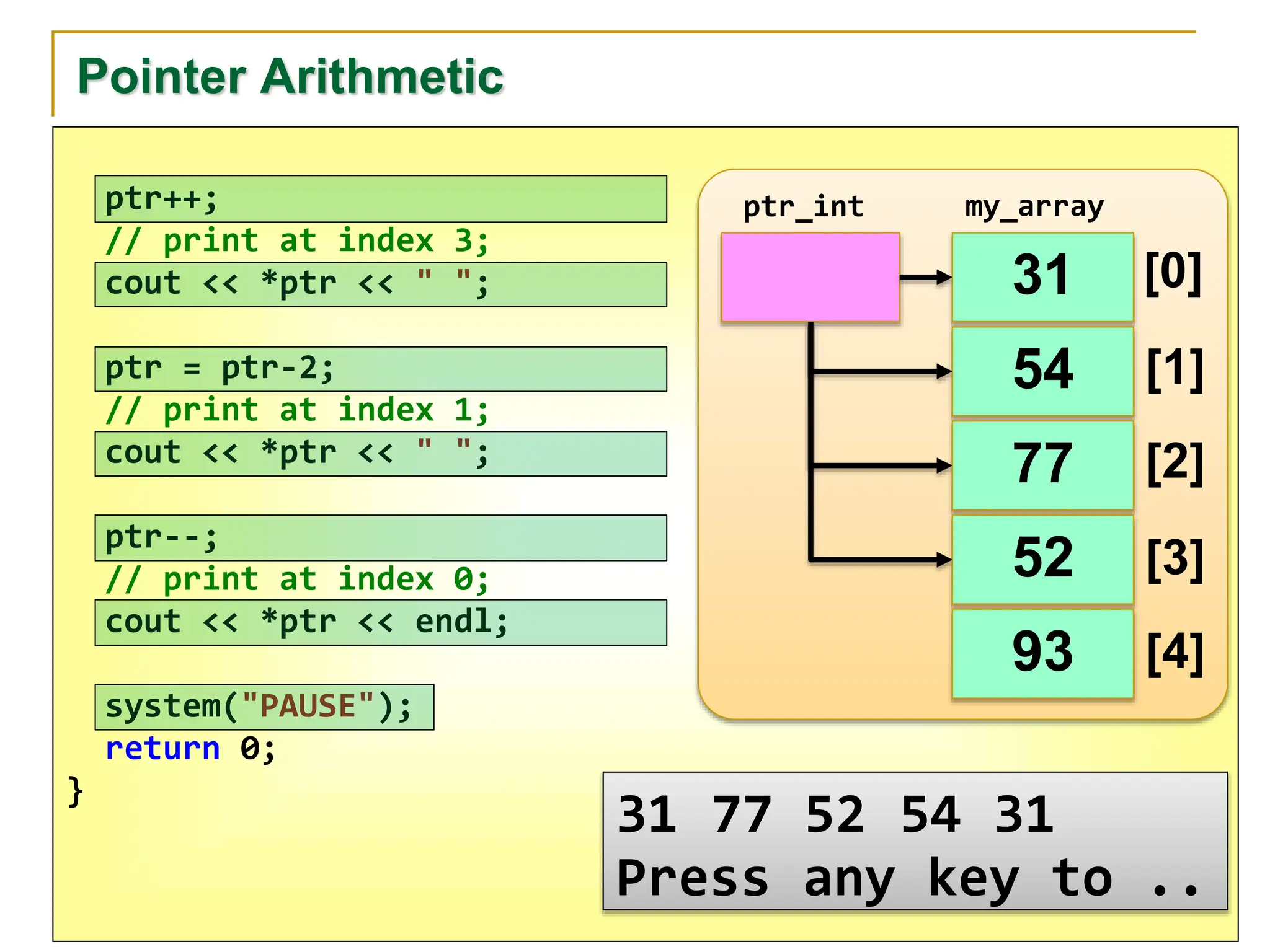

11. Pointer Arithmetic
ptr++;
// print at index 3;
cout << *ptr << " ";
ptr = ptr-2;
// print at index 1;
cout << *ptr << " ";
ptr--;
// print at index 0;
cout << *ptr << endl;
system("PAUSE");
return 0;
}
31 77
31
54
77
52
my_array
93
[0]
[1]
[2]
[3]
[4]
ptr_int
52 54 31
Press any key to ..

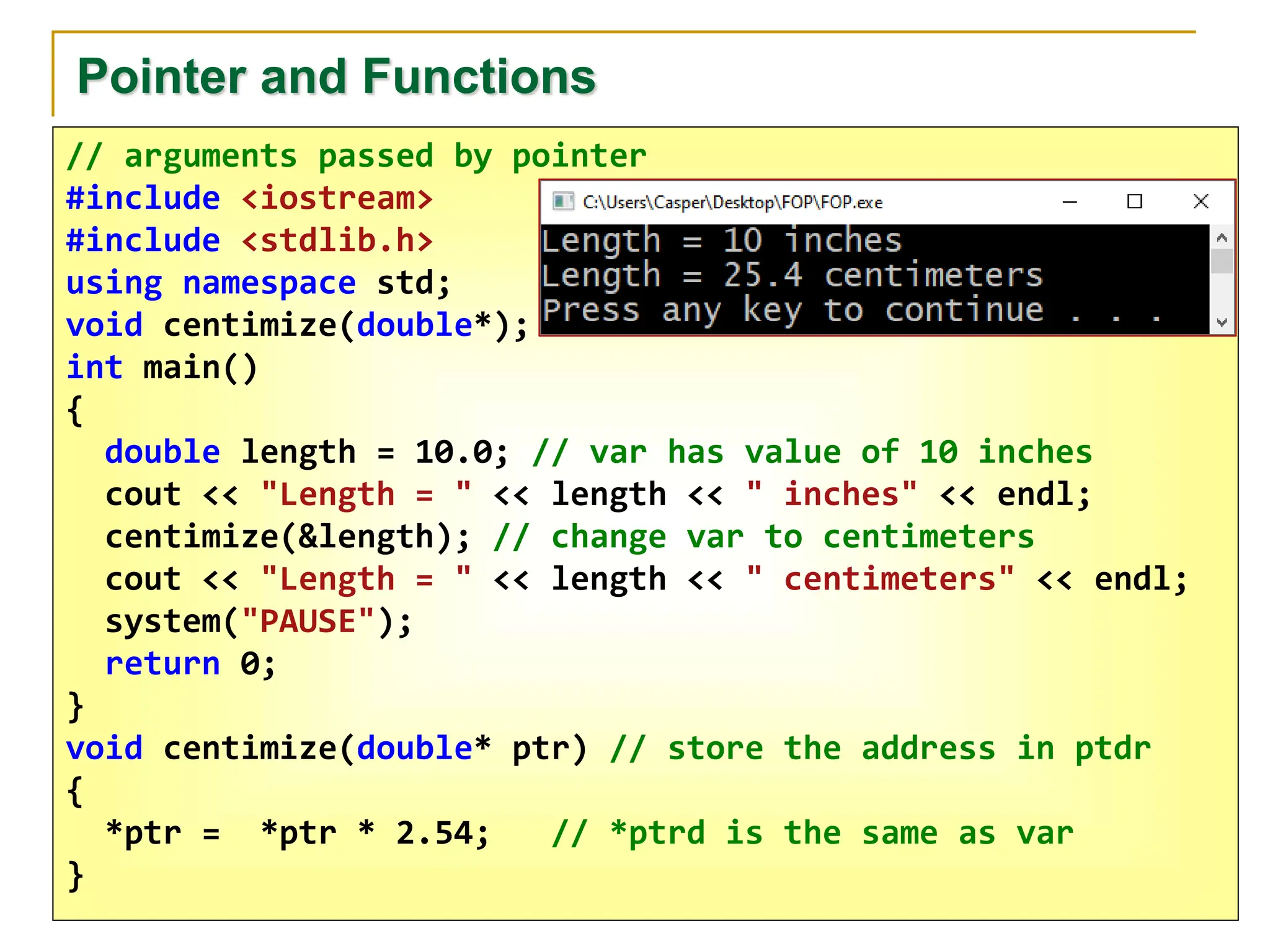

12. Pointer and Functions
// arguments passed by pointer
#include <iostream>
#include <stdlib.h>
using namespace std;
void centimize(double*);
int main()
{
double length = 10.0; // var has value of 10 inches
cout << "Length = " << length << " inches" << endl;
centimize(&length); // change var to centimeters
cout << "Length = " << length << " centimeters" << endl;
system("PAUSE");
return 0;
}
void centimize(double* ptr) // store the address in ptdr
{
*ptr = *ptr * 2.54; // *ptrd is the same as var
}

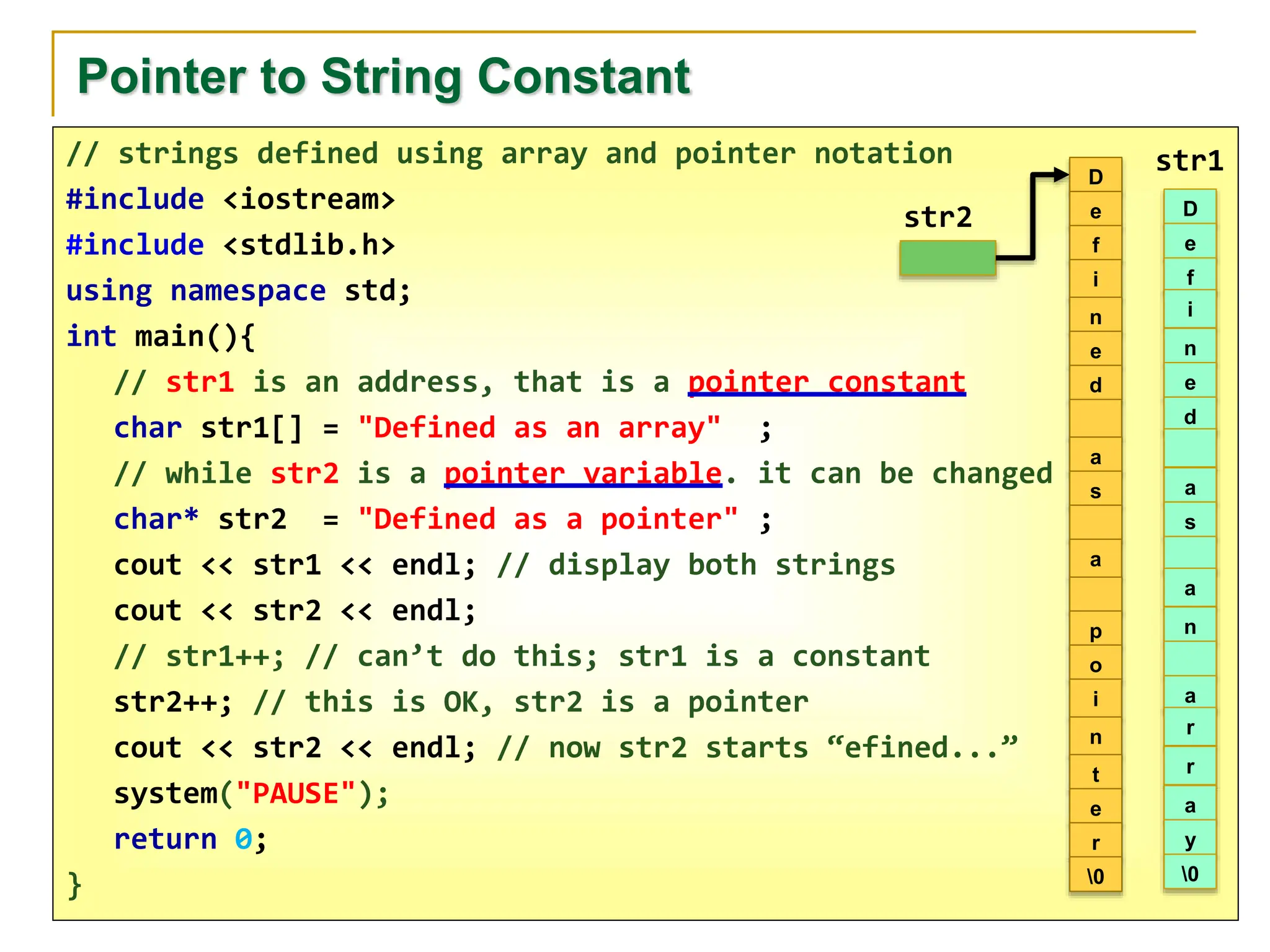

13. Pointer to String Constant
// strings defined using array and pointer notation
#include <iostream>
#include <stdlib.h>
using namespace std;
int main(){
// str1 is an address, that is a pointer constant
char str1[] = "Defined as an array" ;
// while str2 is a pointer variable. it can be changed
char* str2 = "Defined as a pointer" ;
cout << str1 << endl; // display both strings
cout << str2 << endl;
// str1++; // can’t do this; str1 is a constant
str2++; // this is OK, str2 is a pointer
cout << str2 << endl; // now str2 starts “efined...”
system("PAUSE");
return 0;
}
str2
str1
D
e
f
i
n
e
d
a
s
a
n
a
r
r
a
y
0
D
e
f
i
n
e
d
a
s
a
p
o
i
n
t
e
r
0
14. String as Function Argument
// displays a string with pointer notation
#include <iostream>
#include <stdlib.h>
using namespace std;
void dispstr(char*); // prototype
int main()
{
char str[] = "This is amazing" ;
dispstr(str); // display the string
system("PAUSE"); return 0;
}
void dispstr(char* ps){
while( *ps ) // until null ('0') character,
cout << *ps++; // print characters
cout << endl;
}
ps
T
h
i
s
i
s
a
m
a
z
i
n
g
0
str

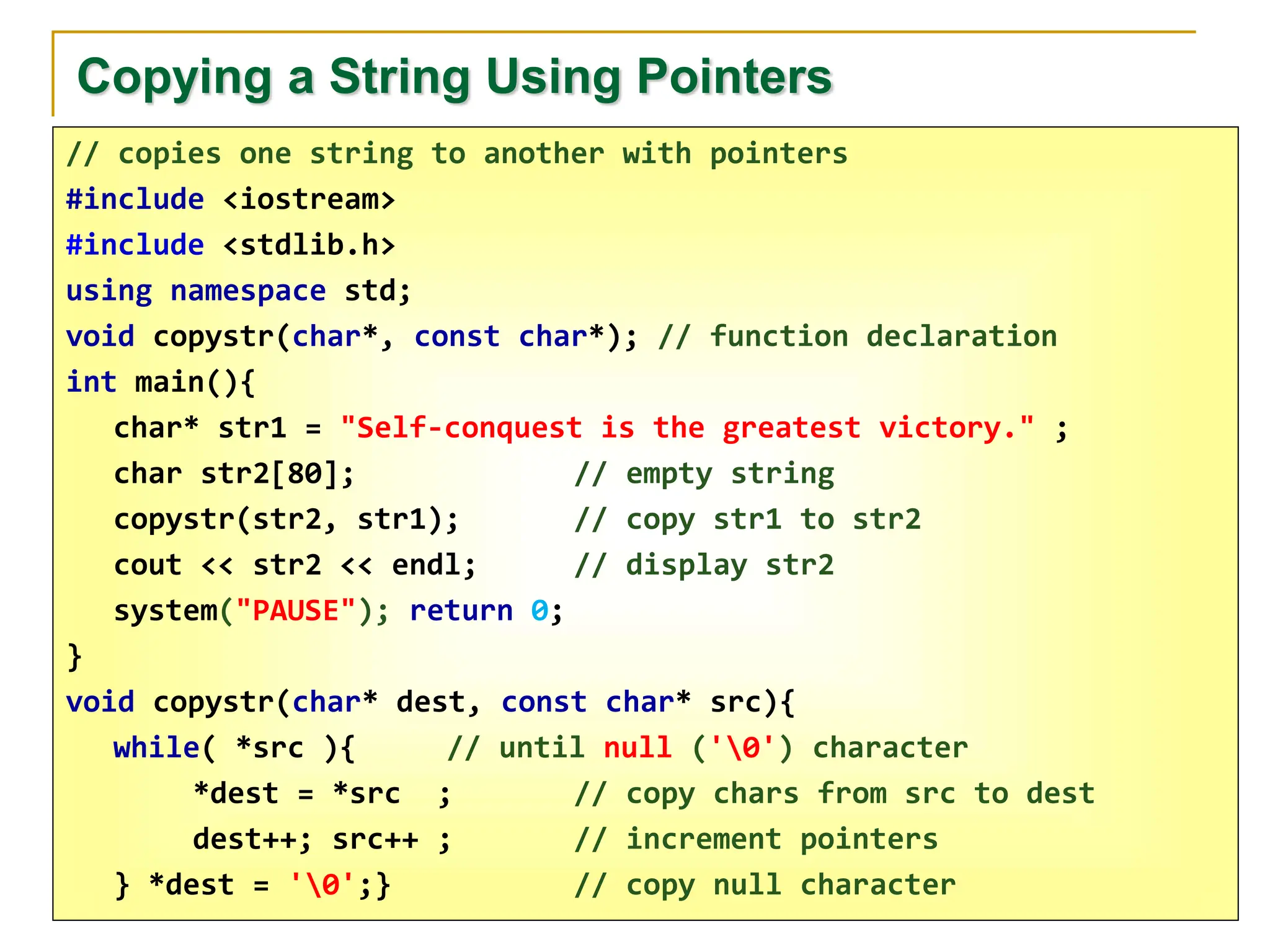

15. Copying a String Using Pointers
// copies one string to another with pointers
#include <iostream>
#include <stdlib.h>
using namespace std;
void copystr(char*, const char*); // function declaration
int main(){
char* str1 = "Self-conquest is the greatest victory." ;
char str2[80]; // empty string
copystr(str2, str1); // copy str1 to str2
cout << str2 << endl; // display str2
system("PAUSE"); return 0;
}
void copystr(char* dest, const char* src){
while( *src ){ // until null ('0') character
*dest = *src ; // copy chars from src to dest
dest++; src++ ; // increment pointers
} *dest = '0';} // copy null character
16. The const Modifier and Pointers
The use of the const modifier with pointer declarations can be
confusing, because it can mean one of two things, depending on
where it’s placed. The following statements show the two
possibilities:
const int* cptrInt; // cptrInt is a pointer to constant int
int* const ptrcInt; // ptrcInt is a constant pointer to int
In the first declaration, you cannot change the value of whatever
cptrInt points to, although you can change cptrInt itself.
In the second declaration, you can change what ptrcInt points to,
but you cannot change the value of ptrcInt itself.
You can remember the difference by reading from right to left, as
indicated in the comments.

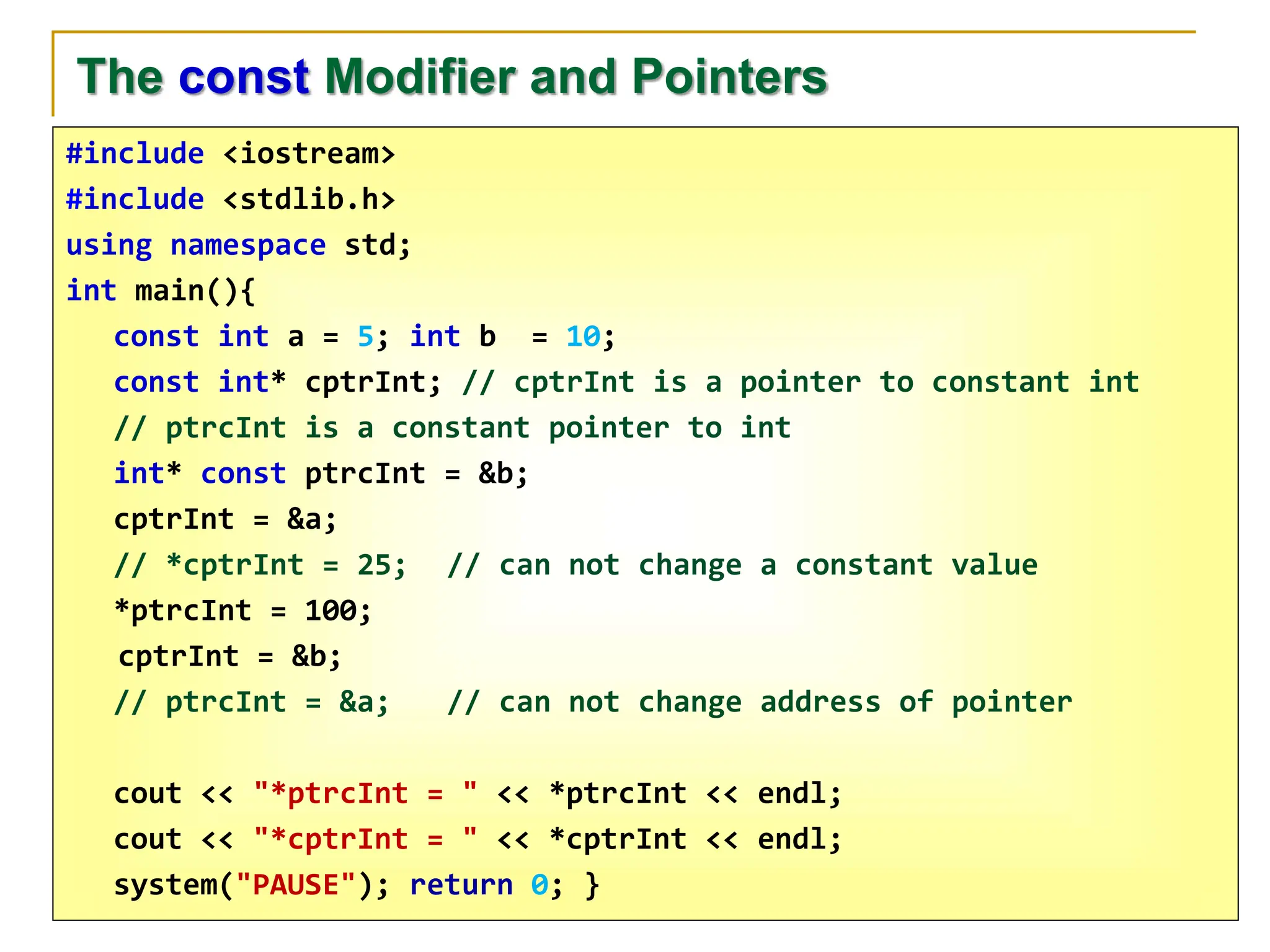

17. The const Modifier and Pointers
#include <iostream>
#include <stdlib.h>
using namespace std;
int main(){
const int a = 5; int b = 10;
const int* cptrInt; // cptrInt is a pointer to constant int
// ptrcInt is a constant pointer to int
int* const ptrcInt = &b;
cptrInt = &a;
// *cptrInt = 25; // can not change a constant value
*ptrcInt = 100;
cptrInt = &b;
// ptrcInt = &a; // can not change address of pointer
cout << "*ptrcInt = " << *ptrcInt << endl;
cout << "*cptrInt = " << *cptrInt << endl;
system("PAUSE"); return 0; }
