This document discusses using Jupyter notebooks, Pandas, and Spark for analytics pipelines on both small and large datasets. It summarizes the challenges of working with different data volumes and timeframes. For small mobile transaction data, notebooks with Pandas and R are used, while larger retail data is analyzed with Spark ML and scikit-learn in notebooks running in Docker containers. Future work includes applying Spark to additional domains and building forecasting and streaming capabilities.

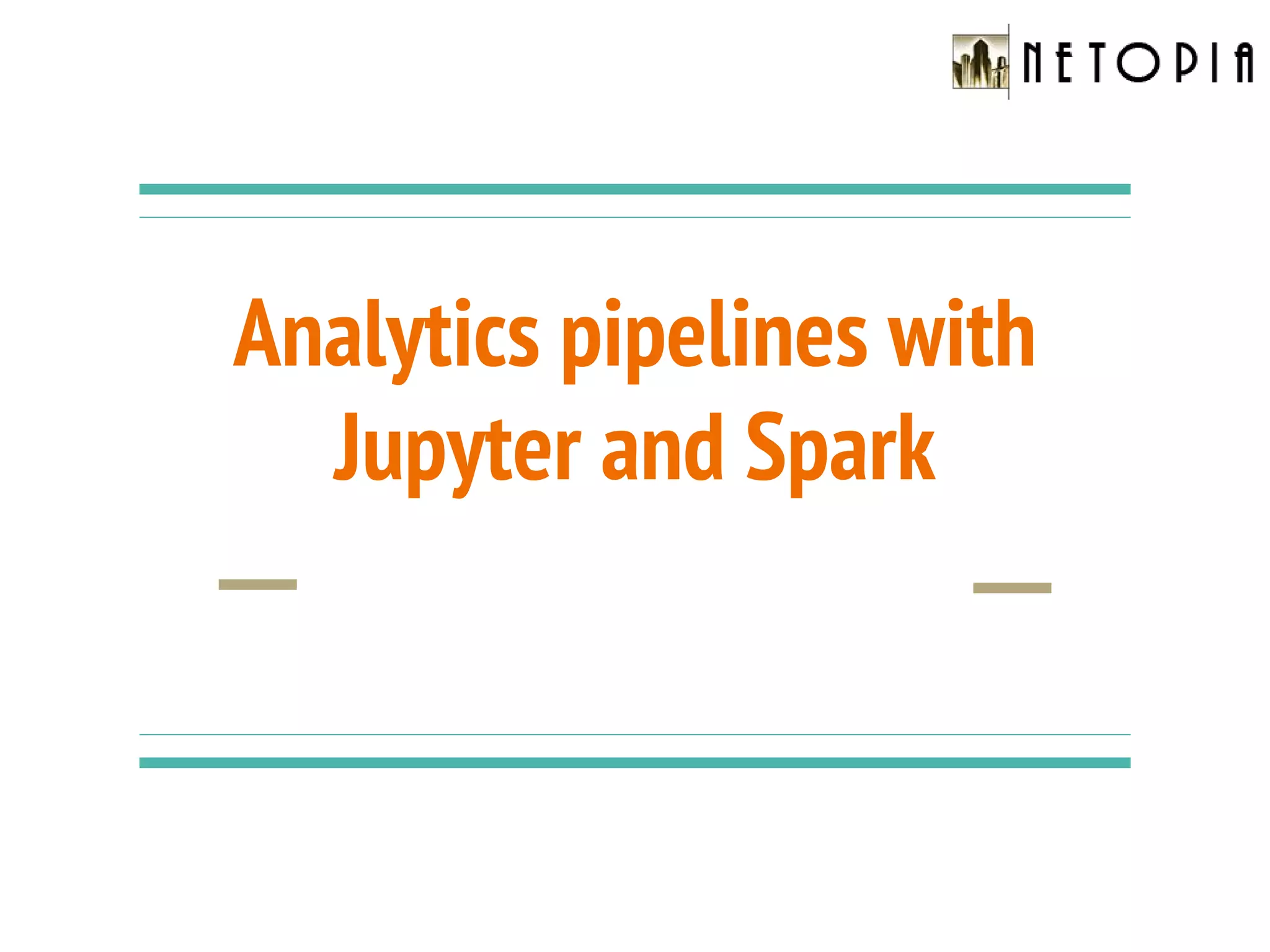

1. Analytics pipelines with
Jupyter and Spark

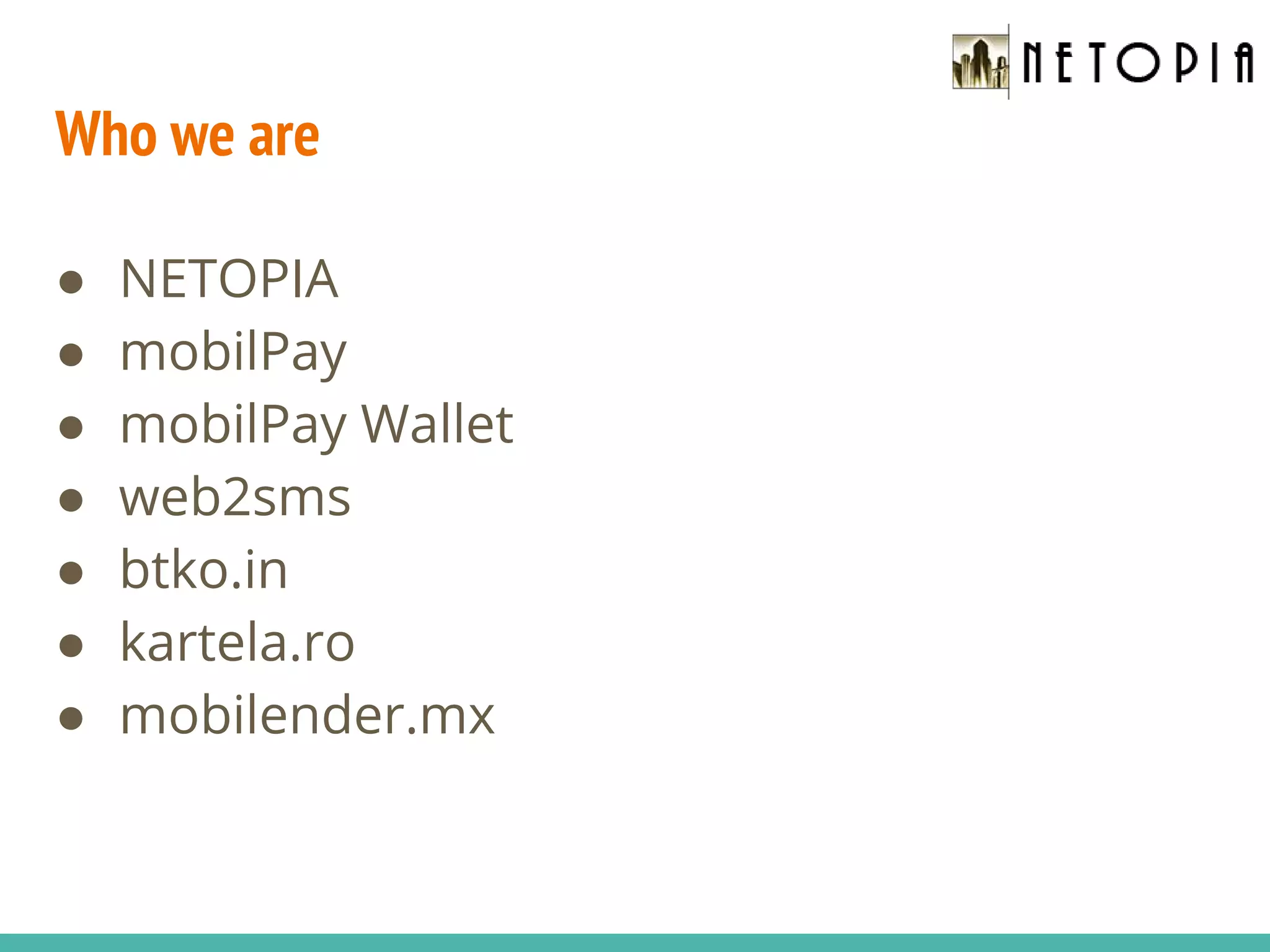

2. Who we are
● NETOPIA
● mobilPay
● mobilPay Wallet
● web2sms
● btko.in
● kartela.ro
● mobilender.mx

3. Challenges

4. Three dimensional problem
● Time: Past events or crystall ball?
● Profile: Who is looking at the data?
● Quantity: How much data is there to look at?

5. Profile
● Data Scientist
● Data Engineer

6. Quantity
● Hundreds of MB to a few GB
● Up to million events/records
vs.
● GB to TB to PB
● Hundreds of millions to billions and beyond
events/records

7. Also
● Computing vs. Storage
● Vertical vs. Horizontal scalability
● Distributed/ML libraries
● Dependency hell

8. Time
NOW
Past Future
Analytics Forecasting
(a.k.a. Prediction)

9. “Classic” Approach
Small Data Big Data
Data Engineer grep, sed, awk Java, Scala, Python, PIG,
Hadoop, lately Spark &
others
Data Scientist R/RStudio No way, Josè!

10. New Approach
Small Data Big Data
Data Engineer
Notebook Technologies: Jupyter (most used),
zeppelin, but also less known ones (Rodeo,
Beaker)
Data Scientist

11. Data analysis with
Jupyter, Pandas and Spark

12. Outline
About the data:
● Set of mobile transactions
● Set (separate) of retail transactions
About the tools: Jupyter, Pandas and Spark
Our experience
Future work

13. Mobile transactions Retail data
Elements of
analysis
Transactions Transactions, Products, Stock data
We know Transaction value, User identifier,
Merchant
Transaction value, Sold products,
Merchant
We don’t know What product was bought Who the user is
Size Hundreds of thousands of entries Hundreds of millions of entries
Status Building prediction models Gathering data
Datasets

14. Mobile transactions data

15. SQL Database
Mobile data: Environment
Preprocessing notebooks
Analysis and model testing notebooks
Pandas R (with rpy2)
scikit-learn Custom code
CSV files
pickle files
Other input sources
Jupyter
notebooks
in Docker
container
with
Anaconda
Diagnostics
Cleaning
Feature building
Raw data
Models
Visualizations

16. Docker image
… with Anaconda
● Anaconda: package manager
for data science
● Using docker-compose for
setting up container
parameters
● Many available images
● Our base image:
○ pyspark from Jupyter Docker
Stacks
○ Extended with required libraries
● Libraries are added or
updated with docker build:
○ Self-contained
○ Easy versioning

17. Jupyter Notebook
(1)
Web application for creating
documents with live code,
explanations and visualizations
● Initially, part of IPython
● Narrative with live code
● Protocol for interactive
exploration
○ Run blocks of code
○ Embedded JS
● Executable documents
○ Code
○ HTML and Markdown
○ Metadata
● Kernels for multiple
languages
○ Python
○ R
○ Scala
○ Bash
● Internal format: JSON

18. Jupyter Notebook
(2)
Web application for creating
documents with live code,
explanations and visualizations
● Plugins and widgets
● Easy to share (formats:
Notebook, PDF, HTML, …)
● Large ecosystem
○ Jupyter Lab / Jupyter Hub
○ GitHub visualizations
○ Blog integration
○ Education: teaching, evaluation
○ Microsoft, Google, Bloomberg,
IBM, O'Reilly
○ Executable books
● Versioning is complicated

19. Pandas
● DataFrame objects
○ Tabular data structures
○ Each column has one data type
● Based on numpy (fast)
● Processing is (mostly) done in
memory
● Data manipulation:
○ Hierarchical indexing
○ Reshaping, pivoting, grouping
○ String operations
○ Time series operations
● Reading / writing from / to
many formats (CSV, JSON,
HDF5, …)
● Visualization: matplotlib,
Seaborn, Bokeh, …
Python library for data
manipulation and analysis

20. rpy2
Interface between Python and
R
● Translates DataFrames
between Python and R
● Python in Jupyter: use %%R
● Direct access to R objects
(rpy2.robjects)

21. Jupyter, Pandas and R
R with Rpy2
Python
HTML and Markdown
Notebook

22. Mobile data: User retention
Active users:
● Classic: 1+ transactions in a given period
● Rolling: 1+ transactions in a given or
subsequent period
Plots:
● X: period (day, week, month)
● Y (cohort): period or another type of
segment
● By transaction criteria (merchant,
product, etc.)
Results:
● Response to campaigns
● Activity recurrence
Cohorts
Periods

23. Mobile data: Correlations
Features:
● How similar are two features?
Merchants:
● Which merchants have common users?
Products:
● Which products are sold together?

24. Mobile data: Clusters
● Group users by behavior
● Identify outliers
● Future: automatic cluster labeling

25. Retail transactions data

26. Retail data: Our experience
First try: Out-of-core processing with HDF5
● Data does did not fit in memory
● HDF5: format for large data
● Pandas + HDF5, Blaze, Dask, Odo
● Easy to use functions
● Library incompatibilities
● Slow queries, use indexes
● Occasional runtime errors

27. Cassandra
Retail data: Environment
Preprocessing notebooks
Analysis and model testing notebooks
Large data:
Spark ML + scikit-learn
Small (selection) data:
Pandas, scikit-learn and R
CSV files
Apache Parquet
Cassandra
Other input sources
Jupyter
notebooks
in Docker
containers
with Spark
and
Anaconda
Diagnostics
Cleaning
Feature building
Raw data
Models
Visualizations
In progress

28. Spark
Engine for big data processing
● DataFrames
○ Built on top of RDDs
○ Similar to Pandas and R
○ SQL queries
○ Automatic query optimization
through query plan
○ String , date-time and statistics
functions
○ Group by, filters
● Jupyter integration: work in
progress
https://cwiki.apache.org/confluence/display/SPARK/PySpark+Internals

29. Spark
Machine Learning
MLlib and ML
● MLlib
○ Uses RDDs
○ Summaries, correlations,
sampling
○ SVMs, logistic regression,
decision trees, ensembles and
Naive Bayes
○ Clustering
○ Feature transformation
● ML
○ Works with DataFrames
○ Many wrappers for MLlib
○ Pipelines:
■ Transformers, Estimators,
Parameters
■ labelCol, featuresCol,
predictionCol, ...
○ R formulas (y ~ x1 + x2)

30. Retail data: Our experience
Current: Spark + Docker
● No issues at current size (several GBs)
● Docker Compose for creating master, workers and Jupyter container
(driver)
● ML libraries are easy to work with
● Incomplete Python API for ML (e.g., summaries)
● Documentation needs improvement
● Model diagnostics
○ Some metrics are available
○ Supplement with scikit-learn (example: build ROC curves)
● scikit-learn or R on top of Spark
○ Parallelize parameter search (e.g., grid search)
○ Spark sklearn (github.com/databricks/spark-sklearn): Grid Search

31. Future work
Mobile wallet transactions:
● Data fits in memory
● Use Spark for distributing workload
ERP transactions:
● Some data fits in memory, after processing
● Build a web app for data exploration
● Forecast
○ Sales
○ Inventory requirements
● Try Spark Streaming
http://xkcd.com/1425/
