Intro to Big Data - Spark

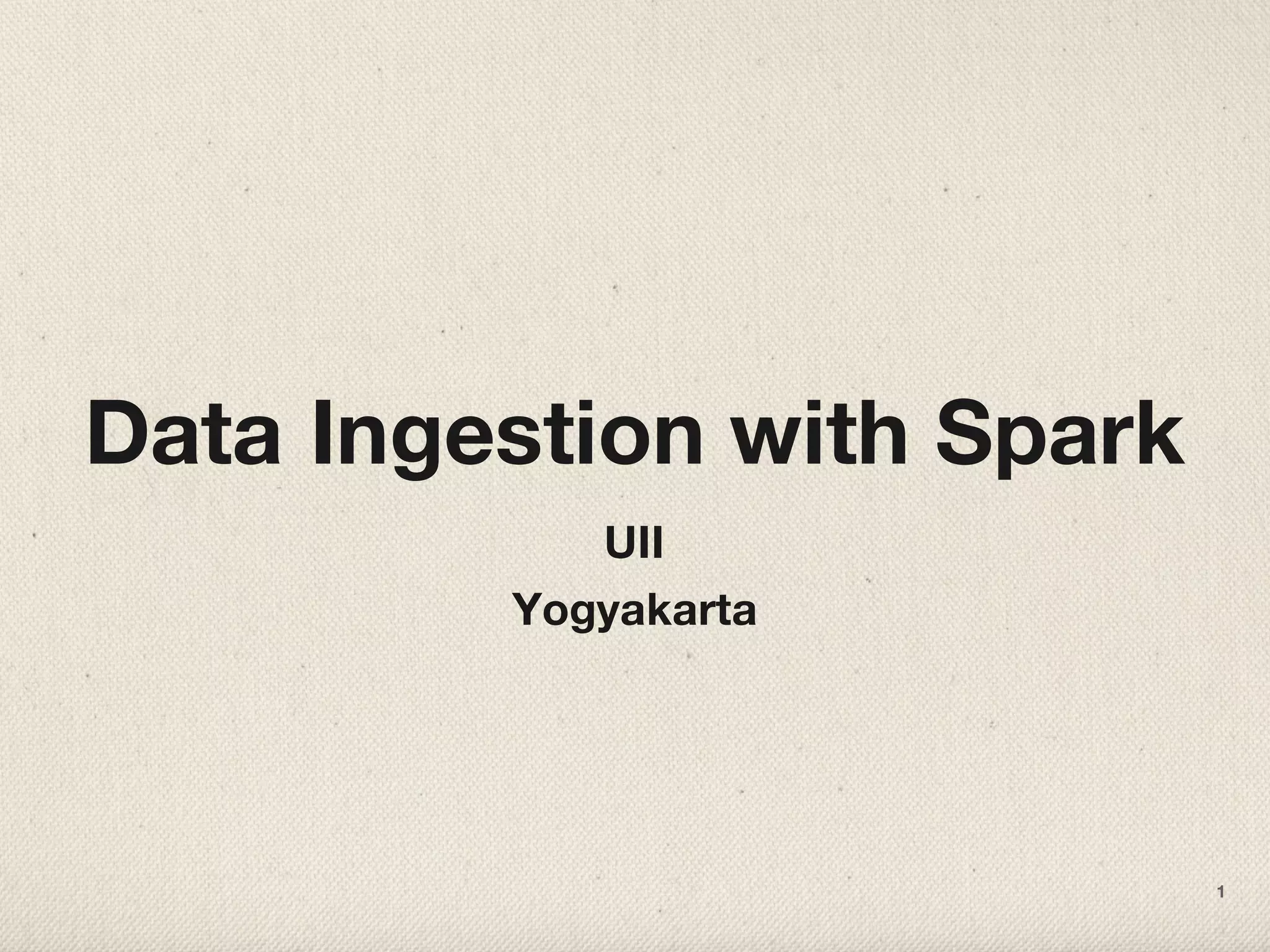

- 1. Data Ingestion with Spark UII Yogyakarta 1
- 2. About Me Sofian Hadiwijaya @sofianhw me@sofianhw.com Co Founder at Pinjam.co.id Tech Advisor at Nodeflux.io Software Innovator (IoT and AI) at Intel 2
- 3. 3
- 4. 4
- 5. 5
- 6. Wikipedia big data In information technology, big data is a loosely-defined term used to describe data sets so large and complex that they become awkward to work with using on-hand database management tools. 6Source: http://en.wikipedia.org/wiki/Big_data
- 7. How big is big? • 2008: Google processes 20 PB a day • 2009: Facebook has 2.5 PB user data + 15 TB/day • 2009: eBay has 6.5 PB user data + 50 TB/day • 2011: Yahoo! has 180-200 PB of data • 2012: Facebook ingests 500 TB/day 7
- 8. That’s a lot of data 8Credit: http://www.flickr.com/photos/19779889@N00/1367404058/
- 10. No really, what do you do with it? • User behavior analysis • AB test analysis • Ad targeting • Trending topics • User and topic modeling • Recommendations • And more... 10
- 11. How to scale data? 11
- 13. Parallel processing is complicated • How do we assign tasks to workers? • What if we have more tasks than slots? • What happens when tasks fail? • How do you handle distributed synchronization? 13Credit: http://www.flickr.com/photos/sybrenstuvel/2468506922/
- 14. Data storage is not trivial • Data volumes are massive • Reliably storing PBs of data is challenging • Disk/hardware/network failures • Probability of failure event increases with number of machines For example: 1000 hosts, each with 10 disks a disk lasts 3 year how many failures per day? 14
- 15. Hadoop cluster 15 Cluster of machine running Hadoop at Yahoo! (credit: Yahoo!)
- 16. Hadoop 16
- 17. Hadoop provides • Redundant, fault-tolerant data storage • Parallel computation framework • Job coordination 17http://hapdoop.apache.org
- 19. Hadoop origins • Hadoop is an open-source implementation based on GFS and MapReduce from Google • Sanjay Ghemawat, Howard Gobioff, and Shun- Tak Leung. (2003) The Google File System • Jeffrey Dean and Sanjay Ghemawat. (2004) MapReduce: Simplified Data Processing on Large Clusters. OSDI 2004 19
- 20. Hadoop Stack 20 MapReduce (Distributed Programming Framework) Pig (Data Flow) Hive (SQL) HDFS (Hadoop Distributed File System) Cascading (Java) HBase (ColumnarDatabase)
- 21. HDFS 21
- 22. HDFS is... • A distributed file system • Redundant storage • Designed to reliably store data using commodity hardware • Designed to expect hardware failures • Intended for large files • Designed for batch inserts • The Hadoop Distributed File System 22
- 23. HDFS - files and blocks • Files are stored as a collection of blocks • Blocks are 64 MB chunks of a file (configurable) • Blocks are replicated on 3 nodes (configurable) • The NameNode (NN) manages metadata about files and blocks • The SecondaryNameNode (SNN) holds a backup of the NN data • DataNodes (DN) store and serve blocks 23
- 24. Replication • Multiple copies of a block are stored • Replication strategy: • Copy #1 on another node on same rack • Copy #2 on another node on different rack 24
- 25. HDFS - writes 25 DataNode Block Slave node NameNode e Master DataNode Block Slave node DataNode Block Slave node File Client Rack #1 Rack #2 Note: Write path for a single block shown. Client writes multiple blocks in parallel. block
- 26. HDFS - reads 26 DataNode Block Slave node NameNode e Master DataNode Block Slave node DataNode Block Slave node File Client Client reads multiple blocks in parallel and re-assembles into a file. block 1 block 2 block N
- 27. What about DataNode failures? • DNs check in with the NN to report health • Upon failure NN orders DNs to replicate under- replicated blocks 27Credit: http://www.flickr.com/photos/18536761@N00/367661087/
- 28. MapReduce 28
- 29. MapReduce is... • A programming model for expressing distributed computations at a massive scale • An execution framework for organizing and performing such computations • An open-source implementation called Hadoop 29
- 30. Typical large-data problem • Iterate over a large number of records • Extract something of interest from each • Shuffle and sort intermediate results • Aggregate intermediate results • Generate final output 30 Map Reduce (Dean and Ghemawat, OSDI 2004)
- 32. MapReduce architecture 32 TaskTracker Task Slave node JobTracker Master TaskTracker Task Slave node TaskTracker Task Slave node Job Client
- 33. What about failed tasks? • Tasks will fail • JT will retry failed tasks up to N attempts • After N failed attempts for a task, job fails • Some tasks are slower than other • Speculative execution is JT starting up multiple of the same task • First one to complete wins, other is killed 33Credit: http://www.flickr.com/photos/phobia/2308371224/
- 34. MapReduce - Java API • Mapper: void map(WritableComparable key, Writable value, OutputCollector output, Reporter reporter) • Reducer: void reduce(WritableComparable key, Iterator values, OutputCollector output, Reporter reporter) 34
- 35. MapReduce - Java API • Writable • Hadoop wrapper interface • Text, IntWritable, LongWritable, etc • WritableComparable • Writable classes implement WritableComparable • OutputCollector • Class that collects keys and values • Reporter • Reports progress, updates counters • InputFormat • Reads data and provide InputSplits • Examples: TextInputFormat, KeyValueTextInputFormat • OutputFormat • Writes data • Examples: TextOutputFormat, SequenceFileOutputFormat 35
- 36. MapReduce - Counters are... • A distributed count of events during a job • A way to indicate job metrics without logging • Your friend • Bad: System.out.println(“Couldn’t parse value”); • Good: reporter.incrCounter(BadParseEnum, 1L); 36
- 37. MapReduce - word count mapper public static class Map extends MapReduceBase implements Mapper<LongWritable, Text, Text, IntWritable> { private final static IntWritable one = new IntWritable(1); private Text word = new Text(); public void map(LongWritable key, Text value, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException { String line = value.toString(); StringTokenizer tokenizer = new StringTokenizer(line); while (tokenizer.hasMoreTokens()) { word.set(tokenizer.nextToken()); output.collect(word, one); } } } 37
- 38. MapReduce - word count reducer public static class Reduce extends MapReduceBase implements Reducer<Text, IntWritable, Text, IntWritable> { public void reduce(Text key, Iterator<IntWritable> values, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException { int sum = 0; while (values.hasNext()) { sum += values.next().get(); } output.collect(key, new IntWritable(sum)); } } 38
- 39. MapReduce - word count main public static void main(String[] args) throws Exception { JobConf conf = new JobConf(WordCount.class); conf.setJobName("wordcount"); conf.setOutputKeyClass(Text.class); conf.setOutputValueClass(IntWritable.class); conf.setMapperClass(Map.class); conf.setCombinerClass(Reduce.class); conf.setReducerClass(Reduce.class); conf.setInputFormat(TextInputFormat.class); conf.setOutputFormat(TextOutputFormat.class); FileInputFormat.setInputPaths(conf, new Path(args[0])); FileOutputFormat.setOutputPath(conf, new Path(args[1])); JobClient.runJob(conf); } 39
- 40. MapReduce - running a job • To run word count, add files to HDFS and do: $ bin/hadoop jar wordcount.jar org.myorg.WordCount input_dir output_dir 40
- 41. MapReduce is good for... • Embarrassingly parallel algorithms • Summing, grouping, filtering, joining • Off-line batch jobs on massive data sets • Analyzing an entire large dataset 41
- 42. MapReduce is ok for... • Iterative jobs (i.e., graph algorithms) • Each iteration must read/write data to disk • IO and latency cost of an iteration is high 42
- 43. MapReduce is not good for... • Jobs that need shared state/coordination • Tasks are shared-nothing • Shared-state requires scalable state store • Low-latency jobs • Jobs on small datasets • Finding individual records 43
- 44. Hadoop combined architecture 44 TaskTracker DataNode Slave node JobTracker Master TaskTracker DataNode Slave node TaskTracker DataNode Slave node SecondaryNameNode Backup NameNode
- 46. Welcome Spark 46
- 47. What is Spark? Distributed data analytics engine, generalizing Map Reduce Core engine, with streaming, SQL, machine learning, and graph processing modules
- 48. Most Active Big Data Project Activity in last 30 days* *as of June 1, 2014 0 50 100 150 200 250 Patches MapReduce Storm Yarn Spark 0 5000 10000 15000 20000 25000 30000 35000 40000 45000 Lines Added MapReduce Storm Yarn Spark 0 2000 4000 6000 8000 10000 12000 14000 16000 Lines Removed MapReduce Storm Yarn Spark
- 49. Big Data Systems Today MapReduce Pregel Dremel GraphLab Storm Giraph Drill Impala S4 … Specialized systems (iterative, interactive and streaming apps) General batch processing Unified platform
- 50. Spark Core: RDDs Distributed collection of objects What’s cool about them? • In-memory • Built via parallel transformations (map, filter, …) • Automatically rebuilt on failure
- 51. Data Sharing in MapReduce iter. 1 iter. 2 . . . Input HDFS read HDFS write HDFS read HDFS write Input query 1 query 2 query 3 result 1 result 2 result 3 . . . HDFS read Slow due to replication, serialization, and disk IO
- 52. iter. 1 iter. 2 . . . Input What We’d Like Distributed memory Input query 1 query 2 query 3 . . . one-time processing 10-100× faster than network and disk
- 53. A Unified Platform MLlib machine learning Spark Streaming real-time Spark Core GraphX graph Spark SQL
- 54. Spark SQL Unify tables with RDDs Tables = Schema + Data
- 55. Spark SQL Unify tables with RDDs Tables = Schema + Data = SchemaRDD coolPants = sql(""" SELECT pid, color FROM pants JOIN opinions WHERE opinions.coolness > 90""") chosenPair = coolPants.filter(lambda row: row(1) == "green").take(1)
- 56. GraphX Unifies graphs with RDDs of edges and vertices
- 57. GraphX Unifies graphs with RDDs of edges and vertices
- 58. GraphX Unifies graphs with RDDs of edges and vertices
- 59. GraphX Unifies graphs with RDDs of edges and vertices
- 61. MLlib Vectors, Matrices = RDD[Vector] Iterative computation
- 63. Spark Streaming RD D RD D RD D RD D RD D RD D Time Express streams as a series of RDDs over time val pantsers = spark.sequenceFile(“hdfs:/pantsWearingUsers”) spark.twitterStream(...) .filter(t => t.text.contains(“Hadoop”)) .transform(tweets => tweets.map(t => (t.user, t)).join(pantsers) .print()
- 64. What it Means for Users Separate frameworks: … HDFS read HDFS write ETL HDFS read HDFS write train HDFS read HDFS write query HDFS HDFS read ETL train query Spark: Interactive analysis
- 65. Spark Cluster 65
- 66. Benefits of Unification • No copying or ETLing data between systems • Combine processing types in one program • Code reuse • One system to learn • One system to maintain
- 68. 68
- 70. Data collection • Happens where data originates • “logging code” • Batch v. Streaming • Pull v. Push 70
- 71. Data Ingestion • Receives data • Sometimes coupled with storage • Routing data 71
