Cyogenic rocket engine report
1. DEPT MECHANICAL ,SEACET 1
CRYOGENICROCKET ENGINE

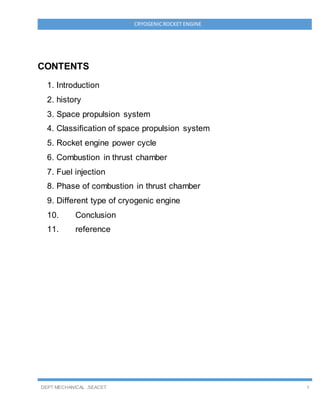

CONTENTS
1. Introduction
2. history

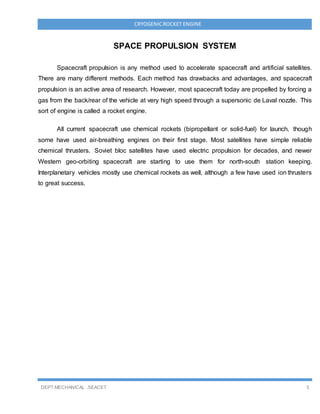

3. Space propulsion system
4. Classification of space propulsion system

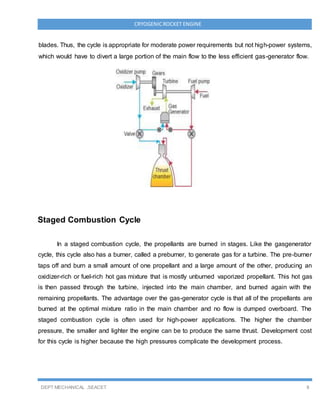

5. Rocket engine power cycle
6. Combustion in thrust chamber
7. Fuel injection

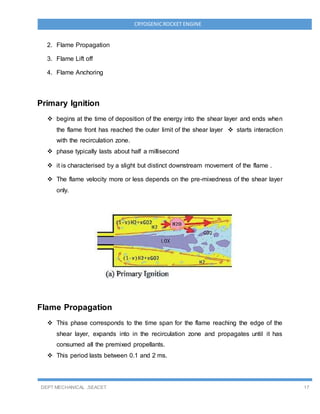

8. Phase of combustion in thrust chamber
9. Different type of cryogenic engine
10. Conclusion
11. reference
2. DEPT MECHANICAL ,SEACET 2
CRYOGENICROCKET ENGINE

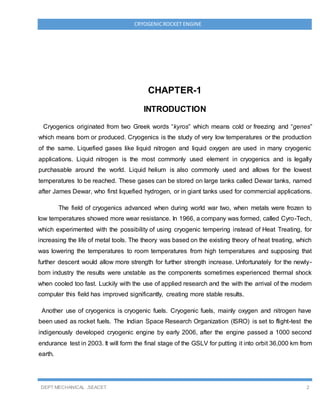

CHAPTER-1
INTRODUCTION
Cryogenics originated from two Greek words “kyros” which means cold or freezing and “genes”
which means born or produced. Cryogenics is the study of very low temperatures or the production
of the same. Liquefied gases like liquid nitrogen and liquid oxygen are used in many cryogenic
applications. Liquid nitrogen is the most commonly used element in cryogenics and is legally
purchasable around the world. Liquid helium is also commonly used and allows for the lowest
temperatures to be reached. These gases can be stored on large tanks called Dewar tanks, named
after James Dewar, who first liquefied hydrogen, or in giant tanks used for commercial applications.
The field of cryogenics advanced when during world war two, when metals were frozen to
low temperatures showed more wear resistance. In 1966, a company was formed, called Cyro-Tech,
which experimented with the possibility of using cryogenic tempering instead of Heat Treating, for
increasing the life of metal tools. The theory was based on the existing theory of heat treating, which
was lowering the temperatures to room temperatures from high temperatures and supposing that
further descent would allow more strength for further strength increase. Unfortunately for the newly-
born industry the results were unstable as the components sometimes experienced thermal shock
when cooled too fast. Luckily with the use of applied research and the with the arrival of the modern
computer this field has improved significantly, creating more stable results.
Another use of cryogenics is cryogenic fuels. Cryogenic fuels, mainly oxygen and nitrogen have
been used as rocket fuels. The Indian Space Research Organization (ISRO) is set to flight-test the
indigenously developed cryogenic engine by early 2006, after the engine passed a 1000 second
endurance test in 2003. It will form the final stage of the GSLV for putting it into orbit 36,000 km from
earth.
3. DEPT MECHANICAL ,SEACET 3
CRYOGENICROCKET ENGINE

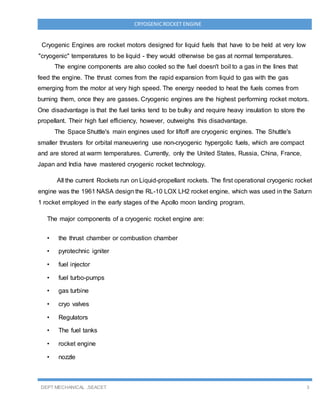

Cryogenic Engines are rocket motors designed for liquid fuels that have to be held at very low
"cryogenic" temperatures to be liquid - they would otherwise be gas at normal temperatures.
The engine components are also cooled so the fuel doesn't boil to a gas in the lines that
feed the engine. The thrust comes from the rapid expansion from liquid to gas with the gas
emerging from the motor at very high speed. The energy needed to heat the fuels comes from
burning them, once they are gasses. Cryogenic engines are the highest performing rocket motors.
One disadvantage is that the fuel tanks tend to be bulky and require heavy insulation to store the
propellant. Their high fuel efficiency, however, outweighs this disadvantage.
The Space Shuttle's main engines used for liftoff are cryogenic engines. The Shuttle's
smaller thrusters for orbital maneuvering use non-cryogenic hypergolic fuels, which are compact
and are stored at warm temperatures. Currently, only the United States, Russia, China, France,
Japan and India have mastered cryogenic rocket technology.
All the current Rockets run on Liquid-propellant rockets. The first operational cryogenic rocket
engine was the 1961 NASA design the RL-10 LOX LH2 rocket engine, which was used in the Saturn
1 rocket employed in the early stages of the Apollo moon landing program.
The major components of a cryogenic rocket engine are:
• the thrust chamber or combustion chamber
• pyrotechnic igniter
• fuel injector
• fuel turbo-pumps
• gas turbine
• cryo valves
• Regulators
• The fuel tanks
• rocket engine
• nozzle
4. DEPT MECHANICAL ,SEACET 4
CRYOGENICROCKET ENGINE
Among them, the combustion chamber & the nozzle are the main components of the rocket
engine.
CHAPTER-2
HISTORY

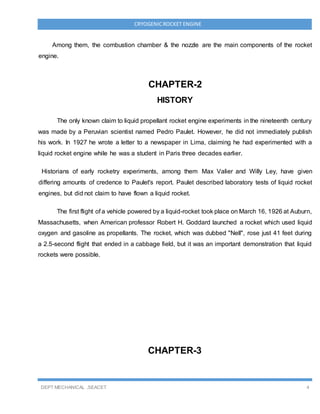

The only known claim to liquid propellant rocket engine experiments in the nineteenth century
was made by a Peruvian scientist named Pedro Paulet. However, he did not immediately publish
his work. In 1927 he wrote a letter to a newspaper in Lima, claiming he had experimented with a
liquid rocket engine while he was a student in Paris three decades earlier.
Historians of early rocketry experiments, among them Max Valier and Willy Ley, have given
differing amounts of credence to Paulet's report. Paulet described laboratory tests of liquid rocket
engines, but did not claim to have flown a liquid rocket.
The first flight of a vehicle powered by a liquid-rocket took place on March 16, 1926 at Auburn,
Massachusetts, when American professor Robert H. Goddard launched a rocket which used liquid
oxygen and gasoline as propellants. The rocket, which was dubbed "Nell", rose just 41 feet during
a 2.5-second flight that ended in a cabbage field, but it was an important demonstration that liquid
rockets were possible.
CHAPTER-3
5. DEPT MECHANICAL ,SEACET 5
CRYOGENICROCKET ENGINE
SPACE PROPULSION SYSTEM
Spacecraft propulsion is any method used to accelerate spacecraft and artificial satellites.
There are many different methods. Each method has drawbacks and advantages, and spacecraft
propulsion is an active area of research. However, most spacecraft today are propelled by forcing a
gas from the back/rear of the vehicle at very high speed through a supersonic de Laval nozzle. This
sort of engine is called a rocket engine.
All current spacecraft use chemical rockets (bipropellant or solid-fuel) for launch, though
some have used air-breathing engines on their first stage. Most satellites have simple reliable
chemical thrusters. Soviet bloc satellites have used electric propulsion for decades, and newer
Western geo-orbiting spacecraft are starting to use them for north-south station keeping.
Interplanetary vehicles mostly use chemical rockets as well, although a few have used ion thrusters
to great success.
6. DEPT MECHANICAL ,SEACET 6
CRYOGENICROCKET ENGINE
CHAPTER-4

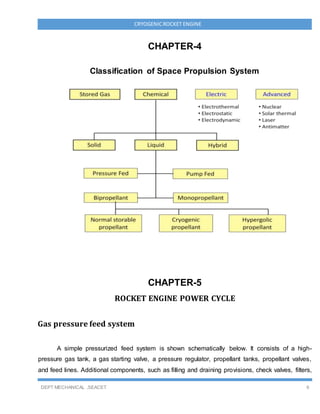

Classification of Space Propulsion System
CHAPTER-5
ROCKET ENGINE POWER CYCLE
Gas pressure feed system
A simple pressurized feed system is shown schematically below. It consists of a high-
pressure gas tank, a gas starting valve, a pressure regulator, propellant tanks, propellant valves,
and feed lines. Additional components, such as filling and draining provisions, check valves, filters,
7. DEPT MECHANICAL ,SEACET 7
CRYOGENICROCKET ENGINE
flexible elastic bladders for separating the liquid from the pressurizing gas, and pressure sensors or
gauges, are also often incorporated. After all tanks are filled, the high-pressure gas valve is remotely
actuated and admits gas through the pressure regulator at a constant pressure to the propellant
tanks. The check valves prevent mixing of the oxidizer with the fuel when the unit is not in an right
position. The propellants are fed to the thrust chamber by opening valves. When the propellants are
completely consumed, the pressurizing gas can also scavenge and clean lines and valves of much
of the liquid propellant residue. The variations in this system, such as the combination of several
valves into one or the elimination and addition of certain components, depend to a large extent on
the application. If a unit is to be used over and over, such as space-maneuver rocket, it will include
several additional features such as, possibly, a thrust-regulating device and a tank level gauge.
Gas-Generator Cycle
The gas-generator cycle taps off a small amount of fuel and oxidizer from the main flow to feed a
burner called a gas generator. The hot gas from this generator passes through a turbine to generate
power for the pumps that send propellants to the combustion chamber. The hot gas is then either
dumped overboard or sent into the main nozzle downstream. Increasing the flow of propellants into
the gas generator increases the speed of the turbine, which increases the flow of propellants into
the main combustion chamber (and hence, the amount of thrust produced). The gas generator must
burn propellants at a less-than-optimal mixture ratio to keep the temperature low for the turbine
8. DEPT MECHANICAL ,SEACET 8
CRYOGENICROCKET ENGINE
blades. Thus, the cycle is appropriate for moderate power requirements but not high-power systems,
which would have to divert a large portion of the main flow to the less efficient gas-generator flow.
Staged Combustion Cycle
In a staged combustion cycle, the propellants are burned in stages. Like the gasgenerator
cycle, this cycle also has a burner, called a preburner, to generate gas for a turbine. The pre-burner
taps off and burn a small amount of one propellant and a large amount of the other, producing an
oxidizer-rich or fuel-rich hot gas mixture that is mostly unburned vaporized propellant. This hot gas
is then passed through the turbine, injected into the main chamber, and burned again with the
remaining propellants. The advantage over the gas-generator cycle is that all of the propellants are
burned at the optimal mixture ratio in the main chamber and no flow is dumped overboard. The
staged combustion cycle is often used for high-power applications. The higher the chamber
pressure, the smaller and lighter the engine can be to produce the same thrust. Development cost
for this cycle is higher because the high pressures complicate the development process.
9. DEPT MECHANICAL ,SEACET 9
CRYOGENICROCKET ENGINE

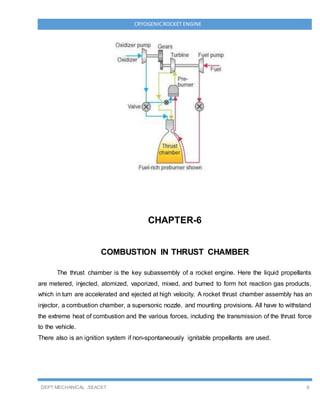

CHAPTER-6
COMBUSTION IN THRUST CHAMBER
The thrust chamber is the key subassembly of a rocket engine. Here the liquid propellants
are metered, injected, atomized, vaporized, mixed, and burned to form hot reaction gas products,
which in turn are accelerated and ejected at high velocity. A rocket thrust chamber assembly has an
injector, a combustion chamber, a supersonic nozzle, and mounting provisions. All have to withstand
the extreme heat of combustion and the various forces, including the transmission of the thrust force
to the vehicle.
There also is an ignition system if non-spontaneously ignitable propellants are used.

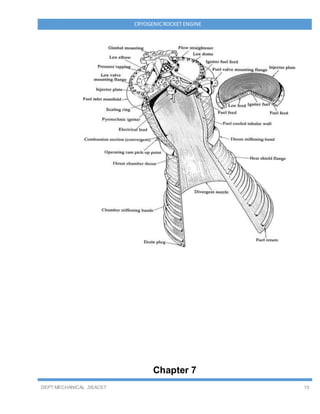

11. DEPT MECHANICAL ,SEACET 11
CRYOGENICROCKET ENGINE
FUEL INJECTION
The functions of the injector are similar to those of a carburetor of an internal combustion
engine. The injector has to introduce and meter the flow of liquid propellants to the combustion
chamber, cause the liquids to be broken up into small droplets (a process called atomization), and
distribute and mix the propellants in such a manner that a correctly proportioned mixture of fuel and
oxidizer will result, with uniform propellant mass flow and composition over the chamber cross
section. This has been accomplished with different types of injector designs and elements.
The injection hole pattern on the face of the injector is closely related to the internal manifolds
or feed passages within the injector. These provide for the distribution of the propellant from the
injector inlet to all the injection holes. A large complex manifold volume allows low passage velocities
and good distribution of flow over the cross section of the chamber. A small manifold volume allows
for a lighter weight injector and reduces the amount of "dribble" flow after the main valves are shut.
The higher passage velocities cause a more uneven flow through different identical injection holes
and thus a poorer distribution and wider local gas composition variation.
Dribbling results in afterburning, which is an inefficient irregular combustion that gives a little "cutoff"
thrust after valve closing. For applications with very accurate terminal vehicle velocity requirements,
the cutoff impulse has to be very small and reproducible and often valves are built into the injector
to minimize passage volume. Impinging-stream-type, multiple-hole injectors are commonly used
with oxygenhydrocarbon and storable propellants. For unlike doublet patterns the propellants are
injected through a number of separate small holes in such a manner that the fuel and oxidizer
streams impinge upon each other. Impingement forms thin liquid fans and aids atomization of the
liquids into droplets, also aiding distribution. The two liquid streams then form a fan which breaks up
into droplets.
12. DEPT MECHANICAL ,SEACET 12
CRYOGENICROCKET ENGINE

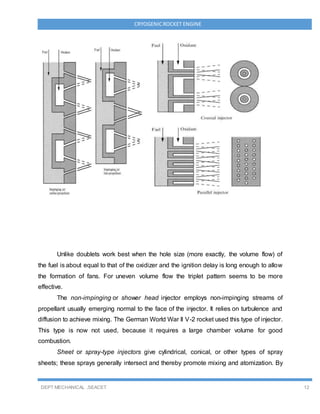

Unlike doublets work best when the hole size (more exactly, the volume flow) of
the fuel is about equal to that of the oxidizer and the ignition delay is long enough to allow
the formation of fans. For uneven volume flow the triplet pattern seems to be more
effective.
The non-impinging or shower head injector employs non-impinging streams of
propellant usually emerging normal to the face of the injector. It relies on turbulence and
diffusion to achieve mixing. The German World War II V-2 rocket used this type of injector.
This type is now not used, because it requires a large chamber volume for good
combustion.
Sheet or spray-type injectors give cylindrical, conical, or other types of spray
sheets; these sprays generally intersect and thereby promote mixing and atomization. By
13. DEPT MECHANICAL ,SEACET 13
CRYOGENICROCKET ENGINE

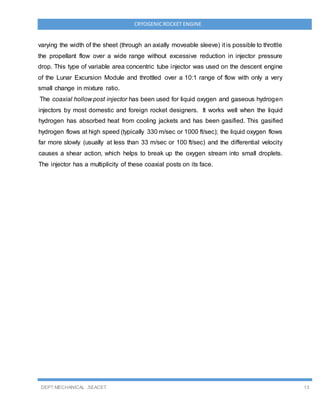

varying the width of the sheet (through an axially moveable sleeve) it is possible to throttle
the propellant flow over a wide range without excessive reduction in injector pressure
drop. This type of variable area concentric tube injector was used on the descent engine
of the Lunar Excursion Module and throttled over a 10:1 range of flow with only a very
small change in mixture ratio.
The coaxial hollow post injector has been used for liquid oxygen and gaseous hydrogen
injectors by most domestic and foreign rocket designers. It works well when the liquid
hydrogen has absorbed heat from cooling jackets and has been gasified. This gasified
hydrogen flows at high speed (typically 330 m/sec or 1000 ft/sec); the liquid oxygen flows
far more slowly (usually at less than 33 m/sec or 100 ft/sec) and the differential velocity
causes a shear action, which helps to break up the oxygen stream into small droplets.
The injector has a multiplicity of these coaxial posts on its face.
14. DEPT MECHANICAL ,SEACET 14
CRYOGENICROCKET ENGINE
CHAPTER-8

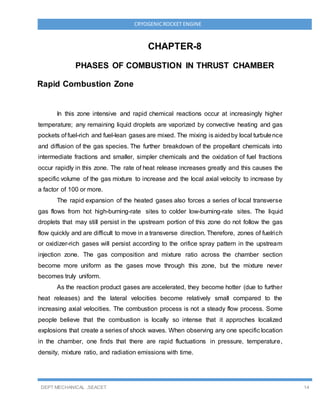

PHASES OF COMBUSTION IN THRUST CHAMBER
Rapid Combustion Zone
In this zone intensive and rapid chemical reactions occur at increasingly higher
temperature; any remaining liquid droplets are vaporized by convective heating and gas
pockets of fuel-rich and fuel-lean gases are mixed. The mixing is aidedby local turbulence
and diffusion of the gas species. The further breakdown of the propellant chemicals into
intermediate fractions and smaller, simpler chemicals and the oxidation of fuel fractions
occur rapidly in this zone. The rate of heat release increases greatly and this causes the
specific volume of the gas mixture to increase and the local axial velocity to increase by
a factor of 100 or more.
The rapid expansion of the heated gases also forces a series of local transverse
gas flows from hot high-burning-rate sites to colder low-burning-rate sites. The liquid
droplets that may still persist in the upstream portion of this zone do not follow the gas
flow quickly and are difficult to move in a transverse direction. Therefore, zones of fuelrich
or oxidizer-rich gases will persist according to the orifice spray pattern in the upstream
injection zone. The gas composition and mixture ratio across the chamber section
become more uniform as the gases move through this zone, but the mixture never
becomes truly uniform.
As the reaction product gases are accelerated, they become hotter (due to further
heat releases) and the lateral velocities become relatively small compared to the
increasing axial velocities. The combustion process is not a steady flow process. Some
people believe that the combustion is locally so intense that it approches localized
explosions that create a series of shock waves. When observing any one specific location
in the chamber, one finds that there are rapid fluctuations in pressure, temperature,
density, mixture ratio, and radiation emissions with time.
15. DEPT MECHANICAL ,SEACET 15
CRYOGENICROCKET ENGINE
Injection/Atomization Zone
Two different liquids are injected with storable propellants and with liquid
oxygen/hydrocarbon combinations. They are injected through orifices at velocities
typically between 7 and 60 m/sec or about 20 to 200 ft/sec. The injector design has a
profound influence on the combustion behavior and some seemingly minor design
changes can have a major effect on instability. The pattern, sizes, number, distribution,
and types of orifices influence the combustion behavior, as do the pressure drop, manifold
geometry, or surface roughness in the injection orifice walls.
The individual jets, streams, or sheets break up into droplets by impingement of
one jet with another (or with a surface), by the inherent instabilities of liquid sprays, or by
the interaction with gases at a different velocity and temperature. In this first zone the
liquids are atomized into a large number of small droplets. Heat is transferred to the
droplets by radiation from the very hot rapid combustion zone and by convection from
moderately hot gases in the first zone. The droplets evaporate and create local regions
rich either in fuel vapor or oxidizer vapor.
This first zone is heterogeneous; it contains liquids and vaporized propellant as
well as some burning hot gases. With the liquid being located at discrete sites, there are
large gradients in all directions with respect to fuel and oxidizer mass fluxes, mixture ratio,
size and dispersion of droplets, or properties of the gaseous medium. Chemical reactions
occur in this zone, but the rate of heat generation is relatively low, in part because the
liquids and the gases are still relatively cold and in part because vaporization near the
droplets causes fuel-rich and fuel-lean regions which do not burn as quickly. Some hot
gases from the combustion zone are re-circulated back from the rapid combustion zone,
and they can create local gas velocities that flow across the injector face.
The hot gases, which can flow in unsteady vortexes or turbulence patterns, are
essential to the initial evaporation of the liquids. The injection, atomization and
vaporization processes are different if one of the propellants is a gas. For example, this
occurs in liquid oxygen with gaseous hydrogen propellant in thrust chambers or
16. DEPT MECHANICAL ,SEACET 16
CRYOGENICROCKET ENGINE
precombustion chambers, where liquid hydrogen has absorbed heat from cooling jackets
and has been gasified. Hydrogen gas has no droplets and does not evaporate. The gas
usually has a much higher injection velocity (above 120 m/sec) than the liquid propellant.
This cause shear forces to be imposed on the liquid jets, with more rapid droplet
formation and gasification. The preferred injector design for gaseous hydrogen and liquid
oxygen is different from the individual jet streams used with storable propellants.
Stream Tube Combustion Zone
In this zone oxidation reactions continue, but at a lower rate, and some additional
heat is released. However, chemical reactions continue because the mixture tends to be
driven toward an equilibrium composition. Since axial velocities are high (200 to 600
m/sec) the transverse convective flow velocities become relatively small. Streamlines are
formed and there is relatively little turbulent mixing across streamline boundaries. Locally
the flow velocity and the pressure fluctuate somewhat. The residence time in this zone is
very short compared to the residence time in the other two zones. The streamline type,
inviscid flow, and the chemical reactions toward achieving chemical equilibrium persist
not only throughout the remainder of the combustion chamber, but are also extended into
the nozzle. Actually, the major processes do not take place strictly sequentially, but
several seem to occur simultaneously in several parts of the chamber. The flame front is
not a simple plane surface across the combustion chamber
There is turbulence in the gas flow in all parts of the combustion chamber. The
residence time of the propellant material in the combustion chamber is very short, usually
less than 10 milliseconds. Combustion in a liquid rocket engine is very dynamic, with the
volumetric heat release being approximately 370 MJ/m3-sec, which is much higher than
in turbojets. Further, the higher temperature in a rocket causes chemical reaction rates to
be several times faster (increasing exponentially with temperature) than in turbojet.
The four phases of combustion in the thrust chamber are
1. Primary Ignition
17. DEPT MECHANICAL ,SEACET 17
CRYOGENICROCKET ENGINE
2. Flame Propagation
3. Flame Lift off
4. Flame Anchoring
Primary Ignition
begins at the time of deposition of the energy into the shear layer and ends when
the flame front has reached the outer limit of the shear layer starts interaction
with the recirculation zone.
phase typically lasts about half a millisecond
it is characterised by a slight but distinct downstream movement of the flame .
The flame velocity more or less depends on the pre-mixedness of the shear layer
only.
Flame Propagation
This phase corresponds to the time span for the flame reaching the edge of the
shear layer, expands into in the recirculation zone and propagates until it has
consumed all the premixed propellants.
This period lasts between 0.1 and 2 ms.
18. DEPT MECHANICAL ,SEACET 18
CRYOGENICROCKET ENGINE
It is characterised by an upstream movement of the upstream flame front until it
reaches a minimum distance from the injector face plate.
It is accompanied by a strong rise of the flame intensity and by a peak in the
combustion chamber pressure.
The duration of this phase as well as the pressure and emission behaviour during
this phase depend strongly on the global characteristics of the stationary cold flow
before ignition.
Flame Lift Off
phase starts when the upstream flame front begins to move downstream away
from the injector because all premixed propellants in the recirculation zone have
been consumed until it reaches a maximum distance.
This period lasts between 1 and 5 ms.
The emission of the flame is less intense showing that the chemical activity has
decreased.
The position where the movement of the upstream flame front comes to an end,
the characteristic times of convection and flame propagation are balanced.
19. DEPT MECHANICAL ,SEACET 19
CRYOGENICROCKET ENGINE

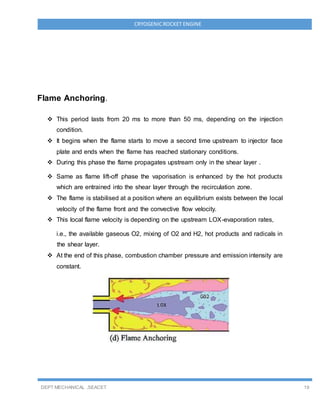

Flame Anchoring.
This period lasts from 20 ms to more than 50 ms, depending on the injection
condition.
It begins when the flame starts to move a second time upstream to injector face
plate and ends when the flame has reached stationary conditions.
During this phase the flame propagates upstream only in the shear layer .
Same as flame lift-off phase the vaporisation is enhanced by the hot products
which are entrained into the shear layer through the recirculation zone.
The flame is stabilised at a position where an equilibrium exists between the local
velocity of the flame front and the convective flow velocity.
This local flame velocity is depending on the upstream LOX-evaporation rates,
i.e., the available gaseous O2, mixing of O2 and H2, hot products and radicals in
the shear layer.
At the end of this phase, combustion chamber pressure and emission intensity are
constant.
20. DEPT MECHANICAL ,SEACET 20
CRYOGENICROCKET ENGINE
CHAPTER-9
DIFFERENT TYPES OF CRYOGENIC ENGINES
HM-7B Rocket Engine
HM-7 cryogenic propellant rocket engine has been used as an upper stage engine
on all versions of the Ariane launcher. The more powerful HM-7B version was used on
Ariane's 2, 3 and 4 and is also used on the ESC-A cryogenic upper stage of Ariane 5.
Important principles used in the HM-7 combustion chamber were adopted by NASA under
license and it is this technology that formed the basis of today's US space shuttle main
engines - the first reusable rocket engine in the world.
The HM7 engine was built upon the development work of the 40kN HM-4 engine.
In 1973, the Ottobrunn team started development of the HM-7 thrust chamber for the third
stage of Ariane 1. Six years later, the HM-7 engine was successfully qualified with the
first launch of Ariane 1 in December 1979.
21. DEPT MECHANICAL ,SEACET 21
CRYOGENICROCKET ENGINE

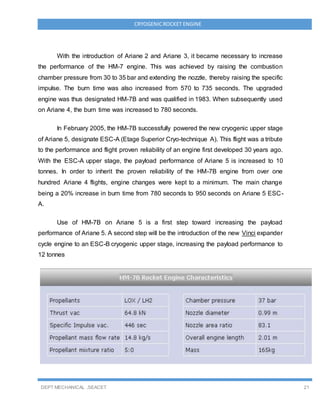

With the introduction of Ariane 2 and Ariane 3, it became necessary to increase
the performance of the HM-7 engine. This was achieved by raising the combustion
chamber pressure from 30 to 35 bar and extending the nozzle, thereby raising the specific
impulse. The burn time was also increased from 570 to 735 seconds. The upgraded
engine was thus designated HM-7B and was qualified in 1983. When subsequently used
on Ariane 4, the burn time was increased to 780 seconds.
In February 2005, the HM-7B successfully powered the new cryogenic upper stage
of Ariane 5, designate ESC-A (Etage Superior Cryo-technique A). This flight was a tribute
to the performance and flight proven reliability of an engine first developed 30 years ago.
With the ESC-A upper stage, the payload performance of Ariane 5 is increased to 10
tonnes. In order to inherit the proven reliability of the HM-7B engine from over one
hundred Ariane 4 flights, engine changes were kept to a minimum. The main change
being a 20% increase in burn time from 780 seconds to 950 seconds on Ariane 5 ESC-
A.
Use of HM-7B on Ariane 5 is a first step toward increasing the payload
performance of Ariane 5. A second step will be the introduction of the new Vinci expander
cycle engine to an ESC-B cryogenic upper stage, increasing the payload performance to
12 tonnes
22. DEPT MECHANICAL ,SEACET 22
CRYOGENICROCKET ENGINE
The HM7B engine is a gas generator liquid oxygen / liquid hydrogen engine that
powers the Ariane 4 third stage. The HM7 engine built upon the development work of the
40 kN thrust HM4. The HM7 development program began in 1973 as part of Europe's
effort to develop an indigenous launch capability. Final qualification of the
HM7 engine occurred in 1979 and the engine went on to power the third stage of the
Ariane 1. SEP continued to perfect and upgrade the engine, increasing the specific
impulse by 4 seconds by increasing chamber pressure and lengthening the nozzle. The
new engine, the HM7B, powered the third stage of the Ariane 2,3 and 4. As of June 1st,
1995, SEP had produced 111 HM7B engines, with a cumulated total of 171,700 seconds
of operation, including 47,400 in flight.
300 N Cryogenic Engine:
This 300 N cryogenic propellant engine has a vacuum Isp of 415 seconds - the
highest value ever achieved in Europe for an engine of such small size.
Being pressure-fed, the engine assembly is relatively simple and avoids the need
for a turbo-pump. The thrust chamber and throat region of the engine are regenerative
cooled using hydrogen propellant. The nozzle extension is radiation cooled.
The engine incorporates a splash-plate injector having a star shaped configuration.
Ignition and subsequent re-ignition is achieved using Tri-ethyl aluminum (TEA) - which is
hypergolic with the oxygen propellant. The number of re-ignitions is a function of the
volume of Tri-ethyl aluminum accommodated. The engine nominally provides for 1
ignition and 3 re-ignitions using just 1.5 cc of Tri-ethyl aluminum. The use of a chemical
ignition system enables a very compact design.
The engine needs no pre-cooling prior to ignition. Only the propellant feed lines to
the engine propellant valves need be pre-cooled.
23. DEPT MECHANICAL ,SEACET 23
CRYOGENICROCKET ENGINE

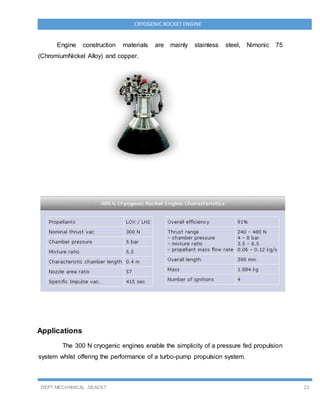

Engine construction materials are mainly stainless steel, Nimonic 75
(ChromiumNickel Alloy) and copper.
Applications
The 300 N cryogenic engines enable the simplicity of a pressure fed propulsion
system whilst offering the performance of a turbo-pump propulsion system.
24. DEPT MECHANICAL ,SEACET 24
CRYOGENICROCKET ENGINE

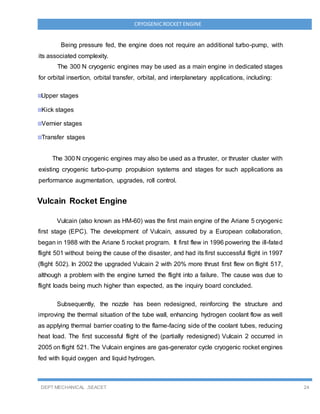

Being pressure fed, the engine does not require an additional turbo-pump, with
its associated complexity.
The 300 N cryogenic engines may be used as a main engine in dedicated stages
for orbital insertion, orbital transfer, orbital, and interplanetary applications, including:
Upper stages
Kick stages
Vernier stages
Transfer stages
The 300 N cryogenic engines may also be used as a thruster, or thruster cluster with
existing cryogenic turbo-pump propulsion systems and stages for such applications as
performance augmentation, upgrades, roll control.
Vulcain Rocket Engine
Vulcain (also known as HM-60) was the first main engine of the Ariane 5 cryogenic
first stage (EPC). The development of Vulcain, assured by a European collaboration,
began in 1988 with the Ariane 5 rocket program. It first flew in 1996 powering the ill-fated
flight 501 without being the cause of the disaster, and had its first successful flight in 1997
(flight 502). In 2002 the upgraded Vulcain 2 with 20% more thrust first flew on flight 517,
although a problem with the engine turned the flight into a failure. The cause was due to
flight loads being much higher than expected, as the inquiry board concluded.
Subsequently, the nozzle has been redesigned, reinforcing the structure and
improving the thermal situation of the tube wall, enhancing hydrogen coolant flow as well
as applying thermal barrier coating to the flame-facing side of the coolant tubes, reducing
heat load. The first successful flight of the (partially redesigned) Vulcain 2 occurred in
2005 on flight 521. The Vulcain engines are gas-generator cycle cryogenic rocket engines
fed with liquid oxygen and liquid hydrogen.

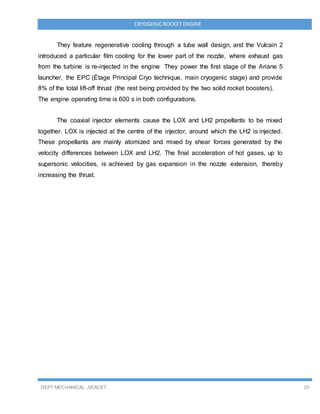

25. DEPT MECHANICAL ,SEACET 25
CRYOGENICROCKET ENGINE
They feature regenerative cooling through a tube wall design, and the Vulcain 2
introduced a particular film cooling for the lower part of the nozzle, where exhaust gas
from the turbine is re-injected in the engine They power the first stage of the Ariane 5
launcher, the EPC (Étage Principal Cryo technique, main cryogenic stage) and provide
8% of the total lift-off thrust (the rest being provided by the two solid rocket boosters).
The engine operating time is 600 s in both configurations.
The coaxial injector elements cause the LOX and LH2 propellants to be mixed
together. LOX is injected at the centre of the injector, around which the LH2 is injected.
These propellants are mainly atomized and mixed by shear forces generated by the
velocity differences between LOX and LH2. The final acceleration of hot gases, up to
supersonic velocities, is achieved by gas expansion in the nozzle extension, thereby
increasing the thrust.

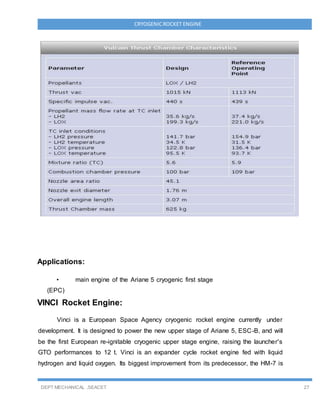

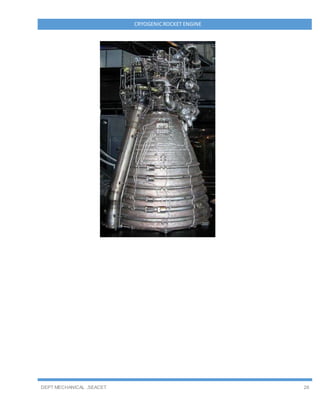

27. DEPT MECHANICAL ,SEACET 27
CRYOGENICROCKET ENGINE
Applications:
• main engine of the Ariane 5 cryogenic first stage
(EPC)
VINCI Rocket Engine:
Vinci is a European Space Agency cryogenic rocket engine currently under
development. It is designed to power the new upper stage of Ariane 5, ESC-B, and will
be the first European re-ignitable cryogenic upper stage engine, raising the launcher's
GTO performances to 12 t. Vinci is an expander cycle rocket engine fed with liquid
hydrogen and liquid oxygen. Its biggest improvement from its predecessor, the HM-7 is
28. DEPT MECHANICAL ,SEACET 28
CRYOGENICROCKET ENGINE
the capability of restarting up to five times. It is also the first European expander cycle
engine, removing the need for a gas generator to drive the fuel and oxydizer pumps. It
features a carbon ceramic extendable nozzle in order to have a large, 2.15 m diameter
nozzle extension with minimum length: the retracted nozzle part is deployed only after
the upper stage separates from the rest of the rocket; after extension, the engine's overall
length increases from 2.3 m to 4.2 m.
29. DEPT MECHANICAL ,SEACET 29
CRYOGENICROCKET ENGINE
Applications:
• upper stage of Ariane 5
CHAPTER-10
CONCLUSION
The area of Cryogenics in Cryogenic Rocket Engines is a vast one and it cannot
be described in a few words. As the world progress new developments are being made
more and more new developments are being made in the field of Rocket Engineering.
Now a day cryo propelled rocket engines are having a great demand in the field of space
exploration. Due to the high specific impulse obtained during the ignition of fuels they are
of much demand.
30. DEPT MECHANICAL ,SEACET 30
CRYOGENICROCKET ENGINE
CHAPTER-11
REFERENCES
“Rocket propulsion elements” by G. P. Sutton, 7th edition.
“Advances in propulsion” by K. Ramamurthy.
“Rocket and Spacecraft Propulsion” by M. J. Turner.
“Ignition of cryogenic H2/LOX sprays” by O. Gurliat, V. Schmidt, O.J. Haidn, M.
Oschwald.
National Aeronautics and Space Administration, United States Of America
Vikram Sarabhai Space Centre, Thiruvananthapuram
