The document discusses the interaction between the CPU, memory, and input/output devices. It describes how data is input from devices, transferred to memory under the control unit's supervision, and then interpreted and executed by the CPU. The CPU contains an ALU that performs arithmetic and logical operations and a control unit that controls data flow and coordinates all computer components.

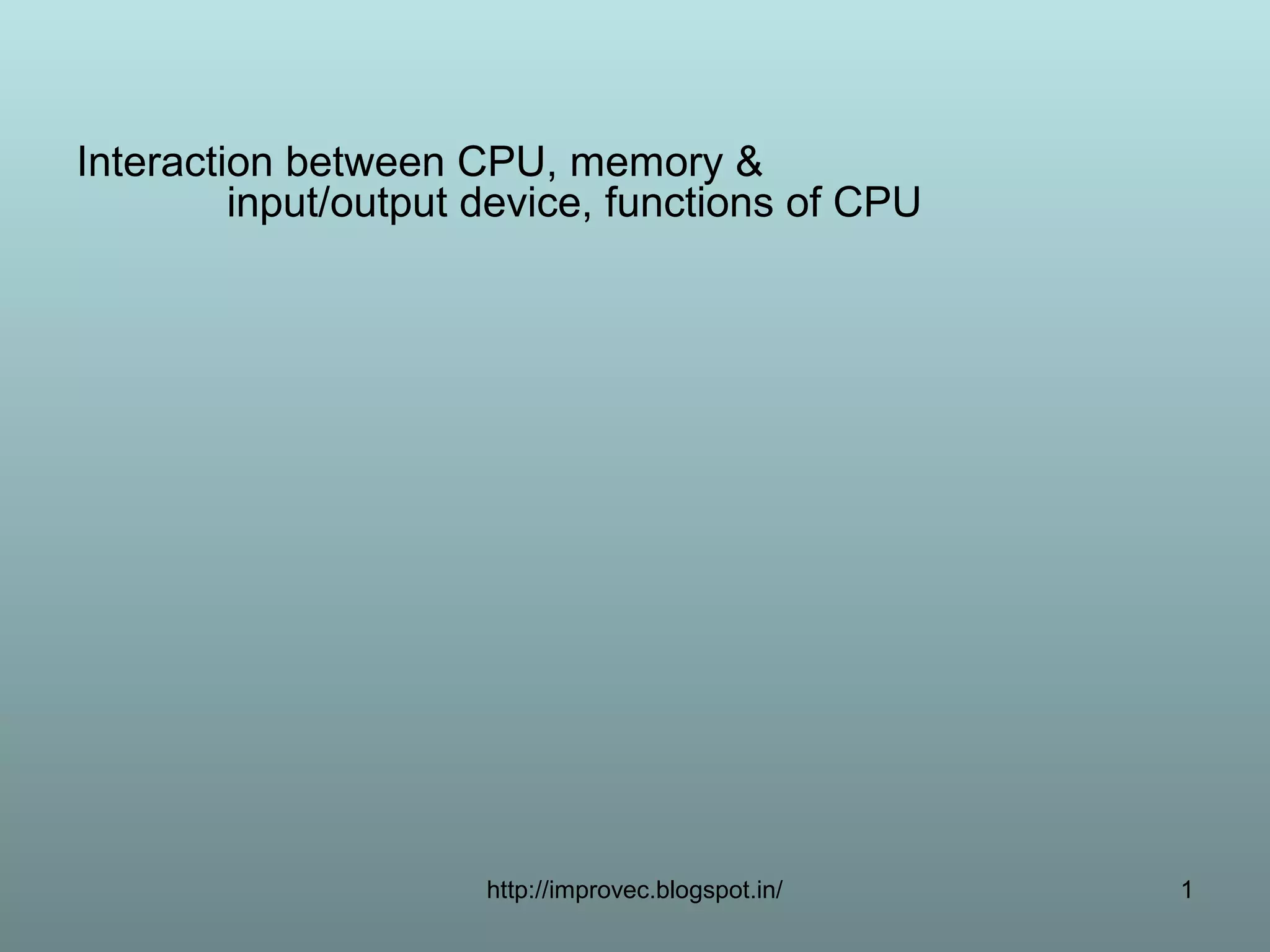

1. Interaction between CPU, memory &
input/output device, functions of CPU
http://improvec.blogspot.in/ 1

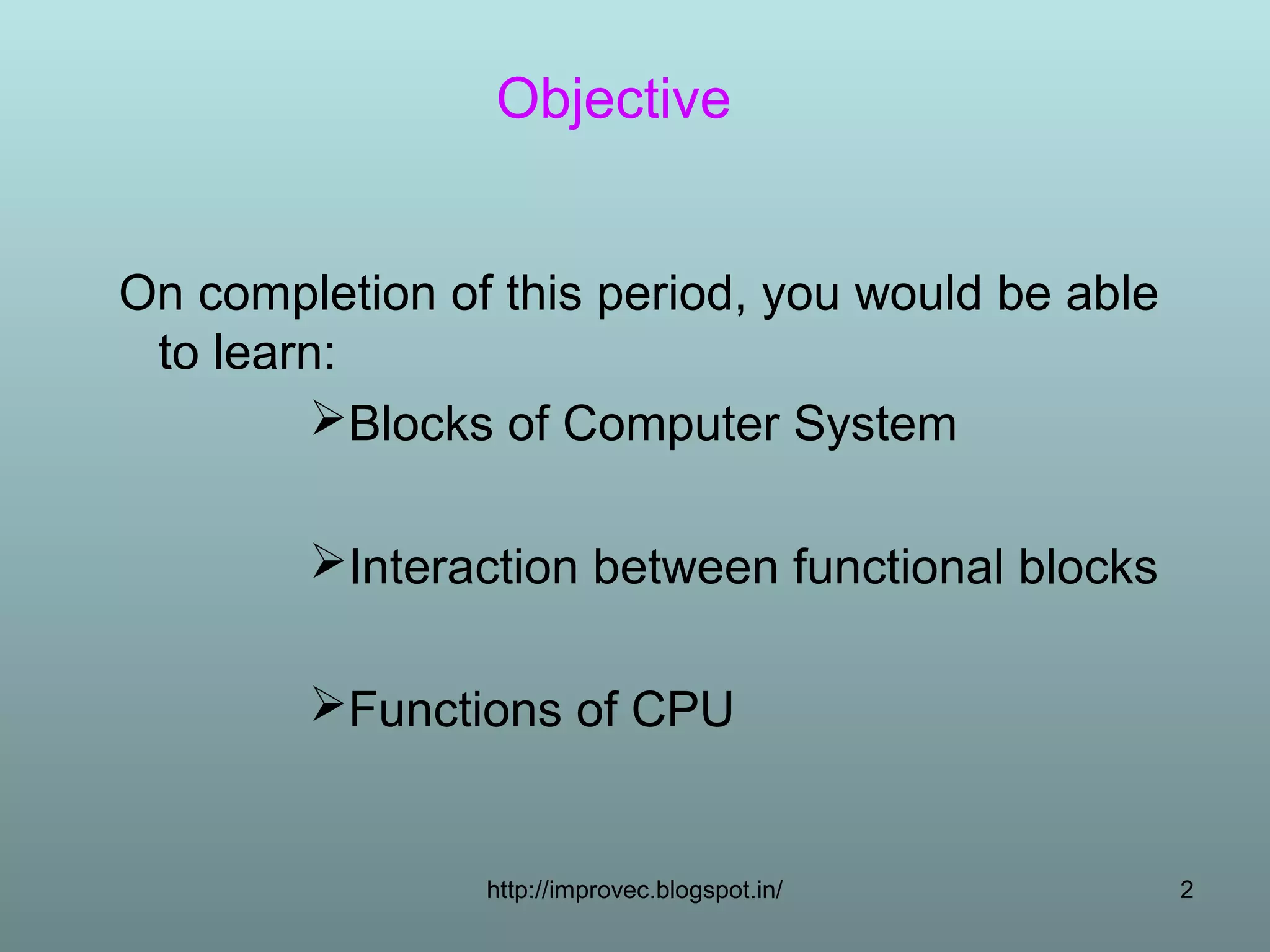

2. Objective
On completion of this period, you would be able
to learn:
Blocks of Computer System
Interaction between functional blocks
Functions of CPU
http://improvec.blogspot.in/ 2

3. Recap
 What is a computer?
It is an electronic device which processes the data
 Functional units of a computer
 Input unit
 Memory unit
 ALU
 CU
 Output unit
http://improvec.blogspot.in/ 3

4. Prerequisites
What are parts of the computer?
Input Unit
Memory Unit
CPU
Output Unit
What is CPU?
Central Processing Unit
http://improvec.blogspot.in/ 4

5. Interaction between functional blocks
data To user
INPUT UNIT
INPUT UNIT MEMORY UNIT
MEMORY UNIT OUTPUT UNIT
OUTPUT UNIT
(Result)
instruction read write
operand result
CONTROL UNIT
CONTROL UNIT ALU
ALU
Control
signals
___ data flow
------Control flow
http://improvec.blogspot.in/ 5

6. Interaction between Functional Blocks
 Data is supplied to the computer through an input
device.
 The data is then transferred to memory under the
supervision of the control unit.
http://improvec.blogspot.in/ 6

7. Interaction between functional blocks
(contd)
 Each instruction is interpreted before execution
 Control unit informs the ALU of the precise
operation to be performed and
 Directs the transfer of operands to the ALU
http://improvec.blogspot.in/ 7

8. Interaction between functional blocks (contd)
 The ALU then performs all calculations and
comparisons needed
 And the results are then passed unto the
memory unit, from there to the output unit
http://improvec.blogspot.in/ 8

9. CPU
(Central processing unit)
http://improvec.blogspot.in/ 9

10. CPU
 CPU is the heart and brain of a computer.
 It receives data as input.
 Follows instruction, and processes data
accordingly.
 Presents the information as out put to the user.
http://improvec.blogspot.in/ 10

11. CPU (contd)
 Its primary function is to execute programs.
 it controls & coordinates all components such as
memory, input and output devices.
http://improvec.blogspot.in/ 11

12. Blocks of CPU
Fig 1 http://improvec.blogspot.in/ 12

13. CPU (Central Processing Unit)
ALU (Arithmetic & Logical Unit)
 It performs two types of operations
1. Arithmetic Operations.
2. Logical Operations.
http://improvec.blogspot.in/ 13

14. ALU (Arithmetic & Logical Unit)
Operation : Symbol
Addition : +
Subtraction : -
Multiplication : *
Division : /
http://improvec.blogspot.in/ 14

15. Logical Operations
 Logical AND
 Logical OR
 Logical NOT
 Logical EXCLUSIVE OR
http://improvec.blogspot.in/ 15

16. CU (Control Unit)
 Controls the operations that takes place in
various parts of a computer by sending
electronic signals.
 Supervises the flow of data in various parts of
computer such as input device, output device,
and memory devices.
http://improvec.blogspot.in/ 16

17. CPU
http://improvec.blogspot.in/ 17

18. Functions of CPU
CPU performs everything in binary form
It takes the information and process it
according to instructions.
It performs all calculations.
It takes all decisions.
It controls all units of computer.
http://improvec.blogspot.in/ 18

19. Summary
In this class, you have learnt about
Blocks of CPU
Functions of CPU
Interaction among the functional
blocks
http://improvec.blogspot.in/ 19

20. Questions
1. Explain the interaction between CPU, memory
and I/O devices?
2. Describe the functions of CPU?
http://improvec.blogspot.in/ 20

21. Quiz
1. The control unit, together with the ALU
and memory unit, form
a. control unit
b. memory
c. CPU (central processing unit)
d. ALU
Answer: c
http://improvec.blogspot.in/ 21

22. Quiz (Contd...)
2. The program’s instructions and data are
transferred under the control of
a. CPU
b. Control Unit
b. ALU
d. Memory Unit
Answer: b
http://improvec.blogspot.in/ 22

23. Quiz (Contd...)
3. ALU handles
a. arithmetic operations
b. logical operations
c. arithmetic operations and logical operations
d. None of the above
Answer: c
http://improvec.blogspot.in/ 23

24. Assignment
• Open a CPU cabinet with the help of your
teacher (expert), and try to understand the
connections and working of various components
in side.
http://improvec.blogspot.in/ 24
