The document discusses coroutines in C++, focusing on asynchronous programming with WinAPI and the structure of resizable functions. It presents various code samples demonstrating the implementation of async writers and coroutine handling, including the use of promises and event notifications. Additionally, it touches upon fine-tuning coroutine theory in the context of the Windows kernel and EFI.

1. COROUTINES EVERYWHERE
Alexey Kutumov
Senior software engineer at Kaspersky Lab

2. AGENDA
Ч resumable_function
Ч co_await
я C++
Fine tuning coroutine

3. Ч Е RESUMABLE_FUNCTION

4. RESUMABLE FUNCTION
auto ResumableFunction(std::string someArg) {
DoThis();
co_await StartSomeAsyncOp();
DoThat(someArg);
}

5. WINAPI SAMPLE (OLD SCHOOL)
struct AsyncContext : public OVERLAPPED {
HANDLE m_event;
AsyncContext()
: OVERLAPPED()
, m_event(::CreateEvent(nullptr, true, true, nullptr)) {
}
static void WINAPI OnWrite(DWORD error, DWORD bytesWritten, LPOVERLAPPED overlapped) {
AsyncContext* me = static_cast<AsyncContext*>(overlapped);
std::cout << "done, bytes written: " << bytesWritten << std::endl;
::SetEvent(me->m_event);
}
};

6. WINAPI SAMPLE (OLD SCHOOL)
void OldSchoolWinapiWaiter() {
const char data [] = "hello from good ol` C!";
auto file = ::CreateFile("1.txt", ..., FILE_FLAG_OVERLAPPED);
AsyncContext ctx;
std::cout << "starting..." << std::endl;
::WriteFileEx(file, data, sizeof(data) - 1, &ctx, AsyncContext::OnWrite);
::WaitForSingleObjectEx(ctx.m_event, INFINITE, true);
}

7. WINAPI SAMPLE (C++)
struct AsyncIoBase : private OVERLAPPED {
AsyncIoBase() : OVERLAPPED() {
}
OVERLAPPED* GetOverlapped() {
return static_cast<OVERLAPPED*>(this);
}
template <typename AsyncIoType>
static AsyncIoType* GetAsyncIo(OVERLAPPED* overlapped) {
return static_cast<AsyncIoType*>(overlapped);
}
};

8. WINAPI SAMPLE (C++)
struct AsyncWriterBase : public AsyncIoBase {
explicit AsyncWriterBase(HANDLE handle)
: AsyncIoBase(), m_handle(handle) {
}
void StartAsyncWrite(const void* data, size_t size) {
::WriteFileEx(m_handle, data, size, GetOverlapped(), OnWrite);
}
virtual void WriteFinished(DWORD bytesWritten) = 0;
static void WINAPI OnWrite(DWORD error, DWORD bytesWritten, LPOVERLAPPED overlapped) {
AsyncWriterBase* me = GetAsyncIo<AsyncWriterBase>(overlapped);
me->WriteFinished(bytesWritten);
}
HANDLE m_handle;
};

9. WINAPI SAMPLE (C++)
struct WinapiAsyncWriter : public AsyncWriterBase {
explicit WinapiAsyncWriter(HANDLE handle);
HANDLE WriteAsync(const std::string& message) {
m_message = message;
std::cout << "starting ..." << std::endl;
StartAsyncWrite(m_message.data(), m_message.size());
return m_promise;
}
virtual void WriteFinished(DWORD bytesWritten) {
std::cout << "done, bytes written: " << bytesWritten << std::endl;
::SetEvent(m_promise);
}
HANDLE m_promise;
std::string m_message;

10. WINAPI SAMPLE (C++)
void TryWinApiWaiter() {
auto fileHandle = ::CreateFile("2.txt", ..., FILE_FLAG_OVERLAPPED);
WinapiAsyncWriter asyncWriter{fileHandle};
auto future = asyncWriter.WriteAsync("hello world");
::WaitForSingleObjectEx(future, INFINITE, true);
}

11. WINAPI SAMPLE (CORO)
struct WinApiAwaitable : AsyncWriterBase {
WinApiAwaitable(HANDLE handle, const char* data, size_t size);
bool await_ready();
void await_suspend(std::coroutine_handle<coro::promise<void>> coroutineHandle);
DWORD await_resume();
private:
std::coroutine_handle<coro::promise<void>> m_coroutineHandle;
const void* m_data;
size_t m_size;
DWORD m_bytesWritten;
virtual void WriteFinished(DWORD bytesWritten);
};

12. WINAPI SAMPLE (CORO)
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
std::cout << "starting ..." << std::endl;
DWORD bytesWritten = co_await WinApiAwaitable{handle, message.data(), message.size()};
std::cout << "done, bytes written: " << bytesWritten << std::endl;
}
void TrySimpleCoroWaiter() {
auto file = ::CreateFile(TEXT("3.txt"), ..., FILE_FLAG_OVERLAPPED);
auto future = WriteAsync(file, "hello coroutines!");
future.get_value();
}

13. WINAPI SAMPLE (CORO)
void WinApiAwaitable::await_suspend(std::coroutine_handle<promise_type> handle) {
m_coroutineHandle = handle;
StartAsyncWrite(m_data, m_size);
}
void WinApiAwaitable::WriteFinished(DWORD bytesWritten) {
m_bytesWritten = bytesWritten;
m_coroutineHandle.resume();
}
DWORD WinApiAwaitable::await_resume() {
return m_bytesWritten;
}

14. Е CO_AWAIT

15. CO_AWAIT
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
std::cout << "starting ..." << std::endl;
auto bytesWritten = co_await WinApiAwaitable{handle, message.data(), message.size()};
std::cout << "done, bytes written: " << bytesWritten << std::endl;
}

16. CO_AWAIT
typedef void( *CoroResumeFunction)(void *);
enum class CoroState {Init, Resume};
template <typename PromiseType>
struct coro_frame_header
{
CoroResumeFunction resumeAddr;
PromiseType promise;
CoroState state
explicit coro_frame_header(CoroResumeFunction fn)
: resumeAddr(fn)
, promise()
, state(CoroState::Init){
}

17. CO_AWAIT
struct FunctionContext : coro_frame_header<coro::promise<void>> {
HANDLE handle;
std::string message;
WinApiAwaitable awaitable;
FunctionContext(HANDLE h, std::string m, CoroResumeFunction fn)
: frame_header(fn)
, handle(h)
, message(std::move(m))
, awaitable(handle, message.data(), message.size()) {
}
};

18. CO_AWAIT
template <typename PromiseType>
struct coroutine_handle {
coro_frame_header<PromiseType>* m_frame
coroutine_handle(coro_frame_header<PromiseType>* frame)
: m_frame(frame) {
}
void resume() {
m_frame->resumeAddr(m_frame);
}
void destroy();
};

19. CO_AWAIT
void WinApiAwaitable::await_suspend(std::coroutine_handle<promise_type> handle) {
m_coroutineHandle = handle;
StartAsyncWrite(m_data, m_size);
}
DWORD WinApiAwaitable::await_resume() {
return m_bytesWritten;
}
void WinApiAwaitable::WriteFinished(DWORD bytesWritten) {
m_bytesWritten = bytesWritten;
m_coroutineHandle.resume();
}

20. CO_AWAIT
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
std::cout << "starting ..." << std::endl;
auto bytesWritten = co_await WinApiAwaitable{handle, message.data(), message.size()};
std::cout << "done, bytes written: " << bytesWritten << std::endl;
}

21. CO_AWAIT
void CoroFunction(void* rawCtx) {
FunctionContext* ctx = static_cast<FunctionContext*>(rawCtx);
if (ctx->state == CoroState::Init) {
ctx->state = CoroState::Resume;
std::cout << "starting ..." << std::endl;
ctx->awaitable.await_suspend(ctx);
} else {
DWORD bytesWritten = ctx->awaitable.await_resume();
std::cout << "done, bytes written: " << bytesWritten << std::endl;
delete ctx;
}
}

22. CO_AWAIT
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
FunctionContext* ctx = new FunctionContext{handle, std::move(message), CoroFunction};
CoroFunction(ctx);
return ctx->promise.get_future();
}

23. Е C++

24. C++ RUNTIME
void* operator new(size_t size);
void operator delete(void* location, size_t);
ИЛИ
void* operator new(size_t size, std::nothrow_t const &);
void operator delete(void* location, size_t);

25. C++ RUNTIME
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
FunctionContext* ctx = new FunctionContext{handle, std::move(message), CoroFunction};
CoroFunction(ctx);
return ctx->promise.get_future();
}

26. C++ RUNTIME
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
typedef std::coroutine_traits<coro::future<void>, HANDLE, std::string> coro_traits;
auto* ctx = new (std::nothrow) FunctionContext{handle, std::move(message), CoroFunction};
if (!ctx) {
return coro_traits::get_return_object_on_allocation_failure();
}
CoroFunction(ctx);
return ctx->promise.get_future();
}

27. C++ RUNTIME
constexpr ULONG CrtPoolTag = 'CRTP';
void* operator new(size_t size, struct std::nothrow_t const &) {
return ::ExAllocatePoolWithTag(PagedPool, size, CrtPoolTag);
}
void operator delete(void* location, size_t) {
if (location) {
::ExFreePoolWithTag(location, CrtPoolTag);
}
}

28. FINE TUNING COROUTINE

29. THEORY (WINDOWS KERNEL + EFI)
(IRQ – km, Task – efi).
(Level) я (IRQL – km, TPL – efi).
я
я.

30. LEVELS OF EXECUTION
Windows kernel
PASSIVE_LEVEL
APC_LEVEL
DISPATCH_LEVEL
…
DIRQL
…
HIGH_LEVEL
EFI
TPL_APPLICATION
TPL_CALLBACK
TPL_NOTIFY
FW interrupts
TPL_HIGH_LEVEL

31. INITIAL + FINAL SUSPEND POINTS
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
auto __is = ???.initial_suspend();
__co_await __is;
std::cout << "starting ..." << std::endl;
auto bytesWritten = co_await WinApiAwaitable{handle, message.data(), message.size()};
std::cout << "done, bytes written: " << bytesWritten << std::endl;
auto __fs = ???.final_suspend();
__co_await __fs;
}

32. INITIAL SUSPEND
coro::future<void> WriteAsync(HANDLE handle, std::string message) {
auto* ctx = new (std::nothrow) FunctionContext{handle, std::move(message), CoroFunction};
if (!ctx) {return ...}
auto is = ctx->promise.initial_suspend();
if (is.await_ready()) {
is.await_resume();
CoroFunction(ctx);
} else {
is.await_suspend(ctx);
}
return ctx->promise.get_future();
}

33. CONSTRUCTORS IN NOEXCEPT ENVIRONMENT
auto* ctx = new (std::nothrow) FunctionContext{args};
::operator new(sizeof(FunctionContext), std::nothrow);
FunctionContext::FunctionContext(args);
coro::promise<void>::coro::promise<void>();
coro::promise<void>::construct_shared_state();
make_shared_nothrow<State>();
::CreateEvent(nullptr, true, true, nullptr)

34. INITIAL SUSPEND
struct check_for_broken_promise {
explicit check_for_broken_promise(bool valid) : m_valid(valid) {}
bool await_ready() noexcept { return m_valid; }
void await_suspend(std::experimental::coroutine_handle<promise> coroutine) noexcept {
coroutine.destroy();
}
void await_resume() noexcept {}
const bool m_valid;
};
template <typename Type>
check_for_broken_promise promise<Type>::initial_suspend() {
return check_for_broken_promise{detail::IsValid(m_state)};
}

35. FINAL SUSPEND
void CoroFunction(FunctionContext* ctx) {
if (ctx->state == CoroState::Init) {
/// starting...
} else {
DWORD bytesWritten = ctx->awaitable.await_resume();
std::cout << "done, bytes written: " << bytesWritten << std::endl;
auto fs = ctx->promise.final_suspend();
if (fs.await_ready()) {
fs.await_resume();
delete ctx; // destroy coro
} else {
fs.await_suspend(ctx);
}
}

36. SHARED_STATE_BASE
struct shared_state_base {
~shared_state_base() {
DestroyCoroutine();
}
void DestroyCoroutine() {
if (m_coroutine) {m_coroutine.destroy(); m_coroutine = nullptr;}
}
coro::error_code Notify(std::experimental::coroutine_handle<> coroutine = nullptr) {
m_coroutine = coroutine;
return m_event.Notify();
}
PlatformEventType m_event;
std::experimental::coroutine_handle<> m_coroutine;
};

37. SHARED_STATE_BASE
~future() {
if (m_state) {
m_state->DestroyCoroutine();
}
}
~promise() {
if (m_state) {
m_state->DestroyCoroutine();
}
}

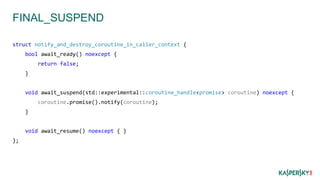

38. FINAL_SUSPEND
struct notify_and_destroy_coroutine_in_caller_context {
bool await_ready() noexcept {
return false;
}
void await_suspend(std::experimental::coroutine_handle<promise> coroutine) noexcept {
coroutine.promise().notify(coroutine);
}
void await_resume() noexcept { }
};

39. FINAL_SUSPEND
struct notify_and_destroy_coroutine_in_async_context {
notify_and_destroy_coroutine_in_async_context(coro::shared_state_ptr state)
: m_state(state) { }
bool await_ready() noexcept { return true; }
void await_suspend(std::experimental::coroutine_handle<> /* coroutine */) noexcept { }
void await_resume() noexcept {
m_state->Notify();
}
coro::shared_state_ptr m_state;
};

40. LET'S TALK?
alexey.kutumov@gmail.com
https://github.com/prograholic/coroutines_km/
