OpenFabrics Interfaces
libfabric Tutorial

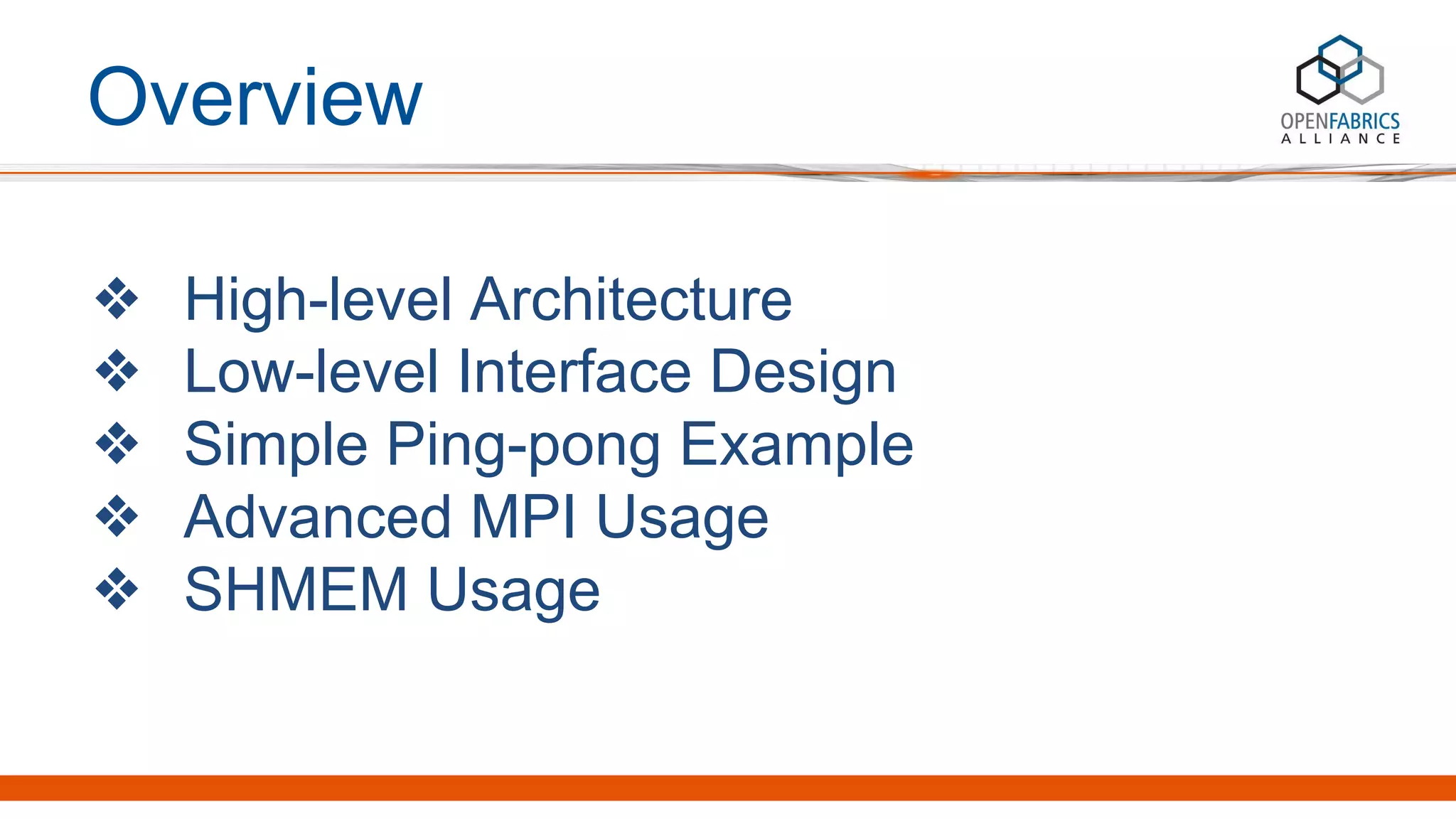

Overview
❖ High-level Architecture
❖ Low-level Interface Design
❖ Simple Ping-pong Example
❖ Advanced MPI Usage
❖ SHMEM Usage
● This tutorial covers libfabric as of the v1.1.1 release
● Future versions might look a little different, but the v1.1
interface should remain available for a long time
● Man pages, source, presentations all available at:
○ http://ofiwg.github.io/libfabric/
○ https://github.com/ofiwg/libfabric
● Code on slides deliberately omits error checking for
clarity
Overview
Developer Note
• libfabric supports a sockets provider
• Allows it to run on most Linux systems
• Includes virtual Linux environments
• Also runs on OS X
• brew install libfabric
Acknowlegements
Contributors to this tutorial not present today:
• Bob Russell, University of New Hampshire
• Sayantan Sur, Intel
• Jeff Squyres, Cisco
High-Level Architecture
High-Level Architecture
➢ Interfaces and Services
❏ Object-Model
❏ Communication Models
❏ Endpoints
Design Guidelines
• Application driven API
• Low-level fabric services abstraction
• Extensibility built into interface
• Optimal impedance match between applications
and underlying hardware
• Minimize software overhead
• Maximize scalability
• Implementation agnostic
Architecture
Control Services
• Discover information about types of fabric
services available
• Identify most effective ways of utilizing a
provider
• Request specific features
• Convey usage model to providers
Communication Services
• Setup communication between processes
• Support connection-oriented and
connectionless communication
• Connection management targets ease of use
• Address vectors target high scalability
Completion Services
• Asynchronous completion support
• Event queues for detailed status
• Configurable level of data reported
• Separation between control versus data operations
• Low-impact counters for fast notification
Data Transfer Services
Supports different communication paradigms:
• Message Queues - send/receive FIFOs
• Tag Matching - steered message transfers
• RMA - direct memory transfers
• Atomics - direct memory manipulation
High-Level Architecture
✓ Interfaces and Services
➢ Object-Model
❏ Communication Models
❏ Endpoints
Object-Model
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll setsActive endpoints
DomainAddress vector
Memory regions
Fabric Object
• Represent a single physical
or virtual network
• Shares network addresses
• May span multiple providers
• Future: topology information
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Domain Object
• Logical connection into a
fabric
• Physical or virtual NIC
• Boundary for associating
fabric resources
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Passive Endpoint
• Used by connection-
oriented protocols
• Listens for connection
requests
• Often map to software
constructs
• Can span multiple domains
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Event Queue
• Report completion of asyn-
chronous control operations
• Report error and other
notifications
• Explicitly or implicitly subscribe
for events
• Often mix of HW and SW
support
• Usage designed for ease of
use
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Wait Set
• Optimized method of waiting
for events across multiple
event queues, completion
queues, and counters
• Abstraction of wait object(s)
• Enables platform specific,
high-performance wait objects
• Uses single wait object when
possible
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Active Endpoint
• Data transfer communication
portal
• Identified by fabric address
• Often associated with a
single NIC
• Hardware Tx/Rx command
queues
• Support onload, offload, and
partial offload
implementations
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Active Endpoint Types
• FI_EP_DGRAM
• Unreliable datagram
• FI_EP_MSG
• Reliable, connected
• FI_EP_RDM
• Reliable Datagram Message
• Reliable, unconnected
Completion Queue
• Higher performance queues
for data transfer completions
• Associated with a single
domain
• Often mapped to hardware
resources
• Optimized to report
successful completions
• User-selectable completion format
• Detailed error completions
reported ‘out of band’
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Remote CQ Data
• Application data written directly into remote
completion queue
• InfiniBand immediate data
• Support for up to 8 bytes
• Minimum of 4 bytes, if supported
Counters
• Lightweight completion
mechanism for data
transfers
• Report only number of
successful/error
completions
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Poll Set
• Designed for providers that
use the host processor to
progress data transfers
• Allows provider to use
application thread
• Allows driving progress
across all objects assigned
to a poll set
• Can optimize where progress
occurs
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Memory Region
• Local memory buffers
exposed to fabric services
• Permissions control access
• Focused on desired
application usage, with
support for existing
hardware
• Registration of locally used
buffers
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Memory Registration Modes
• FI_MR_BASIC
• MR attributes selected by provider
• Buffers identified by virtual address
• Application must exchange MR parameters
• FI_MR_SCALABLE
• MR attributes selected by application
• Buffers accessed starting at address 0
• Eliminates need to exchange MR parameters
Address Vector
• Store peer addresses for
connectionless endpoints
• Map higher level addresses
to fabric specific addresses
• Designed for high scalability
• Enable minimal memory footprint
• Optimized address resolution
• Supports shared memory
Passive
endpoints
Fabric Event queues
Wait sets
Completions
queues
Completion
counters
Poll sets
Active
endpoints
Domain
Address
vector
Memory
regions
Address Vector Types
• FI_AV_MAP
• Peers identified using a 64-bit fi_addr_t
• Provider can encode fabric address directly
• Enables direct mapping to hardware commands
• FI_AV_TABLE
• Peers identified using an index
• Minimal application memory footprint (0!)
• May require lookup on each data transfer
High-Level Architecture
✓ Services
✓ Object-Model
➢ Communication Models
❏ Endpoints
Connected Endpoints
Connectionless Endpoints
High-Level Architecture
✓ Services
✓ Object-Model
✓ Communication Models
➢ Endpoints
Basic Endpoint
Tx/Rx completions may
go to the same or
different CQs
Tx/Rx command
‘queues’
Simple endpoint
configuration
Shared Contexts Endpoints may share
underlying command queues
Enables resource manager to select
where resource sharing occurs
CQs may be
dedicated or shared
Scalable Endpoints
Single addressable endpoint
with multiple command queues
Each context may
be associated with
its own CQ
Targets lockless,
multi-threaded usage
Low-Level Interface Design
Low-Level Design
➢ Control Interface
❏ Capability and Mode Bits
❏ Attributes
Control Interface - getinfo
int fi_getinfo(uint32_t version,
const char *node,
const char *service,
uint64_t flags,
struct fi_info *hints,
struct fi_info **info);
Explicit versioning for
forward compatibility
Modeled after getaddrinfo /
rdma_getaddrinfo
Hints used to filter output
Returns list of fabric info structures
Control Interface - fi_info
struct fi_info {
struct fi_info *next;
uint64_t caps;
uint64_t mode;
...
};
Primary structure used to query
and configure interfaces
caps and mode flags provide
simple mechanism to request
basic fabric services
Control Interface - fi_info
struct fi_info {
...
uint32_t addr_format;
size_t src_addrlen;
size_t dest_addrlen;
void *src_addr;
void *dest_addr;
...
};
Enables apps to be agnostic of
fabric specific addressing
(FI_FORMAT_UNSPEC) ..
But also supports apps
wanting to request a specific
source or destination address
Apps indicate their address
format for all APIs up front
Control Interface - fi_info
struct fi_info {
...
fid_t handle;
struct fi_tx_attr *tx_attr;
struct fi_rx_attr *rx_attr;
struct fi_ep_attr *ep_attr;
struct fi_domain_attr *domain_attr;
struct fi_fabric_attr *fabric_attr;
};
Links to attributes related to
the data transfer services that
are being requested
Apps can use default values
or request minimal attributes
Low-Level Design
✓ Control Interface
➢ Capability and Mode Bits
❏ Attributes
Capability Bits
• Desired features and services requested by
application
• Primary - application must request to enable
• Secondary - application may request
• Provider may enable if not requested
Providers enable capabilities if requested, or
if it will not impact performance or security
Basic set of features
required by application
Capabilities
• FI_MSG
• FI_RMA
• FI_TAGGED
• FI_ATOMIC
Specify desired data transfer
services (interfaces) to
enable
• FI_READ
• FI_WRITE
• FI_SEND
• FI_RECV
• FI_REMOTE_READ
• FI_REMOTE_WRITE
Overrides default capabilities;
used to limit functionality
Capabilities
• FI_SOURCE
• Source address returned with completion data
• Enabling may impact performance
• FI_DIRECTED_RECV
• Use source address of an incoming message to select receive buffer
• FI_MULTI_RECV
• Support for single buffer receiving multiple incoming messages
• Enables more efficient use of receive buffers
• FI_NAMED_RX_CTX
• Used with scalable endpoints
• Allows initiator to direct transfers to a desired receive context
Receive oriented capabilities
Capabilities
• FI_RMA_EVENT
• Supports generating completion events when endpoint is the target of
an RMA operation
• Enabling can avoid sending separate message after RMA completes
• FI_TRIGGER
• Supports triggered operations
• Triggered operations are specialized use cases of existing data
transfer routines
• FI_FENCE
• Supports fencing operations to a given remote endpoint
Mode Bits
• Requirements placed on the application
• Application indicates which modes it supports
• Requests that an application implement a
feature
• Application may see improved performance
• Cost of implementation by application is less than
provider based implementation
• Often related to hardware limitations
Provider requests to the
application
Mode Bits
• FI_CONTEXT
• Application provides ‘scratch’ space for providers as part of all data
transfers
• Avoids providers needing to allocate internal structures to track
requests
• Targets providers that have a significant software component
• FI_LOCAL_MR
• Provider requires that locally accessed data buffers be registered with
the provider before being used
• Supports existing iWarp and InfiniBand hardware
Mode Bits
• FI_MSG_PREFIX
• Application provides buffer space before their data buffers
• Typically used by provider to implement protocol headers
• FI_ASYNC_IOV
• Indicates that IOVs must remain valid until an operation completes
• Avoids providers needing to buffer IOVs
• FI_RX_CQ_DATA
• Indicates that transfers which carry remote CQ data consume receive
buffer space
• Supports existing InfiniBand hardware
Low-Level Design
✓ Control Interface
✓ Capability and Mode Bits
➢ Attributes
Attributes
• Providers encode default sizes for allocated
resources
• Administrator may override defaults
• Attributes reflect configured or optimal sizes
• Not necessarily maximums
• Intent is to guide resource managers to allocate
resources efficiently
Fabric Attributes
struct fi_fabric_attr {
struct fid_fabric *fabric;
char *name;
char *prov_name;
uint32_t prov_version;
};
Return a reference to
an already opened
instance, if it exists
Framework will search for
and select most recent
provider version available
Domain Attributes
struct fi_domain_attr {
struct fid_domain *domain;
char *name;
enum fi_threading threading;
enum fi_progress control_progress;
enum fi_progress data_progress;
enum fi_resource_mgmt resource_mgmt;
...
};
Specifies how resources (EPs,
CQs, etc.) may be assigned to
threads without needing locking
Indicates if application
threads are used to
progress operationsIndicates if provider will protect
against queue overruns
Domain Attributes
struct fi_domain_attr {
...
enum fi_av_type av_type;
enum fi_mr_mode mr_mode;
size_t mr_key_size;
size_t cq_data_size;
size_t cq_cnt;
...
};
Map or indexed
address vector type
Basic or scalable
memory registration
Range of MR key
Size of supported
remote CQ data
Optimal number of CQs
supported by domain
Domain Attributes
struct fi_domain_attr {
...
size_t ep_cnt;
size_t tx_ctx_cnt;
size_t rx_ctx_cnt;
size_t max_ep_tx_ctx;
size_t max_ep_rx_ctx;
size_t max_ep_stx_ctx;
size_t max_ep_srx_ctx;
};
Optimal endpoint
resource constraints
Scalable and shared
endpoint contexts
Endpoint Attributes
struct fi_ep_attr {
enum fi_ep_type type;
uint32_t protocol;
uint32_t protocol_version;
size_t max_msg_size;
size_t msg_prefix_size;
...
}; If FI_PREFIX
mode set
Maximum transfer
To ensure
interoperability
Endpoint Attributes
struct fi_ep_attr {
...
size_t max_order_raw_size;
size_t max_order_war_size;
size_t max_order_waw_size;
uint64_t mem_tag_format;
size_t tx_ctx_cnt;
size_t rx_ctx_cnt;
};
Delivery order of
transport data
Tag matching support
Rx/Tx contexts
Tx/Rx Attributes
struct fi_tx_attr {
uint64_t caps;
uint64_t mode;
uint64_t op_flags;
uint64_t msg_order;
uint64_t comp_order;
size_t inject_size;
size_t size;
size_t iov_limit;
size_t rma_iov_limit;
};
struct fi_rx_attr {
uint64_t caps;
uint64_t mode;
uint64_t op_flags;
uint64_t msg_order;
uint64_t comp_order;
size_t total_buffered_recv;
size_t size;
size_t iov_limit;
};
Can specify capability and
mode bits per context
Tx/Rx Attributes
• op_flags
• Default flags to control operation
• Apply to all operations where flags are not provided
directly or are assumed by the call itself
• size
• Minimum number of operations that may be posted
to a context
• Assumes each operation consumes the maximum
amount of resources
Tx/Rx Attributes
• inject_size
• Injected buffers may be re-used immediately on
return from a function call
• Related to FI_INJECT flag and fi_inject() call
• Maximum size of an injected buffer
• total_buffered_recv
• Total available space allocated by provider to buffer
messages for which there is no matching receive
• Handles unexpected messages
msg_order
• Order in which transport headers are processed
• [READ | WRITE | SEND] after [R | W | S]
• Determines how receive buffers are associated
with transfers
• Necessary, but insufficient, for data ordering
comp_order
• Order in which completed requests are written
to a completion object
• FI_ORDER_NONE - no ordering defined
• FI_ORDER_STRICT - ordered by processing
• FI_ORDER_DATA - bytes are also written in order
• Order depends on communication type
• Unreliable - all operations ordered
• Reliable - ordered per remote endpoint
Simple Ping-pong Example
RDM Pingpong
1. Open an endpoint
2. Direct completions to selected queues
3. Setup an address vector
4. Send and receive messages
Client-server test using
reliable unconnected
endpoints
RDM Pingpong
struct fi_info *fi, *hints;
struct test_options opts;
int main(int argc, char **argv)
{
init_test_options(&opts, argc, argv);
Use command line to pass in
source/destination address
Assumes no failures!
RDM Pingpong
hints = fi_allocinfo();
hints->ep_attr->type = FI_EP_RDM;
hints->caps = FI_MSG;
if (opts.dest_addr) {
/* “client” */
fi_getinfo(FI_VERSION(1,1), opts.dest_addr,
opts.dest_port, 0, hints, &fi);
Send/receive messages
over RDM endpoint
Explicitly define version
supported by app
Never use FI_MAJOR_VERSION
or FI_MINOR_VERSION defines!
RDM Pingpong
} else {
/* “server” */
fi_getinfo(FI_VERSION(1,1), opts.src_addr,
opts.src_port, FI_SOURCE, hints, &fi);
}
Node and service parameters
are local addresses
We assume both sides get the same
fabric name and endpoint protocol
We could use the hints
to force this
RDM Pingpong
fi_fabric(fi->fabric_attr, &fabric, NULL);
fi_domain(fabric, fi, &domain, NULL);
fi_getinfo returns optimal
options first
Open fabric and domain
using returned defaults
In the absence of any hints,
provider returns attributes most
suited to their implementation
RDM Pingpong
struct fi_cq_attr cq_attr = {};
cq_attr.wait_obj = FI_WAIT_NONE;
cq_attr.format = FI_CQ_FORMAT_CONTEXT;
cq_attr.size = fi->tx_attr->size;
fi_cq_open(domain, &cq_attr, &tx_cq, NULL);
Create completion queue
for transmit context
We will never block
waiting for a completion
Only provide request
context for each completion
Size the CQ the same as
the transmit context
RDM Pingpong
cq_attr.size = fi->rx_attr->size;
fi_cq_open(domain, &cq_attr, &rx_cq, NULL);
Create completion queue
for receive context
Only adjust the size
Since this is a pingpong test, we really
only need CQ sizes of 1
RDM Pingpong
struct fi_av_attr av_attr = {};
av_attr.type = fi->domain_attr->av_type;
av_attr.count = 1;
fi_av_open(domain, fi, &av_attr, &av, NULL);
Create address vector
Use AV type optimal
for provider
By default, addresses inserted into the AV will be
resolved synchronously. We can obtain asynchronous
operation by binding the AV with an event queue
RDM Pingpong
fi_endpoint(domain, fi, &ep, NULL)
Create the endpoint
Use the default attributes
specified by the provider
RDM Pingpong
fi_ep_bind(ep, av, 0);
fi_ep_bind(ep, tx_cq, FI_TRANSMIT);
fi_ep_bind(ep, rx_cq, FI_RECV);
fi_enable(ep);
Associate the endpoint
with the other resources
And enable it for
data transfers
RDM Pingpong
fi_recv(ep, rx_buf, MAX_CTRL_MSG_SIZE, 0, 0, NULL);
Client is given server address
through command line
Client will send its address to
the server as its first message
Server will ack when it is ready
RDM Pingpong
int wait_for_comp(struct fid_cq *cq)
{
struct fi_cq_entry entry;
int ret;
while (1) {
ret = fi_cq_read(cq, &entry, 1);
if (ret > 0)
return 0;
Define function to
retrieve a completion
CQ entry based on configured format
(i.e. FI_CQ_FORMAT_CONTEXT)
Return success if we
have a completion
RDM Pingpong
if (ret != -FI_EAGAIN) {
struct fi_cq_err_entry err_entry;
fi_cq_readerr(cq, &err_entry, 0);
printf(“%s %sn”, fi_strerror(err_entry.err),
fi_cq_strerror(cq, err_entry.prov_errno,
err_entry.err_data,
NULL, 0);
return ret;
}
}
}
The operation failed
Print some error information
RDM Pingpong
size_t addrlen = MAX_CTRL_MSG_SIZE;
if (opts.dest_addr) {
fi_av_insert(av, fi->dest_addr, 1, &remote_addr,
0, NULL);
fi_getname(&ep->fid, tx_buf, &addrlen);
Get client address to send to server
Synchronously insert server
address into client’s AV
RDM Pingpong
fi_send(ep, tx_buf, addrlen, NULL, remote_addr,
NULL);
wait_for_comp(rx_cq);
fi_recv(ep, rx_buf, opts.size, 0, 0, NULL);
wait_for_comp(tx_cq);
} else {
Wait for server to
ack that it’s ready
RDM Pingpong
wait_for_comp(rx_cq);
fi_av_insert(av, rx_buf, 1, &remote_addr,
0, NULL);
fi_recv(ep, rx_buf, opts.size, 0, 0, NULL);
fi_send(ep, tx_buf, 1, NULL, remote_addr, NULL);
wait_for_comp(tx_cq);
}
Server waits for
message from client
Insert client address
Ack that we’re ready
RDM Pingpong
for (i = 0; i < opts.iterations; i++) {
if (opts.dest_addr) {
fi_send(ep, tx_buf, opts.size, NULL,
remote_addr, NULL);
wait_for_comp(tx_cq);
wait_for_comp(rx_cq);
fi_recv(ep, rx_buf, opts.size, 0, 0, NULL);
} else {
Exchange messages
RDM Pingpong
wait_for_comp(rx_cq);
fi_recv(ep, rx_buf, opts.size, 0, 0, NULL);
fi_send(ep, tx_buf, opts.size, NULL,
remote_addr, NULL);
wait_for_comp(tx_cq);
}
}
/* done */
}
Advanced MPI Usage
MPI: Choosing an OFI mapping
Implements
Counters CQ
MPI progress
Implements
Domain
MPI Initialization
Endpoint
One size does not fit all!
● OFI is a set of building blocks
● Customize for your hardware
This tutorial:
● Presents a possible mapping
of MPI to OFI.
● Designed for providers with
a semantic match to MPI
Examples of this mapping:
● OpenMPI MTL
● MPICH Netmod
Implements
Tagged
MPI Two-sided
Implements
RMA
MPI-3 RMA
MSG
MPI_Init
• Initializes processes for communication
• Sets up OFI data structures
• exchanges information necessary to
communicate
• Establishes an MPI communicator
• Processes are addressable by MPI rank
• Initial “world” communicator is all processes in a job
MPI_Init
int MPI_init(/* … */){
/* Initialize MPI and OFI */
/* Use process manager for job state (job size, rank, etc) */
/* fi_getinfo(): Query and request OFI capabilities */
/* Map OFI capabilities to MPI API set. */
/* Open OFI objects (fabric, domain, endpoint, counter, cq, av)*/
/* Exchange addresses via process manager */
/* Bind OFI objects */
}
OFI initialization is designed so
critical communication code path
will be lightweight.
There are multiple ways to map
MPI semantics to OFI semantics
MPI_Init: Data structures
typedef struct global_t {
/* … */
struct fid_domain *domain;
struct fid_fabric *fabric;
struct fid_endpoint *ep;
struct fid_cq *p2p_cq;
struct fid_cntr *rma_ctr;
struct fid_mr *mr;
struct fid_av *av;
/* … */
} global_t;
global_t gbl; Global State Object
Endpoint
Completion Queue
Counter
Memory Region
Address Vector
MPI_Init: Map MPI to OFI
int MPI_init() {
…
hints = fi_allocinfo();
assert(hints != NULL);
hints->mode = FI_CONTEXT;
hints->caps = FI_TAGGED; /* Implements MPI tagged (2-sided) p2p */
hints->caps |= FI_MSG; /* Implements control messages */
hints->caps |= FI_MULTI_RECV; /* Ring buffer for control */
hints->caps |= FI_RMA; /* Implements MPI-3 RMA */
hints->caps |= FI_ATOMIC; /* Implements MPI-3 RMA atomics */
…
}
Allocate and clear an
info struct
Request Capabilities
MPI provides context
via MPI Requests
MPI_Init: OFI hints
int MPI_init() {
/* MPI handles locking, OFI should not lock */
hints->domain_attr->threading = FI_THREAD_ENDPOINT ;
/* OFI handles progress: Note that this choice may be provider dependent */
hints->domain_attr->control_progress = FI_PROGRESS_AUTO ;
hints->domain_attr->data_progress = FI_PROGRESS_AUTO ;
/* OFI handles flow control*/
hints->domain_attr->resource_mgmt = FI_RM_ENABLED;
/* MPI does not want to exchange memory regions */
hints->domain_attr->mr_mode = FI_MR_SCALABLE ;
/* Completions indicate data is in memory at the target */
hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE |FI_COMPLETION;
}
MPI_Init: Query Provider
int MPI_init() {
…
ret = fi_getinfo(fi_version, NULL, NULL,
0ULL, hints, &prov));
prov_use = choose_prov_from_list(prov);
max_buffered_send = prov_use->tx_attr->inject_size;
max_buffered_write = prov_use->tx_attr->inject_size;
max_send = prov_use->ep_attr->max_msg_size;
max_write = prov_use->ep_attr->max_msg_size;
…
}
Query OFI limits
OFI returns a list of
suitable providers
based on hints
MPI_Init: Single Basic endpoint
int MPI_init(/* … */)
{ …
/* Create the endpoint */
struct fid_endpoint *ep;
fi_endpoint(domain, prov_use, &ep, NULL);
gbl.ep = ep;
/* Bind the MR, CQs, counters, and AV to the endpoint object */
/* In this MPI model, we have 1 endpoint, 1 counter, and 1 completion queue */
fi_ep_bind(ep, (fid_t)gbl.p2p_cq, FI_SEND|FI_RECV|FI_SELECTIVE_COMPLETION );
fi_ep_bind(ep, (fid_t)gbl.rma_ctr, FI_READ | FI_WRITE);
fi_ep_bind(ep, (fid_t)gbl.av, 0ULL);
fi_enable(ep);
fi_ep_bind(ep, (fid_t)mr, FI_REMOTE_READ | FI_REMOTE_WRITE );
…
}
MPI_Init: Address Exchange
Get publishable
name
Endpoint name is a
serialized name that can be
exchanged
int MPI_init(/* … */)
{ …
/* Get our endpoint name and publish */
/* the socket to the KVS */
addrnamelen = FI_NAME_MAX;
fi_getname((fid_t)gbl.ep, addrname,&addrnamelen);
allgather_addresses(addrname, &all_addrnames);
/* Names are exchanged: Create an address vector and */
/* optionally add a table of mapped addresses */
fi_av_open(gbl.domain, av_attr, &gbl.av, NULL);
fi_av_insert(gbl.av, all_addrnames, job_size, mapped_table, 0ULL, NULL);
…
}
MPI Communicators
• MPI communicators remap a per-communicator MPI rank to a global
canonical process (often referenced by process rank in
MPI_COMM_WORLD)
• An OFI Address vector is a logical container for a list of network addresses
• The MPI implementation must map logical per-communicator ranks to a
network address to communicate
• There are several ways that communicators can be mapped
How should MPI use address vectors?
Address Table
Communicator A Communicator B
int MPI_Send(comm, rank){
fi_addr_t addr =
addr_table[comm->table[rank]];
fi_tsend(gbl.ep, …, addr, …);
}
Communicator A Communicator B
Method 1: AV_MAP Method 2: AV_TABLE
int MPI_Send(comm, rank){
int addr = comm->table[rank];
fi_tsend(gbl.ep, …, addr, …);
}
fi_addr_t
integer
How should MPI use address vectors?
Communicator A Communicator B
Method 3: AV_MAP
int MPI_Send(comm, rank){
fi_addr_t addr =
comm->table[rank];
fi_send(gbl.ep, …, addr, …);
}
fi_addr_t
integer
Communicator B
Method 4: AV_TABLE (per
comm)
int MPI_Send(comm, rank){
int addr = rank;
fi_send(comm->ep, …, addr, …);
}
Communicator A
O(1) communicator storage is possible
● Requires a new AV bound to an endpoint per
communicator.
MPI Communication
• Endpoints have been created and bound to resources
• Addresses have been exchanged
• Data can be sent/received
• Send operations
• MPI_Send: blocking send of a buffer to a rank in a communicator
• MPI_Isend: non-blocking send of a buffer to a rank in a
communicator
MPI_Send
int MPI_Send(const void *buf, int count, MPI_Datatype datatype,
int rank, int tag, MPI_Comm comm) {
…
/* We can implement a lightweight send if certain conditions are met */
/* Lightweight send maps to fi_tinject */
if (datatype_is_ contiguous && (data_sz <= max_buffered_send ))
mpi_errno = send_lightweight (buf, data_sz, rank, tag, comm);
else
mpi_errno = send_normal(buf, count, datatype, rank, tag, comm)
…
}
int send_lightweight (const void *buf, size_t data_sz,
int rank, int tag, Comm *comm)
{
int mpi_errno = MPI_SUCCESS;
uint64_t match_bits;
ssize_t ret;
/* Convert MPI rank to address, initialize the tag, inject! */
/* Tagged inject is buffered, no need to wait for completion*/
match_bits = init_sendtag(comm->comm_id, comm->rank, tag);
ret = fi_tinject(ep, buf, data_sz,
RANK_TO_FIADDR (comm, rank),
match_bits);
if(ret != 0) mpi_errno = handle_mpi_error(ret);
return mpi_errno;
}
MPI_Send: send_lightweight
MPI Send: Matching
• MPI enforces message order based on {rank, tag, communicator}.
• OFI uses a 64-bit integer for matching.
• The match bits must pack this information
/* match/ignore bit manipulation
*
* 0123 4567 01234567 0123 4567 01234567 0123 4567 01234567 01234567 01234567
* | | |
* ^ | context id | source | message tag
* | | (communicator) | |
* +---- protocol
*/
MPI Send: Matching Alternative
• Use fi_tsenddata/fi_tinjectdata to send immediate data
• Use FI_DIRECTED_RECEIVE to accept messages from a specific
destination address
• Send source rank in immediate data
/* match/ignore bit manipulation
*
* 0123 4567 01234567 01234567 01234567 01234567 01234567 01234567 01234567
* | |
* ^ | context id | message tag
* | | (communicator) |
* +---- protocol
*/
MPI_Send: send_normal
int send_normal(const void *buf, size_t data_sz,
int rank, int tag, Comm *comm, Request **req ) { …
/* Create a request, handle datatype processing, send */
/* The MPI request object contains the OFI state via */
/* The fi_context field in the request object */
*req = create_and_setup_mpi_request();
… /* Other MPI processing. Example, datatypes */
match_bits = init_sendtag(comm->comm_id, comm->rank, tag);
ret = fi_tsend(ep, dt_buf, dt_sz,
RANK_TO_FIADDR (comm, rank),
match_bits, &((*r)->ofi_context) );
if(ret != 0) mpi_errno = handle_mpi_error(ret);
/* Block until send is complete */
while((*req)->state != DONE)
PROGRESS();
return mpi_errno;
}
Advanced MPI_Send: Scalable EP
Rank 0
Communicator
0 1
Rank 1
Communicator
0 1
MPI_Send
Rank 0
Communicator
0 1
Rank 1
Communicator
0 1
MPI_Send
0 1 0 1 0 1 0 1
Normal MPI
Send
Scalable
EP Send
Why use Scalable EP’
s?:
● Parallelism
● Reduce lock
contention
● Different
attributes (like
ordering)
● Exploit
independent
hardware
resources
fi_addr_t
integer
MPI_Init: Scalable endpoints
int MPI_init(/* … */)
{ …
/* Create the transmit context using scalable endpoints */
struct fi_tx_attr tx_attr;
fi_scalable_ep(gbl.domain, prov_use, ep, NULL);
/* For Tagged MPI Point to Point */
tx_attr.caps = FI_TAGGED;
fi_tx_context(gbl.ep, index, &tx_attr, &g_txc(index), NULL);
fi_ep_bind(g_txc_tag(index), (fid_t)p2p_cq, FI_SEND);
/* For request based MPI RMA */
tx_attr.caps = FI_RMA|FI_ATOMIC;
fi_tx_context(gbl.ep, index+1, &tx_attr, &g_txc_rma(index), NULL);
fi_ep_bind(g_txc_rma(index), (fid_t) p2p_cq, FI_SEND);
/* For non-request based MPI RMA */
tx_attr.caps = FI_RMA|FI_ATOMIC;
fi_tx_context(gbl.ep, index+3, &tx_attr, &g_txc_cntr(index), NULL);
fi_ep_bind(g_txc_cntr(index), (fid_t) rma_ctr, FI_WRITE | FI_READ);
}
Tagged transmit
context: shared
completion queue
RMA transmit
context: shared
completion queue
RMA transmit
context:
completion counter
Advanced MPI_Send: Scalable EP
ret = fi_tsend(g_txc(src_tx_ctx_index), dt_buf, dt_sz,
RANK_TO_FIADDR_SEP(comm, rank, dest_rx_ctx_index),
match_bits, &(*r)->ofi_context );
Endpoint:
● Use a transmit context
instead of endpoint.
● transmit context is an
endpoint created with
fi_tx_context
Addressing:
● Use EP version of RANK_TO_FIADDR
● “endpoint” is an index (offset) into an
array of receive contexts
fi_addr_t RANK_TO_FIADDR_SEP (Comm *comm, int rank,
int endpoint) {
return fi_rx_addr(RANK_TO_FI_ADDR (comm, rank),
endpoint,
MAX_ENDPOINT_BITS);
/* MAX_ENDPOINT_BITS is an address vector attribute */
}
Which endpoint is right for my MPI?
• Basic Endpoint
• Possible to implement all of MPI
• Scalable endpoint + contexts
• Useful for internal threading modes, separation of resources, software
parallelization
• Adding capabilities to RMA windows (such as ordering restrictions)
• Binding resources at window creation time (memory regions)
• Shared endpoint + contexts
• Useful on shared or oversubscribed hardware
• Use them all!
• Start with basic, and customize/specialize MPI with a mix of endpoint
types
MPI Progress
• MPI_Send has initiated a blocking send operation that may take time to
complete. MPI will need to read the completion queues to complete the
request.
• MPI must handle errors (fatal and recoverable) in the progress loop.
MPI Progress
int internal_progress (){
int mpi_errno;
ssize_t ret;
struct fi_cq_tagged_entry wc[NUM_CQ_ENTRIES ];
ret = fi_cq_read(cq, (void *) wc, NUM_CQ_ENTRIES );
if(likely(ret > 0))
mpi_errno = handle_cq_entries(wc, ret);
else if (ret == -FI_EAGAIN)
mpi_errno = MPI_SUCCESS;
else
mpi_errno = handle_cq_error (ret);
return mpi_errno;
}
Optimized “Good” path
Empty Poll path
Error path
MPI Progress
static inline MPI_Request *context_to_req (void *context){
char *base = (char *)context;
return (Request *)container_of(base, Request, context);
}
static inline int handle_cq_entries (cq_tagged_entry_t * wc, ssize_t num){
int i;
Request *req;
for (i = 0; i < num; i++) {
req = context_to_req (wc[i].op_context);
dispatch_function(&wc[i],req);
}
return MPI_SUCCESS;
}
Embedded OFI context
● Embedding helps to prevent
double allocations (provider
and app)
● OFI can also allocate context
Handles multiple
completions
MPI Progress: dispatch
static inline int dispatch_function (cq_tagged_entry_t *wc, MPI_Request *req)
{
int mpi_errno;
switch (request->event )) {
case EVENT_SEND:
mpi_errno = send_done_event (wc, req);
break;
case EVENT_RECV:
mpi_errno = recv_done_event (wc, req);
break;
…
};
}
Marks MPI send request
complete. MPI test/wait
routines watch the
completion state.
Marks MPI receive request
complete and populates
the MPI status object
MPI_Recv
int MPI_Recv(const void *buf, size_t data_sz,int rank, int tag, Comm * comm,
Request *req ){
…
*req = create_and_setup_mpi_request();
match_bits = init_recvtag(&mask_bits, comm, rank, tag);
… /* Other MPI processing. Example, datatypes */
fi_trecv(ep,recv_buf,data_sz,NULL,
(MPI_ANY_SOURCE == rank) ? FI_ADDR_UNSPEC : RANK_TO_FIADDR(comm, rank),
match_bits, mask_bits, &req->context)
…
/* check completion queue for match */
}
Receive always takes
a context
Mask bits tell receive to
ignore ANY_SOURCE
match bits if rank ==
MPI_ANY_SOURCE
MPI_Probe: check for inbound msg
int MPI_Probe(int rank, int tag, Comm * comm,MPI_Status *status){
match_bits = init_recvtag(&mask_bits, comm, rank, tag);
… /* Other MPI processing */
msg.addr = remote_proc;
msg.tag = match_bits;
msg.ignore = mask_bits;
msg.context = req->context;
while(!req->done) {
ret = fi_trecvmsg(ep, &msg, FI_PEEK|FI_COMPLETION);
if(ret == 0)
PROGRESS_WHILE(!req.done);
else if(ret == -FI_ENOMSG)
continue;
else
error();
}
/* Fill out status and return */
}
Peek matches a
message but does not
dequeue it.
Progress to complete
message
add FI_CLAIM to flags
when implementing
MPI_Mprobe
int probe_event(cq_tagged_entry_t *wc,
Request *rreq){
rreq->done = TRUE;
rreq->status.MPI_SOURCE = get_source(wc->tag);
rreq->status.MPI_TAG = get_tag(wc->tag);
rreq->status.MPI_ERROR = MPI_SUCCESS;
rreq->status.count = wc->len;
return MPI_SUCCESS;
}
Probe/Receive completion events
int recv_event(cq_tagged_entry_t *wc,
Request *rreq){
rreq->done = TRUE;
rreq->status.MPI_SOURCE = get_source(wc->tag);
rreq->status.MPI_TAG = get_tag(wc->tag);
rreq->status.MPI_ERROR = MPI_SUCCESS;
rreq->status.count = wc->len;
/* Other MPI processing: unpack, request completion */
return MPI_SUCCESS;
}
Probe
● Fills out status to be returned to
the user
● get_tag/get_source are macros
that decode the tag
● length is data bytes, needs to be
converted to MPI count
Recv
● Fills out status to be
returned to the user
● Unpacks data and/or
handles the datatypes
● Handles any protocol acking
required (like ssend acks)
MPI 3 RMA Desired Semantics
114
• Memory exposed to incoming read/write by all targets
• Offset based addressing within a window O(1) storage is ideal
• Synchronization per MPI window
• Local and request based completion requirement at the origin for certain ops
• Non-contiguous support
• Hardware accelerated atomics
• Asynchronous progress
Memory
Segment
Memory
CPU
Memory
Segment
Memory
CPU
Memory
Segment
Memory
CPU
Memory
Segment
Memory
Window
CPU
• Possible Mappings (Using FI_SCALABLE_MR):
• Mapping 1: Global endpoint, user defined key, map all of memory
• Mapping 2: TX context per window, user defined key
• Mapping 3: TX/RX context per window, no key (offsets embedded in RX)
• Common: Fallback to mapping 1 when resources constrained
• Use symmetric heap if possible
• O(1) if resources and MPI parameters permit, otherwise:
• Displacement unit (if necessary)
• Window bases if Mapping 1 and no symmetric heap.
115
Memory Regions and Windows
• Counters used for synchronization (e.g.,
MPI_Win_flush)
• Completion queues used to signal request-based
“R” variants (e.g., MPI_Rput)
• MPI_Win_lock/unlock uses message queue
API for protocol
116
Synchronization
Window
• Desirable to not pack the data or send datatype, possible mappings:
•Send a series of RMA operations that align contiguous chunks
•Generate iovec lists that correspond to OFI hardware limits
•Handle datatypes natively with OFI
Memory
Origin[0] Origin[1] Origin[…] Origin[n-1]
Result[…] Result[n-1]Result[1]Result[0]
Memory Target[1]Target[0] Target[n-1]Target[…]
Non-contiguous Data
MPI_Put
int MPI_Put() {
…
/* We can implement a lightweight put if conditions are met */
if (origin_contig && target_contig && other_conditions &&
origin_bytes <= max_buffered_write )) {
/* Increment counter to synchronize with fi_cntr_read */
global_cntr++;
fi_inject_write (ep, (char *)origin_addr, target_bytes,
RANK_TO_FIADDR (win->comm, target_rank),
target_address, win->memory_key );
}
}
Target address can
be offset or VA based
Keys can be:
● Exchanged
● App provided: (FI_MR_SCALABLE)
MPI_Get
int MPI_Get() {
…
/* We can implement a lighter weight get if conditions are met */
if (origin_contig && target_contig && other_conditions &&
origin_bytes <= max_msg_size)) {
/* Increment counter to synchronize with fi_cntr_read */
global_cntr++;
fi_read (ep, (char *)origin_addr, target_bytes,
RANK_TO_FIADDR (win->comm, target_rank),
target_address, win->memory_key );
}
}
Target address can
be offset or VA based
Keys can be:
● Exchanged
● App provided: (FI_MR_SCALABLE)
• Natively supported in libfabric
• FI_ATOMIC capability for fi_getinfo
• see fi_atomic functions in the fi_atomic(3) man page
• Query MPI datatype and MPI op and use valid table
• Fall back to message queue API emulation if hardware atomic is not available
• Provide optimized versions of single element atomics
• At window creation, determine MPI ordering info key values and create the scalable
context with corresponding FI_ORDER_xAy flags
• We’ll discuss more later in the tutorial
120
MPI Atomics
OpenSHMEM Example
Content
❖ OpenSHMEM program model in a nutshell
❖ Mapping to libfabric constructs
➢ Endpoint types
➢ Address vectors
➢ Memory Registration
➢ Completion Queues and Counters
❖ Example Code walkthrough
Program Model in a Nutshell
NPES constant
Certain segments
of PE address
space remotely
accessible in a
one-sided fashion
OpenSHMEM - FI_EP_RDM
endpoints
❖ FI_EP_RDM likely best choice for OpenShmem
➢ one endpoint can be used to put/get, etc. to all PEs
in job
➢ relatively simple connection setup, but does require
some sort of out-of-band to exchange endpoint
names
➢ Does require an Address Vector instance
OpenSHMEM - Which AV Type?
❖ Two types of address vectors -
➢ FI_AV_MAP - using this type means the library must
internally keep a mechanism for mapping a PE to a
fabric fi_addr_t
➢ FI_AV_TABLE - supports a simple indexing scheme
to be used in place of fi_addr_t. Can support using
the PE rank as the address in data transfer
operations (this is likely the better choice for
OpenSHMEM)
OpenSHMEM - Memory Registration
❖ libfabric supports two memory registration
modes - basic and scalable
❖ FI_LOCAL_MR mode bit indicates whether local
buffers need to be registered
OpenSHMEM - Memory Registration(2)
❖ Scalable memory registration model simpler to
use
➢ does not require O(NPES) bookkeeping of memory keys.
➢ simplifies the implementation of a growable symmetric heap.
❖ Basic memory registration model is likely to be
supported by more providers
❖ Probably a good idea to be able to support both
models at least for the medium term
OpenSHMEM - Completion Queues,
Counters
❖ With current OpenSHMEM api, no need to track
data transfers on a per operation basis
❖ But for shmem_quiet/shmem_fence do need to
count outstanding data transfers
❖ fi_cntr’s smart to use here
❖ To support shmem_quiet semantics, want to use
FI_DELIVERY_COMPLETE for tx_attr op_flags
Example walkthrough
❖ shmem_init
❖ data transfer examples
➢ shmem_put
➢ shmem_iput (done two ways)
➢ shmem_double_swap
shmem_init (1)
void shmem_init(void) *dest, const void *src, size_t nelems, int pe)
{
uint32_t version = FI_VERSION(1,0); /* api version we use */
struct fi_tx_attr tx_attr = {0};
struct fi_rx_attr rx_attr = {0};
struct fi_ep_attr ep_attr = {0};
struct fi_domain_attr dom_attr = {0};
struct fi_info hints, *p_info = NULL;
hints = fi_allocinfo();
hints->caps = FI_RMA; /* one sided, got to have that */
hints->caps |= FI_ATOMIC; /* for shmem_fadd, etc. */
hints->caps |= FI_MSG; /* may be useful for control messages */
…
shmem_init (2)
hints.ep_attr = &ep_attr;
hints.ep_attr->type = FI_EP_RDM; /* specify EP type */
hints.tx_attr = &tx_attr;
hints.tx_attr->op_flags =
FI_DELIVERY_COMPLETE; /* shmem_quiet visibility guarantee */
hints.rx_attr = &rx_attr;
hints.rx_attr->op_flags = 0;
hints.domain_attr = &dom_attr;
hints.domain_attr->data_progress =
FI_PROGRESS_AUTO; /* no to shmem_progress */
#ifdef USE_SCALABLE_MR
hints.domain_attr->mr_mode = FI_MR_SCALABLE; /* optionally try scalable mr
*/
#endif
fi_getinfo(version, NULL, 0, 0, &hints, &p_info);
…
shmem_init (3)
fi_fabric(p_info->fabric_attr, /* get a fab desc */
&fab_desc, NULL);
fi_domain(fab_desc,p_info, &dom_desc, NULL); /* get a dom desc */
fi_endpoint(dom_desc, p_info, &ep_desc, NULL); /* get a ep desc */
cntr_attr.events = FI_CNTR_EVENTS_COMP;
fi_cntr_open(dom, &cnt_attr, &putcntr); /* open a put cntr */
fi_ep_bind(ep_desc, &putcntr->fid, FI_WRITE); /* bind to ep */
fi_cntr_open(dom, &cnt_attr, &getcntr); /* open a put cntr */
fi_ep_bind(ep_desc, &getcntr->fid, FI_READ); /* bind to ep */
av_attr.type = FI_AV_TABLE;
fi_av_open(dom, &av_attr, &av_desc, NULL); /* get an av desc */
fi_ep_bind(ep_desc, &av->fid, 0); /* bind to ep */
/* also open CQ and bind to ep (not shown) */
…
shmem_init (4)
#ifdef USE_SCALABLE_MR
fi_mr_reg(dom_desc, 0, UINT64_MAX, /* register entire addr space */
FI_REMOTE_READ | FI_REMOTE_WRITE,
0, /* zero-offset */
0ULL, /* pick 0 as memory key */
0,
&mr_desc,
NULL);
#else
fi_mr_reg(dom_desc, bss_base, bss_len,
FI_REMOTE_READ | FI_REMOTE_WRITE,
0,0ULL,0,&bss_mr_desc, NULL);
bss_mr_desc_key = fi_mr_key(bss_mr_desc);
/* same for symmetric heap*/
#endif
…
shmem_init (5)
fi_enable(ep_desc); /* enable ep for data transfers */
len = sizeof(getname_buf);
fi_getname(ep_desc,getname_buf, &len); /* get ep name */
all_ep_names = (char *)malloc(len * n_pes);
out_of_band_xchg(getname_buf, all_ep_names); /* oob exchange of ep names */
n = fi_av_insert(av_desc, /* add entries to av table */
all_ep_names,
npes,
NULL, /* don’t need vec of fi_addr’s for FI_AV_TABLE
*/
0,
NULL);
free(all_ep_names);
/* for !USE_SCALABLE_MR also need to exchange memory keys */
}
shmem_put/iput
shmem_put
void shmem_put64(void *dest, const void *src, size_t nelems, int pe)
{
extern uint64_t put_count;
uint64_t key = 0ULL;
#if !USE_SCALABLE_MR
key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */
#endif
fi_write(ep_desc,
src,
nelems * sizeof(long),
NULL, /* FI_LOCAL_MR */
(fi_addr_t)pe,
(uint64_t)dest,
key,
NULL);
put_count++;
fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/
}
shmem_iput - using FI_MORE(1)
void shmem_iput64(void *dest, const void *src,
ptrdiff_t tst, ptrdiff_t sst, size_t nelems, int pe)
{
extern uint64_t put_count;
uint64_t key = 0ULL;
uint64_t i;
struct fi_msg_rma msg_rma;
struct iov s_msg_iov,
struct fi_rma_iov t_msg_iov;
s_msg_iov.iov_len = sizeof(long); t_msg_iov.len = sizeof(long);
msg_rma.msg_iov = &s_msg_iov;
msg_rma.rma_iov = &t_msg_iov;
msg_rma.desc = NULL; /* assumes FI_LOCAL_MR */
msg_rma.iov_count = msg_rma.rma_iov_count = 1;
msg_rma.addr = (fi_addr_t)pe;
t_msg_iov.key = 0ULL; /* USE_SCALABLE_MR */
. . .
shmem_iput - using FI_MORE (2)
. . .
for (i=0;i<nelems-1;i++) {
s_msg_iov.iov_base = src + i * sst * sizeof(long);
t_msg_iov.addr = (uint64_t)dest + i * tst * sizeof(long);
fi_writemsg(ep_desc,
&msg_rma,
FI_MORE);
}
s_msg_iov.iov_base = src + (nelems - 1) * sst * sizeof(long);
t_msg_iov.addr = (uint64_t)dest + (nelems - 1) * tst * sizeof(long);
fi_writemsg(ep_desc,
&msg_rma,
0);
put_count += nelems;
fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/
}
shmem_swap
long shmem_long_swap(long *target, long value, int pe)
{
extern uint64_t get_count;
uint64_t key = 0ULL, result;
const uint64_t mask = ~0ULL;
#if !USE_SCALABLE_MR
key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */
#endif
fi_compare_atomic(ep_desc, &value, 1, NULL,
&mask, NULL,
&result, NULL,
(fi_addr_t)pe,
(uint64_t)target, key,
FI_UINT64, FI_MSWAP, NULL);
get_count++;
fi_cntr_wait(getcntr, get_count, -1); /* wait till data has returned*/
return result;
}
For more information:
OFIWG BoF - Tuesday 1:30 - 3:00 PM
2016 International OpenFabrics Alliance Workshop
Monterey, CA
April 4-8
https://www.openfabrics.org/index.php/blogs/80-2016-
international-openfabrics-alliance-workshop.html
Mail list - ofiwg@lists.openfabrics.org
Backup slides
shmem_put
void shmem_put64(void *dest, const void *src, size_t nelems, int pe)
{
extern uint64_t put_count;
uint64_t key = 0ULL;
struct fi_msg_rma msg_rma;
struct iov s_msg_iov,
struct fi_rma_iov t_msg_iov;
#if !USE_SCALABLE_MR
key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */
#endif
s_msg_iov.iov_base = src;
s_msg_iov.iov_len = sizeof(long) * nelems;
t_msg_iov.addr = (uint64_t)dest;
t_msg_iov.len = sizeof(long) * nelems;
. . .
shmem_put (2)
...
t_msg_iov.key = key;
msg_rma.msg_iov = &s_msg_iov;
msg_rma.rma_iov = &t_msg_iov;
msg_rma.desc = NULL; /* assumes FI_LOCAL_MR */
msg_rma.iov_count = msg_rma.rma_iov_count = 1;
msg_rma.addr = (uint64_t)pe;
fi_writemsg(ep_desc,
&msg_rma,
FI_DELIVERY_COMPLETE);
put_count++;
fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/
}

More Related Content

What's hot

Kernel Recipes 2017 - EBPF and XDP - Eric Leblond
Kernel Recipes 2017 - EBPF and XDP - Eric LeblondKernel Recipes 2017 - EBPF and XDP - Eric Leblond
Kernel Recipes 2017 - EBPF and XDP - Eric Leblond
Anne Nicolas

Proxmox Clustering with CEPH
Proxmox Clustering with CEPHProxmox Clustering with CEPH
Proxmox Clustering with CEPH
FahadIbrar5

RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects
RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA InterconnectsRDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects
RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects
inside-BigData.com

Freeswitch
FreeswitchFreeswitch
Freeswitch
Suneet Saini

eBPF/XDP
eBPF/XDP eBPF/XDP
eBPF/XDP
Netronome

Introduction to OpenFlow
Introduction to OpenFlowIntroduction to OpenFlow
Introduction to OpenFlow
Joel W. King

MP BGP-EVPN 실전기술-1편(개념잡기)
MP BGP-EVPN 실전기술-1편(개념잡기)MP BGP-EVPN 실전기술-1편(개념잡기)
MP BGP-EVPN 실전기술-1편(개념잡기)
JuHwan Lee

20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN
20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN
20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN
Indonesia Network Operators Group

Cruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clustersCruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clusters
Prateek Maheshwari

Apache Kafka
Apache KafkaApache Kafka
Apache Kafka
Diego Pacheco

Linux Systems Performance 2016
Linux Systems Performance 2016Linux Systems Performance 2016
Linux Systems Performance 2016
Brendan Gregg

RISC-V Boot Process: One Step at a Time
RISC-V Boot Process: One Step at a TimeRISC-V Boot Process: One Step at a Time
RISC-V Boot Process: One Step at a Time
Atish Patra

Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...
Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...
Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...
confluent

Introduction to memcached
Introduction to memcachedIntroduction to memcached
Introduction to memcached
Jurriaan Persyn

Introduction of eBPF - 時下最夯的Linux Technology
Introduction of eBPF - 時下最夯的Linux Technology Introduction of eBPF - 時下最夯的Linux Technology
Introduction of eBPF - 時下最夯的Linux Technology
Jace Liang

Building DataCenter networks with VXLAN BGP-EVPN
Building DataCenter networks with VXLAN BGP-EVPNBuilding DataCenter networks with VXLAN BGP-EVPN
Building DataCenter networks with VXLAN BGP-EVPN
Cisco Canada

CloudStack Networking
CloudStack NetworkingCloudStack Networking
Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!
Ray Jenkins

Using the New Apache Flink Kubernetes Operator in a Production Deployment
Using the New Apache Flink Kubernetes Operator in a Production DeploymentUsing the New Apache Flink Kubernetes Operator in a Production Deployment
Using the New Apache Flink Kubernetes Operator in a Production Deployment
Flink Forward

Using eBPF for High-Performance Networking in Cilium
Using eBPF for High-Performance Networking in CiliumUsing eBPF for High-Performance Networking in Cilium
Using eBPF for High-Performance Networking in Cilium
ScyllaDB


What's hot (20)

Kernel Recipes 2017 - EBPF and XDP - Eric Leblond
Kernel Recipes 2017 - EBPF and XDP - Eric LeblondKernel Recipes 2017 - EBPF and XDP - Eric Leblond
Kernel Recipes 2017 - EBPF and XDP - Eric Leblond

Proxmox Clustering with CEPH
Proxmox Clustering with CEPHProxmox Clustering with CEPH
Proxmox Clustering with CEPH

RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects
RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA InterconnectsRDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects
RDMA, Scalable MPI-3 RMA, and Next-Generation Post-RDMA Interconnects

Freeswitch
FreeswitchFreeswitch
Freeswitch

eBPF/XDP
eBPF/XDP eBPF/XDP
eBPF/XDP

Introduction to OpenFlow
Introduction to OpenFlowIntroduction to OpenFlow
Introduction to OpenFlow

MP BGP-EVPN 실전기술-1편(개념잡기)
MP BGP-EVPN 실전기술-1편(개념잡기)MP BGP-EVPN 실전기술-1편(개념잡기)
MP BGP-EVPN 실전기술-1편(개념잡기)

20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN
20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN
20 - IDNOG03 - Franki Lim (ARISTA) - Overlay Networking with VXLAN

Cruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clustersCruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clusters

Apache Kafka
Apache KafkaApache Kafka
Apache Kafka

Linux Systems Performance 2016
Linux Systems Performance 2016Linux Systems Performance 2016
Linux Systems Performance 2016

RISC-V Boot Process: One Step at a Time
RISC-V Boot Process: One Step at a TimeRISC-V Boot Process: One Step at a Time
RISC-V Boot Process: One Step at a Time

Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...
Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...
Disaster Recovery with MirrorMaker 2.0 (Ryanne Dolan, Cloudera) Kafka Summit ...

Introduction to memcached
Introduction to memcachedIntroduction to memcached
Introduction to memcached

Introduction of eBPF - 時下最夯的Linux Technology
Introduction of eBPF - 時下最夯的Linux Technology Introduction of eBPF - 時下最夯的Linux Technology
Introduction of eBPF - 時下最夯的Linux Technology

Building DataCenter networks with VXLAN BGP-EVPN
Building DataCenter networks with VXLAN BGP-EVPNBuilding DataCenter networks with VXLAN BGP-EVPN
Building DataCenter networks with VXLAN BGP-EVPN

CloudStack Networking
CloudStack NetworkingCloudStack Networking
CloudStack Networking

Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!

Using the New Apache Flink Kubernetes Operator in a Production Deployment
Using the New Apache Flink Kubernetes Operator in a Production DeploymentUsing the New Apache Flink Kubernetes Operator in a Production Deployment
Using the New Apache Flink Kubernetes Operator in a Production Deployment

Using eBPF for High-Performance Networking in Cilium
Using eBPF for High-Performance Networking in CiliumUsing eBPF for High-Performance Networking in Cilium
Using eBPF for High-Performance Networking in Cilium


Viewers also liked

A Taste of Open Fabrics Interfaces
A Taste of Open Fabrics InterfacesA Taste of Open Fabrics Interfaces
A Taste of Open Fabrics Interfaces
seanhefty

Lustre And Nfs V4
Lustre And Nfs V4Lustre And Nfs V4
Lustre And Nfs V4
awesomesos

Service Fabric Overview (Yves Goeleven)
Service Fabric Overview (Yves Goeleven)Service Fabric Overview (Yves Goeleven)
Service Fabric Overview (Yves Goeleven)
Visug

クラウドを活用するためのヒント
クラウドを活用するためのヒントクラウドを活用するためのヒント
クラウドを活用するためのヒント
Naoto MATSUMOTO

Usage of Reliable Actors in Azure Service Fabric
Usage of Reliable Actors in Azure Service FabricUsage of Reliable Actors in Azure Service Fabric
Usage of Reliable Actors in Azure Service Fabric
Alexander Laysha

Containers and HPC
Containers and HPCContainers and HPC
Containers and HPC
Olli-Pekka Lehto

Modern Computing: Cloud, Distributed, & High Performance
Modern Computing: Cloud, Distributed, & High PerformanceModern Computing: Cloud, Distributed, & High Performance
Modern Computing: Cloud, Distributed, & High Performance
inside-BigData.com

2016 IDC HPC Market Update
2016 IDC HPC Market Update2016 IDC HPC Market Update
2016 IDC HPC Market Update
inside-BigData.com

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)
k33a

Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)
Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)
Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)
Codit


Viewers also liked (10)

A Taste of Open Fabrics Interfaces
A Taste of Open Fabrics InterfacesA Taste of Open Fabrics Interfaces
A Taste of Open Fabrics Interfaces

Lustre And Nfs V4
Lustre And Nfs V4Lustre And Nfs V4
Lustre And Nfs V4

Service Fabric Overview (Yves Goeleven)
Service Fabric Overview (Yves Goeleven)Service Fabric Overview (Yves Goeleven)
Service Fabric Overview (Yves Goeleven)

クラウドを活用するためのヒント
クラウドを活用するためのヒントクラウドを活用するためのヒント
クラウドを活用するためのヒント

Usage of Reliable Actors in Azure Service Fabric
Usage of Reliable Actors in Azure Service FabricUsage of Reliable Actors in Azure Service Fabric
Usage of Reliable Actors in Azure Service Fabric

Containers and HPC
Containers and HPCContainers and HPC
Containers and HPC

Modern Computing: Cloud, Distributed, & High Performance
Modern Computing: Cloud, Distributed, & High PerformanceModern Computing: Cloud, Distributed, & High Performance
Modern Computing: Cloud, Distributed, & High Performance

2016 IDC HPC Market Update
2016 IDC HPC Market Update2016 IDC HPC Market Update
2016 IDC HPC Market Update

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)

Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)
Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)
Azure Service Fabric: notes from the field (Sam Vanhoute @Integrate 2016)


Similar to OFI libfabric Tutorial

From Device to Data Center to Insights
From Device to Data Center to InsightsFrom Device to Data Center to Insights
From Device to Data Center to Insights
DataWorks Summit/Hadoop Summit

From Device to Data Center to Insights: Architectural Considerations for the ...
From Device to Data Center to Insights: Architectural Considerations for the ...From Device to Data Center to Insights: Architectural Considerations for the ...
From Device to Data Center to Insights: Architectural Considerations for the ...
P. Taylor Goetz

Apache Big Data 2016: Next Gen Big Data Analytics with Apache Apex
Apache Big Data 2016: Next Gen Big Data Analytics with Apache ApexApache Big Data 2016: Next Gen Big Data Analytics with Apache Apex
Apache Big Data 2016: Next Gen Big Data Analytics with Apache Apex
Apache Apex

09 Systems Software Programming-Network Programming.pptx
09 Systems Software Programming-Network Programming.pptx09 Systems Software Programming-Network Programming.pptx
09 Systems Software Programming-Network Programming.pptx
KushalSrivastava23

Hacking apache cloud stack
Hacking apache cloud stackHacking apache cloud stack
Hacking apache cloud stack
Nitin Mehta

Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka
Ricardo Bravo

Chapter_4.pptx
Chapter_4.pptxChapter_4.pptx
Chapter_4.pptx
MuhammadUsman854361

OpenFabrics Interfaces introduction
OpenFabrics Interfaces introductionOpenFabrics Interfaces introduction
OpenFabrics Interfaces introduction
ofiwg

Asynchronous Python with Twisted
Asynchronous Python with TwistedAsynchronous Python with Twisted
Asynchronous Python with Twisted
Adam Englander

Foundational Design Patterns for Multi-Purpose Applications
Foundational Design Patterns for Multi-Purpose ApplicationsFoundational Design Patterns for Multi-Purpose Applications
Foundational Design Patterns for Multi-Purpose Applications
Ching-Hwa Yu

Introduction to Apache Apex and writing a big data streaming application
Introduction to Apache Apex and writing a big data streaming application  Introduction to Apache Apex and writing a big data streaming application
Introduction to Apache Apex and writing a big data streaming application
Apache Apex

Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...
Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...
Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...
OPNFV

Adding Real-time Features to PHP Applications
Adding Real-time Features to PHP ApplicationsAdding Real-time Features to PHP Applications
Adding Real-time Features to PHP Applications
Ronny López

Software Defined Networking: Primer
Software Defined Networking: Primer Software Defined Networking: Primer
Software Defined Networking: Primer
Bangladesh Network Operators Group

Realtime traffic analyser
Realtime traffic analyserRealtime traffic analyser
Realtime traffic analyser
Alex Moskvin

Light Reading BTE_SDNtoolbox_June_2015
Light Reading BTE_SDNtoolbox_June_2015Light Reading BTE_SDNtoolbox_June_2015
Light Reading BTE_SDNtoolbox_June_2015
Deborah Porchivina

AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...
AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...
AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...
Amazon Web Services

Introduction to SignalR
Introduction to SignalRIntroduction to SignalR
Introduction to SignalR
University of Hawai‘i at Mānoa

44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw
44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw
44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw
44CON

Fluentd and Distributed Logging at Kubecon
Fluentd and Distributed Logging at KubeconFluentd and Distributed Logging at Kubecon
Fluentd and Distributed Logging at Kubecon
N Masahiro


Similar to OFI libfabric Tutorial (20)

From Device to Data Center to Insights
From Device to Data Center to InsightsFrom Device to Data Center to Insights
From Device to Data Center to Insights

From Device to Data Center to Insights: Architectural Considerations for the ...
From Device to Data Center to Insights: Architectural Considerations for the ...From Device to Data Center to Insights: Architectural Considerations for the ...
From Device to Data Center to Insights: Architectural Considerations for the ...

Apache Big Data 2016: Next Gen Big Data Analytics with Apache Apex
Apache Big Data 2016: Next Gen Big Data Analytics with Apache ApexApache Big Data 2016: Next Gen Big Data Analytics with Apache Apex
Apache Big Data 2016: Next Gen Big Data Analytics with Apache Apex

09 Systems Software Programming-Network Programming.pptx
09 Systems Software Programming-Network Programming.pptx09 Systems Software Programming-Network Programming.pptx
09 Systems Software Programming-Network Programming.pptx

Hacking apache cloud stack
Hacking apache cloud stackHacking apache cloud stack
Hacking apache cloud stack

Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka

Chapter_4.pptx
Chapter_4.pptxChapter_4.pptx
Chapter_4.pptx

OpenFabrics Interfaces introduction
OpenFabrics Interfaces introductionOpenFabrics Interfaces introduction
OpenFabrics Interfaces introduction

Asynchronous Python with Twisted
Asynchronous Python with TwistedAsynchronous Python with Twisted
Asynchronous Python with Twisted

Foundational Design Patterns for Multi-Purpose Applications
Foundational Design Patterns for Multi-Purpose ApplicationsFoundational Design Patterns for Multi-Purpose Applications
Foundational Design Patterns for Multi-Purpose Applications

Introduction to Apache Apex and writing a big data streaming application
Introduction to Apache Apex and writing a big data streaming application  Introduction to Apache Apex and writing a big data streaming application
Introduction to Apache Apex and writing a big data streaming application

Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...
Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...
Summit 16: Applying Machine Learning to Intent-based Networking and Nfv Scali...

Adding Real-time Features to PHP Applications
Adding Real-time Features to PHP ApplicationsAdding Real-time Features to PHP Applications
Adding Real-time Features to PHP Applications

Software Defined Networking: Primer
Software Defined Networking: Primer Software Defined Networking: Primer
Software Defined Networking: Primer

Realtime traffic analyser
Realtime traffic analyserRealtime traffic analyser
Realtime traffic analyser

Light Reading BTE_SDNtoolbox_June_2015
Light Reading BTE_SDNtoolbox_June_2015Light Reading BTE_SDNtoolbox_June_2015
Light Reading BTE_SDNtoolbox_June_2015

AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...
AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...
AWS re:Invent 2016: Advanced Tips for Amazon EC2 Networking and High Availabi...

Introduction to SignalR
Introduction to SignalRIntroduction to SignalR
Introduction to SignalR

44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw
44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw
44CON 2014 - Binary Protocol Analysis with CANAPE, James Forshaw

Fluentd and Distributed Logging at Kubecon
Fluentd and Distributed Logging at KubeconFluentd and Distributed Logging at Kubecon
Fluentd and Distributed Logging at Kubecon


Recently uploaded

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdfRevolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Undress Baby

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic
Green Software Development

GraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph TechnologyGraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph Technology
Neo4j

Empowering Growth with Best Software Development Company in Noida - Deuglo
Empowering Growth with Best Software  Development Company in Noida - DeugloEmpowering Growth with Best Software  Development Company in Noida - Deuglo
Empowering Growth with Best Software Development Company in Noida - Deuglo
Deuglo Infosystem Pvt Ltd

E-commerce Application Development Company.pdf
E-commerce Application Development Company.pdfE-commerce Application Development Company.pdf
E-commerce Application Development Company.pdf
Hornet Dynamics

socradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdfsocradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdf
SOCRadar

Oracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptxOracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptx
Remote DBA Services

Introducing Crescat - Event Management Software for Venues, Festivals and Eve...
Introducing Crescat - Event Management Software for Venues, Festivals and Eve...Introducing Crescat - Event Management Software for Venues, Festivals and Eve...
Introducing Crescat - Event Management Software for Venues, Festivals and Eve...
Crescat

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions
TheSMSPoint

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, FactsALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
Green Software Development

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics
Hornet Dynamics

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
mz5nrf0n

Artificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension FunctionsArtificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension Functions
Octavian Nadolu

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j

LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOMLORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
lorraineandreiamcidl

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Łukasz Chruściel

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code
A Study of Variable-Role-based Feature Enrichment in Neural Models of CodeA Study of Variable-Role-based Feature Enrichment in Neural Models of Code
A Study of Variable-Role-based Feature Enrichment in Neural Models of Code
Aftab Hussain

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work
Sven Peters

SMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API ServiceSMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API Service
Yara Milbes

SWEBOK and Education at FUSE Okinawa 2024
SWEBOK and Education at FUSE Okinawa 2024SWEBOK and Education at FUSE Okinawa 2024
SWEBOK and Education at FUSE Okinawa 2024
Hironori Washizaki


Recently uploaded (20)

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdfRevolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdf

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic

GraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph TechnologyGraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph Technology

Empowering Growth with Best Software Development Company in Noida - Deuglo
Empowering Growth with Best Software  Development Company in Noida - DeugloEmpowering Growth with Best Software  Development Company in Noida - Deuglo
Empowering Growth with Best Software Development Company in Noida - Deuglo

E-commerce Application Development Company.pdf
E-commerce Application Development Company.pdfE-commerce Application Development Company.pdf
E-commerce Application Development Company.pdf

socradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdfsocradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdf

Oracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptxOracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptx

Introducing Crescat - Event Management Software for Venues, Festivals and Eve...
Introducing Crescat - Event Management Software for Venues, Festivals and Eve...Introducing Crescat - Event Management Software for Venues, Festivals and Eve...
Introducing Crescat - Event Management Software for Venues, Festivals and Eve...

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions

ALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, FactsALGIT - Assembly Line for Green IT - Numbers, Data, Facts
ALGIT - Assembly Line for Green IT - Numbers, Data, Facts

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样

Artificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension FunctionsArtificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension Functions

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris

LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOMLORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code
A Study of Variable-Role-based Feature Enrichment in Neural Models of CodeA Study of Variable-Role-based Feature Enrichment in Neural Models of Code
A Study of Variable-Role-based Feature Enrichment in Neural Models of Code

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work

SMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API ServiceSMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API Service

SWEBOK and Education at FUSE Okinawa 2024
SWEBOK and Education at FUSE Okinawa 2024SWEBOK and Education at FUSE Okinawa 2024
SWEBOK and Education at FUSE Okinawa 2024


OFI libfabric Tutorial

  • 2. Overview ❖ High-level Architecture ❖ Low-level Interface Design ❖ Simple Ping-pong Example ❖ Advanced MPI Usage ❖ SHMEM Usage
  • 3. ● This tutorial covers libfabric as of the v1.1.1 release ● Future versions might look a little different, but the v1.1 interface should remain available for a long time ● Man pages, source, presentations all available at: ○ http://ofiwg.github.io/libfabric/ ○ https://github.com/ofiwg/libfabric ● Code on slides deliberately omits error checking for clarity Overview
  • 4. Developer Note • libfabric supports a sockets provider • Allows it to run on most Linux systems • Includes virtual Linux environments • Also runs on OS X • brew install libfabric
  • 5. Acknowlegements Contributors to this tutorial not present today: • Bob Russell, University of New Hampshire • Sayantan Sur, Intel • Jeff Squyres, Cisco
  • 7. High-Level Architecture ➢ Interfaces and Services ❏ Object-Model ❏ Communication Models ❏ Endpoints
  • 8. Design Guidelines • Application driven API • Low-level fabric services abstraction • Extensibility built into interface • Optimal impedance match between applications and underlying hardware • Minimize software overhead • Maximize scalability • Implementation agnostic
  • 10. Control Services • Discover information about types of fabric services available • Identify most effective ways of utilizing a provider • Request specific features • Convey usage model to providers
  • 11. Communication Services • Setup communication between processes • Support connection-oriented and connectionless communication • Connection management targets ease of use • Address vectors target high scalability
  • 12. Completion Services • Asynchronous completion support • Event queues for detailed status • Configurable level of data reported • Separation between control versus data operations • Low-impact counters for fast notification
  • 13. Data Transfer Services Supports different communication paradigms: • Message Queues - send/receive FIFOs • Tag Matching - steered message transfers • RMA - direct memory transfers • Atomics - direct memory manipulation
  • 14. High-Level Architecture ✓ Interfaces and Services ➢ Object-Model ❏ Communication Models ❏ Endpoints
  • 15. Object-Model Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll setsActive endpoints DomainAddress vector Memory regions
  • 16. Fabric Object • Represent a single physical or virtual network • Shares network addresses • May span multiple providers • Future: topology information Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 17. Domain Object • Logical connection into a fabric • Physical or virtual NIC • Boundary for associating fabric resources Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 18. Passive Endpoint • Used by connection- oriented protocols • Listens for connection requests • Often map to software constructs • Can span multiple domains Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 19. Event Queue • Report completion of asyn- chronous control operations • Report error and other notifications • Explicitly or implicitly subscribe for events • Often mix of HW and SW support • Usage designed for ease of use Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 20. Wait Set • Optimized method of waiting for events across multiple event queues, completion queues, and counters • Abstraction of wait object(s) • Enables platform specific, high-performance wait objects • Uses single wait object when possible Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 21. Active Endpoint • Data transfer communication portal • Identified by fabric address • Often associated with a single NIC • Hardware Tx/Rx command queues • Support onload, offload, and partial offload implementations Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 22. Active Endpoint Types • FI_EP_DGRAM • Unreliable datagram • FI_EP_MSG • Reliable, connected • FI_EP_RDM • Reliable Datagram Message • Reliable, unconnected
  • 23. Completion Queue • Higher performance queues for data transfer completions • Associated with a single domain • Often mapped to hardware resources • Optimized to report successful completions • User-selectable completion format • Detailed error completions reported ‘out of band’ Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 24. Remote CQ Data • Application data written directly into remote completion queue • InfiniBand immediate data • Support for up to 8 bytes • Minimum of 4 bytes, if supported
  • 25. Counters • Lightweight completion mechanism for data transfers • Report only number of successful/error completions Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 26. Poll Set • Designed for providers that use the host processor to progress data transfers • Allows provider to use application thread • Allows driving progress across all objects assigned to a poll set • Can optimize where progress occurs Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 27. Memory Region • Local memory buffers exposed to fabric services • Permissions control access • Focused on desired application usage, with support for existing hardware • Registration of locally used buffers Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 28. Memory Registration Modes • FI_MR_BASIC • MR attributes selected by provider • Buffers identified by virtual address • Application must exchange MR parameters • FI_MR_SCALABLE • MR attributes selected by application • Buffers accessed starting at address 0 • Eliminates need to exchange MR parameters
  • 29. Address Vector • Store peer addresses for connectionless endpoints • Map higher level addresses to fabric specific addresses • Designed for high scalability • Enable minimal memory footprint • Optimized address resolution • Supports shared memory Passive endpoints Fabric Event queues Wait sets Completions queues Completion counters Poll sets Active endpoints Domain Address vector Memory regions
  • 30. Address Vector Types • FI_AV_MAP • Peers identified using a 64-bit fi_addr_t • Provider can encode fabric address directly • Enables direct mapping to hardware commands • FI_AV_TABLE • Peers identified using an index • Minimal application memory footprint (0!) • May require lookup on each data transfer
  • 31. High-Level Architecture ✓ Services ✓ Object-Model ➢ Communication Models ❏ Endpoints
  • 34. High-Level Architecture ✓ Services ✓ Object-Model ✓ Communication Models ➢ Endpoints
  • 35. Basic Endpoint Tx/Rx completions may go to the same or different CQs Tx/Rx command ‘queues’ Simple endpoint configuration
  • 36. Shared Contexts Endpoints may share underlying command queues Enables resource manager to select where resource sharing occurs CQs may be dedicated or shared
  • 37. Scalable Endpoints Single addressable endpoint with multiple command queues Each context may be associated with its own CQ Targets lockless, multi-threaded usage
  • 39. Low-Level Design ➢ Control Interface ❏ Capability and Mode Bits ❏ Attributes
  • 40. Control Interface - getinfo int fi_getinfo(uint32_t version, const char *node, const char *service, uint64_t flags, struct fi_info *hints, struct fi_info **info); Explicit versioning for forward compatibility Modeled after getaddrinfo / rdma_getaddrinfo Hints used to filter output Returns list of fabric info structures
  • 41. Control Interface - fi_info struct fi_info { struct fi_info *next; uint64_t caps; uint64_t mode; ... }; Primary structure used to query and configure interfaces caps and mode flags provide simple mechanism to request basic fabric services
  • 42. Control Interface - fi_info struct fi_info { ... uint32_t addr_format; size_t src_addrlen; size_t dest_addrlen; void *src_addr; void *dest_addr; ... }; Enables apps to be agnostic of fabric specific addressing (FI_FORMAT_UNSPEC) .. But also supports apps wanting to request a specific source or destination address Apps indicate their address format for all APIs up front
  • 43. Control Interface - fi_info struct fi_info { ... fid_t handle; struct fi_tx_attr *tx_attr; struct fi_rx_attr *rx_attr; struct fi_ep_attr *ep_attr; struct fi_domain_attr *domain_attr; struct fi_fabric_attr *fabric_attr; }; Links to attributes related to the data transfer services that are being requested Apps can use default values or request minimal attributes
  • 44. Low-Level Design ✓ Control Interface ➢ Capability and Mode Bits ❏ Attributes
  • 45. Capability Bits • Desired features and services requested by application • Primary - application must request to enable • Secondary - application may request • Provider may enable if not requested Providers enable capabilities if requested, or if it will not impact performance or security Basic set of features required by application
  • 46. Capabilities • FI_MSG • FI_RMA • FI_TAGGED • FI_ATOMIC Specify desired data transfer services (interfaces) to enable • FI_READ • FI_WRITE • FI_SEND • FI_RECV • FI_REMOTE_READ • FI_REMOTE_WRITE Overrides default capabilities; used to limit functionality
  • 47. Capabilities • FI_SOURCE • Source address returned with completion data • Enabling may impact performance • FI_DIRECTED_RECV • Use source address of an incoming message to select receive buffer • FI_MULTI_RECV • Support for single buffer receiving multiple incoming messages • Enables more efficient use of receive buffers • FI_NAMED_RX_CTX • Used with scalable endpoints • Allows initiator to direct transfers to a desired receive context Receive oriented capabilities
  • 48. Capabilities • FI_RMA_EVENT • Supports generating completion events when endpoint is the target of an RMA operation • Enabling can avoid sending separate message after RMA completes • FI_TRIGGER • Supports triggered operations • Triggered operations are specialized use cases of existing data transfer routines • FI_FENCE • Supports fencing operations to a given remote endpoint
  • 49. Mode Bits • Requirements placed on the application • Application indicates which modes it supports • Requests that an application implement a feature • Application may see improved performance • Cost of implementation by application is less than provider based implementation • Often related to hardware limitations Provider requests to the application
  • 50. Mode Bits • FI_CONTEXT • Application provides ‘scratch’ space for providers as part of all data transfers • Avoids providers needing to allocate internal structures to track requests • Targets providers that have a significant software component • FI_LOCAL_MR • Provider requires that locally accessed data buffers be registered with the provider before being used • Supports existing iWarp and InfiniBand hardware
  • 51. Mode Bits • FI_MSG_PREFIX • Application provides buffer space before their data buffers • Typically used by provider to implement protocol headers • FI_ASYNC_IOV • Indicates that IOVs must remain valid until an operation completes • Avoids providers needing to buffer IOVs • FI_RX_CQ_DATA • Indicates that transfers which carry remote CQ data consume receive buffer space • Supports existing InfiniBand hardware
  • 52. Low-Level Design ✓ Control Interface ✓ Capability and Mode Bits ➢ Attributes
  • 53. Attributes • Providers encode default sizes for allocated resources • Administrator may override defaults • Attributes reflect configured or optimal sizes • Not necessarily maximums • Intent is to guide resource managers to allocate resources efficiently
  • 54. Fabric Attributes struct fi_fabric_attr { struct fid_fabric *fabric; char *name; char *prov_name; uint32_t prov_version; }; Return a reference to an already opened instance, if it exists Framework will search for and select most recent provider version available
  • 55. Domain Attributes struct fi_domain_attr { struct fid_domain *domain; char *name; enum fi_threading threading; enum fi_progress control_progress; enum fi_progress data_progress; enum fi_resource_mgmt resource_mgmt; ... }; Specifies how resources (EPs, CQs, etc.) may be assigned to threads without needing locking Indicates if application threads are used to progress operationsIndicates if provider will protect against queue overruns
  • 56. Domain Attributes struct fi_domain_attr { ... enum fi_av_type av_type; enum fi_mr_mode mr_mode; size_t mr_key_size; size_t cq_data_size; size_t cq_cnt; ... }; Map or indexed address vector type Basic or scalable memory registration Range of MR key Size of supported remote CQ data Optimal number of CQs supported by domain
  • 57. Domain Attributes struct fi_domain_attr { ... size_t ep_cnt; size_t tx_ctx_cnt; size_t rx_ctx_cnt; size_t max_ep_tx_ctx; size_t max_ep_rx_ctx; size_t max_ep_stx_ctx; size_t max_ep_srx_ctx; }; Optimal endpoint resource constraints Scalable and shared endpoint contexts
  • 58. Endpoint Attributes struct fi_ep_attr { enum fi_ep_type type; uint32_t protocol; uint32_t protocol_version; size_t max_msg_size; size_t msg_prefix_size; ... }; If FI_PREFIX mode set Maximum transfer To ensure interoperability
  • 59. Endpoint Attributes struct fi_ep_attr { ... size_t max_order_raw_size; size_t max_order_war_size; size_t max_order_waw_size; uint64_t mem_tag_format; size_t tx_ctx_cnt; size_t rx_ctx_cnt; }; Delivery order of transport data Tag matching support Rx/Tx contexts
  • 60. Tx/Rx Attributes struct fi_tx_attr { uint64_t caps; uint64_t mode; uint64_t op_flags; uint64_t msg_order; uint64_t comp_order; size_t inject_size; size_t size; size_t iov_limit; size_t rma_iov_limit; }; struct fi_rx_attr { uint64_t caps; uint64_t mode; uint64_t op_flags; uint64_t msg_order; uint64_t comp_order; size_t total_buffered_recv; size_t size; size_t iov_limit; }; Can specify capability and mode bits per context
  • 61. Tx/Rx Attributes • op_flags • Default flags to control operation • Apply to all operations where flags are not provided directly or are assumed by the call itself • size • Minimum number of operations that may be posted to a context • Assumes each operation consumes the maximum amount of resources
  • 62. Tx/Rx Attributes • inject_size • Injected buffers may be re-used immediately on return from a function call • Related to FI_INJECT flag and fi_inject() call • Maximum size of an injected buffer • total_buffered_recv • Total available space allocated by provider to buffer messages for which there is no matching receive • Handles unexpected messages
  • 63. msg_order • Order in which transport headers are processed • [READ | WRITE | SEND] after [R | W | S] • Determines how receive buffers are associated with transfers • Necessary, but insufficient, for data ordering
  • 64. comp_order • Order in which completed requests are written to a completion object • FI_ORDER_NONE - no ordering defined • FI_ORDER_STRICT - ordered by processing • FI_ORDER_DATA - bytes are also written in order • Order depends on communication type • Unreliable - all operations ordered • Reliable - ordered per remote endpoint
  • 66. RDM Pingpong 1. Open an endpoint 2. Direct completions to selected queues 3. Setup an address vector 4. Send and receive messages Client-server test using reliable unconnected endpoints
  • 67. RDM Pingpong struct fi_info *fi, *hints; struct test_options opts; int main(int argc, char **argv) { init_test_options(&opts, argc, argv); Use command line to pass in source/destination address Assumes no failures!
  • 68. RDM Pingpong hints = fi_allocinfo(); hints->ep_attr->type = FI_EP_RDM; hints->caps = FI_MSG; if (opts.dest_addr) { /* “client” */ fi_getinfo(FI_VERSION(1,1), opts.dest_addr, opts.dest_port, 0, hints, &fi); Send/receive messages over RDM endpoint Explicitly define version supported by app Never use FI_MAJOR_VERSION or FI_MINOR_VERSION defines!
  • 69. RDM Pingpong } else { /* “server” */ fi_getinfo(FI_VERSION(1,1), opts.src_addr, opts.src_port, FI_SOURCE, hints, &fi); } Node and service parameters are local addresses We assume both sides get the same fabric name and endpoint protocol We could use the hints to force this
  • 70. RDM Pingpong fi_fabric(fi->fabric_attr, &fabric, NULL); fi_domain(fabric, fi, &domain, NULL); fi_getinfo returns optimal options first Open fabric and domain using returned defaults In the absence of any hints, provider returns attributes most suited to their implementation
  • 71. RDM Pingpong struct fi_cq_attr cq_attr = {}; cq_attr.wait_obj = FI_WAIT_NONE; cq_attr.format = FI_CQ_FORMAT_CONTEXT; cq_attr.size = fi->tx_attr->size; fi_cq_open(domain, &cq_attr, &tx_cq, NULL); Create completion queue for transmit context We will never block waiting for a completion Only provide request context for each completion Size the CQ the same as the transmit context
  • 72. RDM Pingpong cq_attr.size = fi->rx_attr->size; fi_cq_open(domain, &cq_attr, &rx_cq, NULL); Create completion queue for receive context Only adjust the size Since this is a pingpong test, we really only need CQ sizes of 1
  • 73. RDM Pingpong struct fi_av_attr av_attr = {}; av_attr.type = fi->domain_attr->av_type; av_attr.count = 1; fi_av_open(domain, fi, &av_attr, &av, NULL); Create address vector Use AV type optimal for provider By default, addresses inserted into the AV will be resolved synchronously. We can obtain asynchronous operation by binding the AV with an event queue
  • 74. RDM Pingpong fi_endpoint(domain, fi, &ep, NULL) Create the endpoint Use the default attributes specified by the provider
  • 75. RDM Pingpong fi_ep_bind(ep, av, 0); fi_ep_bind(ep, tx_cq, FI_TRANSMIT); fi_ep_bind(ep, rx_cq, FI_RECV); fi_enable(ep); Associate the endpoint with the other resources And enable it for data transfers
  • 76. RDM Pingpong fi_recv(ep, rx_buf, MAX_CTRL_MSG_SIZE, 0, 0, NULL); Client is given server address through command line Client will send its address to the server as its first message Server will ack when it is ready
  • 77. RDM Pingpong int wait_for_comp(struct fid_cq *cq) { struct fi_cq_entry entry; int ret; while (1) { ret = fi_cq_read(cq, &entry, 1); if (ret > 0) return 0; Define function to retrieve a completion CQ entry based on configured format (i.e. FI_CQ_FORMAT_CONTEXT) Return success if we have a completion
  • 78. RDM Pingpong if (ret != -FI_EAGAIN) { struct fi_cq_err_entry err_entry; fi_cq_readerr(cq, &err_entry, 0); printf(“%s %sn”, fi_strerror(err_entry.err), fi_cq_strerror(cq, err_entry.prov_errno, err_entry.err_data, NULL, 0); return ret; } } } The operation failed Print some error information
  • 79. RDM Pingpong size_t addrlen = MAX_CTRL_MSG_SIZE; if (opts.dest_addr) { fi_av_insert(av, fi->dest_addr, 1, &remote_addr, 0, NULL); fi_getname(&ep->fid, tx_buf, &addrlen); Get client address to send to server Synchronously insert server address into client’s AV
  • 80. RDM Pingpong fi_send(ep, tx_buf, addrlen, NULL, remote_addr, NULL); wait_for_comp(rx_cq); fi_recv(ep, rx_buf, opts.size, 0, 0, NULL); wait_for_comp(tx_cq); } else { Wait for server to ack that it’s ready
  • 81. RDM Pingpong wait_for_comp(rx_cq); fi_av_insert(av, rx_buf, 1, &remote_addr, 0, NULL); fi_recv(ep, rx_buf, opts.size, 0, 0, NULL); fi_send(ep, tx_buf, 1, NULL, remote_addr, NULL); wait_for_comp(tx_cq); } Server waits for message from client Insert client address Ack that we’re ready
  • 82. RDM Pingpong for (i = 0; i < opts.iterations; i++) { if (opts.dest_addr) { fi_send(ep, tx_buf, opts.size, NULL, remote_addr, NULL); wait_for_comp(tx_cq); wait_for_comp(rx_cq); fi_recv(ep, rx_buf, opts.size, 0, 0, NULL); } else { Exchange messages
  • 83. RDM Pingpong wait_for_comp(rx_cq); fi_recv(ep, rx_buf, opts.size, 0, 0, NULL); fi_send(ep, tx_buf, opts.size, NULL, remote_addr, NULL); wait_for_comp(tx_cq); } } /* done */ }
  • 85. MPI: Choosing an OFI mapping Implements Counters CQ MPI progress Implements Domain MPI Initialization Endpoint One size does not fit all! ● OFI is a set of building blocks ● Customize for your hardware This tutorial: ● Presents a possible mapping of MPI to OFI. ● Designed for providers with a semantic match to MPI Examples of this mapping: ● OpenMPI MTL ● MPICH Netmod Implements Tagged MPI Two-sided Implements RMA MPI-3 RMA MSG
  • 86. MPI_Init • Initializes processes for communication • Sets up OFI data structures • exchanges information necessary to communicate • Establishes an MPI communicator • Processes are addressable by MPI rank • Initial “world” communicator is all processes in a job
  • 87. MPI_Init int MPI_init(/* … */){ /* Initialize MPI and OFI */ /* Use process manager for job state (job size, rank, etc) */ /* fi_getinfo(): Query and request OFI capabilities */ /* Map OFI capabilities to MPI API set. */ /* Open OFI objects (fabric, domain, endpoint, counter, cq, av)*/ /* Exchange addresses via process manager */ /* Bind OFI objects */ } OFI initialization is designed so critical communication code path will be lightweight. There are multiple ways to map MPI semantics to OFI semantics
  • 88. MPI_Init: Data structures typedef struct global_t { /* … */ struct fid_domain *domain; struct fid_fabric *fabric; struct fid_endpoint *ep; struct fid_cq *p2p_cq; struct fid_cntr *rma_ctr; struct fid_mr *mr; struct fid_av *av; /* … */ } global_t; global_t gbl; Global State Object Endpoint Completion Queue Counter Memory Region Address Vector
  • 89. MPI_Init: Map MPI to OFI int MPI_init() { … hints = fi_allocinfo(); assert(hints != NULL); hints->mode = FI_CONTEXT; hints->caps = FI_TAGGED; /* Implements MPI tagged (2-sided) p2p */ hints->caps |= FI_MSG; /* Implements control messages */ hints->caps |= FI_MULTI_RECV; /* Ring buffer for control */ hints->caps |= FI_RMA; /* Implements MPI-3 RMA */ hints->caps |= FI_ATOMIC; /* Implements MPI-3 RMA atomics */ … } Allocate and clear an info struct Request Capabilities MPI provides context via MPI Requests
  • 90. MPI_Init: OFI hints int MPI_init() { /* MPI handles locking, OFI should not lock */ hints->domain_attr->threading = FI_THREAD_ENDPOINT ; /* OFI handles progress: Note that this choice may be provider dependent */ hints->domain_attr->control_progress = FI_PROGRESS_AUTO ; hints->domain_attr->data_progress = FI_PROGRESS_AUTO ; /* OFI handles flow control*/ hints->domain_attr->resource_mgmt = FI_RM_ENABLED; /* MPI does not want to exchange memory regions */ hints->domain_attr->mr_mode = FI_MR_SCALABLE ; /* Completions indicate data is in memory at the target */ hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE |FI_COMPLETION; }
  • 91. MPI_Init: Query Provider int MPI_init() { … ret = fi_getinfo(fi_version, NULL, NULL, 0ULL, hints, &prov)); prov_use = choose_prov_from_list(prov); max_buffered_send = prov_use->tx_attr->inject_size; max_buffered_write = prov_use->tx_attr->inject_size; max_send = prov_use->ep_attr->max_msg_size; max_write = prov_use->ep_attr->max_msg_size; … } Query OFI limits OFI returns a list of suitable providers based on hints
  • 92. MPI_Init: Single Basic endpoint int MPI_init(/* … */) { … /* Create the endpoint */ struct fid_endpoint *ep; fi_endpoint(domain, prov_use, &ep, NULL); gbl.ep = ep; /* Bind the MR, CQs, counters, and AV to the endpoint object */ /* In this MPI model, we have 1 endpoint, 1 counter, and 1 completion queue */ fi_ep_bind(ep, (fid_t)gbl.p2p_cq, FI_SEND|FI_RECV|FI_SELECTIVE_COMPLETION ); fi_ep_bind(ep, (fid_t)gbl.rma_ctr, FI_READ | FI_WRITE); fi_ep_bind(ep, (fid_t)gbl.av, 0ULL); fi_enable(ep); fi_ep_bind(ep, (fid_t)mr, FI_REMOTE_READ | FI_REMOTE_WRITE ); … }
  • 93. MPI_Init: Address Exchange Get publishable name Endpoint name is a serialized name that can be exchanged int MPI_init(/* … */) { … /* Get our endpoint name and publish */ /* the socket to the KVS */ addrnamelen = FI_NAME_MAX; fi_getname((fid_t)gbl.ep, addrname,&addrnamelen); allgather_addresses(addrname, &all_addrnames); /* Names are exchanged: Create an address vector and */ /* optionally add a table of mapped addresses */ fi_av_open(gbl.domain, av_attr, &gbl.av, NULL); fi_av_insert(gbl.av, all_addrnames, job_size, mapped_table, 0ULL, NULL); … }
  • 94. MPI Communicators • MPI communicators remap a per-communicator MPI rank to a global canonical process (often referenced by process rank in MPI_COMM_WORLD) • An OFI Address vector is a logical container for a list of network addresses • The MPI implementation must map logical per-communicator ranks to a network address to communicate • There are several ways that communicators can be mapped
  • 95. How should MPI use address vectors? Address Table Communicator A Communicator B int MPI_Send(comm, rank){ fi_addr_t addr = addr_table[comm->table[rank]]; fi_tsend(gbl.ep, …, addr, …); } Communicator A Communicator B Method 1: AV_MAP Method 2: AV_TABLE int MPI_Send(comm, rank){ int addr = comm->table[rank]; fi_tsend(gbl.ep, …, addr, …); } fi_addr_t integer
  • 96. How should MPI use address vectors? Communicator A Communicator B Method 3: AV_MAP int MPI_Send(comm, rank){ fi_addr_t addr = comm->table[rank]; fi_send(gbl.ep, …, addr, …); } fi_addr_t integer Communicator B Method 4: AV_TABLE (per comm) int MPI_Send(comm, rank){ int addr = rank; fi_send(comm->ep, …, addr, …); } Communicator A O(1) communicator storage is possible ● Requires a new AV bound to an endpoint per communicator.
  • 97. MPI Communication • Endpoints have been created and bound to resources • Addresses have been exchanged • Data can be sent/received • Send operations • MPI_Send: blocking send of a buffer to a rank in a communicator • MPI_Isend: non-blocking send of a buffer to a rank in a communicator
  • 98. MPI_Send int MPI_Send(const void *buf, int count, MPI_Datatype datatype, int rank, int tag, MPI_Comm comm) { … /* We can implement a lightweight send if certain conditions are met */ /* Lightweight send maps to fi_tinject */ if (datatype_is_ contiguous && (data_sz <= max_buffered_send )) mpi_errno = send_lightweight (buf, data_sz, rank, tag, comm); else mpi_errno = send_normal(buf, count, datatype, rank, tag, comm) … }
  • 99. int send_lightweight (const void *buf, size_t data_sz, int rank, int tag, Comm *comm) { int mpi_errno = MPI_SUCCESS; uint64_t match_bits; ssize_t ret; /* Convert MPI rank to address, initialize the tag, inject! */ /* Tagged inject is buffered, no need to wait for completion*/ match_bits = init_sendtag(comm->comm_id, comm->rank, tag); ret = fi_tinject(ep, buf, data_sz, RANK_TO_FIADDR (comm, rank), match_bits); if(ret != 0) mpi_errno = handle_mpi_error(ret); return mpi_errno; } MPI_Send: send_lightweight
  • 100. MPI Send: Matching • MPI enforces message order based on {rank, tag, communicator}. • OFI uses a 64-bit integer for matching. • The match bits must pack this information /* match/ignore bit manipulation * * 0123 4567 01234567 0123 4567 01234567 0123 4567 01234567 01234567 01234567 * | | | * ^ | context id | source | message tag * | | (communicator) | | * +---- protocol */
  • 101. MPI Send: Matching Alternative • Use fi_tsenddata/fi_tinjectdata to send immediate data • Use FI_DIRECTED_RECEIVE to accept messages from a specific destination address • Send source rank in immediate data /* match/ignore bit manipulation * * 0123 4567 01234567 01234567 01234567 01234567 01234567 01234567 01234567 * | | * ^ | context id | message tag * | | (communicator) | * +---- protocol */
  • 102. MPI_Send: send_normal int send_normal(const void *buf, size_t data_sz, int rank, int tag, Comm *comm, Request **req ) { … /* Create a request, handle datatype processing, send */ /* The MPI request object contains the OFI state via */ /* The fi_context field in the request object */ *req = create_and_setup_mpi_request(); … /* Other MPI processing. Example, datatypes */ match_bits = init_sendtag(comm->comm_id, comm->rank, tag); ret = fi_tsend(ep, dt_buf, dt_sz, RANK_TO_FIADDR (comm, rank), match_bits, &((*r)->ofi_context) ); if(ret != 0) mpi_errno = handle_mpi_error(ret); /* Block until send is complete */ while((*req)->state != DONE) PROGRESS(); return mpi_errno; }
  • 103. Advanced MPI_Send: Scalable EP Rank 0 Communicator 0 1 Rank 1 Communicator 0 1 MPI_Send Rank 0 Communicator 0 1 Rank 1 Communicator 0 1 MPI_Send 0 1 0 1 0 1 0 1 Normal MPI Send Scalable EP Send Why use Scalable EP’ s?: ● Parallelism ● Reduce lock contention ● Different attributes (like ordering) ● Exploit independent hardware resources fi_addr_t integer
  • 104. MPI_Init: Scalable endpoints int MPI_init(/* … */) { … /* Create the transmit context using scalable endpoints */ struct fi_tx_attr tx_attr; fi_scalable_ep(gbl.domain, prov_use, ep, NULL); /* For Tagged MPI Point to Point */ tx_attr.caps = FI_TAGGED; fi_tx_context(gbl.ep, index, &tx_attr, &g_txc(index), NULL); fi_ep_bind(g_txc_tag(index), (fid_t)p2p_cq, FI_SEND); /* For request based MPI RMA */ tx_attr.caps = FI_RMA|FI_ATOMIC; fi_tx_context(gbl.ep, index+1, &tx_attr, &g_txc_rma(index), NULL); fi_ep_bind(g_txc_rma(index), (fid_t) p2p_cq, FI_SEND); /* For non-request based MPI RMA */ tx_attr.caps = FI_RMA|FI_ATOMIC; fi_tx_context(gbl.ep, index+3, &tx_attr, &g_txc_cntr(index), NULL); fi_ep_bind(g_txc_cntr(index), (fid_t) rma_ctr, FI_WRITE | FI_READ); } Tagged transmit context: shared completion queue RMA transmit context: shared completion queue RMA transmit context: completion counter
  • 105. Advanced MPI_Send: Scalable EP ret = fi_tsend(g_txc(src_tx_ctx_index), dt_buf, dt_sz, RANK_TO_FIADDR_SEP(comm, rank, dest_rx_ctx_index), match_bits, &(*r)->ofi_context ); Endpoint: ● Use a transmit context instead of endpoint. ● transmit context is an endpoint created with fi_tx_context Addressing: ● Use EP version of RANK_TO_FIADDR ● “endpoint” is an index (offset) into an array of receive contexts fi_addr_t RANK_TO_FIADDR_SEP (Comm *comm, int rank, int endpoint) { return fi_rx_addr(RANK_TO_FI_ADDR (comm, rank), endpoint, MAX_ENDPOINT_BITS); /* MAX_ENDPOINT_BITS is an address vector attribute */ }
  • 106. Which endpoint is right for my MPI? • Basic Endpoint • Possible to implement all of MPI • Scalable endpoint + contexts • Useful for internal threading modes, separation of resources, software parallelization • Adding capabilities to RMA windows (such as ordering restrictions) • Binding resources at window creation time (memory regions) • Shared endpoint + contexts • Useful on shared or oversubscribed hardware • Use them all! • Start with basic, and customize/specialize MPI with a mix of endpoint types
  • 107. MPI Progress • MPI_Send has initiated a blocking send operation that may take time to complete. MPI will need to read the completion queues to complete the request. • MPI must handle errors (fatal and recoverable) in the progress loop.
  • 108. MPI Progress int internal_progress (){ int mpi_errno; ssize_t ret; struct fi_cq_tagged_entry wc[NUM_CQ_ENTRIES ]; ret = fi_cq_read(cq, (void *) wc, NUM_CQ_ENTRIES ); if(likely(ret > 0)) mpi_errno = handle_cq_entries(wc, ret); else if (ret == -FI_EAGAIN) mpi_errno = MPI_SUCCESS; else mpi_errno = handle_cq_error (ret); return mpi_errno; } Optimized “Good” path Empty Poll path Error path
  • 109. MPI Progress static inline MPI_Request *context_to_req (void *context){ char *base = (char *)context; return (Request *)container_of(base, Request, context); } static inline int handle_cq_entries (cq_tagged_entry_t * wc, ssize_t num){ int i; Request *req; for (i = 0; i < num; i++) { req = context_to_req (wc[i].op_context); dispatch_function(&wc[i],req); } return MPI_SUCCESS; } Embedded OFI context ● Embedding helps to prevent double allocations (provider and app) ● OFI can also allocate context Handles multiple completions
  • 110. MPI Progress: dispatch static inline int dispatch_function (cq_tagged_entry_t *wc, MPI_Request *req) { int mpi_errno; switch (request->event )) { case EVENT_SEND: mpi_errno = send_done_event (wc, req); break; case EVENT_RECV: mpi_errno = recv_done_event (wc, req); break; … }; } Marks MPI send request complete. MPI test/wait routines watch the completion state. Marks MPI receive request complete and populates the MPI status object
  • 111. MPI_Recv int MPI_Recv(const void *buf, size_t data_sz,int rank, int tag, Comm * comm, Request *req ){ … *req = create_and_setup_mpi_request(); match_bits = init_recvtag(&mask_bits, comm, rank, tag); … /* Other MPI processing. Example, datatypes */ fi_trecv(ep,recv_buf,data_sz,NULL, (MPI_ANY_SOURCE == rank) ? FI_ADDR_UNSPEC : RANK_TO_FIADDR(comm, rank), match_bits, mask_bits, &req->context) … /* check completion queue for match */ } Receive always takes a context Mask bits tell receive to ignore ANY_SOURCE match bits if rank == MPI_ANY_SOURCE
  • 112. MPI_Probe: check for inbound msg int MPI_Probe(int rank, int tag, Comm * comm,MPI_Status *status){ match_bits = init_recvtag(&mask_bits, comm, rank, tag); … /* Other MPI processing */ msg.addr = remote_proc; msg.tag = match_bits; msg.ignore = mask_bits; msg.context = req->context; while(!req->done) { ret = fi_trecvmsg(ep, &msg, FI_PEEK|FI_COMPLETION); if(ret == 0) PROGRESS_WHILE(!req.done); else if(ret == -FI_ENOMSG) continue; else error(); } /* Fill out status and return */ } Peek matches a message but does not dequeue it. Progress to complete message add FI_CLAIM to flags when implementing MPI_Mprobe
  • 113. int probe_event(cq_tagged_entry_t *wc, Request *rreq){ rreq->done = TRUE; rreq->status.MPI_SOURCE = get_source(wc->tag); rreq->status.MPI_TAG = get_tag(wc->tag); rreq->status.MPI_ERROR = MPI_SUCCESS; rreq->status.count = wc->len; return MPI_SUCCESS; } Probe/Receive completion events int recv_event(cq_tagged_entry_t *wc, Request *rreq){ rreq->done = TRUE; rreq->status.MPI_SOURCE = get_source(wc->tag); rreq->status.MPI_TAG = get_tag(wc->tag); rreq->status.MPI_ERROR = MPI_SUCCESS; rreq->status.count = wc->len; /* Other MPI processing: unpack, request completion */ return MPI_SUCCESS; } Probe ● Fills out status to be returned to the user ● get_tag/get_source are macros that decode the tag ● length is data bytes, needs to be converted to MPI count Recv ● Fills out status to be returned to the user ● Unpacks data and/or handles the datatypes ● Handles any protocol acking required (like ssend acks)
  • 114. MPI 3 RMA Desired Semantics 114 • Memory exposed to incoming read/write by all targets • Offset based addressing within a window O(1) storage is ideal • Synchronization per MPI window • Local and request based completion requirement at the origin for certain ops • Non-contiguous support • Hardware accelerated atomics • Asynchronous progress Memory Segment Memory CPU Memory Segment Memory CPU Memory Segment Memory CPU Memory Segment Memory Window CPU
  • 115. • Possible Mappings (Using FI_SCALABLE_MR): • Mapping 1: Global endpoint, user defined key, map all of memory • Mapping 2: TX context per window, user defined key • Mapping 3: TX/RX context per window, no key (offsets embedded in RX) • Common: Fallback to mapping 1 when resources constrained • Use symmetric heap if possible • O(1) if resources and MPI parameters permit, otherwise: • Displacement unit (if necessary) • Window bases if Mapping 1 and no symmetric heap. 115 Memory Regions and Windows
  • 116. • Counters used for synchronization (e.g., MPI_Win_flush) • Completion queues used to signal request-based “R” variants (e.g., MPI_Rput) • MPI_Win_lock/unlock uses message queue API for protocol 116 Synchronization
  • 117. Window • Desirable to not pack the data or send datatype, possible mappings: •Send a series of RMA operations that align contiguous chunks •Generate iovec lists that correspond to OFI hardware limits •Handle datatypes natively with OFI Memory Origin[0] Origin[1] Origin[…] Origin[n-1] Result[…] Result[n-1]Result[1]Result[0] Memory Target[1]Target[0] Target[n-1]Target[…] Non-contiguous Data
  • 118. MPI_Put int MPI_Put() { … /* We can implement a lightweight put if conditions are met */ if (origin_contig && target_contig && other_conditions && origin_bytes <= max_buffered_write )) { /* Increment counter to synchronize with fi_cntr_read */ global_cntr++; fi_inject_write (ep, (char *)origin_addr, target_bytes, RANK_TO_FIADDR (win->comm, target_rank), target_address, win->memory_key ); } } Target address can be offset or VA based Keys can be: ● Exchanged ● App provided: (FI_MR_SCALABLE)
  • 119. MPI_Get int MPI_Get() { … /* We can implement a lighter weight get if conditions are met */ if (origin_contig && target_contig && other_conditions && origin_bytes <= max_msg_size)) { /* Increment counter to synchronize with fi_cntr_read */ global_cntr++; fi_read (ep, (char *)origin_addr, target_bytes, RANK_TO_FIADDR (win->comm, target_rank), target_address, win->memory_key ); } } Target address can be offset or VA based Keys can be: ● Exchanged ● App provided: (FI_MR_SCALABLE)
  • 120. • Natively supported in libfabric • FI_ATOMIC capability for fi_getinfo • see fi_atomic functions in the fi_atomic(3) man page • Query MPI datatype and MPI op and use valid table • Fall back to message queue API emulation if hardware atomic is not available • Provide optimized versions of single element atomics • At window creation, determine MPI ordering info key values and create the scalable context with corresponding FI_ORDER_xAy flags • We’ll discuss more later in the tutorial 120 MPI Atomics
  • 122. Content ❖ OpenSHMEM program model in a nutshell ❖ Mapping to libfabric constructs ➢ Endpoint types ➢ Address vectors ➢ Memory Registration ➢ Completion Queues and Counters ❖ Example Code walkthrough
  • 123. Program Model in a Nutshell NPES constant Certain segments of PE address space remotely accessible in a one-sided fashion
  • 124. OpenSHMEM - FI_EP_RDM endpoints ❖ FI_EP_RDM likely best choice for OpenShmem ➢ one endpoint can be used to put/get, etc. to all PEs in job ➢ relatively simple connection setup, but does require some sort of out-of-band to exchange endpoint names ➢ Does require an Address Vector instance
  • 125. OpenSHMEM - Which AV Type? ❖ Two types of address vectors - ➢ FI_AV_MAP - using this type means the library must internally keep a mechanism for mapping a PE to a fabric fi_addr_t ➢ FI_AV_TABLE - supports a simple indexing scheme to be used in place of fi_addr_t. Can support using the PE rank as the address in data transfer operations (this is likely the better choice for OpenSHMEM)
  • 126. OpenSHMEM - Memory Registration ❖ libfabric supports two memory registration modes - basic and scalable ❖ FI_LOCAL_MR mode bit indicates whether local buffers need to be registered
  • 127. OpenSHMEM - Memory Registration(2) ❖ Scalable memory registration model simpler to use ➢ does not require O(NPES) bookkeeping of memory keys. ➢ simplifies the implementation of a growable symmetric heap. ❖ Basic memory registration model is likely to be supported by more providers ❖ Probably a good idea to be able to support both models at least for the medium term
  • 128. OpenSHMEM - Completion Queues, Counters ❖ With current OpenSHMEM api, no need to track data transfers on a per operation basis ❖ But for shmem_quiet/shmem_fence do need to count outstanding data transfers ❖ fi_cntr’s smart to use here ❖ To support shmem_quiet semantics, want to use FI_DELIVERY_COMPLETE for tx_attr op_flags
  • 129. Example walkthrough ❖ shmem_init ❖ data transfer examples ➢ shmem_put ➢ shmem_iput (done two ways) ➢ shmem_double_swap
  • 130. shmem_init (1) void shmem_init(void) *dest, const void *src, size_t nelems, int pe) { uint32_t version = FI_VERSION(1,0); /* api version we use */ struct fi_tx_attr tx_attr = {0}; struct fi_rx_attr rx_attr = {0}; struct fi_ep_attr ep_attr = {0}; struct fi_domain_attr dom_attr = {0}; struct fi_info hints, *p_info = NULL; hints = fi_allocinfo(); hints->caps = FI_RMA; /* one sided, got to have that */ hints->caps |= FI_ATOMIC; /* for shmem_fadd, etc. */ hints->caps |= FI_MSG; /* may be useful for control messages */ …
  • 131. shmem_init (2) hints.ep_attr = &ep_attr; hints.ep_attr->type = FI_EP_RDM; /* specify EP type */ hints.tx_attr = &tx_attr; hints.tx_attr->op_flags = FI_DELIVERY_COMPLETE; /* shmem_quiet visibility guarantee */ hints.rx_attr = &rx_attr; hints.rx_attr->op_flags = 0; hints.domain_attr = &dom_attr; hints.domain_attr->data_progress = FI_PROGRESS_AUTO; /* no to shmem_progress */ #ifdef USE_SCALABLE_MR hints.domain_attr->mr_mode = FI_MR_SCALABLE; /* optionally try scalable mr */ #endif fi_getinfo(version, NULL, 0, 0, &hints, &p_info); …
  • 132. shmem_init (3) fi_fabric(p_info->fabric_attr, /* get a fab desc */ &fab_desc, NULL); fi_domain(fab_desc,p_info, &dom_desc, NULL); /* get a dom desc */ fi_endpoint(dom_desc, p_info, &ep_desc, NULL); /* get a ep desc */ cntr_attr.events = FI_CNTR_EVENTS_COMP; fi_cntr_open(dom, &cnt_attr, &putcntr); /* open a put cntr */ fi_ep_bind(ep_desc, &putcntr->fid, FI_WRITE); /* bind to ep */ fi_cntr_open(dom, &cnt_attr, &getcntr); /* open a put cntr */ fi_ep_bind(ep_desc, &getcntr->fid, FI_READ); /* bind to ep */ av_attr.type = FI_AV_TABLE; fi_av_open(dom, &av_attr, &av_desc, NULL); /* get an av desc */ fi_ep_bind(ep_desc, &av->fid, 0); /* bind to ep */ /* also open CQ and bind to ep (not shown) */ …
  • 133. shmem_init (4) #ifdef USE_SCALABLE_MR fi_mr_reg(dom_desc, 0, UINT64_MAX, /* register entire addr space */ FI_REMOTE_READ | FI_REMOTE_WRITE, 0, /* zero-offset */ 0ULL, /* pick 0 as memory key */ 0, &mr_desc, NULL); #else fi_mr_reg(dom_desc, bss_base, bss_len, FI_REMOTE_READ | FI_REMOTE_WRITE, 0,0ULL,0,&bss_mr_desc, NULL); bss_mr_desc_key = fi_mr_key(bss_mr_desc); /* same for symmetric heap*/ #endif …
  • 134. shmem_init (5) fi_enable(ep_desc); /* enable ep for data transfers */ len = sizeof(getname_buf); fi_getname(ep_desc,getname_buf, &len); /* get ep name */ all_ep_names = (char *)malloc(len * n_pes); out_of_band_xchg(getname_buf, all_ep_names); /* oob exchange of ep names */ n = fi_av_insert(av_desc, /* add entries to av table */ all_ep_names, npes, NULL, /* don’t need vec of fi_addr’s for FI_AV_TABLE */ 0, NULL); free(all_ep_names); /* for !USE_SCALABLE_MR also need to exchange memory keys */ }
  • 136. shmem_put void shmem_put64(void *dest, const void *src, size_t nelems, int pe) { extern uint64_t put_count; uint64_t key = 0ULL; #if !USE_SCALABLE_MR key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */ #endif fi_write(ep_desc, src, nelems * sizeof(long), NULL, /* FI_LOCAL_MR */ (fi_addr_t)pe, (uint64_t)dest, key, NULL); put_count++; fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/ }
  • 137. shmem_iput - using FI_MORE(1) void shmem_iput64(void *dest, const void *src, ptrdiff_t tst, ptrdiff_t sst, size_t nelems, int pe) { extern uint64_t put_count; uint64_t key = 0ULL; uint64_t i; struct fi_msg_rma msg_rma; struct iov s_msg_iov, struct fi_rma_iov t_msg_iov; s_msg_iov.iov_len = sizeof(long); t_msg_iov.len = sizeof(long); msg_rma.msg_iov = &s_msg_iov; msg_rma.rma_iov = &t_msg_iov; msg_rma.desc = NULL; /* assumes FI_LOCAL_MR */ msg_rma.iov_count = msg_rma.rma_iov_count = 1; msg_rma.addr = (fi_addr_t)pe; t_msg_iov.key = 0ULL; /* USE_SCALABLE_MR */ . . .
  • 138. shmem_iput - using FI_MORE (2) . . . for (i=0;i<nelems-1;i++) { s_msg_iov.iov_base = src + i * sst * sizeof(long); t_msg_iov.addr = (uint64_t)dest + i * tst * sizeof(long); fi_writemsg(ep_desc, &msg_rma, FI_MORE); } s_msg_iov.iov_base = src + (nelems - 1) * sst * sizeof(long); t_msg_iov.addr = (uint64_t)dest + (nelems - 1) * tst * sizeof(long); fi_writemsg(ep_desc, &msg_rma, 0); put_count += nelems; fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/ }
  • 139. shmem_swap long shmem_long_swap(long *target, long value, int pe) { extern uint64_t get_count; uint64_t key = 0ULL, result; const uint64_t mask = ~0ULL; #if !USE_SCALABLE_MR key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */ #endif fi_compare_atomic(ep_desc, &value, 1, NULL, &mask, NULL, &result, NULL, (fi_addr_t)pe, (uint64_t)target, key, FI_UINT64, FI_MSWAP, NULL); get_count++; fi_cntr_wait(getcntr, get_count, -1); /* wait till data has returned*/ return result; }
  • 140. For more information: OFIWG BoF - Tuesday 1:30 - 3:00 PM 2016 International OpenFabrics Alliance Workshop Monterey, CA April 4-8 https://www.openfabrics.org/index.php/blogs/80-2016- international-openfabrics-alliance-workshop.html Mail list - ofiwg@lists.openfabrics.org
  • 142. shmem_put void shmem_put64(void *dest, const void *src, size_t nelems, int pe) { extern uint64_t put_count; uint64_t key = 0ULL; struct fi_msg_rma msg_rma; struct iov s_msg_iov, struct fi_rma_iov t_msg_iov; #if !USE_SCALABLE_MR key = key_is_bss_or_symheap(dest); /* assumes sym heap at same VADDR */ #endif s_msg_iov.iov_base = src; s_msg_iov.iov_len = sizeof(long) * nelems; t_msg_iov.addr = (uint64_t)dest; t_msg_iov.len = sizeof(long) * nelems; . . .
  • 143. shmem_put (2) ... t_msg_iov.key = key; msg_rma.msg_iov = &s_msg_iov; msg_rma.rma_iov = &t_msg_iov; msg_rma.desc = NULL; /* assumes FI_LOCAL_MR */ msg_rma.iov_count = msg_rma.rma_iov_count = 1; msg_rma.addr = (uint64_t)pe; fi_writemsg(ep_desc, &msg_rma, FI_DELIVERY_COMPLETE); put_count++; fi_cntr_wait(putcntr, put_count, -1); /* wait till src can be reused*/ }
