DIVIDE AND MANAGE WITHDIVIDE AND MANAGE WITH
CONAN.IOCONAN.IO
Pavel.Filonov@kaspersky.com

2. 2

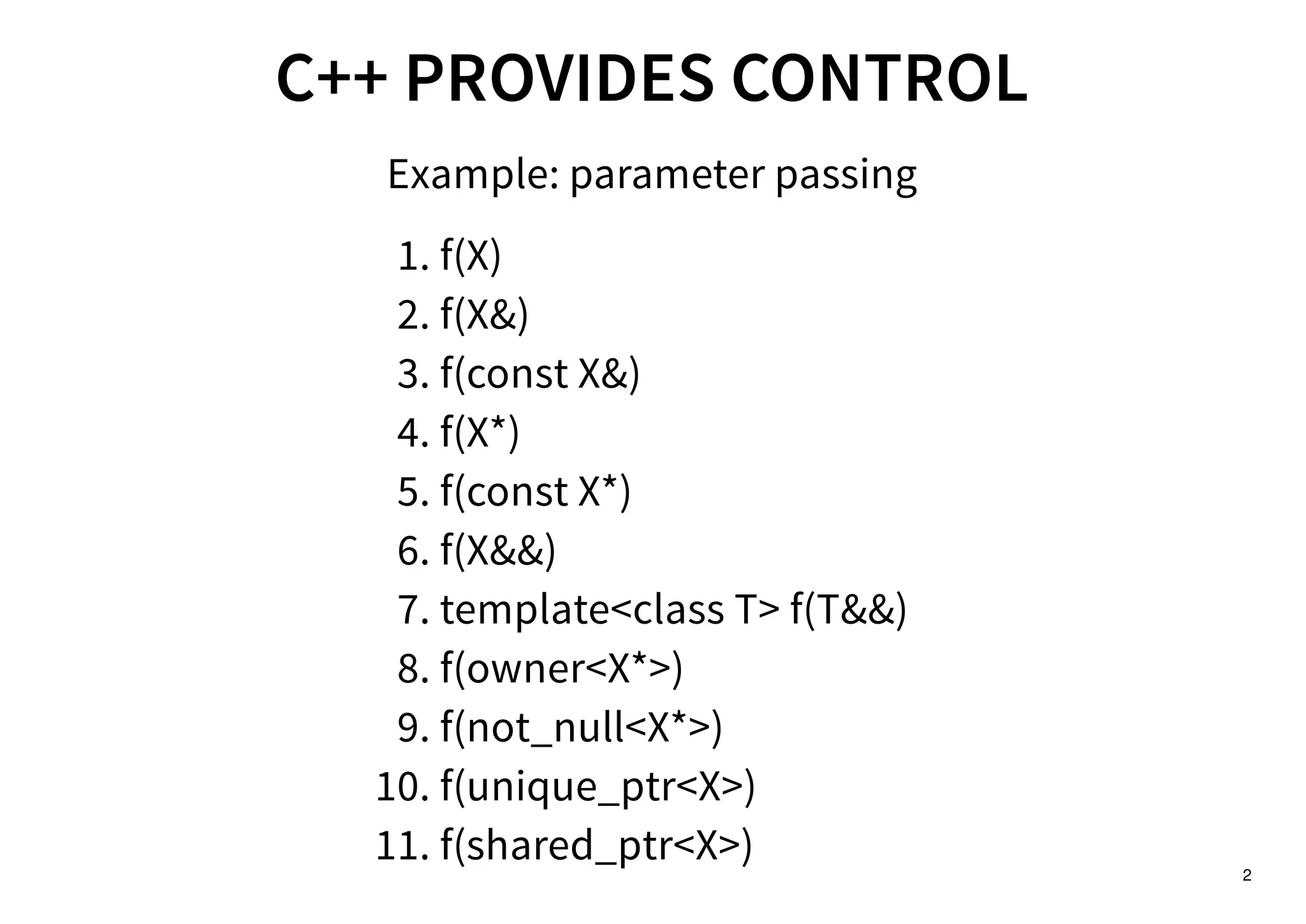

C++ PROVIDES CONTROLC++ PROVIDES CONTROL
Example: parameter passing
f(X)1.
f(X&)2.
f(const X&)3.
f(X*)4.
f(const X*)5.
f(X&&)6.
template<class T> f(T&&)7.
f(owner<X*>)8.
f(not_null<X*>)9.
f(unique_ptr<X>)10.
f(shared_ptr<X>)11.

3. 3
C++ PROVIDES PORTABILITYC++ PROVIDES PORTABILITY
But how we could build all of this!

4. 4
C++ BUILD TOOLSC++ BUILD TOOLS
CMake
qmake
bazel
ninja
meson
maiken
Scons
...
Ok. But who will manage our dependencies?

5. 5
C++ PACKAGE MANAGERSC++ PACKAGE MANAGERS
Linux
apt, yum, portage, pacman, ...
Macos
MacPorts, Fink, Homebrew, ...
Windows
Nuget, Chocolatey
Cross-plarform
cpm, hunter, ExternalProject_Add
<self-written scripts on python, perl, bash, cmake>
biicode
conan

6. 6

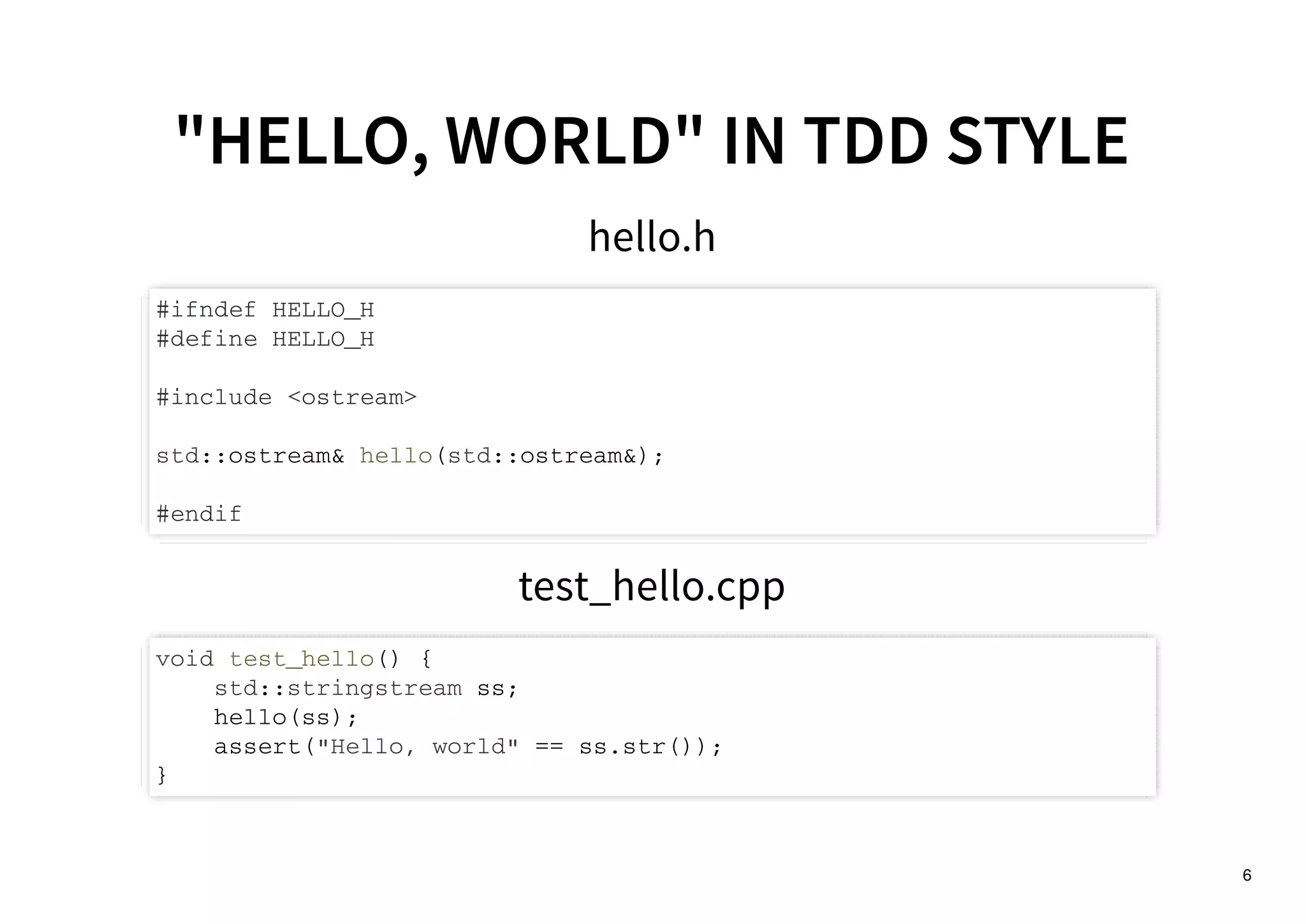

"HELLO, WORLD" IN TDD STYLE"HELLO, WORLD" IN TDD STYLE
hello.h
#ifndef HELLO_H
#define HELLO_H
#include <ostream>
std::ostream& hello(std::ostream&);
#endif
test_hello.cpp
void test_hello() {
std::stringstream ss;
hello(ss);
assert("Hello, world" == ss.str());
}

7. 7
BUILD CONFIGURATIONBUILD CONFIGURATION
CMakeLists.txt
cmake_minimum_required(VERSION 2.8.12)
project(hello CXX)
set(${PROJECT_NAME}_SOURCES
${CMAKE_SOURCE_DIR}/src/hello.cpp
)
set(${PROJECT_NAME}_HEADERS
${CMAKE_SOURCE_DIR}/include/hello.h
)
include_directories(include)
add_executable(${PROJECT_NAME}
${CMAKE_SOURCE_DIR}/src/main.cpp
${${PROJECT_NAME}_SOURCES}
${${PROJECT_NAME}_HEADERS}
)
enable_testing()
add_subdirectory(test)

8. TRAVIS CI CONFIGURATIONTRAVIS CI CONFIGURATION
.travis.yml
sudo: required
dist: trusty
script:
- mkdir build && cd build
- cmake ..
- cmake --build .
- ctest
matrix:
include:
- os: linux
addons:
apt:
sources:
- ubuntu-toolchain-r-test
packages:
- g++-4.9
env: CXX=g++-4.9
- os: linux
addons:
8

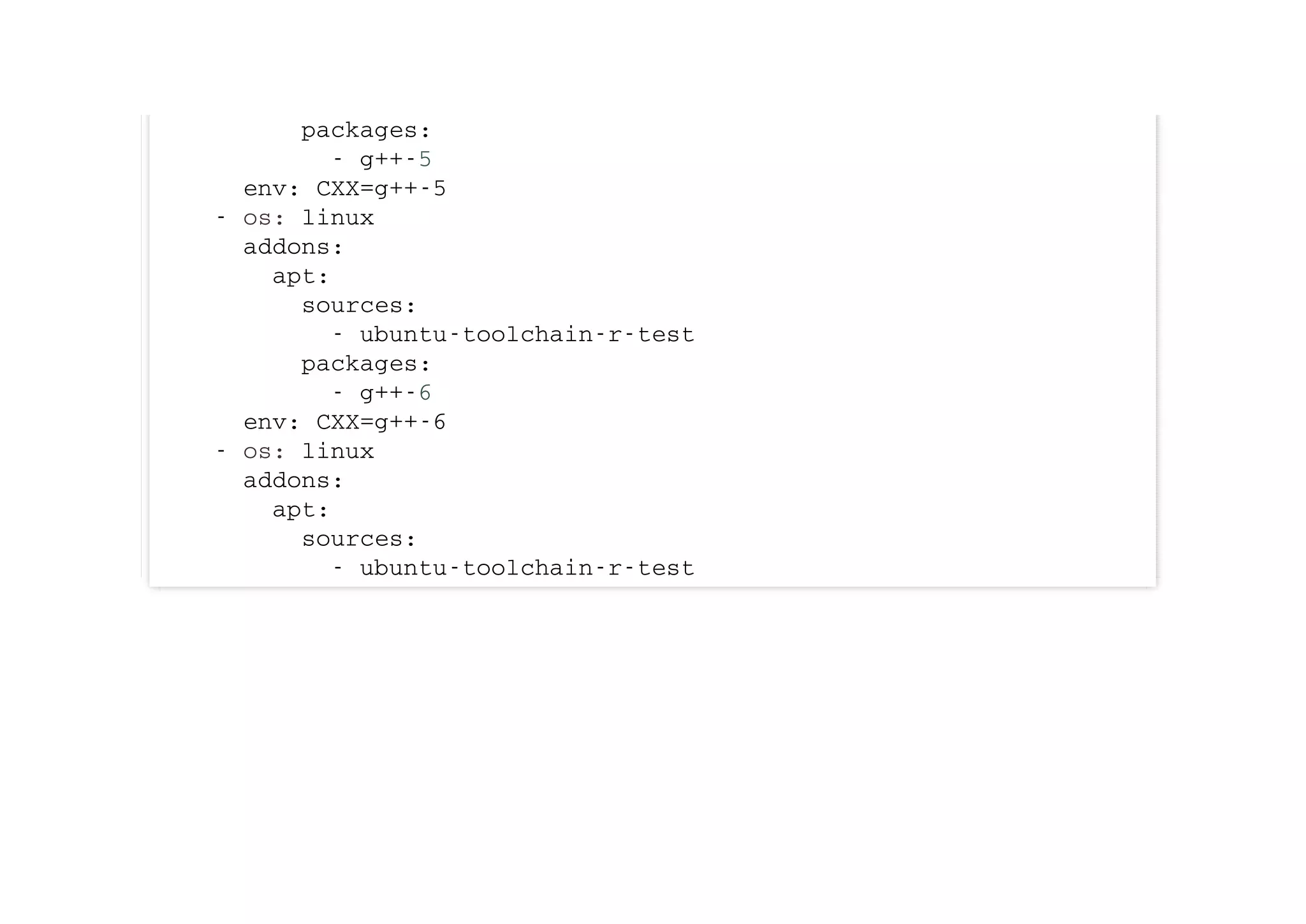

9. packages:
- g++-5
env: CXX=g++-5
- os: linux
addons:
apt:
sources:
- ubuntu-toolchain-r-test
packages:
- g++-6
env: CXX=g++-6
- os: linux
addons:
apt:
sources:
- ubuntu-toolchain-r-test

10. 9

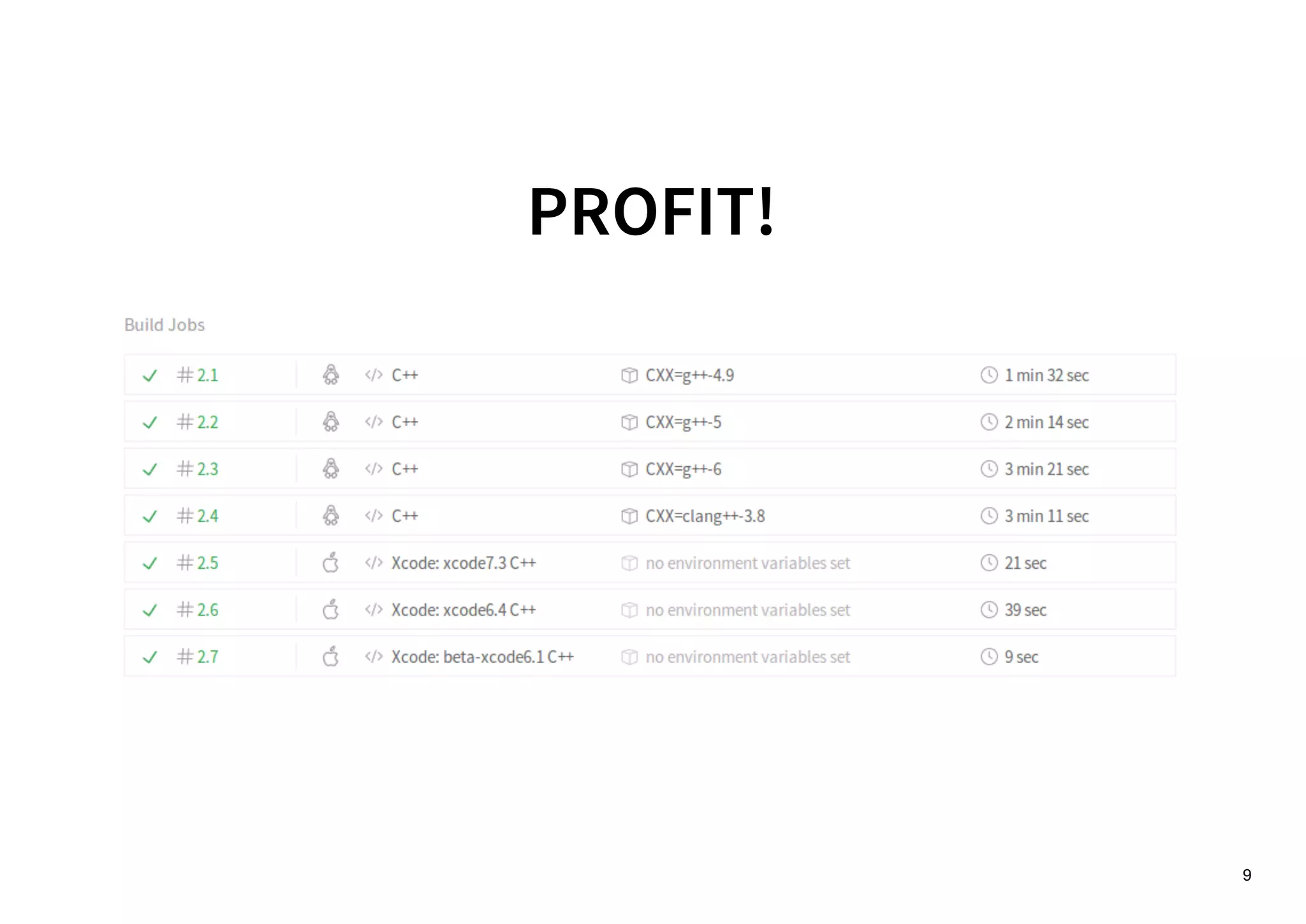

PROFIT!PROFIT!

11. 10
APPVEYOR CONFIGURATIONAPPVEYOR CONFIGURATION
appveyor.yml
build:
build_script:
- mkdir build && cd build
- cmake -G "%TOOLCHAIN_VERSION%" ..
- cmake --build . --config release
test_script:
- cmd: ctest -C release -VV
environment:
matrix:
- TOOLCHAIN_VERSION: Visual Studio 14 2015
- TOOLCHAIN_VERSION: Visual Studio 12 2013
- TOOLCHAIN_VERSION: Visual Studio 11 2012

12. 11

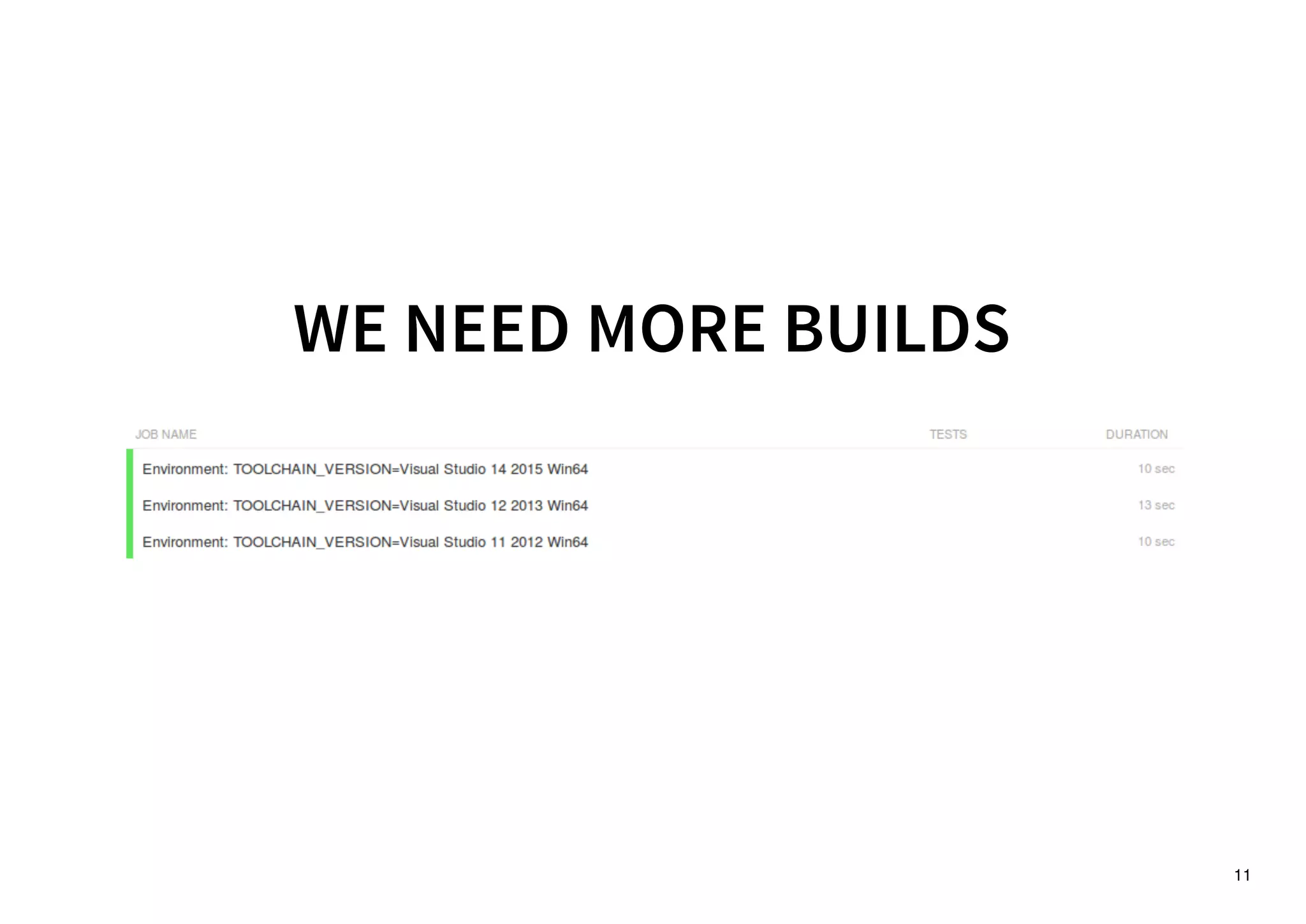

WE NEED MORE BUILDSWE NEED MORE BUILDS

13. 12
NOW WE WANT TO USE GOOGLETESTNOW WE WANT TO USE GOOGLETEST
#include <sstream>
#include <iostream>
#include <gtest/gtest.h>
#include <hello.h>
TEST(hello, simple) {
std::stringstream ss;
hello(ss);
ASSERT_EQ("Hello, world", ss.str());
}
But how build it on CI?

14. 13
HERE COMES CONANHERE COMES CONAN
pip install conan
conanfile.txt
[requires]
gtest/1.7.0@lasote/stable
[generators]
cmake
CMakeLists.txt
include(${CMAKE_BINARY_DIR}/conanbuildinfo.cmake)
conan_basic_setup()
target_link_libraries(${PROJECT_NAME} ${CONAN_LIBS})

15. 14
INSTALL DEPENDENCIESINSTALL DEPENDENCIES
$conan install
Requirements
gtest/1.7.0@lasote/stable from conan.io
Packages
gtest/1.7.0@lasote/stable:ee666ea2ce
gtest/1.7.0@lasote/stable: Installing package ee666ea2ce
gtest/1.7.0@lasote/stable: Looking for package ee666ea2ce in remote 'conan.io'
Downloading conan_package.tgz
[==================================================]
Downloading conanmanifest.txt
[==================================================]
Downloading conaninfo.txt
[==================================================]
gtest/1.7.0@lasote/stable: Package installed ee666ea2ce
PROJECT: Generated cmake created conanbuildinfo.cmake
PROJECT: Generated conaninfo.txt

16. 15
IF NO BINARY PACKAGE FOUNDIF NO BINARY PACKAGE FOUND
$conan install --build=missing
gtest/1.7.0: WARN: Binary for ad55876aa not in remote: Package not found!
gtest/1.7.0: Building your package in ~/.conan/data/gtest/1.7.0/lasote
gtest/1.7.0: Configuring sources in ~/.conan/data/gtest/1.7.0/lasote/stable/
[==================================================]
Unzipping 4.8 MB, this can take a while
gtest/1.7.0: Copying sources to build folder
gtest/1.7.0: Generated cmake created conanbuildinfo.cmake
-- The C compiler identification is GNU 6.1.1
-- The CXX compiler identification is GNU 6.1.1
...
gtest/1.7.0 package(): Copied 20 '.h' files
gtest/1.7.0 package(): Copied 2 '.so' files: libgtest_main.so, libgtest.so
gtest/1.7.0: Package 'ad55876aa' created
PROJECT: Generated cmake created conanbuildinfo.cmake
PROJECT: Generated conaninfo.txt

17. 16

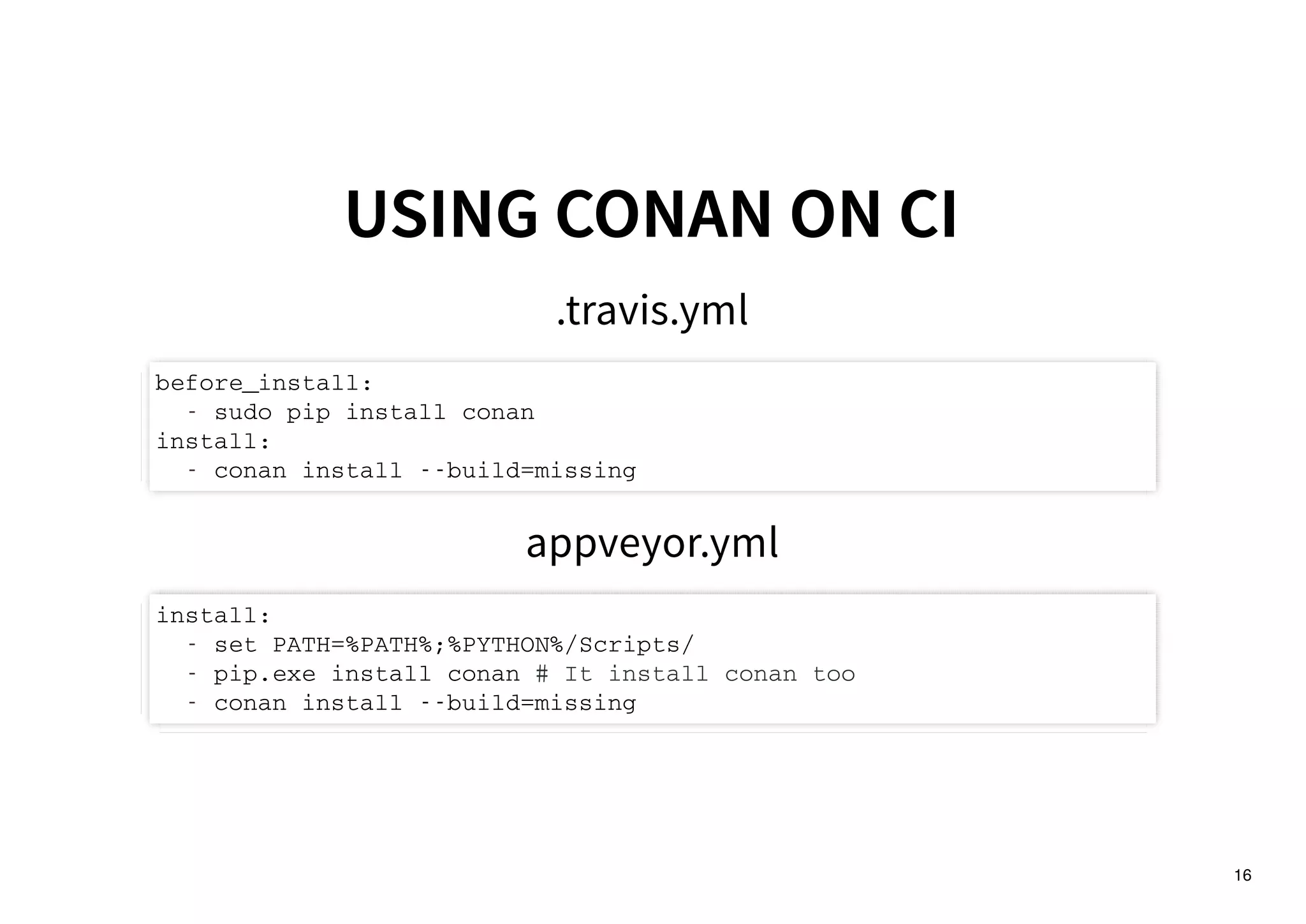

USING CONAN ON CIUSING CONAN ON CI
.travis.yml
before_install:
- sudo pip install conan
install:
- conan install --build=missing
appveyor.yml
install:
- set PATH=%PATH%;%PYTHON%/Scripts/
- pip.exe install conan # It install conan too
- conan install --build=missing

18. 17
CONAN REPOSITORY PACKAGE LISTCONAN REPOSITORY PACKAGE LIST

19. 18
HOW TO BUILD OWN PACKAGEHOW TO BUILD OWN PACKAGE
conanfile.py
class LibrabbitmqConan(ConanFile):
name = "librabbitmq"
version = "0.8.1"
def source(self):
self.run("git clone https://github.com/alanxz/rabbitmq-c.git")
def build(self):
cmake = CMake(self.settings)
self.run("cmake -DENABLE_SSL_SUPPORT=OFF "
"%s/rabbitmq-c %s" % (self.conanfile_directory,
cmake.command_line))
self.run("cmake --build . %s" % cmake.build_config)
def package(self):
self.copy("*.h", dst="include", src="rabbitmq-c/librabbitmq")
conan export demo/testing

20. 19
CONAN PRIVATE REPOSITORYCONAN PRIVATE REPOSITORY
Get sources
$ git clone https://github.com/conan-io/conan.git
$ cd conan
$ git checkout master
$ pip install -r conans/requirements.txt
$ pip install -r conans/requirements_server.txt
$ pip install gunicorn
Run server
gunicorn -b 0.0.0.0:9300 -w 4 -t 120
conans.server.server_launcher:app
Upload packages
$ conan upload librabbitmq/0.8.1@demo/testing

21. 20
CONAN BUILD PACKAGE TOOLSCONAN BUILD PACKAGE TOOLS
build.py
from conan.packager import ConanMultiPackager
if __name__ == "__main__":
builder = ConanMultiPackager()
builder.add_common_builds(pure_c=True)
builder.run()

22. CONAN BUILD PACKAGE TOOLSCONAN BUILD PACKAGE TOOLS
.travis.yml
os: linux
services:
- docker
sudo: required
language: python
env:
matrix:
- CONAN_GCC_VERSIONS=4.6 CONAN_USE_DOCKER=1
- CONAN_GCC_VERSIONS=4.8 CONAN_USE_DOCKER=1
- CONAN_GCC_VERSIONS=4.9 CONAN_USE_DOCKER=1
- CONAN_GCC_VERSIONS=5.2 CONAN_USE_DOCKER=1
- CONAN_GCC_VERSIONS=5.3 CONAN_USE_DOCKER=1
global:
- CONAN_UPLOAD=1
- CONAN_REFERENCE="librabbitmq/0.8.1"
- CONAN_USERNAME="filonovpv"
- CONAN_CHANNEL="testing"
- CONAN_TOTAL_PAGES=1
- CONAN_CURRENT_PAGE=1 21

23. osx_image: xcode7.3 # apple-clang 7.3
language: generic
env:
- os: osx
osx_image: xcode7.1 # apple-clang 7.0
language: generic
env:
- os: osx
osx_image: xcode6.4 # apple-clang 6.1
language: generic
env:
- os: osx
osx_image: xcode6.2 # apple-clang 6.0
language: generic
env:

24. CONAN BUILD PACKAGE TOOLSCONAN BUILD PACKAGE TOOLS
appveyor.yml
build: false
environment:
PYTHON: "C:Python27"
PYTHON_VERSION: "2.7.8"
PYTHON_ARCH: "32"
CONAN_UPLOAD: 1
CONAN_REFERENCE: "librabbitmq/0.8.1"
CONAN_USERNAME: "filonovpv"
CONAN_CHANNEL: "testing"
CONAN_TOTAL_PAGES: 4
matrix:
- CONAN_CURRENT_PAGE: 1
- CONAN_CURRENT_PAGE: 2
- CONAN_CURRENT_PAGE: 3
- CONAN_CURRENT_PAGE: 4
install:
# Workaround for CMake not wanting sh.exe on PATH for MinGW
- set PATH=%PATH:C:Program FilesGitusrbin;=%
22

25. test_script:
- python build.py

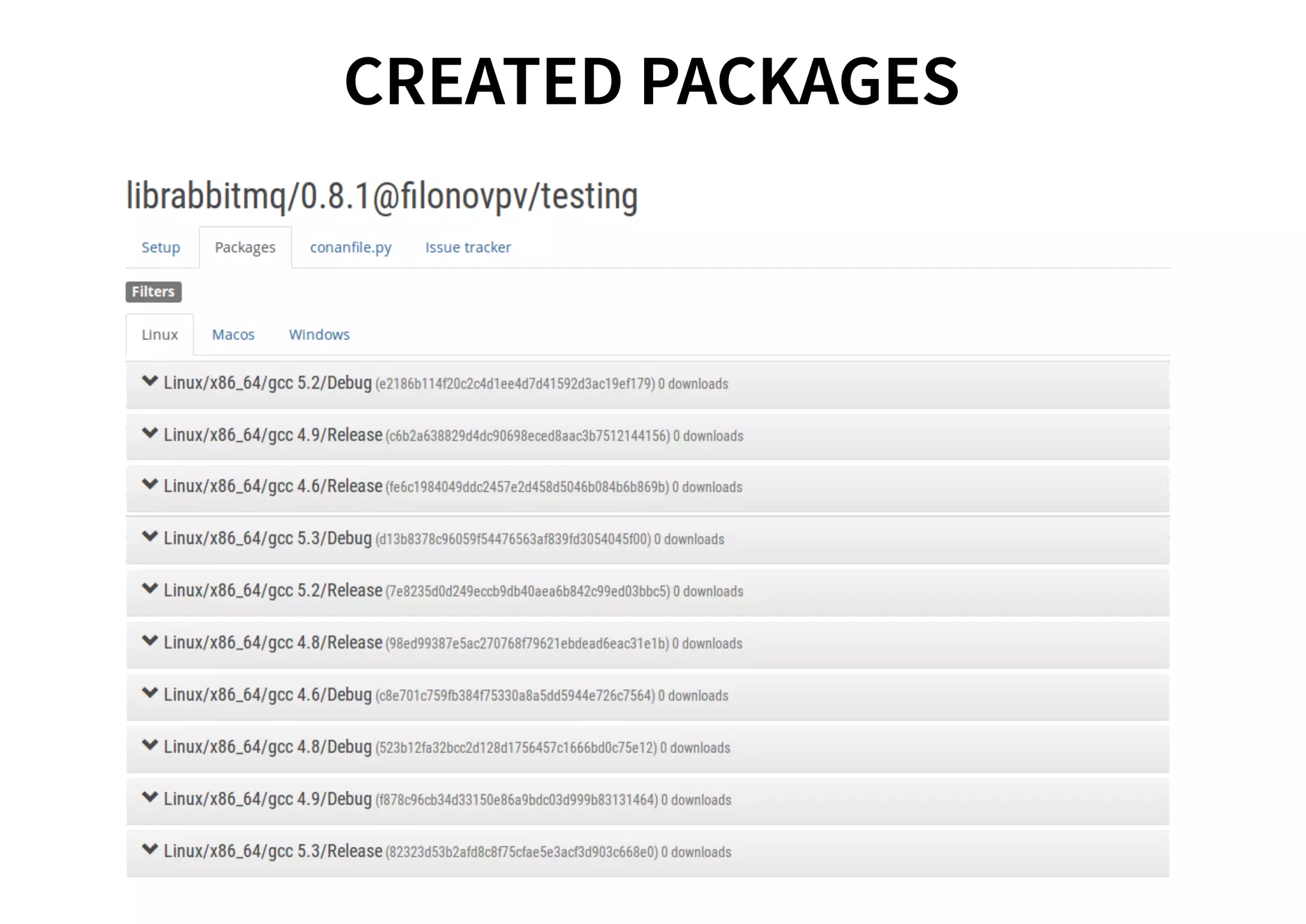

26. CREATED PACKAGESCREATED PACKAGES

27. 24

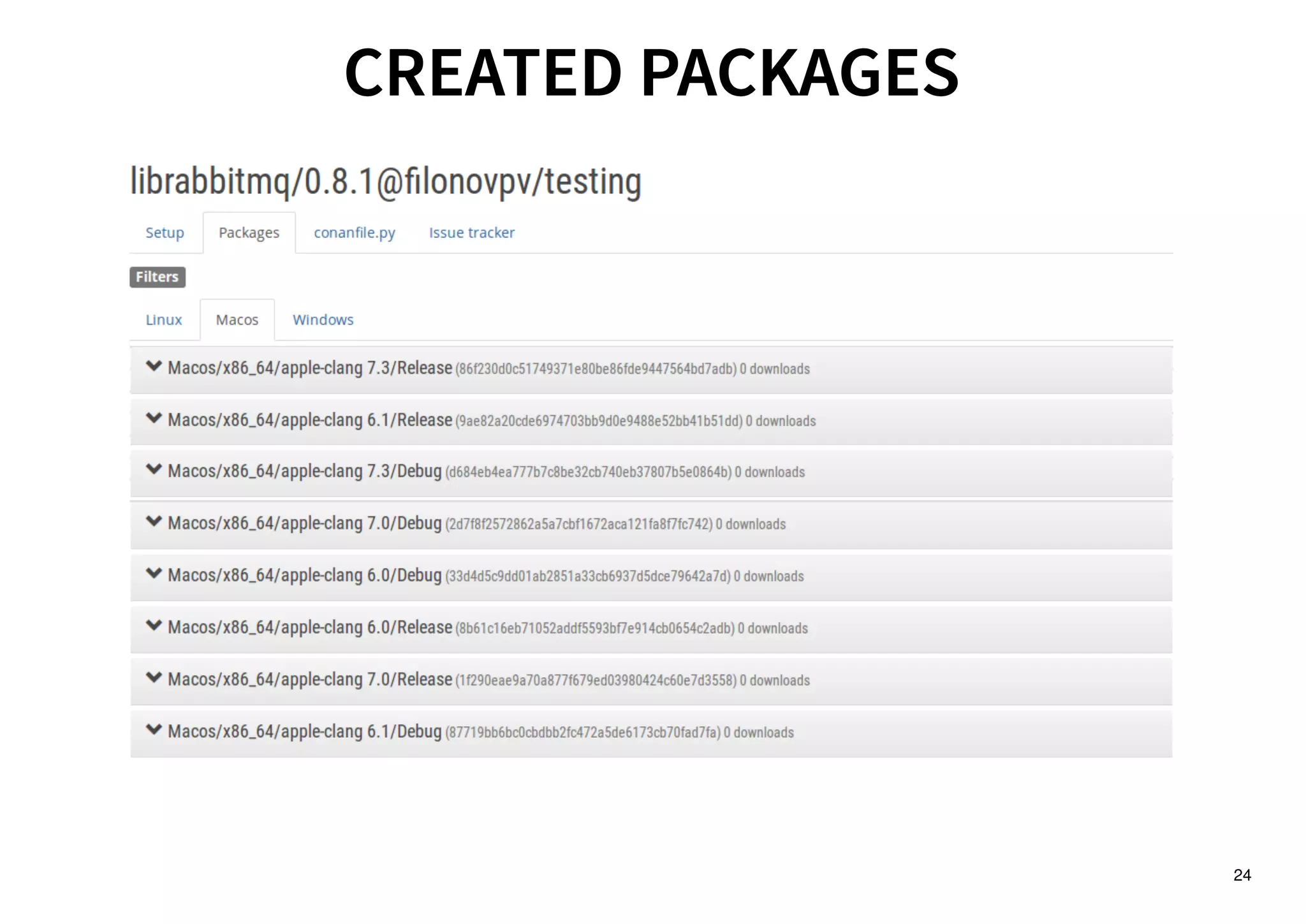

CREATED PACKAGESCREATED PACKAGES

28. 25
CREATED PACKAGESCREATED PACKAGES

29. 26
CONCLUSIONSCONCLUSIONS
Positive points
build scripts on python
public repository
private repository
build matrix
Negative points
build scripts on python
small number of packages in the official repository
small amount of documentation

30. 27
REFERENCESREFERENCES
Conan - C/C++ package manager - ,1.
conan.io c++ package manager demo with sfml -2.
CppCon 2014: Lightning Talks - Boris Kolpackov "C++
Package Manager" -
3.
Diego Rodriguez-Losada: Biicode, a C/C++ dependency
manager with a hosting service -
4.
Diego Rodriguez-Losada: Why in heaven is there no
dependency management for C++? -
5.
Arne Mertz, Using Conan for Third Party Libraries -6.
Programming C++ With The 4 Cs: Clang, Cmake, Clion
And Conan -
7.
Site Source
Video
Video
Video
Video
Blogpost
Blogpost
