TensorFlow r1.9で導入されたXLA RPCに関するソースコード解析結果です。 Source code analysis result on XLA RPC introduced in TensorFlow r1.9.

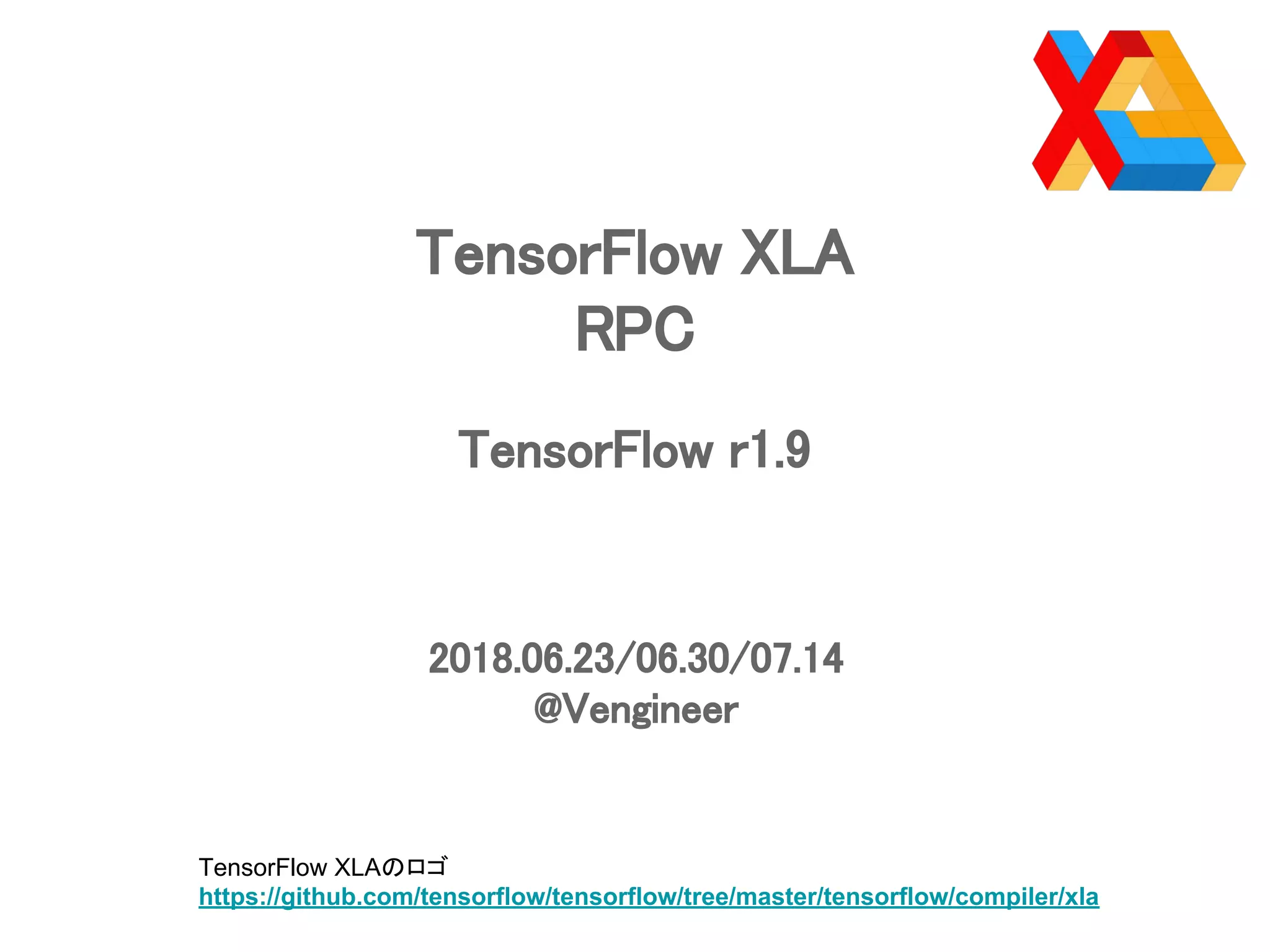

1. TensorFlow XLA
RPC
TensorFlow r1.9
2018.06.23/06.30/07.14
@Vengineer
TensorFlow XLAのロゴ
https://github.com/tensorflow/tensorflow/tree/master/tensorflow/compiler/xla

2. ブログ (2007年～) : Vengineerの戯言
http://blogs.yahoo.co.jp/verification_engineer
SlideShare :
https://www.slideshare.net/ssuser479fa3
Twitter (2009年～) :
＠Vengineer
ソースコード解析職人

3. local_client
local_service backend
・CPU
・GPU
・Interpreter
・(Accelerator)
Service
Client
TensorFlow XLAの内部構成

4. compiler/xla/client/local_client.cc
StatusOr<std::unique_ptr<LocalExecutable>> LocalClient::Compile(
const XlaComputation& computation,
const tensorflow::gtl::ArraySlice<const Shape*> argument_layouts,
const ExecutableBuildOptions& options) {
ExecutableBuildOptions updated_options = options;
if (options.device_ordinal() == -1) {
updated_options.set_device_ordinal(default_device_ordinal());
VLOG(3) << "Set device ordinal to default value of: "
<< updated_options.device_ordinal();
}
TF_ASSIGN_OR_RETURN(std::unique_ptr<Executable> executable,
local_service_->CompileExecutable(
computation, argument_layouts, updated_options));
return WrapUnique(new LocalExecutable(std::move(executable),
local_service_->mutable_backend(),
updated_options));
}
local_service の CompileExecutable で
サービス側で computation をコンパイルして、
Executable にして返す。

5. compiler/xla/service/local_service.cc
StatusOr<std::unique_ptr<Executable>> LocalService:: CompileExecutable(
const XlaComputation& computation,
const tensorflow::gtl::ArraySlice<const Shape*> argument_layouts,
const ExecutableBuildOptions& build_options) {
const HloModuleProto& proto = computation.proto();
....
TF_ASSIGN_OR_RETURN(
se::StreamExecutor * executor,
execute_backend_->stream_executor(build_options.device_ordinal()));
return BuildExecutable(proto, std::move(module_config),
execute_backend_.get(), executor,
build_options.device_allocator());
}
CompileExecutable では、
Serviceの BuildExecutablleにて、
Executableを生成する。

6. compiler/xla/service/service.cc
StatusOr<std::vector<std::unique_ptr<Executable>>> Service::BuildExecutables(
const std::vector<const HloModuleProto*>& module_protos,
std::vector<std::unique_ptr<HloModuleConfig>> module_configs,
Backend* backend, std::vector<std::vector<se::StreamExecutor*>> executors,
DeviceMemoryAllocator* device_allocator) {
....
TF_ASSIGN_OR_RETURN(
std::vector<std::unique_ptr<Executable>> executables,
backend->compiler()->Compile(std::move(modules),
std::move(executors),
device_allocator));
....
return std::move(executables);
}
BuildExecutable では、
backendのcompilerにて、Compileし、
Executableを生成する。

7. XLAグラフに変換
最適化、その1
ターゲットハードウェアの
実行オブジェクト
ターゲットハードウェアに
依存しない最適化
HLO (High Level Optimizer)
XLAグラフ
最適化、その2
コード生成
ターゲットハードウェアに
依存する最適化
LLO (Low Level Optimizer)
TensorFow Graph
実行オブジェクト
XLAグラフ
LLVM Compiler::Compile (r1.5～)
RunHloPass
RunBackend

8. TensorFlow XLA RPC

9. tensorflow/compiler/xla/rpc
BUILD
grpc_service.h
grpc_service.cc
grpc_service_main.cc
grpc_client_test.cc
grpc_stub.h
grpc_stub.cc
xla_service.proto

10. grpcを利用して、
サーバー・クライアントを構成
xla_service.proto => プロトコル
grpc_service.{h,cc} => サービス
grpc_service_main.cc => サーバー
grpc_client_test.cc => クライアント
(grpc_stub.{h,cc})

11. GRPCStub
GRPCService Service
・CPU
・GPU
・Interpreter
・Accelerator
Service
Client

12. テストプログラム

13. class GRPCClientTestBase : public ::testing::Test {
protected:
GRPCClientTestBase() {
string test_srcdir = tensorflow::testing::TensorFlowSrcRoot();
string service_main_path = tensorflow::io::JoinPath(
test_srcdir, "compiler/xla/rpc/grpc_service_main_cpu");
int port = tensorflow::internal::PickUnusedPortOrDie();
subprocess_.SetProgram(
service_main_path,
{service_main_path,
tensorflow::strings::Printf("--port=%d", port)});
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c

14. subprocess_.SetChannelAction(
tensorflow::CHAN_STDOUT,
tensorflow::ACTION_DUPPARENT);
subprocess_.SetChannelAction(
tensorflow::CHAN_STDERR,
tensorflow::ACTION_DUPPARENT);
CHECK(subprocess_.Start());
LOG(INFO) << "Launched subprocess";
子プロセスとして、
を起動！
grpc_service_main
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c
CPU XLA版が動作する

15. auto channel =
::grpc::CreateChannel(tensorflow::strings::Printf("localhost:%d",
port),
::grpc::InsecureChannelCredentials());
channel->WaitForConnected(gpr_time_add(
gpr_now(GPR_CLOCK_REALTIME),
gpr_time_from_seconds(10, GPR_TIMESPAN)));
LOG(INFO) << "Channel to server is connected on port " << port;
xla_service_ = grpc::XlaService::NewStub(channel);
stub_.reset(new GRPCStub(xla_service_.get()));
client_.reset(new Client(stub_.get()));
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c
クライアント

16. 参考：gRPC C++ Hello World Tutorial
サービス部分
class GreeterServiceImpl final : public Greeter::Service {
Status SayHello(ServerContext* context, const HelloRequest* request,
HelloReply* reply) override {
std::string prefix("Hello ");
reply->set_message(prefix + request->name());
return Status::OK;
}
};
https://github.com/grpc/grpc/tree/master/examples/cpp/helloworld

17. 参考：gRPC C++ Hello World Tutorial
サーバー部分
void RunServer() {
std::string server_address("0.0.0.0:50051");
GreeterServiceImpl service;
ServerBuilder builder;
builder.AddListeningPort(server_address,
grpc::InsecureServerCredentials());
builder.RegisterService(&service);
std::unique_ptr<Server> server(builder.BuildAndStart());
std::cout << "Server listening on " << server_address << std::endl;
server->Wait();
}
https://github.com/grpc/grpc/tree/master/examples/cpp/helloworld

18. 参考：gRPC C++ Hello World Tutorial
サーバーのmain関数
int main(int argc, char** argv) {
RunServer();
return 0;
}
https://github.com/grpc/grpc/tree/master/examples/cpp/helloworld

19. 参考：gRPC C++ Hello World Tutorial
クライアントのコール部分
std::string SayHello(const std::string& user) {
// Data we are sending to the server.
HelloRequest request;
request.set_name(user);
ClientContext context;
Status status = stub_->SayHello(&context, request, &reply);
if (status.ok()) {
return reply.message();
} else {
std::cout << status.error_code() << ": " << status.error_message()
<< std::endl;
return "RPC failed";
}
}
https://github.com/grpc/grpc/tree/master/examples/cpp/helloworld

20. 参考：gRPC C++ Hello World Tutorial
クライアントのmain関数
int main(int argc, char** argv) {
GreeterClient greeter(grpc::CreateChannel(
"localhost:50051", grpc::InsecureChannelCredentials()));
std::string user("world");
std::string reply = greeter.SayHello(user);
std::cout << "Greeter received: " << reply << std::endl;
return 0;
}
https://github.com/grpc/grpc/tree/master/examples/cpp/helloworld

21. サービスプロトコル

22. xla_service_ = grpc::XlaService::NewStub(channel);
service XlaService {
/////////////////////////
// Global data requests
// Unregisters a global allocation.
//
// If the handle given is not currently allocated, a NOT_FOUND status is
// returned.
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/xla_service.proto

23. サーバー側

24. // Service implementation which wraps a XLA Service with a GRPC interface.
class GRPCService : public grpc::XlaService::Service {
public:
// Factory for creating a RPCService. The parameter platform is the platform
// that the service should target. If platform is null then the default
// platform is used.
static StatusOr<std::unique_ptr<GRPCService>> NewService(
se::Platform* platform = nullptr);
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_service.h
サービス

25. /* static */
StatusOr<std::unique_ptr<GRPCService>> GRPCService::NewService(
se::Platform* platform) {
std::unique_ptr<GRPCService> grpc_service(new GRPCService());
TF_ASSIGN_OR_RETURN(grpc_service->service_,
::xla::Service::NewService(platform));
return std::move(grpc_service);
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_service.h

26. int main(int argc, char** argv) {
return xla::RealMain(argc, argv);
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_service_main.cc
サーバー

27. int RealMain(int argc, char** argv) {
int32 port = 1685;
std::vector<tensorflow::Flag> flag_list = {
tensorflow::Flag("port", &port, "port to listen on"),
};
string usage = tensorflow::Flags::Usage(argv[0], flag_list);
bool parsed_values_ok = tensorflow::Flags::Parse(&argc, argv, flag_list);
if (!parsed_values_ok) {
LOG(ERROR) << usage;
return 2;
}
tensorflow::port::InitMain(argv[0], &argc, &argv);
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_service_main.cc

28. std::unique_ptr<xla::GRPCService> service =
xla::GRPCService::NewService().ConsumeValueOrDie();
::grpc::ServerBuilder builder;
builder.AddListeningPort(server_address,
::grpc::InsecureServerCredentials());
builder.RegisterService(service.get());
std::unique_ptr<::grpc::Server> server(builder.BuildAndStart());
server->Wait();
return 0;
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_service_main.cc

29. クライアント側

30. TEST_F(GRPCClientTestBase, AxpyTenValues) {
XlaBuilder builder("axpy_10");
auto alpha = ConstantR0<float>(&builder, 3.1415926535);
auto x = ConstantR1<float>(
&builder, {-1.0, 1.0, 2.0, -2.0, -3.0, 3.0, 4.0, -4.0, -5.0, 5.0});
auto y = ConstantR1<float>(
&builder, {5.0, -5.0, -4.0, 4.0, 3.0, -3.0, -2.0, 2.0, 1.0, -1.0});
auto ax = Mul(alpha, x);
Add(ax, y);
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c
クライアント
axpy = x * alpha + y

31. std::vector<float> expected = {
1.85840735, -1.85840735, 2.28318531, -2.28318531, -6.42477796,
6.42477796, 10.56637061, -10.56637061, -14.70796327, 14.70796327};
std::unique_ptr<Literal> expected_literal =
Literal::CreateR1<float>(expected);
auto computation = builder.Build();
auto result_literal =
client_->ExecuteAndTransfer(computation, {}, nullptr));
EXPECT_TRUE(LiteralTestUtil::Near(
*expected_literal, *result_literal, ErrorSpec(0.0001)));
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c
RPCを実行

32. class GRPCClientTestBase : public ::testing::Test {
protected:
GRPCClientTestBase() {
…..
xla_service_ = grpc::XlaService::NewStub(channel);
stub_.reset(new GRPCStub(xla_service_.get()));
client_.reset(new Client(stub_.get()));
}
https://github.com/tensorflow/tensorflow/blob/master/tensorflow/compiler/xla/rpc/grpc_client_test.c
