Hardware includes the physical parts of a computer like the case, monitor, keyboard, and mouse. The case protects components and manages airflow to keep them cool. The power supply provides power to components through various connectors. The motherboard is the main circuit board that contains the CPU socket and connections for components like memory, storage, and expansion cards. It manages communication between these components through the northbridge and southbridge chips.

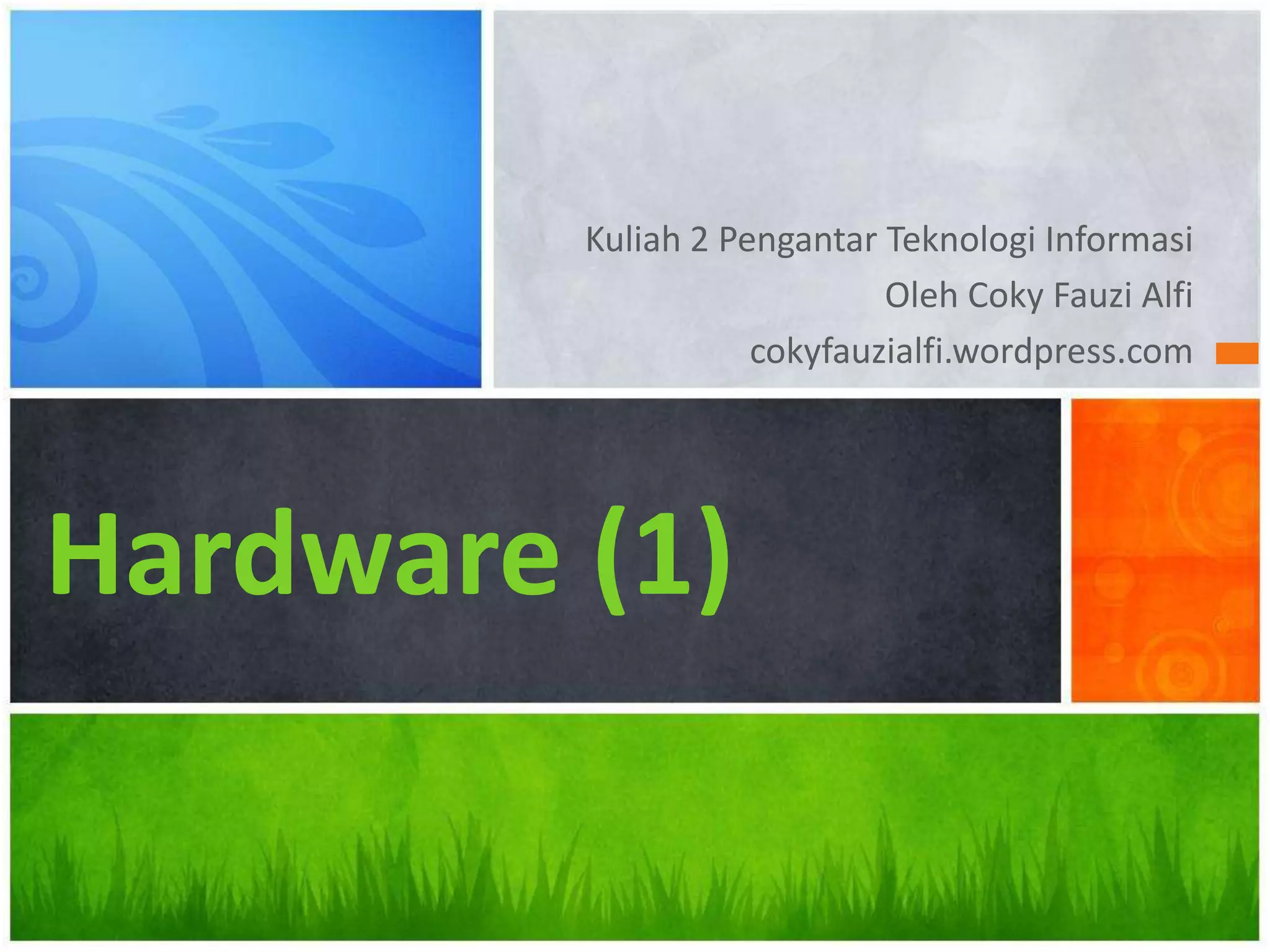

1. Kuliah 2 Pengantar Teknologi Informasi Oleh Coky Fauzi Alfi cokyfauzialfi.wordpress.com Hardware (1)

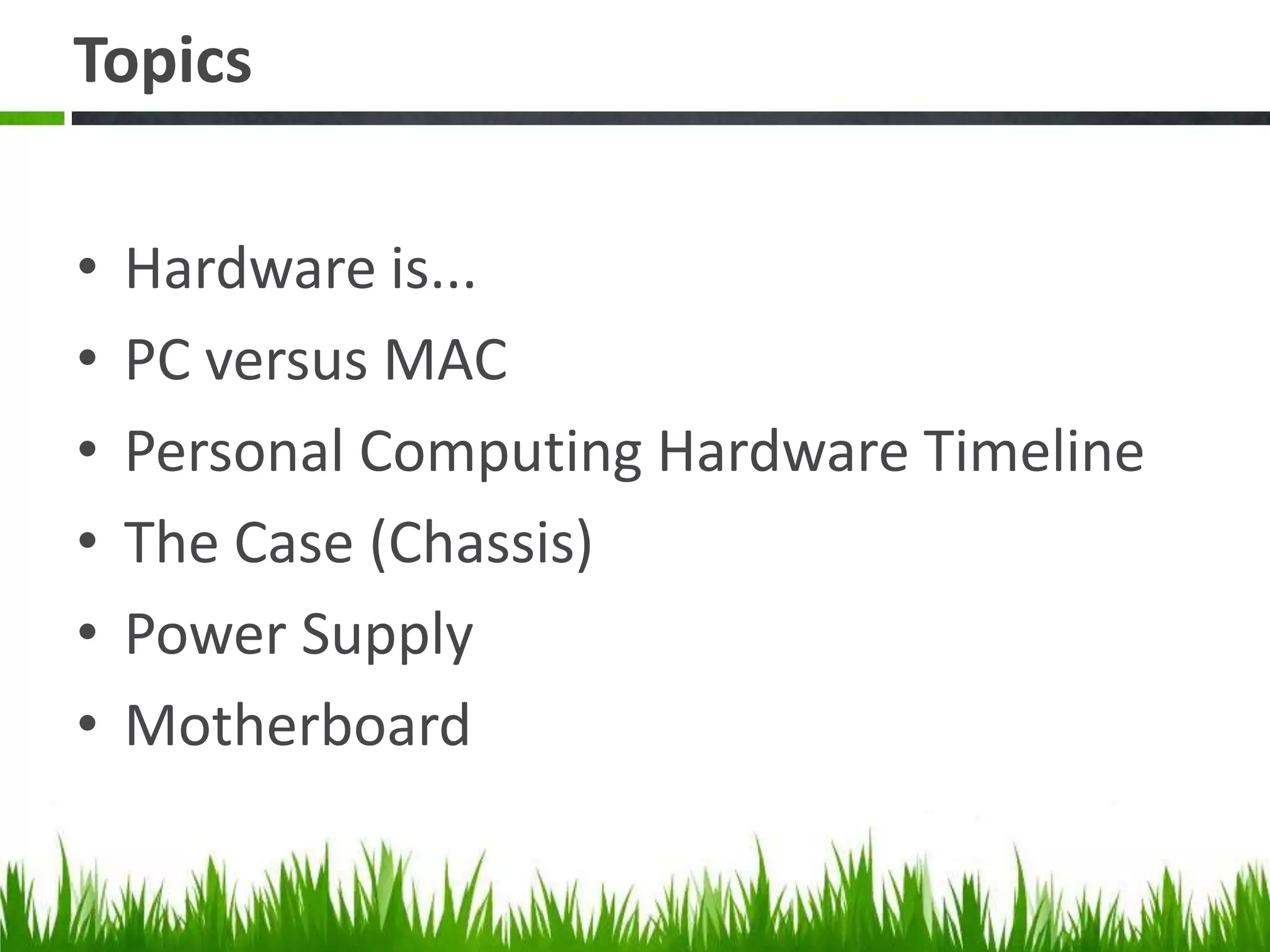

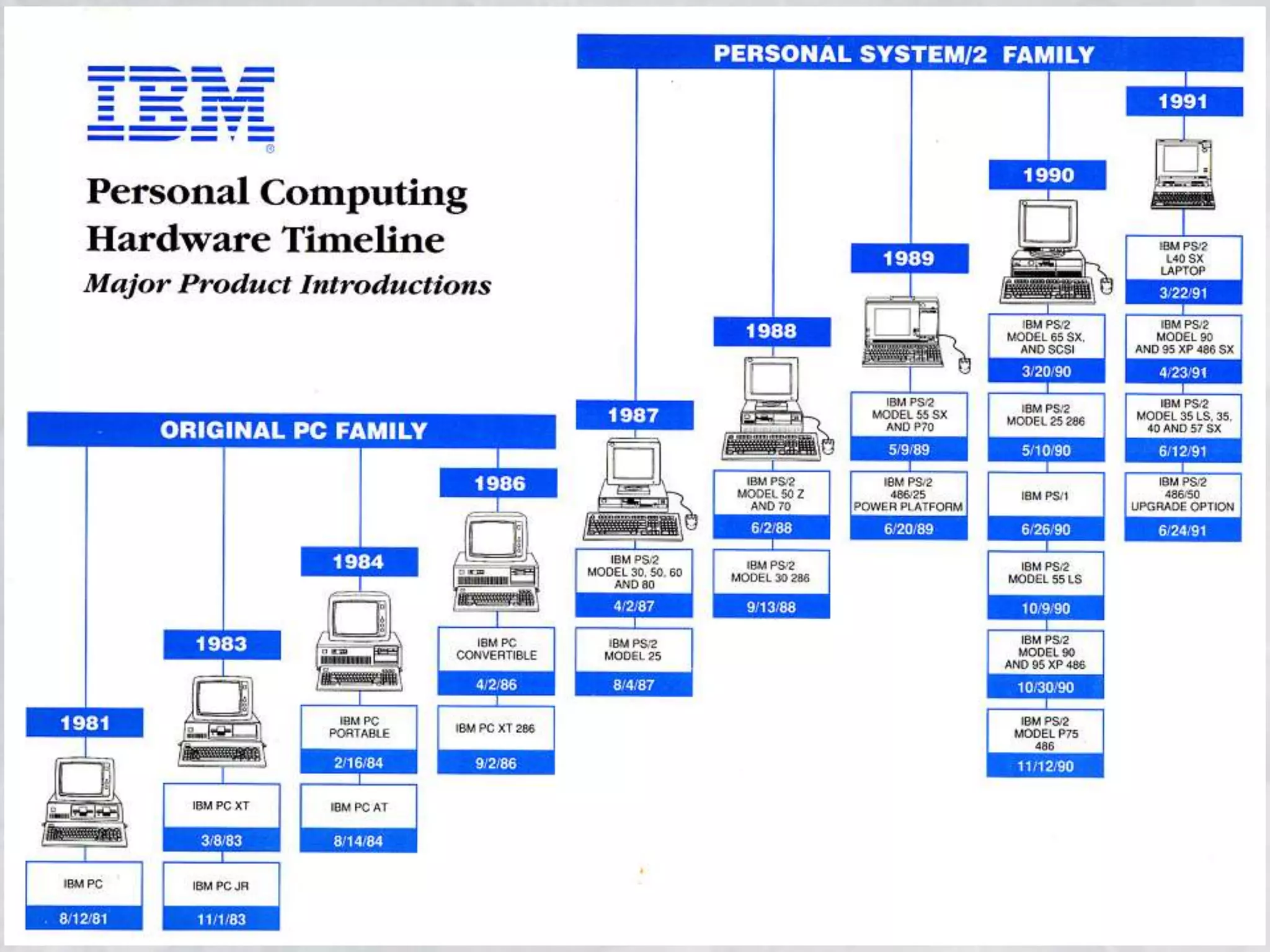

2. Topics Hardware is... PC versus MAC Personal Computing Hardware Timeline The Case (Chassis) Power Supply Motherboard

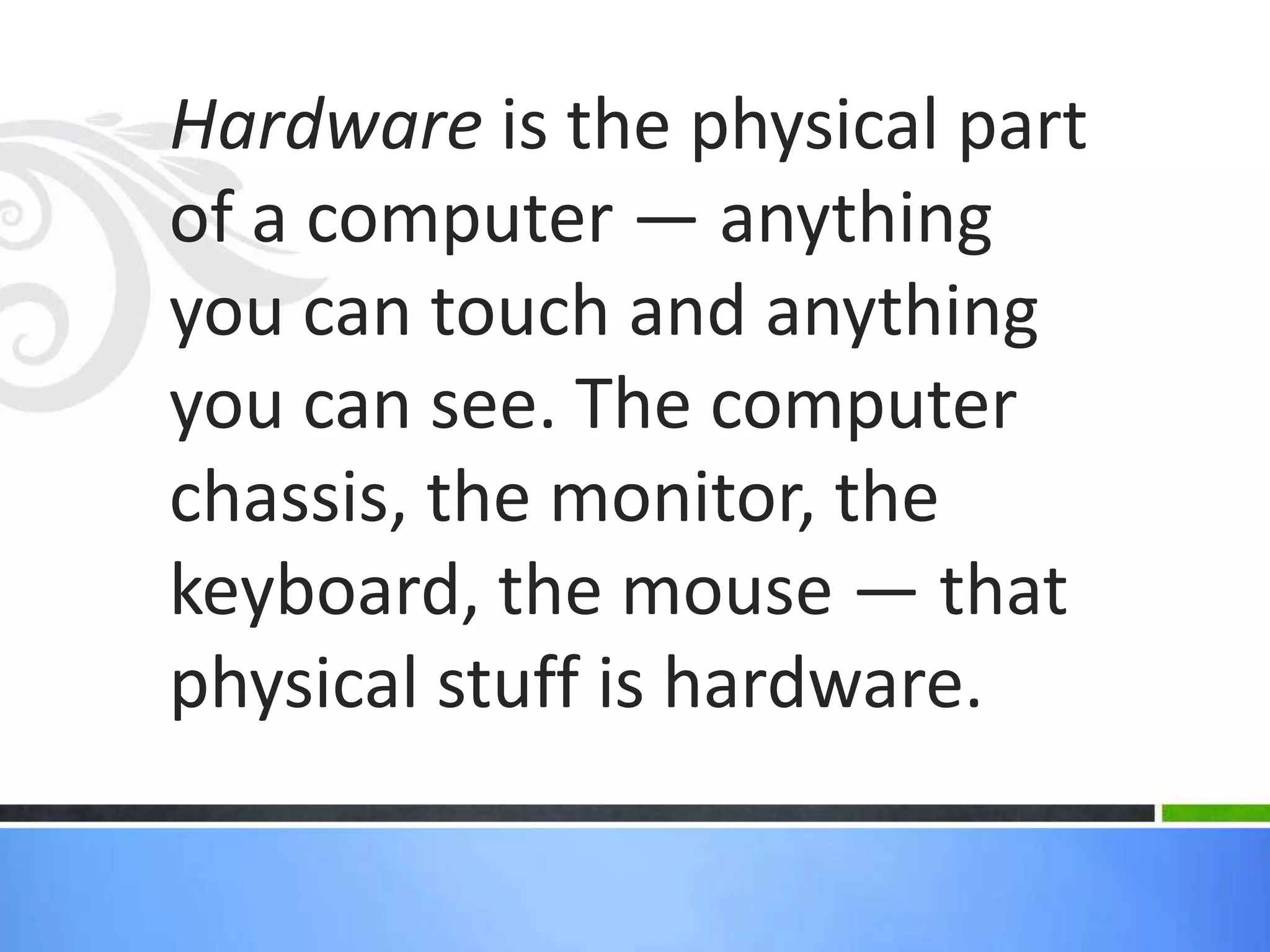

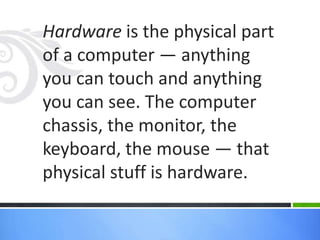

3. Hardware is the physical part of a computer — anything you can touch andanything you can see. The computer chassis, themonitor, the keyboard, themouse — that physical stuff is hardware.

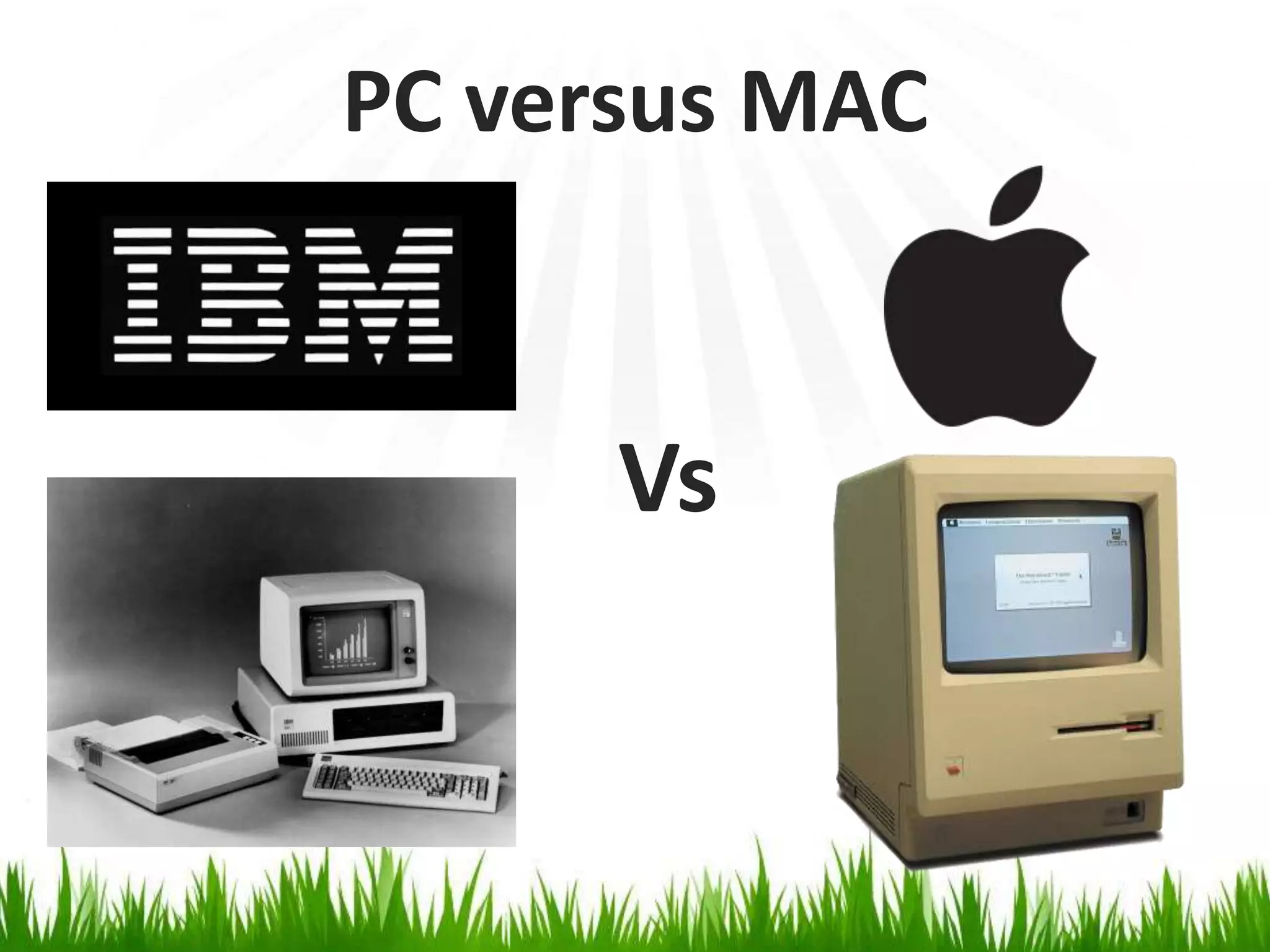

4. PC versus MAC Vs

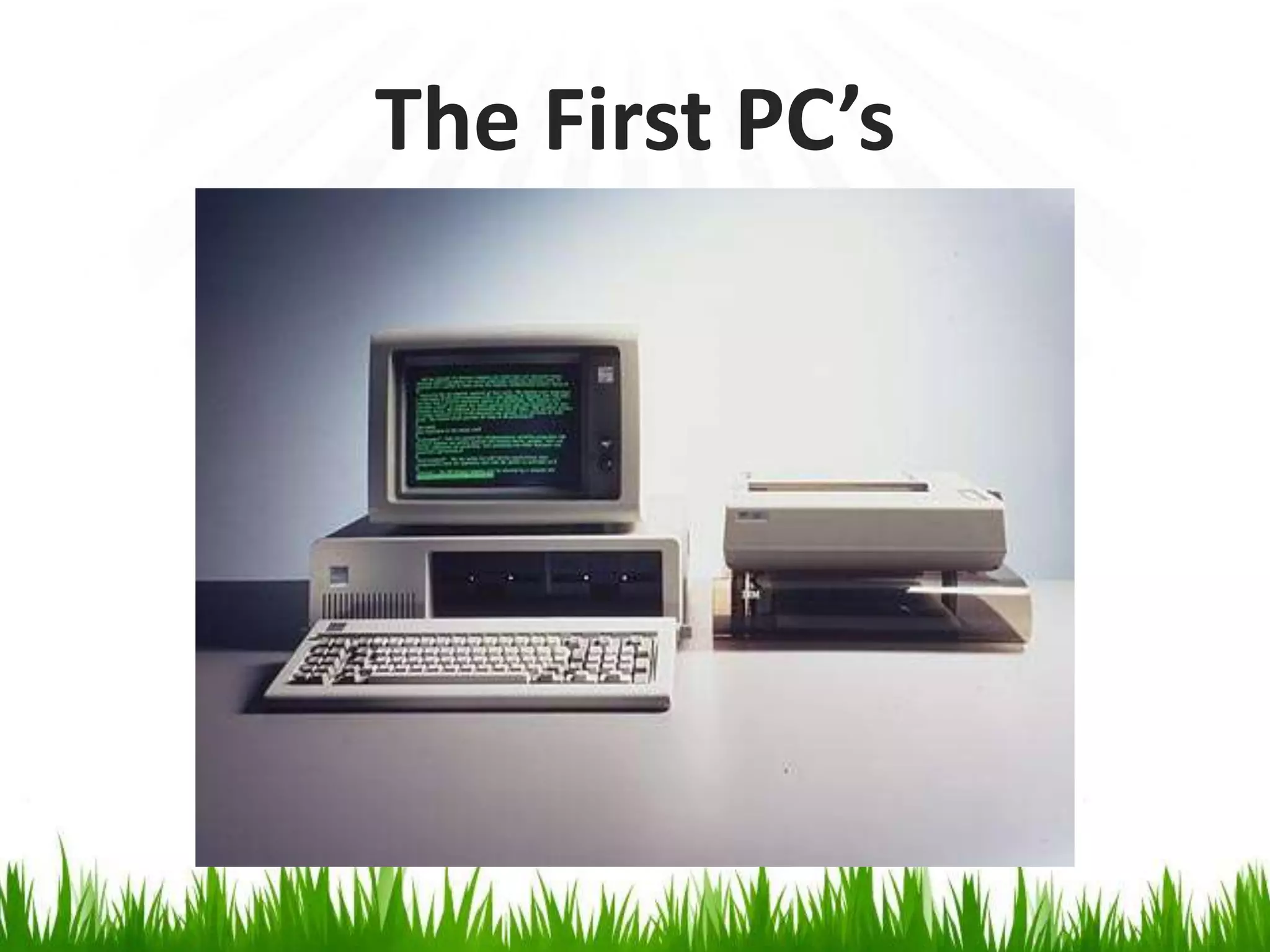

6. The First PC’s

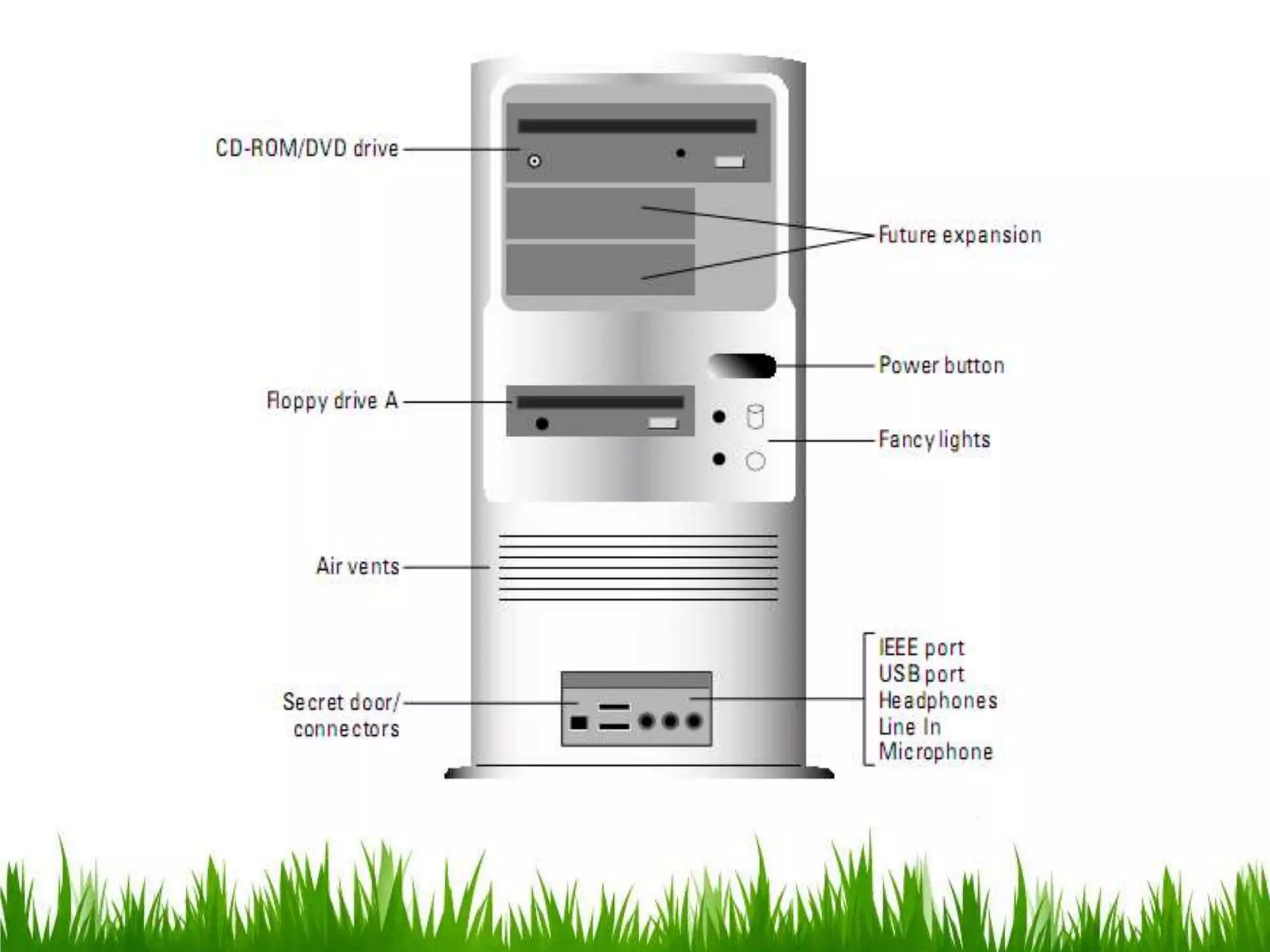

7. The Case (Chassis)

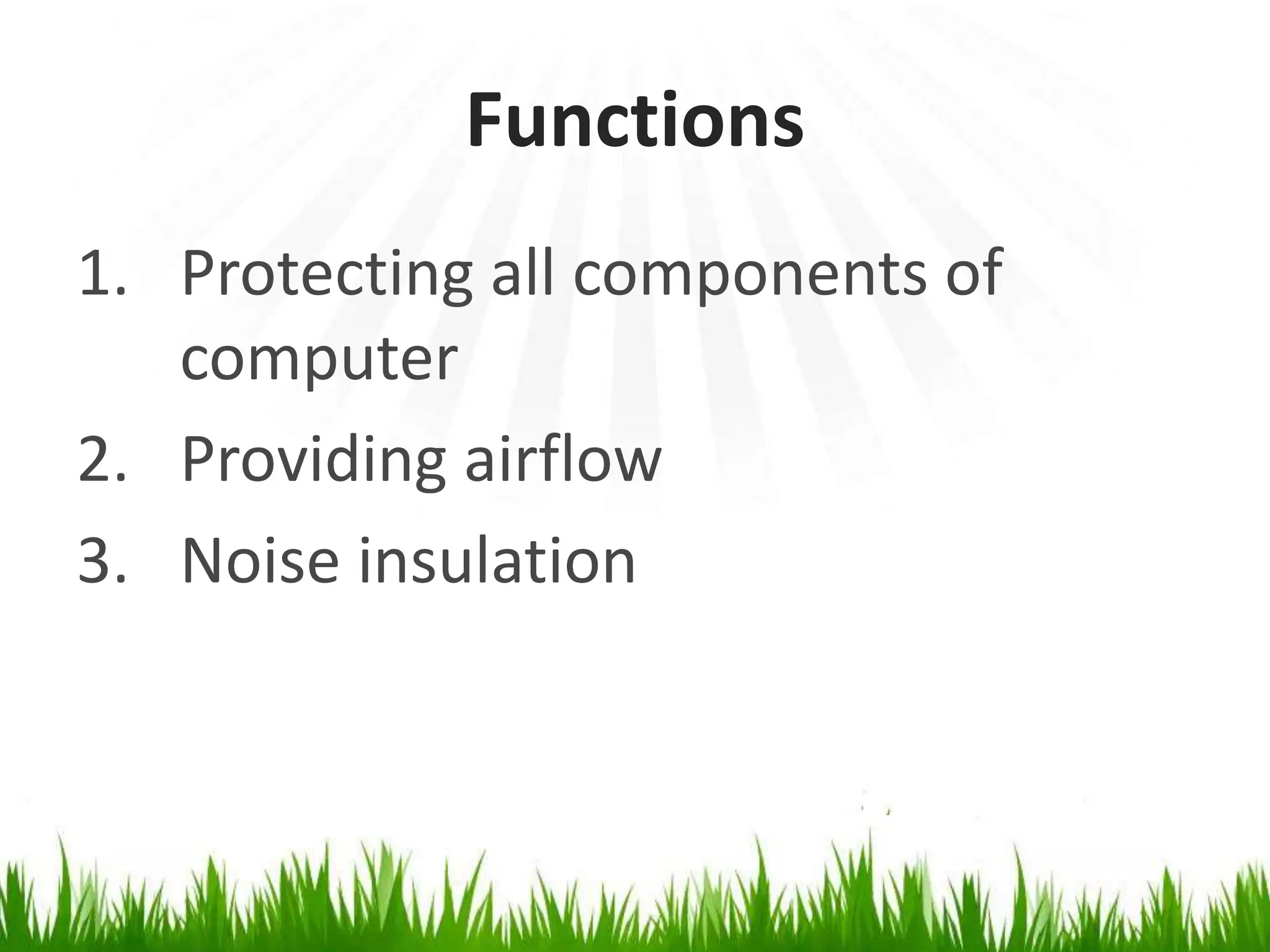

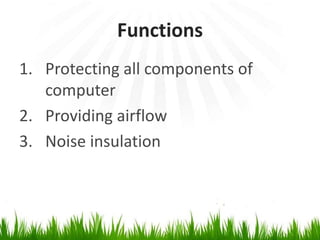

8. Functions Protecting all components of computer Providing airflow Noise insulation

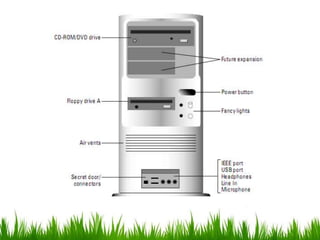

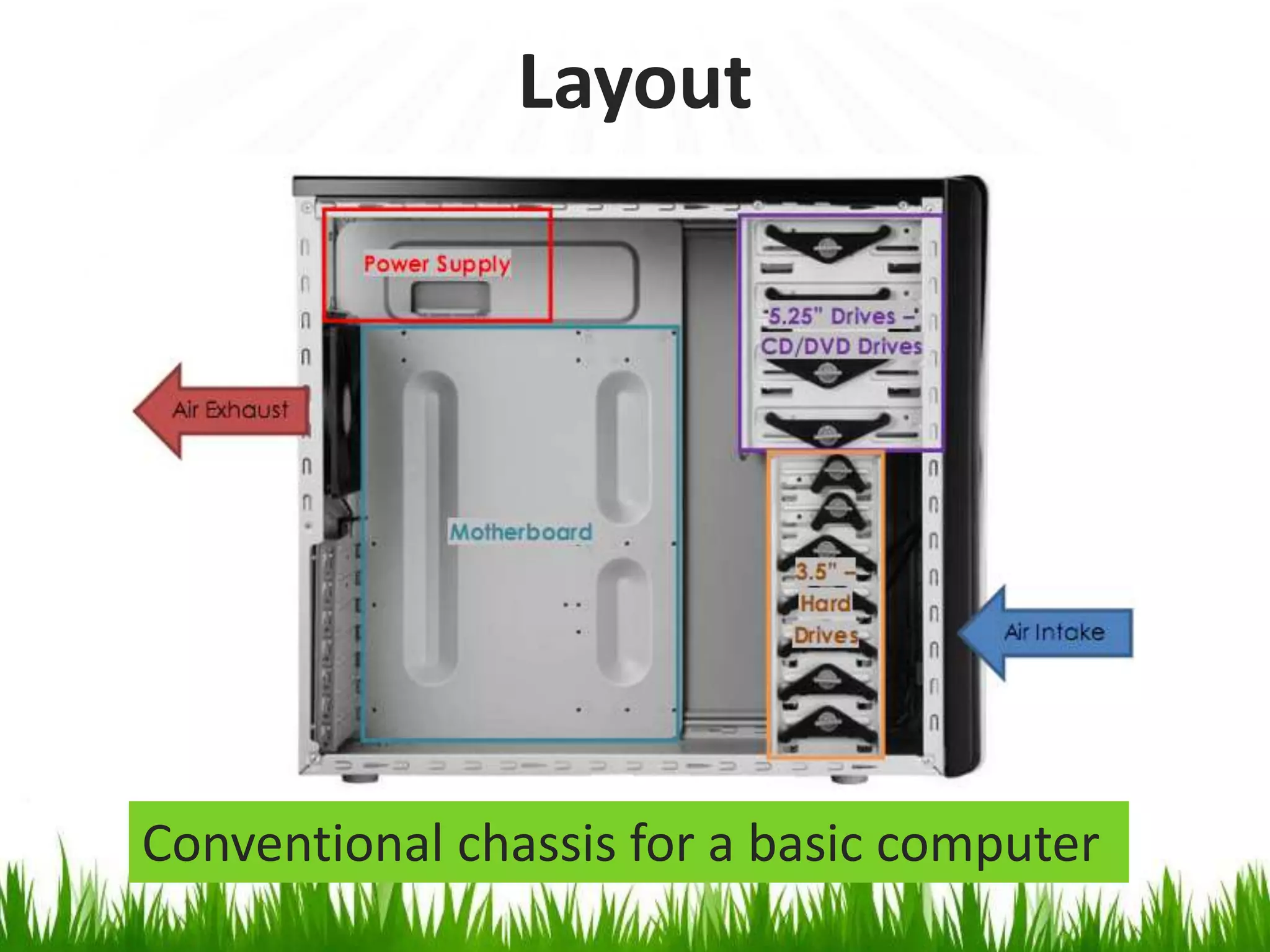

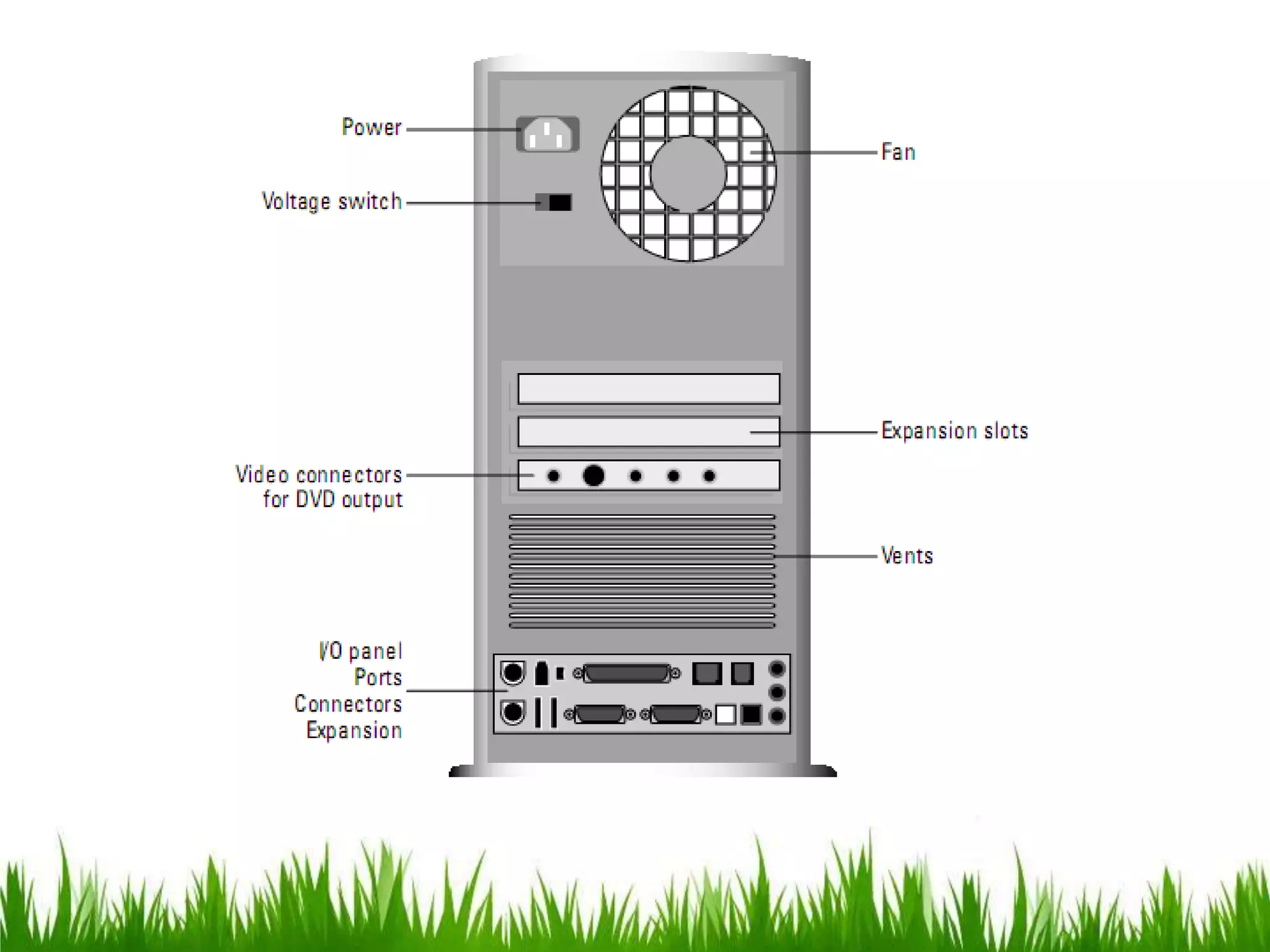

11. Layout Conventional chassis for a basic computer

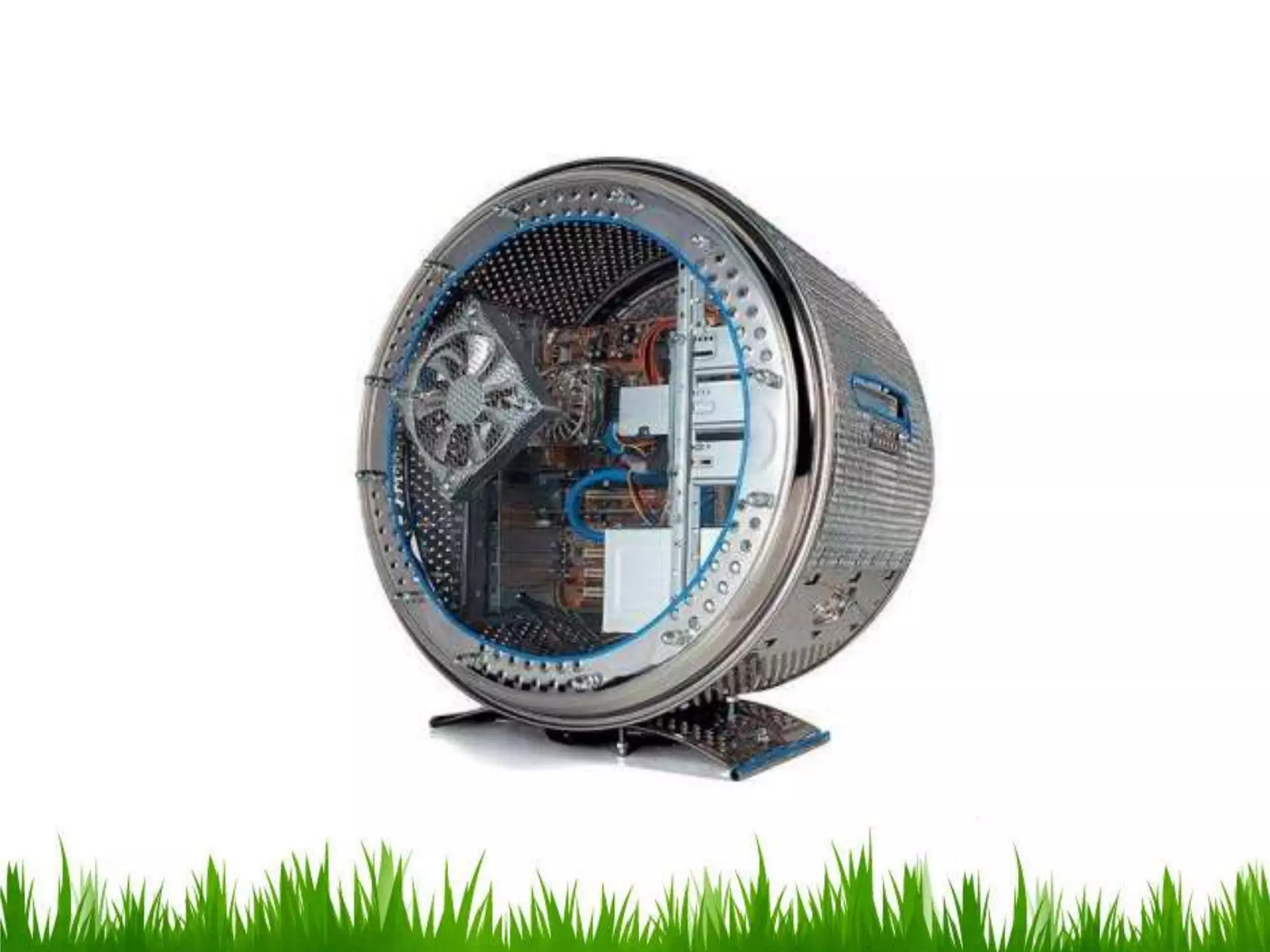

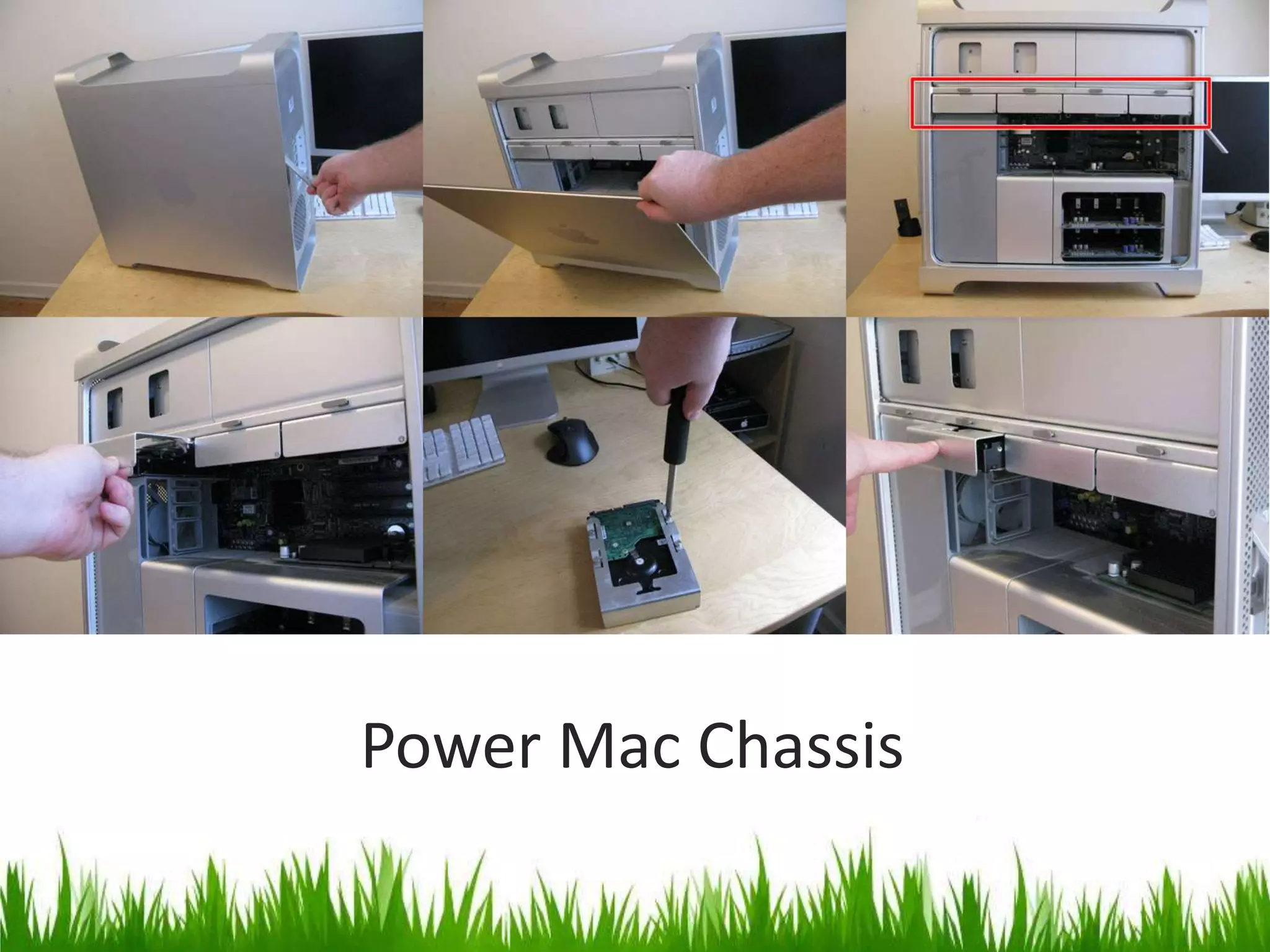

12. Power Mac Chassis

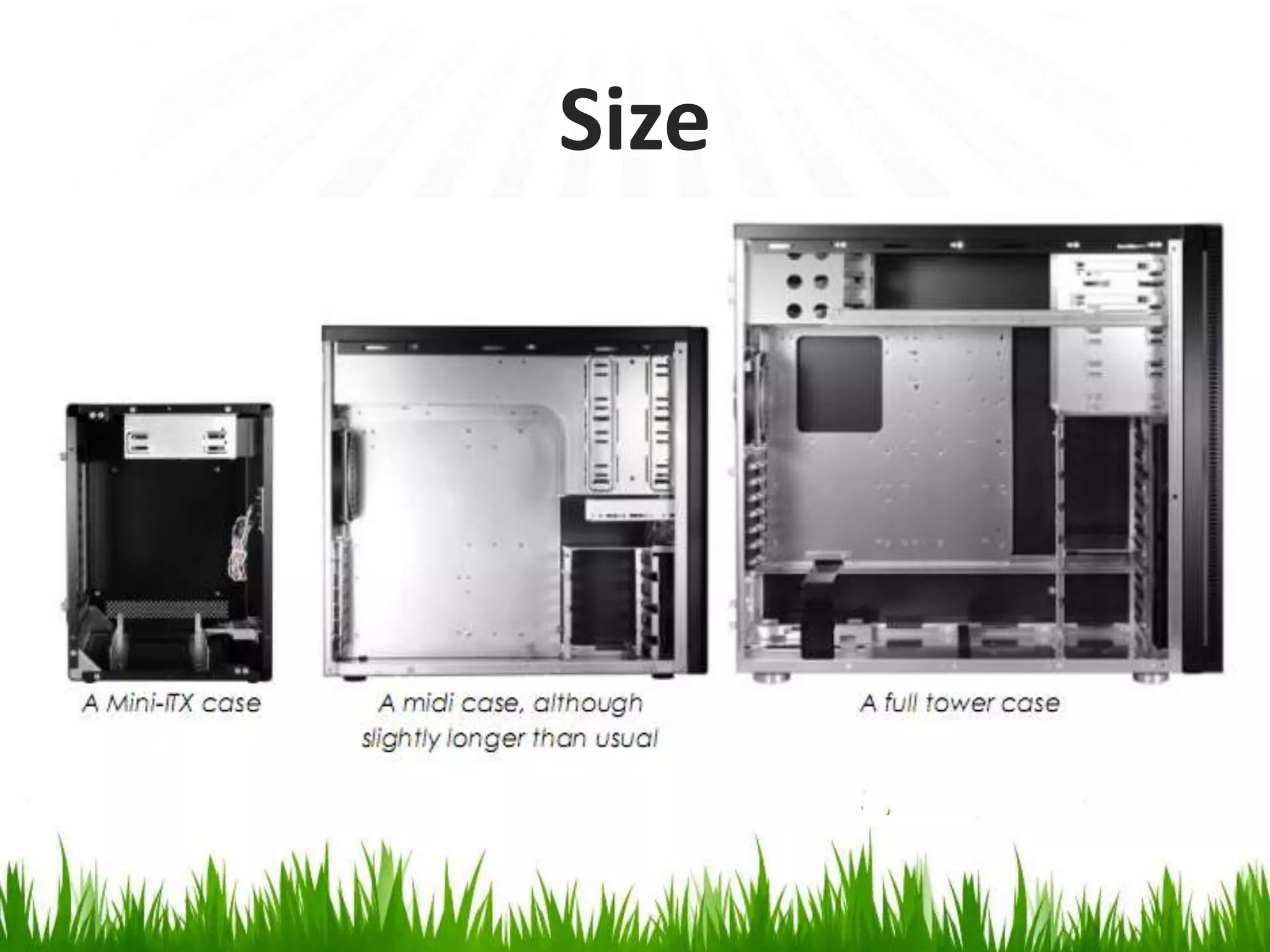

14. Size

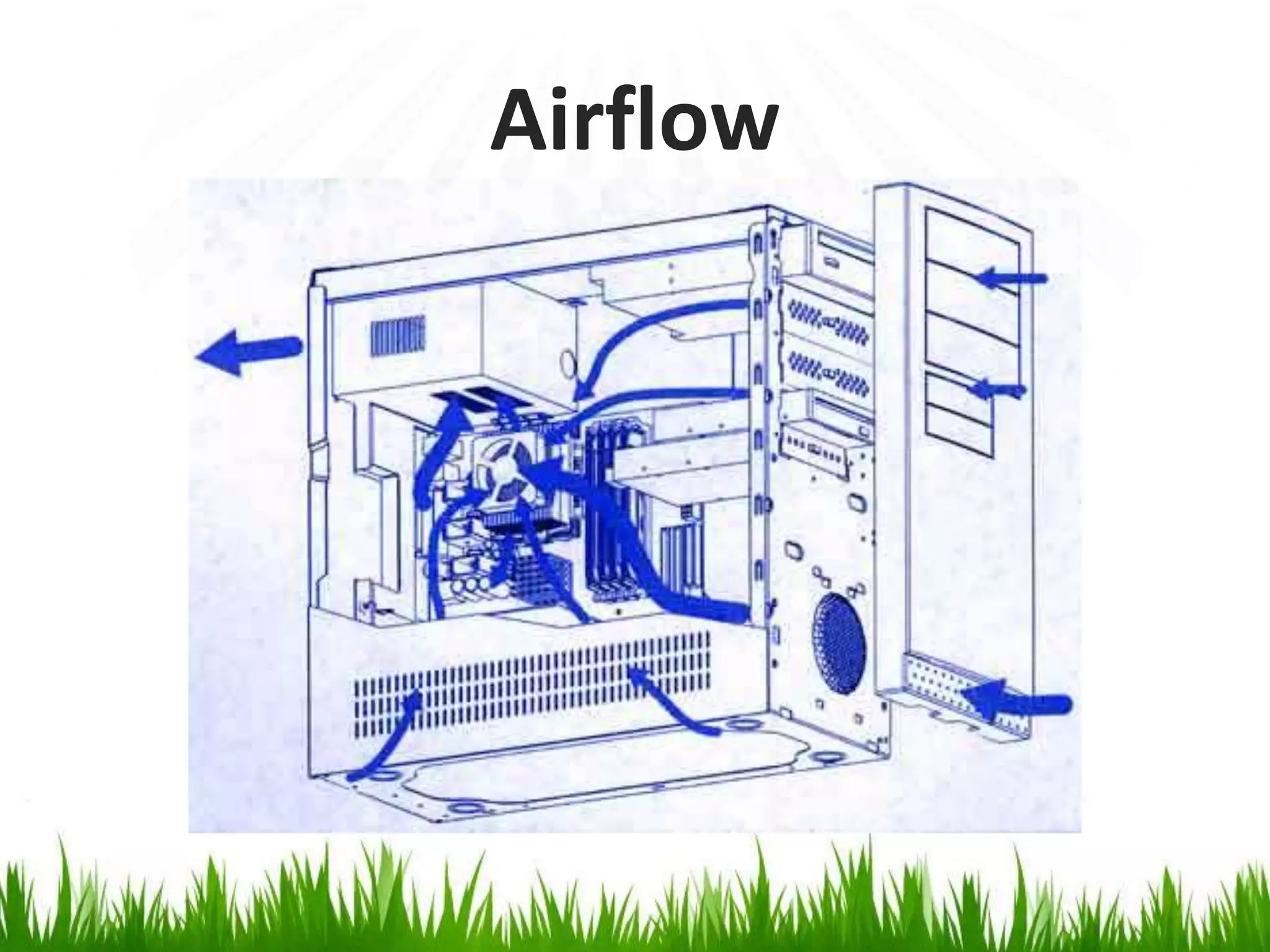

15. Airflow

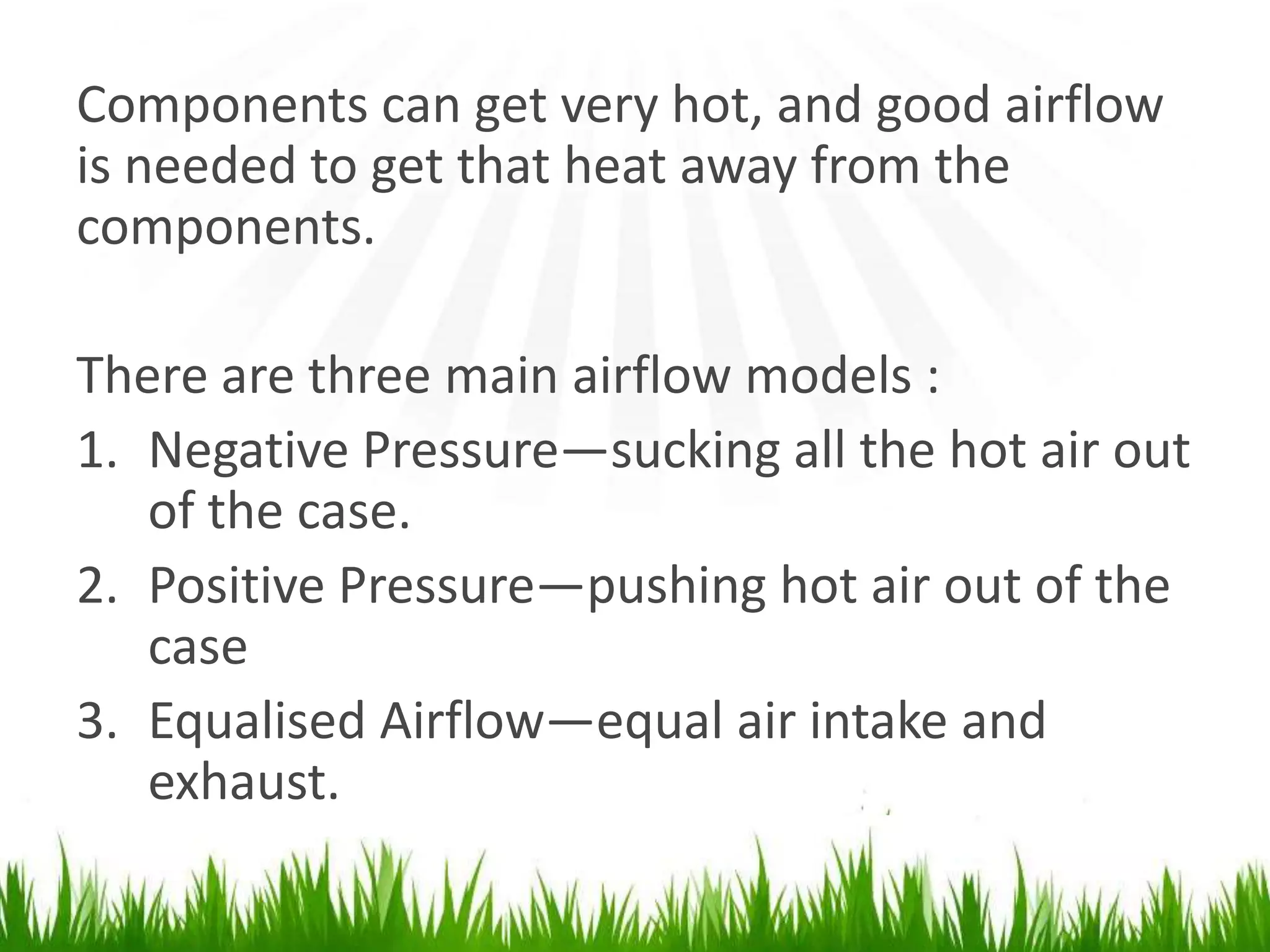

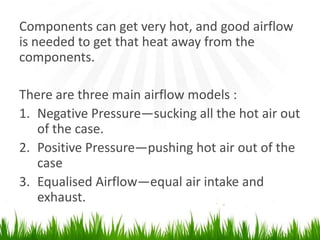

16. Components can get very hot, and good airflow is needed to get that heat away from thecomponents. There are three main airflow models : Negative Pressure―sucking all the hot air out of the case. Positive Pressure―pushing hot air out of the case Equalised Airflow―equal air intake and exhaust.

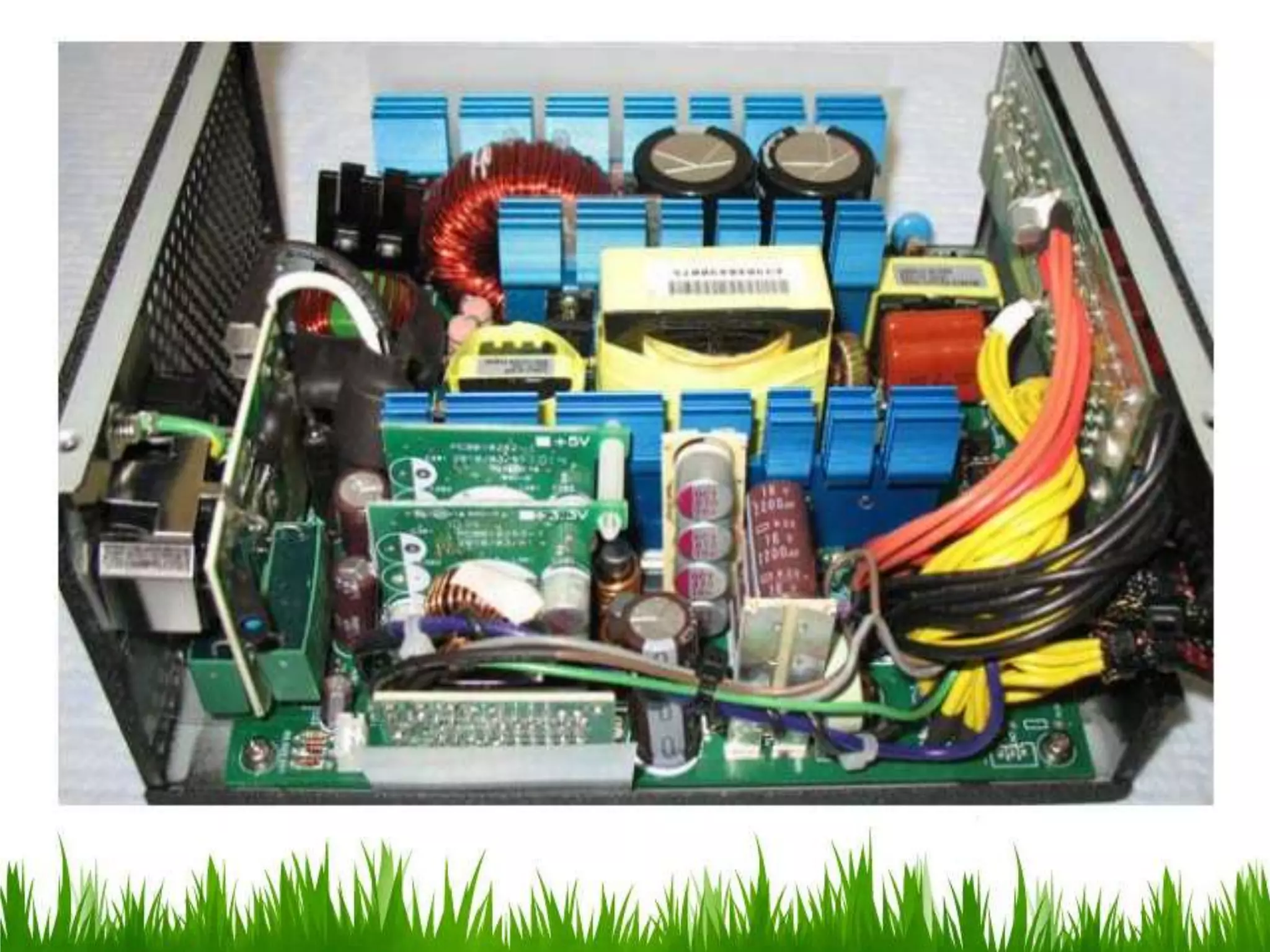

17. Power Supply

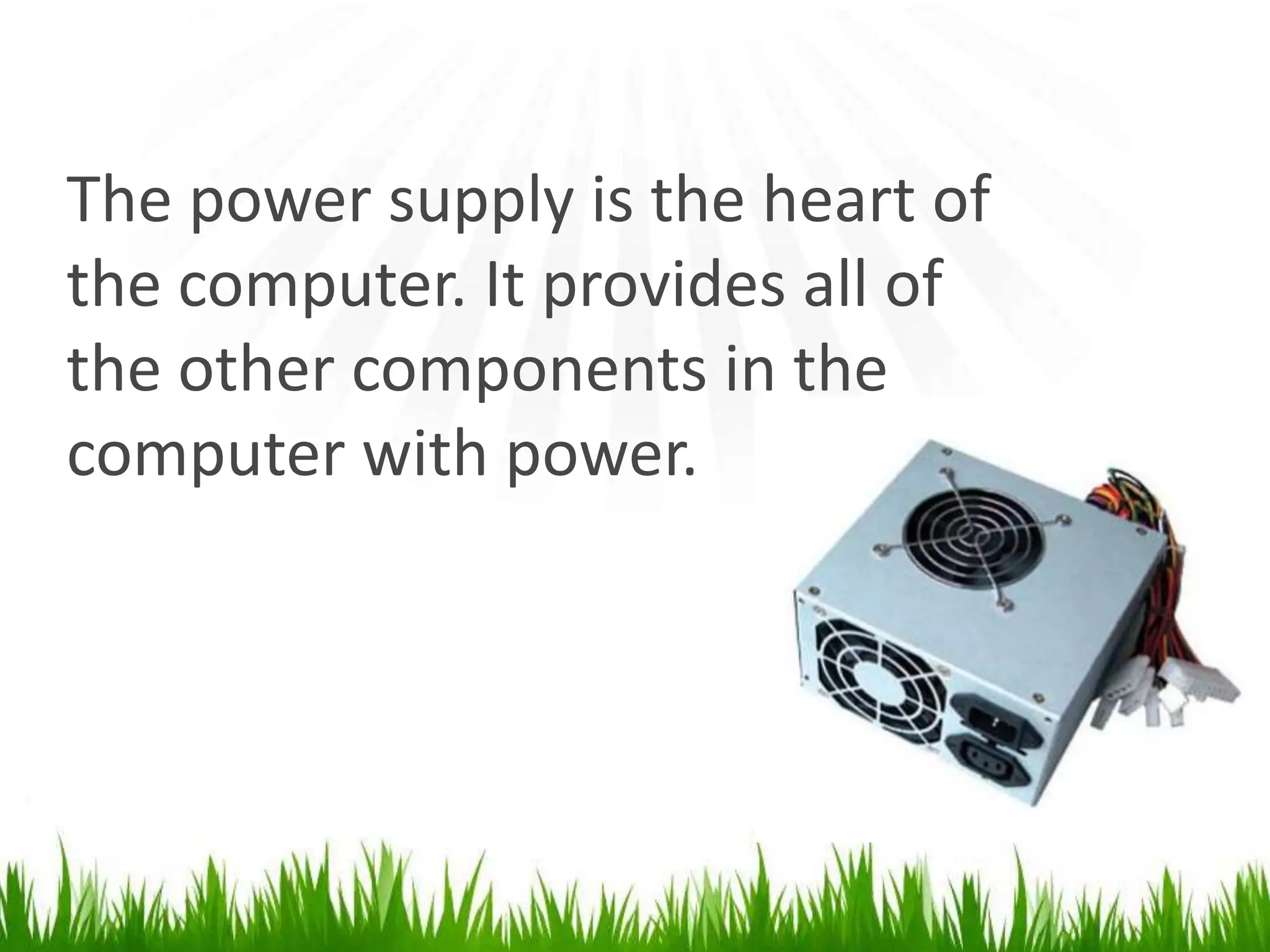

18. The power supply is the heart of the computer.It provides all of the other components in the computer with power.

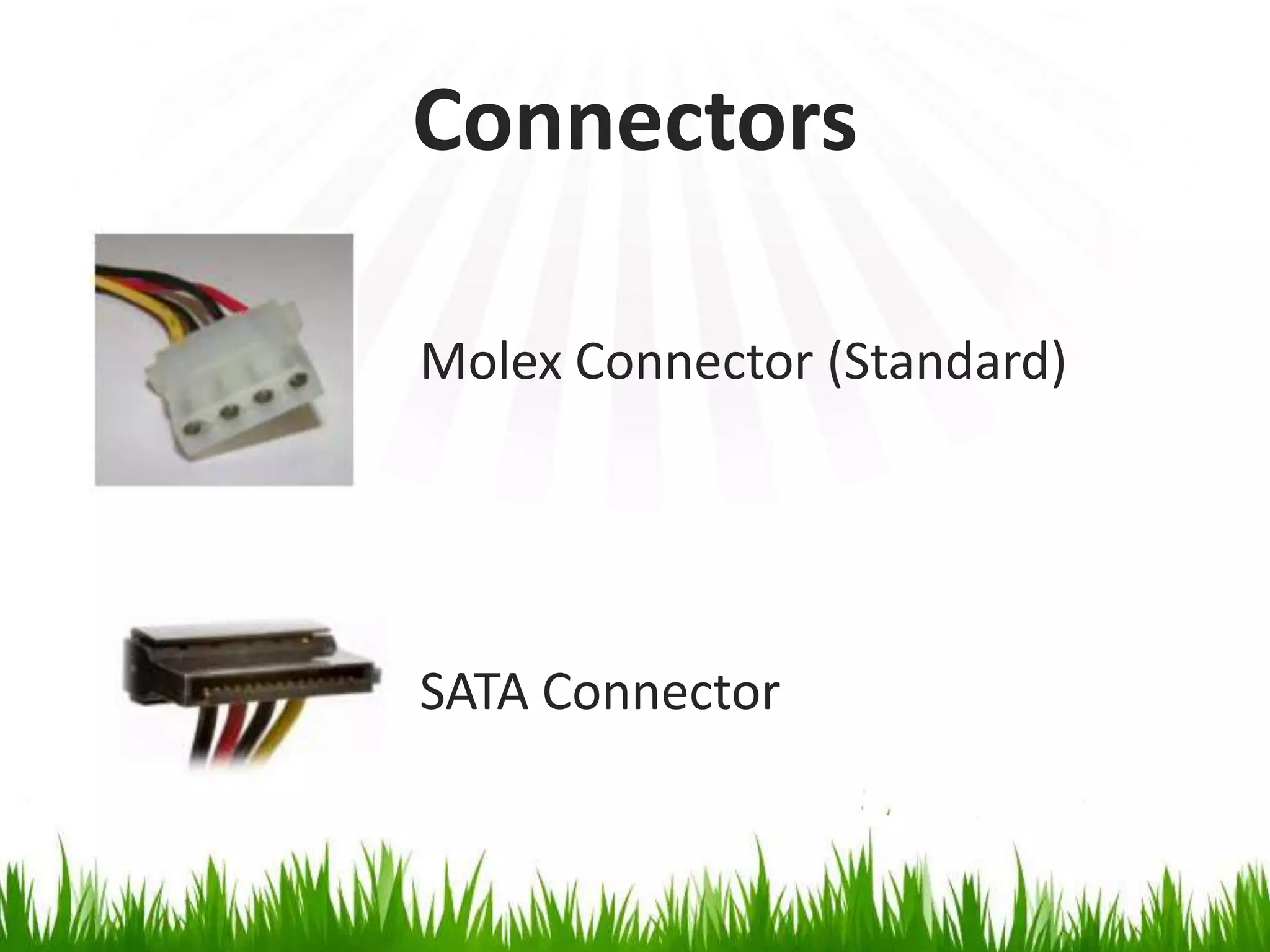

20. Connectors Molex Connector (Standard) SATA Connector

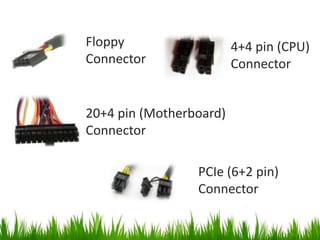

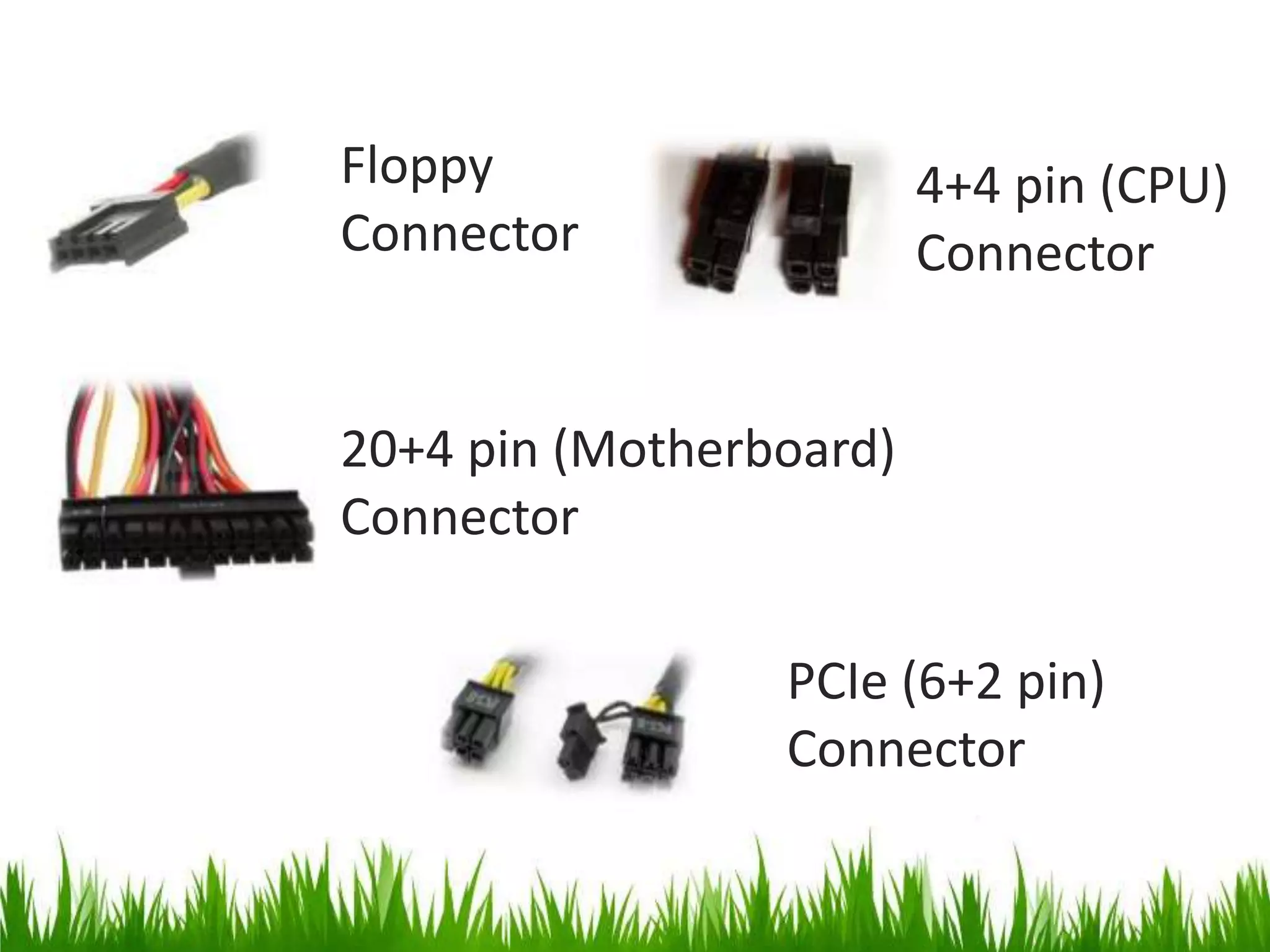

21. Floppy Connector 4+4 pin (CPU) Connector 20+4 pin (Motherboard) Connector PCIe (6+2 pin) Connector

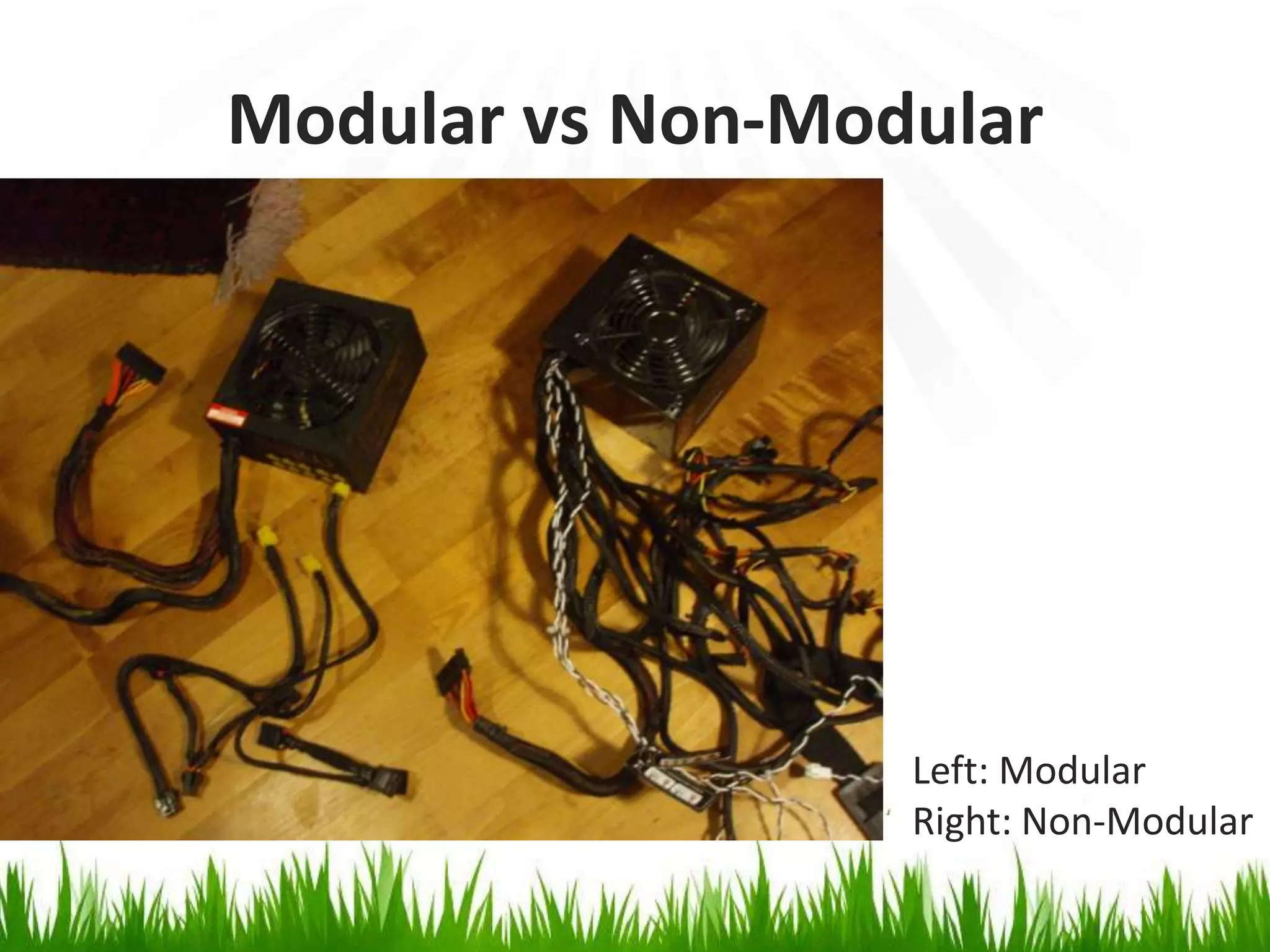

22. Modular vs Non-Modular Left: Modular Right: Non-Modular

23. Motherboard

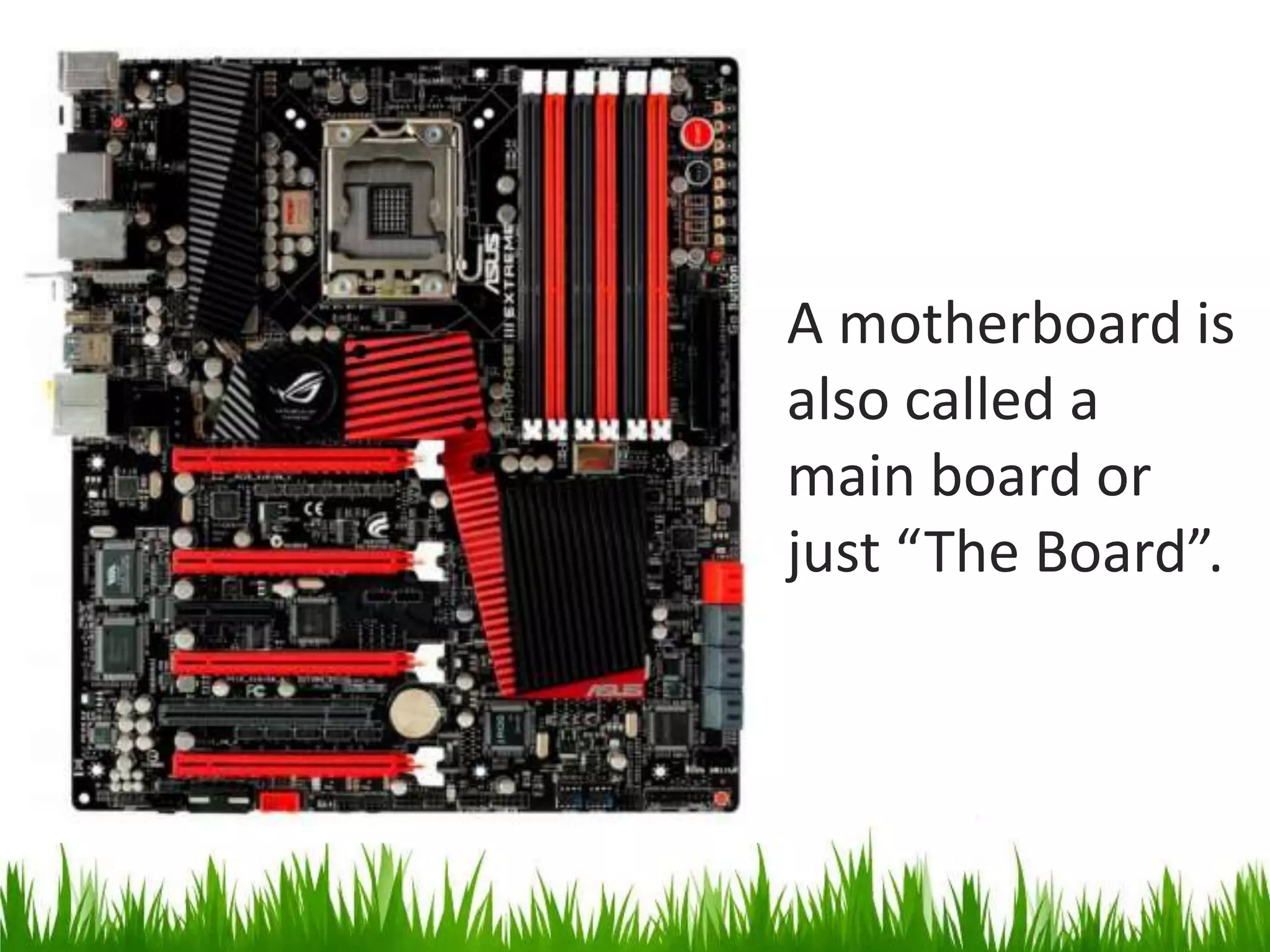

24. A motherboard is also called a main board or just “The Board”.

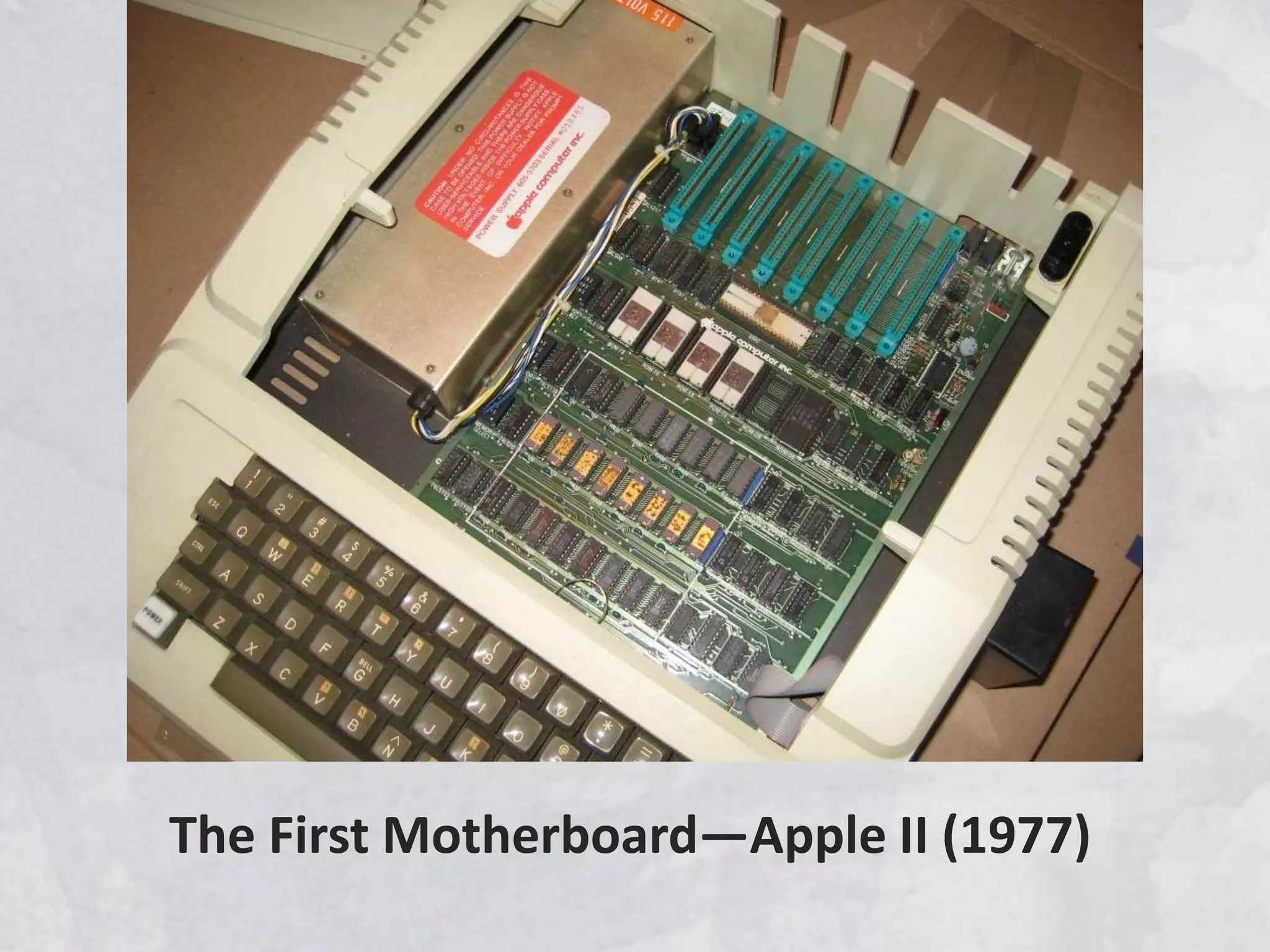

25. The First Motherboard―Apple II (1977)

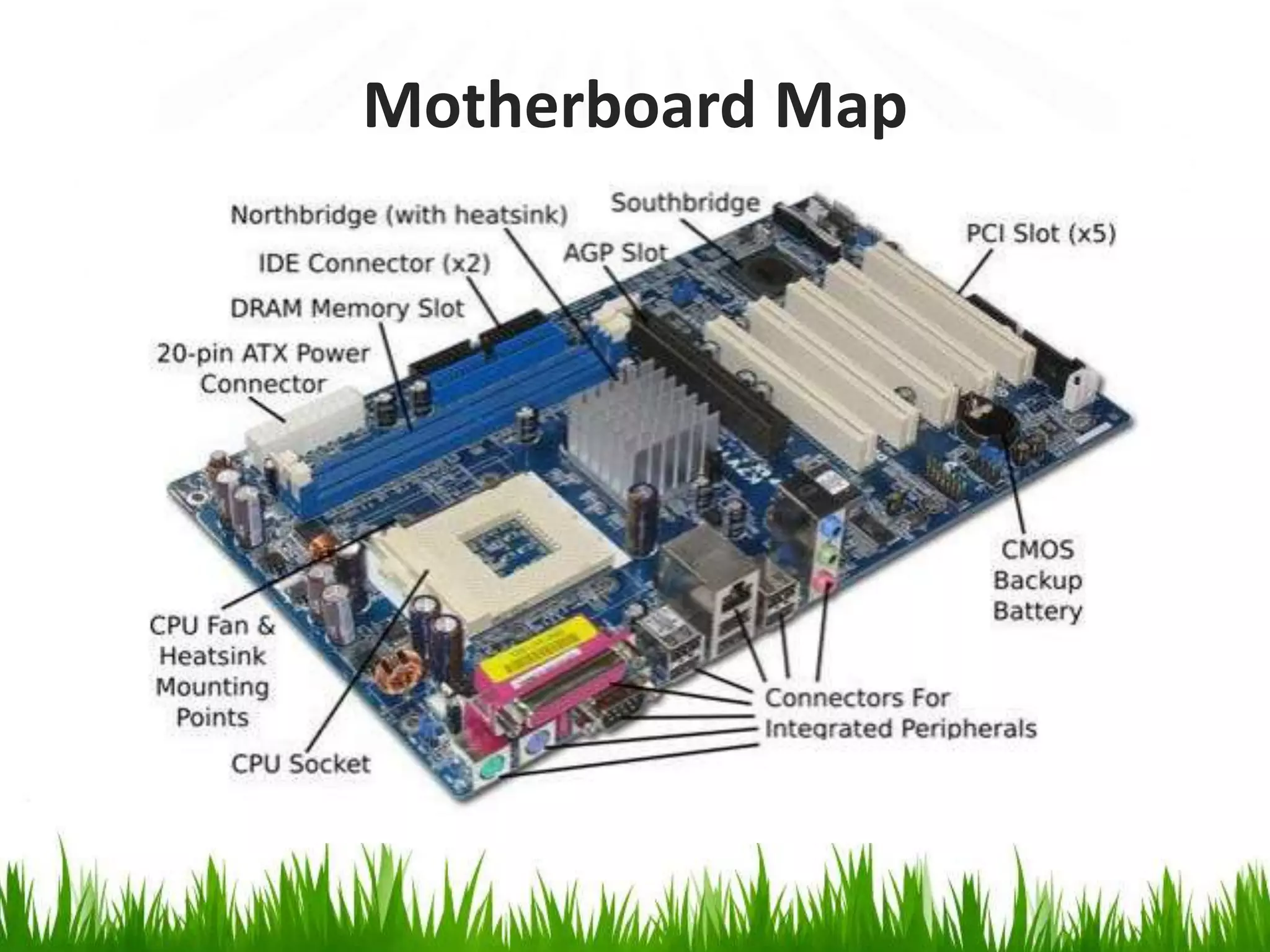

26. Motherboard Map

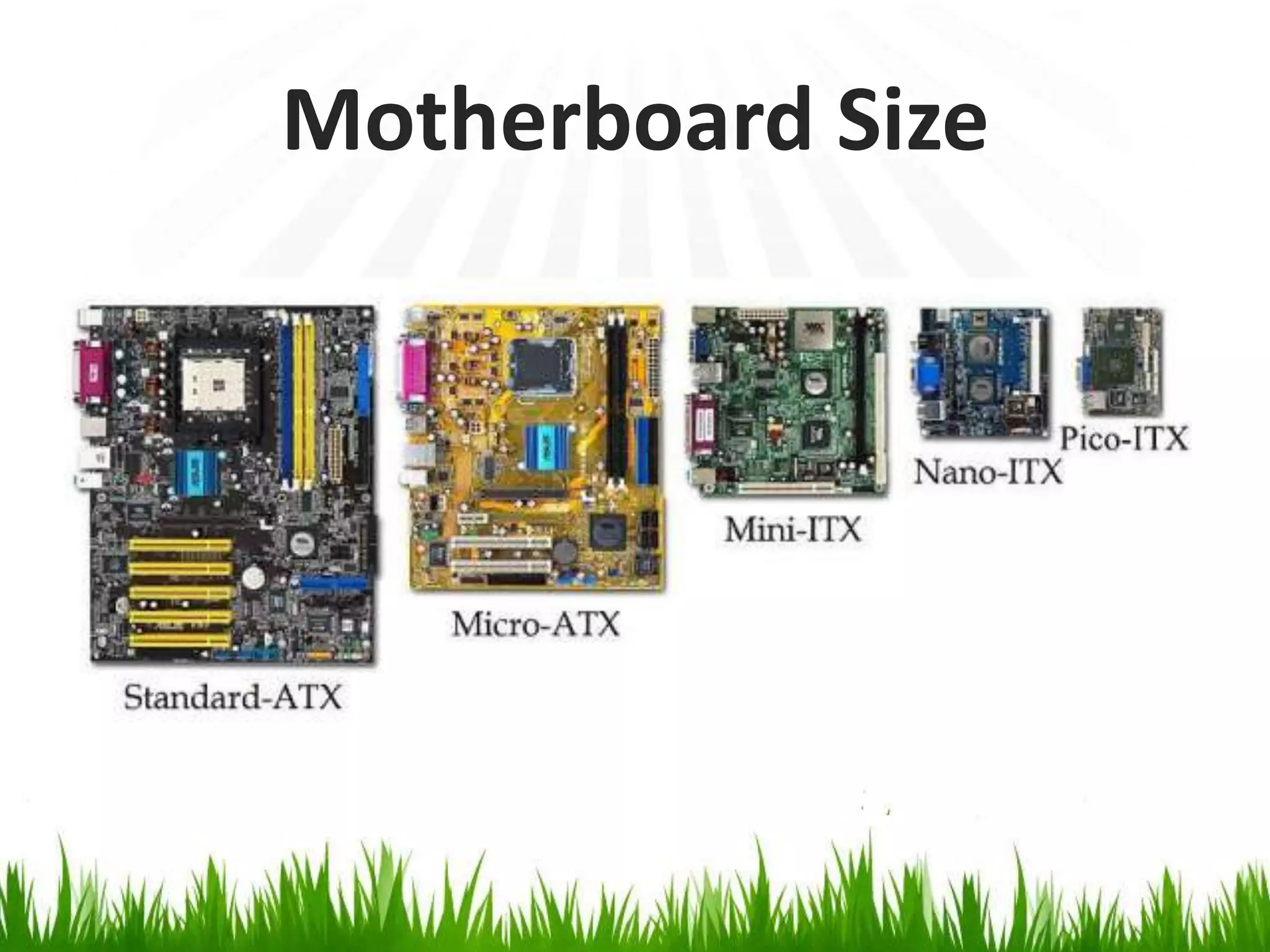

27. Motherboard Size

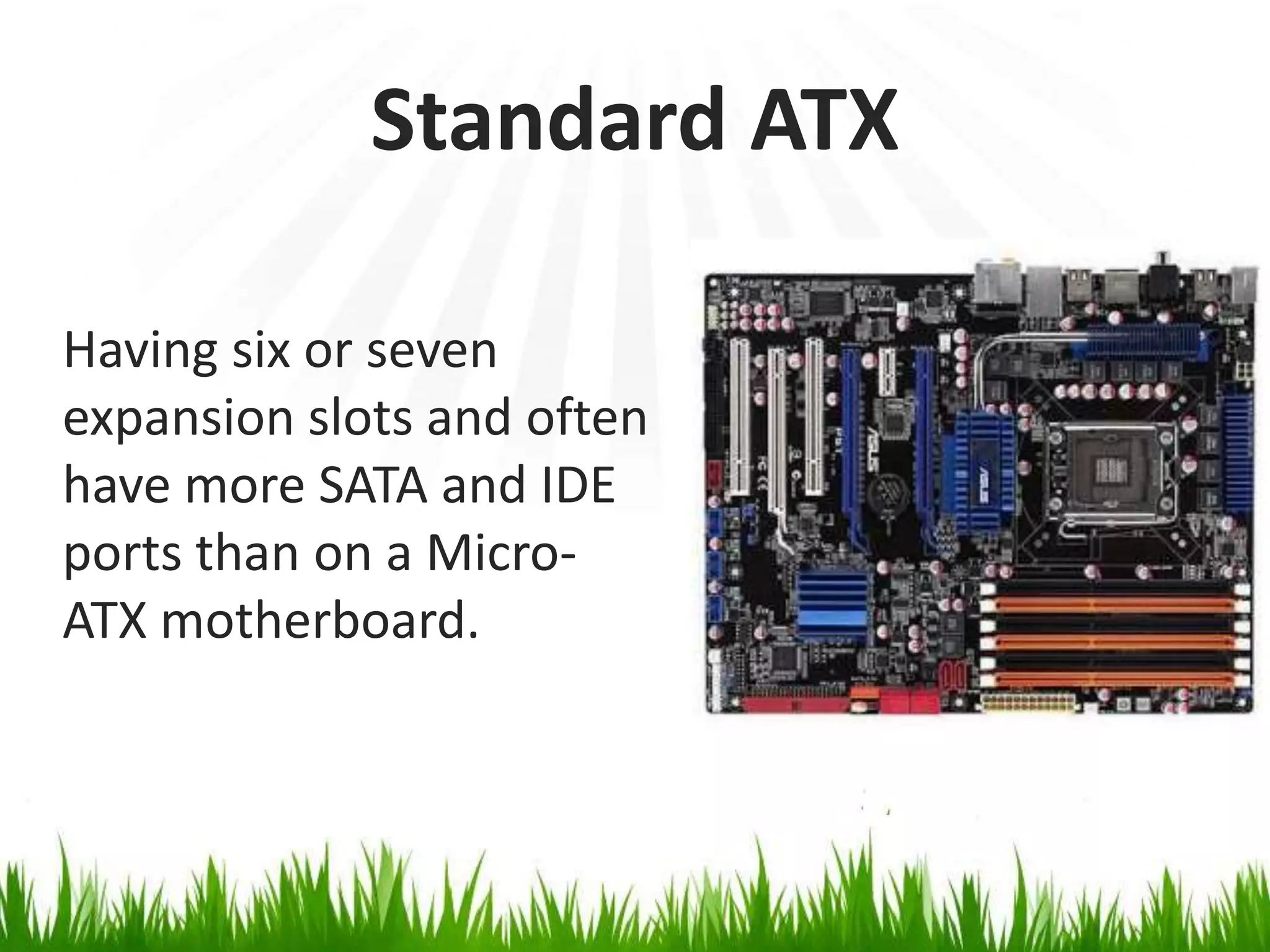

28. Standard ATX Having six or sevenexpansion slots and often have more SATA and IDE ports than on a Micro-ATX motherboard.

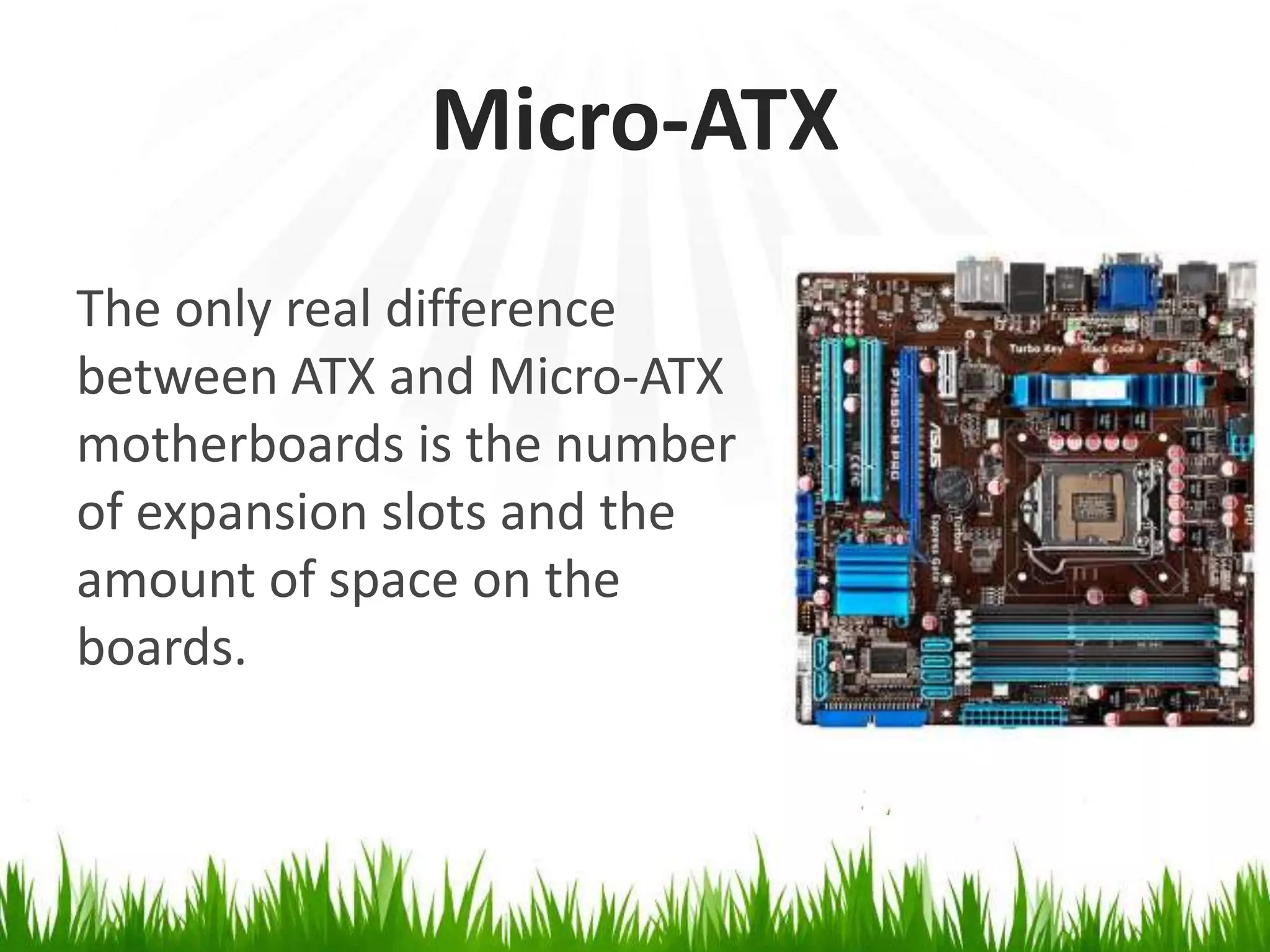

29. Micro-ATX The only real differencebetween ATX and Micro-ATX motherboards is the number of expansion slots and the amount of space on the boards.

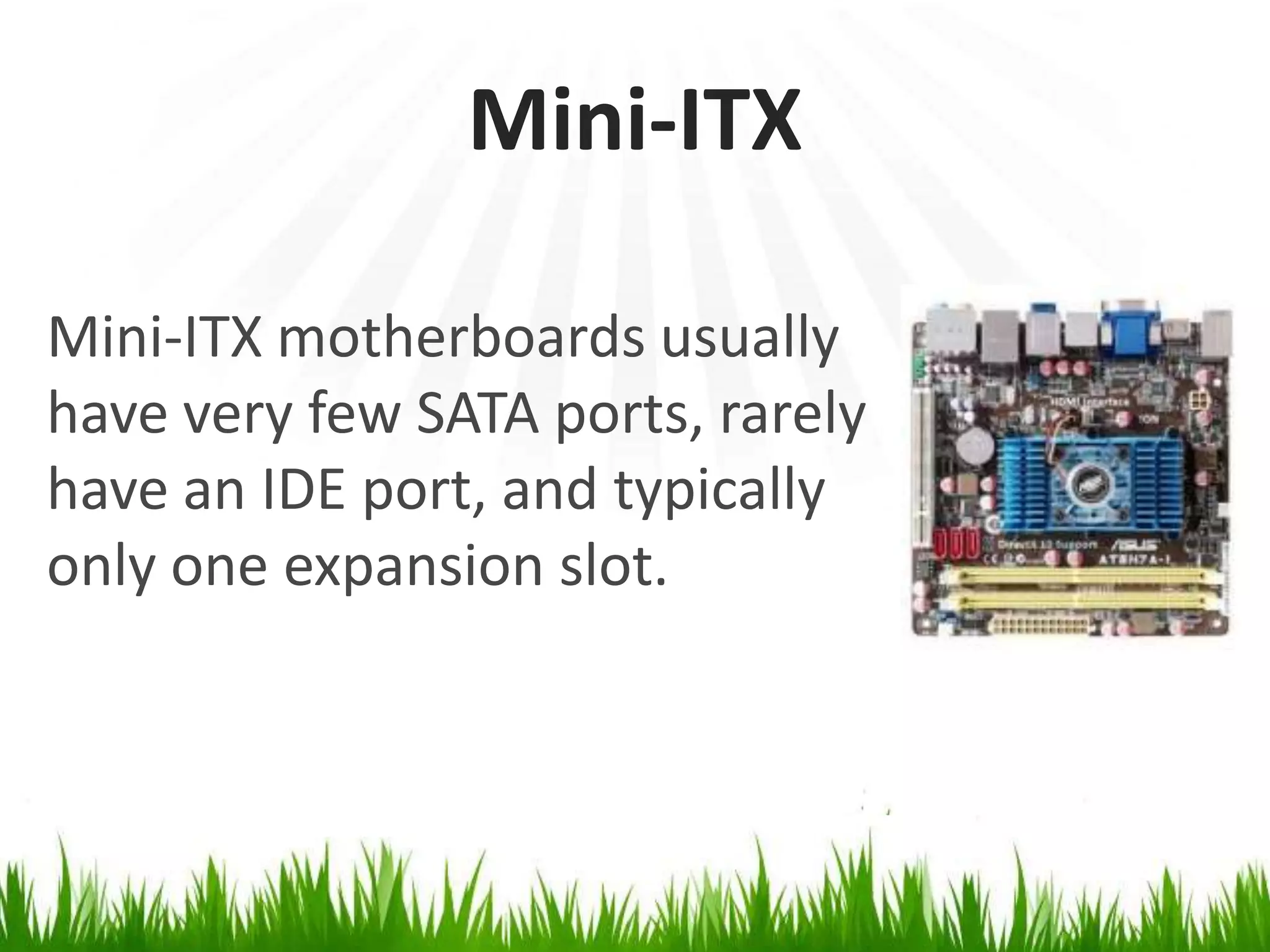

30. Mini-ITX Mini-ITX motherboardsusually have very few SATA ports, rarelyhave an IDE port, and typically only one expansion slot.

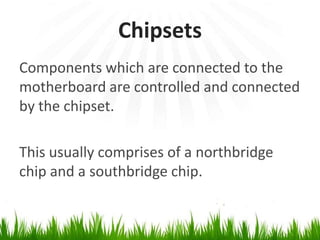

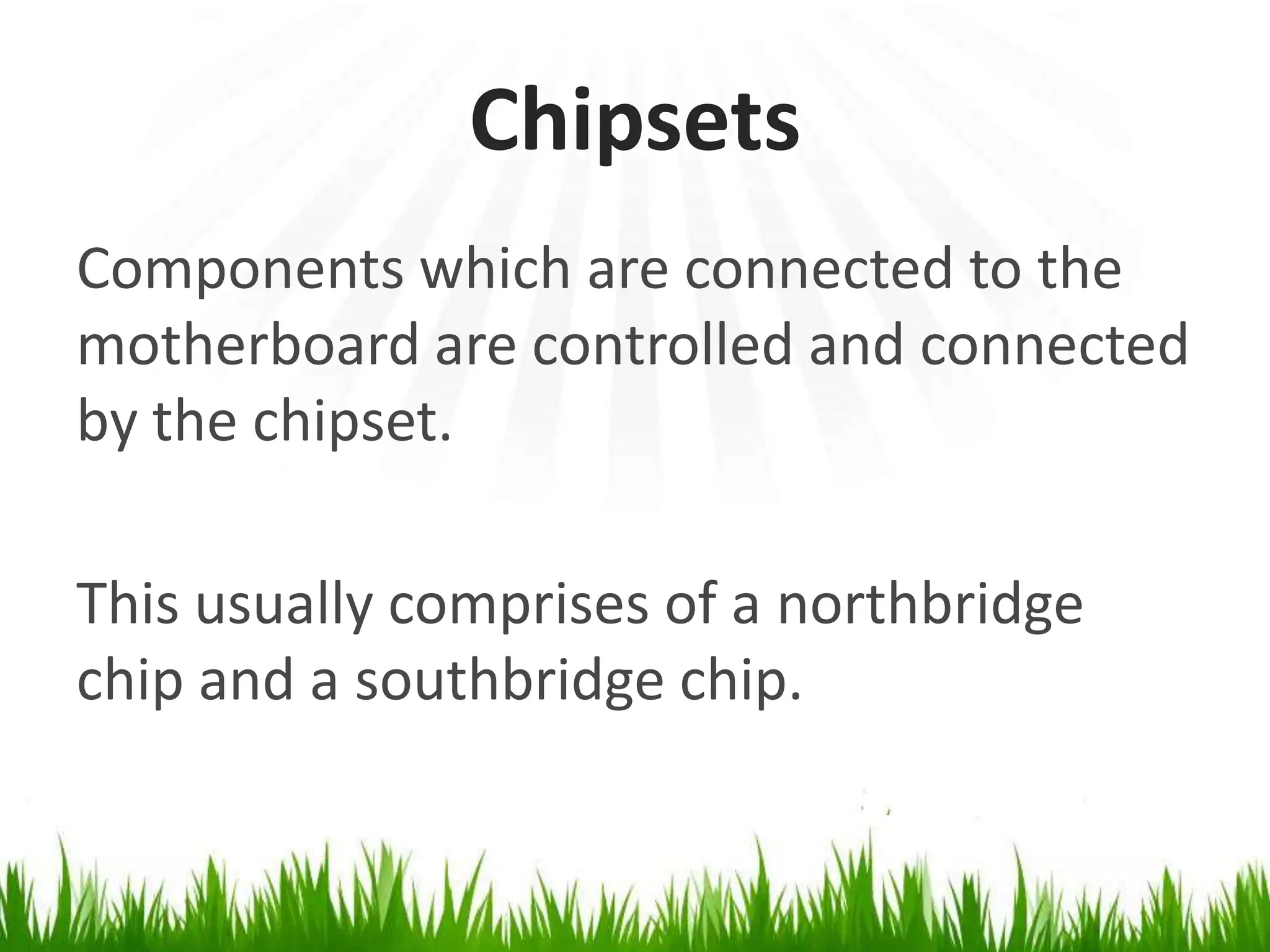

31. Chipsets Components which are connected to themotherboard are controlled and connected by the chipset. This usually comprises of a northbridge chip and a southbridge chip.

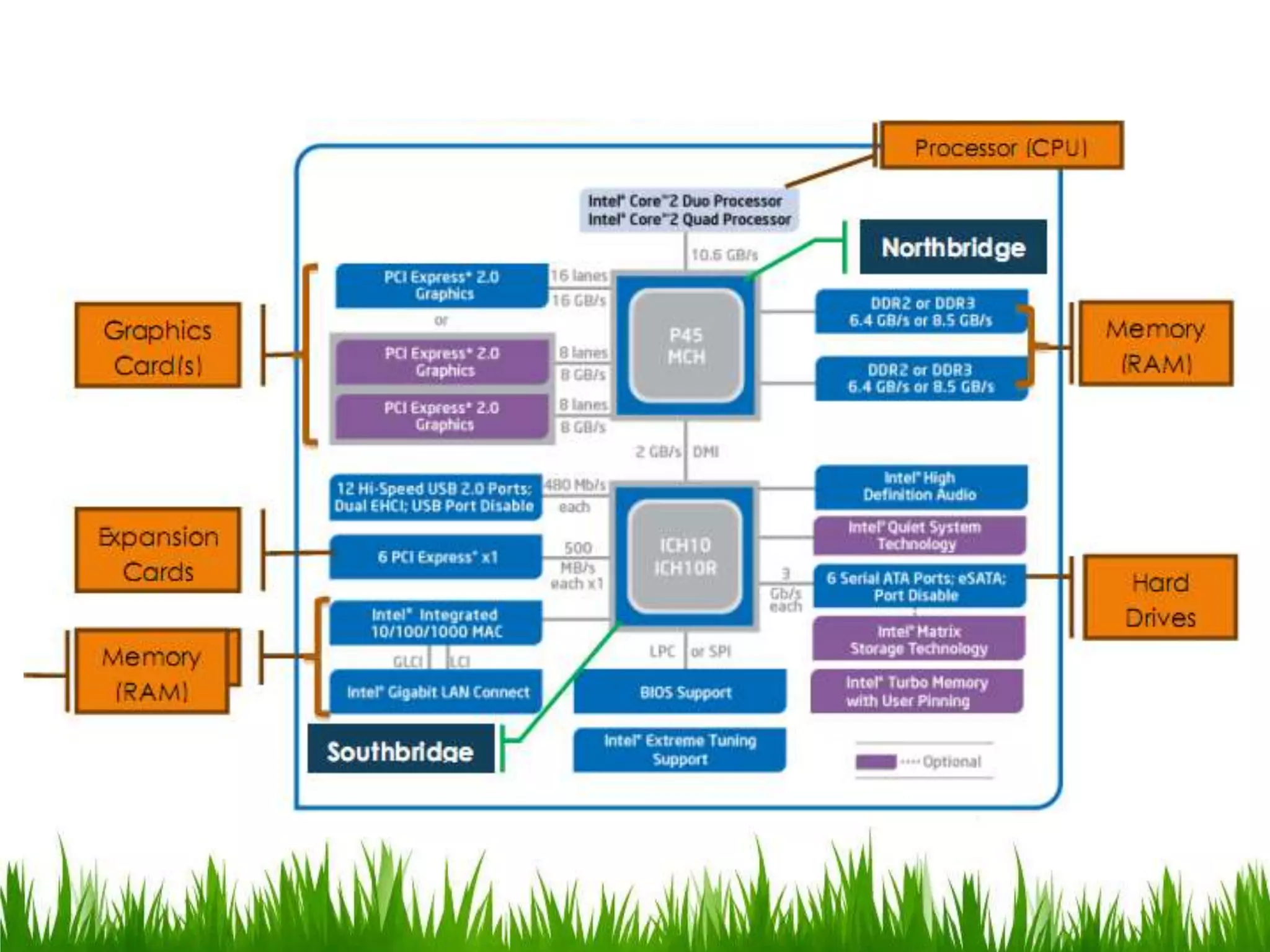

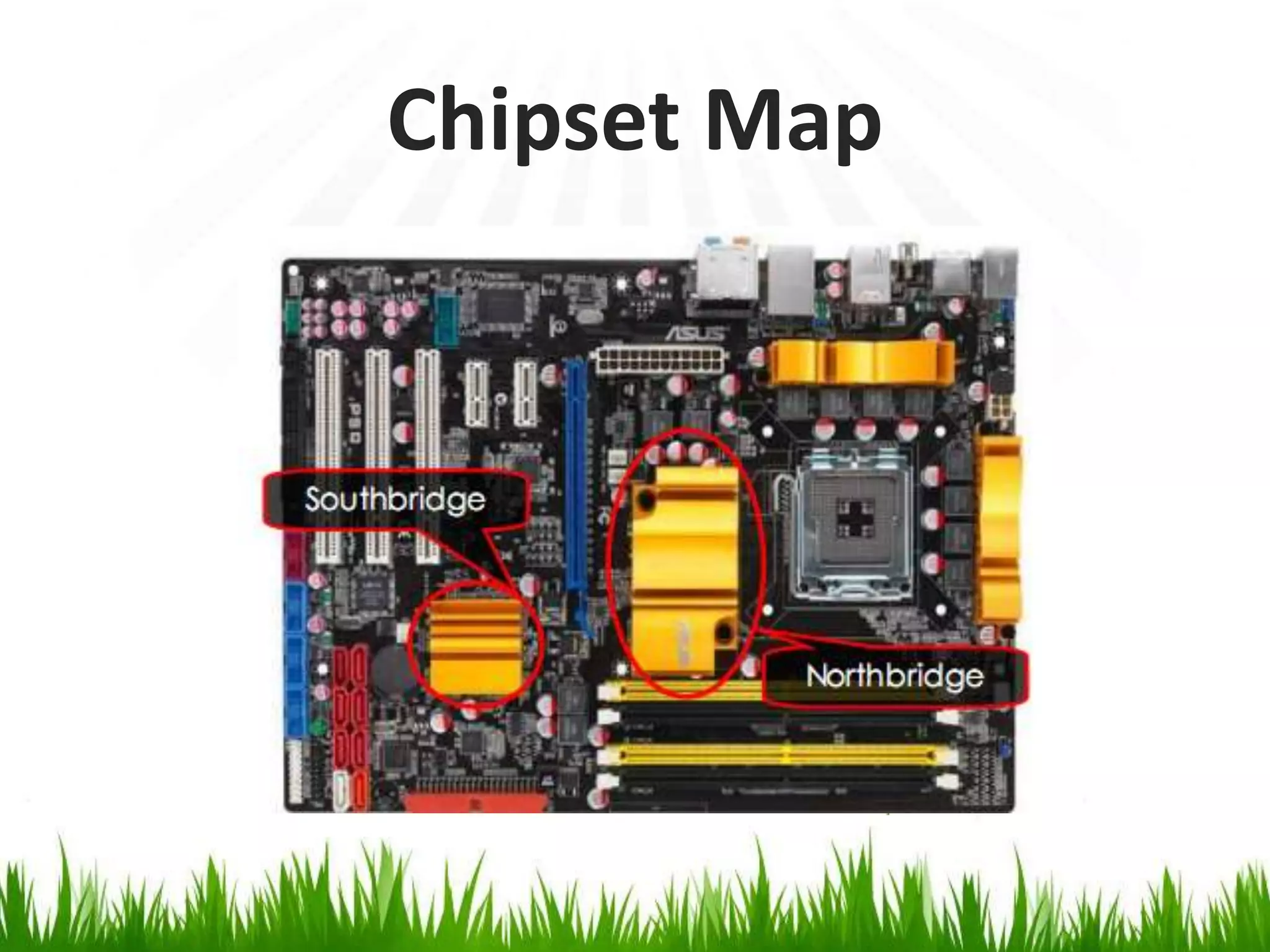

32. Chipset Map

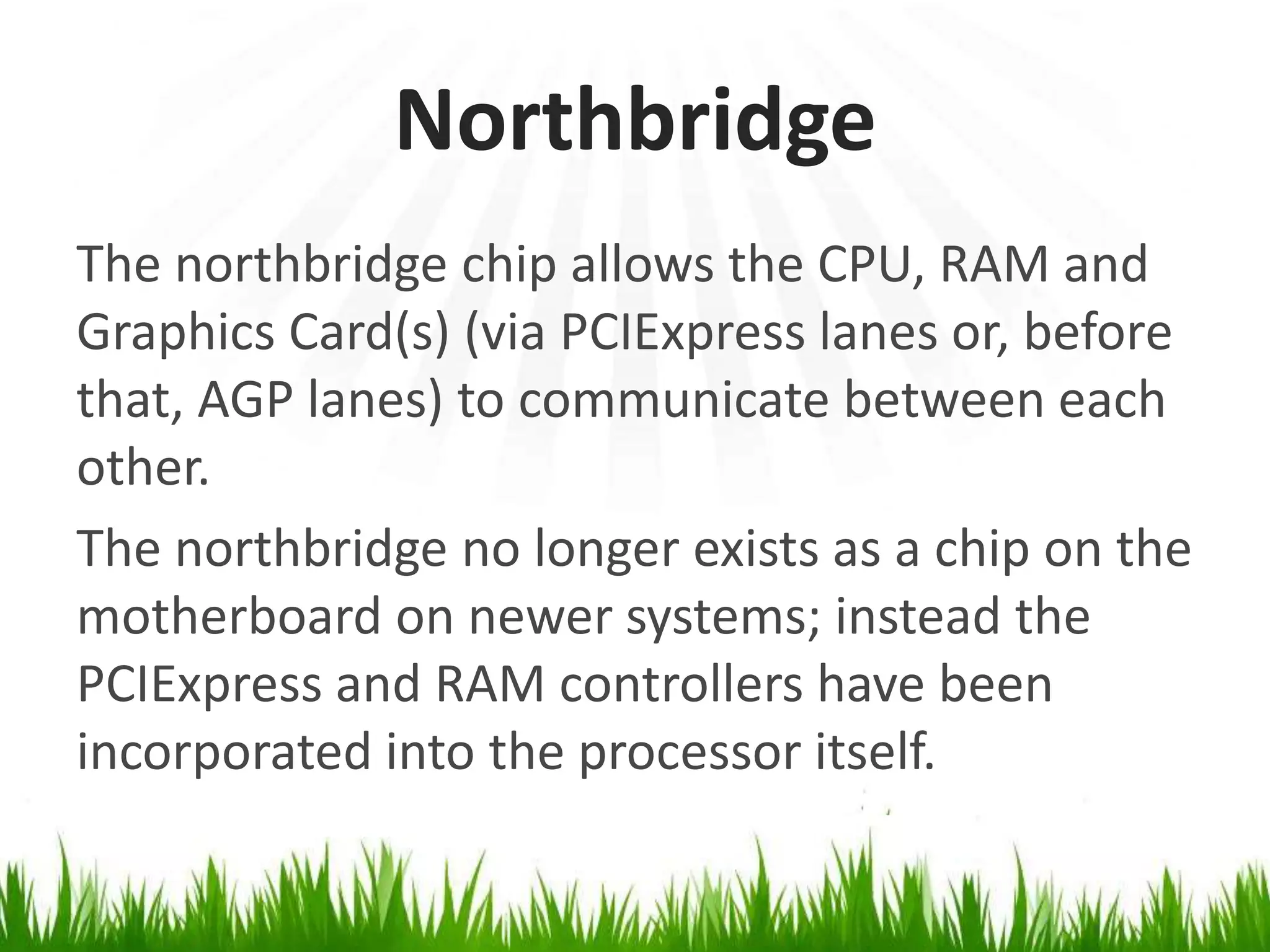

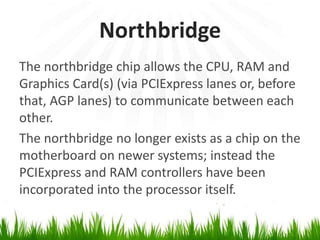

34. Northbridge The northbridge chip allows the CPU, RAM and Graphics Card(s) (via PCIExpress lanes or, before that, AGP lanes) tocommunicate between each other. The northbridge no longer exists as a chip on the motherboard on newer systems; instead the PCIExpress and RAM controllers have been incorporated into the processor itself.

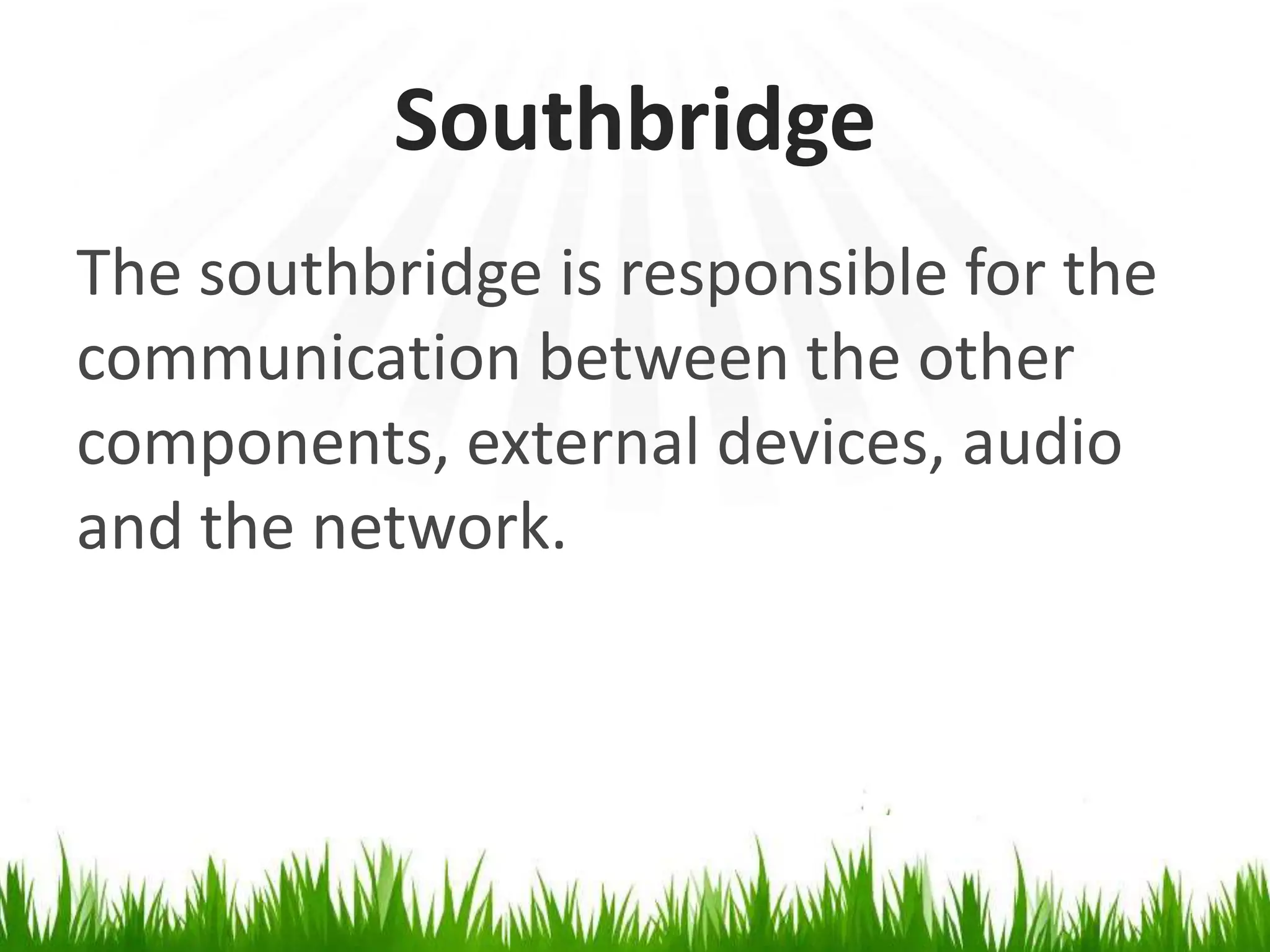

35. Southbridge The southbridge is responsible for thecommunication between the other components, external devices, audio and the network.

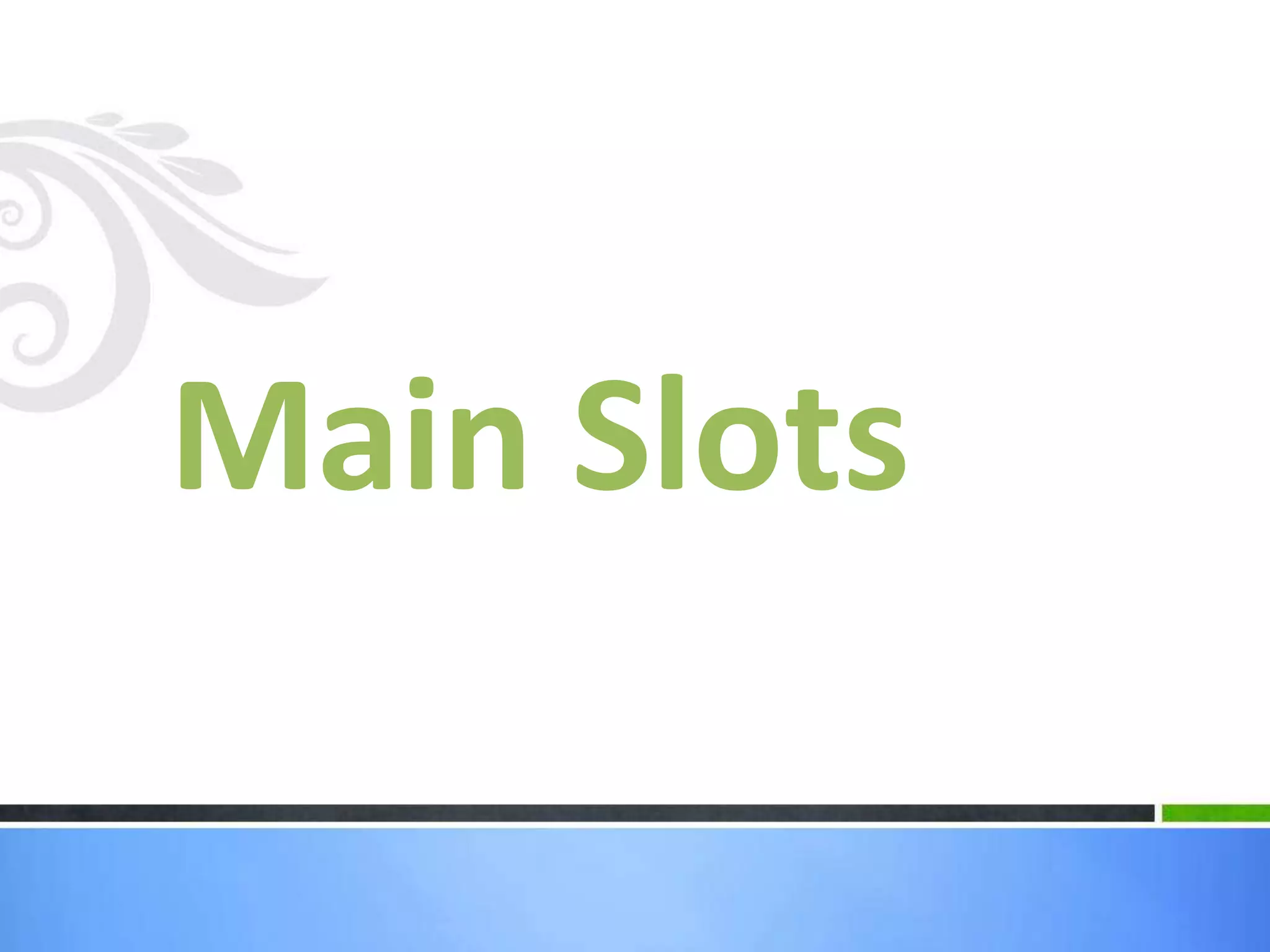

36. Main Slots

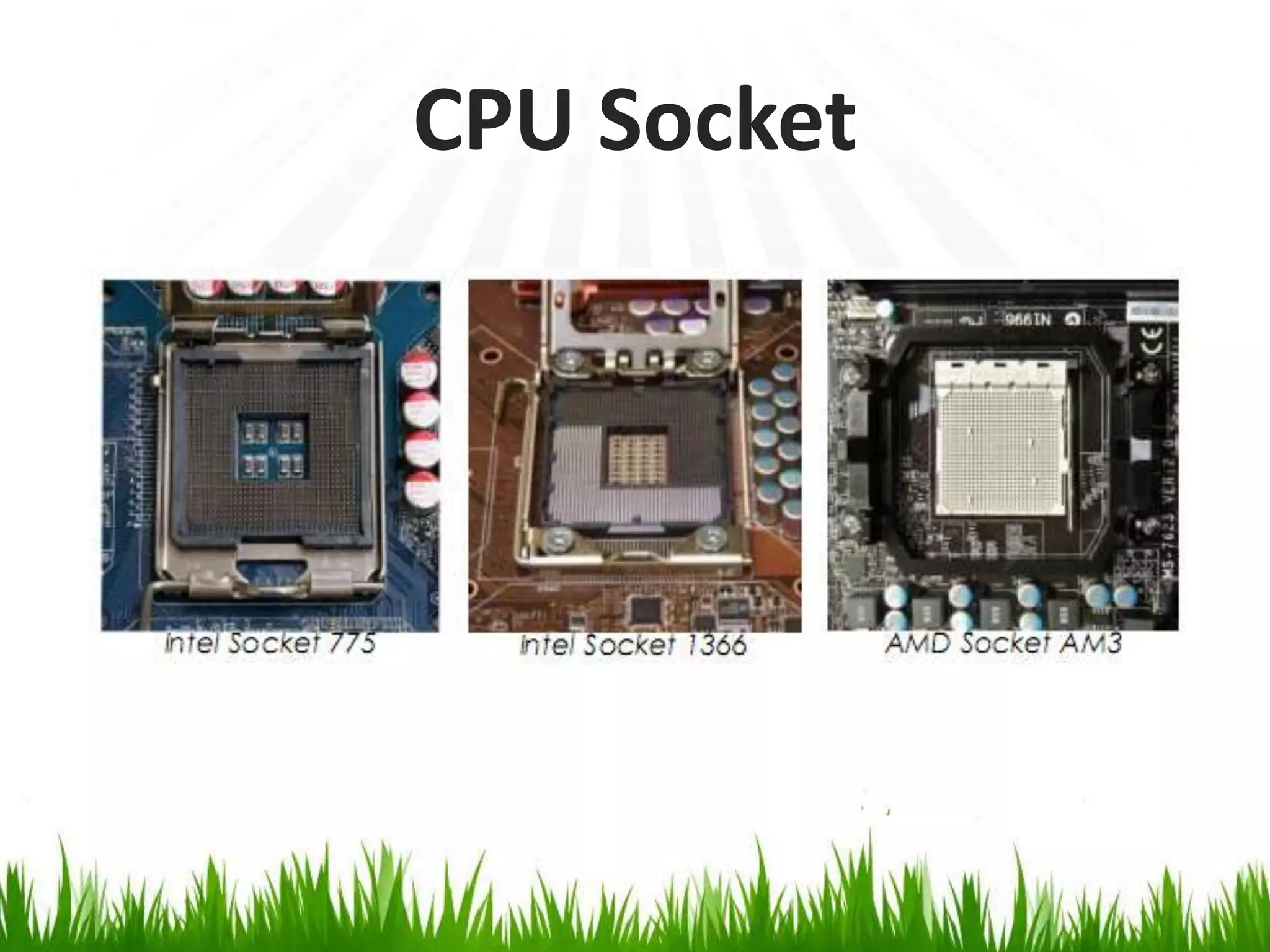

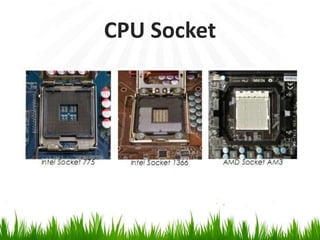

37. CPU Socket

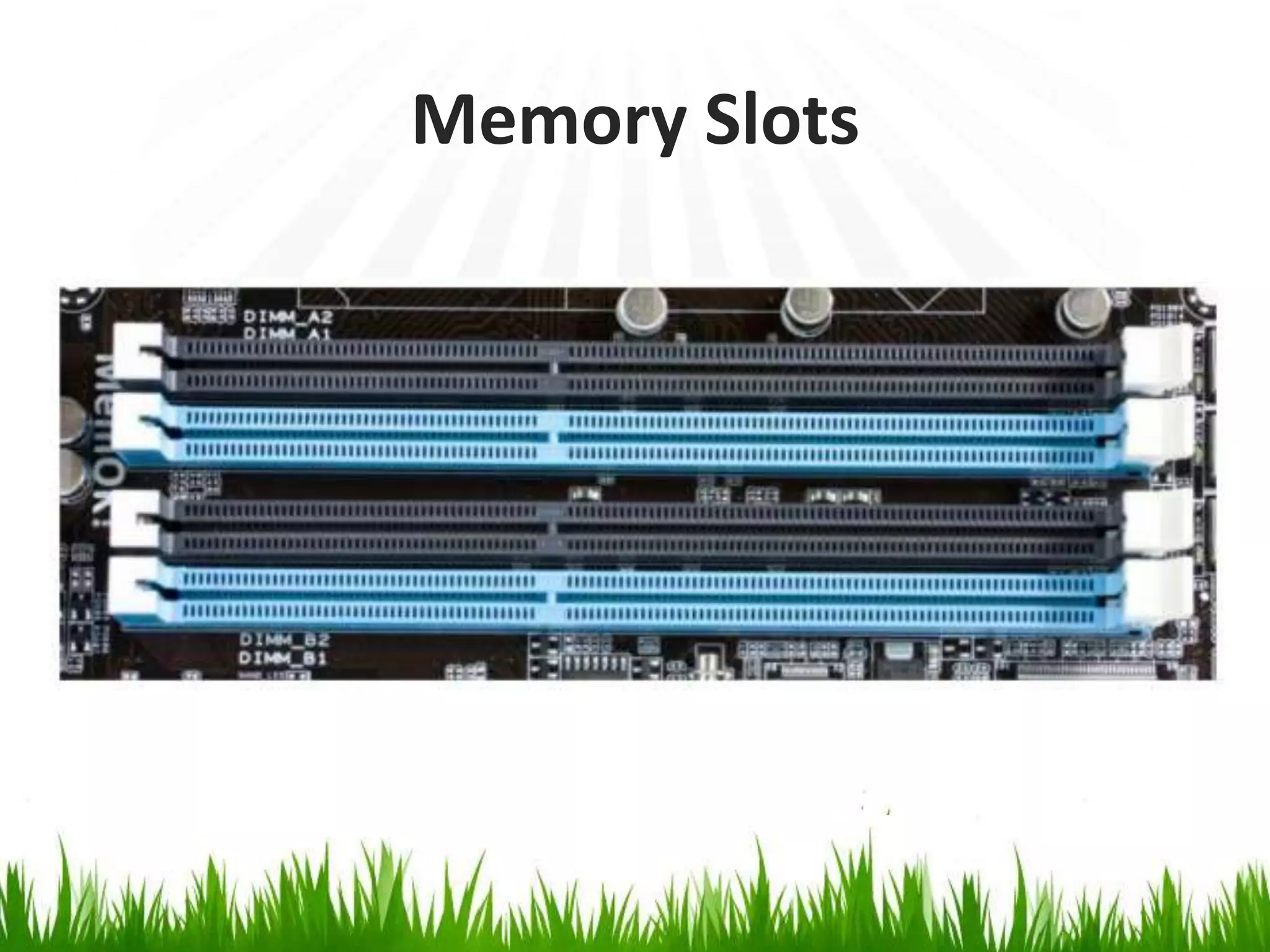

38. Memory Slots

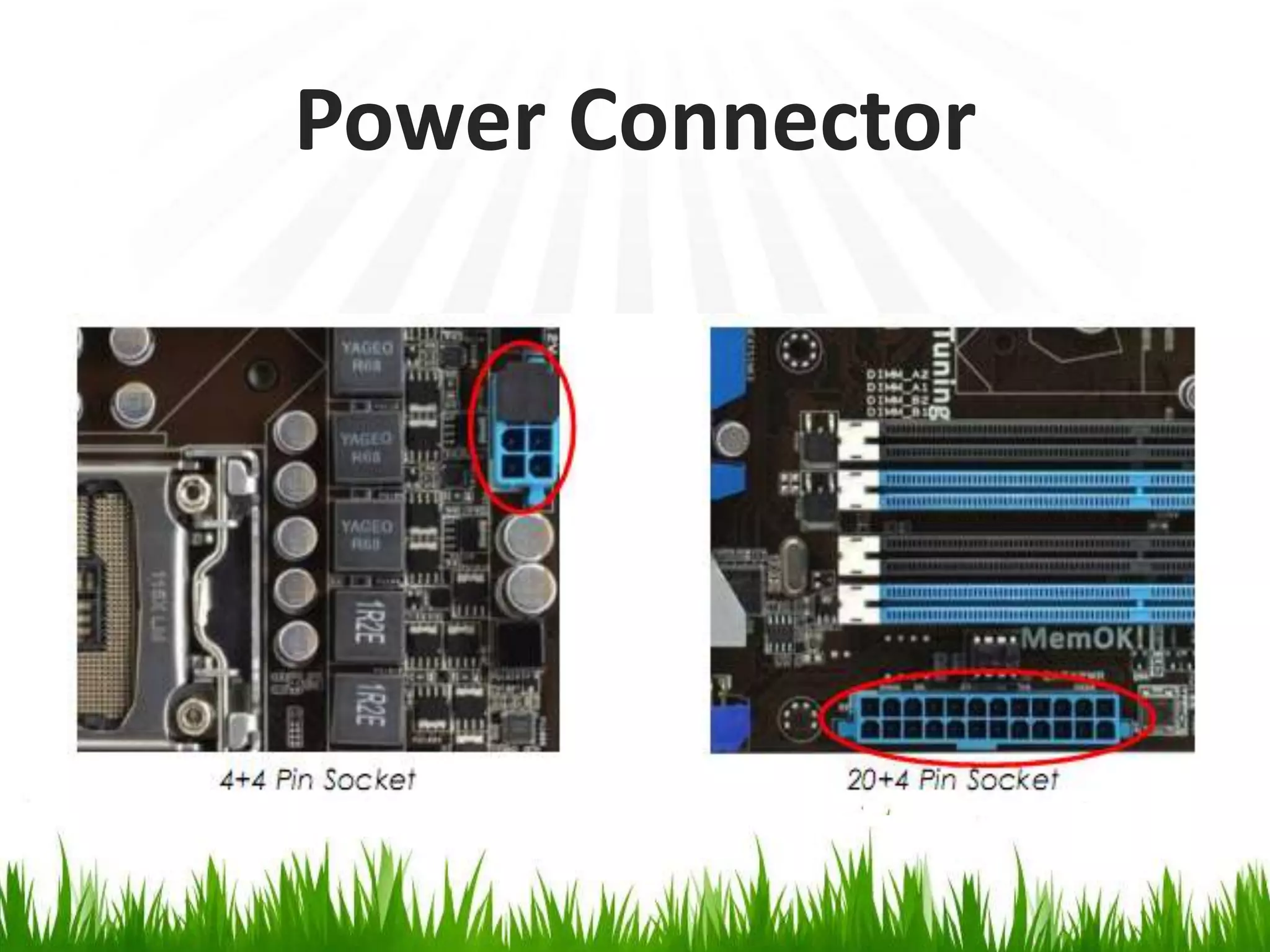

39. Power Connector

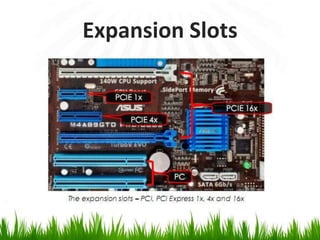

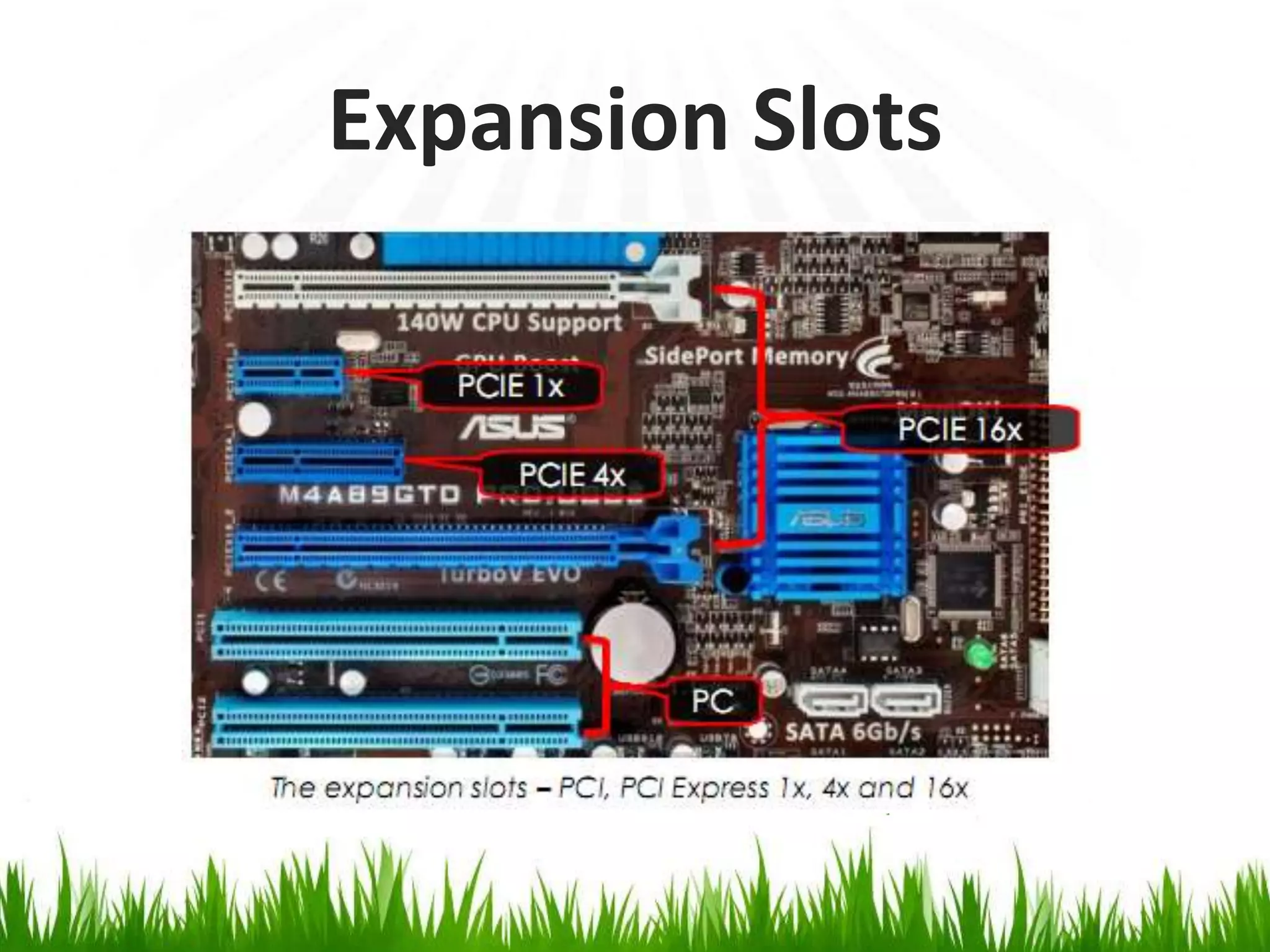

40. Expansion Slots

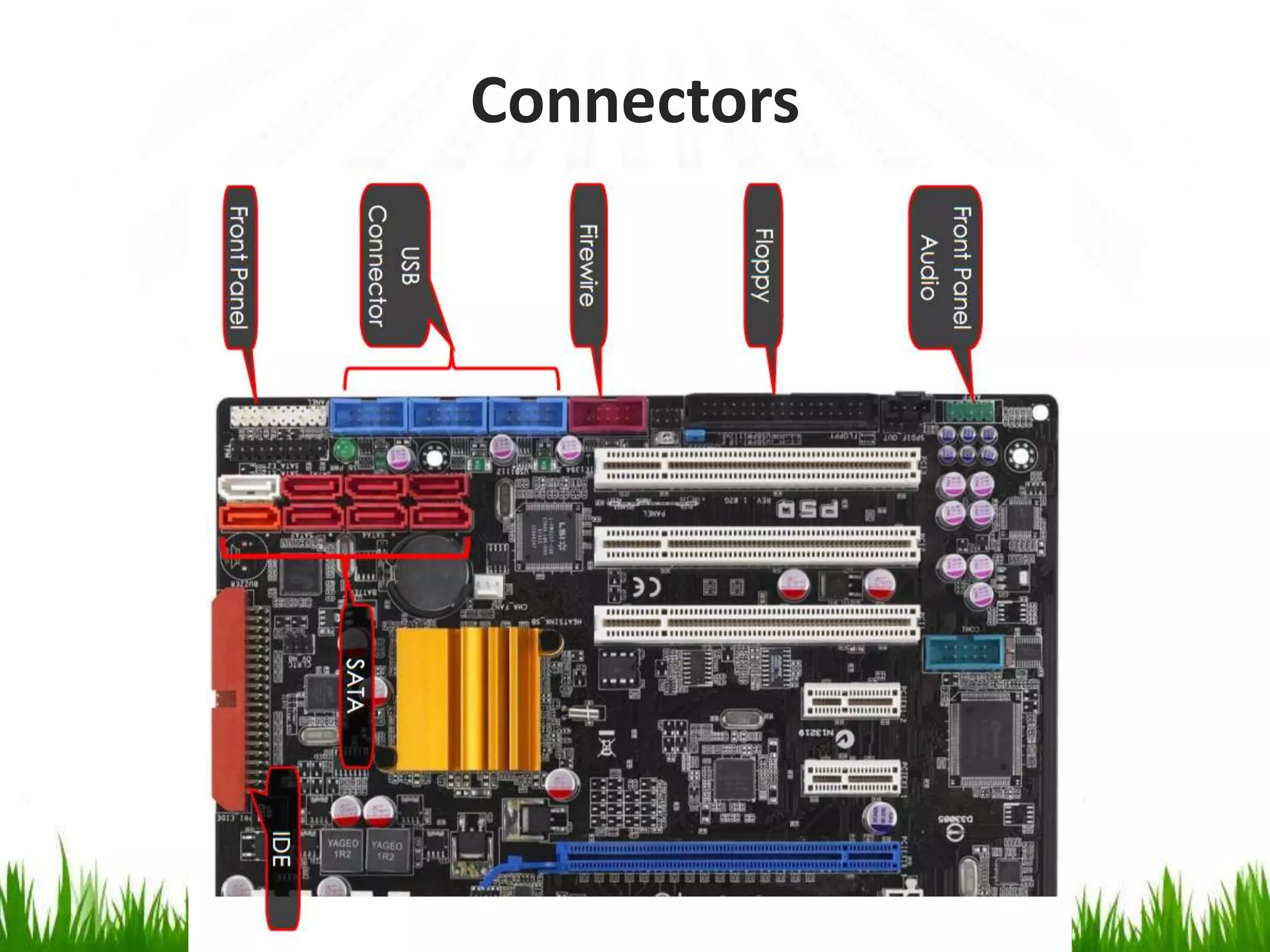

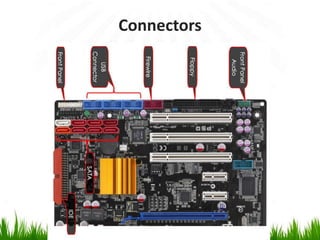

41. Connectors

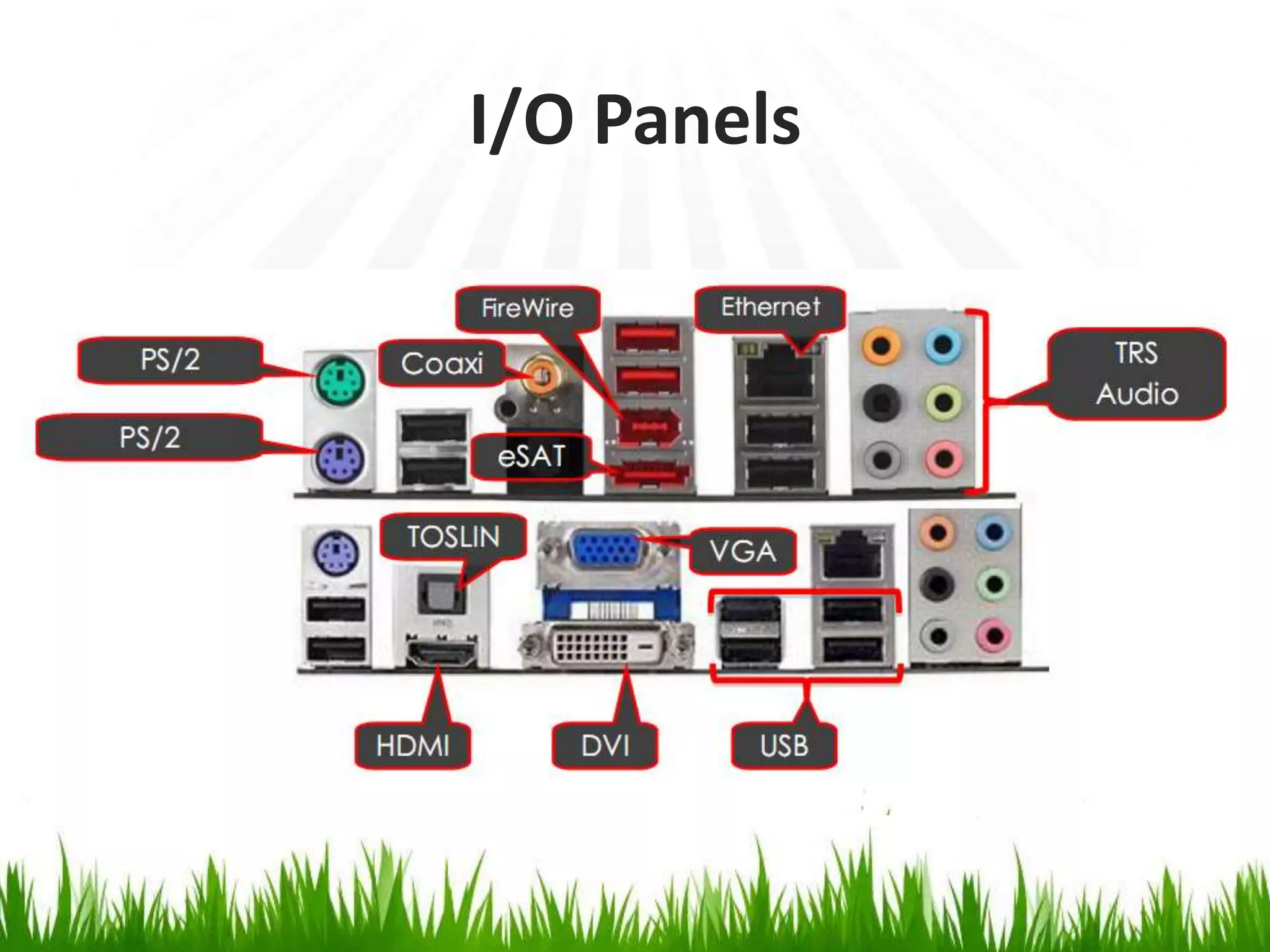

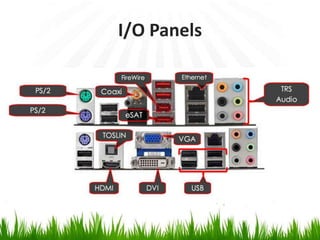

42. I/O Panels

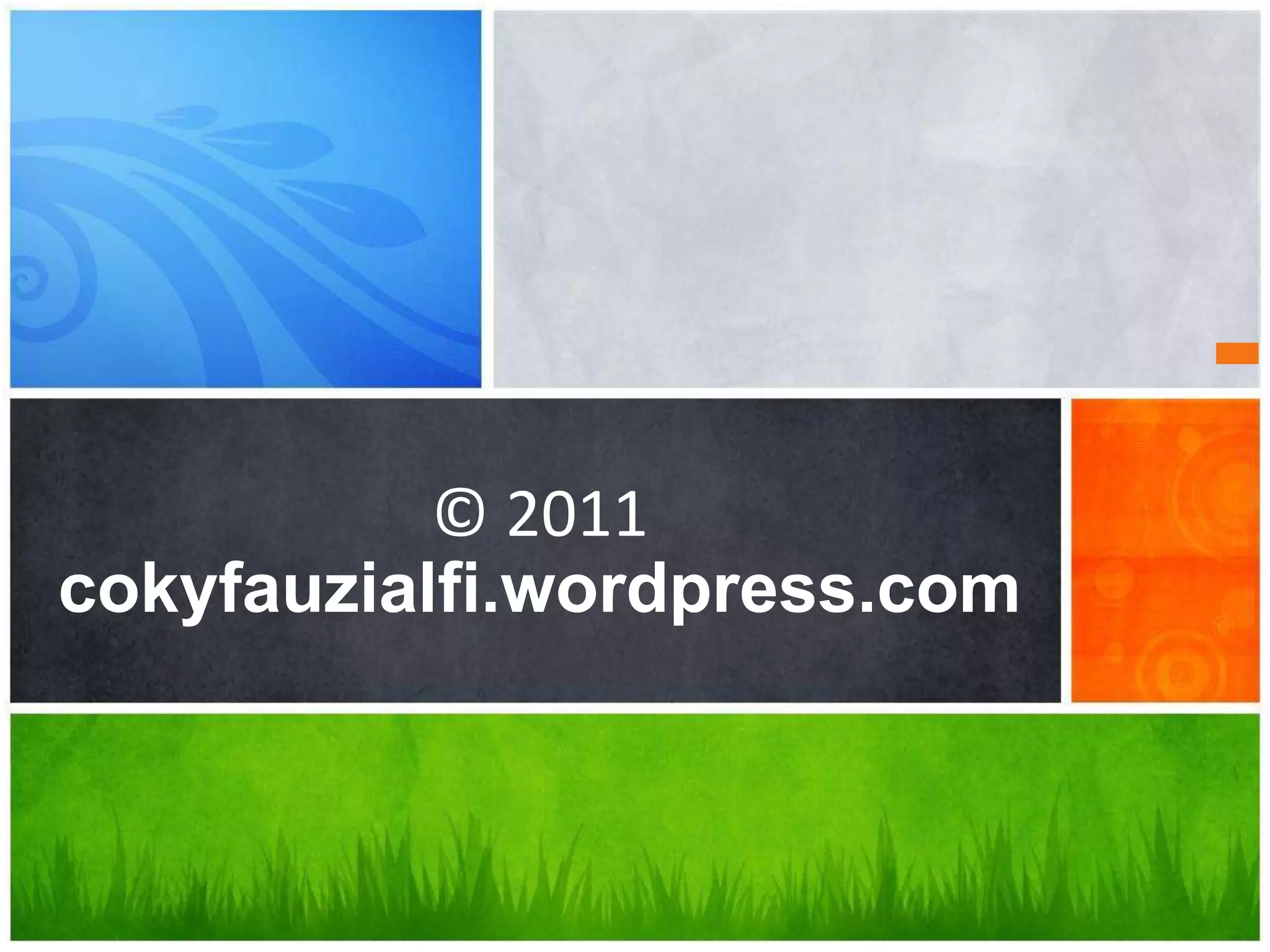

43. © 2011 cokyfauzialfi.wordpress.com What’s Your Message?
