Complicate, detect, respond: stopping cyber attacks with identity analytics

Complicate, detect, respond: stopping
cyber attacks with identity analytics
Michael Davis and David Chan
Ernst & Young
Title or Division
SCX15S
#CAWorld
Security

1 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type
of warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.

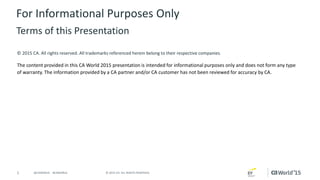

For Informational Purposes Only
Terms of this Presentation

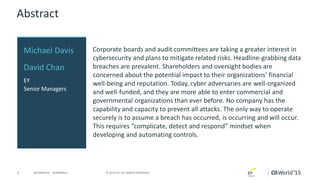

Abstract
Corporate boards and audit committees are taking a greater interest in
cybersecurity and plans to mitigate related risks. Headline-grabbing data
breaches are prevalent. Shareholders and oversight bodies are
concerned about the potential impact to their organizations’ financial
well-being and reputation. Today, cyber adversaries are well-organized
and well-funded, and they are more able to enter commercial and
governmental organizations than ever before. No company has the
capability and capacity to prevent all attacks. The only way to operate
securely is to assume a breach has occurred, is occurring and will occur.
This requires “complicate, detect and respond” mindset when
developing and automating controls.
Michael Davis
David Chan
EY
Senior Managers

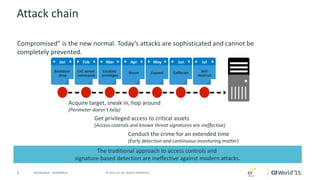

Attack chain
MarFebJan Apr May Jun Jul
Self-
destruct
Backdoor
drop
CnC server
commands
Escalate
privileges
Recon Expand Exfiltrate
Compromised” is the new normal. Today’s attacks are sophisticated and cannot be
completely prevented.
Acquire target, sneak in, hop around
(Perimeter doesn’t help)
Get privileged access to critical assets
(Access controls and known threat signatures are ineffective)
Conduct the crime for an extended time
(Early detection and continuous monitoring matter)
The traditional approach to access controls and
signature-based detection are ineffective against modern attacks.

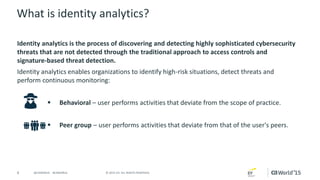

What is identity analytics?
Identity analytics is the process of discovering and detecting highly sophisticated cybersecurity
threats that are not detected through the traditional approach to access controls and
signature-based threat detection.
Identity analytics enables organizations to identify high-risk situations, detect threats and
perform continuous monitoring:
 Behavioral – user performs activities that deviate from the scope of practice.
 Peer group – user performs activities that deviate from that of the user's peers.

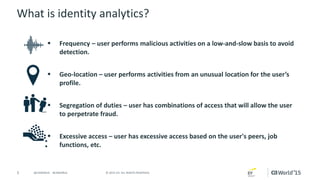

What is identity analytics?
 Frequency – user performs malicious activities on a low-and-slow basis to avoid
detection.
 Geo-location – user performs activities from an unusual location for the user’s
profile.
 Segregation of duties – user has combinations of access that will allow the user
to perpetrate fraud.
 Excessive access – user has excessive access based on the user's peers, job
functions, etc.

Identity analytics works based on clustering algorithms
Jane Doe
Class ID:
“5120”
Manager:
“Tony Oliver”
Job title:
“Settlement
analyst”
Cost center:
“1265”
Department:
“Settlement”
97%
62%
Cohesiveness
100%
99%
100%
99% outlier
probability

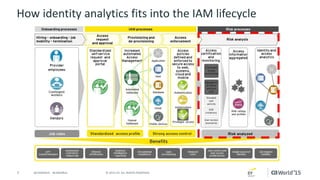

How identity analytics fits into the IAM lifecycle

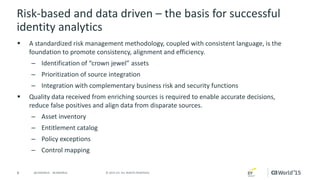

Risk-based and data driven – the basis for successful
identity analytics
 A standardized risk management methodology, coupled with consistent language, is the
foundation to promote consistency, alignment and efficiency.
– Identification of “crown jewel” assets
– Prioritization of source integration
– Integration with complementary business risk and security functions
 Quality data received from enriching sources is required to enable accurate decisions,
reduce false positives and align data from disparate sources.
– Asset inventory
– Entitlement catalog
– Policy exceptions
– Control mapping

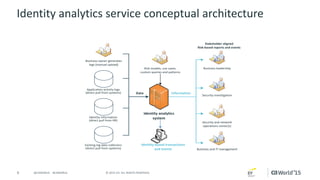

Identity analytics service conceptual architecture
Business leadership
Identity analytics
system
Identity analytics
system
Security investigation
Identity information
(direct pull from HR)
Existing log data collectors
(direct pull from systems)
Business owner generates
logs (manual upload)
Application activity logs
(direct pull from systems)
Business and IT managementBusiness and IT management
InformationData
Stakeholder aligned
Risk-based reports and events
Risk models, use cases,
custom queries and patterns
Identity-based transactions
and events
Security and network
operations center(s)

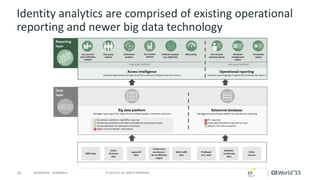

Identity analytics are comprised of existing operational
reporting and newer big data technology

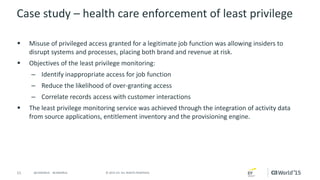

Case study – health care enforcement of least privilege
 Misuse of privileged access granted for a legitimate job function was allowing insiders to
disrupt systems and processes, placing both brand and revenue at risk.
 Objectives of the least privilege monitoring:
– Identify inappropriate access for job function
– Reduce the likelihood of over-granting access
– Correlate records access with customer interactions
 The least privilege monitoring service was achieved through the integration of activity data
from source applications, entitlement inventory and the provisioning engine.

Combining outlier analysis with activity monitoring to
target investigations
Jane Doe
Outlier 99%
probability
Title
“Sales service”
99%
JobKey
“1A11”
100%
Division
“Service”
100%
Manager
“Tony Luke” 97%
Usage
100%
Outlier analysis identified users whose access did not align
with peers.
Event data was correlated to identify events where users
gained access without “purpose.”
Application
event logs
Provisioning
engine
Entitlement
inventory
Peer analysis
Investigation events
Remediation team
(privacy, business, security)
Least privilege
dashboard
Least privilege
monitoring

Case study – telecommunications privileged access
monitoring
 Without adequate logging and monitoring, it was a challenge to detect high-risk transactions
in “crown jewel” applications.
– Centralizing the service provided the opportunity to improve incident response and
proactively detect risky activity.
 Objectives of the central activity monitoring service:
– Reduce the manual effort and burden on the application teams
– Reduce risk of rubber-stamping by analyzing logs based on:
 Rules developed during the onboarding process
 Standard heuristics, such as time of access and peer group analysis
– Generate summarized risk-based activity reports for application owner sign-off
 Monitoring service was achieved through the integration of data from source applications,
entitlement inventory, provisioning engine and security information and event management
(SIEM) tool

The centralized service automatically analyzed the
logs for risky activity
Summarized risk-based
reports
Workflow integration
for review/sign-off
App owner
review/sign-off
Privileged activity monitoring service
Security investigation
(future requirement)
App elevated activity logs
(direct pull)
Identity information
(AD/LDAP/QAR System)
Existing log data collectors
App owner generates
logs (manual upload)
Feeds
1
2
3
4
5
6
7
Escalate (if needed)

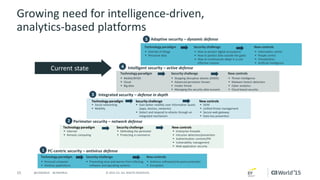

Growing need for intelligence-driven,
analytics-based platforms
Adaptive security – dynamic defense
Intelligent security – active defense
Integrated security – defense in depth
Perimeter security – network defense
PC-centric security – antivirus defense
Technology paradigm New controlsSecurity challenge
 Personal computer
 Desktop applications
 Preventing virus and worms from infecting
software and operating systems
 Internet
 Remote computing
 Social networking
 Mobility
 Mobile/BYOD
 Cloud
 Big data
 Internet of things
 Pervasive data
 Threat intelligence
 Malware breach detection
 Cyber analytics
 Cloud-based security
 Stopping disruptive attacks (DDOS)
 Advanced persistent threats
 Insider threat
 Managing the security data tsunami
 Gain better visibility over information assets
(apps, devices, networks)
 Detect and respond to attacks through an
integrated mechanism
 Defending the perimeter
 Protecting e-commerce
 Enterprise firewalls
 Intrusion detection/prevention
 Authentication controls/PKI
 Vulnerability management
 Web application security
 Antivirus software/end point protection
 Encryption
 SIEM
 Unified threat management
 Secure web gateway
 Data loss prevention
 Information centric
 People centric
 Virtualization
 Artificial intelligence
 How to protect digital ecosystems
 How to protect data outside the gates
 How to continuously adapt in a cost
effective manner
1
2
3
5
4
Current state

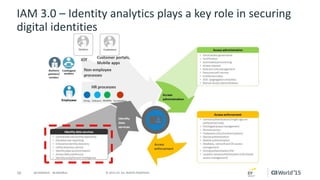

IAM 3.0 – Identity analytics plays a key role in securing
digital identities

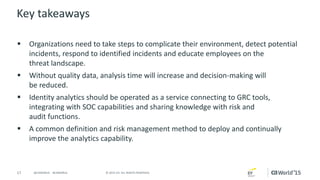

Key takeaways
 Organizations need to take steps to complicate their environment, detect potential
incidents, respond to identified incidents and educate employees on the
threat landscape.
 Without quality data, analysis time will increase and decision-making will
be reduced.
 Identity analytics should be operated as a service connecting to GRC tools,
integrating with SOC capabilities and sharing knowledge with risk and
audit functions.
 A common definition and risk management method to deploy and continually
improve the analytics capability.

Q & A

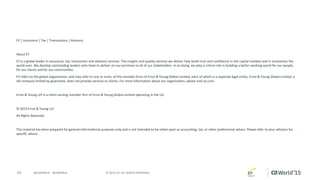

EY | Assurance | Tax | Transactions | Advisory
About EY
EY is a global leader in assurance, tax, transaction and advisory services. The insights and quality services we deliver help build trust and confidence in the capital markets and in economies the
world over. We develop outstanding leaders who team to deliver on our promises to all of our stakeholders. In so doing, we play a critical role in building a better working world for our people,
for our clients and for our communities.
EY refers to the global organization, and may refer to one or more, of the member firms of Ernst & Young Global Limited, each of which is a separate legal entity. Ernst & Young Global Limited, a
UK company limited by guarantee, does not provide services to clients. For more information about our organization, please visit ey.com.
Ernst & Young LLP is a client-serving member firm of Ernst & Young Global Limited operating in the US.
© 2015 Ernst & Young LLP
All Rights Reserved.
This material has been prepared for general informational purposes only and is not intended to be relied upon as accounting, tax, or other professional advice. Please refer to your advisors for
specific advice.

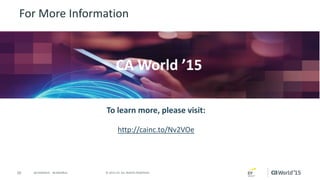

For More Information
