1. Cisternography
Presenter: Sujan Karki
B. Sc. MIT 2nd year
National Academy of Medical Sciences, Bir
Hospital

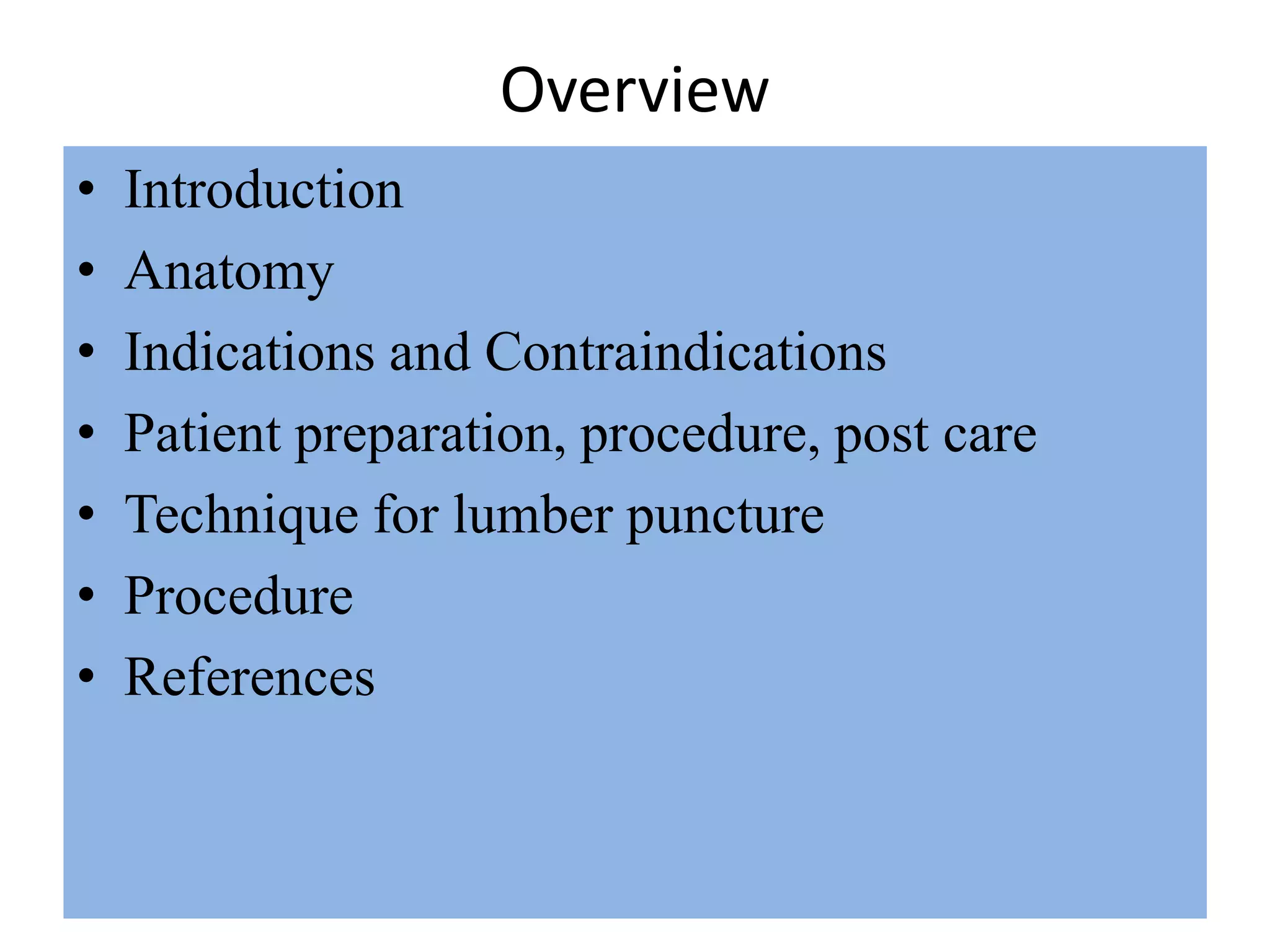

2. Overview
• Introduction
• Anatomy
• Indications and Contraindications
• Patient preparation, procedure, post care
• Technique for lumber puncture
• Procedure
• References

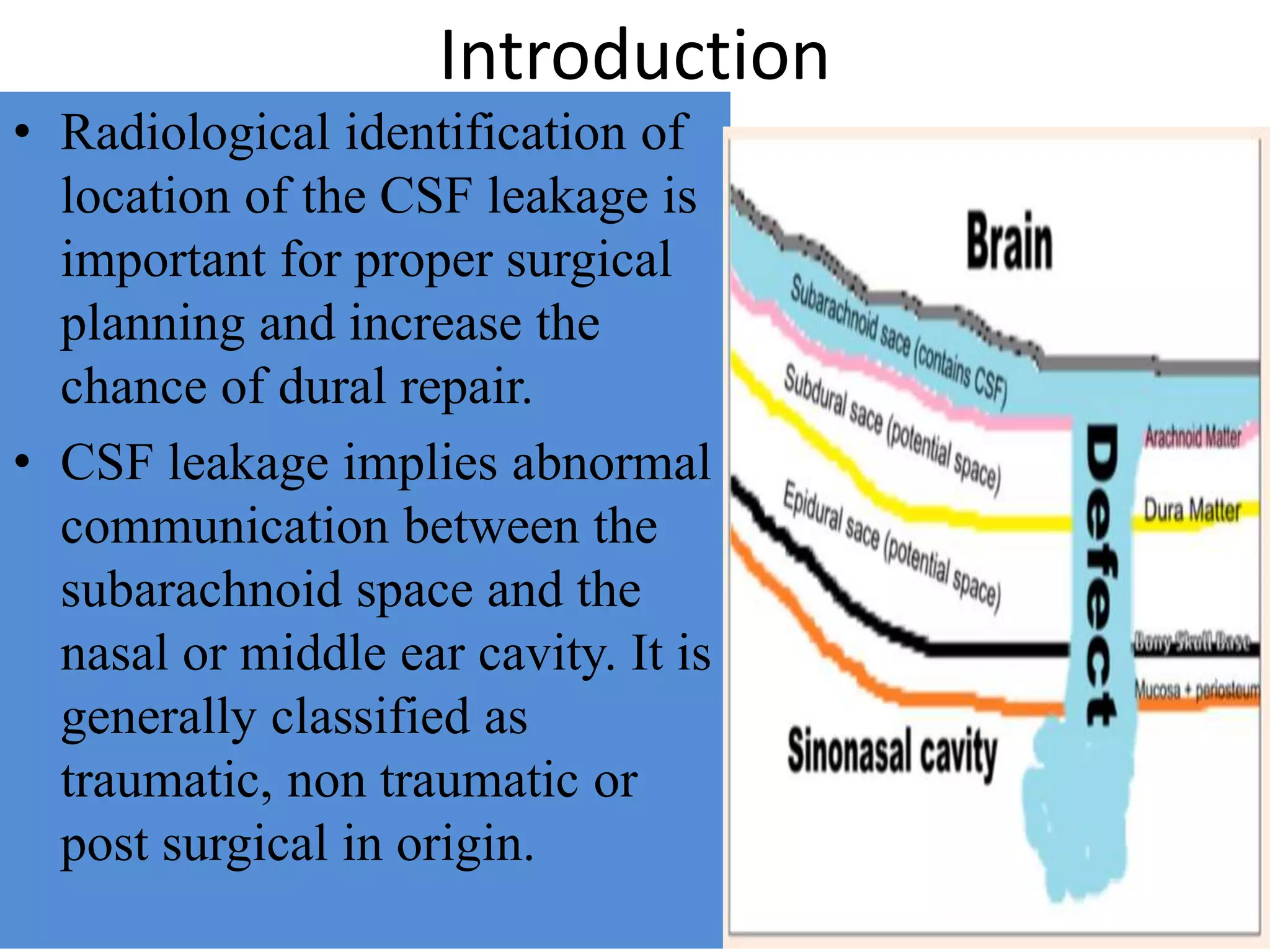

3. Introduction
• Radiological identification of
location of the CSF leakage is
important for proper surgical
planning and increase the
chance of dural repair.
• CSF leakage implies abnormal
communication between the
subarachnoid space and the
nasal or middle ear cavity. It is
generally classified as
traumatic, non traumatic or
post surgical in origin.

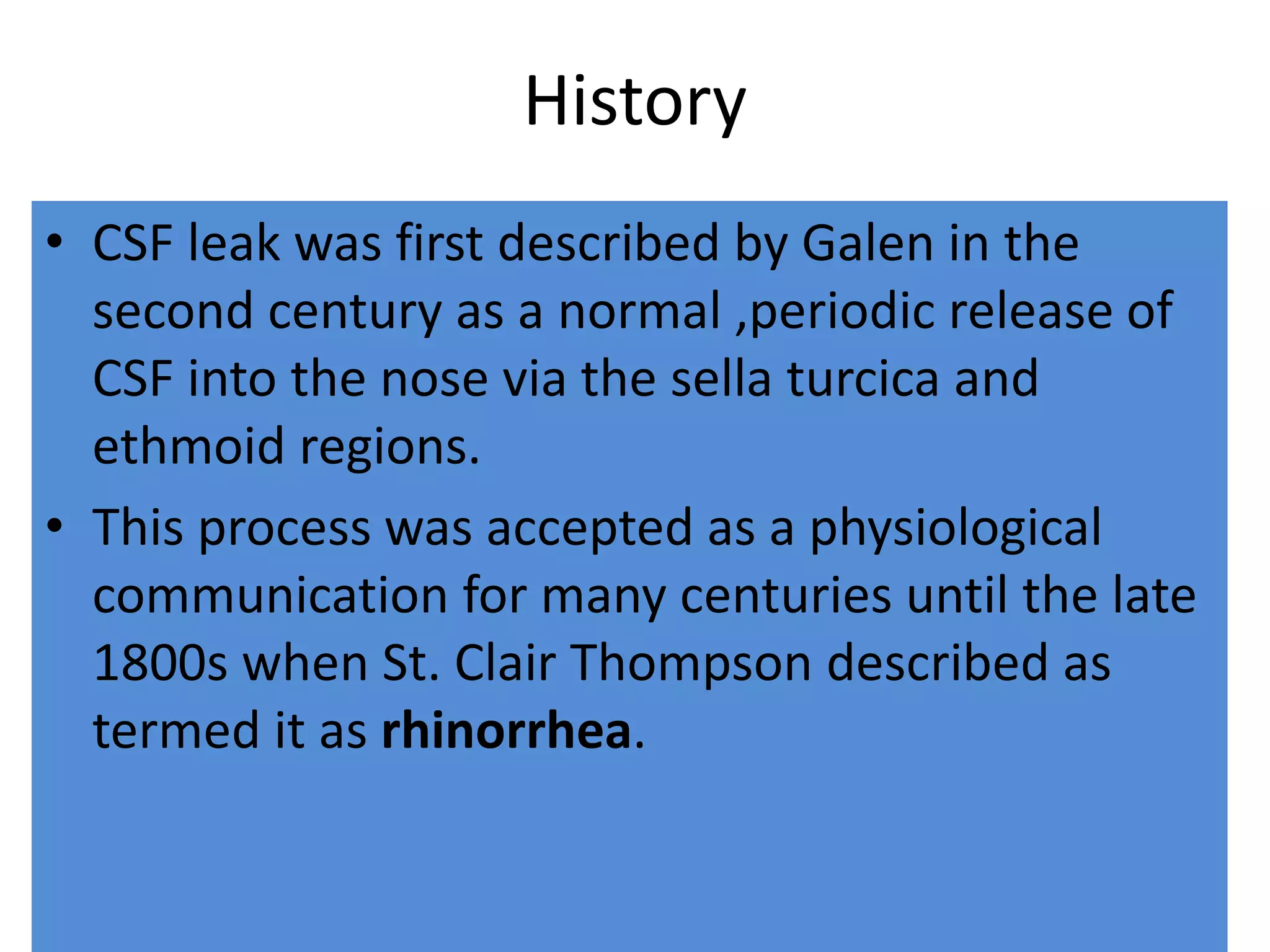

4. History
• CSF leak was first described by Galen in the
second century as a normal ,periodic release of
CSF into the nose via the sella turcica and
ethmoid regions.
• This process was accepted as a physiological
communication for many centuries until the late
1800s when St. Clair Thompson described as
termed it as rhinorrhea.

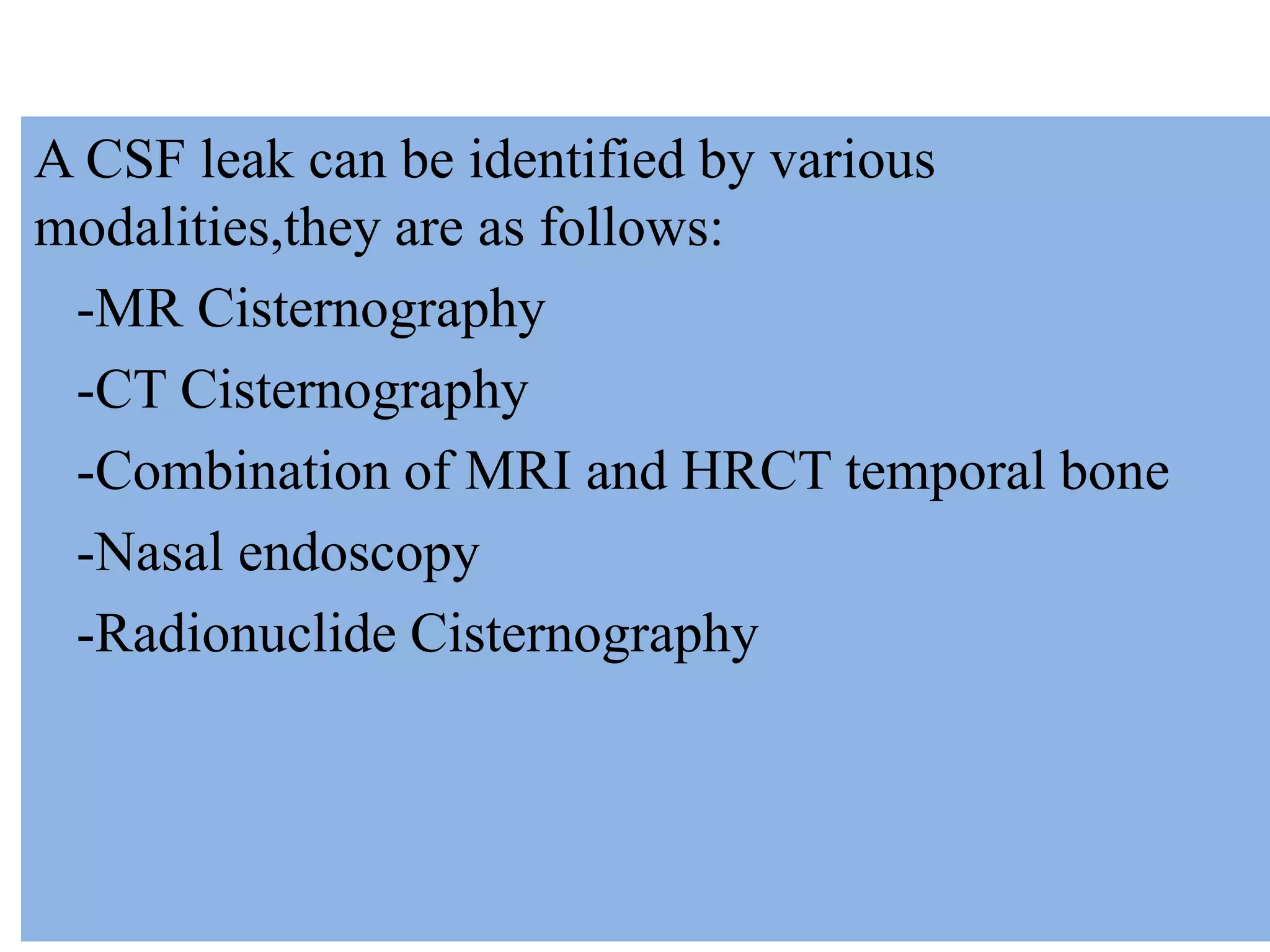

5. A CSF leak can be identified by various
modalities,they are as follows:
-MR Cisternography

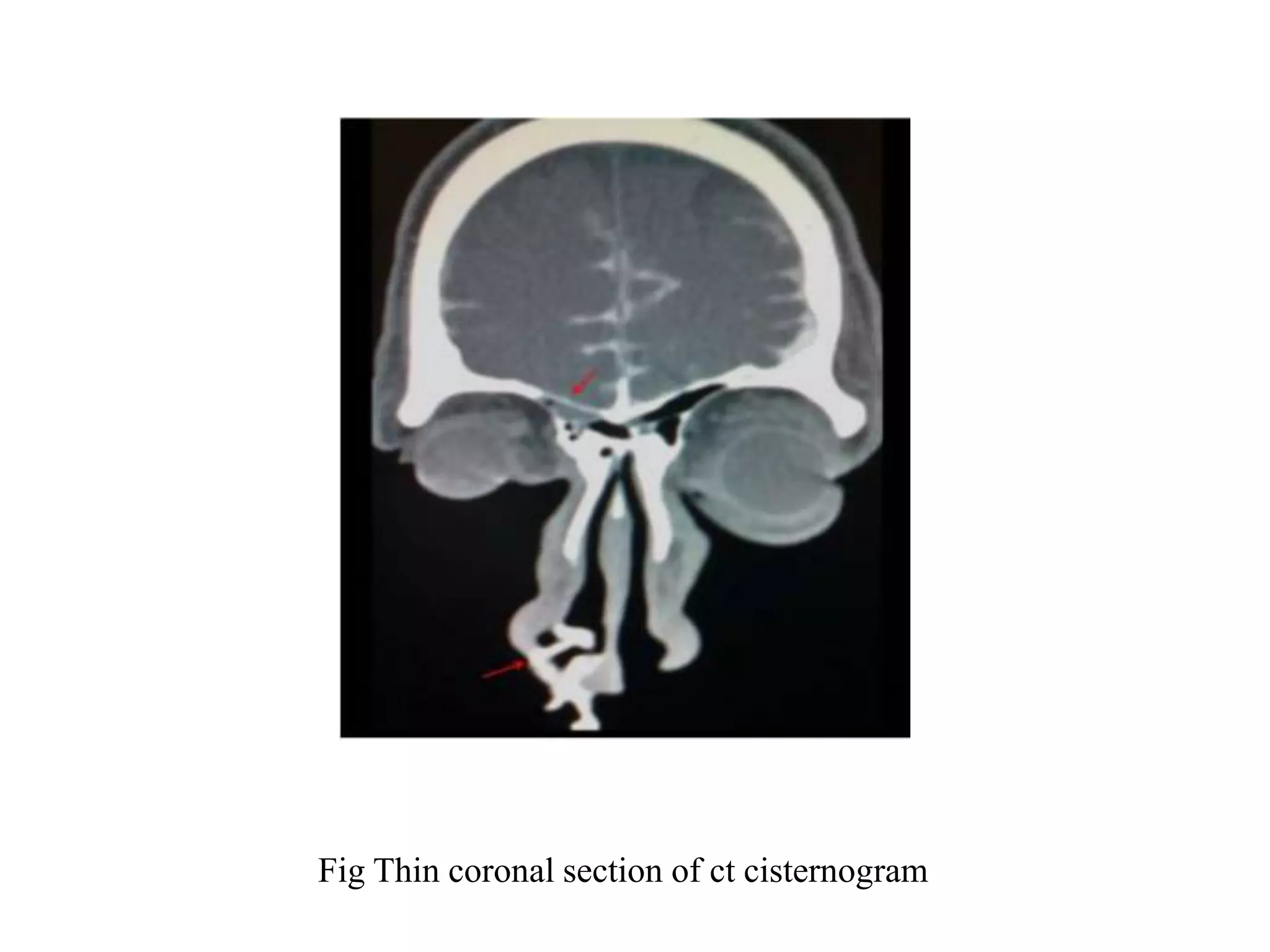

-CT Cisternography
-Combination of MRI and HRCT temporal bone
-Nasal endoscopy

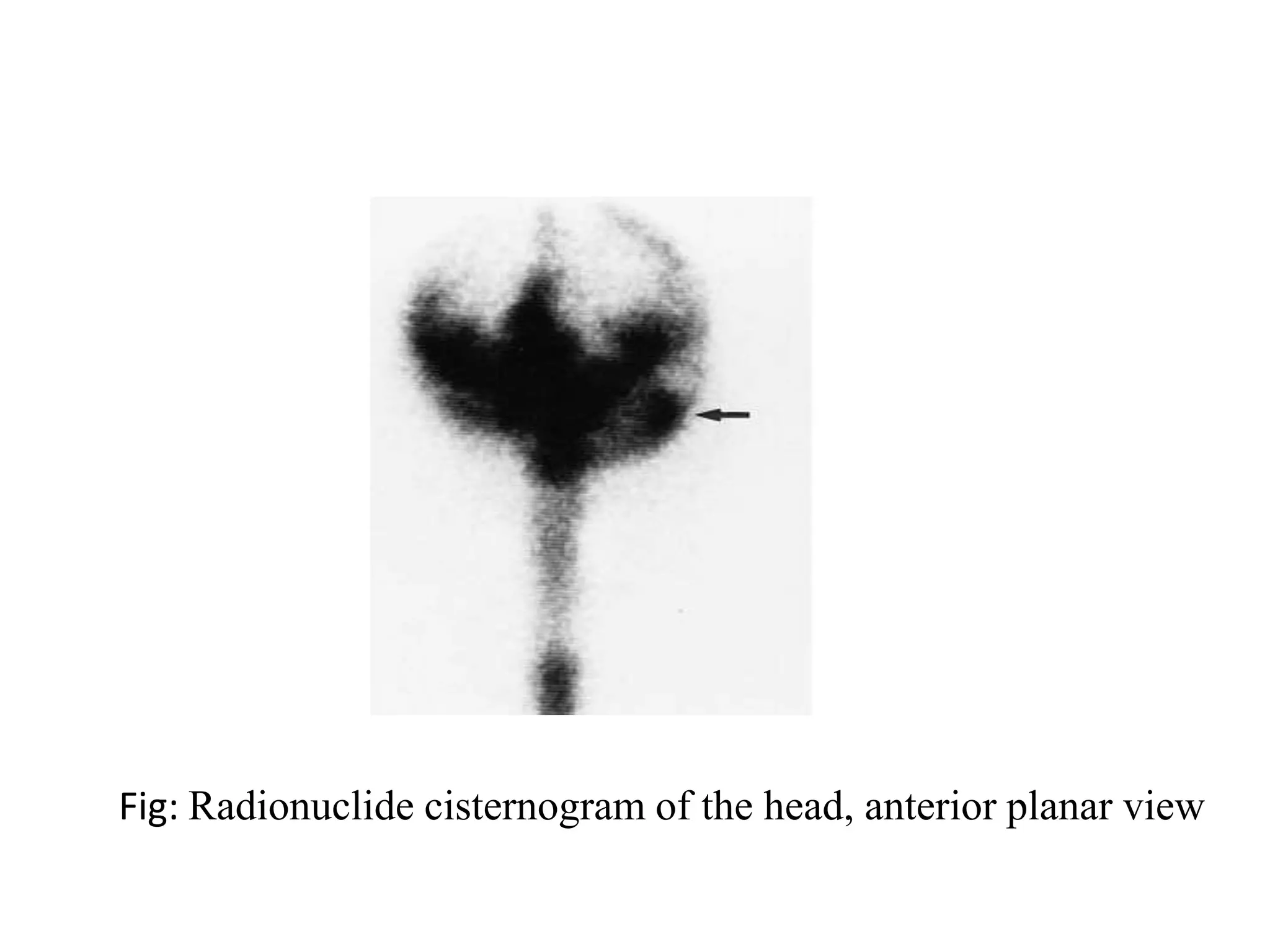

-Radionuclide Cisternography

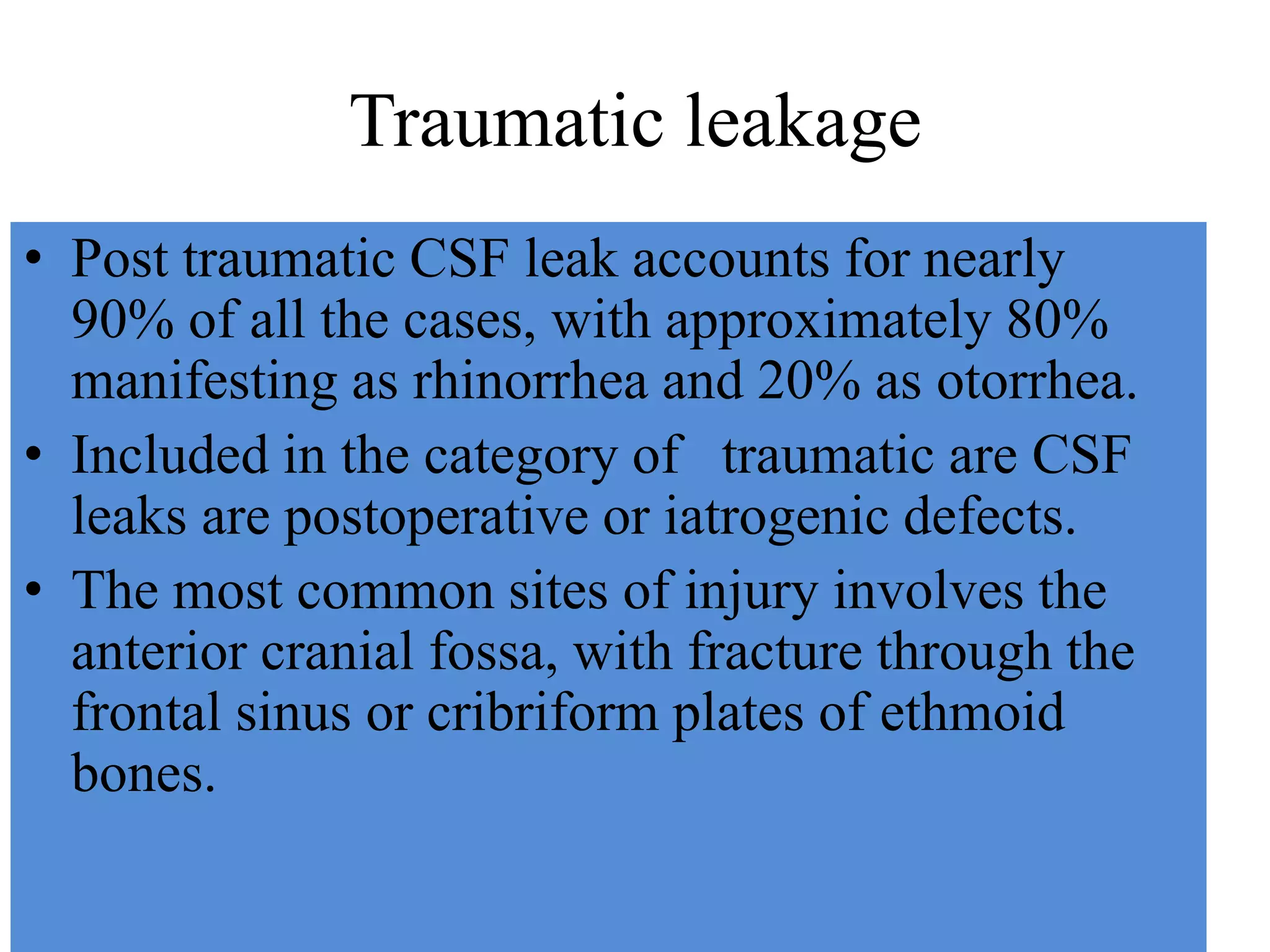

6. Traumatic leakage
• Post traumatic CSF leak accounts for nearly
90% of all the cases, with approximately 80%
manifesting as rhinorrhea and 20% as otorrhea.
• Included in the category of traumatic are CSF
leaks are postoperative or iatrogenic defects.
• The most common sites of injury involves the
anterior cranial fossa, with fracture through the
frontal sinus or cribriform plates of ethmoid
bones.

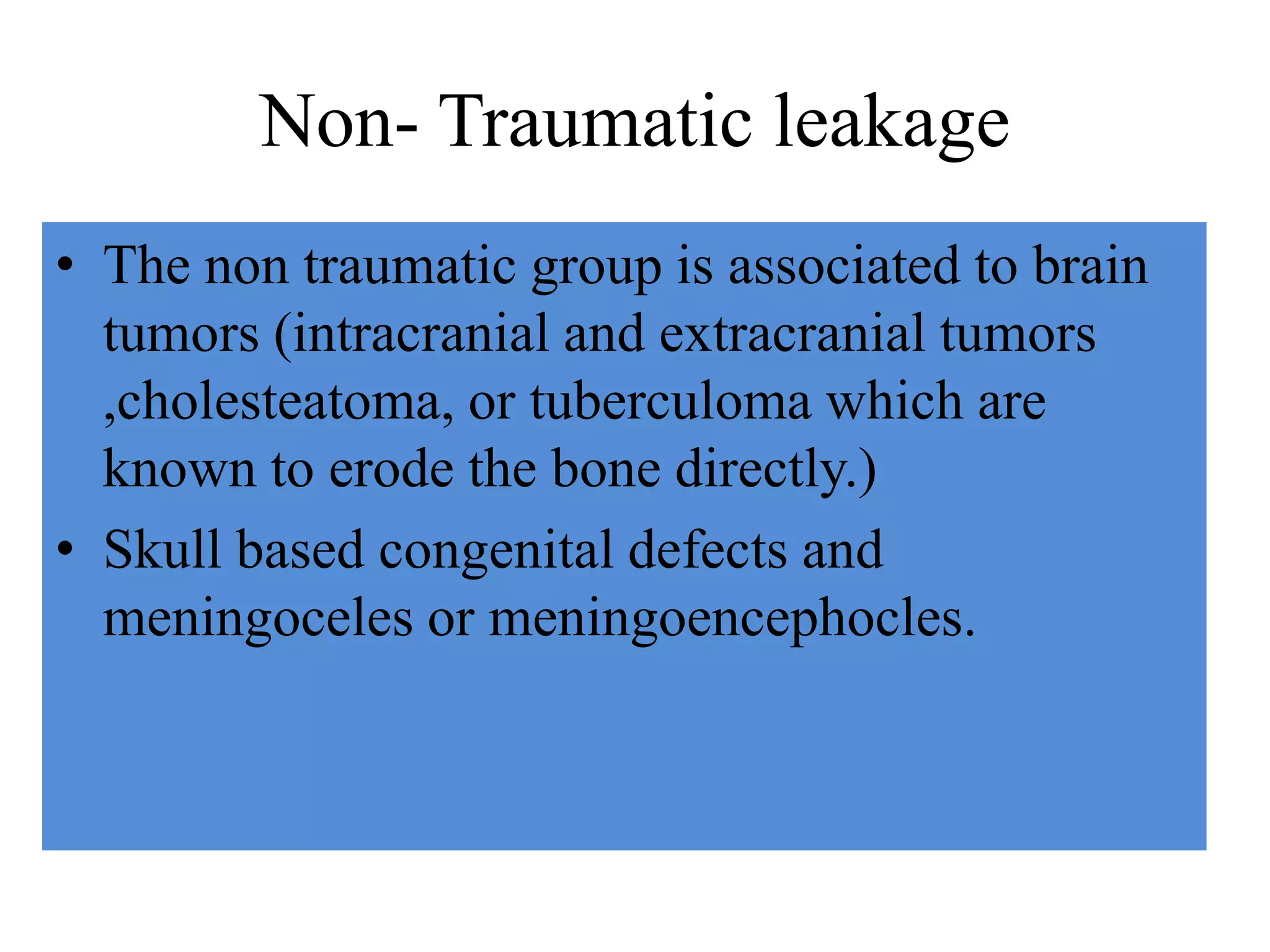

7. Non- Traumatic leakage
• The non traumatic group is associated to brain
tumors (intracranial and extracranial tumors
,cholesteatoma, or tuberculoma which are
known to erode the bone directly.)
• Skull based congenital defects and
meningoceles or meningoencephocles.

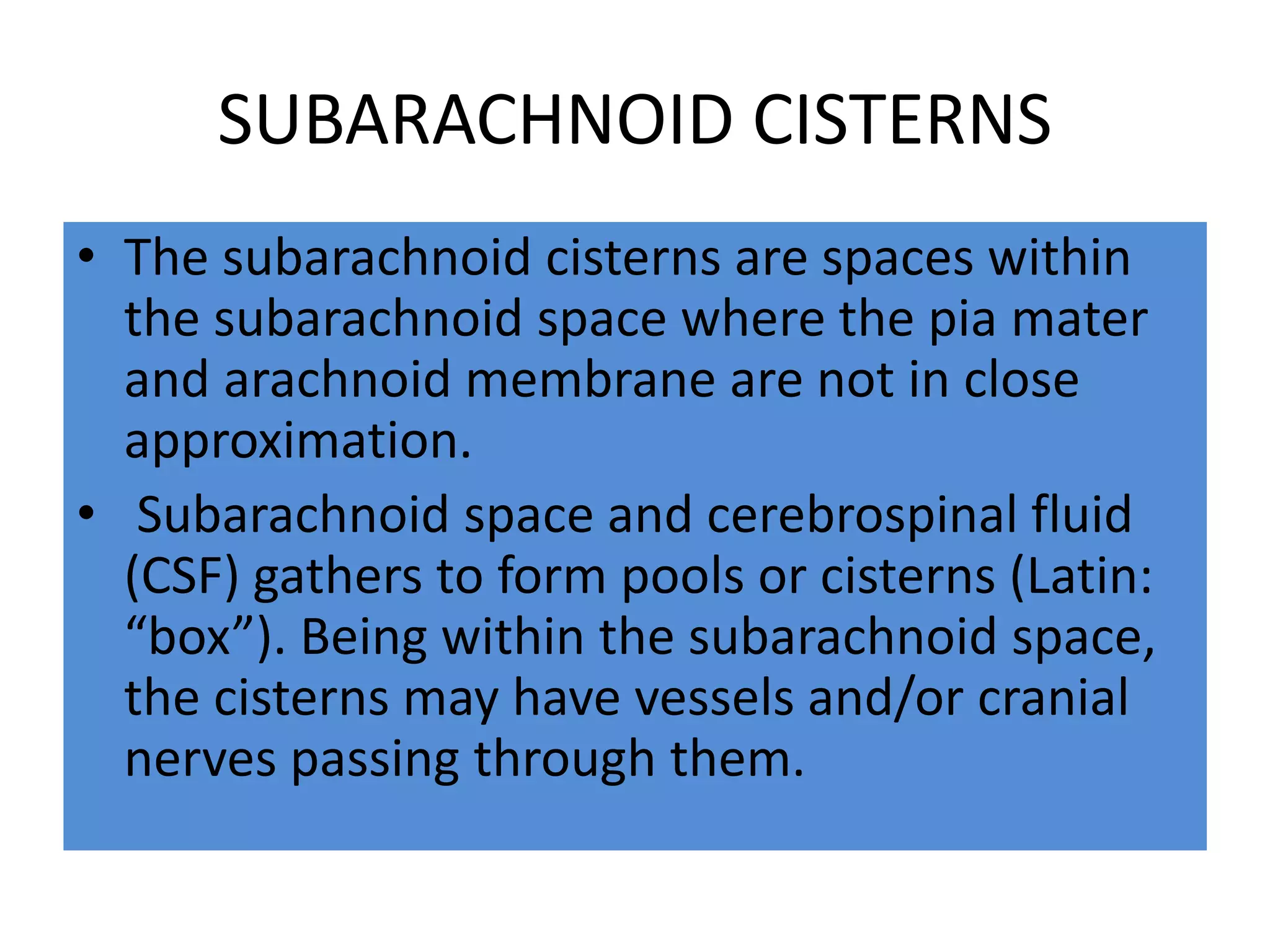

8. SUBARACHNOID CISTERNS
• The subarachnoid cisterns are spaces within
the subarachnoid space where the pia mater
and arachnoid membrane are not in close
approximation.
• Subarachnoid space and cerebrospinal fluid
(CSF) gathers to form pools or cisterns (Latin:
“box”). Being within the subarachnoid space,
the cisterns may have vessels and/or cranial
nerves passing through them.

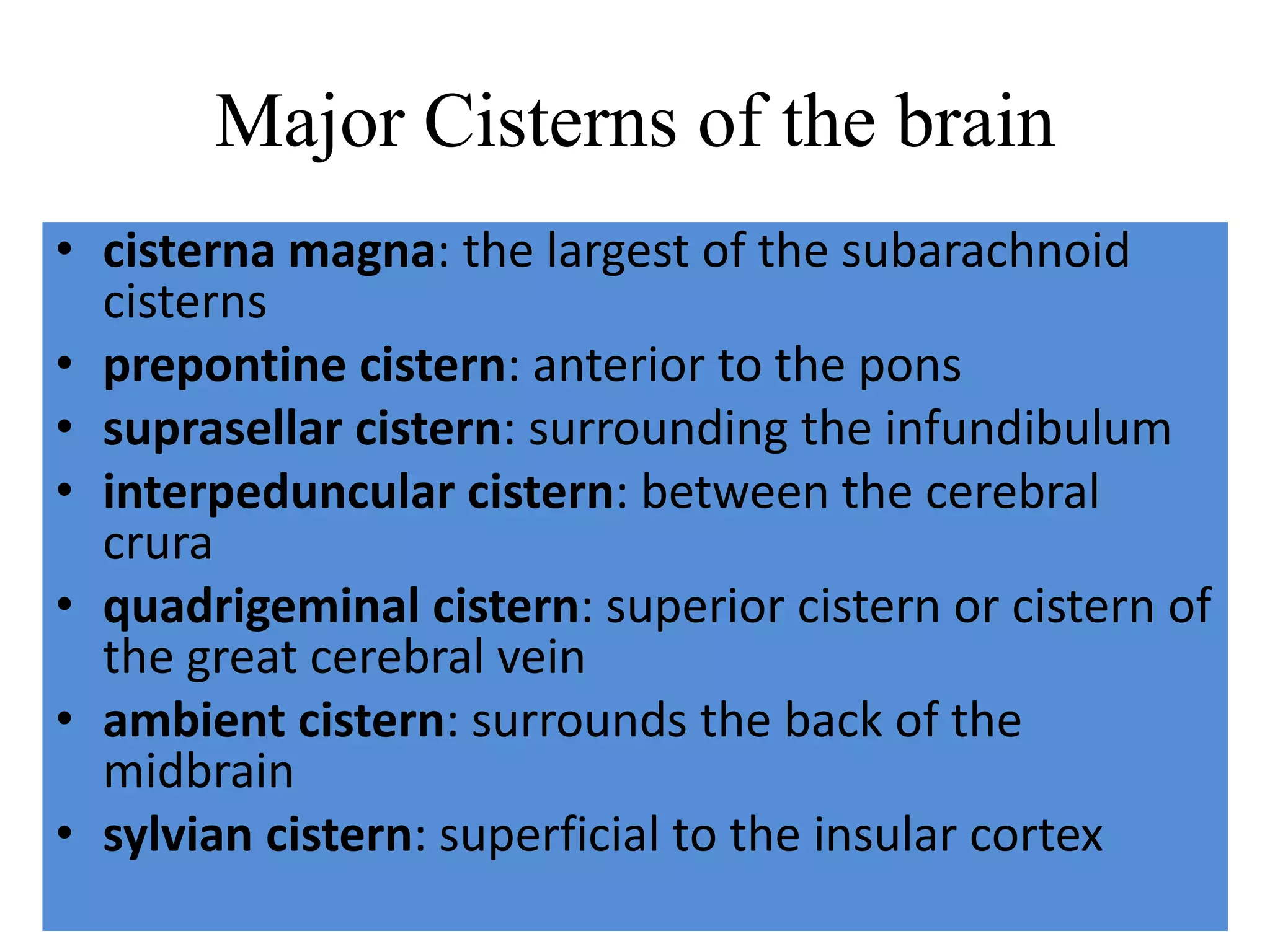

9. Major Cisterns of the brain
• cisterna magna: the largest of the subarachnoid
cisterns
• prepontine cistern: anterior to the pons
• suprasellar cistern: surrounding the infundibulum
• interpeduncular cistern: between the cerebral
crura
• quadrigeminal cistern: superior cistern or cistern of
the great cerebral vein
• ambient cistern: surrounds the back of the
midbrain
• sylvian cistern: superficial to the insular cortex

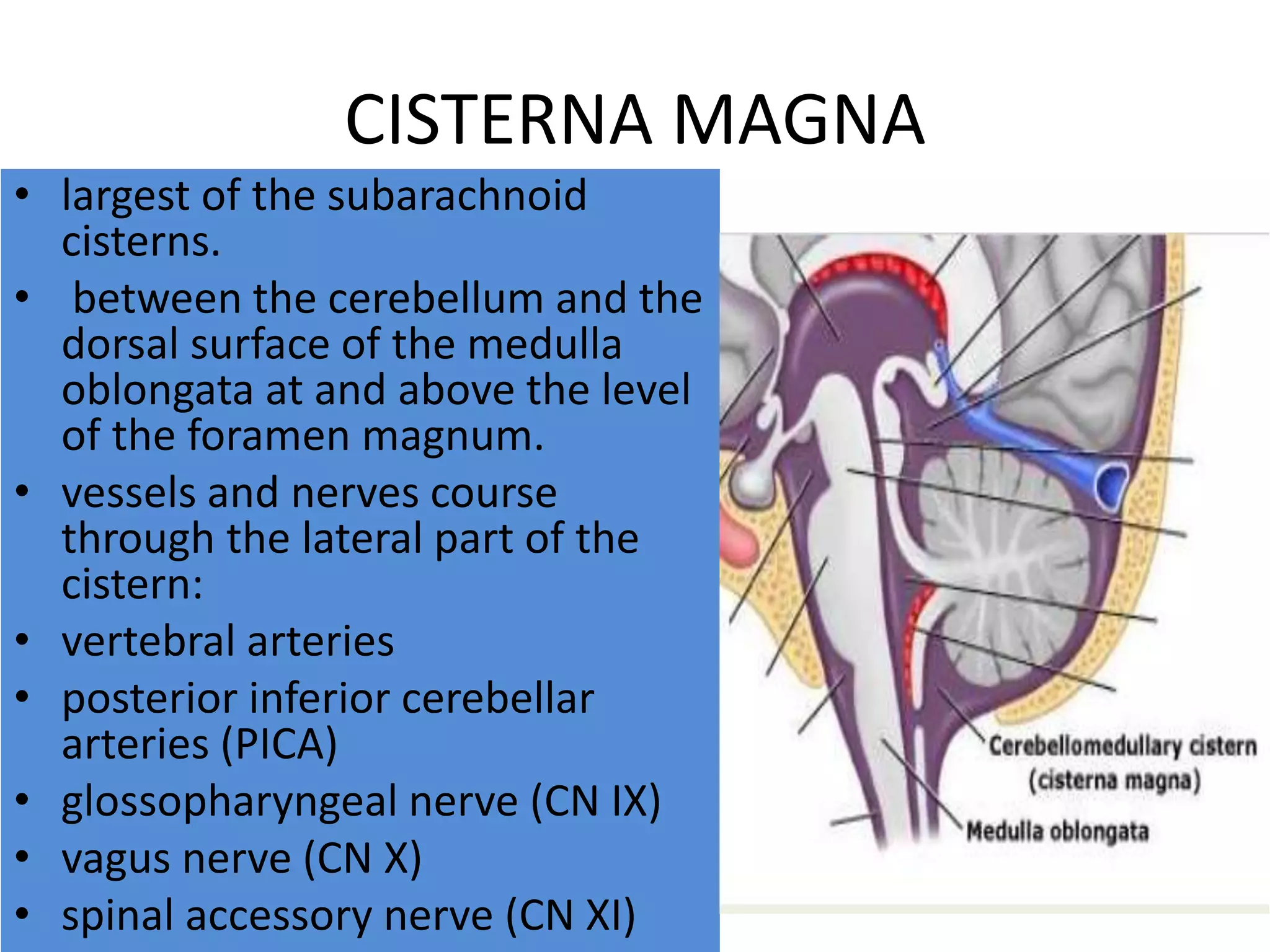

10. CISTERNA MAGNA
• largest of the subarachnoid
cisterns.
• between the cerebellum and the
dorsal surface of the medulla
oblongata at and above the level
of the foramen magnum.
• vessels and nerves course
through the lateral part of the
cistern:
• vertebral arteries
• posterior inferior cerebellar
arteries (PICA)
• glossopharyngeal nerve (CN IX)
• vagus nerve (CN X)
• spinal accessory nerve (CN XI)

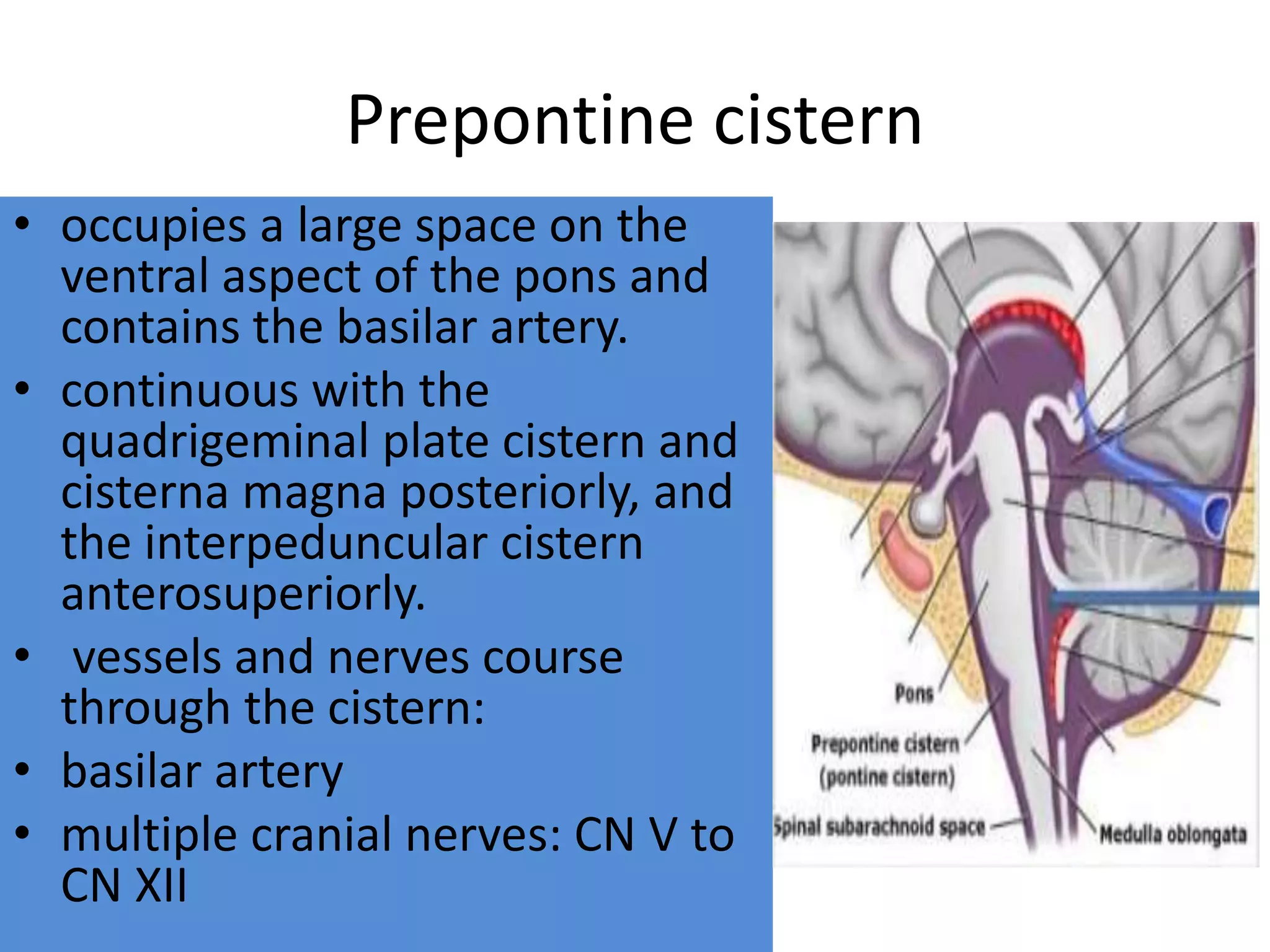

11. Prepontine cistern
• occupies a large space on the
ventral aspect of the pons and
contains the basilar artery.
• continuous with the
quadrigeminal plate cistern and
cisterna magna posteriorly, and
the interpeduncular cistern
anterosuperiorly.
• vessels and nerves course
through the cistern:
• basilar artery
• multiple cranial nerves: CN V to
CN XII

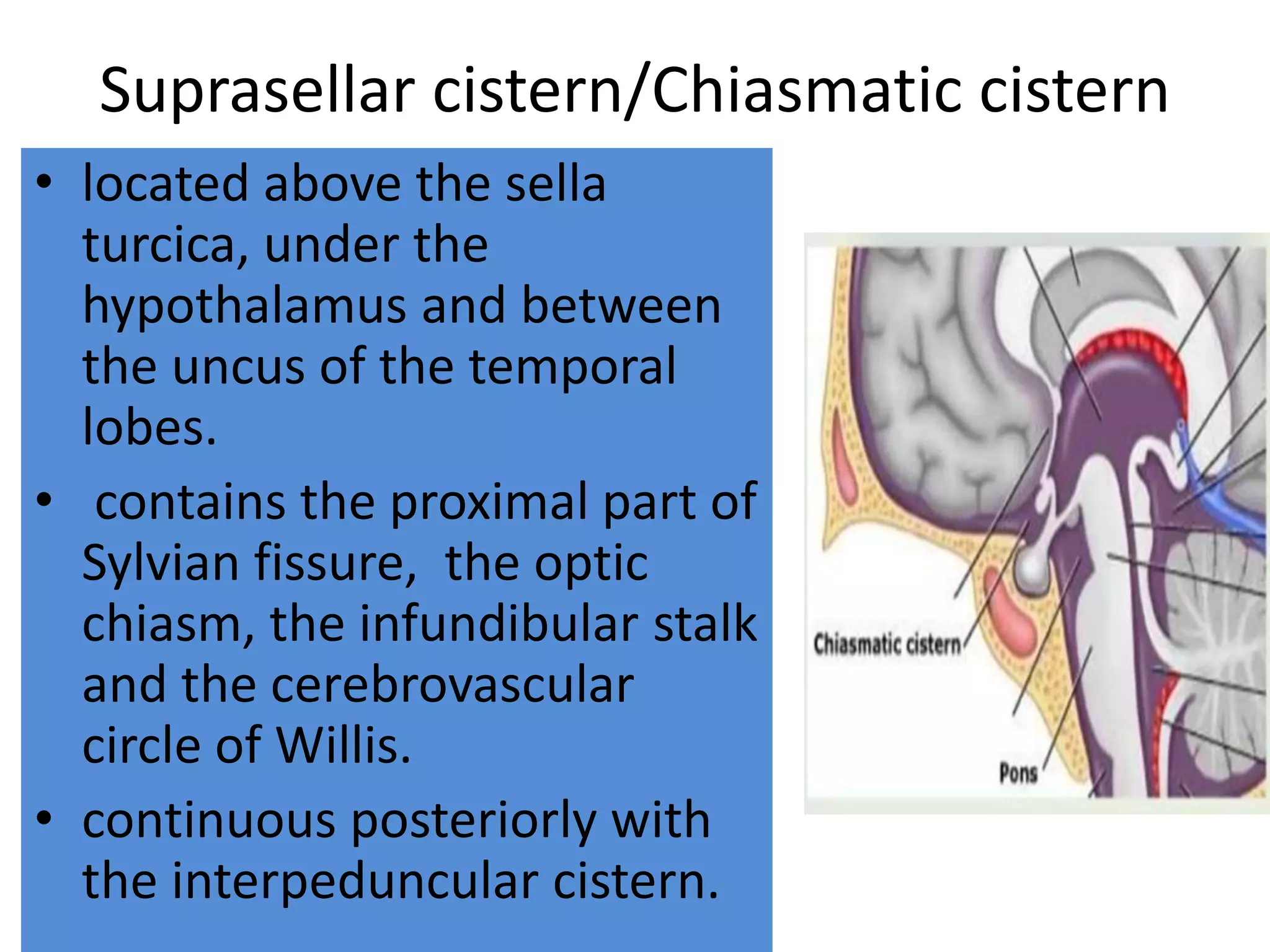

12. Suprasellar cistern/Chiasmatic cistern
• located above the sella
turcica, under the
hypothalamus and between
the uncus of the temporal
lobes.
• contains the proximal part of
Sylvian fissure, the optic
chiasm, the infundibular stalk
and the cerebrovascular
circle of Willis.
• continuous posteriorly with
the interpeduncular cistern.

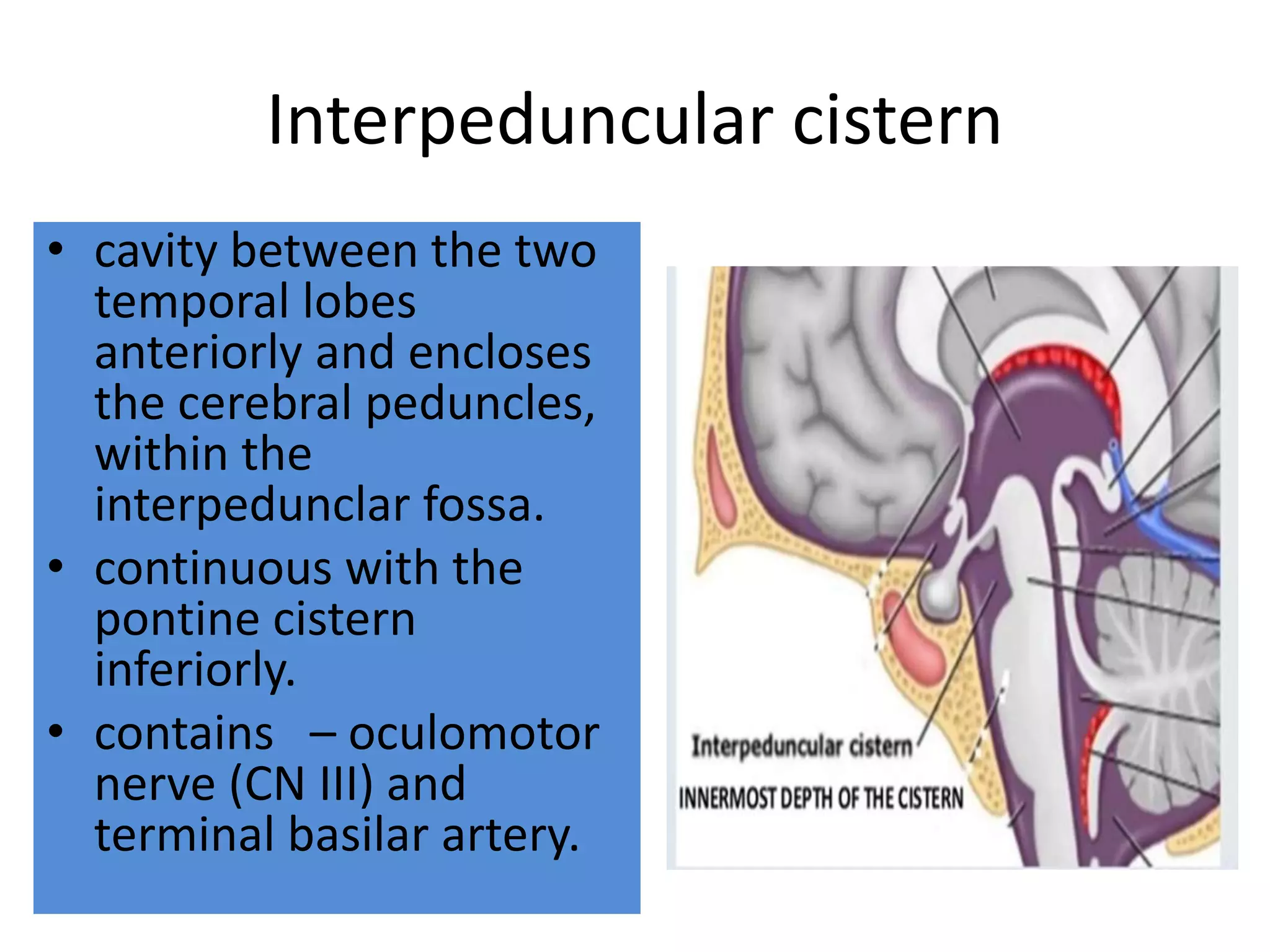

13. Interpeduncular cistern
• cavity between the two
temporal lobes
anteriorly and encloses
the cerebral peduncles,
within the
interpedunclar fossa.
• continuous with the
pontine cistern
inferiorly.
• contains – oculomotor
nerve (CN III) and
terminal basilar artery.

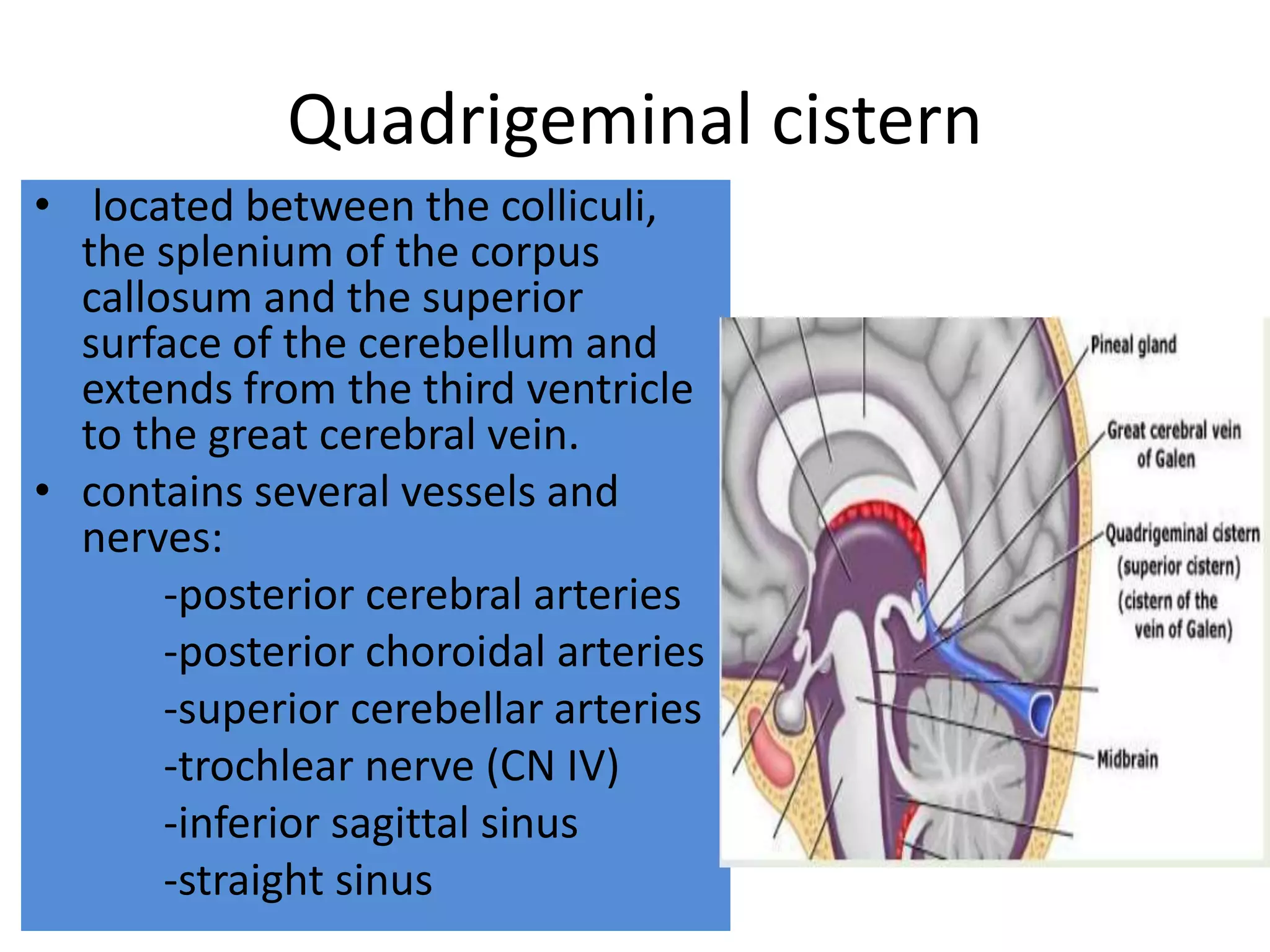

14. Quadrigeminal cistern
• located between the colliculi,
the splenium of the corpus
callosum and the superior
surface of the cerebellum and
extends from the third ventricle
to the great cerebral vein.
• contains several vessels and
nerves:
-posterior cerebral arteries
-posterior choroidal arteries
-superior cerebellar arteries
-trochlear nerve (CN IV)
-inferior sagittal sinus
-straight sinus

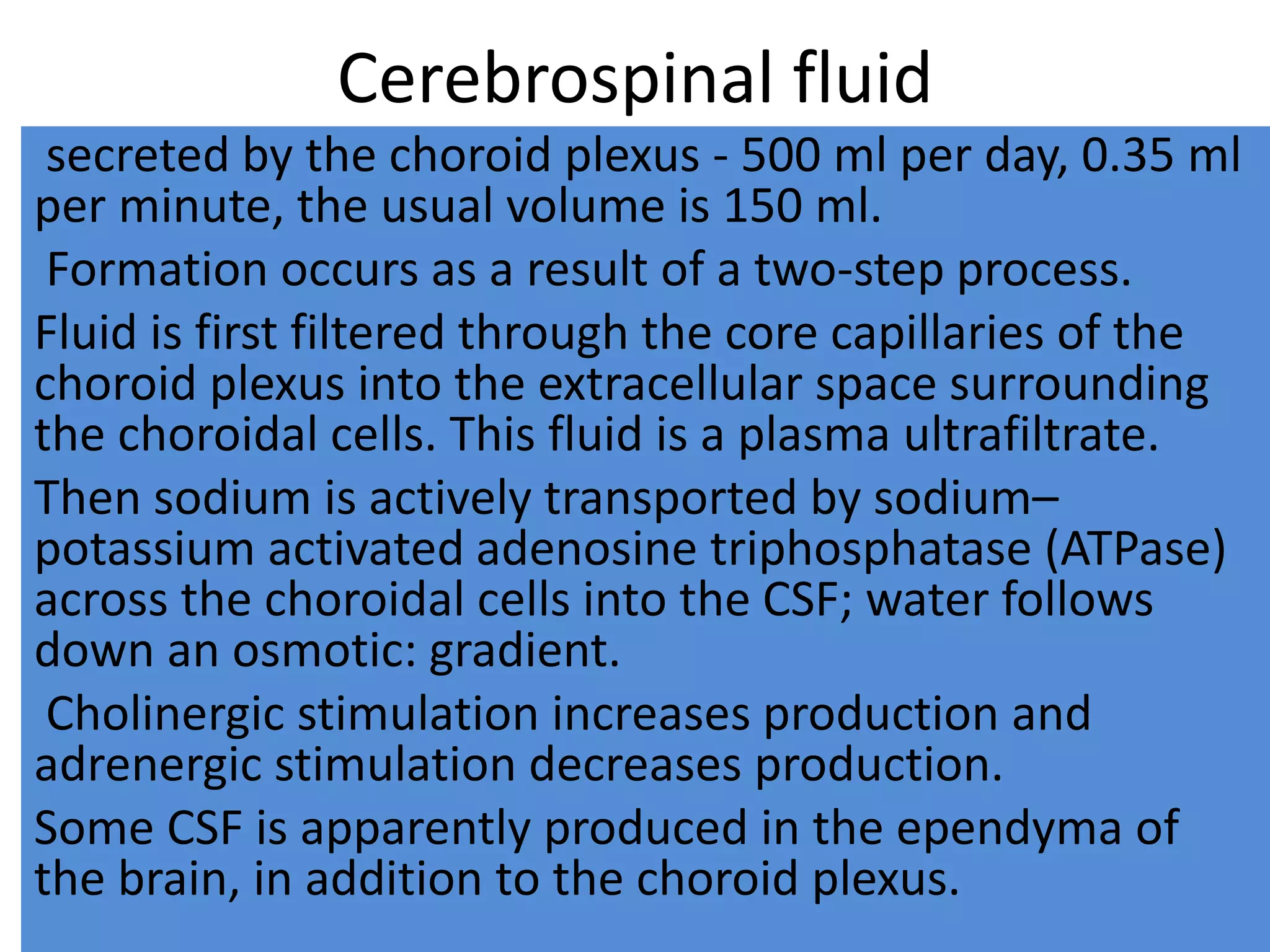

15. Cerebrospinal fluid
secreted by the choroid plexus - 500 ml per day, 0.35 ml
per minute, the usual volume is 150 ml.
Formation occurs as a result of a two-step process.
Fluid is first filtered through the core capillaries of the
choroid plexus into the extracellular space surrounding
the choroidal cells. This fluid is a plasma ultrafiltrate.
Then sodium is actively transported by sodium–
potassium activated adenosine triphosphatase (ATPase)
across the choroidal cells into the CSF; water follows
down an osmotic: gradient.
Cholinergic stimulation increases production and
adrenergic stimulation decreases production.
Some CSF is apparently produced in the ependyma of
the brain, in addition to the choroid plexus.

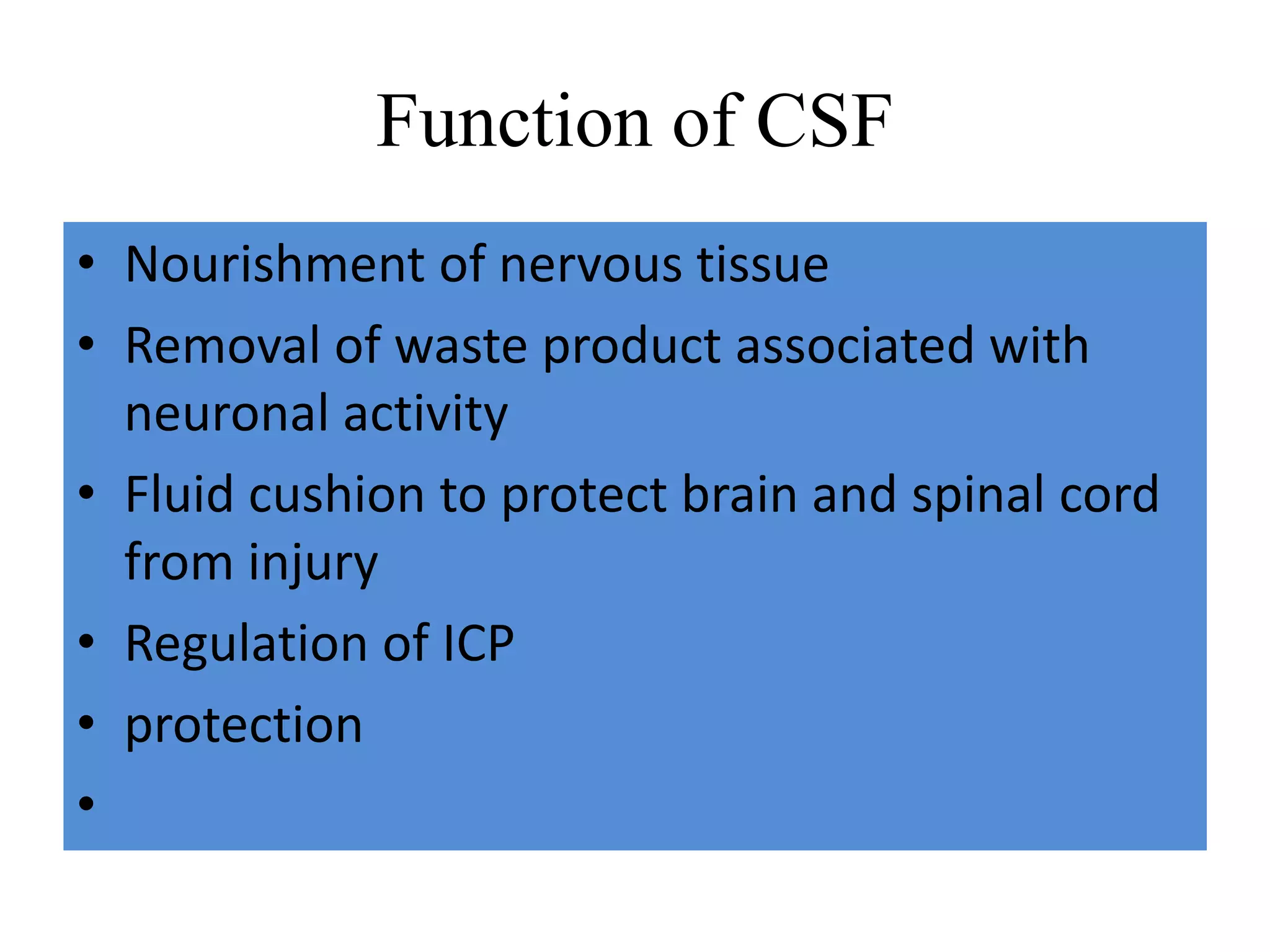

16. Function of CSF
• Nourishment of nervous tissue
• Removal of waste product associated with
neuronal activity
• Fluid cushion to protect brain and spinal cord
from injury
• Regulation of ICP
• protection
•

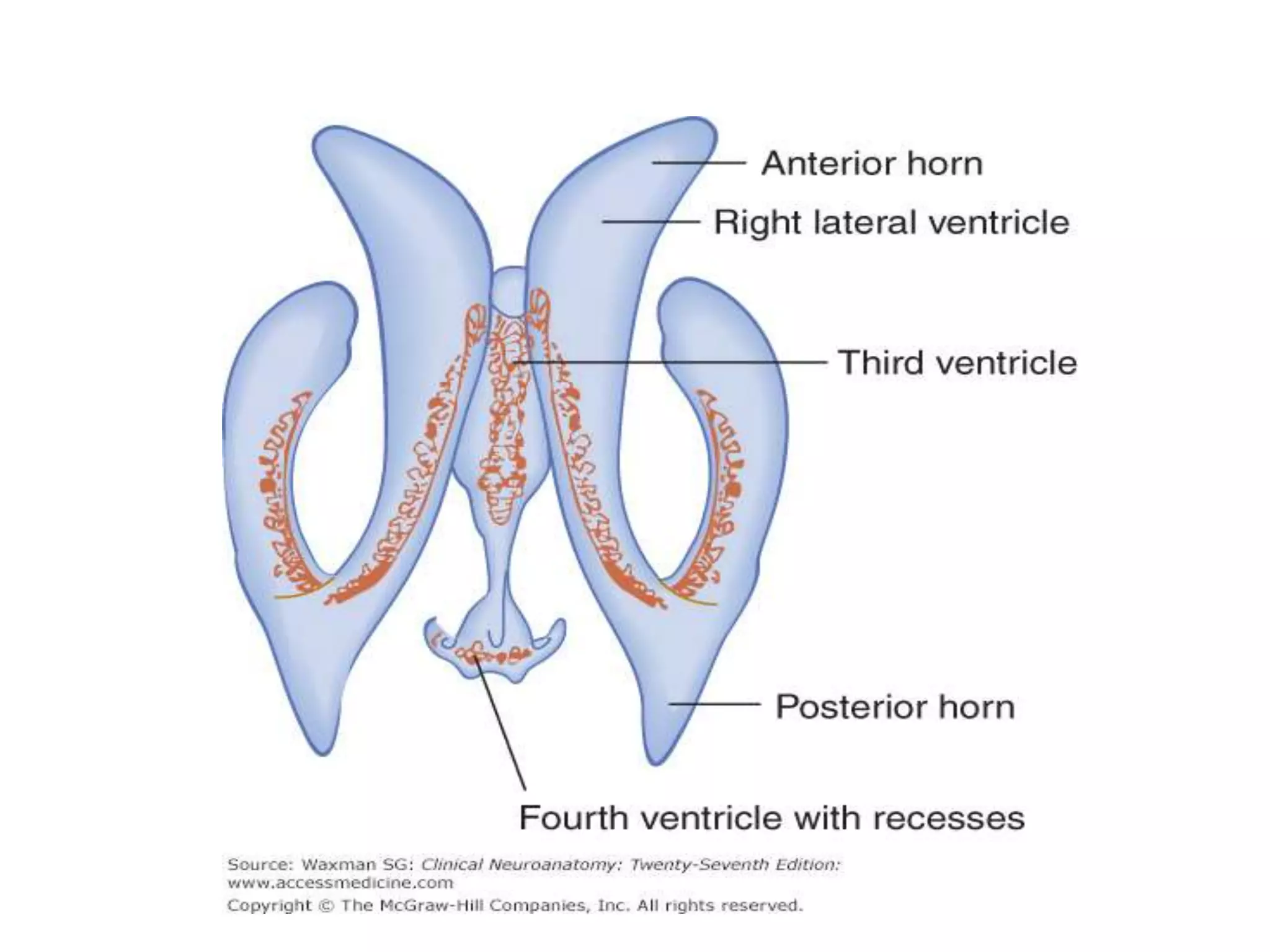

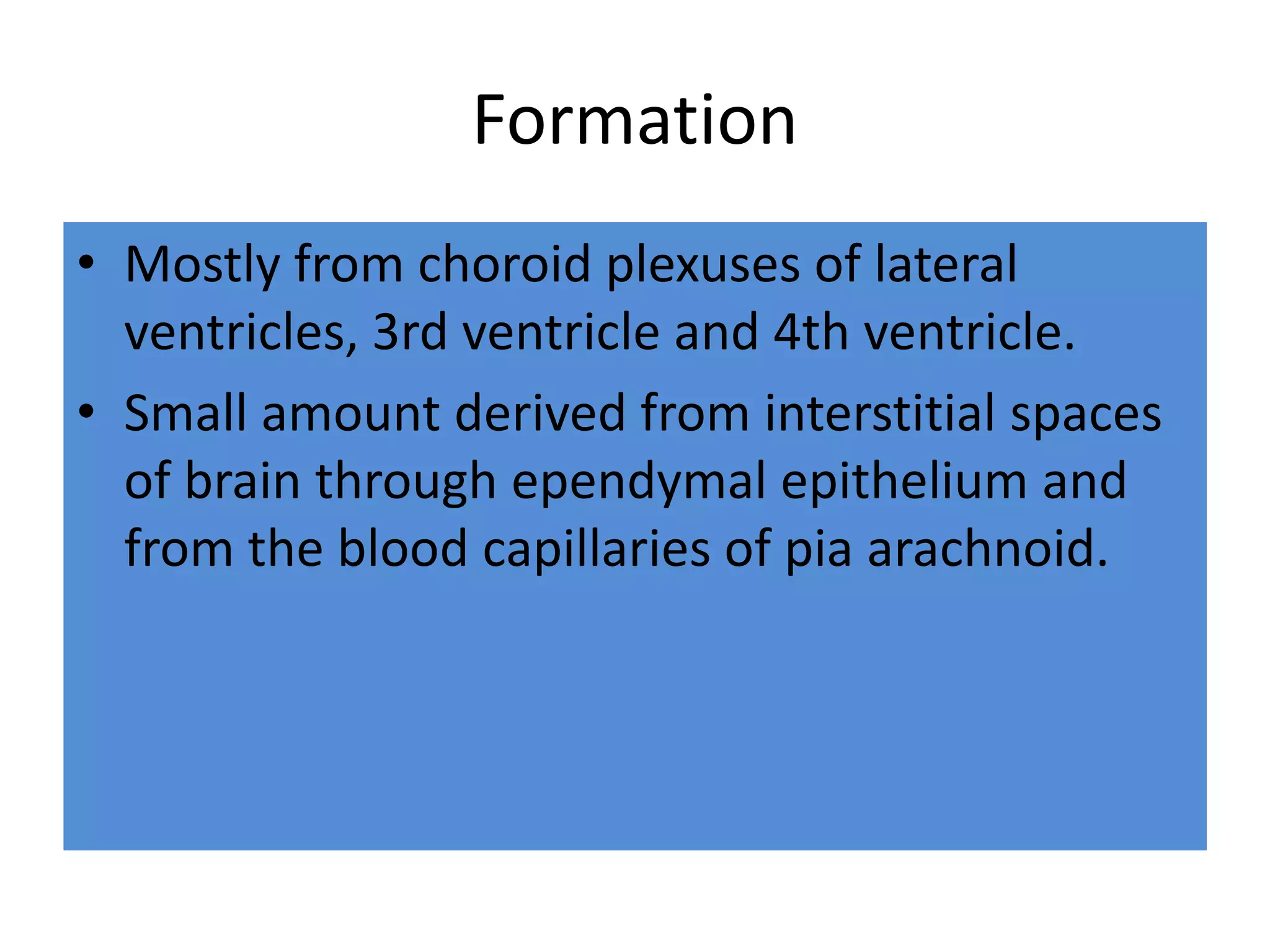

17. Formation
• Mostly from choroid plexuses of lateral
ventricles, 3rd ventricle and 4th ventricle.
• Small amount derived from interstitial spaces
of brain through ependymal epithelium and
from the blood capillaries of pia arachnoid.

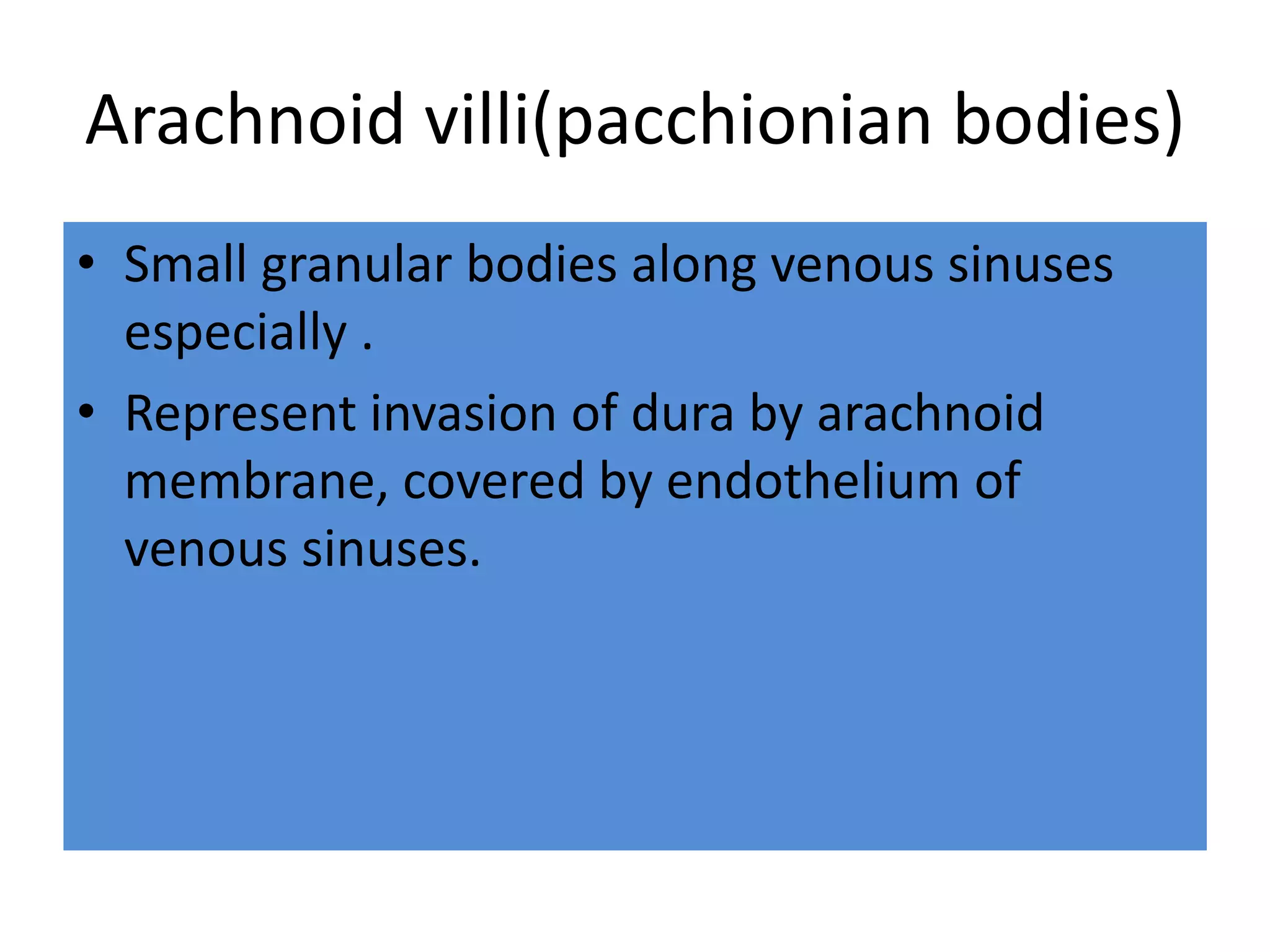

19. Arachnoid villi(pacchionian bodies)
• Small granular bodies along venous sinuses
especially .
• Represent invasion of dura by arachnoid
membrane, covered by endothelium of
venous sinuses.

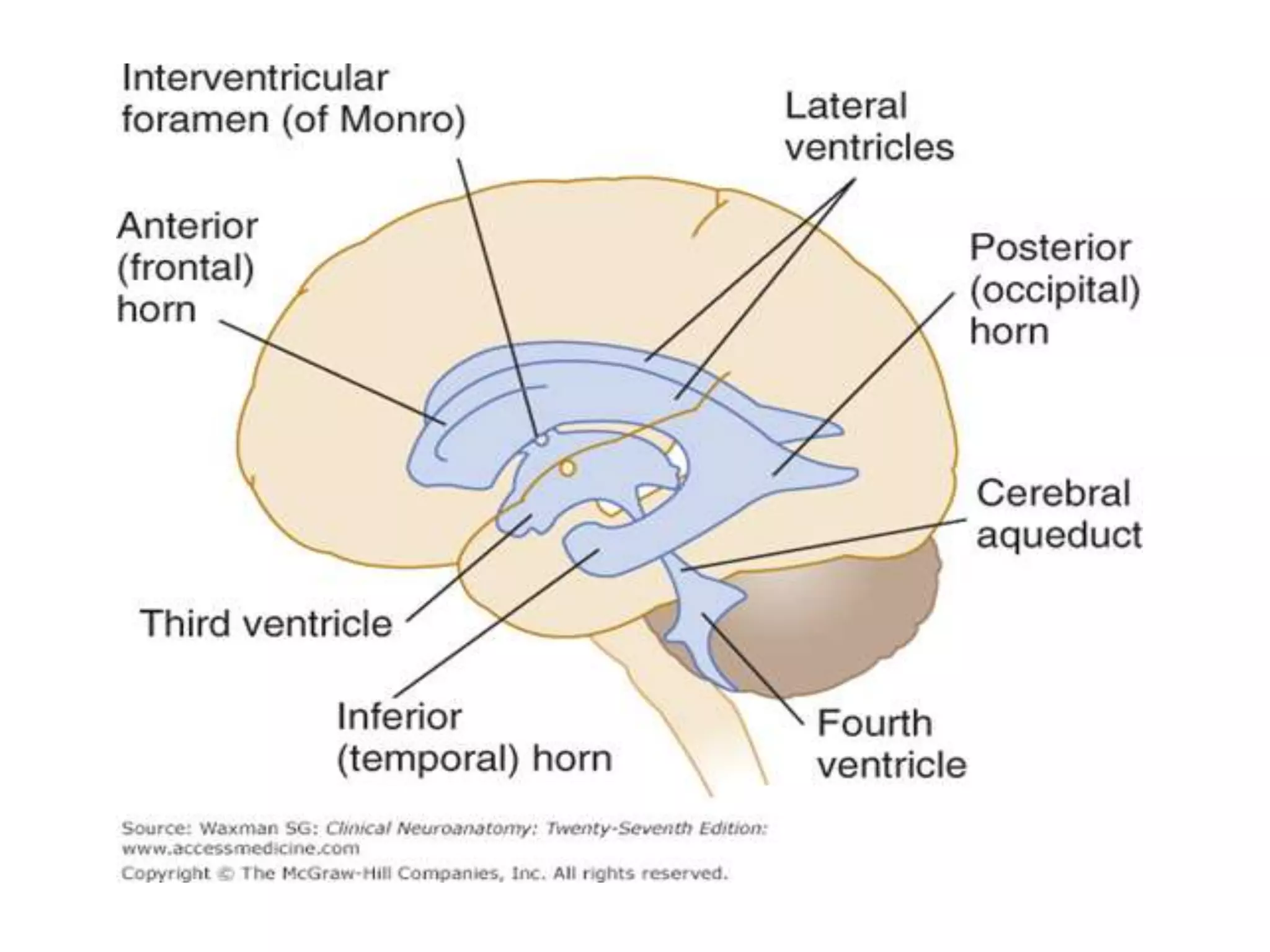

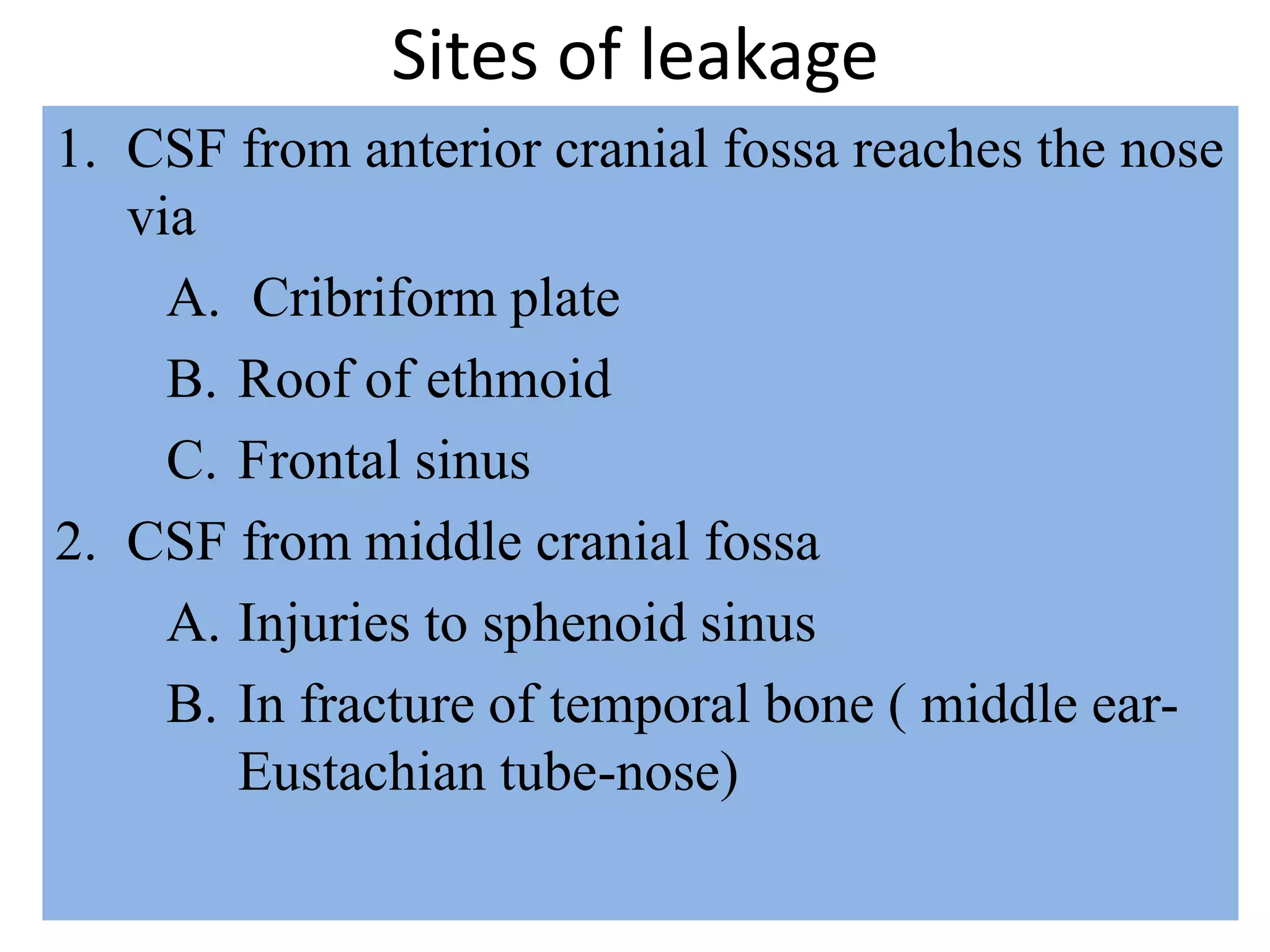

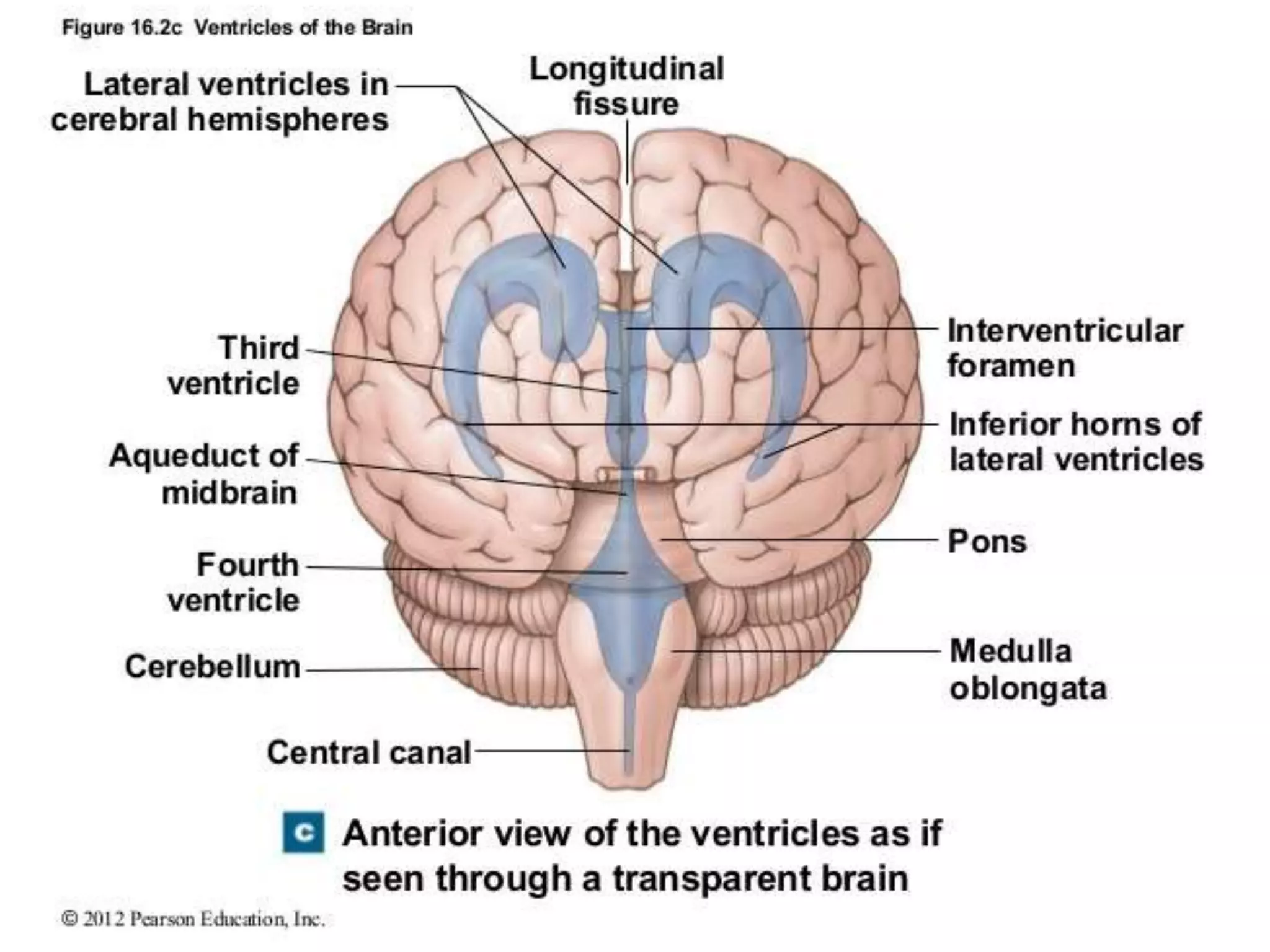

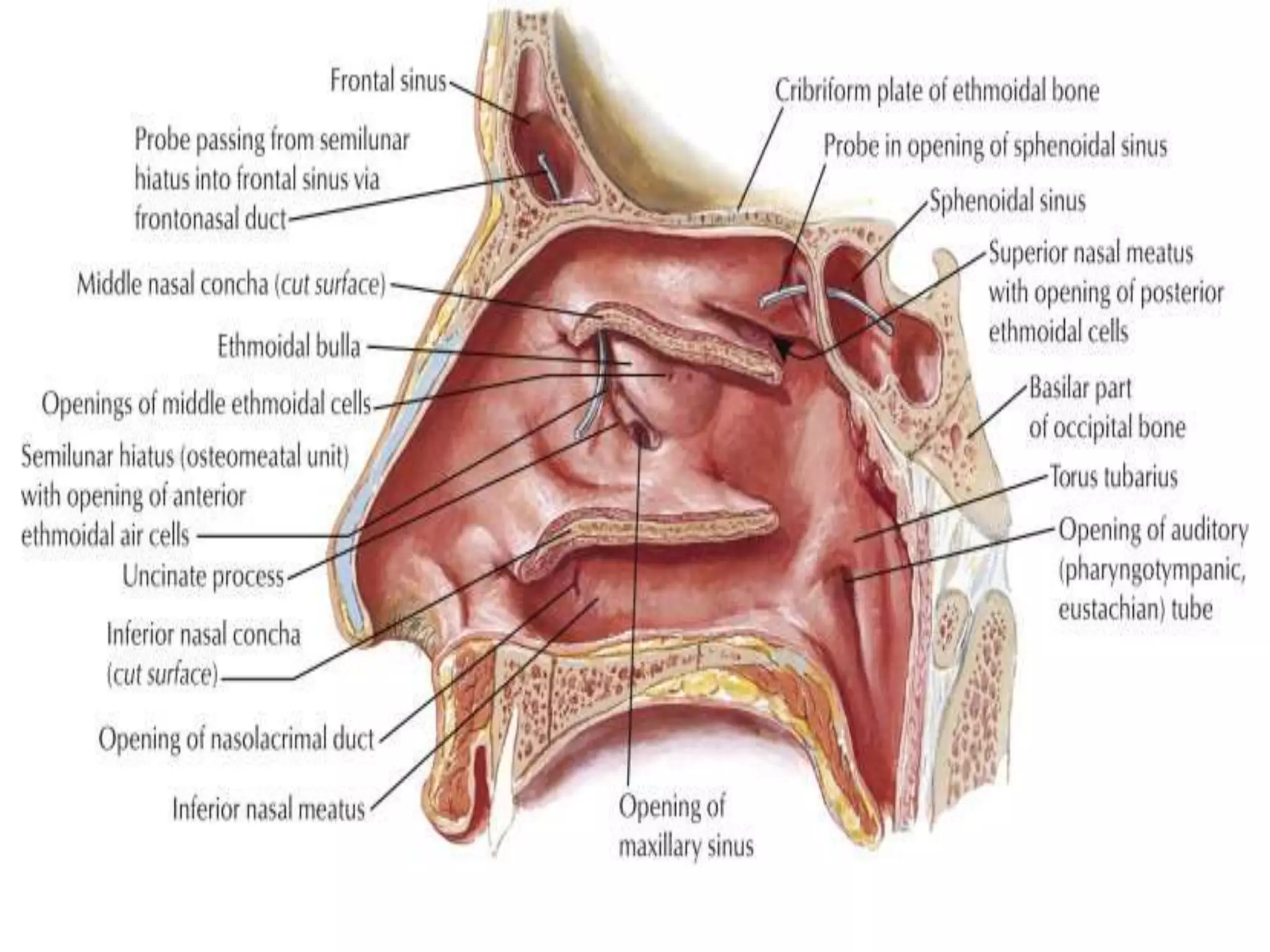

22. Sites of leakage
1. CSF from anterior cranial fossa reaches the nose
via
A. Cribriform plate
B. Roof of ethmoid
C. Frontal sinus
2. CSF from middle cranial fossa
A. Injuries to sphenoid sinus
B. In fracture of temporal bone ( middle ear-
Eustachian tube-nose)

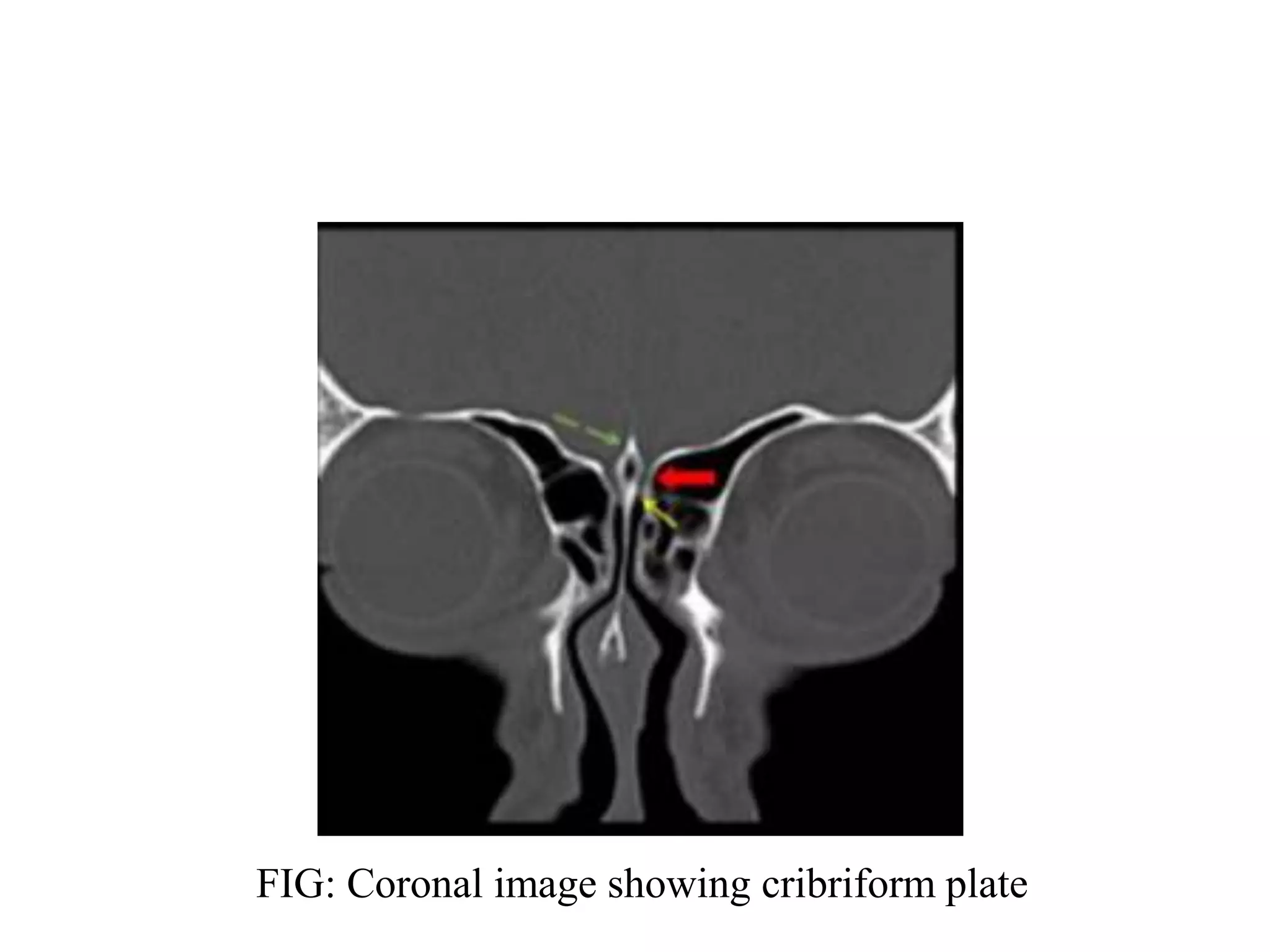

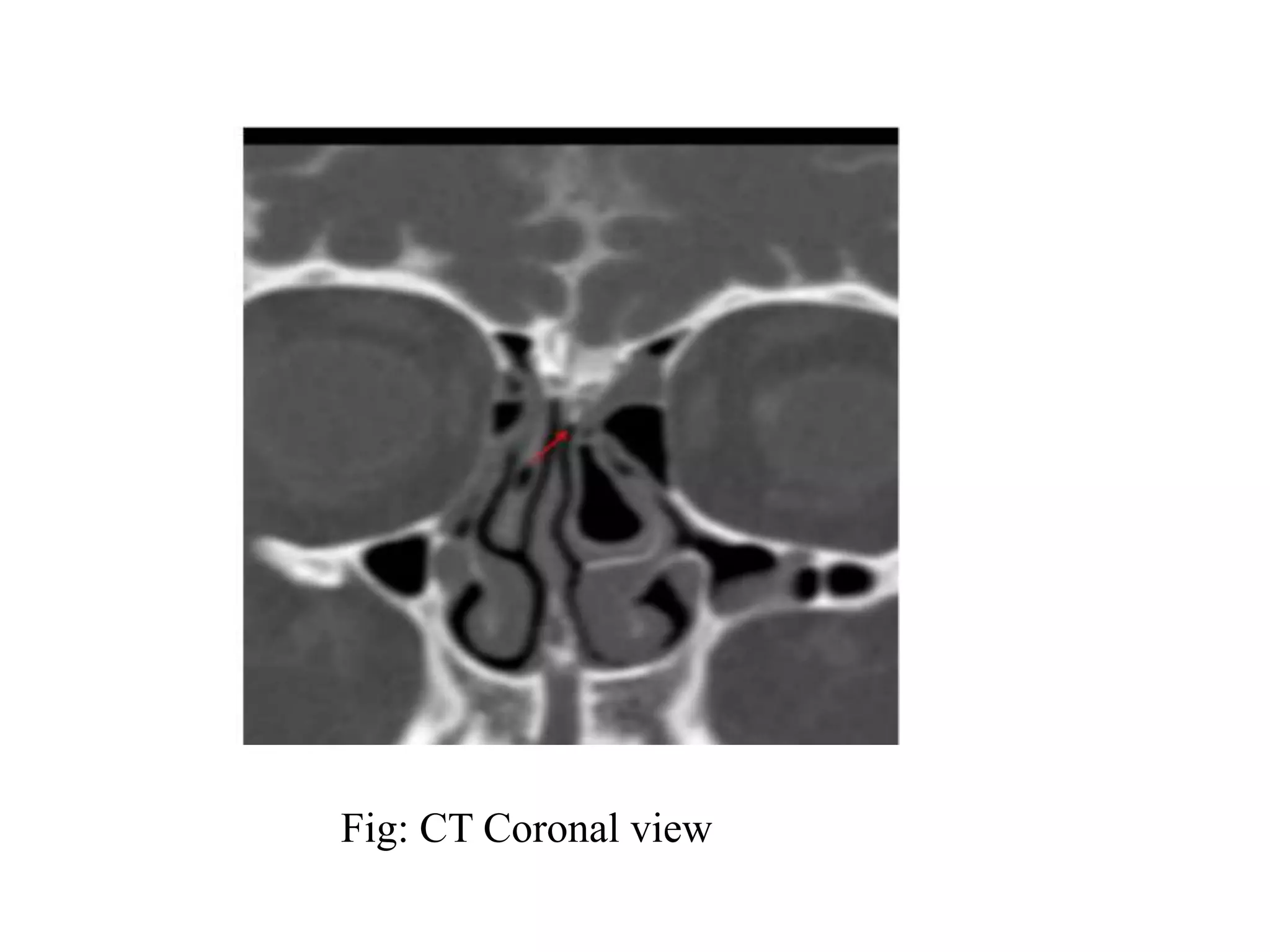

23. FIG: Coronal image showing cribriform plate

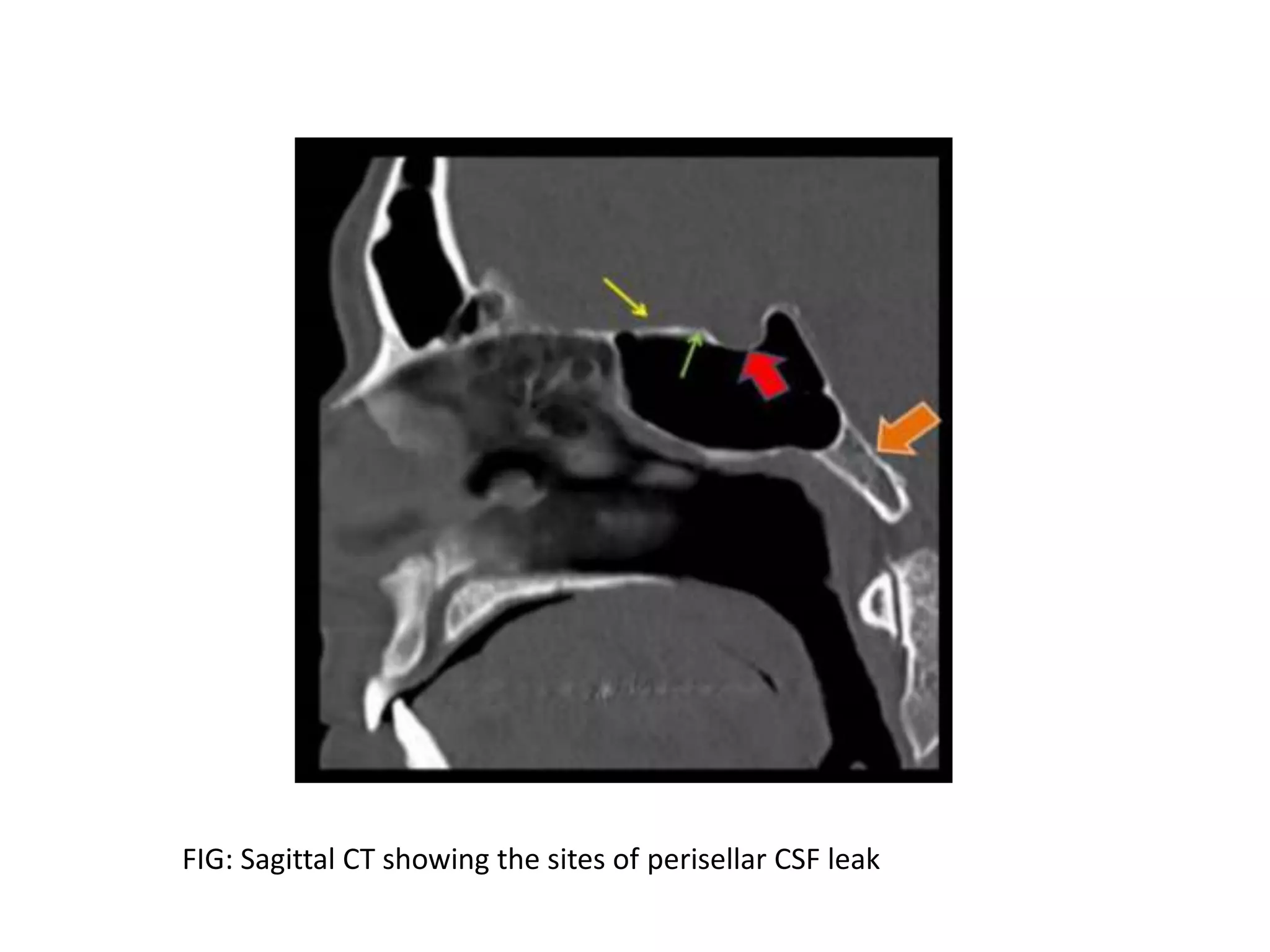

24. FIG: Sagittal CT showing the sites of perisellar CSF leak

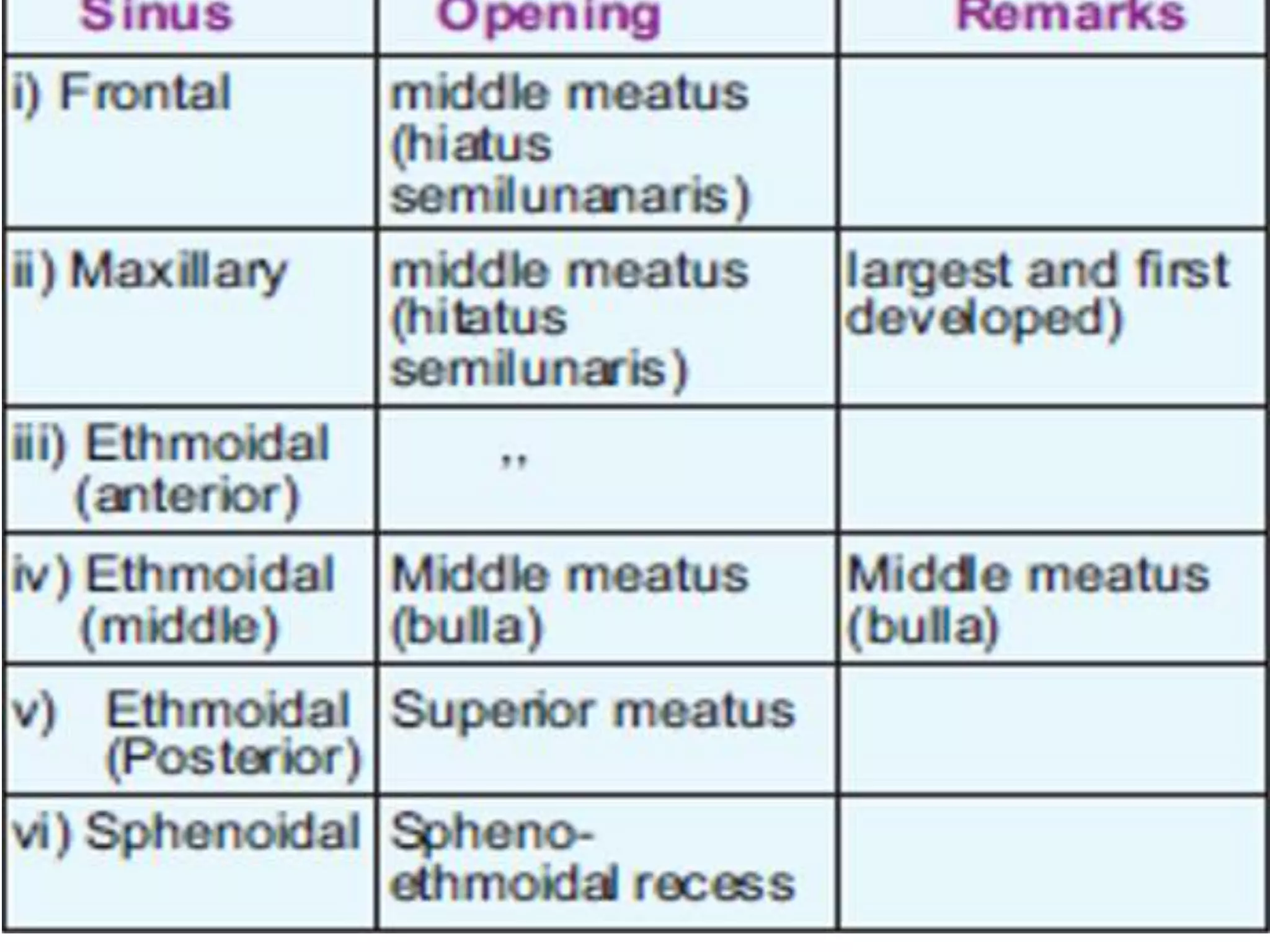

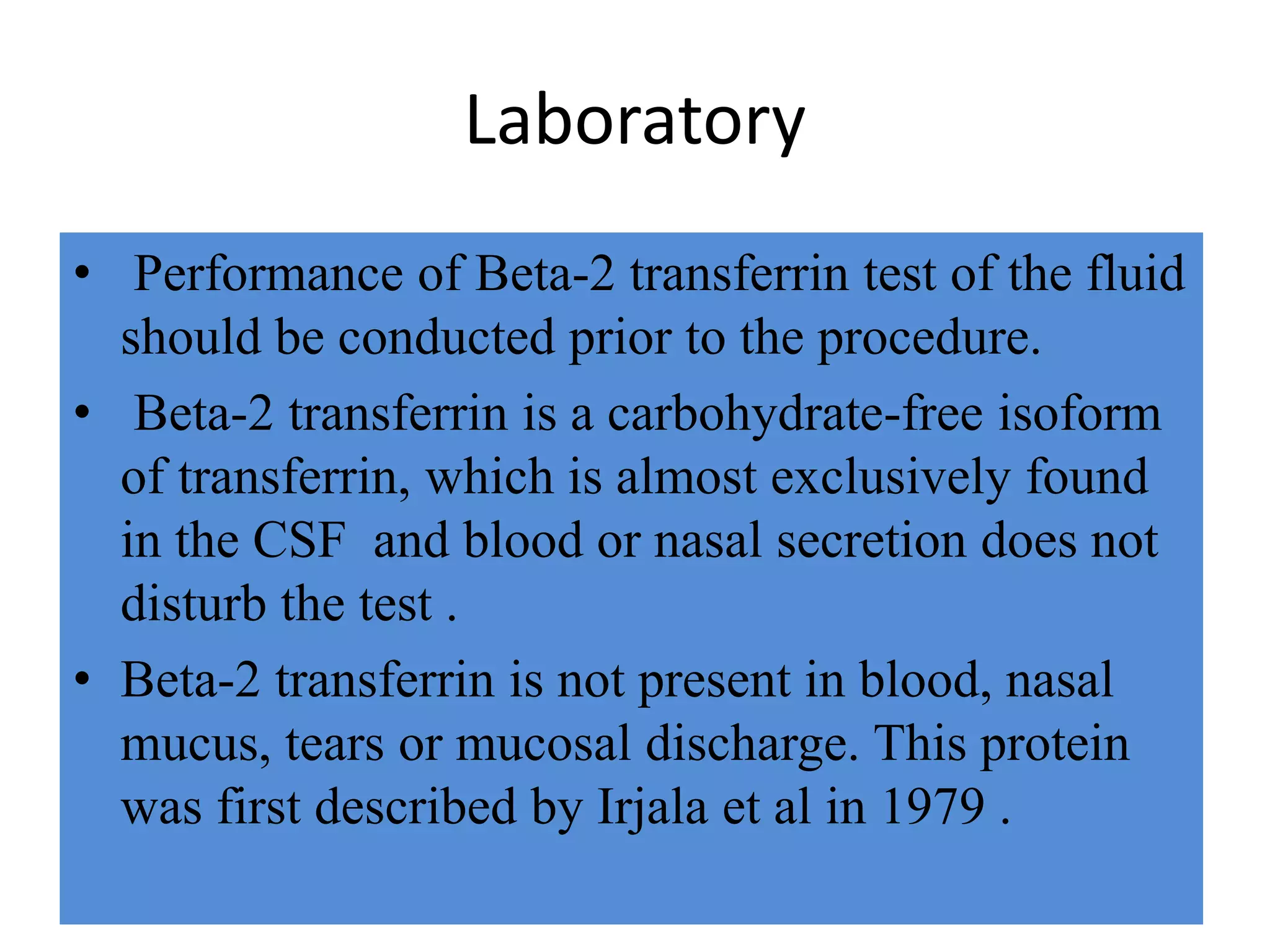

27. Laboratory
• Performance of Beta-2 transferrin test of the fluid
should be conducted prior to the procedure.
• Beta-2 transferrin is a carbohydrate-free isoform
of transferrin, which is almost exclusively found
in the CSF and blood or nasal secretion does not
disturb the test .
• Beta-2 transferrin is not present in blood, nasal
mucus, tears or mucosal discharge. This protein
was first described by Irjala et al in 1979 .

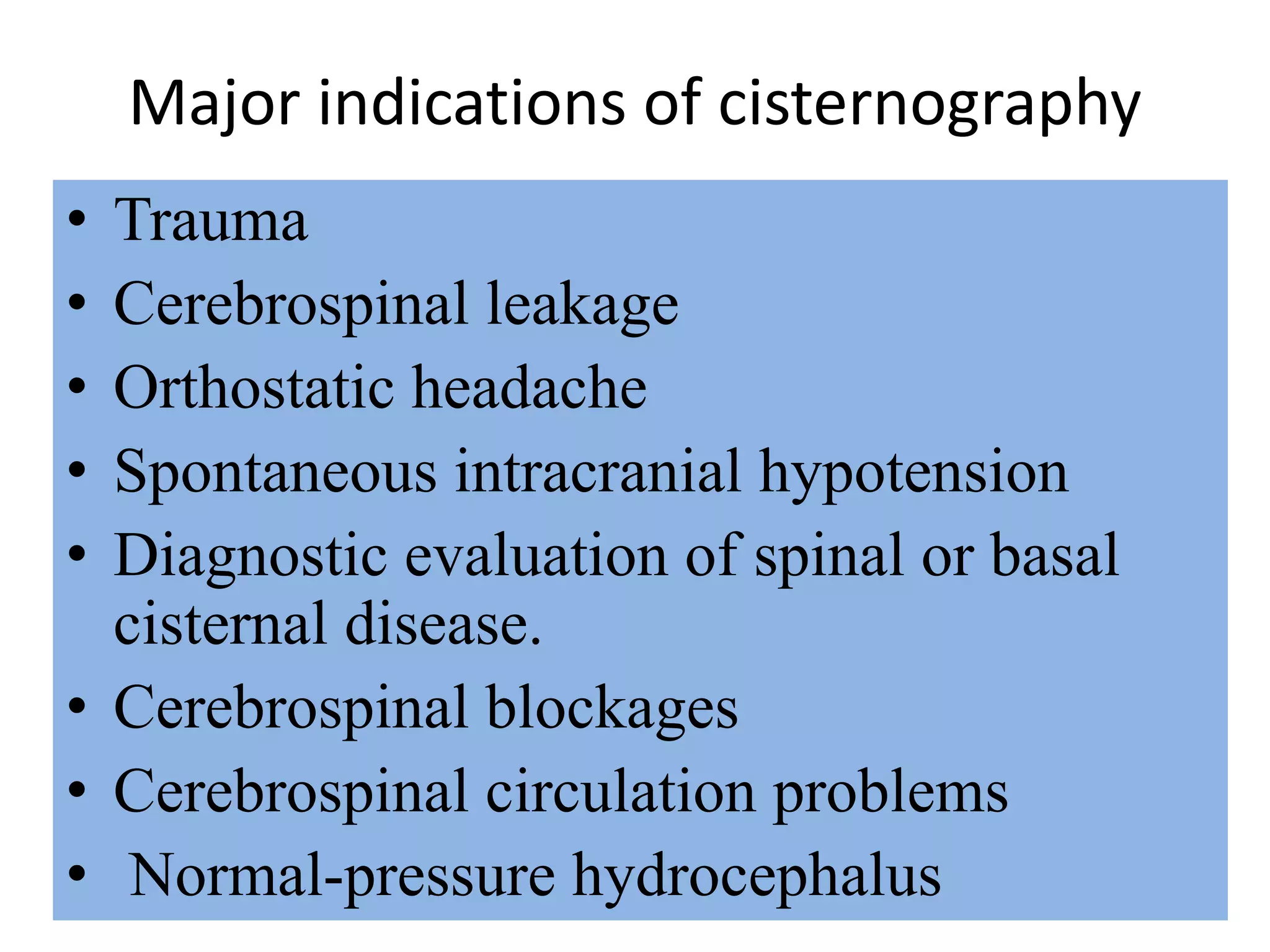

28. Major indications of cisternography
• Trauma
• Cerebrospinal leakage
• Orthostatic headache
• Spontaneous intracranial hypotension
• Diagnostic evaluation of spinal or basal
cisternal disease.
• Cerebrospinal blockages
• Cerebrospinal circulation problems
• Normal-pressure hydrocephalus

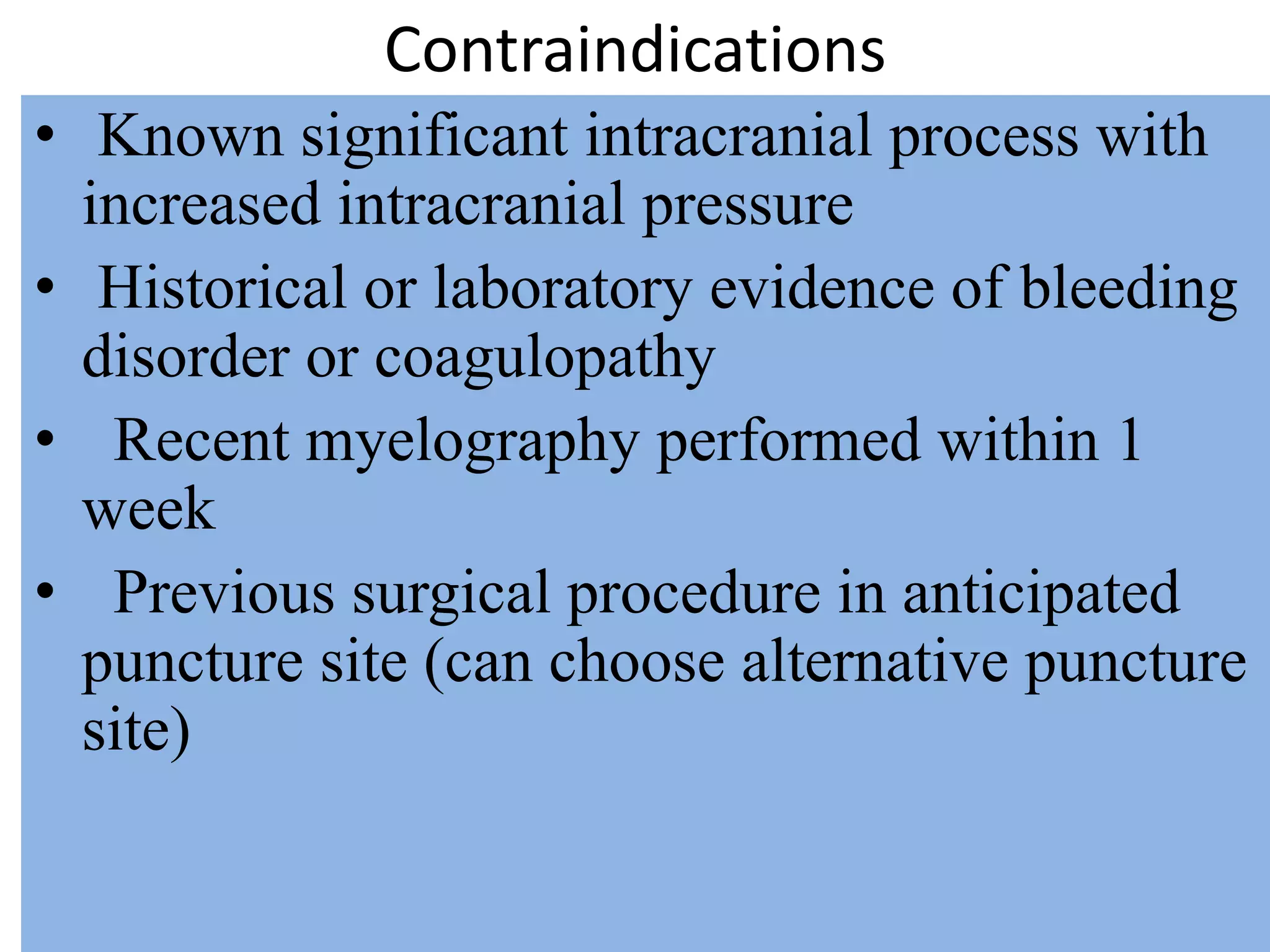

29. Contraindications
• Known significant intracranial process with
increased intracranial pressure
• Historical or laboratory evidence of bleeding
disorder or coagulopathy
• Recent myelography performed within 1
week
• Previous surgical procedure in anticipated
puncture site (can choose alternative puncture
site)

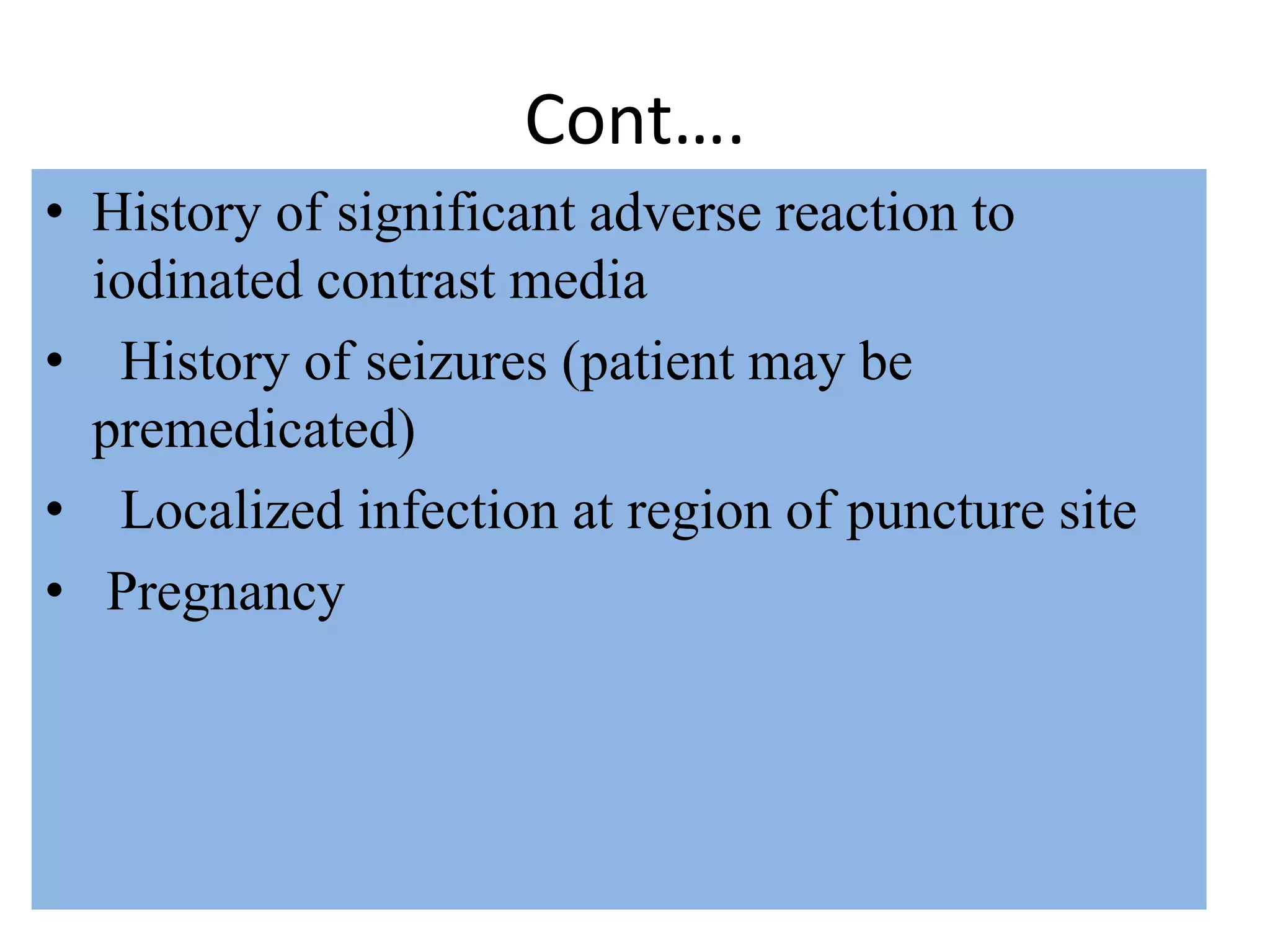

30. Cont….
• History of significant adverse reaction to
iodinated contrast media
• History of seizures (patient may be
premedicated)
• Localized infection at region of puncture site
• Pregnancy

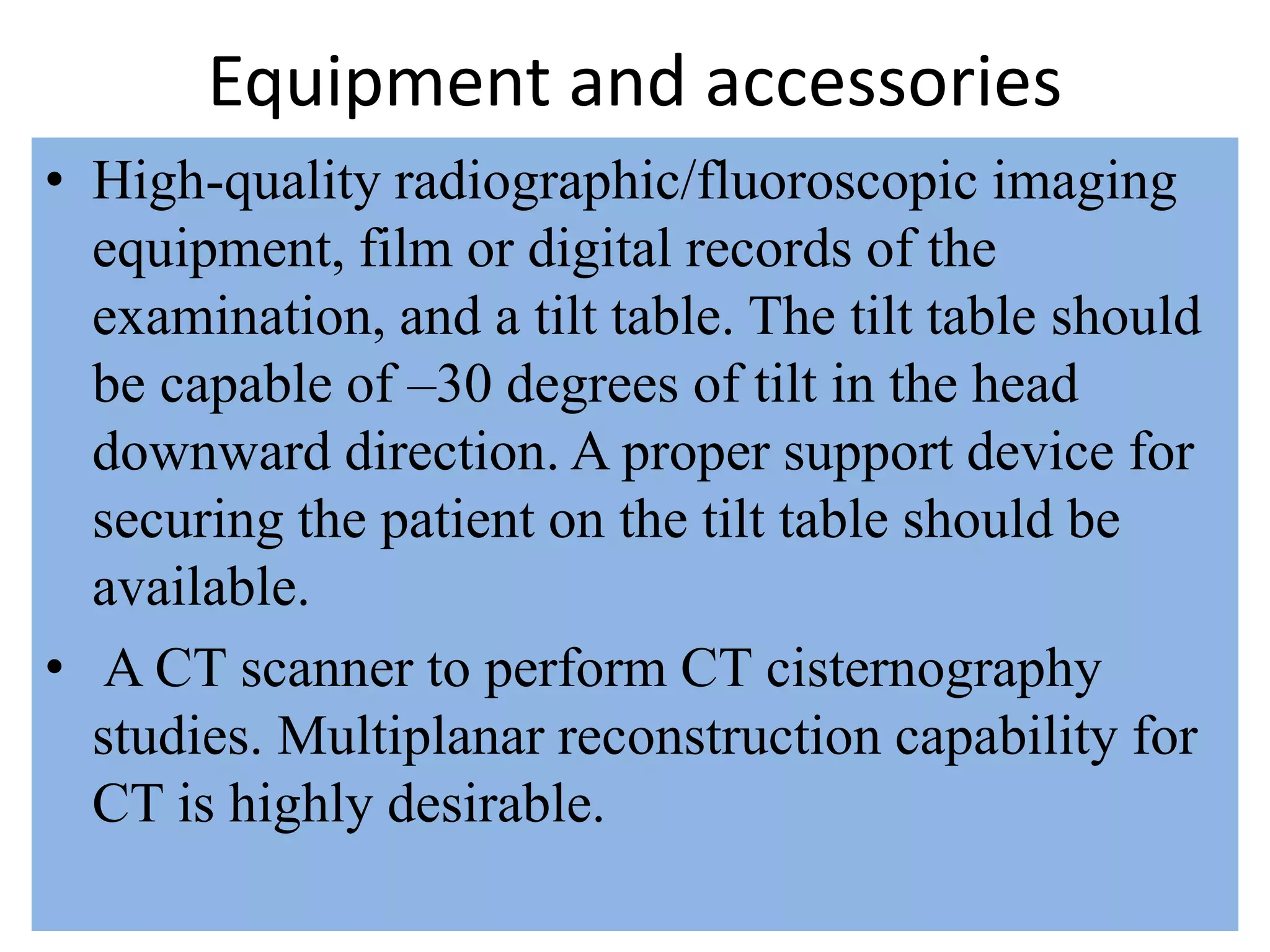

31. Equipment and accessories
• High-quality radiographic/fluoroscopic imaging
equipment, film or digital records of the
examination, and a tilt table. The tilt table should
be capable of –30 degrees of tilt in the head
downward direction. A proper support device for
securing the patient on the tilt table should be
available.
• A CT scanner to perform CT cisternography
studies. Multiplanar reconstruction capability for
CT is highly desirable.

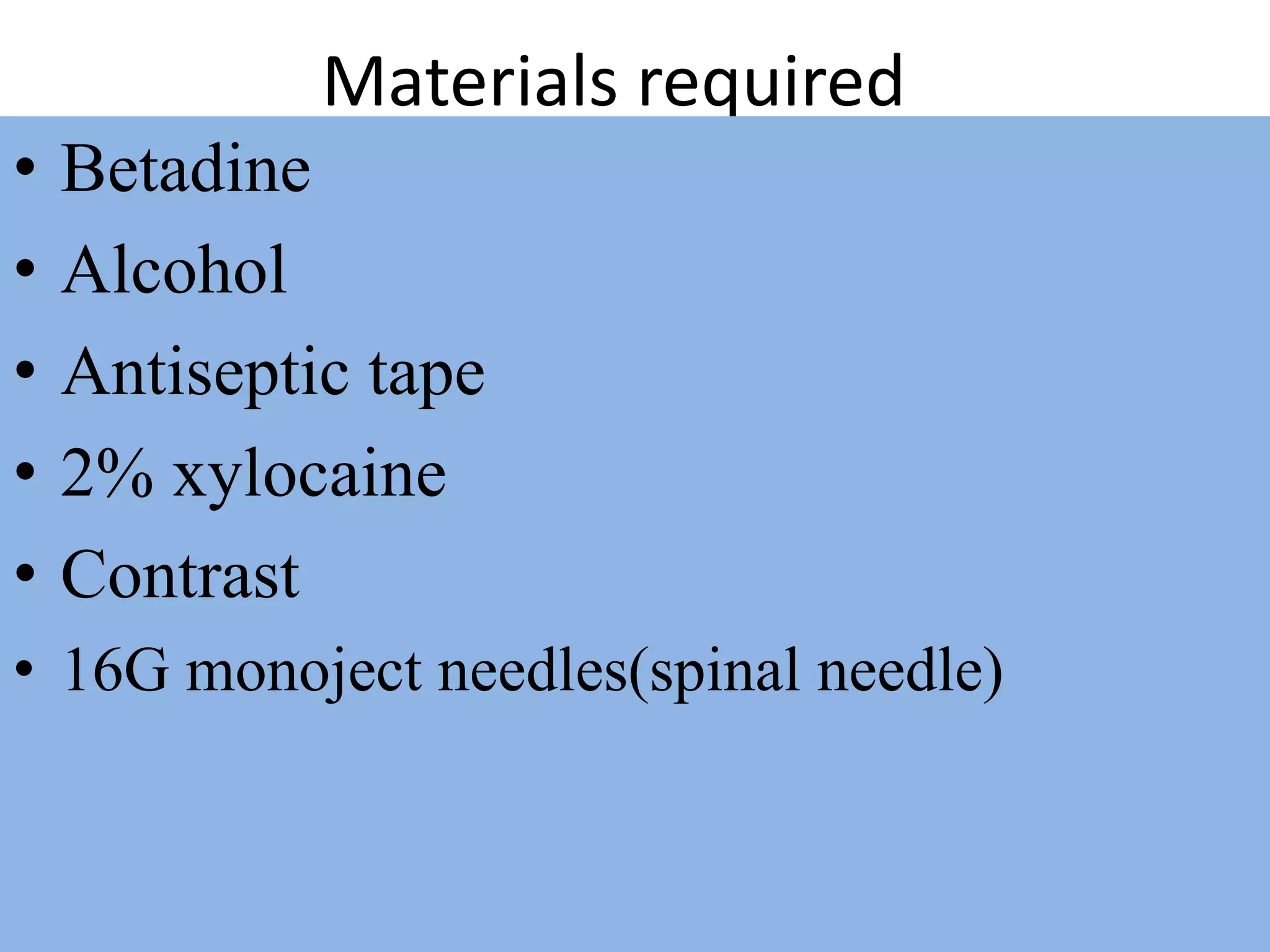

32. Materials required
• Betadine
• Alcohol
• Antiseptic tape
• 2% xylocaine
• Contrast
• 16G monoject needles(spinal needle)

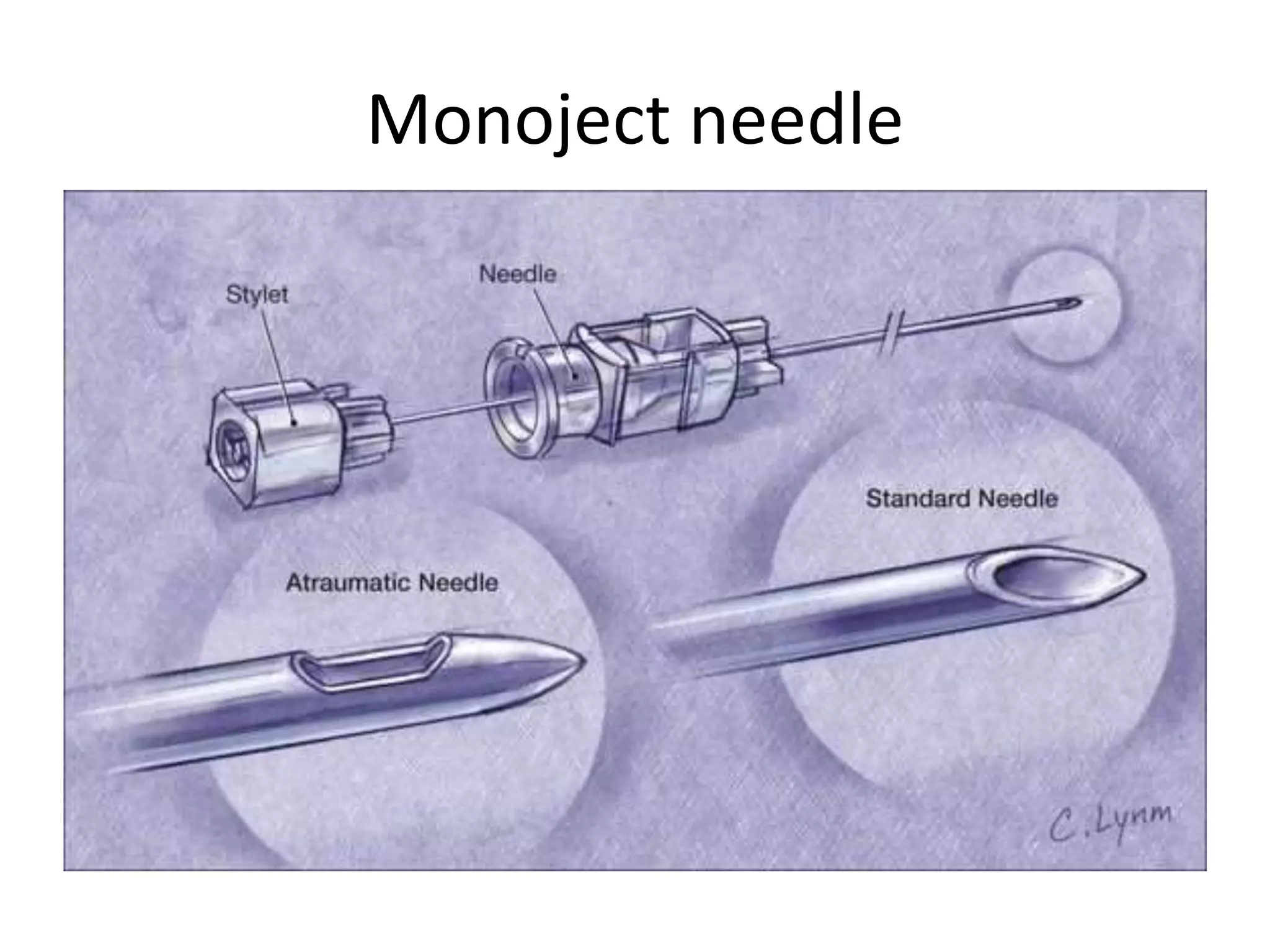

33. Monoject needle

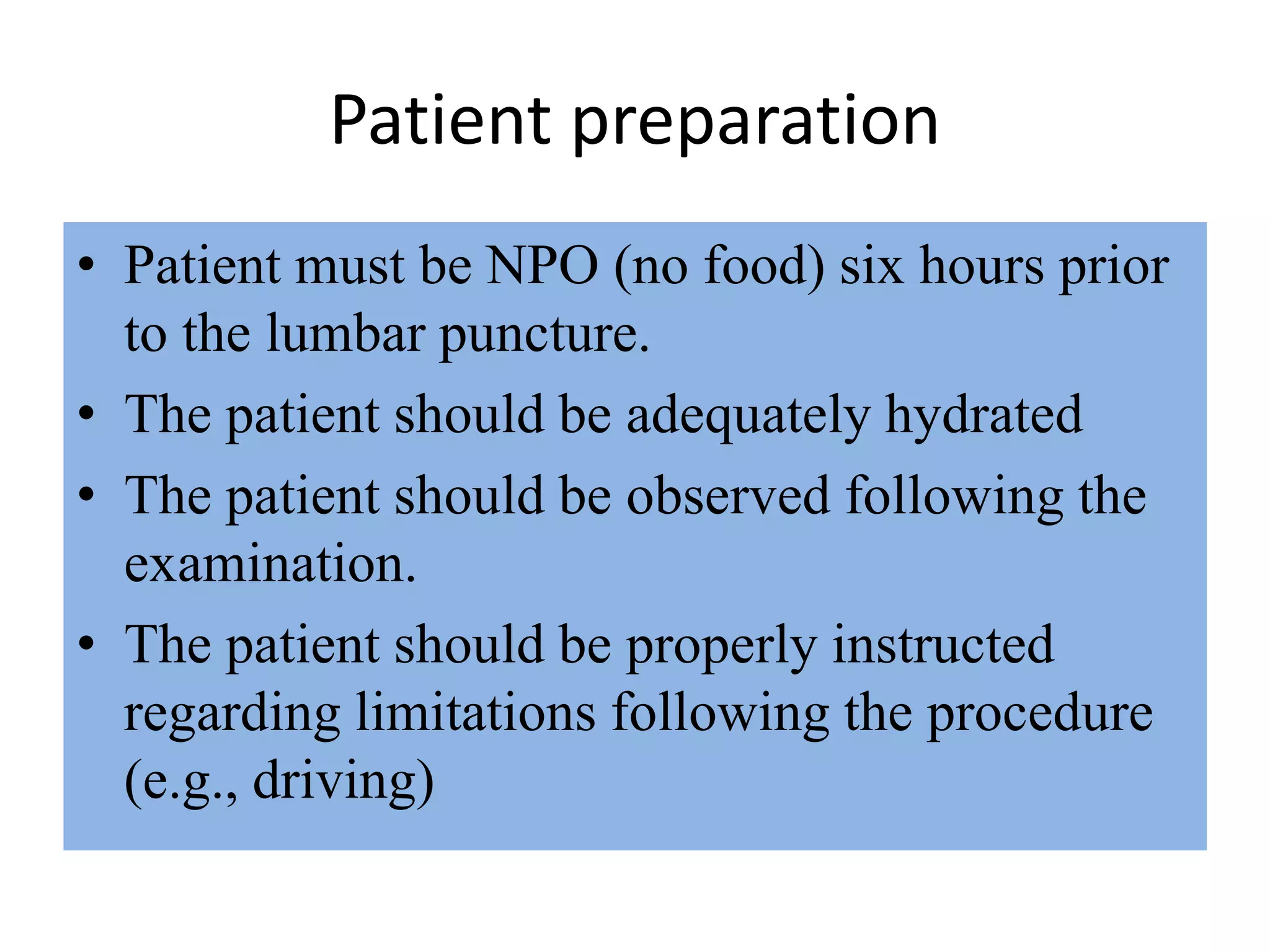

34. Patient preparation
• Patient must be NPO (no food) six hours prior
to the lumbar puncture.
• The patient should be adequately hydrated
• The patient should be observed following the
examination.
• The patient should be properly instructed
regarding limitations following the procedure
(e.g., driving)

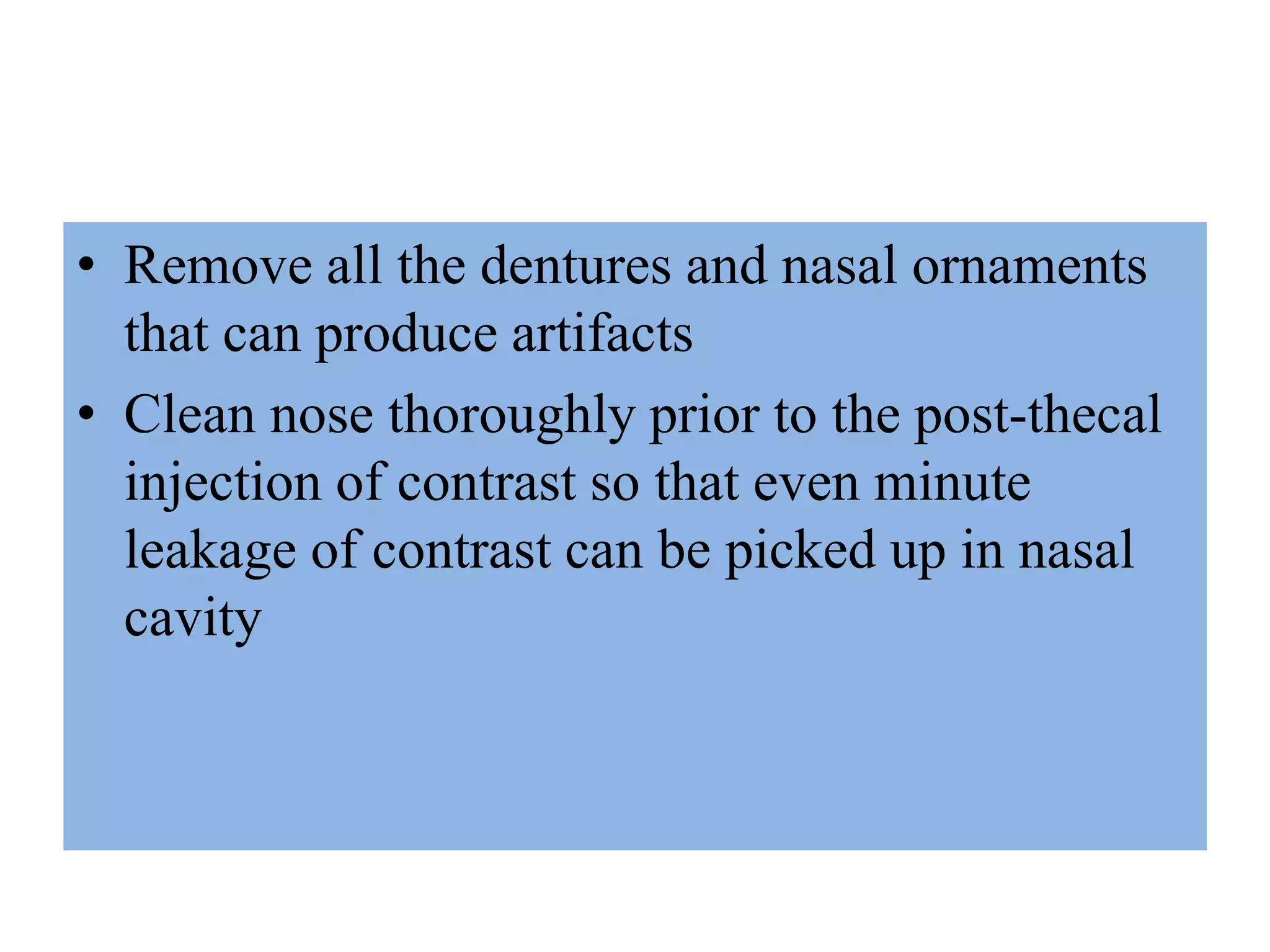

35. • Remove all the dentures and nasal ornaments
that can produce artifacts
• Clean nose thoroughly prior to the post-thecal
injection of contrast so that even minute
leakage of contrast can be picked up in nasal
cavity

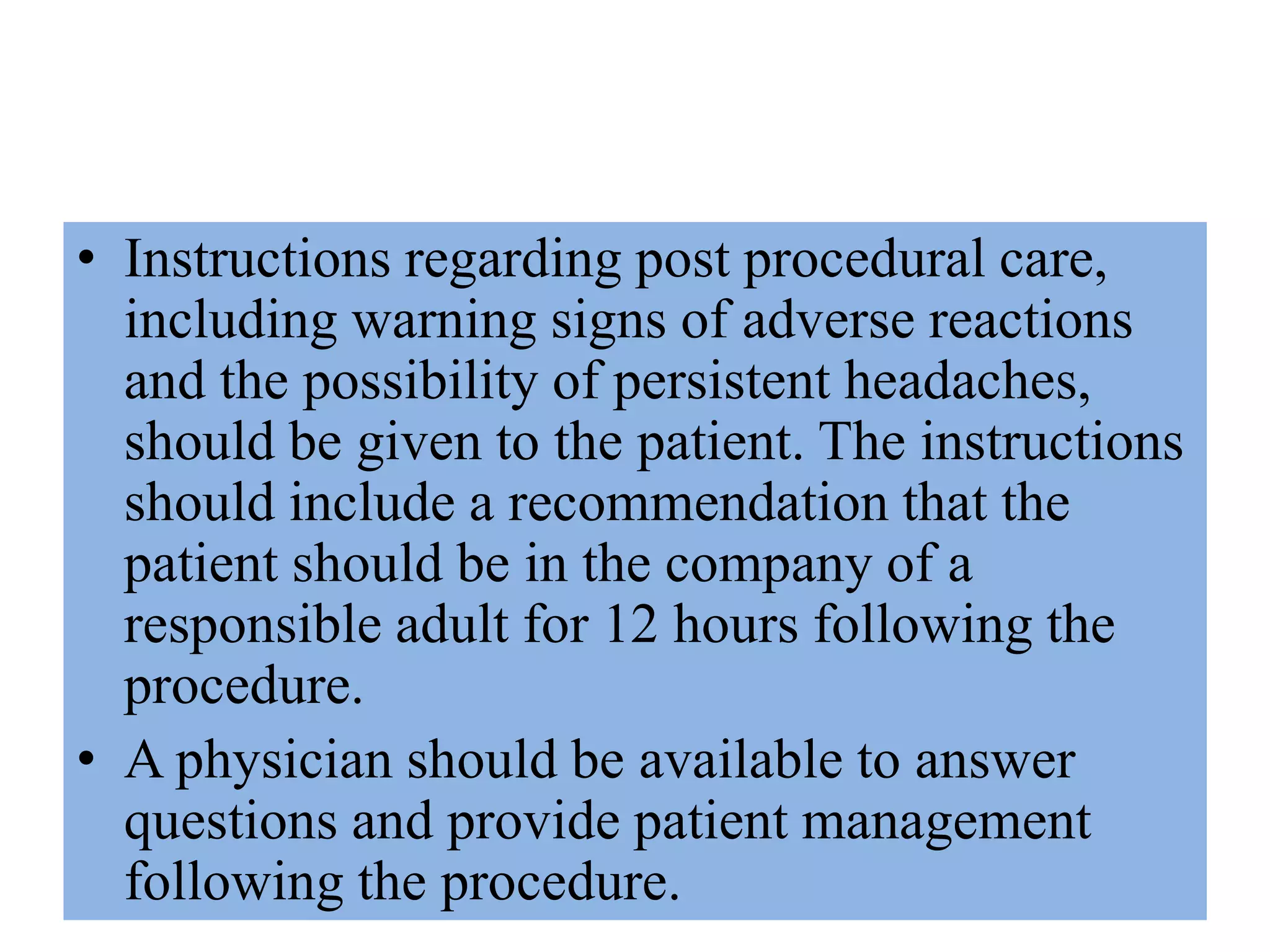

36. • Instructions regarding post procedural care,
including warning signs of adverse reactions
and the possibility of persistent headaches,
should be given to the patient. The instructions
should include a recommendation that the
patient should be in the company of a
responsible adult for 12 hours following the
procedure.
• A physician should be available to answer
questions and provide patient management
following the procedure.

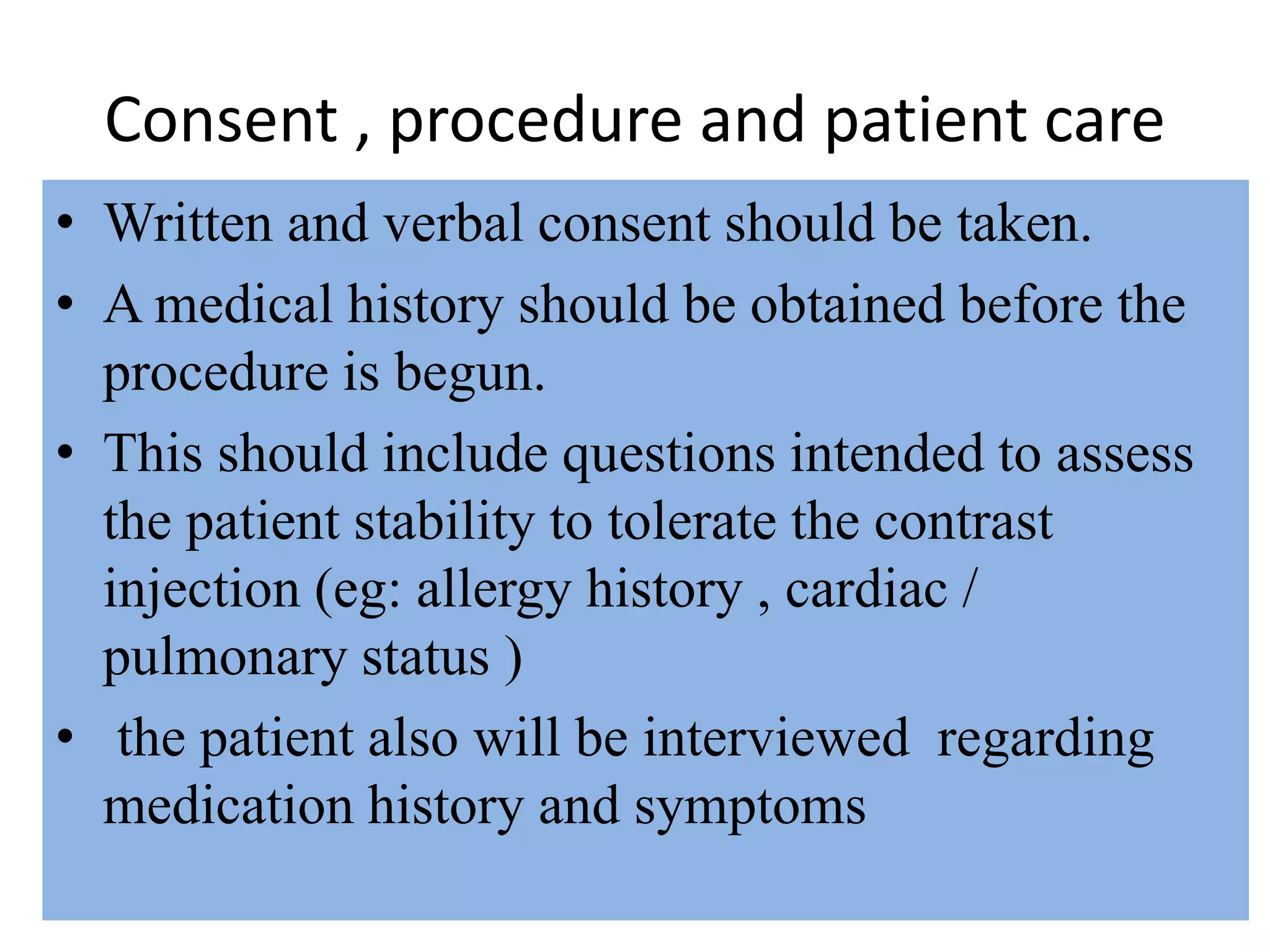

37. Consent , procedure and patient care
• Written and verbal consent should be taken.
• A medical history should be obtained before the
procedure is begun.
• This should include questions intended to assess
the patient stability to tolerate the contrast
injection (eg: allergy history , cardiac /
pulmonary status )
• the patient also will be interviewed regarding
medication history and symptoms

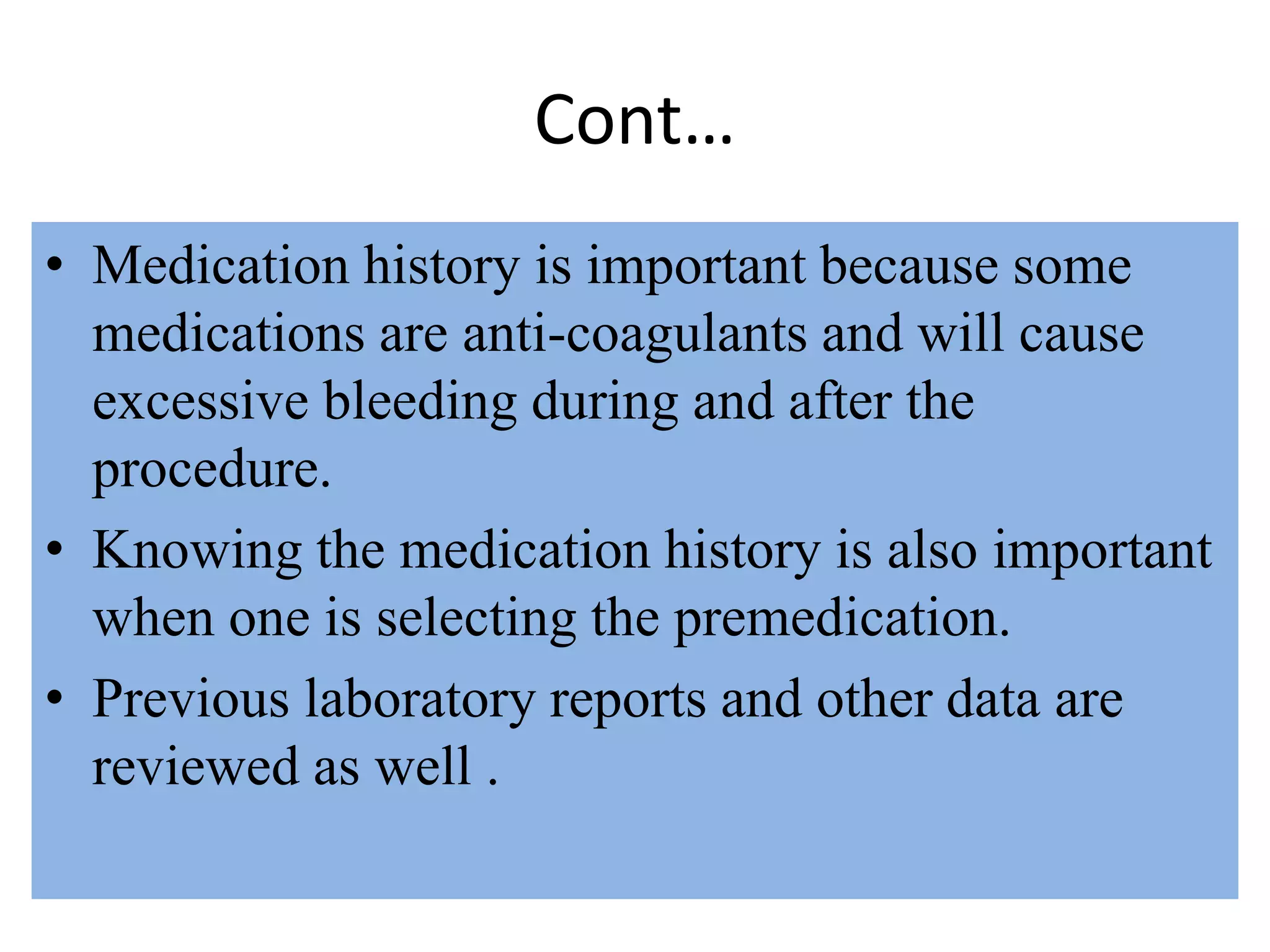

38. Cont…
• Medication history is important because some
medications are anti-coagulants and will cause
excessive bleeding during and after the
procedure.
• Knowing the medication history is also important
when one is selecting the premedication.
• Previous laboratory reports and other data are
reviewed as well .

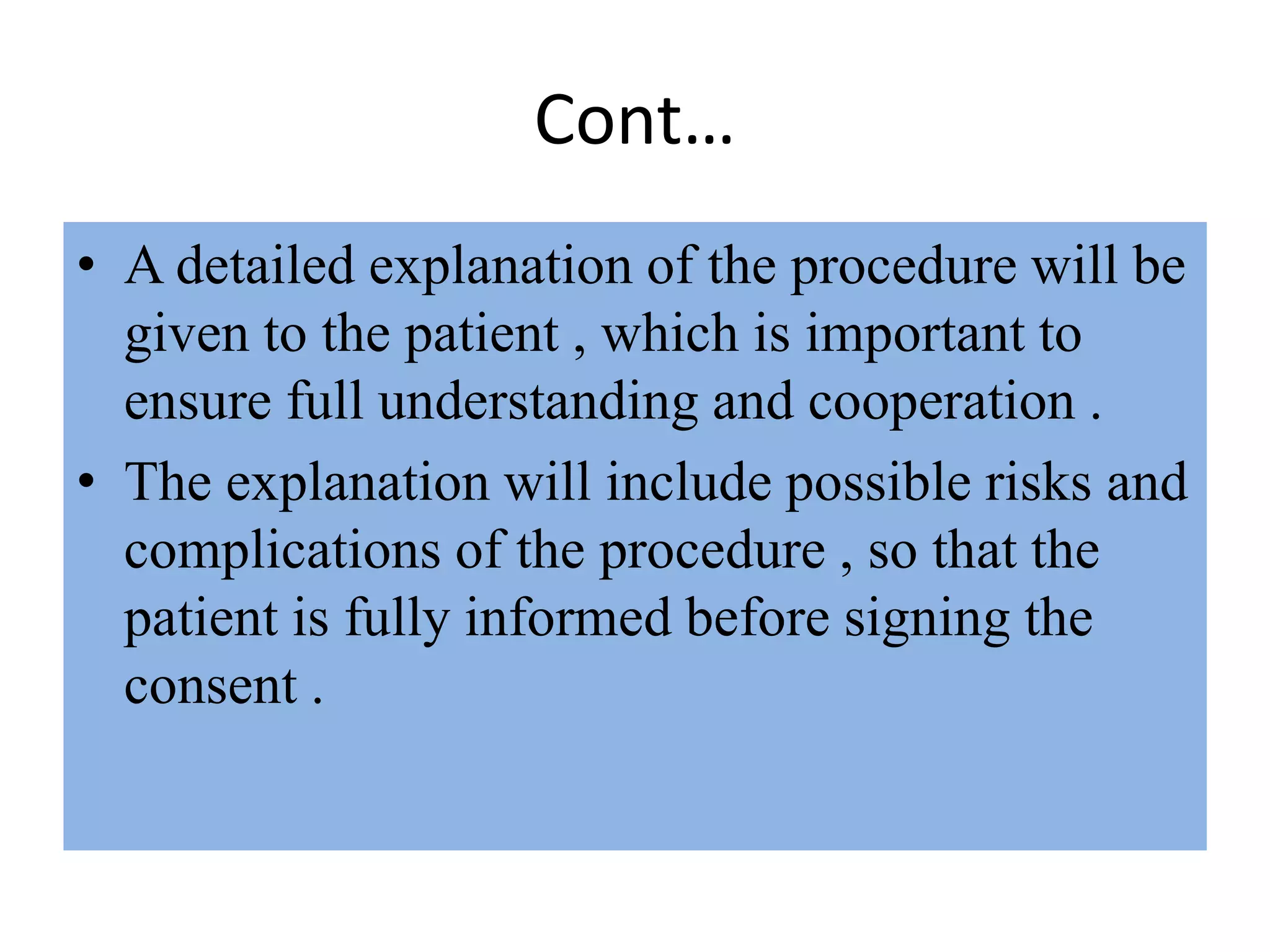

39. Cont…
• A detailed explanation of the procedure will be
given to the patient , which is important to
ensure full understanding and cooperation .
• The explanation will include possible risks and
complications of the procedure , so that the
patient is fully informed before signing the
consent .

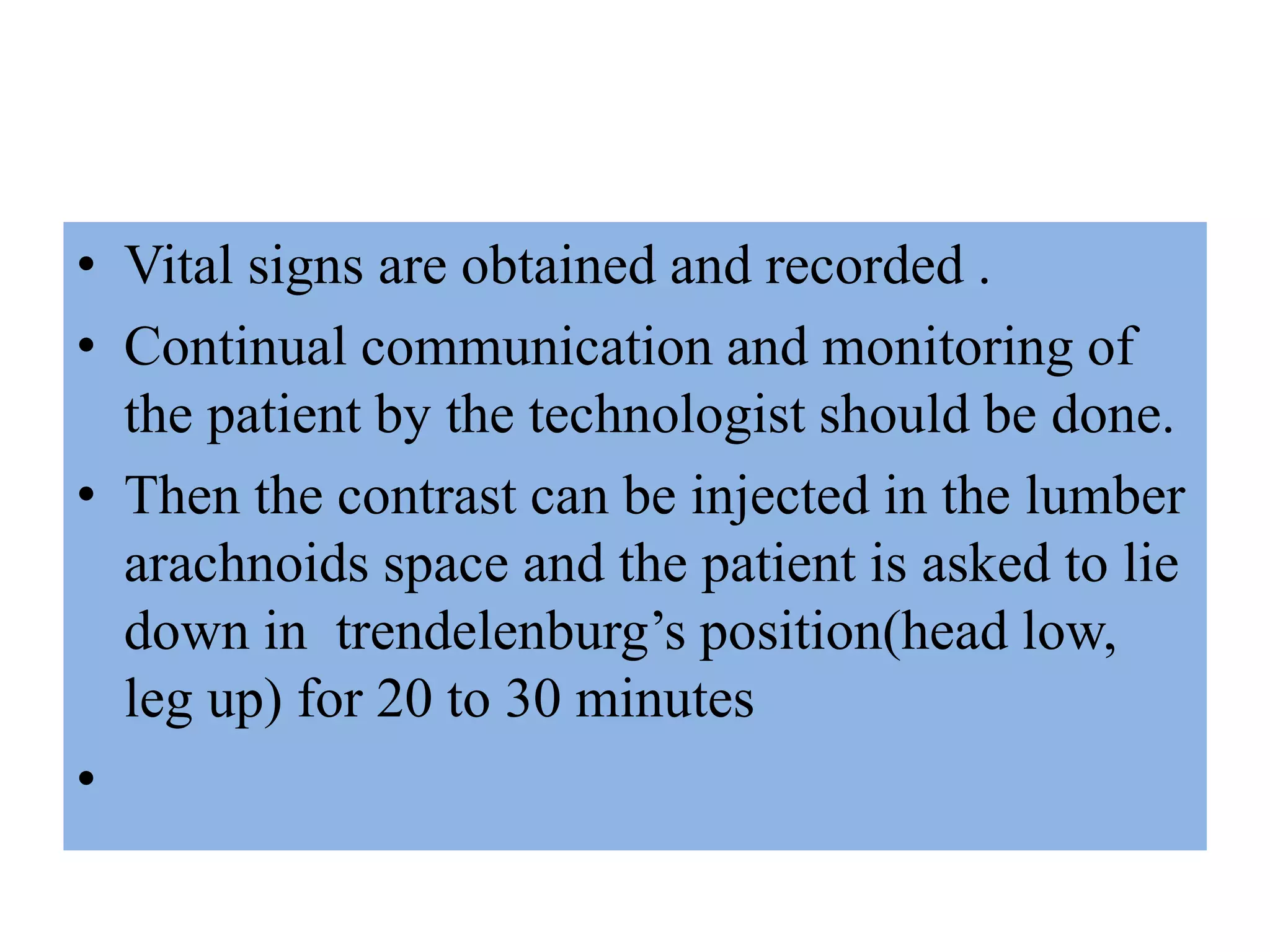

40. • Vital signs are obtained and recorded .
• Continual communication and monitoring of
the patient by the technologist should be done.
• Then the contrast can be injected in the lumber
arachnoids space and the patient is asked to lie
down in trendelenburg’s position(head low,
leg up) for 20 to 30 minutes
•

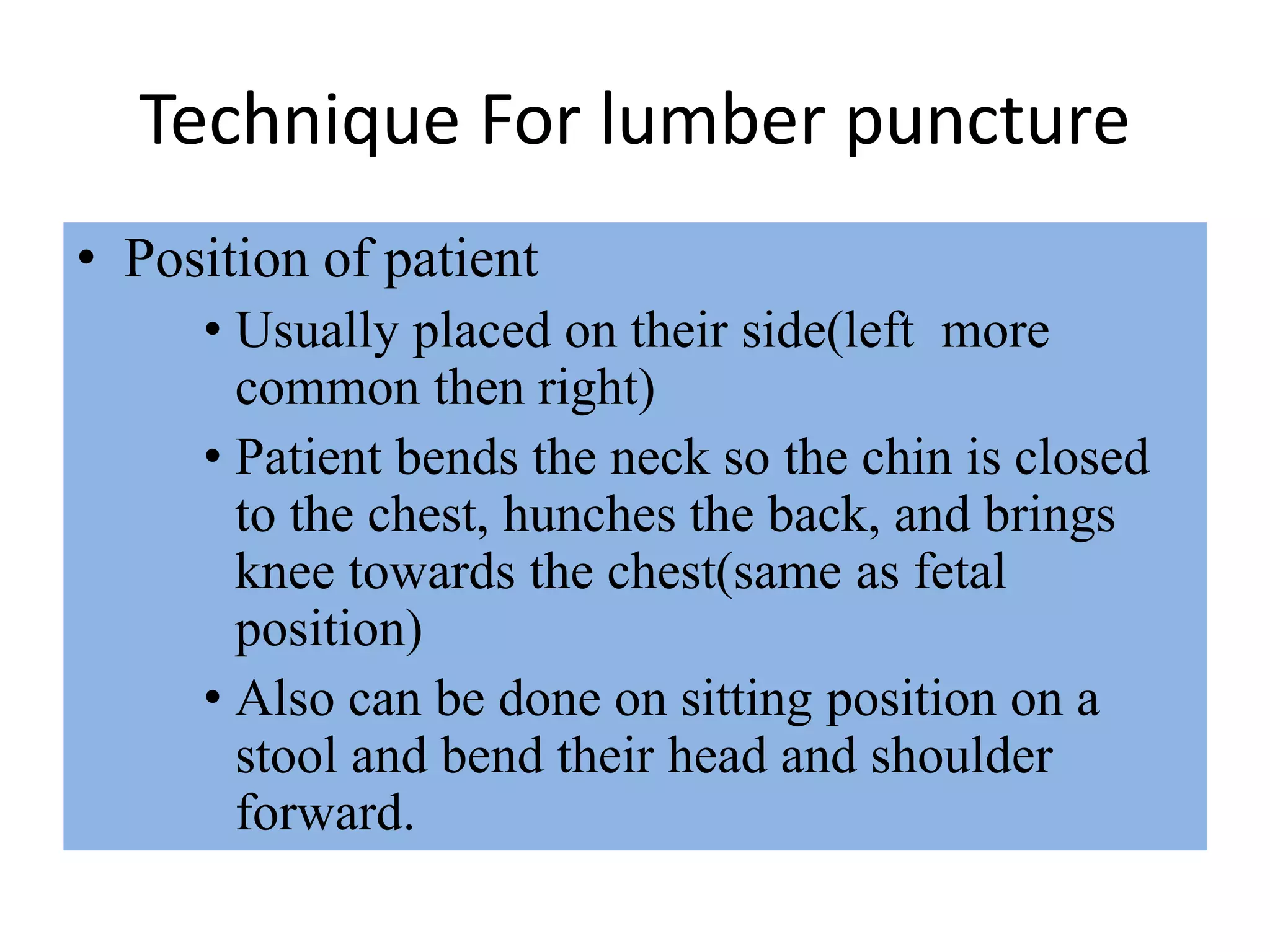

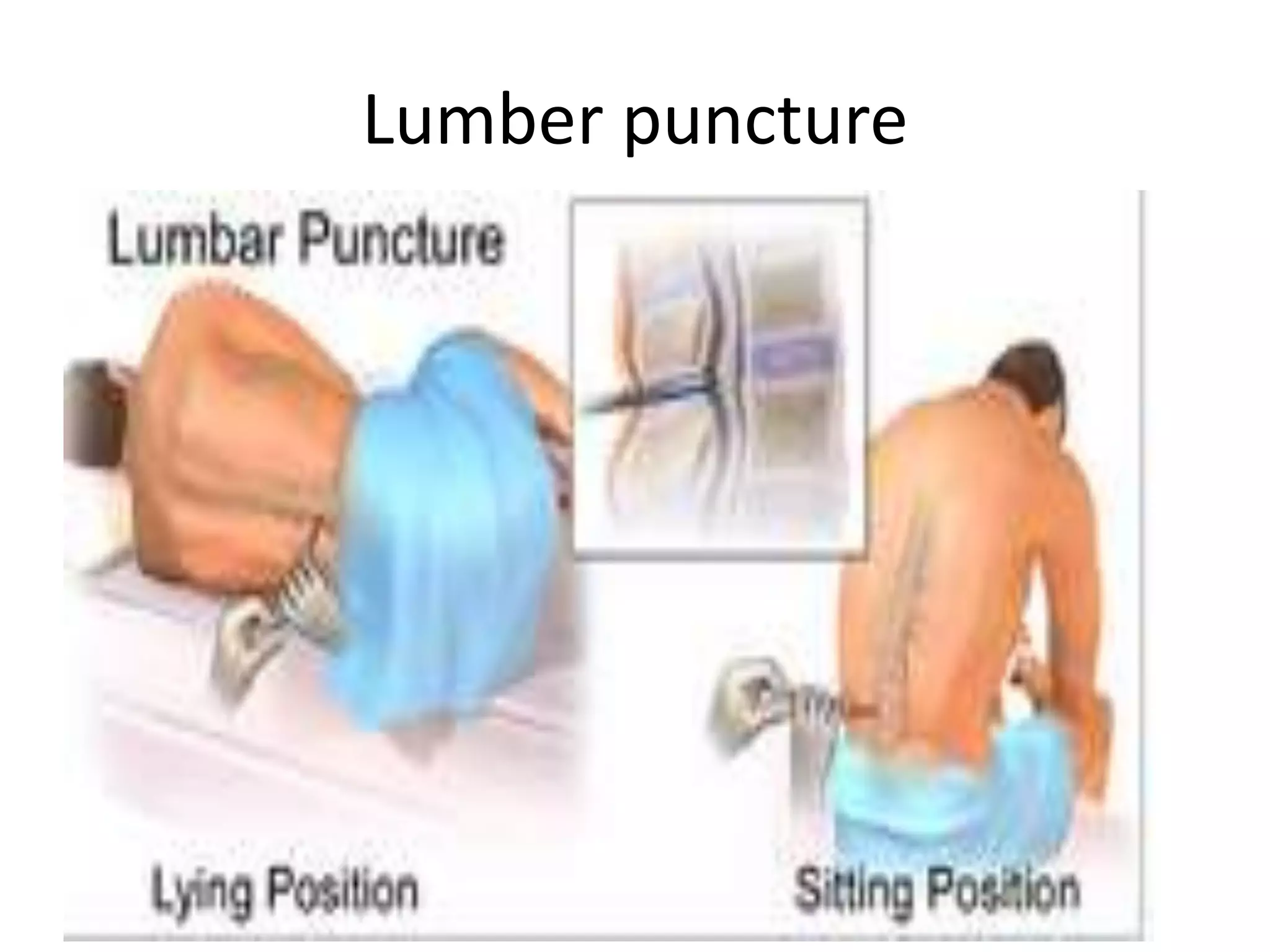

41. Technique For lumber puncture
• Position of patient
• Usually placed on their side(left more
common then right)
• Patient bends the neck so the chin is closed
to the chest, hunches the back, and brings
knee towards the chest(same as fetal
position)
• Also can be done on sitting position on a
stool and bend their head and shoulder
forward.

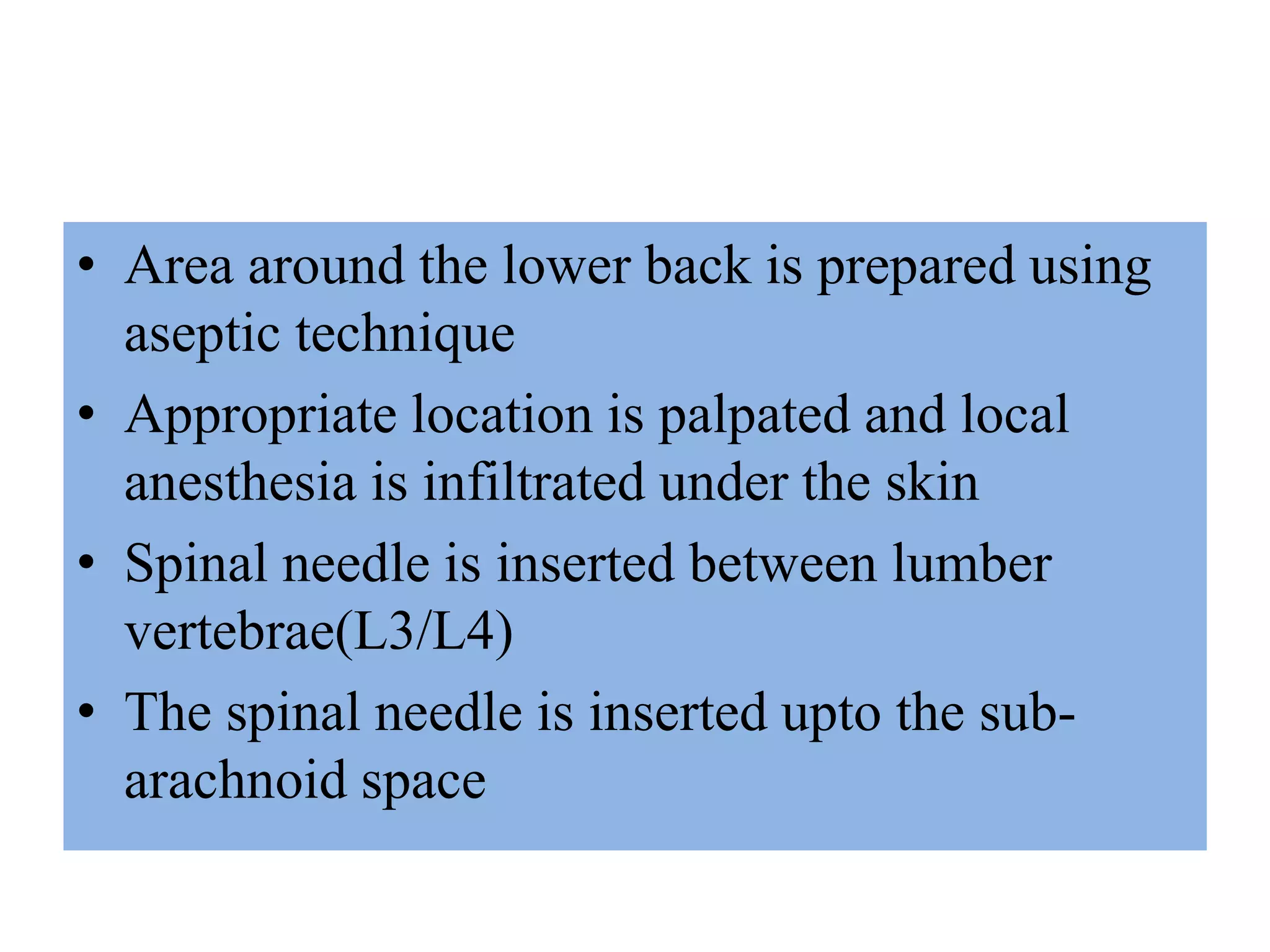

42. • Area around the lower back is prepared using
aseptic technique
• Appropriate location is palpated and local
anesthesia is infiltrated under the skin
• Spinal needle is inserted between lumber
vertebrae(L3/L4)
• The spinal needle is inserted upto the sub-
arachnoid space

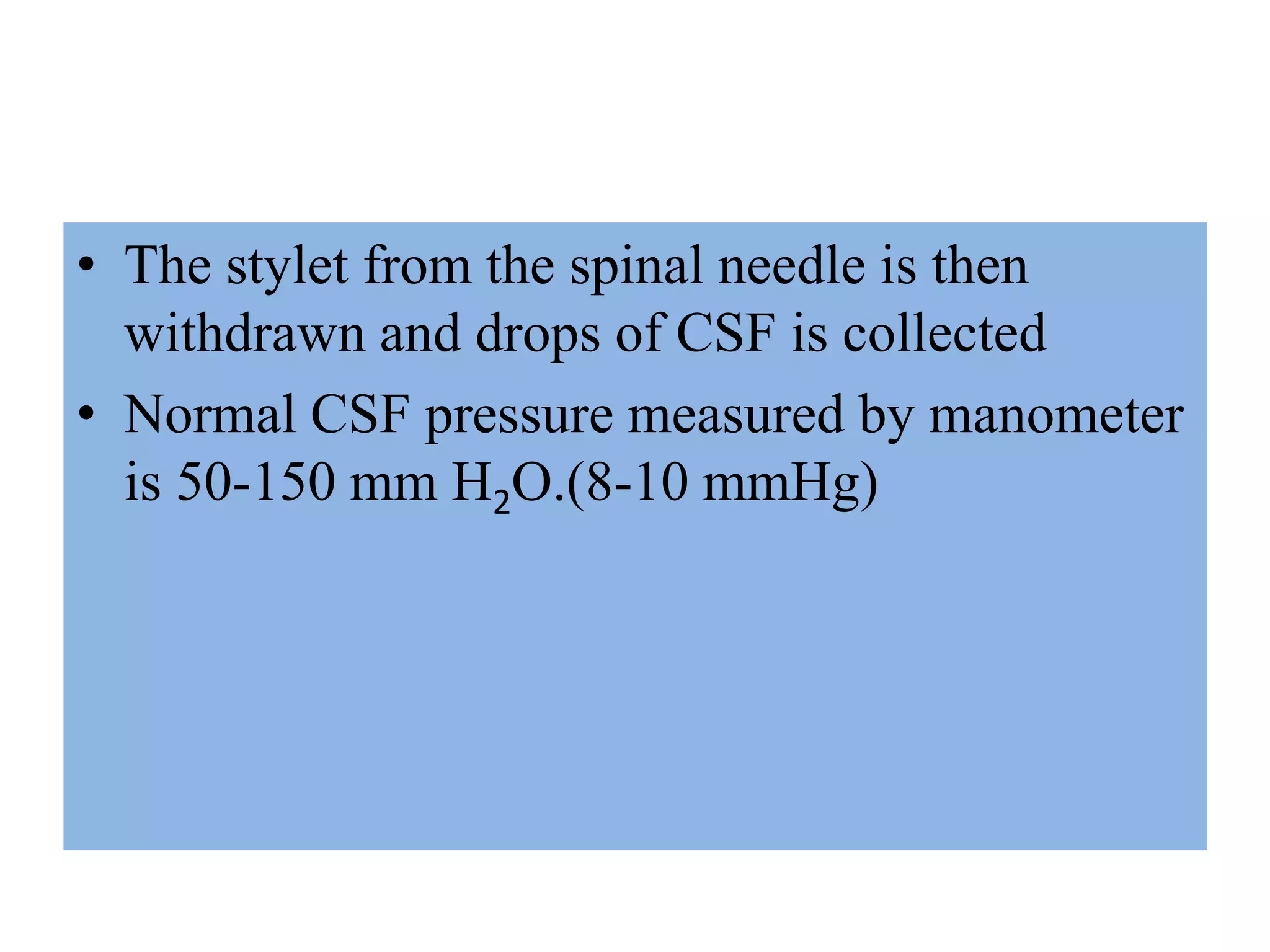

43. • The stylet from the spinal needle is then
withdrawn and drops of CSF is collected
• Normal CSF pressure measured by manometer
is 50-150 mm H2O.(8-10 mmHg)

44. Lumber puncture

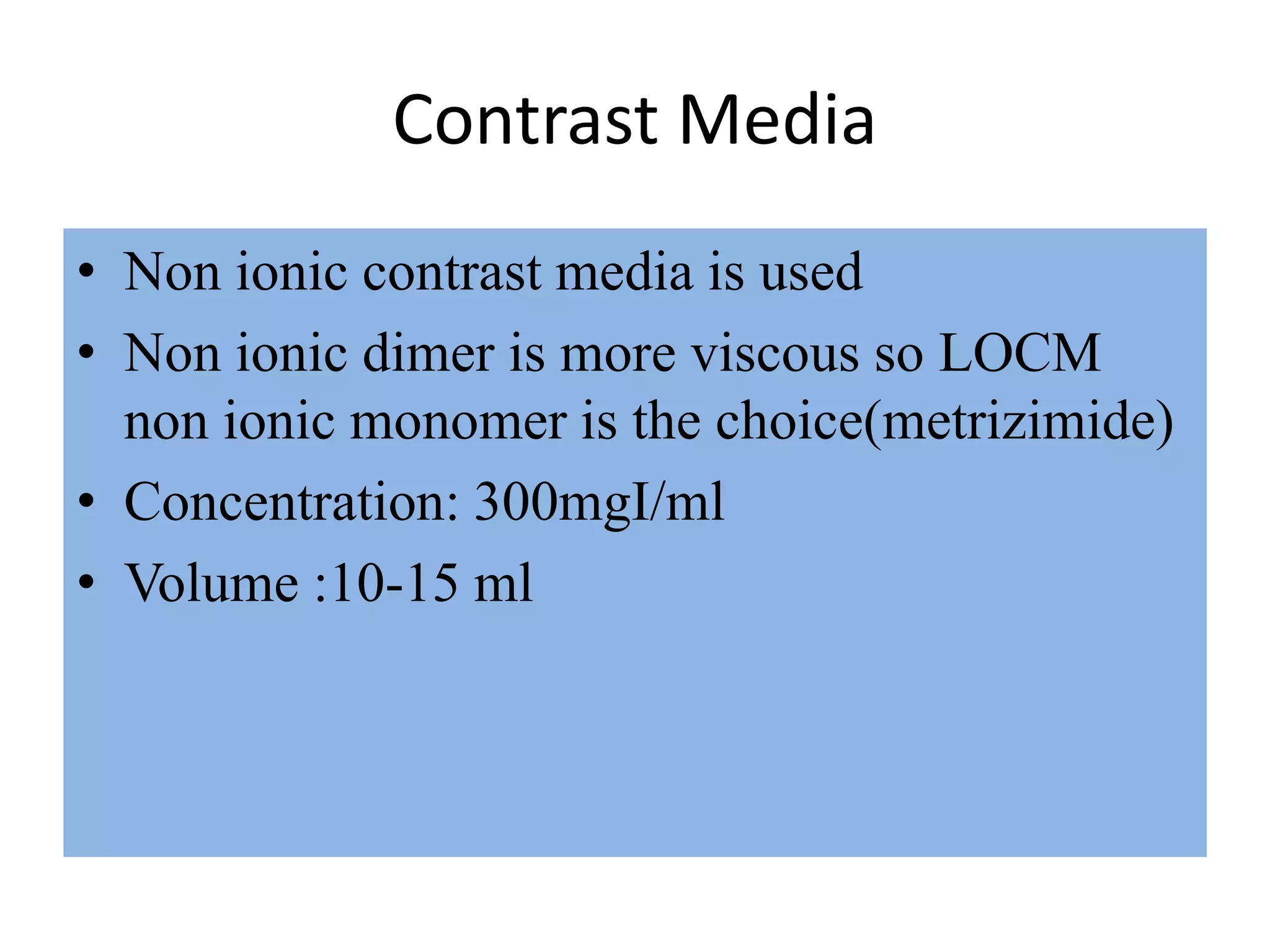

45. Contrast Media
• Non ionic contrast media is used
• Non ionic dimer is more viscous so LOCM
non ionic monomer is the choice(metrizimide)
• Concentration: 300mgI/ml
• Volume :10-15 ml

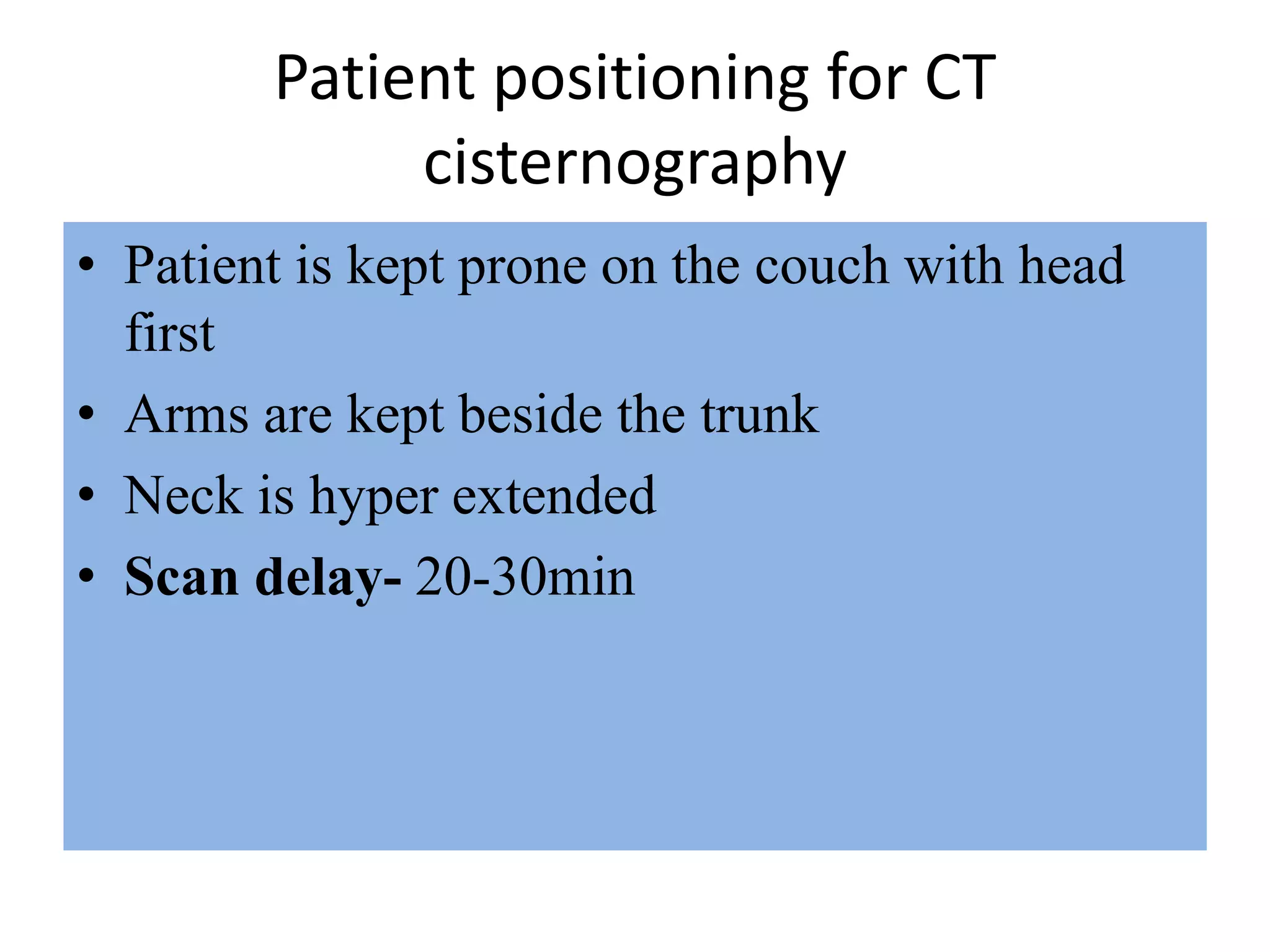

46. Patient positioning for CT
cisternography
• Patient is kept prone on the couch with head
first
• Arms are kept beside the trunk
• Neck is hyper extended
• Scan delay- 20-30min

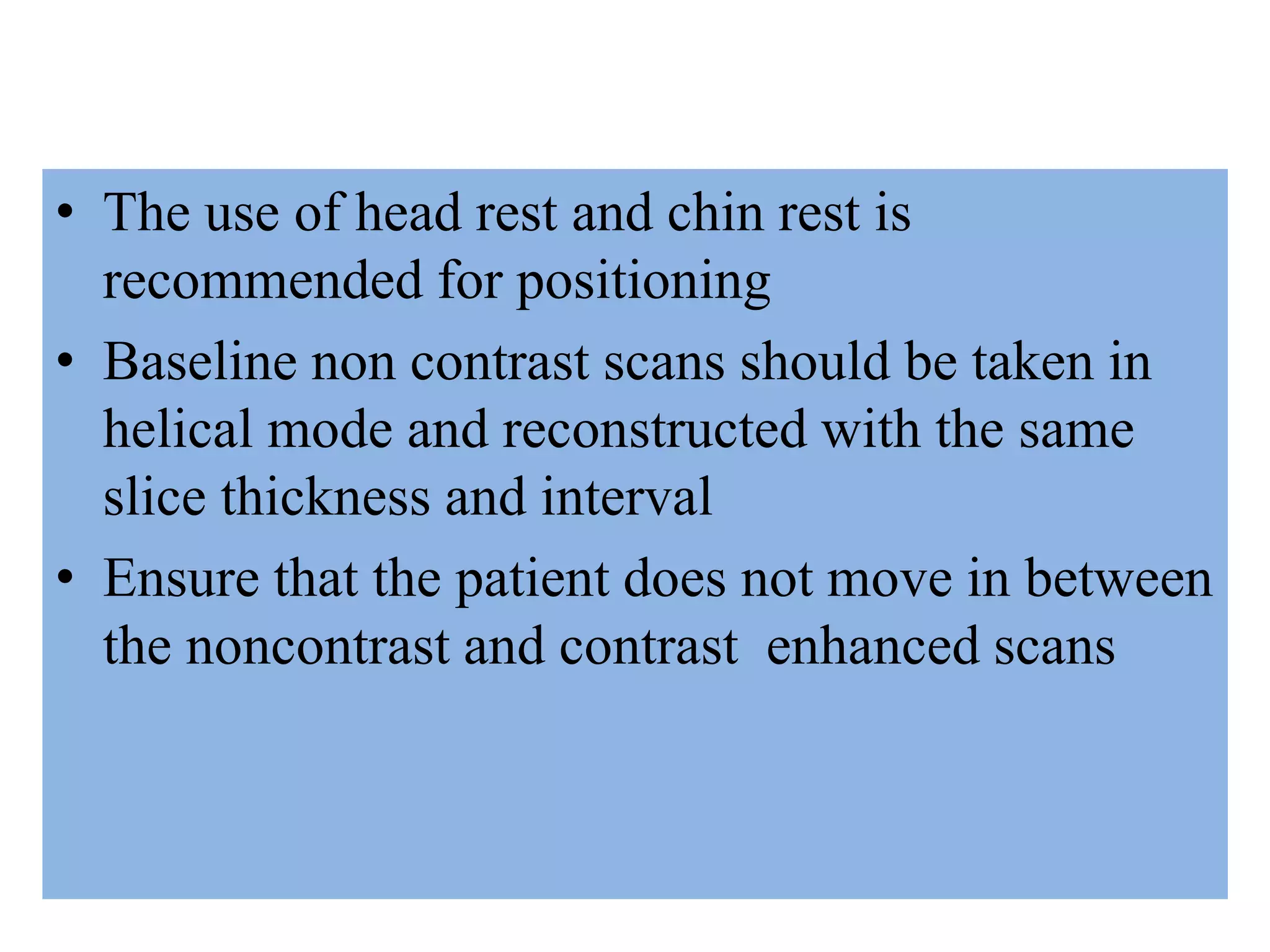

47. • The use of head rest and chin rest is
recommended for positioning
• Baseline non contrast scans should be taken in
helical mode and reconstructed with the same
slice thickness and interval
• Ensure that the patient does not move in between
the noncontrast and contrast enhanced scans

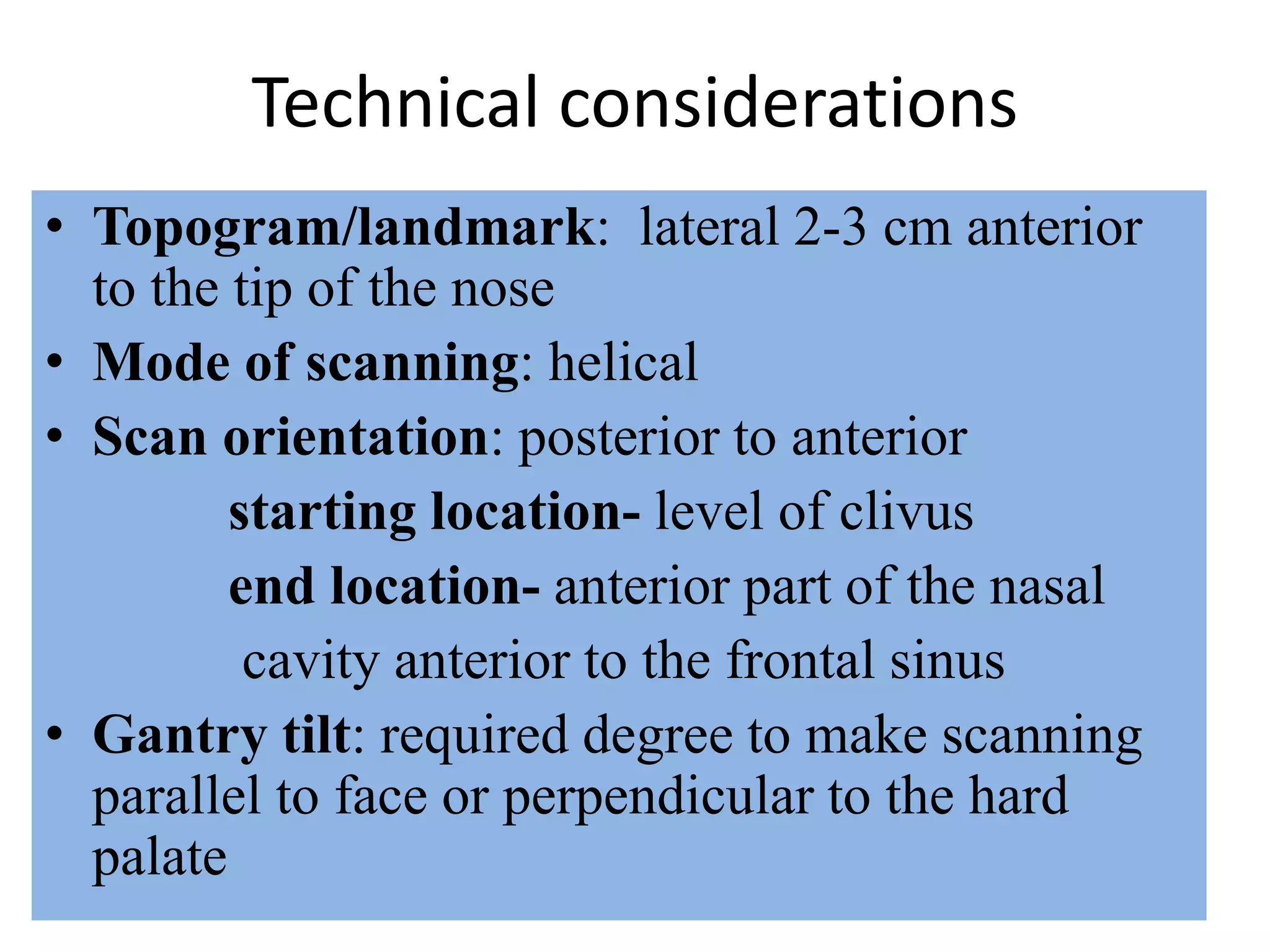

48. Technical considerations
• Topogram/landmark: lateral 2-3 cm anterior
to the tip of the nose
• Mode of scanning: helical
• Scan orientation: posterior to anterior
starting location- level of clivus
end location- anterior part of the nasal
cavity anterior to the frontal sinus
• Gantry tilt: required degree to make scanning
parallel to face or perpendicular to the hard
palate

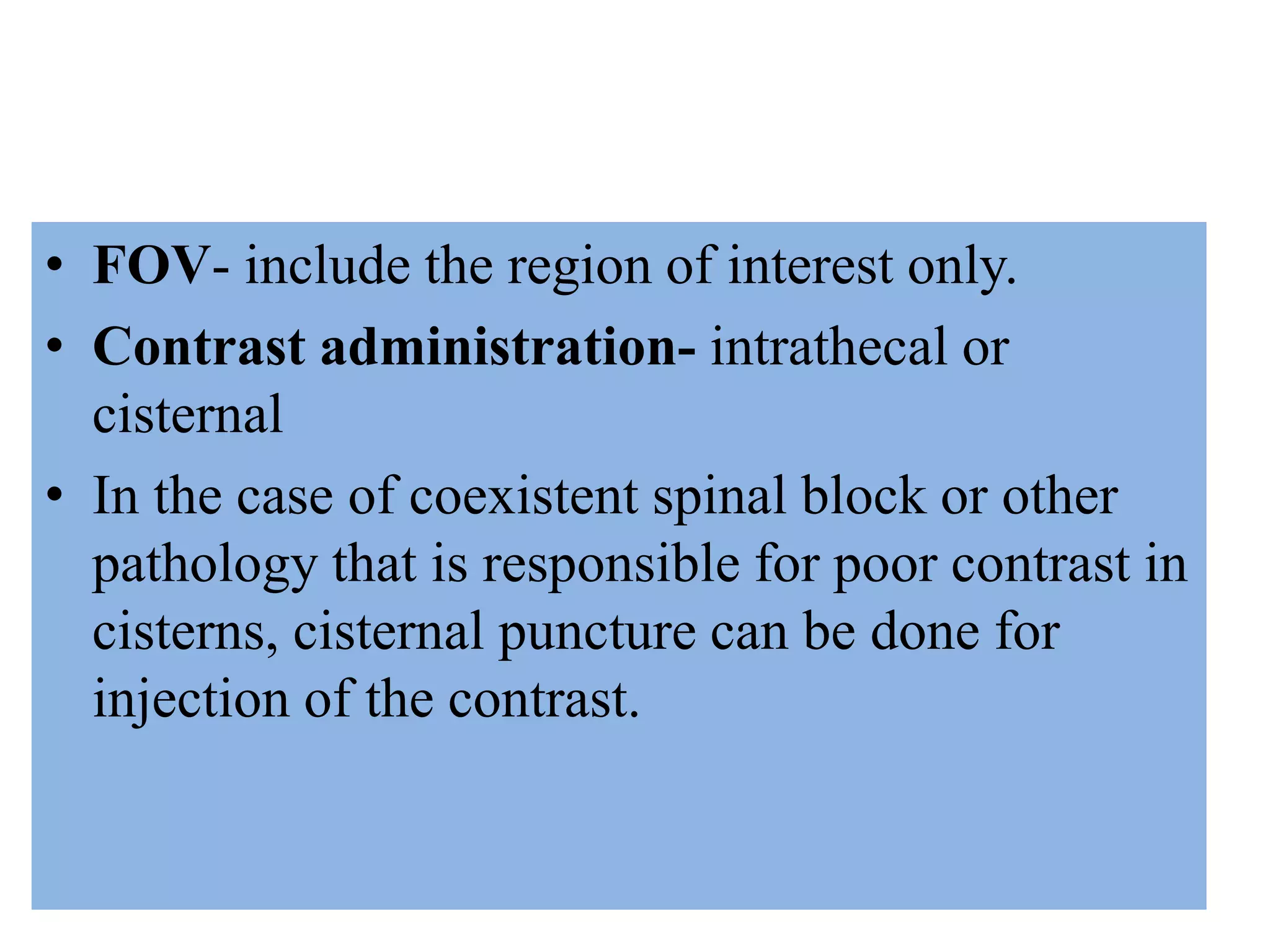

49. • FOV- include the region of interest only.
• Contrast administration- intrathecal or
cisternal
• In the case of coexistent spinal block or other
pathology that is responsible for poor contrast in
cisterns, cisternal puncture can be done for
injection of the contrast.

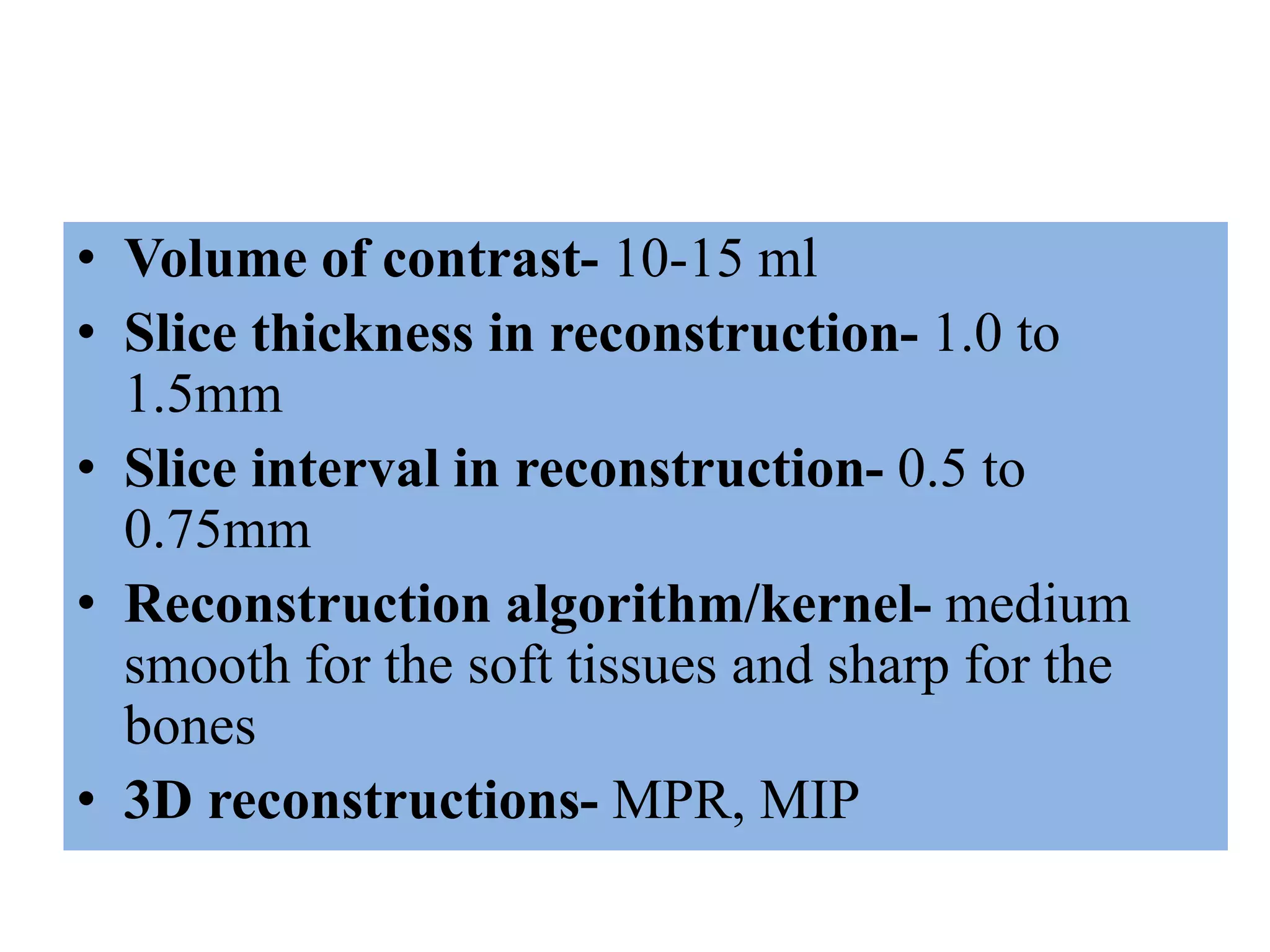

50. • Volume of contrast- 10-15 ml
• Slice thickness in reconstruction- 1.0 to
1.5mm
• Slice interval in reconstruction- 0.5 to
0.75mm
• Reconstruction algorithm/kernel- medium
smooth for the soft tissues and sharp for the
bones
• 3D reconstructions- MPR, MIP

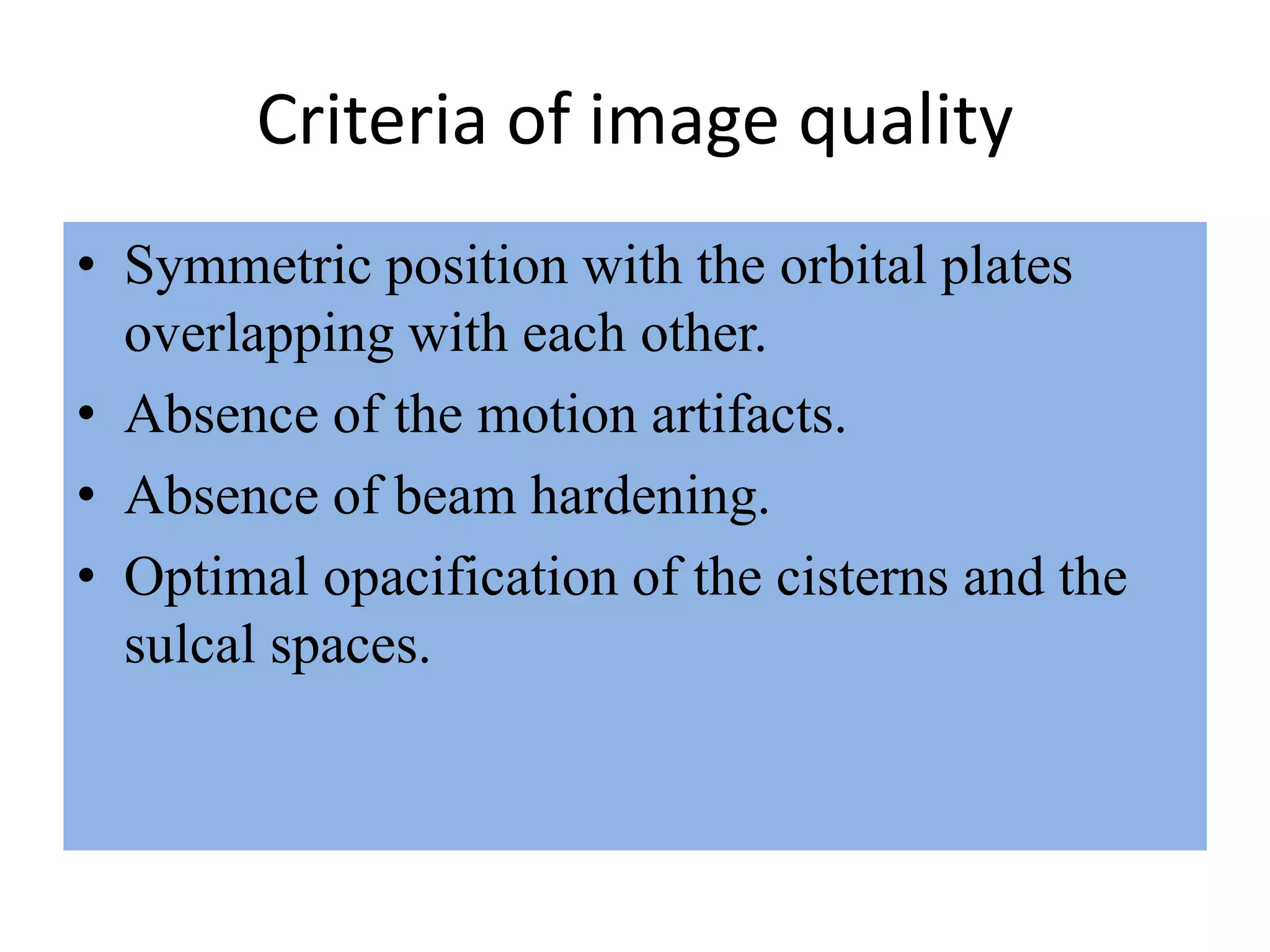

51. Criteria of image quality
• Symmetric position with the orbital plates
overlapping with each other.
• Absence of the motion artifacts.
• Absence of beam hardening.
• Optimal opacification of the cisterns and the
sulcal spaces.

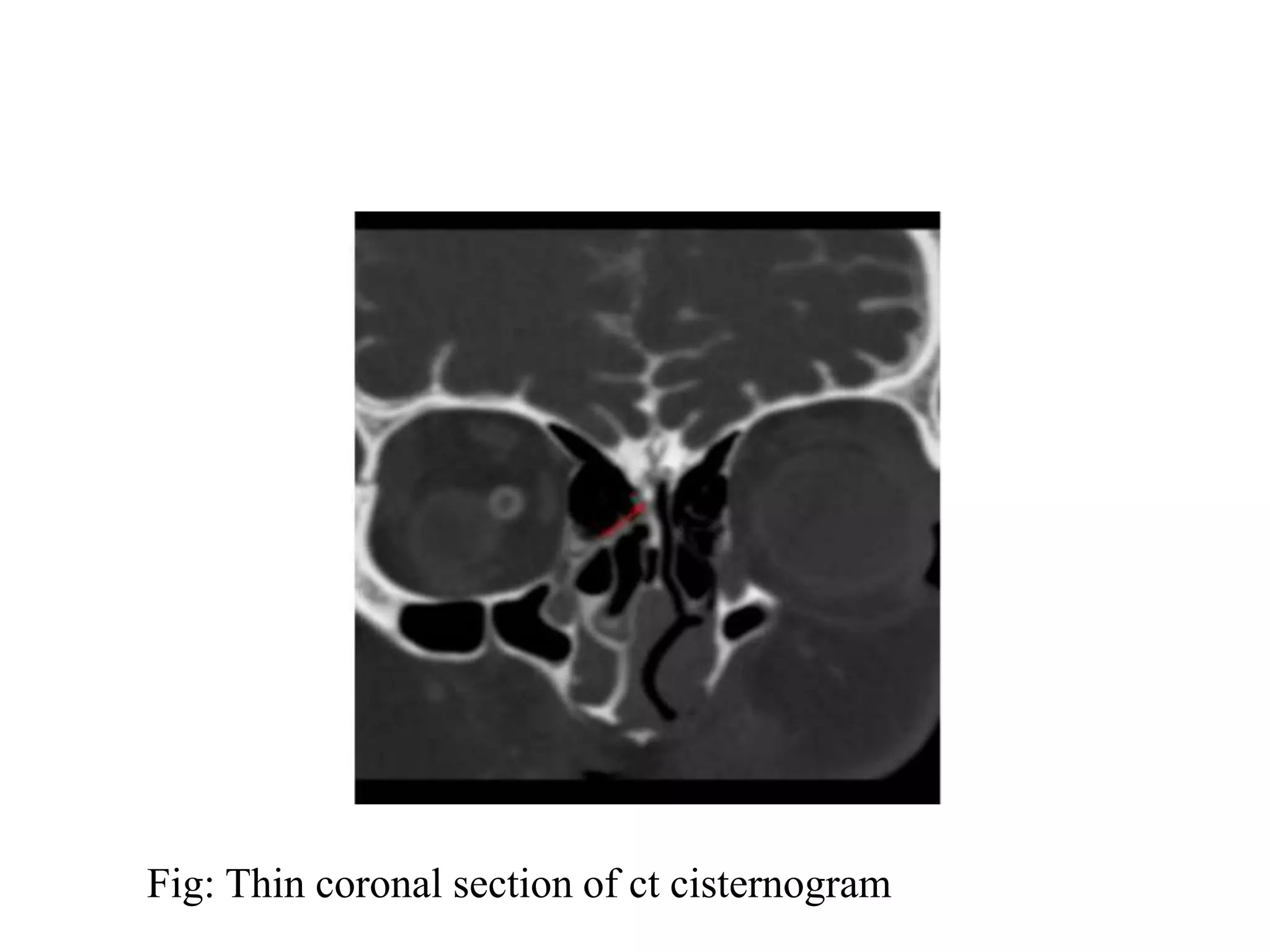

52. Fig: Thin coronal section of ct cisternogram

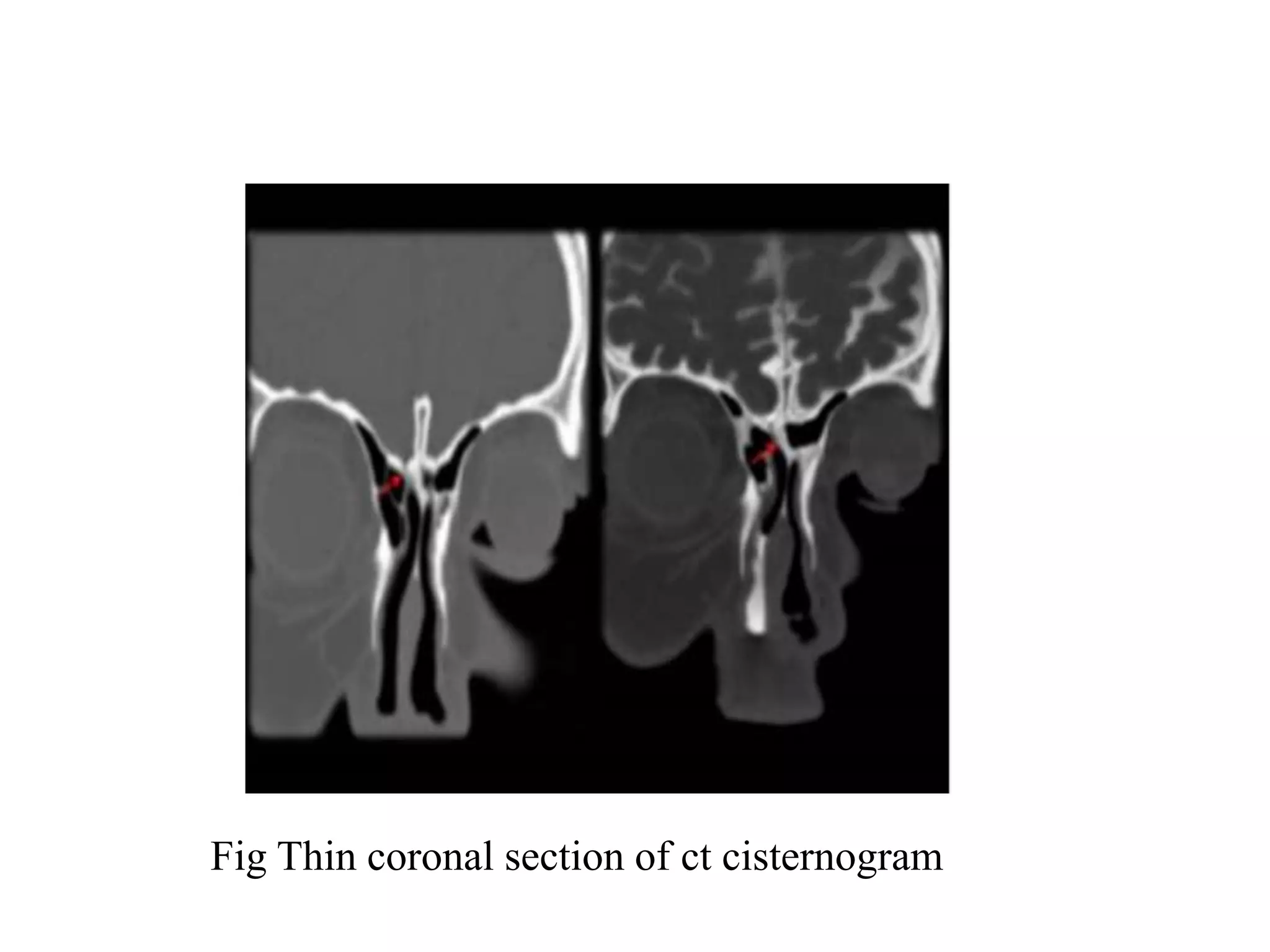

53. Fig Thin coronal section of ct cisternogram

54. Fig: CT Coronal view

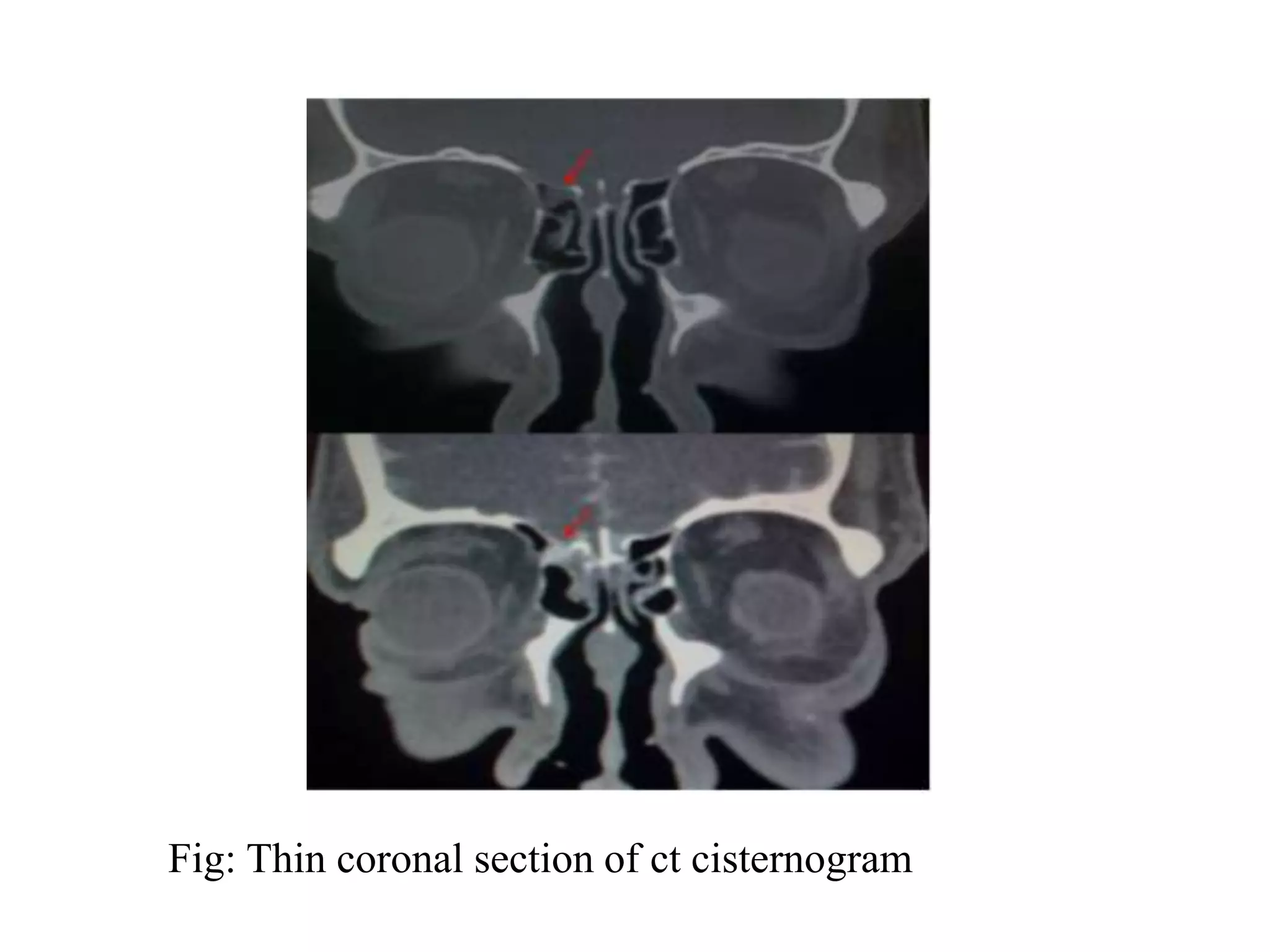

55. Fig: Thin coronal section of ct cisternogram

56. Fig Thin coronal section of ct cisternogram

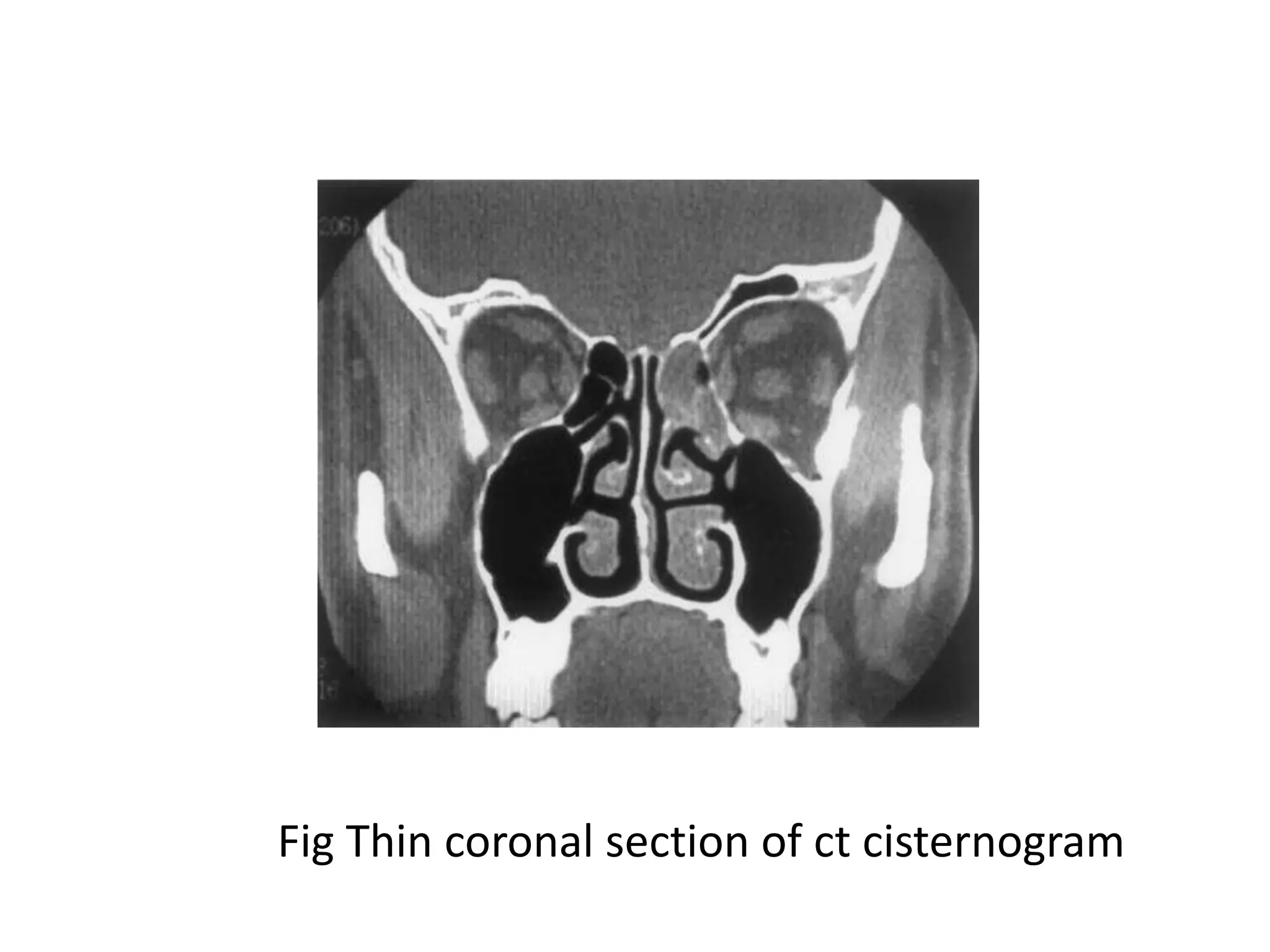

57. Fig Thin coronal section of ct cisternogram

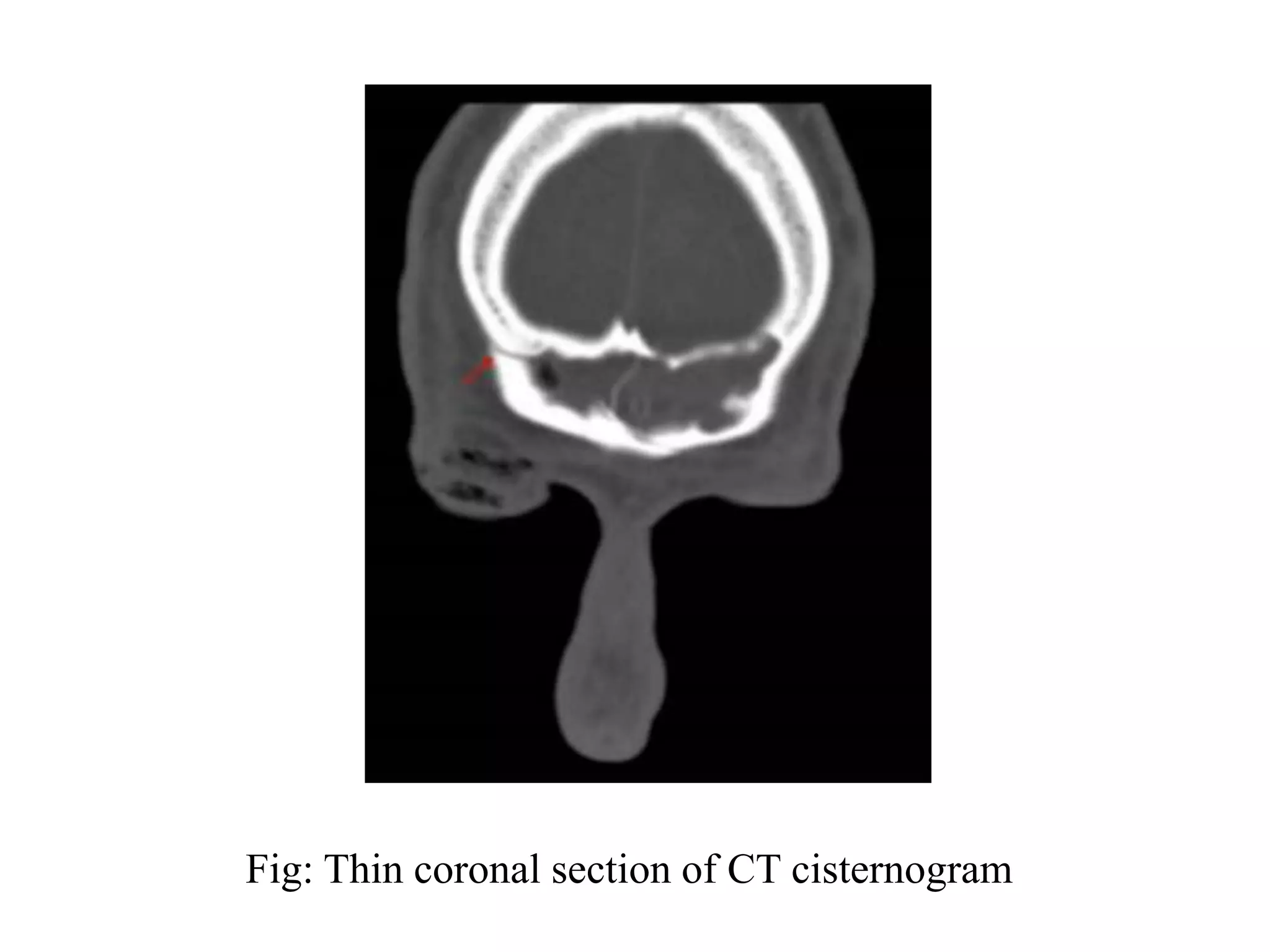

58. Fig: Thin coronal section of CT cisternogram

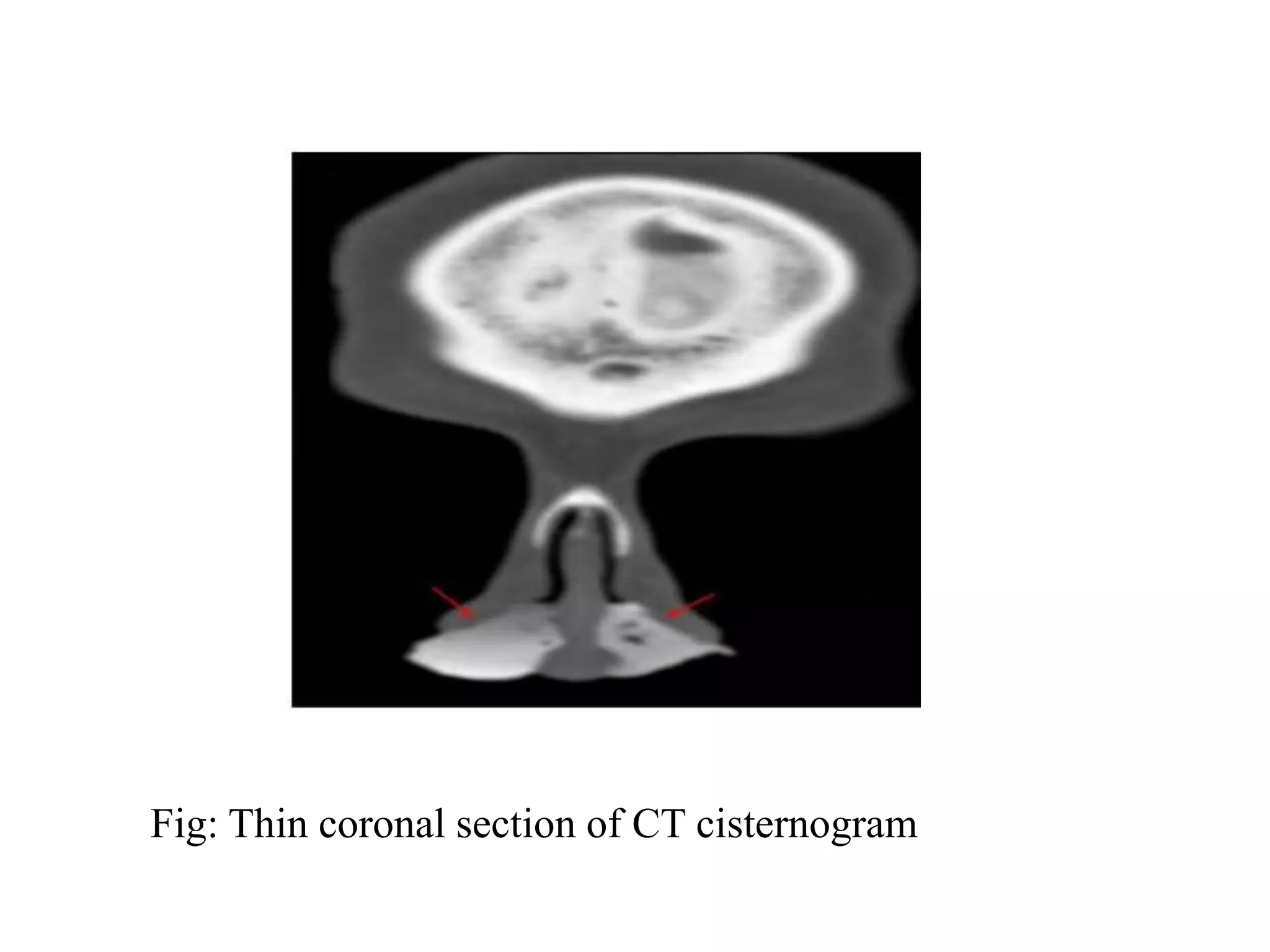

59. Fig: Thin coronal section of CT cisternogram

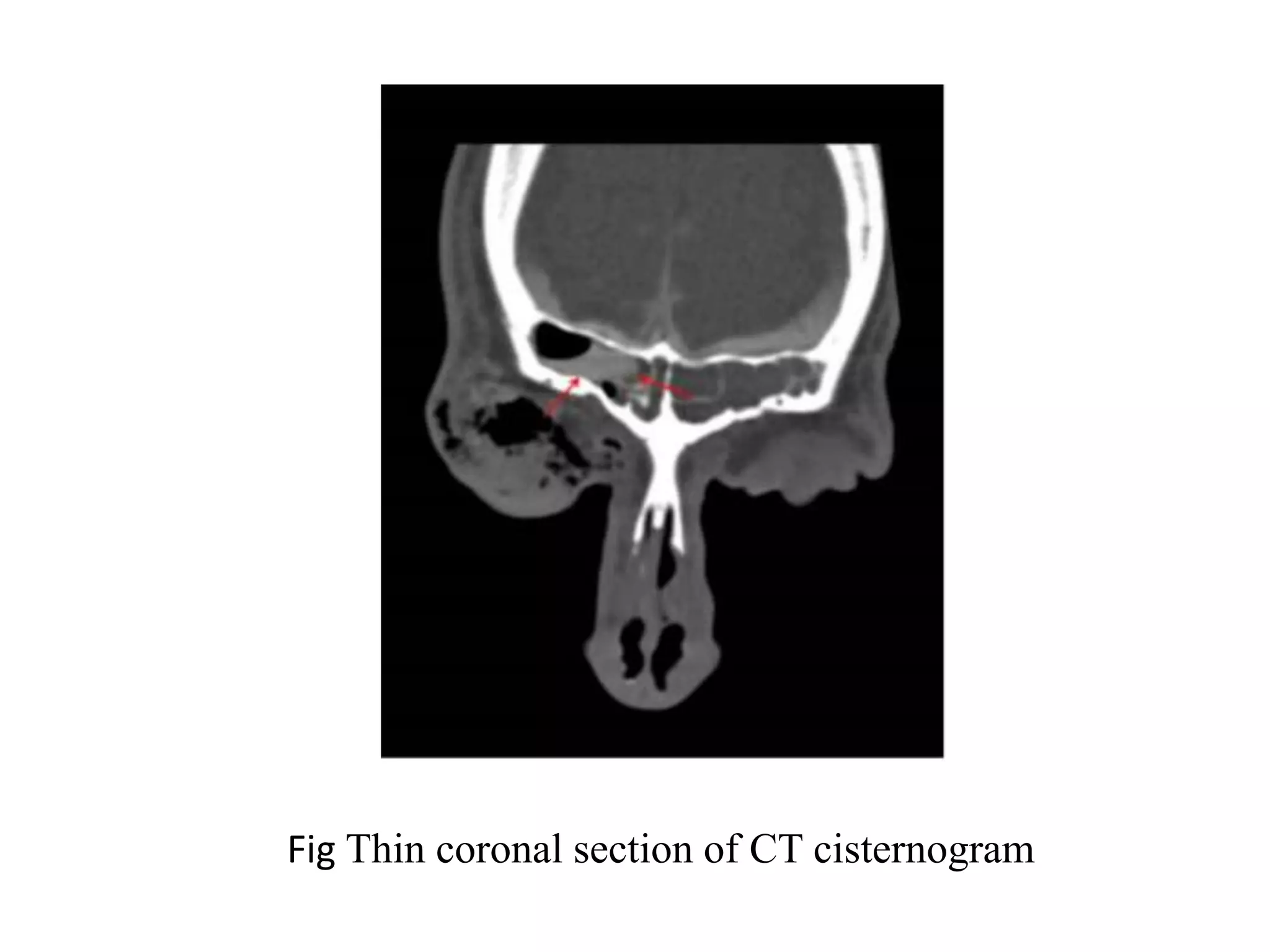

60. Fig Thin coronal section of CT cisternogram

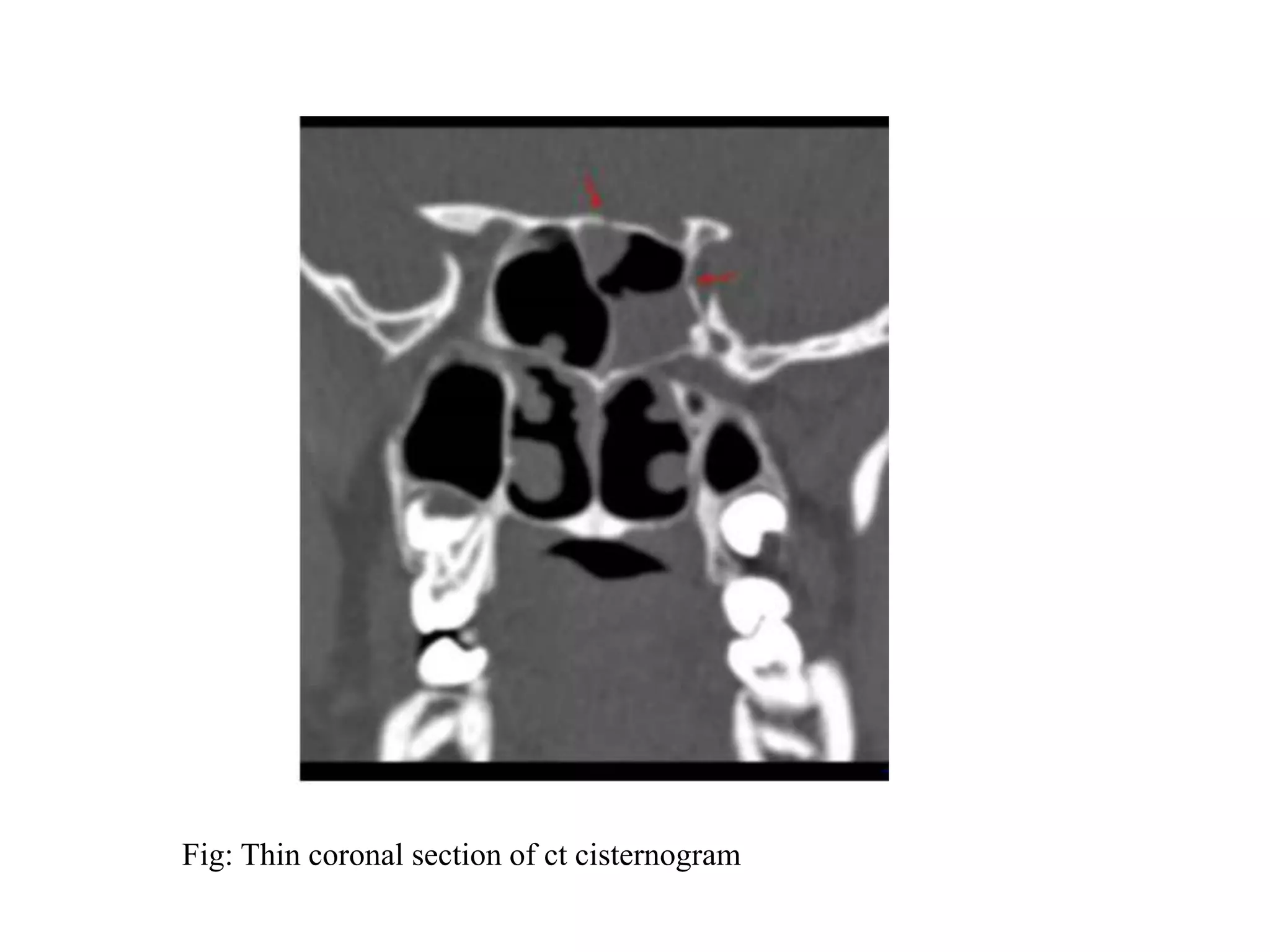

61. Fig: Thin coronal section of ct cisternogram

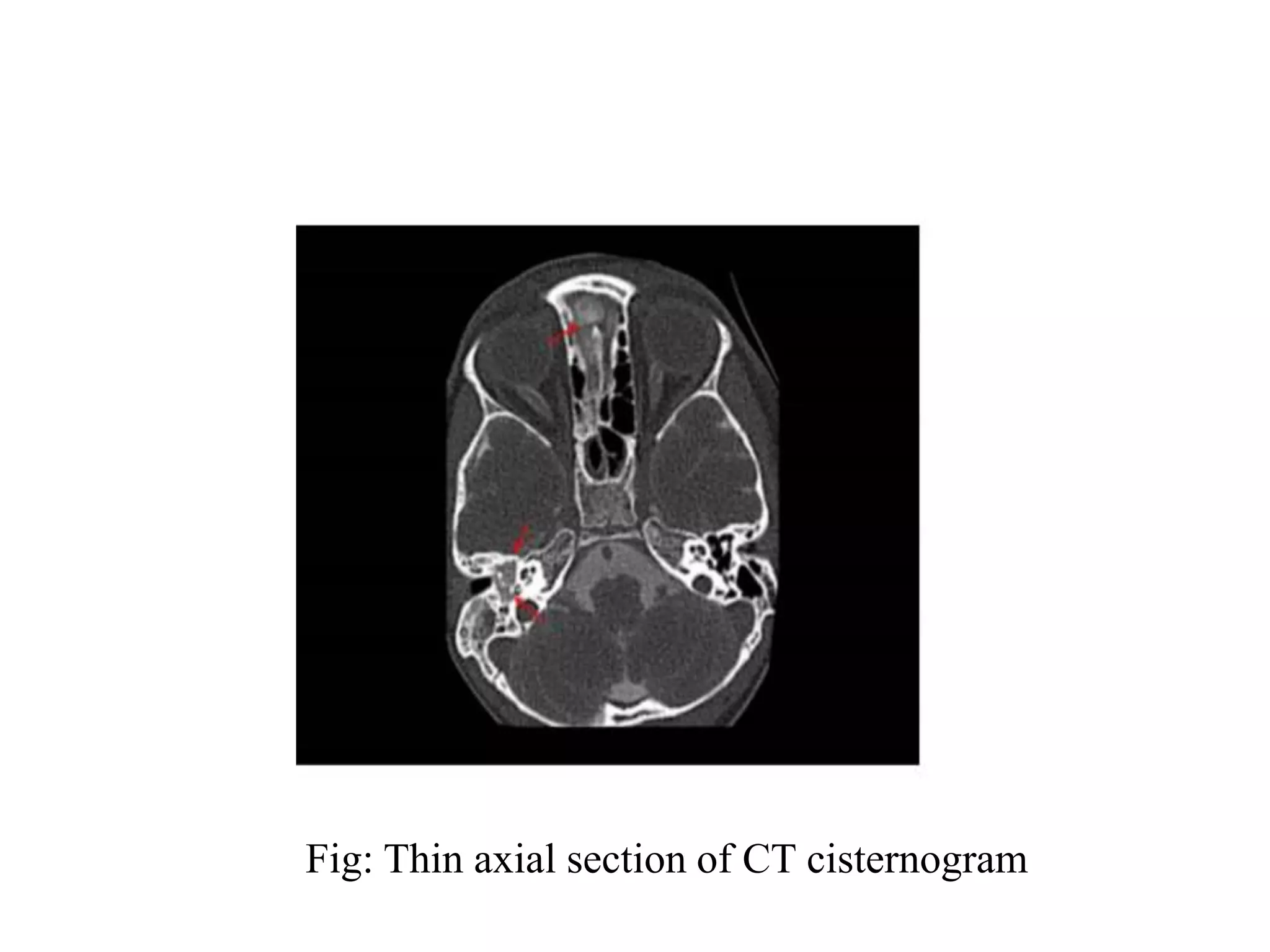

62. Fig: Thin axial section of CT cisternogram

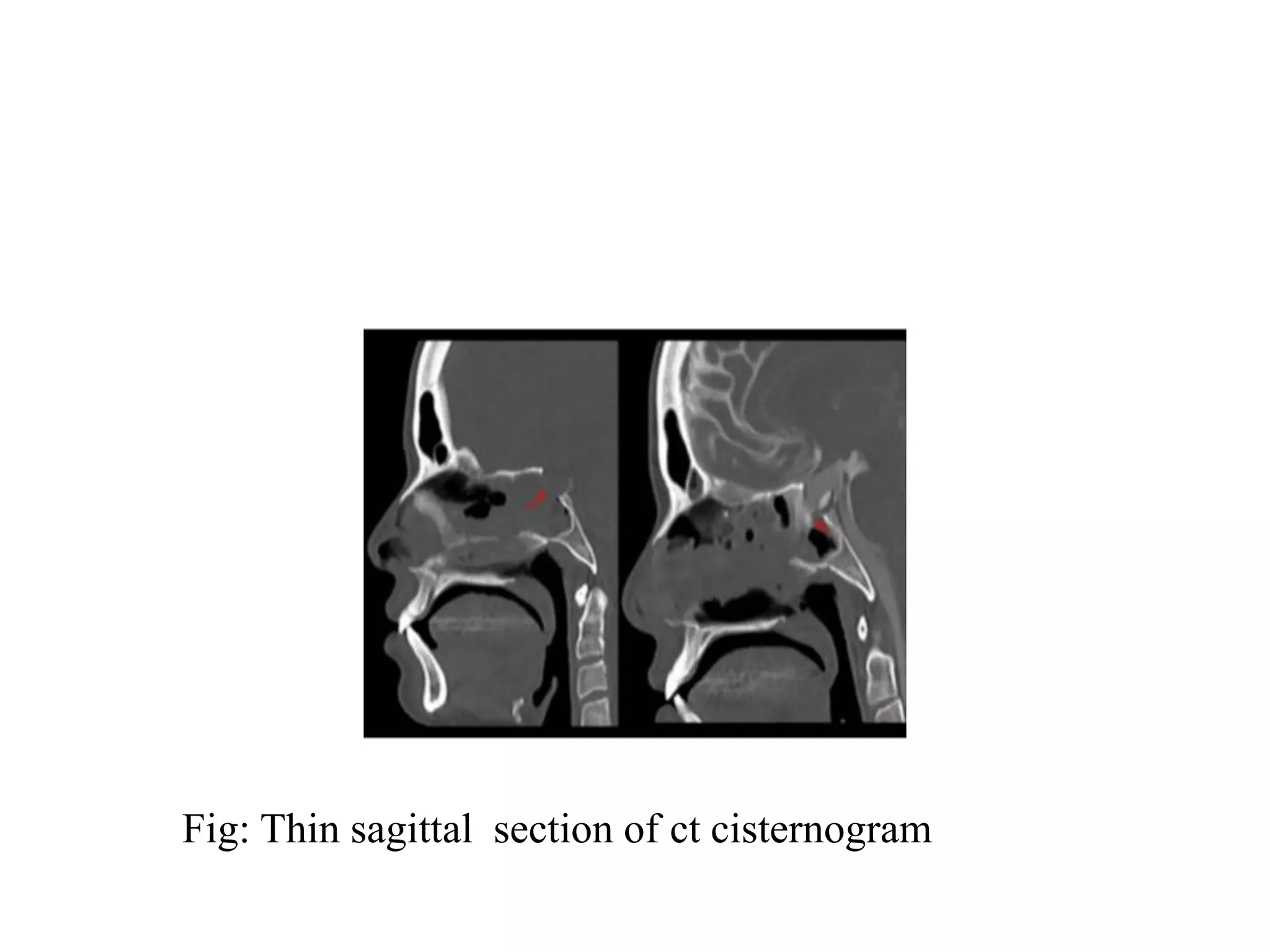

63. Fig: Thin sagittal section of ct cisternogram

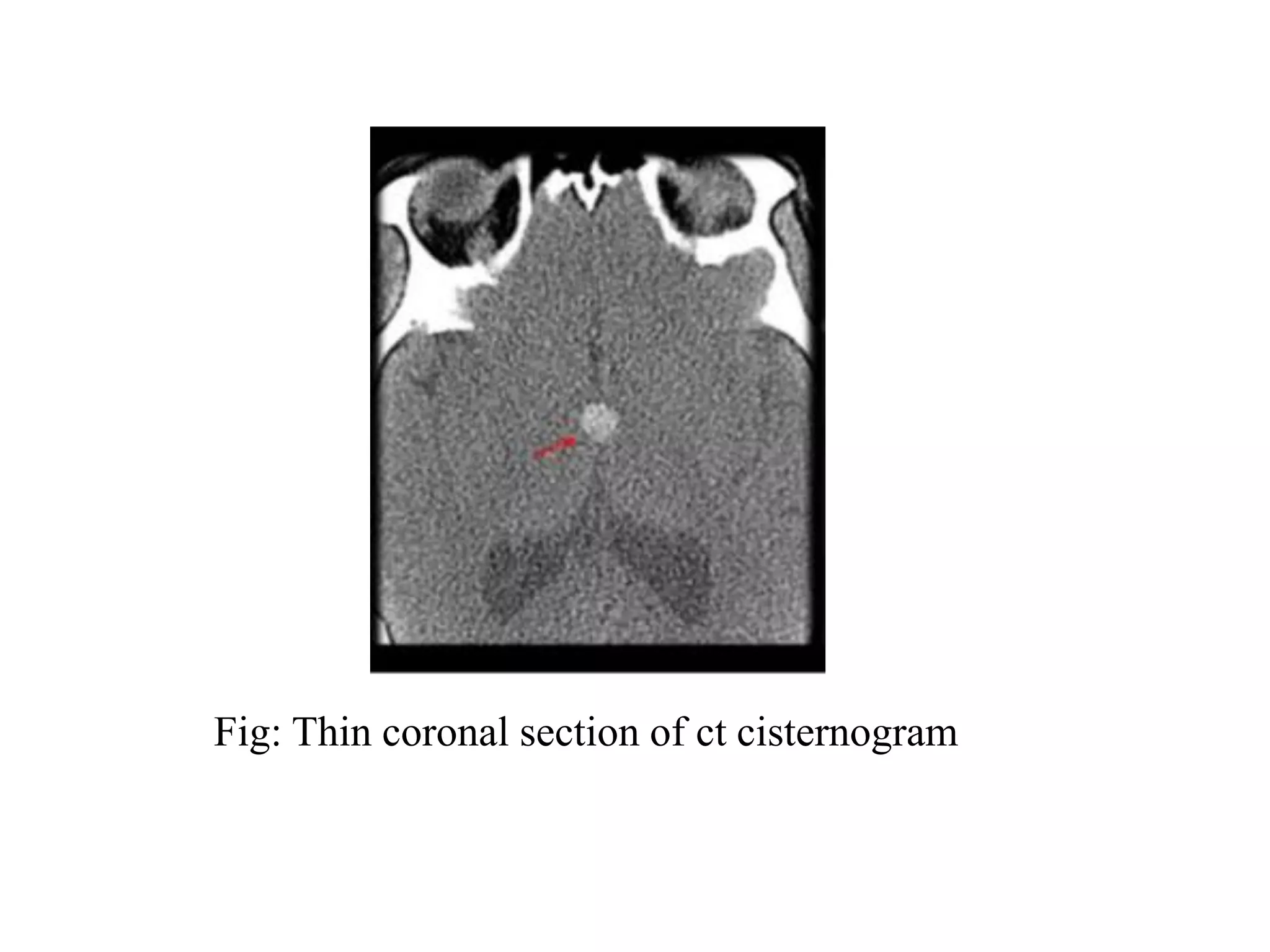

64. Fig: Thin coronal section of ct cisternogram

65. Fig: Radionuclide cisternogram of the head, anterior planar view

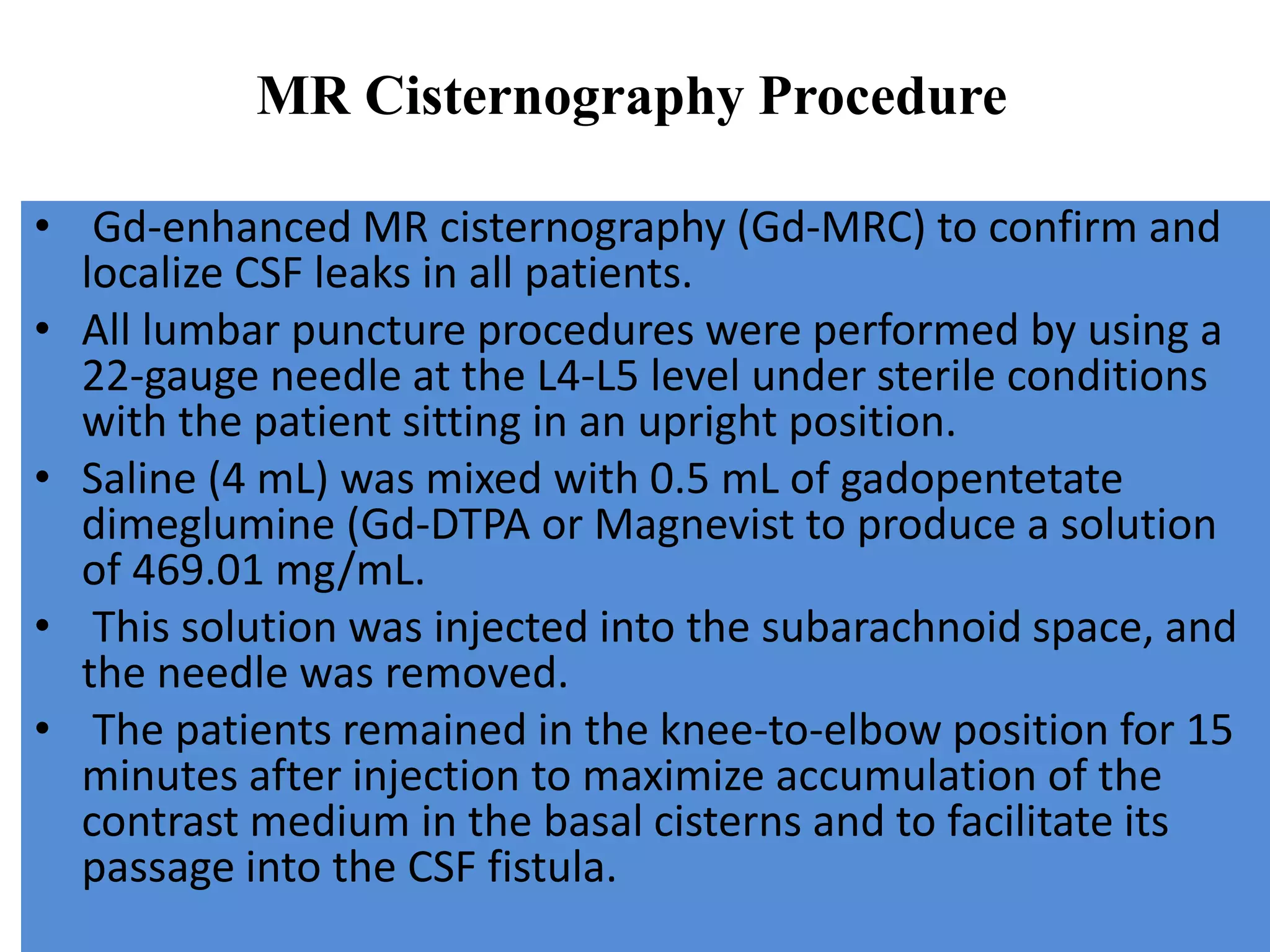

66. • Gd-enhanced MR cisternography (Gd-MRC) to confirm and
localize CSF leaks in all patients.
• All lumbar puncture procedures were performed by using a
22-gauge needle at the L4-L5 level under sterile conditions
with the patient sitting in an upright position.
• Saline (4 mL) was mixed with 0.5 mL of gadopentetate
dimeglumine (Gd-DTPA or Magnevist to produce a solution
of 469.01 mg/mL.
• This solution was injected into the subarachnoid space, and
the needle was removed.
• The patients remained in the knee-to-elbow position for 15
minutes after injection to maximize accumulation of the
contrast medium in the basal cisterns and to facilitate its
passage into the CSF fistula.
MR Cisternography Procedure

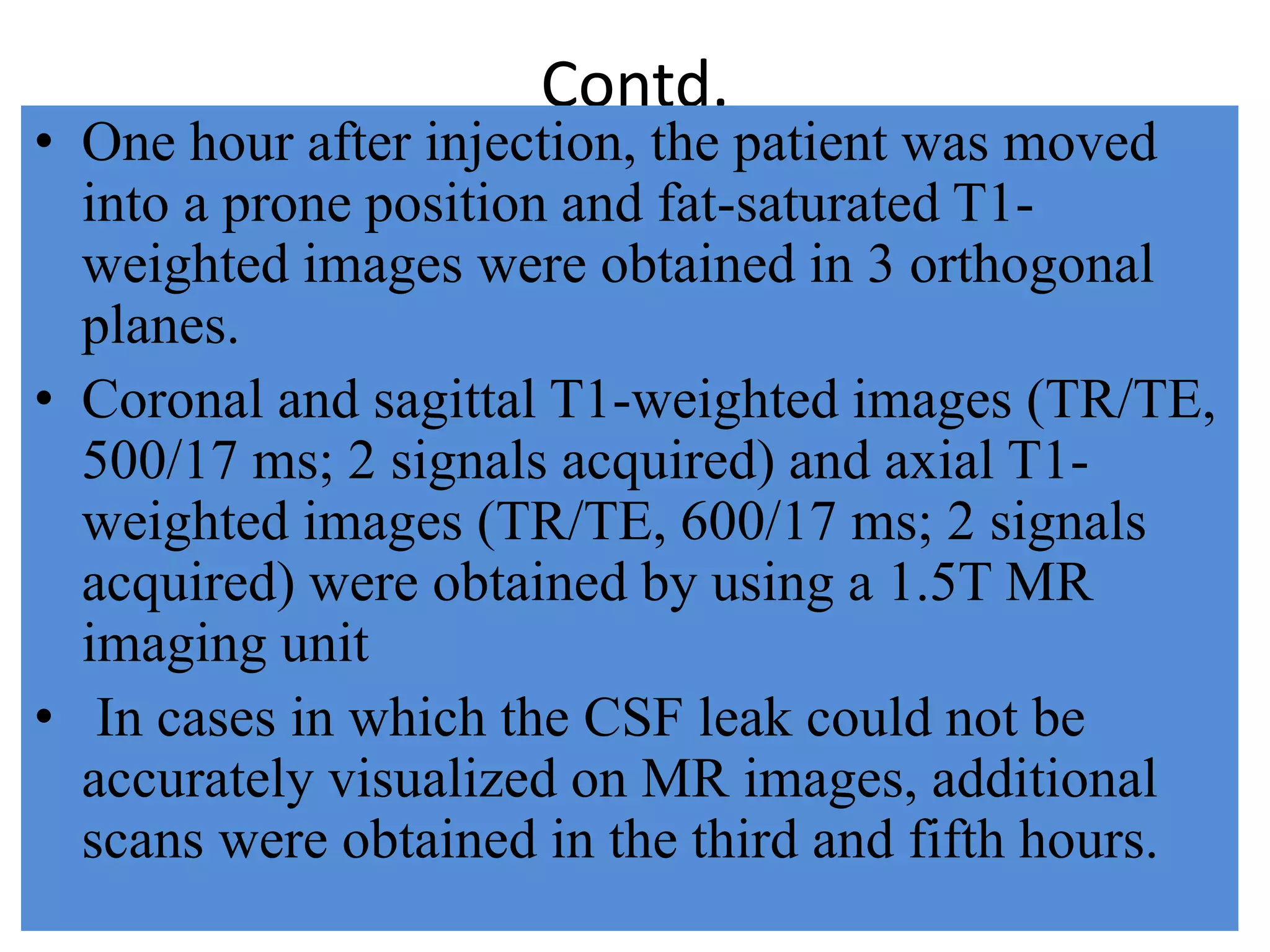

67. Contd.
• One hour after injection, the patient was moved
into a prone position and fat-saturated T1-
weighted images were obtained in 3 orthogonal
planes.
• Coronal and sagittal T1-weighted images (TR/TE,
500/17 ms; 2 signals acquired) and axial T1-
weighted images (TR/TE, 600/17 ms; 2 signals
acquired) were obtained by using a 1.5T MR
imaging unit
• In cases in which the CSF leak could not be
accurately visualized on MR images, additional
scans were obtained in the third and fifth hours.

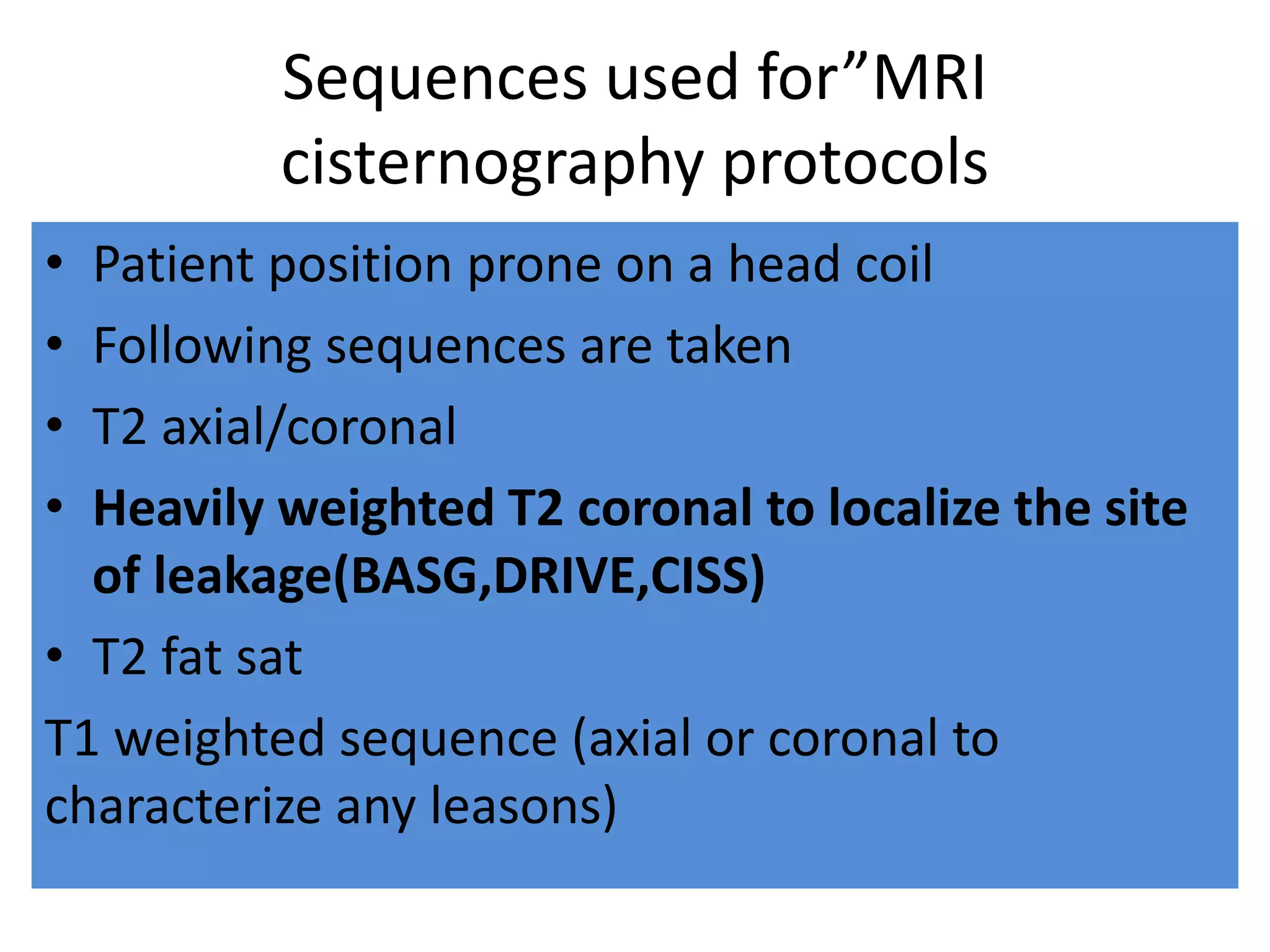

68. Sequences used for”MRI
cisternography protocols
• Patient position prone on a head coil
• Following sequences are taken
• T2 axial/coronal
• Heavily weighted T2 coronal to localize the site
of leakage(BASG,DRIVE,CISS)
• T2 fat sat
T1 weighted sequence (axial or coronal to
characterize any leasons)

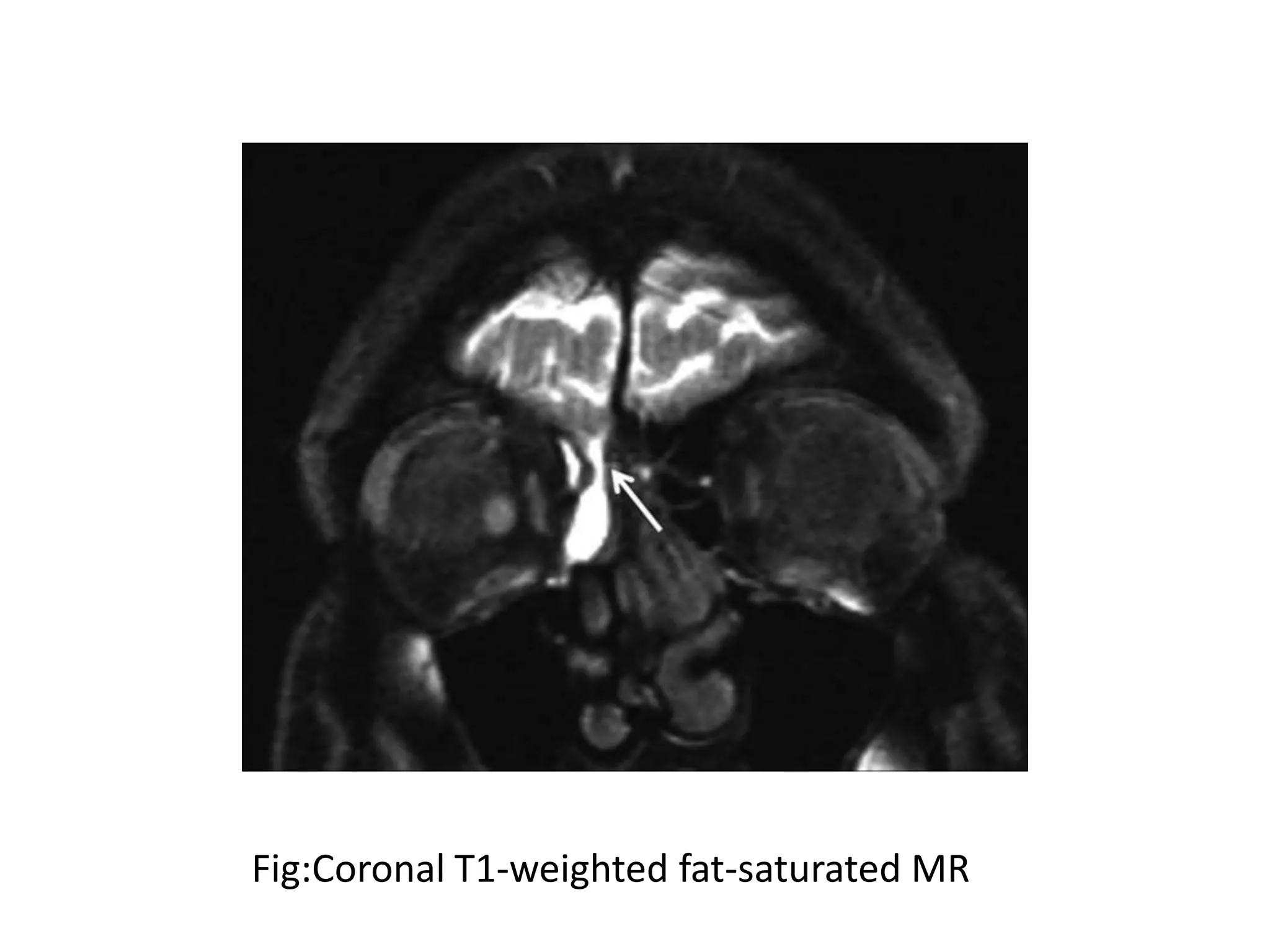

69. Fig:Coronal T1-weighted fat-saturated MR

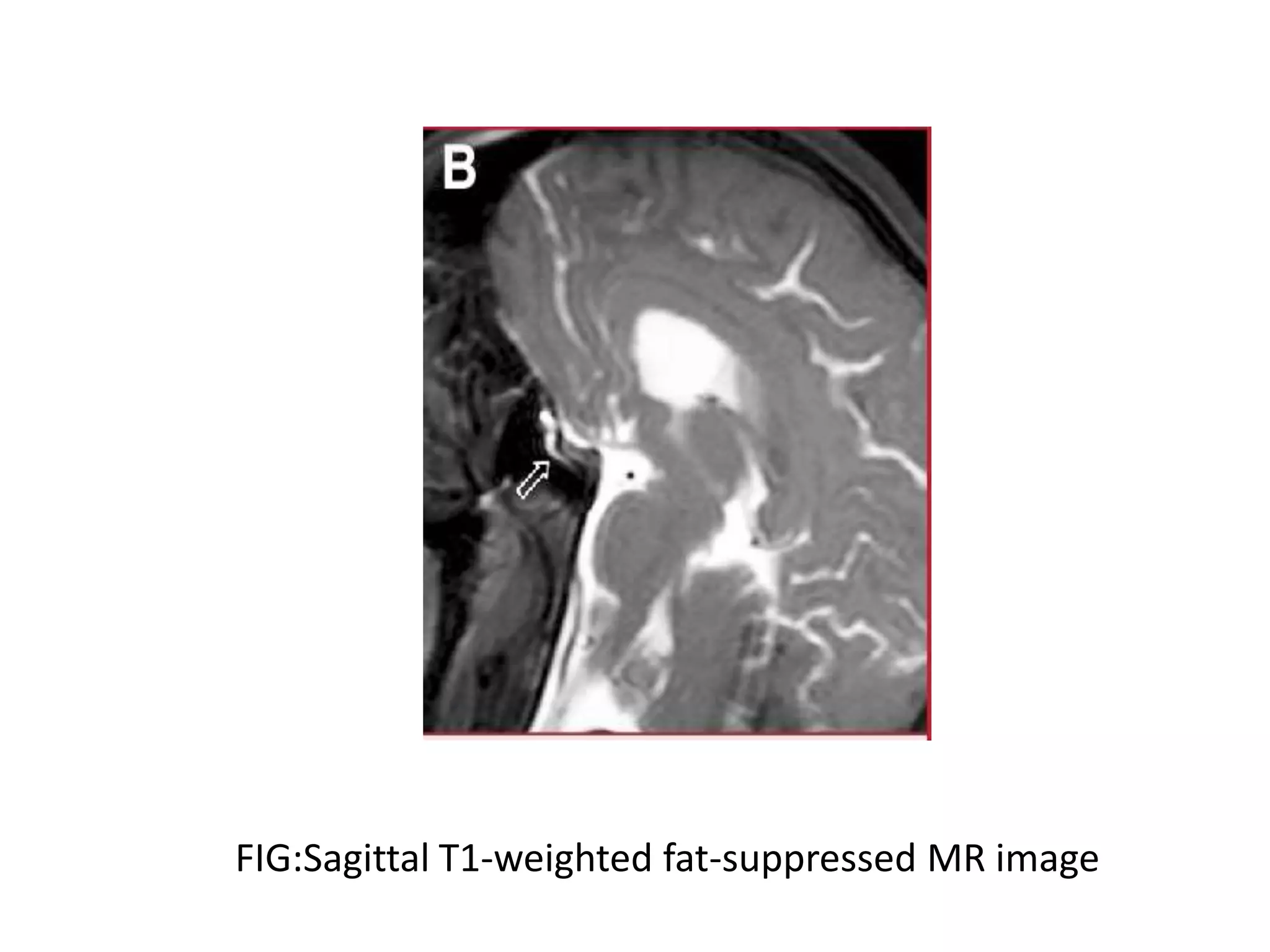

70. FIG:Sagittal T1-weighted fat-suppressed MR image

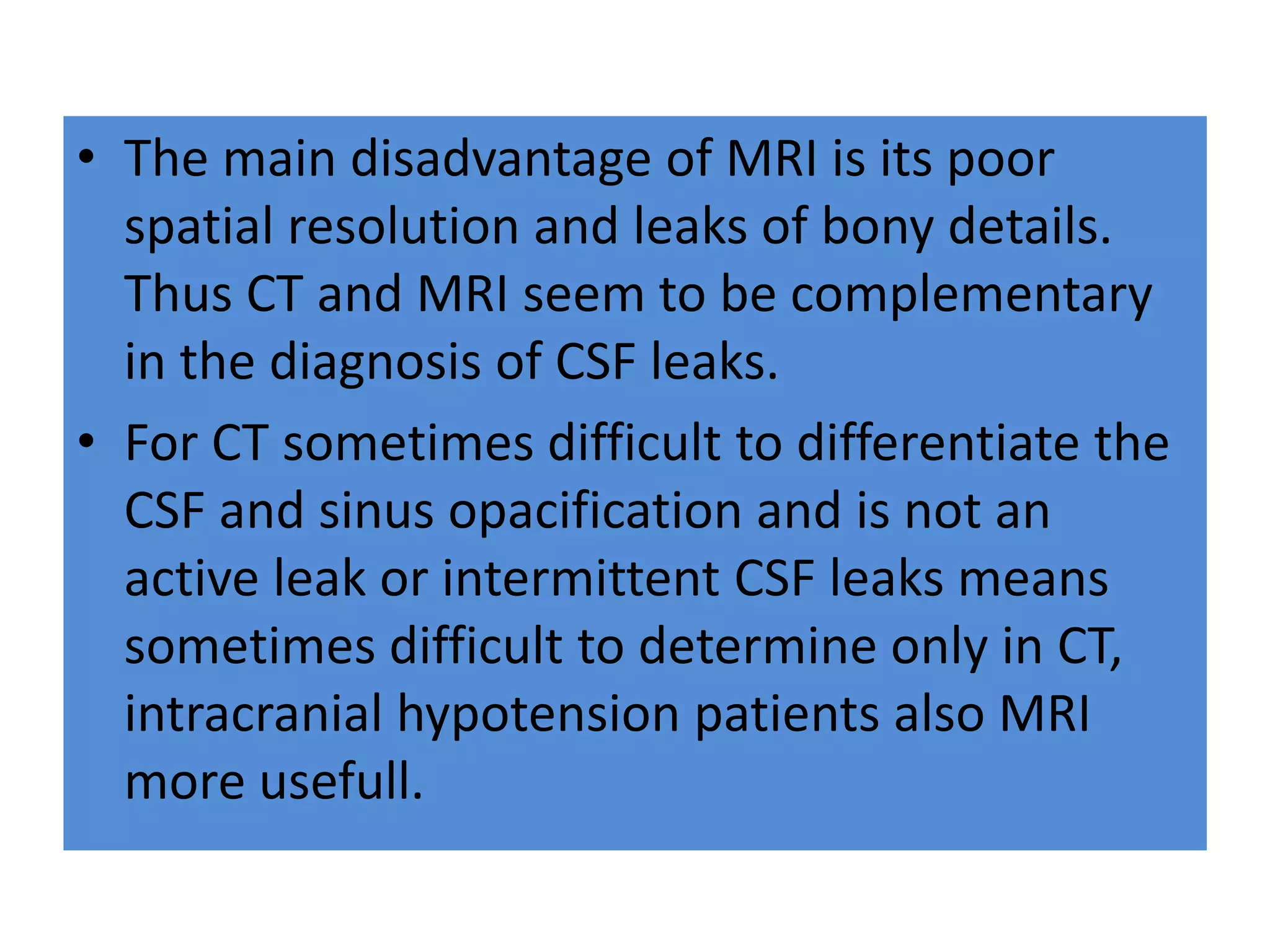

71. • The main disadvantage of MRI is its poor
spatial resolution and leaks of bony details.
Thus CT and MRI seem to be complementary
in the diagnosis of CSF leaks.
• For CT sometimes difficult to differentiate the
CSF and sinus opacification and is not an
active leak or intermittent CSF leaks means
sometimes difficult to determine only in CT,
intracranial hypotension patients also MRI
more usefull.

72. References
1)Intrathecal Gadolinium-Enhanced MR Cisternography
in the Evaluation of CSF Leakage H. Selcuk, S. Albayram,
H. Ozer, S
2)Combined HRCT and MRI in the Detection of CSF
RhinorrheaBadr Eldin Mostafa, M.D.1 and Ahmed
Khafagi, M.D
3)Current Approach to Cerebrospinal Fluid Rhinorrhea
Diagnosis and Management Ibrahim Sumaily,
Otorhinolaryngologist, Asir central Hospital, Abha, KSA,
Saudi Journal of Otolaryngology-ENT Research
4)www.myESR.com
5)Radiopedia.org

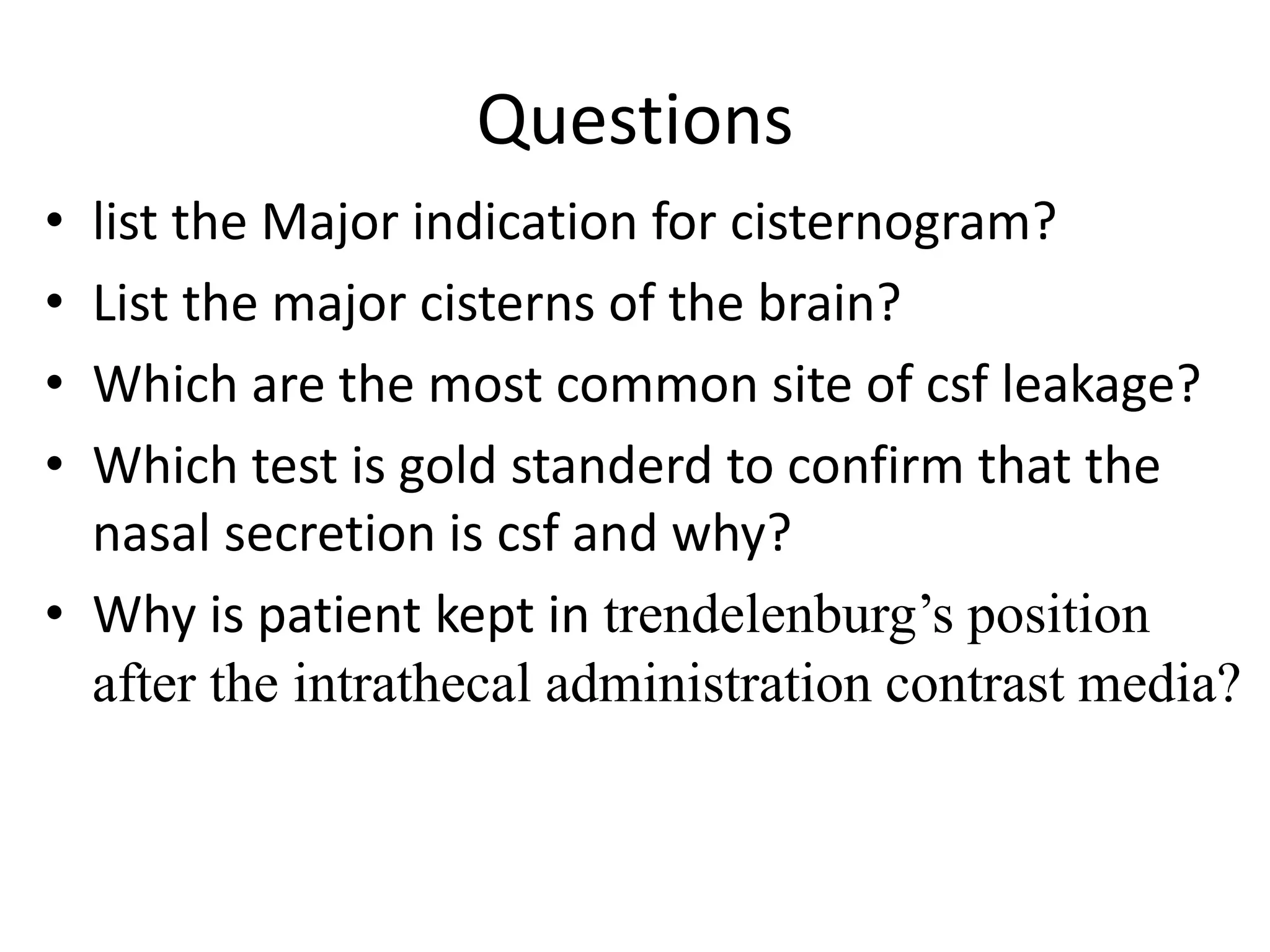

73. Questions
• list the Major indication for cisternogram?
• List the major cisterns of the brain?
• Which are the most common site of csf leakage?
• Which test is gold standerd to confirm that the
nasal secretion is csf and why?
• Why is patient kept in trendelenburg’s position
after the intrathecal administration contrast media?
