We present a new open source project which provides IPv6 networking for Linux Containers by generating programs for each individual container on the fly and then runs them as JITed BPF code in the kernel. By generating and compiling the code, the program is reduced to the minimally required feature set and then heavily optimised by the compiler as parameters become plain variables. The upcoming addition of the Express Data Plane (XDP) to the kernel will make this approach even more efficient as the programs will get invoked directly from the network driver.

1. Cilium:
Fast IPv6 Container Networking with
BPF and XDP
LinuxCon 2016, Toronto
Thomas Graf (@tgraf__)
Kernel, Cilium & Open vSwitch Team
Noiro Networks (Cisco)

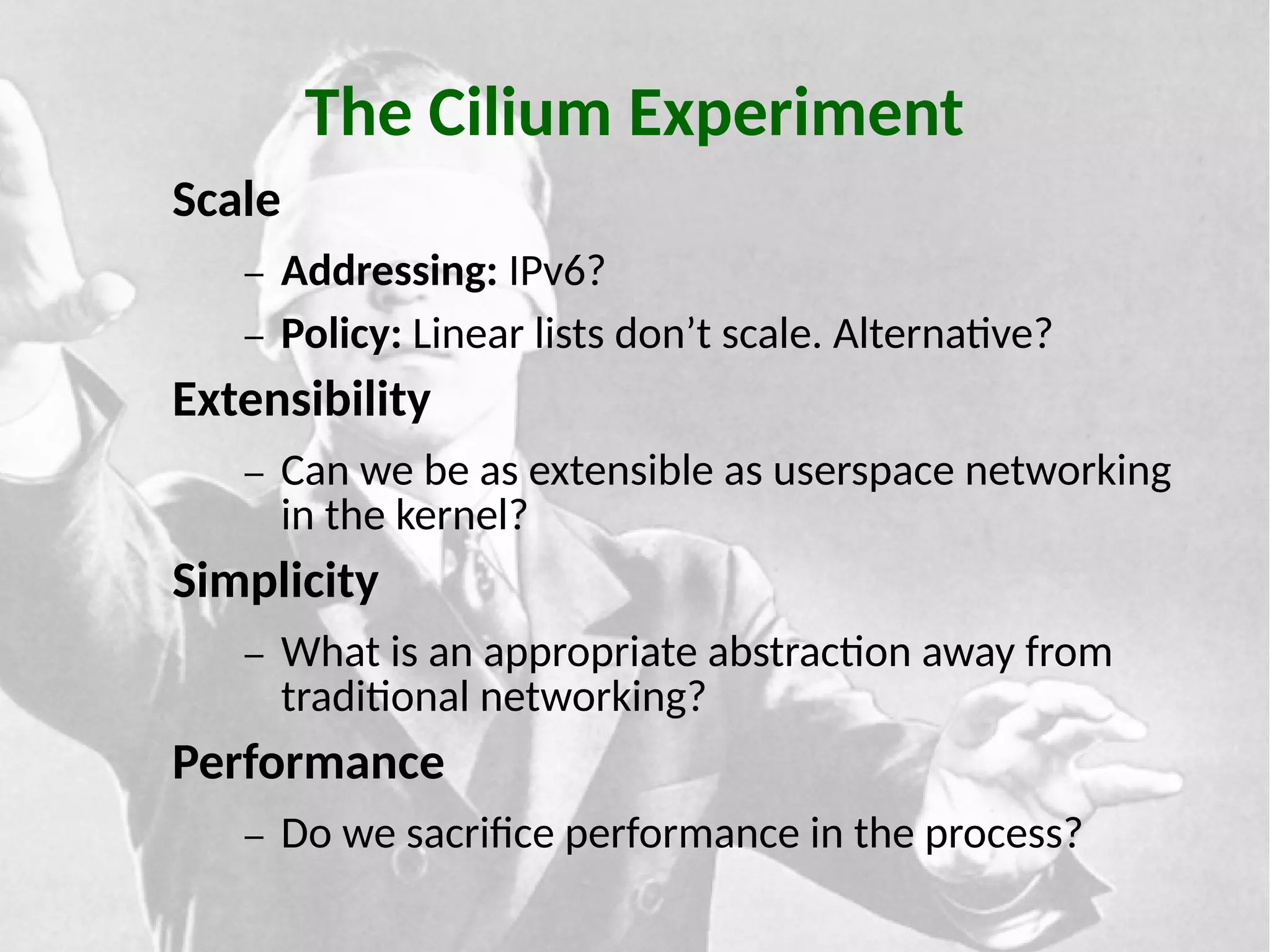

2. The Cilium Experiment
Scale
– Addressing: IPv6?
– Policy: Linear lists don’t scale. Alternative?
Extensibility
– Can we be as extensible as userspace networking
in the kernel?
Simplicity
– What is an appropriate abstraction away from
traditional networking?
Performance
– Do we sacrifice performance in the process?

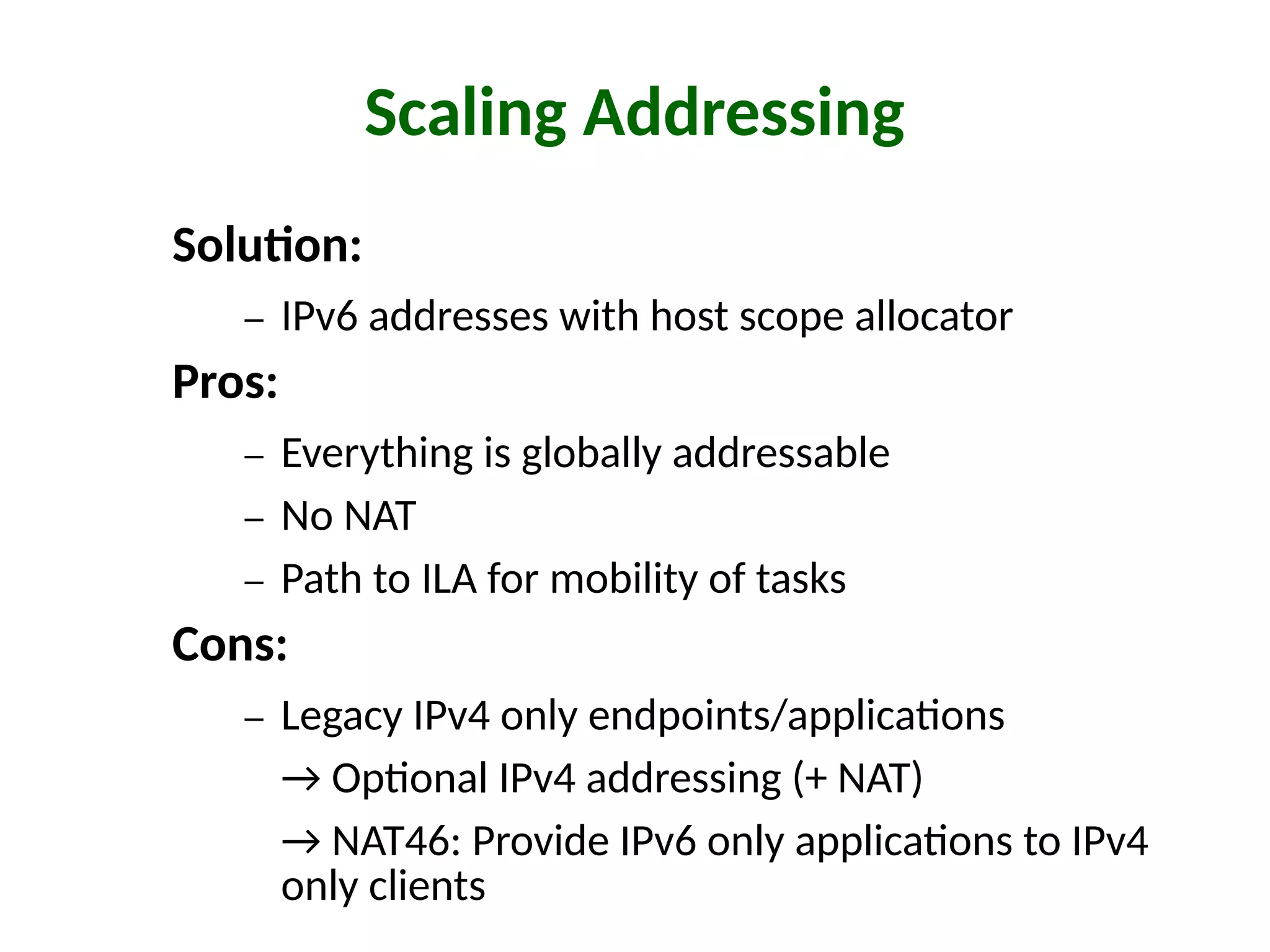

3. Scaling Addressing
Solution:
– IPv6 addresses with host scope allocator
Pros:
– Everything is globally addressable
– No NAT
– Path to ILA for mobility of tasks
Cons:
– Legacy IPv4 only endpoints/applications
→ Optional IPv4 addressing (+ NAT)
→ NAT46: Provide IPv6 only applications to IPv4
only clients

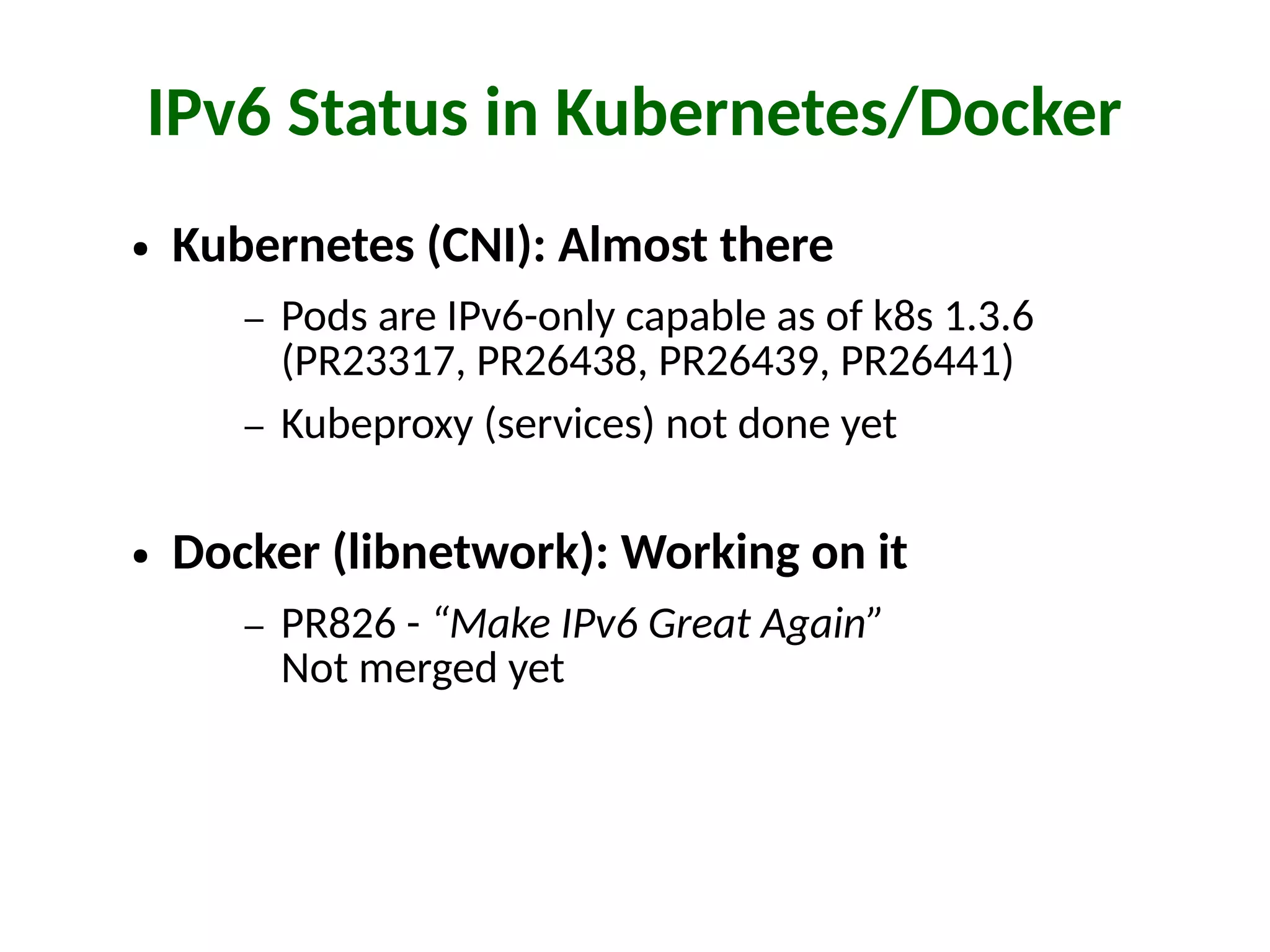

4. IPv6 Status in Kubernetes/Docker
● Kubernetes (CNI): Almost there
– Pods are IPv6-only capable as of k8s 1.3.6
(PR23317, PR26438, PR26439, PR26441)
– Kubeproxy (services) not done yet
● Docker (libnetwork): Working on it
– PR826 - “Make IPv6 Great Again”
Not merged yet

5. Scaling Policy
LB Frontend Backend

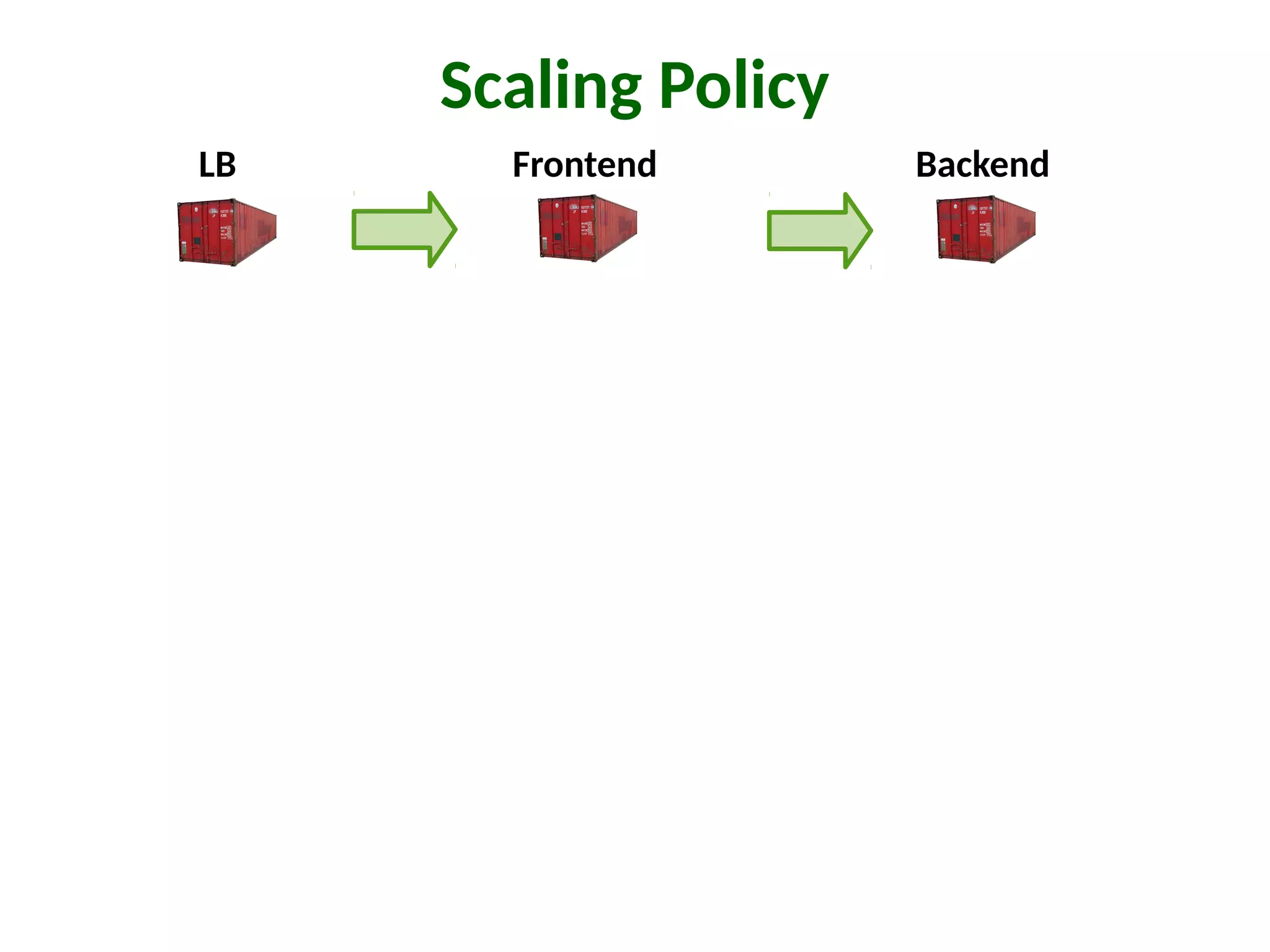

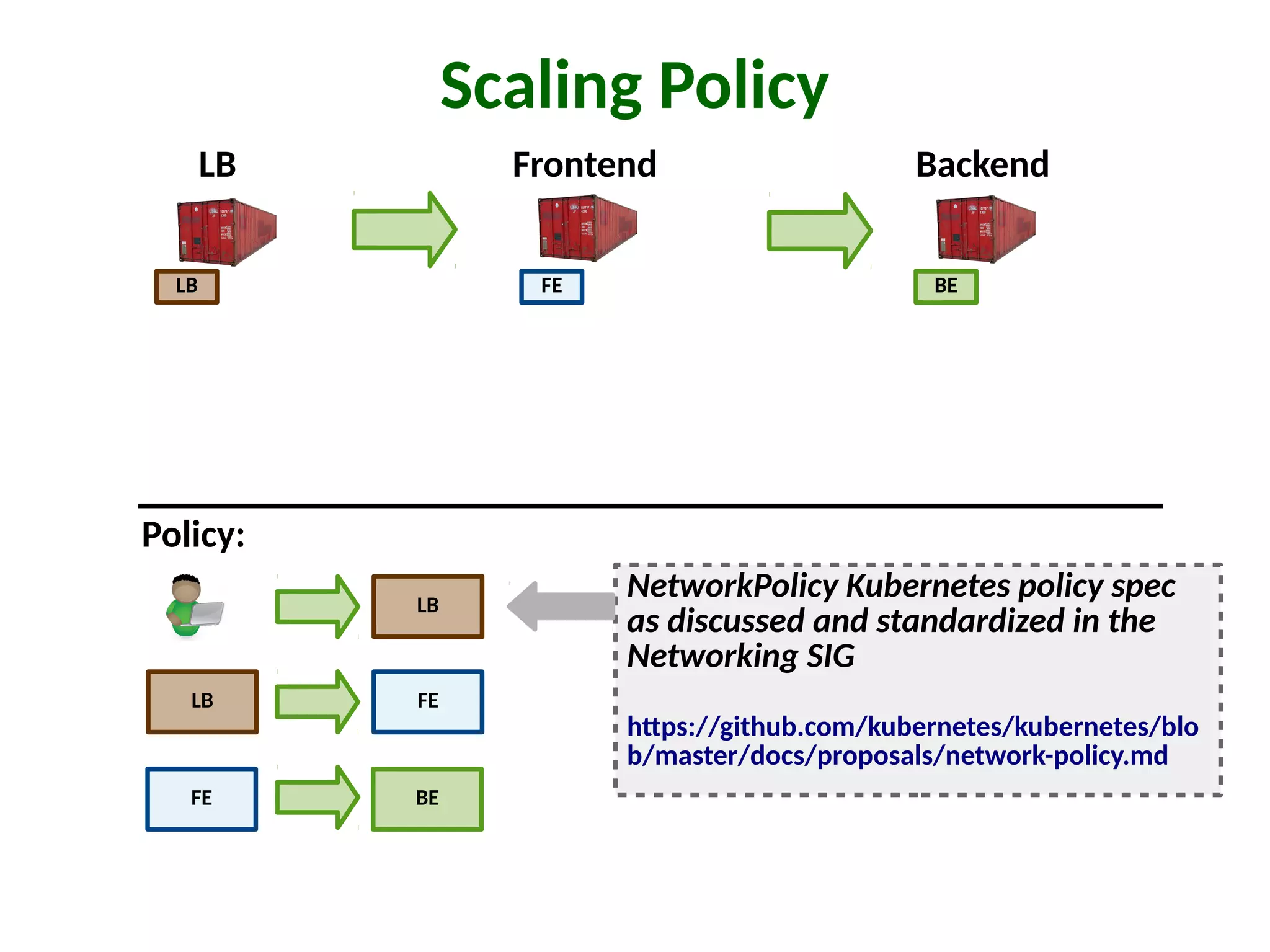

6. Scaling Policy
LB BEFE
LB FE
FE BE
LB
LB Frontend Backend
Policy:
NetworkPolicy Kubernetes policy spec
as discussed and standardized in the
Networking SIG
https://github.com/kubernetes/kubernetes/blo
b/master/docs/proposals/network-policy.md

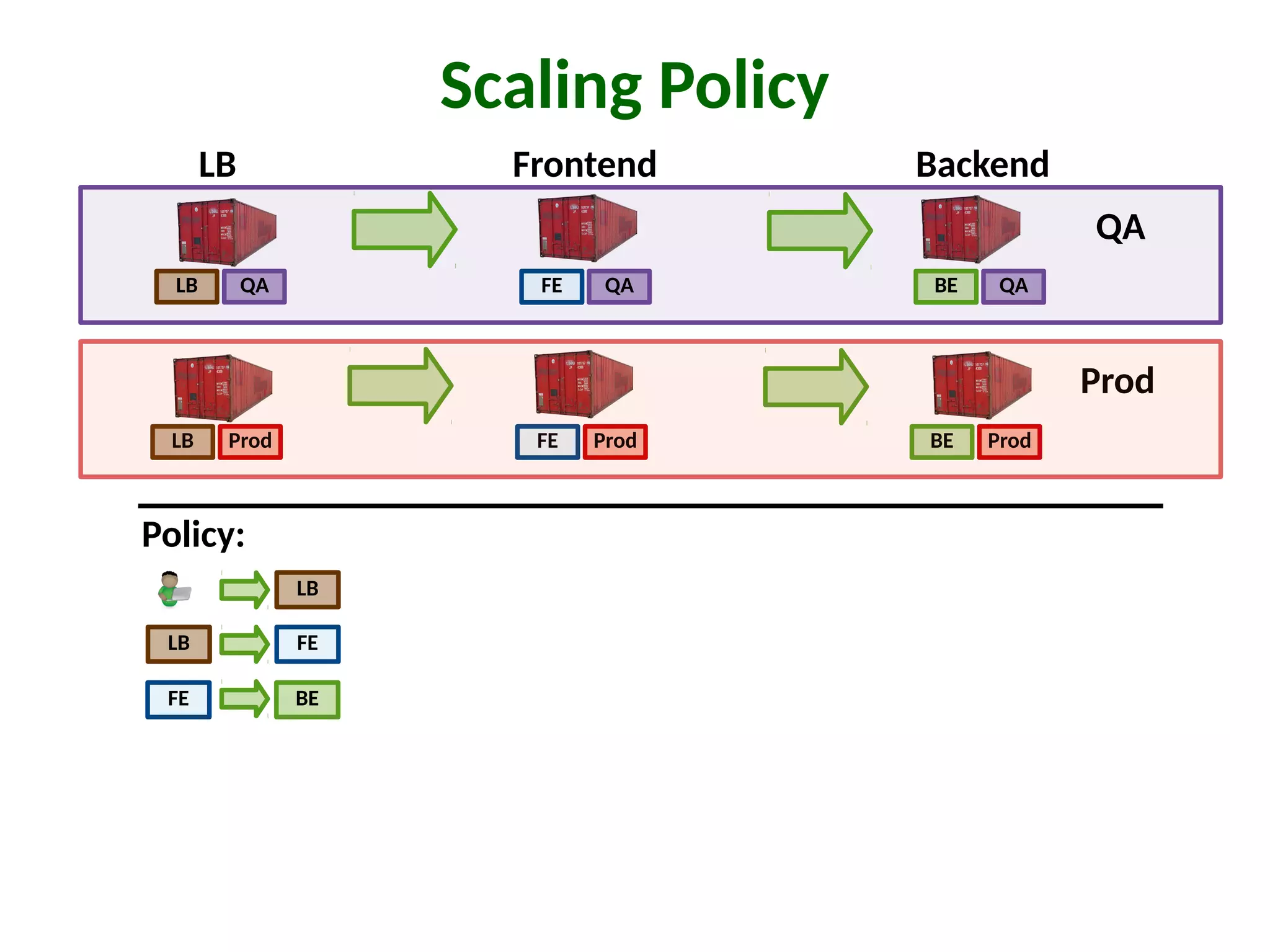

7. Scaling Policy
LB QA BE QAFE QA
LB Prod BE ProdFE Prod
LB FE
FE BE
LB
LB Frontend Backend
QA
Prod
Policy:

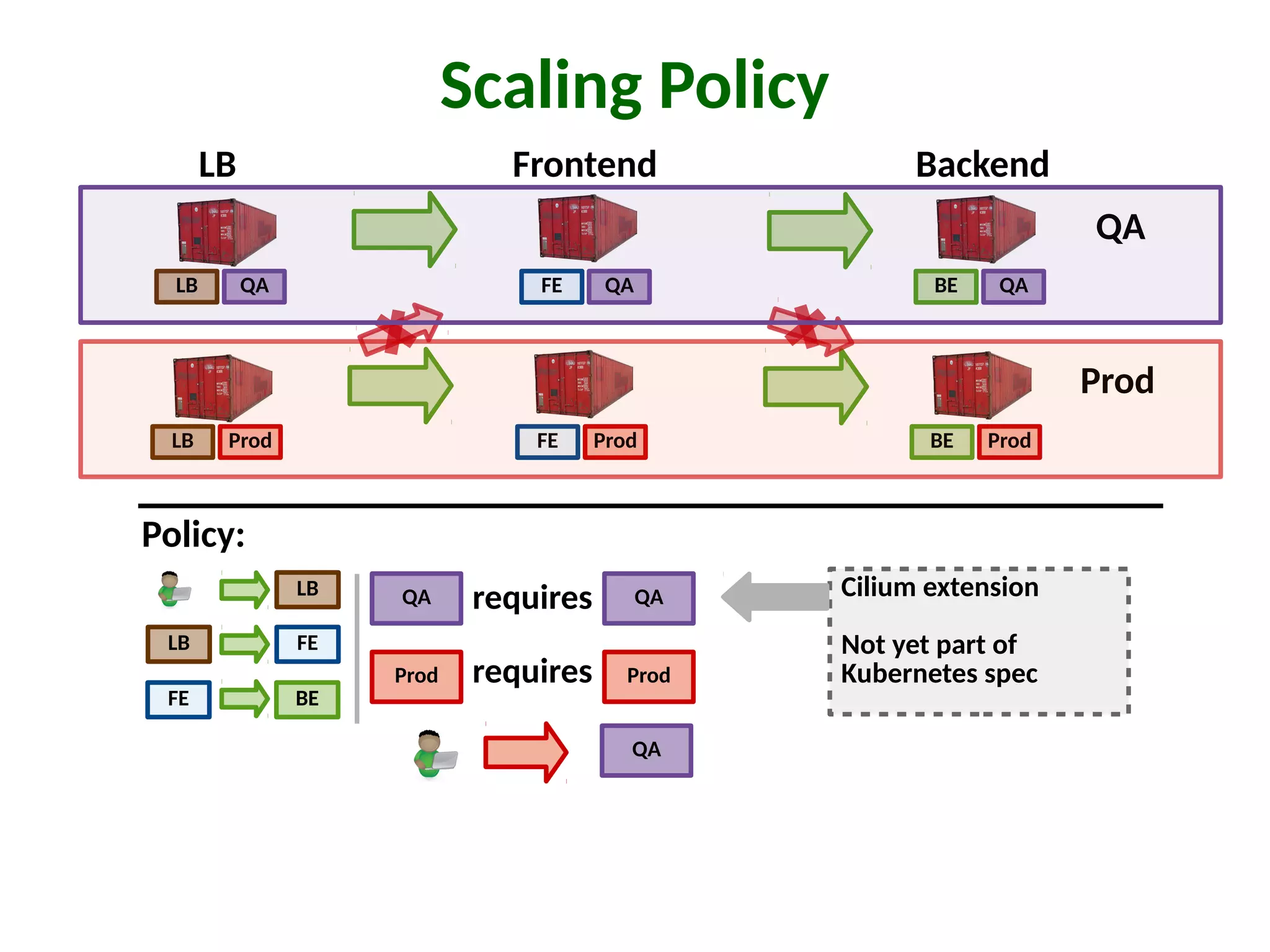

8. Scaling Policy
LB QA BE QAFE QA
LB Prod BE ProdFE Prod
LB FE
FE
QA
Prod
BE
LB QA
Prod
requires
requires
LB Frontend Backend
QA
Prod
Policy:
Cilium extension
Not yet part of
Kubernetes spec
QA

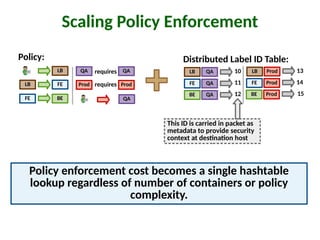

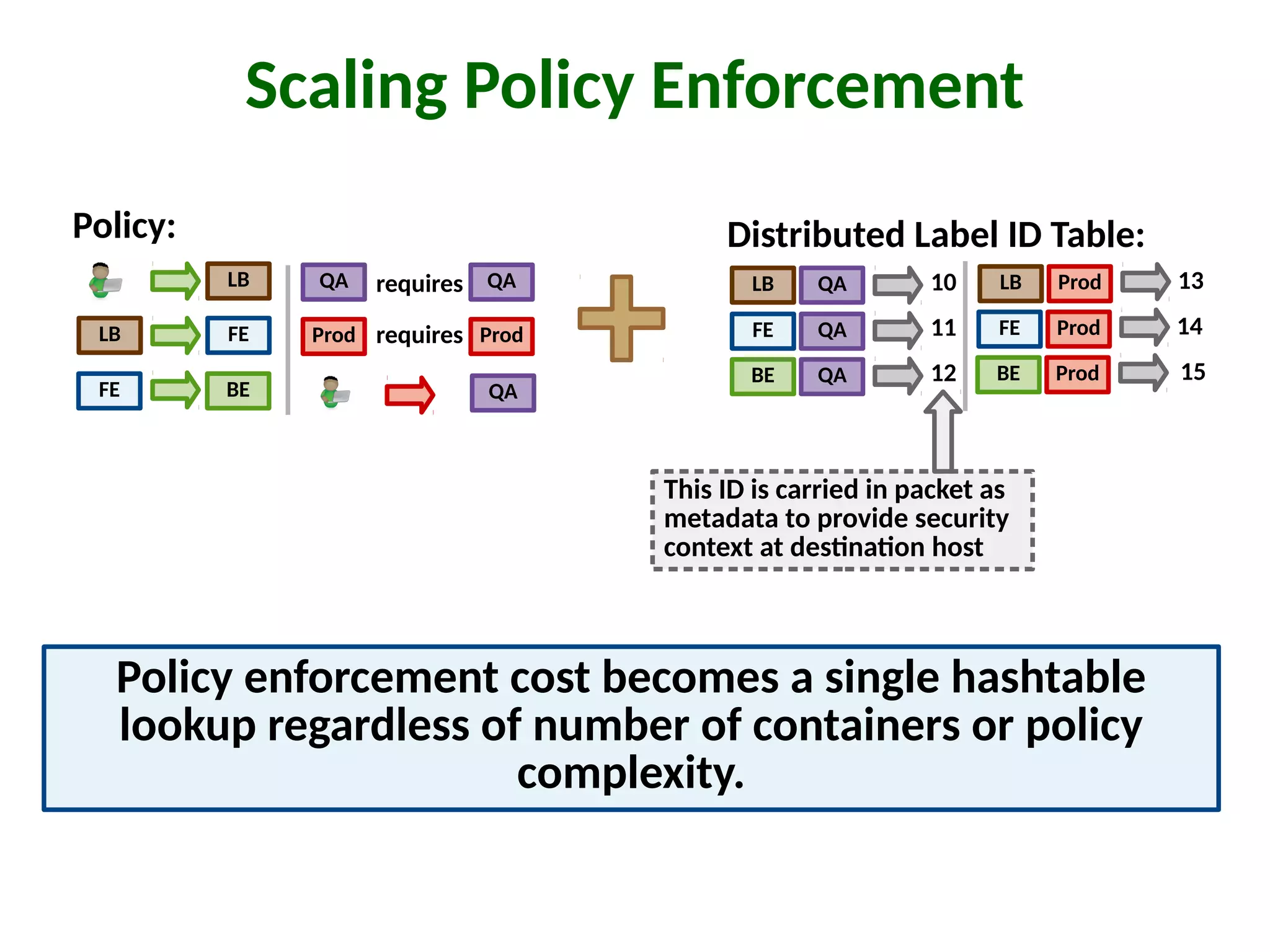

9. Scaling Policy Enforcement
LB FE
FE
QA
Prod
BE
LB QA
Prod
requires
requires
LB QA
FE QA
LB Prod10
11
12
13
Policy enforcement cost becomes a single hashtable
lookup regardless of number of containers or policy
complexity.
BE QA
FE Prod 14
BE Prod 15
Distributed Label ID Table:Policy:
QA
This ID is carried in packet as
metadata to provide security
context at destination host

10. Extensibility

11. Kernel
Userspace
Source
Code
Byte
Code
LLVM/clang
Sockets
netdevice
Network
StackTC
Ingress
TC
Egress
netdevice
Verifier
+ JIT
add eax,edx
shl eax,2
add eax,edx
shl eax,2

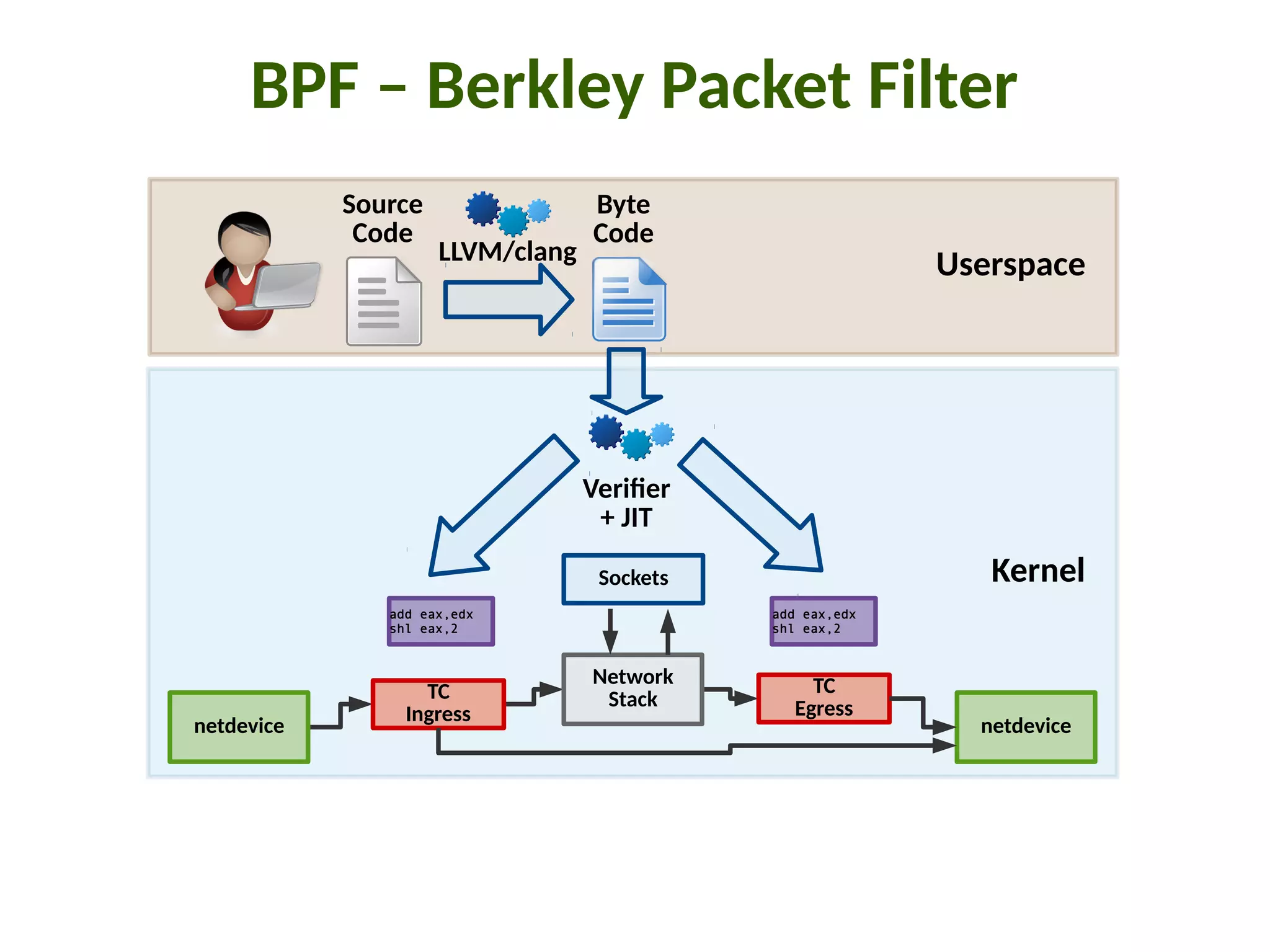

BPF – Berkley Packet Filter

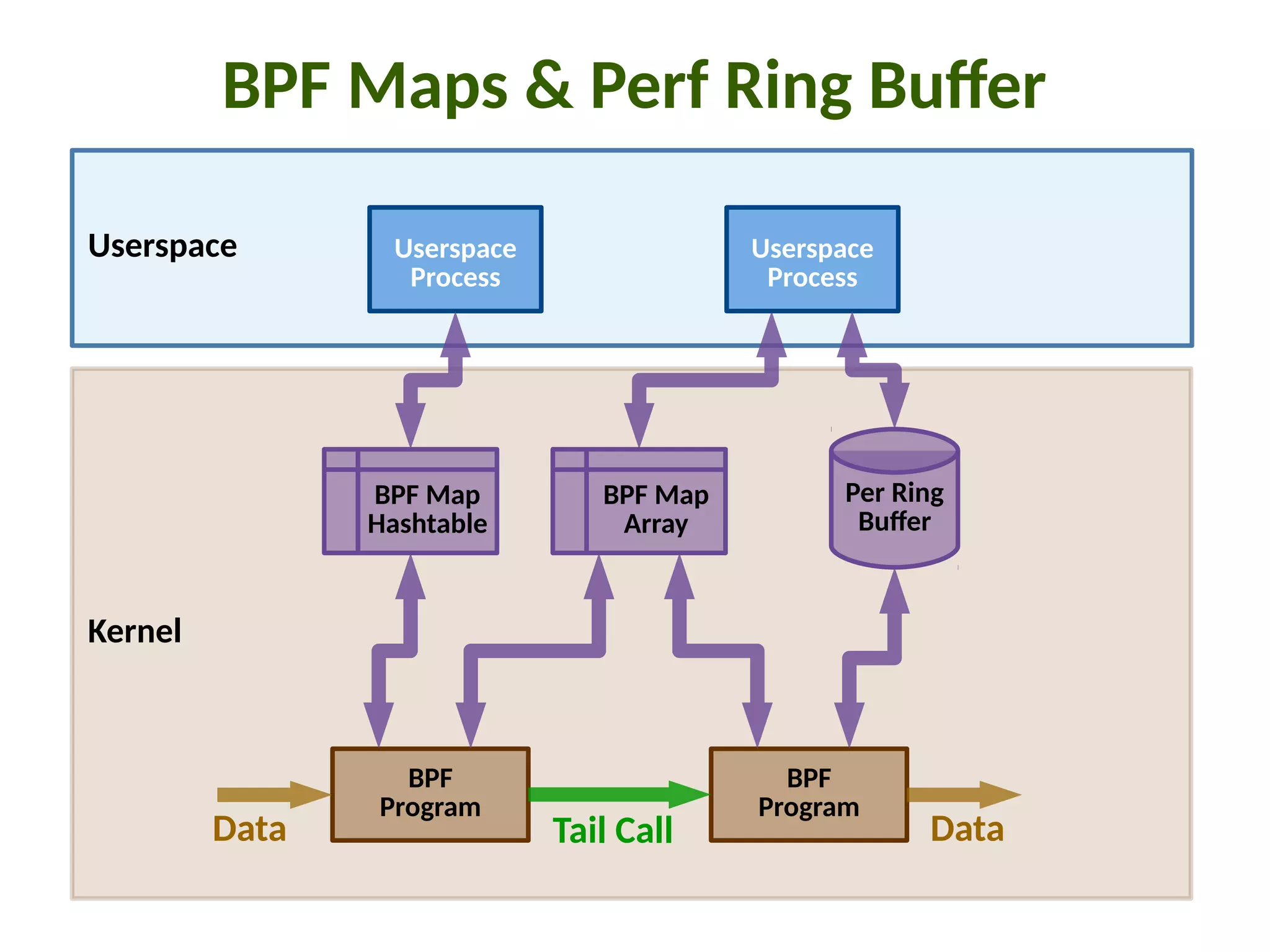

12. Kernel
Userspace
BPF
Program
Userspace
Process
BPF Maps & Perf Ring Buffer
BPF Map
Hashtable
BPF Map
Array
Userspace
Process
BPF
Program
Per Ring
Buffer
Data DataTail Call

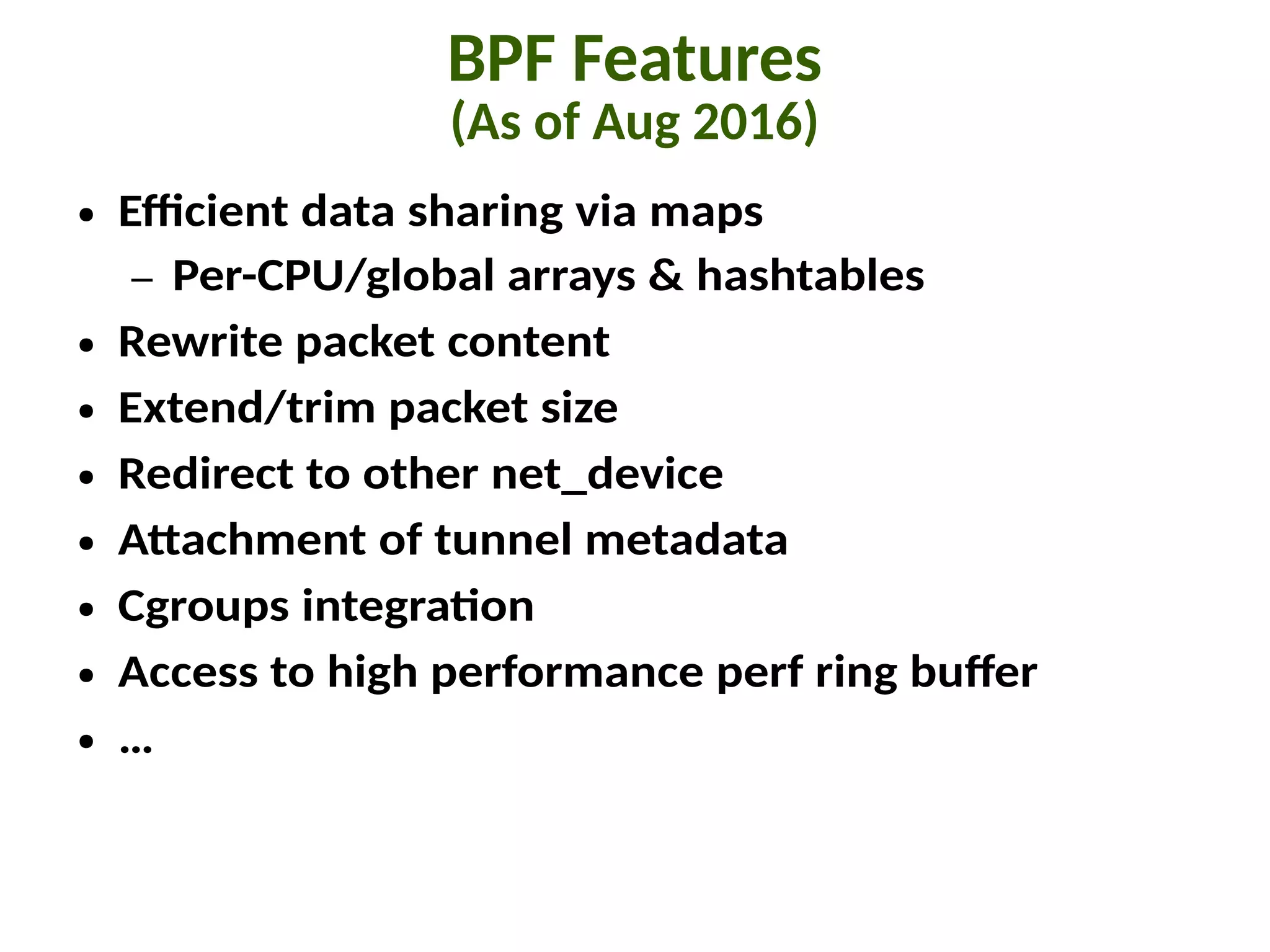

13. BPF Features
(As of Aug 2016)
● Efficient data sharing via maps
– Per-CPU/global arrays & hashtables
● Rewrite packet content
● Extend/trim packet size
● Redirect to other net_device
● Attachment of tunnel metadata
● Cgroups integration
● Access to high performance perf ring buffer
● …

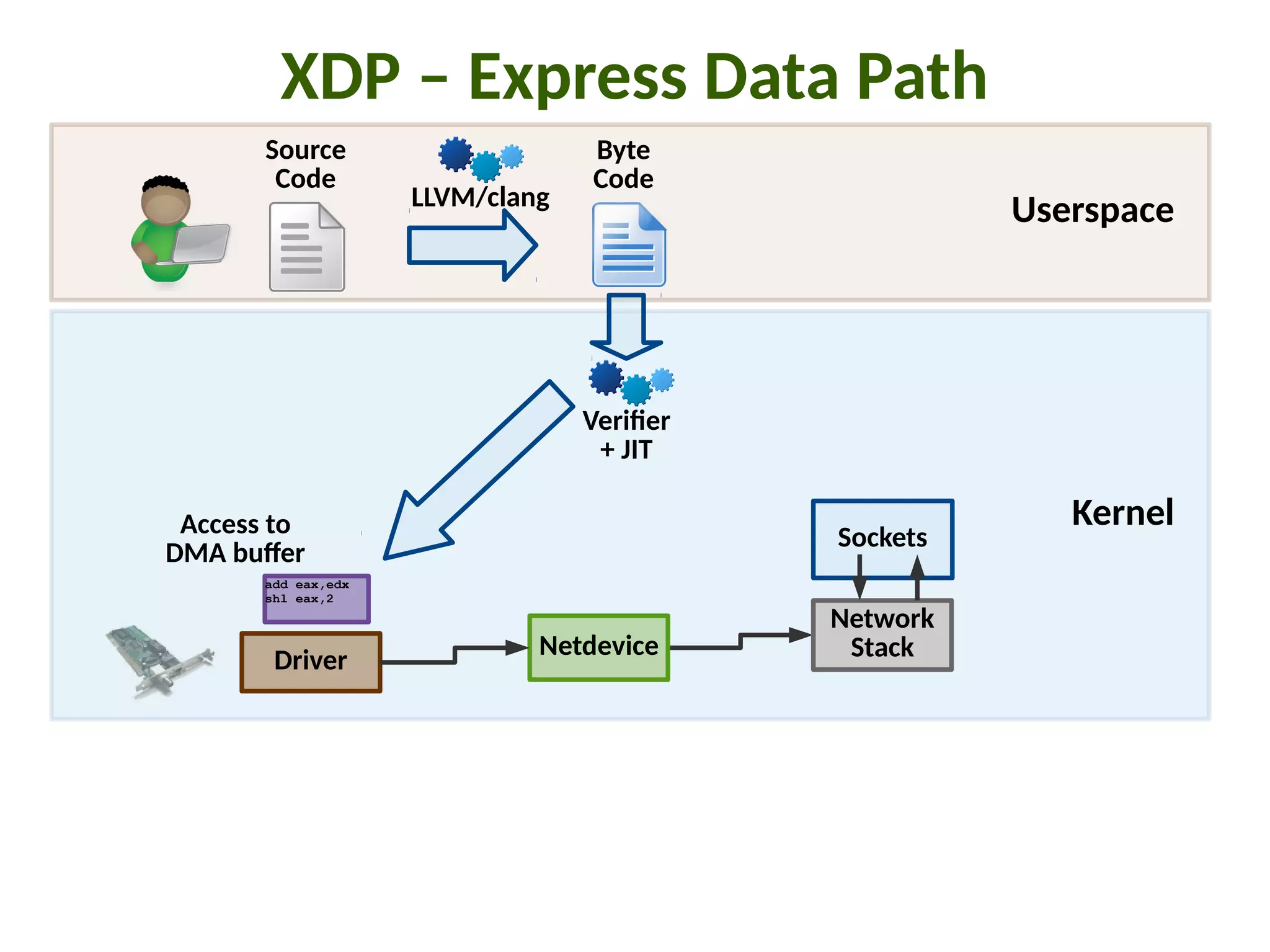

14. Kernel
Userspace
XDP – Express Data Path
Source
Code
Byte
Code
LLVM/clang
Sockets
Netdevice
Network
Stack
Verifier
+ JIT
add eax,edx
shl eax,2
Driver
Access to
DMA buffer

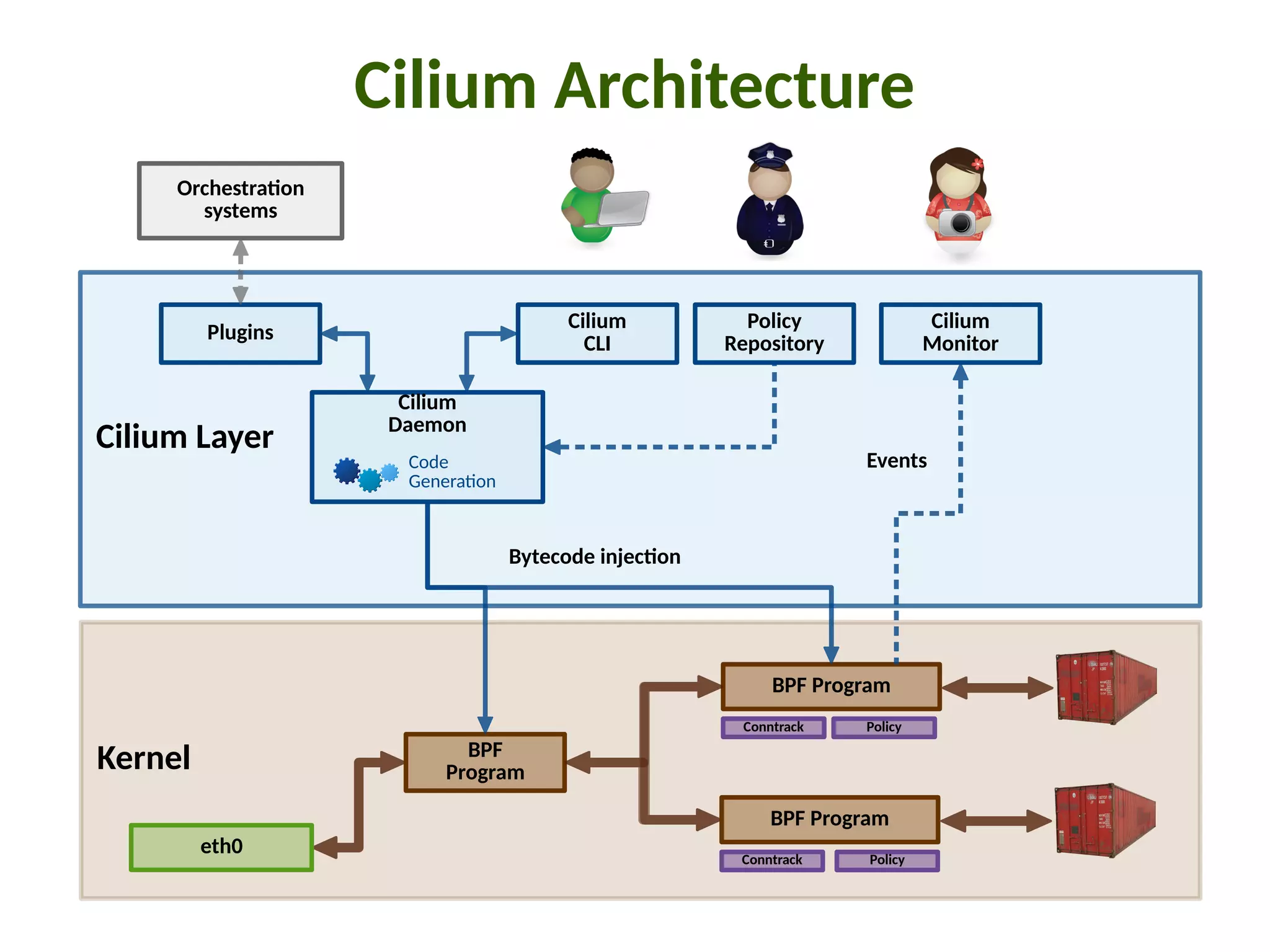

15. Kernel
Cilium Layer
Orchestration
systems
eth0
BPF
Program
Cilium
Daemon
Cilium
Monitor
Cilium
CLI
BPF Program
Conntrack Policy
Bytecode injection
Events
BPF Program
Conntrack Policy
Code
Generation
Plugins
Policy
Repository
Cilium Architecture

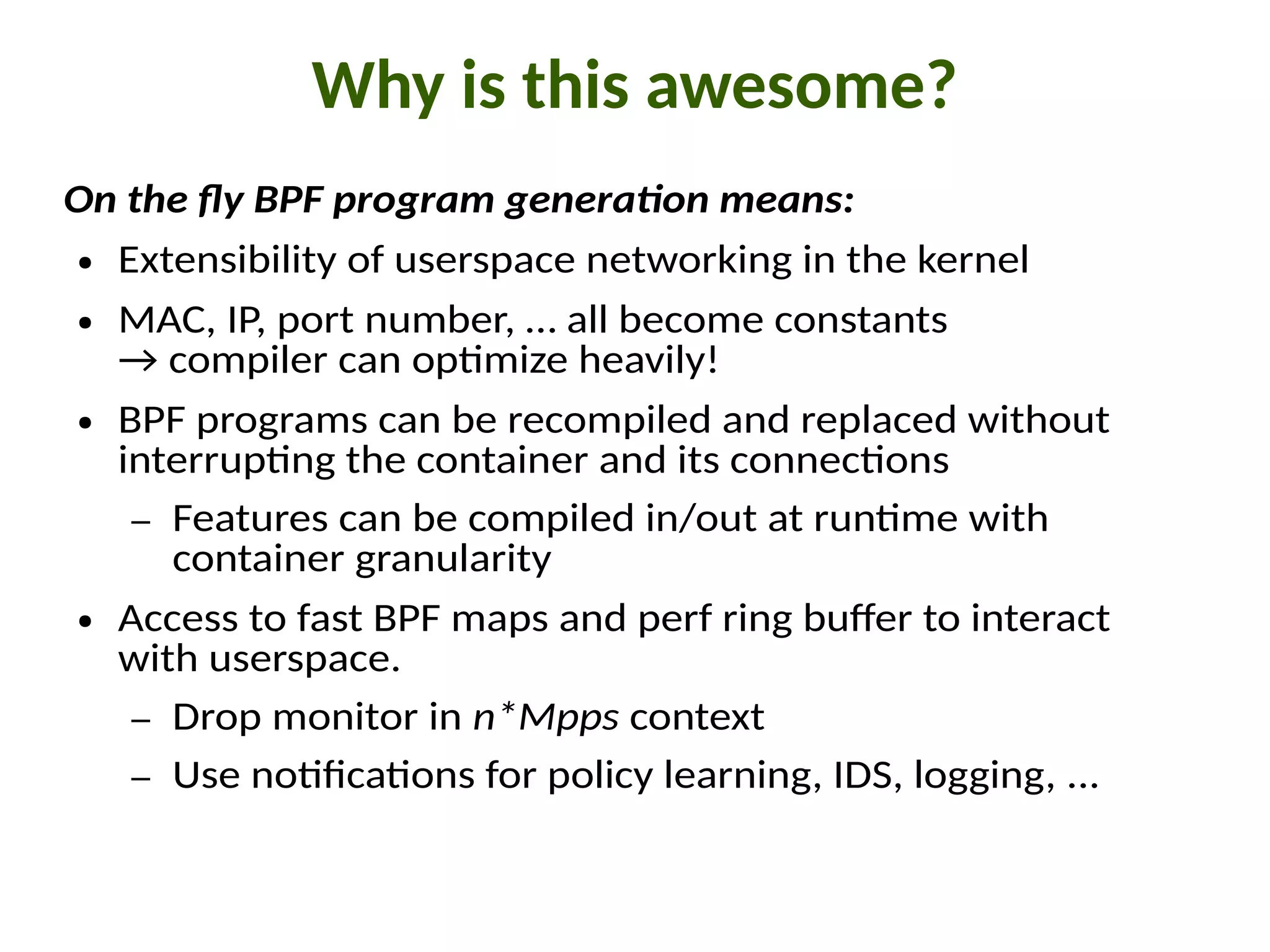

16. Why is this awesome?
On the fly BPF program generation means:
● Extensibility of userspace networking in the kernel
● MAC, IP, port number, … all become constants
→ compiler can optimize heavily!
● BPF programs can be recompiled and replaced without
interrupting the container and its connections
– Features can be compiled in/out at runtime with
container granularity
● Access to fast BPF maps and perf ring buffer to interact
with userspace.
– Drop monitor in n*Mpps context
– Use notifications for policy learning, IDS, logging, ...

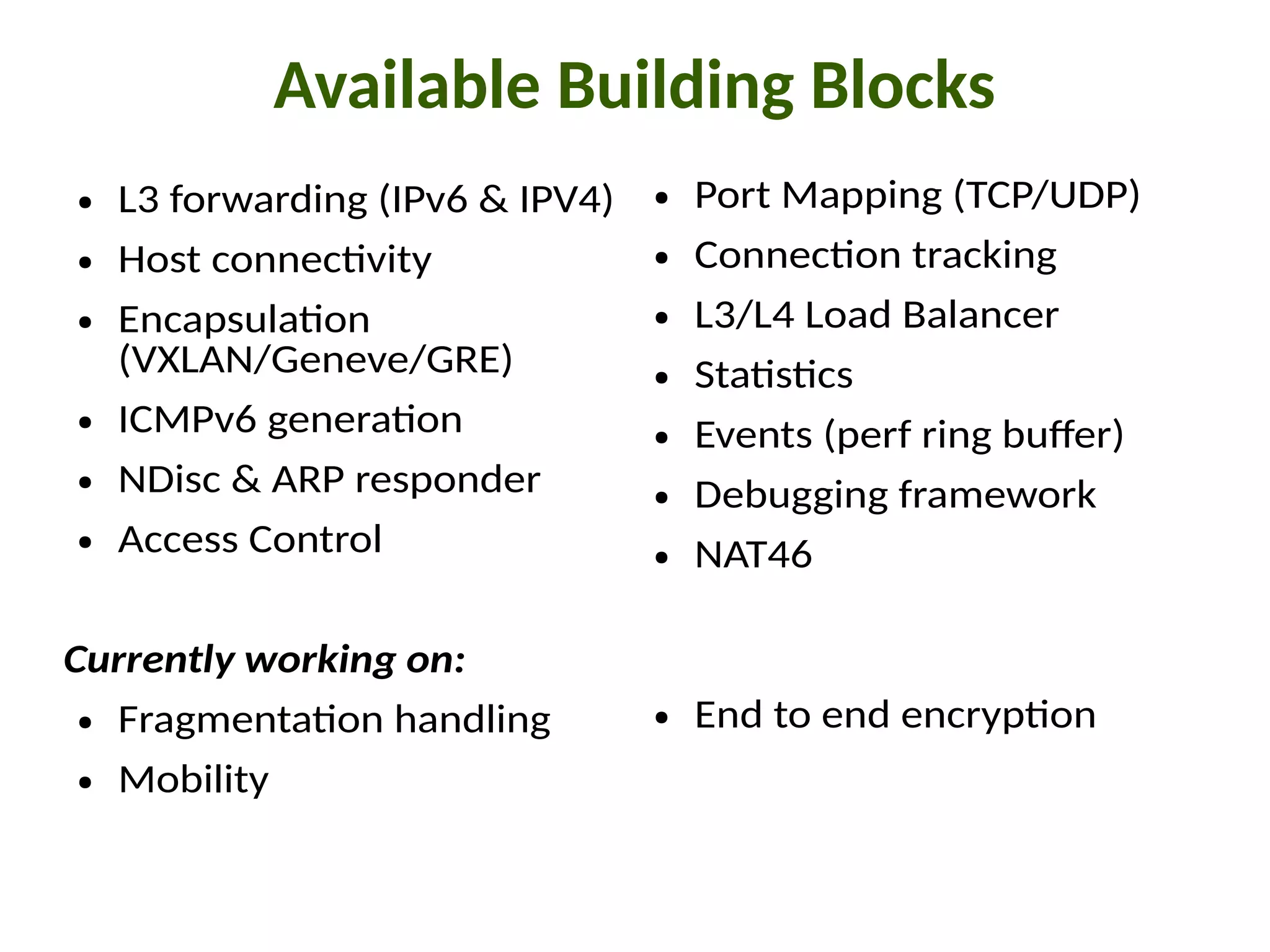

17. Available Building Blocks
● L3 forwarding (IPv6 & IPV4)
● Host connectivity
● Encapsulation
(VXLAN/Geneve/GRE)
● ICMPv6 generation
● NDisc & ARP responder
● Access Control
Currently working on:
● Fragmentation handling
● Mobility
● Port Mapping (TCP/UDP)
● Connection tracking
● L3/L4 Load Balancer
● Statistics
● Events (perf ring buffer)
● Debugging framework
● NAT46
● End to end encryption

18. Networking should be invisible,
it is not.
Simplicity

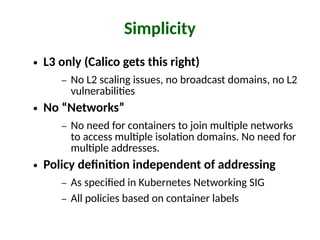

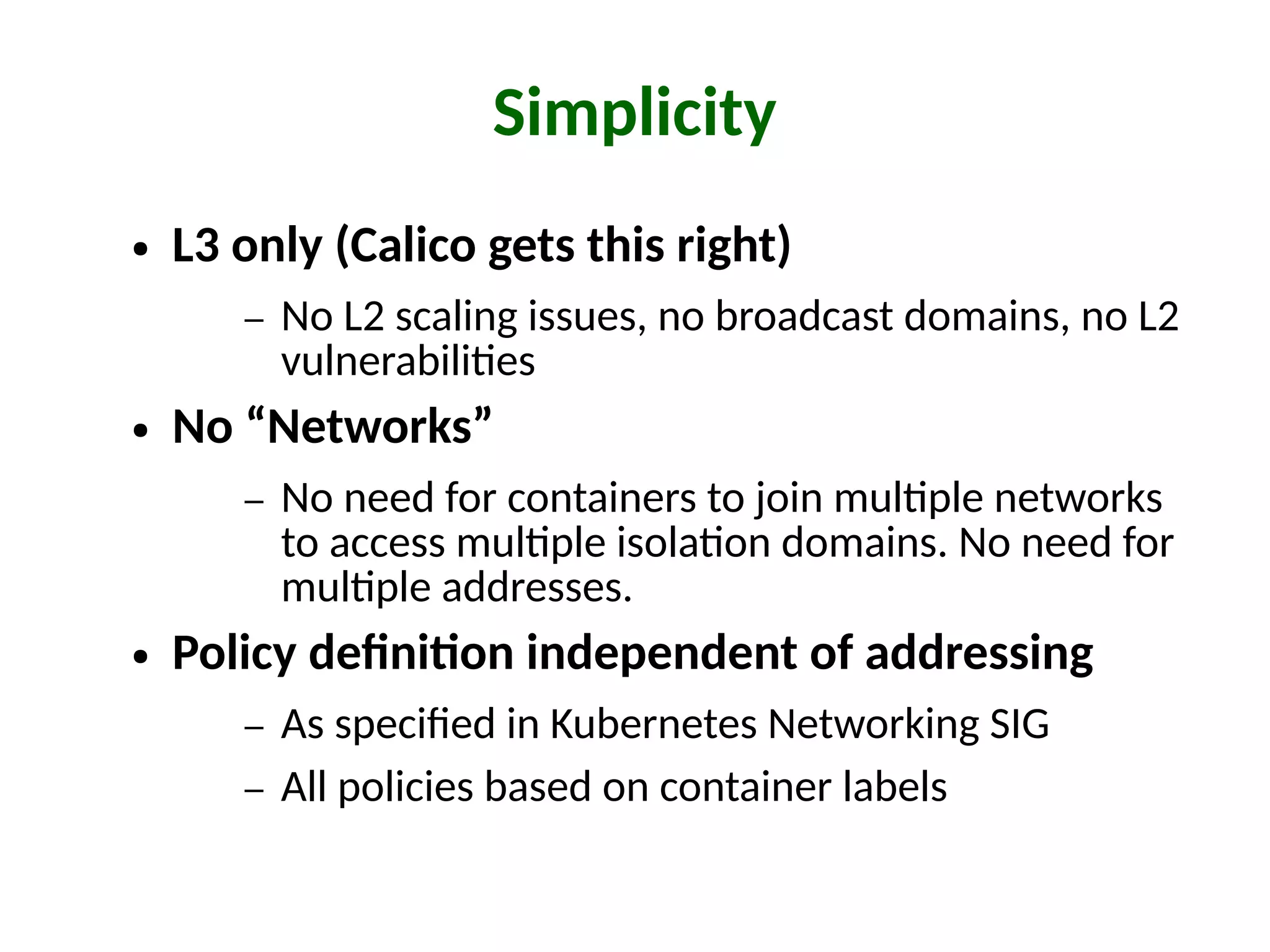

19. Simplicity
● L3 only (Calico gets this right)
– No L2 scaling issues, no broadcast domains, no L2
vulnerabilities
● No “Networks”
– No need for containers to join multiple networks
to access multiple isolation domains. No need for
multiple addresses.
● Policy definition independent of addressing
– As specified in Kubernetes Networking SIG
– All policies based on container labels

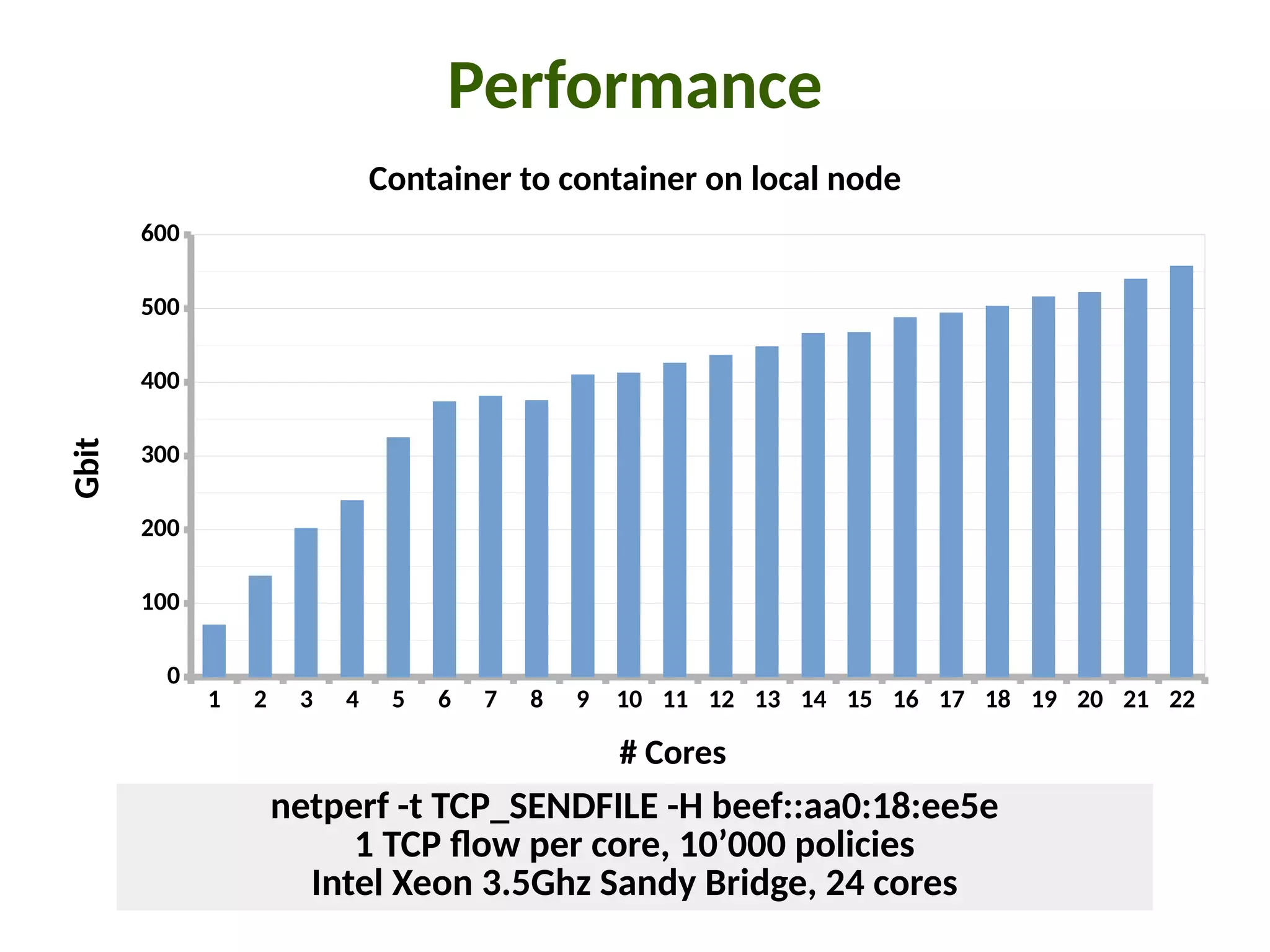

20. Performance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
0
100
200
300
400
500
600
Container to container on local node
# Cores
Gbit
netperf -t TCP_SENDFILE -H beef::aa0:18:ee5e
1 TCP flow per core, 10’000 policies
Intel Xeon 3.5Ghz Sandy Bridge, 24 cores

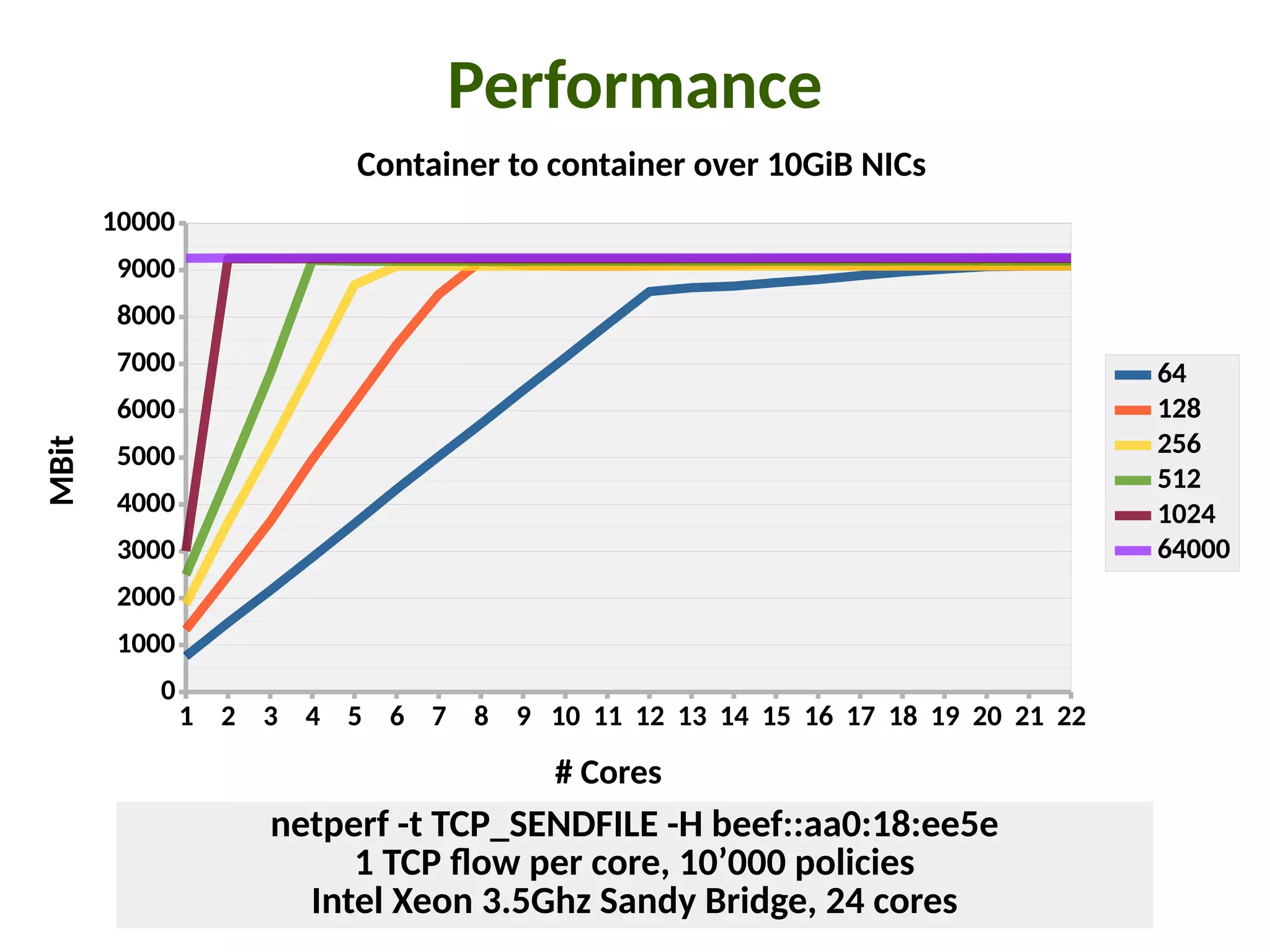

21. Performance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
Container to container over 10GiB NICs
64
128
256
512
1024
64000
# Cores
MBit
netperf -t TCP_SENDFILE -H beef::aa0:18:ee5e
1 TCP flow per core, 10’000 policies
Intel Xeon 3.5Ghz Sandy Bridge, 24 cores

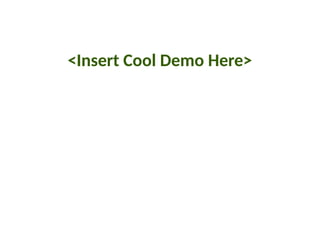

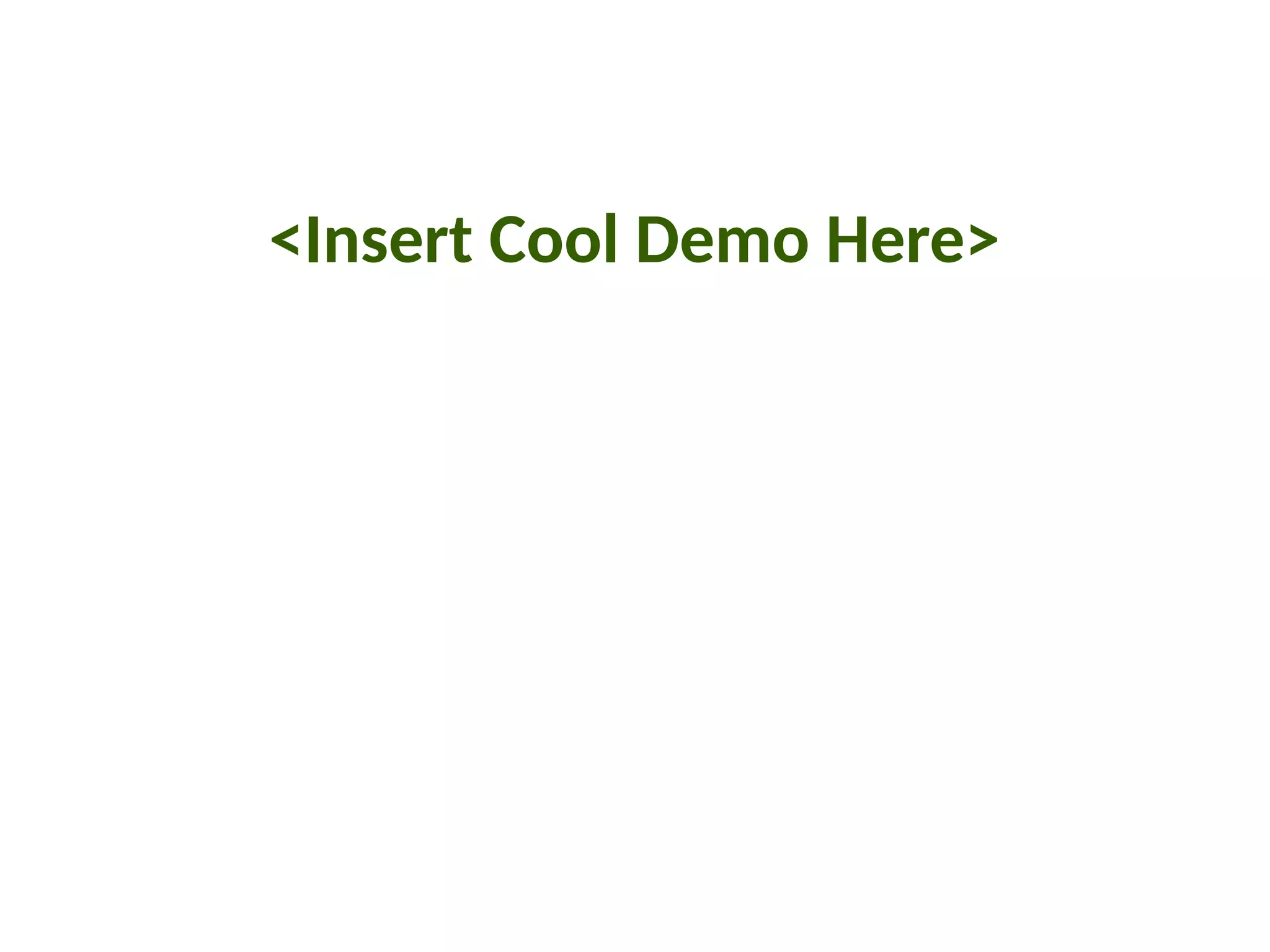

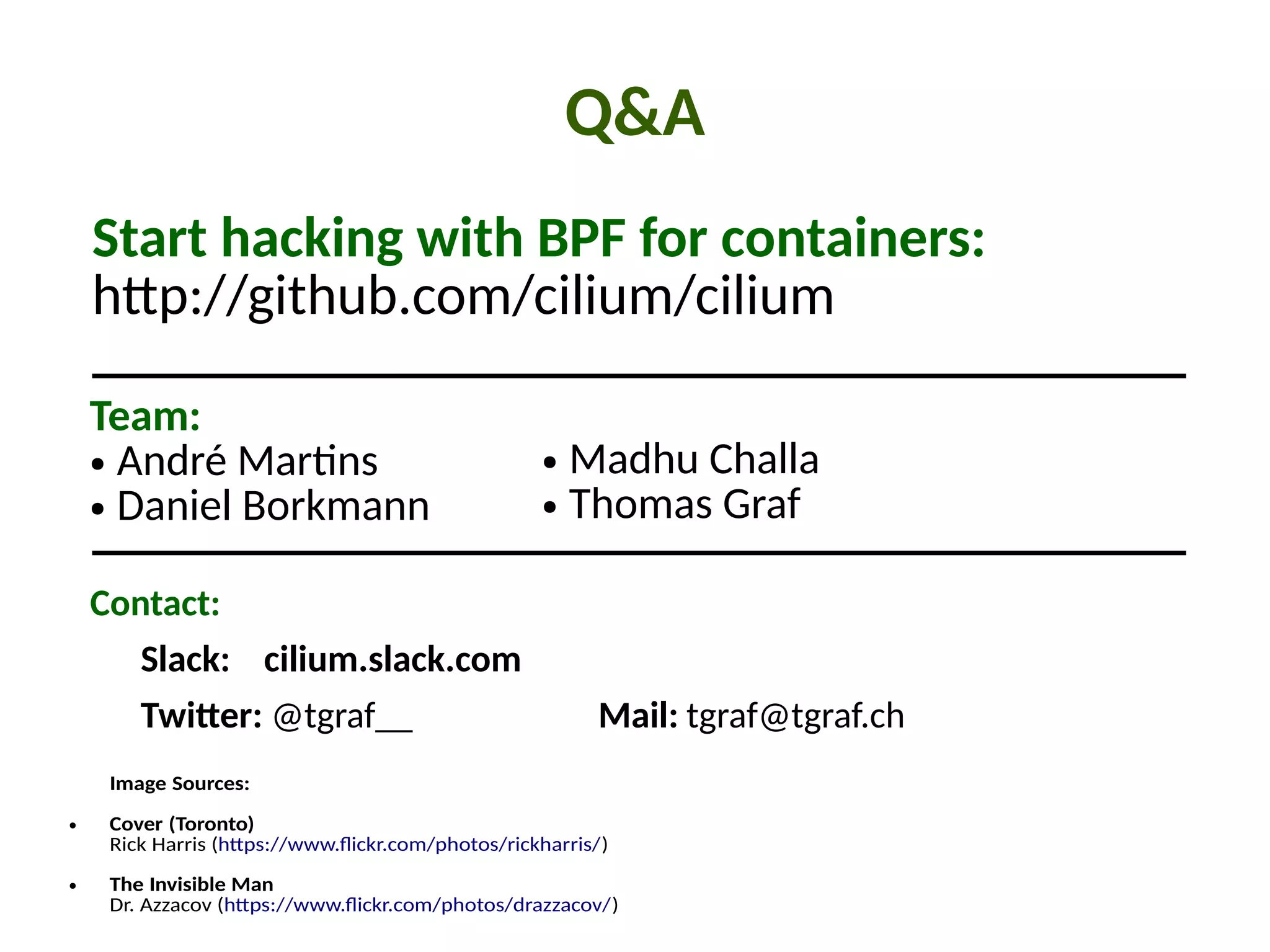

22. <Insert Cool Demo Here>

23. Q&A
Image Sources:
● Cover (Toronto)
Rick Harris (https://www.flickr.com/photos/rickharris/)
● The Invisible Man
Dr. Azzacov (https://www.flickr.com/photos/drazzacov/)
Start hacking with BPF for containers:
http://github.com/cilium/cilium
Contact:
Slack: cilium.slack.com
Twitter: @tgraf__ Mail: tgraf@tgraf.ch
Team:
● André Martins
● Daniel Borkmann
● Madhu Challa
● Thomas Graf
