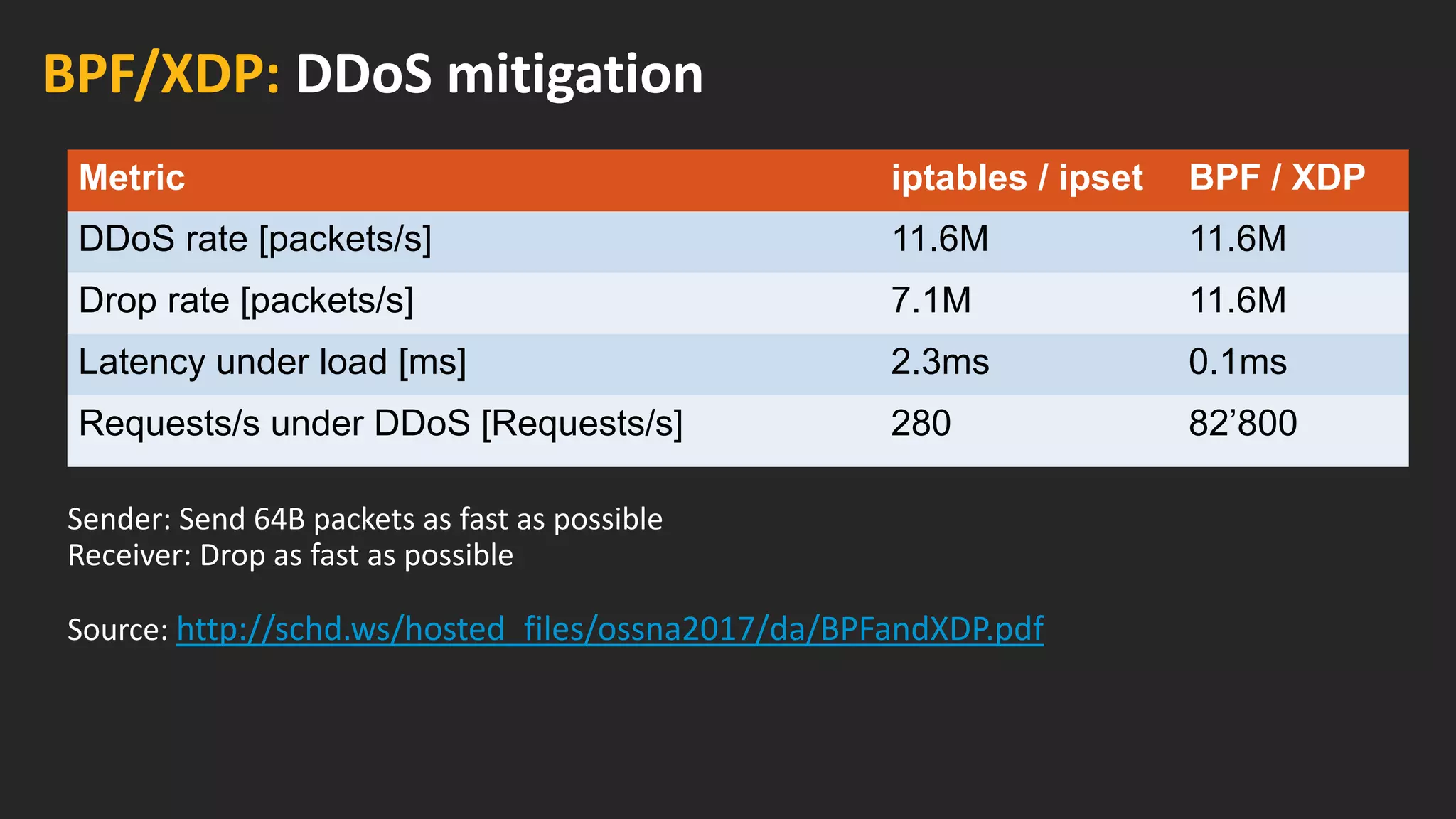

![BPF/XDP: DDoS mitigation
Metric iptables / ipset BPF / XDP
DDoS rate [packets/s] 11.6M 11.6M
Drop rate [packets/s] 7.1M 11.6M
Latency under load [ms] 2.3ms 0.1ms
Requests/s under DDoS [Requests/s] 280 82’800
Sender: Send 64B packets as fast as possible
Receiver: Drop as fast as possible
Source: http://schd.ws/hosted_files/ossna2017/da/BPFandXDP.pdf](https://image.slidesharecdn.com/2018kubeconeucilium-acceleratingenvoy-180505125951/75/Accelerating-Envoy-and-Istio-with-Cilium-and-the-Linux-Kernel-5-2048.jpg)
![So many more examples….
• Cloudflare DDoS mitigation [https://www.netdevconf.org/2.1/slides/apr6/bertin_Netdev-XDP.pdf]
• BCC [https://github.com/iovisor/bcc]
• Systemtap [https://sourceware.org/git/gitweb.cgi?p=systemtap.git;a=summary]
• Weave Scope [https://github.com/weaveworks/scope]
• Suricata [http://suricata.readthedocs.io/en/latest/capture-hardware/ebpf-xdp.html]
• systemd [http://0pointer.net/blog/ip-accounting-and-access-lists-with-systemd.html]
• gobpf [https://github.com/iovisor/gobpf]
• ply [https://github.com/wkz/ply]
• bpfps [https://github.com/genuinetools/bpfps]
• Perf [https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/tools/perf]
• bpftrace [https://github.com/ajor/bpftrace]
• Open vSwitch [http://www.openvswitch.org//support/ovscon2016/7/1120-tu.pdf]
• PCP [https://github.com/performancecopilot/pcp]
• …](https://image.slidesharecdn.com/2018kubeconeucilium-acceleratingenvoy-180505125951/75/Accelerating-Envoy-and-Istio-with-Cilium-and-the-Linux-Kernel-12-2048.jpg)
![Cilium in a Nutshell
• Current Release: 1.0.1
• Highly efficient BPF datapath
• Fully Distributed
• Service Mesh datapath
• CNI and CMM plugin
• Network Security on both Packet and API level
• Identity Based
• IP/CIDR as fallback
• API Aware (HTTP, gRPC, Kafka, [more coming soon])
• Distributed and Scalable Load Balancing
• Simplified Networking Model
• Overlay
• Direct Routing
• Delegation to other plugin (1.1)
• Visibility / Tracing](https://image.slidesharecdn.com/2018kubeconeucilium-acceleratingenvoy-180505125951/75/Accelerating-Envoy-and-Istio-with-Cilium-and-the-Linux-Kernel-28-2048.jpg)
Uploaded byThomas Graf
Accelerating Envoy and Istio with Cilium and the Linux Kernel
The document discusses how Cilium can accelerate Envoy and Istio by using eBPF/XDP to provide transparent acceleration of network traffic between Kubernetes pods and sidecars without any changes required to applications or Envoy. Cilium also provides features like service mesh datapath, network security policies, load balancing, and visibility/tracing capabilities. BPF/XDP in Cilium allows for transparent TCP/IP acceleration during the data phase of communications between pods and sidecars.
In this document
Powered by AI
Introducing Cilium for Envoy and Istio, highlighting enhancements via the Linux kernel.
Discussion on BPF's superpowers and performance metrics from Facebook regarding L3/L4 load balancing.
Comparative DDoS mitigation metrics showing performance improvements using BPF/XDP.
Observations on the decline of iptables and the move towards more efficient alternatives.
Illustrative examples of BPF usage in various applications like Cloudflare and composing toolchains.
Exploration of how BPF integrates with Envoy to enhance service mesh performance.
Depictions of Kubernetes pod/service architecture with sidecar injection and varying service communication models.
Performance impacts of using Cilium for sidecar injection in Kubernetes.
Overview of Cilium, its releases, and features like BPF datapath and security functionalities.
Details on mutual TLS, encrypted connections, and kTLS offloading to improve security.
Encouragement for further engagement with the Cilium community and resources for getting started.
More Related Content
Similar to Accelerating Envoy and Istio with Cilium and the Linux Kernel
Accelerating Envoy and Istio with Cilium and the Linux Kernel
- 1. Cilium Accelerating Envoy andIstio with Cilium and the Linux Kernel Thomas Graf, Covalent
- 2.
- 3. The Rise ofBPF [and XDP]

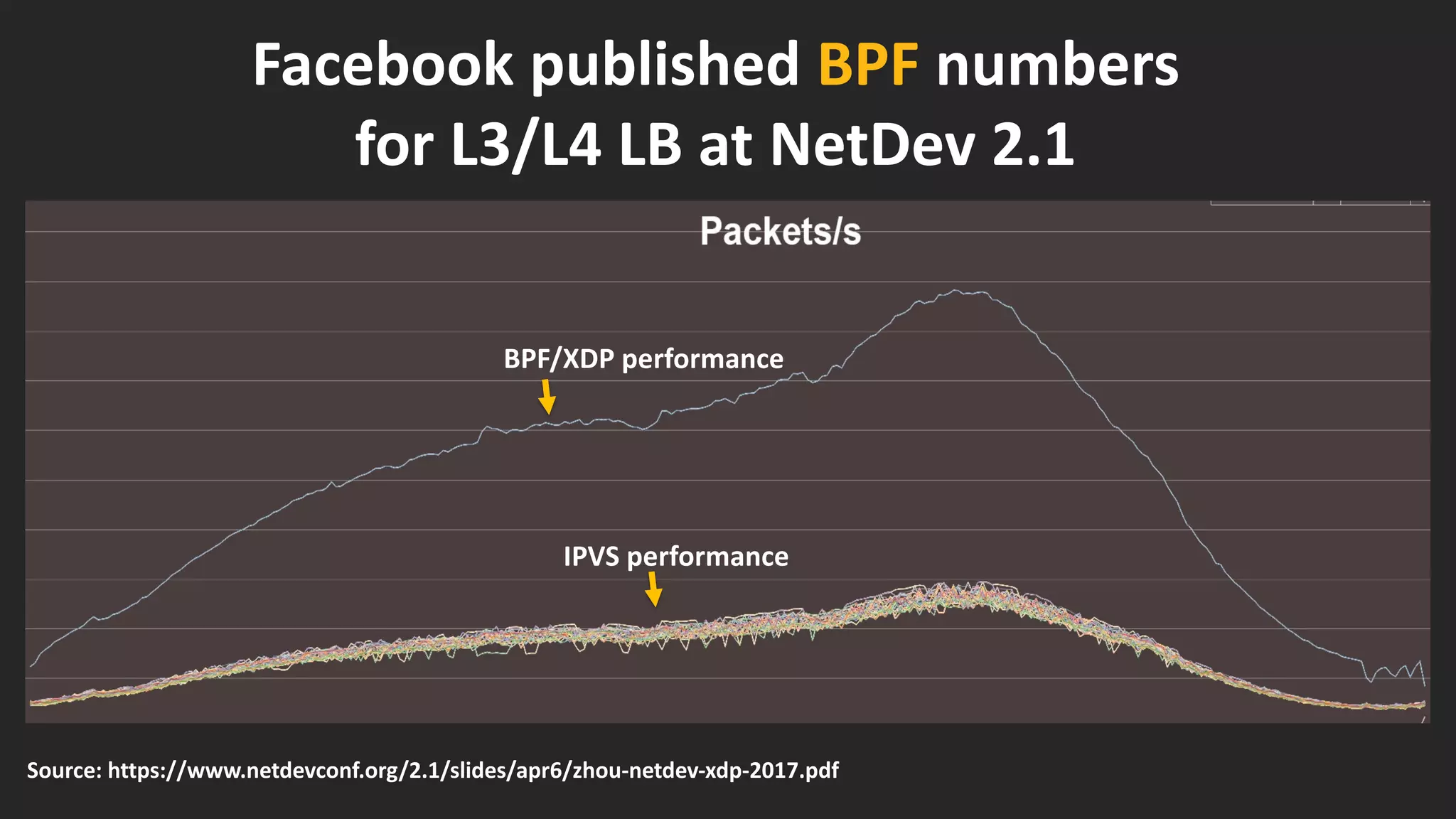

- 4. Source: https://www.netdevconf.org/2.1/slides/apr6/zhou-netdev-xdp-2017.pdf Facebook publishedBPF numbers for L3/L4 LB at NetDev 2.1 BPF/XDP performance IPVS performance
- 5. BPF/XDP: DDoS mitigation Metriciptables / ipset BPF / XDP DDoS rate [packets/s] 11.6M 11.6M Drop rate [packets/s] 7.1M 11.6M Latency under load [ms] 2.3ms 0.1ms Requests/s under DDoS [Requests/s] 280 82’800 Sender: Send 64B packets as fast as possible Receiver: Drop as fast as possible Source: http://schd.ws/hosted_files/ossna2017/da/BPFandXDP.pdf

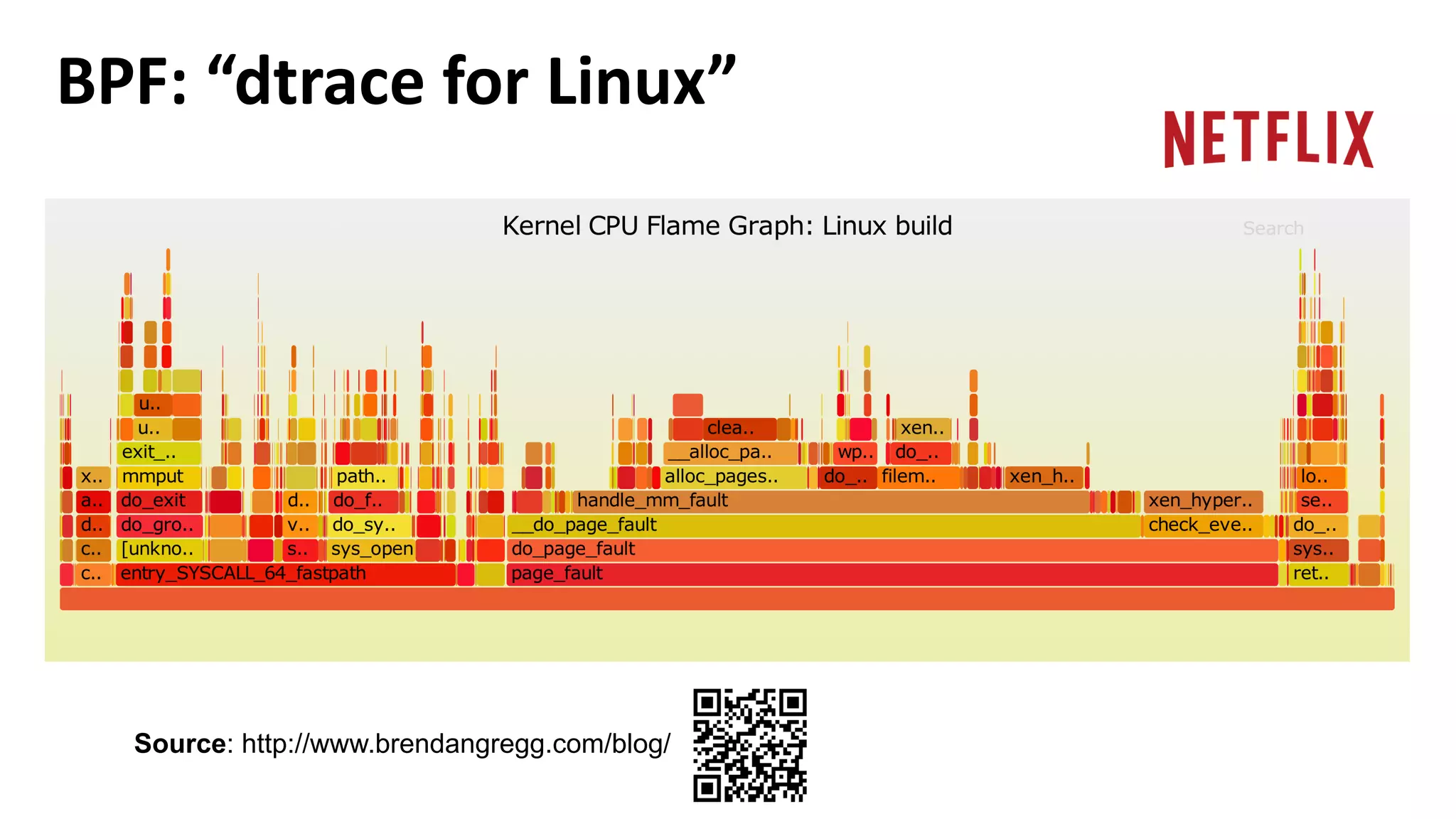

- 6. BPF: “dtrace forLinux” Source: http://www.brendangregg.com/blog/

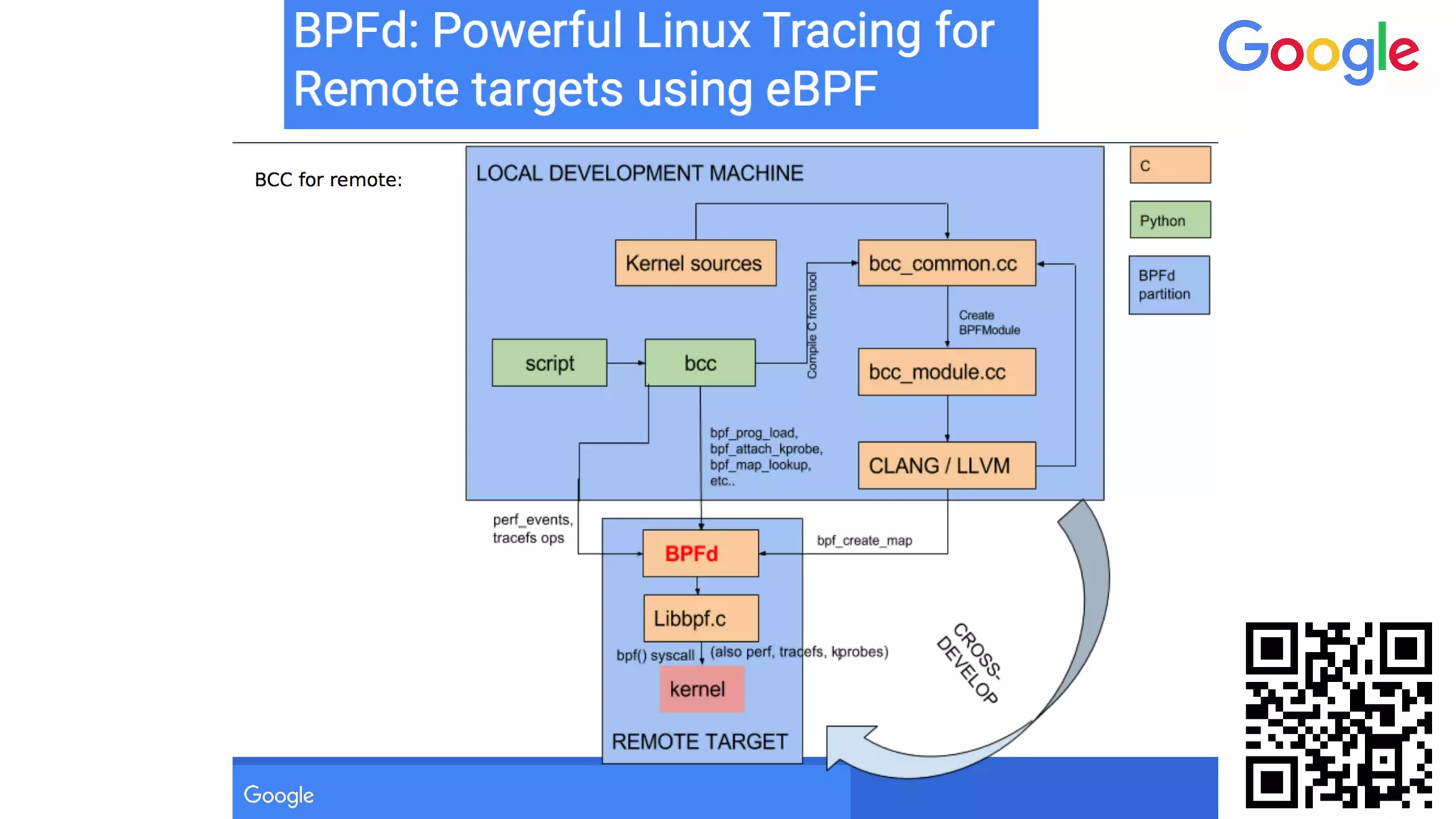

- 8. What is yourfavorite iptables memory?
- 9. What is yourfavorite iptables memory?

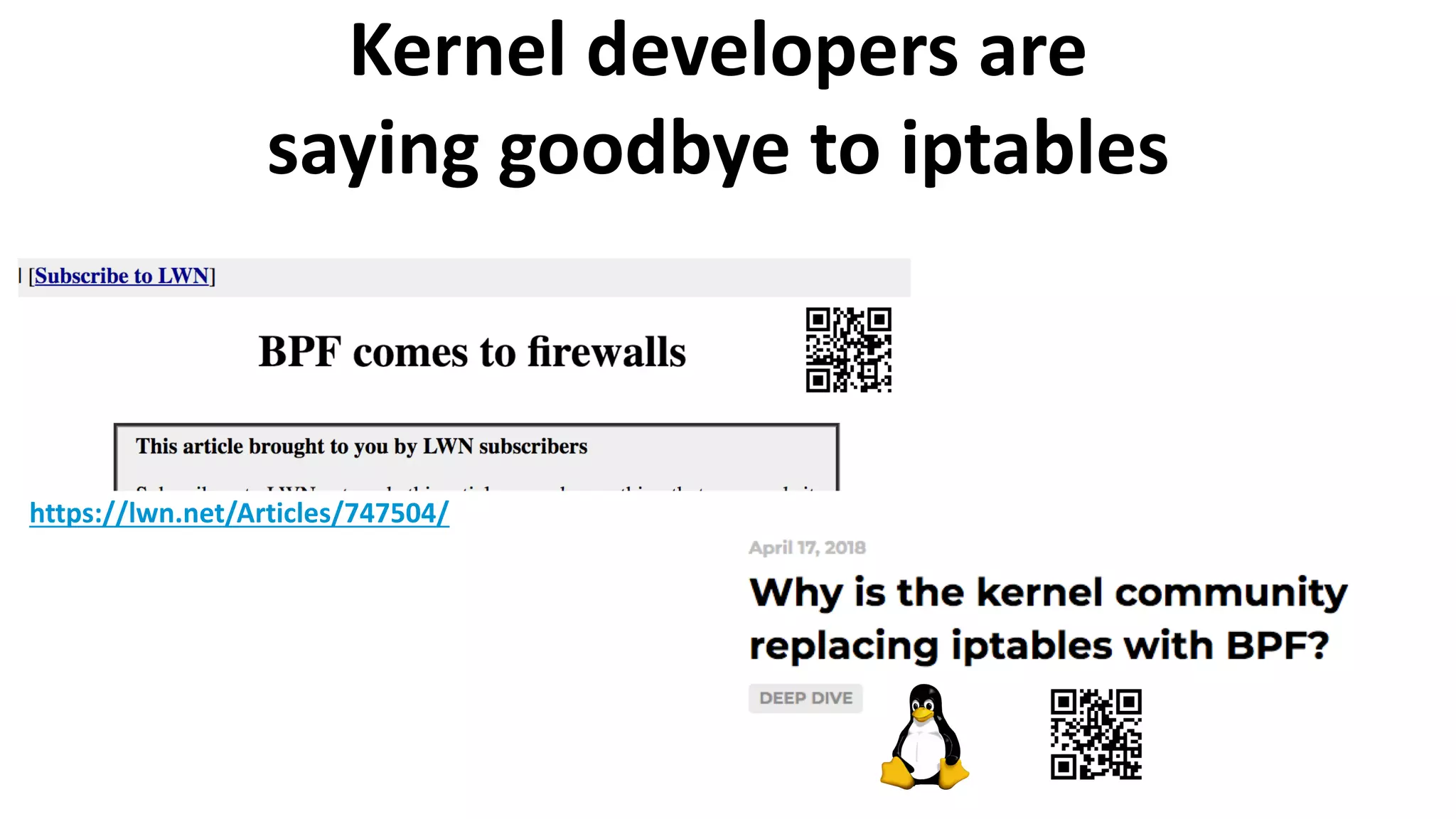

- 10. Kernel developers are sayinggoodbye to iptables https://lwn.net/Articles/747504/

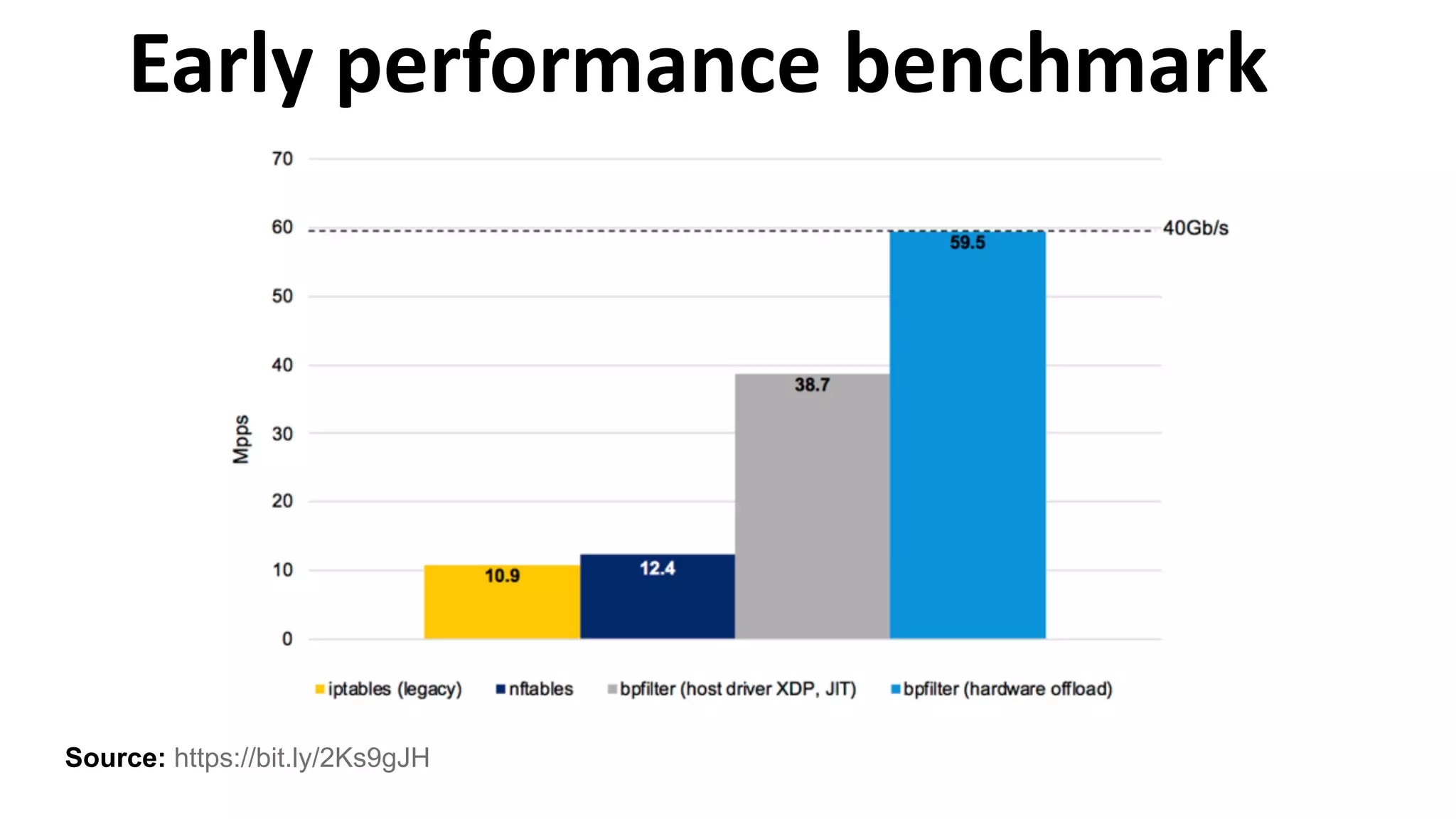

- 11. Early performance benchmark Source:https://bit.ly/2Ks9gJH

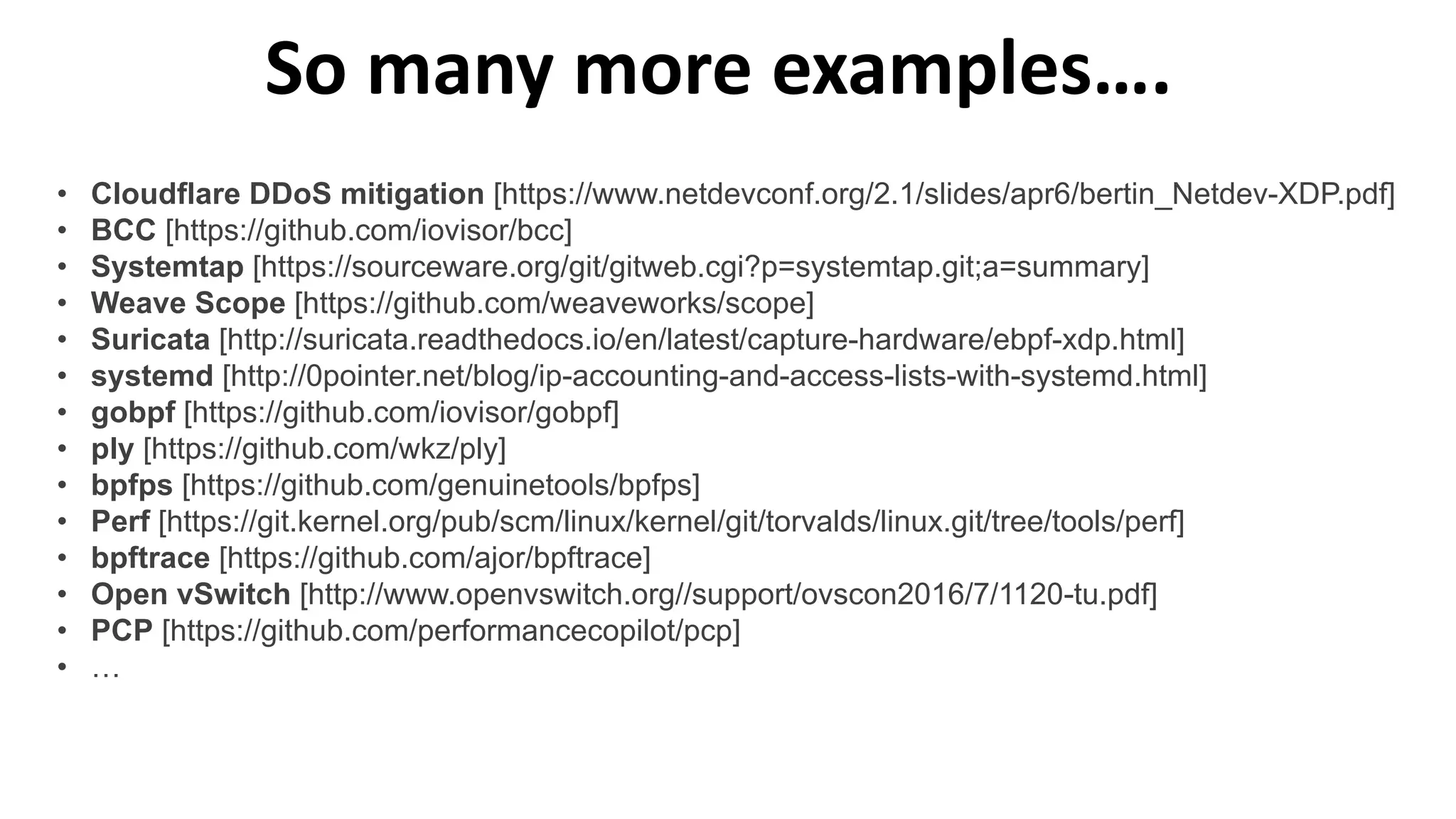

- 12. So many moreexamples…. • Cloudflare DDoS mitigation [https://www.netdevconf.org/2.1/slides/apr6/bertin_Netdev-XDP.pdf] • BCC [https://github.com/iovisor/bcc] • Systemtap [https://sourceware.org/git/gitweb.cgi?p=systemtap.git;a=summary] • Weave Scope [https://github.com/weaveworks/scope] • Suricata [http://suricata.readthedocs.io/en/latest/capture-hardware/ebpf-xdp.html] • systemd [http://0pointer.net/blog/ip-accounting-and-access-lists-with-systemd.html] • gobpf [https://github.com/iovisor/gobpf] • ply [https://github.com/wkz/ply] • bpfps [https://github.com/genuinetools/bpfps] • Perf [https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/tools/perf] • bpftrace [https://github.com/ajor/bpftrace] • Open vSwitch [http://www.openvswitch.org//support/ovscon2016/7/1120-tu.pdf] • PCP [https://github.com/performancecopilot/pcp] • …

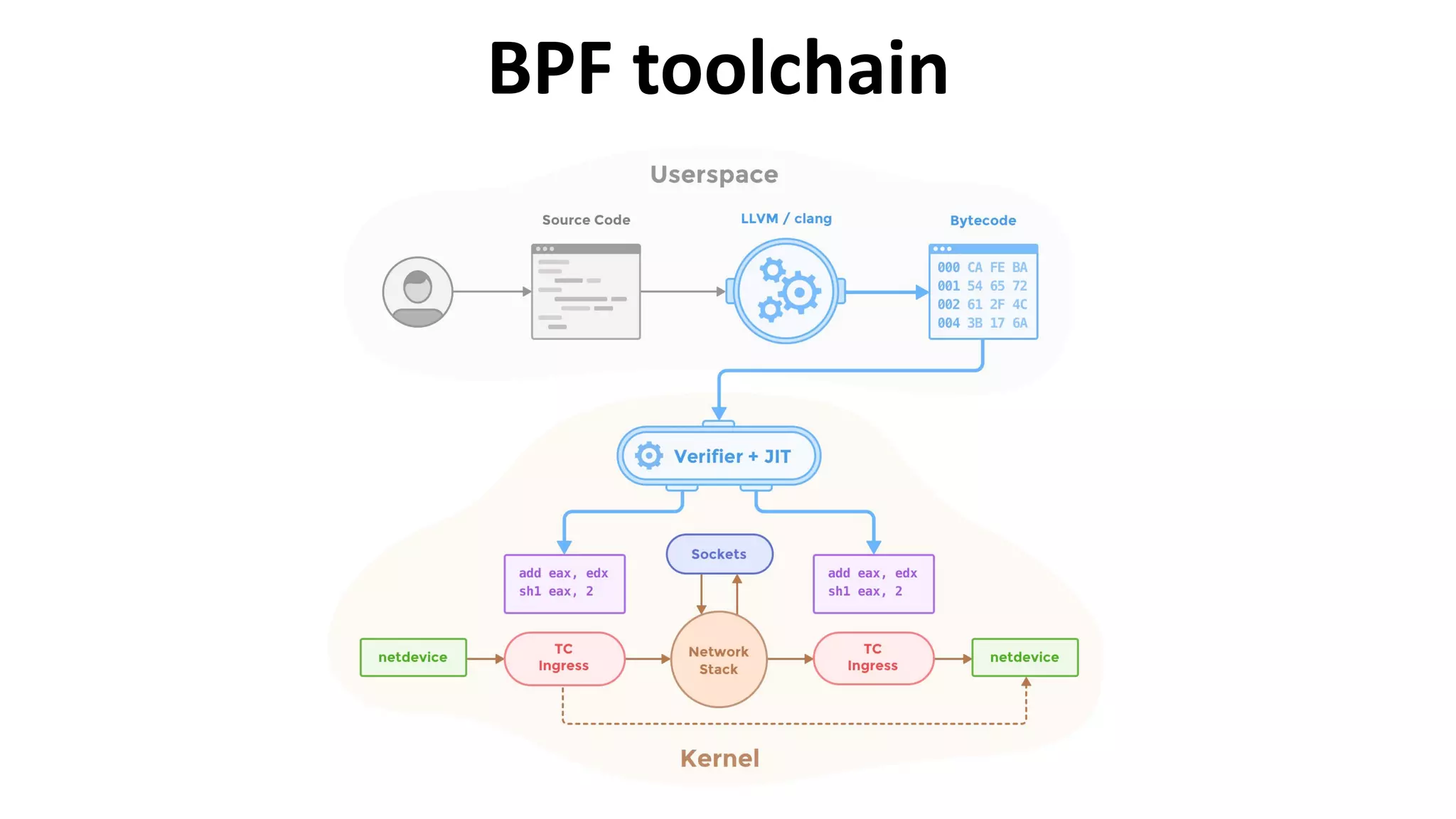

- 13.
- 14. How does BPFapply to Envoy and Service Mesh?

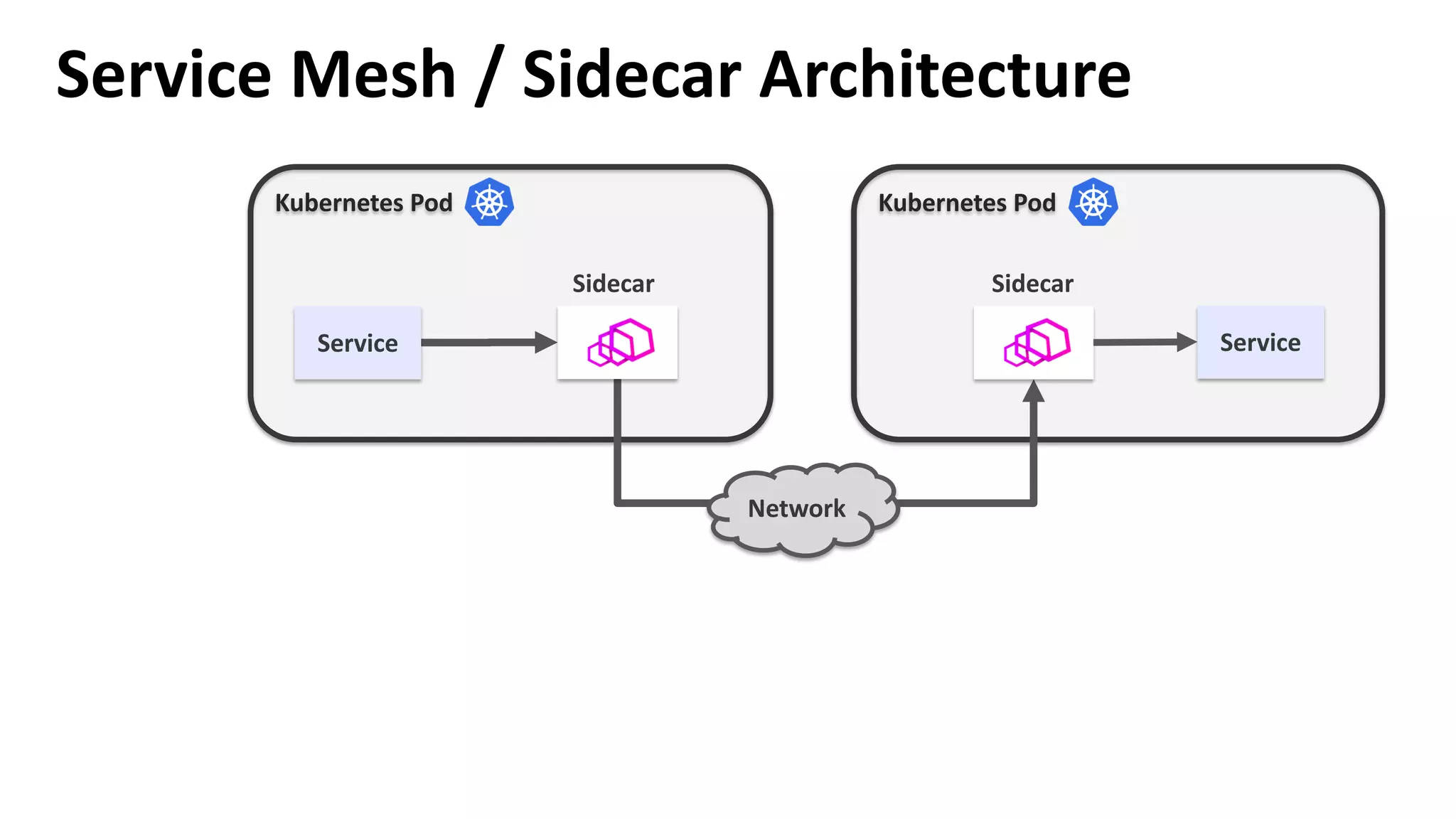

- 15. Kubernetes Pod Service Kubernetes Pod ServiceMesh / Sidecar Architecture Network Service SidecarSidecar

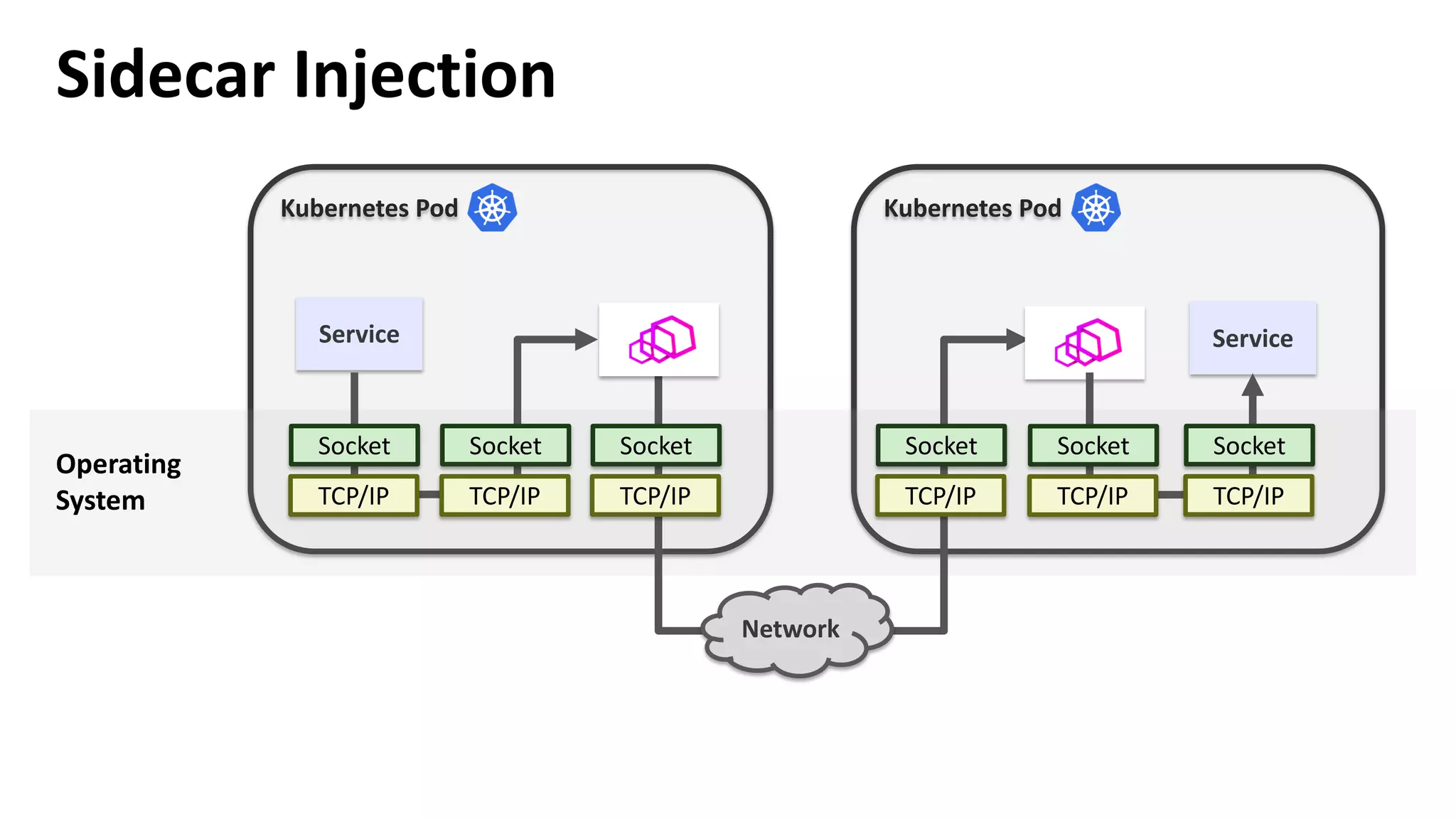

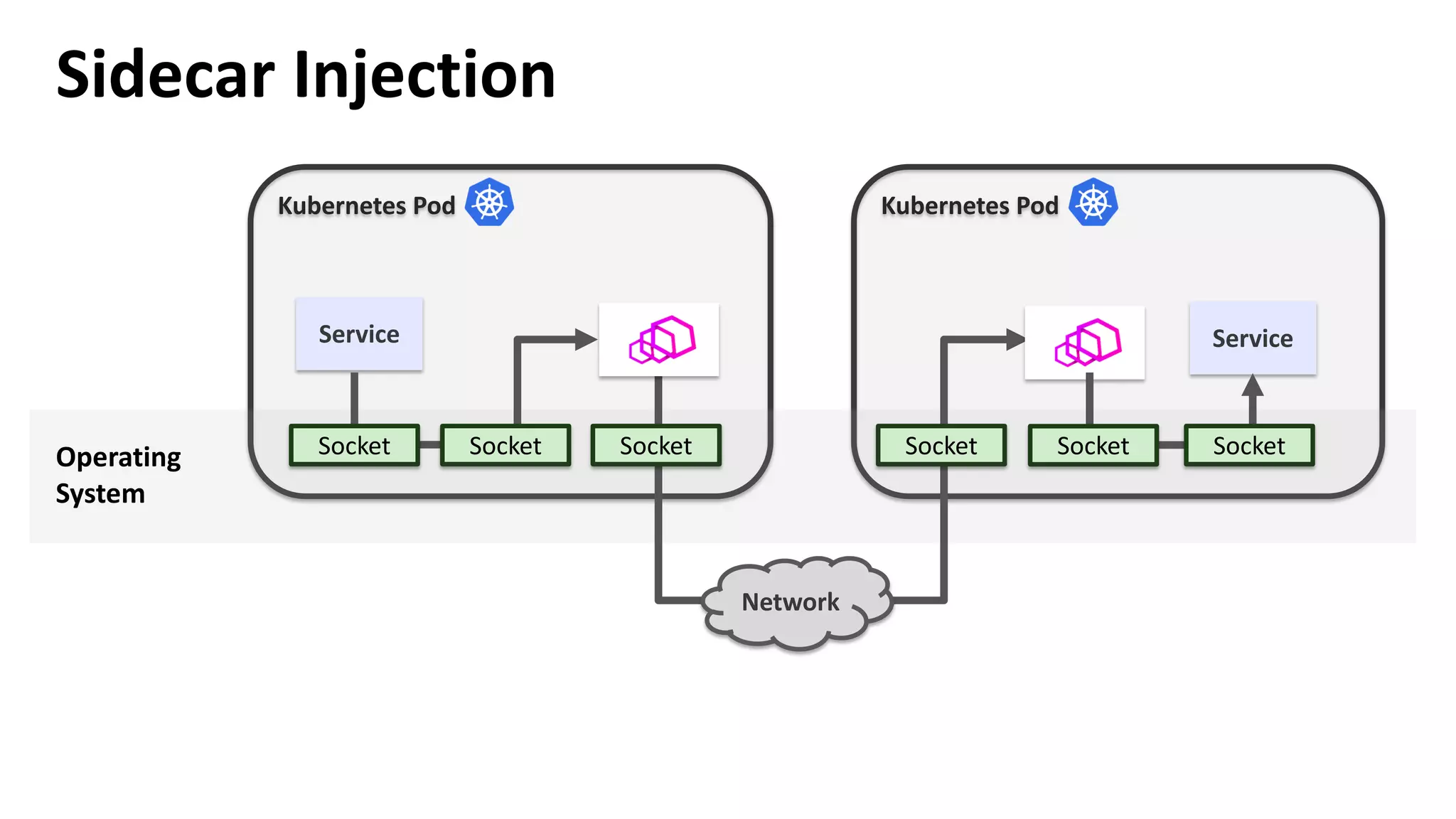

- 16. Kubernetes Pod Service Kubernetes Pod Operating System SocketSocket Sidecar Injection Network Service Socket Socket Socket Socket
- 17. Kubernetes Pod Service Kubernetes Pod Operating System Socket TCP/IP Socket TCP/IP SidecarInjection Network Service Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP

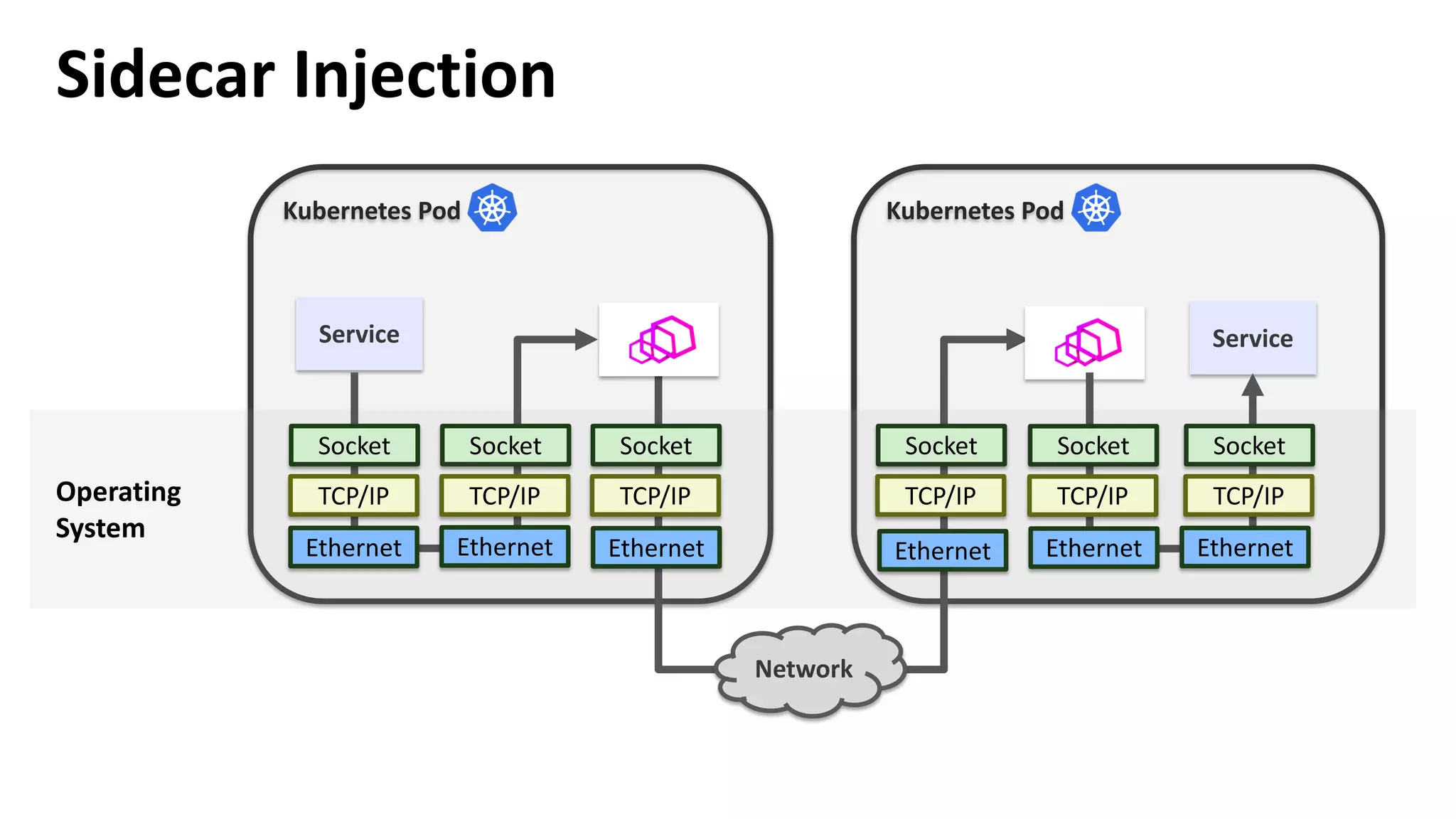

- 18. Kubernetes Pod Service Kubernetes Pod SidecarInjection Network Service Operating System Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Ethernet Ethernet Ethernet Ethernet EthernetEthernet

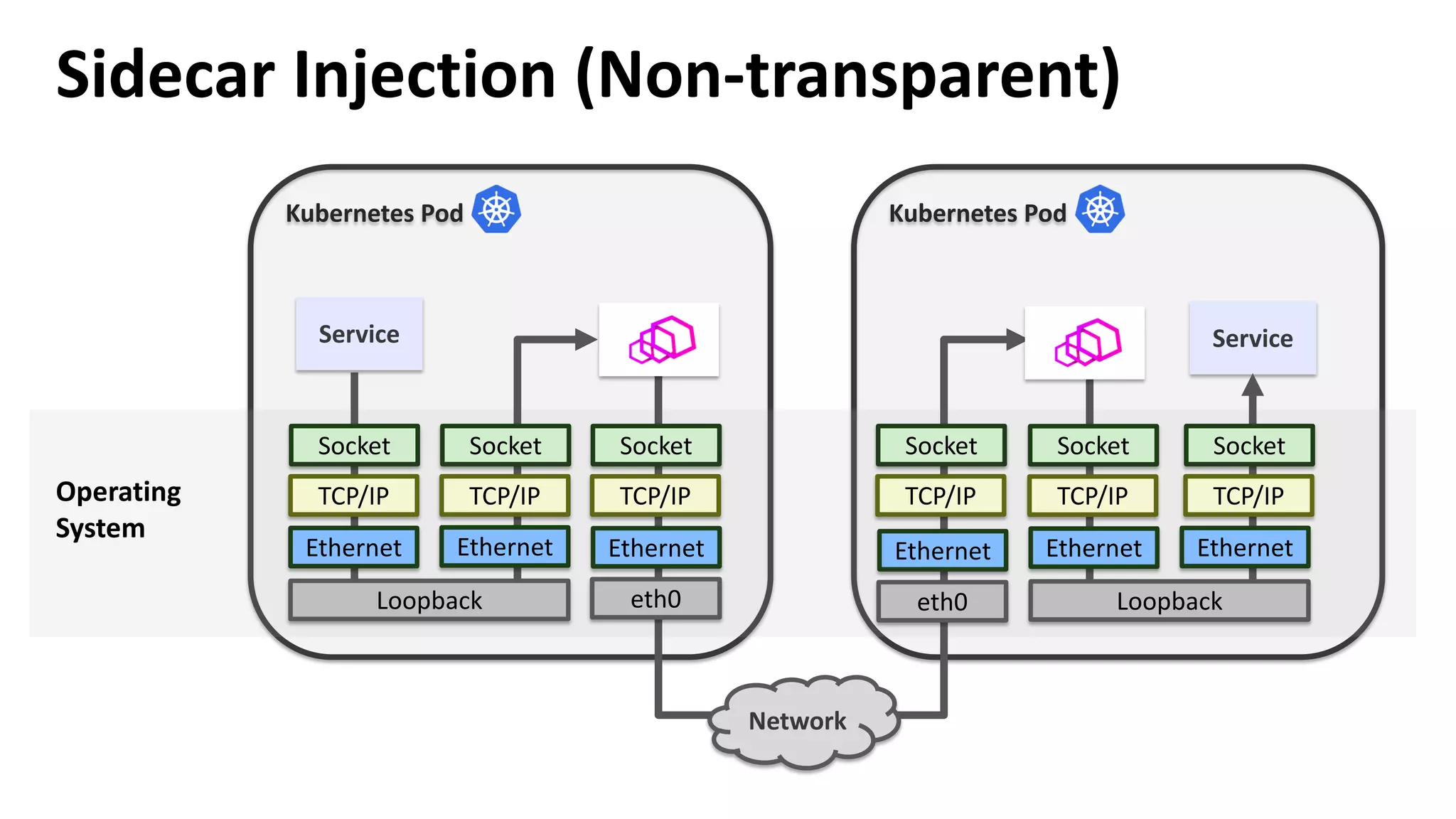

- 19. Kubernetes Pod Service Kubernetes Pod Operating System Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP SidecarInjection (Non-transparent) Network Service Ethernet Ethernet Loopback Ethernet eth0 Ethernet Ethernet Loopback Ethernet eth0

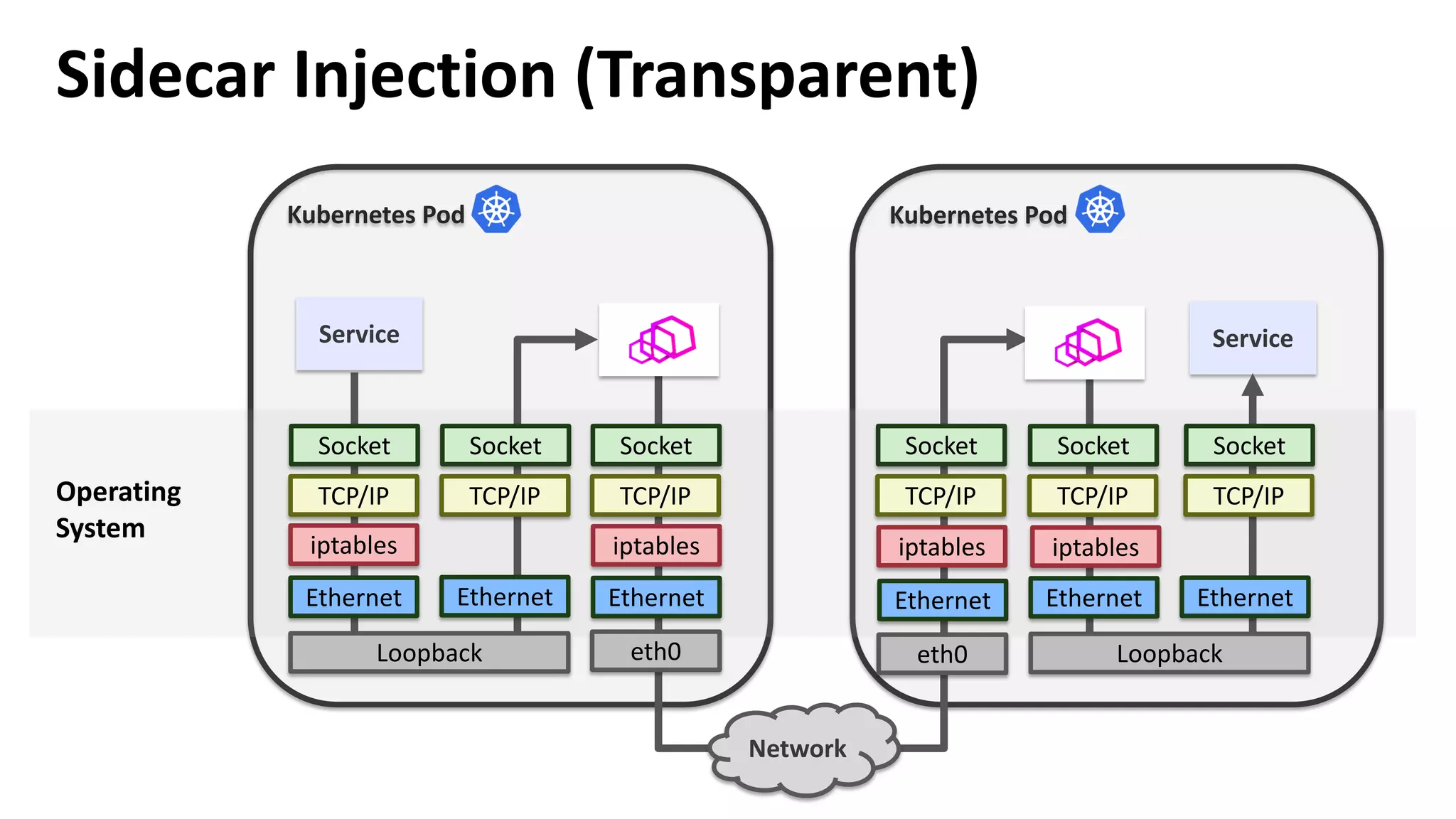

- 20. Kubernetes Pod Service Kubernetes Pod Operating System Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP Socket TCP/IP SidecarInjection (Transparent) Network Service Ethernet Ethernet Loopback Ethernet eth0 Ethernet Ethernet Loopback Ethernet eth0 iptables iptables iptablesiptables
- 21. Why use TCPand Ethernet in a single-node, lossless environment?

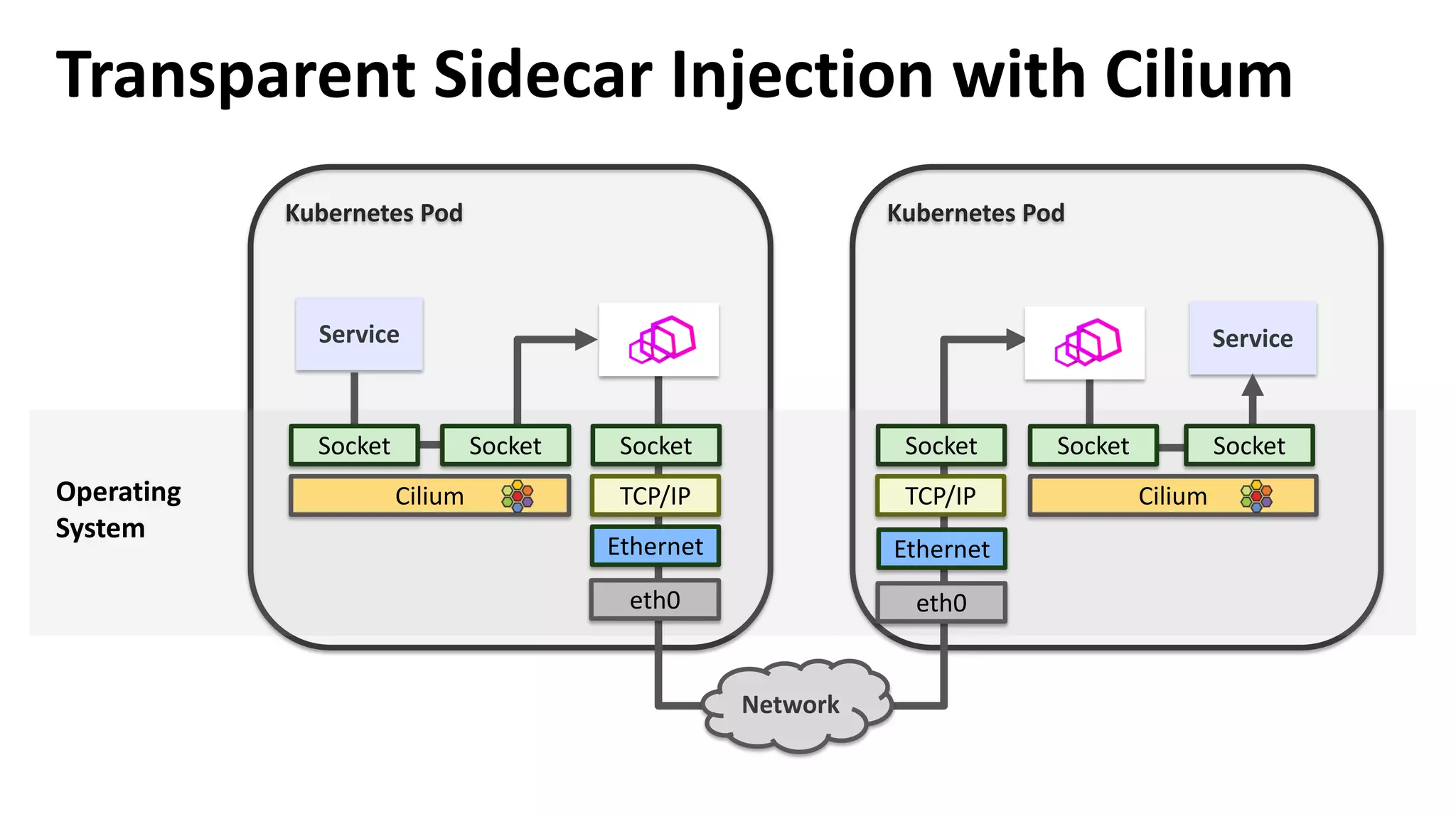

- 22. Kubernetes Pod Service Kubernetes Pod Operating System SocketSocket Socket TCP/IP Socket TCP/IP Socket Socket Transparent Sidecar Injection with Cilium Network Service Ethernet eth0 Ethernet eth0 CiliumCilium

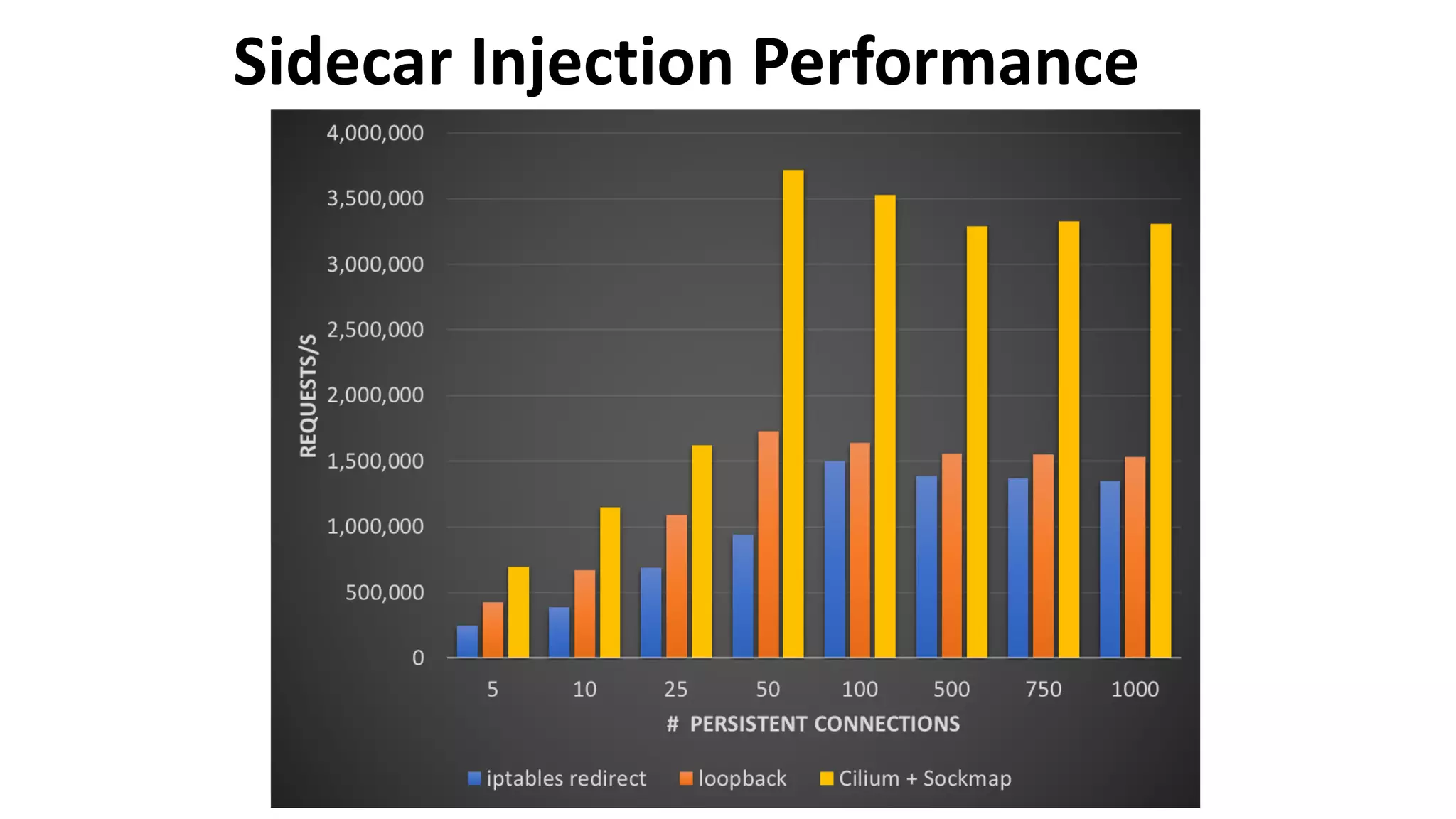

- 23.

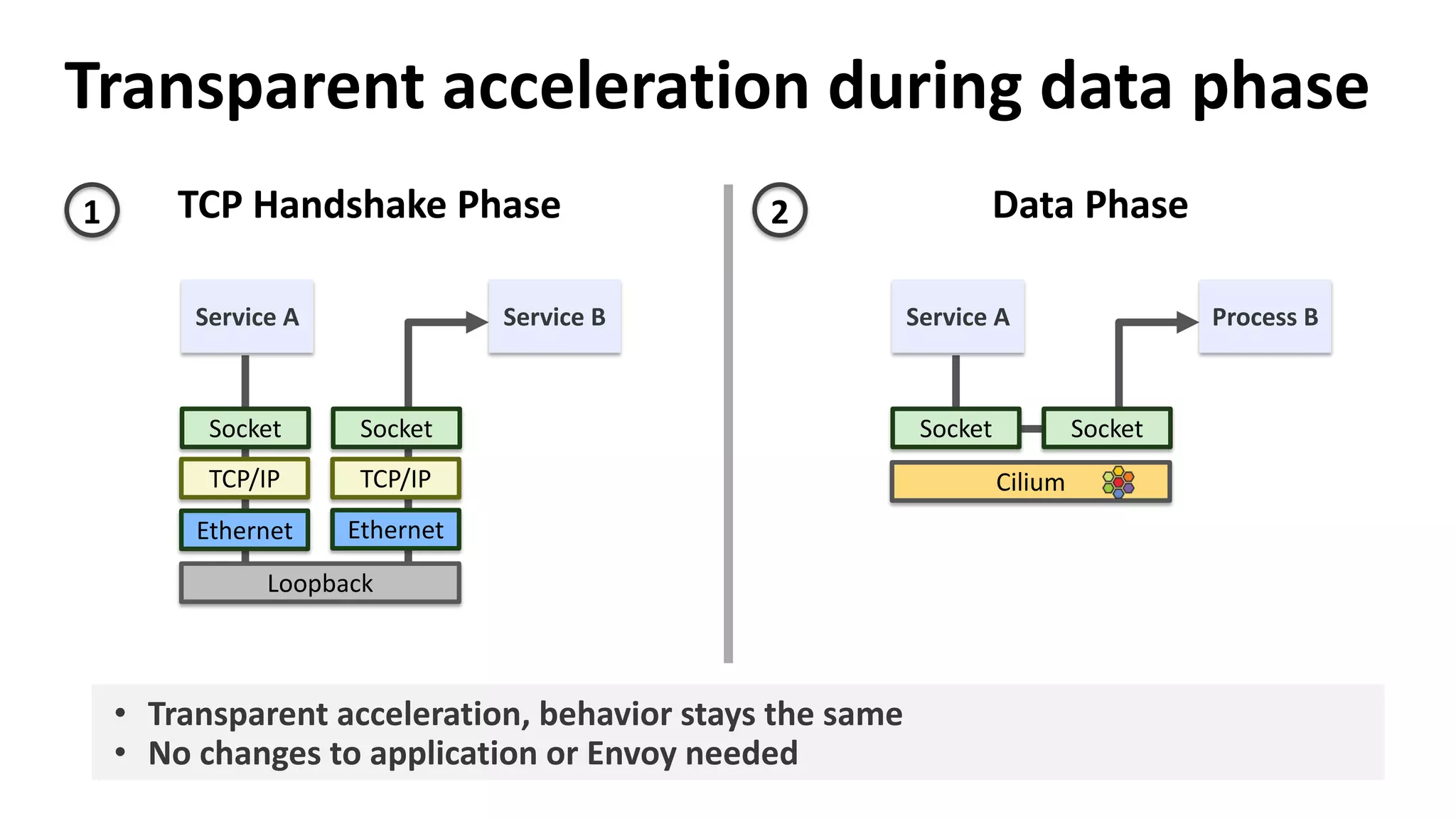

- 24. Socket TCP/IP Socket TCP/IP Service A ServiceB Ethernet Ethernet Loopback TCP Handshake Phase Socket Socket Service A Process B Data Phase Cilium Transparent acceleration during data phase • Transparent acceleration, behavior stays the same • No changes to application or Envoy needed 1 2

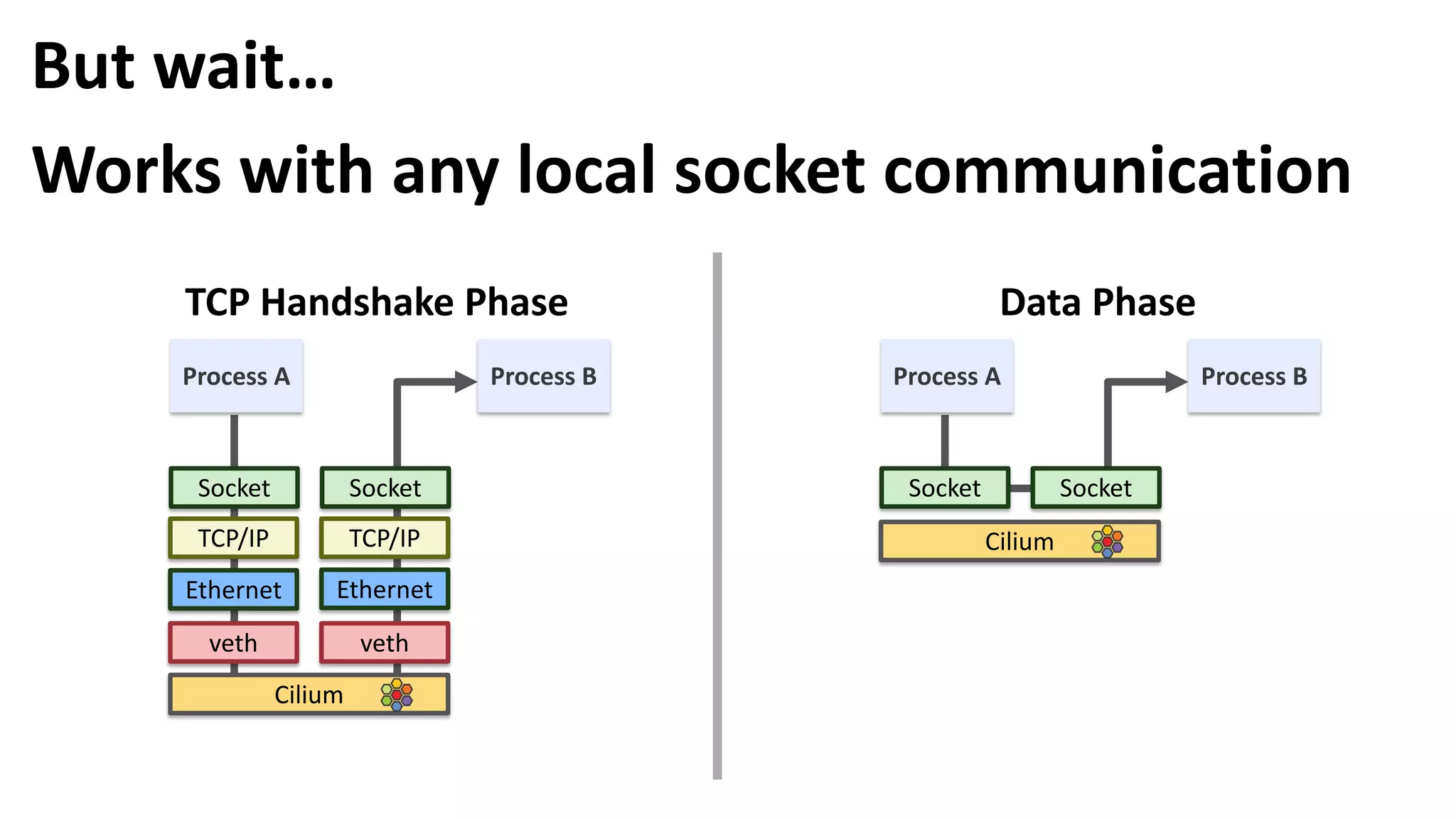

- 25. Socket TCP/IP Socket TCP/IP Process A ProcessB Ethernet Ethernet Cilium But wait… Works with any local socket communication TCP Handshake Phase Socket Socket Process A Process B Data Phase Cilium vethveth
- 26. How do Iget this?

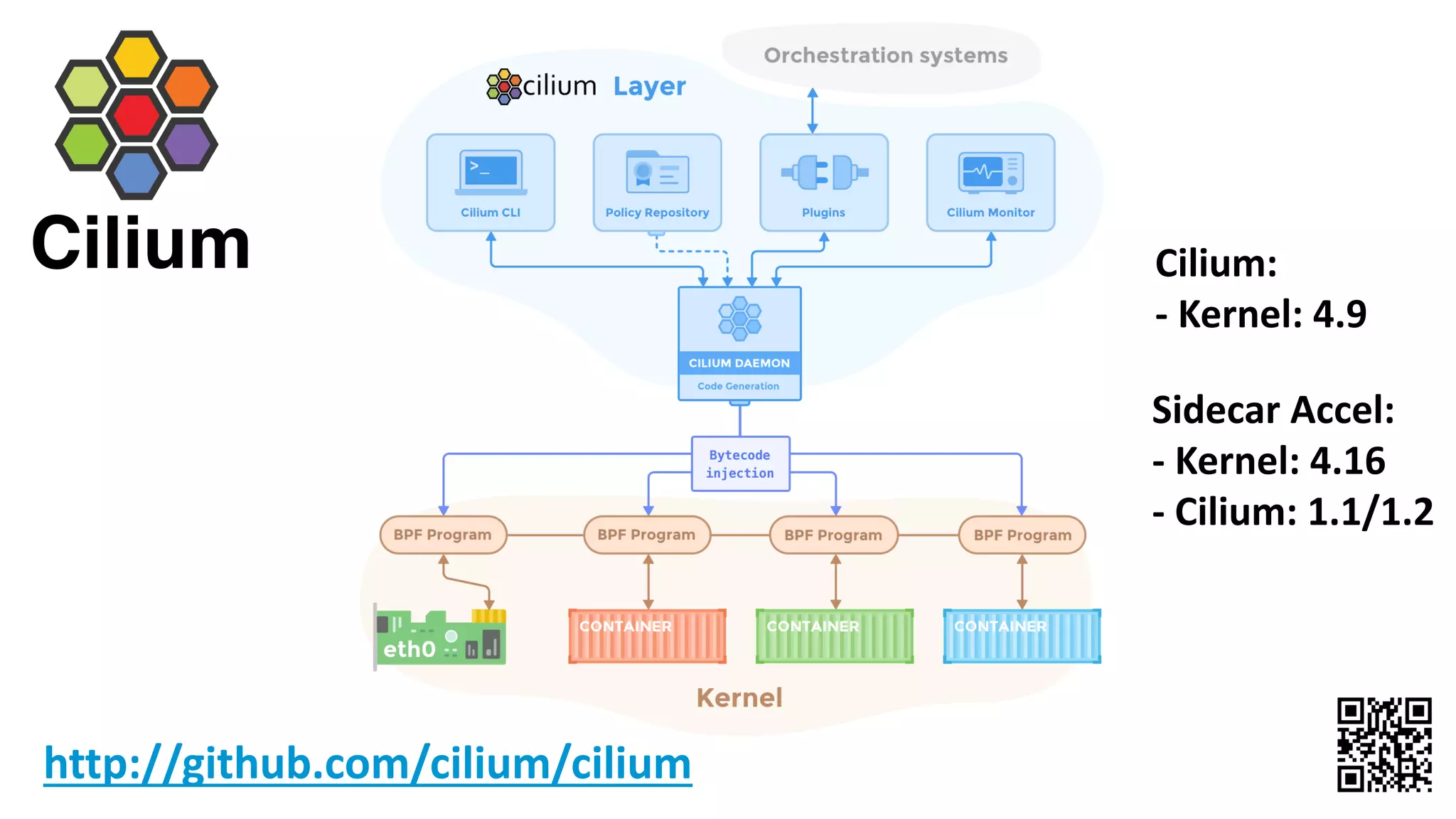

- 27. http://github.com/cilium/cilium Cilium Sidecar Accel: - Kernel:4.16 - Cilium: 1.1/1.2 Cilium: - Kernel: 4.9

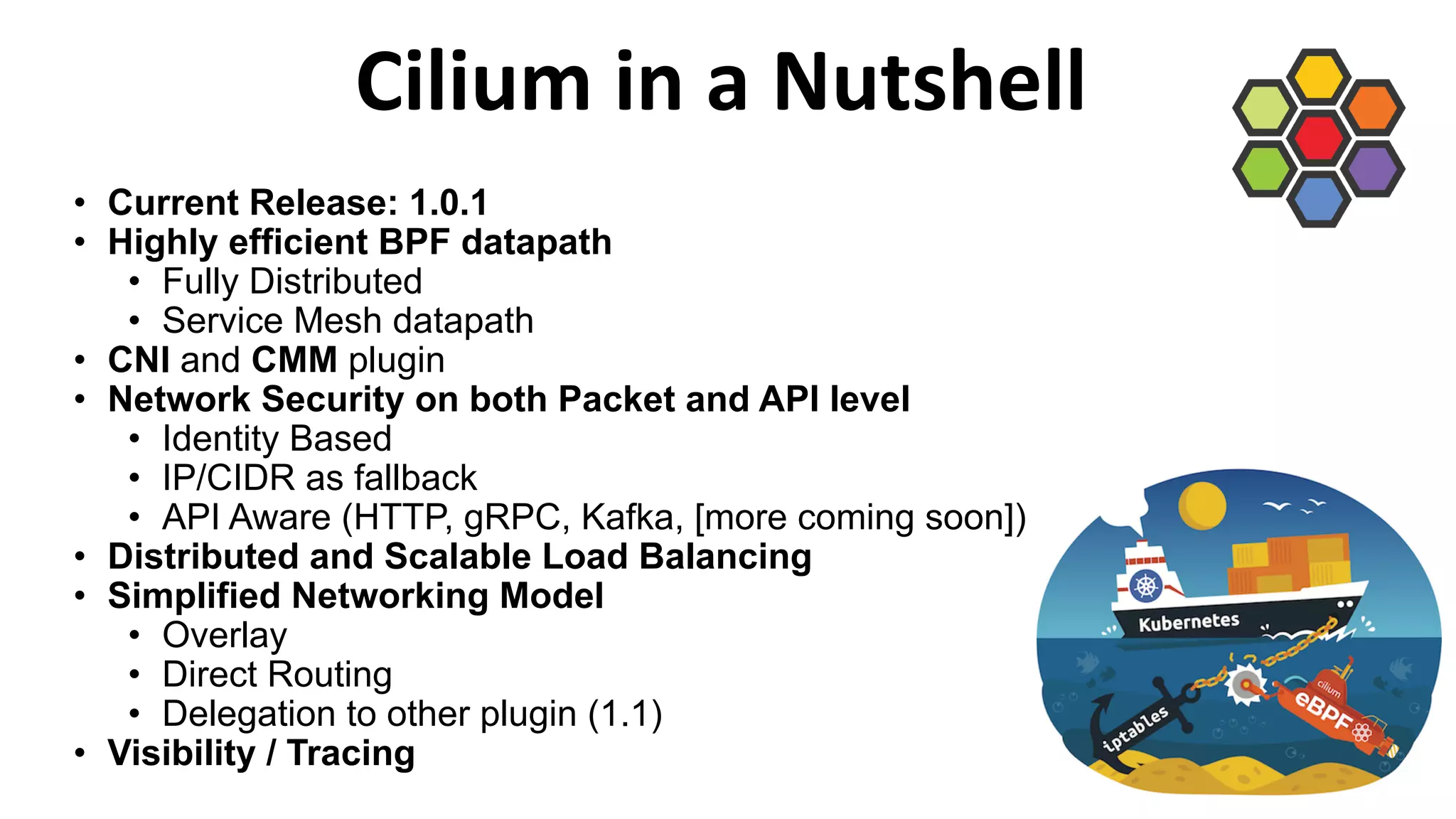

- 28. Cilium in aNutshell • Current Release: 1.0.1 • Highly efficient BPF datapath • Fully Distributed • Service Mesh datapath • CNI and CMM plugin • Network Security on both Packet and API level • Identity Based • IP/CIDR as fallback • API Aware (HTTP, gRPC, Kafka, [more coming soon]) • Distributed and Scalable Load Balancing • Simplified Networking Model • Overlay • Direct Routing • Delegation to other plugin (1.1) • Visibility / Tracing
- 29.
- 30. It gets better… …and a little bit scary

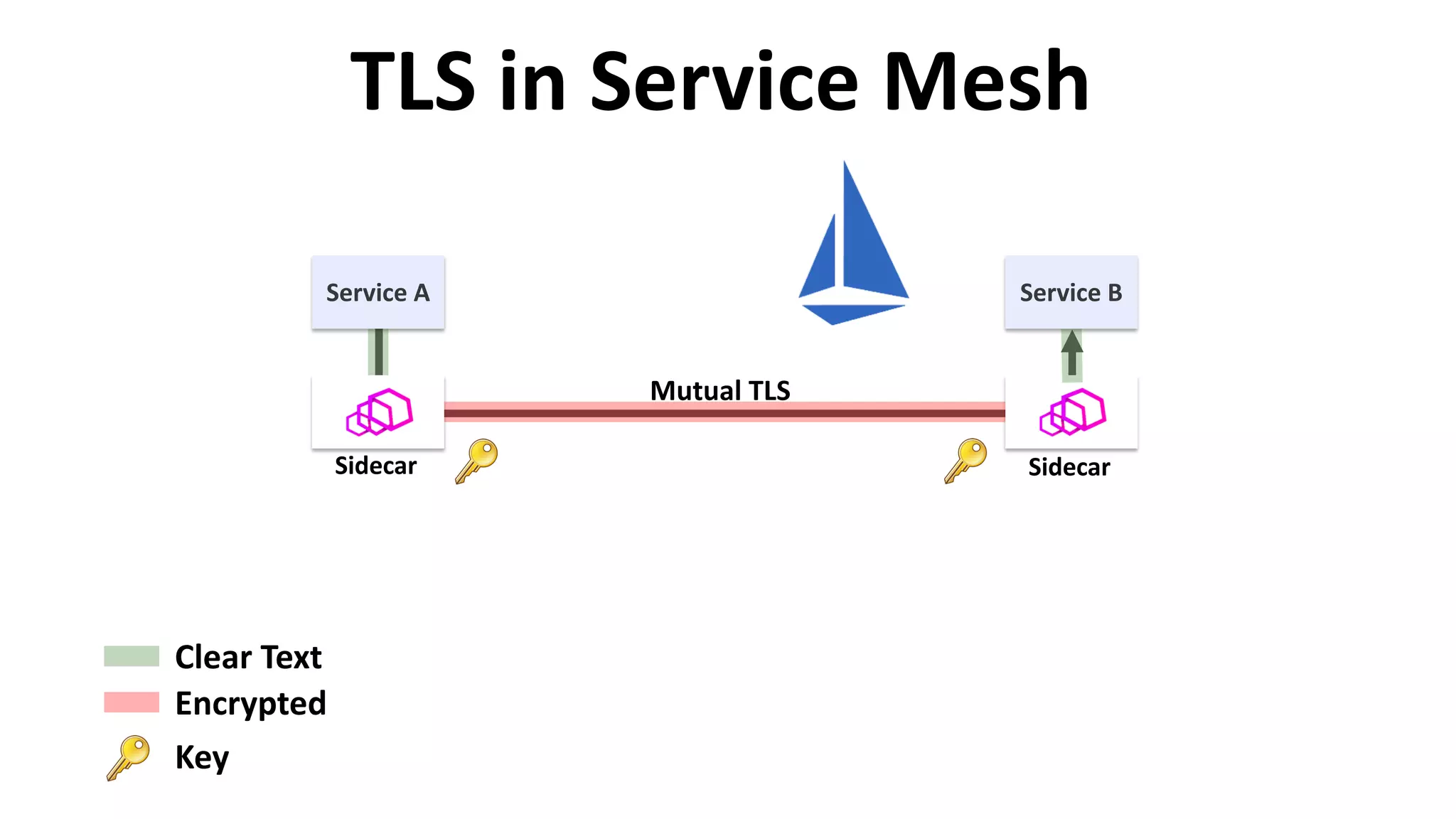

- 31. Service A ServiceB Mutual TLS TLS in Service Mesh Clear Text Encrypted Sidecar Sidecar Key

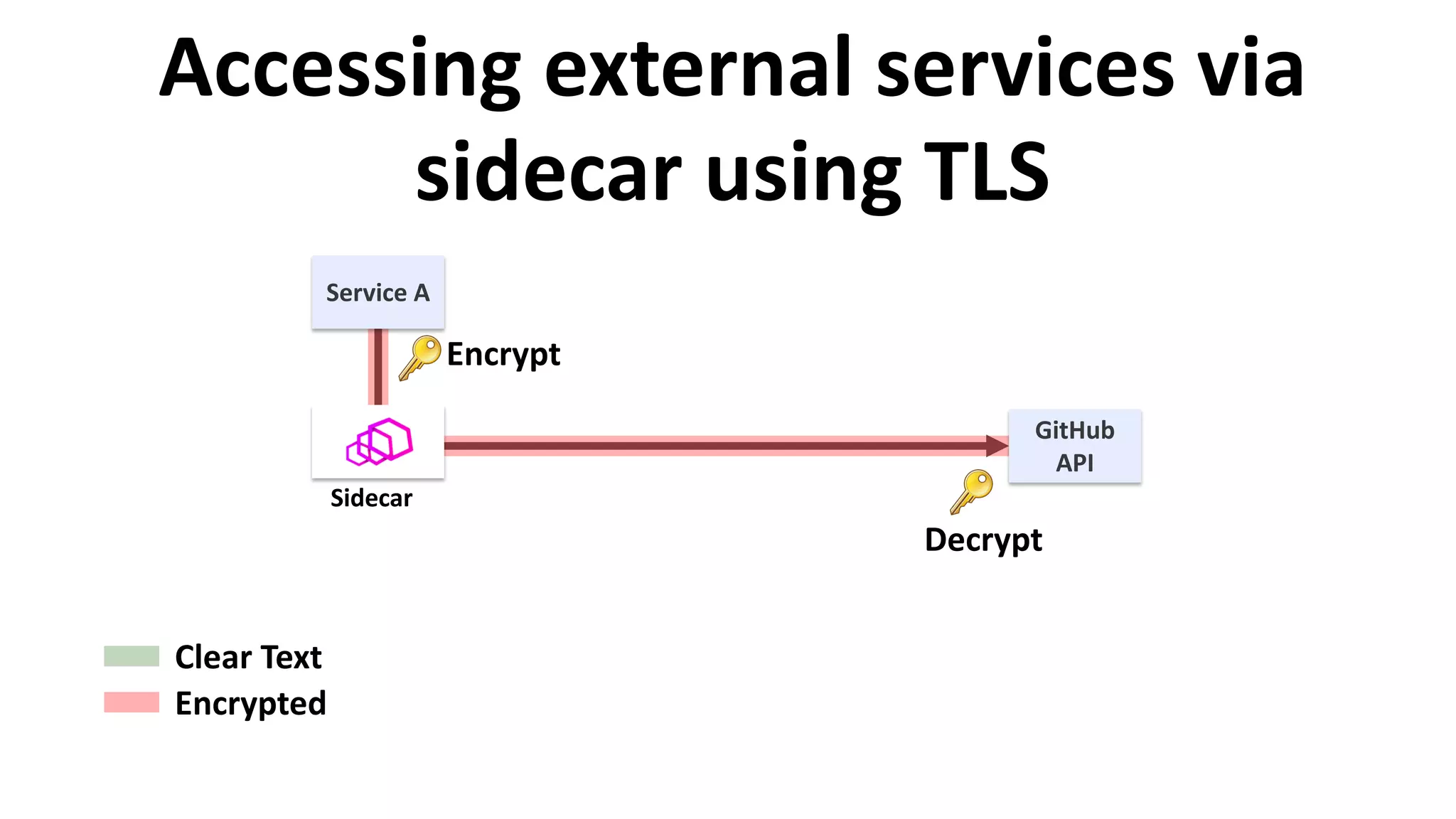

- 32. Service A Accessing externalservices via sidecar using TLS GitHub API Clear Text Encrypted Sidecar Encrypt Decrypt

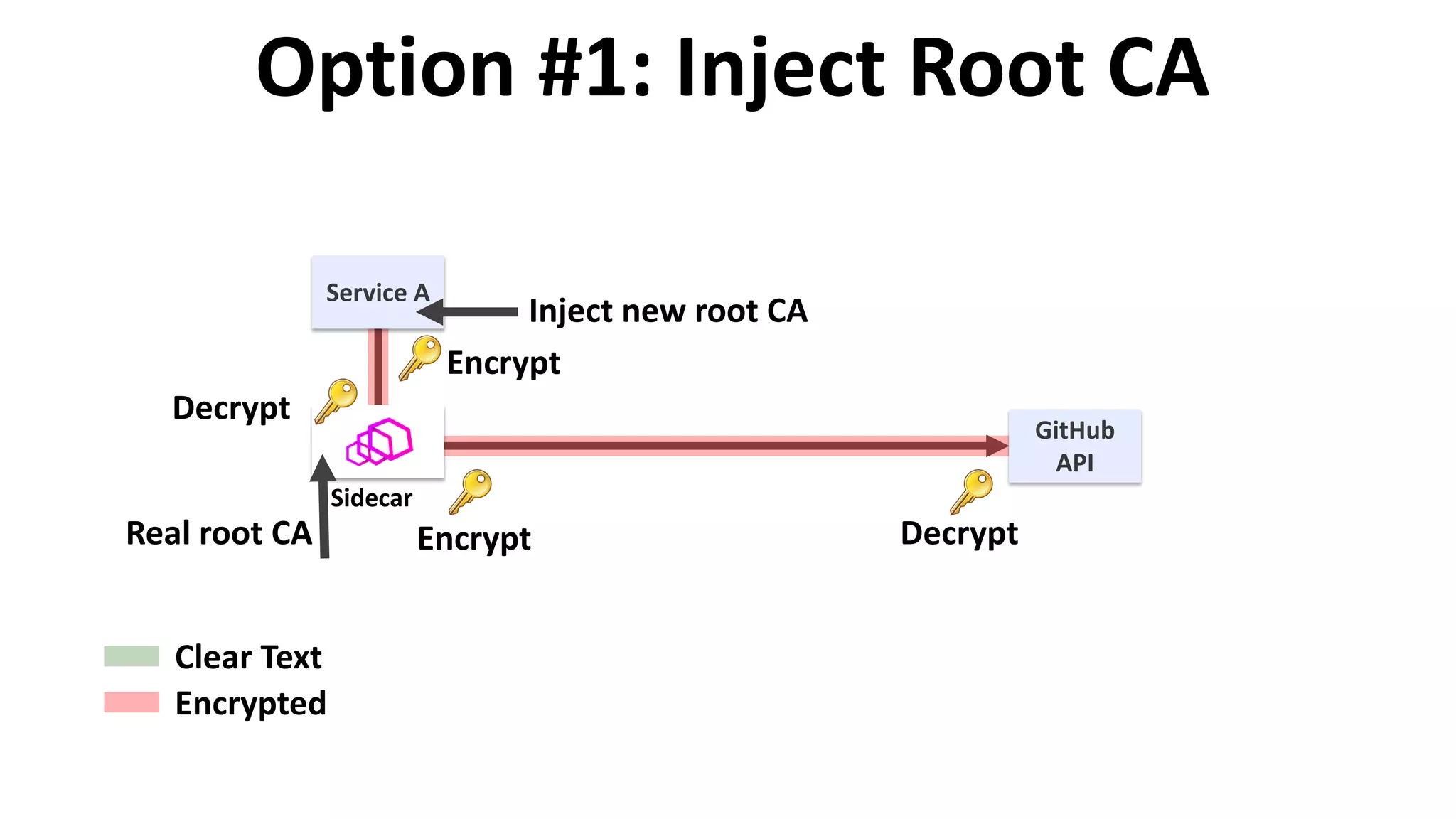

- 33. Service A Option #1:Inject Root CA GitHub API Clear Text Encrypted Sidecar Inject new root CA Real root CA Encrypt Decrypt Encrypt Decrypt

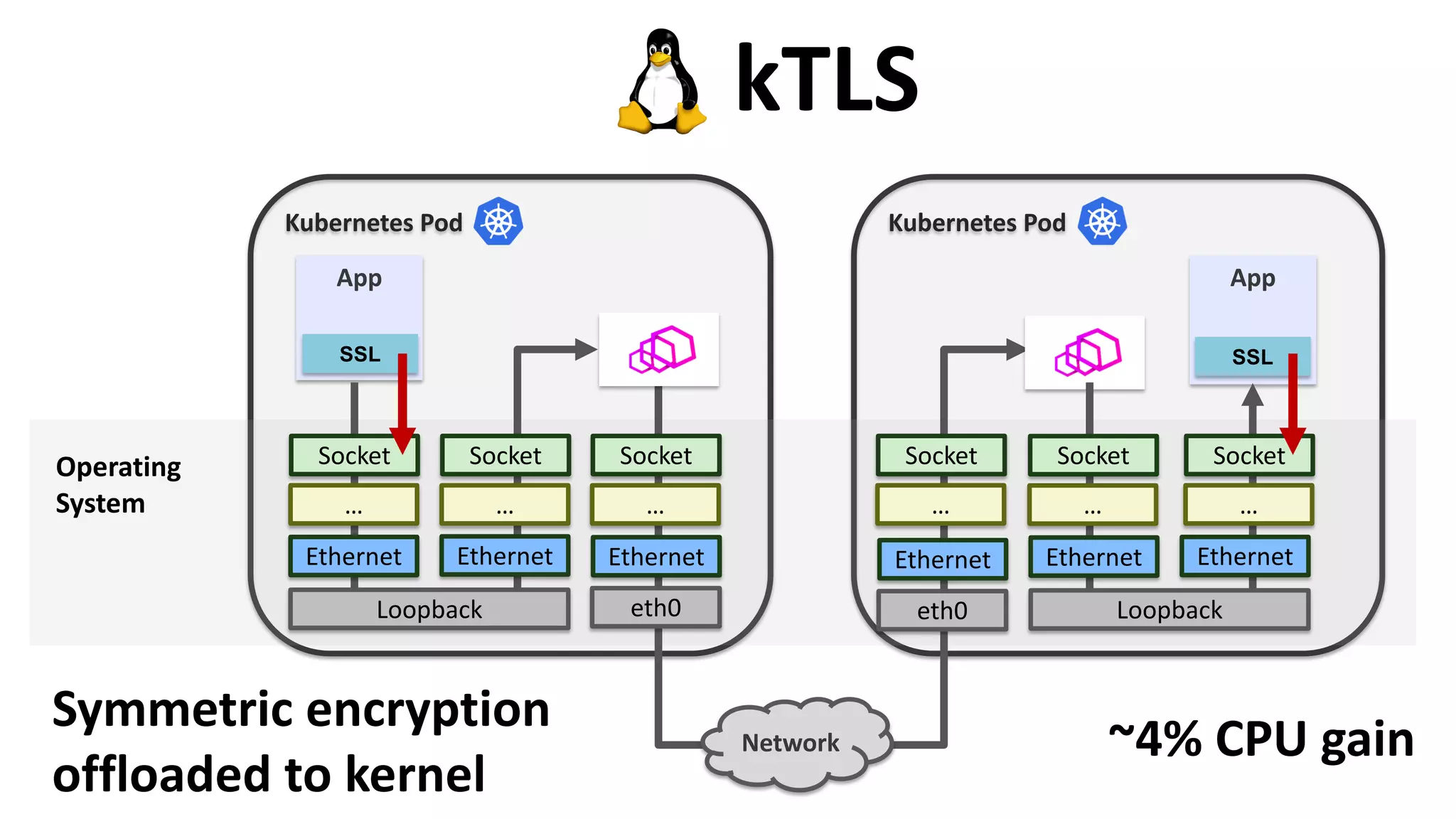

- 34. kTLS Kubernetes Pod App Kubernetes Pod Operating System SocketSocket Network App Socket Socket Socket Socket SSL SSL … … … … … … Ethernet Ethernet Loopback Ethernet eth0 Ethernet Ethernet Loopback Ethernet eth0 Symmetric encryption offloaded to kernel ~4% CPU gain

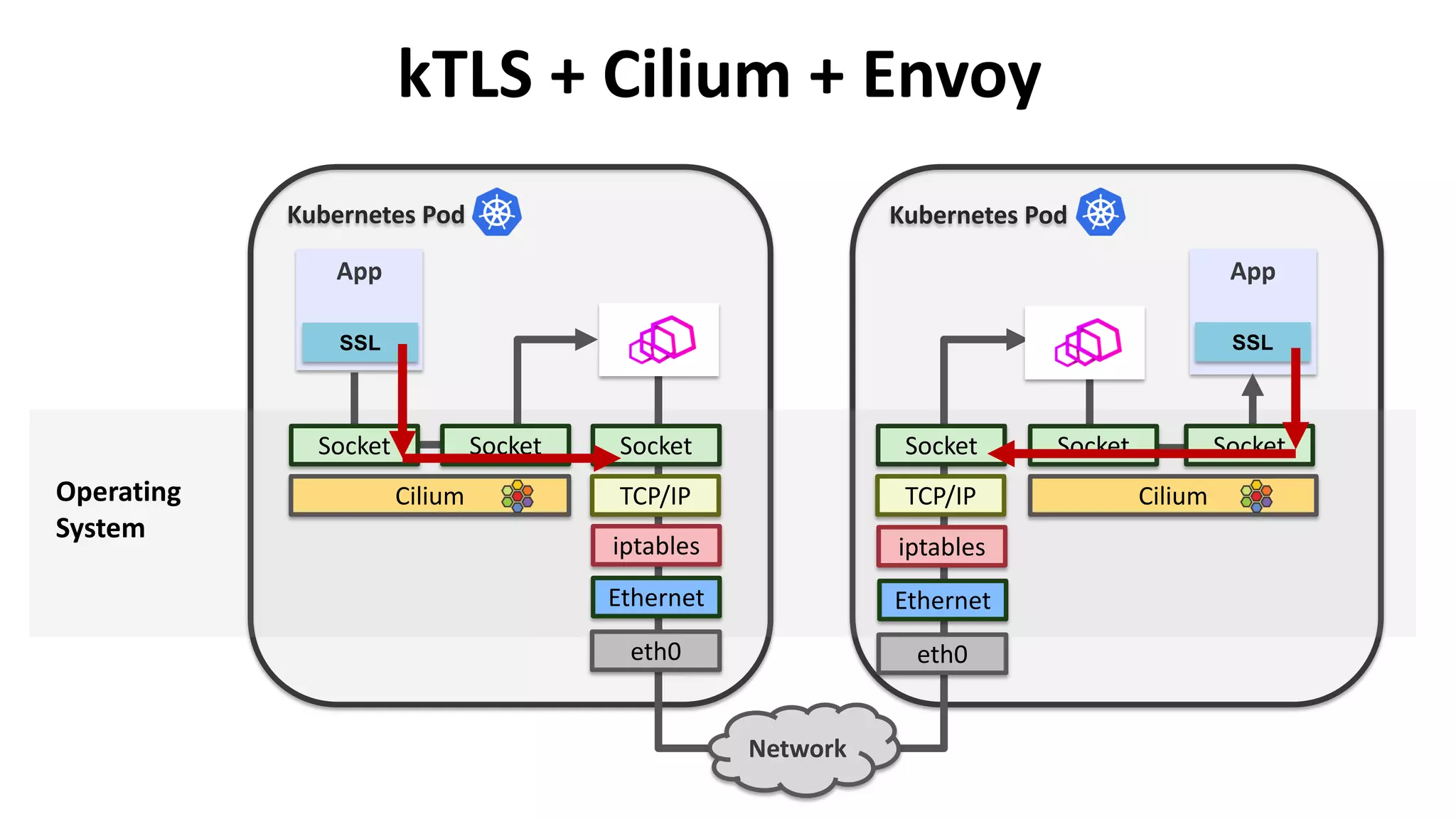

- 35. Kubernetes Pod App Kubernetes Pod Operating System SocketSocket Socket TCP/IP Socket TCP/IP Socket Socket kTLS + Cilium + Envoy Network App Ethernet eth0 Ethernet eth0 iptablesiptables CiliumCilium SSL SSL

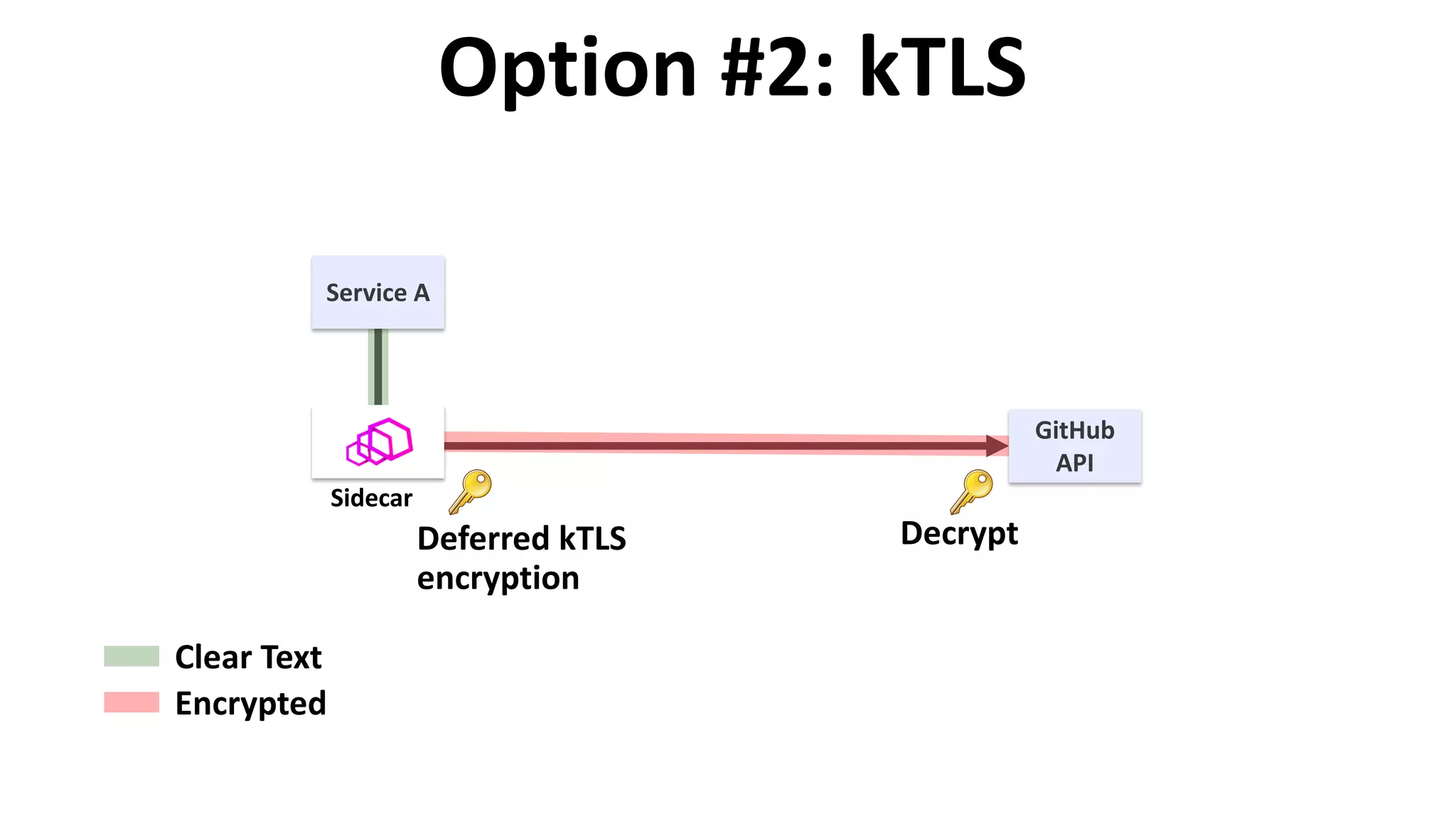

- 36. Service A Option #2:kTLS GitHub API Clear Text Encrypted Sidecar Deferred kTLS encryption Decrypt
- 37. Sidecar for TLSencrypted connections without CA injection & decryption
