Cilium
Networking & Security for Containers with BPF & XDP
Docker Distributed Systems Summit
Thomas Graf

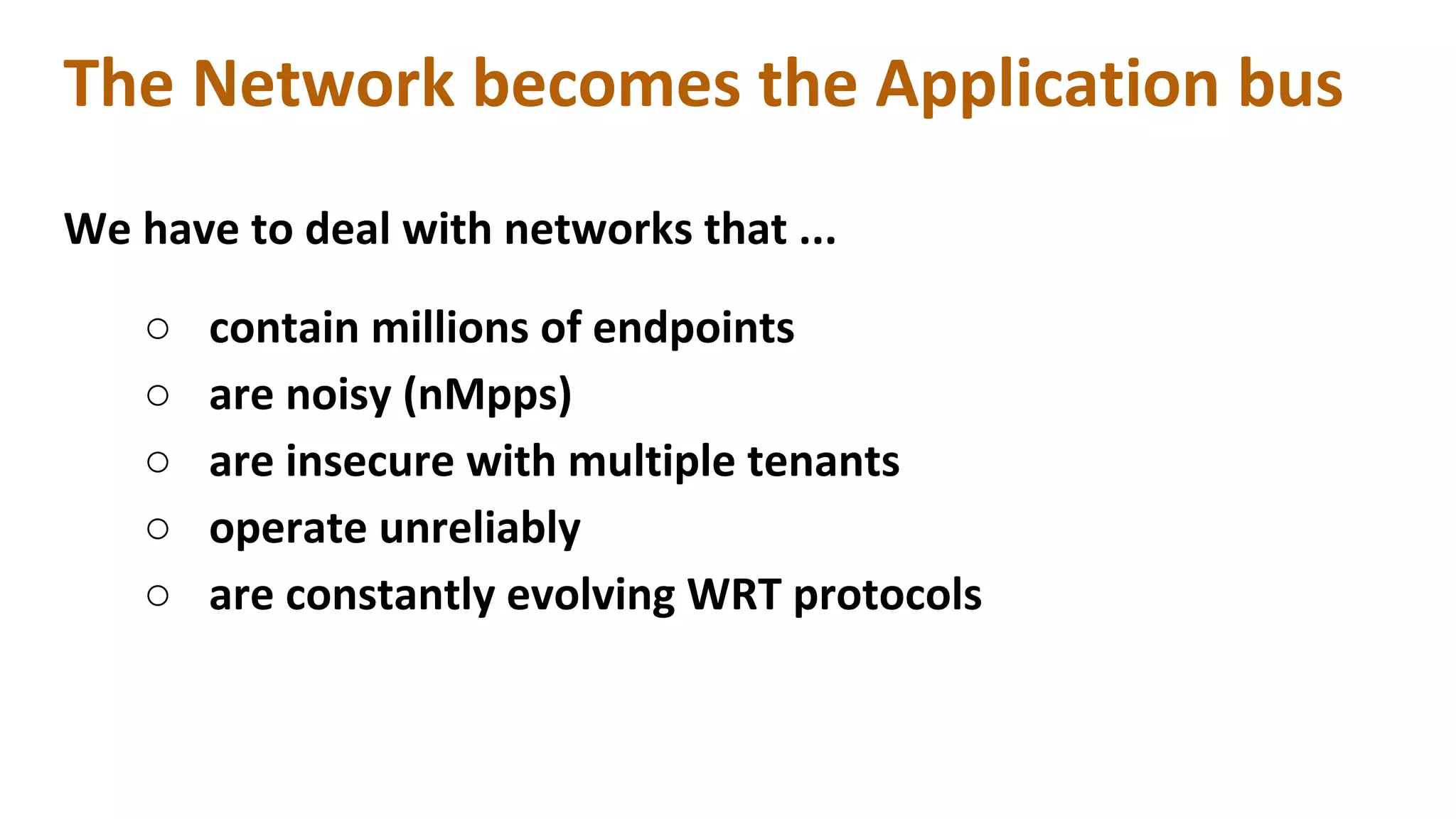

The Network becomes the Application bus
We have to deal with networks that ...
○ contain millions of endpoints
○ are noisy (nMpps)
○ are insecure with multiple tenants
○ operate unreliably
○ are constantly evolving WRT protocols

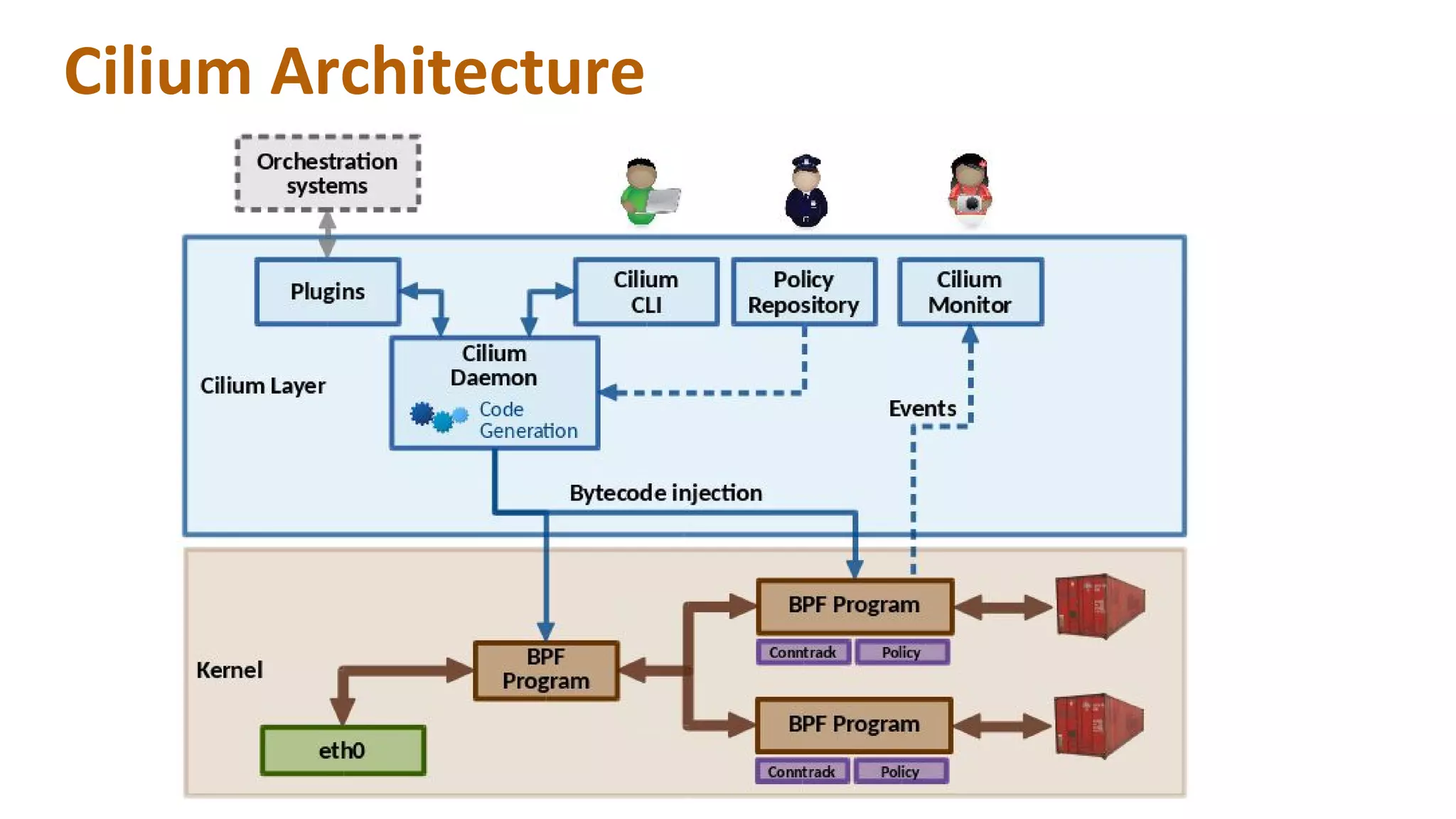

Cilium Architecture

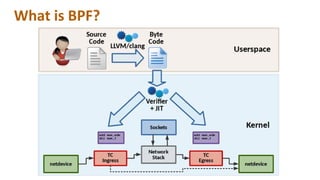

What is BPF?
BPF Code Generation at Container Startup
● Generate networking code at container startup
○ Tailored to each individual container
○ Leads to minimal code required
⇒ faster
⇒ smaller attack surface (unikernel like)
● Majority of configuration (IP, MAC, ports, ... ) becomes
constant, the compiler can optimize heavily
● Regeneration at runtime without breaking connections

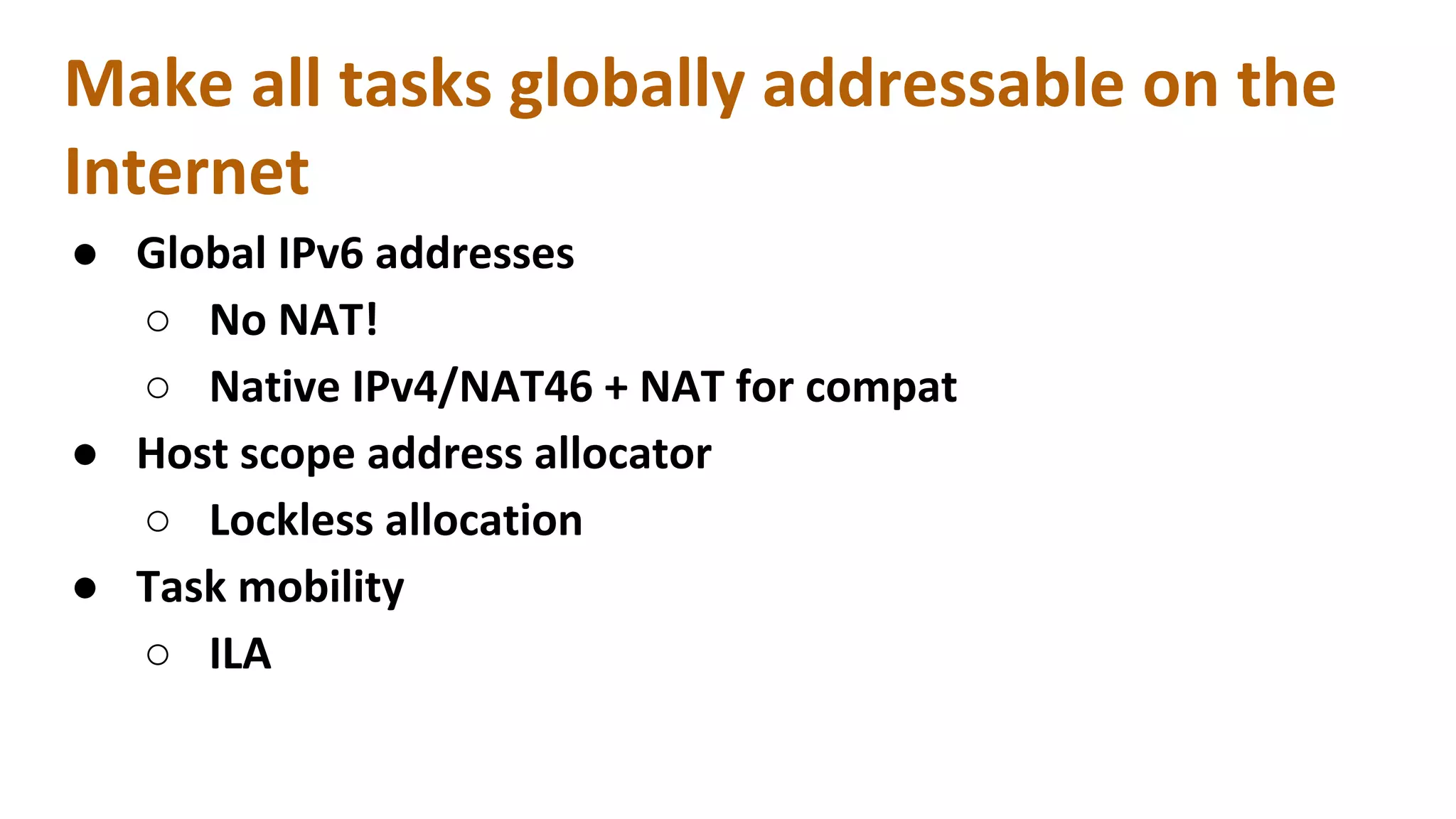

Make all tasks globally addressable on the
Internet
● Global IPv6 addresses
○ No NAT!
○ Native IPv4/NAT46 + NAT for compat
● Host scope address allocator
○ Lockless allocation
● Task mobility
○ ILA

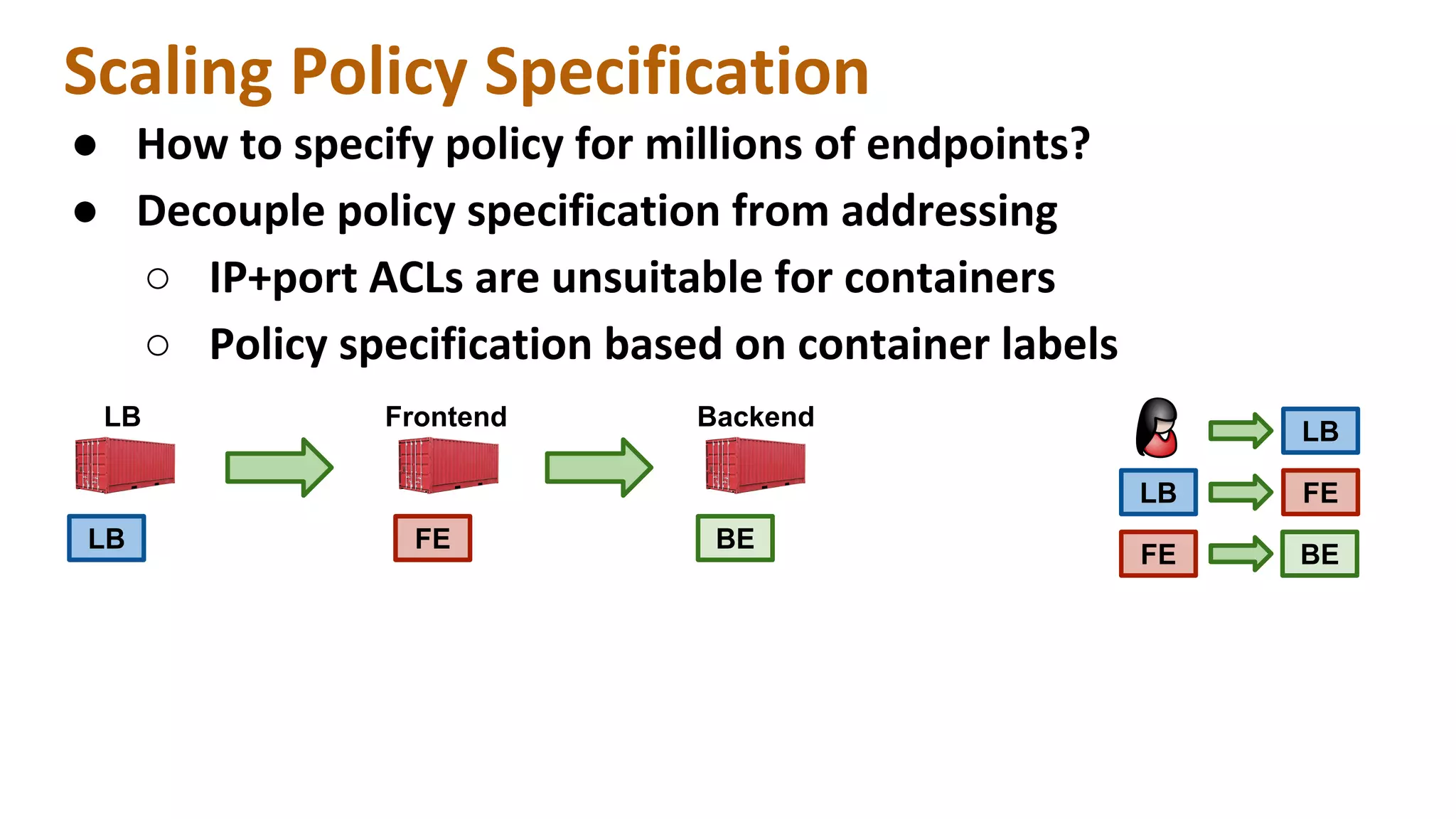

Scaling Policy Specification
● How to specify policy for millions of endpoints?
● Decouple policy specification from addressing
○ IP+port ACLs are unsuitable for containers
○ Policy specification based on container labels
Frontend BackendLB
FE BE
LB
LB
FE
FE BE
LB

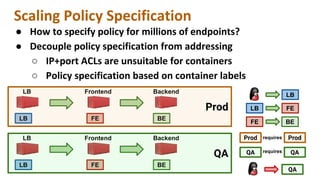

Scaling Policy Specification
● How to specify policy for millions of endpoints?
● Decouple policy specification from addressing
○ IP+port ACLs are unsuitable for containers
○ Policy specification based on container labels
Frontend BackendLB
FE BE
LB
LB
FE
FE BE
LB
Prod
Frontend BackendLB
FE BELB
QA
Prod
QA
Prodrequires
requires QA
QA

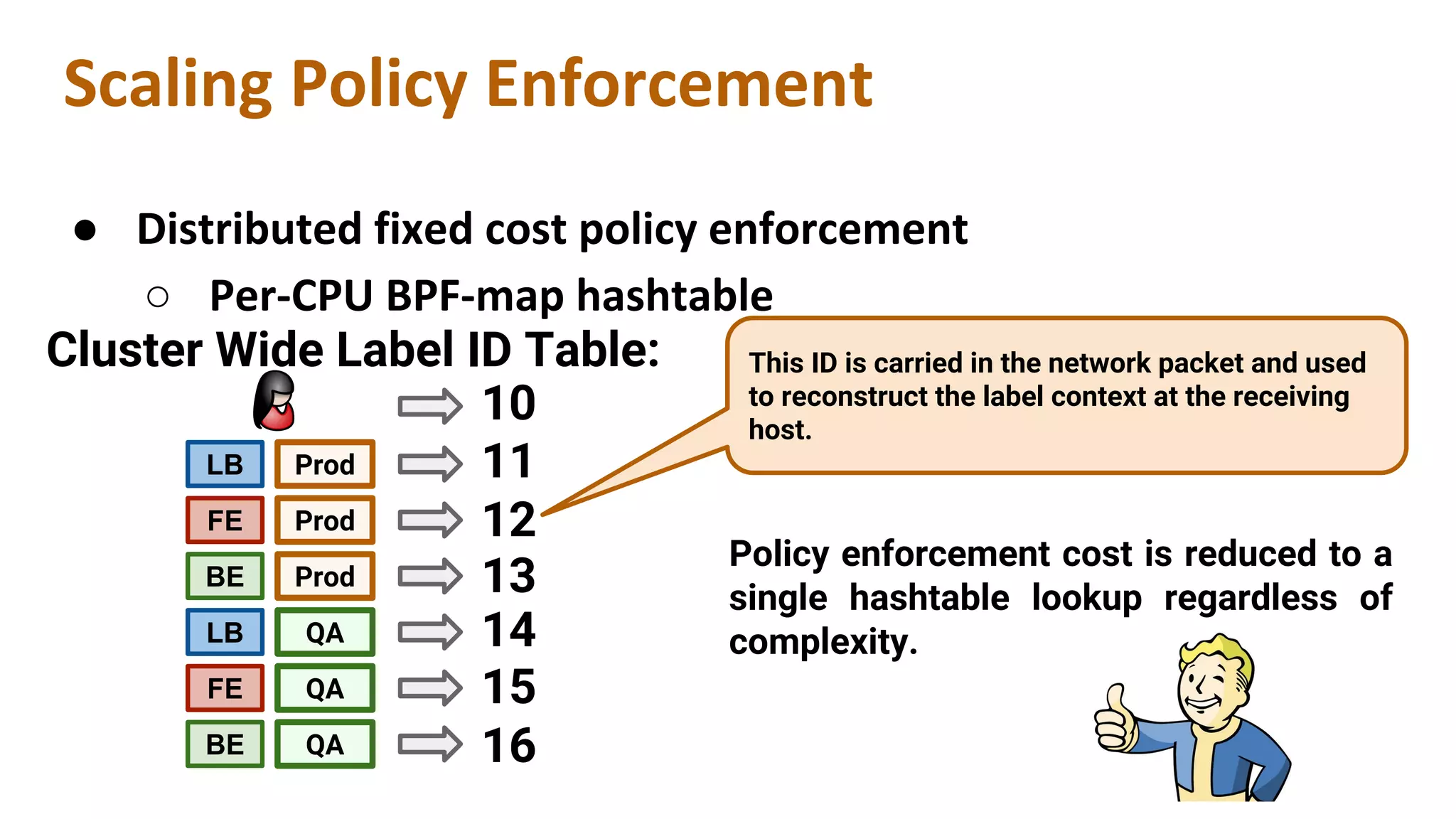

Scaling Policy Enforcement
● Distributed fixed cost policy enforcement
○ Per-CPU BPF-map hashtable
FE
BE
LB Prod
QA
Prod
Prod
FE
BE
LB
QA
QA
10
11
12
13
14
15
16
Cluster Wide Label ID Table: This ID is carried in the network packet and used
to reconstruct the label context at the receiving
host.
Policy enforcement cost is reduced to a
single hashtable lookup regardless of
complexity.

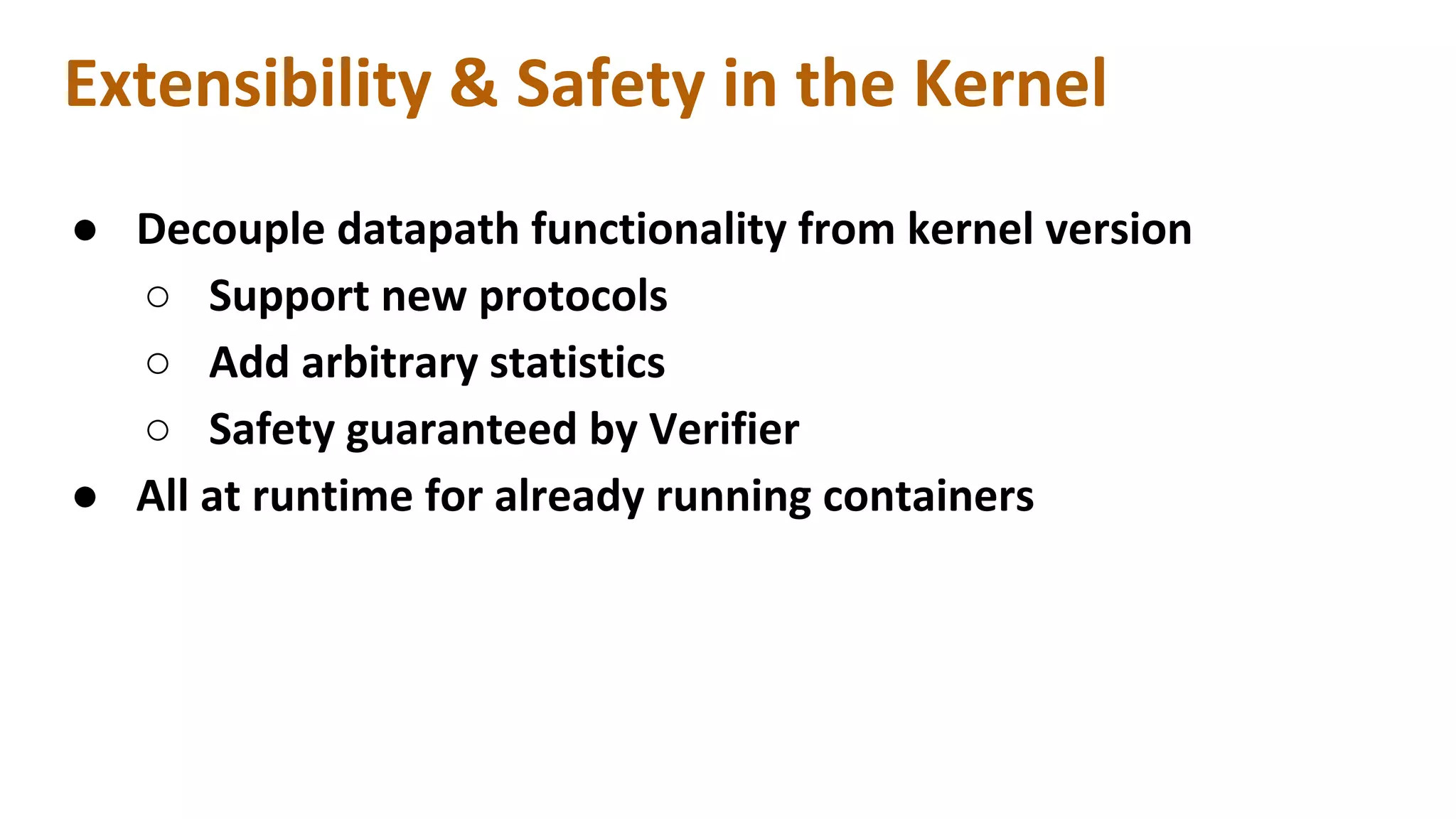

Extensibility & Safety in the Kernel
● Decouple datapath functionality from kernel version
○ Support new protocols
○ Add arbitrary statistics
○ Safety guaranteed by Verifier
● All at runtime for already running containers

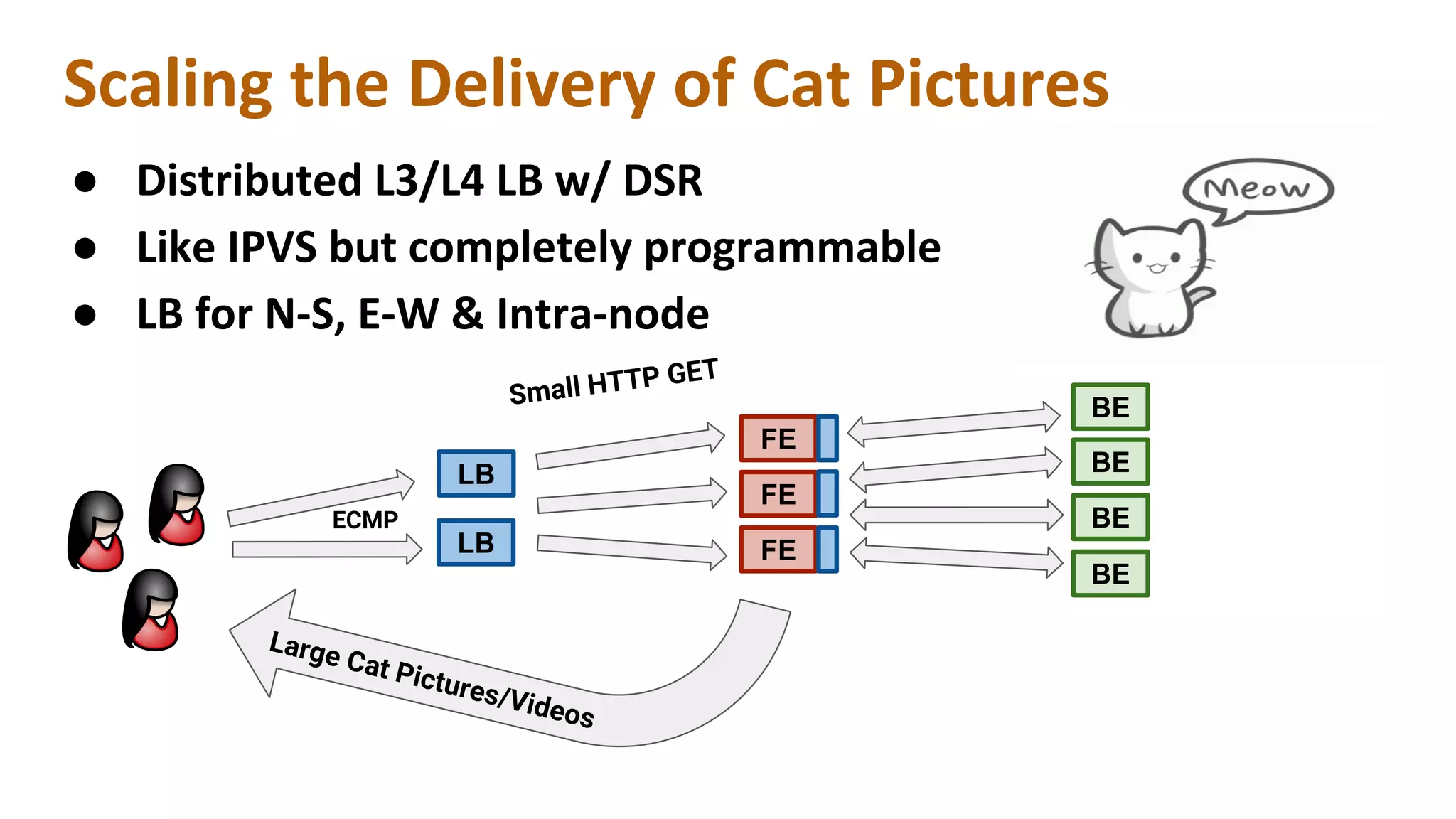

Scaling the Delivery of Cat Pictures
● Distributed L3/L4 LB w/ DSR
● Like IPVS but completely programmable
● LB for N-S, E-W & Intra-node
FE
BE
LB
LB
ECMP
FE
FE
BE
BE
BE
Small HTTP GET
Large Cat Pictures/Videos

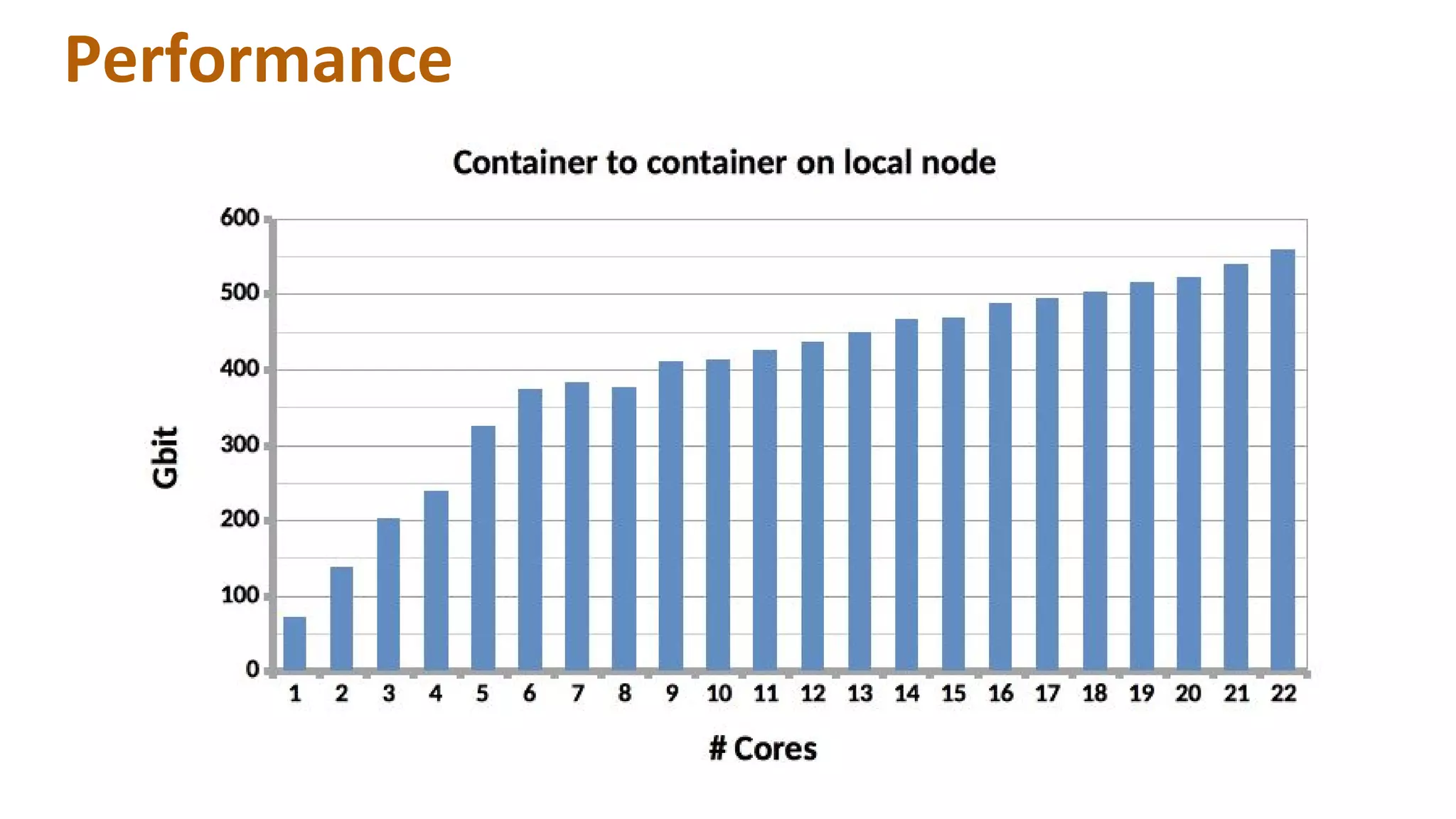

Performance
Demo
Q&A
Start hacking on BPF for containers:
https://github.com/cilium/cilium
Slack: Twitter
cilium.slack.com @tgraf__
Thank You

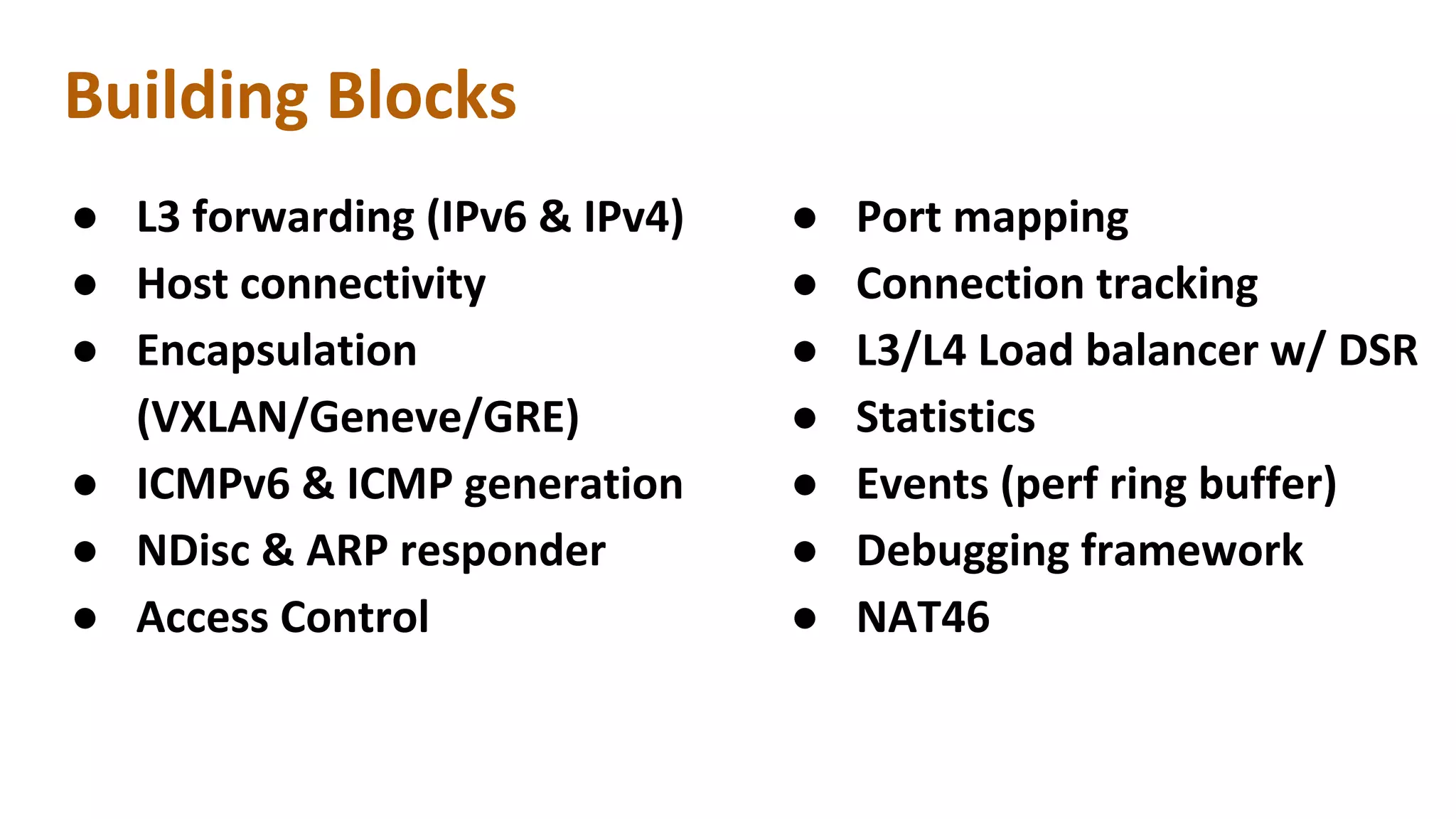

● L3 forwarding (IPv6 & IPv4)
● Host connectivity
● Encapsulation
(VXLAN/Geneve/GRE)
● ICMPv6 & ICMP generation
● NDisc & ARP responder
● Access Control
● Port mapping
● Connection tracking
● L3/L4 Load balancer w/ DSR
● Statistics
● Events (perf ring buffer)
● Debugging framework
● NAT46
Building Blocks
