Chromium is commonly used to make alloys and protect other materials from corrosion. It is extracted commercially from the mineral chromite using the thermite process, which involves a reduction-oxidation reaction with aluminum. This process requires substantial heat energy. Some common alloys containing chromium include ferrochrome, used to make stainless steel, and chromel and stellite, known for their heat and corrosion resistance. While chromium recycling is not large-scale currently due to abundant reserves, it may become more important in the future as ores are depleted.

1. METALS An indepth Study of Chromium By Ben DeBortoli, Joe McDonogh & Tim Chow

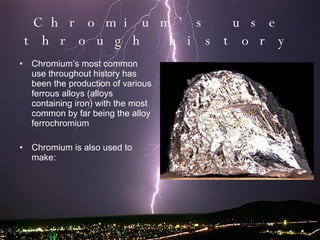

2. Chromium’s use through history Chromium’s most common use throughout history has been the production of various ferrous alloys (alloys containing iron) with the most common by far being the alloy ferrochromium Chromium is also used to make:

3. paint up to the 1980’s

4. Elevators

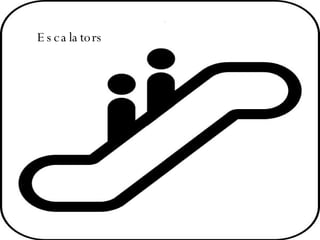

5. Escalators

6. Barbeques

7. Aeroplane Frames

8. And many other things…

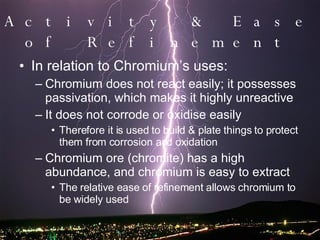

9. Activity & Ease of Refinement In relation to Chromium’s uses: Chromium does not react easily; it possesses passivation, which makes it highly unreactive It does not corrode or oxidise easily Therefore it is used to build & plate things to protect them from corrosion and oxidation Chromium ore (chromite) has a high abundance, and chromium is easy to extract The relative ease of refinement allows chromium to be widely used

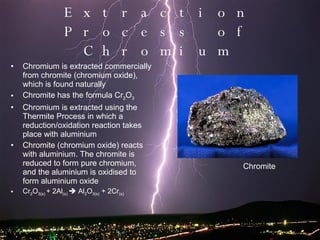

10. Extraction Process of Chromium Chromium is extracted commercially from chromite (chromium oxide), which is found naturally Chromite has the formula Cr 2 O 3 Chromium is extracted using the Thermite Process in which a reduction/oxidation reaction takes place with aluminium Chromite (chromium oxide) reacts with aluminium. The chromite is reduced to form pure chromium, and the aluminium is oxidised to form aluminium oxide Cr 2 O 3(s) + 2Al (s)  Al 2 O 3(s) + 2Cr (s) Chromite

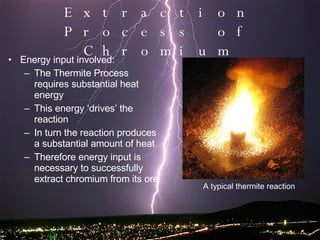

11. Energy input involved: The Thermite Process requires substantial heat energy This energy ‘drives’ the reaction In turn the reaction produces a substantial amount of heat Therefore energy input is necessary to successfully extract chromium from its ore Extraction Process of Chromium A typical thermite reaction

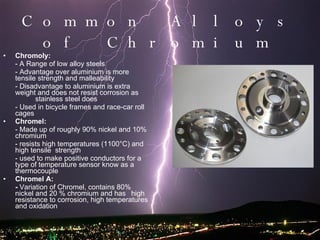

12. Common Alloys of Chromium Chromoly: - A Range of low alloy steels - Advantage over aluminium is more tensile strength and malleability - Disadvantage to aluminium is extra weight and does not resist corrosion as stainless steel does - Used in bicycle frames and race-car roll cages Chromel: - Made up of roughly 90% nickel and 10% chromium - resists high temperatures (1100°C) and high tensile strength - used to make positive conductors for a type of temperature sensor know as a thermocouple Chromel A: - Variation of Chromel, contains 80% nickel and 20 % chromium and has high resistance to corrosion, high temperatures and oxidation

13. Common Alloys of Chromium Stellite: - Formed from a variety of cobalt-chromium alloys designed to wear resistance - Completely non-corrosive and non-magnetic - Cuts things at high temps - Expensive to produce due to extreme durablity, done by grinding rather than cutting - used in saw teeth, hard facing, acid-resistant machine parts, improved quality of poppet valves, valve seats and internal combustion engines greatly. Also used in M60 machine guns, starting from the chamber as well as jet turbine engine blades Ferrochrome: - This alloy of chromium is 50%-70% chromium, alloyed with iron - 80% of ferrochrome is used in the production of stainless steel - Usually used in areas of specialist productions like engineering. A high Cr to Fe ratio is needed and minimum amounts of other elements such as Sulfur, Phosophorus and titanium are important - This production is done in small furnices rather than large Ferrochrome

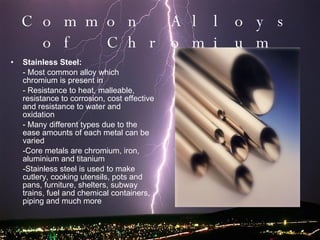

14. Common Alloys of Chromium Stainless Steel: - Most common alloy which chromium is present in - Resistance to heat, malleable, resistance to corrosion, cost effective and resistance to water and oxidation - Many different types due to the ease amounts of each metal can be varied -Core metals are chromium, iron, aluminium and titanium -Stainless steel is used to make cutlery, cooking utensils, pots and pans, furniture, shelters, subway trains, fuel and chemical containers, piping and much more

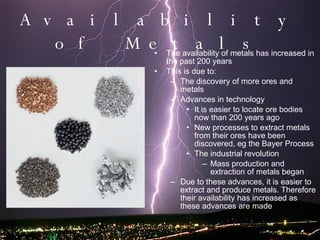

15. Availability of Metals The availability of metals has increased in the past 200 years This is due to: The discovery of more ores and metals Advances in technology It is easier to locate ore bodies now than 200 years ago New processes to extract metals from their ores have been discovered, eg the Bayer Process The industrial revolution Mass production and extraction of metals began Due to these advances, it is easier to extract and produce metals. Therefore their availability has increased as these advances are made

16. The Recycling of Chromium Chromium is currently not recycled on the large scale due to: The abundance of chromium ores and their ability to satisfy human needs for many hundreds of years The relative ease associated with extracting chromium However in the future a need may arise to recycle chromium: as chromium ores become depleted as energy conservation becomes more of an issue But in the short term and at present there is no need to recycle chromium
