This chapter discusses data design concepts and structures. It explains key data design terminology like entities, fields, records and files. Different data models are covered, including relational and object-oriented databases. The chapter also describes logical and physical data storage, data coding, data warehousing, and security controls for databases.

1. Systems Analysis and Design
8th Edition
Chapter 9
Data Design

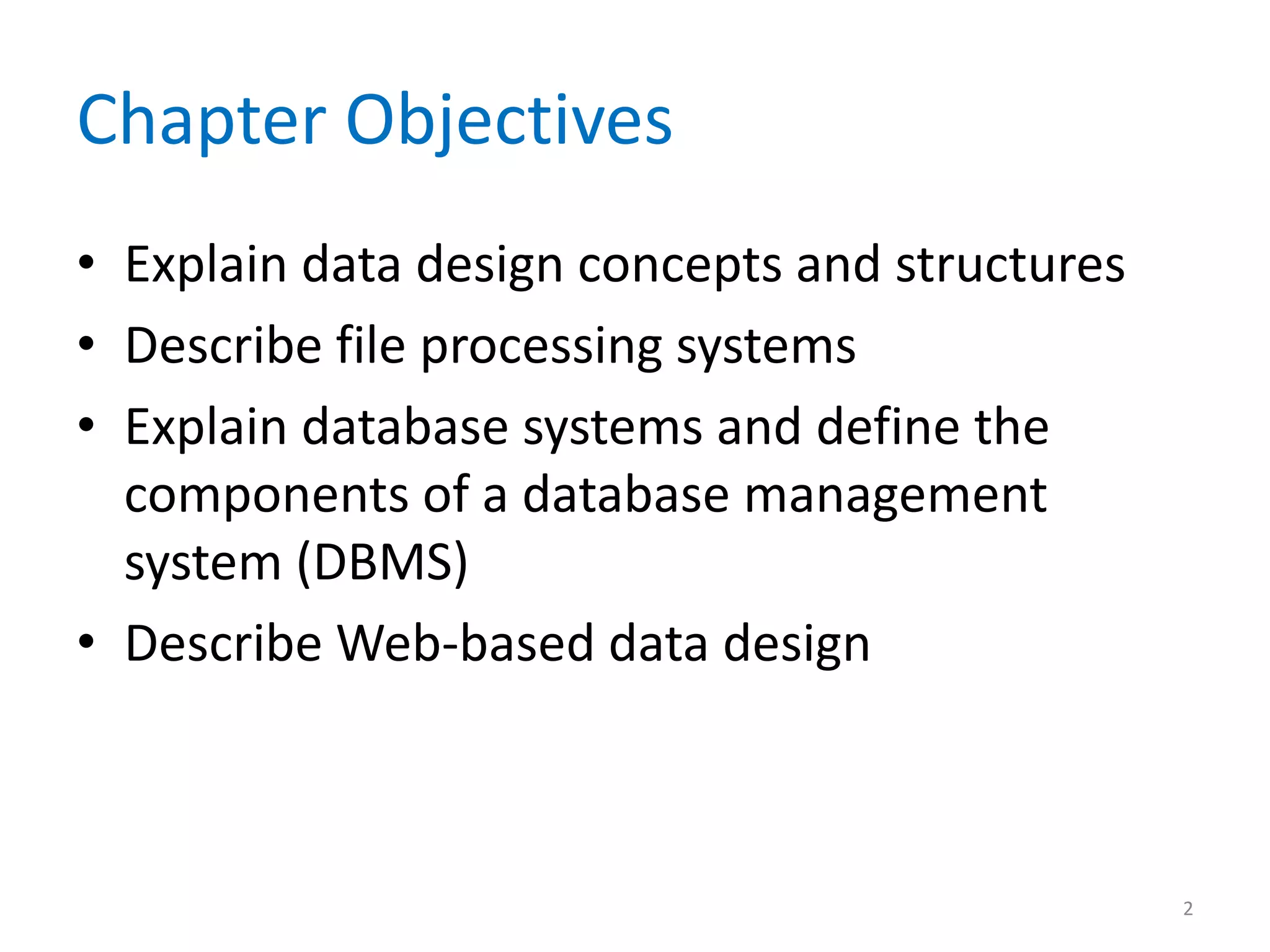

2. Chapter Objectives
• Explain data design concepts and structures
• Describe file processing systems
• Explain database systems and define the
components of a database management
system (DBMS)
• Describe Web-based data design
2

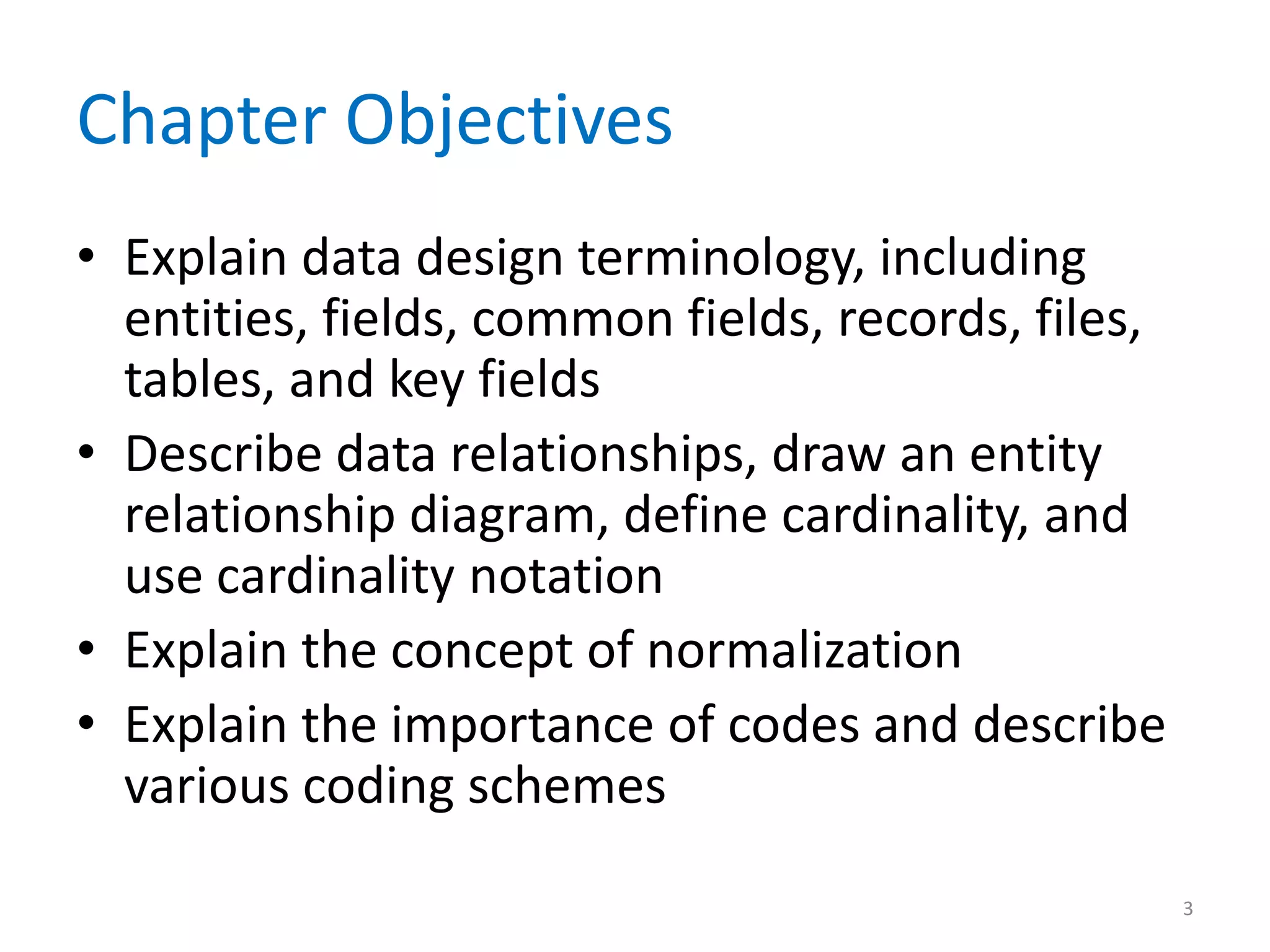

3. Chapter Objectives
• Explain data design terminology, including
entities, fields, common fields, records, files,
tables, and key fields
• Describe data relationships, draw an entity
relationship diagram, define cardinality, and
use cardinality notation
• Explain the concept of normalization
• Explain the importance of codes and describe
various coding schemes
3

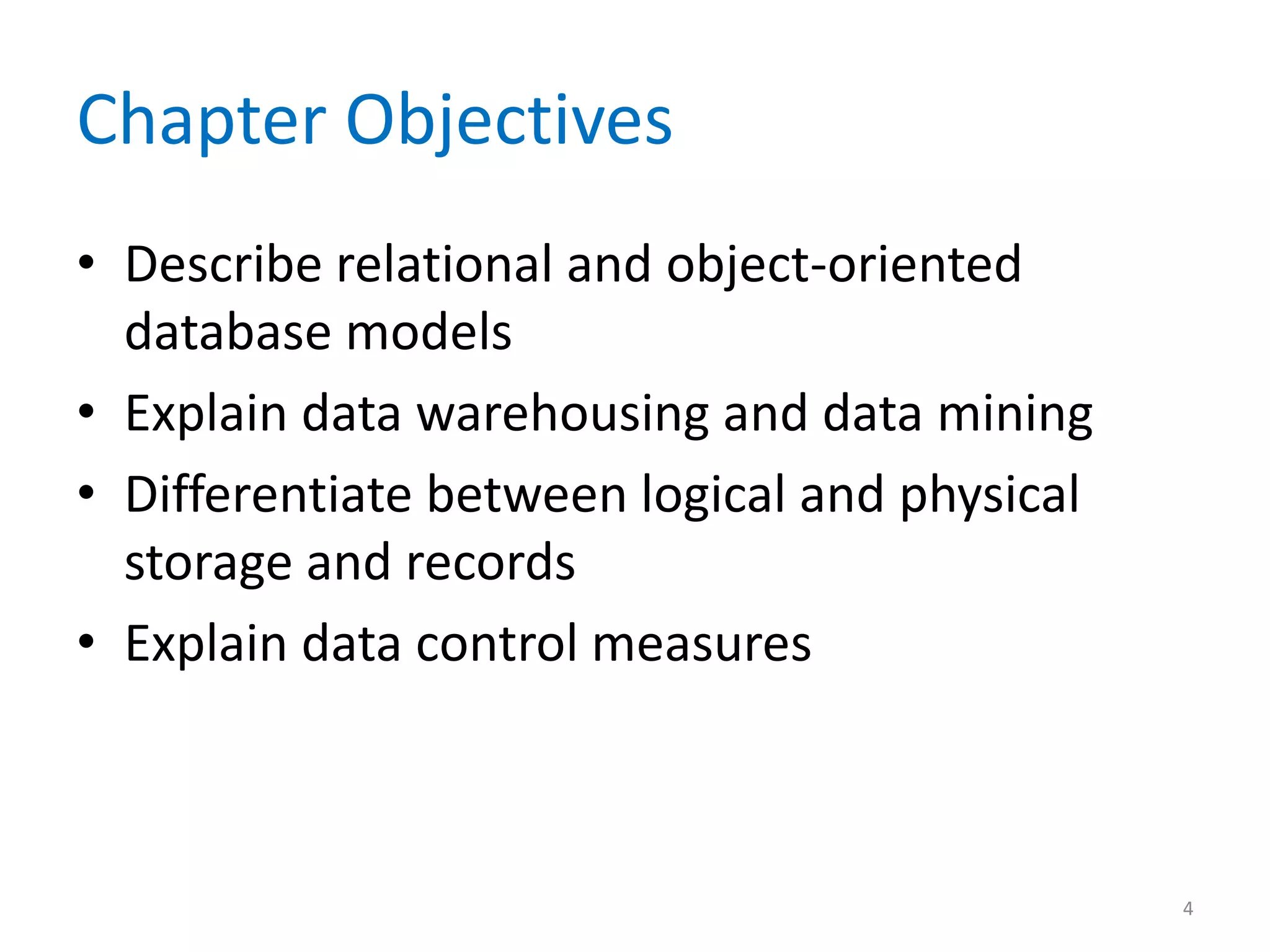

4. Chapter Objectives
• Describe relational and object-oriented
database models
• Explain data warehousing and data mining
• Differentiate between logical and physical
storage and records
• Explain data control measures
4

5. Introduction

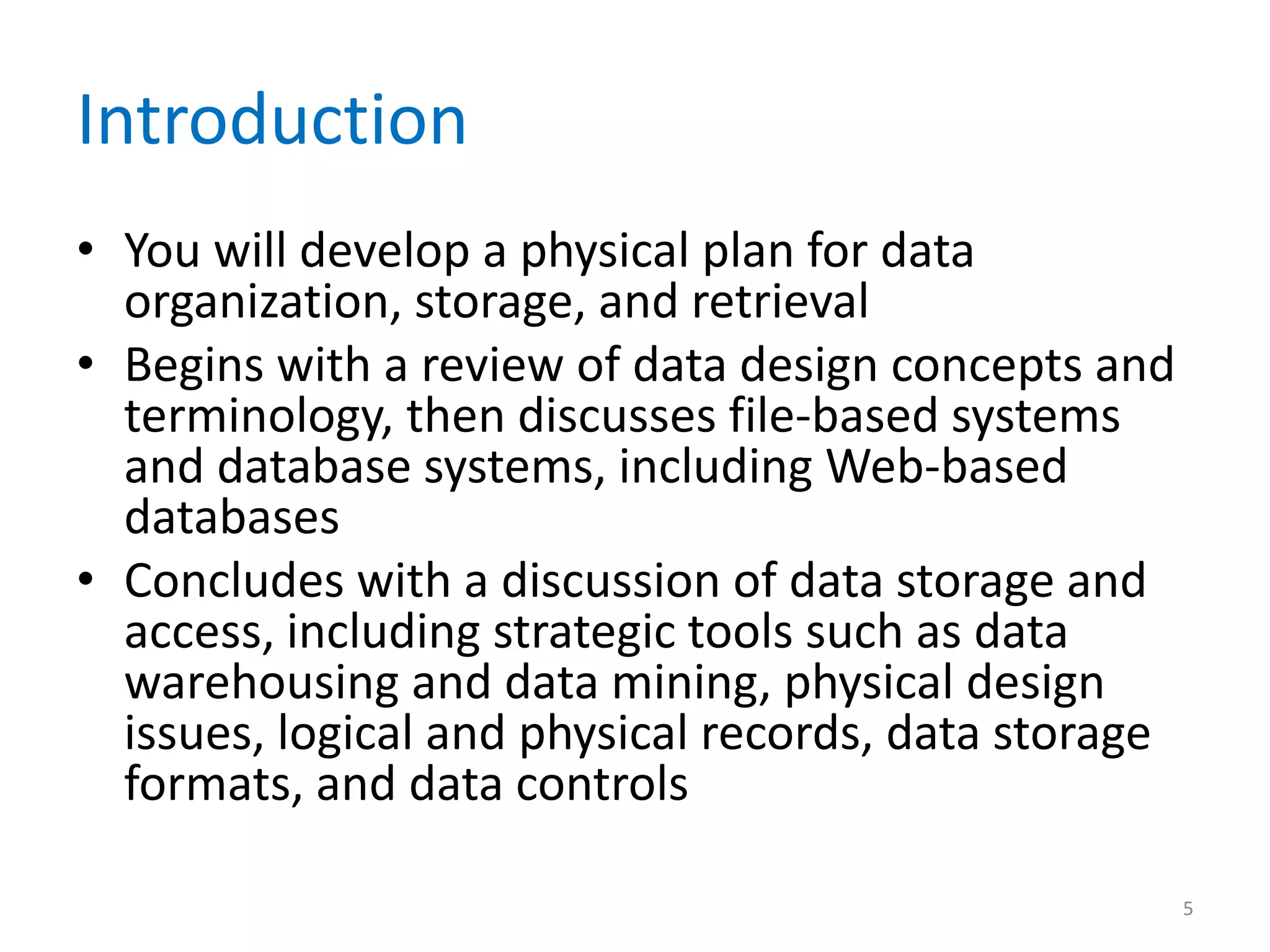

• You will develop a physical plan for data
organization, storage, and retrieval
• Begins with a review of data design concepts and
terminology, then discusses file-based systems
and database systems, including Web-based
databases
• Concludes with a discussion of data storage and
access, including strategic tools such as data
warehousing and data mining, physical design
issues, logical and physical records, data storage
formats, and data controls
5

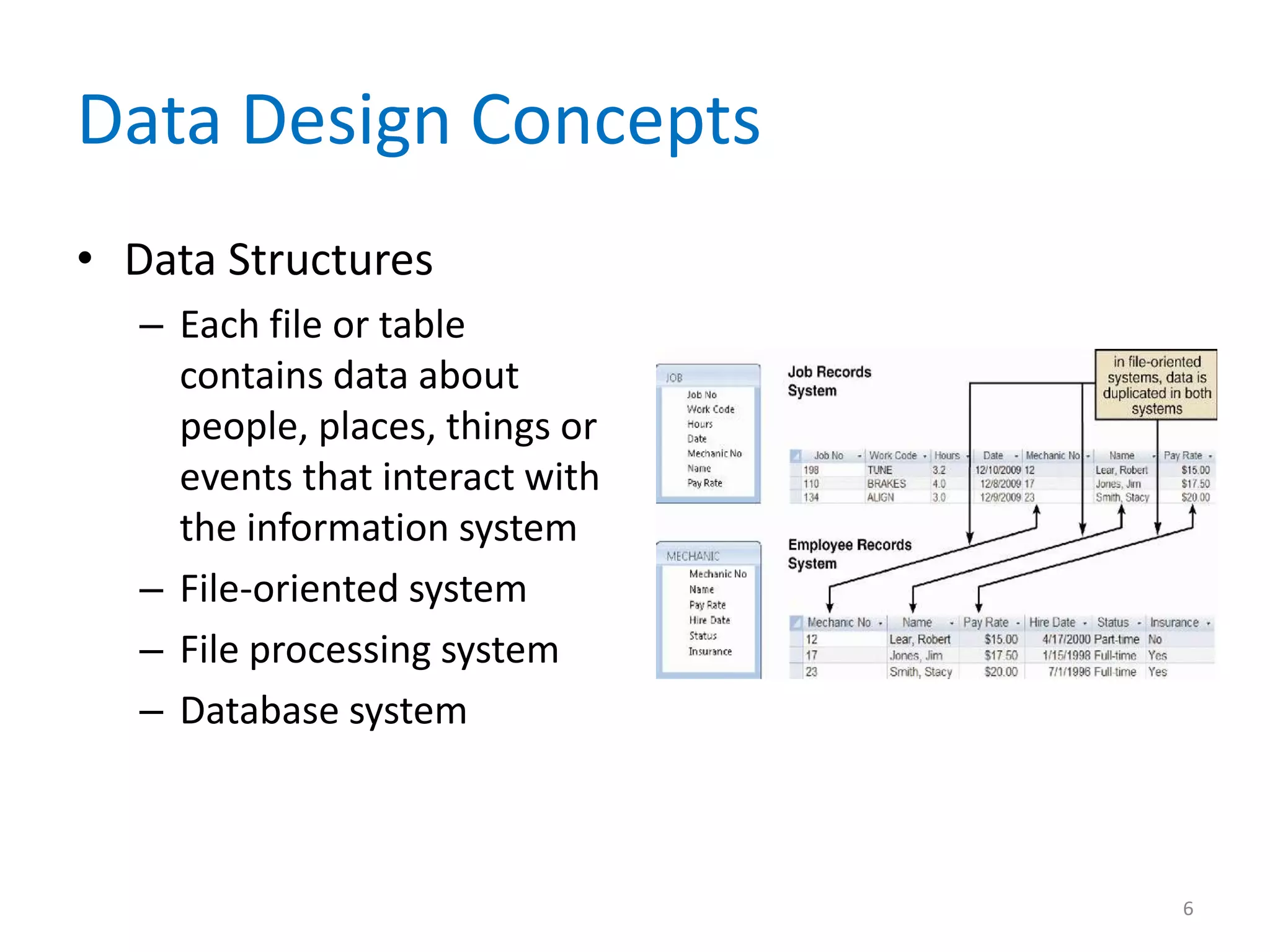

6. Data Design Concepts
• Data Structures
– Each file or table
contains data about
people, places, things or
events that interact with
the information system
– File-oriented system
– File processing system
– Database system
6

7. Data Design Concepts

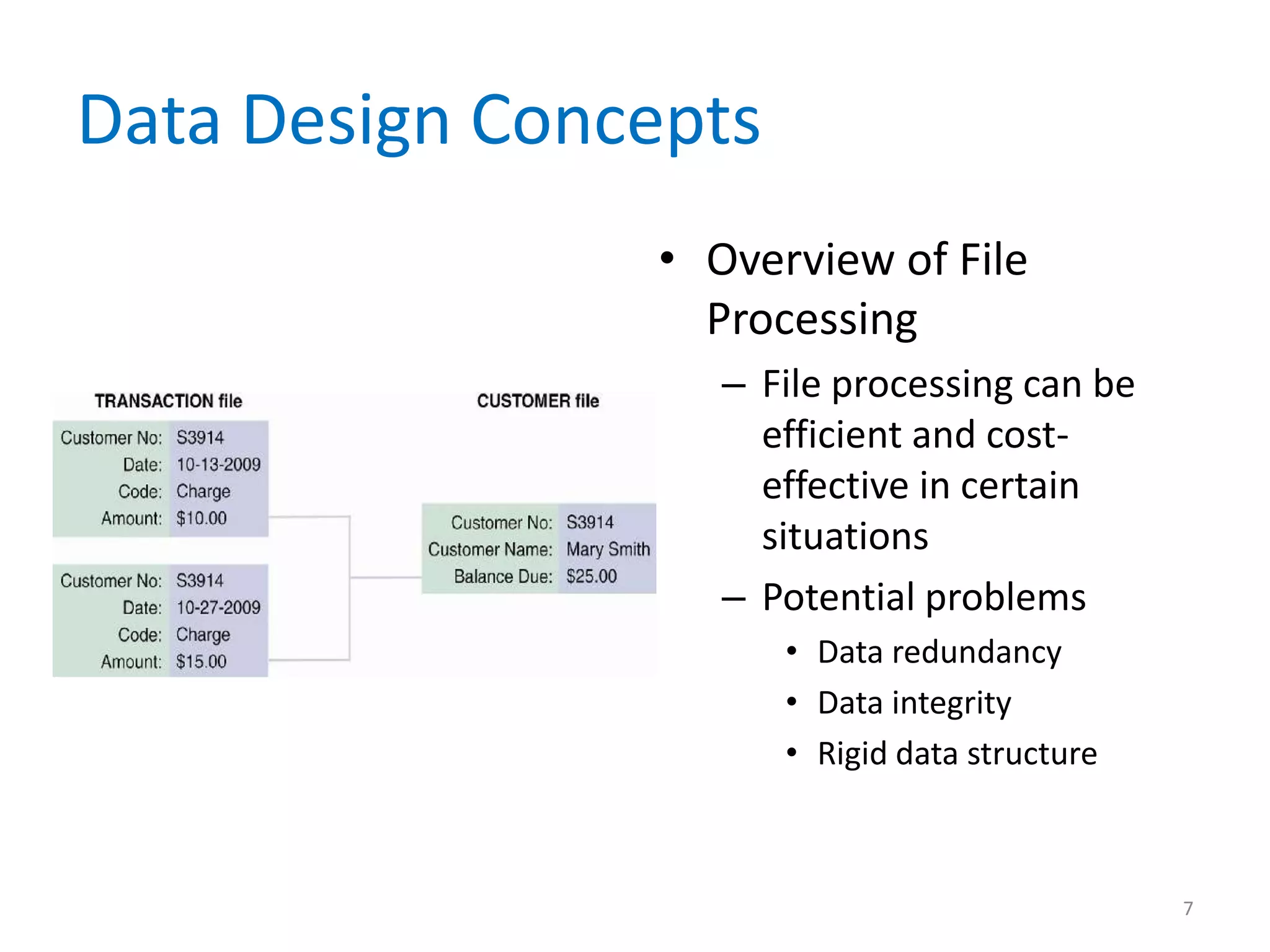

• Overview of File
Processing
– File processing can be
efficient and cost-
effective in certain
situations
– Potential problems
• Data redundancy
• Data integrity
• Rigid data structure
7

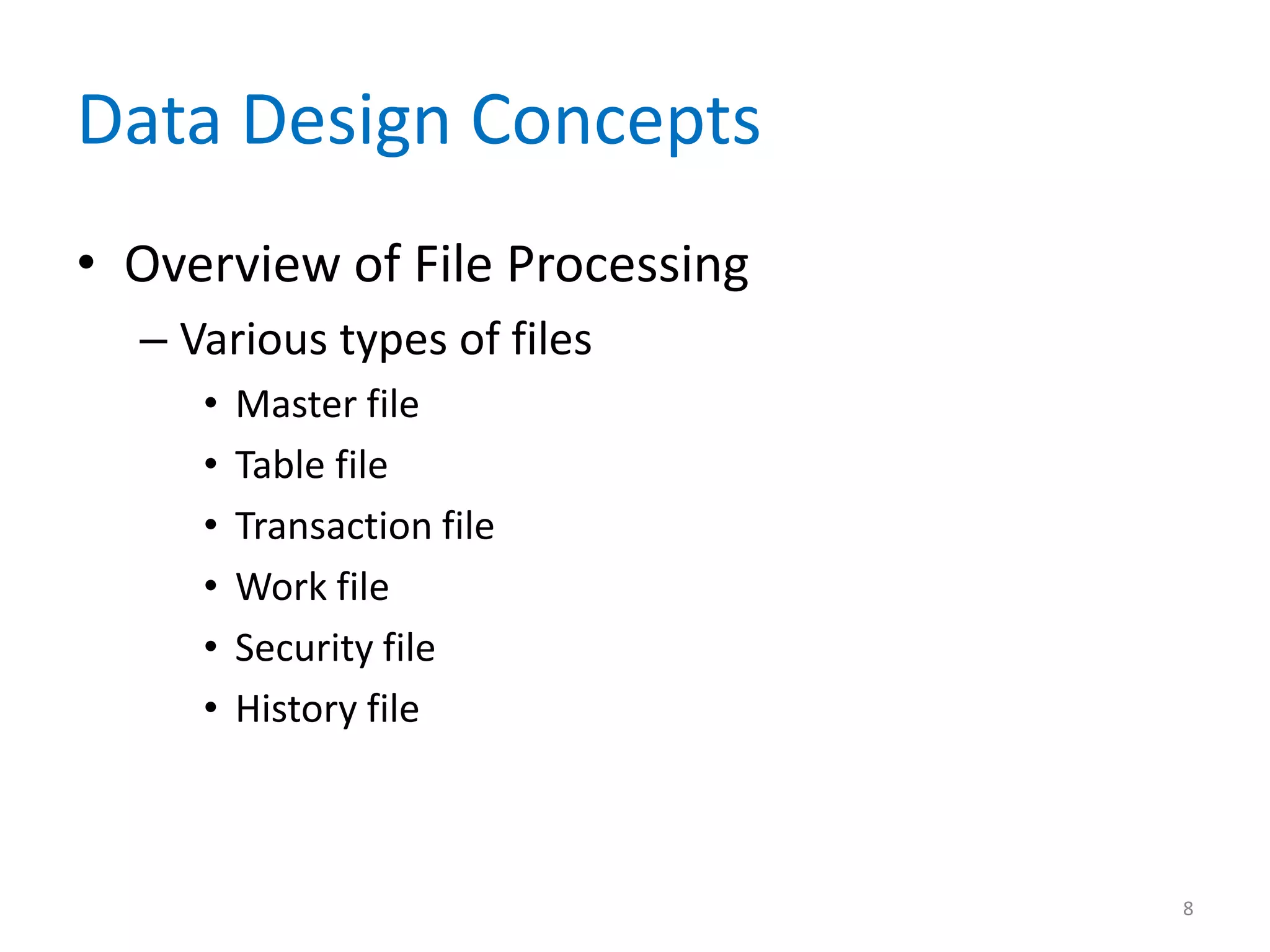

8. Data Design Concepts
• Overview of File Processing
– Various types of files
• Master file
• Table file
• Transaction file
• Work file
• Security file
• History file
8

9. Data Design Concepts

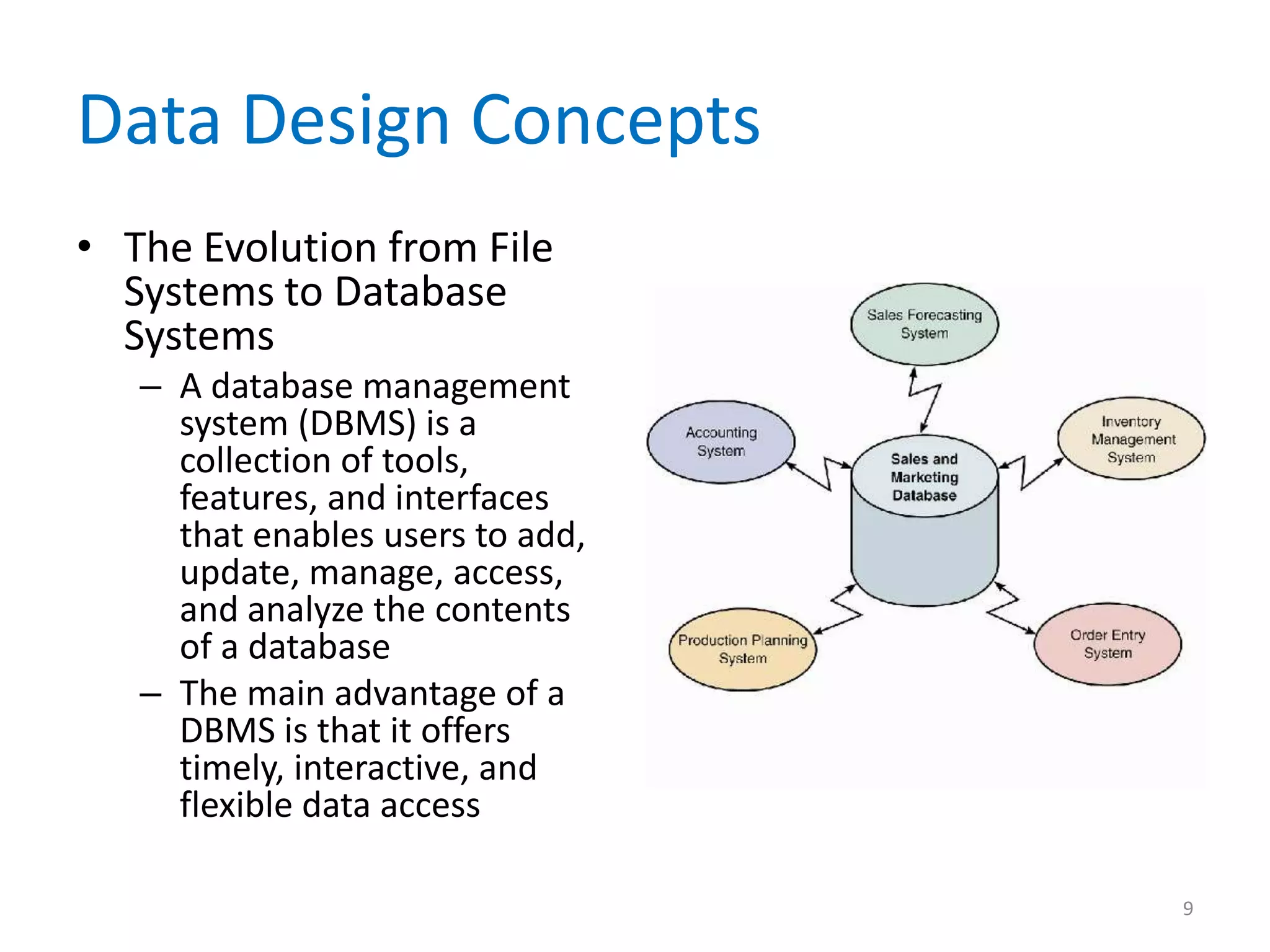

• The Evolution from File
Systems to Database
Systems
– A database management
system (DBMS) is a
collection of tools,
features, and interfaces
that enables users to add,
update, manage, access,
and analyze the contents
of a database
– The main advantage of a
DBMS is that it offers
timely, interactive, and
flexible data access
9

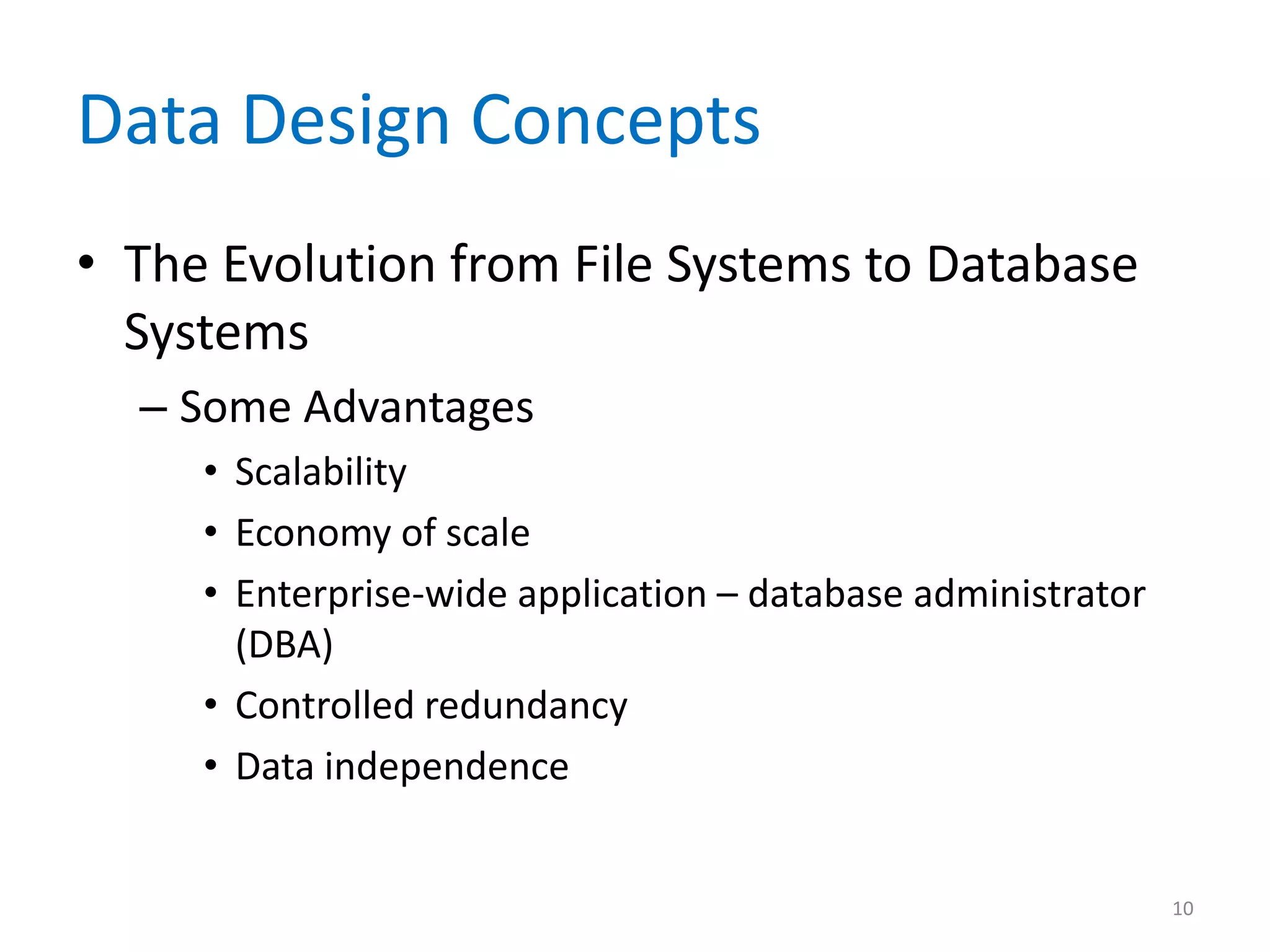

10. Data Design Concepts
• The Evolution from File Systems to Database
Systems
– Some Advantages
• Scalability
• Economy of scale
• Enterprise-wide application – database administrator
(DBA)
• Controlled redundancy
• Data independence
10

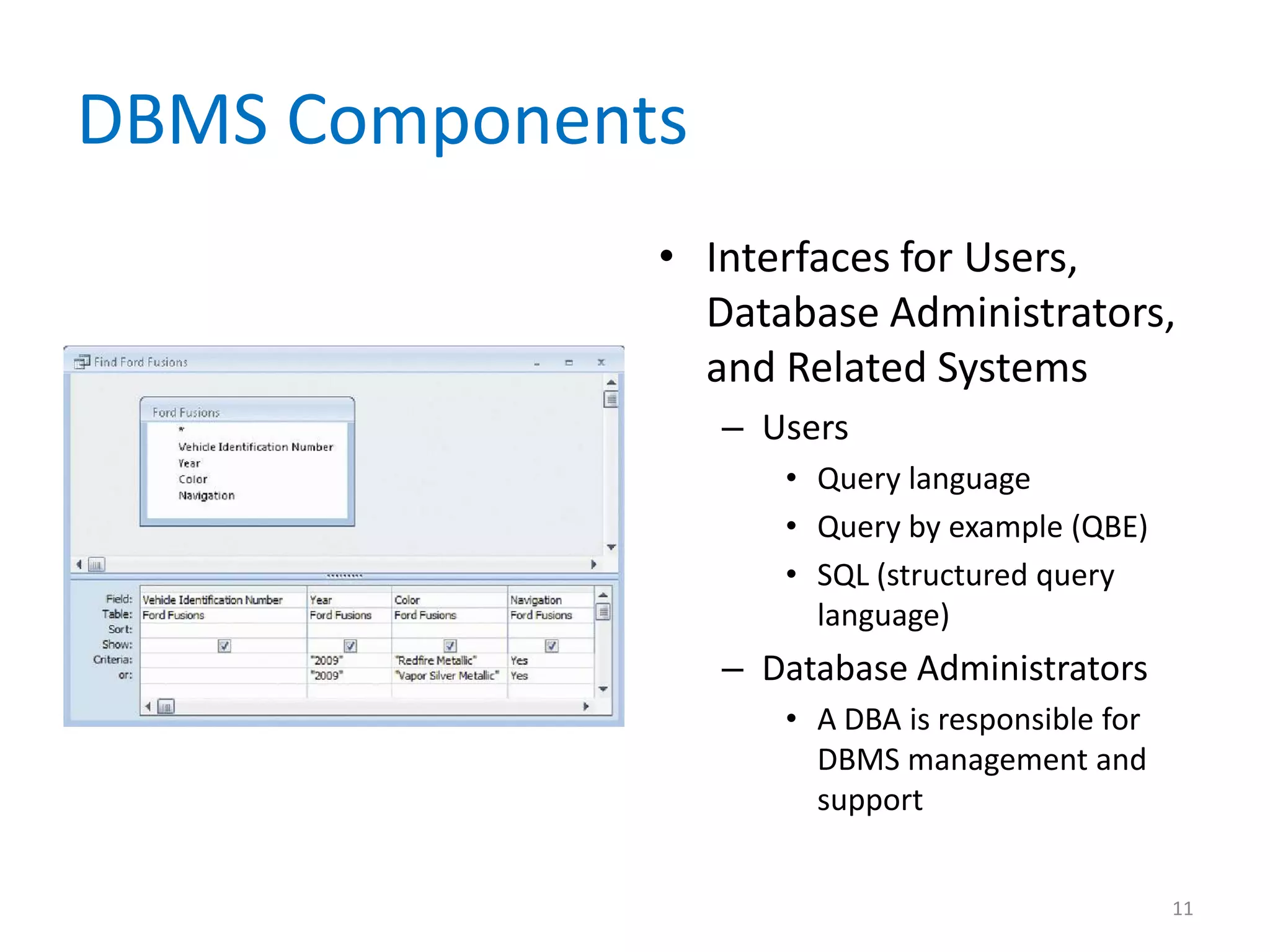

11. DBMS Components
• Interfaces for Users,
Database Administrators,
and Related Systems
– Users
• Query language
• Query by example (QBE)
• SQL (structured query
language)
– Database Administrators
• A DBA is responsible for
DBMS management and
support
11

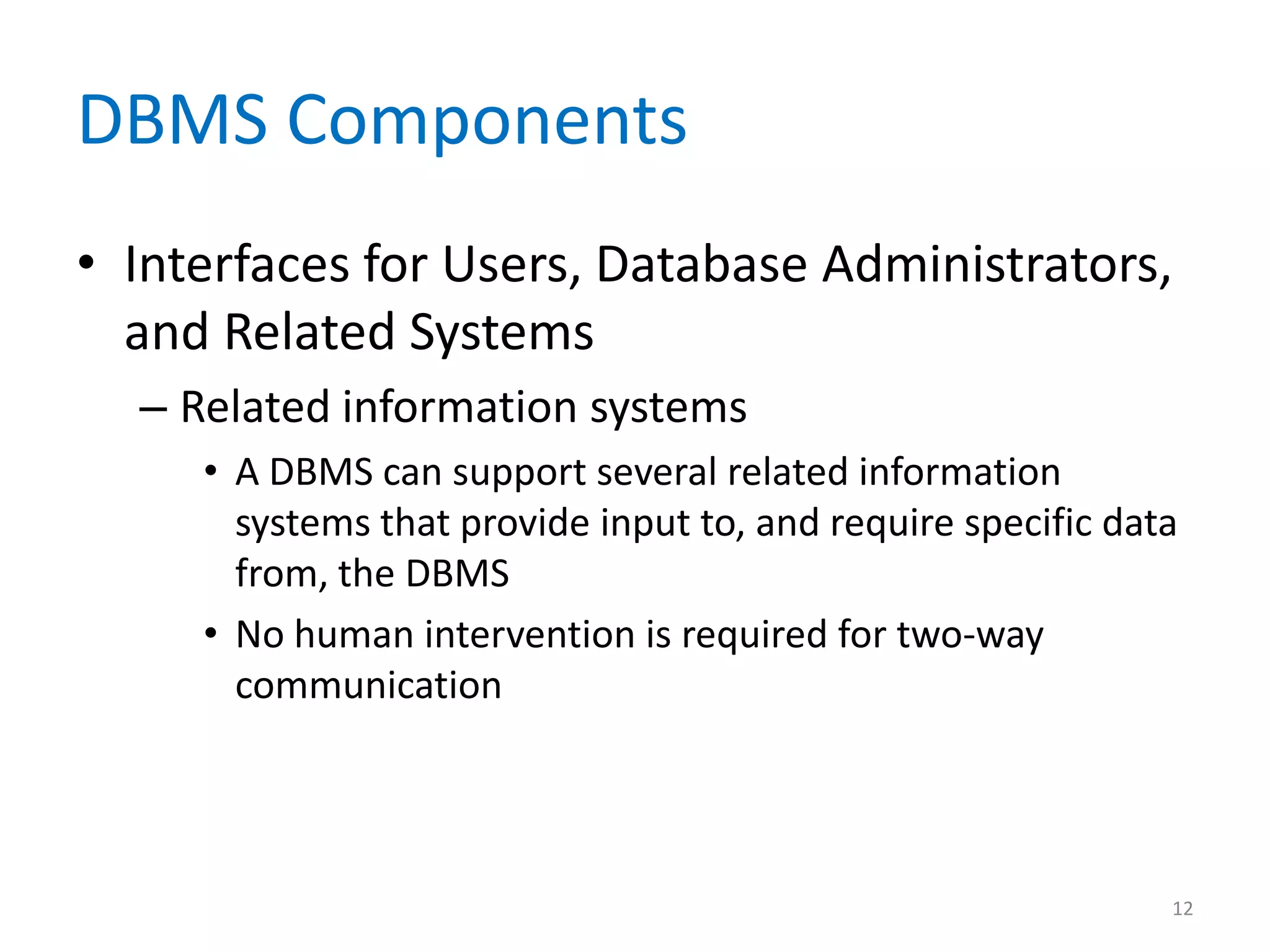

12. DBMS Components
• Interfaces for Users, Database Administrators,
and Related Systems
– Related information systems
• A DBMS can support several related information
systems that provide input to, and require specific data
from, the DBMS
• No human intervention is required for two-way
communication
12

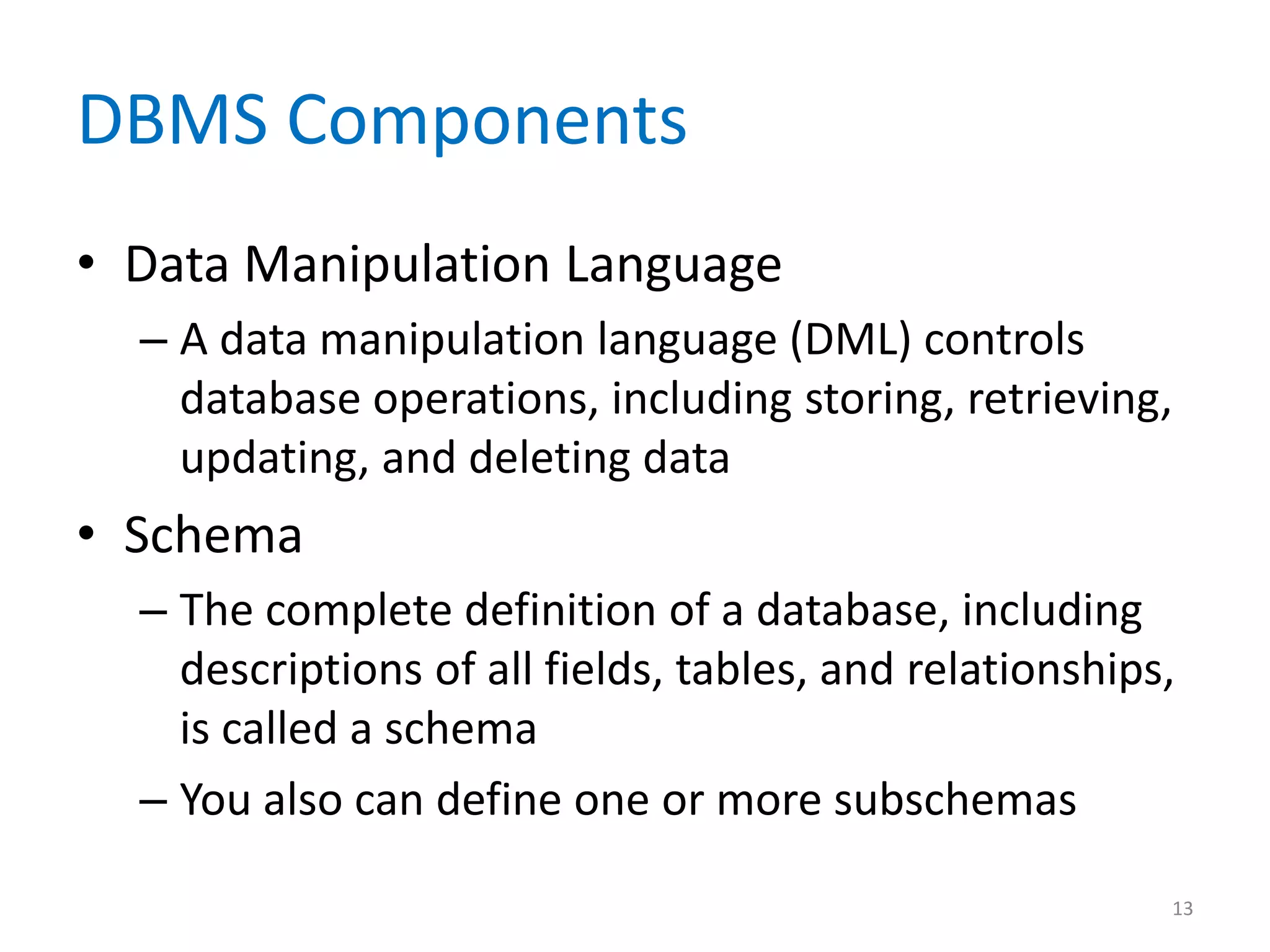

13. DBMS Components
• Data Manipulation Language
– A data manipulation language (DML) controls
database operations, including storing, retrieving,
updating, and deleting data
• Schema
– The complete definition of a database, including
descriptions of all fields, tables, and relationships,
is called a schema
– You also can define one or more subschemas
13

14. DBMS Components

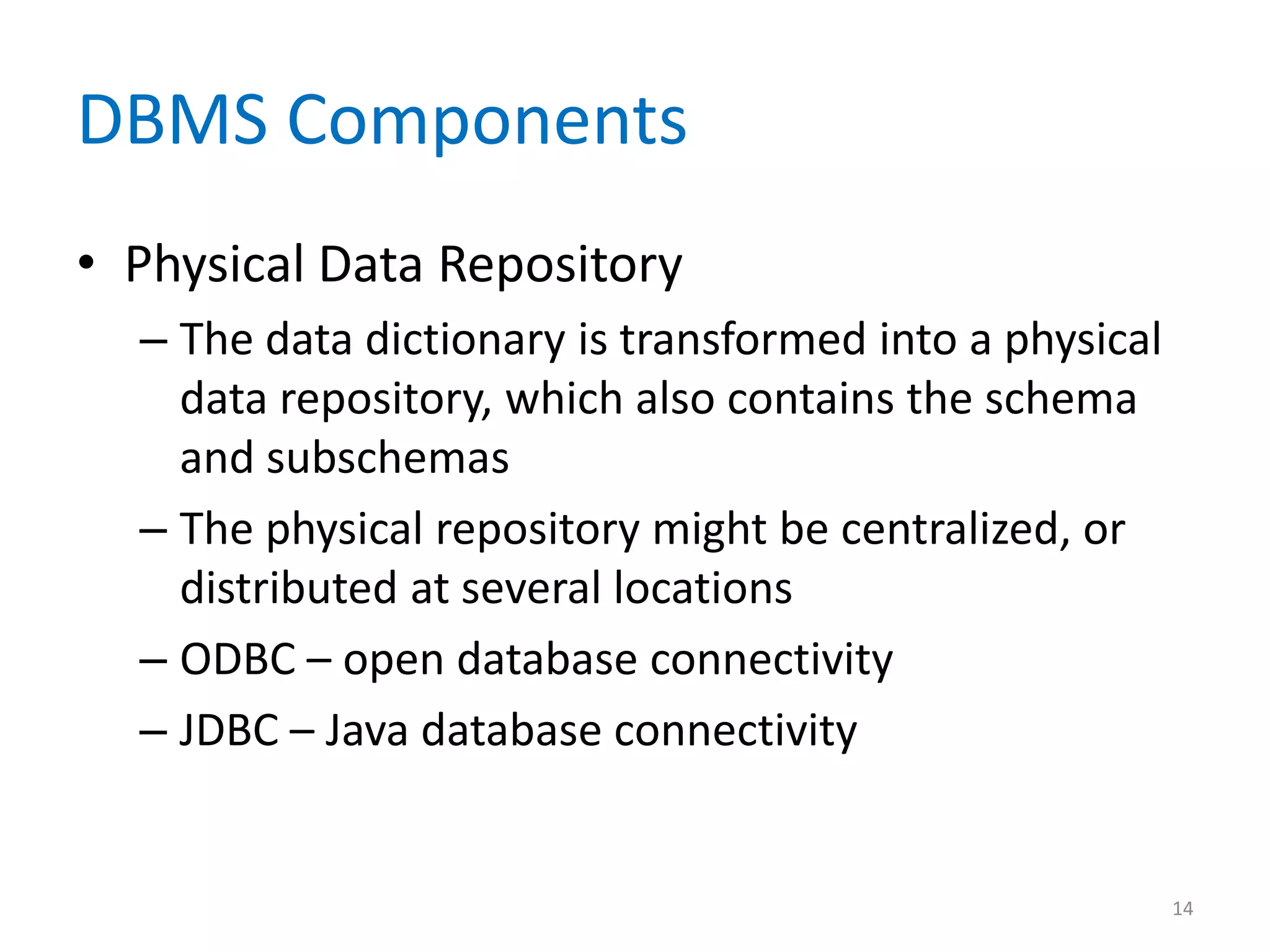

• Physical Data Repository
– The data dictionary is transformed into a physical
data repository, which also contains the schema
and subschemas
– The physical repository might be centralized, or
distributed at several locations
– ODBC – open database connectivity
– JDBC – Java database connectivity
14

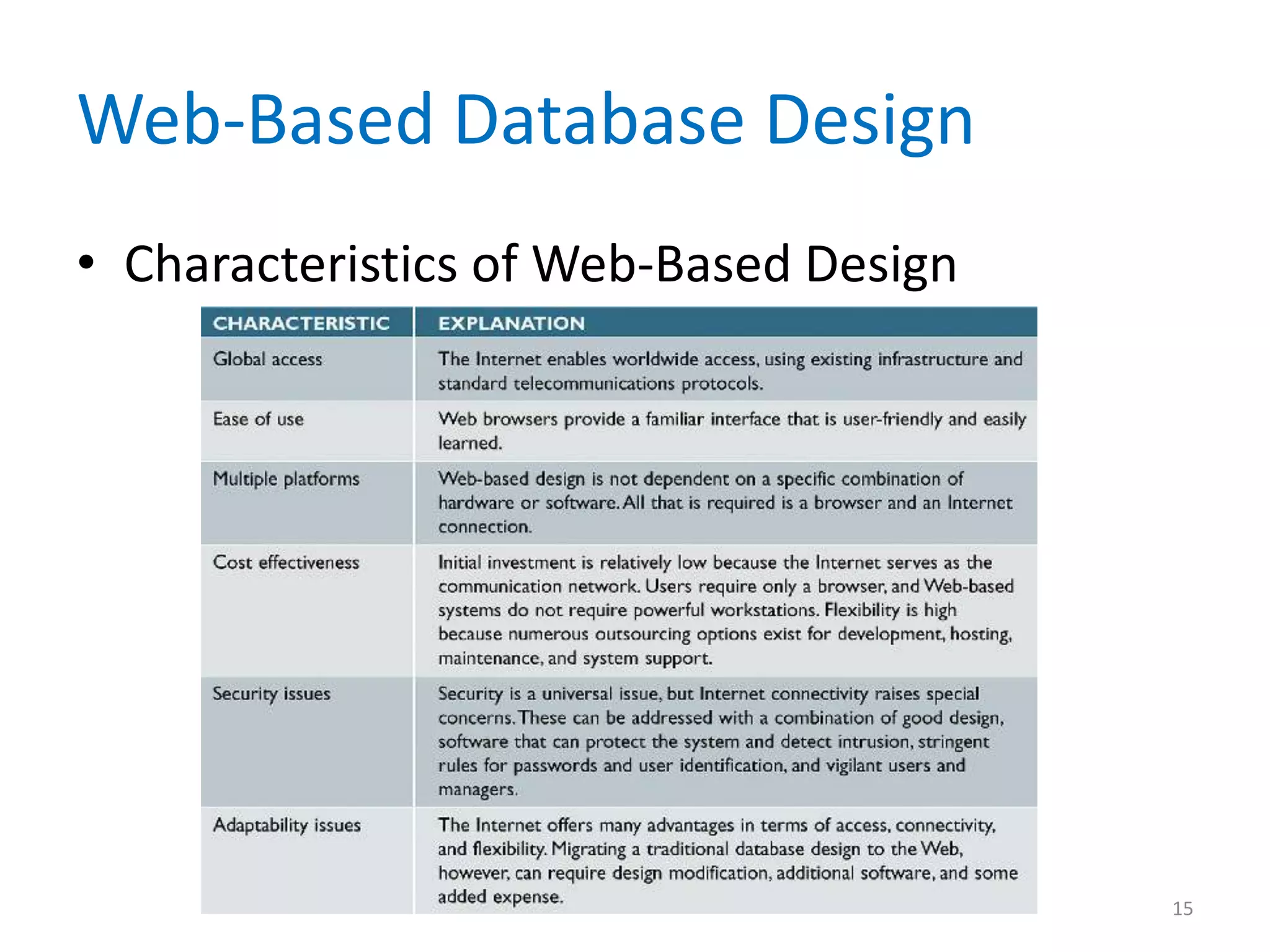

15. Web-Based Database Design
• Characteristics of Web-Based Design
15

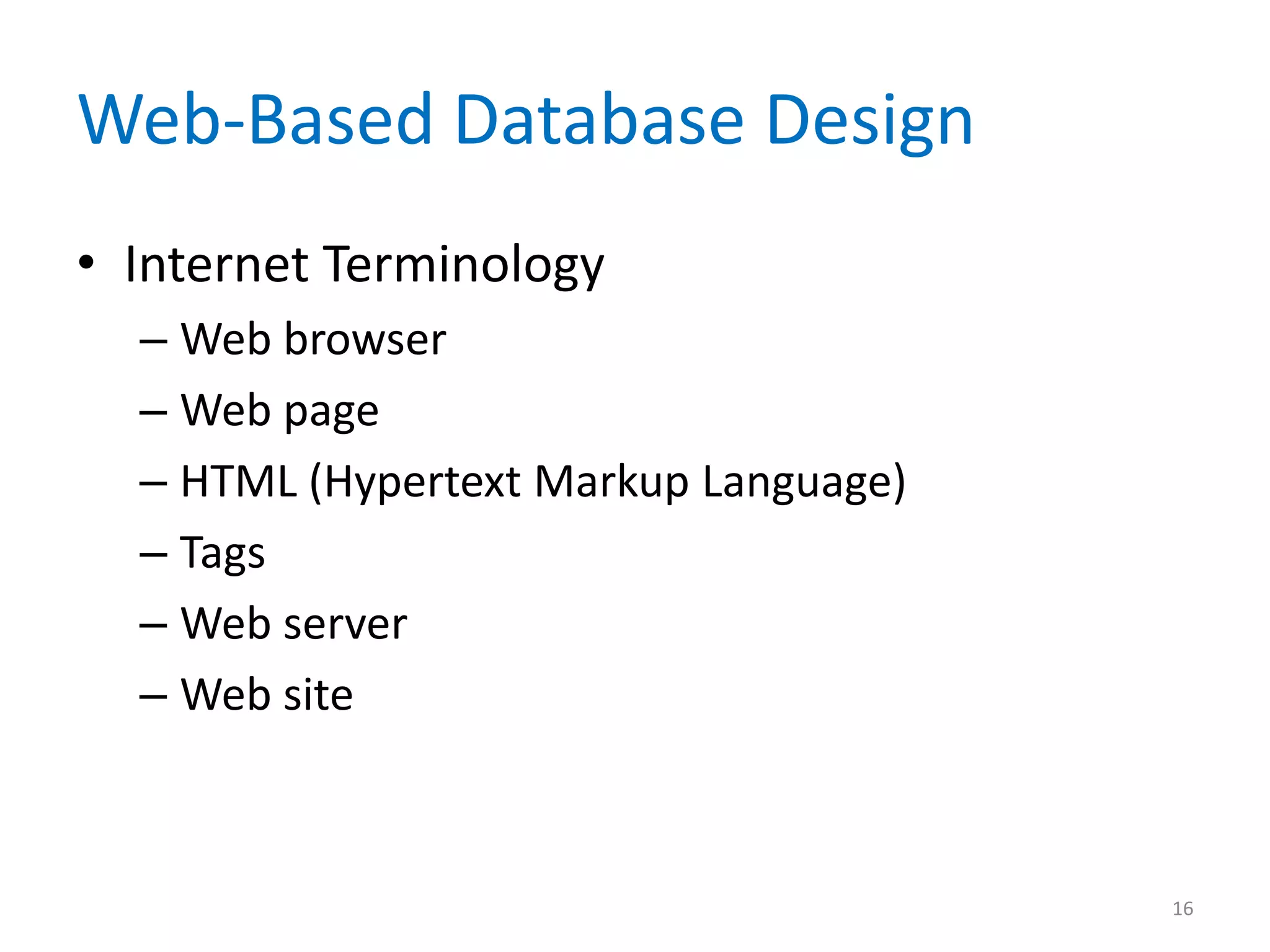

16. Web-Based Database Design
• Internet Terminology
– Web browser
– Web page
– HTML (Hypertext Markup Language)
– Tags
– Web server
– Web site
16

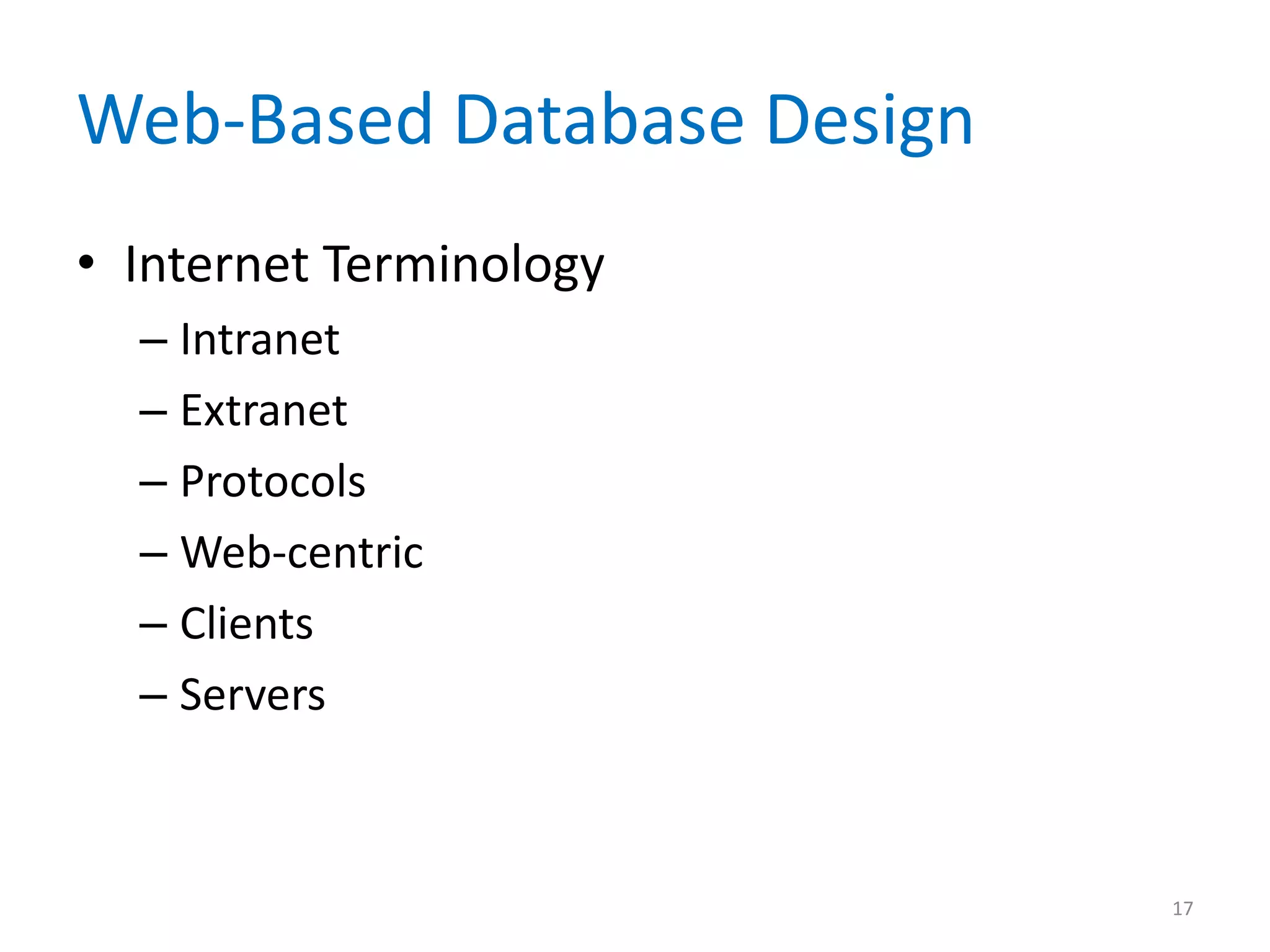

17. Web-Based Database Design
• Internet Terminology
– Intranet
– Extranet
– Protocols
– Web-centric
– Clients
– Servers
17

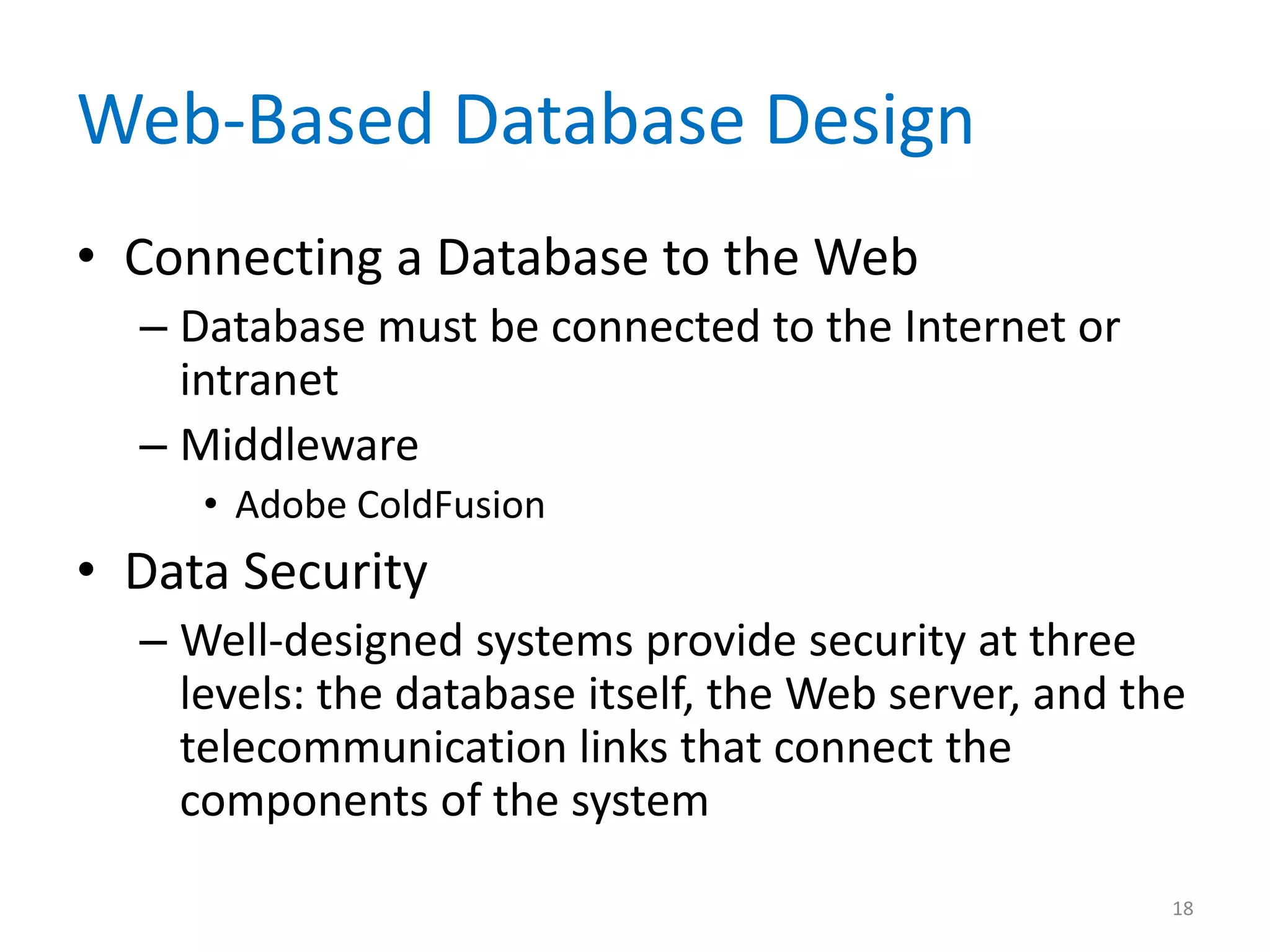

18. Web-Based Database Design
• Connecting a Database to the Web
– Database must be connected to the Internet or
intranet
– Middleware
• Adobe ColdFusion
• Data Security
– Well-designed systems provide security at three
levels: the database itself, the Web server, and the
telecommunication links that connect the
components of the system
18

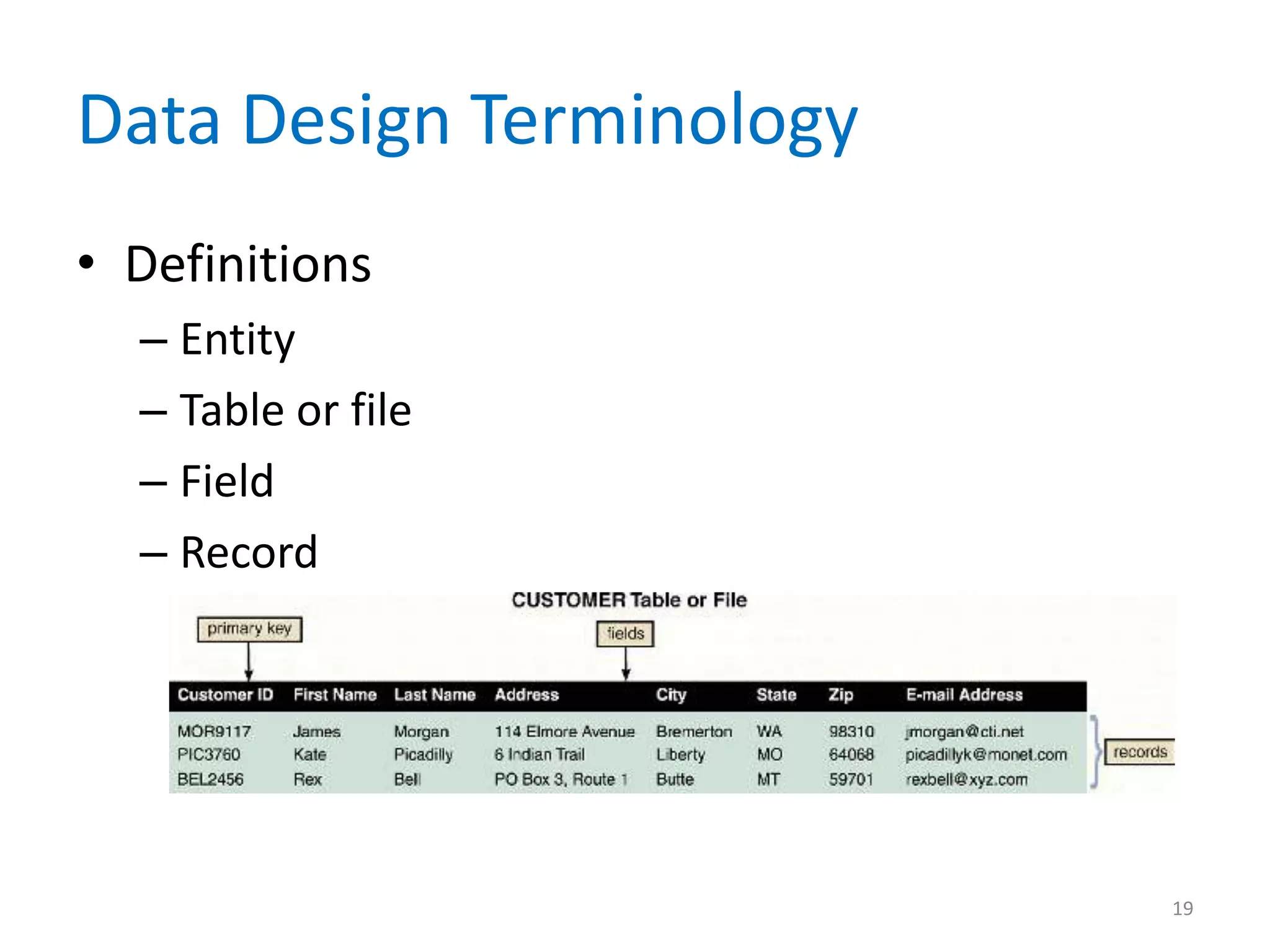

19. Data Design Terminology
• Definitions
– Entity
– Table or file
– Field
– Record
19

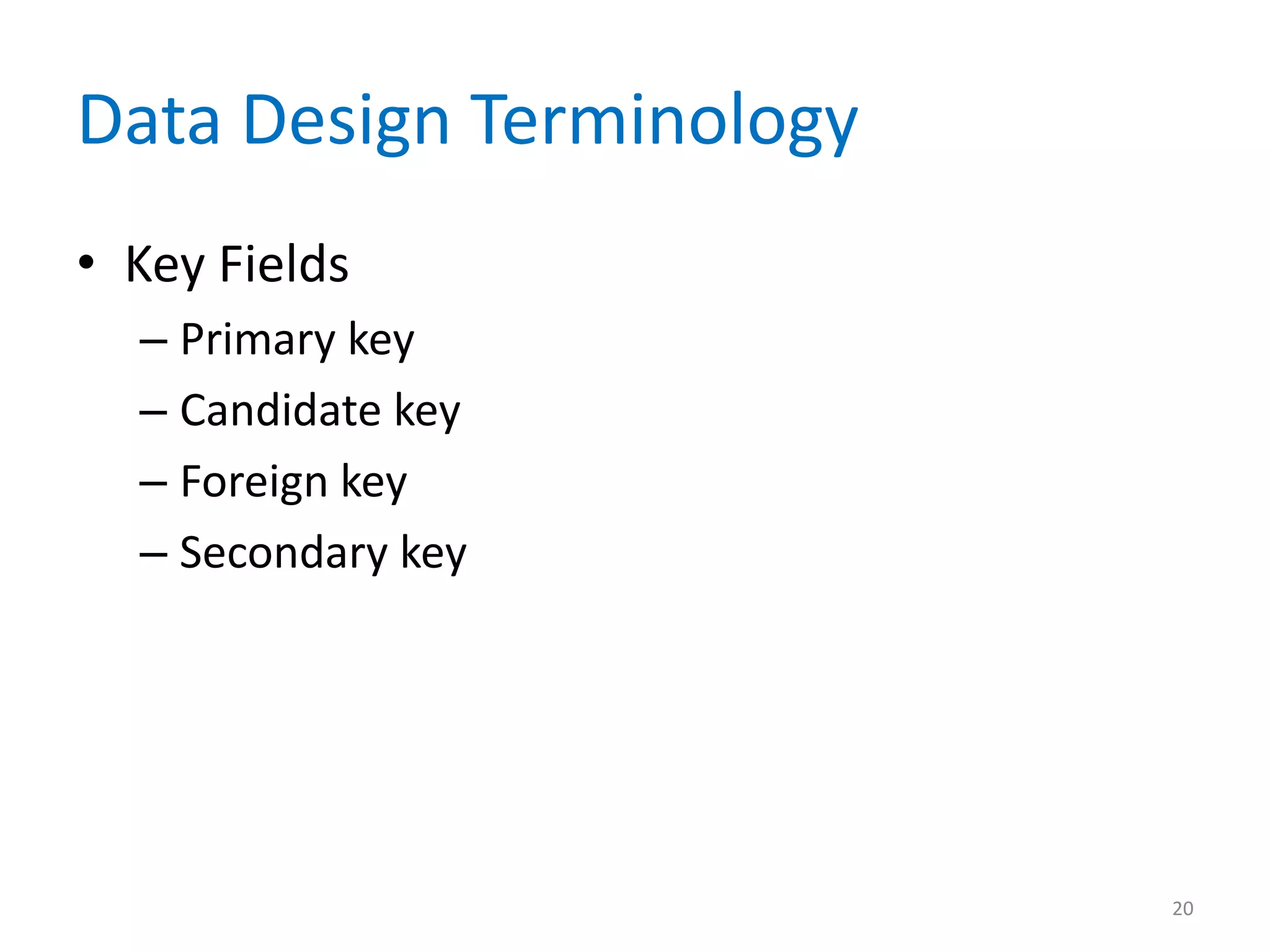

20. Data Design Terminology
• Key Fields
– Primary key
– Candidate key
– Foreign key
– Secondary key
20

21. Data Design Terminology

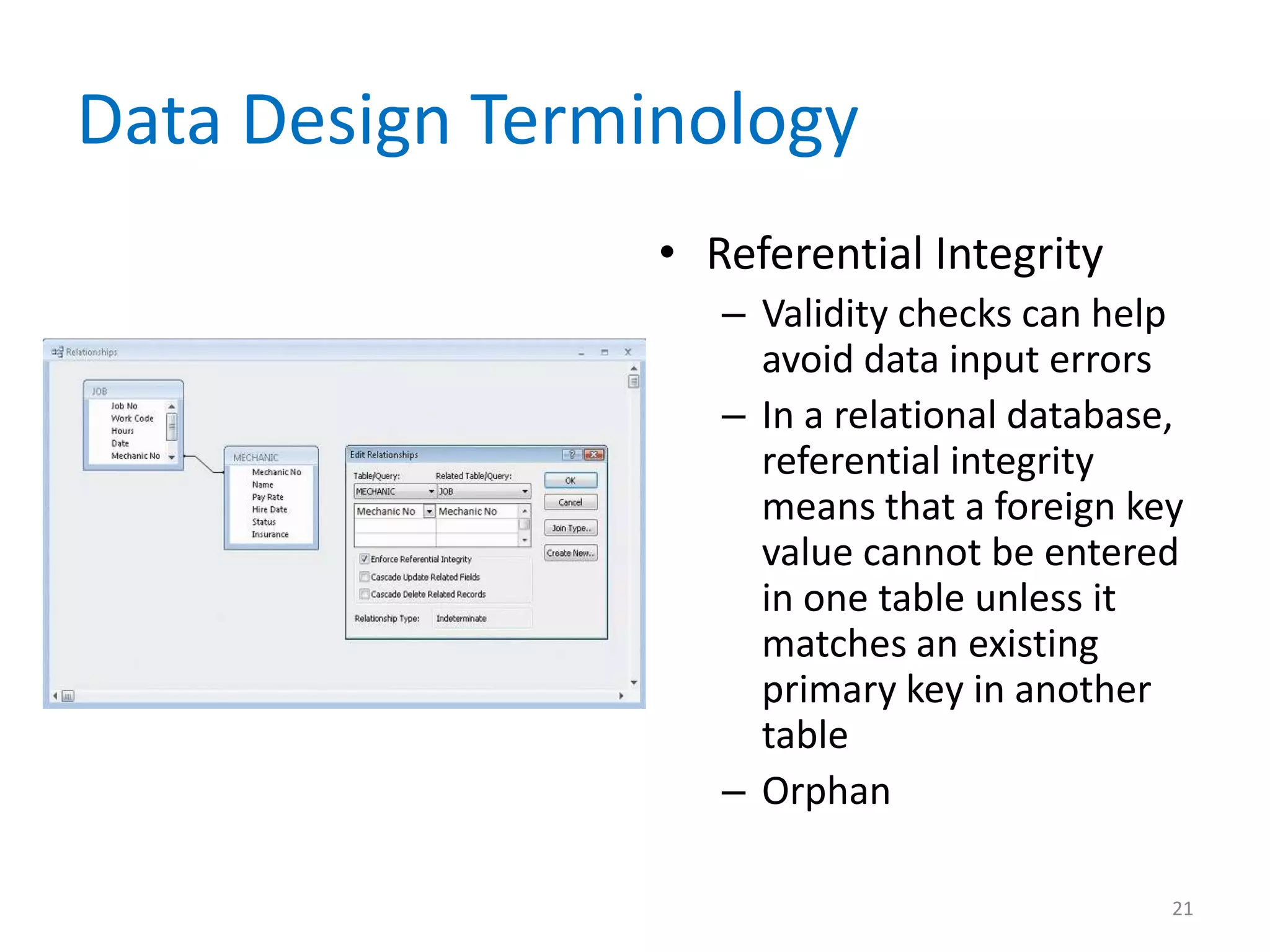

• Referential Integrity
– Validity checks can help
avoid data input errors
– In a relational database,
referential integrity
means that a foreign key
value cannot be entered
in one table unless it
matches an existing
primary key in another
table
– Orphan
21

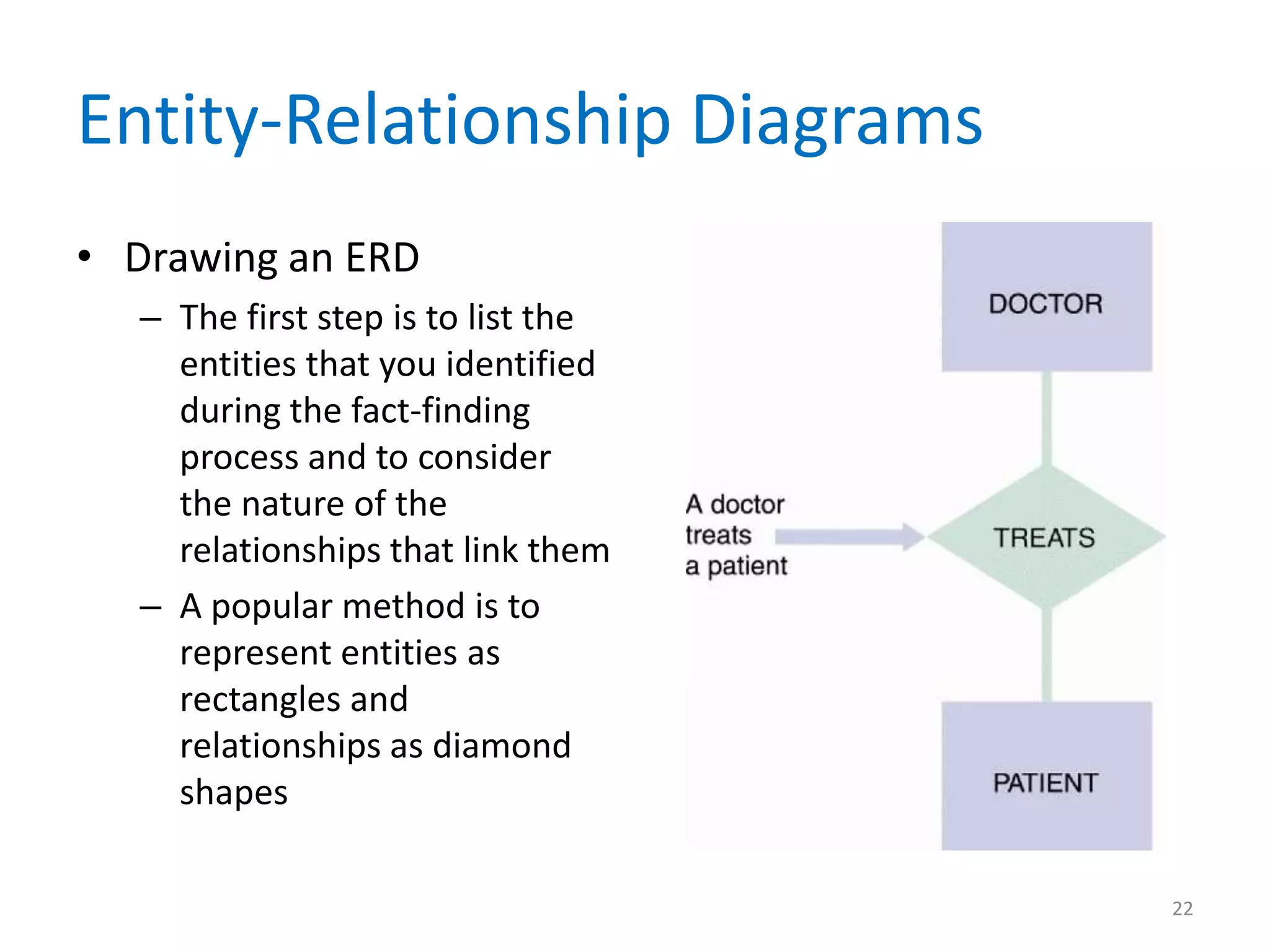

22. Entity-Relationship Diagrams
• Drawing an ERD
– The first step is to list the
entities that you identified
during the fact-finding
process and to consider
the nature of the
relationships that link them
– A popular method is to
represent entities as
rectangles and
relationships as diamond
shapes
22

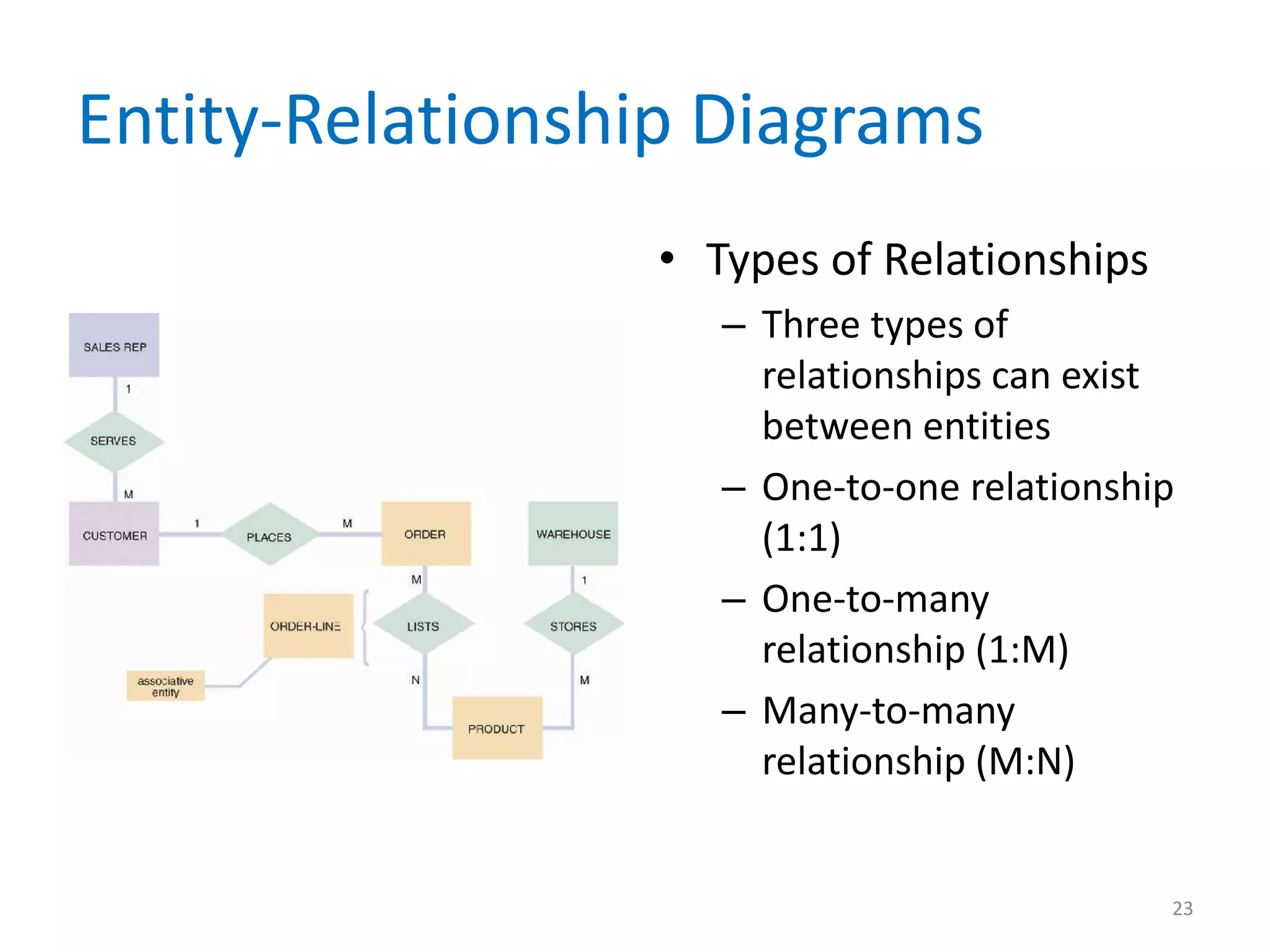

23. Entity-Relationship Diagrams
• Types of Relationships
– Three types of
relationships can exist
between entities
– One-to-one relationship
(1:1)
– One-to-many
relationship (1:M)
– Many-to-many
relationship (M:N)
23

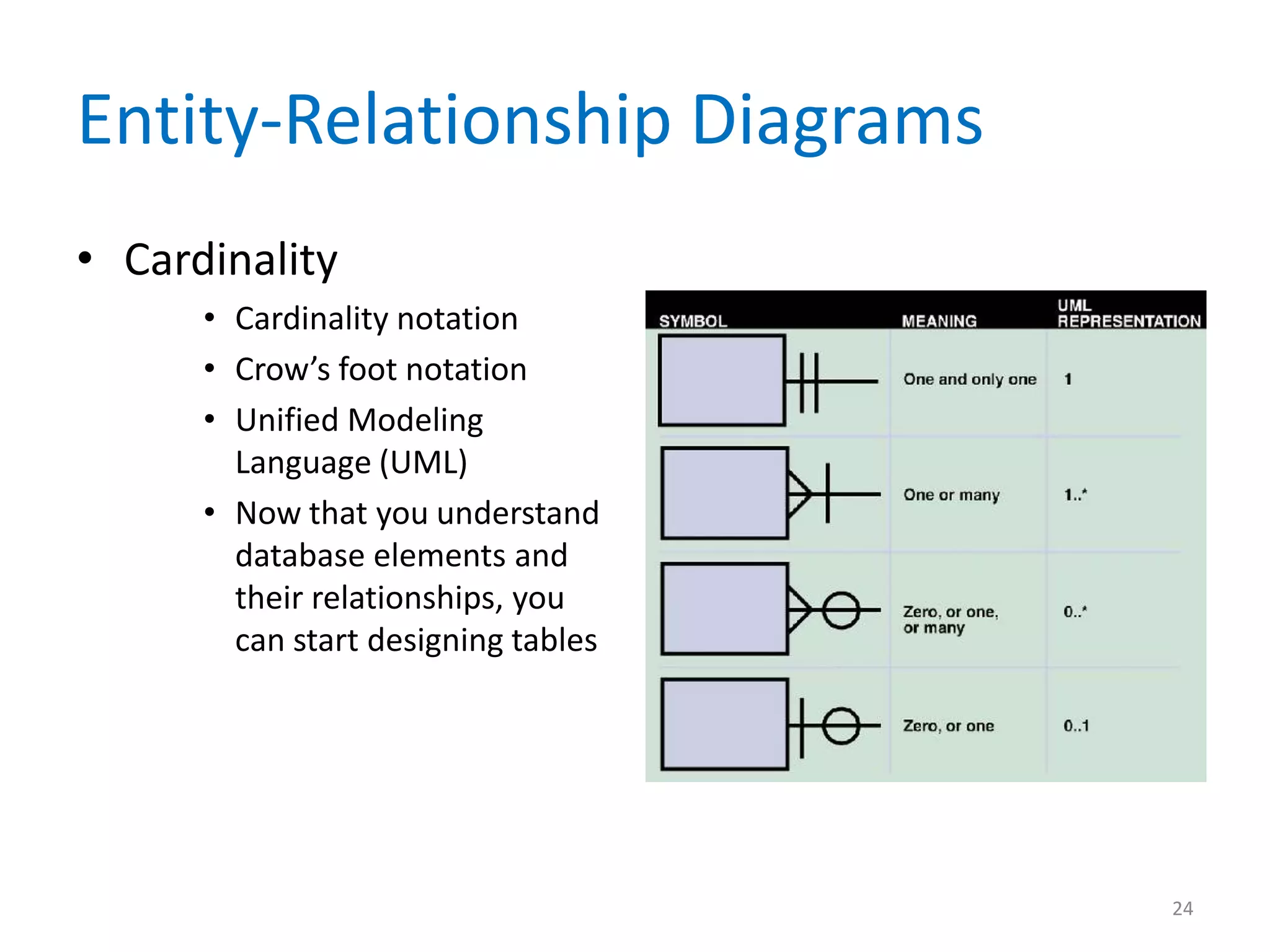

24. Entity-Relationship Diagrams
• Cardinality
• Cardinality notation
• Crow’s foot notation
• Unified Modeling
Language (UML)
• Now that you understand
database elements and
their relationships, you
can start designing tables
24

25. Normalization

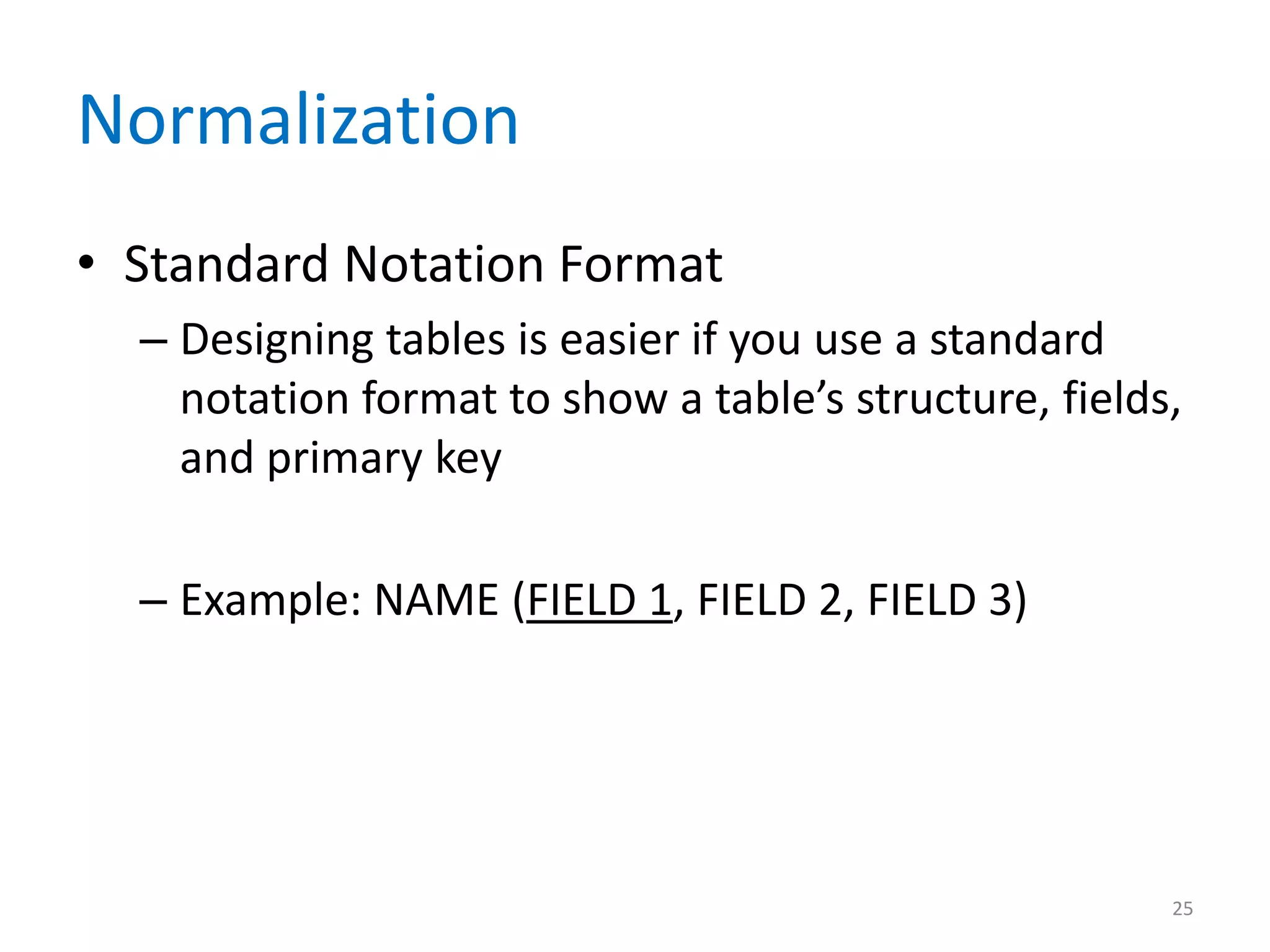

• Standard Notation Format
– Designing tables is easier if you use a standard
notation format to show a table’s structure, fields,
and primary key
– Example: NAME (FIELD 1, FIELD 2, FIELD 3)
25

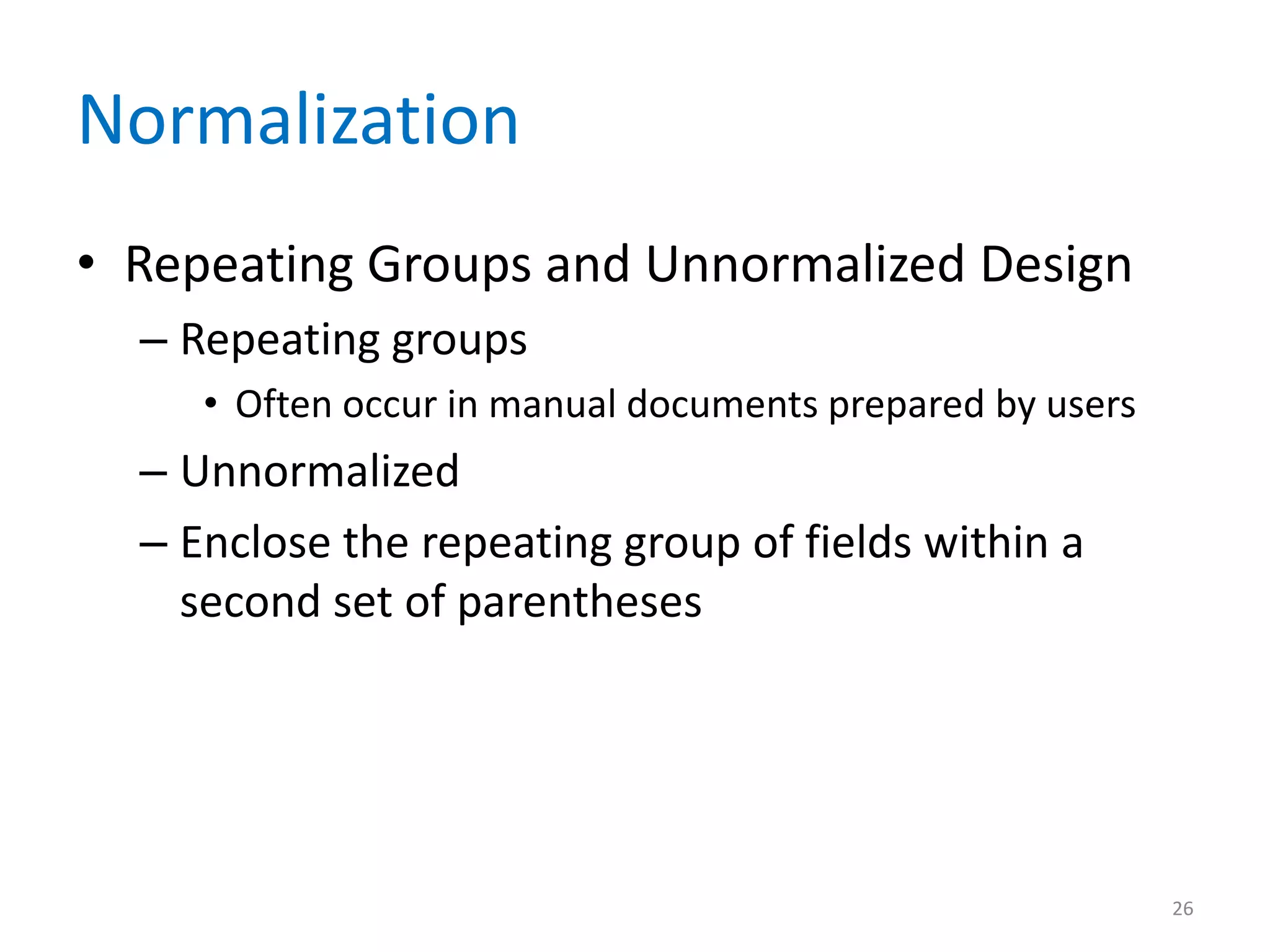

26. Normalization
• Repeating Groups and Unnormalized Design
– Repeating groups
• Often occur in manual documents prepared by users
– Unnormalized
– Enclose the repeating group of fields within a
second set of parentheses
26

27. Normalization

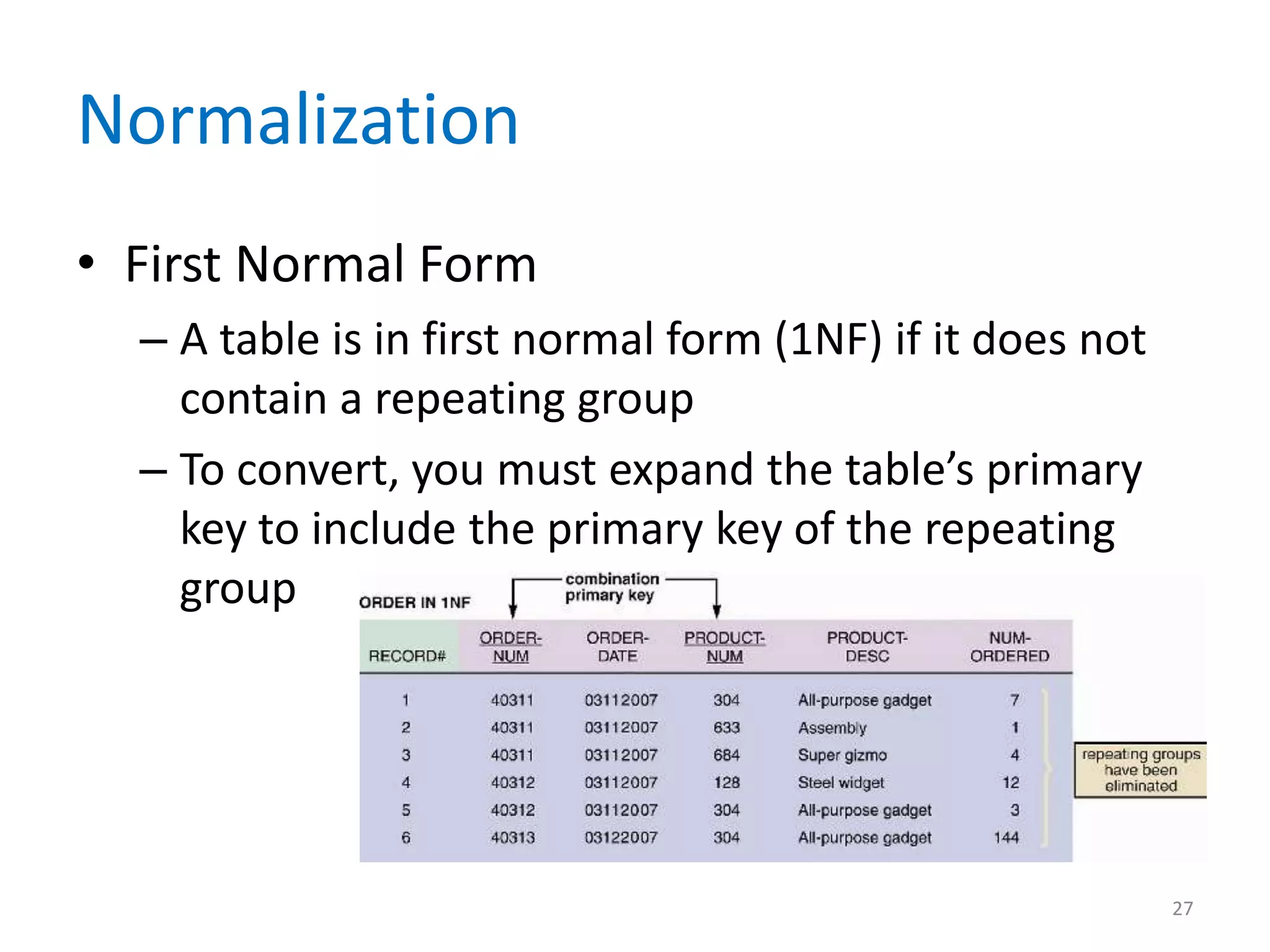

• First Normal Form
– A table is in first normal form (1NF) if it does not
contain a repeating group
– To convert, you must expand the table’s primary
key to include the primary key of the repeating
group
27

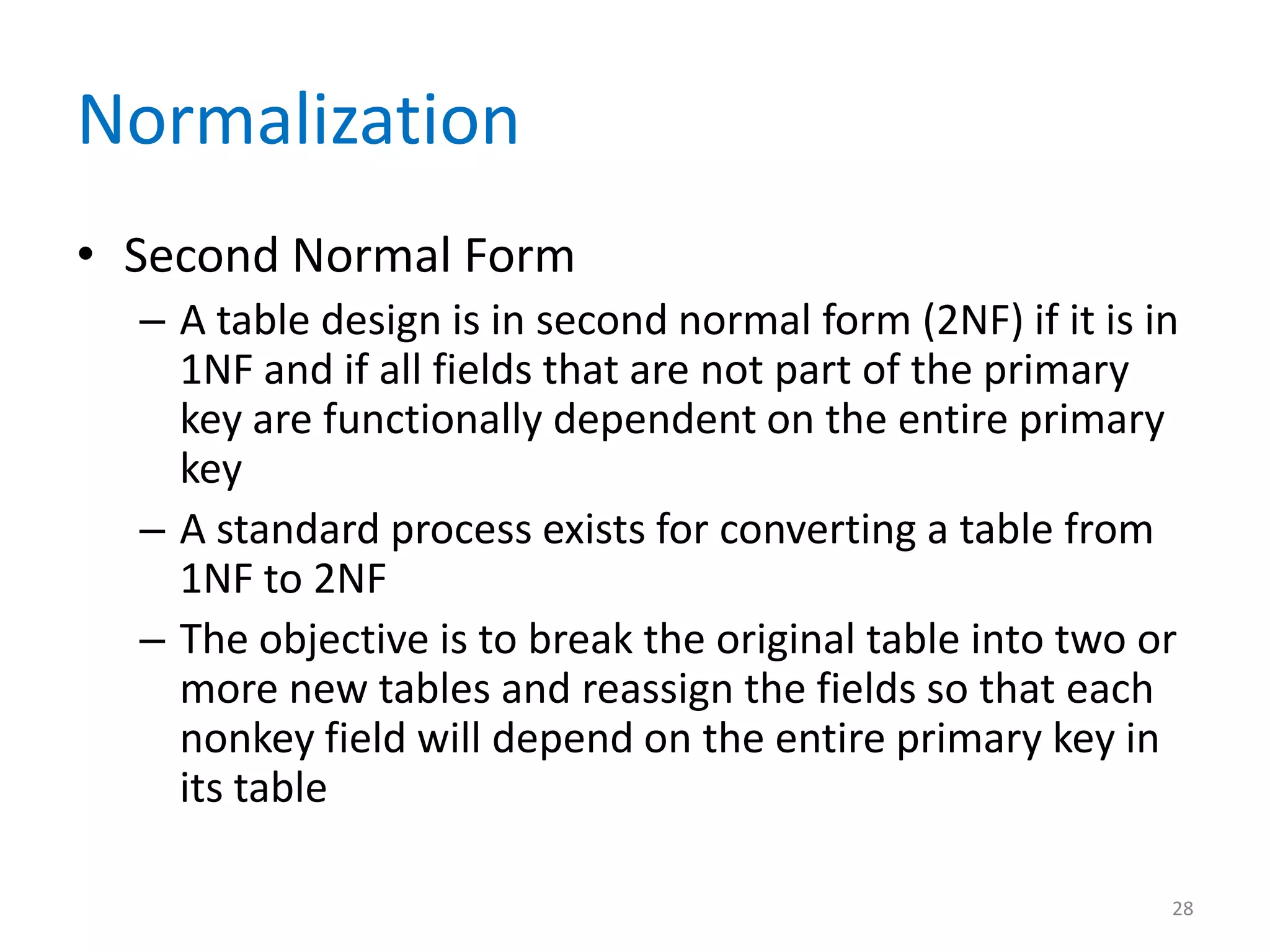

28. Normalization
• Second Normal Form
– A table design is in second normal form (2NF) if it is in
1NF and if all fields that are not part of the primary
key are functionally dependent on the entire primary
key
– A standard process exists for converting a table from
1NF to 2NF
– The objective is to break the original table into two or
more new tables and reassign the fields so that each
nonkey field will depend on the entire primary key in
its table
28

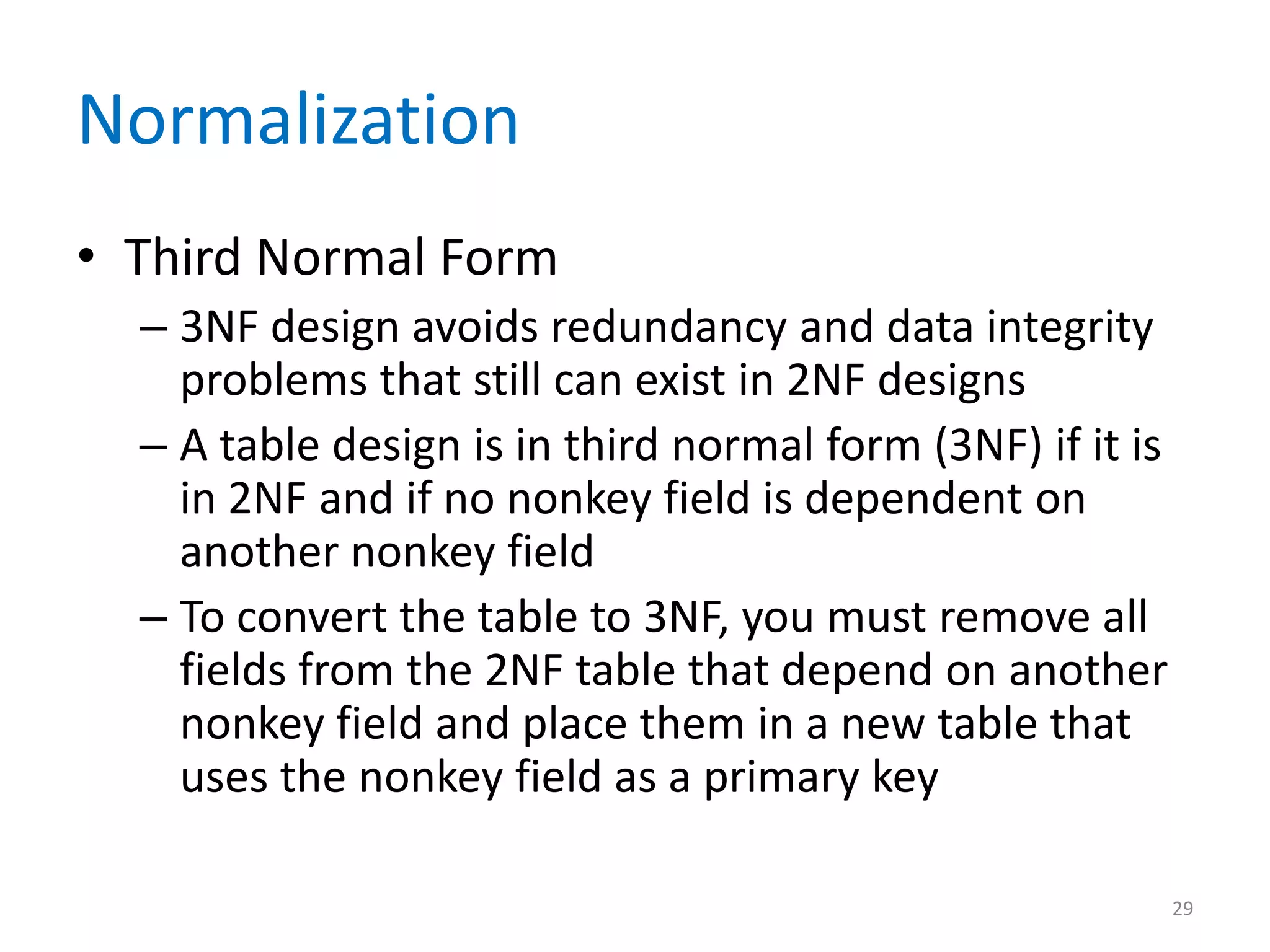

29. Normalization
• Third Normal Form
– 3NF design avoids redundancy and data integrity
problems that still can exist in 2NF designs
– A table design is in third normal form (3NF) if it is
in 2NF and if no nonkey field is dependent on
another nonkey field
– To convert the table to 3NF, you must remove all
fields from the 2NF table that depend on another
nonkey field and place them in a new table that
uses the nonkey field as a primary key
29

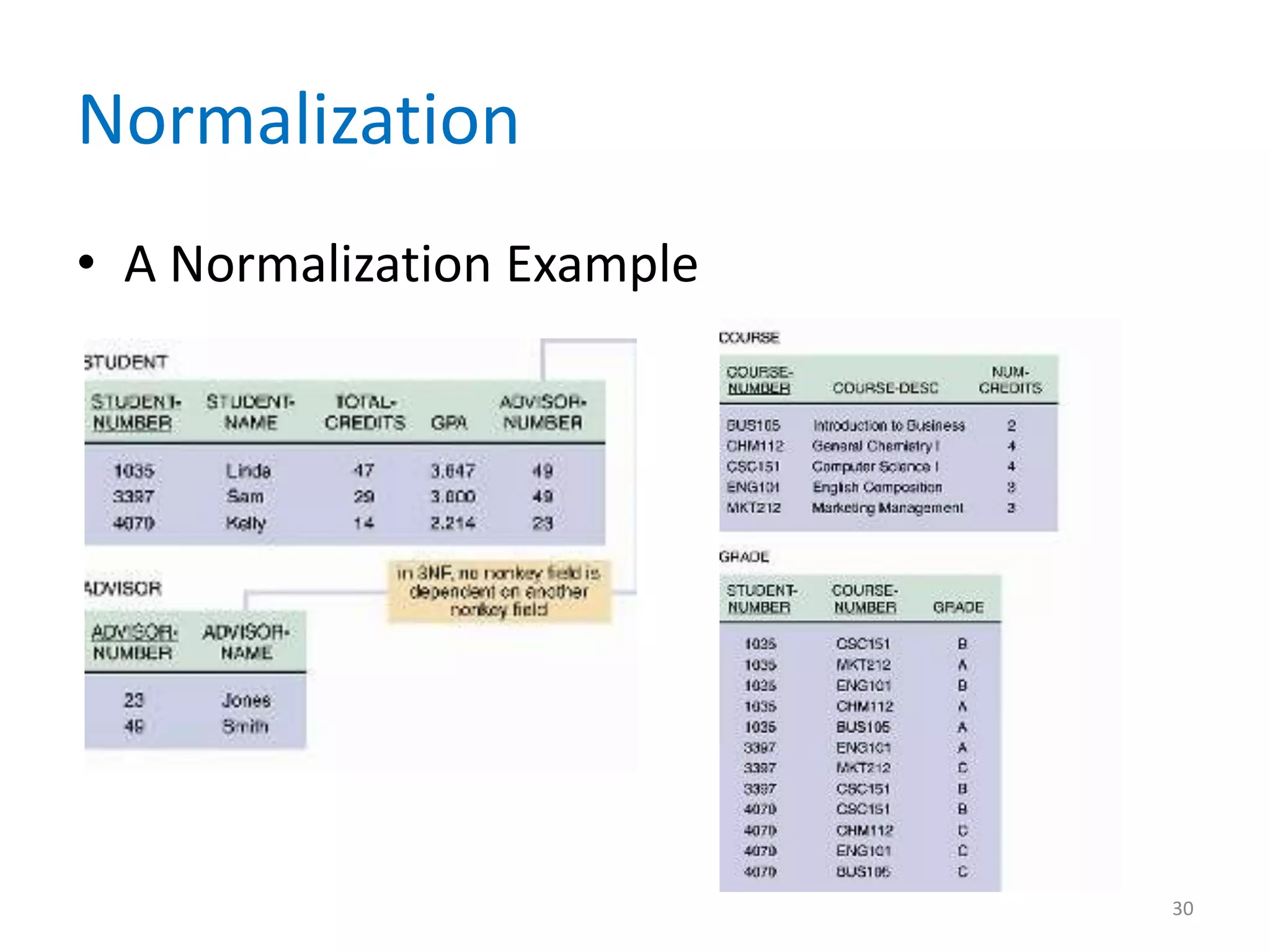

30. Normalization
• A Normalization Example
30

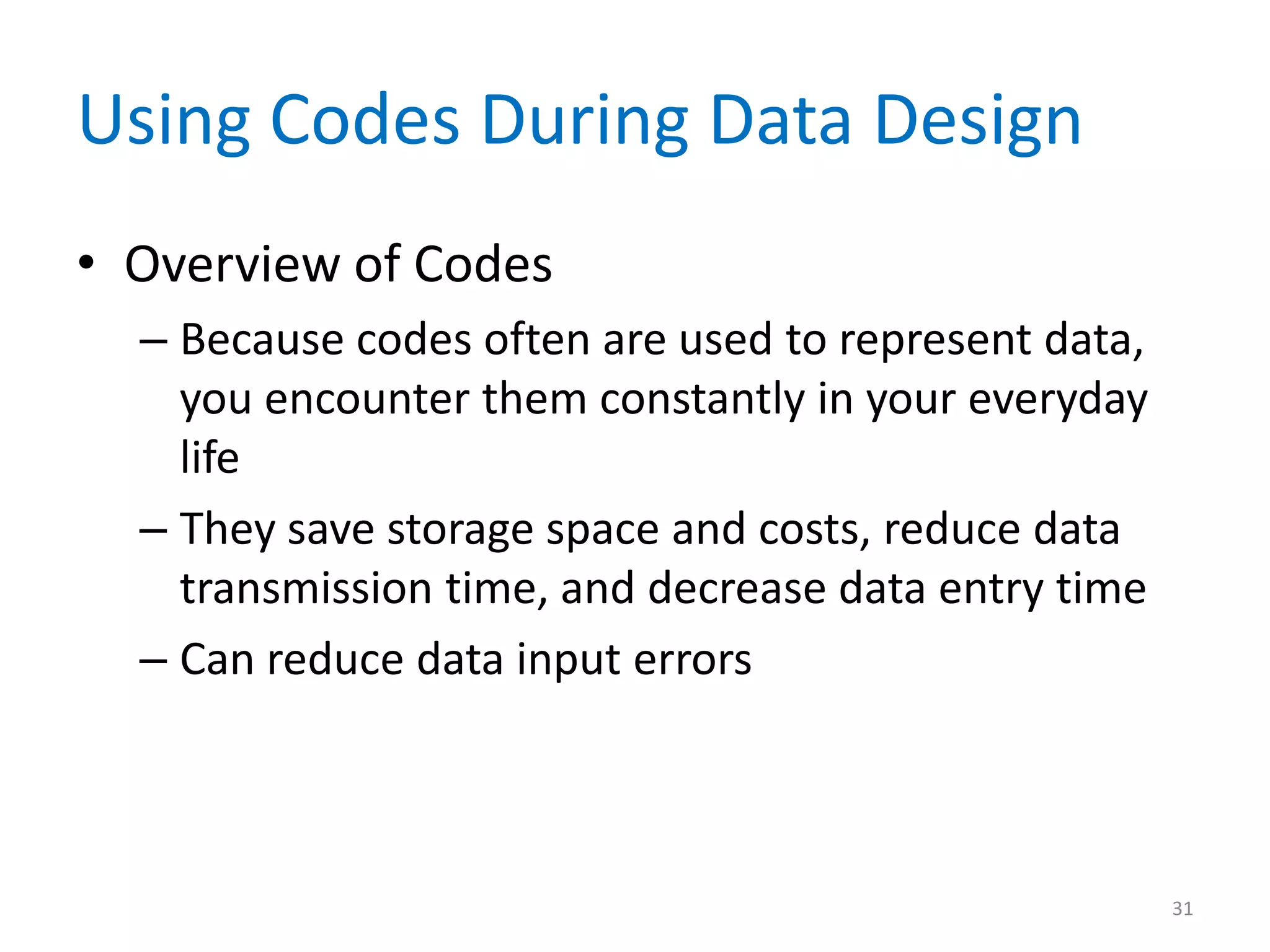

31. Using Codes During Data Design
• Overview of Codes
– Because codes often are used to represent data,
you encounter them constantly in your everyday
life
– They save storage space and costs, reduce data
transmission time, and decrease data entry time
– Can reduce data input errors
31

32. Using Codes During Data Design
• Types of Codes
1. Sequence codes
2. Block sequence codes
3. Alphabetic codes
4. Significant digit codes
5. Derivation codes
6. Cipher codes
7. Action codes
32

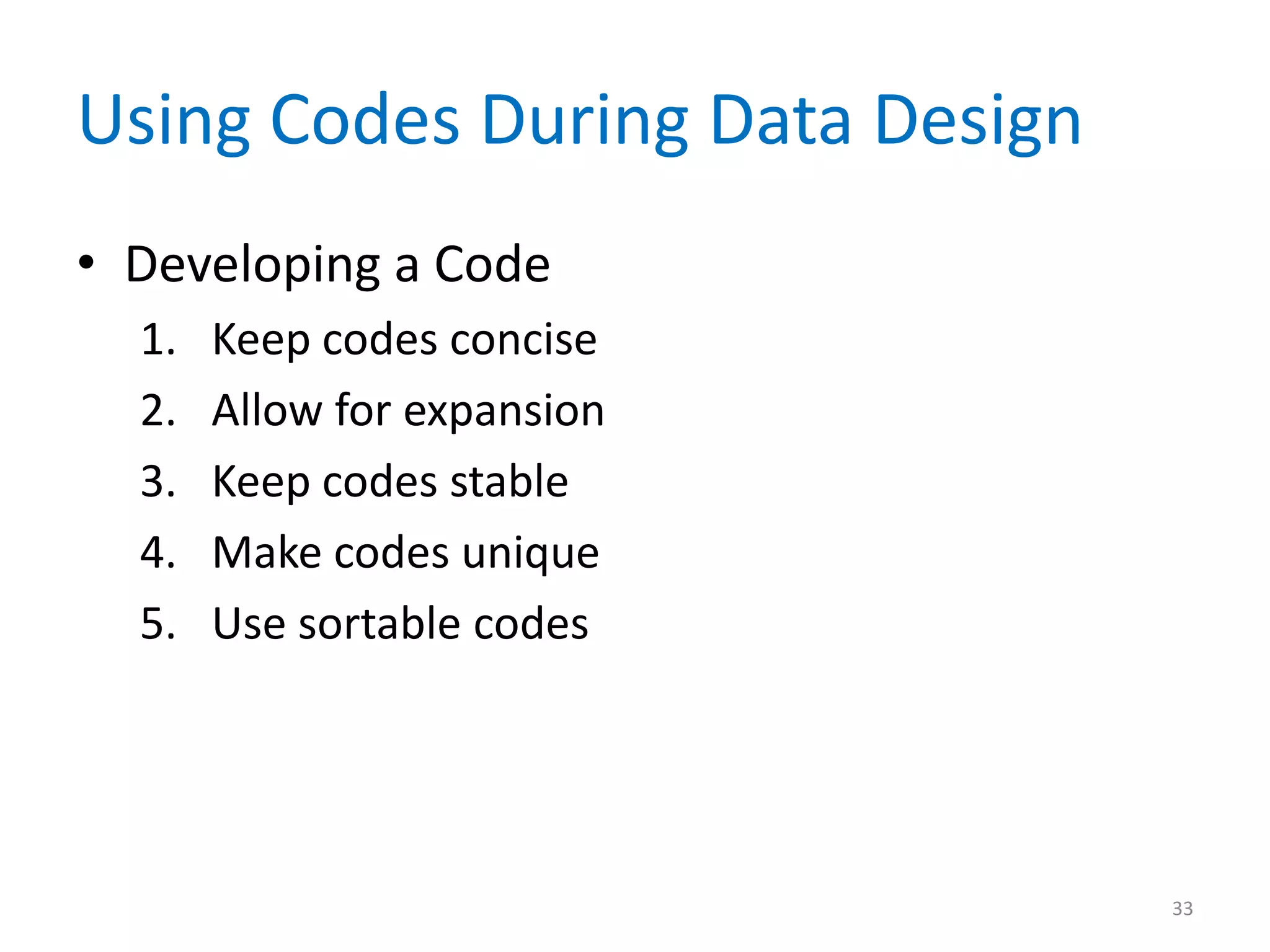

33. Using Codes During Data Design
• Developing a Code
1. Keep codes concise
2. Allow for expansion
3. Keep codes stable
4. Make codes unique
5. Use sortable codes
33

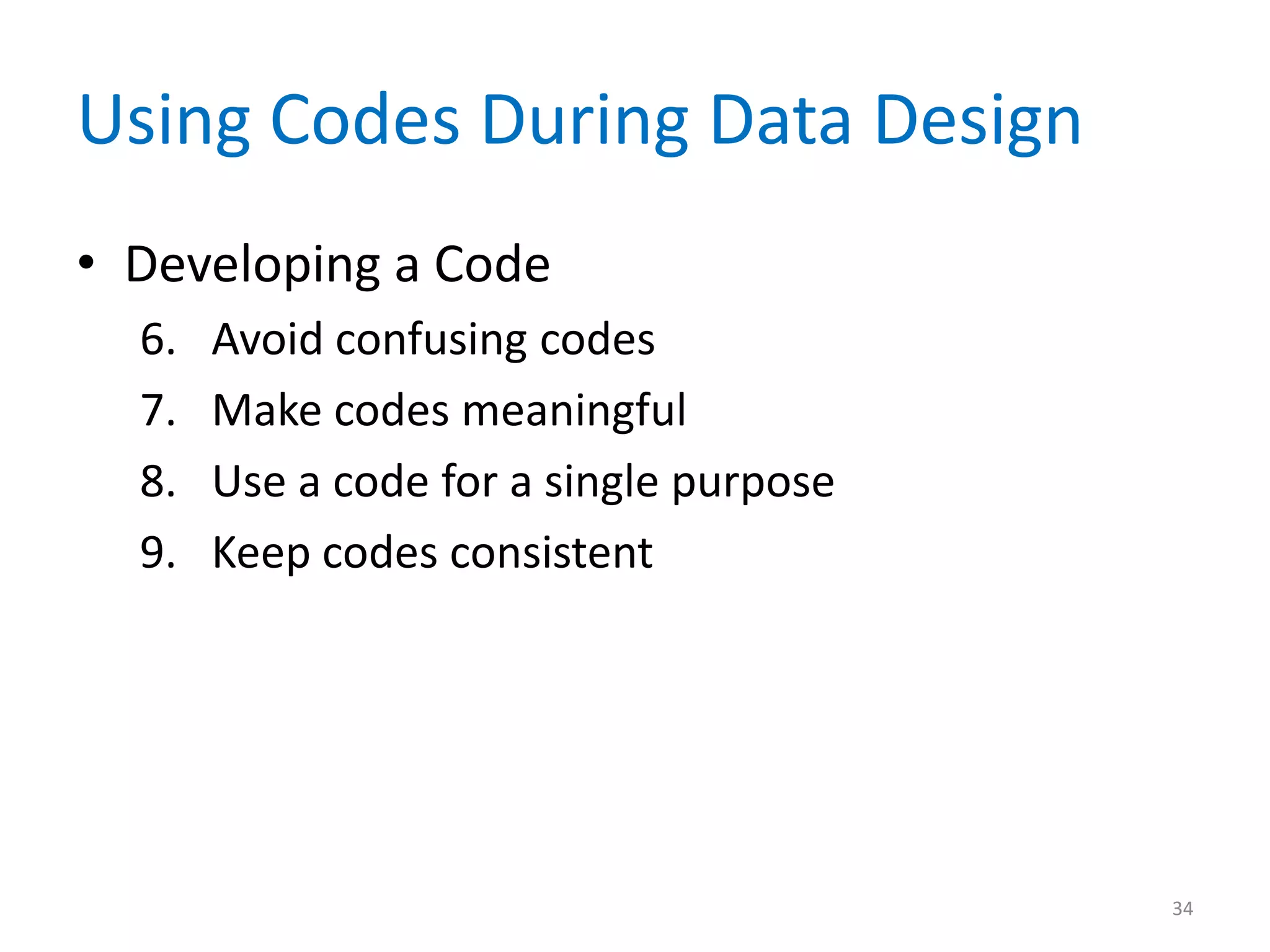

34. Using Codes During Data Design
• Developing a Code
6. Avoid confusing codes
7. Make codes meaningful
8. Use a code for a single purpose
9. Keep codes consistent
34

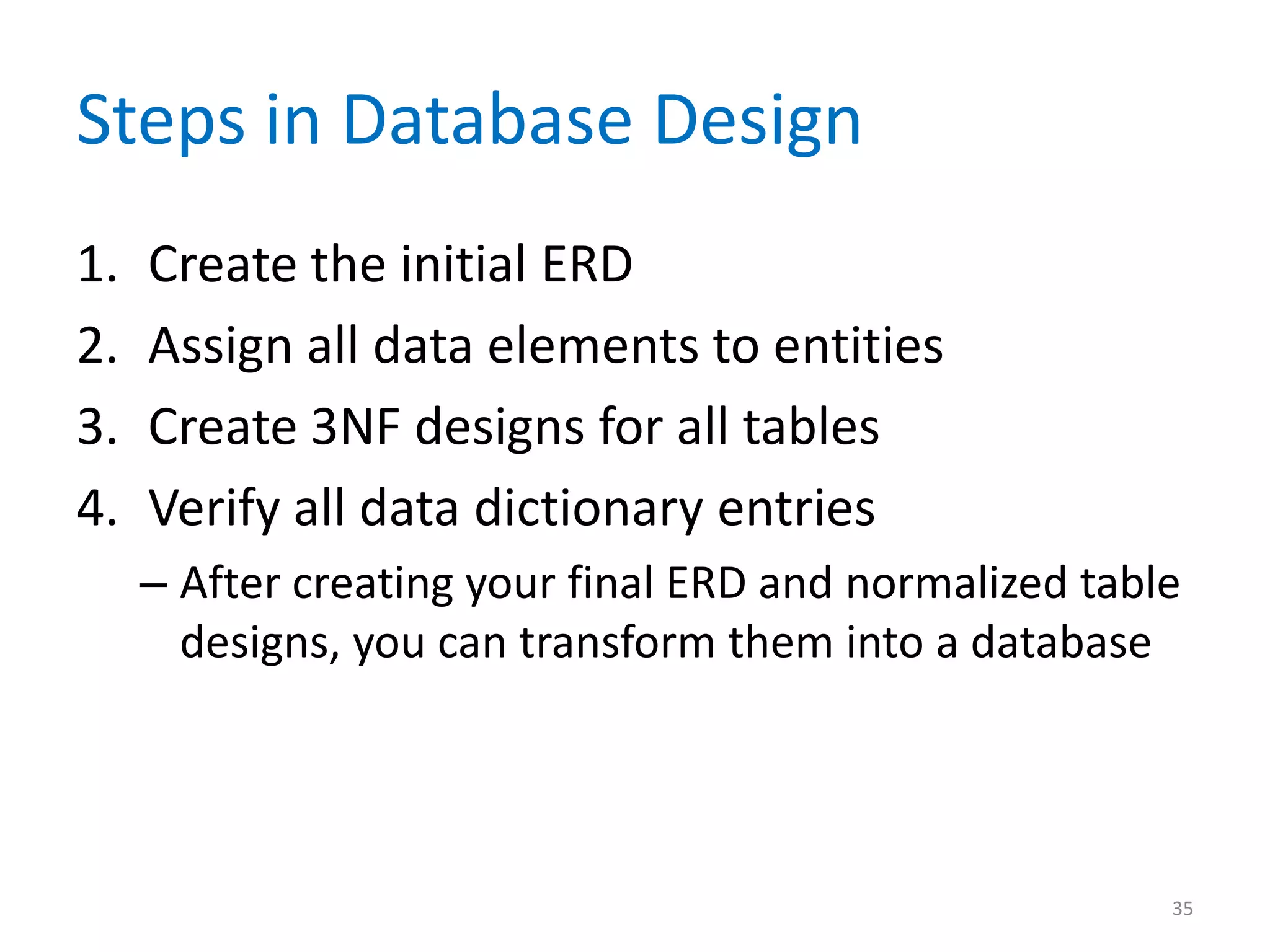

35. Steps in Database Design
1. Create the initial ERD
2. Assign all data elements to entities
3. Create 3NF designs for all tables
4. Verify all data dictionary entries
– After creating your final ERD and normalized table
designs, you can transform them into a database
35

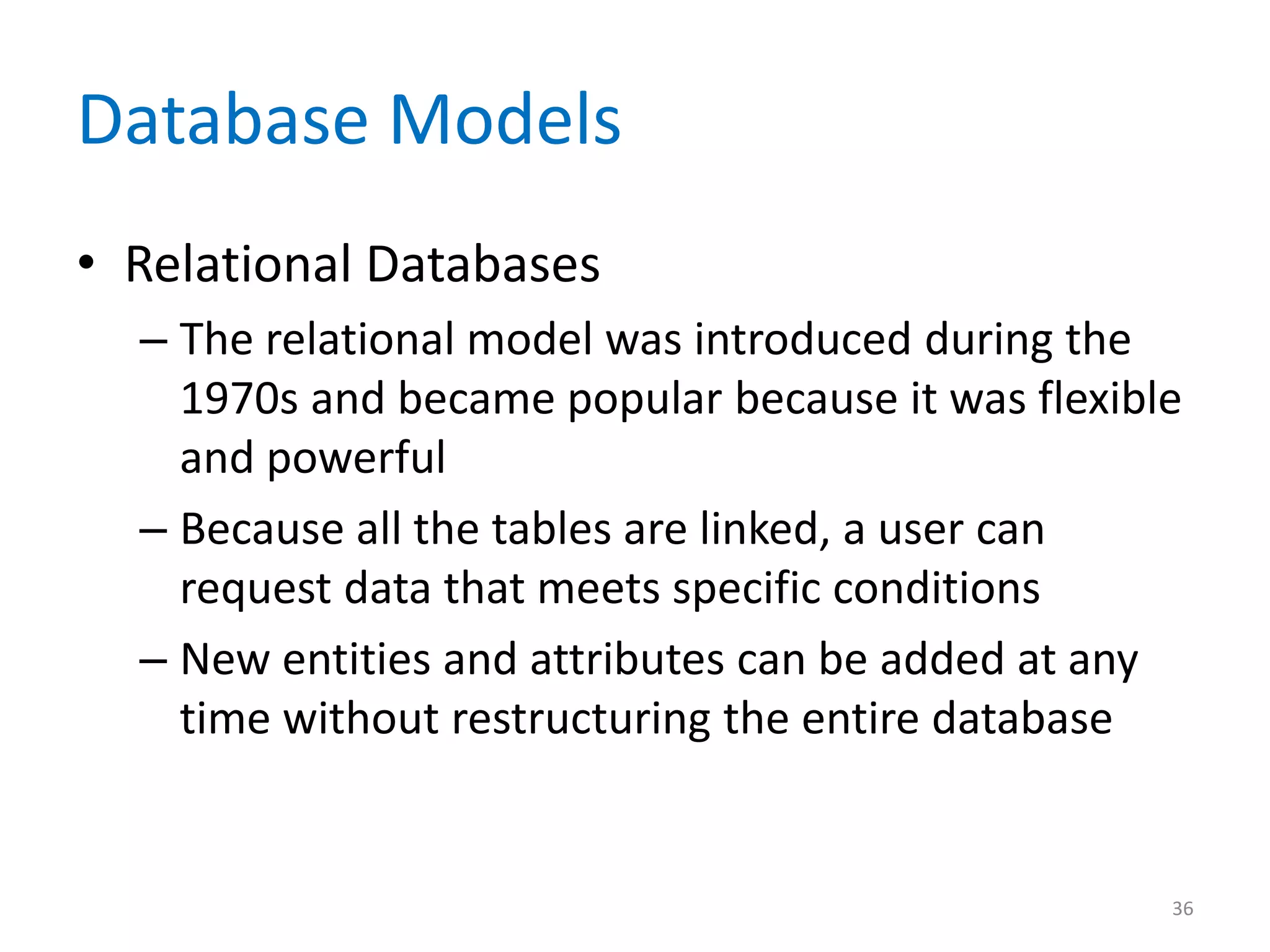

36. Database Models
• Relational Databases
– The relational model was introduced during the
1970s and became popular because it was flexible
and powerful
– Because all the tables are linked, a user can
request data that meets specific conditions
– New entities and attributes can be added at any
time without restructuring the entire database
36

37. Database Models

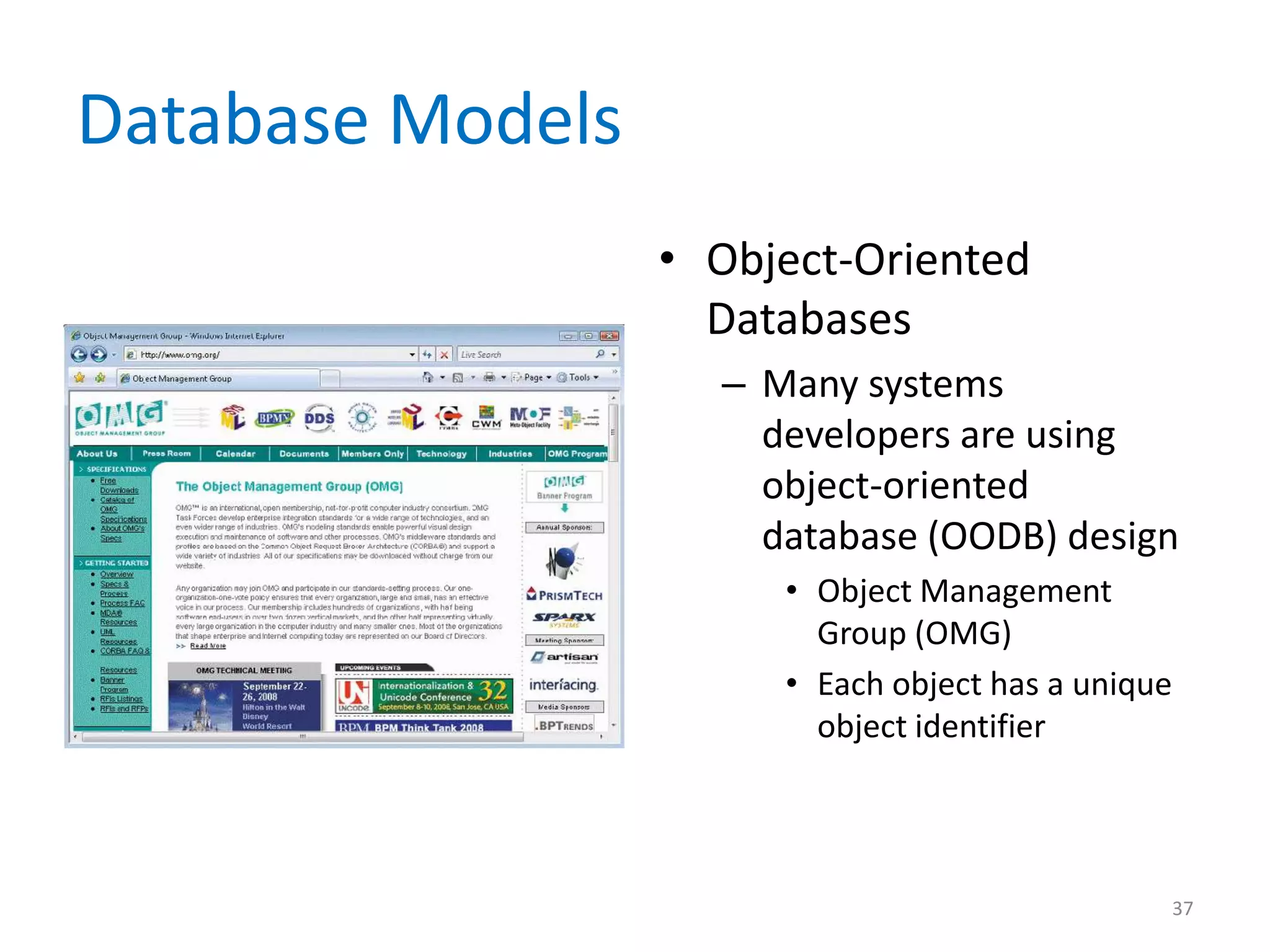

• Object-Oriented
Databases
– Many systems
developers are using
object-oriented
database (OODB) design
• Object Management
Group (OMG)
• Each object has a unique
object identifier
37

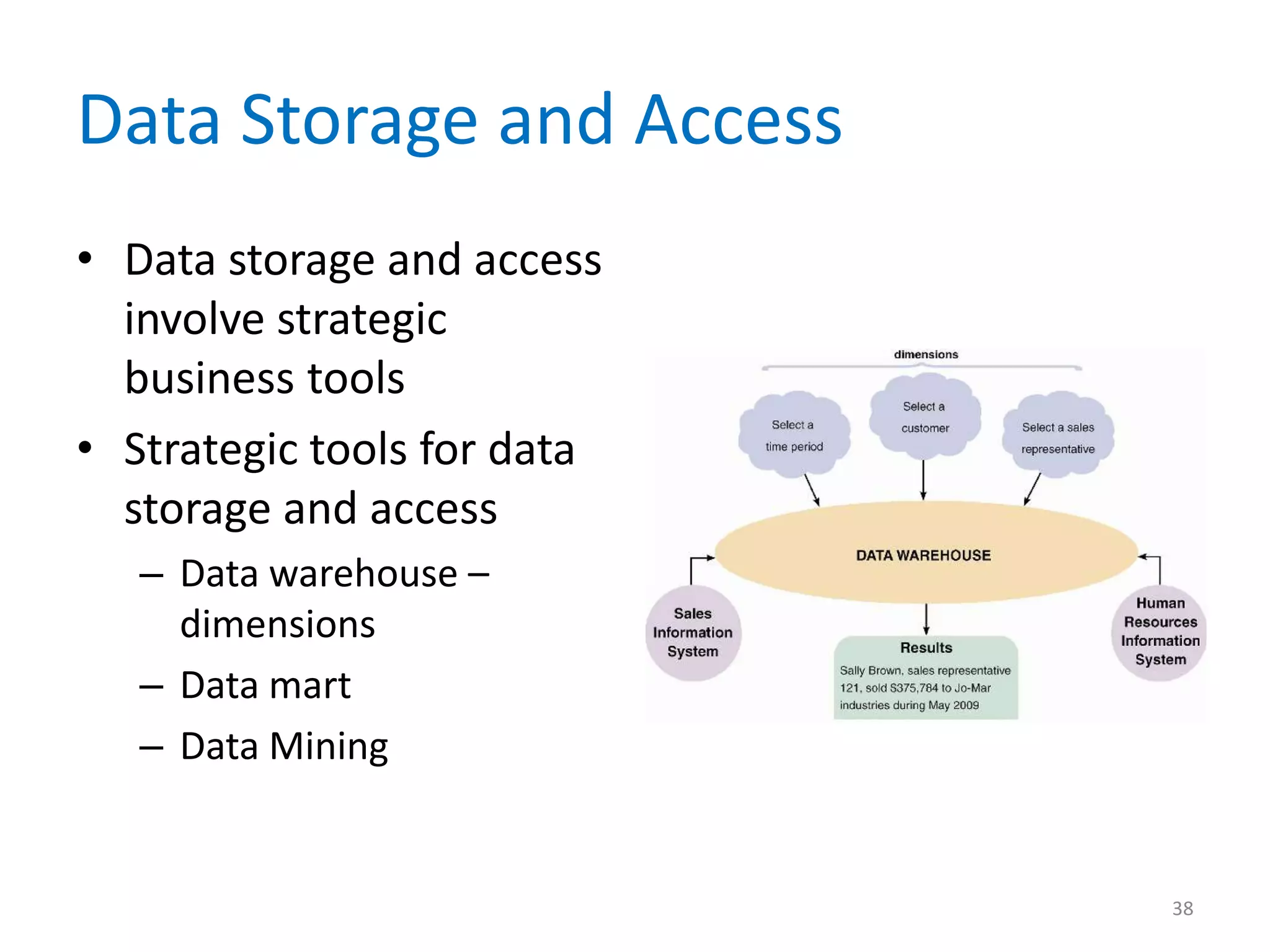

38. Data Storage and Access
• Data storage and access
involve strategic
business tools
• Strategic tools for data
storage and access
– Data warehouse –
dimensions
– Data mart
– Data Mining
38

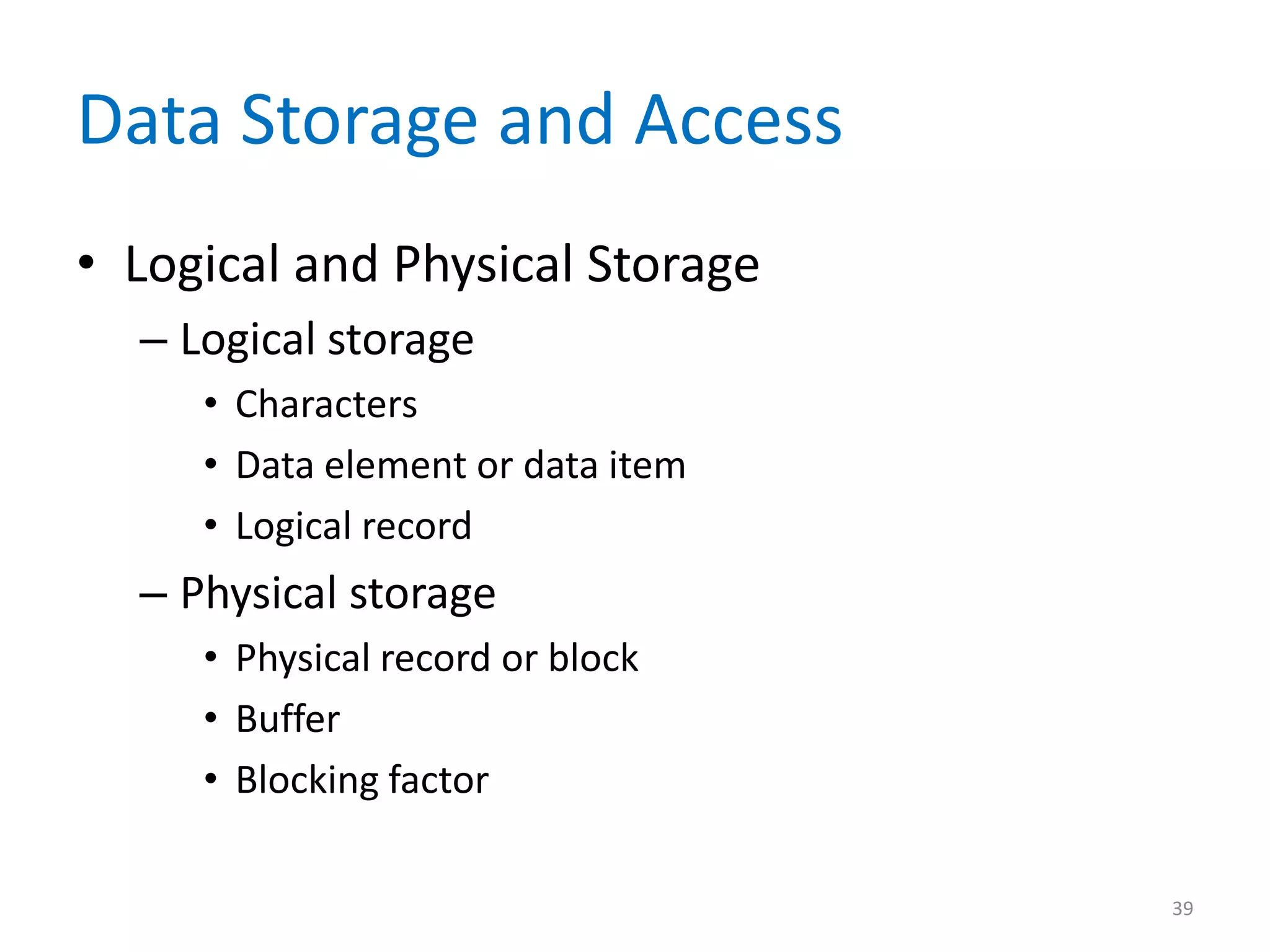

39. Data Storage and Access
• Logical and Physical Storage
– Logical storage
• Characters
• Data element or data item
• Logical record
– Physical storage
• Physical record or block
• Buffer
• Blocking factor
39

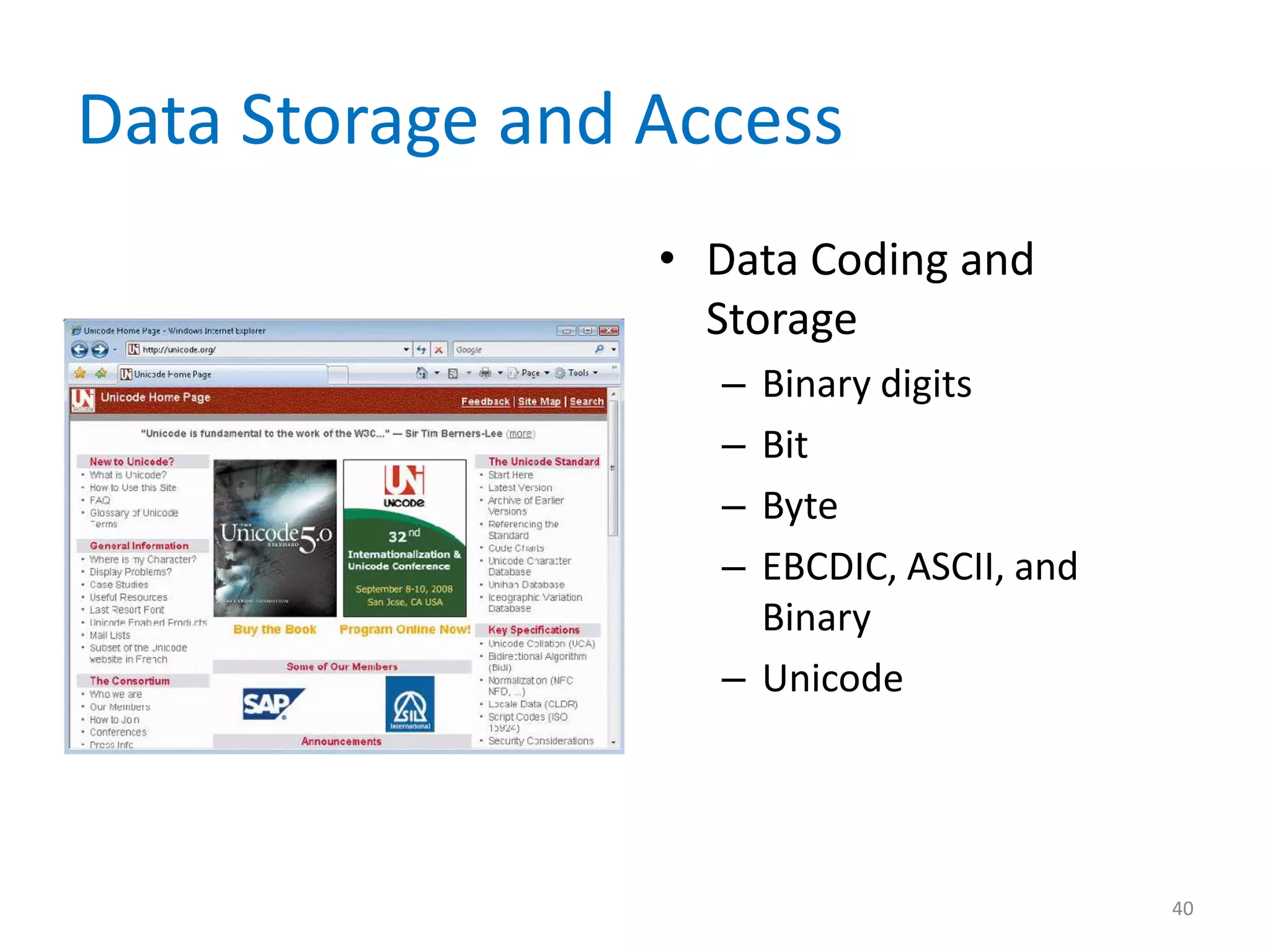

40. Data Storage and Access
• Data Coding and
Storage
– Binary digits
– Bit
– Byte
– EBCDIC, ASCII, and
Binary
– Unicode
40

41. Data Storage and Access
• Data Coding and Storage

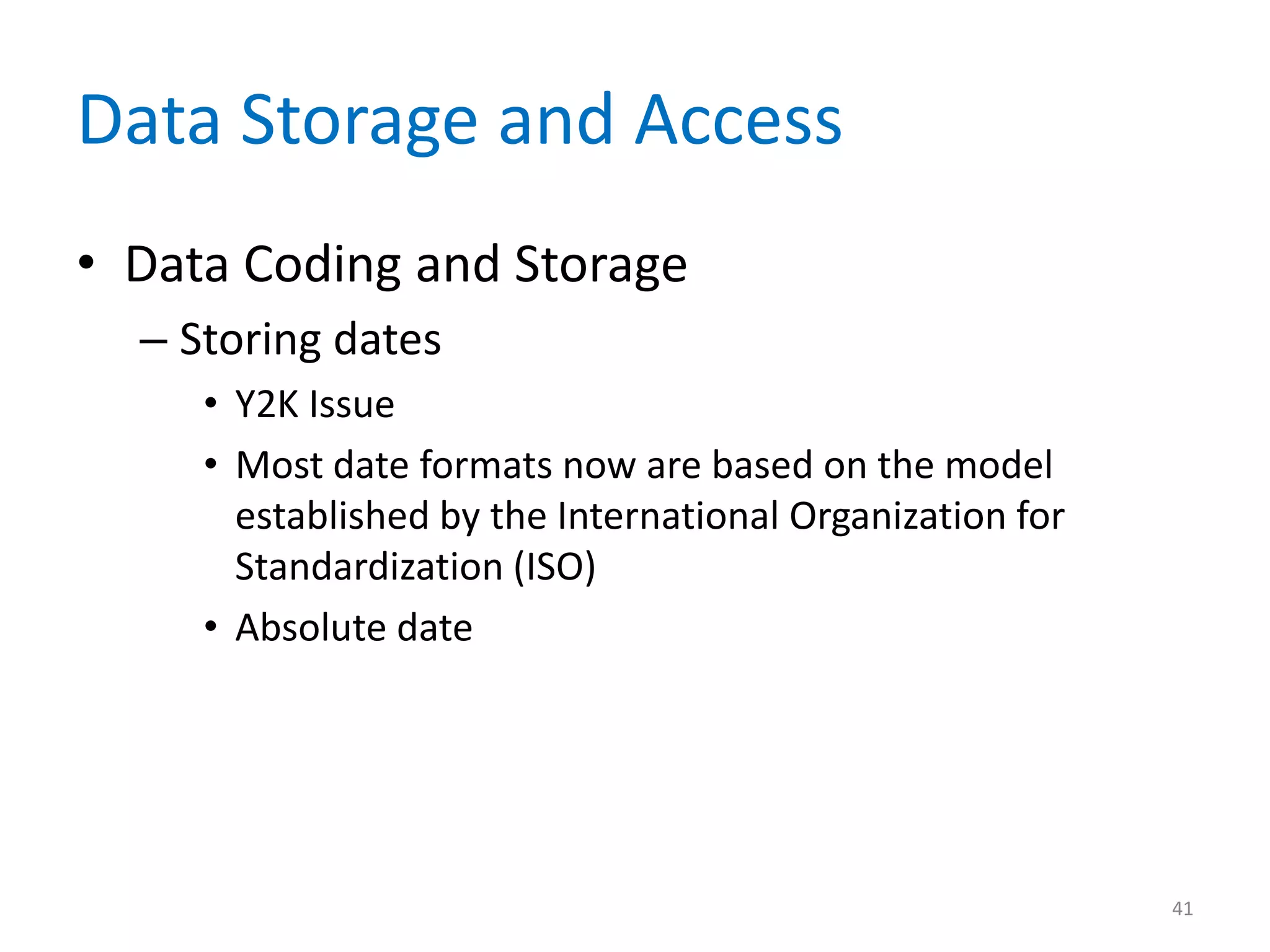

– Storing dates
• Y2K Issue
• Most date formats now are based on the model
established by the International Organization for
Standardization (ISO)
• Absolute date
41

42. Data Control
• User ID
• Password
• Permissions
• Encryption
• Backup
• Recovery procedures
• Audit log files
• Audit fields
42

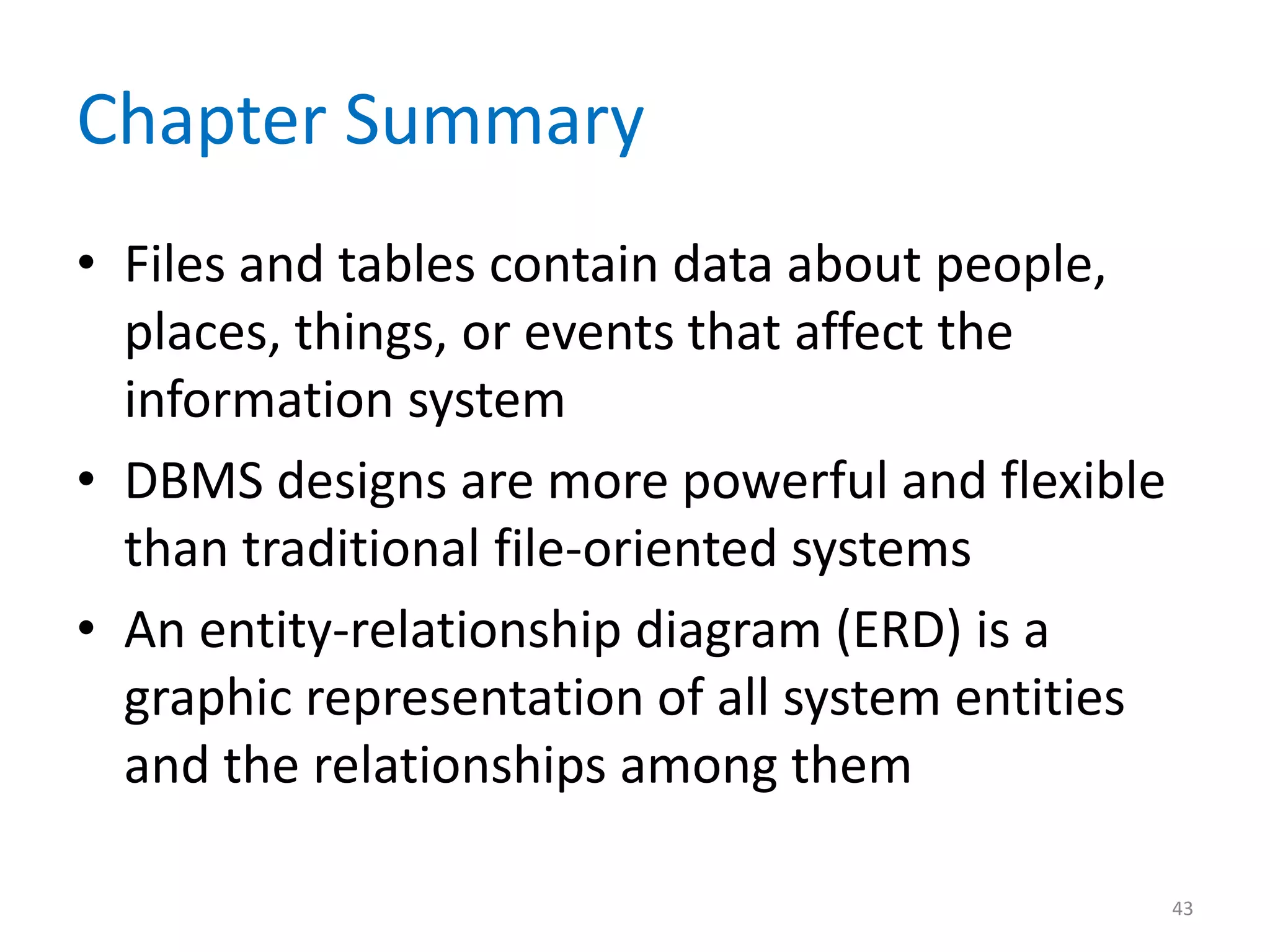

43. Chapter Summary
• Files and tables contain data about people,
places, things, or events that affect the
information system
• DBMS designs are more powerful and flexible
than traditional file-oriented systems
• An entity-relationship diagram (ERD) is a
graphic representation of all system entities
and the relationships among them
43

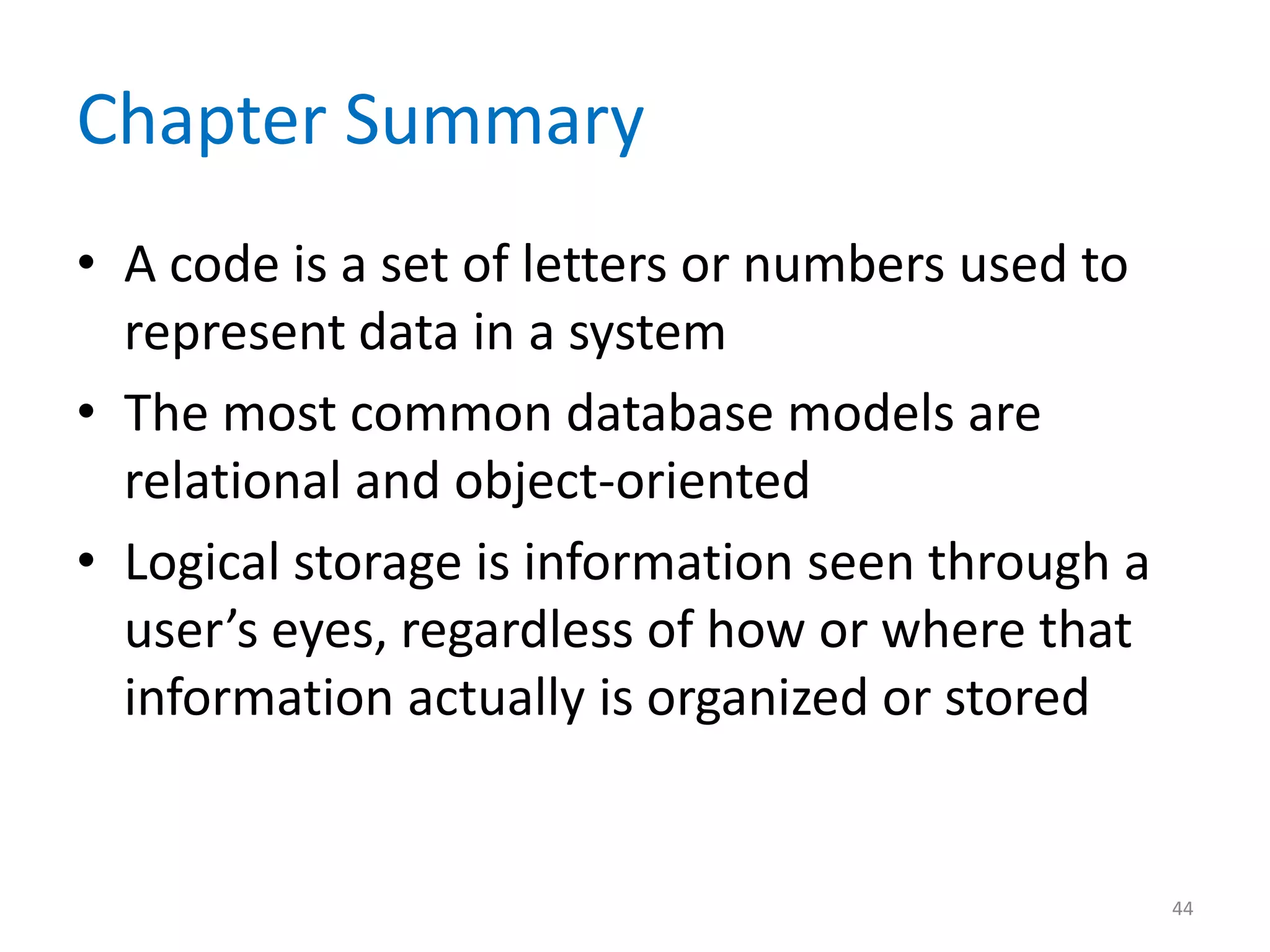

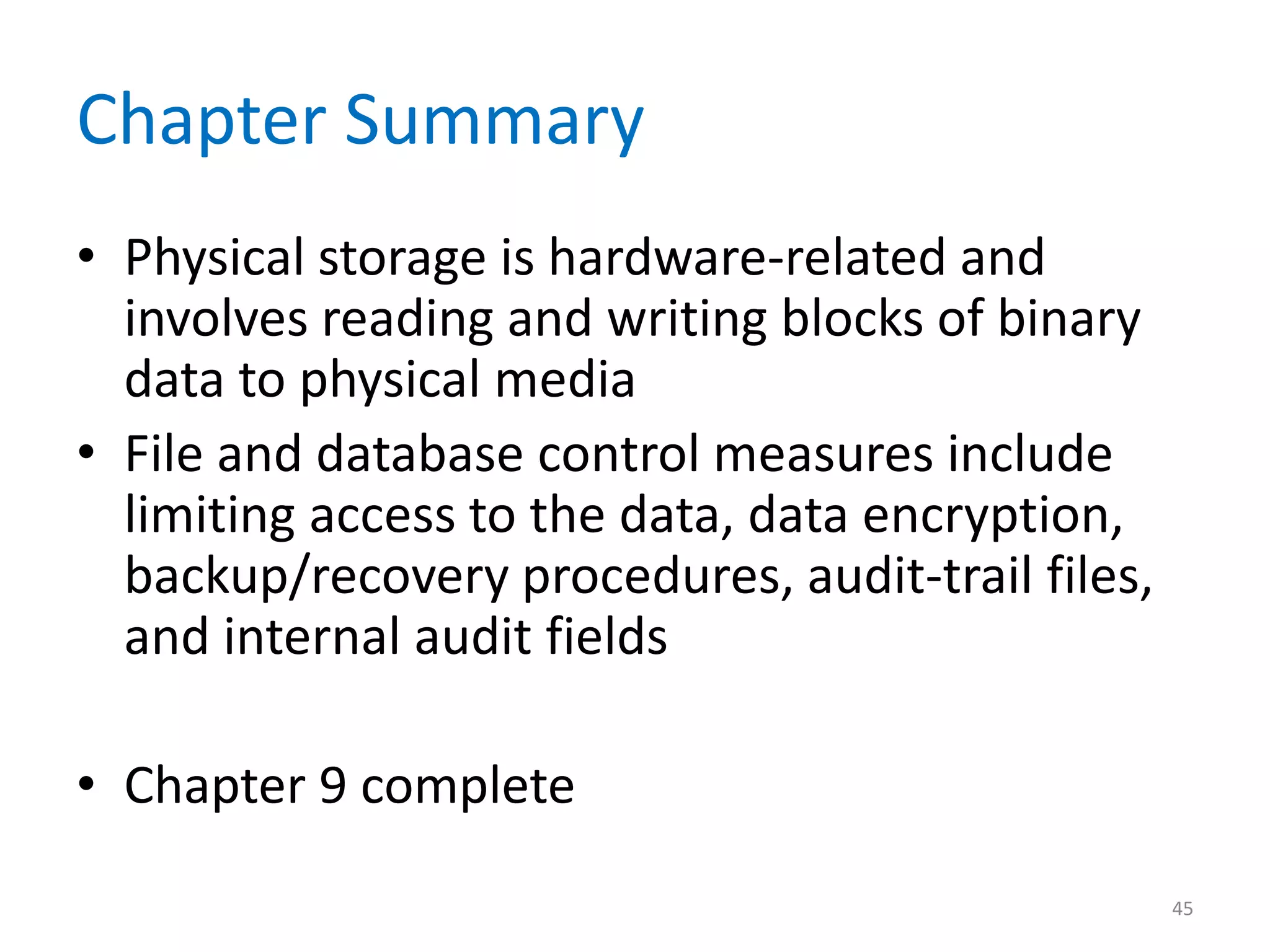

44. Chapter Summary
• A code is a set of letters or numbers used to
represent data in a system
• The most common database models are
relational and object-oriented
• Logical storage is information seen through a
user’s eyes, regardless of how or where that
information actually is organized or stored
44

45. Chapter Summary
• Physical storage is hardware-related and
involves reading and writing blocks of binary
data to physical media
• File and database control measures include
limiting access to the data, data encryption,
backup/recovery procedures, audit-trail files,
and internal audit fields
• Chapter 9 complete
45
