5.01 Activity Notes A

5.01 Student Activities Notes

• How is database information used, organized, and managed in business?

For what purposes?

Database Uses in Business
I. Database Use and Purpose – A database is a tool used to organize, store,
retrieve, and communicate groups of related information.
A. Examples of databases and database uses in business and society:
1. phone book
2. online library card catalog
3. payroll data including employee names, social security numbers,
pay rates, exemptions, etc.
4. eBay and other online businesses use databases to maintain
inventory and keep track of customers, products, vendors, pay pal
accounts
B. Tables are the building blocks of all databases. They are used to group
and organize the information within a database.
1. A table is an arrangement of columns and rows. It is the
fundamental building block of all databases.
2. An entry is a single piece of data in a database table.
3. A field is a grouping or category of similar information contained in
a table; a unique identifier for a category of information
4. A record is a complete description of all of the fields related to one
item in a table.
II. Data Types, Field Properties, Primary Keys, and Printing
A. Before a database can be built, the user must first define its purpose and
determine how the data will be organized into fields.
1. Fields should be formatted in accordance with the data they contain
so that the database can be searched, used in calculations, and
sorted as needed.
2. A field name should be short and descriptive
3. A data type defines the value of a cell and a field property defines
the format of the data within the cell
B. Data types: used to control how data in a particular field will be searched,
sorted, or used in calculations. The default format is text.

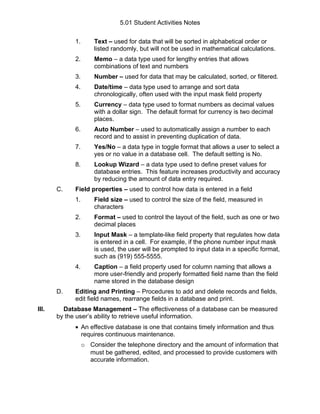

1. Text – used for data that will be sorted in alphabetical order or
listed randomly, but will not be used in mathematical calculations.
2. Memo – a data type used for lengthy entries that allows
combinations of text and numbers
3. Number – used for data that may be calculated, sorted, or filtered.
4. Date/time – data type used to arrange and sort data
chronologically, often used with the input mask field property
5. Currency – data type used to format numbers as decimal values
with a dollar sign. The default format for currency is two decimal
places.
6. Auto Number – used to automatically assign a number to each
record and to assist in preventing duplication of data.
7. Yes/No – a data type in toggle format that allows a user to select a
yes or no value in a database cell. The default setting is No.
8. Lookup Wizard – a data type used to define preset values for
database entries. This feature increases productivity and accuracy
by reducing the amount of data entry required.
C. Field properties – used to control how data is entered in a field
1. Field size – used to control the size of the field, measured in
characters
2. Format – used to control the layout of the field, such as one or two
decimal places
3. Input Mask – a template-like field property that regulates how data
is entered in a cell. For example, if the phone number input mask
is used, the user will be prompted to input data in a specific format,
such as (919) 555-5555.
4. Caption – a field property used for column naming that allows a
more user-friendly and properly formatted field name than the field
name stored in the database design
D. Editing and Printing – Procedures to add and delete records and fields,
edit field names, rearrange fields in a database and print.
III. Database Management – The effectiveness of a database can be measured
by the user’s ability to retrieve useful information.
• An effective database is one that contains timely information and thus
requires continuous maintenance.
o Consider the telephone directory and the amount of information that
must be gathered, edited, and processed to provide customers with
accurate information.

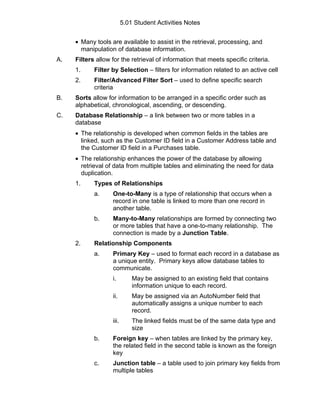

• Many tools are available to assist in the retrieval, processing, and
manipulation of database information.

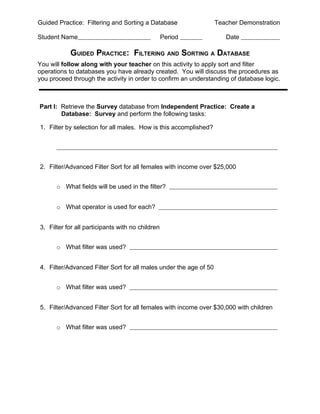

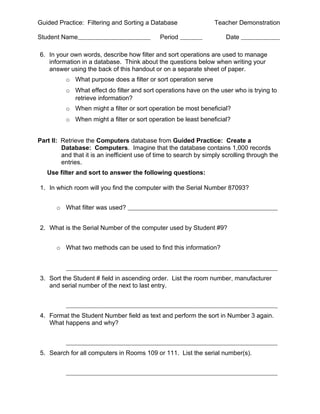

A. Filters allow for the retrieval of information that meets specific criteria.
1. Filter by Selection – filters for information related to an active cell
2. Filter/Advanced Filter Sort – used to define specific search
criteria

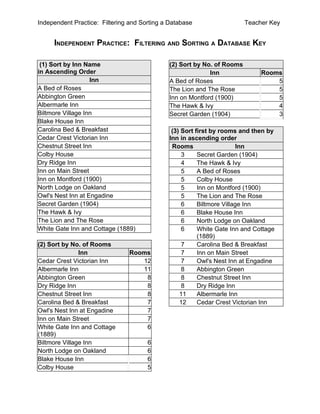

B. Sorts allow for information to be arranged in a specific order such as
alphabetical, chronological, ascending, or descending.
C. Database Relationship – a link between two or more tables in a
database
• The relationship is developed when common fields in the tables are
linked, such as the Customer ID field in a Customer Address table and
the Customer ID field in a Purchases table.
• The relationship enhances the power of the database by allowing
retrieval of data from multiple tables and eliminating the need for data
duplication.

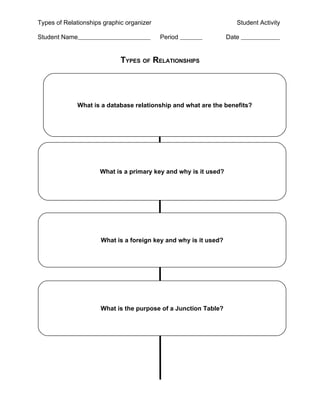

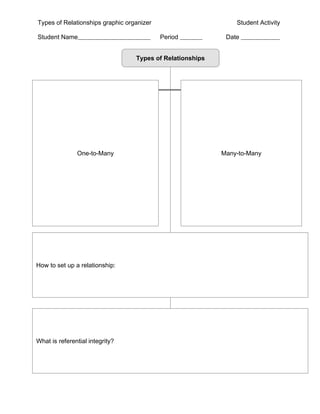

1. Types of Relationships
a. One-to-Many is a type of relationship that occurs when a
record in one table is linked to more than one record in
another table.

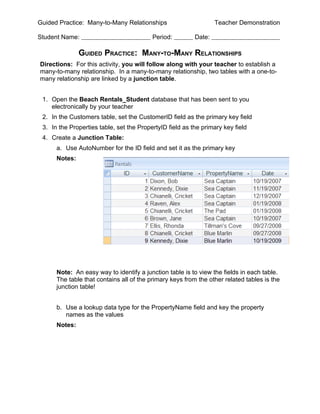

b. Many-to-Many relationships are formed by connecting two
or more tables that have a one-to-many relationship. The
connection is made by a Junction Table.
2. Relationship Components
a. Primary Key – used to format each record in a database as
a unique entity. Primary keys allow database tables to
communicate.
i. May be assigned to an existing field that contains
information unique to each record.
ii. May be assigned via an AutoNumber field that
automatically assigns a unique number to each
record.
iii. The linked fields must be of the same data type and
size
b. Foreign key – when tables are linked by the primary key,
the related field in the second table is known as the foreign
key
c. Junction table – a table used to join primary key fields from
multiple tables


d. Join line – a graphical representation of the link between
two or more tables
e. Referential integrity protects related data that is stored in
multiple tables.
Referential integrity would prevent a customer in a
customers table from being deleted if the customer’s ID also
appears in the order table

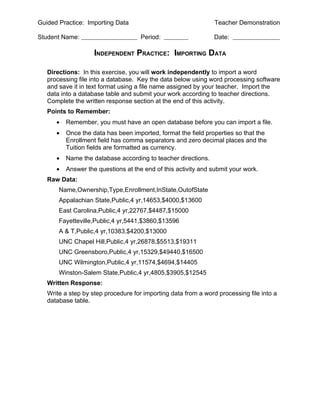

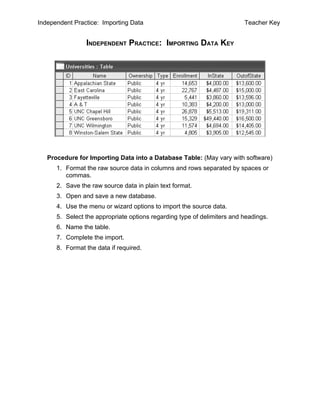

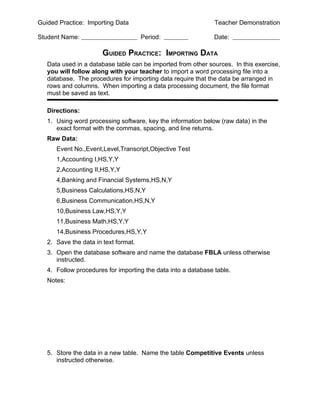

IV. Raw Data Import - A useful and practical method for obtaining information
from other sources and creating database tables. Eliminates the need for
repetitive data entry and assists in the protection of the data’s integrity.
A. Must be formatted as text
B. Must be separated at field and record breaks with a separator, such as a
comma (delimitated)

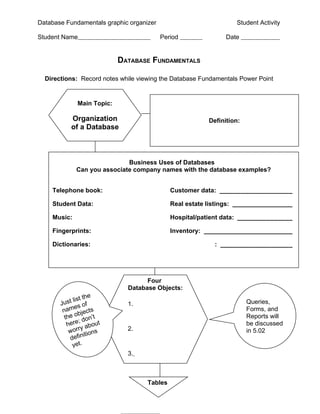

Database Fundamentals graphic organizer Student Activity

Student Name Period Date

DATABASE FUNDAMENTALS

Directions: Record notes while viewing the Database Fundamentals Power Point

Main Topic:

Organization Definition:
of a Database

Business Uses of Databases
Can you associate company names with the database examples?

Telephone book: Customer data: ____________________

Student Data: Real estate listings: _________________

Music: Hospital/patient data: _______________

Fingerprints: Inventory: _________________________

Dictionaries: : ____________________

Four
Database Objects:
e
ist th
J ust l of 1. Queries,
es
nam bjects Forms, and
the o don’t Reports will
;
here about be discussed
y
worr tions 2. in 5.02
i
defin
yet.
3.

Tables

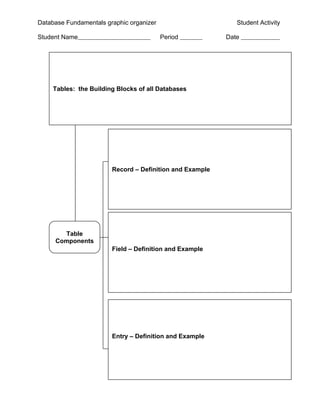

Tables: the Building Blocks of all Databases

Record – Definition and Example

Table
Components
Field – Definition and Example

Entry – Definition and Example



1. What are the field names?

2. What is the name of the table?

3. How many records are there?

4. How many entries are there?

5. Describe the contents of one record.

6. Describe the contents of one field.

6411 – Computer Applications I Summer 2008, Version 2 Unit B – 5.01 – page 7

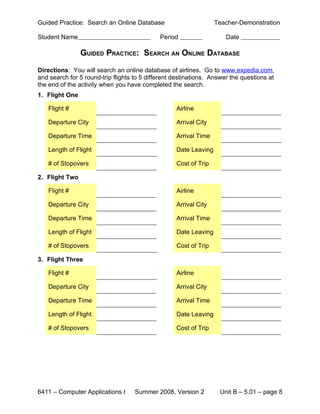

Guided Practice: Search an Online Database Teacher-Demonstration


GUIDED PRACTICE: SEARCH AN ONLINE DATABASE

Directions: You will search an online database of airlines. Go to www.expedia.com
and search for 5 round-trip flights to 5 different destinations. Answer the questions at
the end of the activity when you have completed the search.
1. Flight One

Flight # Airline

Departure City Arrival City

Departure Time Arrival Time

Length of Flight Date Leaving

# of Stopovers Cost of Trip

2. Flight Two

Flight # Airline





3. Flight Three

Flight # Airline

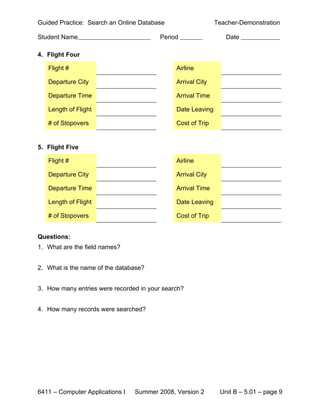

Guided Practice: Search an Online Database Teacher-Demonstration


4. Flight Four

Flight # Airline





5. Flight Five

Flight # Airline





Questions:
1. What are the field names?

2. What is the name of the database?

3. How many entries were recorded in your search?

4. How many records were searched?

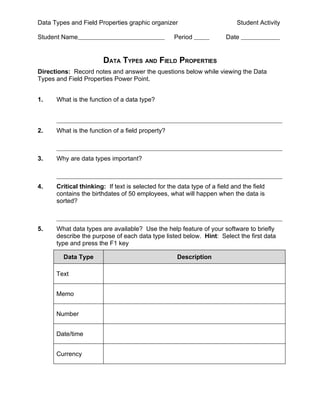

Data Types and Field Properties graphic organizer Student Activity


DATA TYPES AND FIELD PROPERTIES
Directions: Record notes and answer the questions below while viewing the Data
Types and Field Properties Power Point.

1. What is the function of a data type?

2. What is the function of a field property?

3. Why are data types important?

4. Critical thinking: If text is selected for the data type of a field and the field
contains the birthdates of 50 employees, what will happen when the data is
sorted?

5. What data types are available? Use the help feature of your software to briefly
describe the purpose of each data type listed below. Hint: Select the first data
type and press the F1 key

Data Type Description

Text

Memo

Number

Date/time

Currency



Data Type Description

AutoNumber

Yes/No

Lookup Wizard

6. When should you change from the default data type?

7. Why are field properties important?

8. What field properties are available? Click on each field property listed below and
view the descriptions as they appear in the right-hand pane. Describe each.

Field Property Description

Field size

Format

Input mask

Caption

9. When should you set a field property?

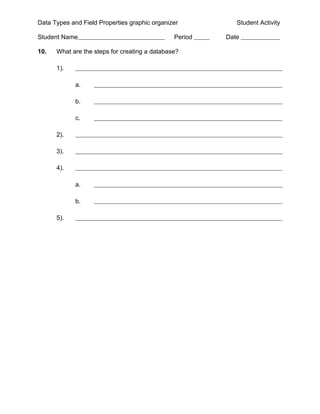

10. What are the steps for creating a database?

1).

a.

b.

c.

2).

3).

4).

a.

b.

5).

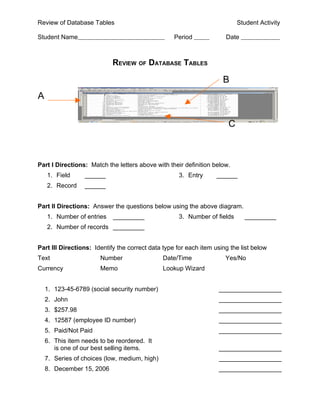

Review of Database Tables Student Activity


REVIEW OF DATABASE TABLES

B
A

C

Part I Directions: Match the letters above with their definition below.
1. Field ______ 3. Entry ______
2. Record ______

Part II Directions: Answer the questions below using the above diagram.
1. Number of entries _________ 3. Number of fields _________
2. Number of records _________

Part III Directions: Identify the correct data type for each item using the list below
Text Number Date/Time Yes/No
Currency Memo Lookup Wizard

1. 123-45-6789 (social security number) __________________
2. John __________________
3. $257.98 __________________
4. 12587 (employee ID number) __________________
5. Paid/Not Paid __________________
6. This item needs to be reordered. It
is one of our best selling items. __________________
7. Series of choices (low, medium, high) __________________
8. December 15, 2006 __________________



9. (555) 555-5555 (phone number) __________________

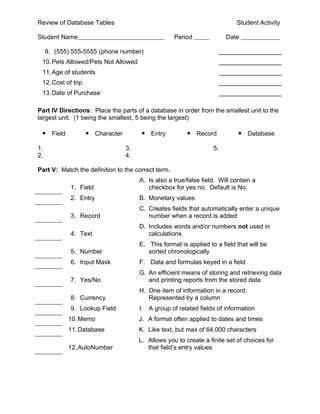

10. Pets Allowed/Pets Not Allowed __________________
11. Age of students __________________
12. Cost of trip __________________
13. Date of Purchase __________________

Part IV Directions: Place the parts of a database in order from the smallest unit to the
largest unit. (1 being the smallest, 5 being the largest)

• Field • Character • Entry • Record • Database

1. 3. 5.
2. 4.

Part V: Match the definition to the correct term.
A. Is also a true/false field. Will contain a
1. Field checkbox for yes no. Default is No.
2. Entry B. Monetary values
C. Creates fields that automatically enter a unique
3. Record number when a record is added
D. Includes words and/or numbers not used in
4. Text calculations
E. This format is applied to a field that will be
5. Number sorted chronologically
6. Input Mask F. Data and formulas keyed in a field
G. An efficient means of storing and retrieving data
7. Yes/No and printing reports from the stored data
H. One item of information in a record.
8. Currency Represented by a column
9. Lookup Field I. A group of related fields of information
10. Memo J. A format often applied to dates and times
11. Database K. Like text, but max of 64,000 characters
L. Allows you to create a finite set of choices for
12. AutoNumber that field’s entry values

Guided Practice: Create a Database: Computers Teacher Demonstration

Student Name: Period: Date:

GUIDED PRACTICE: CREATE A DATABASE: COMPUTERS

Directions: In this activity, you will follow along with your teacher to create a
database and complete the following tasks:
• Plan the structure • Add records
• Enter data • Delete records

1. Plan the structure
a. How will the data be grouped? You will be creating a computer
inventory database. For each item, you have the name of the
manufacturer, the serial number of the equipment, the room
location, and the ID number of the student to which each piece of
equipment is assigned.
b. What will the field names be? Record the field names in the first
row of each column below:

Compaq 12345 214 5
Dell 54321 110 6
Dell 98765 310 9
Packard Bell 45678 214 3
Compaq 34567 110 4
Compaq 95425 111 8
Gateway 55557 109 8
Dell 90864 222 12
Dell 123674 214 15
Gateway 87093 119 27
Hewlett Packard 83765 111 22
c. What will you name the database?
2. Open and save a new database
Notes:

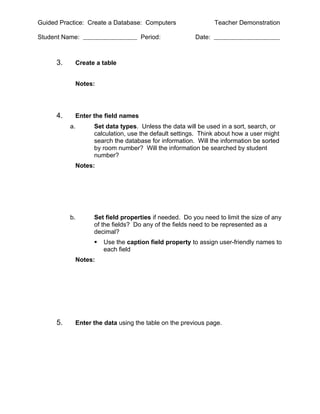

3. Create a table

Notes:

4. Enter the field names
a. Set data types. Unless the data will be used in a sort, search, or
calculation, use the default settings. Think about how a user might
search the database for information. Will the information be sorted
by room number? Will the information be searched by student
number?
Notes:

b. Set field properties if needed. Do you need to limit the size of any
of the fields? Do any of the fields need to be represented as a
decimal?
 Use the caption field property to assign user-friendly names to
each field
Notes:

5. Enter the data using the table on the previous page.

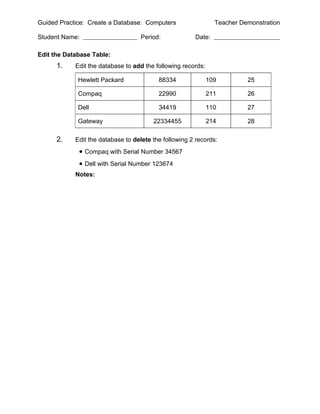

Edit the Database Table:
1. Edit the database to add the following records:


Compaq 22990 211 26

Dell 34419 110 27

Gateway 22334455 214 28

2. Edit the database to delete the following 2 records:
• Compaq with Serial Number 34567
• Dell with Serial Number 123674
Notes:

Guided Practice: Create a Database: Computers Teacher Key

GUIDED PRACTICE: CREATE A DATABASE: COMPUTERS KEY

Field Name Field Property Field Property
(Field Size) (Caption)
Manufacturer 20 Same
SeNo 9 Serial Number
RNo 4 Room Number
StNo 4 Student Number

Manufacturer Serial Number Room Number Student Number
Compaq 12345 214 5
Dell 54321 110 6
Dell 98765 310 9
Packard Bell 45678 214 3
Compaq 34567 110 4
Compaq 95425 111 8
Gateway 55557 109 8
Dell 90864 222 12
Dell 123674 214 15
Gateway 87093 119 27

Guided Practice: Create a Database: Computers Teacher Key

1. Edit the database by adding the following records:
Manufacturer Serial Number Room Number Student Number
Compaq 22990 211 26
Dell 34419 110 27
Gateway 22334455 214 28

2. Edit the database by deleting the following 2 records:
Compaq with Serial Number 34567
Dell with Serial Number 123674

Computers Database

With records deleted

With records added

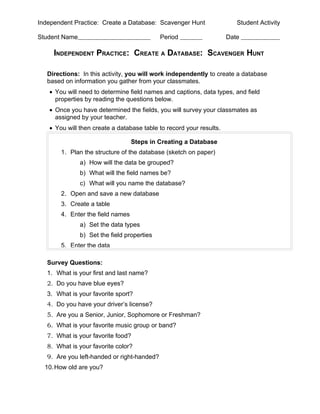

Independent Practice: Create a Database: Scavenger Hunt Student Activity


INDEPENDENT PRACTICE: CREATE A DATABASE: SCAVENGER HUNT

Directions: In this activity, you will work independently to create a database
based on information you gather from your classmates.
• You will need to determine field names and captions, data types, and field
properties by reading the questions below.
• Once you have determined the fields, you will survey your classmates as
assigned by your teacher.
• You will then create a database table to record your results.

Steps in Creating a Database
1. Plan the structure of the database (sketch on paper)
a) How will the data be grouped?
b) What will the field names be?
c) What will you name the database?
2. Open and save a new database
3. Create a table
4. Enter the field names
a) Set the data types
b) Set the field properties
5. Enter the data

Survey Questions:
1. What is your first and last name?
2. Do you have blue eyes?
3. What is your favorite sport?
4. Do you have your driver’s license?
5. Are you a Senior, Junior, Sophomore or Freshman?
6. What is your favorite music group or band?
7. What is your favorite food?
8. What is your favorite color?
9. Are you left-handed or right-handed?
10. How old are you?

Independent Practice: Create a Database: Scavenger Hunt Student Activity

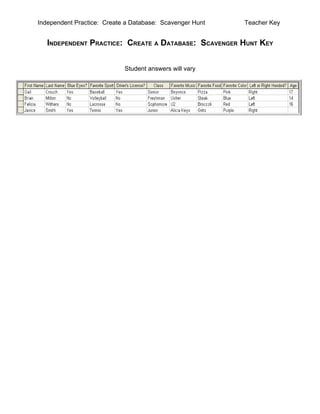

Independent Practice: Create a Database: Scavenger Hunt Teacher Key

INDEPENDENT PRACTICE: CREATE A DATABASE: SCAVENGER HUNT KEY

Student answers will vary

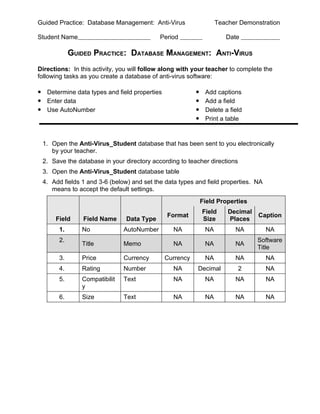

Guided Practice: Database Management: Anti-Virus Teacher Demonstration


GUIDED PRACTICE: DATABASE MANAGEMENT: ANTI-VIRUS
Directions: In this activity, you will follow along with your teacher to complete the
following tasks as you create a database of anti-virus software:

• Determine data types and field properties • Add captions
• Enter data • Add a field
• Use AutoNumber • Delete a field
• Print a table

1. Open the Anti-Virus_Student database that has been sent to you electronically
by your teacher.
2. Save the database in your directory according to teacher directions
3. Open the Anti-Virus_Student database table
4. Add fields 1 and 3-6 (below) and set the data types and field properties. NA
means to accept the default settings.
Field Properties
Field Decimal
Format Caption
Field Field Name Data Type Size Places
1. No AutoNumber NA NA NA NA
2. Software
Title Memo NA NA NA
Title
3. Price Currency Currency NA NA NA
4. Rating Number NA Decimal 2 NA
5. Compatibilit Text NA NA NA NA
y
6. Size Text NA NA NA NA

Guided Practice: Database Management: Anti-Virus Teacher Demonstration

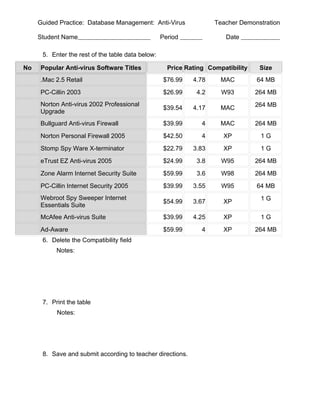

5. Enter the rest of the table data below:

No Popular Anti-virus Software Titles Price Rating Compatibility Size
.Mac 2.5 Retail $76.99 4.78 MAC 64 MB
PC-Cillin 2003 $26.99 4.2 W93 264 MB
Norton Anti-virus 2002 Professional 264 MB
$39.54 4.17 MAC
Upgrade
Bullguard Anti-virus Firewall $39.99 4 MAC 264 MB
Norton Personal Firewall 2005 $42.50 4 XP 1G
Stomp Spy Ware X-terminator $22.79 3.83 XP 1G
eTrust EZ Anti-virus 2005 $24.99 3.8 W95 264 MB
Zone Alarm Internet Security Suite $59.99 3.6 W98 264 MB
PC-Cillin Internet Security 2005 $39.99 3.55 W95 64 MB
Webroot Spy Sweeper Internet 1G
$54.99 3.67 XP
Essentials Suite
McAfee Anti-virus Suite $39.99 4.25 XP 1G
Ad-Aware $59.99 4 XP 264 MB
6. Delete the Compatibility field
Notes:

7. Print the table
Notes:

8. Save and submit according to teacher directions.

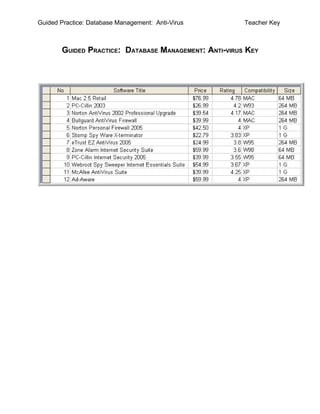

Guided Practice: Database Management: Anti-Virus Teacher Key

GUIDED PRACTICE: DATABASE MANAGEMENT: ANTI-VIRUS KEY

Independent Practice: Create a Database: Survey Student Activity

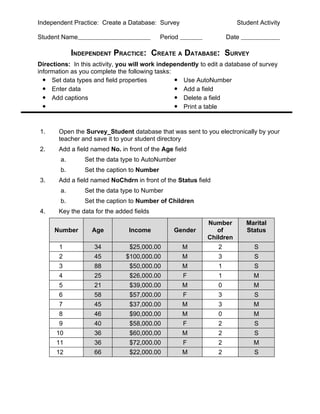

INDEPENDENT PRACTICE: CREATE A DATABASE: SURVEY
Directions: In this activity, you will work independently to edit a database of survey
information as you complete the following tasks:
• Set data types and field properties • Use AutoNumber
• Enter data • Add a field
• Add captions • Delete a field
• • Print a table

1. Open the Survey_Student database that was sent to you electronically by your
teacher and save it to your student directory
2. Add a field named No. in front of the Age field
a. Set the data type to AutoNumber
b. Set the caption to Number
3. Add a field named NoChdrn in front of the Status field
a. Set the data type to Number
b. Set the caption to Number of Children
4. Key the data for the added fields
Number Marital
Number Age Income Gender of Status
Children
1 34 $25,000.00 M 2 S
2 45 $100,000.00 M 3 S
3 88 $50,000.00 M 1 S
4 25 $26,000.00 F 1 M
5 21 $39,000.00 M 0 M
6 58 $57,000.00 F 3 S
7 45 $37,000.00 M 3 M
8 46 $90,000.00 M 0 M
9 40 $58,000.00 F 2 S
10 36 $60,000.00 M 2 S
11 36 $72,000.00 F 2 M
12 66 $22,000.00 M 2 S

Independent Practice: Create a Database: Survey Student Activity


5. Follow teacher directions for printing, completing the final step of this activity
(deletion of a field), and submitting your work. Ask your teacher which field to
delete.

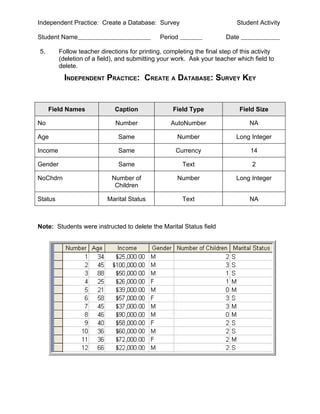

INDEPENDENT PRACTICE: CREATE A DATABASE: SURVEY KEY

Field Names Caption Field Type Field Size

No Number AutoNumber NA

Age Same Number Long Integer

Income Same Currency 14

Gender Same Text 2

NoChdrn Number of Number Long Integer
Children

Status Marital Status Text NA

Note: Students were instructed to delete the Marital Status field

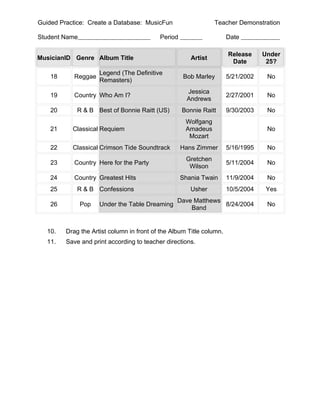

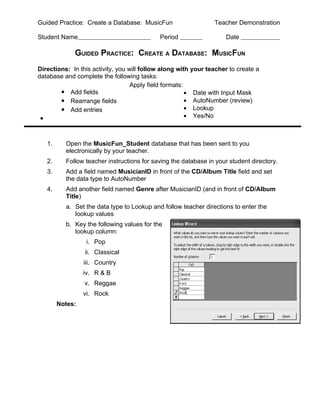

Guided Practice: Create a Database: MusicFun Teacher Demonstration


GUIDED PRACTICE: CREATE A DATABASE: MUSICFUN
Directions: In this activity, you will follow along with your teacher to create a
database and complete the following tasks:
Apply field formats:
• Add fields • Date with Input Mask
• Rearrange fields • AutoNumber (review)
• Add entries • Lookup
• • Yes/No

1. Open the MusicFun_Student database that has been sent to you
electronically by your teacher.
2. Follow teacher instructions for saving the database in your student directory.
3. Add a field named MusicianID in front of the CD/Album Title field and set
the data type to AutoNumber
4. Add another field named Genre after MusicianID (and in front of CD/Album
Title)
a. Set the data type to Lookup and follow teacher directions to enter the
lookup values
b. Key the following values for the
lookup column:
i. Pop
ii. Classical
iii. Country
iv. R & B
v. Reggae
vi. Rock
Notes:



5. Add another field named Release after the Artist field
a. Set the data type to Date/Time
b. Set the caption to Release Date
c. Set the field property for Input Mask and short date format
Notes:

6. Add another field after Release
a. Name the field Under 25
b. Set the data type to Yes/No
c. Set the caption to Under 25?
d. Note that the Format field property automatically selects Yes/No
Notes:

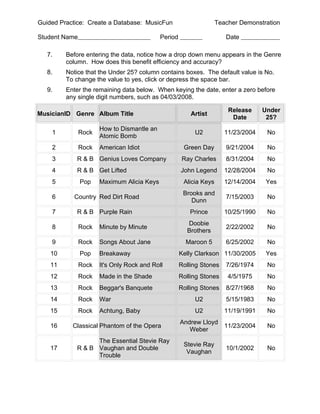

7. Before entering the data, notice how a drop down menu appears in the Genre
column. How does this benefit efficiency and accuracy?
8. Notice that the Under 25? column contains boxes. The default value is No.
To change the value to yes, click or depress the space bar.
9. Enter the remaining data below. When keying the date, enter a zero before
any single digit numbers, such as 04/03/2008.

Release Under
MusicianID Genre Album Title Artist
Date 25?
How to Dismantle an
1 Rock U2 11/23/2004 No
Atomic Bomb
2 Rock American Idiot Green Day 9/21/2004 No
3 R & B Genius Loves Company Ray Charles 8/31/2004 No
4 R & B Get Lifted John Legend 12/28/2004 No
5 Pop Maximum Alicia Keys Alicia Keys 12/14/2004 Yes
Brooks and
6 Country Red Dirt Road 7/15/2003 No
Dunn
7 R & B Purple Rain Prince 10/25/1990 No
Doobie
8 Rock Minute by Minute 2/22/2002 No
Brothers
9 Rock Songs About Jane Maroon 5 6/25/2002 No
10 Pop Breakaway Kelly Clarkson 11/30/2005 Yes
11 Rock It's Only Rock and Roll Rolling Stones 7/26/1974 No
12 Rock Made in the Shade Rolling Stones 4/5/1975 No
13 Rock Beggar's Banquete Rolling Stones 8/27/1968 No
14 Rock War U2 5/15/1983 No
15 Rock Achtung, Baby U2 11/19/1991 No
Andrew Lloyd
16 Classical Phantom of the Opera 11/23/2004 No
Weber
The Essential Stevie Ray
Stevie Ray
17 R & B Vaughan and Double 10/1/2002 No
Vaughan
Trouble



Release Under
MusicianID Genre Album Title Artist
Date 25?
Legend (The Definitive
18 Reggae Bob Marley 5/21/2002 No
Remasters)
Jessica
19 Country Who Am I? 2/27/2001 No
Andrews
20 R & B Best of Bonnie Raitt (US) Bonnie Raitt 9/30/2003 No
Wolfgang
21 Classical Requiem Amadeus No
Mozart
22 Classical Crimson Tide Soundtrack Hans Zimmer 5/16/1995 No
Gretchen
23 Country Here for the Party 5/11/2004 No
Wilson
24 Country Greatest Hits Shania Twain 11/9/2004 No
25 R & B Confessions Usher 10/5/2004 Yes
Dave Matthews
26 Pop Under the Table Dreaming 8/24/2004 No
Band

10. Drag the Artist column in front of the Album Title column.
11. Save and print according to teacher directions.

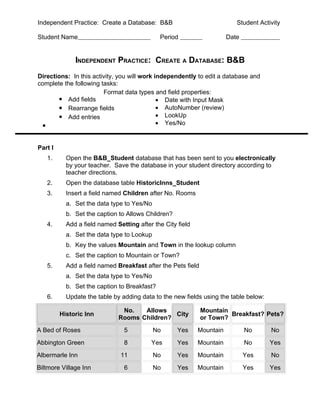

Independent Practice: Create a Database: B&B Student Activity


INDEPENDENT PRACTICE: CREATE A DATABASE: B&B
Directions: In this activity, you will work independently to edit a database and
complete the following tasks:
Format data types and field properties:
• Add fields • Date with Input Mask
• Rearrange fields • AutoNumber (review)
• Add entries • LookUp
• • Yes/No

Part I
1. Open the B&B_Student database that has been sent to you electronically
by your teacher. Save the database in your student directory according to
teacher directions.
2. Open the database table HistoricInns_Student
3. Insert a field named Children after No. Rooms
a. Set the data type to Yes/No
b. Set the caption to Allows Children?
4. Add a field named Setting after the City field
a. Set the data type to Lookup
b. Key the values Mountain and Town in the lookup column
c. Set the caption to Mountain or Town?
5. Add a field named Breakfast after the Pets field
a. Set the data type to Yes/No
b. Set the caption to Breakfast?

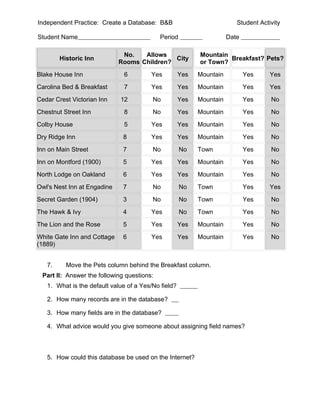

6. Update the table by adding data to the new fields using the table below:

No. Allows Mountain
Historic Inn City Breakfast? Pets?
Rooms Children? or Town?
A Bed of Roses 5 No Yes Mountain No No
Abbington Green 8 Yes Yes Mountain No Yes
Albermarle Inn 11 No Yes Mountain Yes No
Biltmore Village Inn 6 No Yes Mountain Yes Yes



No. Allows Mountain
Historic Inn City Breakfast? Pets?
Rooms Children? or Town?
Blake House Inn 6 Yes Yes Mountain Yes Yes
Carolina Bed & Breakfast 7 Yes Yes Mountain Yes Yes
Cedar Crest Victorian Inn 12 No Yes Mountain Yes No
Chestnut Street Inn 8 No Yes Mountain Yes No
Colby House 5 Yes Yes Mountain Yes No
Dry Ridge Inn 8 Yes Yes Mountain Yes No
Inn on Main Street 7 No No Town Yes No
Inn on Montford (1900) 5 Yes Yes Mountain Yes No
North Lodge on Oakland 6 Yes Yes Mountain Yes No
Owl's Nest Inn at Engadine 7 No No Town Yes Yes
Secret Garden (1904) 3 No No Town Yes No
The Hawk & Ivy 4 Yes No Town Yes No
The Lion and the Rose 5 Yes Yes Mountain Yes No
White Gate Inn and Cottage 6 Yes Yes Mountain Yes No
(1889)

7. Move the Pets column behind the Breakfast column.
Part II: Answer the following questions:
1. What is the default value of a Yes/No field?

2. How many records are in the database?

3. How many fields are in the database?

4. What advice would you give someone about assigning field names?

5. How could this database be used on the Internet?

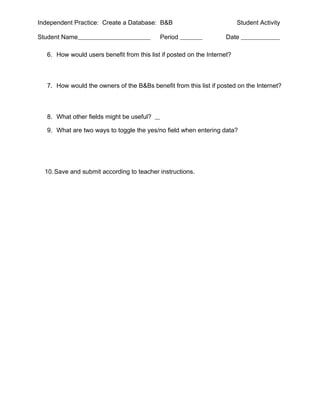

6. How would users benefit from this list if posted on the Internet?

7. How would the owners of the B&Bs benefit from this list if posted on the Internet?

8. What other fields might be useful?

9. What are two ways to toggle the yes/no field when entering data?

10. Save and submit according to teacher instructions.

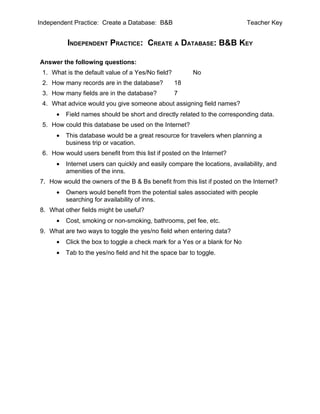

Independent Practice: Create a Database: B&B Teacher Key

INDEPENDENT PRACTICE: CREATE A DATABASE: B&B KEY

Answer the following questions:
1. What is the default value of a Yes/No field? No
2. How many records are in the database? 18
3. How many fields are in the database? 7
4. What advice would you give someone about assigning field names?
• Field names should be short and directly related to the corresponding data.
5. How could this database be used on the Internet?
• This database would be a great resource for travelers when planning a
business trip or vacation.
6. How would users benefit from this list if posted on the Internet?
• Internet users can quickly and easily compare the locations, availability, and
amenities of the inns.
7. How would the owners of the B & Bs benefit from this list if posted on the Internet?
• Owners would benefit from the potential sales associated with people
searching for availability of inns.
8. What other fields might be useful?
• Cost, smoking or non-smoking, bathrooms, pet fee, etc.
9. What are two ways to toggle the yes/no field when entering data?
• Click the box to toggle a check mark for a Yes or a blank for No
• Tab to the yes/no field and hit the space bar to toggle.

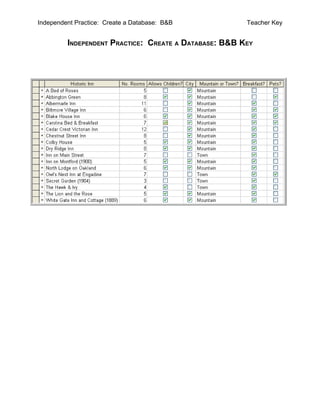

Independent Practice: Create a Database: B&B Teacher Key

INDEPENDENT PRACTICE: CREATE A DATABASE: B&B KEY

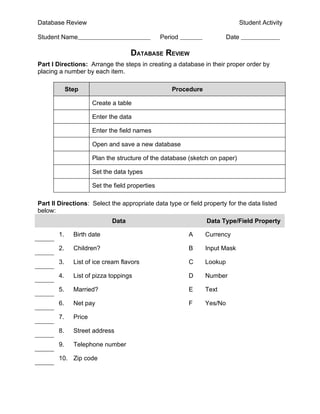

Database Review Student Activity


DATABASE REVIEW
Part I Directions: Arrange the steps in creating a database in their proper order by
placing a number by each item.

Step Procedure

Create a table

Enter the data

Enter the field names

Open and save a new database

Plan the structure of the database (sketch on paper)

Set the data types

Set the field properties

Part II Directions: Select the appropriate data type or field property for the data listed
below:
Data Data Type/Field Property

1. Birth date A Currency

2. Children? B Input Mask

3. List of ice cream flavors C Lookup

4. List of pizza toppings D Number

5. Married? E Text

6. Net pay F Yes/No

7. Price

8. Street address

9. Telephone number

10. Zip code

Database Review Student Activity


Determining Sort Order Teacher Key

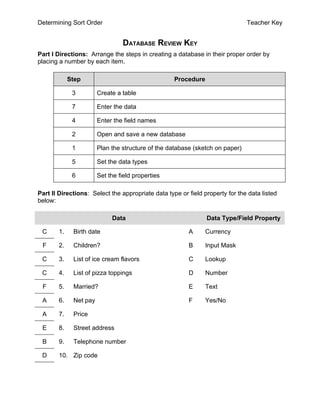

DATABASE REVIEW KEY
Part I Directions: Arrange the steps in creating a database in their proper order by
placing a number by each item.

Step Procedure

3 Create a table

7 Enter the data

4 Enter the field names

2 Open and save a new database

1 Plan the structure of the database (sketch on paper)

5 Set the data types

6 Set the field properties

Part II Directions: Select the appropriate data type or field property for the data listed
below:

Data Data Type/Field Property

C 1. Birth date A Currency

F 2. Children? B Input Mask

C 3. List of ice cream flavors C Lookup

C 4. List of pizza toppings D Number

F 5. Married? E Text

A 6. Net pay F Yes/No

A 7. Price

E 8. Street address

B 9. Telephone number

D 10. Zip code

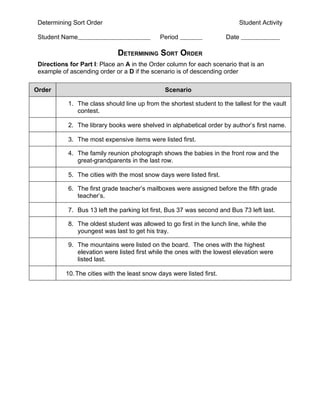

Determining Sort Order Student Activity


DETERMINING SORT ORDER
Directions for Part I: Place an A in the Order column for each scenario that is an
example of ascending order or a D if the scenario is of descending order

Order Scenario

1. The class should line up from the shortest student to the tallest for the vault
contest.

2. The library books were shelved in alphabetical order by author’s first name.

3. The most expensive items were listed first.

4. The family reunion photograph shows the babies in the front row and the
great-grandparents in the last row.

5. The cities with the most snow days were listed first.

6. The first grade teacher’s mailboxes were assigned before the fifth grade
teacher’s.

7. Bus 13 left the parking lot first, Bus 37 was second and Bus 73 left last.

8. The oldest student was allowed to go first in the lunch line, while the
youngest was last to get his tray.

9. The mountains were listed on the board. The ones with the highest
elevation were listed first while the ones with the lowest elevation were
listed last.

10. The cities with the least snow days were listed first.

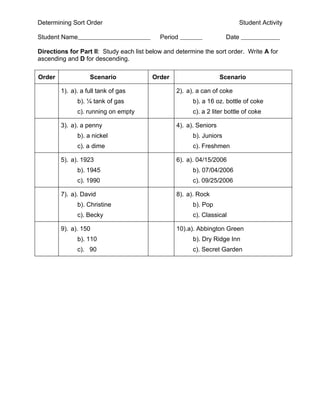

Determining Sort Order Student Activity


Directions for Part II: Study each list below and determine the sort order. Write A for
ascending and D for descending.

Order Scenario Order Scenario

1). a). a full tank of gas 2). a). a can of coke
b). ¼ tank of gas b). a 16 oz. bottle of coke
c). running on empty c). a 2 liter bottle of coke

3). a). a penny 4). a). Seniors
b). a nickel b). Juniors
c). a dime c). Freshmen

5). a). 1923 6). a). 04/15/2006
b). 1945 b). 07/04/2006
c). 1990 c). 09/25/2006

7). a). David 8). a). Rock
b). Christine b). Pop
c). Becky c). Classical

9). a). 150 10).a). Abbington Green
b). 110 b). Dry Ridge Inn
c). 90 c). Secret Garden

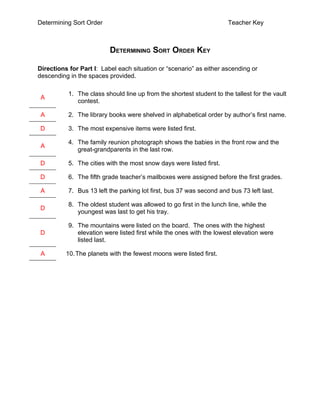

DETERMINING SORT ORDER KEY

Directions for Part I: Label each situation or “scenario” as either ascending or
descending in the spaces provided.

1. The class should line up from the shortest student to the tallest for the vault
A
contest.

A 2. The library books were shelved in alphabetical order by author’s first name.

D 3. The most expensive items were listed first.

4. The family reunion photograph shows the babies in the front row and the
A
great-grandparents in the last row.

D 5. The cities with the most snow days were listed first.

D 6. The fifth grade teacher’s mailboxes were assigned before the first grades.

A 7. Bus 13 left the parking lot first, bus 37 was second and bus 73 left last.

8. The oldest student was allowed to go first in the lunch line, while the
D
youngest was last to get his tray.

9. The mountains were listed on the board. The ones with the highest
D elevation were listed first while the ones with the lowest elevation were
listed last.

A 10. The planets with the fewest moons were listed first.

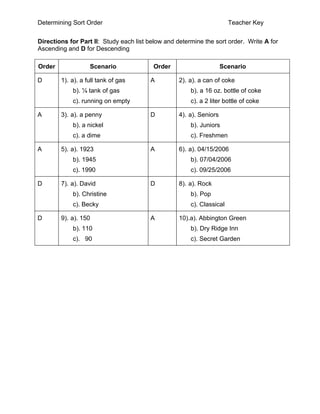

Directions for Part II: Study each list below and determine the sort order. Write A for
Ascending and D for Descending

Order Scenario Order Scenario

D 1). a). a full tank of gas A 2). a). a can of coke
b). ¼ tank of gas b). a 16 oz. bottle of coke
c). running on empty c). a 2 liter bottle of coke

A 3). a). a penny D 4). a). Seniors
b). a nickel b). Juniors
c). a dime c). Freshmen

A 5). a). 1923 A 6). a). 04/15/2006
b). 1945 b). 07/04/2006
c). 1990 c). 09/25/2006

D 7). a). David D 8). a). Rock
b). Christine b). Pop
c). Becky c). Classical

D 9). a). 150 A 10).a). Abbington Green
b). 110 b). Dry Ridge Inn
c). 90 c). Secret Garden

Understanding Operators Student Activity

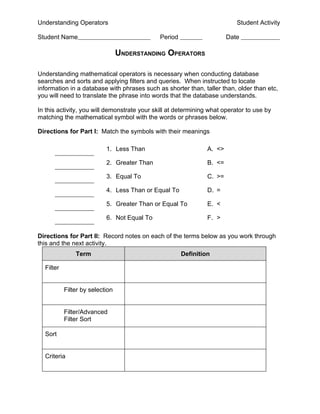

UNDERSTANDING OPERATORS

Understanding mathematical operators is necessary when conducting database
searches and sorts and applying filters and queries. When instructed to locate
information in a database with phrases such as shorter than, taller than, older than etc,
you will need to translate the phrase into words that the database understands.

In this activity, you will demonstrate your skill at determining what operator to use by
matching the mathematical symbol with the words or phrases below.

Directions for Part I: Match the symbols with their meanings

1. Less Than A. <>

2. Greater Than B. <=

3. Equal To C. >=

4. Less Than or Equal To D. =

5. Greater Than or Equal To E. <

6. Not Equal To F. >

Directions for Part II: Record notes on each of the terms below as you work through
this and the next activity.
Term Definition

Filter

Filter by selection

Filter/Advanced
Filter Sort

Sort

Criteria

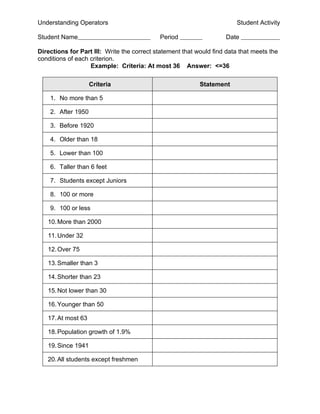

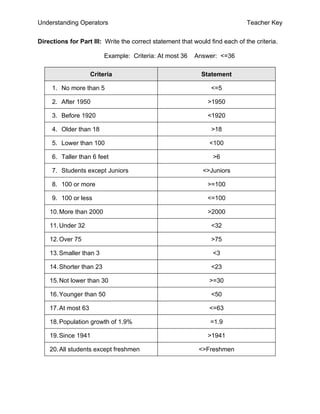

Directions for Part III: Write the correct statement that would find data that meets the
conditions of each criterion.
Example: Criteria: At most 36 Answer: <=36

Criteria Statement

1. No more than 5

2. After 1950

3. Before 1920

4. Older than 18

5. Lower than 100

6. Taller than 6 feet

7. Students except Juniors

8. 100 or more

9. 100 or less

10. More than 2000

11. Under 32

12. Over 75

13. Smaller than 3

14. Shorter than 23

15. Not lower than 30

16. Younger than 50

17. At most 63

18. Population growth of 1.9%

19. Since 1941

20. All students except freshmen

Understanding Operators Teacher Key

UNDERSTANDING OPERATORS KEY

Understanding mathematical operators is necessary when conducting database
searches and sorts and applying filters and queries. When instructed to locate
information in a database with phrases such as shorter than, taller than, older than etc,
you will need to translate the phrase into words that the database understands.

In this activity, you will demonstrate your skill at determining what operator to use by
matching the mathematical symbol with the words or phrases below.

Directions for Part I: Match the symbols with their meanings.

E 1. Less Than A. <>

F 2. Greater Than B. <=

D 3. Equal To C. >=

B 4. Less Than or Equal To D. =

C 5. Greater Than or Equal To E. <

A 6. Not Equal To F. >

Directions for Part II: Record notes on each of the terms below as you work through
this and the next activity.
Term Definition

Filter A tool used to search for specific information
within a database

Filter by selection Filters for the field or entry that has been
selected

Filter/Advanced Filters according to specific criteria assigned by
Filter Sort the user

Sort Arranging information in some form of logical
order; alphabetical, chronological, numerical

Criteria A condition that must be met or not met in a
search

Understanding Operators Teacher Key

Directions for Part III: Write the correct statement that would find each of the criteria.

Example: Criteria: At most 36 Answer: <=36

Criteria Statement

1. No more than 5 <=5

2. After 1950 >1950

3. Before 1920 <1920

4. Older than 18 >18

5. Lower than 100 <100

6. Taller than 6 feet >6

7. Students except Juniors <>Juniors

8. 100 or more >=100

9. 100 or less <=100

10. More than 2000 >2000

11. Under 32 <32

12. Over 75 >75

13. Smaller than 3 <3

14. Shorter than 23 <23

15. Not lower than 30 >=30

16. Younger than 50 <50

17. At most 63 <=63

18. Population growth of 1.9% =1.9

19. Since 1941 >1941

20. All students except freshmen <>Freshmen

Guided Practice: Filtering and Sorting a Database Teacher Demonstration


GUIDED PRACTICE: FILTERING AND SORTING A DATABASE
You will follow along with your teacher on this activity to apply sort and filter
operations to databases you have already created. You will discuss the procedures as
you proceed through the activity in order to confirm an understanding of database logic.

Part I: Retrieve the Survey database from Independent Practice: Create a
Database: Survey and perform the following tasks:

1. Filter by selection for all males. How is this accomplished?

2. Filter/Advanced Filter Sort for all females with income over $25,000

o What fields will be used in the filter?

o What operator is used for each?

3. Filter for all participants with no children

o What filter was used?

4. Filter/Advanced Filter Sort for all males under the age of 50


5. Filter/Advanced Filter Sort for all females with income over $30,000 with children




6. In your own words, describe how filter and sort operations are used to manage
information in a database. Think about the questions below when writing your
answer using the back of this handout or on a separate sheet of paper.
o What purpose does a filter or sort operation serve
o What effect do filter and sort operations have on the user who is trying to
retrieve information?
o When might a filter or sort operation be most beneficial?
o When might a filter or sort operation be least beneficial?

Part II: Retrieve the Computers database from Guided Practice: Create a
Database: Computers. Imagine that the database contains 1,000 records
and that it is an inefficient use of time to search by simply scrolling through the
entries.
Use filter and sort to answer the following questions:

1. In which room will you find the computer with the Serial Number 87093?


2. What is the Serial Number of the computer used by Student #9?

o What two methods can be used to find this information?

3. Sort the Student # field in ascending order. List the room number, manufacturer
and serial number of the next to last entry.

4. Format the Student Number field as text and perform the sort in Number 3 again.
What happens and why?

5. Search for all computers in Rooms 109 or 111. List the serial number(s).

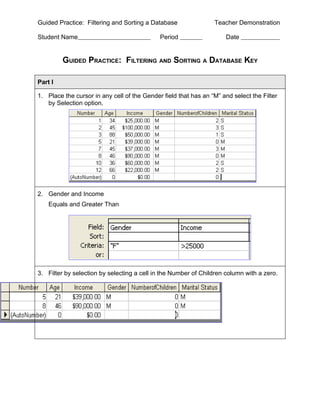

GUIDED PRACTICE: FILTERING AND SORTING A DATABASE KEY

Part I

1. Place the cursor in any cell of the Gender field that has an “M” and select the Filter
by Selection option.

2. Gender and Income
Equals and Greater Than

3. Filter by selection by selecting a cell in the Number of Children column with a zero.

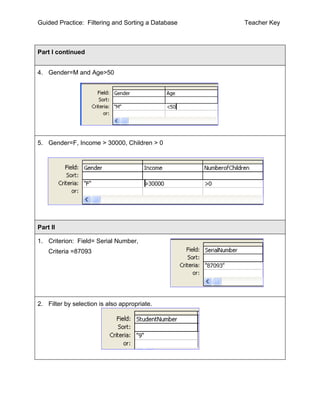

Guided Practice: Filtering and Sorting a Database Teacher Key

Part I continued

4. Gender=M and Age>50

5. Gender=F, Income > 30000, Children > 0

Part II

1. Criterion: Field= Serial Number,
Criteria =87093

2. Filter by selection is also appropriate.

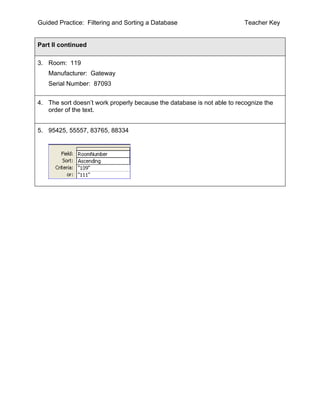

Guided Practice: Filtering and Sorting a Database Teacher Key

Part II continued

3. Room: 119
Manufacturer: Gateway
Serial Number: 87093

4. The sort doesn’t work properly because the database is not able to recognize the
order of the text.

5. 95425, 55557, 83765, 88334

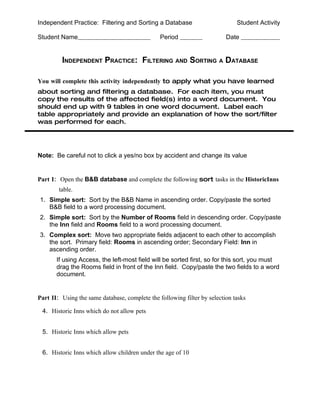

Independent Practice: Filtering and Sorting a Database Student Activity


INDEPENDENT PRACTICE: FILTERING AND SORTING A DATABASE

You will complete this activity independently to apply what you have learned
about sorting and filtering a database. For each item, you must
copy the results of the affected field(s) into a word document. You
should end up with 9 tables in one word document. Label each
table appropriately and provide an explanation of how the sort/filter
was performed for each.

Note: Be careful not to click a yes/no box by accident and change its value

Part I: Open the B&B database and complete the following sort tasks in the HistoricInns
table.
1. Simple sort: Sort by the B&B Name in ascending order. Copy/paste the sorted
B&B field to a word processing document.
2. Simple sort: Sort by the Number of Rooms field in descending order. Copy/paste
the Inn field and Rooms field to a word processing document.
3. Complex sort: Move two appropriate fields adjacent to each other to accomplish
the sort. Primary field: Rooms in ascending order; Secondary Field: Inn in
ascending order.
If using Access, the left-most field will be sorted first, so for this sort, you must
drag the Rooms field in front of the Inn field. Copy/paste the two fields to a word
document.

Part II: Using the same database, complete the following filter by selection tasks

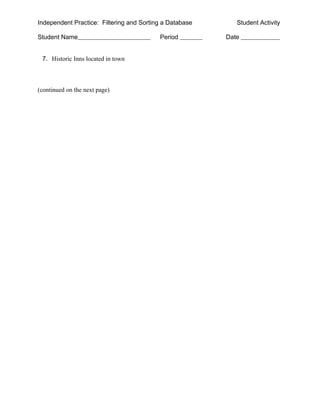

4. Historic Inns which do not allow pets

5. Historic Inns which allow pets

6. Historic Inns which allow children under the age of 10



7. Historic Inns located in town

(continued on the next page)

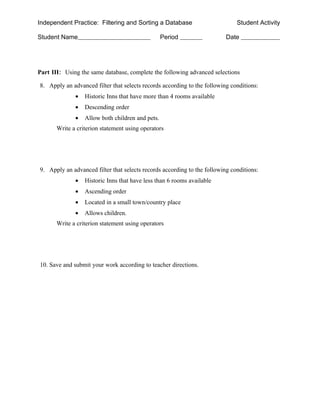

Part III: Using the same database, complete the following advanced selections

8. Apply an advanced filter that selects records according to the following conditions:
• Historic Inns that have more than 4 rooms available
• Descending order
• Allow both children and pets.
Write a criterion statement using operators

9. Apply an advanced filter that selects records according to the following conditions:
• Historic Inns that have less than 6 rooms available
• Ascending order
• Located in a small town/country place
• Allows children.
Write a criterion statement using operators

10. Save and submit your work according to teacher directions.

Independent Practice: Filtering and Sorting a Database Teacher Key

INDEPENDENT PRACTICE: FILTERING AND SORTING A DATABASE KEY

(1) Sort by Inn Name (2) Sort by No. of Rooms
in Ascending Order Inn Rooms
Inn A Bed of Roses 5
A Bed of Roses The Lion and The Rose 5
Abbington Green Inn on Montford (1900) 5
Albermarle Inn The Hawk & Ivy 4
Biltmore Village Inn Secret Garden (1904) 3
Blake House Inn
Carolina Bed & Breakfast (3) Sort first by rooms and then by
Cedar Crest Victorian Inn Inn in ascending order
Chestnut Street Inn Rooms Inn
Colby House 3 Secret Garden (1904)
Dry Ridge Inn 4 The Hawk & Ivy
Inn on Main Street 5 A Bed of Roses
Inn on Montford (1900) 5 Colby House
North Lodge on Oakland 5 Inn on Montford (1900)
Owl's Nest Inn at Engadine 5 The Lion and The Rose
Secret Garden (1904) 6 Biltmore Village Inn
The Hawk & Ivy 6 Blake House Inn
The Lion and The Rose 6 North Lodge on Oakland
White Gate Inn and Cottage (1889) 6 White Gate Inn and Cottage
(1889)
(2) Sort by No. of Rooms 7 Carolina Bed & Breakfast
Inn Rooms 7 Inn on Main Street
Cedar Crest Victorian Inn 12 7 Owl's Nest Inn at Engadine
Albermarle Inn 11 8 Abbington Green
Abbington Green 8 8 Chestnut Street Inn
Dry Ridge Inn 8 8 Dry Ridge Inn
Chestnut Street Inn 8 11 Albermarle Inn
Carolina Bed & Breakfast 7 12 Cedar Crest Victorian Inn
Owl's Nest Inn at Engadine 7
Inn on Main Street 7
White Gate Inn and Cottage 6
(1889)
Biltmore Village Inn 6
North Lodge on Oakland 6
Blake House Inn 6
Colby House 5

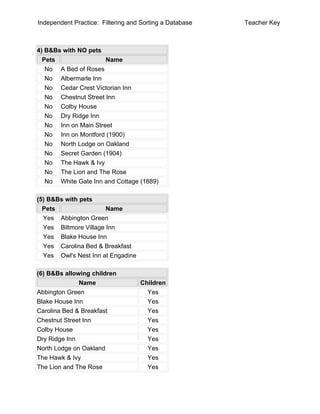

4) B&Bs with NO pets
Pets Name
No A Bed of Roses
No Albermarle Inn
No Cedar Crest Victorian Inn
No Chestnut Street Inn
No Colby House
No Dry Ridge Inn
No Inn on Main Street
No Inn on Montford (1900)
No North Lodge on Oakland
No Secret Garden (1904)
No The Hawk & Ivy
No The Lion and The Rose
No White Gate Inn and Cottage (1889)

(5) B&Bs with pets
Pets Name
Yes Abbington Green
Yes Biltmore Village Inn
Yes Blake House Inn
Yes Carolina Bed & Breakfast
Yes Owl's Nest Inn at Engadine

(6) B&Bs allowing children
Name Children
Abbington Green Yes
Blake House Inn Yes
Carolina Bed & Breakfast Yes
Chestnut Street Inn Yes
Colby House Yes
Dry Ridge Inn Yes
North Lodge on Oakland Yes
The Hawk & Ivy Yes
The Lion and The Rose Yes

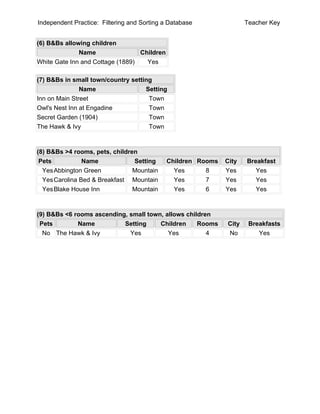

(6) B&Bs allowing children
Name Children
White Gate Inn and Cottage (1889) Yes

(7) B&Bs in small town/country setting
Name Setting
Inn on Main Street Town
Owl's Nest Inn at Engadine Town
Secret Garden (1904) Town
The Hawk & Ivy Town

(8) B&Bs >4 rooms, pets, children
Pets Name Setting Children Rooms City Breakfast
Yes Abbington Green Mountain Yes 8 Yes Yes
Yes Carolina Bed & Breakfast Mountain Yes 7 Yes Yes
Yes Blake House Inn Mountain Yes 6 Yes Yes

(9) B&Bs <6 rooms ascending, small town, allows children
Pets Name Setting Children Rooms City Breakfasts
No The Hawk & Ivy Yes Yes 4 No Yes

Types of Relationships graphic organizer Student Activity


TYPES OF RELATIONSHIPS

What is a database relationship and what are the benefits?

What is a primary key and why is it used?

What is a foreign key and why is it used?

What is the purpose of a Junction Table?

Types of Relationships graphic organizer Student Activity


Types of Relationships

One-to-Many Many-to-Many

How to set up a relationship:

What is referential integrity?

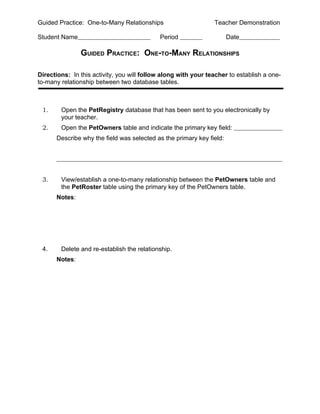

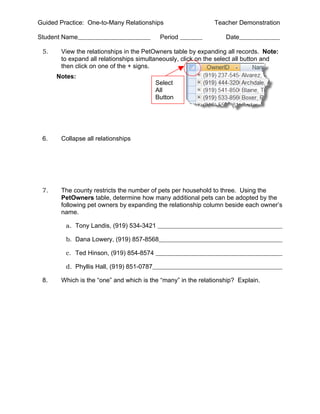

Guided Practice: One-to-Many Relationships Teacher Demonstration


GUIDED PRACTICE: ONE-TO-MANY RELATIONSHIPS

Directions: In this activity, you will follow along with your teacher to establish a one-
to-many relationship between two database tables.

1. Open the PetRegistry database that has been sent to you electronically by
your teacher.
2. Open the PetOwners table and indicate the primary key field:
Describe why the field was selected as the primary key field:

3. View/establish a one-to-many relationship between the PetOwners table and
the PetRoster table using the primary key of the PetOwners table.
Notes:

4. Delete and re-establish the relationship.
Notes:

Guided Practice: One-to-Many Relationships Teacher Demonstration


5. View the relationships in the PetOwners table by expanding all records. Note:
to expand all relationships simultaneously, click on the select all button and
then click on one of the + signs.
Notes:
Select
All
Button

6. Collapse all relationships

7. The county restricts the number of pets per household to three. Using the
PetOwners table, determine how many additional pets can be adopted by the
following pet owners by expanding the relationship column beside each owner’s
name.

a. Tony Landis, (919) 534-3421

b. Dana Lowery, (919) 857-8568

c. Ted Hinson, (919) 854-8574

d. Phyllis Hall, (919) 851-0787

8. Which is the “one” and which is the “many” in the relationship? Explain.

Guided Practice: One-to-Many Relationships Teacher Key

GUIDED PRACTICE: ONE-TO-MANY RELATIONSHIPS KEY


7. The county restricts on the number of pets per household to three. Using the
PetOwners table, determine how many pets can be adopted by the following pet
owners by expanding the relationship column beside each owner’s name.
e. Tony Landis, (919) 534-3421.......................................................................0
f. Dana Lowery, (919) 857-8568.....................................................................1
g. Ted Hinson, (919) 854-8574........................................................................0
h. Phyllis Hall, (919) 851-0787.........................................................................2
8. In this relationship, each dog can only have one owner, but each owner can have
more than one dog.

A Little More Guidance Teacher Demonstration


A LITTLE MORE GUIDANCE
Directions: In this activity, you will follow along with your teacher to create a new
database table based on information from an existing table.

1. Open the States database that has been sent to you electronically by your
teacher and save it to your files.
2. Create a new table and save it as JustStates
3. The first field is formatted as the primary key field, using ID as the field name. If
the first field has not been created already, create it now, using AutoNumber and
setting it as the primary key field.
4. Add a new field named States
5. Set the data type as Lookup or leave it as Text, depending on your preferred
method of retrieving the data from the State table (see methods below)
Method 1 – Use the Lookup Wizard
a. Select the Lookup Wizard as the data type
b. Select the option to look up the values in a table or query
c. Select the State table
d. Select the State Abbreviation and State Name fields
e. Select ascending order by state abbreviation
f. Save and view the data, which will appear in a drop down list
Method 2 – Copy and paste values
a. Use the default data type (text)
b. Open the State table and select and copy the State Name column
c. Select the Lookup tab in the Field Properties section
d. Select List Box as the display control
e. Select Value List as the row source type
f. Select the row source window and use the paste command to enter the
copied list of states
g. Set State Name as the default entry
View the table and notice that you have all of the states available in a drop down menu
and saved the excessive time of rekeying all of the information in.

A Little More Guidance Teacher Demonstration


Independent Practice: One-to-Many Relationships Student Activity


INDEPENDENT PRACTICE: ONE-TO-MANY RELATIONSHIPS

Directions: In this activity, you will work independently to establish a one-to-many
relationship between two database tables.

1. Open a new database and save it as Authors.
2. Create a database table named Authors using the information below and using
the Authors field as the primary key

Authors Database
Authors Table
Authors Publishers
Evanovich, Janet Penguin Putnam Inc
Hautman, Pete Fulcrum Books
Hillerman, Tony Random House
Hopkins, Ellen Penguin Putnam Inc
Hosseini, Khaled Harper Books
Meyer, Stepheni Reader's Choice
Rowling, J K Markee Brothers

3. Create another table named Publications
a. Do not set a primary key
b. Use a lookup data type for the authors and key the authors’ names in the
values list

Independent Practice: One-to-Many Relationships Student Activity


c. Enter the data in the table
d. Save the table
4. Open the relationships window and establish a one-to-many relationship between
the Authors and Publications tables using the primary key from the Authors table
5. Open the Authors table and expand the relationship for each author
6. Save and submit your work according to teacher directions
7. Think about how a bookstore would use the information and record your thoughts
in the space below.

Independent Practice: One-to-Many Relationships Teacher Key

INDEPENDENT PRACTICE: ONE-TO-MANY RELATIONSHIPS KEY

Guided Practice: Many-to-Many Relationships Teacher Demonstration


GUIDED PRACTICE: MANY-TO-MANY RELATIONSHIPS
Directions: For this activity, you will follow along with your teacher to establish a
many-to-many relationship. In a many-to-many relationship, two tables with a one-to-
many relationship are linked by a junction table.

1. Open the Beach Rentals_Student database that has been sent to you
electronically by your teacher
2. In the Customers table, set the CustomerID field as the primary key field
3. In the Properties table, set the PropertyID field as the primary key field
4. Create a Junction Table:
a. Use AutoNumber for the ID field and set it as the primary key
Notes:

Note: An easy way to identify a junction table is to view the fields in each table.
The table that contains all of the primary keys from the other related tables is the
junction table!

b. Use a lookup data type for the PropertyName field and key the property
names as the values
Notes:



c. Use an input mask, short date format for the date field
Notes:

5. Establish a one-to-many relationship between the Customers table and the Rentals
table using the primary key from the Customers table
Notes:

6. Select the option to enforce referential
integrity for both relationships

7. Establish a one-to-many
relationship between the
Properties table and the Rentals
table using the primary key from
the Properties table

8. Save and answer the questions on the next page.



Open the Customers table and try to delete Bob Dixon. What happens? Why?

Expand all of the relationships in the Customers table. Which renter has rented the
most properties?

Expand all of the relationships in the Properties table. Which property is the most
popular?

How can this type of relational database be used in business?

Why is it important to understand database relationships?

Why is it important to enforce referential integrity in this database?

Guided Practice: Many-to-Many Relationships Teacher Key

GUIDED PRACTICE: MANY-TO-MANY RELATIONSHIPS KEY

Open the Customers table and try to delete Bob Dixon. What happens? Why?
Bob Dixon cannot be deleted because he is linked to another table.

Expand all of the relationships in the Customers table. Which renter has rented the
most properties?
Cricket Chianelli

Expand all of the relationships in the Properties table. Which property is the most
popular?
Sea Captain

How can this type of relational database be used in a business?
A beach rental company would use this database to keep track of customers and
property owners. The beach rental company could quickly look up information
sorted by property or by customer.

Why is it important to understand database relationships?
Databases are used by businesses worldwide to manage information. Database
relationships increase the effectiveness and power of databases by allowing
information to be organized into manageable and logical chunks of related data
(tables) and by enabling communication between multiple tables.

Why is it important to enforce referential integrity in this database?
To help protect data from being deleted or corrupted

Independent Practice: Many-to-Many Relationships Student Activity


INDEPENDENT PRACTICE: MANY-TO-MANY RELATIONSHIPS
Directions: For this activity, you will work independently to create a many-to-
many relationship.

1. Open the Flights_Student database that has been sent to you electronically.
2. Follow teacher instructions for saving the database to your student directory.
3. Create a database table named Pilots
a. Set the PilotID data type as number and make it the primary key field
b. Do not make any errors as you key the information from the table below:

PilotID Pilot Name
332341 Motley, Dan
384858 Main, Hydie
528966 Long, John
754858 Penny, Annie
838488 Swain, Bob
859699 Young, Debra
908948 Lox, Bailey
958678 Anderson, Lee

4. Save and close the Pilots table.
5. Establish a one-to-many relationship between the Flights table and the
Reservations table using the Flight# field in the Flights table as the link to the
FlightNo field in the Reservations table
6. Establish a one-to-many relationship between the Reservations table and the Pilots
table using the PilotID field in the Pilots table as the link to the Pilot field in the
Reservations table
7. Enforce referential integrity in the link between the Pilots table and the Reservations
table



1. What is the function of referential integrity in this activity?
a. It prevents a pilot from being deleted from the pilots table if the pilot has been
assigned to a flight in the reservations table
b. It allows a pilot to be deleted from the pilots table if the pilot has been
2. Perform a filter for the flights listed below to answer the questions about the Flights
table
a. How many pilots does Northwest Flight 99 have?
b. How many passengers does Northwest Flight 99 have?
c. How many passengers does US Airways Flight 5474 have?
3. Open the Pilots table and answer the following questions:
a. Which pilot has the most passengers?
b. Which pilot has the least?
4. How is the expanded relationship information helpful to the following people:
a. Customers

b. Pilots

c. Airline stewards

d. Reservations specialists

5. Save and submit your work according to teacher dirctions

Independent Practice: Many-to-Many Relationships Teacher Key

INDEPENDENT PRACTICE: MANY-TO-MANY RELATIONSHIPS KEY

1. What is the function of referential integrity in this activity?
a. It prevents a pilot from being deleted from the pilots table if the pilot has
been assigned to a flight in the reservations table
b. It allows a pilot to be deleted from the pilots table if the pilot has been
2. Perform a filter for the flights listed below to answer the questions about the Flights
table
a. How many pilots does Flight 99 have? ..........................................................1
b. How many customers does Flight 99 have? .................................................1
c. How many customers does Flight 5474 have? ...........................................11
3. Open the Pilots table and answer the following questions:
a. Which pilot has the most passengers? .........................................Dan Motley
b. Which pilot has the least? ..........................................................Debra Young
4. How is the expanded relationship information helpful to the following people?
a. Customers
Customers can find out flight information, such as flight number and
pilot information. If concerned about safety, they may choose to
check out the pilot on the Internet.
b. Pilots
Pilots can quickly see how full their flight is
c. Airline stewards
Airline stewards can check the flight roster
d. Reservations specialists
Reservations specialists can view flight data to find out how many
spaces are left and answer customer inquiries about flight arrival
and departure times

Guided Practice: Importing Data Teacher Demonstration


GUIDED PRACTICE: IMPORTING DATA
Data used in a database table can be imported from other sources. In this exercise,
you will follow along with your teacher to import a word processing file into a
database. The procedures for importing data require that the data be arranged in
rows and columns. When importing a data processing document, the file format
must be saved as text.

Directions:
1. Using word processing software, key the information below (raw data) in the
exact format with the commas, spacing, and line returns.
Raw Data:
Event No.,Event,Level,Transcript,Objective Test
1,Accounting I,HS,Y,Y
2,Accounting II,HS,Y,Y
4,Banking and Financial Systems,HS,N,Y
5,Business Calculations,HS,N,Y
6,Business Communication,HS,N,Y
10,Business Law,HS,Y,Y
11,Business Math,HS,Y,Y
14,Business Procedures,HS,Y,Y
2. Save the data in text format.
3. Open the database software and name the database FBLA unless otherwise
instructed.
4. Follow procedures for importing the data into a database table.
Notes:

5. Store the data in a new table. Name the table Competitive Events unless
instructed otherwise.

Guided Practice: Importing Data Teacher Demonstration


INDEPENDENT PRACTICE: IMPORTING DATA

Directions: In this exercise, you will work independently to import a word
processing file into a database. Key the data below using word processing software
and save it in text format using a file name assigned by your teacher. Import the
data into a database table and submit your work according to teacher directions.
Complete the written response section at the end of this activity.
Points to Remember:
• Remember, you must have an open database before you can import a file.
• Once the data has been imported, format the field properties so that the
Enrollment field has comma separators and zero decimal places and the
Tuition fields are formatted as currency.
• Name the database according to teacher directions.
• Answer the questions at the end of this activity and submit your work.
Raw Data:
Name,Ownership,Type,Enrollment,InState,OutofState
Appalachian State,Public,4 yr,14653,$4000,$13600
East Carolina,Public,4 yr,22767,$4487,$15000
Fayetteville,Public,4 yr,5441,$3860,$13596
A & T,Public,4 yr,10383,$4200,$13000
UNC Chapel Hill,Public,4 yr,26878,$5513,$19311
UNC Greensboro,Public,4 yr,15329,$49440,$16500
UNC Wilmington,Public,4 yr,11574,$4694,$14405
Winston-Salem State,Public,4 yr,4805,$3905,$12545
Written Response:
Write a step by step procedure for importing data from a word processing file into a
database table.

Independent Practice: Importing Data Teacher Key

INDEPENDENT PRACTICE: IMPORTING DATA KEY

Procedure for Importing Data into a Database Table: (May vary with software)
1. Format the raw source data in columns and rows separated by spaces or
commas.
2. Save the raw source data in plain text format.
3. Open and save a new database.
4. Use the menu or wizard options to import the source data.
5. Select the appropriate options regarding type of delimiters and headings.
6. Name the table.
7. Complete the import.
8. Format the data if required.

Database Concept Review Student Activity


DATABASE CONCEPT REVIEW
Directions: Answer the questions below.

1. In your own words provide the definition of a database.

2. List 3 examples of a database.

3. What is a database relationship?

4. Work with a partner and describe a one-to-many relationship using a database
and tables you make up. Draw the tables on paper and key descriptions of each,
then cut and paste the descriptions onto the paper.



5. Work with a partner and describe a many-to-many relationship using a database
and tables you make up.

6. Work with a partner and draw a picture of the database, the tables, and the
many-to-many relationship on the back of this sheet.

7. Give an example of how referential integrity could be used in your scenario (#6)

8. Number the following database elements in order from largest to smallest.
a. _____ Field c. _____ Record
b. _____ Database d. _____ Entry

9. Match the field types with the correct definition.

a. Allows you to create a finite set of choices for
Text that field’s entry values.

Number b. Is a true/false field

Lookup Wizard c. Date and time entries in various formats.

d. This includes not only words, but also
Date/Time numbers not used in calculations.

e. This field may not include anything other than
Currency numbers.

AutoNumber f. Like text, but max of 64,000 characters.

g. Creates fields that automatically enter a
Yes/No unique number when a record is added.

h. Currency values expressed in various formats.

Database Concept Review Teacher Key

DATABASE CONCEPT REVIEW KEY

Directions: Answer the questions below.

1. In your own words provide the definition of a database.
• Student answers will vary
2. List 3 examples of a database.
• Telephone book|
• Computerized Library card catalog
• Student data (NCWISE)
• iTunes
• Personal address book
• CD-Rom Encyclopedias
• Job Search
• Fingerprint database
• Customer contact list
• Houses for sale and MLS listings online
• Hospital/patient data
• Business stock inventory
• Barcode scanners keep inventory in databases
• Internet search engines database
• Encyclopedias & Dictionaries
3. A database relationship is a link between common fields of two or more tables
in a database.
4. Answers will vary – invite students to share their examples with the class
5. Answers will vary
9. Number the following database elements in order from largest to smallest.

1 Database 2 Record 3 Field


4 Entry


Match the field types with the correct definition.
a. Allows you to create a finite set of choices
D Text for that field’s entry values.
E Number b. Is a true/false field
A Lookup Wizard c. Date and time entries in various formats.
d. This includes not only words, but also
C Date/Time numbers no used in calculations.
e. This field may not include anything other
H Currency than numbers.
G AutoNumber f. Like text, but max of 64,000 characters.
g. Creates fields that automatically enter a
B Yes/No unique number when a record is added.
h. Currency values expressed in various
formats.

5.01 Activity Notes A

More Related Content

What's hot

Viewers also liked

Similar to 5.01 Activity Notes A

More from wmassie

Recently uploaded

5.01 Activity Notes A
