This document provides information on Ethernet connection standards including cable types, connector types, and maximum distances. It lists standards for copper and fiber cables ranging from 10 Mbps to 10 Gbps, noting the cable type (e.g. Cat5, fiber), connector used (e.g. RJ-45, SC), and maximum distance supported. It also provides details on common copper cable categories, their uses and supported speeds.

1. CCNA Data Center
Ethernet
Connections

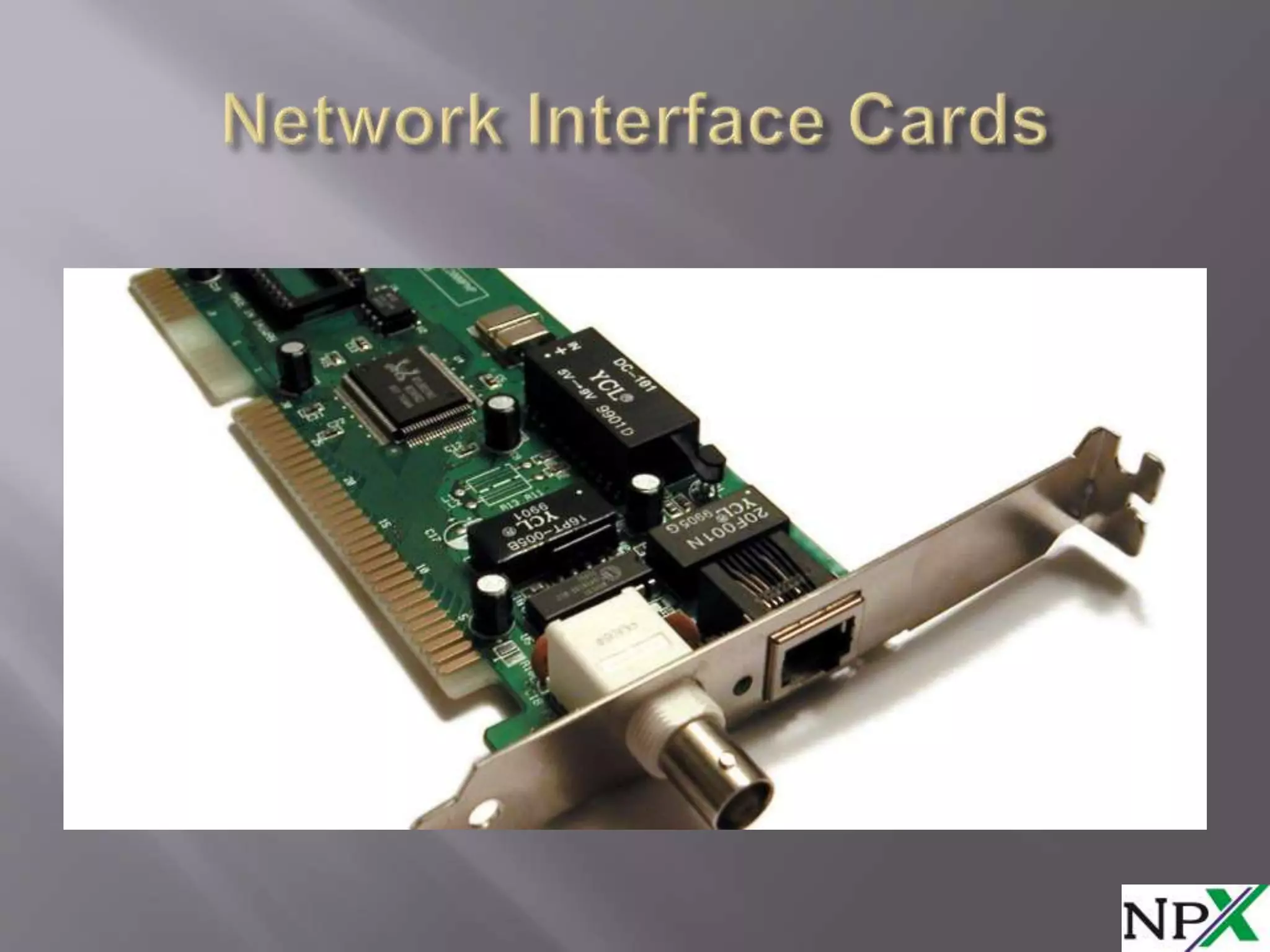

3. standard cable connector distance
10BASE-2 RG-58 Coax BNC 185M
10BASE-5 RG-50 Coax AUI 500M
10BASE-T Cat 3 RJ-45 100M
10BASE-TX Cat 5 RJ-45 100M
100BASE-FX MMF SC,ST,LC,MTRJ 400M

4. standard cable connector Distance
1000BASE-CX Twinax DE-9 or 8P8C 25M
1000BASE-SX MMF Dual LC 200-500M
1000BASE-LX MMF Dual LC 550M
1000BASE-T Cat 5 RJ-45 100M
1000BASE-TX Cat 6a RJ-45 100M

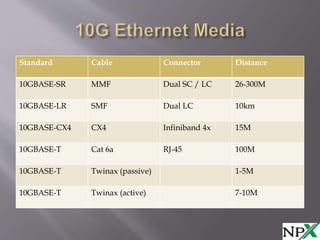

5. Standard Cable Connector Distance
10GBASE-SR MMF Dual SC / LC 26-300M
10GBASE-LR SMF Dual LC 10km
10GBASE-CX4 CX4 Infiniband 4x 15M
10GBASE-T Cat 6a RJ-45 100M
10GBASE-T Twinax (passive) 1-5M
10GBASE-T Twinax (active) 7-10M

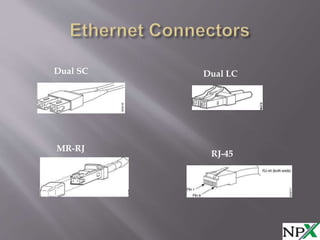

6. Dual SC Dual LC
MR-RJ
RJ-45

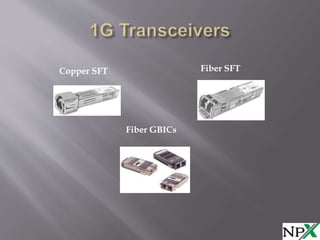

7. Copper SFT Fiber SFT
Fiber GBICs

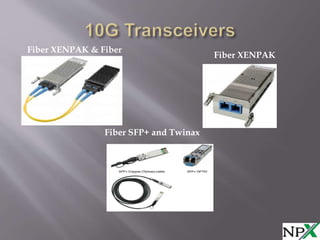

8. Fiber XENPAK & Fiber
X2
Fiber XENPAK
Fiber SFP+ and Twinax

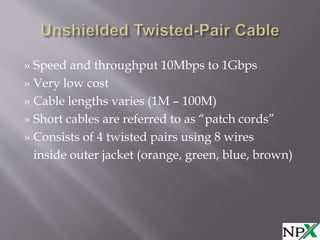

9. » Speed and throughput 10Mbps to 1Gbps
» Very low cost
» Cable lengths varies (1M – 100M)
» Short cables are referred to as “patch cords”
» Consists of 4 twisted pairs using 8 wires
inside outer jacket (orange, green, blue, brown)

10. » Cat 1 – Telephone wire – not for data
» Cat 3 – Used in 10BaseT (up to 10Mbps)
» Cat 5 – Data speeds up to 100Mbps
» Cat 5e – Data speeds up to 1Gbps (using 2-pair)
» Cat 6 – 4 pairs of 24-gauge copper wires (up to
1Gbps)
» Cat 6a – Enhanced performance in high noise
environments (up to 10Gbps)
» Most common – Cat 1 (Telephone) Cat 5, 5e, & 6
(Data)

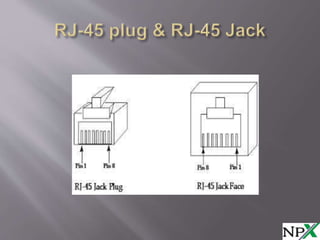

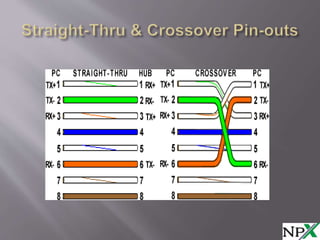

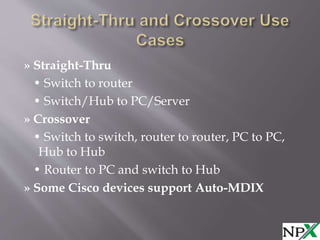

13. » Straight-Thru
• Switch to router
• Switch/Hub to PC/Server
» Crossover
• Switch to switch, router to router, PC to PC,
Hub to Hub
• Router to PC and switch to Hub
» Some Cisco devices support Auto-MDIX
