Casting
•
0 likes•1,536 views

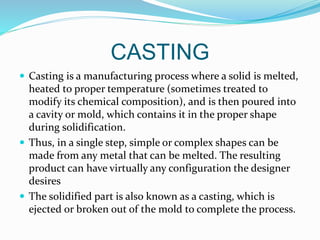

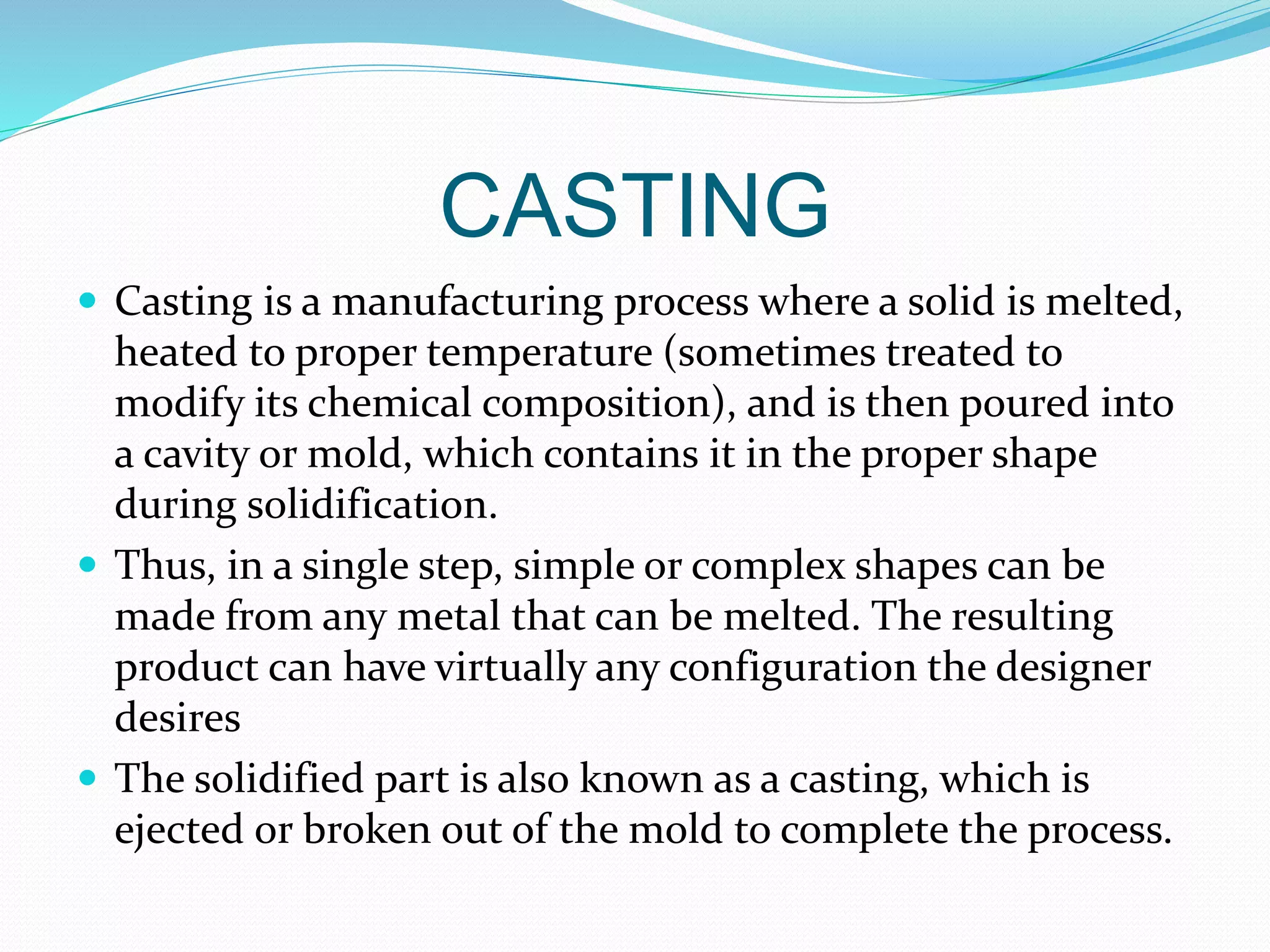

Casting is a manufacturing process where a solid material is melted and poured into a mold cavity to form a part. This allows both simple and complex shapes to be produced from any material that can be melted. The terminology used in metal casting includes patterns, molds, cores, and gating systems. The casting process involves obtaining the casting geometry, patternmaking, coremaking and molding, alloy melting and pouring, and cleaning the finished casting. Casting provides advantages for mass production and forming parts from materials that cannot be easily shaped by other processes.
Report
Share
Report
Share
Download to read offline
