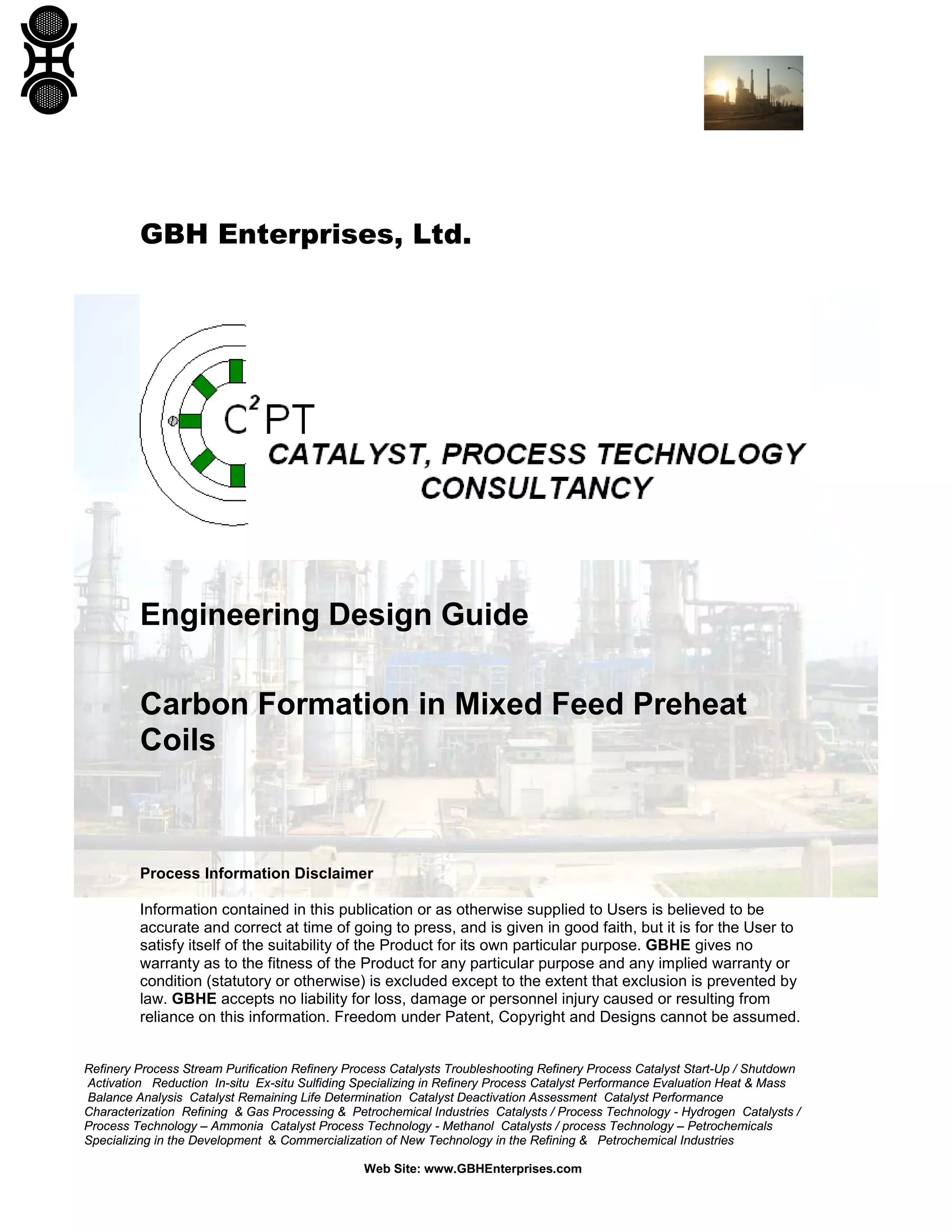

1. GBH Enterprises, Ltd.
Engineering Design Guide
Carbon Formation in Mixed Feed Preheat
Coils
Process Information Disclaimer
Information contained in this publication or as otherwise supplied to Users is believed to be
accurate and correct at time of going to press, and is given in good faith, but it is for the User to
satisfy itself of the suitability of the Product for its own particular purpose. GBHE gives no
warranty as to the fitness of the Product for any particular purpose and any implied warranty or
condition (statutory or otherwise) is excluded except to the extent that exclusion is prevented by
law. GBHE accepts no liability for loss, damage or personnel injury caused or resulting from
reliance on this information. Freedom under Patent, Copyright and Designs cannot be assumed.
Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

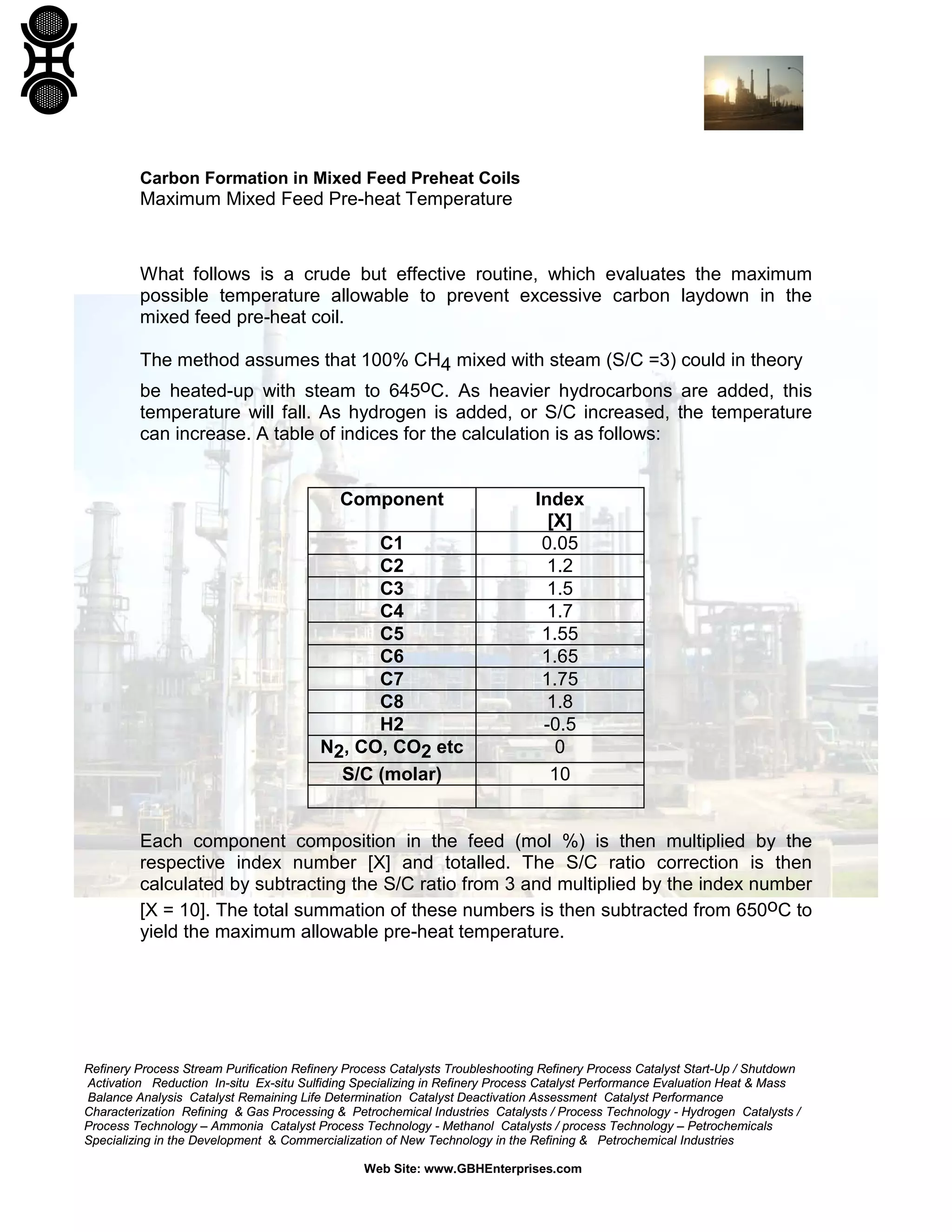

2. Carbon Formation in Mixed Feed Preheat Coils
Maximum Mixed Feed Pre-heat Temperature
What follows is a crude but effective routine, which evaluates the maximum
possible temperature allowable to prevent excessive carbon laydown in the
mixed feed pre-heat coil.
The method assumes that 100% CH4 mixed with steam (S/C =3) could in theory
be heated-up with steam to 645oC. As heavier hydrocarbons are added, this
temperature will fall. As hydrogen is added, or S/C increased, the temperature
can increase. A table of indices for the calculation is as follows:
Component
C1
C2
C3
C4
C5
C6
C7
C8
H2
N2, CO, CO2 etc
S/C (molar)
Index
[X]
0.05
1.2
1.5
1.7
1.55
1.65
1.75
1.8
-0.5
0
10
Each component composition in the feed (mol %) is then multiplied by the
respective index number [X] and totalled. The S/C ratio correction is then
calculated by subtracting the S/C ratio from 3 and multiplied by the index number
[X = 10]. The total summation of these numbers is then subtracted from 650oC to
yield the maximum allowable pre-heat temperature.
Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

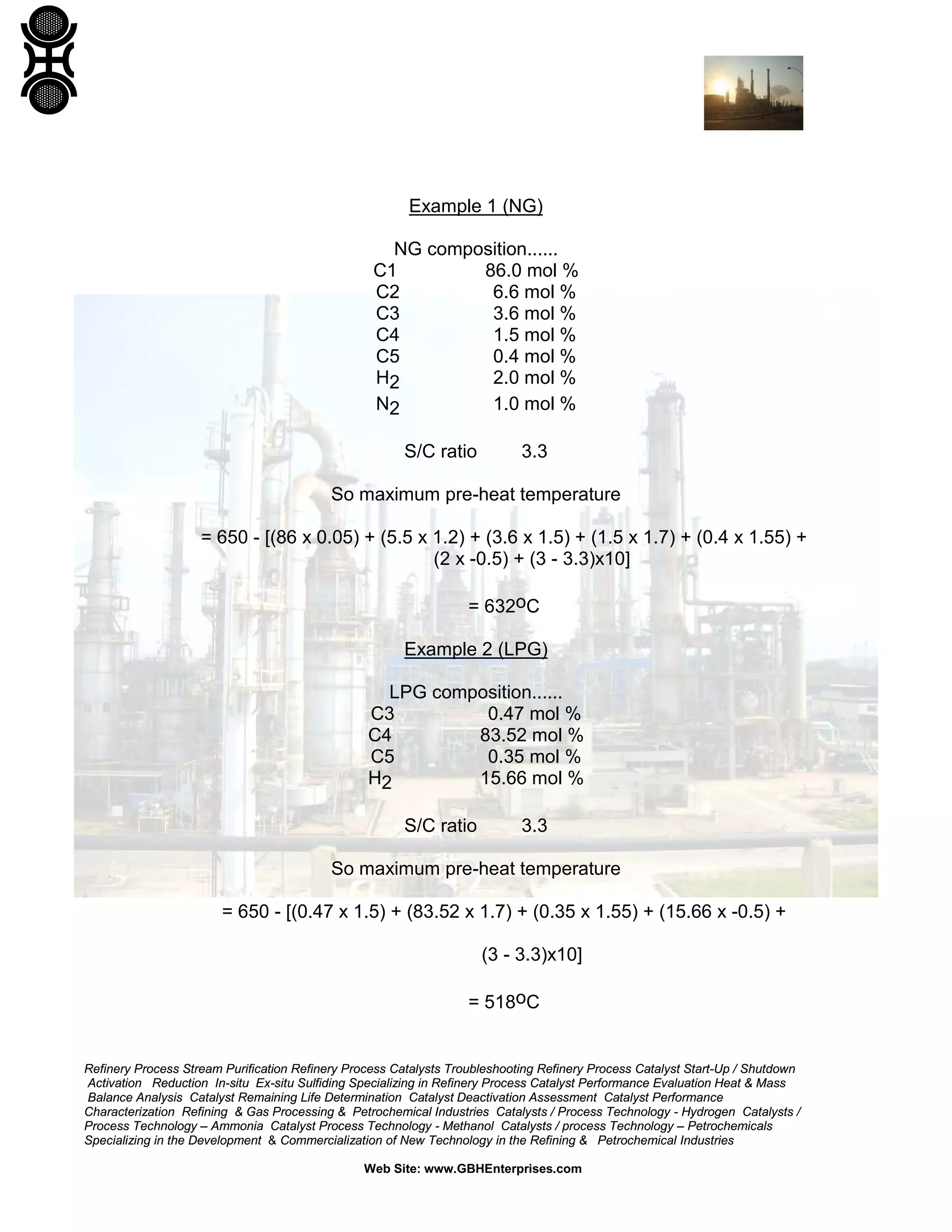

3. Example 1 (NG)
NG composition......
C1
86.0 mol %
C2
6.6 mol %
C3
3.6 mol %
C4
1.5 mol %
C5
0.4 mol %
H2
2.0 mol %
N2
1.0 mol %
S/C ratio
3.3
So maximum pre-heat temperature
= 650 - [(86 x 0.05) + (5.5 x 1.2) + (3.6 x 1.5) + (1.5 x 1.7) + (0.4 x 1.55) +
(2 x -0.5) + (3 - 3.3)x10]
= 632oC
Example 2 (LPG)
LPG composition......
C3
0.47 mol %
C4
83.52 mol %
C5
0.35 mol %
H2
15.66 mol %
S/C ratio
3.3
So maximum pre-heat temperature
= 650 - [(0.47 x 1.5) + (83.52 x 1.7) + (0.35 x 1.55) + (15.66 x -0.5) +
(3 - 3.3)x10]
= 518oC
Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

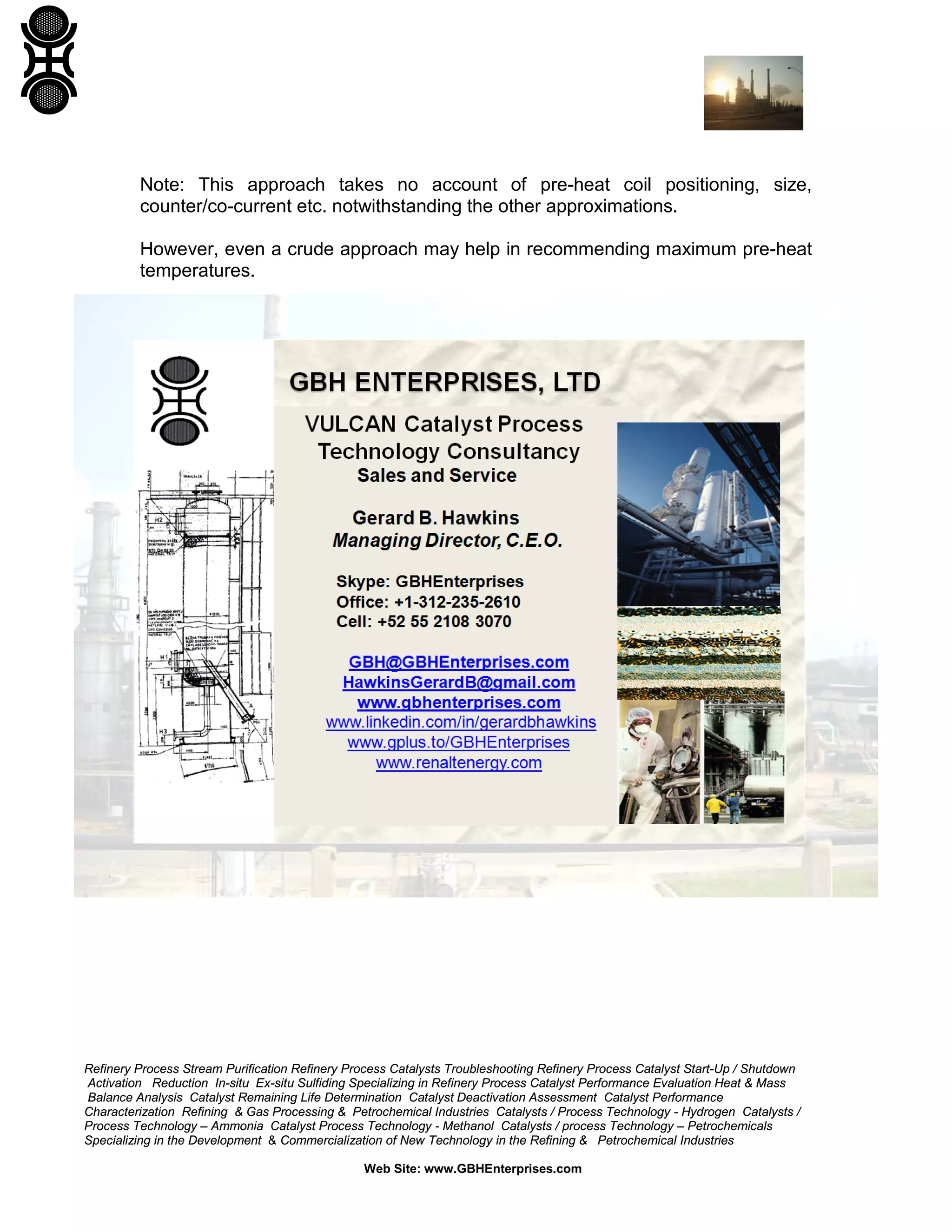

4. Note: This approach takes no account of pre-heat coil positioning, size,
counter/co-current etc. notwithstanding the other approximations.
However, even a crude approach may help in recommending maximum pre-heat
temperatures.
