Capacitors

Boylestad

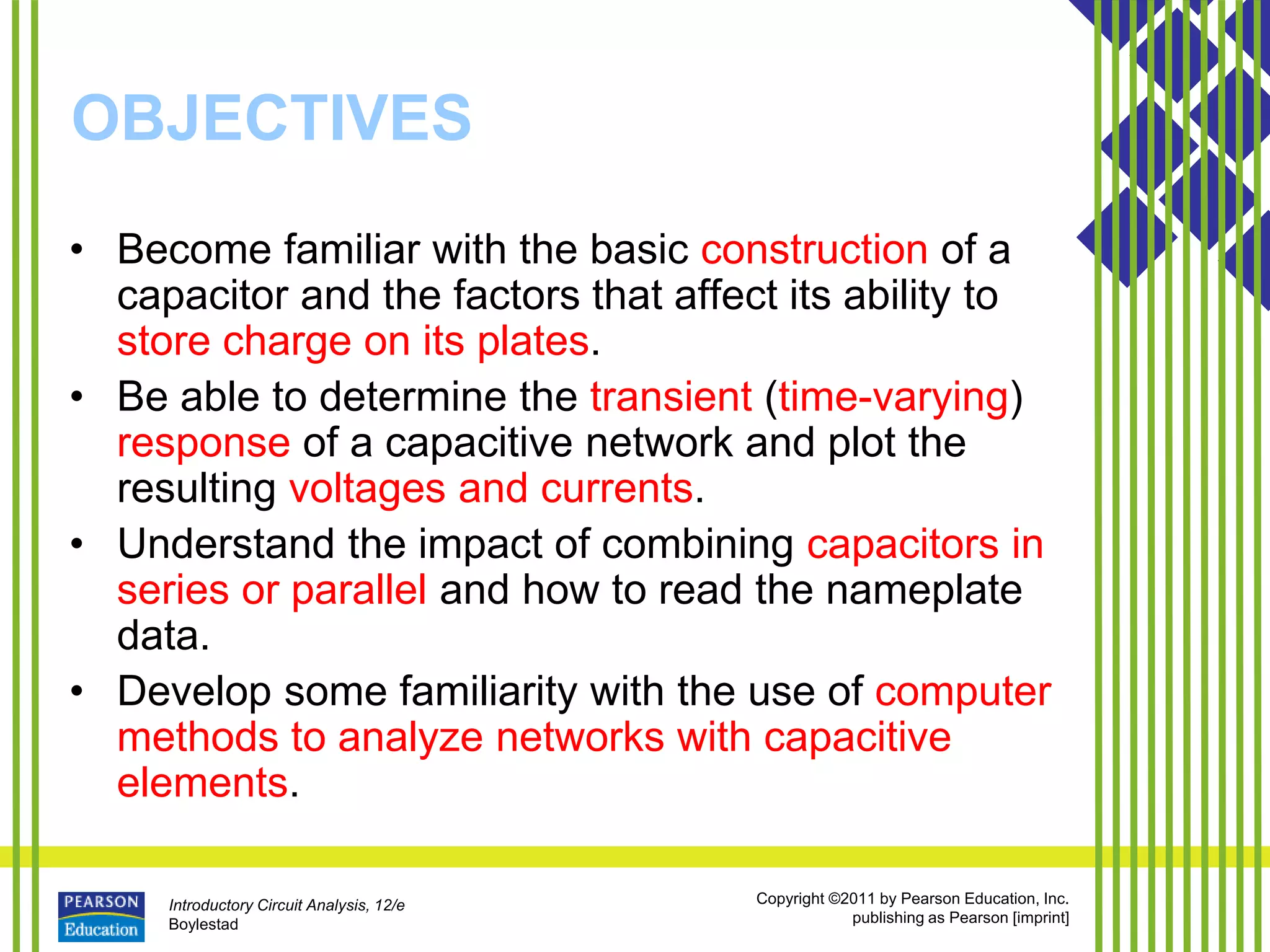

OBJECTIVES
• Become familiar with the basic construction of a
capacitor and the factors that affect its ability to
store charge on its plates.
• Be able to determine the transient (time-varying)
response of a capacitive network and plot the
resulting voltages and currents.
• Understand the impact of combining capacitors in
series or parallel and how to read the nameplate
data.
• Develop some familiarity with the use of computer
methods to analyze networks with capacitive
elements.

Boylestad

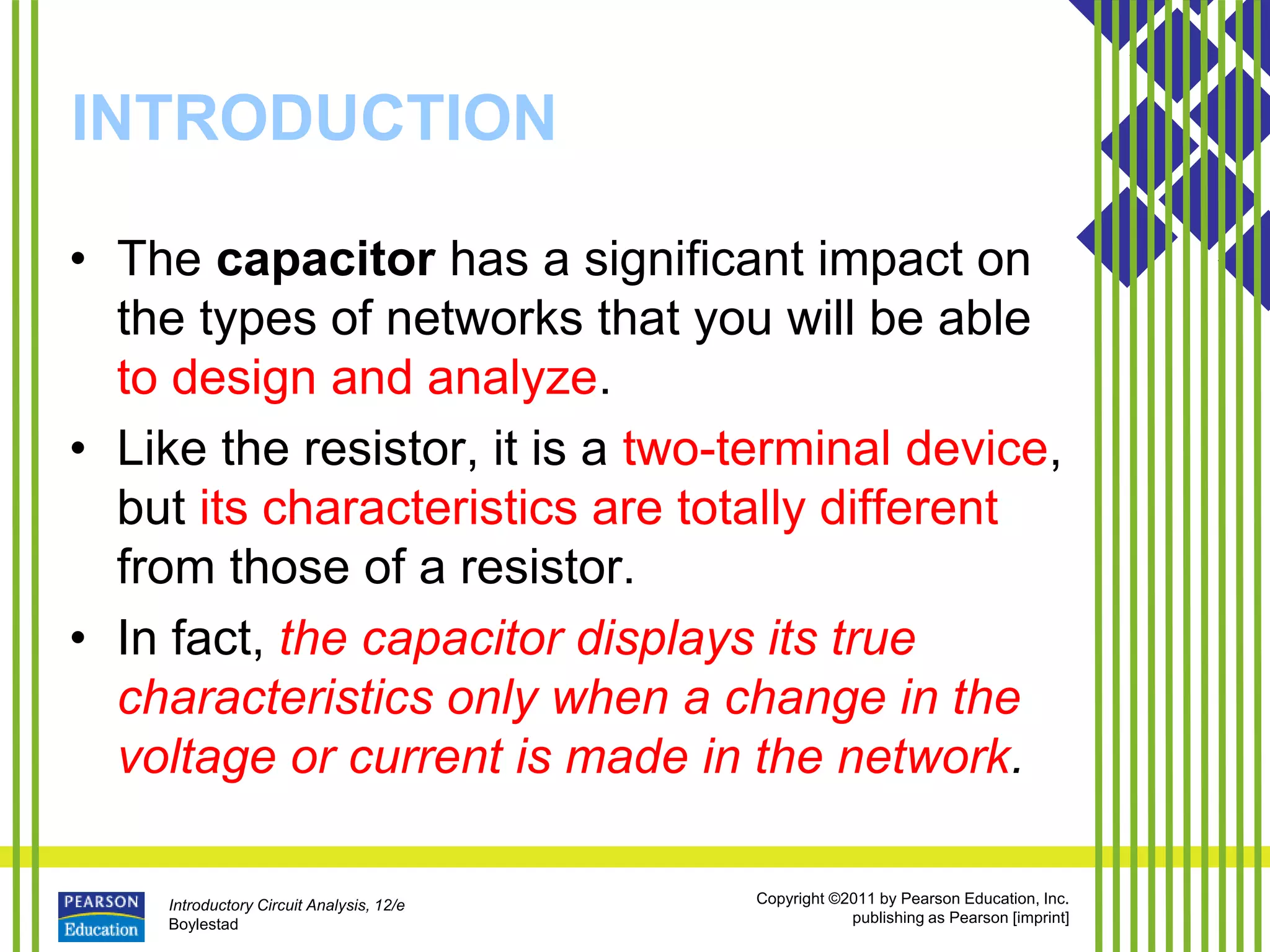

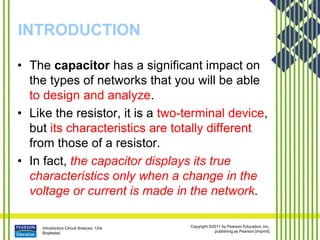

INTRODUCTION
• The capacitor has a significant impact on
the types of networks that you will be able
to design and analyze.
• Like the resistor, it is a two-terminal device,
but its characteristics are totally different
from those of a resistor.
• In fact, the capacitor displays its true
characteristics only when a change in the
voltage or current is made in the network.

Boylestad
THE ELECTRIC FIELD

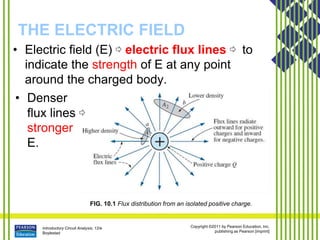

FIG. 10.1 Flux distribution from an isolated positive charge.
• Electric field (E) ⇨ electric flux lines ⇨ to
indicate the strength of E at any point
around the charged body.
• Denser
flux lines ⇨
stronger
E.

Boylestad
THE ELECTRIC FIELD
FIG. 10.2 Determining the force on a unit
charge r meters from a charge Q of
similar polarity.

Boylestad
THE ELECTRIC FIELD

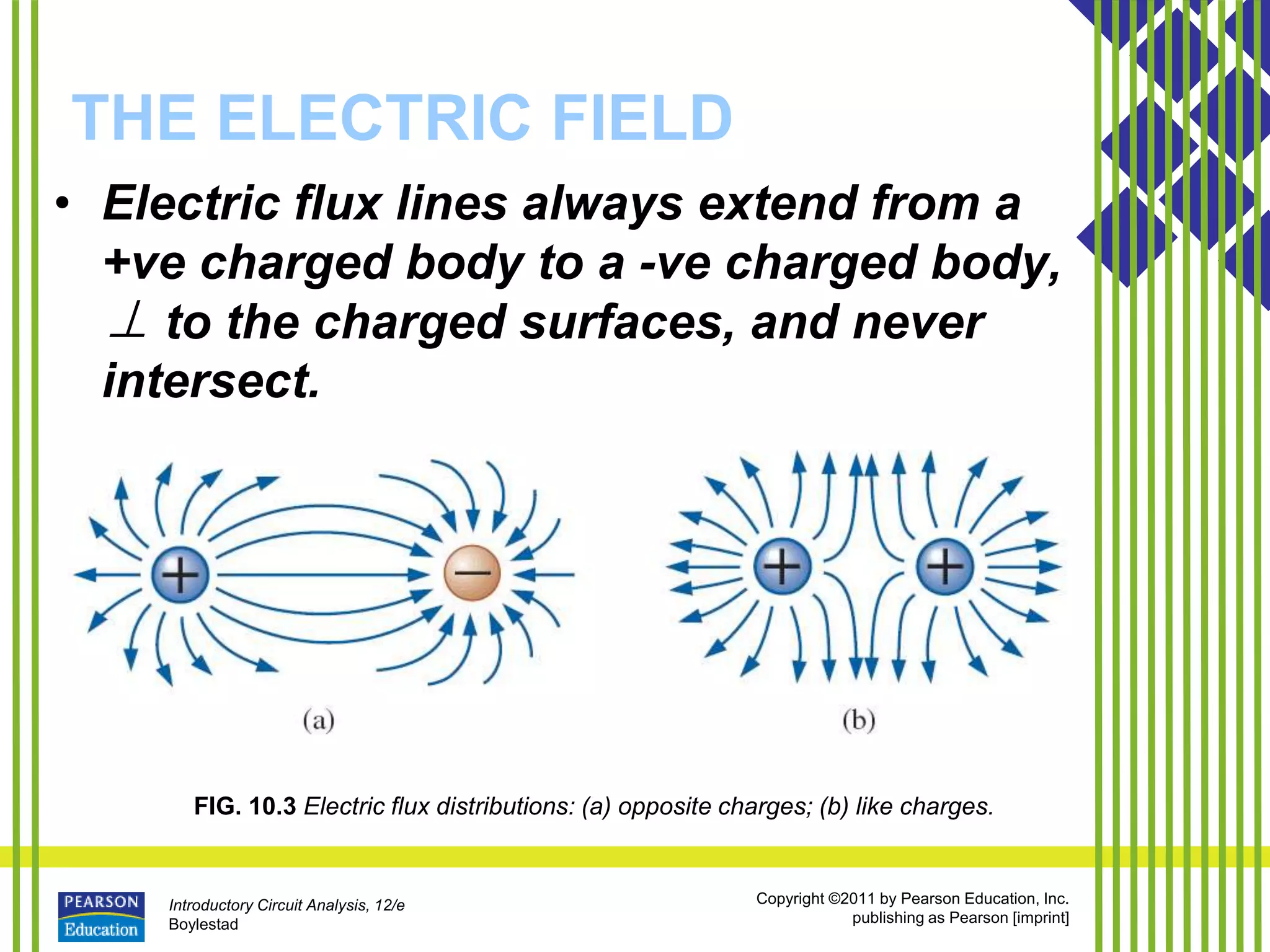

FIG. 10.3 Electric flux distributions: (a) opposite charges; (b) like charges.
• Electric flux lines always extend from a
+ve charged body to a -ve charged body,
⊥ to the charged surfaces, and never
intersect.

Boylestad
CAPACITANCE

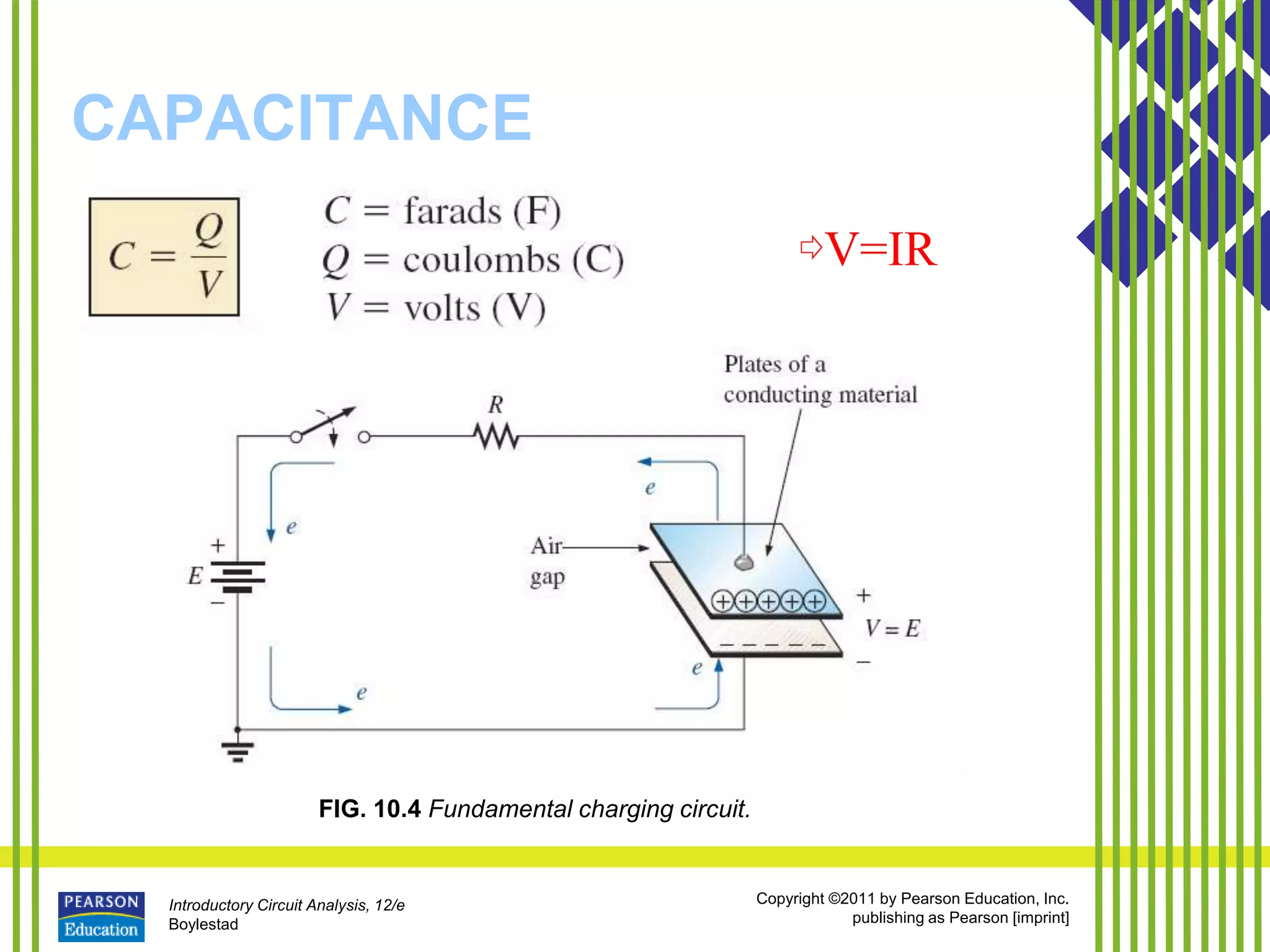

FIG. 10.4 Fundamental charging circuit.
⇨V=IR

Boylestad
CAPACITANCE

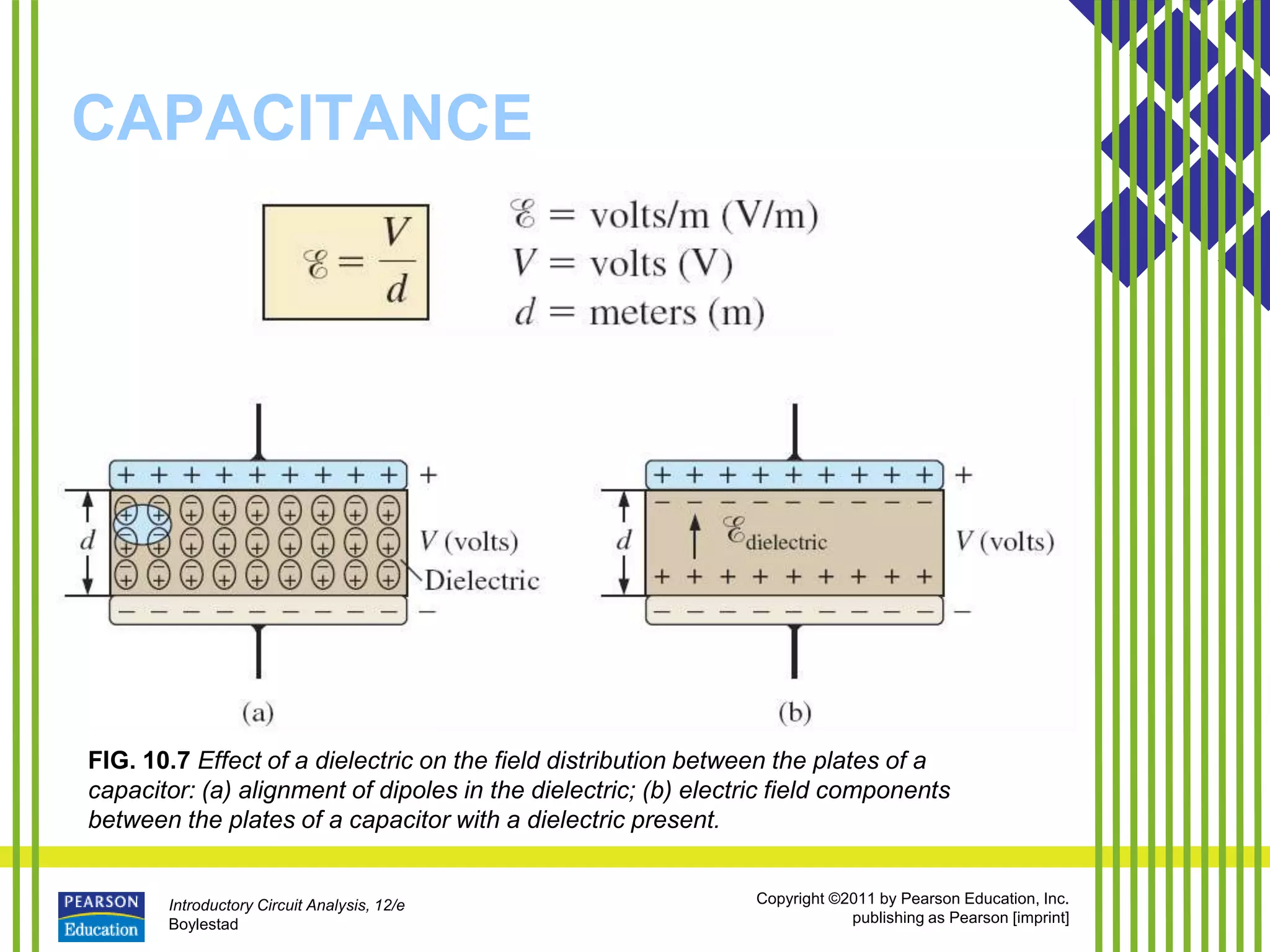

FIG. 10.7 Effect of a dielectric on the field distribution between the plates of a
capacitor: (a) alignment of dipoles in the dielectric; (b) electric field components
between the plates of a capacitor with a dielectric present.

Boylestad
CAPACITANCE

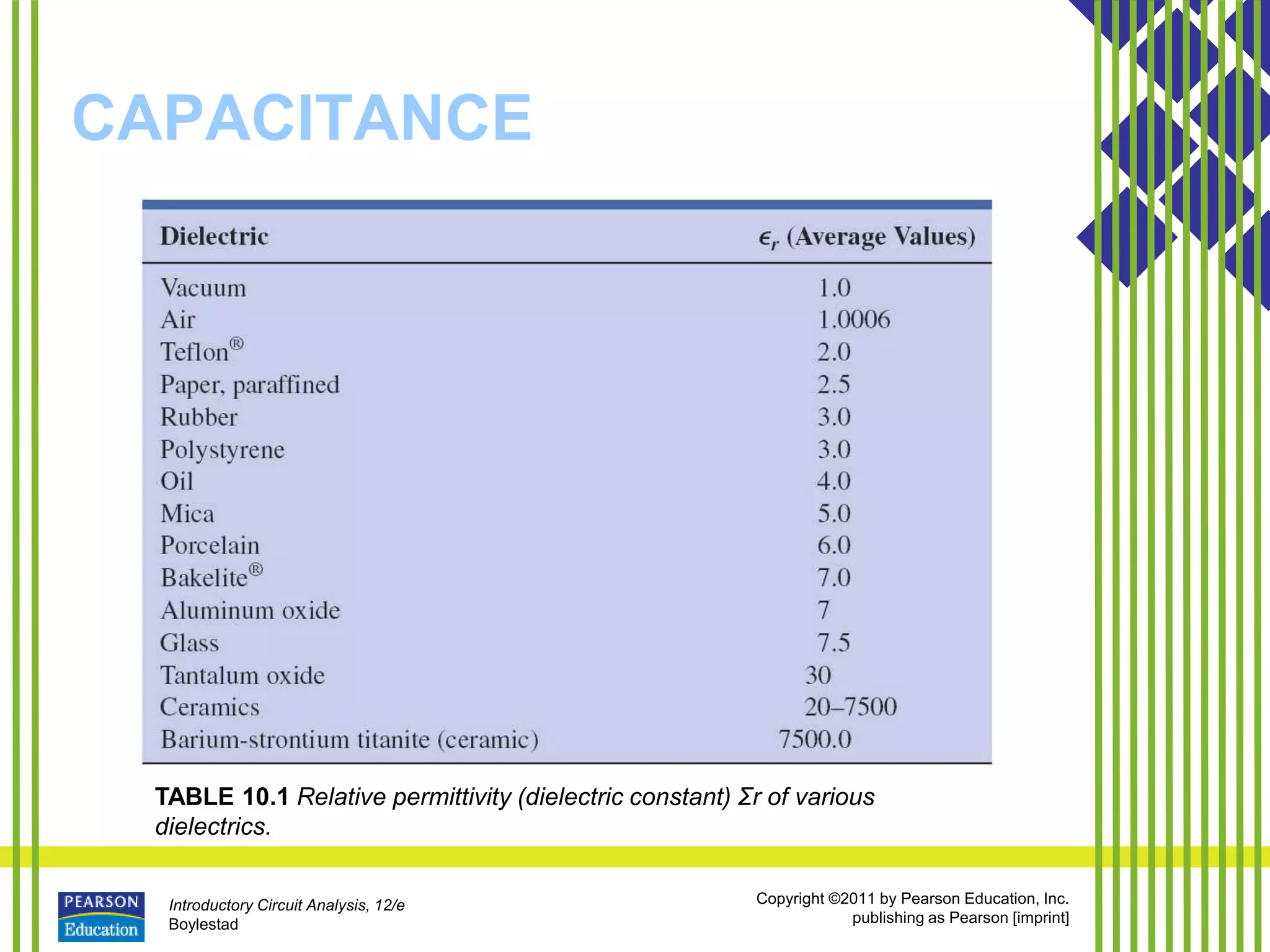

TABLE 10.1 Relative permittivity (dielectric constant) Σr of various
dielectrics.

Boylestad

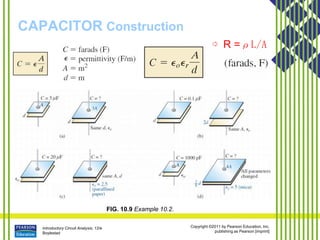

CAPACITOR Construction

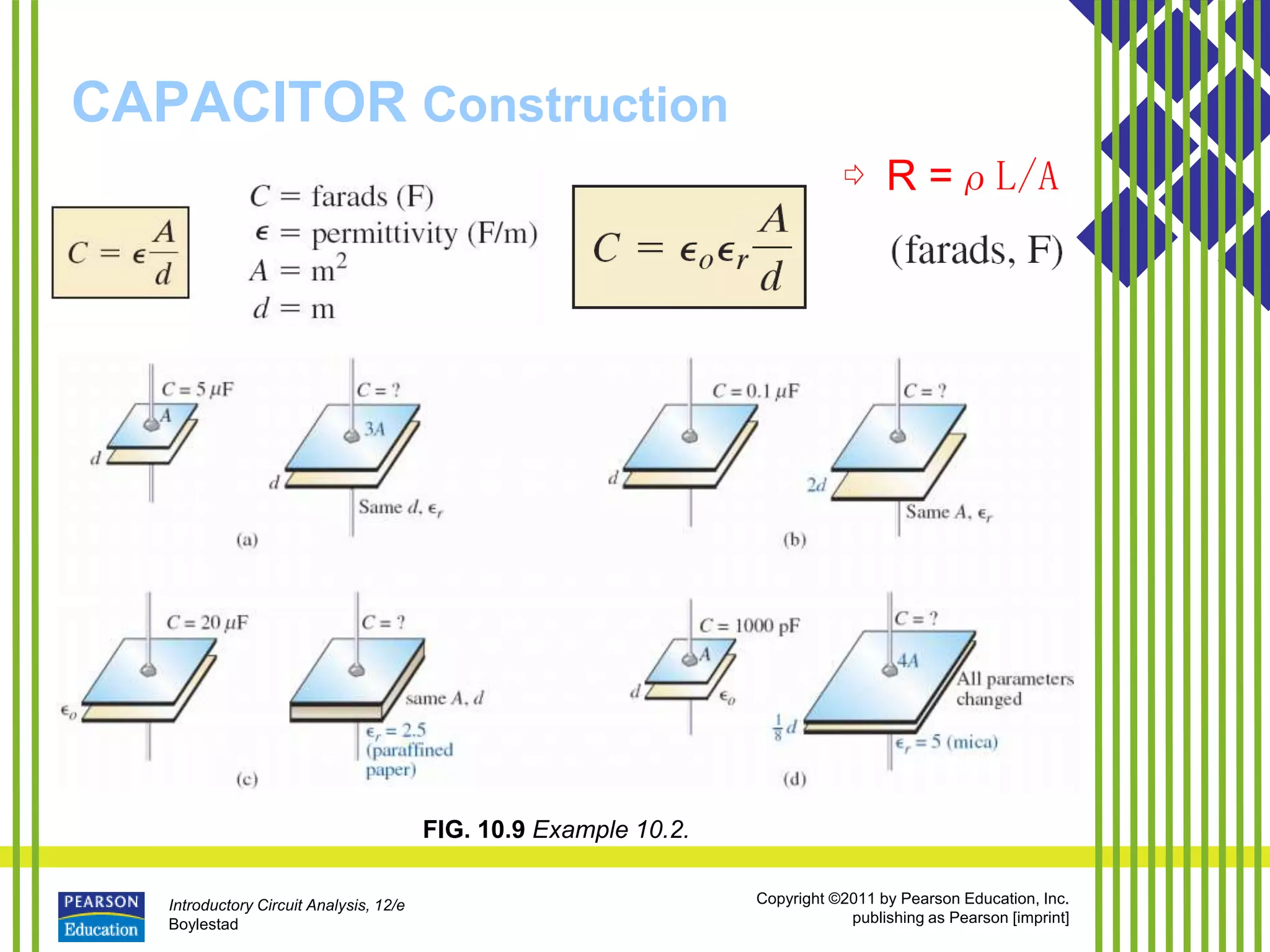

FIG. 10.9 Example 10.2.
⇨ R =ρL/A

Boylestad
CAPACITORS
Types of Capacitors
• Capacitors, like resistors, can be listed
under two general headings: fixed and
variable.

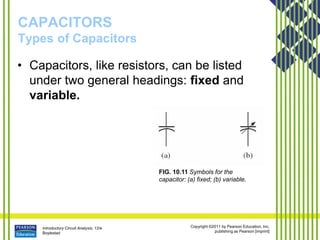

FIG. 10.11 Symbols for the
capacitor: (a) fixed; (b) variable.

Boylestad
CAPACITORS
Types of Capacitors

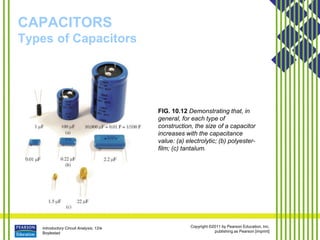

FIG. 10.12 Demonstrating that, in
general, for each type of
construction, the size of a capacitor
increases with the capacitance
value: (a) electrolytic; (b) polyester-
film; (c) tantalum.

Boylestad
CAPACITORS
Types of Capacitors

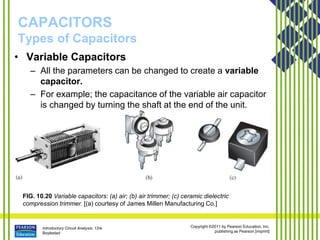

FIG. 10.20 Variable capacitors: (a) air; (b) air trimmer; (c) ceramic dielectric
compression trimmer. [(a) courtesy of James Millen Manufacturing Co.]
• Variable Capacitors
– All the parameters can be changed to create a variable
capacitor.
– For example; the capacitance of the variable air capacitor
is changed by turning the shaft at the end of the unit.

Boylestad
CAPACITORS
Leakage Current and ESR

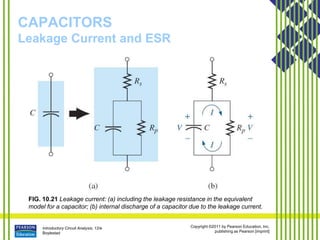

FIG. 10.21 Leakage current: (a) including the leakage resistance in the equivalent
model for a capacitor; (b) internal discharge of a capacitor due to the leakage current.

Boylestad
CAPACITORS
Capacitor Labeling

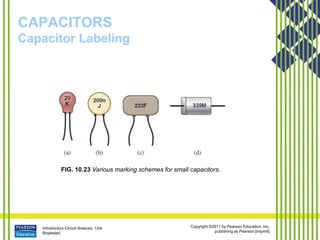

FIG. 10.23 Various marking schemes for small capacitors.

Boylestad
CAPACITORS
Measurement and Testing of Capacitors
• The capacitance of
a capacitor can be
read directly using
a meter such as
the Universal LCR
Meter.

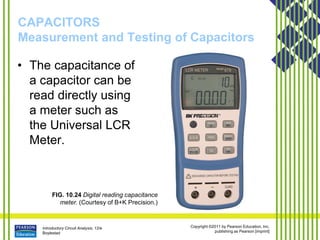

FIG. 10.24 Digital reading capacitance
meter. (Courtesy of B+K Precision.)

Boylestad
TRANSIENTS IN CAPACITIVE
NETWORKS: THE CHARGING PHASE
• The placement of
charge on the
plates of a
capacitor does not
occur
instantaneously.
• Instead, it occurs
over a period of
time determined by
the components of
the network.

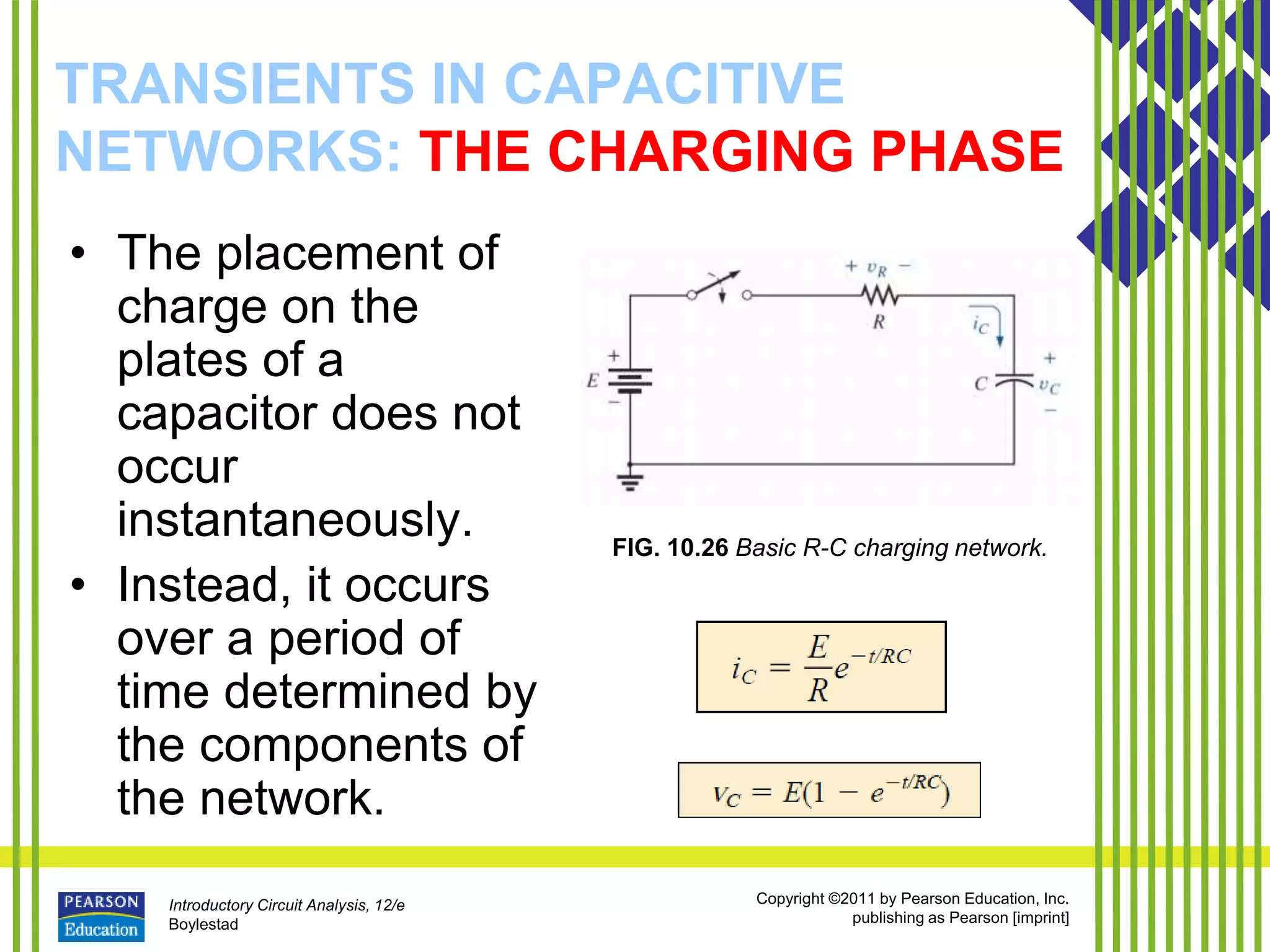

FIG. 10.26 Basic R-C charging network.

Boylestad

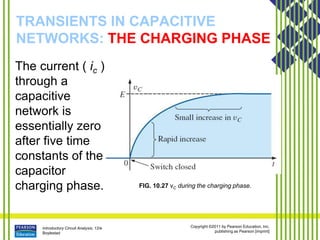

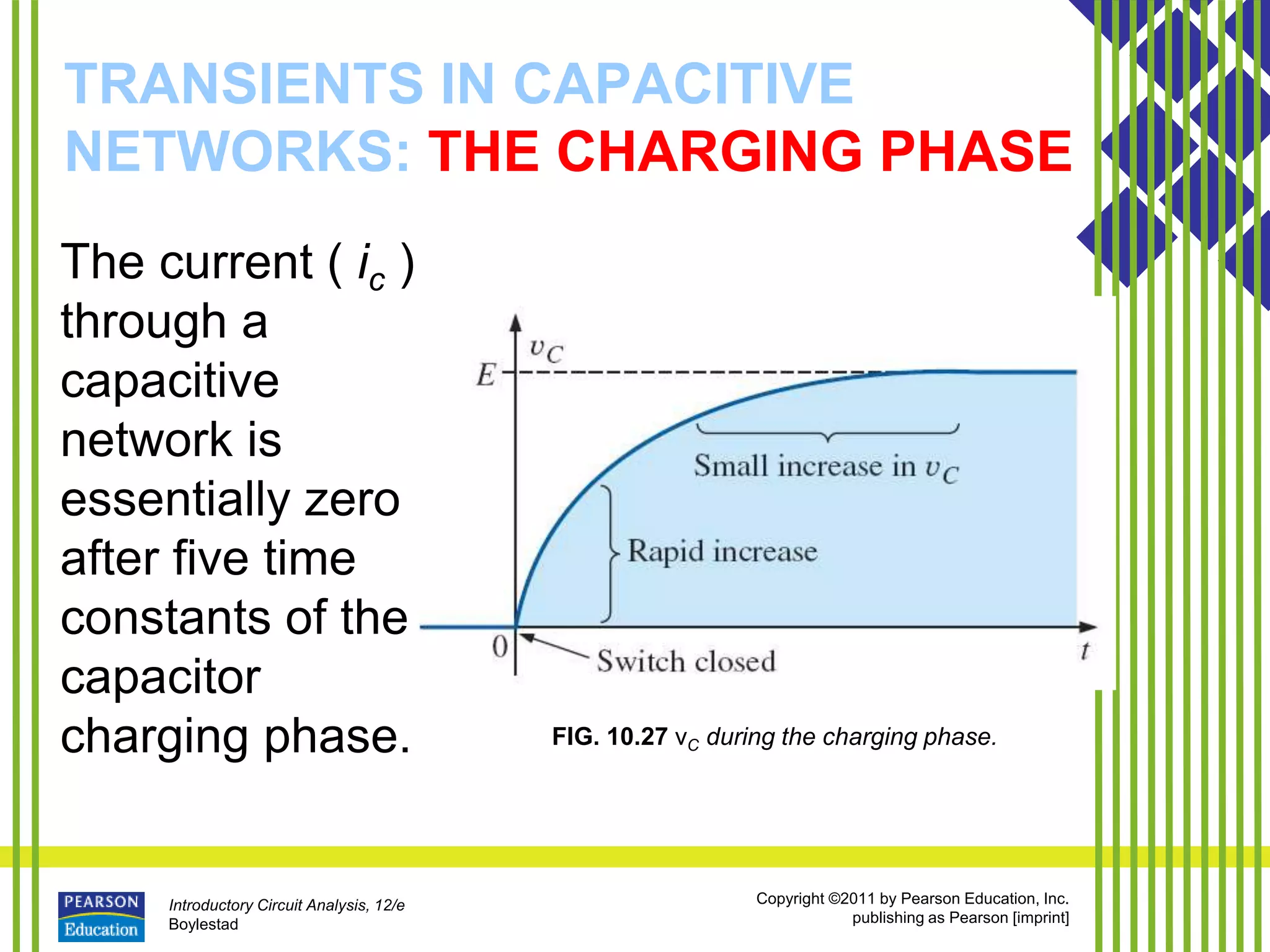

FIG. 10.27 vC during the charging phase.
The current ( ic )
through a
capacitive
network is
essentially zero
after five time
constants of the
capacitor
charging phase.

Boylestad

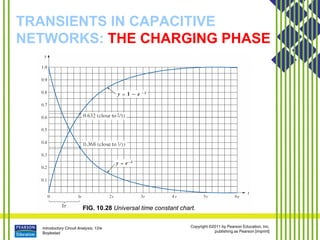

FIG. 10.28 Universal time constant chart.

Boylestad

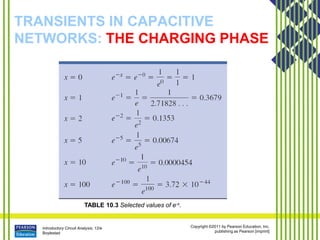

TABLE 10.3 Selected values of e-x.

Boylestad

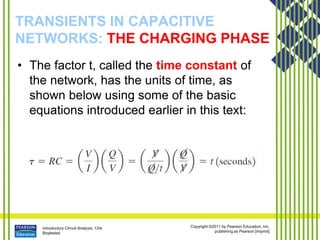

• The factor t, called the time constant of
the network, has the units of time, as
shown below using some of the basic
equations introduced earlier in this text:

Boylestad

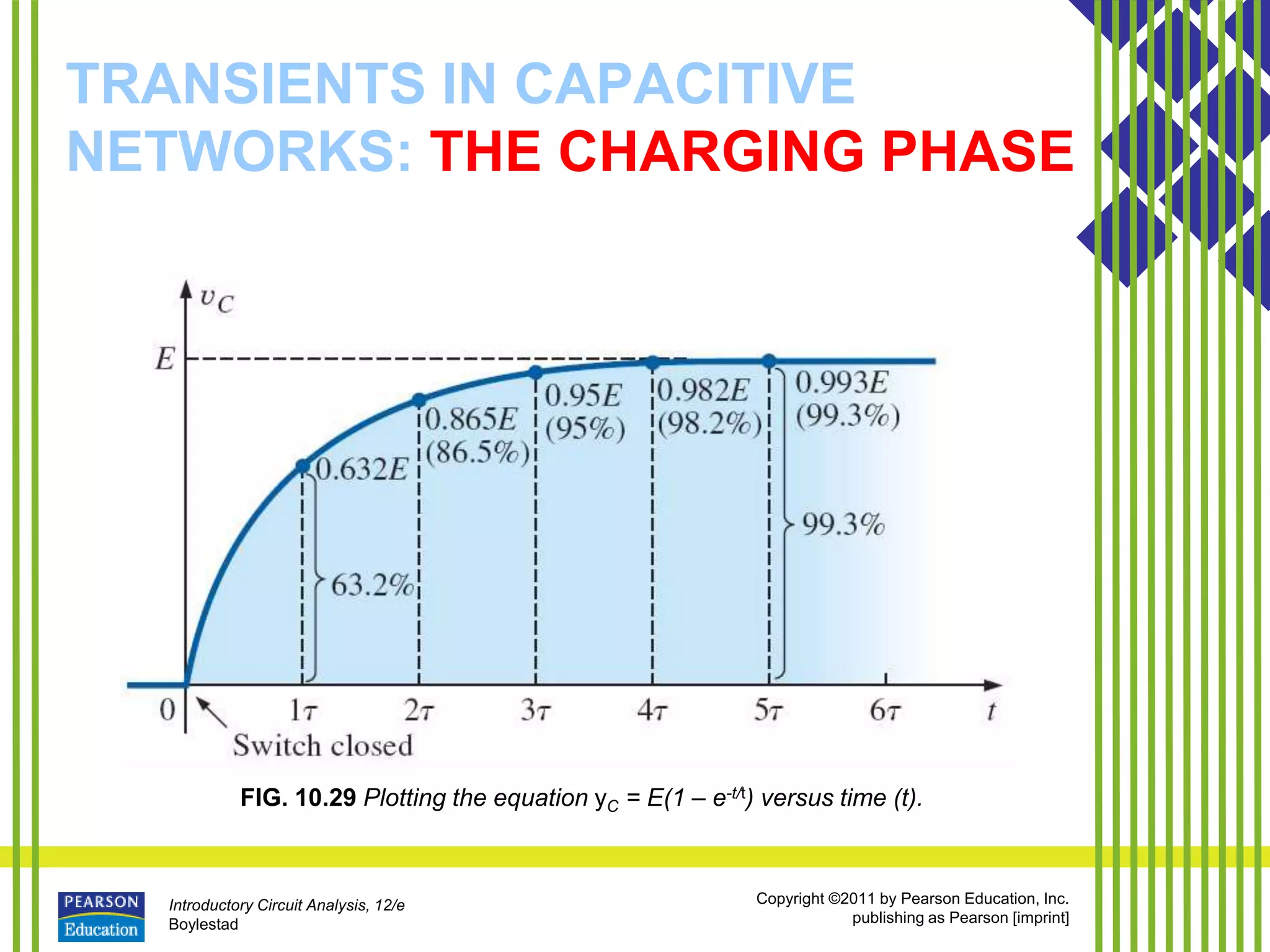

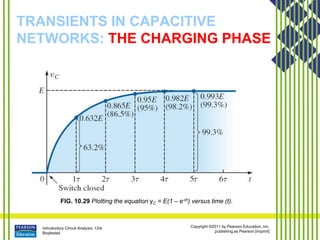

FIG. 10.29 Plotting the equation yC = E(1 – e-t/t) versus time (t).

Boylestad

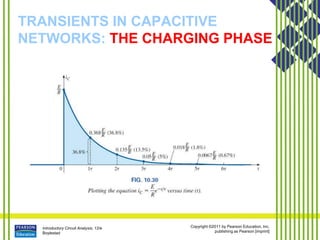

Boylestad

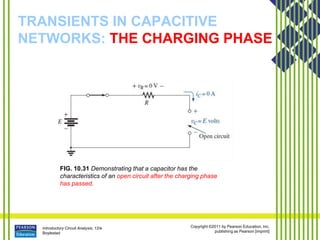

FIG. 10.31 Demonstrating that a capacitor has the
characteristics of an open circuit after the charging phase
has passed.

Boylestad

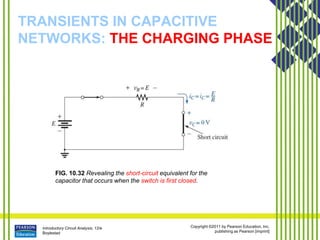

FIG. 10.32 Revealing the short-circuit equivalent for the
capacitor that occurs when the switch is first closed.

Boylestad

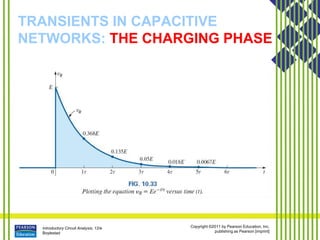

TRANSIENTS IN CAPACITIVE NETWORKS: THE
CHARGING PHASE
Using the Calculator to Solve Exponential Functions

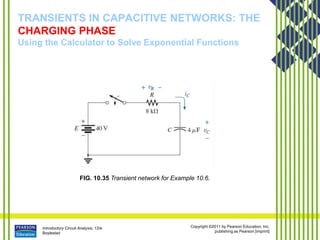

FIG. 10.35 Transient network for Example 10.6.

Boylestad
CHARGING PHASE

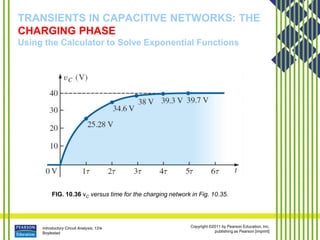

FIG. 10.36 vC versus time for the charging network in Fig. 10.35.

Boylestad
CHARGING PHASE

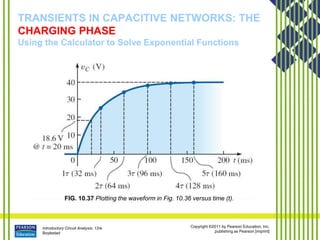

FIG. 10.37 Plotting the waveform in Fig. 10.36 versus time (t).

Boylestad
CHARGING PHASE

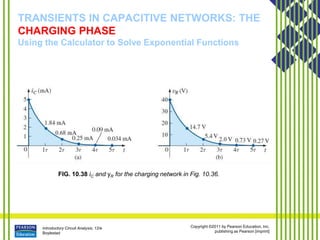

FIG. 10.38 iC and yR for the charging network in Fig. 10.36.

Boylestad
TRANSIENTS IN CAPACITIVE NETWORKS:
THE DISCHARGING PHASE
• How to discharge a capacitor and how long
the discharge time will be.
• You can, of course, place a lead directly
across a capacitor to discharge it very
quickly—and possibly cause a visible
spark.
• For larger capacitors such those in TV
sets, this procedure should not be
attempted because of the high voltages
involved.

Boylestad
NETWORKS: THE DISCHARGING PHASE

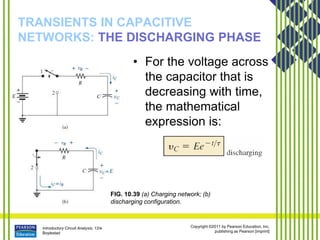

FIG. 10.39 (a) Charging network; (b)
discharging configuration.
• For the voltage across
the capacitor that is
decreasing with time,
the mathematical
expression is:

Boylestad

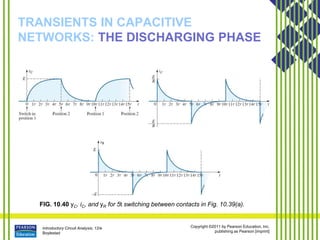

FIG. 10.40 yC, iC, and yR for 5t switching between contacts in Fig. 10.39(a).

Boylestad

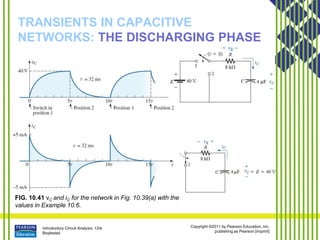

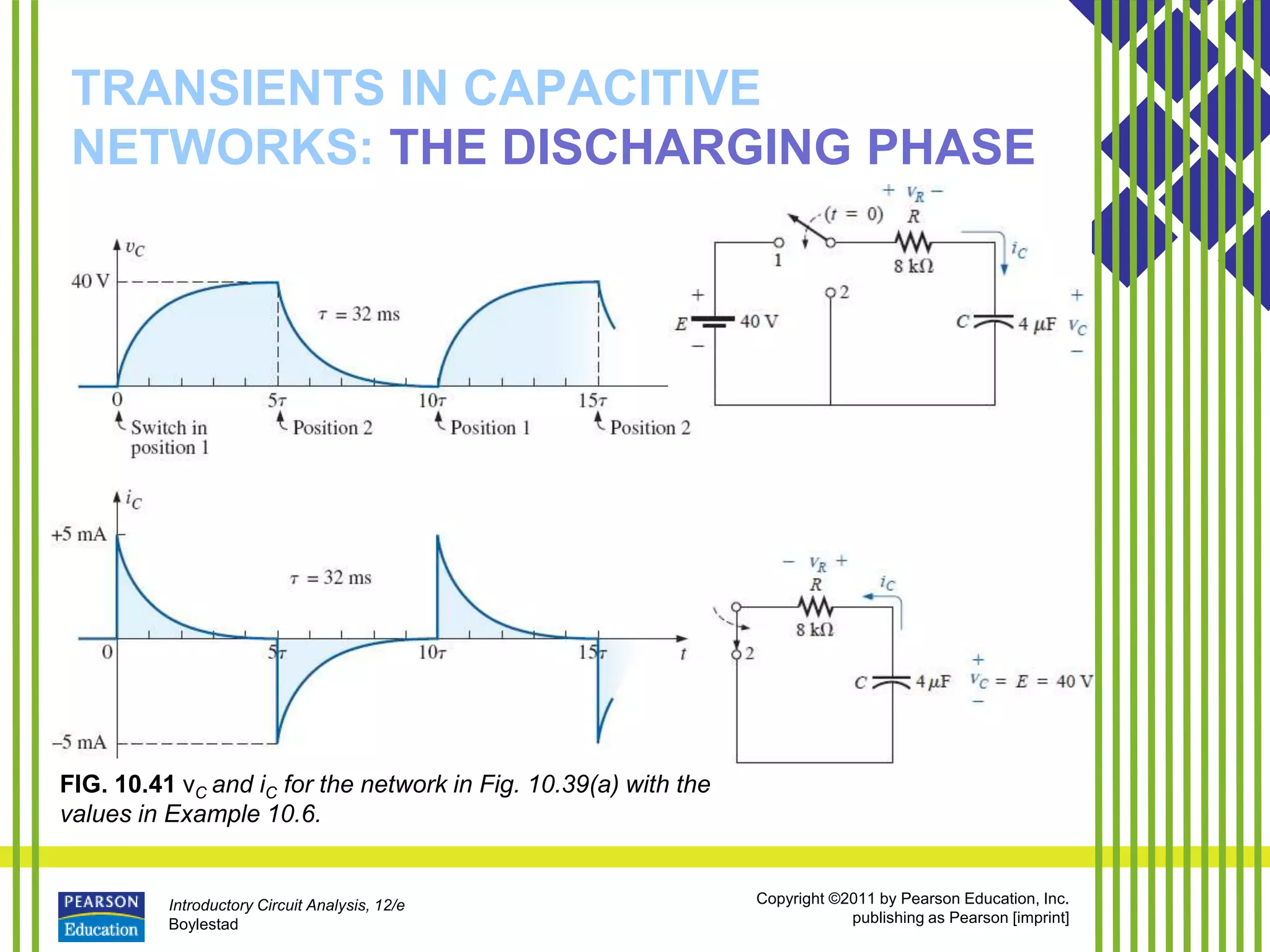

FIG. 10.41 vC and iC for the network in Fig. 10.39(a) with the
values in Example 10.6.

Boylestad
The Effect of on the Response

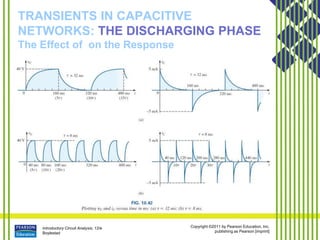

Boylestad

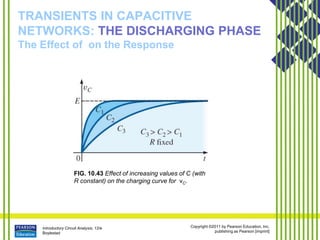

FIG. 10.43 Effect of increasing values of C (with
R constant) on the charging curve for vC.

Boylestad

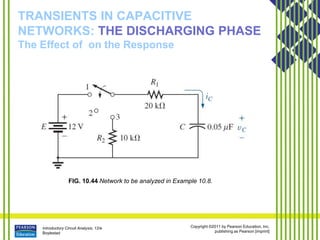

FIG. 10.44 Network to be analyzed in Example 10.8.

Boylestad

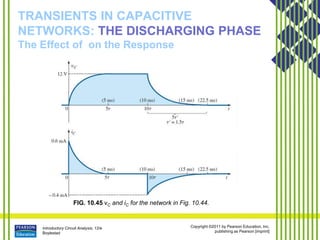

FIG. 10.45 vC and iC for the network in Fig. 10.44.

Boylestad

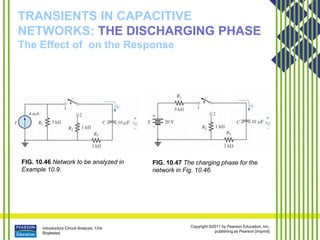

FIG. 10.46 Network to be analyzed in
Example 10.9.
FIG. 10.47 The charging phase for the
network in Fig. 10.46.

Boylestad

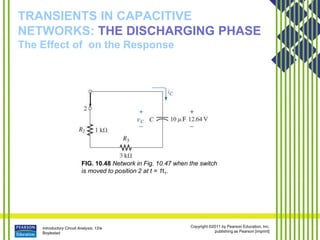

FIG. 10.48 Network in Fig. 10.47 when the switch
is moved to position 2 at t = 1t1.

Boylestad

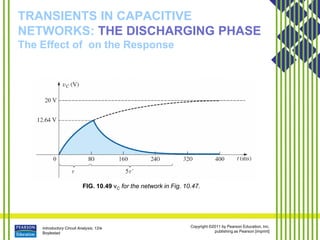

FIG. 10.49 vC for the network in Fig. 10.47.

Boylestad

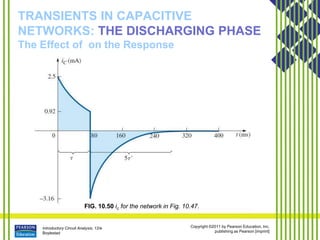

FIG. 10.50 ic for the network in Fig. 10.47.

Boylestad
INITIAL CONDITIONS
• The voltage across the capacitor at this
instant is called the initial value, as shown
for the general waveform in Fig. 10.51.

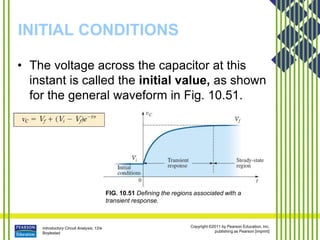

FIG. 10.51 Defining the regions associated with a
transient response.

Boylestad

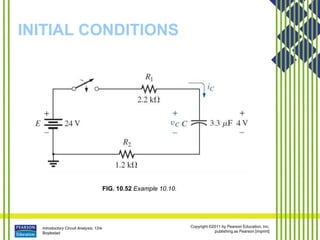

INITIAL CONDITIONS

Boylestad
INITIAL CONDITIONS

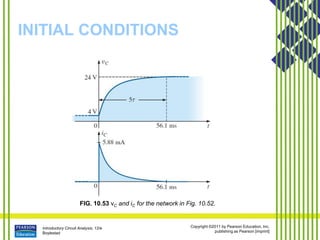

FIG. 10.53 vC and iC for the network in Fig. 10.52.

Boylestad
INITIAL CONDITIONS

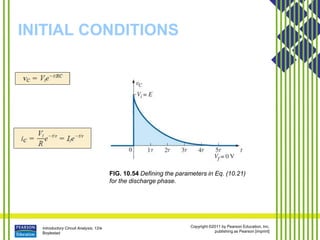

FIG. 10.54 Defining the parameters in Eq. (10.21)
for the discharge phase.

Boylestad

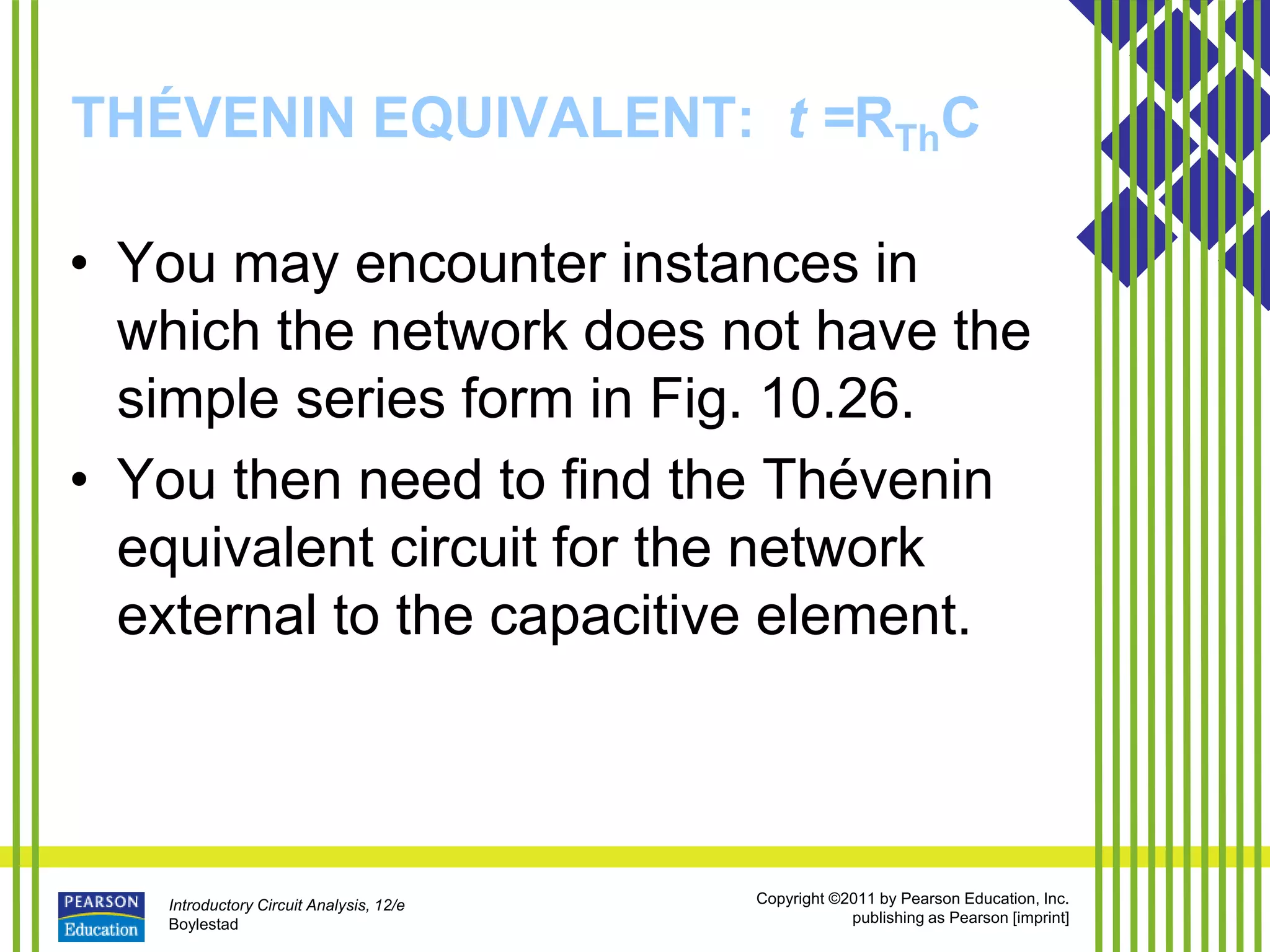

THÉVENIN EQUIVALENT: t =RThC
• You may encounter instances in
which the network does not have the
simple series form in Fig. 10.26.
• You then need to find the Thévenin
equivalent circuit for the network
external to the capacitive element.

Boylestad

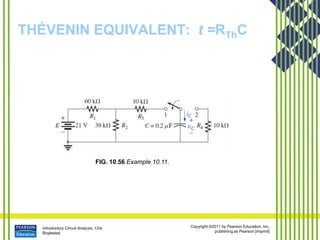

Boylestad

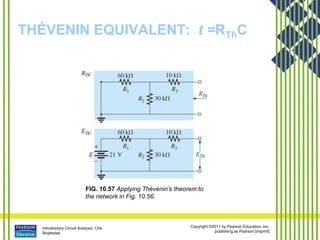

FIG. 10.57 Applying Thévenin’s theorem to
the network in Fig. 10.56.

Boylestad

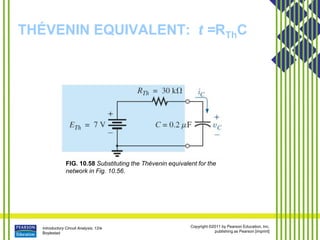

FIG. 10.58 Substituting the Thévenin equivalent for the

Boylestad

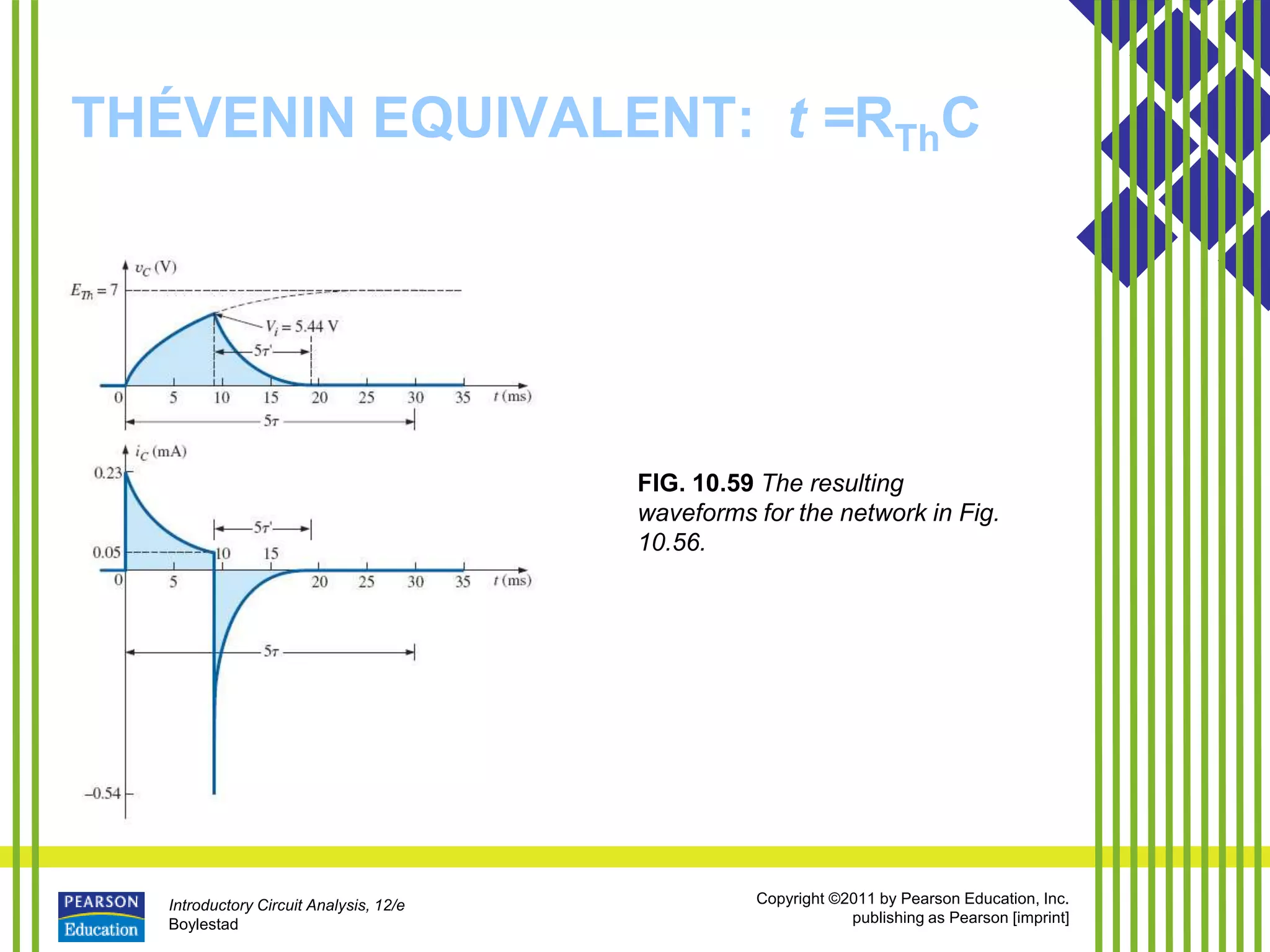

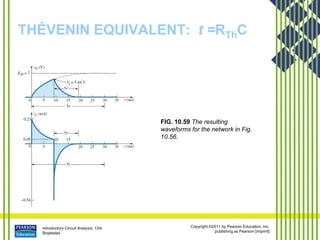

FIG. 10.59 The resulting
waveforms for the network in Fig.
10.56.

Boylestad

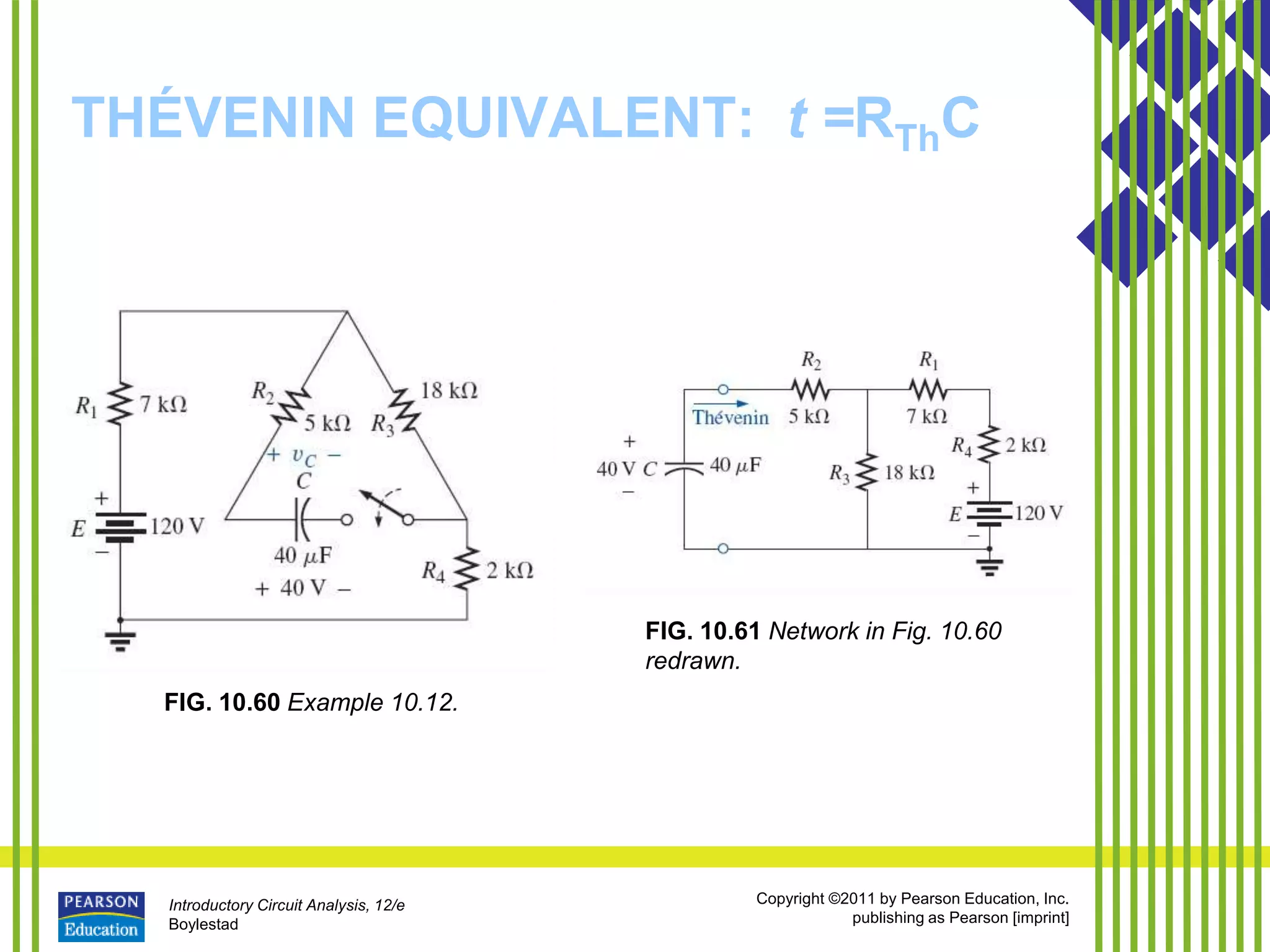

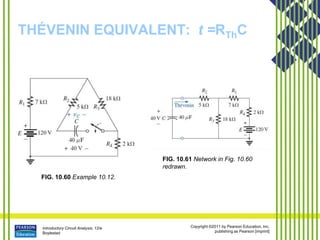

FIG. 10.61 Network in Fig. 10.60
redrawn.

Boylestad

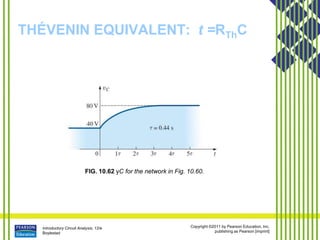

FIG. 10.62 yC for the network in Fig. 10.60.

Boylestad

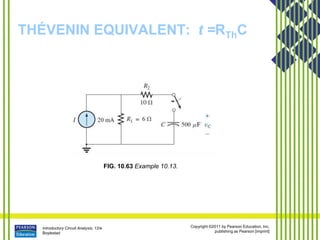

Boylestad

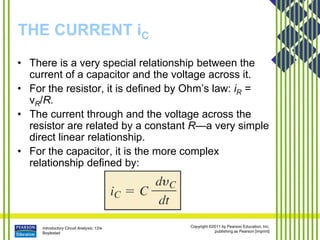

THE CURRENT iC
• There is a very special relationship between the
current of a capacitor and the voltage across it.
• For the resistor, it is defined by Ohm’s law: iR =
vR/R.
• The current through and the voltage across the
resistor are related by a constant R—a very simple
direct linear relationship.
• For the capacitor, it is the more complex
relationship defined by:

Boylestad
THE CURRENT iC

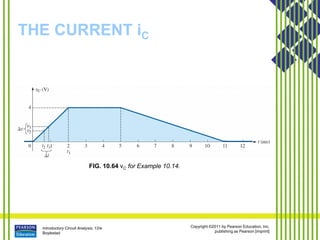

FIG. 10.64 vC for Example 10.14.

Boylestad
THE CURRENT iC

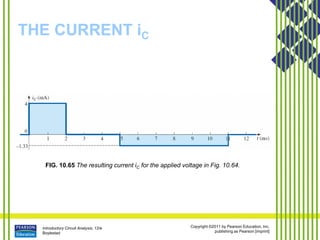

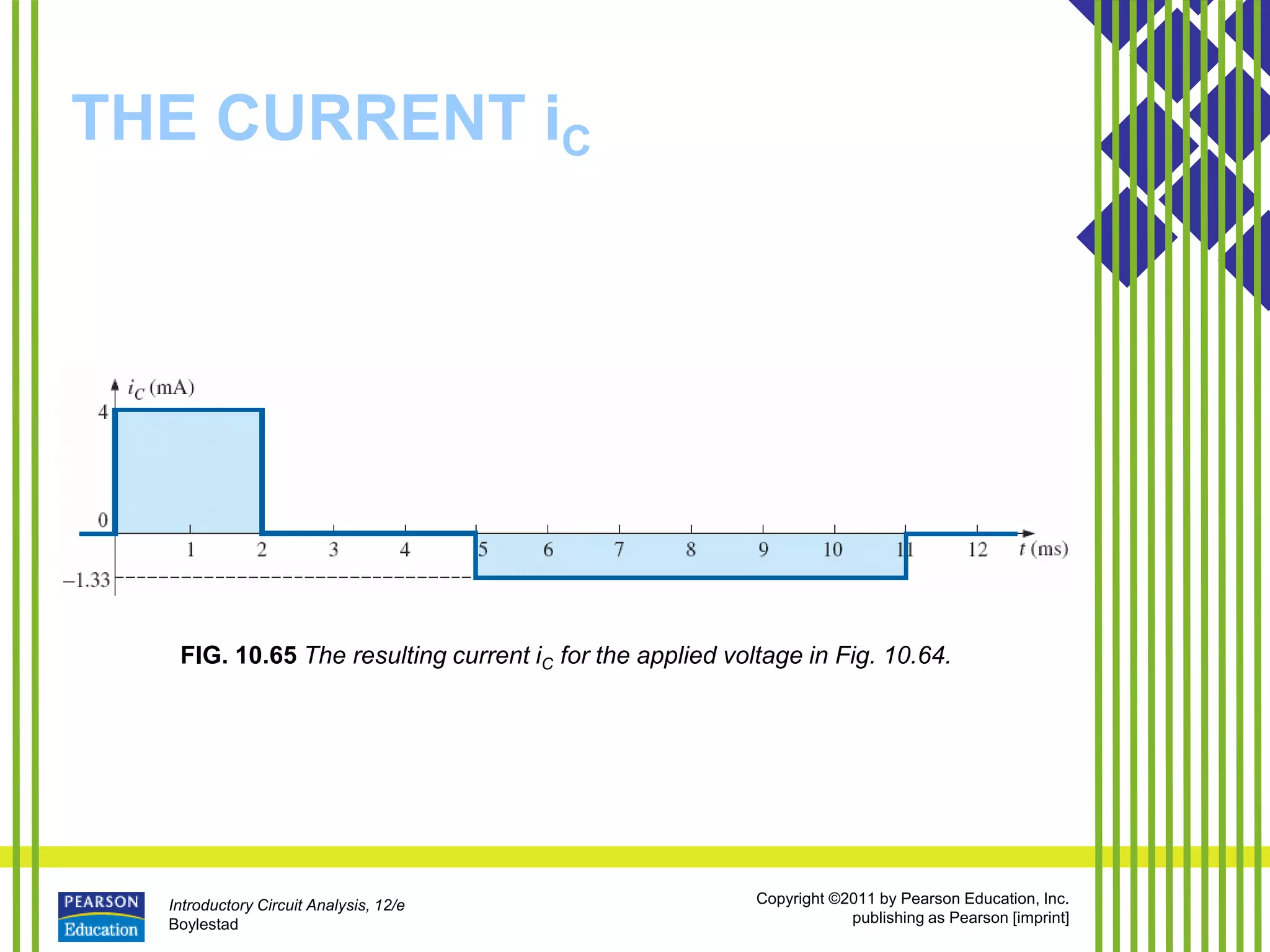

FIG. 10.65 The resulting current iC for the applied voltage in Fig. 10.64.

Boylestad

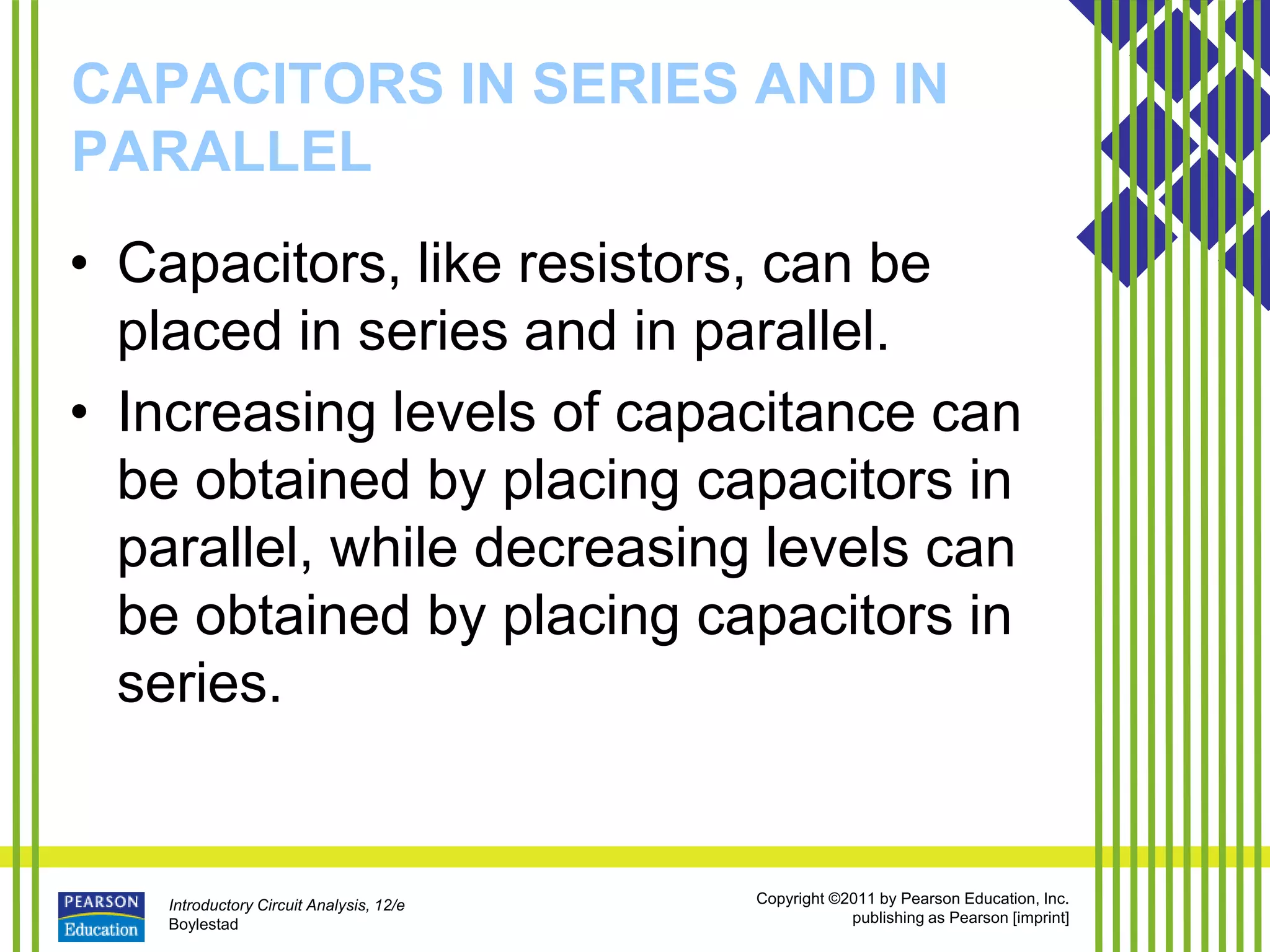

CAPACITORS IN SERIES AND IN
PARALLEL
• Capacitors, like resistors, can be
placed in series and in parallel.
• Increasing levels of capacitance can
be obtained by placing capacitors in
parallel, while decreasing levels can
be obtained by placing capacitors in
series.

Boylestad
PARALLEL

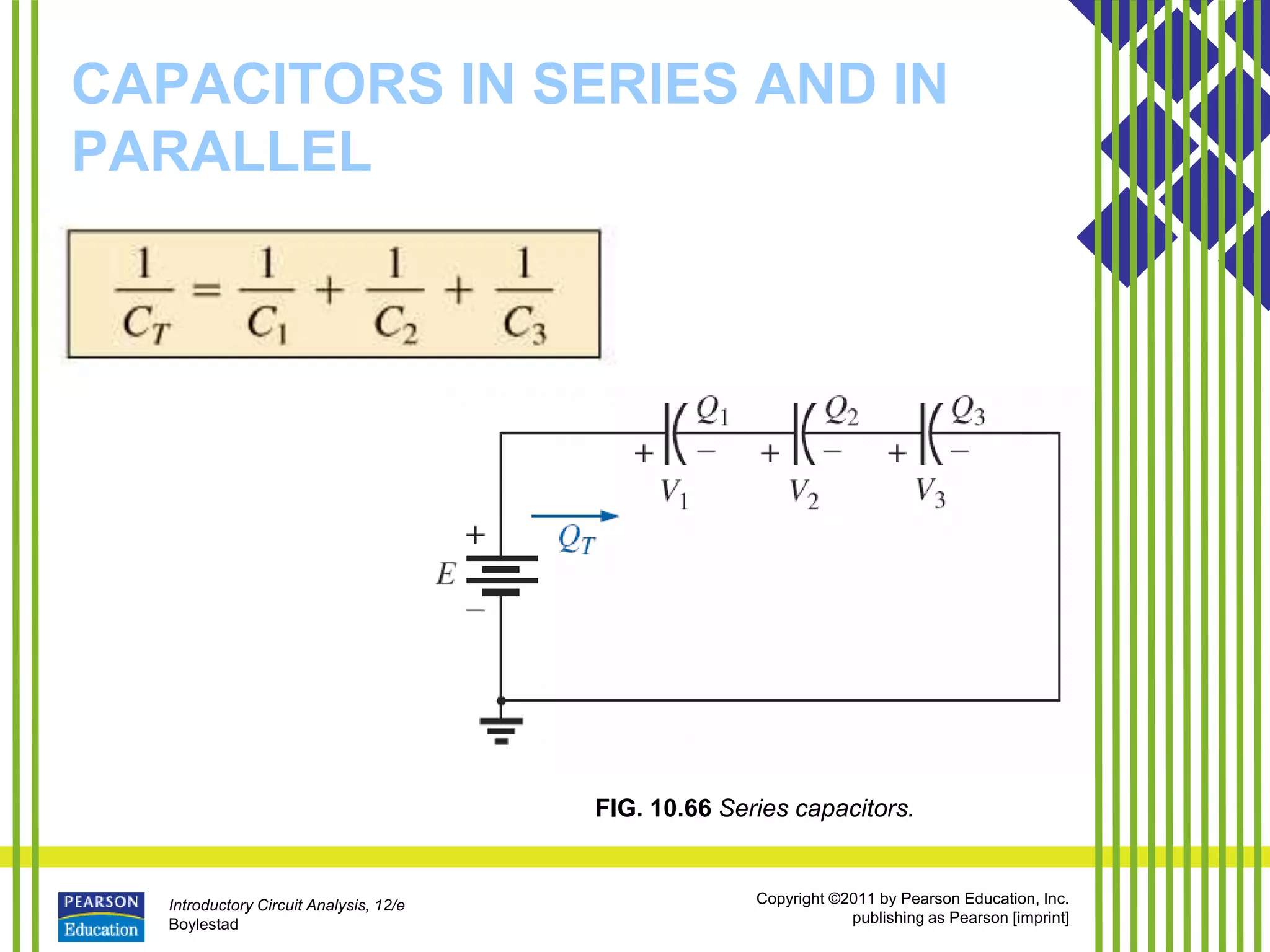

FIG. 10.66 Series capacitors.

Boylestad
PARALLEL
FIG. 10.67 Parallel capacitors.

Boylestad
PARALLEL

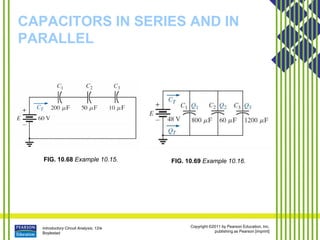

FIG. 10.68 Example 10.15. FIG. 10.69 Example 10.16.

Boylestad
PARALLEL

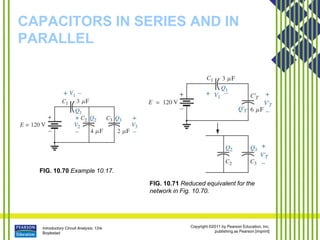

FIG. 10.71 Reduced equivalent for the

Boylestad
PARALLEL

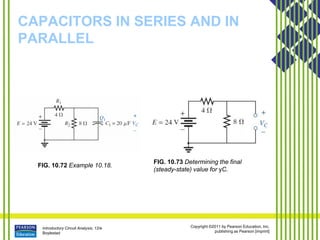

FIG. 10.73 Determining the final
(steady-state) value for yC.

Boylestad
PARALLEL

Boylestad

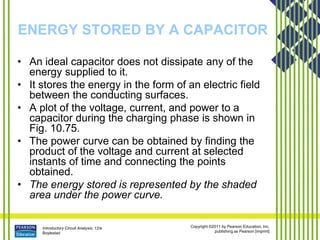

ENERGY STORED BY A CAPACITOR
• An ideal capacitor does not dissipate any of the
energy supplied to it.
• It stores the energy in the form of an electric field
between the conducting surfaces.
• A plot of the voltage, current, and power to a
capacitor during the charging phase is shown in
Fig. 10.75.
• The power curve can be obtained by finding the
product of the voltage and current at selected
instants of time and connecting the points
obtained.
• The energy stored is represented by the shaded
area under the power curve.

Boylestad
ENERGY STORED BY A CAPACITOR

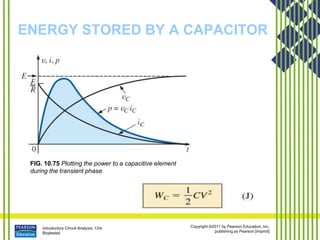

FIG. 10.75 Plotting the power to a capacitive element
during the transient phase.

Boylestad
APPLICATIONS
Touch Pad

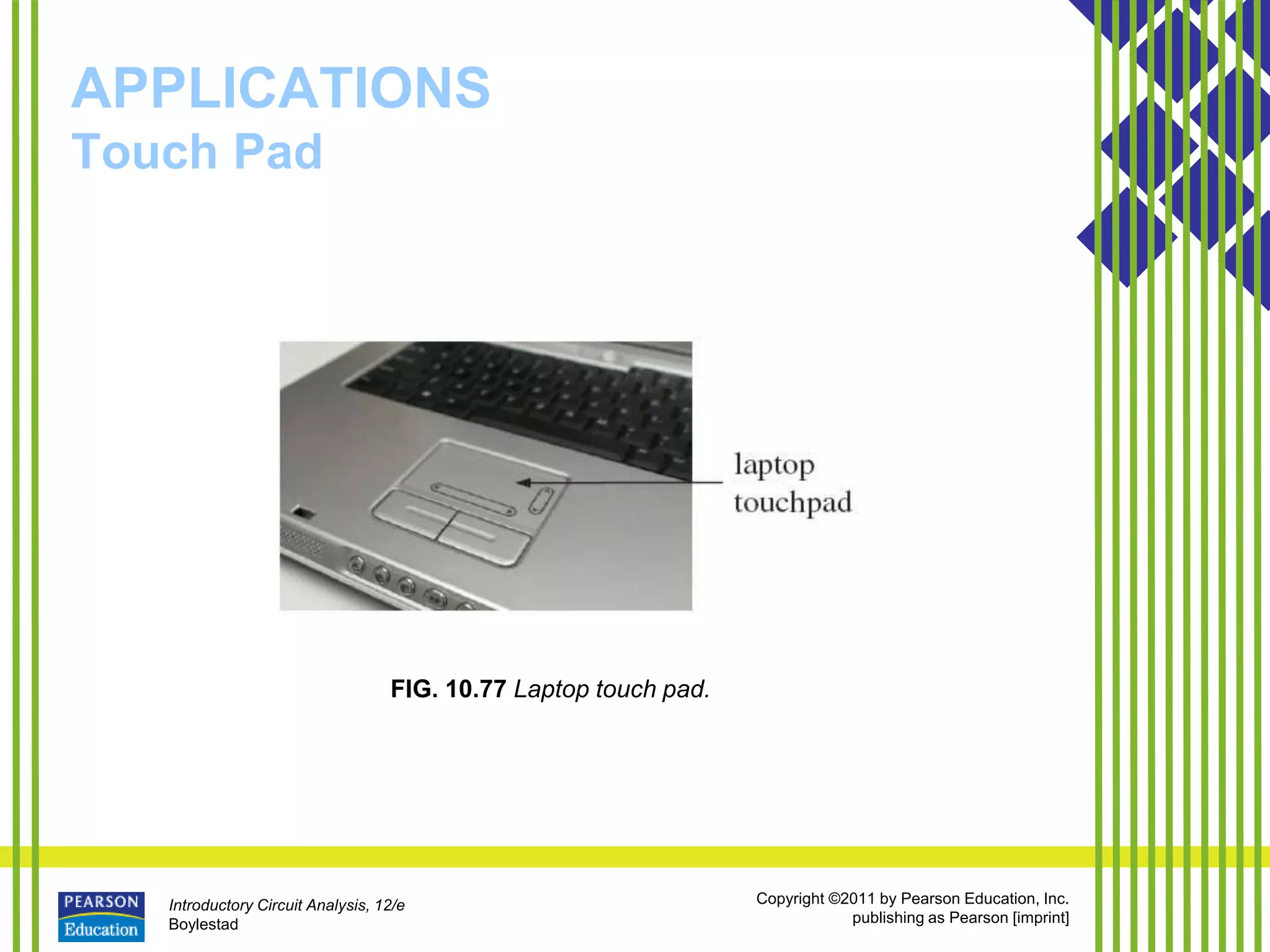

FIG. 10.77 Laptop touch pad.

Boylestad
APPLICATIONS
Touch Pad

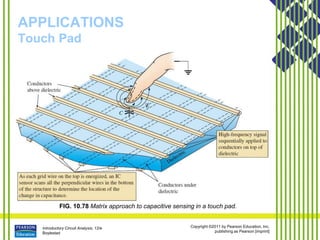

FIG. 10.78 Matrix approach to capacitive sensing in a touch pad.

Boylestad
APPLICATIONS
Flash Lamp

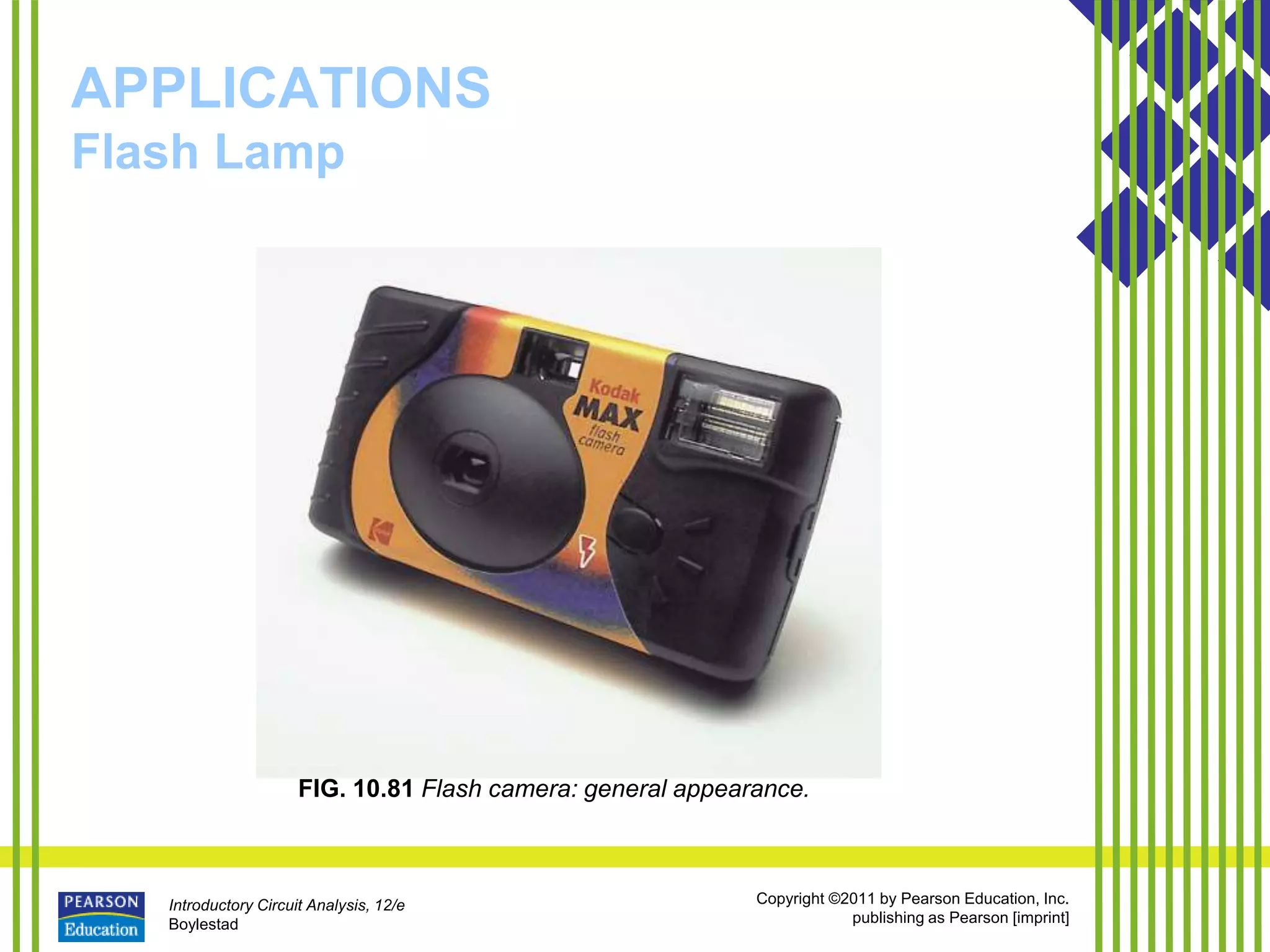

FIG. 10.81 Flash camera: general appearance.

Boylestad
APPLICATIONS
Flash Lamp

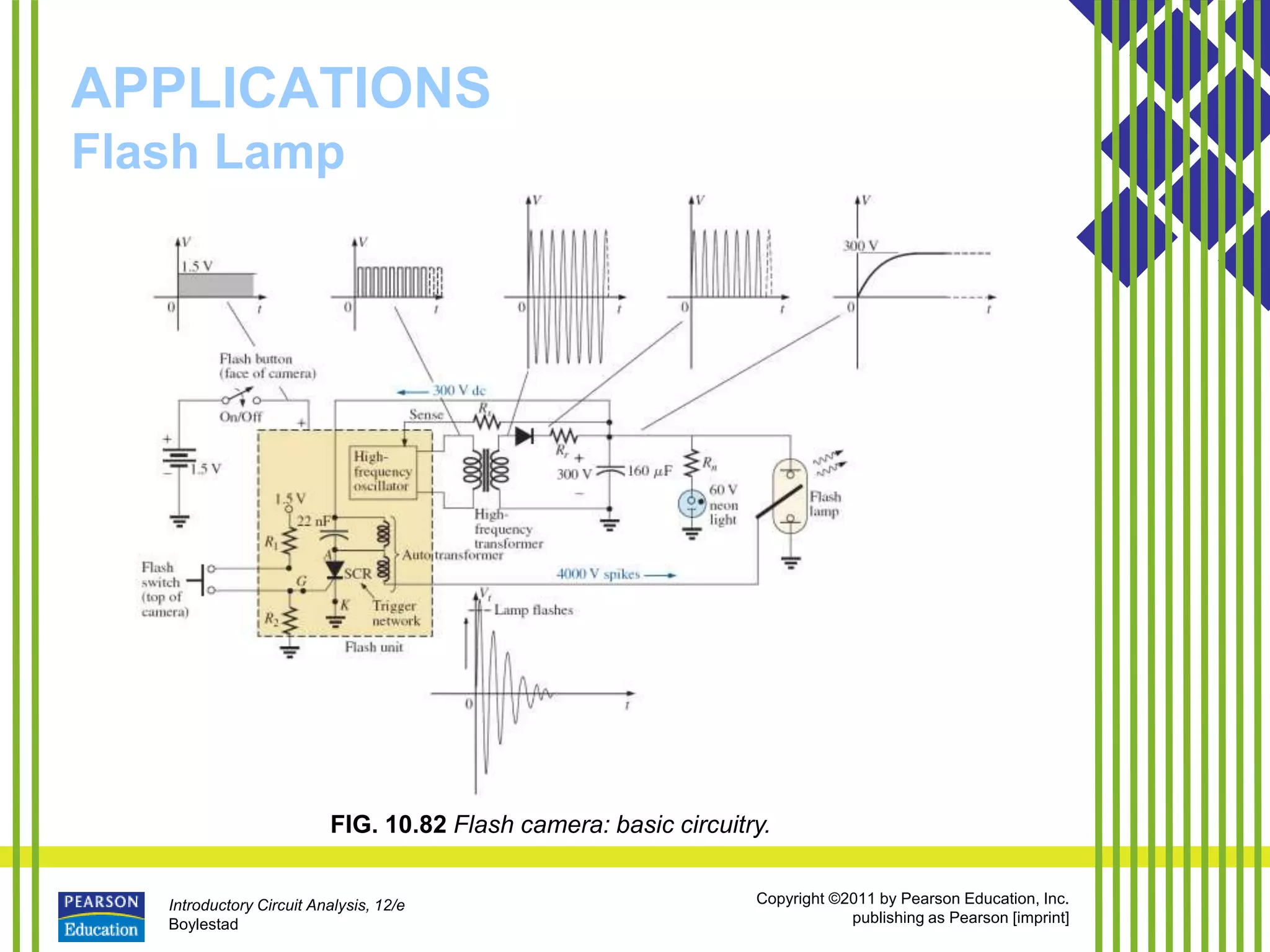

FIG. 10.82 Flash camera: basic circuitry.

Boylestad
APPLICATIONS
Flash Lamp

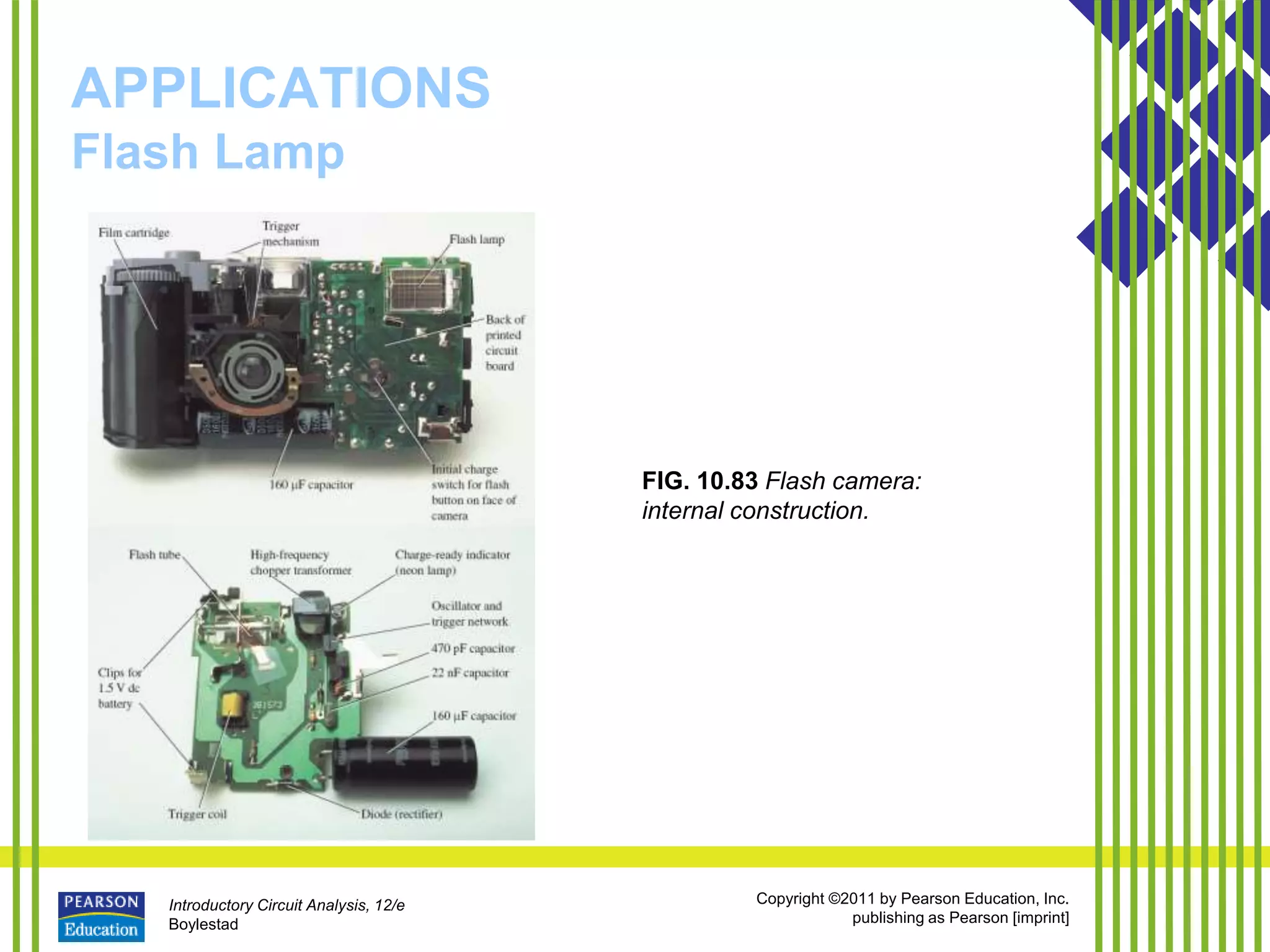

FIG. 10.83 Flash camera:
internal construction.
