This document summarizes a webinar about the Camunda BPM 7.2 release. It discusses key features of the new release like performance improvements, an enhanced tasklist user interface, improved support for connectors, data formats, scripting and templates, and integration with the CMMN standard for case management. Examples and live demos were provided to illustrate how these features can be used. The webinar encouraged attendees to try out the open source version and also mentioned options for the enterprise edition and support services.

1. Camunda BPM 7.2
Release Webinar

2. Your hosts for today
Daniel Meyer
Technical Lead
Jakob Freund
CEO

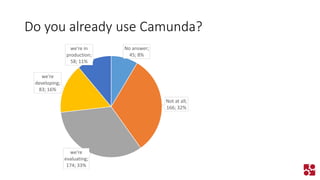

3. Do you already use Camunda?
No answer; 45; 8%
Not at all; 166; 32%
we're evaluating; 174; 33%
we're developing; 83; 16%
we're in production; 58; 11%

4. Why do you use Camunda?
Reasons:
•Executes BPMN 2.0
•Best option for Java
•is Open Source
Advantages:
•Stanardized technologies and Skills
•More flexible
•Easier, quicker development
•cost-effective
Also trusted by:

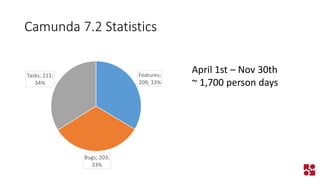

5. Camunda 7.2 Statistics
April 1st –Nov 30th
~ 1,700 person days
Features; 209; 33%
Bugs; 203; 33%
Tasks; 211; 34%

6. Camunda BPM 7.2
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN

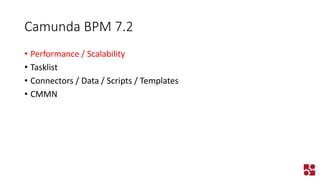

7. Camunda BPM 7.2
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN

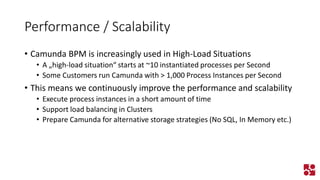

8. Performance / Scalability
•Camunda BPM is increasingly used in High-Load Situations
•A „high-load situation“ starts at ~10 instantiated processes per Second
•Some Customers run Camunda with > 1,000 Process Instances per Second
•This means we continuously improve the performance and scalability
•Execute process instances in a short amount of time
•Support load balancing in Clusters
•Prepare Camunda for alternative storage strategies (No SQL, In Memory etc.)

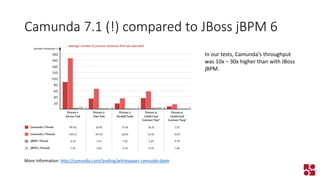

9. Camunda 7.1 (!) compared to JBoss jBPM 6
More Information: http://camunda.com/landing/whitepaper-camunda-jbpm
In our tests, Camunda‘s throughput was 10x –30x higher than with JBoss jBPM.

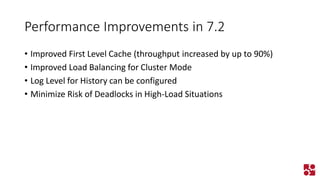

10. Performance Improvements in 7.2
•Improved First Level Cache (throughput increased by up to 90%)
•Improved Load Balancing for Cluster Mode
•Log Level for History can be configured
•Minimize Risk of Deadlocks in High-Load Situations

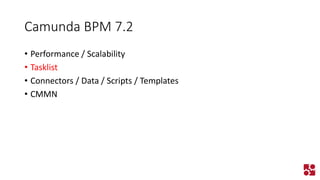

11. Camunda BPM 7.2
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN

12. What isTasklist?

13. Tasklist 7.2
In collaboration with
“The tasklist is the central point of contact for business users with the BPM platform and is therefore an essential component. The innovative implementation of the Camunda tasklist matches the DAB bank's web technology stack perfectly and saves extensive in-house development. The functionality is optimally aligned to the Camunda BPM platform and due to its flexible adaptability also fulfills the needs of a bank.
Karl Brandner, Chief Architect

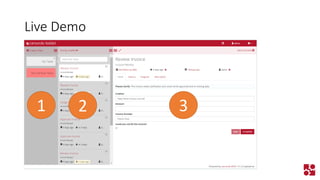

14. Live Demo
1
2
3

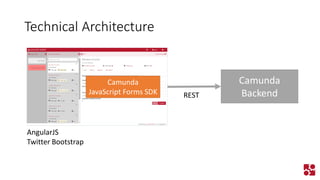

15. Technical Architecture
Camunda
Backend
REST
Camunda
JavaScript Forms SDK
AngularJS
Twitter Bootstrap

16. Your own Setup?
Camunda
Backend
REST
Camunda
JavaScript Forms SDK
Your very own HTML 5 User Interface

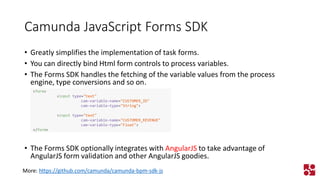

17. Camunda JavaScript Forms SDK
•Greatly simplifies the implementation of task forms.
•You can directly bind Html form controls to process variables.
•The Forms SDK handles the fetching of the variable values from the process engine, type conversions and so on.
•The Forms SDK optionally integrates with AngularJSto take advantage of AngularJS form validation and other AngularJS goodies.
More: https://github.com/camunda/camunda-bpm-sdk-js
<form>
<inputtype="text"
cam-variable-name="CUSTOMER_ID"
cam-variable-type="String">
<inputtype="text"
cam-variable-name="CUSTOMER_REVENUE"
cam-variable-type="Float">
</form>

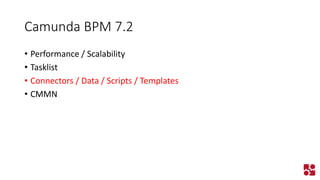

18. Camunda BPM 7.2
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN

19. The paradigm
Developer-Friendly
System Integration
Death by Property Panel
vs.
Camunda
Zero-Code BPM Suites

20. Java Objekte in XML or JSON serialisieren
Camunda BPM
Database
Customer, Address
XML or JSON
Advantages:
•Anyone can directly inspect Java objects in the database and Cockpit
•It is easier to set up polyglot architectures (e.g. Java + Javascript)

21. Live Demo
Yay!

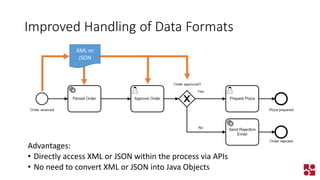

22. Improved Handling of Data Formats
XML or JSON
Advantages:
•Directly access XML or JSON within the process via APIs
•No need to convert XML or JSON into Java Objects

23. Why Scripts and Templates are awesome
•No Java Code / Classes needed
•(Re-)deployment during runtime
•Can be versioned as part of the process definition
•Can be embedded inside the BPMN as well as referenced and maintained in standalone files
•Great performance thanks to compile & cache

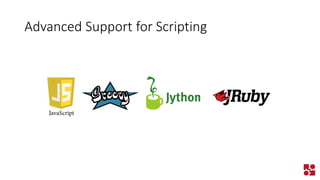

24. Advanced Support for Scripting

25. Advanced Support for Templates
Camunda
Enterprise Edition

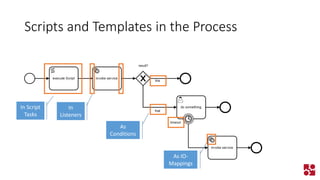

26. Scripts and Templates in the Process
In Script Tasks
In Listeners
As Conditions
As IO- Mappings

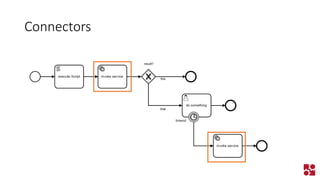

27. Connectors

28. Connectors
•Simple API for implementing Connectors as reusable Components
•Included with Camunda 7.2: SOAP and REST (both based on Apache HTTP Client)
•Fundamentally different approach than Zero-Code Suites:
•Developer become more productive –it‘s not about „empowering Business Analysts“
•However not every developer speaks Java
•Primary Target Group: IT divisions that want to provide a workflow infrastructure for their organization (other IT teams)
•Focus on API instead of Properties
•Connectors can be used in different components, e.g. Java Delegates

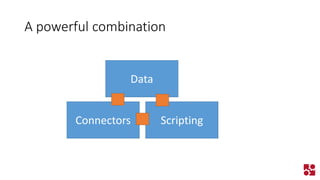

29. A powerful combination
Connectors
Data
Scripting

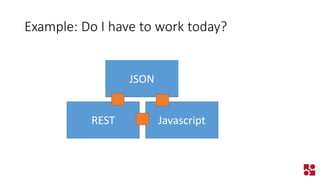

30. Example: Do I have to work today?
REST
JSON
Javascript

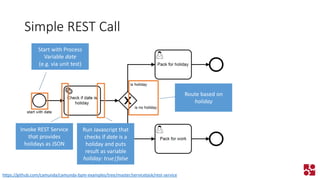

31. Simple REST Call
Start with Process Variable date
(e.g. via unit test)
Invoke REST Service that provides holidays as JSON
Run Javascript that checks if dateis a holiday and puts result as variable holiday: true|false
Route based on holiday
https://github.com/camunda/camunda-bpm-examples/tree/master/servicetask/rest-service

32. Live Demo
Yay!

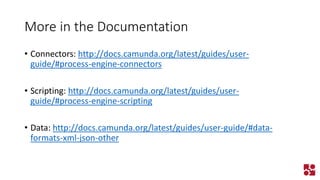

33. More in the Documentation
•Connectors: http://docs.camunda.org/latest/guides/user- guide/#process-engine-connectors
•Scripting: http://docs.camunda.org/latest/guides/user- guide/#process-engine-scripting
•Data: http://docs.camunda.org/latest/guides/user-guide/#data- formats-xml-json-other

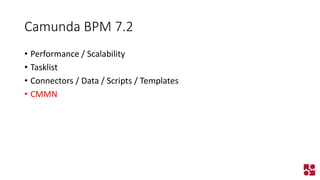

34. Camunda BPM 7.2
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN

35. CMMN 1.0
•Published by OMG in May 2014 as the BPMN-equivalent for „Cases“
•Targets „Activities that are not so predefined and repeatable, but instead depend on evolving circumstances and ad hoc decisions by knowledge workers regarding a particular situation, a case (see Davenport 1994 and 2005; and Van der Aalst 2005)”
•Typical Use Cases:
•applicationandclaimprocessingininsurance
•patientcareandmedicaldiagnosisinhealthcare
•problemresolutionincallcenters
•invoicediscrepancyhandling
More: http://www.omg.org/spec/CMMN/1.0/

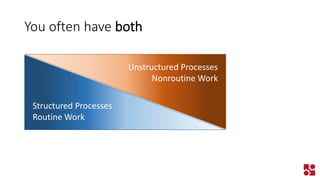

36. You often have both
Unstructured Processes
Nonroutine Work
Structured Processes
Routine Work

37. Camunda integrates BPMN with CMMN

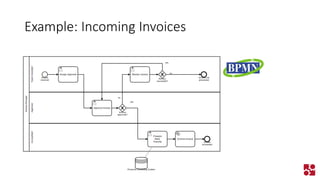

38. Example: Incoming Invoices

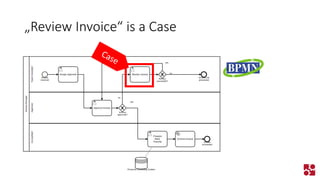

39. „Review Invoice“ is a Case

40. CMMN: A complex example
Source: OMG

41. „Review Invoice“ as a simple Case
CMMN Modeler
by Trisotech

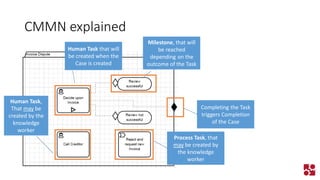

42. CMMN explained
Human Taskthat will be created when the Case is created
Completing the Task triggers Completion of the Case
Milestone, that will be reached depending on the outcome of the Task
Human Task,
That maybe created by the knowledge worker
Process Task, that maybe created by the knowledge worker

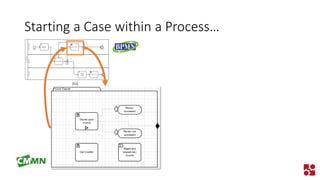

43. Starting a Case within a Process…

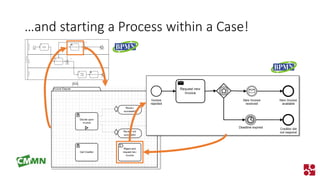

44. …and starting a Process within a Case!

45. Live Demo
Yay!

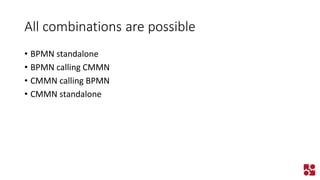

46. All combinations are possible
•BPMN standalone
•BPMN calling CMMN
•CMMN calling BPMN
•CMMN standalone

47. Should Istart with CMMN now?

48. Should Istart with CMMN now?
Yes, cause it‘s safe with Camunda ;-)

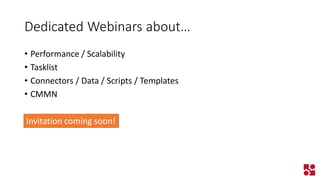

49. Dedicated Webinars about…
•Performance / Scalability
•Tasklist
•Connectors / Data / Scripts / Templates
•CMMN
Invitation coming soon!

50. How can I move ahead?
Open Source Edition
•Download: www.camunda.org
•Docs, Tutorials etc.
•Forum
•Meetings
Enterprise Edition
•Trial: www.camunda.com
•Additional Features
•Support, Patches etc.
•Consulting, Training
Contact: Germany +49 30 664 04 09 00 | US +1.415.800.3908

51. Q&A
