3. camunda: BPMN + Embeddability
BPMN-based Business-IT-Alignment Developer-Friendlyness

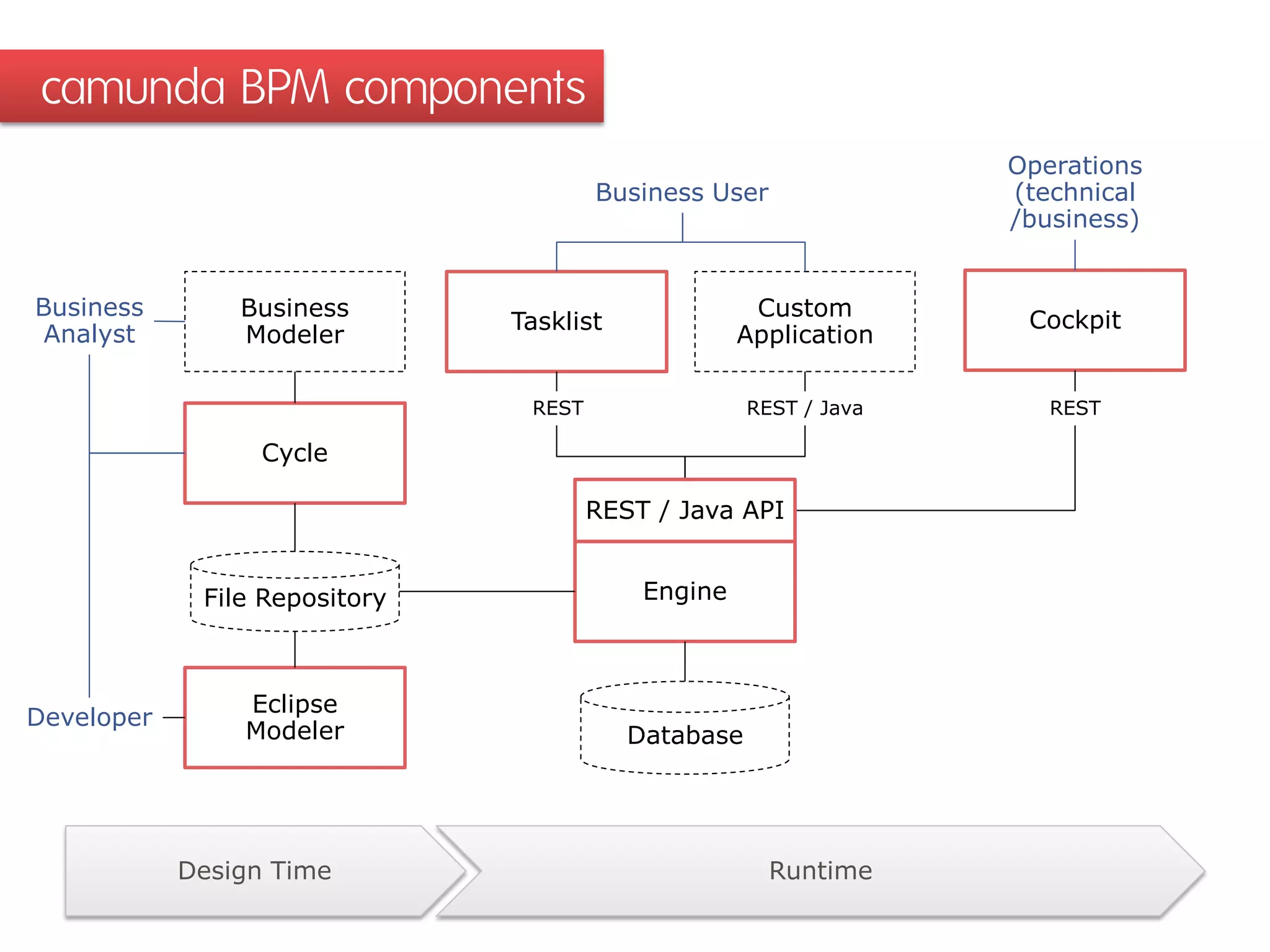

4. camunda BPM components
Engine
Tasklist
Custom
Application
Cockpit
Cycle
Eclipse
Modeler
Business
Modeler
Business User
Operations
(technical
/business)
Business
Analyst
Developer
Database
File Repository
REST / Java API
REST RESTREST / Java
Design Time Runtime

5. About Ancud IT
Aprox. 60 employees
Net-centric, agile IT
OpenSource
Integration
Collaborative
Process-Portals
Founded 2002,
Nuremberg / Germany
Enterprise 2.0

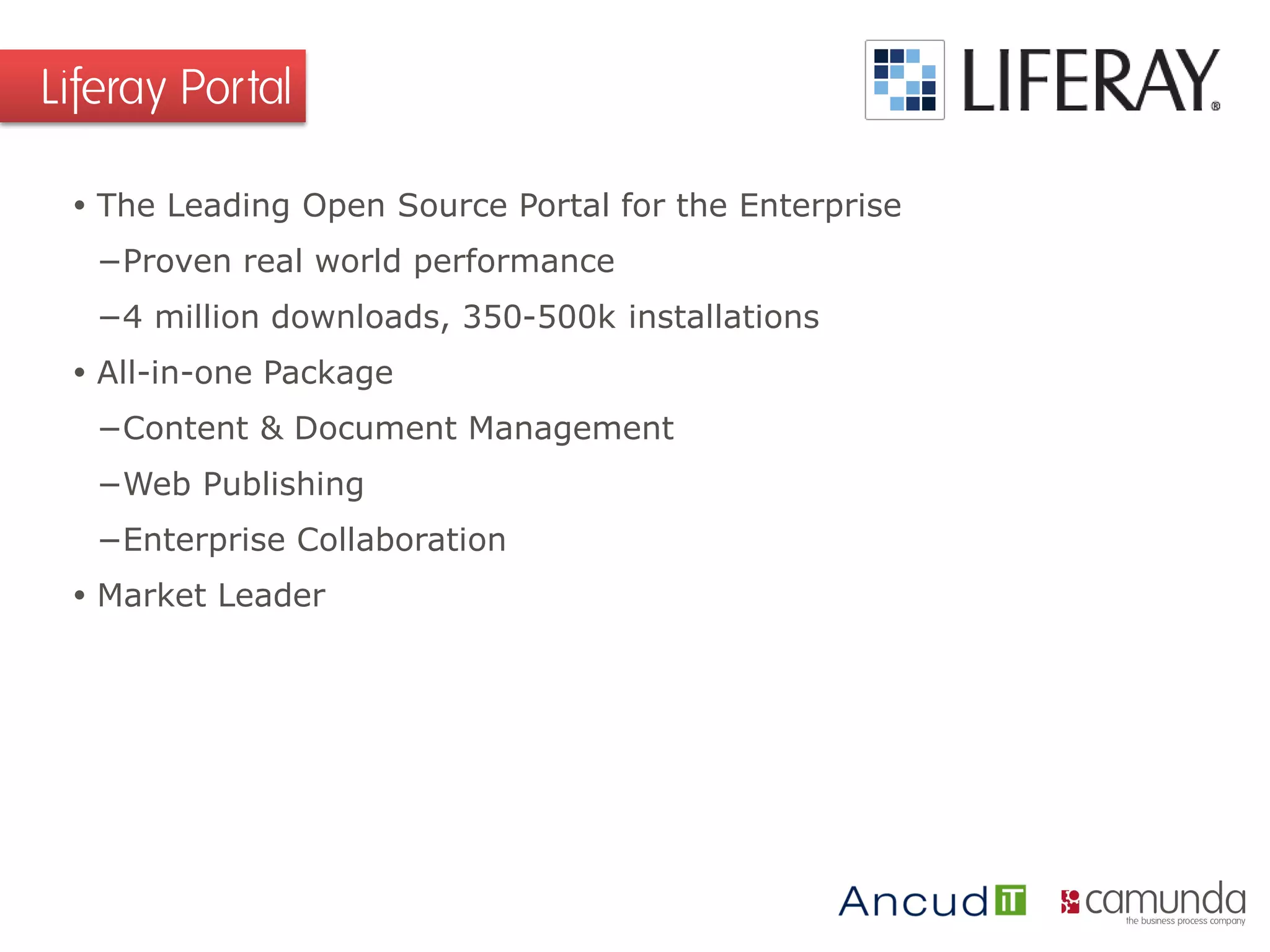

6.  The Leading Open Source Portal for the Enterprise
−Proven real world performance
−4 million downloads, 350-500k installations
 All-in-one Package
−Content & Document Management
−Web Publishing
−Enterprise Collaboration
 Market Leader
Liferay Portal

7.  Liferay Platinum Service Partner
 Liferay Customer Excellence Award 2014
 Selected Customers:
−Olympus
−OBI
−Ehrmann
−Deutsche Bahn
−AUDI AG
Ancud IT is Liferay Partner

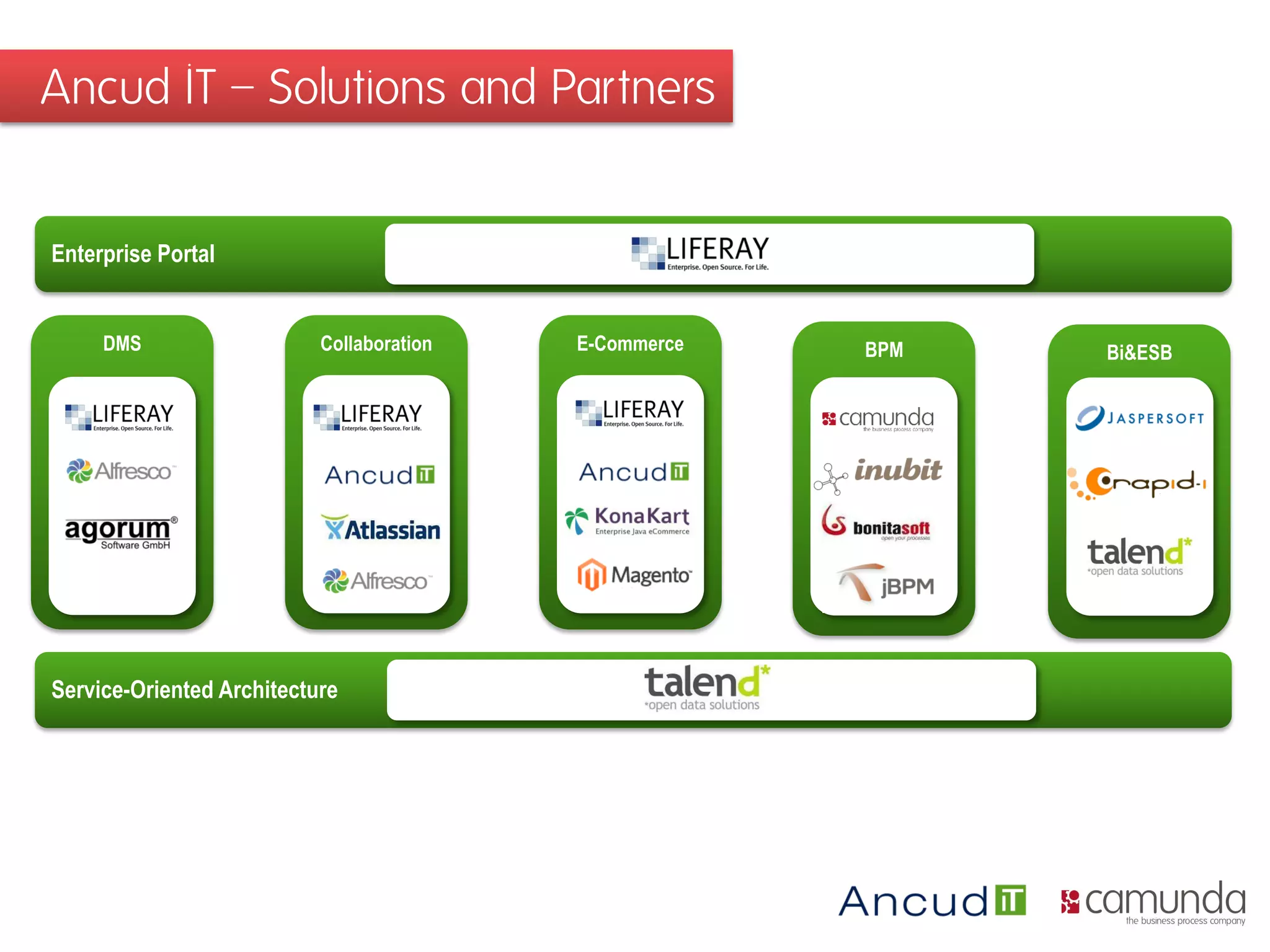

8. Ancud IT – Solutions and Partners
Service-Oriented Architecture
Enterprise Portal
DMS Collaboration Bi&ESBE-Commerce BPM

9. Live
Demo

10.  Portlet Modes
−View (default mode)
−Edit (Reserved for changing the Portlet‘s settings)
−Help (providing information about the portlet)
−etc.
 Request Modes
−Rendering (default mode for viewing the Portlet‘s contents)
−Action (normally used for state changing actions)
−Resource (used for serving resources)
Portlet Rendering

11.  Portlet MVC Architecture
−Configuration is usually done using singleton Beans
−Model is defined as Entities (not used here)
−Controllers are configured using annotations, using beans via CDI
−View is configured by the viewResover, selected by the controller
Spring Model

12. Code
Walkthrough

13.  Build Java services, and deploy within the Portlet
−Pro: still hot deployable Processes using WebForm
−Con: still only deployed services are usable
 Improved error handling
−Think of timeout escalation, tasks already done, but page not
refreshed, etc.
 Use Liferay Users for Camunda
 Assign Processes to Users/Groups
 Substitute Kaleo (the default Liferay Workflow Engine) with Camunda

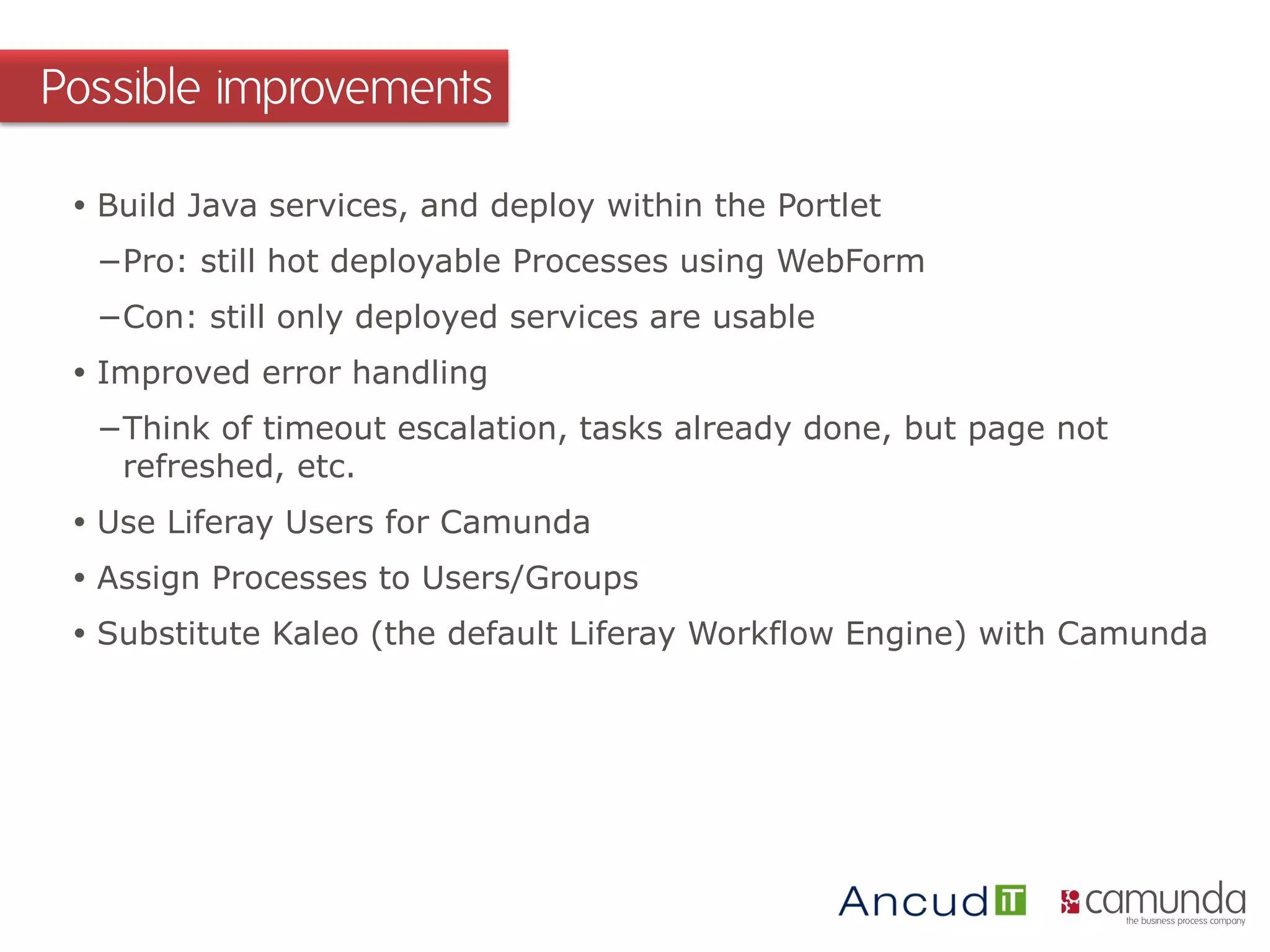

Possible improvements

14. Process Applications vs. „Kaleo“
Use Liferay as UI for
Process Application
Internal Workflows in
Liferay (e.g. release
content)
vs.

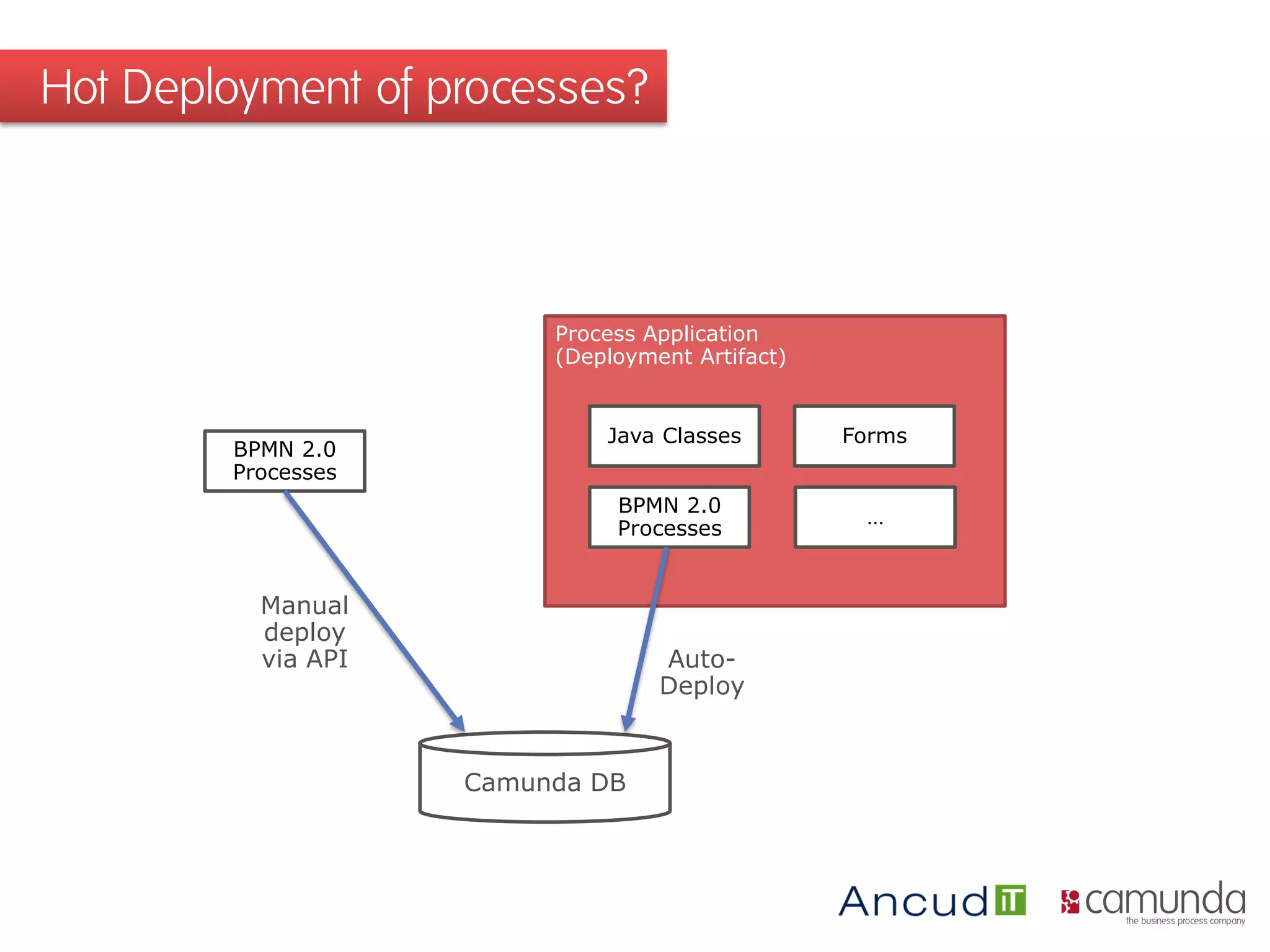

15. Hot Deployment of processes?
Process Application
(Deployment Artifact)
Java Classes
BPMN 2.0
Processes
…
Camunda DB
BPMN 2.0
Processes
Manual
deploy
via API
Forms
Auto-
Deploy

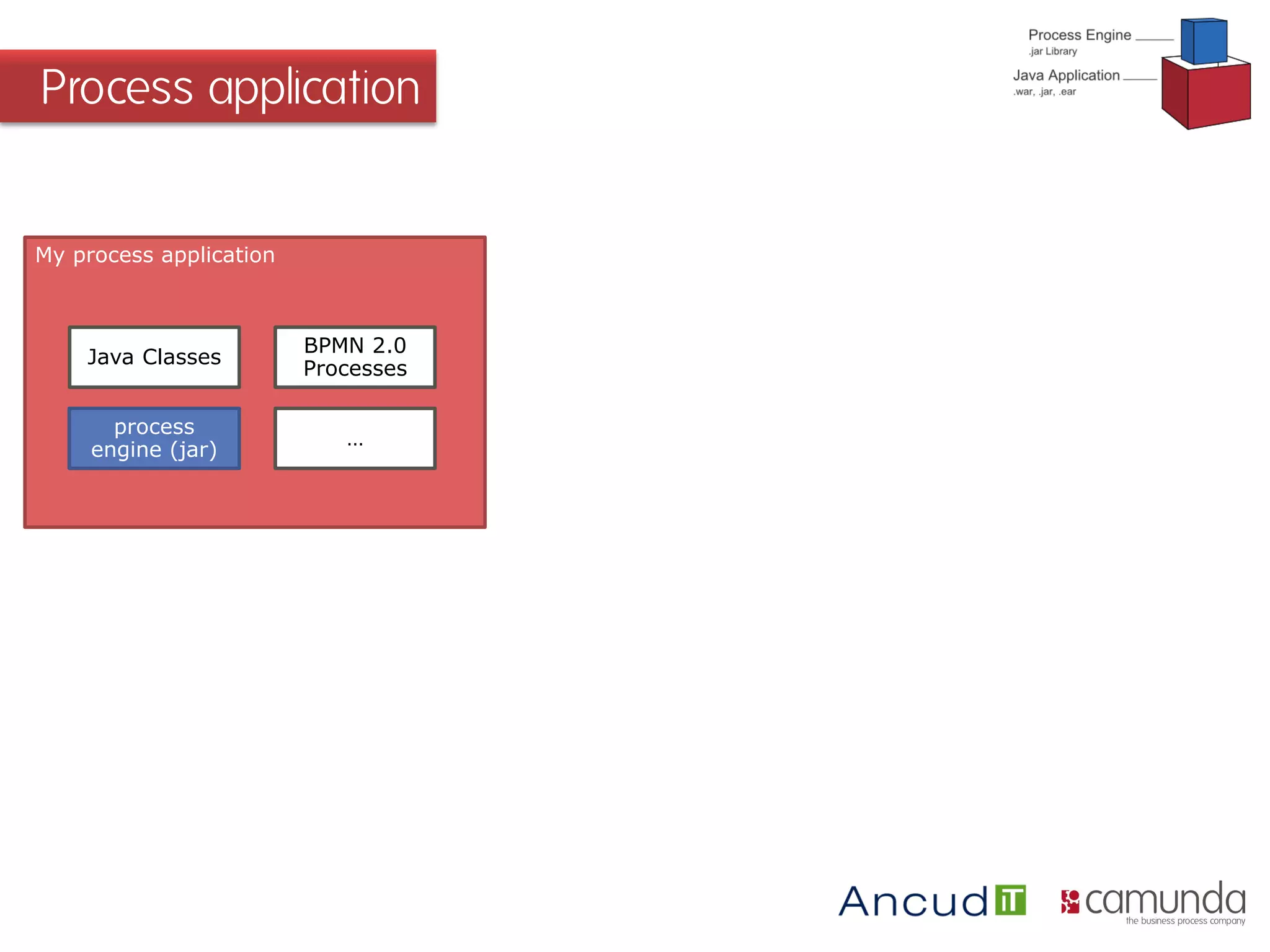

16. Process application
My process application
process
engine (jar)
Java Classes
BPMN 2.0
Processes
…

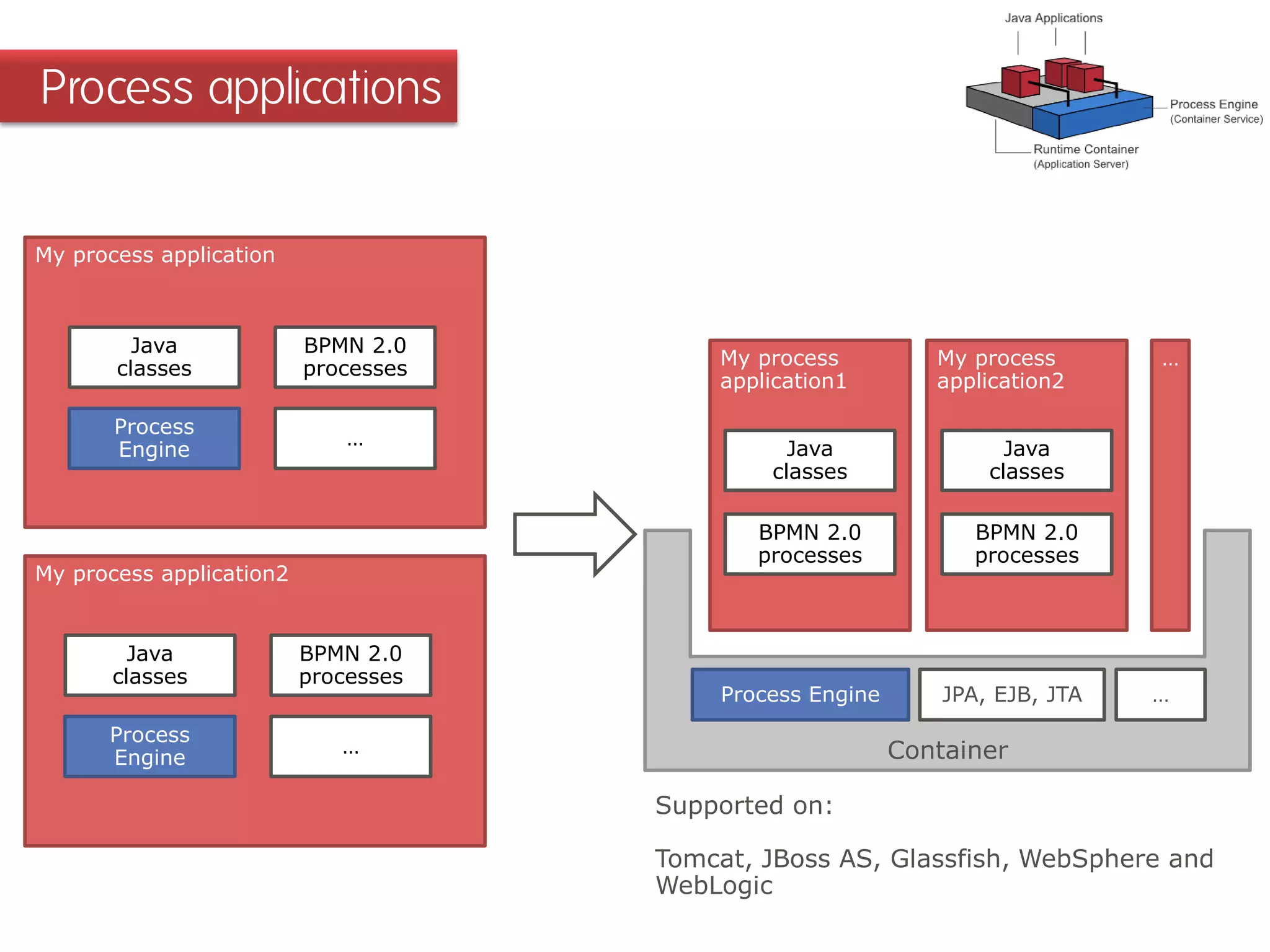

17. Process applications
Process Engine
Container
My process
application2
Java
classes
BPMN 2.0
processes
JPA, EJB, JTA …
My process
application1
Java
classes
BPMN 2.0
processes
…
My process application2
Process
Engine
Java
classes
BPMN 2.0
processes
…
Supported on:
Tomcat, JBoss AS, Glassfish, WebSphere and
WebLogic
My process application
Process
Engine
Java
classes
BPMN 2.0
processes
…

18. Process Engine Modes Embedded Process Engine
Shared Process Engine
Remote Process Engine

19. tasklist.war
generic form
portlet
Portlet Design
generic form
portlet
Decision 1: Generic Portlet or specific Task Form Portlets
pa1.war
tasklist.war
generic form
portlet
Decision 2: Deployment Artifacts
…
pa2.war
tasklist.war
pa1.war
generic form
portlet
load HTML

20. Camunda Task Form Types
Embedded
Task Form
Generated
Task Form
Generic
Task Form
External Task Form
HTML-Form
provided by
Process
Application
(HTML File)
Rendered in
Tasklist
Form Data
Metadata
provided by
Process
Application
(BPMN 2.0
XML)
Rendered in
Tasklist
Completely
generic,
shows all
process
variables
Rendered in
Tasklist
Forwards to
external URL
handing over
parameters
(e.g. taskId)
E.g. HTML5,
JSF, PHP, …
HTML to be
embedded in
tasklist

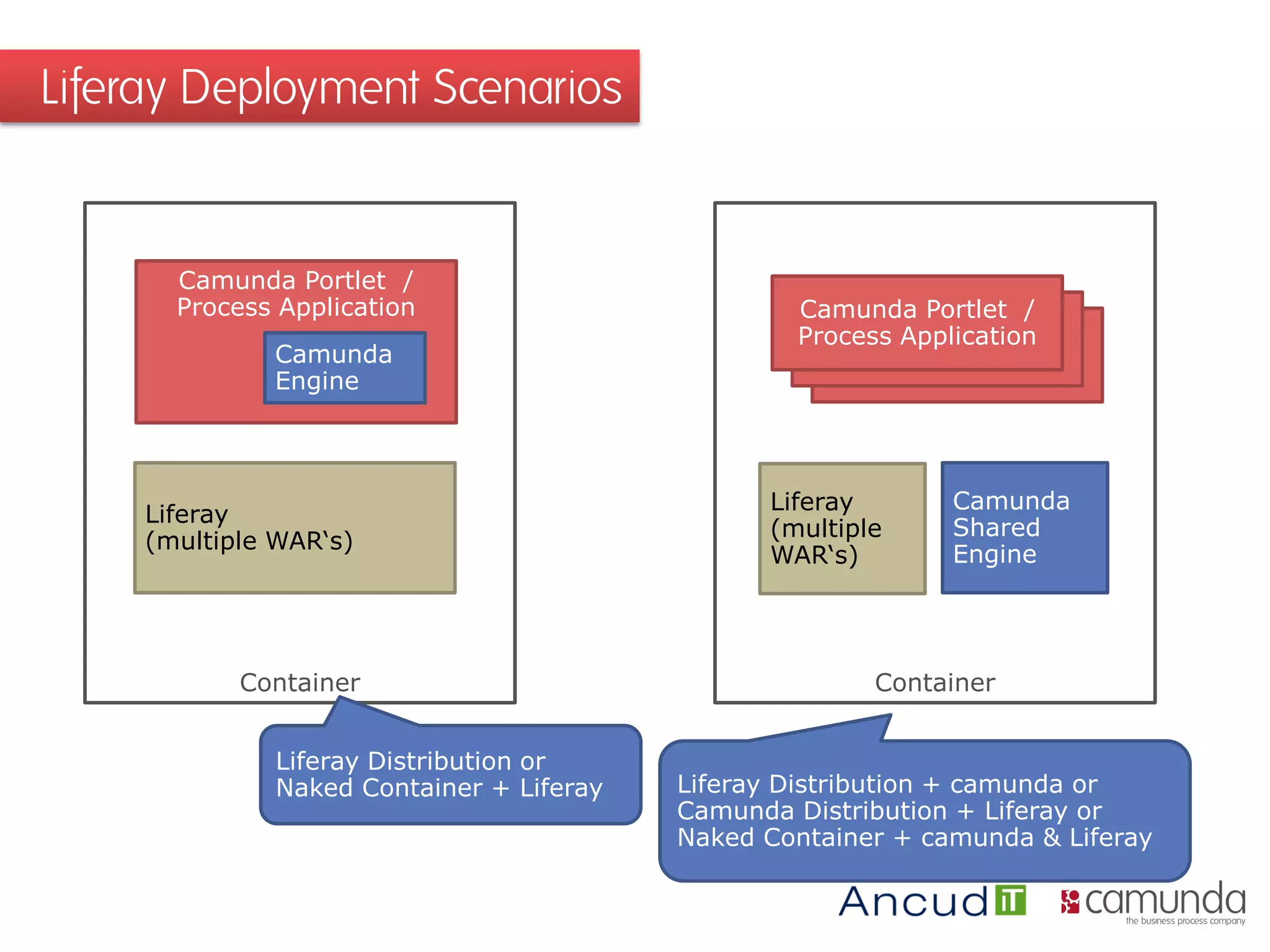

21. Liferay Deployment Scenarios
Container
Liferay
(multiple WAR‘s)
Camunda Portlet /
Process Application
Camunda
Engine
Container
Liferay
(multiple
WAR‘s)
Camunda
Shared
Engine
Liferay Distribution or
Naked Container + Liferay Liferay Distribution + camunda or
Camunda Distribution + Liferay or
Naked Container + camunda & Liferay
Camunda Portlet /
Process Application
Camunda Portlet /
Process Application
Camunda Portlet /
Process Application

22. …and real-life?

23.  Migration from big vendors BPMS
 Technology Stack
−JBoss EAP 6
−Camunda BPM 7 EE (shared engine)
−Liferay 6 EE
−Java EE 6: EJB, JPA, CDI, JSF
 Already went live - awesome feedback!
 Why Portal?
−User Management
−Customizing of UI by user
−Existed with old solution
Real-life project example

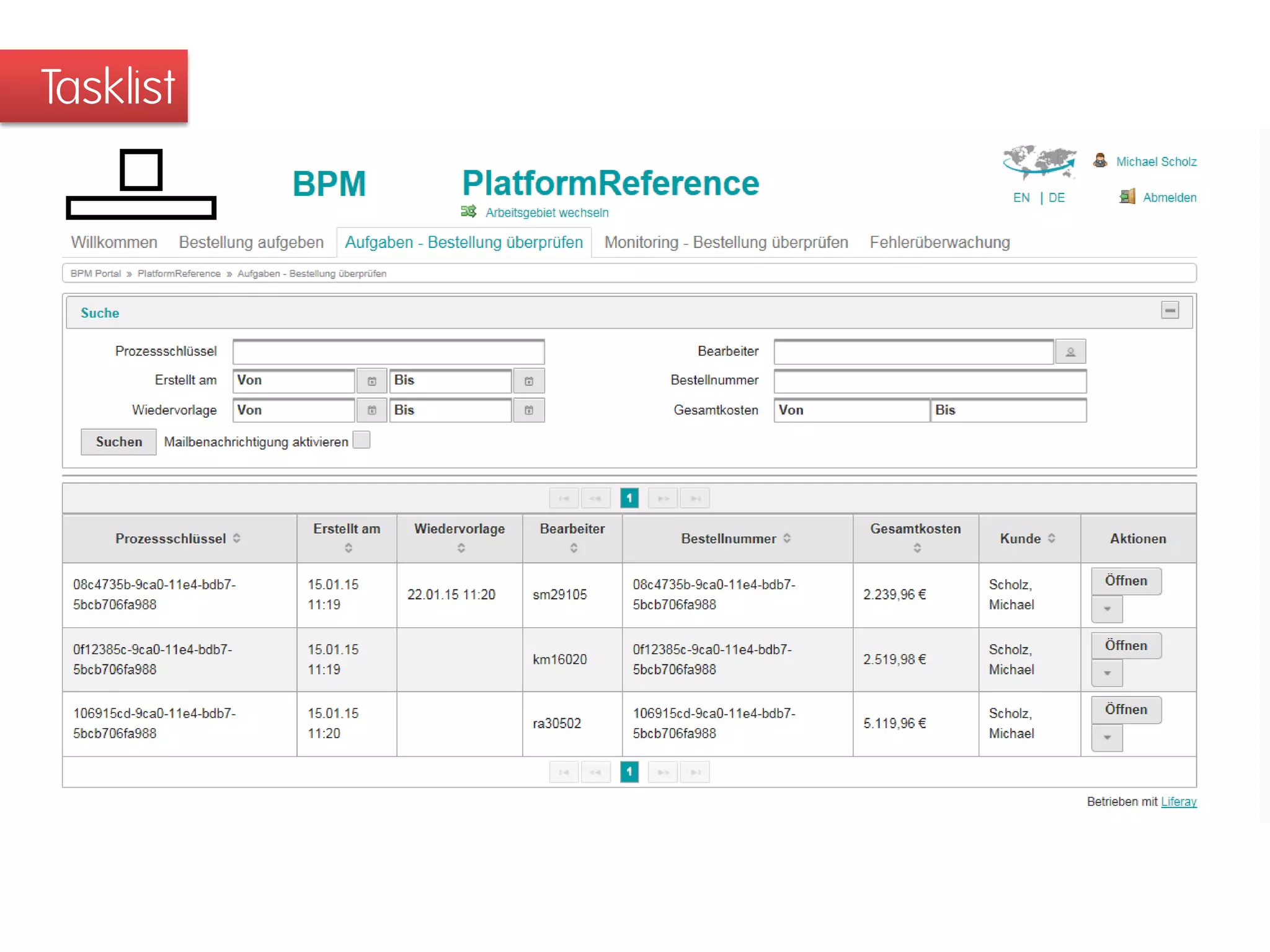

28. Tasklist

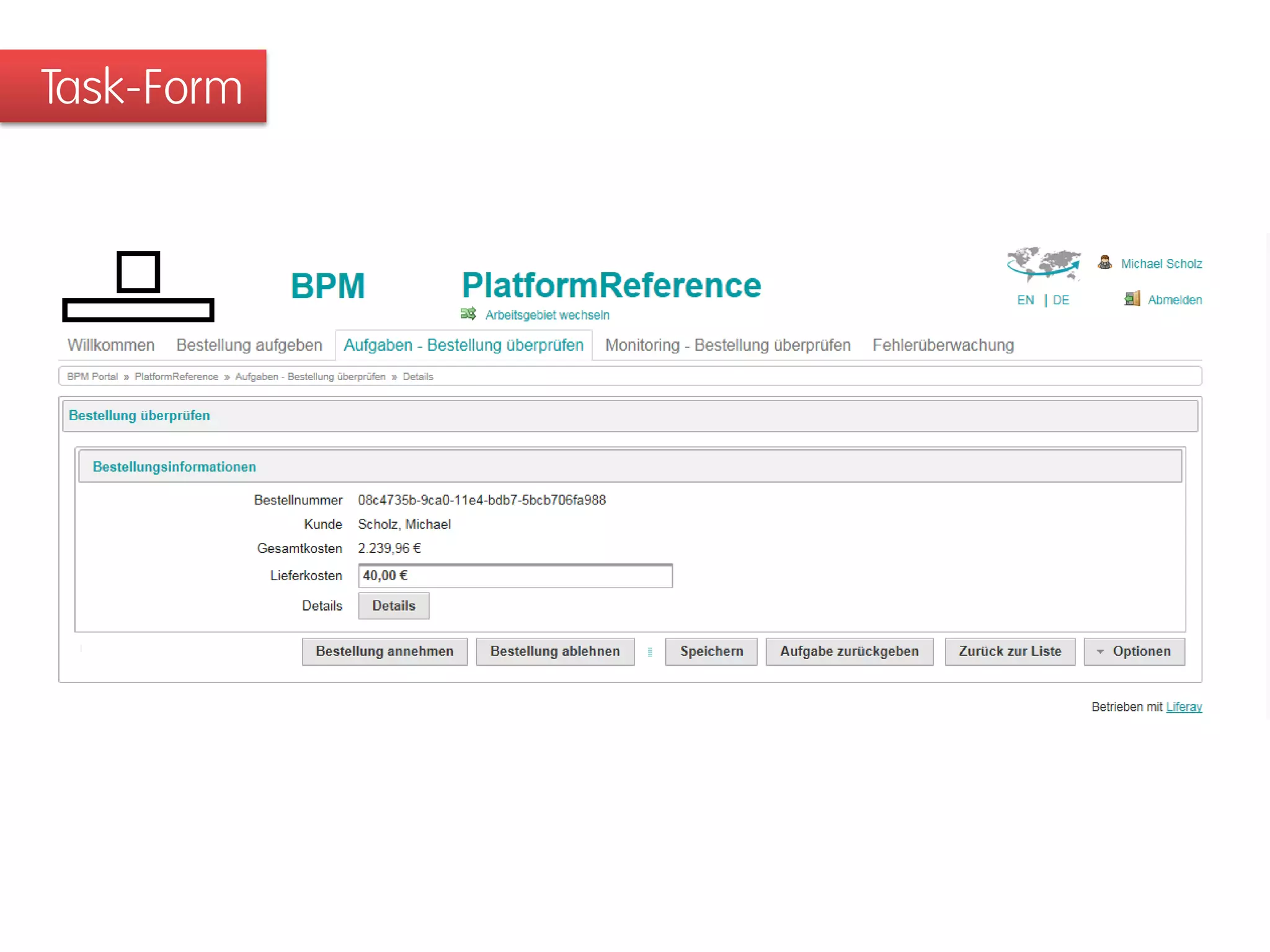

29. Task-Form

30. Monitoring

31. Process Instance View

32. Roadmap?

33. Start now and give us feedback!
Open Source Edition
• Download:
www.camunda.org
• Docs, Tutorials etc.
• Forum
• Meetings
Enterprise Edition
• Trial:
www.camunda.com
• Additional Features
• Support, Patches etc.
• Consulting, Training
http://camunda.com/bpm/consultation/
info@camunda.com | US +1.415.800.3908 | DE +49 30 664040 900
