Domain Driven Design

ARAF KARSH HAMID
Co-Founder / CTO
MetaMagic Global Inc., NJ, USA
@arafkarsh
arafkarsh
Domain
Driven
Design

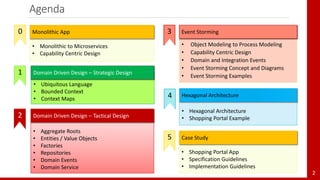

Agenda
2

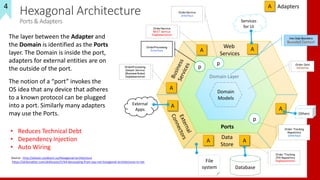

• Hexagonal Architecture
• Shopping Portal Example
Hexagonal Architecture4
• Ubiquitous Language
• Bounded Context
• Context Maps
Domain Driven Design – Strategic Design1
• Shopping Portal App

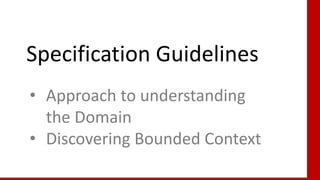

• Specification Guidelines
• Implementation Guidelines
Case Study5
• Aggregate Roots
• Entities / Value Objects
• Factories
• Repositories
• Domain Events

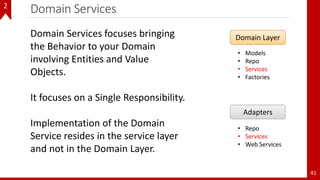

• Domain Service
Domain Driven Design – Tactical Design2
• Object Modeling to Process Modeling
• Capability Centric Design

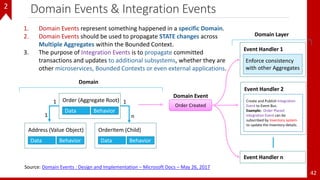

• Domain and Integration Events
• Event Storming Concept and Diagrams
• Event Storming Examples
Event Storming3
• Monolithic to Microservices
• Capability Centric Design
Monolithic App0

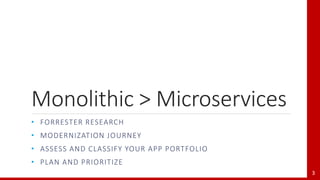

Monolithic > Microservices
• FORRESTER RESEARCH
• MODERNIZATION JOURNEY
• ASSESS AND CLASSIFY YOUR APP PORTFOLIO
• PLAN AND PRIORITIZE
3

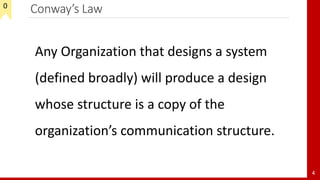

Conway’s Law
4
Any Organization that designs a system
(defined broadly) will produce a design
whose structure is a copy of the
organization’s communication structure.
0

* For IT Services : They can do one more project of same size with ZERO COST in Platform Licensing (Based on 20 developer pack USD $50K per month for 3 months License cost = $150K)
5
0

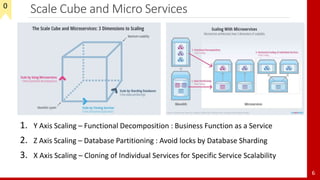

Scale Cube and Micro Services
6
1. Y Axis Scaling – Functional Decomposition : Business Function as a Service
2. Z Axis Scaling – Database Partitioning : Avoid locks by Database Sharding
3. X Axis Scaling – Cloning of Individual Services for Specific Service Scalability
0

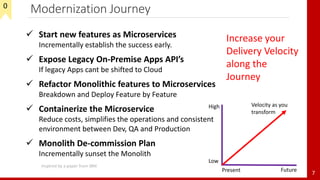

Modernization Journey
7
 Start new features as Microservices
Incrementally establish the success early.
 Expose Legacy On-Premise Apps API’s
If legacy Apps cant be shifted to Cloud
 Refactor Monolithic features to Microservices
Breakdown and Deploy Feature by Feature
 Containerize the Microservice
Reduce costs, simplifies the operations and consistent
environment between Dev, QA and Production
 Monolith De-commission Plan
Incrementally sunset the Monolith
Velocity as you
transform
Increase your
Delivery Velocity
along the
Journey
High
FuturePresent
Low
Inspired by a paper from IBM
0

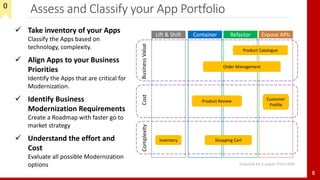

Assess and Classify your App Portfolio
8
 Take inventory of your Apps
Classify the Apps based on
technology, complexity.
 Align Apps to your Business
Priorities
Identify the Apps that are critical for
Modernization.
 Identify Business
Modernization Requirements
Create a Roadmap with faster go to
market strategy
 Understand the effort and
Cost
Evaluate all possible Modernization
options
Container Refactor Expose APIsLift & Shift
BusinessValueCostComplexity
Product Catalogue
Product Review
Inventory Shopping Cart
Customer
Profile
Order Management
0

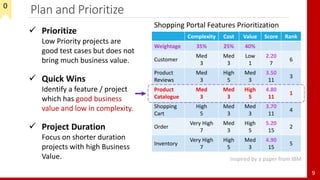

Plan and Prioritize
9
Complexity Cost Value Score Rank
Weightage 35% 25% 40%
Customer
Med
3
Med
3
Low
1
2.20
7
6
Product
Reviews
Med
3
High
5
Med
3
3.50
11
3
Product
Catalogue
Med
3
Med
3
High
5
4.80
11
1
Shopping
Cart
High
5
Med
3
Med
3
3.70
11
4
Order
Very High
7
Med
3
High
5
5.20
15
2
Inventory
Very High
7
High
5
Med
3
4.90
15
5
 Prioritize
Low Priority projects are
good test cases but does not
bring much business value.
 Quick Wins
Identify a feature / project
which has good business
value and low in complexity.
 Project Duration
Focus on shorter duration
projects with high Business
Value.
Shopping Portal Features Prioritization
0

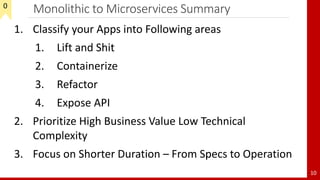

Monolithic to Microservices Summary
10
1. Classify your Apps into Following areas
1. Lift and Shit
2. Containerize
3. Refactor
4. Expose API
2. Prioritize High Business Value Low Technical
Complexity
3. Focus on Shorter Duration – From Specs to Operation
0

CAPABILITY CENTRIC DESIGN
• BUSINESS FUNCTIONS
• BUSINESS PROCESS
• TEAM STRUCTURE
11

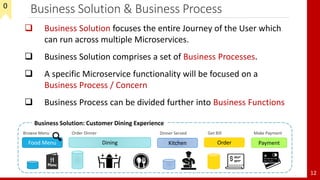

Business Solution & Business Process
12
 Business Solution focuses the entire Journey of the User which
can run across multiple Microservices.
 Business Solution comprises a set of Business Processes.
 A specific Microservice functionality will be focused on a
Business Process / Concern
 Business Process can be divided further into Business Functions
Business Solution: Customer Dining Experience
Order PaymentFood Menu KitchenDining
Browse Menu Order Dinner Dinner Served Get Bill Make Payment
0

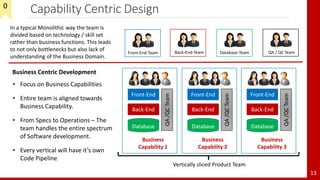

Capability Centric Design
13
Vertically sliced Product Team
Business Centric Development
• Focus on Business Capabilities
• Entire team is aligned towards
Business Capability.
• From Specs to Operations – The
team handles the entire spectrum
of Software development.
• Every vertical will have it’s own
Code Pipeline
Front-End-Team Back-End-Team Database-Team
In a typical Monolithic way the team is
divided based on technology / skill set
rather than business functions. This leads
to not only bottlenecks but also lack of
understanding of the Business Domain.
QA / QC Team
Front-End
Back-End
Database
Business
Capability 1
QA/QCTeam
Front-End
Back-End
Database
Business
Capability 2
QA/QCTeam
Front-End
Back-End
Database
Business
Capability 3
QA/QCTeam
0

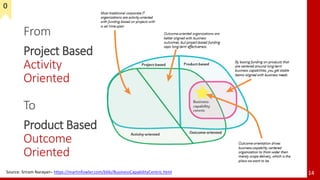

14
From
Project Based
Activity
Oriented
To
Product Based
Outcome
Oriented
Source: Sriram Narayan– https://martinfowler.com/bliki/BusinessCapabilityCentric.html
0

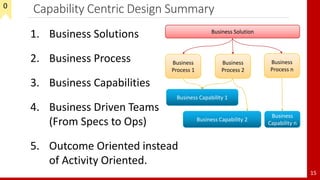

Capability Centric Design Summary
15
1. Business Solutions
2. Business Process
3. Business Capabilities
4. Business Driven Teams
(From Specs to Ops)
5. Outcome Oriented instead
of Activity Oriented.
0
Business Solution
Business
Process 1
Business
Process 2
Business
Process n
Business Capability 1
Business Capability 2
Business
Capability n

16

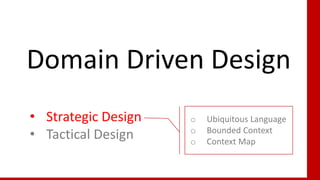

Domain Driven Design
• Strategic Design
• Tactical Design
o Ubiquitous Language
o Bounded Context
o Context Map

17

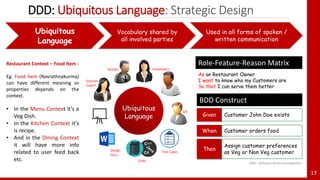

Ubiquitous
Language
Vocabulary shared by
all involved parties
Used in all forms of spoken /
written communication
Ubiquitous
Language
Domain
Expert
Analyst Developers
QA
Design
Docs
Test Cases
Code
Restaurant Context – Food Item :
Eg. Food Item (Navrathnakurma)
can have different meaning or
properties depends on the
context.
• In the Menu Context it’s a
Veg Dish.
• In the Kitchen Context it’s
is recipe.
• And in the Dining Context
it will have more info
related to user feed back
etc.
DDD: Ubiquitous Language: Strategic Design
As an Restaurant Owner
I want to know who my Customers are
So that I can serve them better
Role-Feature-Reason Matrix
BDD – Behavior Driven Development
Given Customer John Doe exists
When Customer orders food
Then
Assign customer preferences
as Veg or Non Veg customer
BDD Construct

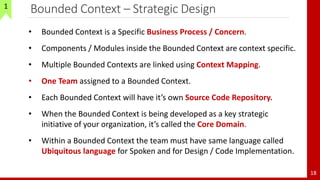

Bounded Context – Strategic Design
18
1
• Bounded Context is a Specific Business Process / Concern.
• Components / Modules inside the Bounded Context are context specific.
• Multiple Bounded Contexts are linked using Context Mapping.
• One Team assigned to a Bounded Context.
• Each Bounded Context will have it’s own Source Code Repository.
• When the Bounded Context is being developed as a key strategic
initiative of your organization, it’s called the Core Domain.
• Within a Bounded Context the team must have same language called
Ubiquitous language for Spoken and for Design / Code Implementation.

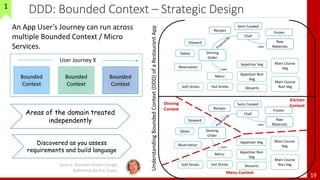

DDD: Bounded Context – Strategic Design
19
An App User’s Journey can run across
multiple Bounded Context / Micro
Services.
Dinning
Order
Reservation
Tables
Recipes
Raw
Materials
Frozen
Semi Cooked
Appetizer Veg
Appetizer Non
Veg
Soft Drinks
Main Course
Non Veg
Main Course
Veg
Hot Drinks Desserts
Steward
Chef
Menu
uses
uses
Dinning
Order
Reservation
Tables
Recipes
Raw
Materials
Frozen
Semi Cooked
Appetizer Veg
Appetizer Non
Veg
Soft Drinks
Main Course
Non Veg
Main Course
Veg
Hot Drinks Desserts
Steward
Chef
Menu
uses
uses
UnderstandingBoundedContext(DDD)ofaRestaurantApp
Dinning
Context
Kitchen
Context
Menu Context
Source: Domain-Driven Design
Reference by Eric Evans
1
Areas of the domain treated
independently
Discovered as you assess
requirements and build language
Bounded
Context
Bounded
Context
Bounded
Context
User Journey X

20

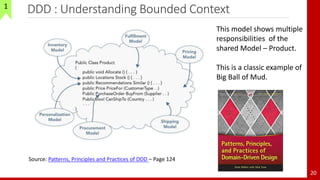

DDD : Understanding Bounded Context1
Source: Patterns, Principles and Practices of DDD – Page 124
This model shows multiple
responsibilities of the
shared Model – Product.
This is a classic example of
Big Ball of Mud.

21

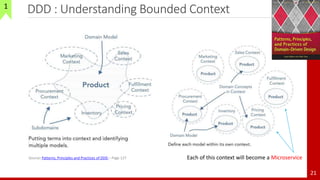

Source: Patterns, Principles and Practices of DDD – Page 127 Each of this context will become a Microservice

22
DDD : Understanding Bounded Context
Source: BoundedContext By Martin Fowler :
http://martinfowler.com/bliki/BoundedContext.html
• DDD deals with large models by
dividing them into different
Bounded Contexts and being explicit
about their interrelationships.
• Bounded Contexts have both
unrelated concepts
• Such as a support ticket only
existing in a customer support
context
• But also share concepts such as
products and customers.
• Different contexts may have
completely different models of
common concepts (Customer &
Product) with mechanisms to map
between these polysemic concepts
for integration.
1

Customer Model in Different Bounded Context
23
Order
Customer
• Customer ID
• Discount
• Bonus Program
Delivery
Customer
• Customer ID
• Address
• Preferred
Delivery method
• Packaging
• Delivery Contact
Billing
Customer
• Customer ID
• Billing Address
• Payment Type
• Tax
o Customer Model has different attributes in different contexts. So it avoids
storing all the customer info in one place and then sharing that across
multiple Bounded Contexts (Microservices).
o If you want to change Customer details related to Tax then only Billing
Bounded Context (Microservice) needs to be updated.
1

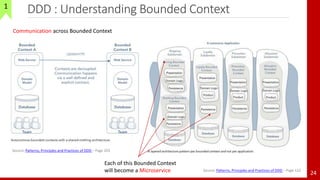

24
Each of this Bounded Context
will become a Microservice
Communication across Bounded Context

25
Microservice is a Bounded Context

DDD : Context Map
26
Source: Domain-Driven Design Reference by Eric Evans
1
(C) COPYRIGHT METAMAGIC GLOBAL INC., NEW JERSEY, USA

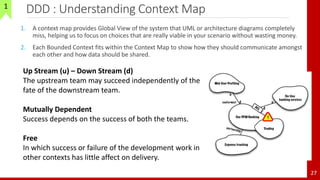

DDD : Understanding Context Map
1. A context map provides Global View of the system that UML or architecture diagrams completely
miss, helping us to focus on choices that are really viable in your scenario without wasting money.
2. Each Bounded Context fits within the Context Map to show how they should communicate amongst
each other and how data should be shared.
27
Up Stream (u) – Down Stream (d)
The upstream team may succeed independently of the
fate of the downstream team.
Mutually Dependent
Success depends on the success of both the teams.
Free
In which success or failure of the development work in
other contexts has little affect on delivery.
1

DDD: Context Map
28
Term Definition Action
Partnership When teams in two context will succeed or fail together, a
cooperative relationship often emerges.
Forge Partnerships
Shared Kernel Sharing a part of the Mode and associated code is very
intimate interdependency, which can leverage design work
or undermine it.
Keep the Kernel Small.
Customer /
Supplier
When two teams are in upstream – downstream
relationship, where the upstream team may succeed
independently of the fate of the downstream team, the
needs of the downstream come to be addressed in a
variety of ways with wide range of consequences.
Downstream priorities factor
into upstream planning.
Conformist Upstream has no motivation in this partnership to keep
the promise. Altruism may motivate Upstream developers
to give promises they cant keep.
Share just enough info with
upstream to keep their
motivation.
Anti
Corruption
Layer
When the translation between two bounded context
becomes more complex, then the translation layer takes
on a more defensive tone.
(down stream) creates a layer in
sync own model and matching
(up stream) functionality.
1

DDD: Context Map
29
Term Definition Action
Open Host
Service
When a subsystem has to be integrated with many others,
customizing a translator for each can bog down the team. There is
more and more to maintain, and more and more to worry about
when changes are made.
Use a one of
translator to augment
the Protocol to share
info (REST)
Published
Language
Translation between the models of two bounded contexts requires
a common language.
Published Language is often combined with Open Host Service.
Use a well
documented shared
language (JSON)
Separate Ways If two sets of functionality have no significant relationship, they
can be completely cut loose from each other. Integration is always
expensive and sometimes the benefit is small.
Bounded context with
no connection to
others.
Big Ball of
Mud
As we survey existing systems, we find that, in fact, there are parts
of systems, often large ones, where models are mixed and
boundaries are inconsistent.
Designate the mess as
a Big Ball of Mud.
1

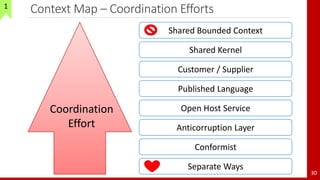

Context Map – Coordination Efforts
30
Shared Bounded Context
Shared Kernel
Customer / Supplier
Published Language
Open Host Service
Anticorruption Layer
Conformist
Separate Ways
Coordination
Effort
1

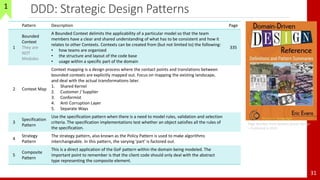

DDD: Strategic Design Patterns
31
Pattern Description Page
1
Bounded
Context
They are
NOT
Modules
A Bounded Context delimits the applicability of a particular model so that the team
members have a clear and shared understanding of what has to be consistent and how it
relates to other Contexts. Contexts can be created from (but not limited to) the following:
• how teams are organized
• the structure and layout of the code base
• usage within a specific part of the domain
335
2 Context Map
Context mapping is a design process where the contact points and translations between
bounded contexts are explicitly mapped out. Focus on mapping the existing landscape,
and deal with the actual transformations later.
1. Shared Kernel
2. Customer / Supplier
3. Conformist
4. Anti Corruption Layer
5. Separate Ways
3
Specification
Pattern
Use the specification pattern when there is a need to model rules, validation and selection
criteria. The specification implementations test whether an object satisfies all the rules of
the specification.
4
Strategy
Pattern
The strategy pattern, also known as the Policy Pattern is used to make algorithms
interchangeable. In this pattern, the varying 'part' is factored out.
5
Composite
Pattern
This is a direct application of the GoF pattern within the domain being modeled. The
important point to remember is that the client code should only deal with the abstract
type representing the composite element.
Page Number from Domain Driven Design
– Published in 2015
1

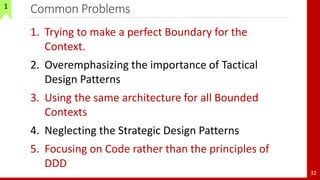

Common Problems
32
1
1. Trying to make a perfect Boundary for the
Context.
2. Overemphasizing the importance of Tactical
Design Patterns
3. Using the same architecture for all Bounded
Contexts
4. Neglecting the Strategic Design Patterns
5. Focusing on Code rather than the principles of
DDD

33
• Strategic Design
• Tactical Design
o Entity
o Value Object
o Aggregate Root
o Factory
o Repository
o Domain Service
o Domain Events

34

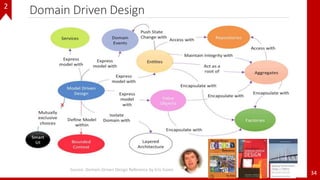

Source: Domain-Driven Design Reference by Eric Evans
2

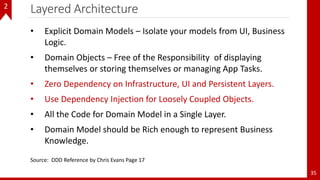

Layered Architecture
35
2
• Explicit Domain Models – Isolate your models from UI, Business
Logic.
• Domain Objects – Free of the Responsibility of displaying
themselves or storing themselves or managing App Tasks.
• Zero Dependency on Infrastructure, UI and Persistent Layers.
• Use Dependency Injection for Loosely Coupled Objects.
• All the Code for Domain Model in a Single Layer.
• Domain Model should be Rich enough to represent Business
Knowledge.
Source: DDD Reference by Chris Evans Page 17

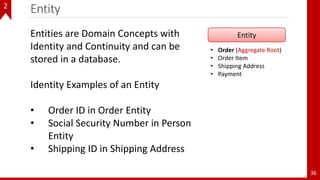

Entity
36
2
Entities are Domain Concepts with
Identity and Continuity and can be
stored in a database.
Identity Examples of an Entity
• Order ID in Order Entity
• Social Security Number in Person
Entity
• Shipping ID in Shipping Address
Entity
• Order (Aggregate Root)
• Order Item
• Shipping Address
• Payment

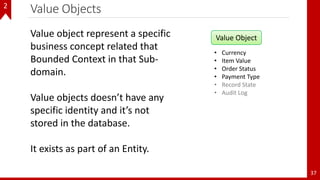

Value Objects
37
2
Value Object
• Currency
• Item Value
• Order Status
• Payment Type
• Record State
• Audit Log
Value object represent a specific
business concept related that
Bounded Context in that Sub-
domain.
Value objects doesn’t have any
specific identity and it’s not
stored in the database.
It exists as part of an Entity.

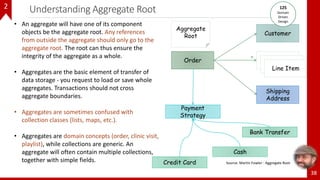

Understanding Aggregate Root
38
Order
Customer
Shipping
Address
Aggregate
Root
Line Item
Line Item
Line Item
*
Payment
Strategy
Credit Card
Cash
Bank Transfer
Source: Martin Fowler : Aggregate Root
• An aggregate will have one of its component
objects be the aggregate root. Any references
from outside the aggregate should only go to the
aggregate root. The root can thus ensure the
integrity of the aggregate as a whole.
• Aggregates are the basic element of transfer of
data storage - you request to load or save whole
aggregates. Transactions should not cross
aggregate boundaries.
• Aggregates are sometimes confused with
collection classes (lists, maps, etc.).
• Aggregates are domain concepts (order, clinic visit,
playlist), while collections are generic. An
aggregate will often contain multiple collections,
together with simple fields.
125
Domain
Driven
Design
2

Designing and Fine Tuning Aggregate Root
39
Source : Effective Aggregate Design Part 1/2/3 : Vaughn Vernon
http://dddcommunity.org/wp-content/uploads/files/pdf_articles/Vernon_2011_1.pdf
Aggregate Root - #1 Aggregate Root - #2
Super Dense Single Aggregate Root
Results in Transaction concurrency issues.
Super Dense Aggregate Root is split into 4
different smaller Aggregate Root in the 2nd
Iteration.
Working on different design models helps the developers to come up with best
possible design.
2

40

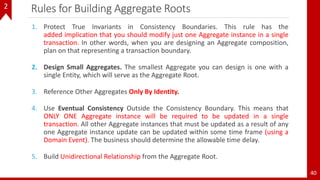

Rules for Building Aggregate Roots
1. Protect True Invariants in Consistency Boundaries. This rule has the
added implication that you should modify just one Aggregate instance in a single
transaction. In other words, when you are designing an Aggregate composition,
plan on that representing a transaction boundary.
2. Design Small Aggregates. The smallest Aggregate you can design is one with a
single Entity, which will serve as the Aggregate Root.
3. Reference Other Aggregates Only By Identity.
4. Use Eventual Consistency Outside the Consistency Boundary. This means that
ONLY ONE Aggregate instance will be required to be updated in a single
transaction. All other Aggregate instances that must be updated as a result of any
one Aggregate instance update can be updated within some time frame (using a
Domain Event). The business should determine the allowable time delay.
5. Build Unidirectional Relationship from the Aggregate Root.
2

Domain Services
41
2
Domain Services focuses bringing
the Behavior to your Domain
involving Entities and Value
Objects.
It focuses on a Single Responsibility.
Implementation of the Domain
Service resides in the service layer
and not in the Domain Layer.
Domain Layer
• Models
• Repo
• Services
• Factories
Adapters
• Repo
• Services
• Web Services

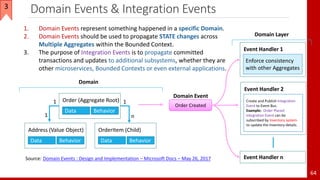

Domain Events & Integration Events
42
1. Domain Events represent something happened in a specific Domain.
2. Domain Events should be used to propagate STATE changes across
Multiple Aggregates within the Bounded Context.
3. The purpose of Integration Events is to propagate committed
transactions and updates to additional subsystems, whether they are
other microservices, Bounded Contexts or even external applications.
Source: Domain Events : Design and Implementation – Microsoft Docs – May 26, 2017
Domain
Data Behavior
Order (Aggregate Root)
Data Behavior
Address (Value Object)
Data Behavior
OrderItem (Child)
1
n
1
1
Order Created
Domain Event
Domain Layer
Enforce consistency
with other Aggregates
Event Handler 1
Event Handler n
Create and Publish Integration
Event to Event Bus.
Example: Order Placed
Integration Event can be
subscribed by Inventory system
to update the Inventory details.
Event Handler 2
2

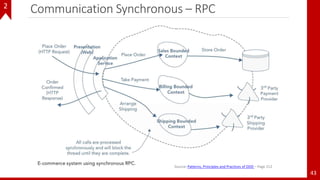

Communication Synchronous – RPC
43
2

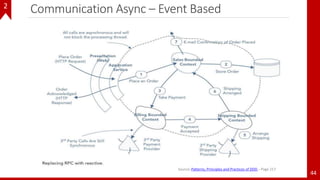

Communication Async – Event Based
44
2

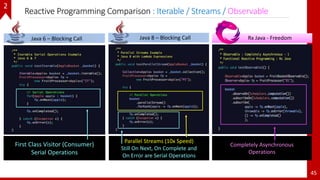

Reactive Programming Comparison : Iterable / Streams / Observable
45
First Class Visitor (Consumer)
Serial Operations
Parallel Streams (10x Speed)
Still On Next, On Complete and
On Error are Serial Operations
Completely Asynchronous
Operations
Java 8 – Blocking CallJava 6 – Blocking Call Rx Java - Freedom
2

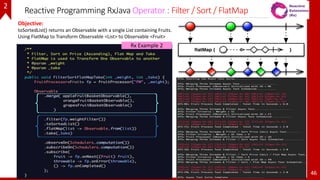

Reactive Programming RxJava Operator : Filter / Sort / FlatMap
46
Objective:
toSortedList() returns an Observable with a single List containing Fruits.
Using FlatMap to Transform Observable <List> to Observable <Fruit>
Rx Example 2
2

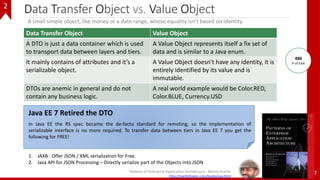

Data Transfer Object vs. Value Object
47
Data Transfer Object Value Object
A DTO is just a data container which is used
to transport data between layers and tiers.
A Value Object represents itself a fix set of
data and is similar to a Java enum.
It mainly contains of attributes and it’s a
serializable object.
A Value Object doesn't have any identity, it is
entirely identified by its value and is
immutable.
DTOs are anemic in general and do not
contain any business logic.
A real world example would be Color.RED,
Color.BLUE, Currency.USD
Patterns of Enterprise Application Architecture : Martin Fowler
http://martinfowler.com/books/eaa.html
A small simple object, like money or a date range, whose equality isn’t based on identity.
486
P of EAA
Java EE 7 Retired the DTO
In Java EE the RS spec became the de-facto standard for remoting, so the implementation of
serializable interface is no more required. To transfer data between tiers in Java EE 7 you get the
following for FREE!
1. JAXB : Offer JSON / XML serialization for Free.
2. Java API for JSON Processing – Directly serialize part of the Objects into JSON
2

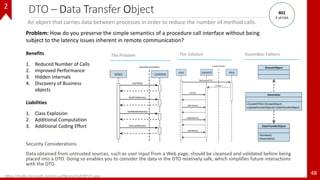

DTO – Data Transfer Object
Security Considerations
Data obtained from untrusted sources, such as user input from a Web page, should be cleansed and validated before being
placed into a DTO. Doing so enables you to consider the data in the DTO relatively safe, which simplifies future interactions
with the DTO.
48
The Problem Assembler Pattern
An object that carries data between processes in order to reduce the number of method calls.
Benefits
1. Reduced Number of Calls
2. Improved Performance
3. Hidden Internals
4. Discovery of Business
objects
Liabilities
1. Class Explosion
2. Additional Computation
3. Additional Coding Effort
https://msdn.microsoft.com/en-us/library/ms978717.aspx
Problem: How do you preserve the simple semantics of a procedure call interface without being
subject to the latency issues inherent in remote communication?
The Solution
401
P of EAA
2

DTO – Data Transfer Object
49
An object that carries data between processes in order to reduce the number of method calls.
The most misused pattern in the Java
Enterprise community is the DTO.
DTO was clearly defined as a solution for a
distribution problem.
DTO was meant to be a coarse-grained
data container which efficiently transports
data between processes (tiers).
On the other hand considering a dedicated
DTO layer as an investment, rarely pays off
and often lead to over engineered bloated
architecture.
Real World Java
EE Patterns
Adam Bien
http://realworldpatterns.com
Don't underestimate the cost of [using DTOs].... It's significant, and
it's painful - perhaps second only to the cost and pain of object-
relational mapping.
Another argument I've heard is using them in case you want to
distribute later. This kind of speculative distribution boundary is
what I rail against. Adding remote boundaries adds complexity.
One case where it is useful to use something like a DTO is when you
have a significant mismatch between the model in your presentation
layer and the underlying domain model.
In this case it makes sense to make presentation specific
facade/gateway that maps from the domain model and presents an
interface that's convenient for the presentation.
Patterns of Enterprise Application Architecture : Martin Fowler
http://martinfowler.com/books/eaa.html
401
P of EAA
2

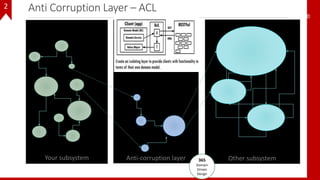

50
Other subsystemAnti-corruption layer 365
Domain
Driven
Design
Your subsystem
2 Anti Corruption Layer – ACL

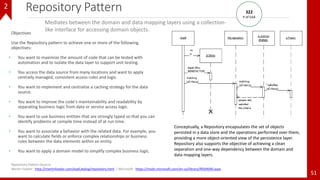

Repository Pattern
Objectives
Use the Repository pattern to achieve one or more of the following
objectives:
• You want to maximize the amount of code that can be tested with
automation and to isolate the data layer to support unit testing.
• You access the data source from many locations and want to apply
centrally managed, consistent access rules and logic.
• You want to implement and centralize a caching strategy for the data
source.
• You want to improve the code's maintainability and readability by
separating business logic from data or service access logic.
• You want to use business entities that are strongly typed so that you can
identify problems at compile time instead of at run time.
• You want to associate a behavior with the related data. For example, you
want to calculate fields or enforce complex relationships or business
rules between the data elements within an entity.
• You want to apply a domain model to simplify complex business logic.
51
Repository Pattern Source:
Martin Fowler : http://martinfowler.com/eaaCatalog/repository.html | Microsoft : https://msdn.microsoft.com/en-us/library/ff649690.aspx
Mediates between the domain and data mapping layers using a collection-
like interface for accessing domain objects.
322
P of EAA
Conceptually, a Repository encapsulates the set of objects
persisted in a data store and the operations performed over them,
providing a more object-oriented view of the persistence layer.
Repository also supports the objective of achieving a clean
separation and one-way dependency between the domain and
data mapping layers.
2

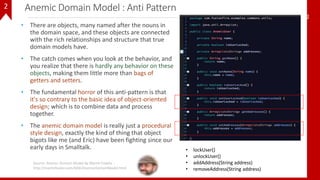

Anemic Domain Model : Anti Pattern
• There are objects, many named after the nouns in
the domain space, and these objects are connected
with the rich relationships and structure that true
domain models have.
• The catch comes when you look at the behavior, and
you realize that there is hardly any behavior on these
objects, making them little more than bags of
getters and setters.
• The fundamental horror of this anti-pattern is that
it's so contrary to the basic idea of object-oriented
design; which is to combine data and process
together.
• The anemic domain model is really just a procedural
style design, exactly the kind of thing that object
bigots like me (and Eric) have been fighting since our
early days in Smalltalk.
52
Source: Anemic Domain Model By Martin Fowler :
http://martinfowler.com/bliki/AnemicDomainModel.html
• lockUser()
• unlockUser()
• addAddress(String address)
• removeAddress(String address)
2

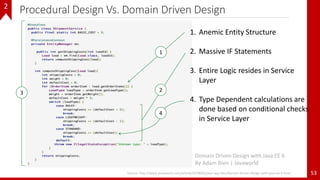

Procedural Design Vs. Domain Driven Design
53
1. Anemic Entity Structure
2. Massive IF Statements
3. Entire Logic resides in Service
Layer
4. Type Dependent calculations are
done based on conditional checks
in Service Layer
4
1
23
Source: http://www.javaworld.com/article/2078042/java-app-dev/domain-driven-design-with-java-ee-6.html
Domain Driven Design with Java EE 6
By Adam Bien | Javaworld
2

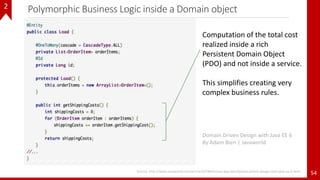

Polymorphic Business Logic inside a Domain object
54
Computation of the total cost
realized inside a rich
Persistent Domain Object
(PDO) and not inside a service.
This simplifies creating very
complex business rules.
2

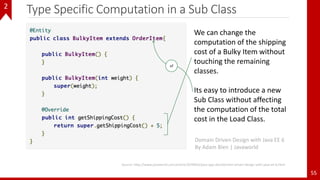

Type Specific Computation in a Sub Class
55
We can change the
computation of the shipping
cost of a Bulky Item without
touching the remaining
classes.
Its easy to introduce a new
Sub Class without affecting
the computation of the total
cost in the Load Class.
of
2

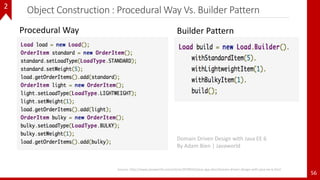

Object Construction : Procedural Way Vs. Builder Pattern
56
Procedural Way Builder Pattern
2

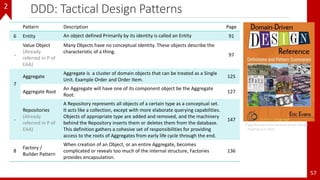

DDD: Tactical Design Patterns
57
6 Entity An object defined Primarily by its identity is called an Entity 91
-
Value Object
(Already
referred in P of
EAA)
Many Objects have no conceptual Identity. These objects describe the
characteristic of a thing.
97
7
Aggregate
Aggregate is a cluster of domain objects that can be treated as a Single
Unit. Example Order and Order Item.
125
Aggregate Root
An Aggregate will have one of its component object be the Aggregate
Root.
127
-
Repositories
(Already
referred in P of
EAA)
A Repository represents all objects of a certain type as a conceptual set.
It acts like a collection, except with more elaborate querying capabilities.
Objects of appropriate type are added and removed, and the machinery
behind the Repository inserts them or deletes them from the database.
This definition gathers a cohesive set of responsibilities for providing
access to the roots of Aggregates from early life cycle through the end.
147
8
Factory /
Builder Pattern
When creation of an Object, or an entire Aggregate, becomes
complicated or reveals too much of the internal structure, Factories
provides encapsulation.
136
2

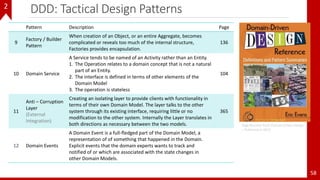

DDD: Tactical Design Patterns
58
9
Factory / Builder
Pattern
When creation of an Object, or an entire Aggregate, becomes
complicated or reveals too much of the internal structure,
Factories provides encapsulation.
136
10 Domain Service
A Service tends to be named of an Activity rather than an Entity.
1. The Operation relates to a domain concept that is not a natural
part of an Entity.
2. The interface is defined in terms of other elements of the
Domain Model
3. The operation is stateless
104
11
Anti – Corruption
Layer
(External
Integration)
Creating an isolating layer to provide clients with functionality in
terms of their own Domain Model. The layer talks to the other
system through its existing interface, requiring little or no
modification to the other system. Internally the Layer translates in
both directions as necessary between the two models.
365
12 Domain Events
A Domain Event is a full-fledged part of the Domain Model, a
representation of of something that happened in the Domain.
Explicit events that the domain experts wants to track and
notified of or which are associated with the state changes in
other Domain Models.
2

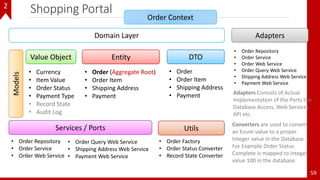

Shopping Portal
59
Order ContextModels
Value Object
• Currency
• Item Value
• Order Status
• Payment Type
• Record State
• Audit Log
Entity
• Order Item
• Payment
DTO
• Order
• Order Item
• Payment
Domain Layer Adapters
• Order Repository
• Order Service
• Order Web Service
• Order Query Web Service
• Shipping Address Web Service
• Payment Web Service
Adapters Consists of Actual
Implementation of the Ports like
Database Access, Web Services
API etc.
Converters are used to convert
an Enum value to a proper
Integer value in the Database.
For Example Order Status
Complete is mapped to integer
value 100 in the database.
Services / Ports
• Order Service
Utils
• Order Factory
• Order Status Converter
• Record State Converter
2

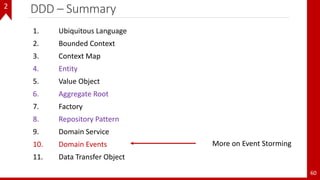

DDD – Summary
60
1. Ubiquitous Language
2. Bounded Context
3. Context Map
4. Entity
5. Value Object
6. Aggregate Root
7. Factory
8. Repository Pattern
9. Domain Service
10. Domain Events
11. Data Transfer Object
More on Event Storming
2

61
Event Storming
• Object Modeling to Process Modeling
• Domain Events for State Change
• Event Storming Process

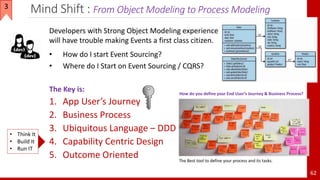

Mind Shift : From Object Modeling to Process Modeling
62
3
Developers with Strong Object Modeling experience
will have trouble making Events a first class citizen.
• How do I start Event Sourcing?
• Where do I Start on Event Sourcing / CQRS?
The Key is:
1. App User’s Journey
2. Business Process
3. Ubiquitous Language – DDD
4. Capability Centric Design
5. Outcome Oriented The Best tool to define your process and its tasks.
How do you define your End User’s Journey & Business Process?
• Think It
• Build It
• Run IT

Business Solution & Business Process
63
 Business Solution focuses the entire Journey of the User which
can run across multiple Micro Services.
 Business Solution comprises a set of Business Processes.
 Business Process focuses on a specific Micro Service and its
functionality.
Business Solution: Customer Dining Experience
Order PaymentFood Menu KitchenDining
Browse Menu Order Dinner Dinner Served Get Bill Make Payment
3

Domain Events & Integration Events
64
1. Domain Events represent something happened in a specific Domain.
2. Domain Events should be used to propagate STATE changes across
Multiple Aggregates within the Bounded Context.
3. The purpose of Integration Events is to propagate committed
transactions and updates to additional subsystems, whether they are
other microservices, Bounded Contexts or even external applications.
Source: Domain Events : Design and Implementation – Microsoft Docs – May 26, 2017
Domain
Data Behavior
Order (Aggregate Root)
Data Behavior
Address (Value Object)
Data Behavior
OrderItem (Child)
1
n
1
1
Order Created
Domain Event
Domain Layer
Enforce consistency
with other Aggregates
Event Handler 1
Event Handler n
Create and Publish Integration
Event to Event Bus.
Example: Order Placed
Integration Event can be
subscribed by Inventory system
to update the Inventory details.
Event Handler 2
3

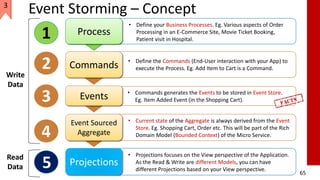

65
Process
• Define your Business Processes. Eg. Various aspects of Order
Processing in an E-Commerce Site, Movie Ticket Booking,
Patient visit in Hospital.1
Commands • Define the Commands (End-User interaction with your App) to
execute the Process. Eg. Add Item to Cart is a Command.2
Event Sourced
Aggregate
• Current state of the Aggregate is always derived from the Event
Store. Eg. Shopping Cart, Order etc. This will be part of the Rich
Domain Model (Bounded Context) of the Micro Service.4
Projections
• Projections focuses on the View perspective of the Application.
As the Read & Write are different Models, you can have
different Projections based on your View perspective.
5
Write
Data
Read
Data
Events • Commands generates the Events to be stored in Event Store.
Eg. Item Added Event (in the Shopping Cart).3
Event Storming – Concept3

66

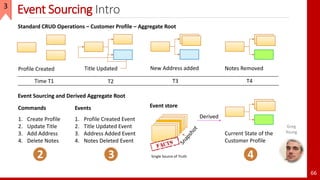

Event Sourcing Intro
Standard CRUD Operations – Customer Profile – Aggregate Root
Profile Created Title Updated New Address added
Derived
Notes Removed
Time T1 T2 T4T3
Event Sourcing and Derived Aggregate Root
Commands
1. Create Profile
2. Update Title
3. Add Address
4. Delete Notes
2
Events
1. Profile Created Event
2. Title Updated Event
3. Address Added Event
4. Notes Deleted Event
3
Current State of the
Customer Profile
4
Event store
Single Source of Truth
Greg
Young
3

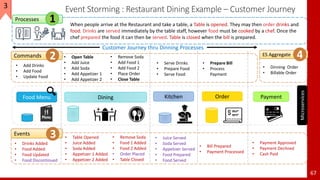

Event Storming : Restaurant Dining Example – Customer Journey
67
Order Payment
• Add Drinks
• Add Food
• Update Food
Commands • Open Table
• Add Juice
• Add Soda
• Add Appetizer 1
• Add Appetizer 2
• Serve Drinks
• Prepare Food
• Serve Food
Events
• Drinks Added
• Food Added
• Food Updated
• Food Discontinued
• Table Opened
• Juice Added
• Soda Added
• Appetizer 1 Added
• Appetizer 2 Added
• Juice Served
• Soda Served
• Appetizer Served
• Food Prepared
• Food Served
• Prepare Bill
• Process
Payment
• Bill Prepared
• Payment Processed
• Payment Approved
• Payment Declined
• Cash Paid
When people arrive at the Restaurant and take a table, a Table is opened. They may then order drinks and
food. Drinks are served immediately by the table staff, however food must be cooked by a chef. Once the
chef prepared the food it can then be served. Table is closed when the bill is prepared.
Microservices
• Dinning Order
• Billable Order
Customer Journey thru Dinning Processes
Processes
Food Menu KitchenDining
• Remove Soda
• Add Food 1
• Add Food 2
• Place Order
• Close Table
• Remove Soda
• Food 1 Added
• Food 2 Added
• Order Placed
• Table Closed
ES Aggregate
3
2 4
1
The purpose of this example is to demonstrate the concept of ES / CQRS thru Event Storming principles.
3

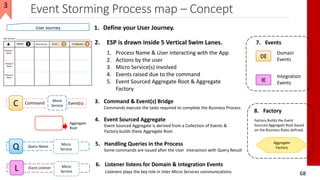

Event Storming Process map – Concept
68
1. Define your User Journey.User Journey
DE
IE
Domain
Events
Integration
Events
7. Events
Event(s)Command
Micro
Service
3. Command & Event(s) BridgeC Commands execute the tasks required to complete the Business Process.
Aggregate
Root
4. Event Sourced Aggregate
Event Sourced Aggregate is derived from a Collection of Events &
Factory builds these Aggregate Root
Query Name
Micro
Service
5. Handling Queries in the Process
Q Some commands are issued after the User interaction with Query Result
Event Listener Micro
Service
6. Listener listens for Domain & Integration Events
L Listeners plays the key role in Inter Micro Services communications
Aggregate
Factory
8. Factory
Factory Builds the Event
Sourced Aggregate Root based
on the Business Rules defined.
2. ESP is drawn inside 5 Vertical Swim Lanes.
1. Process Name & User interacting with the App
2. Actions by the user
3. Micro Service(s) involved
4. Events raised due to the command
5. Event Sourced Aggregate Root & Aggregate
Factory
3

Table OpenedOpen TableC DE
69
ESP : Customer’s Dinning Journey : 1–of–3
Actions Micro Service Events ES Aggregate2 3 4
List Food Menu Food
Menu
Q
Juice AddedAdd JuiceC DE
Soda AddedAdd SodaC DE
Appetizer 1 AddedAdd Appetizer 1C DE
Appetizer 2 AddedAdd Appetizer 2C DE
Soda RemovedRemove SodaC DE
Food 1 AddedAdd Food 1C DE
Order PlacedPlace OrderC IE
1. Dinning Order (This
will have all the Events
associated with the
Customers Dining
experience.)
2. Order (Will Contain
only the actual order)
Dining
Factory
Builds the
Aggregates
Process 1
Browse
Menu
Process 2
Order Food
Aggregate Root is
always derived from
the Event Store at the
time of the Query.
3

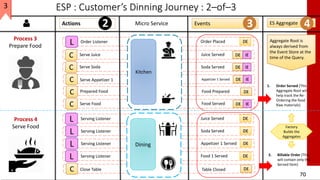

70
Table ClosedClose TableC DE
Order PlacedOrder Listener DEL
Juice ServedServe JuiceC DE IE
Soda ServedServe SodaC DE IE
Appetizer 1 ServedServe Appetizer 1C DE IE
Juice ServedServing Listener DEL
Soda ServedServing Listener DEL
Appetizer 1 ServedServing Listener DEL
Food 1 ServedServing Listener DEL
Dining
Food PreparedPrepared FoodC DE
Food ServedServe FoodC DE IE
Kitchen
1. Order Served (This
Aggregate Root will
help track the Re-
Ordering the food
Raw materials)
3. Billable Order (This
will contain only the
Served Item)
Aggregate Root is
always derived from
time of the Query.
Factory
Builds the
Aggregates
Process 4
Serve Food
Process 3
Prepare Food
3

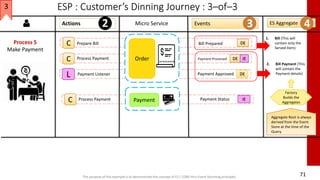

Payment StatusProcess PaymentC IE
71
Payment ApprovedPayment Listener DEL
Bill PreparedPrepare BillC DE
Payment ProcessedProcess PaymentC DE IEOrder
1. Bill (This will
contain only the
Served Item)
Payment
2. Bill Payment (This
will contain the
Payment details)
Aggregate Root is always
derived from the Event
Store at the time of the
Query.
Factory
Builds the
Aggregates
Process 5
Make Payment
3

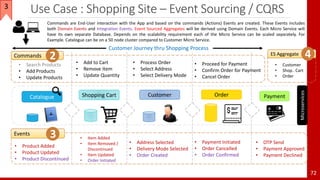

Use Case : Shopping Site – Event Sourcing / CQRS
72
Catalogue Shopping Cart Order Payment
• Search Products
• Add Products
• Update Products
Commands
• Add to Cart
• Remove Item
• Update Quantity
Customer
• Process Order
• Select Address
• Select Delivery Mode
Events
• Product Added
• Product Updated
• Product Discontinued
• Item Added
• Item Removed /
Discontinued
• Item Updated
• Order Initiated
• Address Selected
• Delivery Mode Selected
• Order Created
• Proceed for Payment
• Confirm Order for Payment
• Cancel Order
• Payment Initiated
• Order Cancelled
• Order Confirmed
• OTP Send
Commands are End-User interaction with the App and based on the commands (Actions) Events are created. These Events includes
both Domain Events and Integration Events. Event Sourced Aggregates will be derived using Domain Events. Each Micro Service will
have its own separate Database. Depends on the scalability requirement each of the Micro Service can be scaled separately. For
Example. Catalogue can be on a 50 node cluster compared to Customer Micro Service.
Microservices
• Customer
• Shop.. Cart
• Order
Customer Journey thru Shopping Process
3
2 ES Aggregate 4
3

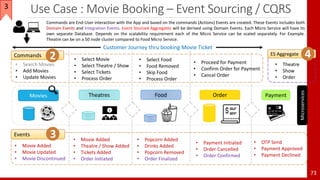

Use Case : Movie Booking – Event Sourcing / CQRS
73
Order Payment
• Search Movies
• Add Movies
• Update Movies
Commands
• Select Movie
• Select Theatre / Show
• Select Tickets
• Process Order
• Select Food
• Food Removed
• Skip Food
• Process Order
Events
• Movie Added
• Movie Updated
• Movie Discontinued
• Movie Added
• Theatre / Show Added
• Tickets Added
• Order Initiated
• Popcorn Added
• Drinks Added
• Popcorn Removed
• Order Finalized
• Cancel Order
• Order Cancelled
• Order Confirmed
• OTP Send
Movies Theatres Food
Microservices
Commands are End-User interaction with the App and based on the commands (Actions) Events are created. These Events includes both
Domain Events and Integration Events. Event Sourced Aggregates will be derived using Domain Events. Each Micro Service will have its
own separate Database. Depends on the scalability requirement each of the Micro Service can be scaled separately. For Example.
Theatre can be on a 50 node cluster compared to Food Micro Service.
• Theatre
• Show
• Order
Customer Journey thru booking Movie Ticket
3
2 ES Aggregate 4
3

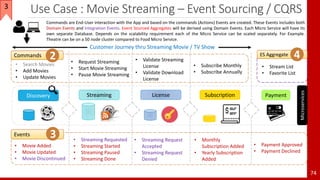

Use Case : Movie Streaming – Event Sourcing / CQRS
74
Subscription Payment
• Search Movies
• Add Movies
• Update Movies
Commands
• Request Streaming
• Start Movie Streaming
• Pause Movie Streaming
• Validate Streaming
License
• Validate Download
License
Events
• Movie Added
• Movie Updated
• Movie Discontinued
• Streaming Requested
• Streaming Started
• Streaming Paused
• Streaming Done
• Streaming Request
Accepted
• Streaming Request
Denied
• Subscribe Monthly
• Subscribe Annually
• Monthly
Subscription Added
• Yearly Subscription
Added
Discovery
Microservices
Commands are End-User interaction with the App and based on the commands (Actions) Events are created. These Events includes both
Domain Events and Integration Events. Event Sourced Aggregates will be derived using Domain Events. Each Micro Service will have its
own separate Database. Depends on the scalability requirement each of the Micro Service can be scaled separately. For Example.
Theatre can be on a 50 node cluster compared to Food Micro Service.
• Stream List
• Favorite List
Customer Journey thru Streaming Movie / TV Show
LicenseStreaming
3
2 ES Aggregate 4
3

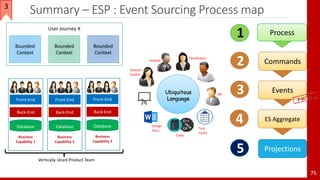

Summary – ESP : Event Sourcing Process map
75
Process1
Commands2
Projections5
ES Aggregate4
Events3
User Journey X
Bounded
Context
Bounded
Context
Bounded
Context
Front-End
Back-End
Database
Business
Capability 1
Front-End
Back-End
Database
Business
Capability 2
Front-End
Back-End
Database
Business
Capability 3
Ubiquitous
Language
Domain
Expert
Analyst
Developers
QA
Design
Docs
Test
Cases
Code
3

76

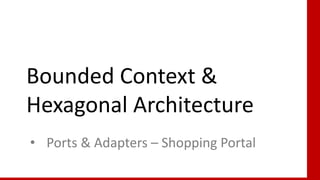

Bounded Context &
Hexagonal Architecture
• Ports & Adapters – Shopping Portal

77
Ports & Adapters
The layer between the Adapter and
the Domain is identified as the Ports
layer. The Domain is inside the port,
adapters for external entities are on
the outside of the port.
The notion of a “port” invokes the
OS idea that any device that adheres
to a known protocol can be plugged
into a port. Similarly many adapters
may use the Ports.
Source : http://alistair.cockburn.us/Hexagonal+architecture
https://skillsmatter.com/skillscasts/5744-decoupling-from-asp-net-hexagonal-architectures-in-net
Services
for UI
Ports
File
system Database
Order Tracking
JPA Repository
Implementation
Adapters
OrderProcessing
Domain Service
(Business Rules)
Implementation
Domain
Models
Domain Layer
Order Data
Validation
OrderService
REST Service
Implementation
OrderProcessing
Interface
p
Order Tracking
Repository
Interface
p
A
A
External
Apps
A
A A
Others
A
A
OrderService
Interface
p
Web
Services
Data
Store
Use Case Boundary
Bounded Context
A
• Reduces Technical Debt
• Dependency Injection
• Auto Wiring
4

78
Specification Guidelines
• Approach to understanding
the Domain
• Discovering Bounded Context

Problem Space
79
Source: Patterns, Principles and Practices of DDD – Page xxxvi
5

How?
80
Focus on Core Complexity & Opportunity in
the Domain
Explore models in collaboration of Domain
Experts & Software Experts
Write software that expresses these
Models explicitly
Speak Ubiquitous Language within a
Bounded Context
Eric Evans – Explore DDD, Denver, 2017
5

Focus on
Clean
Boundaries
over
Perfect
Models
81Source: Patterns, Principles and Practices of DDD – Page 38
5

How?
Core
Domain
82
Identity the areas of the business which is
critical for the success of the business.
Why are these areas important?
Why can't we buy a solution rather than
building it?
What makes the system worth building it?
Look at the Core Domain as a Product instead of a Project
5

How?
Generic
Domains
83
An Email Sending Service
Notification Services like, SMS,
Google Notifications (for
Android), iPhone Notifications.
Reporting & Dashboard
functionalities
5

How?
Supporting
Domains
84
Supporting Domains are the domains
that helps the Core Domain.
In an E-Commerce application like
Amazon or Flipkart, product search
functionality is a supporting domain.
Even off the shelf application can be
used in a supporting domain, For Ex.
Ticketing system.
5

Solution Space
85Source: Patterns, Principles and Practices of DDD – Page xxxviI
5

Domain Vs. Domain Model
86Source: Patterns, Principles and Practices of DDD – Page 43
o Analysis Model or
Business Model is to
describe the Problem
space / Domain.
o The Domain Model
contains only what is
relevant to solve the
problem.
o Domain Model MUST be
free of technical
complexities.
5

Indicators
for
Discovering
Bounded
Context
87
Identify the Business Capabilities from
the User Activities / Stories / Use
Cases
Based on Activities: If an area within the
system contains a set of exclusive activities
then that’s an indicator for a Business
Capabilities.
Based on Trigger: Any area which gets
automatically triggered based on external
input and does some activities based on that
trigger. Ex. Spam Checker, Virus Checker in
mail attachments.
5

Start with? User Journey / Use Cases / Scenarios
88Source: Patterns, Principles and Practices of DDD – Chapter 2 – Page 16
5

Activities & User Journey / Ubiquitous Language
89
Process1
Commands2
Projections5
ES Aggregate4
Events3
User Journey X
Bounded
Context
Bounded
Context
Bounded
Context
Front-End
Back-End
Database
Business
Capability 1
Front-End
Back-End
Database
Business
Capability 2
Front-End
Back-End
Database
Business
Capability 3
Ubiquitous
Language
Domain
Expert
Analyst
Developers
QA
Design
Docs
Test
Cases
Code
5

List Core Activities
90
o List Code Activities for the
Primary Use Case
o Identify the Business Function
/ Capabilities of each of the
Activity
o Identify the User Role (Actor)
for this Activity,
o Ensure that the list of the
Activities complete the entire
Business Solution.
Activity Business
Function
Actor
1
2
3
4
5
6
7
8
9
10
5

User Journey: Shopping in E-Commerce Site
91
Catalogue Shopping Cart Order Payment
• Search Products
• Add Products
• Update Products
Commands
• Add to Cart
• Remove Item
• Update Quantity
Customer
• Process Order
• Select Address
• Select Delivery Mode
Events
• Product Added
• Product Updated
• Product Discontinued
• Item Added
• Item Removed /
Discontinued
• Item Updated
• Order Initiated
• Address Selected
• Delivery Mode Selected
• Order Created
• Cancel Order
• Order Cancelled
• Order Confirmed
• OTP Send
Commands are End-User interaction with the App and based on the commands (Actions) Events are created. These Events includes
both Domain Events and Integration Events. Event Sourced Aggregates will be derived using Domain Events. Each Micro Service will
have its own separate Database. Depends on the scalability requirement each of the Micro Service can be scaled separately. For
Example. Catalogue can be on a 50 node cluster compared to Customer Micro Service.
Microservices
• Customer
• Shop.. Cart
• Order
Customer Journey thru Shopping Process
3
2 ES Aggregate 4
5

Cart OpenedOpen CartC DE
92
ESP : Customer’s Shopping Journey
List Product Menu Product
Menu
Q
Book AddedAdd BookC DE
Pen AddedAdd PenC DE
Bag AddedAdd BagC DE
Book 2 AddedAdd Book 2C DE
Book 3 AddedAdd Book 3C DE
Book 2 RemovedRemove Book 2C DE
Order PlacedPlace OrderC IE
1. Shopping Cart (This
will have all the Events
associated with the
Customers Shopping
experience.)
2. Order (Will Contain
only the actual order)
Shopping
Cart
Factory
Builds the
Aggregates
Process 1
Browse
Catalogue
Process 2
Do Shopping
Aggregate Root is
always derived from
time of the Query.
5

93
Ubiquitous
Language
Vocabulary shared by
all involved parties
Used in all forms of spoken /
written communication
Ubiquitous
Language
Domain
Expert
Analyst Developers
QA
Design
Docs
Test Cases
Code
E-Commerce Context - Product:
Eg. In an E-Commerce Domain
the Product can have different
meanings in different context.
• Product Context in
Catalogue will have
product ID, image,
descriptions etc.
• Product Context in the
Inventory will keep track
of info like SKU, product
technical details from
storage perspective.
Use Case Scenarios – Ubiquitous Language & BDD
As an E-Commerce Owner
I want to know who my Customers are
So that I can serve them better with free
delivery / discounts
BDD – Behavior Driven Development
Given Customer John Doe exists
When Customer orders items
Then
Assign Customer preference
based Item Category and
keep the count of items.
BDD Construct
5

User Case Scenarios – Behavior Driven Development
94
As an E-Commerce Owner
I want know my premium Customers
So that I can offer free delivery
Given
Threshold for free delivery is set
at $70 and I am Customer who has
a basket totaling $50
When
I add an item to my basket costing
$21
Then I should be offered free delivery
BDD Construct
Customer
Offerings
Shopping
Cart
Order
Business
Capabilities
Bounded
Context
Given
Threshold for free delivery is set
at $70 and I am Customer who has
a basket totaling $60
When
I add an item to my basket costing
$7
Then
if I increase my total purchase
value by $3 then I will be offered
free Delivery.
BDD Construct
Scenario 1 Scenario 2
5

95
Implementation Guidelines
• Hexagonal Architecture
• Ports & Adapters – Shopping Portal
• RESTful Guidelines

96
Ports & Adapters
The layer between the Adapter and
the Domain is identified as the Ports
layer. The Domain is inside the port,
adapters for external entities are on
the outside of the port.
The notion of a “port” invokes the
OS idea that any device that adheres
to a known protocol can be plugged
into a port. Similarly many adapters
may use the Ports.
Source : http://alistair.cockburn.us/Hexagonal+architecture
https://skillsmatter.com/skillscasts/5744-decoupling-from-asp-net-hexagonal-architectures-in-net
Services
for UI
Ports
File
system Database
Order Tracking
JPA Repository
Implementation
Adapters
OrderProcessing
Domain Service
(Business Rules)
Implementation
Domain
Models
Domain Layer
Order Data
Validation
OrderService
REST Service
Implementation
OrderProcessing
Interface
p
Order Tracking
Repository
Interface
p
A
A
External
Apps
A
A A
Others
A
A
OrderService
Interface
p
Web
Services
Data
Store
Use Case Boundary
Bounded Context
A
• Reduces Technical Debt
• Dependency Injection
• Auto Wiring
5

Shopping Portal Modules – Code Packaging
97
Auth Products Cart OrderCustomer
Domain Layer
• Models
• Repo
• Services
• Factories
Adapters
• Repo
• Services
• Web Services
Domain Layer
• Models
• Repo
• Services
• Factories
Adapters
• Repo
• Services
• Web Services
Domain Layer
• Models
• Repo
• Services
• Factories
Adapters
• Repo
• Services
• Web Services
Packaging Structure
Bounded Context
Implementation
(Repositories, Business Services, Web Services)
Domain Models
(Entities, Value Objects, DTOs)
(Repositories, Business Services, Web Services)
Entity Factories
Interfaces (Ports)
5

Shopping Portal
98
Order Bounded Context
Models
Value Object
• Currency
• Item Value
• Order Status
• Payment Type
• Record State
• Audit Log
Entity
• Order Item
• Payment
DTO
• Order
• Order Item
• Payment
Domain Layer Adapters
• Order Service
Adapters Consists of Actual
Implementation of the Ports like
Database Access, Web Services
API etc.
Converters are used to convert
an Enum value to a proper
Integer value in the Database.
For Example Order Status
Complete is mapped to integer
value 100 in the database.
Services / Ports
• Order Service
Utils
• Order Factory
• Order Status Converter
• Record State Converter
5

Shopping Portal Design based on Hexagonal Architecture
99
5

RESTful Guidelines
100
1. Endpoints as nouns, NOT verbs
Ex. /catalogues
/orders
/catalogues/products
and NOT
/getProducts/
/updateProducts/
2. Use plurals
Ex. /catalogues/{catalogueId}
and NOT
/catalogue/{catalogueId}
3. Documenting
4. Paging
5. Use SSL
6. HTTP Methods
GET / POST / PUT / DELETE / OPTIONS / HEAD
7. HTTP Status Codes (Effective usage)
8. Versioning
Media Type Version
GET /account/5555 HTTP/1.1
Accept: application/vnd.catalogues.v1+json
URL path version
https://domain/v1/catalogues/products
5

RESTful Guidelines – Query Examples
101
Search All
Products
Search Products By
Catalogue ID
Search Products By
Catalogue ID & Product ID
5

RESTful Guidelines – Query Examples
102
Two different
implementation
of same query
5

RESTful Guidelines – Get & Create Example
103
URL Remains the same.
HTTP Methods Get / Post
Defines the action
5

RESTful Guidelines – Update & Delete Example
104
5

105
Design
Patterns are
solutions to
general
problems that
software
developers
faced during
software
development.
Design Patterns – Holy Grail of Developers
5

References
106
16. Oct 27, 2012 What I have learned about DDD Since the book. By Eric Evans
17. Mar 19, 2013 Domain Driven Design By Eric Evans
18. May 16, 2015 Microsoft Ignite: Domain Driven Design for the Database Driven Mind
19. Jun 02, 2015 Applied DDD in Java EE 7 and Open Source World
20. Aug 23, 2016 Domain Driven Design the Good Parts By Jimmy Bogard
21. Sep 22, 2016 GOTO 2015 – DDD & REST Domain Driven API’s for the Web. By Oliver Gierke
22. Jan 24, 2017 Spring Developer – Developing Micro Services with Aggregates. By Chris Richardson
23. May 17. 2017 DEVOXX – The Art of Discovering Bounded Contexts. By Nick Tune
Event Sourcing and CQRS
23. Nov 13, 2014 GOTO 2014 – Event Sourcing. By Greg Young
24. Mar 22, 2016 Spring Developer – Building Micro Services with Event Sourcing and CQRS
25. Apr 15, 2016 YOW! Nights – Event Sourcing. By Martin Fowler
26. May 08, 2017 When Micro Services Meet Event Sourcing. By Vinicius Gomes

References
107
27. MSDN – Microsoft https://msdn.microsoft.com/en-us/library/dn568103.aspx
28. Martin Fowler : CQRS – http://martinfowler.com/bliki/CQRS.html
29. Udi Dahan : CQRS – http://www.udidahan.com/2009/12/09/clarified-cqrs/
30. Greg Young : CQRS - https://www.youtube.com/watch?v=JHGkaShoyNs
31. Bertrand Meyer – CQS - http://en.wikipedia.org/wiki/Bertrand_Meyer
32. CQS : http://en.wikipedia.org/wiki/Command–query_separation
33. CAP Theorem : http://en.wikipedia.org/wiki/CAP_theorem
34. CAP Theorem : http://www.julianbrowne.com/article/viewer/brewers-cap-theorem
35. CAP 12 years how the rules have changed
36. EBay Scalability Best Practices : http://www.infoq.com/articles/ebay-scalability-best-practices
37. Pat Helland (Amazon) : Life beyond distributed transactions
38. Stanford University: Rx https://www.youtube.com/watch?v=y9xudo3C1Cw
39. Princeton University: SAGAS (1987) Hector Garcia Molina / Kenneth Salem
40. Rx Observable : https://dzone.com/articles/using-rx-java-observable

References – Micro Services – Videos
41. Martin Fowler – Micro Services : https://www.youtube.com/watch?v=2yko4TbC8cI&feature=youtu.be&t=15m53s
42. GOTO 2016 – Microservices at NetFlix Scale: Principles, Tradeoffs & Lessons Learned. By R Meshenberg
43. Mastering Chaos – A NetFlix Guide to Microservices. By Josh Evans
44. GOTO 2015 – Challenges Implementing Micro Services By Fred George
45. GOTO 2016 – From Monolith to Microservices at Zalando. By Rodrigue Scaefer
46. GOTO 2015 – Microservices @ Spotify. By Kevin Goldsmith
47. Modelling Microservices @ Spotify : https://www.youtube.com/watch?v=7XDA044tl8k
48. GOTO 2015 – DDD & Microservices: At last, Some Boundaries By Eric Evans
49. GOTO 2016 – What I wish I had known before Scaling Uber to 1000 Services. By Matt Ranney
50. DDD Europe – Tackling Complexity in the Heart of Software By Eric Evans, April 11, 2016
51. AWS re:Invent 2016 – From Monolithic to Microservices: Evolving Architecture Patterns. By Emerson L, Gilt D. Chiles
52. AWS 2017 – An overview of designing Microservices based Applications on AWS. By Peter Dalbhanjan
53. GOTO Jun, 2017 – Effective Microservices in a Data Centric World. By Randy Shoup.
54. GOTO July, 2017 – The Seven (more) Deadly Sins of Microservices. By Daniel Bryant
55. Sept, 2017 – Airbnb, From Monolith to Microservices: How to scale your Architecture. By Melanie Cubula
56. GOTO Sept, 2017 – Rethinking Microservices with Stateful Streams. By Ben Stopford.
57. GOTO 2017 – Microservices without Servers. By Glynn Bird.
108

109
Araf Karsh Hamid : Co-Founder / CTO
araf.karsh@metamagic.in
USA: +1 (973) 969-2921
India: +91.999.545.8627
Skype / LinkedIn / Twitter / Slideshare : arafkarsh
http://www.slideshare.net/arafkarsh
https://www.linkedin.com/in/arafkarsh/
http://www.arafkarsh.com/

JPA 2.2 and JDBC
110
Java Type JDBC Type
java.time.LocalDate DATE
java.time.LocalTime TIME
java.time.LocalDateTime TIMESTAMP
java.time.OffsetTime TIME_WITH_TIMEZONE
java.time.OffsetDateTime TIMESTAMP_WITH_TIMEZONE

Domain Driven Design

More Related Content

What's hot

Similar to Domain Driven Design

More from Araf Karsh Hamid

Recently uploaded

Domain Driven Design

Editor's Notes
