Camunda BPM is an open source platform that allows modeling and execution of BPMN, CMMN, and DMN. It provides business-IT alignment based on modeling standards. DMN tables can be changed without touching application code, increasing flexibility. Decision logic is transparent and traceable. Camunda offers a DMN table editor and supports various hit policies, FEEL concepts, and scripting for input expressions. It can process up to 220,000 decisions per second.

1. DMN + BPMN + CMMN
Jakob Freund, Camunda

2. Camunda BPM
References
Camunda BPM is an Open Source platform for Business
Process Management and allows you to model and execute
BPMN 2.0, CMMN 1.1 and DMN 1.1.
…and > 75 others: AT&T, Financial Regulatory Authority (FINRA), Sony DADC, Lufthansa Technik, …

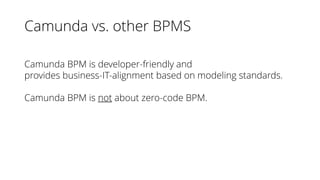

3. Camunda vs. other BPMS
Camunda BPM is developer-friendly and
provides business-IT-alignment based on modeling standards.
Camunda BPM is not about zero-code BPM.

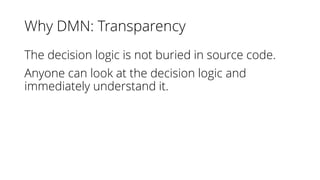

4. Why DMN: Transparency
The decision logic is not buried in source code.
Anyone can look at the decision logic and
immediately understand it.

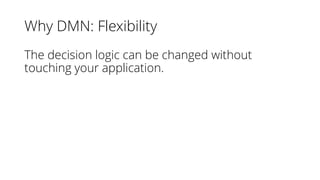

5. Why DMN: Flexibility
The decision logic can be changed without
touching your application.

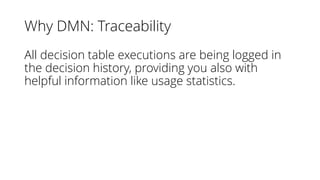

6. Why DMN: Traceability
All decision table executions are being logged in
the decision history, providing you also with
helpful information like usage statistics.

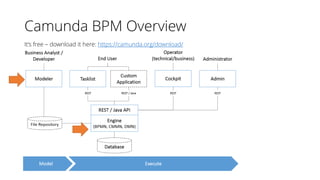

7. Camunda BPM Overview
It‘s free – download it here: https://camunda.org/download/

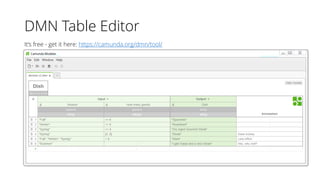

8. DMN Table Editor
It‘s free - get it here: https://camunda.org/dmn/tool/

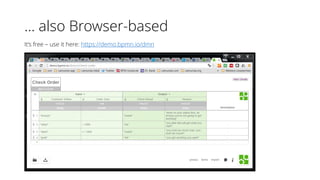

9. ... also Browser-based
It‘s free – use it here: https://demo.bpmn.io/dmn

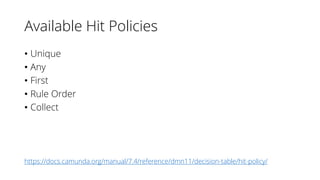

10. Available Hit Policies
• Unique
• Any
• First
• Rule Order
• Collect
https://docs.camunda.org/manual/7.4/reference/dmn11/decision-table/hit-policy/

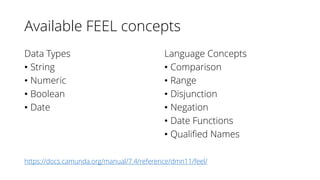

11. Available FEEL concepts
Data Types
• String
• Numeric
• Boolean
• Date
Language Concepts
• Comparison
• Range
• Disjunction
• Negation
• Date Functions
• Qualified Names
https://docs.camunda.org/manual/7.4/reference/dmn11/feel/

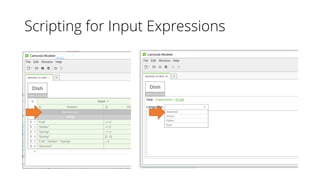

12. Scripting for Input Expressions

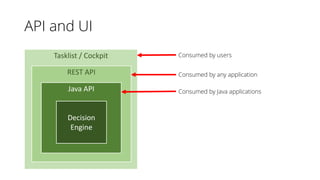

13. Tasklist / Cockpit
REST API
Java API
API and UI
Decision
Engine
Consumed by Java applications
Consumed by any application
Consumed by users

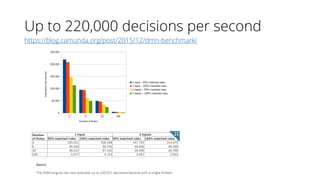

14. Up to 220,000 decisions per second
https://blog.camunda.org/post/2015/12/dmn-benchmark/

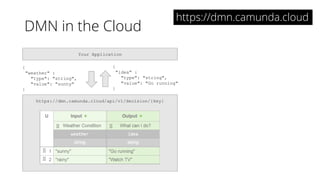

15. DMN in the Cloud
https://dmn.camunda.cloud/api/v1/decision/{key}
Your Application
{
"weather" :
"type": "string",
"value": "sunny"
}
{
"idea" :
"type": "string",
"value": "Go running"
}
https://dmn.camunda.cloud

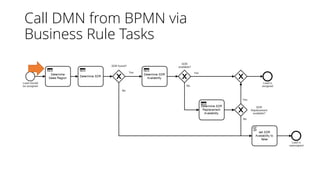

16. Call DMN from BPMN via
Business Rule Tasks

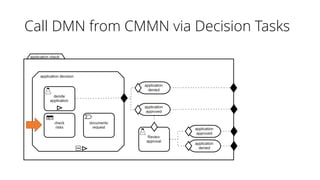

17. Call DMN from CMMN via Decision Tasks

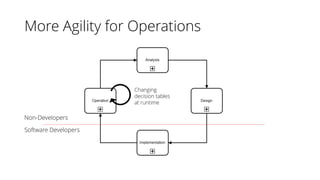

18. More Agility for Operations
Changing
decision tables
at runtime
Non-Developers
Software Developers

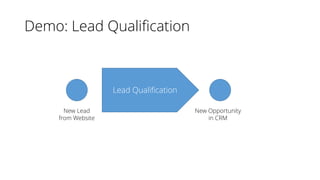

19. Demo: Lead Qualification
Lead Qualification
New Lead
from Website
New Opportunity
in CRM

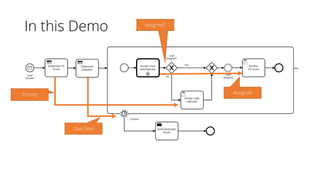

20. In this Demo
Due Date
Priority
Assigned?
Assignee
