1) The document discusses private, public, and hybrid cloud deployment models and how a hybrid cloud is a combination of private and public clouds. 2) It explains how a typical workload in a private cloud would include operating systems, application containers, databases, applications, and network storage supported by infrastructure like hardware, virtualization, and platforms. 3) Cloud management platforms can be used to automate the provisioning, management, and orchestration of workloads across private and hybrid clouds for increased efficiency and control.

1. Build and Manage
Private and Hybrid Cloud
Syed M Shaaf
Sr. Solutions Architect
Red Hat - Nordics

2. 2

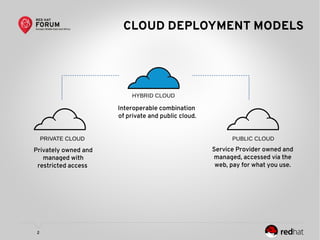

CLOUD DEPLOYMENT MODELS
Service Provider owned and
managed, accessed via the
web, pay for what you use.
Interoperable combination
of private and public cloud.
Privately owned and
managed with
restricted access
PRIVATE CLOUDPRIVATE CLOUD
HYBRID CLOUD
PUBLIC CLOUD

3. 3

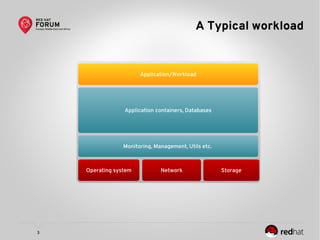

A Typical workload
Oracle Sybase MySQL
Monitoring, Management, Utils etc.
Operating system
Application containers, Databases
Application/Workload
Network Storage

4. 4

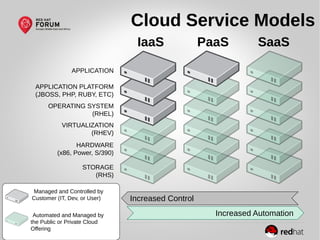

Cloud Service Models
STORAGE
(RHS)
HARDWARE
(x86, Power, S/390)
VIRTUALIZATION
(RHEV)
OPERATING SYSTEM
(RHEL)
APPLICATION PLATFORM
(JBOSS, PHP, RUBY, ETC)
APPLICATION
Automated and Managed by
the Public or Private Cloud
Offering
Managed and Controlled by
Customer (IT, Dev, or User)
IaaS PaaS SaaS
Increased Control
Increased Automation

5. 5
IT – as – a - Service

6. 6

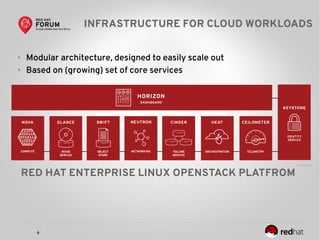

INFRASTRUCTURE FOR CLOUD WORKLOADS
● Modular architecture, designed to easily scale out
● Based on (growing) set of core services
RED HAT ENTERPRISE LINUX OPENSTACK PLATFROM

7. 7

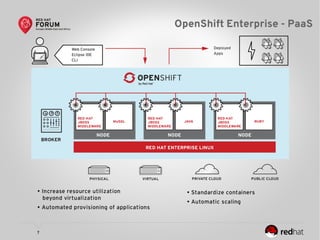

OpenShift Enterprise - PaaS

8. 8

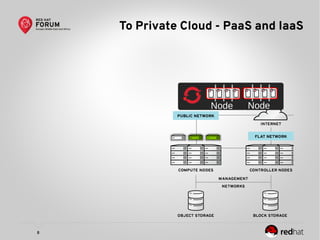

To Private Cloud - PaaS and IaaS
Node Node

9. 9

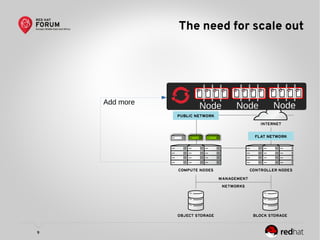

The need for scale out
Node Node NodeAdd more

10. 10

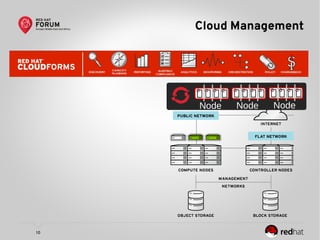

Cloud Management
Node Node Node

11. 11

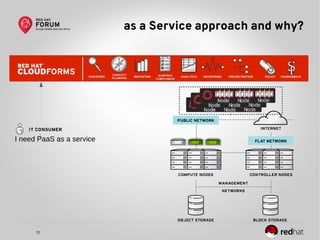

as a Service approach and why?
I need PaaS as a service

12. 12

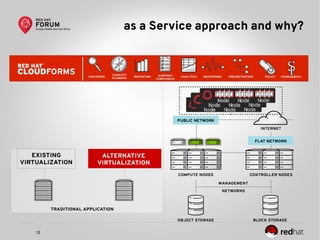

as a Service approach and why?

13. 13

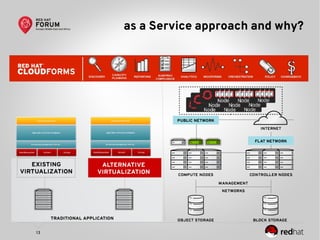

as a Service approach and why?

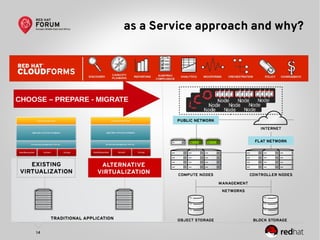

14. 14
as a Service approach and why?
CHOOSE – PREPARE - MIGRATE

15. 15

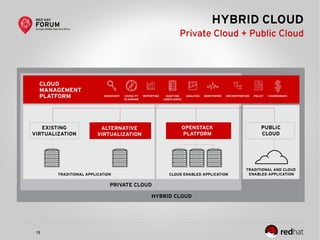

HYBRID CLOUD
Private Cloud + Public Cloud

16. 16
LARGEST OPENSTACK
PARTNER ECOSYSTEM
Red Hat OpenStack Cloud Infrastructure Partner Network
OEMs
and IHVs
System
Integrators
Managed
Service
Providers
ISVs
Cloud
Service
Providers
Channel
Partners
● Over 200 members
since launch in April
2013
● Over 900 certified
solutions in Partner
Network Marketplace
● Over 4,000 RHEL
certified compute
servers

17. 17
Proven success:
Telefónica
BUSINESS CHALLENGE
● Automate infrastructure
deployments
● Increase efficiency
● Speed provisioning
● Reduce time-to-market for new
products
BUSINESS RESULTS
● Flexible, interoperable, multi-
platform private cloud solution
● Integration with previous
infrastructure
● Self-provisioning portal
● Reduced operating costs
● Increased management control
and visibility
SOLUTION
● Red Hat Enterprise Linux
● Red Hat Enterprise Virtualization
● Red Hat CloudForms
● Red Hat Satellite

18. 18

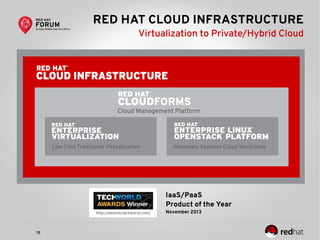

RED HAT CLOUD INFRASTRUCTURE
Virtualization to Private/Hybrid Cloud
Cloud Management Platform
Low Cost Traditional Virtualization Massively Scalable Cloud Workloads
IaaS/PaaS
Product of the Year
November 2013http://awards.techworld.com/

19. 19

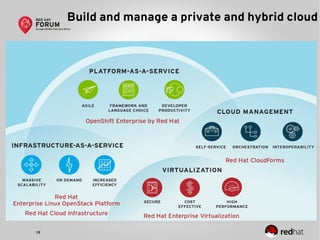

Build and manage a private and hybrid cloud

21. 21
CLOUD MANAGEMENT PLATFORM
Transformation to Private Cloud
CMP CAPABILITIES
● Self-Service Automated Provisioning
● Service Catalog
● Chargeback
● Capacity Management
● Performance Management
● Configuration & Change Management
● Life-cycle Management
● Orchestration
● External Cloud Connection

22. 22

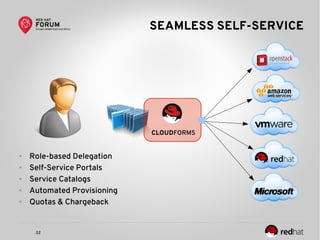

SEAMLESS SELF-SERVICE
CLOUDFORMS
● Role-based Delegation
● Self-Service Portals
● Service Catalogs
● Automated Provisioning
● Quotas & Chargeback

23. 23

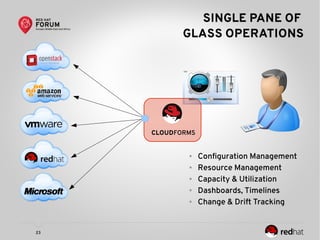

SINGLE PANE OF
GLASS OPERATIONS
CLOUDFORMS
● Configuration Management
● Resource Management
● Capacity & Utilization
● Dashboards, Timelines
● Change & Drift Tracking

24. 24

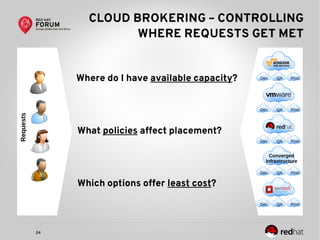

CLOUD BROKERING – CONTROLLING
WHERE REQUESTS GET MET
Requests
What policies affect placement?
Which options offer least cost?
Where do I have available capacity?
Converged
Infrastructure
Dev QA Prod
Dev QA Prod
Dev QA Prod
Dev QA Prod
Dev QA Prod

25. 25

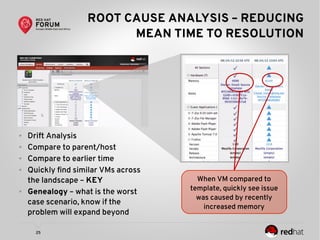

ROOT CAUSE ANALYSIS – REDUCING
MEAN TIME TO RESOLUTION
● Drift Analysis
● Compare to parent/host
● Compare to earlier time
● Quickly find similar VMs across
the landscape – KEY
● Genealogy – what is the worst
case scenario, know if the
problem will expand beyond
When VM compared to
template, quickly see issue
was caused by recently
increased memory

26. 26

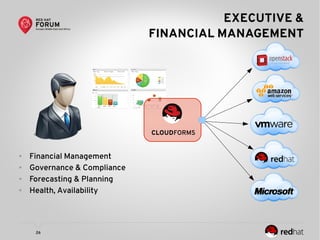

EXECUTIVE &
FINANCIAL MANAGEMENT
CLOUDFORMS
● Financial Management
● Governance & Compliance
● Forecasting & Planning
● Health, Availability

27. 27

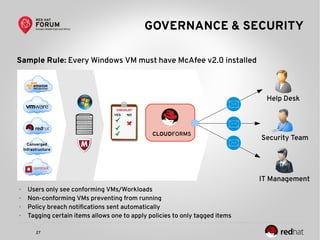

GOVERNANCE & SECURITY
Sample Rule: Every Windows VM must have McAfee v2.0 installed
YES NO
Help Desk
Security Team
IT Management
Converged
Infrastructure
CLOUDFORMS
● Users only see conforming VMs/Workloads
● Non-conforming VMs preventing from running
● Policy breach notifications sent automatically
● Tagging certain items allows one to apply policies to only tagged items
