1. Red Hat Enterprise Virtualization 3.1
Syed M Shaaf
Solutions Architect
Red Hat
November 2012
1 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

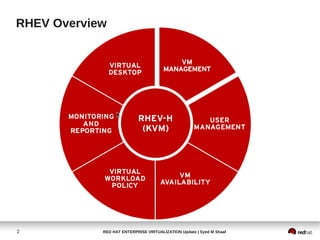

2. RHEV Overview
2 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

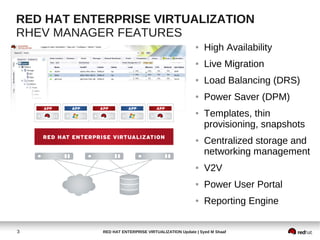

3. RED HAT ENTERPRISE VIRTUALIZATION
RHEV MANAGER FEATURES
● High Availability
● Live Migration
● Load Balancing (DRS)
● Power Saver (DPM)
● Templates, thin
provisioning, snapshots
● Centralized storage and
networking management
● V2V
● Power User Portal
● Reporting Engine
3 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

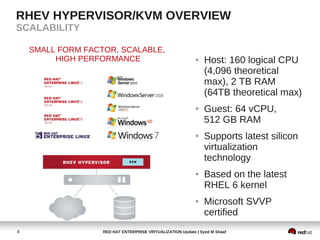

4. RHEV HYPERVISOR/KVM OVERVIEW
SCALABILITY
SMALL FORM FACTOR, SCALABLE,
HIGH PERFORMANCE ● Host: 160 logical CPU
(4,096 theoretical
max), 2 TB RAM
(64TB theoretical max)
● Guest: 64 vCPU,
512 GB RAM
● Supports latest silicon
virtualization
technology
● Based on the latest
RHEL 6 kernel
● Microsoft SVVP
certified
4 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

5. SPICE: EXCEPTIONAL USER EXPERIENCE

User experience comparable to
a local desktop PC

Bi-directional audio & video

VoIP & video conferencing

HD quality video

Hi resolution 2560x1600 (each)

Up to 4 monitors

USB redirection for nearly any
device

Smart Card/CAC authentication

Copy & paste
5 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

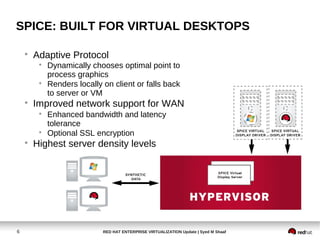

6. SPICE: BUILT FOR VIRTUAL DESKTOPS

Adaptive Protocol

Dynamically chooses optimal point to
process graphics

Renders locally on client or falls back
to server or VM

Improved network support for WAN

Enhanced bandwidth and latency
tolerance

Optional SSL encryption

Highest server density levels
6 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

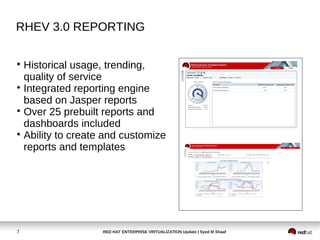

7. RHEV 3.0 REPORTING

Historical usage, trending,
quality of service

Integrated reporting engine
based on Jasper reports

Over 25 prebuilt reports and
dashboards included

Ability to create and customize
reports and templates
7 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

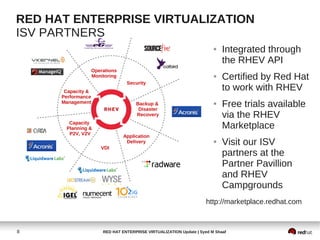

8. RED HAT ENTERPRISE VIRTUALIZATION
ISV PARTNERS
● Integrated through
the RHEV API
Operations
Monitoring ● Certified by Red Hat
Security
Capacity &
to work with RHEV
Performance
Management Backup &
Disaster
● Free trials available
Recovery via the RHEV
Capacity
Planning & Marketplace
P2V, V2V
Application
VDI
Delivery ● Visit our ISV
partners at the
Partner Pavillion
and RHEV
Campgrounds
http://marketplace.redhat.com
8 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

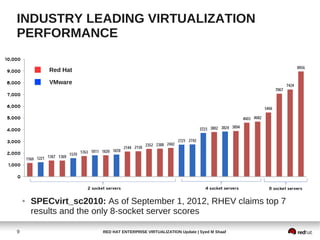

9. INDUSTRY LEADING VIRTUALIZATION
PERFORMANCE
Red Hat
VMware
● SPECvirt_sc2010: As of September 1, 2012, RHEV claims top 7
results and the only 8-socket server scores
9 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

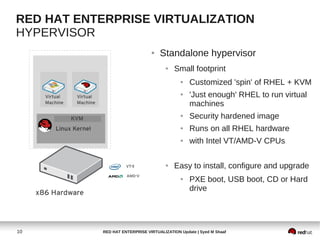

10. RED HAT ENTERPRISE VIRTUALIZATION
HYPERVISOR
● Standalone hypervisor
● Small footprint
● Customized 'spin' of RHEL + KVM
● 'Just enough' RHEL to run virtual
machines
● Security hardened image
● Runs on all RHEL hardware
● with Intel VT/AMD-V CPUs
● Easy to install, configure and upgrade
● PXE boot, USB boot, CD or Hard
drive
10 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

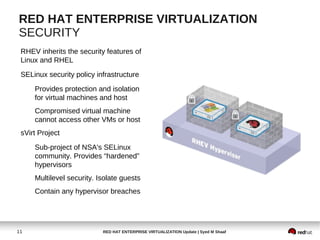

11. RED HAT ENTERPRISE VIRTUALIZATION
SECURITY
RHEV inherits the security features of
Linux and RHEL
SELinux security policy infrastructure
Provides protection and isolation
for virtual machines and host
Compromised virtual machine
cannot access other VMs or host
sVirt Project
Sub-project of NSA's SELinux
community. Provides “hardened”
hypervisors
Multilevel security. Isolate guests
Contain any hypervisor breaches
11 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

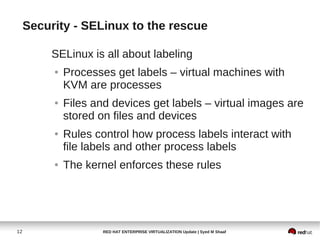

12. Security - SELinux to the rescue
SELinux is all about labeling
● Processes get labels – virtual machines with
KVM are processes
● Files and devices get labels – virtual images are
stored on files and devices
● Rules control how process labels interact with
file labels and other process labels
● The kernel enforces these rules
12 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

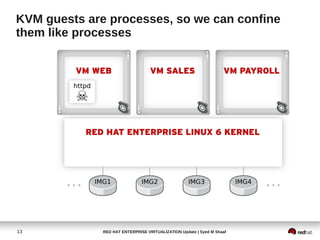

13. KVM guests are processes, so we can confine
them like processes
13 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

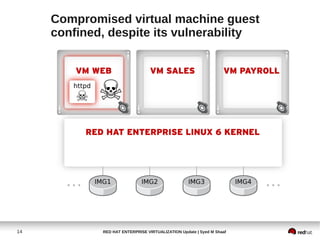

14. Compromised virtual machine guest
confined, despite its vulnerability
14 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

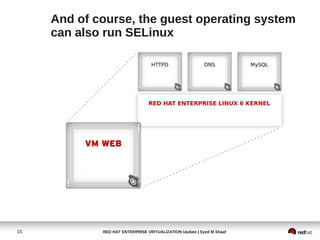

15. And of course, the guest operating system
can also run SELinux
15 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

16. RHEV 3.0 ARCHITECTURE

RHEV-Manager is now a Java
application running on JBoss
EAP on RHEL

Backend database is now
PostgreSQL 8.4

New user portal, REST API,
Linux CLI

Support for multiple external
authentication sources

Red Hat IPA

Microsoft Active Directory
16 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

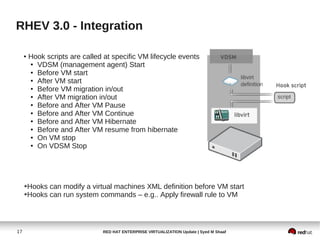

17. RHEV 3.0 - Integration
● Hook scripts are called at specific VM lifecycle events
● VDSM (management agent) Start
● Before VM start
● After VM start
● Before VM migration in/out
● After VM migration in/out
● Before and After VM Pause
● Before and After VM Continue
● Before and After VM Hibernate
● Before and After VM resume from hibernate
● On VM stop
● On VDSM Stop
➔Hooks can modify a virtual machines XML definition before VM start
➔Hooks can run system commands – e.g.. Apply firewall rule to VM
17 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

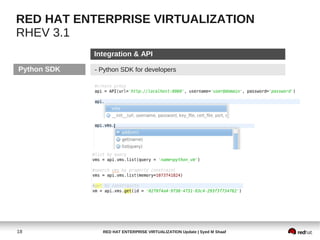

18. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Integration & API
Python SDK - Python SDK for developers
18 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

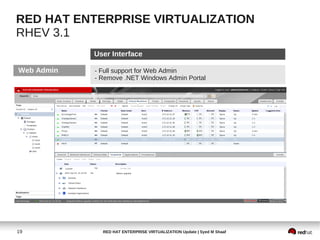

19. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
User Interface
Web Admin - Full support for Web Admin
- Remove .NET Windows Admin Portal
19 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

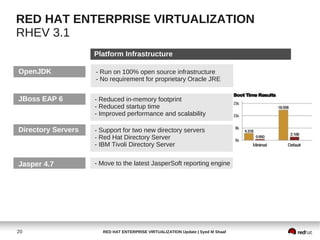

20. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Platform Infrastructure
OpenJDK - Run on 100% open source infrastructure
- No requirement for proprietary Oracle JRE
JBoss EAP 6 - Reduced in-memory footprint
- Reduced startup time
- Improved performance and scalability
Directory Servers - Support for two new directory servers
- Red Hat Directory Server
- IBM Tivoli Directory Server
Jasper 4.7 - Move to the latest JasperSoft reporting engine
20 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

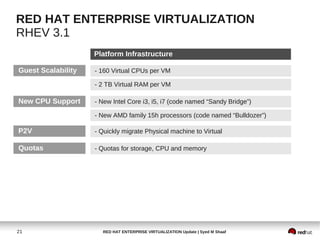

21. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Platform Infrastructure
Guest Scalability - 160 Virtual CPUs per VM
- 2 TB Virtual RAM per VM
New CPU Support - New Intel Core i3, i5, i7 (code named “Sandy Bridge”)
- New AMD family 15h processors (code named “Bulldozer”)
P2V - Quickly migrate Physical machine to Virtual
Quotas - Quotas for storage, CPU and memory
21 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

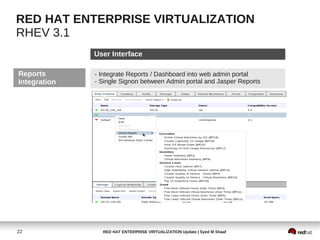

22. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
User Interface
Reports - Integrate Reports / Dashboard into web admin portal
Integration - Single Signon between Admin portal and Jasper Reports
22 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

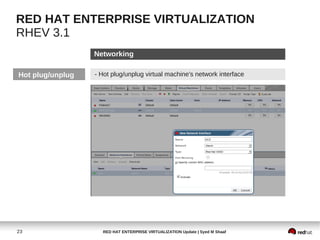

23. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Networking
Hot plug/unplug - Hot plug/unplug virtual machine's network interface
23 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

24. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Storage
Hotplug Disk - Hot plug/unplug virtual machine disk image
Disk Management - New UI for managing internal and external (direct lun) disks
24 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

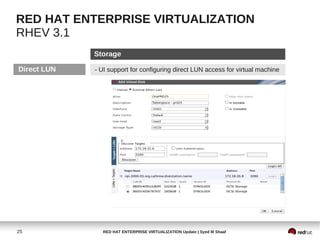

25. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Storage
Direct LUN - UI support for configuring direct LUN access for virtual machine
25 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

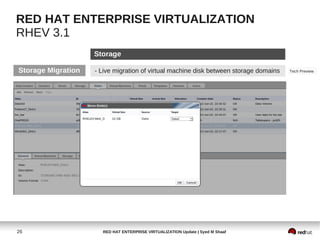

26. RED HAT ENTERPRISE VIRTUALIZATION
RHEV 3.1
Storage
Storage Migration - Live migration of virtual machine disk between storage domains Tech Preview
26 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf

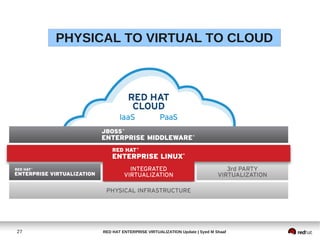

27. PHYSICAL TO VIRTUAL TO CLOUD
27 RED HAT ENTERPRISE VIRTUALIZATION Update | Syed M Shaaf
