Bts commissioning
- 1. Bts commissioning (alcatellucent)Presentation Transcript 1. Switch OFF the BTS cabinet and disconnect Abis connectors fromDDF before offline start 2. Disconnect the Abis connectorfrom The DDF 3. Switch ON the BTS cabinet breakers and connect the Laptop with BTS 4. User Name “COMMTE” Password“COMMTE” 5. Communication Port setting 6. OR 7. After connecting this windowwill be appear 8. Go toConfiguration-> BTS-SW Download-> to download BTS software 9. After BTS- SW downloadthis window will appear 10. Go to offlineFiles and select First File of Master File. 11. Go to offlineFiles and select First File of DDL file. 12. Click ok to startdownloading SW 13. BTS software starts to download. 14. All these Files aredownloaded 15. Go toConfiguration BTScommissioning 16. Click startcommissioning 17. Edit Qmux Address 18. Edit sector Mapping 19. Check AllTwin TRE’s. 20. Click EndCommissioning Click << arrow to move selected modules to available modules 21. All modules Shifted to update modules. 22. Click No to end 23. Reconnect theAbis connector at DDF by verifyingthe TX/RX cables properly 24. Give Hard Reset to BTS cabinet as theOML has established to put the site on Downloading. 25. OFF Line Commissioning Completed Successfully. 26. BTS ON-Line commissioning Procedure using B10 Go toconfiguration>> Hardware setting>>BeginHW modification 27. Go to configuration> BTS commissioning Go to start commissioning> Edit Q1Address, Edit SectorMapping and Twin TRA setting as in offline. 28. Go toconfiguration> Hardware setting>“EndModification” to end onlinecommissioning 29. Online commissioning steps Connect the Abis connector at DDF by verifying Tx/Rx cable properly. OML will be established after primary Abis has connected to DDF. Give hard reset to BTS after OML has established. Put site on Downloading from OMC. O&M will be established as downloading completes. Connect Laptop to BTS MMI port. Go to configuration>Hardware setting>Begin Hardware modification. 30. Online commissioning steps Go to configuration>BTS commissioning>start commissioning. Edit Qmux Address Edit sector mapping Check all Twin TRA setting. Click end commissioning and shift all modules from selected modules to available modules. Go to configuration>Hardware setting>End Hardware modification. Click “yes” when an automatically hardware modification window appears. Hw Audit will be run and all Hardware will be shown after sometime. 31. ON Line Commissioning Completed Successfully.

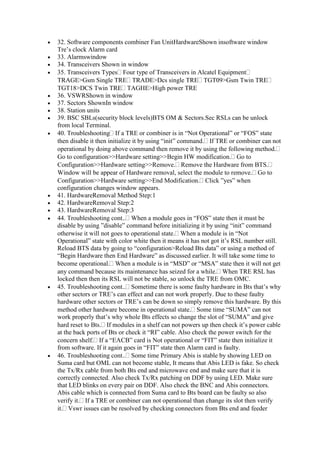

- 2. 32. Software componentscombiner Fan UnitHardwareShown insoftware window Tre’s clock Alarm card 33. Alarmswindow 34. Transceivers Shown in window 35. Transceivers Types Four type of Transceivers in Alcatel Equipment TRAGE>Gsm Single TRE TRADE>Dcs single TRE TGT09>Gsm Twin TRE TGT18>DCS Twin TRE TAGHE>High power TRE 36. VSWRShown in window 37. Sectors ShownIn window 38. Station units 39. BSC SBLs(security block levels)BTS OM & Sectors.Sec RSLs can be unlock from local Terminal. 40. Troubleshooting If a TRE or combiner is in “Not Operational” or “FOS” state then disable it then initialize it by using “init” command. If TRE or combiner can not operational by doing above command then remove it by using the following method. Go to configuration>>Hardware setting>>Begin HW modification. Go to Configuration>>Hardware setting>>Remove. Remove the Hardware from BTS. Window will be appear of Hardware removal, select the module to remove. Go to Configuration>>Hardware setting>>End Modification. Click ”yes” when configuration changes window appears. 41. HardwareRemoval Method Step:1 42. HardwareRemoval Step:2 43. HardwareRemoval Step:3 44. Troubleshooting cont.. When a module goes in “FOS” state then it must be disable by using ”disable” command before initializing it by using “init” command otherwise it will not goes to operational state. When a module is in “Not Operational” state with color white then it means it has not got it’s RSL number still. Reload BTS data by going to “configuration>Reload Bts data” or using a method of “Begin Hardware then End Hardware” as discussed earlier. It will take some time to become operational. When a module is in “MSD” or “MSA” state then it will not get any command because its maintenance has seized for a while. When TRE RSL has locked then then its RSL will not be stable, so unlock the TRE from OMC. 45. Troubleshooting cont.. Sometime there is some faulty hardware in Bts that’s why other sectors or TRE’s can effect and can not work properly. Due to these faulty hardware other sectors or TRE’s can be down so simply remove this hardware. By this method other hardware become in operational state. Some time “SUMA” can not work properly that’s why whole Bts effects so change the slot of “SUMA” and give hard reset to Bts. If modules in a shelf can not powers up then check it’s power cable at the back ports of Bts or check it “RI” cable. Also check the power switch for the concern shelf. If a “EACB” card is Not operational or “FIT” state then initialize it from software. If it again goes in “FIT” state then Alarm card is faulty. 46. Troubleshooting cont.. Some time Primary Abis is stable by showing LED on Suma card but OML can not become stable, It means that Abis LED is fake. So check the Tx/Rx cable from both Bts end and microwave end and make sure that it is correctly connected. Also check Tx/Rx patching on DDF by using LED. Make sure that LED blinks on every pair on DDF. Also check the BNC and Abis connectors. Abis cable which is connected from Suma card to Bts board can be faulty so also verify it. If a TRE or combiner can not operational than change its slot then verify it. Vswr issues can be resolved by checking connectors from Bts end and feeder

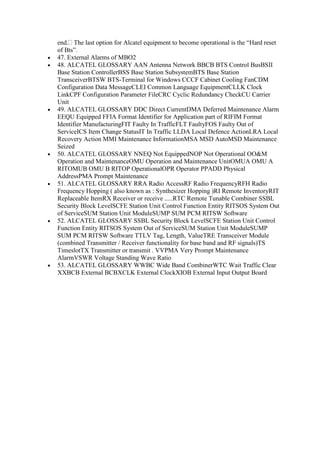

- 3. end. The lastoption for Alcatel equipment to become operational is the “Hard reset of Bts”. 47. External Alarms of MBO2 48. ALCATEL GLOSSARY AAN Antenna Network BBCB BTS Control BusBSII Base Station ControllerBSS Base Station SubsystemBTS Base Station TransceiverBTSW BTS-Terminal for Windows CCCF Cabinet Cooling FanCDM Configuration Data MessageCLEI Common Language EquipmentCLLK Clock LinkCPF Configuration Parameter FileCRC Cyclic Redundancy CheckCU Carrier Unit 49. ALCATEL GLOSSARY DDC Direct CurrentDMA Deferred Maintenance Alarm EEQU Equipped FFIA Format Identifier for Application part of RIFIM Format Identifier ManufacturingFIT Faulty In TrafficFLT FaultyFOS Faulty Out of ServiceICS Item Change StatusIT In Traffic LLDA Local Defence ActionLRA Local Recovery Action MMI Maintenance InformationMSA MSD AutoMSD Maintenance Seized 50. ALCATEL GLOSSARY NNEQ Not EquippedNOP Not Operational OO&M Operation and MaintenanceOMU Operation and Maintenance UnitOMUA OMU A RITOMUB OMU B RITOP OperationalOPR Operator PPADD Physical AddressPMA Prompt Maintenance 51. ALCATEL GLOSSARY RRA Radio AccessRF Radio FrequencyRFH Radio Frequency Hopping ( also known as : Synthesizer Hopping )RI Remote InventoryRIT Replaceable ItemRX Receiver or receive .....RTC Remote Tunable Combiner SSBL Security Block LevelSCFE Station Unit Control Function Entity RITSOS System Out of ServiceSUM Station Unit ModuleSUMP SUM PCM RITSW Software 52. ALCATEL GLOSSARY SSBL Security Block LevelSCFE Station Unit Control Function Entity RITSOS System Out of ServiceSUM Station Unit ModuleSUMP SUM PCM RITSW Software TTLV Tag, Length, ValueTRE Transceiver Module (combined Transmitter / Receiver functionality for base band and RF signals)TS TimeslotTX Transmitter or transmit . VVPMA Very Prompt Maintenance AlarmVSWR Voltage Standing Wave Ratio 53. ALCATEL GLOSSARY WWBC Wide Band CombinerWTC Wait Traffic Clear XXBCB External BCBXCLK External ClockXIOB External Input Output Board
