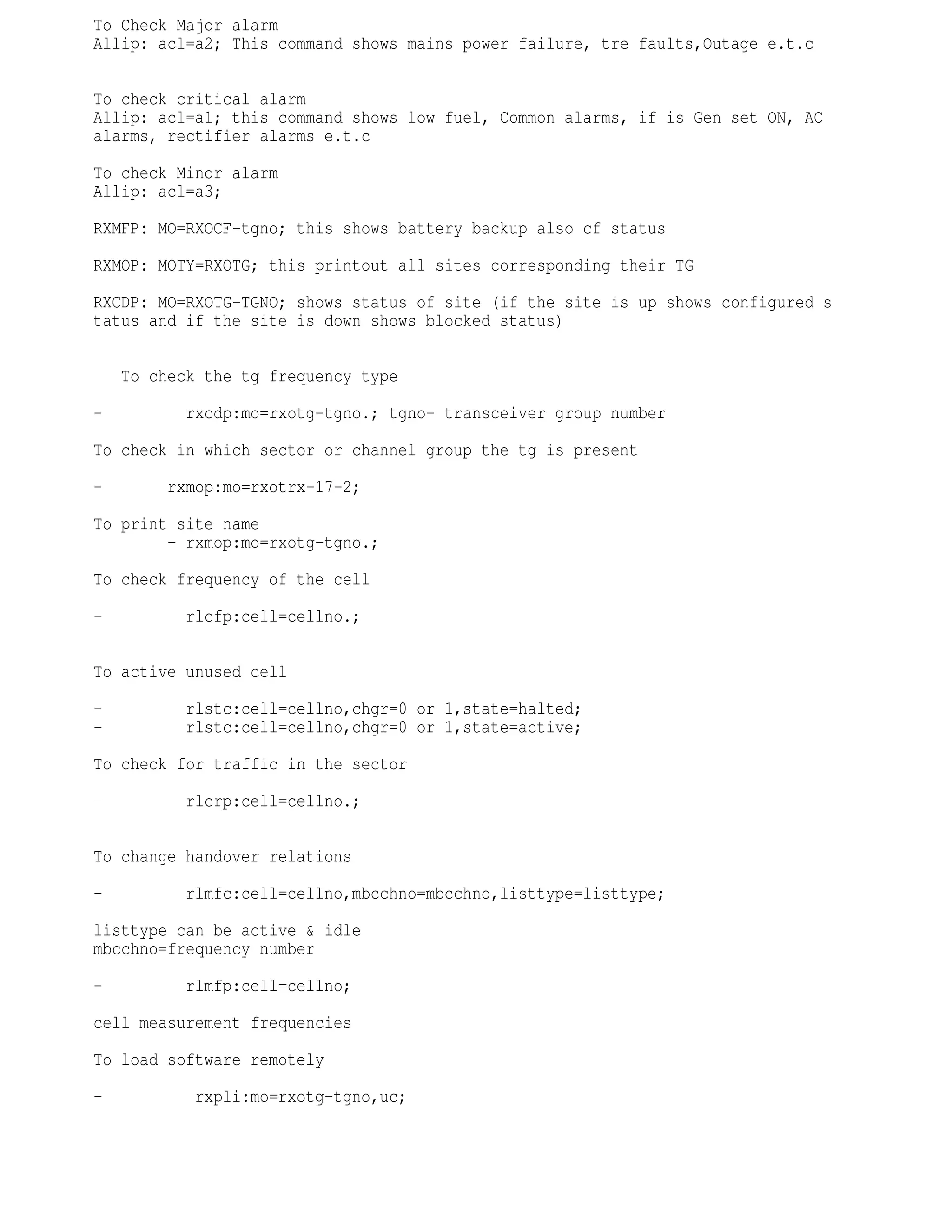

1. To Check Major alarm
Allip: acl=a2; This command shows mains power failure, tre faults,Outage e.t.c
To check critical alarm
Allip: acl=a1; this command shows low fuel, Common alarms, if is Gen set ON, AC
alarms, rectifier alarms e.t.c
To check Minor alarm
Allip: acl=a3;
RXMFP: MO=RXOCF-tgno; this shows battery backup also cf status
RXMOP: MOTY=RXOTG; this printout all sites corresponding their TG
RXCDP: MO=RXOTG-TGNO; shows status of site (if the site is up shows configured s
tatus and if the site is down shows blocked status)
To check the tg frequency type
- rxcdp:mo=rxotg-tgno.; tgno- transceiver group number
To check in which sector or channel group the tg is present
- rxmop:mo=rxotrx-17-2;
To print site name
- rxmop:mo=rxotg-tgno.;
To check frequency of the cell
- rlcfp:cell=cellno.;
To active unused cell
- rlstc:cell=cellno,chgr=0 or 1,state=halted;
- rlstc:cell=cellno,chgr=0 or 1,state=active;
To check for traffic in the sector
- rlcrp:cell=cellno.;
To change handover relations
- rlmfc:cell=cellno,mbcchno=mbcchno,listtype=listtype;
listtype can be active & idle
mbcchno=frequency number
- rlmfp:cell=cellno;
cell measurement frequencies
To load software remotely
- rxpli:mo=rxotg-tgno,uc;

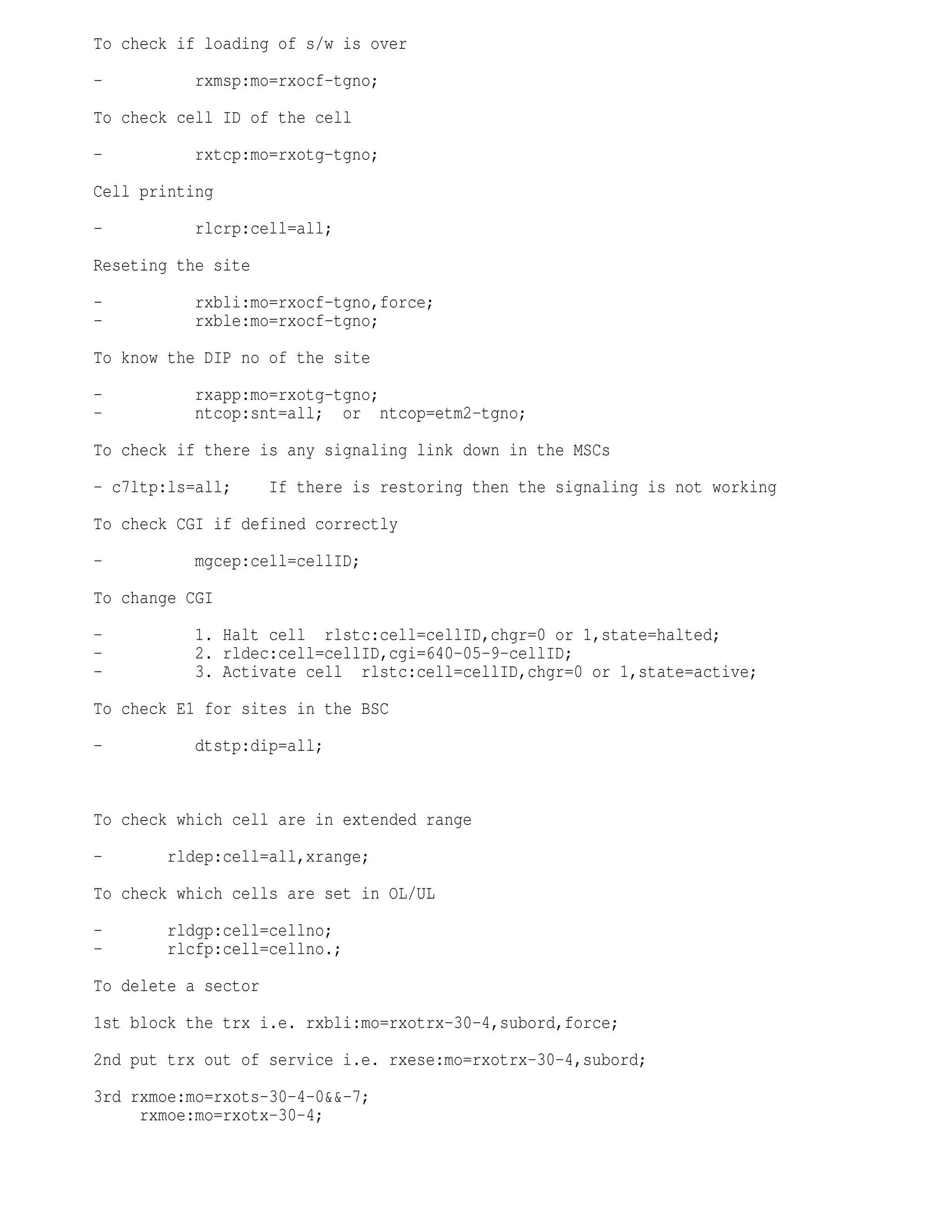

2. To check if loading of s/w is over
- rxmsp:mo=rxocf-tgno;
To check cell ID of the cell
- rxtcp:mo=rxotg-tgno;
Cell printing
- rlcrp:cell=all;
Reseting the site
- rxbli:mo=rxocf-tgno,force;
- rxble:mo=rxocf-tgno;
To know the DIP no of the site
- rxapp:mo=rxotg-tgno;
- ntcop:snt=all; or ntcop=etm2-tgno;
To check if there is any signaling link down in the MSCs
- c7ltp:ls=all; If there is restoring then the signaling is not working
To check CGI if defined correctly
- mgcep:cell=cellID;
To change CGI
- 1. Halt cell rlstc:cell=cellID,chgr=0 or 1,state=halted;
- 2. rldec:cell=cellID,cgi=640-05-9-cellID;
- 3. Activate cell rlstc:cell=cellID,chgr=0 or 1,state=active;
To check E1 for sites in the BSC
- dtstp:dip=all;
To check which cell are in extended range
- rldep:cell=all,xrange;
To check which cells are set in OL/UL
- rldgp:cell=cellno;
- rlcfp:cell=cellno.;
To delete a sector
1st block the trx i.e. rxbli:mo=rxotrx-30-4,subord,force;
2nd put trx out of service i.e. rxese:mo=rxotrx-30-4,subord;
3rd rxmoe:mo=rxots-30-4-0&&-7;
rxmoe:mo=rxotx-30-4;
3. rxmoe:mo=rxorx-30-4;
rxmoe:mo=rxotrx-30-4;
4th rlstc:cell=cellno,state=halted,chgr=0 or 1;
rxtce:mo=rxotg-30,cell=cellno,chgr=0 or 1;
rlsle:cell=cellno,perm;
rldee:cell=cellno;
To check if the cell is active or halted
- rlstp:cell=cellno;
To get TG number
- rxtcp:moty=rxotg,cell=cellno;
To check the TS
- rxmsp:moty=rxots;
To check which faulty code comes from a faulty tre
- rxmfp:mo=rxotx-tgno-trxno;
To lock a sector
- rlstc:cell=cellno,state=halted;
To unlock a sector
- rlstc:cell=cellno,state=active;
Upgrading a sector
<rxtcp:MO=RXOTG-30;
RADIO X-CEIVER ADMINISTRATION
TG TO CHANNEL GROUP CONNECTION DATA
MO CELL CHGR
RXOTG-30 2684 0
2685 0
2686 0
END
<rlcfp:cell=2684;
CELL CONFIGURATION FREQUENCY DATA
CELL
2684
CHGR SCTYPE SDCCH SDCCHAC TN CBCH HSN HOP DCHNO
0 1 0 2 NO 39 OFF 665
END
<rxcdP:mo=rxotG-30;
4. RADIO X-CEIVER ADMINISTRATION
MANAGED OBJECT CONFIGURATION DATA
MO RESULT ARFCN MISMATCH
RXORX-30-0 CONFIG HOP NONE
RXORX-30-4 CONFIG HOP NONE
RXORX-30-8 CONFIG HOP NONE
MO RESULT ARFCN TXAD TN BPC CHCOMB OFFS XRA ICM
RXOTS-30-0-0 CONFIG 665 2 0 4500 BCCH 0 NO ON
RXOTS-30-0-1 CONFIG 665 2 2 4498 SDCCH8 0 NO ON
RXOTS-30-0-2 CONFIG 665 2 7 4482 TCH 0 NO ON
RXOTS-30-0-3 CONFIG 665 2 6 4470 TCH 0 NO ON
RXOTS-30-0-4 CONFIG 665 2 5 4467 TCH 0 NO ON
RXOTS-30-0-5 CONFIG 665 2 4 4465 TCH 0 NO ON
RXOTS-30-0-6 CONFIG 665 2 3 4463 TCH 0 NO ON
RXOTS-30-0-7 CONFIG 665 2 1 4462 TCH 0 NO ON
RXOTS-30-4-0 CONFIG 701 1 0 4505 BCCH 0 NO ON
RXOTS-30-4-1 CONFIG 701 1 2 4504 SDCCH8 0 NO ON
RXOTS-30-4-2 CONFIG 701 1 7 4491 TCH 0 NO ON
RXOTS-30-4-3 CONFIG 701 1 6 4489 TCH 0 NO ON
RXOTS-30-4-4 CONFIG 701 1 5 4488 TCH 0 NO ON
RXOTS-30-4-5 CONFIG 701 1 4 4484 TCH 0 NO ON
RXOTS-30-4-6 CONFIG 701 1 3 4480 TCH 0 NO ON
RXOTS-30-4-7 CONFIG 701 1 1 4469 TCH 0 NO ON
RXOTS-30-8-0 CONFIG 710 0 0 4493 BCCH 0 NO ON
RXOTS-30-8-1 CONFIG 710 0 2 4495 SDCCH8 0 NO ON
RXOTS-30-8-2 CONFIG 710 0 7 4497 TCH 0 NO ON
RXOTS-30-8-3 CONFIG 710 0 6 4486 TCH 0 NO ON
RXOTS-30-8-4 CONFIG 710 0 5 4481 TCH 0 NO ON
RXOTS-30-8-5 CONFIG 710 0 4 4468 TCH 0 NO ON
RXOTS-30-8-6 CONFIG 710 0 3 4466 TCH 0 NO ON
RXOTS-30-8-7 CONFIG 710 0 1 4464 TCH 0 NO ON
MO RESULT ARFCN TXAD BSPWR C0F MISMATCH
RXOTX-30-0 CONFIG 665 2 45 YES NONE
RXOTX-30-4 CONFIG 701 1 45 YES NONE
RXOTX-30-8 CONFIG 710 0 45 YES NONE
END
<rxaPP:mo=rxotG-30;
RADIO X-CEIVER ADMINISTRATION
ABIS PATH STATUS
MO
RXOTG-30
DEV DCP APUSAGE APSTATE 64K TEI
RBLT2-595 19 MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
RBLT2-596 20 UNDEF IDLE NO
RBLT2-597 21 CONC CF/TRXC SIGNAL NO 61 0 8
RBLT2-598 22 CONC TRXC SIGNAL NO 4
RBLT2-599 23 UNDEF IDLE NO
RBLT2-600 24 UNDEF IDLE NO
RBLT2-601 25 UNDEF IDLE NO
RBLT2-602 26 UNDEF IDLE NO
5. RBLT2-603 27 UNDEF IDLE NO
RBLT2-604 28 MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX32 IDLE NO
RBLT2-605 29 MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
RBLT2-606 30 MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
RBLT2-607 31 MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
MPLEX16 SPEECH/DATA NO
END
<rxmop:mo=rxoTrx-30-0;
RADIO X-CEIVER ADMINISTRATION
MANAGED OBJECT DATA
MO CELL CHGR TEI SIG DCP1
RXOTRX-30-0 2684 ALL 0 CONC 128
SWVERREPL SWVERDLD SWVERACT DCP2
DEFAULT B1922R002U B1922R002U 129
130
END
<RLCFI:CELL=2684,DCHNO=661;
RLCFI:CELL=2684,DCHNO=661;
<;
EXECUTED
<RXMOI:MO=RXOTRX-30-1, TEI=1, DCP1=131, DCP2=132&133,SIG=CONC;
RXMOI:MO=RXOTRX-30-1, TEI=1, DCP1=131, DCP2=132&133,SIG=CONC;
<;
EXECUTED
<RXMOC:MO=RXOTRX-30-1, CELL=2684;
RXMOC:MO=RXOTRX-30-1, CELL=2684;
<;
EXECUTED
<RXMOI:MO=RXOTX-30-1, BAND=GSM900, MPWR=47; ! for 1800 band MPWR=45
RXMOI:MO=RXOTX-30-1, BAND=GSM900, MPWR=47;
<;
EXECUTED
<RXMOC:MO=RXOTX-30-1, CELL=2684;
RXMOC:MO=RXOTX-30-1, CELL=2684;
<;
EXECUTED
<RXMOI:MO=RXORX-30-1, BAND=GSM900, RXD=AB;
RXMOI:MO=RXORX-30-1, BAND=GSM900, RXD=AB;
<;
6. EXECUTED
<RXMOI:MO=RXOTS-30-1-0&&-7;
RXMOI:MO=RXOTS-30-1-0&&-7;
<;
EXECUTED
<RXESI:MO=RXOTRX-30-1,SUBORD;
RXESI:MO=RXOTRX-30-1,SUBORD;
<;
RADIO X-CEIVER ADMINISTRATION
MANAGED OBJECT IN SERVICE COMMAND RESULT
MO RESULT
RXOTRX-30-1 ORDERED
RXORX-30-1 ORDERED
RXOTS-30-1-0 ORDERED
RXOTS-30-1-1 ORDERED
RXOTS-30-1-2 ORDERED
RXOTS-30-1-3 ORDERED
RXOTS-30-1-4 ORDERED
RXOTS-30-1-5 ORDERED
RXOTS-30-1-6 ORDERED
RXOTS-30-1-7 ORDERED
RXOTX-30-1 ORDERED
END
<RXBLE:MO=RXOTRX-30-1,SUBORD;
RXBLE:MO=RXOTRX-30-1,SUBORD;
<;
RADIO X-CEIVER ADMINISTRATION
MANUAL DEBLOCKING OF MANAGED OBJECT COMMAND RESULT
MO STATE RESULT
RXOTRX-30-1 NOOP EXECUTED
RXORX-30-1 PREOP ORDERED
RXOTS-30-1-0 PREOP ORDERED
RXOTS-30-1-1 PREOP ORDERED
RXOTS-30-1-2 PREOP ORDERED
RXOTS-30-1-3 PREOP ORDERED
RXOTS-30-1-4 PREOP ORDERED
RXOTS-30-1-5 PREOP ORDERED
RXOTS-30-1-6 PREOP ORDERED
RXOTS-30-1-7 PREOP ORDERED
RXOTX-30-1 PREOP ORDERED
END
Changing frequency of a TRX in cell
rlcfp:cell=3082; ! u get the existing frequency(ies) in cell 3082 !
suppose you want to remove freq= 109 and put 90 insted, you will
have to end that freq. eg. 109 !
rlstc:cell=3082,state=halted;
rlcfe:cell= cell=3082,dhno= 109;
7. rlcfi:cell=3082,dhno=90; ! adding freq. 90 in a mentioned cell!
rlstc=cell=3082,state=active; activate !! and check !!.
Cell Dynamic HR allocation Data
- rldhp:cell=cellno; This command will show the values of DTHAMR( Dynamic
Threshold Half rate Adaptive Multi Rate) and DTHANMR (Dynamic Threshold Half rat
e Non Adaptive Multi Rate)
Cell Adaptive Logical Channel configuration
- rlacp:cell=cellno; If ACSTATE= ON, then there is a dynamic SDCCH in the
cell
Cell General Packet Radio Service Data
-rlgsp:cell=cellno; This shows the value of FPDCH in the cell
To check neighbour relation of the cell
-rlnrp:cell=cellno; To print all neighbours of the cell
Cell Locating Hierarchical Data
-rllhp:cell=cellno; To get the Layer Threshold ( LAYERTHR) value OF A CELL
