This document provides lighting and acoustic calculations and analyses for two spaces - a silent study area and reading space - within a proposed Sentul Community Library.
For the silent study area: daylight factor calculations show natural illumination exceeds recommendations, requiring louvers for shading. Artificial lighting calculations determine 30 downlights are needed to achieve minimum illuminance. Reverberation time is above comfort levels but can be improved with carpet installation.
For the reading space: daylight falls within recommended levels but curtains may be needed. Artificial lighting calculations determine 3 luminaires are sufficient. Sound pressure levels during peak hours are moderate but facade improvements can enhance acoustic properties.
BUILDING SCIENCE II: ACOUSTICS AND LIGHTING ANALYSIS OF DONUTES CAFE, SS15JoyeeLee0131
BUILDING SCIENCE II: ACOUSTICS AND LIGHTING ANALYSIS OF DONUTES CAFE, SS15
as part of the projects by architectural students in Taylor's Univeristy Lakeside Campus
The document provides calculations and analysis for lighting and acoustic design of two spaces - a quiet reading area and young adult area - within the Sentul Community Library.
For the quiet reading area on the second floor: Daylight factor is calculated at 4.9% providing good lighting. Artificial lighting calculation determines 25 fluorescent lamps are needed to achieve 300 lux. Permanent supplementary lighting is proposed with three switches.
For the young adult area on the first floor: Daylight factor is 8.7% risking glare and overheating. 24 LED downlights are calculated to provide 300 lux. Permanent supplementary lighting is proposed with two switches.
External noise calculations find sound levels exceeding limits for both spaces during peak hours
This document provides details on a lighting study for a community library project in Chinatown Kuala Lumpur. It analyzes the daylighting and artificial lighting for three different spaces in the library. For each space, it calculates the daylight factor and expected illuminance from daylight. It determines whether the daylight meets the recommended illuminance levels for the space's intended use. For one space requiring artificial light, it specifies the light fixture type and performs calculations to determine the number and layout of light fixtures needed to achieve the standard illuminance level.
The document discusses the lighting and acoustic design of a quiet study room and reading room located in a new library building.
The quiet study room receives sufficient natural light from windows facing northwest, providing a daylight factor of 6.3% and illumination of 1260 lux. Artificial lights consisting of 30 downlights are installed to ensure uniform lighting of 300 lux.
The reading room located on the first floor receives a daylight factor of 3.8% and illumination of 760 lux from a double volume space. Six luminaires provide uniform artificial light, with switches controlling lights separately from daylight. Reverberation time in the study room was reduced from 1.36 to 0.85 seconds by adding carpet, meeting comfort standards.
The document provides details on lighting and acoustic studies conducted for the Ground Eatery Cafe. It includes:
- An introduction to lighting and acoustics, as well as the methodology used for the study.
- Analysis of the natural and artificial lighting in the cafe, including light level readings across different zones and times of day.
- Acoustic analysis of reverberation time, sound pressure levels, and sound transmission loss in three zones.
- Two precedent studies on the relationship between lighting and user comfort in cafes.
The study examines how lighting and acoustics impact the user experience in different areas of the cafe. Data collected will help identify opportunities to improve the design.
This document provides a literature review and case study analysis of the lighting and acoustic performance of PULP cafe in Bangsar, Kuala Lumpur. It examines the lighting conditions through lux readings taken during daytime and nighttime to evaluate the lighting in different zones. Acoustic performance is also analyzed through sound level and reverberation time measurements to understand the noise sources and materials used. The study aims to understand and explore the lighting design and acoustic characteristics of the space.
The document discusses a lighting and acoustic analysis project of Wisma Mustapha Kamal in Cyberjaya. It includes an introduction of the project aim, site details, and architectural drawings. Literature on lighting concepts such as illuminance, daylight factors and lighting standards are reviewed. The Seagram Building precedent study covers its design strategies, materials used, and performance analysis. Research methodology, identification of existing conditions and analysis of lighting and acoustic levels in the site are also presented.
BUILDING SCIENCE II: ACOUSTICS AND LIGHTING ANALYSIS OF DONUTES CAFE, SS15JoyeeLee0131
BUILDING SCIENCE II: ACOUSTICS AND LIGHTING ANALYSIS OF DONUTES CAFE, SS15
as part of the projects by architectural students in Taylor's Univeristy Lakeside Campus
The document provides calculations and analysis for lighting and acoustic design of two spaces - a quiet reading area and young adult area - within the Sentul Community Library.
For the quiet reading area on the second floor: Daylight factor is calculated at 4.9% providing good lighting. Artificial lighting calculation determines 25 fluorescent lamps are needed to achieve 300 lux. Permanent supplementary lighting is proposed with three switches.
For the young adult area on the first floor: Daylight factor is 8.7% risking glare and overheating. 24 LED downlights are calculated to provide 300 lux. Permanent supplementary lighting is proposed with two switches.
External noise calculations find sound levels exceeding limits for both spaces during peak hours
This document provides details on a lighting study for a community library project in Chinatown Kuala Lumpur. It analyzes the daylighting and artificial lighting for three different spaces in the library. For each space, it calculates the daylight factor and expected illuminance from daylight. It determines whether the daylight meets the recommended illuminance levels for the space's intended use. For one space requiring artificial light, it specifies the light fixture type and performs calculations to determine the number and layout of light fixtures needed to achieve the standard illuminance level.
The document discusses the lighting and acoustic design of a quiet study room and reading room located in a new library building.
The quiet study room receives sufficient natural light from windows facing northwest, providing a daylight factor of 6.3% and illumination of 1260 lux. Artificial lights consisting of 30 downlights are installed to ensure uniform lighting of 300 lux.
The reading room located on the first floor receives a daylight factor of 3.8% and illumination of 760 lux from a double volume space. Six luminaires provide uniform artificial light, with switches controlling lights separately from daylight. Reverberation time in the study room was reduced from 1.36 to 0.85 seconds by adding carpet, meeting comfort standards.
The document provides details on lighting and acoustic studies conducted for the Ground Eatery Cafe. It includes:
- An introduction to lighting and acoustics, as well as the methodology used for the study.
- Analysis of the natural and artificial lighting in the cafe, including light level readings across different zones and times of day.
- Acoustic analysis of reverberation time, sound pressure levels, and sound transmission loss in three zones.
- Two precedent studies on the relationship between lighting and user comfort in cafes.
The study examines how lighting and acoustics impact the user experience in different areas of the cafe. Data collected will help identify opportunities to improve the design.
This document provides a literature review and case study analysis of the lighting and acoustic performance of PULP cafe in Bangsar, Kuala Lumpur. It examines the lighting conditions through lux readings taken during daytime and nighttime to evaluate the lighting in different zones. Acoustic performance is also analyzed through sound level and reverberation time measurements to understand the noise sources and materials used. The study aims to understand and explore the lighting design and acoustic characteristics of the space.
The document discusses a lighting and acoustic analysis project of Wisma Mustapha Kamal in Cyberjaya. It includes an introduction of the project aim, site details, and architectural drawings. Literature on lighting concepts such as illuminance, daylight factors and lighting standards are reviewed. The Seagram Building precedent study covers its design strategies, materials used, and performance analysis. Research methodology, identification of existing conditions and analysis of lighting and acoustic levels in the site are also presented.
1) The document discusses daylight factor calculations for two spaces - a book collection area and cafe area. For the book collection area, the daylight factor is 22.34% which is higher than recommended due to its location near a skylight. For the cafe, the daylight factor is 8.6%.
2) Artificial lighting calculations are provided for two spaces - a digital room and study room. For the digital room, 23 fluorescent lights are needed in a 3x4 layout. For the study room, 14 LED downlights are needed in a 6 row layout.
3) Permanent supplementary lighting calculations are shown for a reading area and cafe. The reading area needs 19 LED wraparound lights in an
Building Science II: Lighting Integration ReportEe Dong Chen
This document analyzes the lighting conditions in two spaces - the main reading zone and tea lounge - of a community library located in Kuala Lumpur. For each space, natural daylighting is assessed using daylight factor calculations and illuminance levels are determined. Artificial lighting designs using recessed downlights and pendants are also proposed, with lumen method calculations to determine fixture specifications and layouts. Permanent supplementary artificial lighting schemes utilizing switching are additionally suggested to optimize the use of daylight.
An A4 bound report which shows a detailed explanation of the integration and calculations of day lighting, artificial lighting and its design intention (PSALI).
The methodology involved preparing for data collection, visiting the site multiple times to collect lighting data, and analyzing the data. Preparation included identifying the building to study, obtaining floor plans, differentiating spaces, and plotting a grid for light readings. The team visited the site several times armed with a lux meter to collect lighting readings throughout the cafe. They then analyzed the data and compared it to standards to evaluate the lighting performance.
The document provides an overview of a lighting analysis project conducted at the SOCSO Rehabilitation Centre in Melaka, Malaysia. It includes an introduction to the project objectives, a site study of the gymnasium and physiotherapy room, a case study comparison of a Finnish office building, a literature review of key lighting concepts, and the proposed research methodology. The analysis will evaluate the day lighting and artificial lighting in the selected spaces to better understand lighting performance.
The document provides an introduction to a project studying the lighting and acoustic performance of The Artisan Café. It includes the aims and objectives, which are to understand the characteristics of daylight, artificial lighting, sound, and acoustics within the space. It also discusses two precedent studies - the Solar Decathlon House in Texas, which analyzed glare from windows using material reflectance values and light transmittance measurements, and the Yildiz Technical University auditorium, which selected interior surface materials and measured reverberation times to optimize acoustics. The methodology, site study, and analysis sections are then outlined.
Project 1-Lighting & Acoustic Performance Evaluation and DesignAngeline KH
This document presents a case study of the lighting conditions at Cafe Giacometti in Switzerland. The cafe was chosen as a precedent study due to its variety of daylighting conditions from both direct and indirect natural light. Measurements and simulations of illuminance levels throughout the cafe were taken at different times of day. The results showed significant variation in maximum and average illuminance between the central area near shaded glazing compared to the southwest corner near an unshaded window. Illuminance levels peaked at over 7000 lux near the unshaded window but dropped to 500 lux further away. This created distinct light zones within the space that occupants could choose from depending on their visual comfort needs and task.
The document provides details on daylight factor analysis and artificial lighting proposals for two areas - the graffiti wall painting area and study lounge area - of a community library building project. For the graffiti area, the daylight factor is calculated to be 4.29% and natural illumination is 858 lux. 55 LED lights arranged in 11 rows of 5 are proposed to provide 300 lux. For the study lounge, the daylight factor is 2.5% and natural illumination is 500 lux. 65 LED ceiling lights arranged in 5 rows of 13 are proposed to provide 300-500 lux. Both areas will utilize multiple switches to control lighting based on daylight levels.
The document is a project report on evaluating the lighting and acoustic performance of Reggae Mansion Hostel in Kuala Lumpur. It includes:
1. An introduction to the hostel and the aims of studying its lighting and acoustics.
2. A methodology section outlining the precedent studies conducted, site visits made to take measurements, and diagrams/calculations used in the analysis.
3. Details of the three main zones studied - the reception/lobby, dining room/bar, and courtyard - including their layouts and construction.
4. An outline of the report's subsequent sections which will analyze the lighting and acoustics of each zone through literature reviews, measurements,
This document provides an introduction, literature review, methodology, case study analysis and conclusion for a student project evaluating the lighting and acoustic performance of a cafe space. The introduction outlines the aim to study how lighting and acoustics affect a space, conduct measurements of illuminance and sound levels at a selected site, analyze issues and propose solutions. The literature review covers key topics on lighting including natural/artificial sources and balance between science and art. Acoustic fundamentals such as sound pressure level and reverberation time are also reviewed. Methodology sections describe the equipment, data collection process and analysis calculations for both lighting and acoustics.
This document provides details of a study conducted on the lighting and acoustic performance of an income tax office in Malaysia. It includes the following:
- An introduction and objectives of evaluating the site's lighting and acoustic qualities.
- A literature review covering key concepts in lighting such as daylight factor and lumen method, and acoustics such as sound pressure level and reverberation time.
- Methodology for conducting lighting and acoustic analyses at the site, including descriptions of equipment used and data collection methods.
- Analyses of the site including zoning of spaces, tabulation of lighting and noise data, and evaluations of daylighting, artificial lighting, noise sources and levels.
- Conclusions and recommendations
The document analyzes the lighting performance of Bean Brothers Coffee Malaysia through on-site measurements and calculations. It divides the space into 4 zones and evaluates each zone. For Zone A, readings were highest at the bottom left corner exposed to daylight. Average lux was 142 lux during the day and 90 lux at night. Higher day readings are due to adjacency to the glass entrance doors and high reflectance materials used. Daylight factor analysis and existing lighting fixtures are also examined to understand the lighting characteristics of the space.
The document summarizes the lighting analysis for two spaces - a workshop and classroom - in a proposed learning center located in Klang, Malaysia. For the workshop space, daylight factor calculations show thermal and glare issues so a perforated screen is added. Artificial lighting calculations using lumen method determine 15 LED lights are needed, arranged in three rows controlled by a PSALI system. The classroom space on the third floor is also analyzed for daylighting strategies and artificial lighting layout.
This document outlines a project to evaluate the lighting and acoustic performance of Underground Societe, a cafe located in Bandar Sunway, Selangor. It begins with an introduction that establishes the aim to understand lighting and acoustic characteristics and requirements. It then provides literature reviews that define key lighting and acoustic concepts. The research methodology discusses how lighting and acoustic data will be collected on site through equipment and methods. The core of the project will involve a case study of Underground Societe to analyze daylighting, artificial lighting, noise sources, sound levels and reverberation times through on-site measurements and data analysis. Diagrams and technical calculations will also be included.
Lighting & Acoustic Performance Evaluation and Designnadiacbass
The document analyzes the lighting and acoustic performance of FIQ's Gastronomy restaurant in Subang Jaya. It includes:
1) Precedent studies of lighting and acoustic designs in other cafes/restaurants.
2) Research methodology which involved measuring light levels and sound levels throughout the restaurant.
3) Analysis of the lighting data collected during peak and non-peak hours, noting higher light levels in the outdoor dining area during the day.
4) Discussion of the building design and layout, with sunlight entering mainly through the entrance due to being located at the ground level of a row of shophouses.
This document provides details of a project studying the lighting and acoustic performance of a multi-purpose building in Subang Jaya, Malaysia. It includes background information on the building, plans and elevations. Precedent studies on acoustic and lighting design of other buildings are presented. The research methodology outlines the equipment and methods used to analyze lighting levels and acoustic readings in the case study building. Details of the case study building are given along with intended lighting and acoustic designs. Sections are included on taking lighting and acoustic measurements and analyses. The document concludes with findings and references.
This document analyzes the lighting, acoustics, and noise levels of a proposed silent reading area and admin office. For the silent area, daylight factor calculations show good natural lighting levels but potential glare issues. Artificial lighting calculations determine 28 downlights are needed. Sound pressure level measurements exceed requirements, but double layered glass and acoustic panels are proposed to mitigate noise. Reverberation time and sound reduction index calculations are also provided to analyze acoustics. For the admin office, daylight is determined to be fair but not adequate, requiring 8 downlights for artificial lighting. Analyses of lighting and acoustics are also provided to ensure compliance with standards.
This document provides a lighting and acoustic analysis for two areas - a staff rest area and quiet study area - of the Sentul Community Library. For the staff rest area, the daylight factor is calculated to be 3.9% and natural illumination as 780 lux, meeting daylight requirements. Artificial lighting calculations determine 7 light bulbs are needed. Acoustic analysis finds the overall wall sound reduction index of 35.85 dB meets the required 30 dB, and reverberation times of 1.00s and 0.76s slightly differ from the 0.4-0.6s requirement. For the quiet study area, daylight factor is 17.8% and illumination 3560 lux, requiring shading. Artificial lighting calculations
The document provides lighting and acoustic proposals for two areas - the children's reading area and formal reading area - of the Sentul Community Library project. It includes daylighting and artificial lighting analyses and proposals for both spaces to meet illumination standards. Acoustic analyses of sound pressure levels and reverberation times are also provided, along with proposals for sound reduction. Adjustments such as double glazed glass, brise soleil panels, and lighting switches are recommended to improve the lighting and acoustic performance of the spaces.
This document provides lighting and acoustic proposals for a community library design project. It includes:
1. Daylight factor calculations for outdoor reading areas and a courtyard showing they will have thermal glare issues without shading.
2. Artificial lighting calculations for an office and meeting room showing the number and placement of light fixtures needed to meet illumination standards.
3. A proposal to use compact fluorescent lights in a newsagent due to low daylight levels.
4. Sound pressure level calculations showing external traffic noise reaching 70dB for a newsagent and teen area, exceeding standards. Laminated glass and green walls are proposed to reduce noise transmission.
1) The document discusses daylight factor calculations for two spaces - a book collection area and cafe area. For the book collection area, the daylight factor is 22.34% which is higher than recommended due to its location near a skylight. For the cafe, the daylight factor is 8.6%.
2) Artificial lighting calculations are provided for two spaces - a digital room and study room. For the digital room, 23 fluorescent lights are needed in a 3x4 layout. For the study room, 14 LED downlights are needed in a 6 row layout.
3) Permanent supplementary lighting calculations are shown for a reading area and cafe. The reading area needs 19 LED wraparound lights in an
Building Science II: Lighting Integration ReportEe Dong Chen
This document analyzes the lighting conditions in two spaces - the main reading zone and tea lounge - of a community library located in Kuala Lumpur. For each space, natural daylighting is assessed using daylight factor calculations and illuminance levels are determined. Artificial lighting designs using recessed downlights and pendants are also proposed, with lumen method calculations to determine fixture specifications and layouts. Permanent supplementary artificial lighting schemes utilizing switching are additionally suggested to optimize the use of daylight.
An A4 bound report which shows a detailed explanation of the integration and calculations of day lighting, artificial lighting and its design intention (PSALI).
The methodology involved preparing for data collection, visiting the site multiple times to collect lighting data, and analyzing the data. Preparation included identifying the building to study, obtaining floor plans, differentiating spaces, and plotting a grid for light readings. The team visited the site several times armed with a lux meter to collect lighting readings throughout the cafe. They then analyzed the data and compared it to standards to evaluate the lighting performance.
The document provides an overview of a lighting analysis project conducted at the SOCSO Rehabilitation Centre in Melaka, Malaysia. It includes an introduction to the project objectives, a site study of the gymnasium and physiotherapy room, a case study comparison of a Finnish office building, a literature review of key lighting concepts, and the proposed research methodology. The analysis will evaluate the day lighting and artificial lighting in the selected spaces to better understand lighting performance.
The document provides an introduction to a project studying the lighting and acoustic performance of The Artisan Café. It includes the aims and objectives, which are to understand the characteristics of daylight, artificial lighting, sound, and acoustics within the space. It also discusses two precedent studies - the Solar Decathlon House in Texas, which analyzed glare from windows using material reflectance values and light transmittance measurements, and the Yildiz Technical University auditorium, which selected interior surface materials and measured reverberation times to optimize acoustics. The methodology, site study, and analysis sections are then outlined.
Project 1-Lighting & Acoustic Performance Evaluation and DesignAngeline KH
This document presents a case study of the lighting conditions at Cafe Giacometti in Switzerland. The cafe was chosen as a precedent study due to its variety of daylighting conditions from both direct and indirect natural light. Measurements and simulations of illuminance levels throughout the cafe were taken at different times of day. The results showed significant variation in maximum and average illuminance between the central area near shaded glazing compared to the southwest corner near an unshaded window. Illuminance levels peaked at over 7000 lux near the unshaded window but dropped to 500 lux further away. This created distinct light zones within the space that occupants could choose from depending on their visual comfort needs and task.
The document provides details on daylight factor analysis and artificial lighting proposals for two areas - the graffiti wall painting area and study lounge area - of a community library building project. For the graffiti area, the daylight factor is calculated to be 4.29% and natural illumination is 858 lux. 55 LED lights arranged in 11 rows of 5 are proposed to provide 300 lux. For the study lounge, the daylight factor is 2.5% and natural illumination is 500 lux. 65 LED ceiling lights arranged in 5 rows of 13 are proposed to provide 300-500 lux. Both areas will utilize multiple switches to control lighting based on daylight levels.
The document is a project report on evaluating the lighting and acoustic performance of Reggae Mansion Hostel in Kuala Lumpur. It includes:
1. An introduction to the hostel and the aims of studying its lighting and acoustics.
2. A methodology section outlining the precedent studies conducted, site visits made to take measurements, and diagrams/calculations used in the analysis.
3. Details of the three main zones studied - the reception/lobby, dining room/bar, and courtyard - including their layouts and construction.
4. An outline of the report's subsequent sections which will analyze the lighting and acoustics of each zone through literature reviews, measurements,
This document provides an introduction, literature review, methodology, case study analysis and conclusion for a student project evaluating the lighting and acoustic performance of a cafe space. The introduction outlines the aim to study how lighting and acoustics affect a space, conduct measurements of illuminance and sound levels at a selected site, analyze issues and propose solutions. The literature review covers key topics on lighting including natural/artificial sources and balance between science and art. Acoustic fundamentals such as sound pressure level and reverberation time are also reviewed. Methodology sections describe the equipment, data collection process and analysis calculations for both lighting and acoustics.
This document provides details of a study conducted on the lighting and acoustic performance of an income tax office in Malaysia. It includes the following:
- An introduction and objectives of evaluating the site's lighting and acoustic qualities.
- A literature review covering key concepts in lighting such as daylight factor and lumen method, and acoustics such as sound pressure level and reverberation time.
- Methodology for conducting lighting and acoustic analyses at the site, including descriptions of equipment used and data collection methods.
- Analyses of the site including zoning of spaces, tabulation of lighting and noise data, and evaluations of daylighting, artificial lighting, noise sources and levels.
- Conclusions and recommendations
The document analyzes the lighting performance of Bean Brothers Coffee Malaysia through on-site measurements and calculations. It divides the space into 4 zones and evaluates each zone. For Zone A, readings were highest at the bottom left corner exposed to daylight. Average lux was 142 lux during the day and 90 lux at night. Higher day readings are due to adjacency to the glass entrance doors and high reflectance materials used. Daylight factor analysis and existing lighting fixtures are also examined to understand the lighting characteristics of the space.
The document summarizes the lighting analysis for two spaces - a workshop and classroom - in a proposed learning center located in Klang, Malaysia. For the workshop space, daylight factor calculations show thermal and glare issues so a perforated screen is added. Artificial lighting calculations using lumen method determine 15 LED lights are needed, arranged in three rows controlled by a PSALI system. The classroom space on the third floor is also analyzed for daylighting strategies and artificial lighting layout.
This document outlines a project to evaluate the lighting and acoustic performance of Underground Societe, a cafe located in Bandar Sunway, Selangor. It begins with an introduction that establishes the aim to understand lighting and acoustic characteristics and requirements. It then provides literature reviews that define key lighting and acoustic concepts. The research methodology discusses how lighting and acoustic data will be collected on site through equipment and methods. The core of the project will involve a case study of Underground Societe to analyze daylighting, artificial lighting, noise sources, sound levels and reverberation times through on-site measurements and data analysis. Diagrams and technical calculations will also be included.
Lighting & Acoustic Performance Evaluation and Designnadiacbass
The document analyzes the lighting and acoustic performance of FIQ's Gastronomy restaurant in Subang Jaya. It includes:
1) Precedent studies of lighting and acoustic designs in other cafes/restaurants.
2) Research methodology which involved measuring light levels and sound levels throughout the restaurant.
3) Analysis of the lighting data collected during peak and non-peak hours, noting higher light levels in the outdoor dining area during the day.
4) Discussion of the building design and layout, with sunlight entering mainly through the entrance due to being located at the ground level of a row of shophouses.
This document provides details of a project studying the lighting and acoustic performance of a multi-purpose building in Subang Jaya, Malaysia. It includes background information on the building, plans and elevations. Precedent studies on acoustic and lighting design of other buildings are presented. The research methodology outlines the equipment and methods used to analyze lighting levels and acoustic readings in the case study building. Details of the case study building are given along with intended lighting and acoustic designs. Sections are included on taking lighting and acoustic measurements and analyses. The document concludes with findings and references.
This document analyzes the lighting, acoustics, and noise levels of a proposed silent reading area and admin office. For the silent area, daylight factor calculations show good natural lighting levels but potential glare issues. Artificial lighting calculations determine 28 downlights are needed. Sound pressure level measurements exceed requirements, but double layered glass and acoustic panels are proposed to mitigate noise. Reverberation time and sound reduction index calculations are also provided to analyze acoustics. For the admin office, daylight is determined to be fair but not adequate, requiring 8 downlights for artificial lighting. Analyses of lighting and acoustics are also provided to ensure compliance with standards.
This document provides a lighting and acoustic analysis for two areas - a staff rest area and quiet study area - of the Sentul Community Library. For the staff rest area, the daylight factor is calculated to be 3.9% and natural illumination as 780 lux, meeting daylight requirements. Artificial lighting calculations determine 7 light bulbs are needed. Acoustic analysis finds the overall wall sound reduction index of 35.85 dB meets the required 30 dB, and reverberation times of 1.00s and 0.76s slightly differ from the 0.4-0.6s requirement. For the quiet study area, daylight factor is 17.8% and illumination 3560 lux, requiring shading. Artificial lighting calculations
The document provides lighting and acoustic proposals for two areas - the children's reading area and formal reading area - of the Sentul Community Library project. It includes daylighting and artificial lighting analyses and proposals for both spaces to meet illumination standards. Acoustic analyses of sound pressure levels and reverberation times are also provided, along with proposals for sound reduction. Adjustments such as double glazed glass, brise soleil panels, and lighting switches are recommended to improve the lighting and acoustic performance of the spaces.
This document provides lighting and acoustic proposals for a community library design project. It includes:
1. Daylight factor calculations for outdoor reading areas and a courtyard showing they will have thermal glare issues without shading.
2. Artificial lighting calculations for an office and meeting room showing the number and placement of light fixtures needed to meet illumination standards.
3. A proposal to use compact fluorescent lights in a newsagent due to low daylight levels.
4. Sound pressure level calculations showing external traffic noise reaching 70dB for a newsagent and teen area, exceeding standards. Laminated glass and green walls are proposed to reduce noise transmission.
The document provides calculations to analyze lighting and acoustic conditions for two areas - the plants study area and limited edition section - of the Sentul Community Library. For lighting, it calculates daylight factor and artificial lighting requirements for both spaces based on Malaysian standards. It determines that the plants study area has good natural light but may experience glare, while the limited edition section lacks sufficient daylight. For acoustics, it measures external noise levels for the limited edition section during peak and non-peak hours.
This document provides calculations and analysis of lighting and acoustics for spaces in a proposed community library. It includes:
1) Daylight factor calculations for a discussion area (4.467%) and study area (2.968%) to determine natural illumination levels.
2) Lumen method calculations to determine the number of artificial lights needed in library spaces to meet illumination standards, including 58 lights for the main collection area and 23 lights for the AV room.
3) PSALI calculations for a meeting room showing it can be controlled by two sets of switches, with one set on all the time and the other only used when needed.
This document provides a lighting study for a community library project. It analyzes the daylight factor and artificial lighting needs for two areas: the lobby/cafeteria and art gallery. The cafeteria achieves a daylight factor of 7.1% while the art gallery achieves 3.49%. Artificial lighting calculations and layouts are also provided for the reading area and children's area to meet the 300-500 lux illumination levels required by standards. The reading area requires 56 light fixtures controlled by 3 switches, while the children's area needs 25 fixtures controlled by 2 switches.
This document provides lighting and acoustic proposals for spaces in a community library building project. It includes:
1. Calculations of the daylight factor and natural illumination for two reading areas, finding one receives excess light and the other is within recommended levels.
2. Artificial lighting calculations for a multipurpose hall and computer room using fluorescent tube lights, finding sufficient illumination levels.
3. A calculation showing external noise from traffic and activities combines to 70dB, far exceeding the recommended 35dB level for a library.
4. Reverberation time and transmission loss are to be calculated for the management office to evaluate acoustic quality.
This document summarizes the lighting design analysis for a Performing Arts Centre in Kajang, Malaysia. It analyzes the lighting needs for two spaces - a gym and two dance studios. For the gym, it calculates the daylight factor, recommends LED downlights, and designs a reflected ceiling plan with 15 downlights spaced 1-2 meters apart. For the dance studios, it finds the daylight factor is 0% since there are no windows. It recommends 36 LED downlights spaced 1.44-2.15 meters apart to provide even illumination throughout both studios. The document references the Malaysian standard MS 1525 for lighting requirements.
The document analyzes and summarizes the lighting and acoustic performance of spaces in a new library building in Kuala Lumpur, Malaysia. It calculates the daylight factor, illuminance levels, artificial lighting requirements, sound pressure levels, reverberation times, and sound reduction indices for the gallery, studio, academic collection, children's collection, and study lounge spaces. The analyses show that the spaces generally meet or exceed recommended lighting and acoustic standards to provide optimal environments for their intended uses.
This document provides details on the lighting analysis for a community library project in Kuala Lumpur, Malaysia. It includes summaries of the artificial lighting analysis and daylight factor analysis conducted for two specific spaces - an art gallery and a discussion area. For the art gallery, calculations determine that 27 recessed LED fixtures are needed to provide adequate 300 lux illumination. For the discussion area, daylight factor calculations show the space achieves 3.32% daylight factor and 664 lux of natural light, enough for activities. However, light shelves are recommended to improve distribution.
This document provides a lighting analysis and design for two spaces in a proposed community library located in Kuala Lumpur, Malaysia. For a meeting area on the second floor, the daylight factor is calculated to be 5.0%, providing 1000 lux of natural light. 35 LED recessed luminaires arranged in 6 rows are proposed to provide artificial lighting above the 300 lux minimum standard. For an exhibition hall, the daylight factor is 5.4% and natural light is 1080 lux. 15 LED track lights arranged in 4 rows are proposed to provide 300 lux of artificial lighting. Both spaces meet the natural and artificial lighting requirements of Malaysian standards.
This document contains lighting and acoustic calculations and proposals for spaces within a building project. It includes:
1. Daylighting calculations for a multipurpose hall and lobby showing daylight factors above recommended levels, requiring shading strategies.
2. Artificial lighting calculations for a study area and quiet reading area to achieve 300-500 lux using downlights and battens.
3. Mention of permanent supplementary artificial lighting for a computer room.
4. Acoustic calculations including external noise levels for a cafe, reverberation time for the multipurpose hall, and sound transmission loss for the lobby.
This document analyzes the lighting conditions for two spaces - a reading area and meeting room - in a proposed community library project. For the reading area, the daylight factor is calculated to be 4.45%, above the recommended 3-6% range. Artificial lighting requirements are also analyzed using the lumen method. Gravity lamps powered by descending weights are proposed to minimize energy usage. For the meeting room, surface mounted downlights are selected to provide illumination.
The document summarizes lighting and acoustic calculations for different areas of the Sentul Community Library project. For lighting, it calculates the daylight factor and artificial lighting needs for the study area, children's play area and cafe using the lumen method. It determines that 15 LED lights are needed for the cafe and 10 fluorescent lamps for the references collection library. For acoustics, it calculates the external sound pressure level from traffic noise for the cafe and study area, finding them within the allowed noise criteria ranges but close monitoring is recommended, especially for the cafe. Vegetation buffers are proposed to help reduce noise levels.
Building Science 2 Project 2 Integration projectTan Jaden
This document contains a lighting analysis and proposal for two community library spaces (Spaces A and B). For Space A, the average daylight factor is calculated to be 4.6%, providing adequate natural light. Artificial lighting is proposed using suspended LED luminaires in three zones, controlled individually. For Space B, the average daylight factor is 3.1%. Artificial lighting using recessed CFL downlights and LED uplights is proposed, with the two types controlled separately for different functions. Layout diagrams and illuminance renderings are provided to illustrate the lighting schemes.
This document contains a lighting and acoustic proposal for a building design project. It includes calculations for daylight factor and illuminance levels to determine natural and artificial lighting solutions for various spaces. It also contains calculations for external sound pressure levels, reverberation time, and sound reduction index to determine appropriate acoustic treatments for spaces like an audio room, ICT room, cafe, and meeting room. The calculations show that some design adjustments are needed to meet lighting and acoustic standards.
This document discusses lighting design for two spaces - an indoor reading room and gallery cafeteria - in a community library project. It analyzes daylighting factors and artificial lighting needs for both spaces based on Malaysian standards. For the reading room, the daylight factor is calculated as 4% and artificial lighting specifications are provided for 33 ceiling mounted LED panels arranged in 3 rows. For the cafeteria, the daylight factor is 2.67% and 49 downlights arranged in 7 rows are specified. Diagrams show daylight contours and permanent supplementary artificial lighting schemes for both spaces.
This document provides lighting and acoustic proposals for an arts and crafts market project with three areas: a classroom, management office, and ground floor retail. Daylight factor calculations show the classroom and management office will have bright lighting conditions between 3-5% without needing much artificial light. Proposals for artificial lighting include lamp quantity calculations to meet illumination standards in each area. Acoustic analyses cover external noise levels and internal reverberation and sound transmission to reduce noise between areas.
This document provides lighting calculations and proposals for two spaces in a community library:
1) A multifunctional space on the first floor that could be used for exhibitions or workshops. Daylight factor calculations found this space would be too bright. Artificial lighting of 23 recessed LED luminaires arranged in a 6x4 layout is proposed to provide 400 lux.
2) A general reading area on the second floor. Artificial lighting of 29 recessed LED luminaires arranged in a 5x6 layout is calculated to provide the required 300 lux. Both spaces will utilize a PSALI scheme to control circuits and reduce energy consumption while maintaining illuminance.
This document discusses various marketing strategies for architecture firms, including branding, networking, and sponsorship. It describes how network marketing works through single-tier, two-tier, and multi-level models. The advantages of network marketing are low startup costs, flexible work hours, and the ability to reach diverse audiences. Digital marketing strategies like websites can generate leads for architecture firms. Network marketing allows architects to build business partnerships and recruit salespeople to their network.
The document discusses a proposed Centre for Democracy project located next to the Palace of Justice in Putrajaya, Malaysia. The client is the BERSIH 2.0 Steering Committee, a coalition of civil society organizations campaigning for clean and fair elections. The project aims to increase public awareness and participation in democracy through spaces for discussion, legal aid, and workshops. A site and context analysis is provided, along with an overview of the proposed program, objectives, stakeholders, and design considerations for the Centre for Democracy.
The document contains construction drawings and details for a proposed Centre for Democracy building project. It includes floor plans showing floor levels and areas designated for functions like workshops, debating chambers, and cafeterias. It also contains section cut views, general notes for contractors, and technical details for building elements like reinforced concrete columns and beams, steel masts, and suspended fabric membranes. Consultants involved in the project include architects, quantity surveyors, civil/structural, and mechanical/electrical engineers.
The document discusses the benefits of exercise for mental health. Regular physical activity can help reduce anxiety and depression and improve mood and cognitive functioning. Exercise causes chemical changes in the brain that may help alleviate symptoms of mental illness and boost overall mental well-being.
The document contains 6 sections with site plans and elevations for Lot 135 on Jalan Sultan Azlan Shah in Kuala Lumpur, Malaysia. The plans include a macro site plan at a scale of 1:1000, a micro site plan at 1:500, a site plan at 1:500, front and rear elevations at 1:400, right and left elevations at 1:200, and another set of right and left elevations at 1:200. All plans and elevations were drawn in April 2016 for Puan Nani Group.
This document appears to be an assignment for a Building Technology course that outlines proposed construction systems for a community library project. It includes sections on the facade system (types A and B), structural system (composite floor system), and roof system. For each system, it provides precedent studies that describe materials, construction methods, advantages, and disadvantages. It also includes proposed facade designs and a sectional perspective of the building. The objective of the assignment is for students to study complex construction systems and understand how to integrate practical considerations into the design process.
This document is a student's illustrated essay and cognitive map of Zone B in Brickfields, Kuala Lumpur, analyzing the area through Kevin Lynch's five elements of urban form - paths, edges, districts, nodes, and landmarks. The student maps the zone, identifying how Lynch's elements define it and influence user experiences. Key landmarks include Nu Sentral station and Menara Kembar Bank Rakyat towers, while paths along roads and a distinctive floor texture guide movement. The zone functions as a residential district surrounded by transportation edges and features open spaces.
This document contains building plans and drawings for a proposed commercial development including:
- A ground floor plan showing 9 rooms and their uses
- A roof plan and site plan
- Elevations, sections and perspective views of the building
- An exploded axonometric diagram labeling building elements
- A phasing plan outlining demolition and construction stages
Fashionista Chic Couture Maze & Coloring Adventures is a coloring and activity book filled with many maze games and coloring activities designed to delight and engage young fashion enthusiasts. Each page offers a unique blend of fashion-themed mazes and stylish illustrations to color, inspiring creativity and problem-solving skills in children.
This document announces the winners of the 2024 Youth Poster Contest organized by MATFORCE. It lists the grand prize and age category winners for grades K-6, 7-12, and individual age groups from 5 years old to 18 years old.
Boudoir photography, a genre that captures intimate and sensual images of individuals, has experienced significant transformation over the years, particularly in New York City (NYC). Known for its diversity and vibrant arts scene, NYC has been a hub for the evolution of various art forms, including boudoir photography. This article delves into the historical background, cultural significance, technological advancements, and the contemporary landscape of boudoir photography in NYC.
Heart Touching Romantic Love Shayari In English with ImagesShort Good Quotes
Explore our beautiful collection of Romantic Love Shayari in English to express your love. These heartfelt shayaris are perfect for sharing with your loved one. Get the best words to show your love and care.

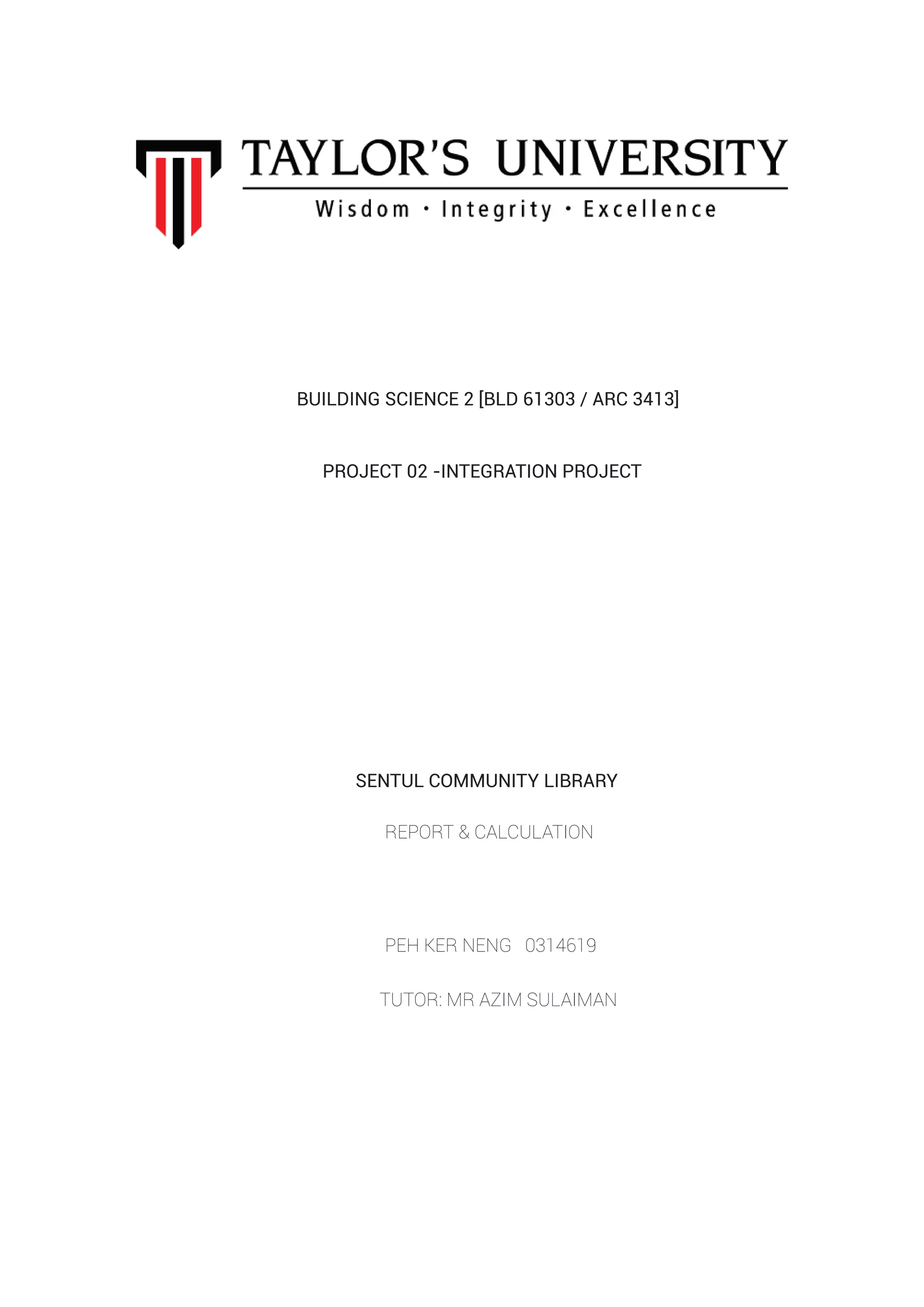

1. BUILDING SCIENCE 2 [BLD 61303 / ARC 3413]
PROJECT 02 -INTEGRATION PROJECT
SENTUL COMMUNITY LIBRARY
REPORT & CALCULATION
PEH KER NENG 0314619
TUTOR: MR AZIM SULAIMAN
2. Table of Content
1.0 Lighting
1.1 Silent Study Area
1.2 Reading Space
1.1.1 Daylight
1.1.2 Artificial light
1.1.3 Psali
2.1.1 Sound Pressure Level ( SPL)
2.1.2 Reverberation Time (RT)
1.2.1 Daylight
1.2.2 Artificial light
1.2.3 Psali
2.0 Acoustic
2.1 Silent Study Area
2.2 Reading Space
2.2.1 Sound Pressure Level ( SPL)
2.2.2 Sound Reduction Index (SRI)
References
3. 1.0 Lighting
1.1 Silent Study Area
Quiet
Study
Area
Second Floor Plan
The silent study area was located at second floor with one side facing the front road and another
side facing the back alley. The space was separate from others activity to enhance the sound
properties. The spaces was expose to sunlight to provide enough lighting for the function.Hence,
minimal artificial lighting was needed in this area.
Daylight Factor, DF
Daylight
According to Ms 1525:
4. Daylight factor diagram
Floor Area (m2)
Area of facade exposed to sunlight (m2)
Area of skylight
Exposed Facade & Skylight Area to floor
area ratio/ Daylight Factor, DF
Daylight Factor Calculation
Natural Illumination Calculation
Illuminance Example
120,000 lux
110,000 lux
20,000 lux
1000-2000 lux
<200 lux
400 lux
40 lux
<1 lux
Very Bright Sunlight
Bright Sunlight
Sunset, Storm cloud
Fully overcast
Sunrise/ sunset on clear day
midday
Overcast day
Clear sky
1.1.1 Daylight
7.6m x 6m = 45.6
28.6
0
(28.6+0)/45.6
=0.63
=0.63x100%
=6.3%
5. E external = 20000 lux
DF= E internal / E external x 100
6.3 = E internal/20000x100
E internal=6.3 x 20000 / 100
=1260 lux
The selected silent study space has a daylight factor of 6.3% and natural illumination of
2000 lux. Based on the requirements of MS1525.The space is too bright as it exceeds the
6% factor. For the purpose of reducing the thermal and glare problem,A louvers facade
system is proposed for the facade design of the library. The vertical louvers will provide a
well shading and reduce the amount of sunlight penetrating into the space. Hence,this
design should be augmented with internalshades for low perpendicular sun angles.The
low-e laminated glass is using as the inner facade of the space to provide privacy and well
sound properties for user.
6. 1.1.2 Artificial light
Utilization Factor Table
According to MS 1525, the recommendation illumination level for study space is 300-500 lux.
Model
Input
Lumen (lm)
Weight (kg)
DN570B (low height recessed version)
1350
230 or 240 v /50-60Hz
Power
2.2
36 w (3000k)
Dimension of room (L x W)
Total floor Area (m2)
Room cavity height (m)
Reflectance values
Room index,K
Utilization Factor,UF
Maintenance Factor, MF
Illunminance Requirement
Number of Luminaires
PHILIPS
7.6m x 6m
45.6
3.5
Ceiling=0.7
Wall= 0.5
Floor= 0.3
6 𝑥 .6
3.5(6 .6)
7
7
K=
= 1
0.8
300-500
N=
300 x 45.6
1350x (0.8x0.52)
0.52
= 24.36
~25 bulbs
+
Spacing to height ration
(SHR)
SHR=
1
Hm
x√
A
N
SHR=
1
3.5
x√ 45.6
25
=0.38
SHR= S
3.5
= 0.38
S= 1.33
Fitting Layout Fitting required along 7.6m wall
=7.6/1.33 = 5.71
=6 rows
Fitting required along 6m wall
=6/1.33 = 4.51
=5 rows
Lumen Method Calculation
7. Fitting Layout
Conclusion
1.1.3 PSALI -Permanent supplementery Artificial Lighting for Interior
30 downlights are used to illuminate study area to chieve minimum of 300 lux that stated in MS 1525.
With the sufficient level of illumination, the users can read in the comfort space.
sw 1
sw 2
There are 30 light fitting in the study room. Controlled by 2 switches which can choose to
turn it off during day time according to the light needed. SW 1 can be choose to turn off
if there are suffiencient daylighting in the space. However, to achieve a uniform lighting and
follow the 300 lux requirement of MS 1525, the SW 2 had to turn on during the day.
8. Reading
Area
1.2 Reading space
The reading space was located at first floor facing the back alley. The function of reading space was
provide a cozy reading area for the user. The facade for the space was a 7 meter curtain wall which
maximise the sunlight penetration. The open design allows view out and daylight penetration.This
design augmented with internal shades for low perpendicular sun angles. Therefore, less artificial
light is needed.
Daylight Factor, DF
According to Ms 1525:
Daylight
First Floor Plan
9. Daylight factor diagram
Floor Area (m2)
Area of facade exposed to sunlight (m2)
Area of skylight
Exposed Facade & Skylight Area to floor
area ratio/ Daylight Factor, DF
Daylight Factor Calculation
Natural Illumination Calculation
Illuminance Example
120,000 lux
110,000 lux
20,000 lux
1000-2000 lux
<200 lux
400 lux
40 lux
<1 lux
Very Bright Sunlight
Bright Sunlight
Sunset, Storm cloud
Fully overcast
Sunrise/ sunset on clear day
midday
Overcast day
Clear sky
1.2.1 Daylight
6m x 9m = 54
21
0
(21+0)/54
=0.38
=3.8%
10. E external = 20000 lux
DF= E internal / E external x 100
3.8 = E internal/20000x100
E internal=3.8 x 20000 / 100
=760 lux
The selected reading space has a daylight factor of 3.8% and natural illumination of 2000 lux.
Based on the requirements of MS1525.The space is a good distribution for daylight as the value
is within 3-6 %.Curtain may used to reduce the thermal problemand achieve a better value of
daylight factor.
11. 1.2.2 Artificial light
Utilization Factor Table
According to MS 1525, the recommendation illumination level for reading space is 300-500 lux.
Model
Input
Lumen (lm)
Weight (kg)
LP710P
14000
220-240 V / 50-60 Hz
Power
5
190 W
Dimension of room (L x W)
Total floor Area (m2)
Room cavity height (m)
Reflectance values
Room index,K
Utilization Factor,UF
Maintenance Factor, MF
Illunminance Requirement
Number of Luminaires
9m x 6m
54
3.5
Ceiling=0.7
Wall= 0.5
Floor= 0.3
9 𝑥 .
3.5(9 6)
K=
= 1.03 =1
0.8
300-500
N=
300 x 54
14000x (0.8x0.52)
0.52
= 2.78
~3 bulbs
+
Spacing to height ration
(SHR)
SHR=
1
Hm
x√
A
N
SHR=
1
3.5
x√ 54
3
=1.21
SHR= S
3.5
= 1.21
S= 4.24
Fitting Layout Fitting required along 9m wall
=9/4.24 = 2.12
=3 rows
Fitting required along 6m wall
=6/4.24 = 1.42
=2 rows
6
Lumen Method Calculation
12. Fitting Layout
Conclusion
There are 6 light fitting in reading room to achieve uniform lighting and achieve the minimum 300
lux that stated in MS1525. With sufficient light illumination, user can read inside the space
comfortably.
There are 6 light fitting in the study room. To achieve a uniform lighting and follow the 300 lux
requirement of MS 1525, the SW 1 had to turn on during the day. However, for energy saving,
switch 2 can choose to turn off due to the sufficient daylighting.
SW 1
SW 2
1.2.3 PSALI -Permanent supplementery Artificial Lighting for Interior
13. 2.0 Acoustic
2.1Silent Study Room
2.2.1 SPL-Sound Pressure Level
Sound Pressure Level formula:
Where SPL= sound pressure level (dB) , I= sound power (intensity)( Watts) and I0 = reference power.
I0 is usually taken as 1x10 -12
watts.
Peak Hour ( Jalan Sultan Azlan Shah)
Highest Reading: 75 dB ( moderate noise)
Lowest Reading: 60 dB ( quite sound)
Highest Reading
Lowest Reading
75 = 10 log10
I
I0
Antilog 7.5=
I
1x10 -12
1 x 107.5
=
I
1x10 -12
60 = 10 log10
I
I0
Antilog 6.0=
I
1x10 -12
1 x 106.0
=
I
1x10 -12
I= 106.0
x (1x10 -12
)
I= 1 x (10 6.0+(-12)
)
I= 1 x 10 -6
I= 107.5
x (1x10 -12
)
I= 1 x (10 7.5+(-12)
)
I= 1 x 10 -4.5
Total Intensities:
Total intensities, I
= (1 x 10 -4.5
)+(1 x 10 -6
)
=3.26x10 -5
Combined SPL:
=10 log10
1x10 -12
3.26x10 -5
( )
=75 dB
14. Highest Reading: 65 dB ( Loud noise)
Lowest Reading: 55 dB ( moderate sound)
Highest Reading
Lowest Reading
65 = 10 log10
I
I0
Antilog 6.5=
I
1x10 -12
1 x 106.5
=
I
1x10 -12
55 = 10 log10
I
I0
Antilog 5.5=
I
1x10 -12
1 x 105.5
=
I
1x10 -12
I= 105.5
x (1x10 -12
)
I= 1 x (10 5.5+(-12)
)
I= 1 x 10 -6.5
I= 106.5
x (1x10 -12
)
I= 1 x (10 6.5+(-12)
)
I= 1 x 10 -5.5
Total Intensities:
Total intensities, I
= (1 x 10 -5.5
)+(1 x 10 -6.5
)
=3.48x10 -6
Combined SPL:
=10 log10
1x10 -12
3.48x10 -6
( )
=65 dB
Non-Peak Hour ( Jalan Sultan Azlan Shah)
From the result, the average sound pressure level for the quiet study room is 75dB for peak hour and
65 dB for non-peak hour. 75 dB is quite high for a study room.
The design solution to resolve the issue is to create a facade that can block the noise from
entering the study room and enhance the sound propertise inside the space.
15. 2.2.2 Reverberation Time , RT
Total Floor Area (m2)
Volume (m3)
Occupancy (pax)
Material Absorption Coefficient at 500Hz with 22 people in the space.
Building
Elements
Wall
Floor
Ceiling
Occupants
Furniture
(unit)
Total Absorption,A =
Materials Area (m2 ) Absorption
Coefficient
(500Hz)
Sound
Absorption ,Sa
Study Area
45.6
45.6x3.5= 159.6
22
4mm glass
Door
Concrete wall,
Plastered
Concrete Slab
solid timber
Plaster finish
Timber table
61.5
45.6
45.6
29
5.3
22-
14
0.1
0.02
0.01
0.06
0.04
0.51
0.06
2.9
1.23
0.46
0.32
1.82
11.22
0.84
18.79
16. Reverberation Time,RT
= (0.16x V)/A
= (0.16x 159.6)/18.79
=1.36 s
Reverberation time chart
The reverberation time for study room in 500 Hz of absorption coefficient is 1.36s. According
to the standard of reverberation time, the standard comfort of study room is within the range
of 0.8 to 1.0s.Hence, the reverberation time of study room is not within the standard range
of comfort reverberation time currently.
17. Material Absorption Coefficient at 500Hz with carpet
Building
Elements
Wall
Floor
Ceiling
Occupants
Furniture
(unit)
Total Absorption,A =
Materials Area (m2 ) Absorption
Coefficient
(500Hz)
Sound
Absorption ,Sa
Door
Concrete wall,
Plastered
Concrete Slab
solid timber
Plaster finish
Timber table
61.5
45.6
45.6
29
5.3
22-
14
0.1
0.02
0.01
0.06
0.04
0.51
0.06
2.9
1.23
0.46
0.32
1.82
11.22
0.84
30.19
4mm glass
Carpet,
thin,
over thin felt
on concrete
45.6 0.25 11.4
Reverberation Time,RT
= (0.16x V)/A
= (0.16x 159.6)/30.19
=0.85 s
The reverberation time for study room in 500 Hz of absorption coefficient had reduced from 1.36 s
to 0.85 s. which is within the range of 0.8 to 1.0 . Hence, the reverberation time for study room is now
within the standard comfort reverberation time.
18. 2.2 Reading Room
2.2.1 SPL-Sound Pressure Level
Sound Pressure Level formula:
Where SPL= sound pressure level (dB) , I= sound power (intensity)( Watts) and I0 = reference power.
I0 is usually taken as 1x10 -12
watts.
Peak Hour (Back Alley)
Highest Reading: 70 dB ( moderate sound)
Lowest Reading: 55 dB (quite sound)
Highest Reading
Lowest Reading
70 = 10 log10
I
I0
Antilog 7=
I
1x10 -12
1 x 107
=
I
1x10 -12
55 = 10 log10
I
I0
Antilog 5.5=
I
1x10 -12
1 x 105.5
=
I
1x10 -12
I= 105.5
x (1x10 -12
)
I= 1 x (10 5.5+(-12)
)
I= 1 x 10 -6.5
I= 107
x (1x10 -12
)
I= 1 x (10 7+(-12)
)
I= 1 x 10 -5
Total Intensities:
Total intensities, I
= (1 x 10 -5
)+(1 x 10 -6.5
)
Combined SPL:
=10 log10
1x10 -12
1.03x10 -5
( )
=70 dB
=1.03x10 -5
19. Highest Reading: 55 dB (quite sound)
Lowest Reading: 45 dB (very quiet)
Highest Reading
Lowest Reading
55 = 10 log10
I
I0
Antilog 5.5=
I
1x10 -12
1 x 105.5
=
I
1x10 -12
45 = 10 log10
I
I0
Antilog 4.5=
I
1x10 -12
1 x 104.5
=
I
1x10 -12
I= 104.5
x (1x10 -12
)
I= 1 x (10 4.5+(-12)
)
I= 1 x 10 -7.5
I= 105.5
x (1x10 -12
)
I= 1 x (10 5.5+(-12)
)
I= 1 x 10 -6.5
Total Intensities:
Total intensities, I
= (1 x 10 -6.5
)+(1 x 10 -7.5
)
=3.48x10 -7
Combined SPL:
=10 log10
1x10 -12
3.48x10 -7
( )
=55 dB
Non-Peak Hour ( Jalan Sultan Azlan Shah)
From the result, the average sound pressure level for the reading room is 70dB for peak hour and
55 dB for non-peak hour. 70 dB is moderate for a reading room.
To enhance the sound properties, a curtain or other mmaterial with soft surface can effectively
decrease the noise in the space due to the will be absorb by materials.t
20. 2.2.2 Sound Reduction Index
Building
Element
Material Surface
Area(m2 )
SRI (dB) Transmission
Coefficient,T
Wall 1
Wall 2
Door
Glass Panel
Concrete
Plywood
Tansmission Coefficient of Materials
a) Wall-glass
21
84
3.8
46 dB
26 dB
31 dB
SRI glass= 10 log10
1
T glass
26= 10 log10
1
T glass
102.6= 10 log10
1
T glass
T glass = 2.51x10-3
2.51x10-3
2.51x10-5
7.94x10-4
21. b) Wall-concrete
c) door- Plywood
SRI concrete= 10 log10
1
T concrete
46= 10 log10
1
T concrete
104.6= 10 log10
1
T concrete
T concrete = 2.51x10-5
SRI plywood= 10 log10
1
T plywood
31= 10 log10
1
T plywood
103.1= 10 log10
1
T plywood
T plywood = 7.94x10-4
Tav = (21x2.51x10-3)+ (84x2.51x10-5)+ (3.8x7.94x10-4)
(21+84+3.8)
=5.32x10-4
Overall SRI=10log10
1
T
=10log10
1
5.32x10-4
=32 dB
70 dB-32 dB=38 dB
The overall transmission loss from reading room to reading area is at 32 db.Assume that the sound
pressure level in the reading roomis approximately 70dB, the sound that is transmitted through
partitions into the reading room is approximately 38dB. Acording to the noise criteria environment
perception ,38dB is in the category of whisper sound. It is an ideal value for a reading
area where people are focusing on reading and studying.
22. References
Association of Australian Acoustical Consultants Guideline for Educational Facilities Acoustics.
(2016) (1st ed.). Retrieved from http://file:///E:/Downloads/AAAC-Guideline-for-Educational-
Facilities-Acoustics-2010%20(1).pdf
web_absorption_data_eng.pdf. (2016) (1st ed.). Retrieved from http://file:///E:/Downloads/web
_absorption_data_eng.pdf
Product catalog - Philips Lighting. (2016). Lighting.philips.com. Retrieved 6 July 2016, from
http://www.lighting.philips.com/main/prof
1.
2.
3.
(2016) (1st ed.). Retrieved from http://www.utm.my/energymanagement/files/2014/07/MS-
1525-2007.pdf
4.
