1. BP202:
Rapid XPages Development
using the
Application Layout Control
Howard Greenberg, TLCC
Paul Della-Nebbia, TLCC
© 2014 IBM Corporation

2. Acknowledgements and Disclaimers
Availability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational purposes only, and are neither
intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to verify the completeness and accuracy of the information
contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise
related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or
its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and
performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you
will result in any specific sales, revenue growth or other results.
© Copyright IBM Corporation 2014. All rights reserved.
 U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
 IBM, the IBM logo, ibm.com, Domino, and Notes are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If
these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law
trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM
trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Other company, product, or service names may be trademarks or service marks of others.
2

3. Who are we?
 Howard Greenberg & Paul Della-Nebbia
– Teaching Notes and Domino since 1994
– Partners at TLCC, the Leader in Notes and Domino Training
– And Now, the Leader in XPages Training
3

4. About TLCC

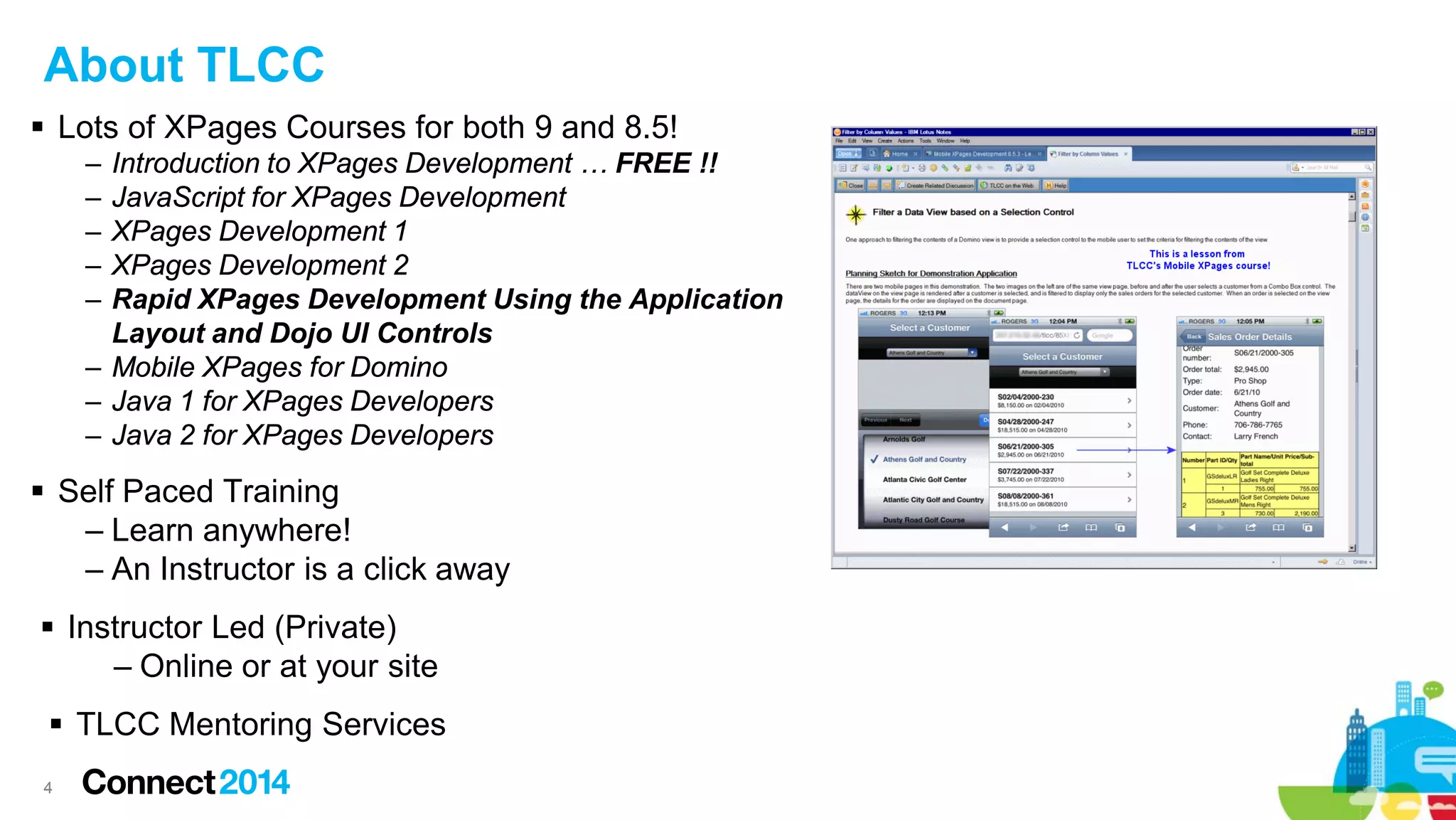

 Lots of XPages Courses for both 9 and 8.5!
‒
‒
‒
‒
‒
Introduction to XPages Development … FREE !!
JavaScript for XPages Development
XPages Development 1
XPages Development 2
Rapid XPages Development Using the Application
Layout and Dojo UI Controls
‒ Mobile XPages for Domino
‒ Java 1 for XPages Developers
‒ Java 2 for XPages Developers
 Self Paced Training
‒ Learn anywhere!
‒ An Instructor is a click away
 Instructor Led (Private)
‒ Online or at your site
 TLCC Mentoring Services
4

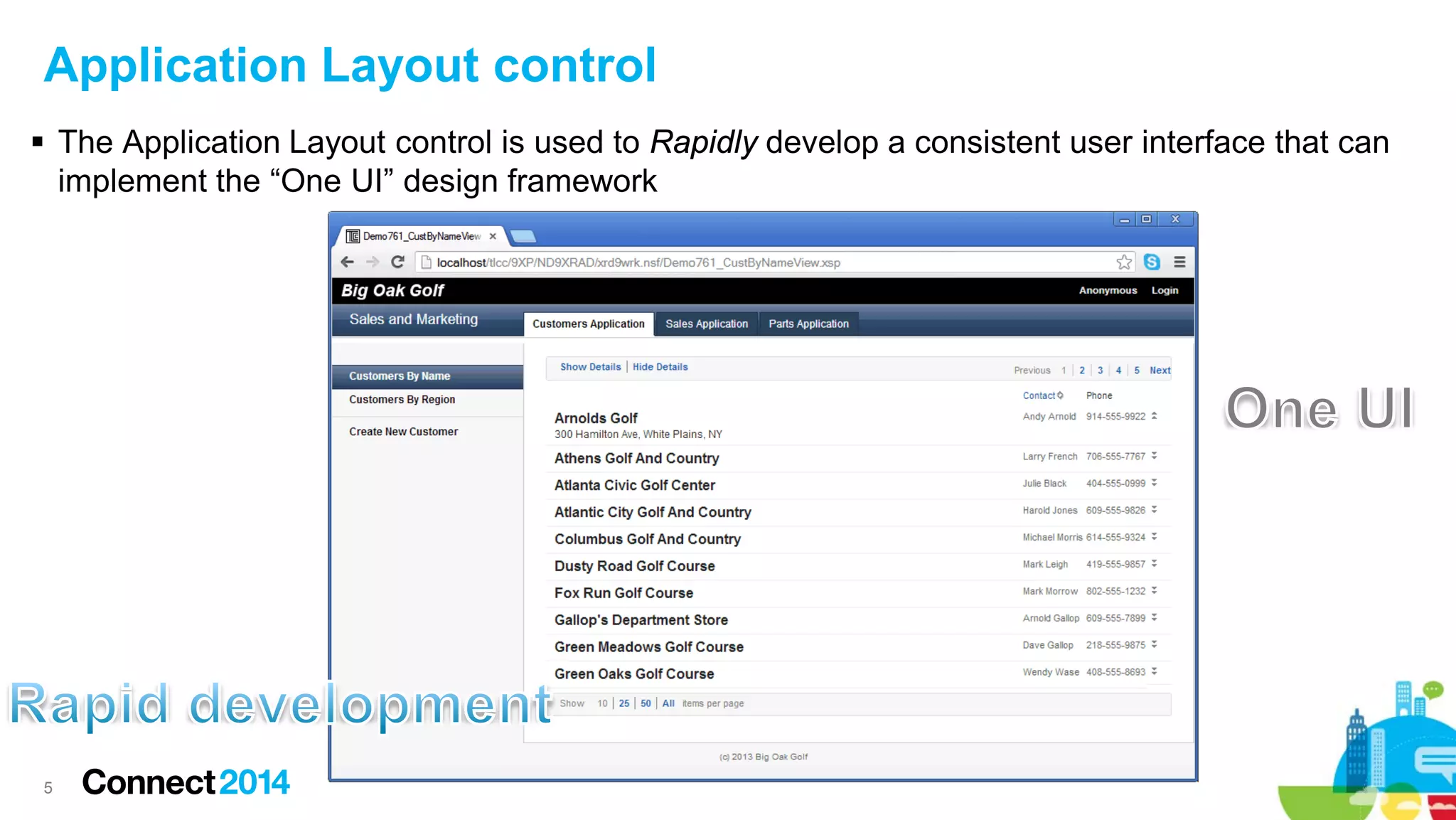

5. Application Layout control
 The Application Layout control is used to Rapidly develop a consistent user interface that can
implement the “One UI” design framework
5

6.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
6

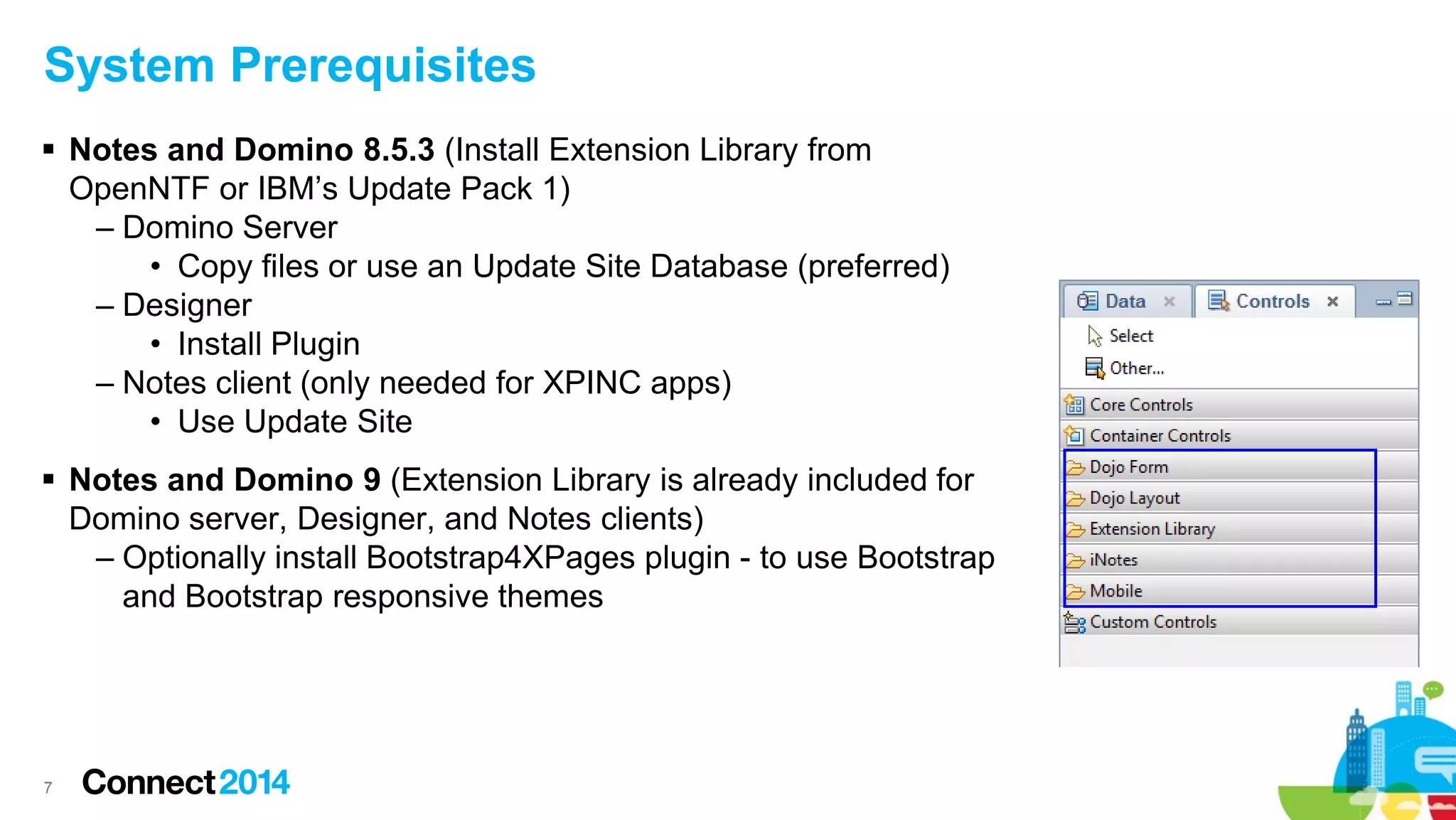

7. System Prerequisites
 Notes and Domino 8.5.3 (Install Extension Library from
OpenNTF or IBM’s Update Pack 1)
– Domino Server
• Copy files or use an Update Site Database (preferred)
– Designer
• Install Plugin
– Notes client (only needed for XPINC apps)
• Use Update Site
 Notes and Domino 9 (Extension Library is already included for
Domino server, Designer, and Notes clients)
– Optionally install Bootstrap4XPages plugin - to use Bootstrap
and Bootstrap responsive themes
7

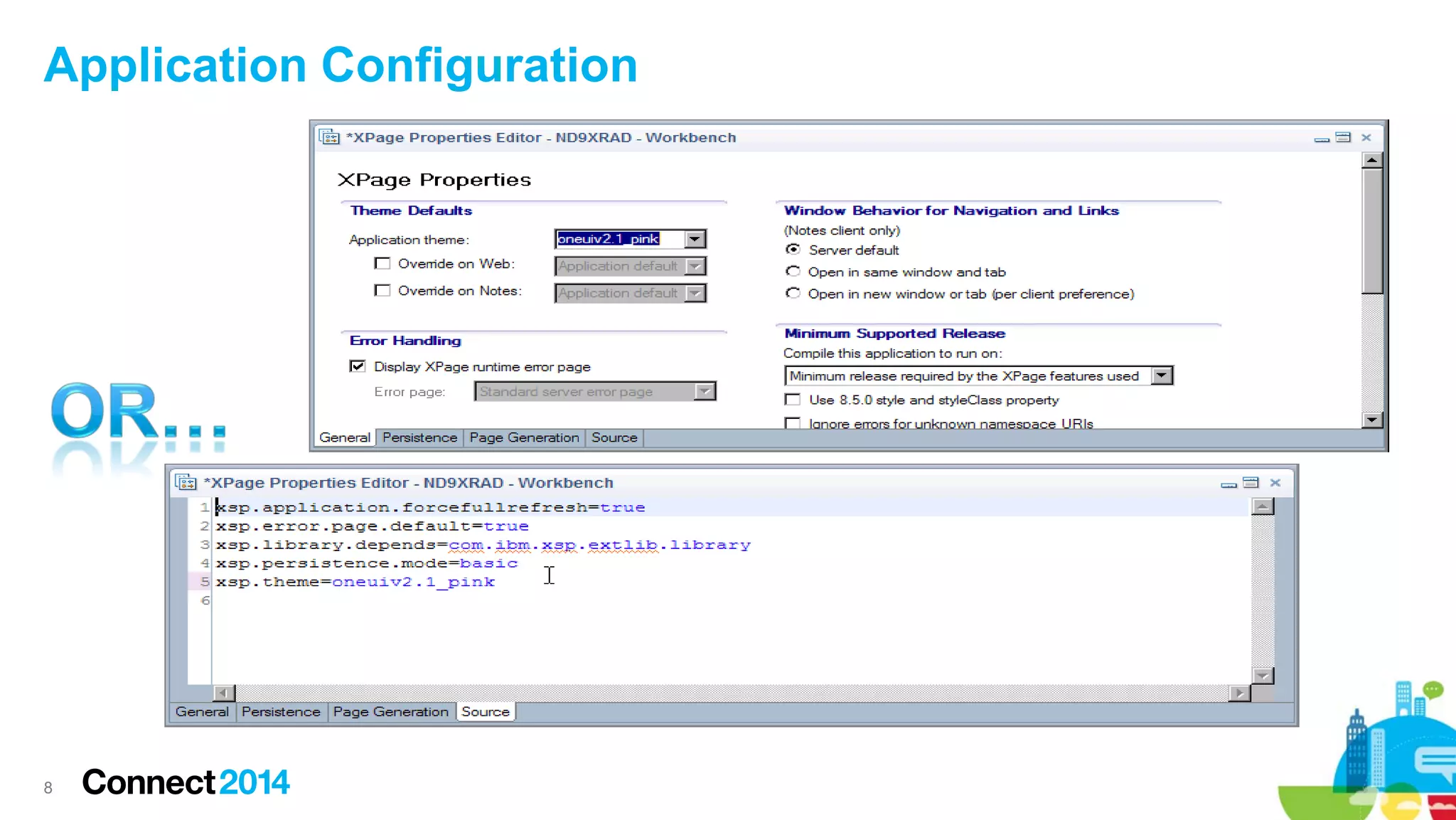

8. Application Configuration
8

9.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
9

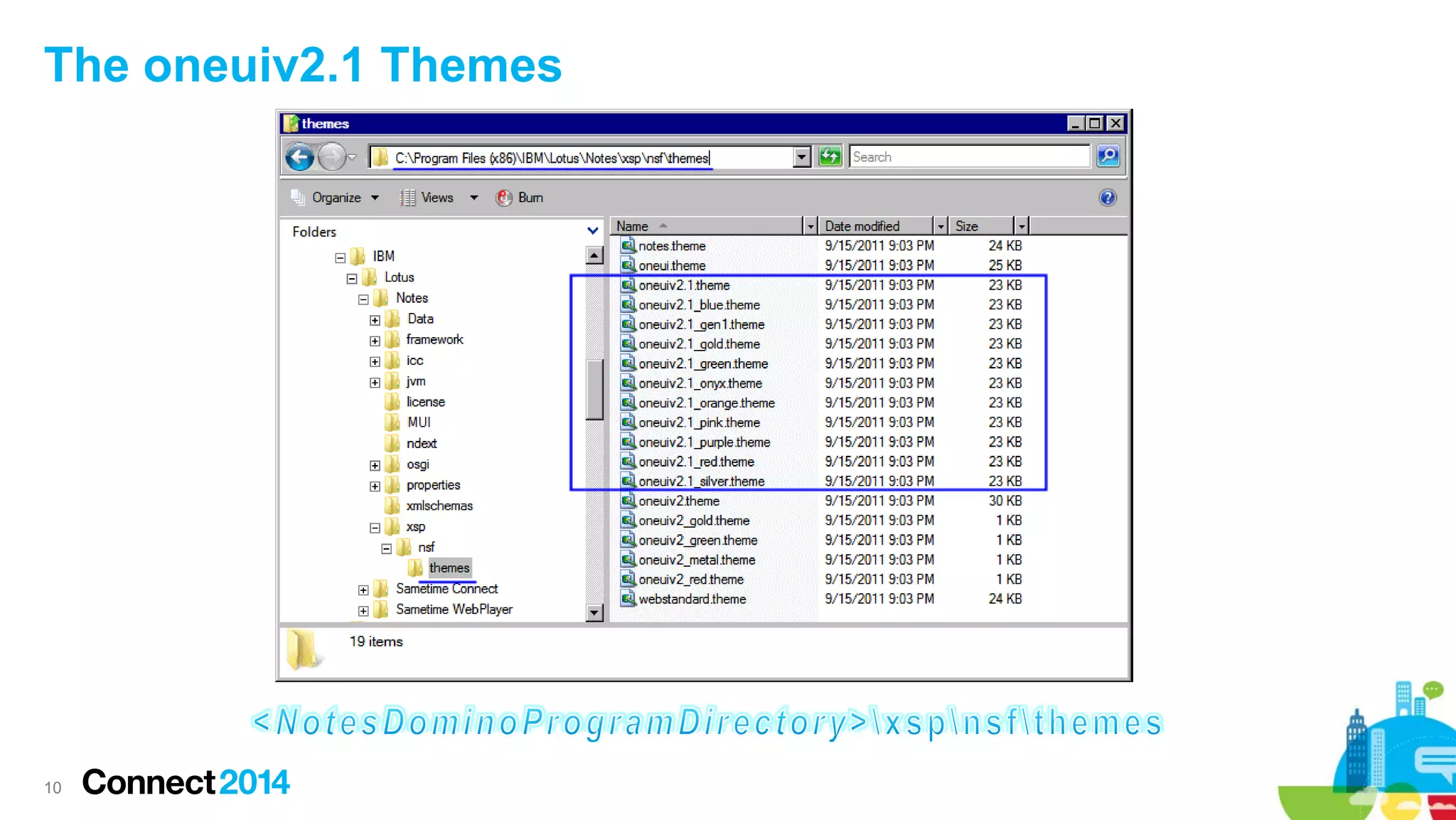

10. The oneuiv2.1 Themes
10

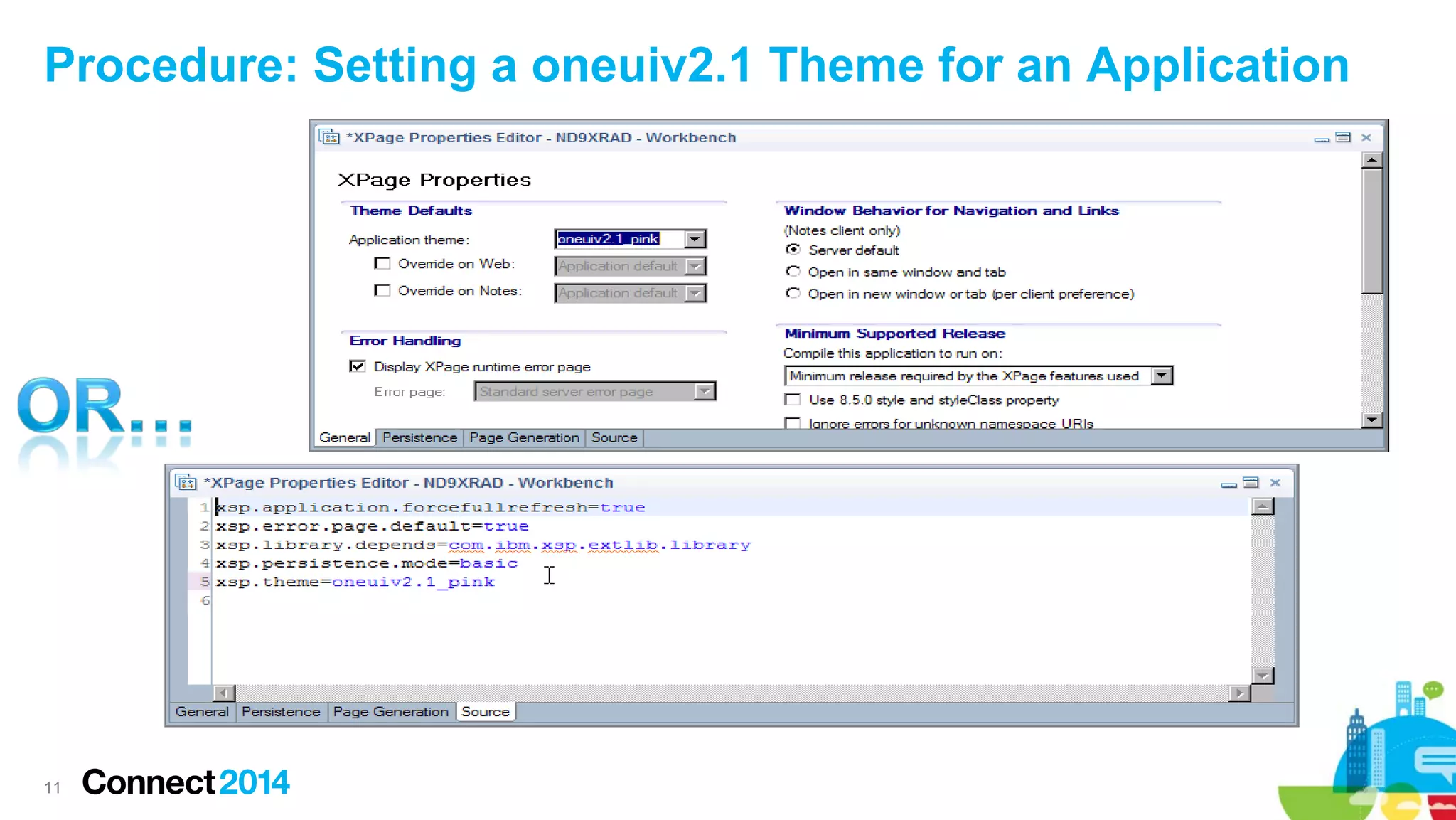

11. Procedure: Setting a oneuiv2.1 Theme for an Application
11

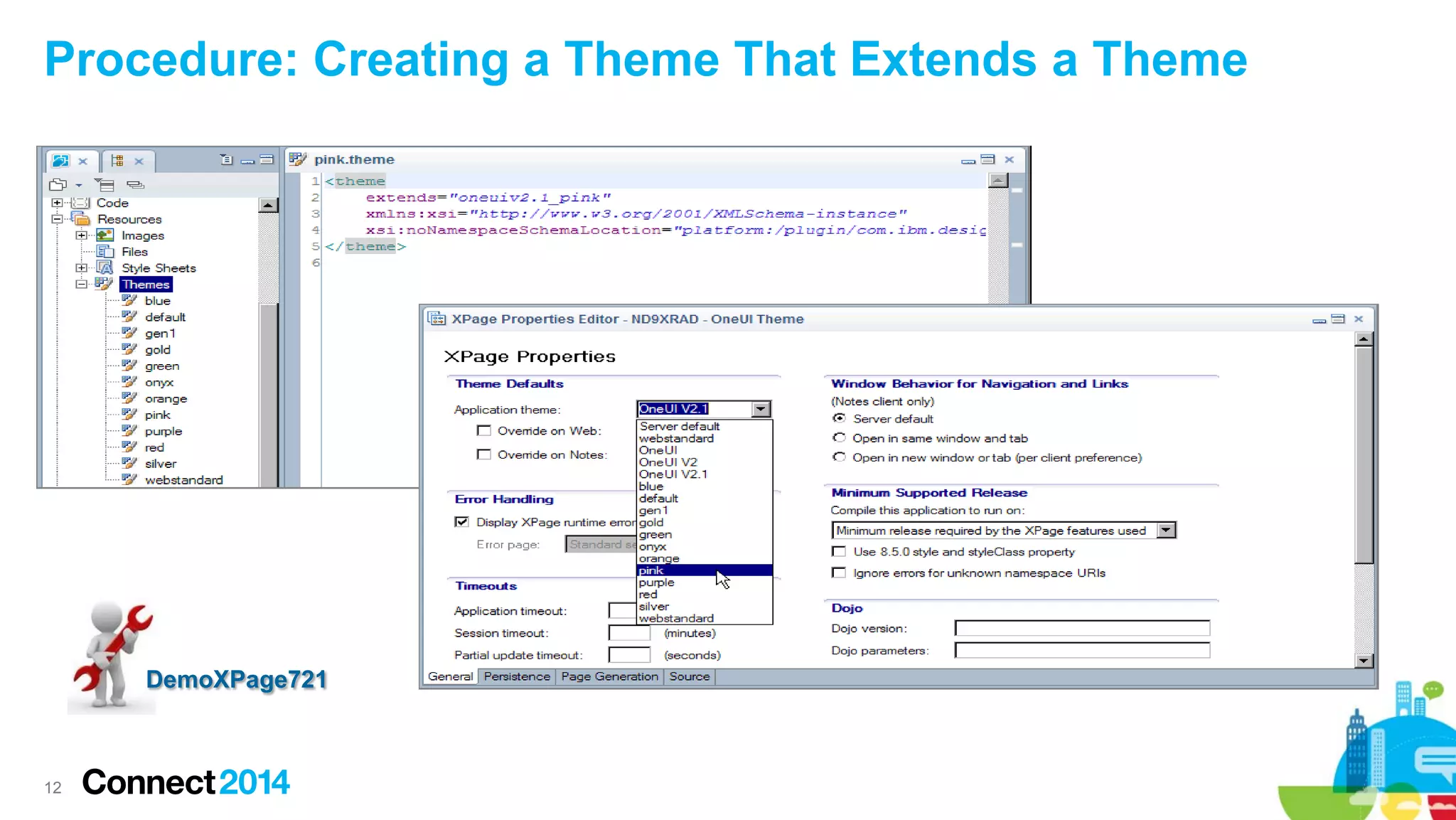

12. Procedure: Creating a Theme That Extends a Theme
DemoXPage721
12

13.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
13

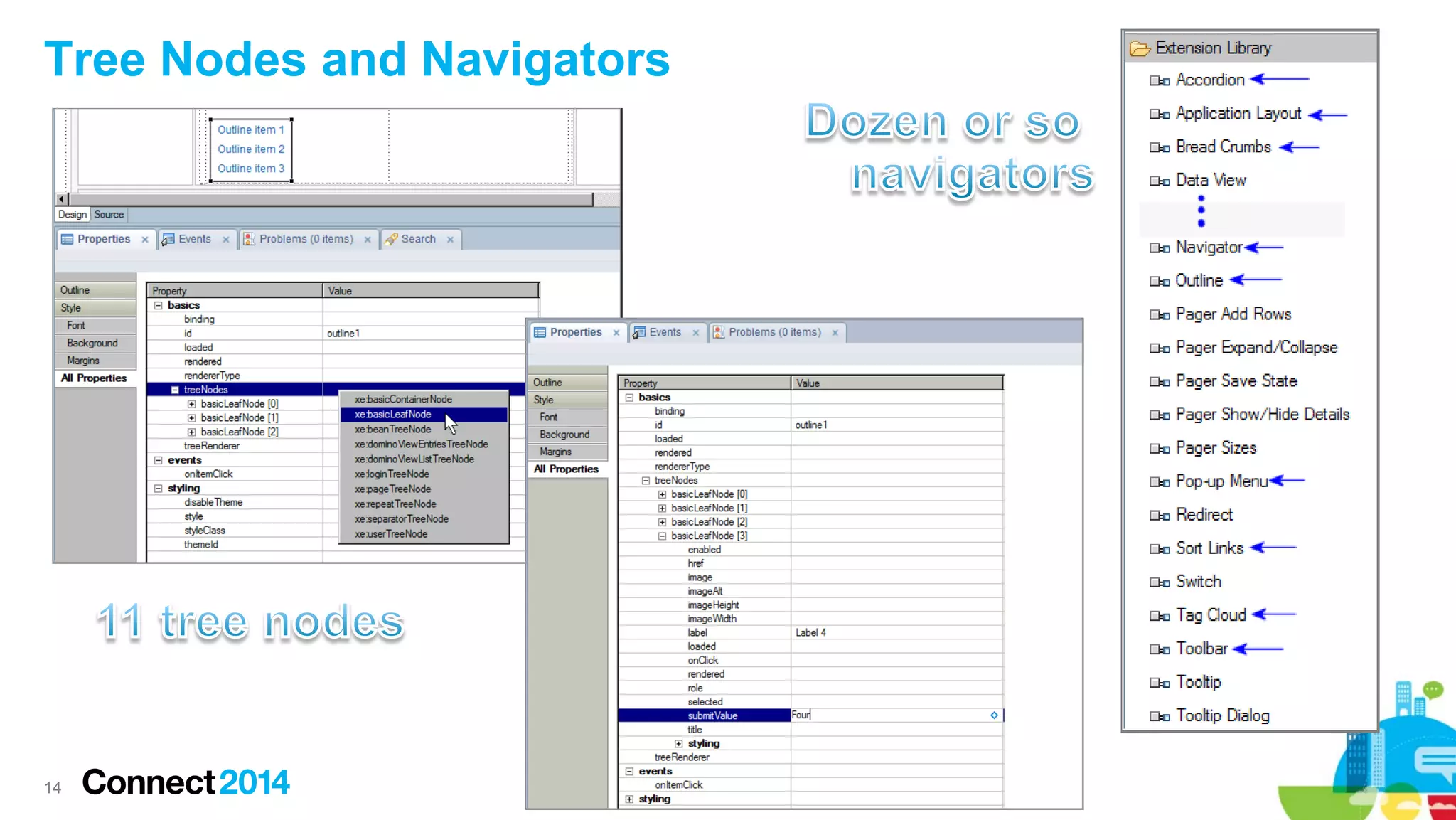

14. Tree Nodes and Navigators
14

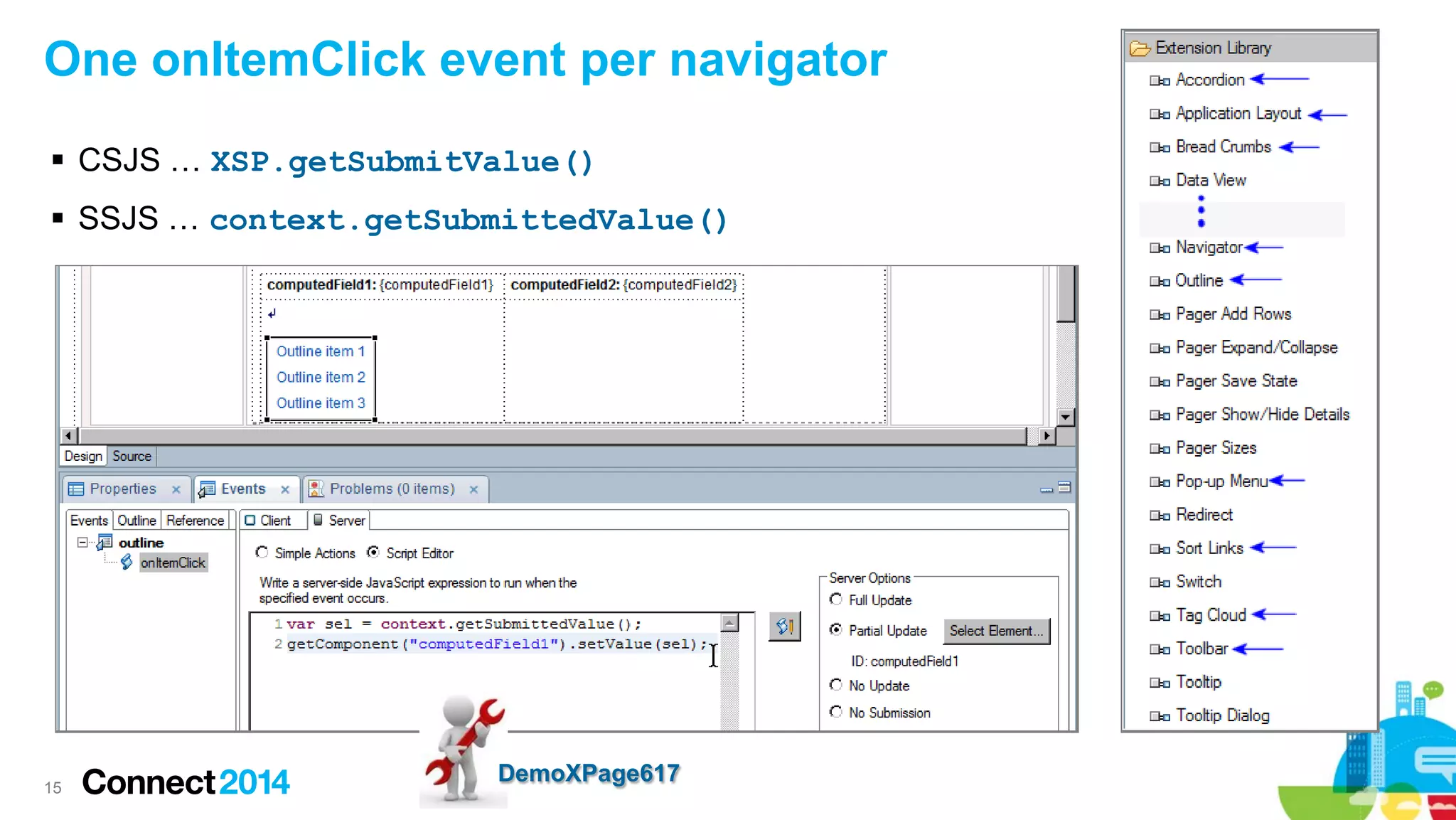

15. One onItemClick event per navigator
 CSJS … XSP.getSubmitValue()
 SSJS … context.getSubmittedValue()
15
DemoXPage617

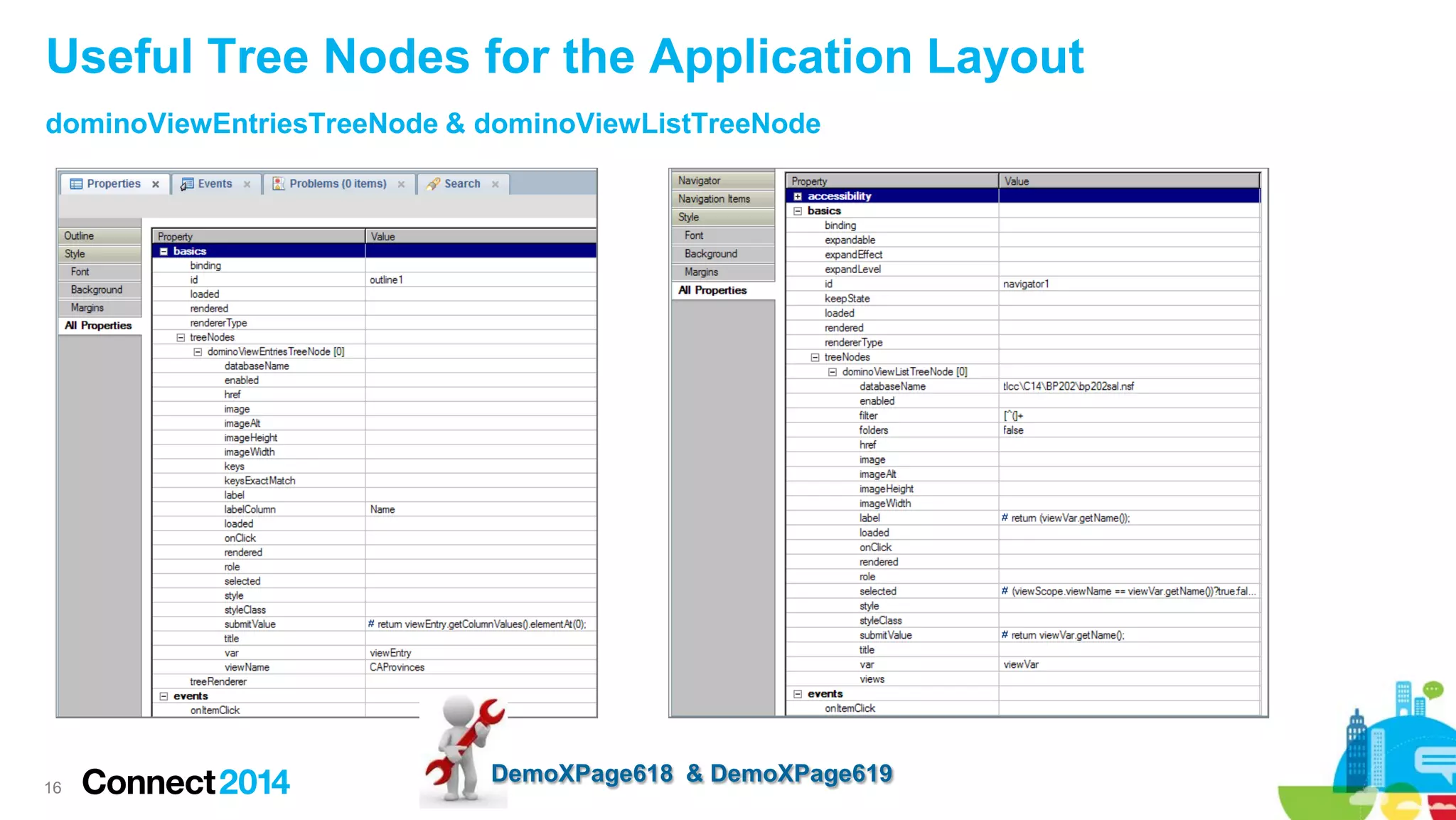

16. Useful Tree Nodes for the Application Layout
dominoViewEntriesTreeNode & dominoViewListTreeNode
16
DemoXPage618 & DemoXPage619

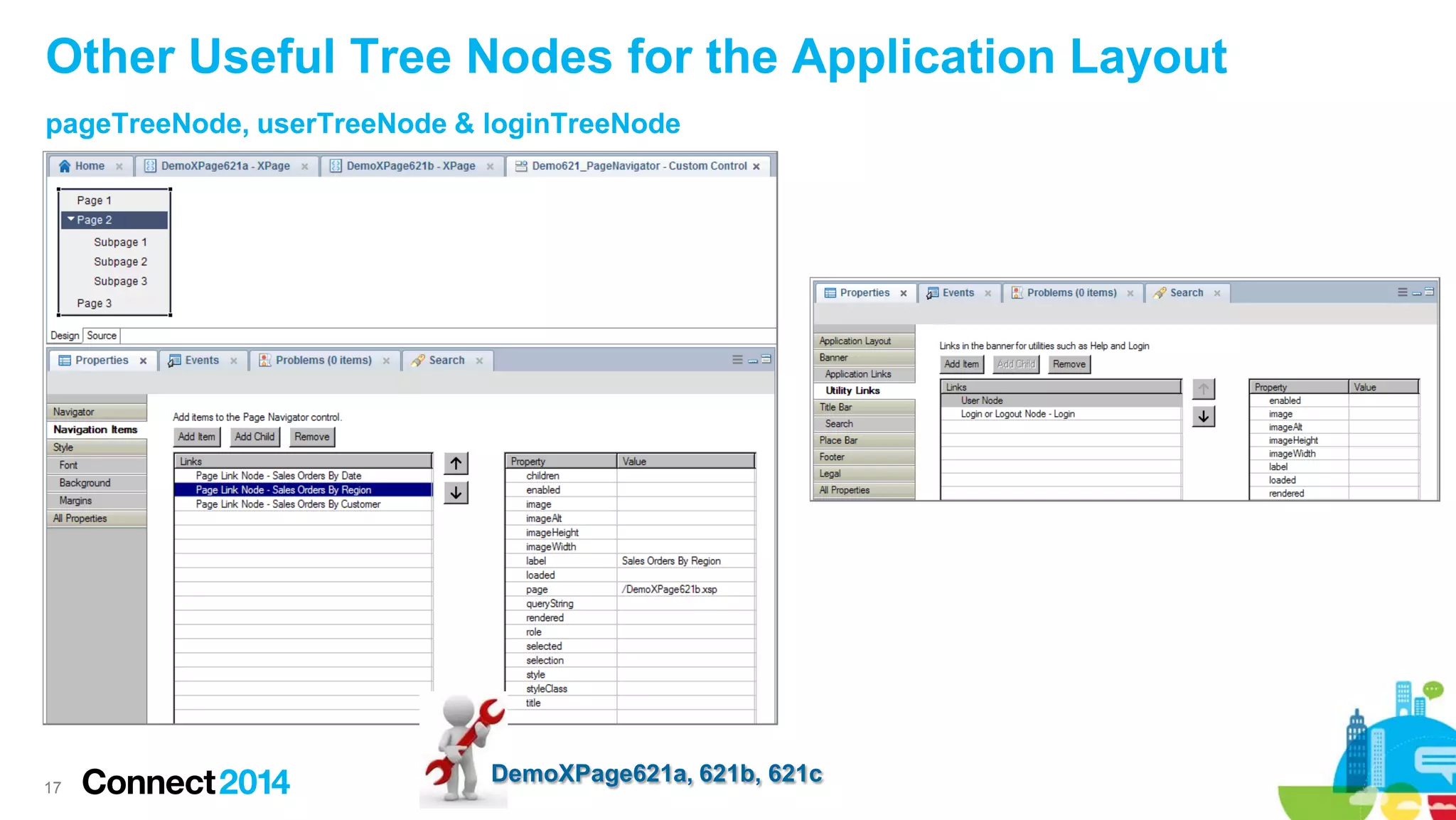

17. Other Useful Tree Nodes for the Application Layout
pageTreeNode, userTreeNode & loginTreeNode
17
DemoXPage621a, 621b, 621c

18.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
18

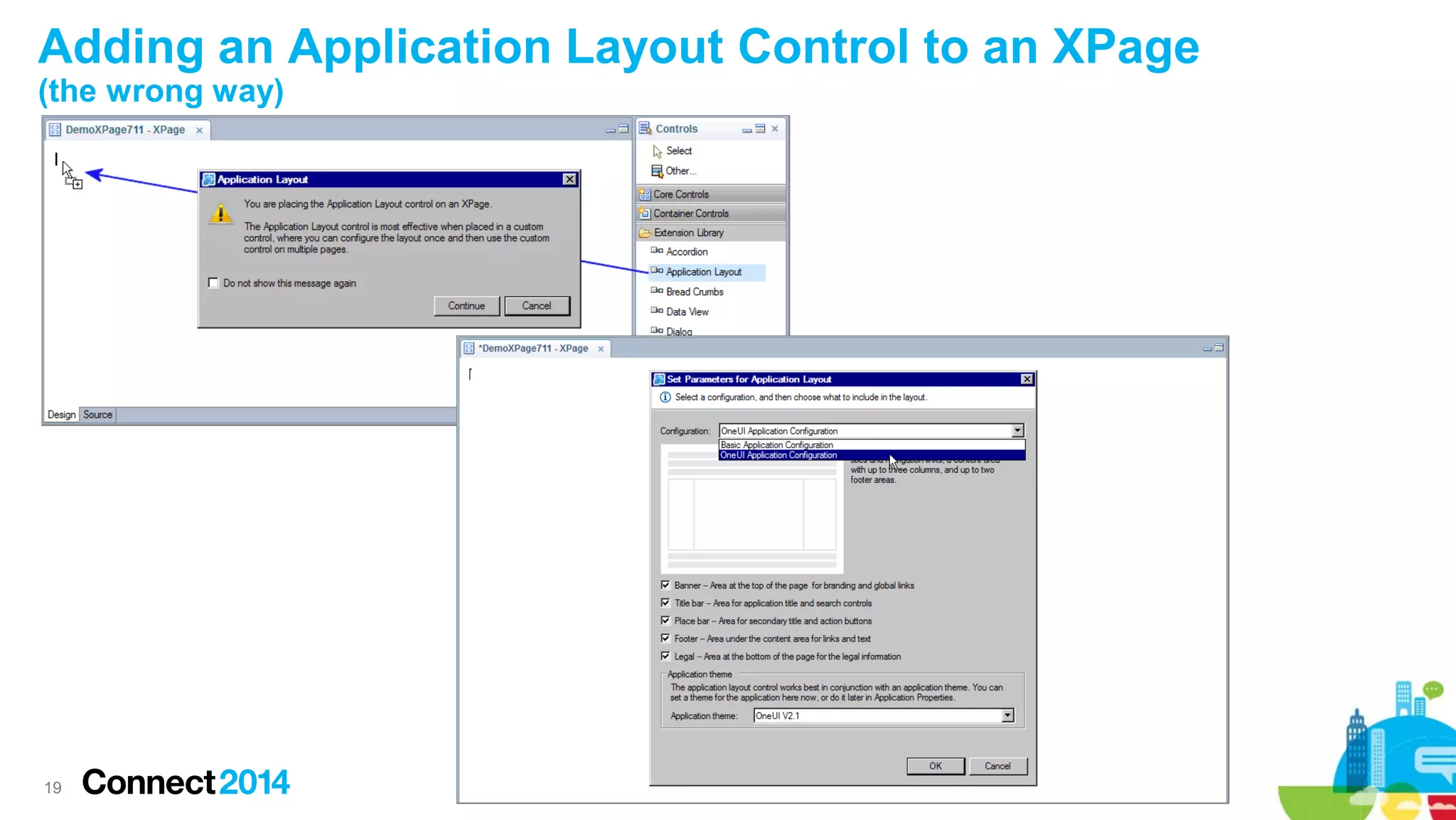

19. Adding an Application Layout Control to an XPage
(the wrong way)
19

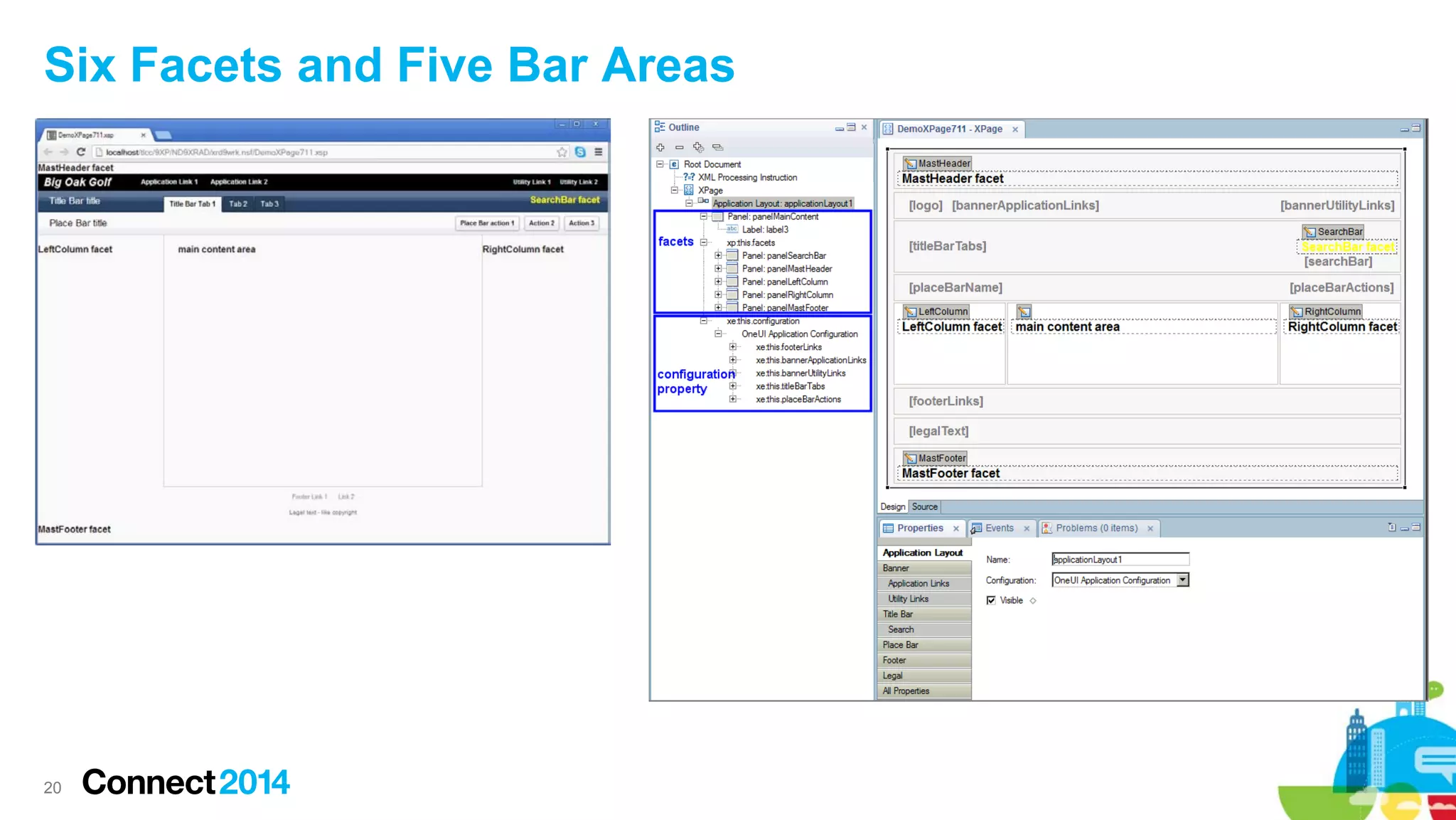

20. Six Facets and Five Bar Areas
20

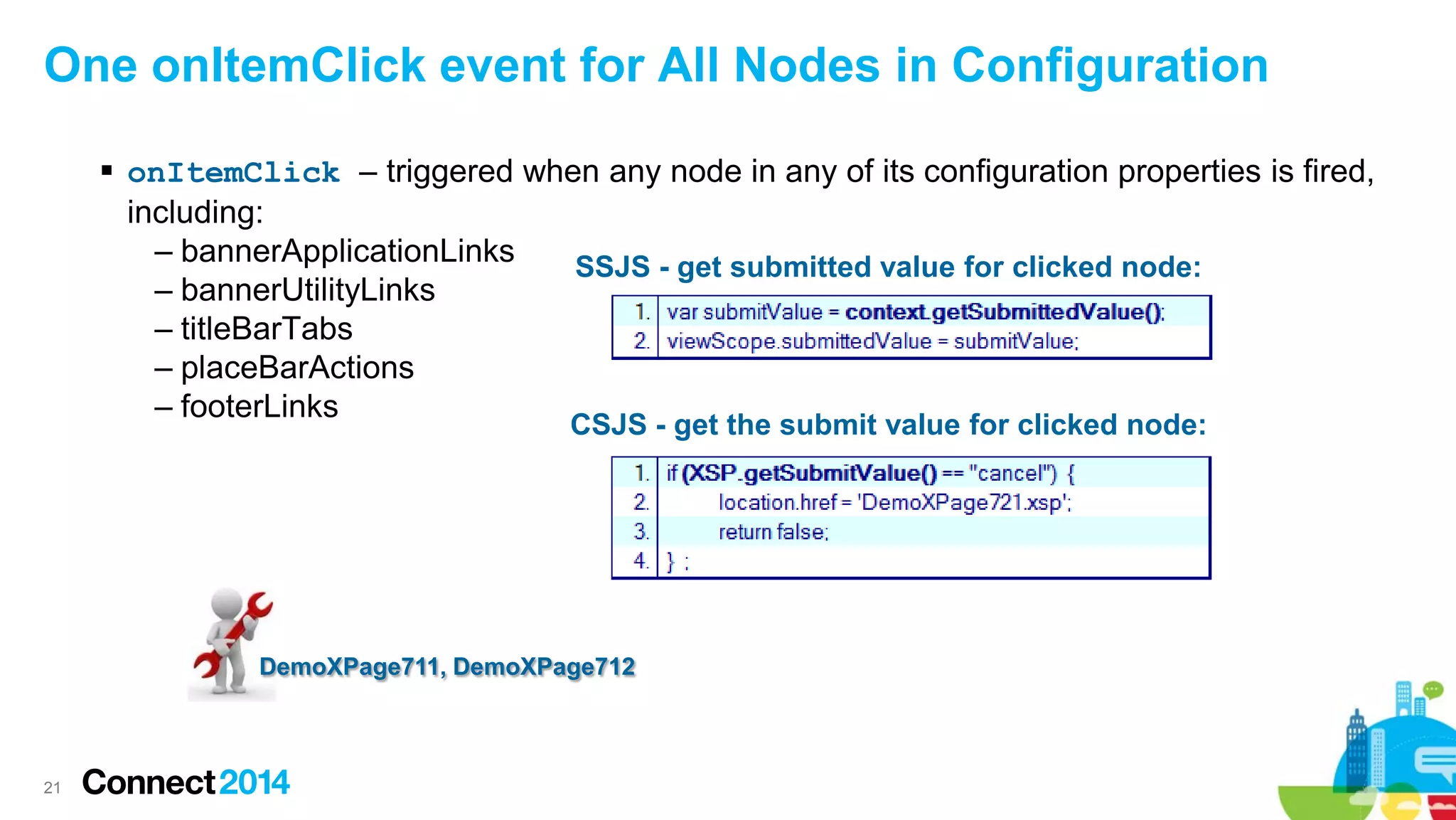

21. One onItemClick event for All Nodes in Configuration
 onItemClick – triggered when any node in any of its configuration properties is fired,
including:
– bannerApplicationLinks
SSJS - get submitted value for clicked node:
– bannerUtilityLinks
– titleBarTabs
– placeBarActions
– footerLinks
CSJS - get the submit value for clicked node:
DemoXPage711, DemoXPage712
21

22.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
22

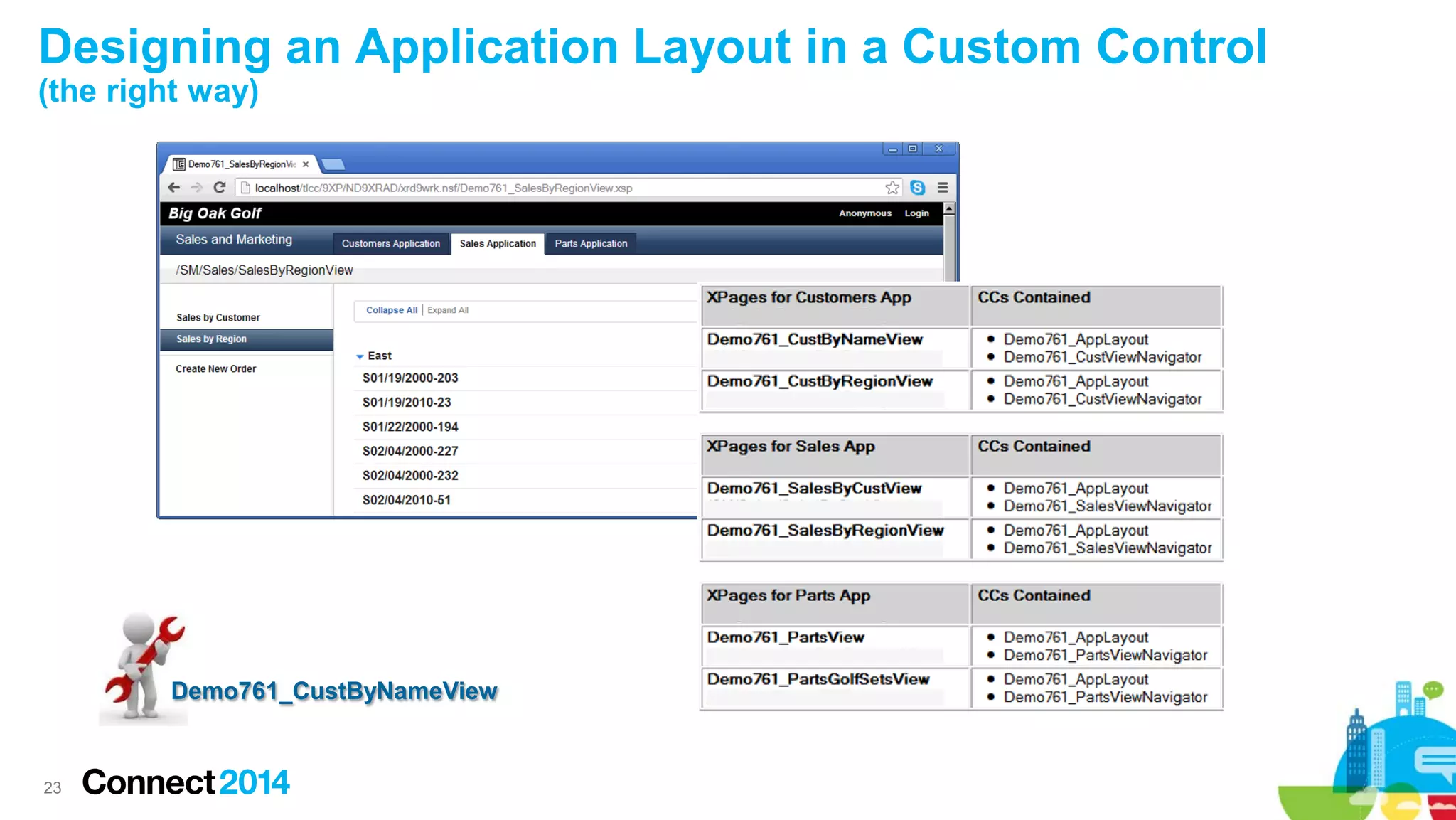

23. Designing an Application Layout in a Custom Control
(the right way)
Demo761_CustByNameView
23

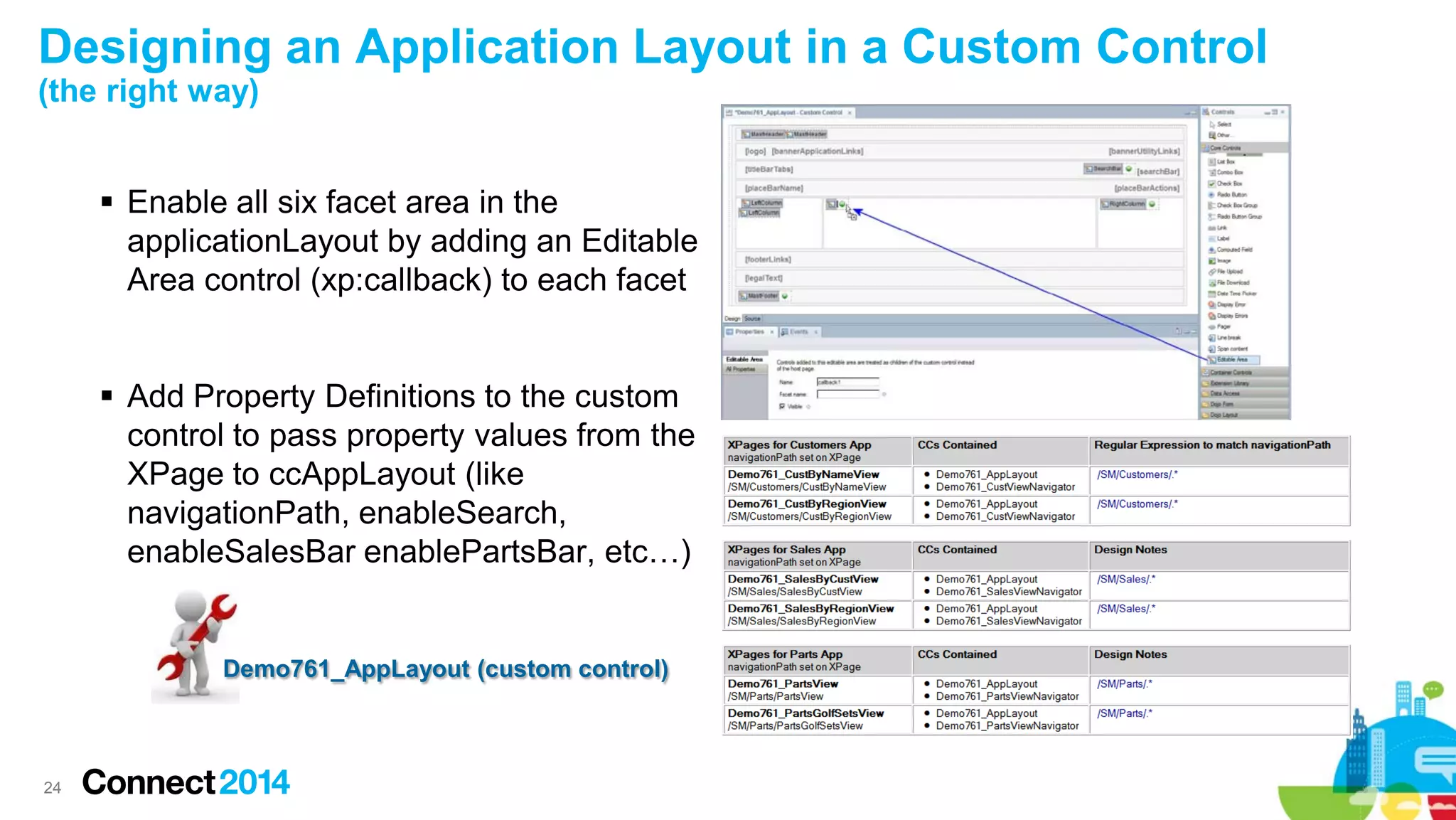

24. Designing an Application Layout in a Custom Control
(the right way)
 Enable all six facet area in the
applicationLayout by adding an Editable
Area control (xp:callback) to each facet
 Add Property Definitions to the custom
control to pass property values from the
XPage to ccAppLayout (like
navigationPath, enableSearch,
enableSalesBar enablePartsBar, etc…)
Demo761_AppLayout (custom control)
24

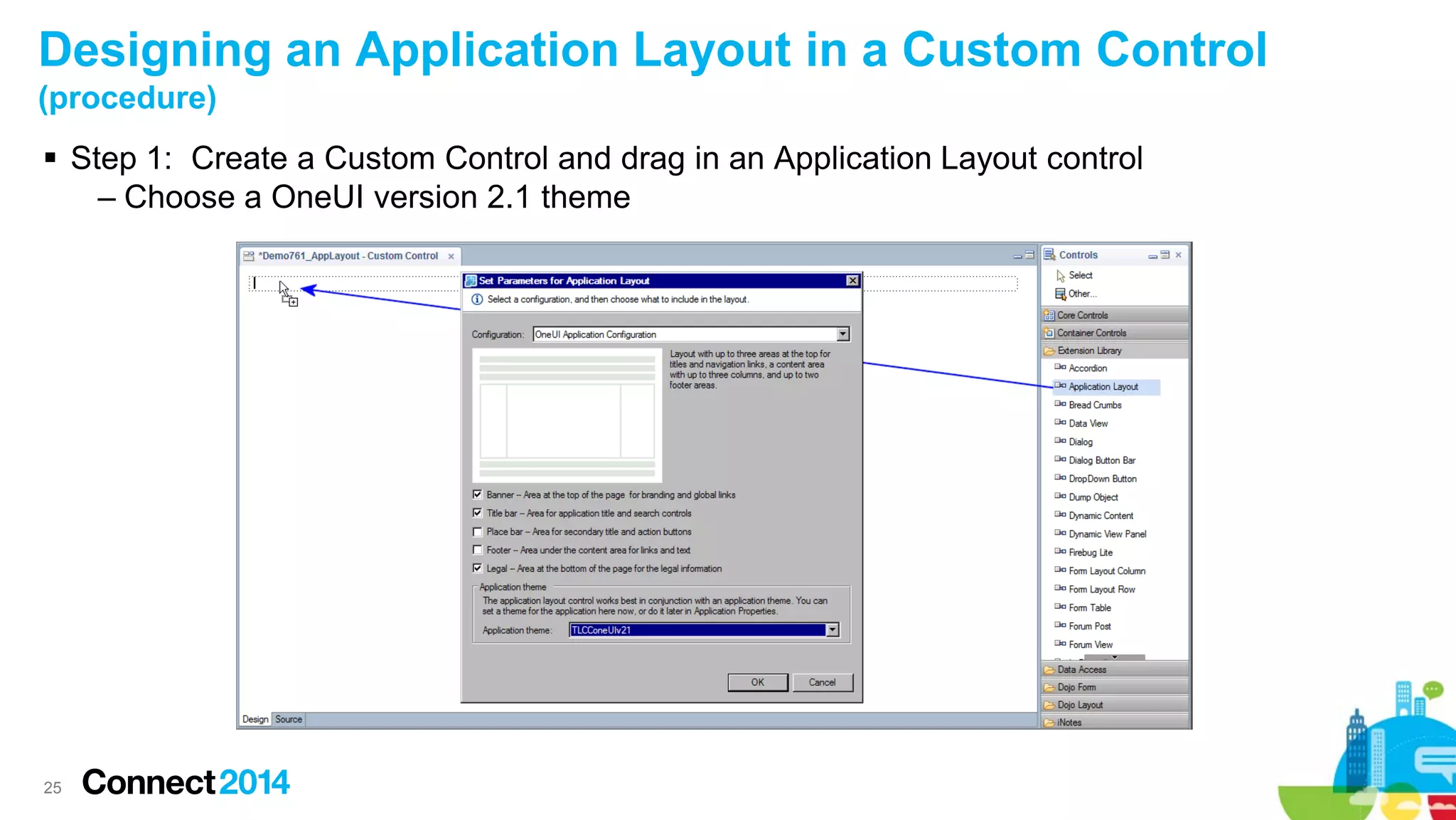

25. Designing an Application Layout in a Custom Control
(procedure)
 Step 1: Create a Custom Control and drag in an Application Layout control
– Choose a OneUI version 2.1 theme
25

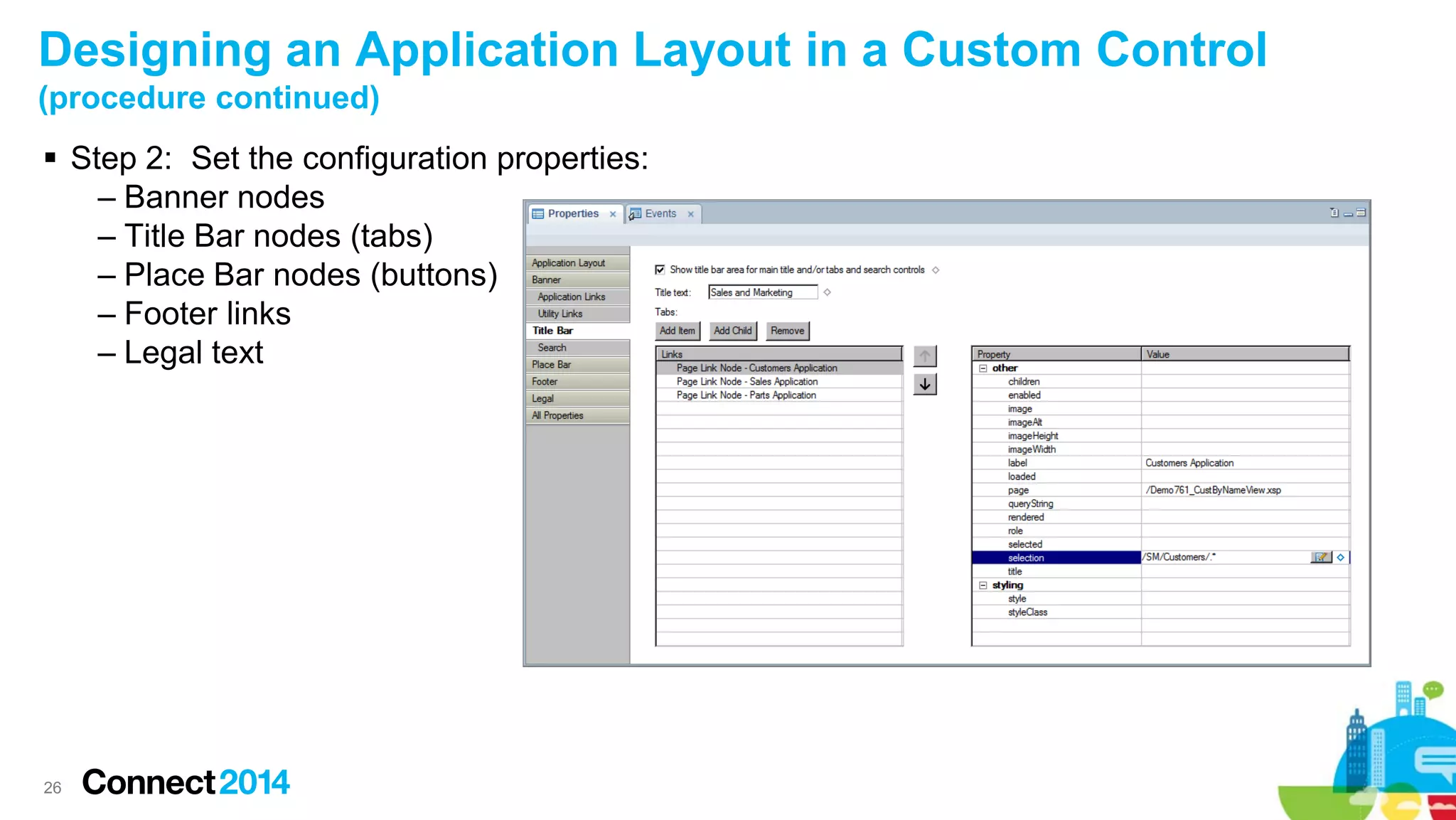

26. Designing an Application Layout in a Custom Control
(procedure continued)
 Step 2: Set the configuration properties:
– Banner nodes
– Title Bar nodes (tabs)
– Place Bar nodes (buttons)
– Footer links
– Legal text
26

27. Designing an Application Layout in a Custom Control
(procedure continued)

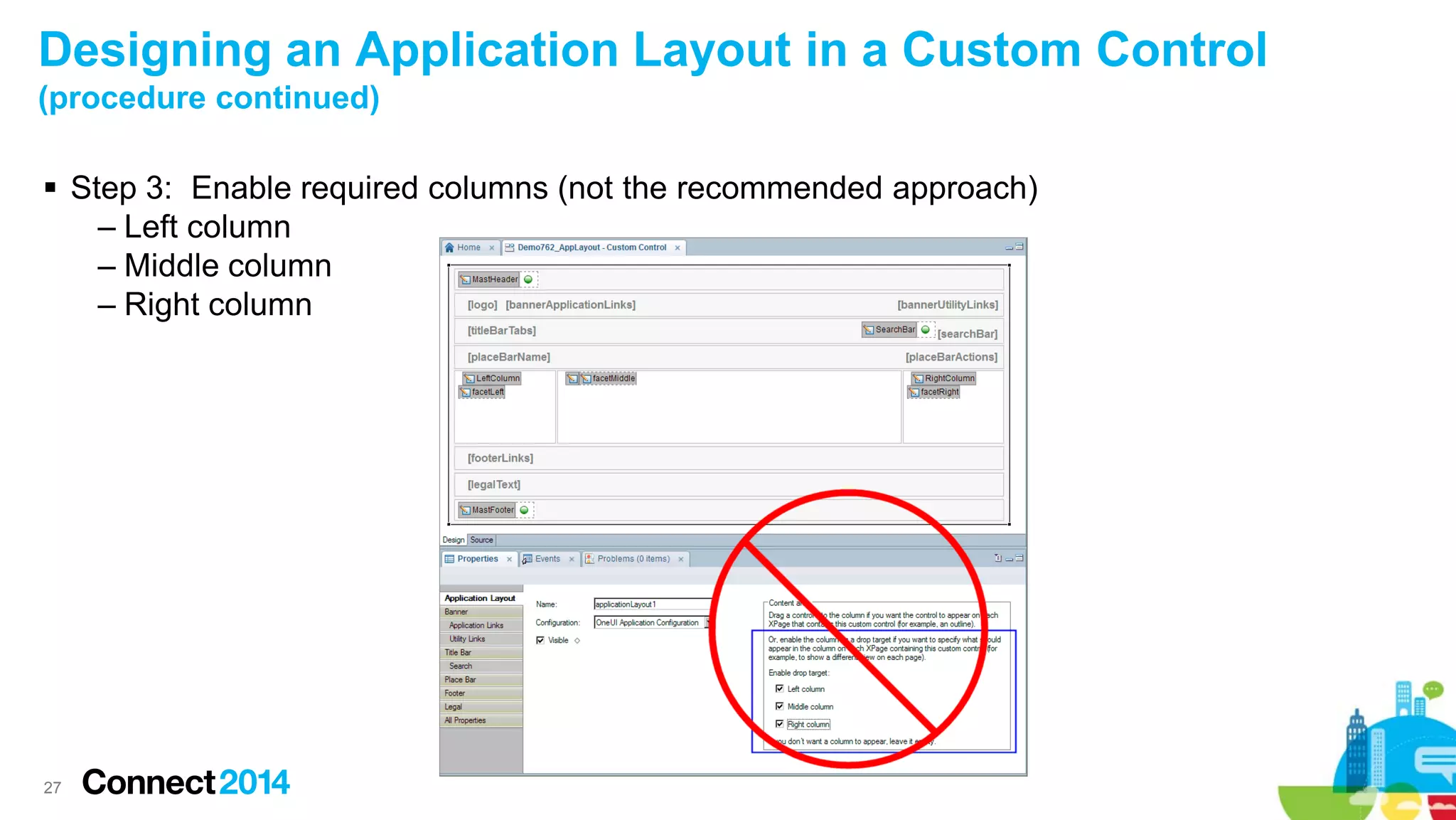

 Step 3: Enable required columns (not the recommended approach)
– Left column
– Middle column
– Right column
27

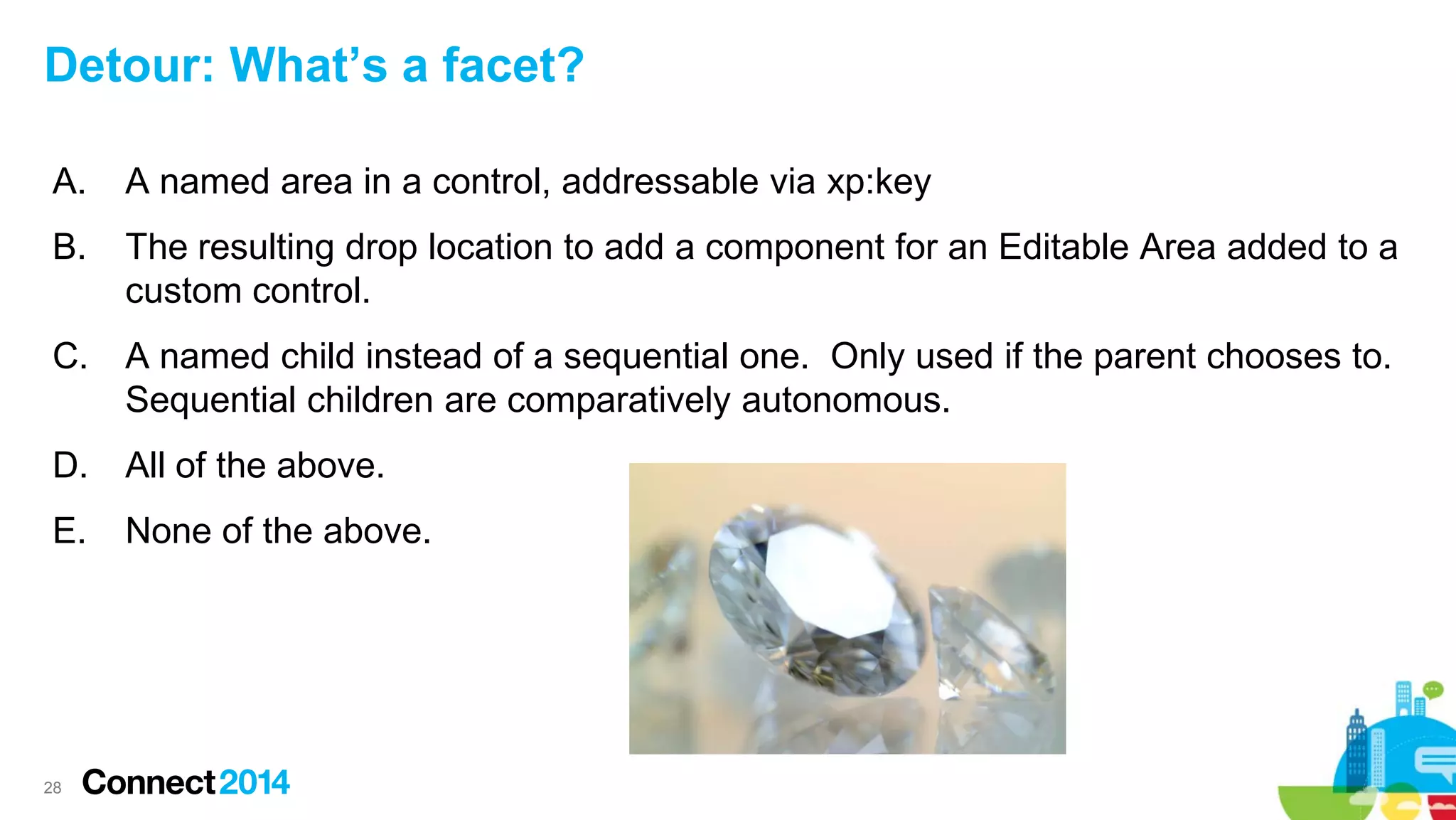

28. Detour: What’s a facet?
A.
A named area in a control, addressable via xp:key
B.
The resulting drop location to add a component for an Editable Area added to a
custom control.
C.
A named child instead of a sequential one. Only used if the parent chooses to.
Sequential children are comparatively autonomous.
D.
All of the above.
E.
None of the above.
28

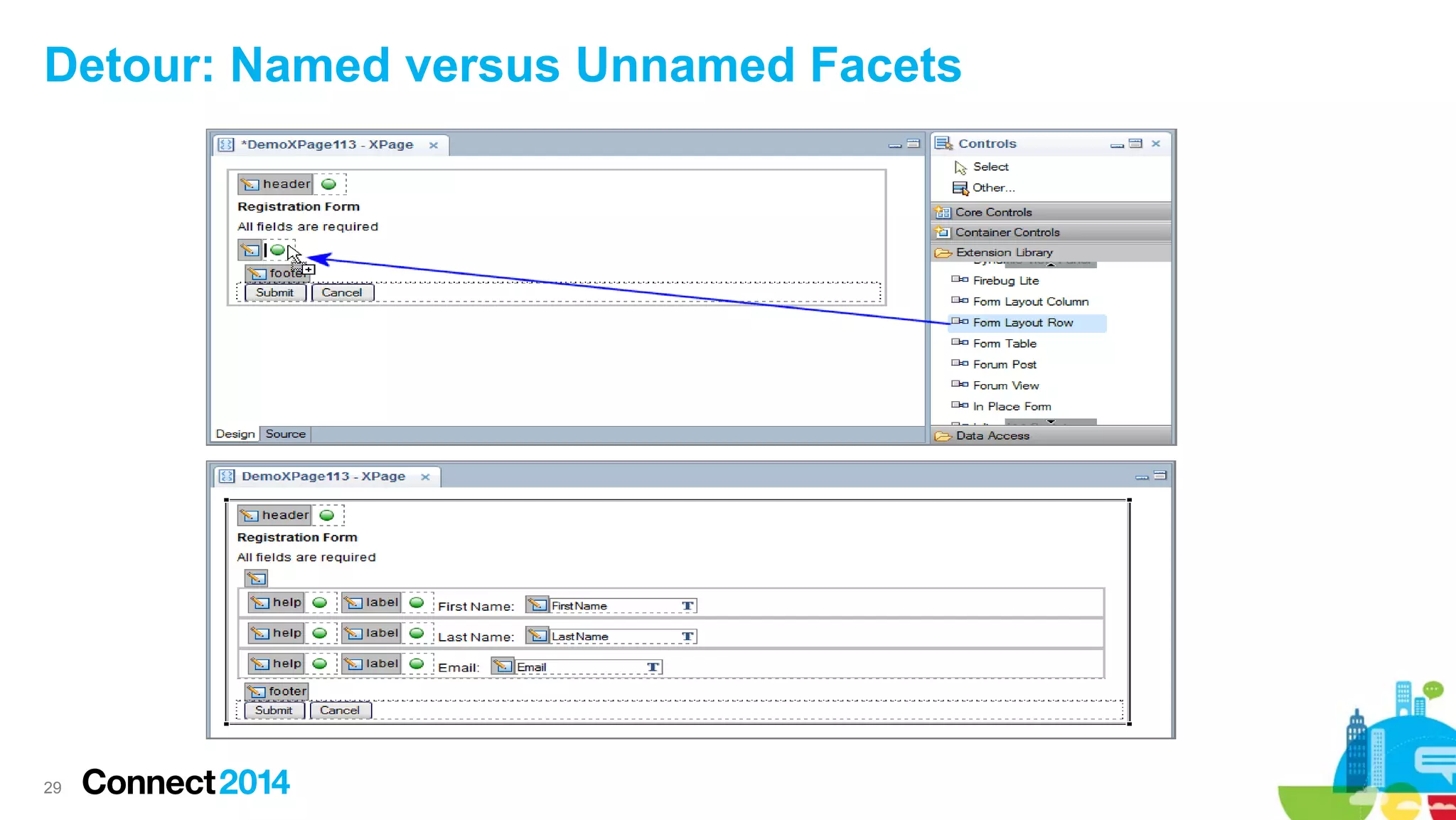

29. Detour: Named versus Unnamed Facets
29

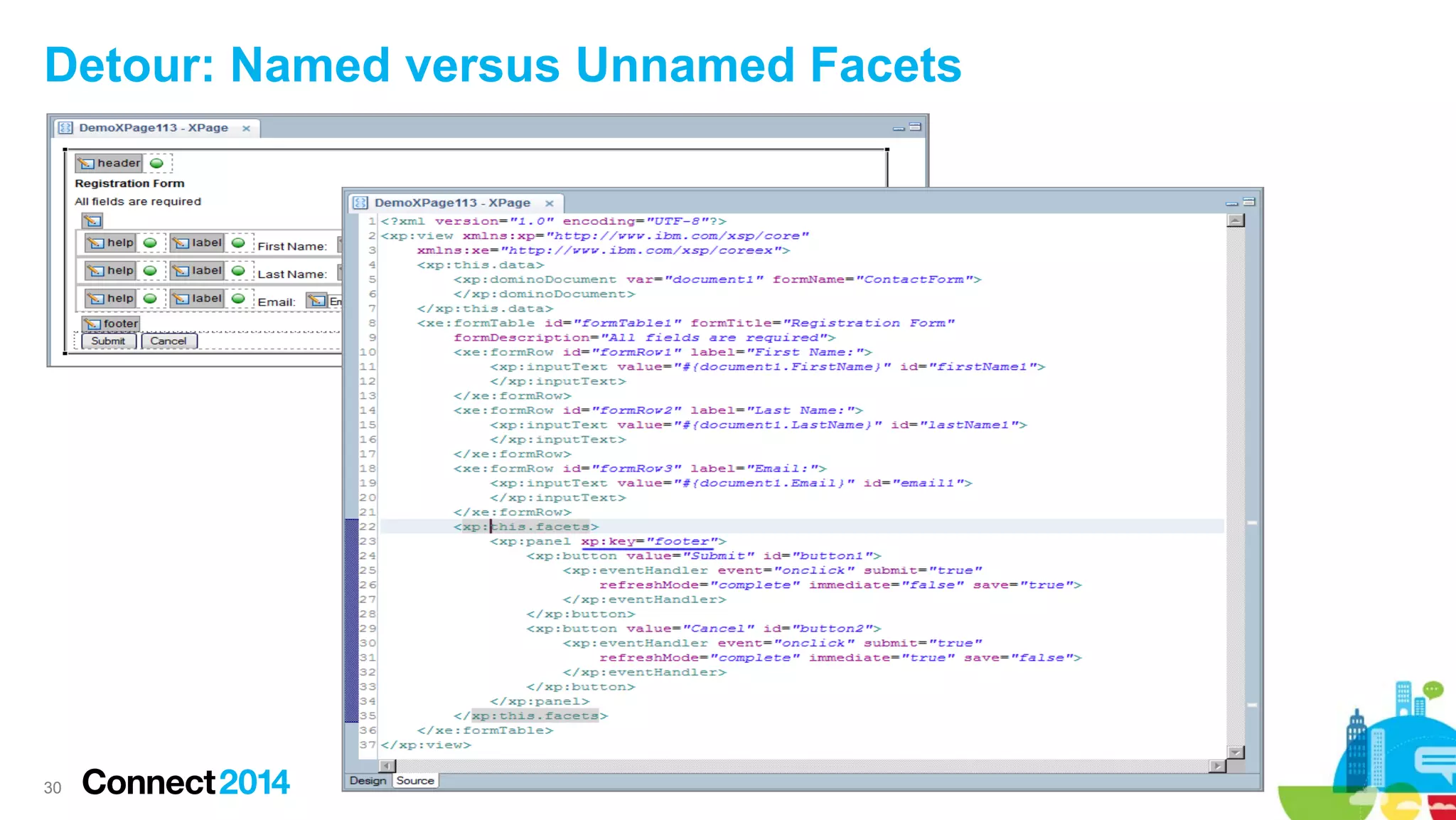

30. Detour: Named versus Unnamed Facets
30

31. Designing an Application Layout in a Custom Control
(procedure continued after the facet detour)

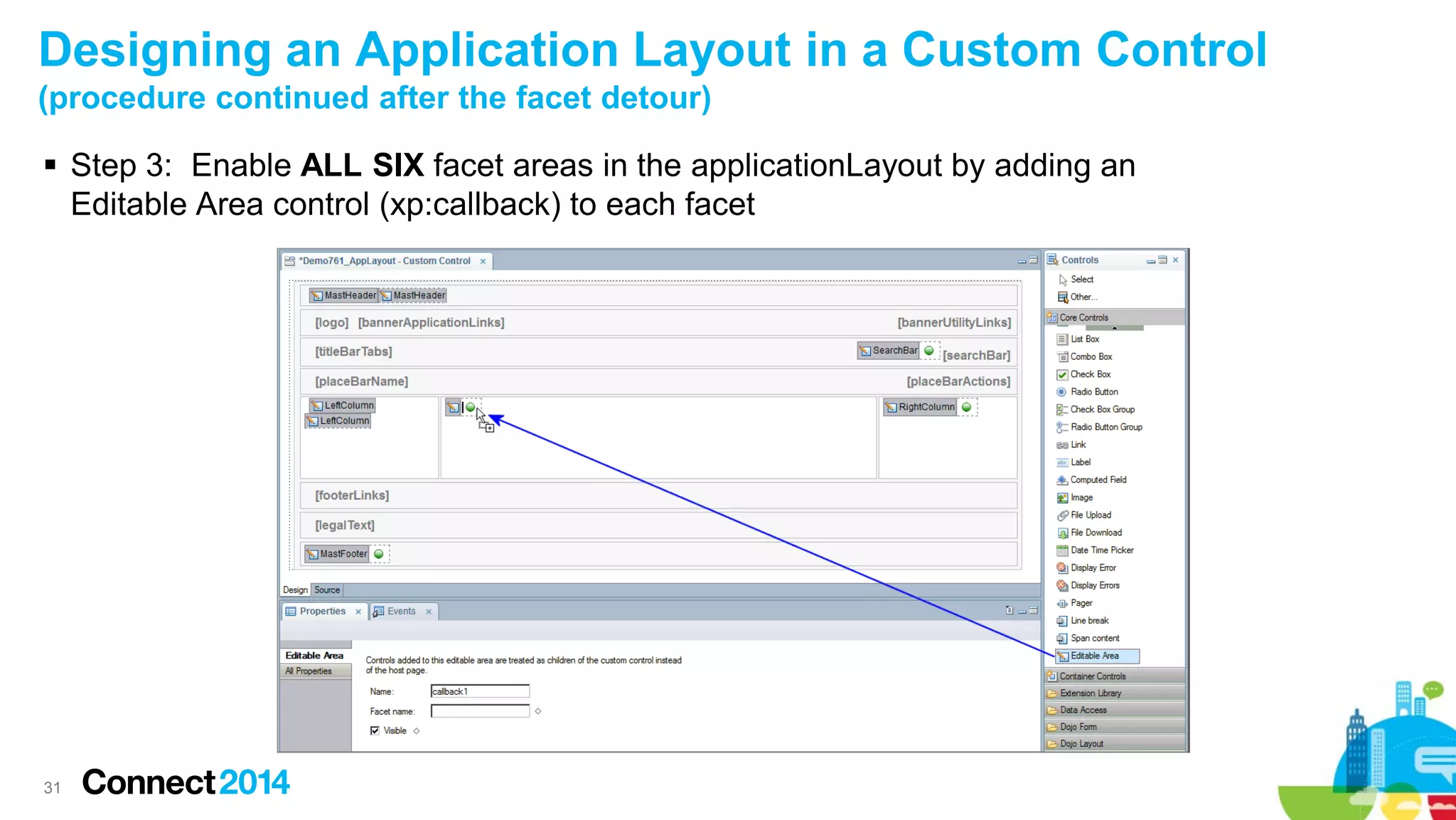

 Step 3: Enable ALL SIX facet areas in the applicationLayout by adding an
Editable Area control (xp:callback) to each facet
31

32. Designing an Application Layout in a Custom Control
(procedure continued)

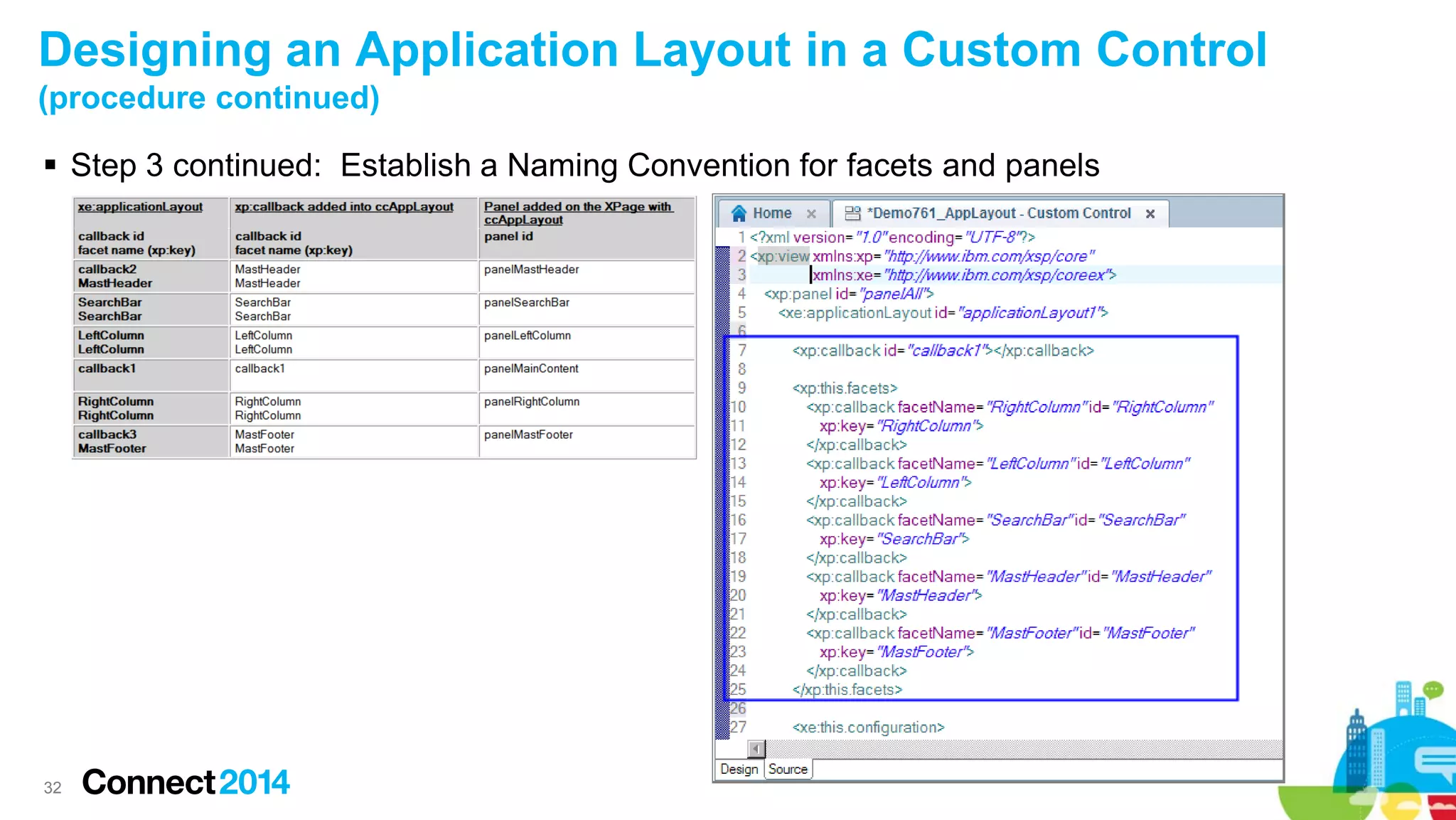

 Step 3 continued: Establish a Naming Convention for facets and panels
32

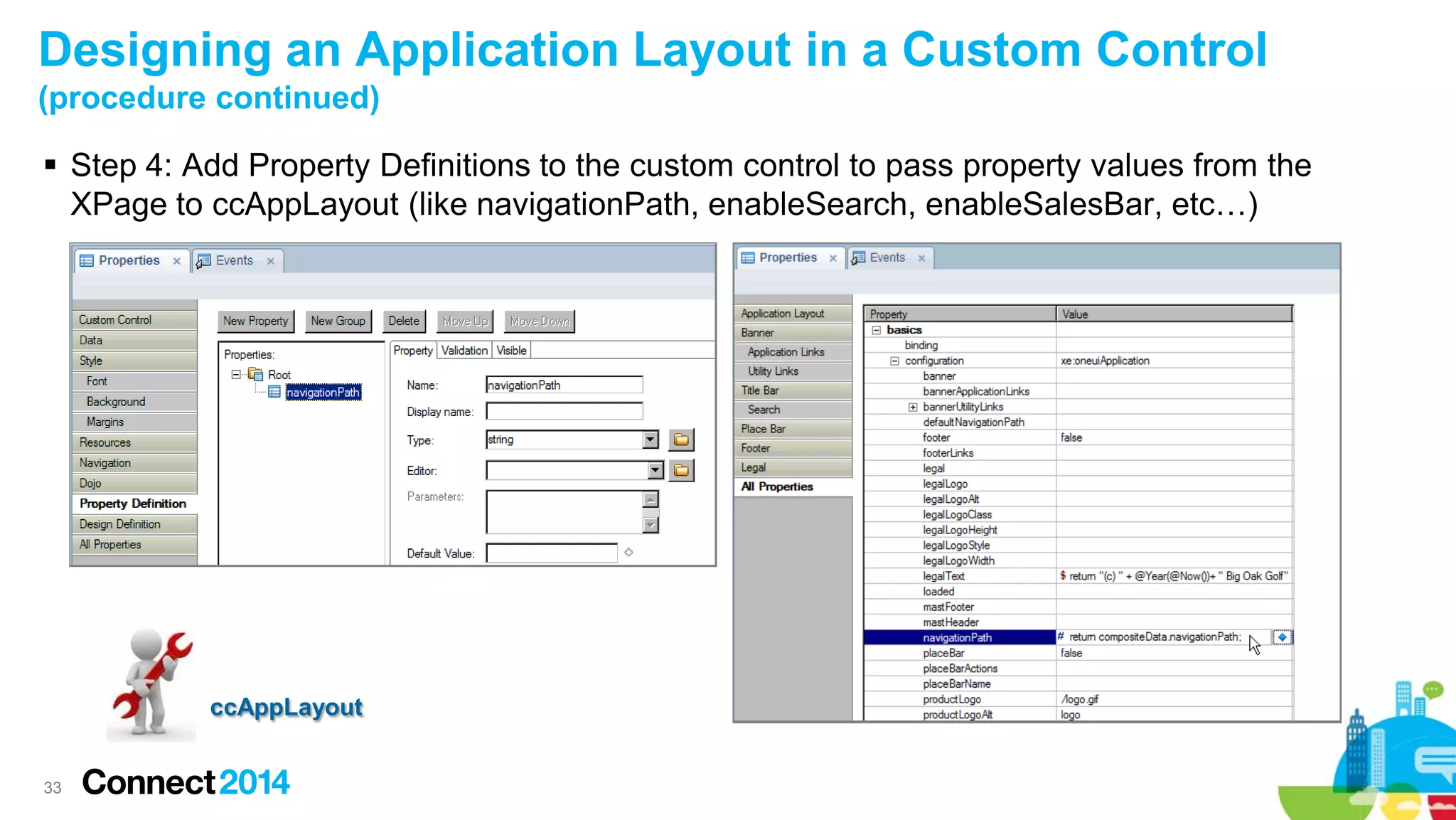

33. Designing an Application Layout in a Custom Control
(procedure continued)
 Step 4: Add Property Definitions to the custom control to pass property values from the
XPage to ccAppLayout (like navigationPath, enableSearch, enableSalesBar, etc…)
ccAppLayout
33

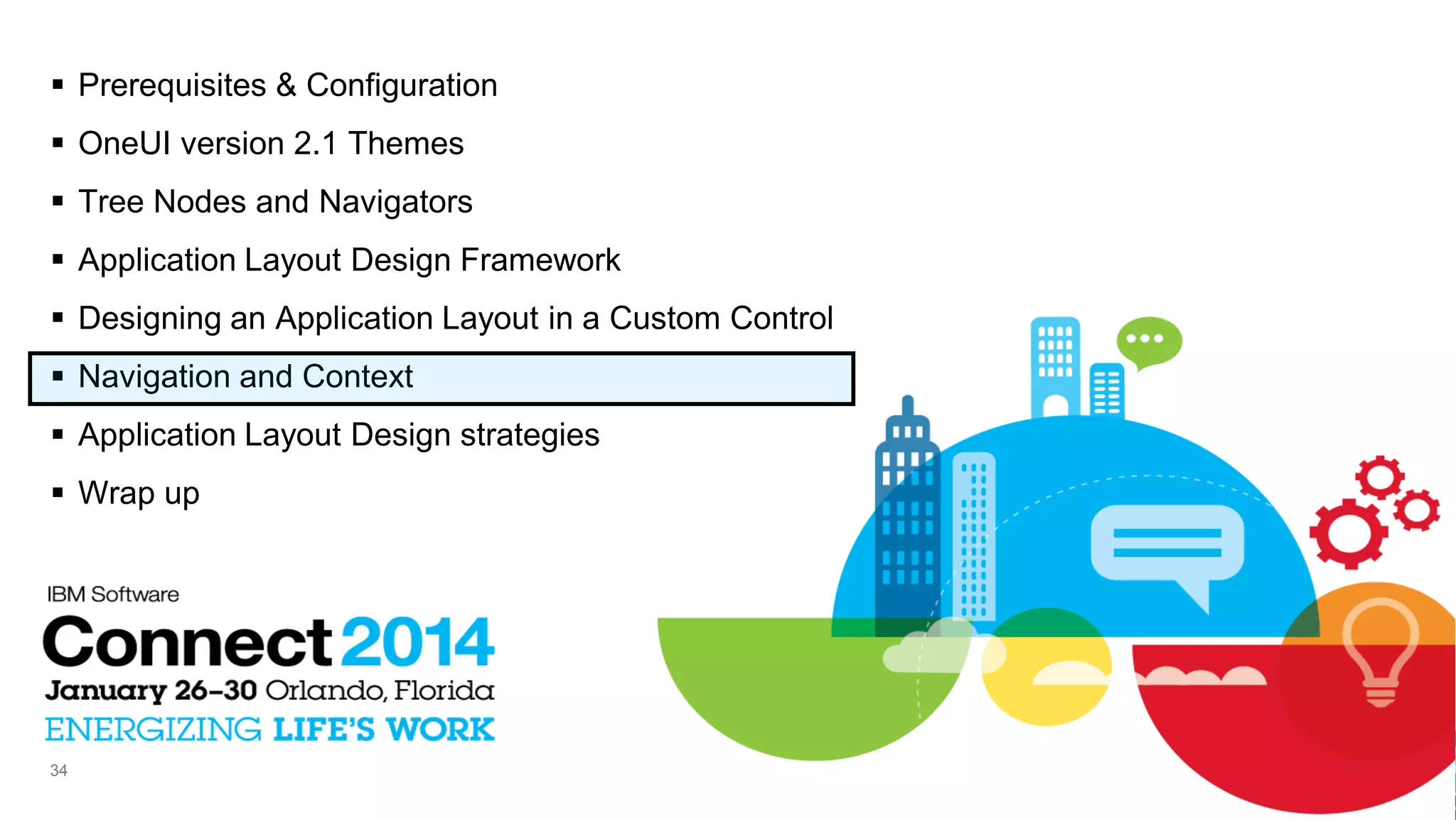

34.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
34

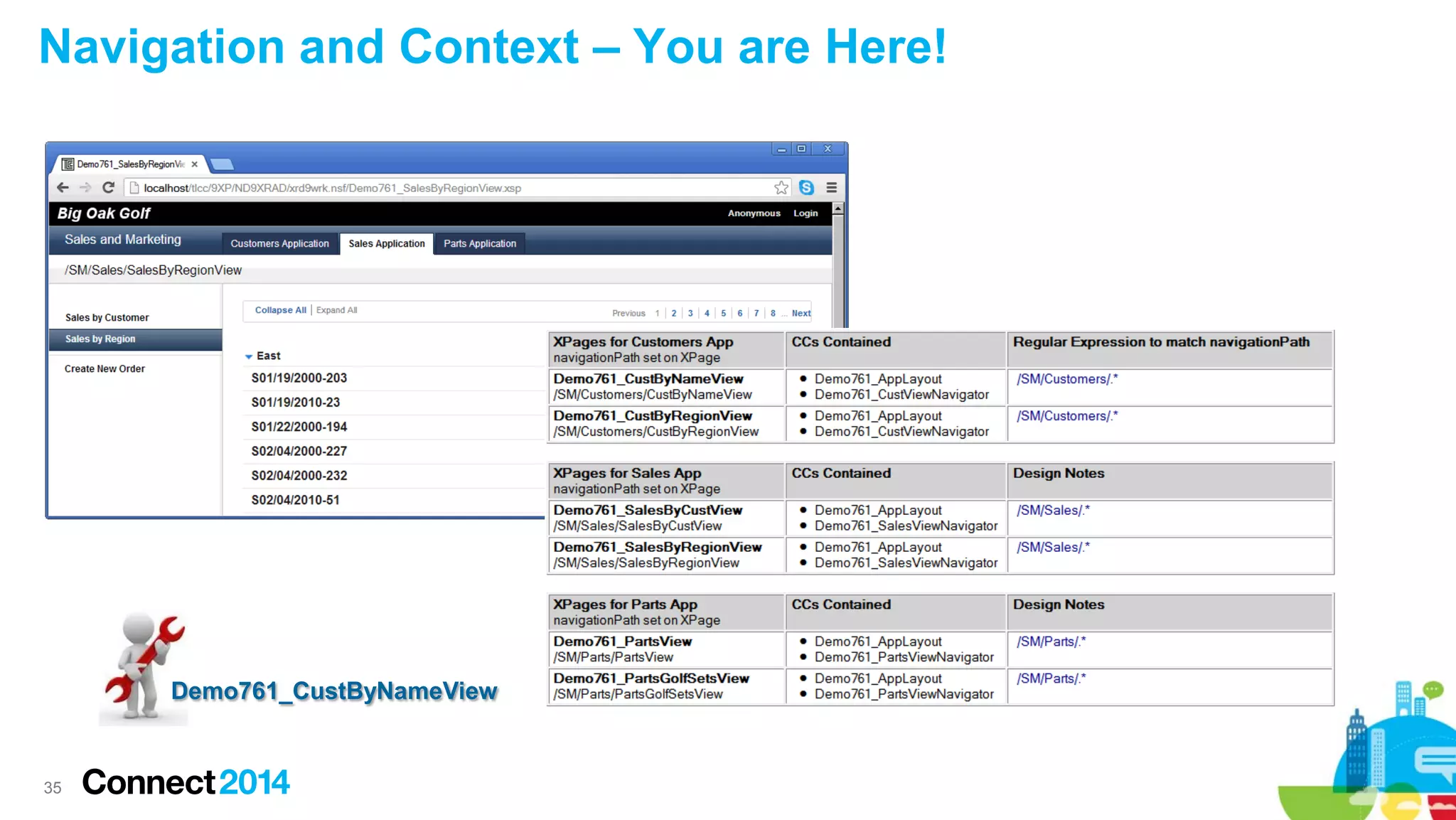

35. Navigation and Context – You are Here!
Demo761_CustByNameView
35

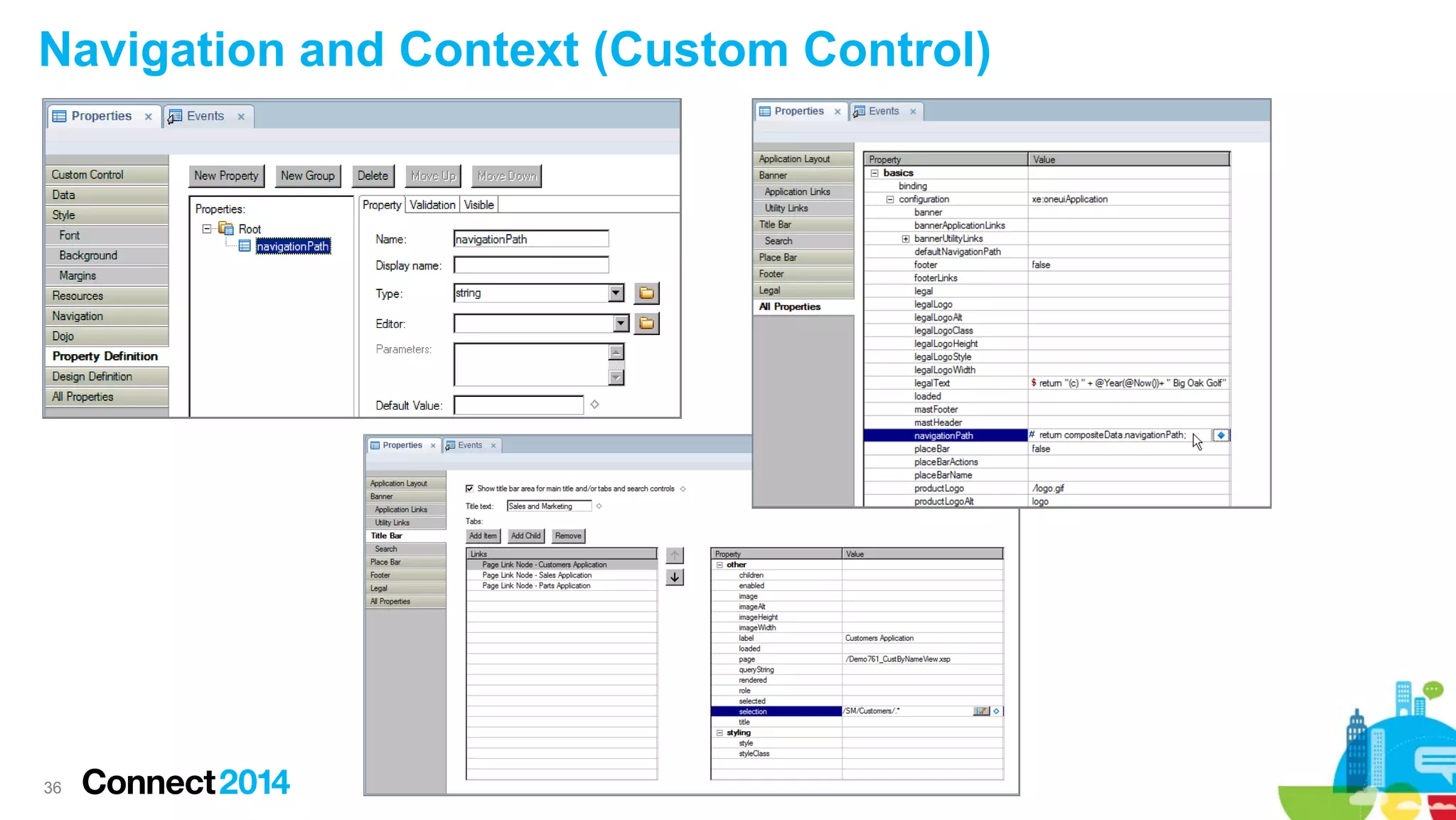

36. Navigation and Context (Custom Control)
36

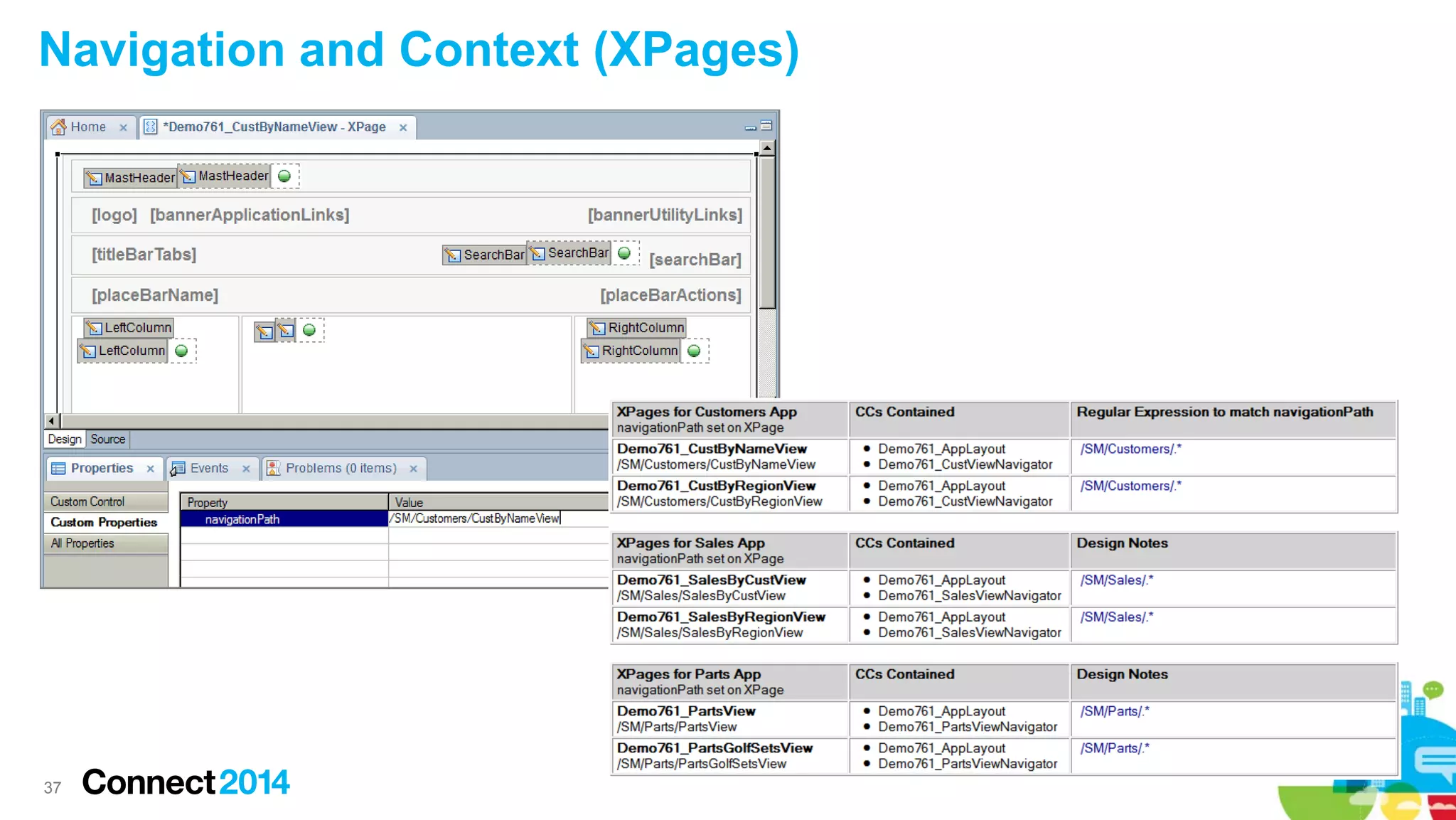

37. Navigation and Context (XPages)
37

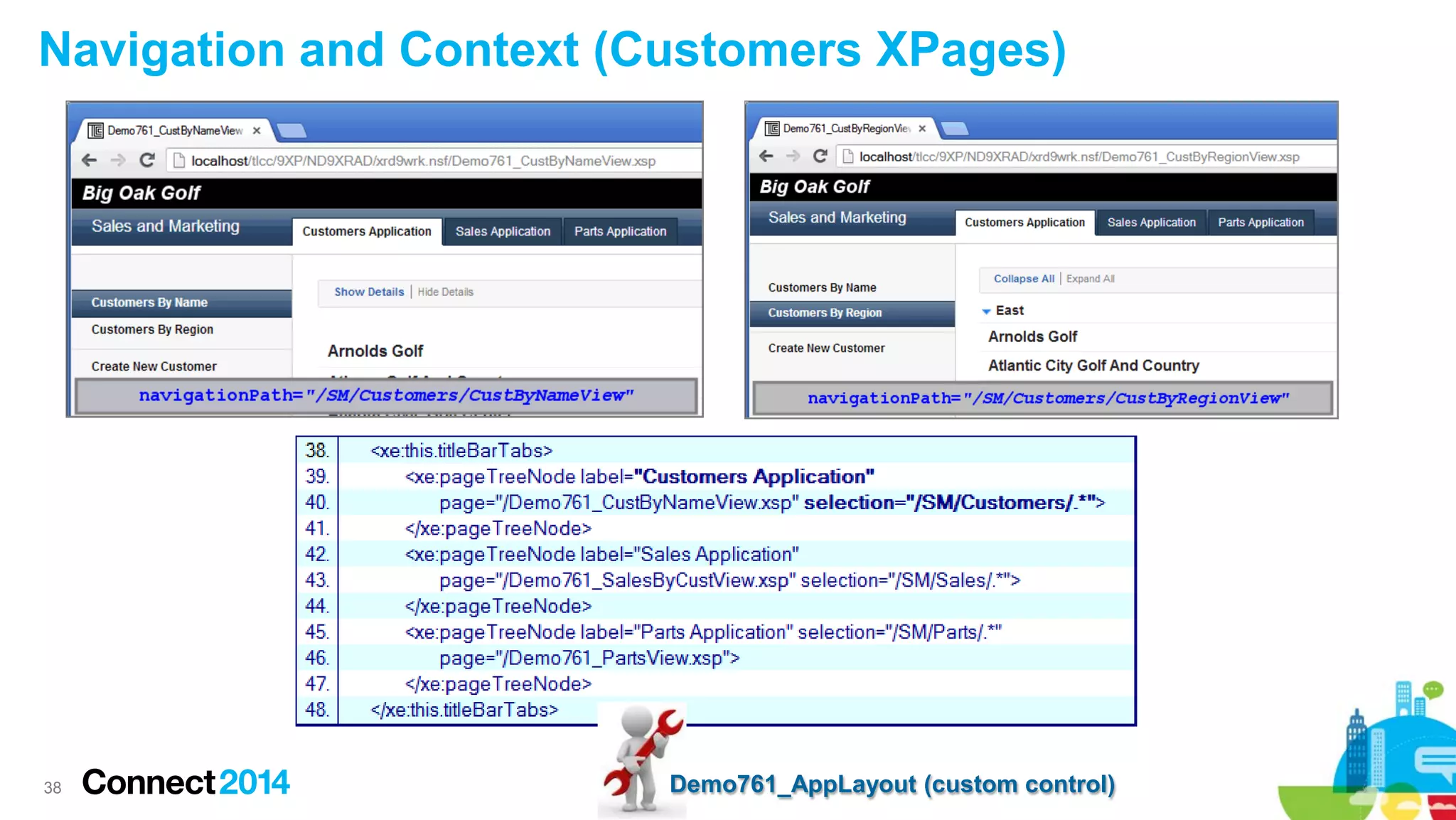

38. Navigation and Context (Customers XPages)
38
Demo761_AppLayout (custom control)

39.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
39

40. Application Layout Design Strategies
40

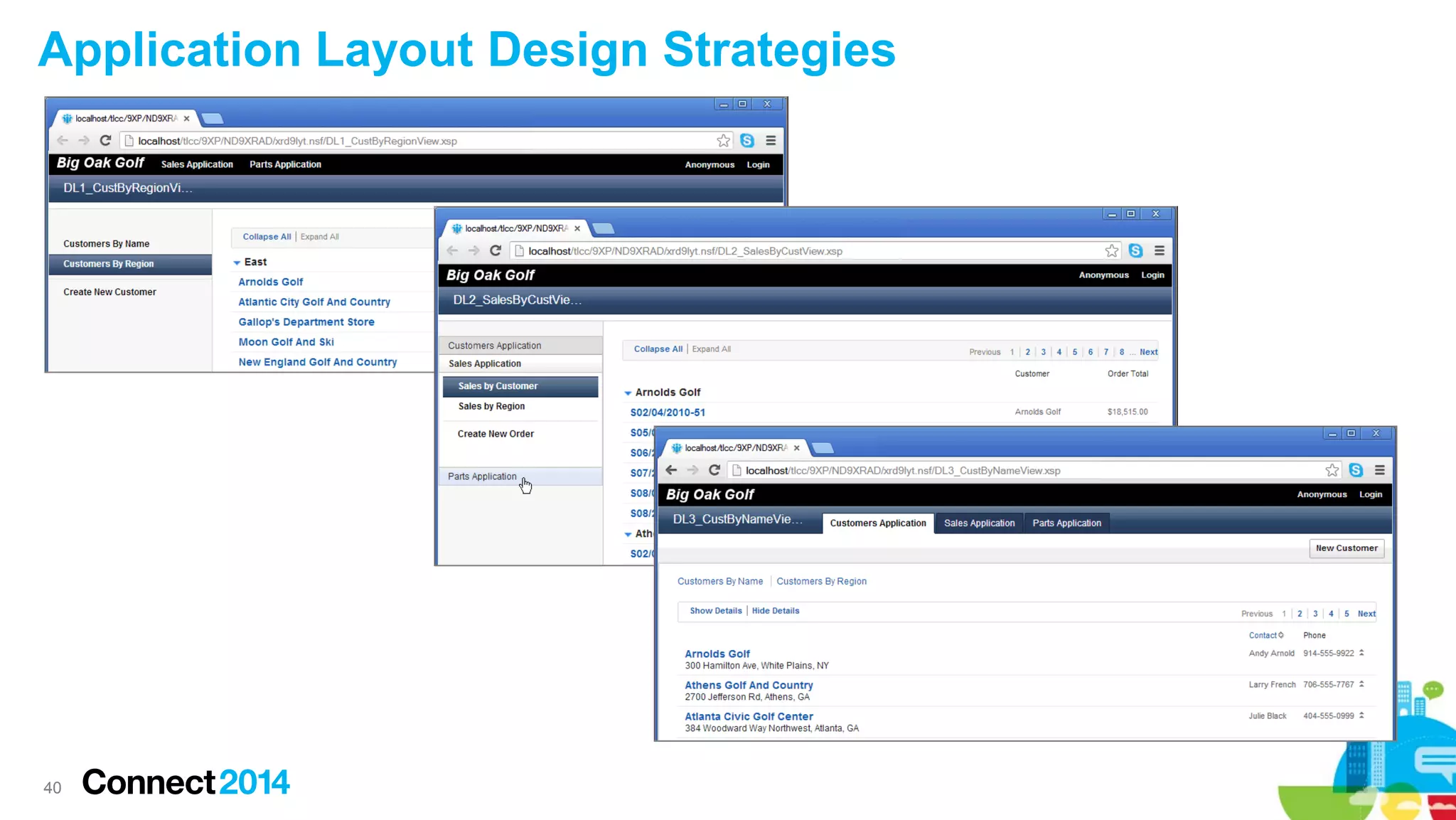

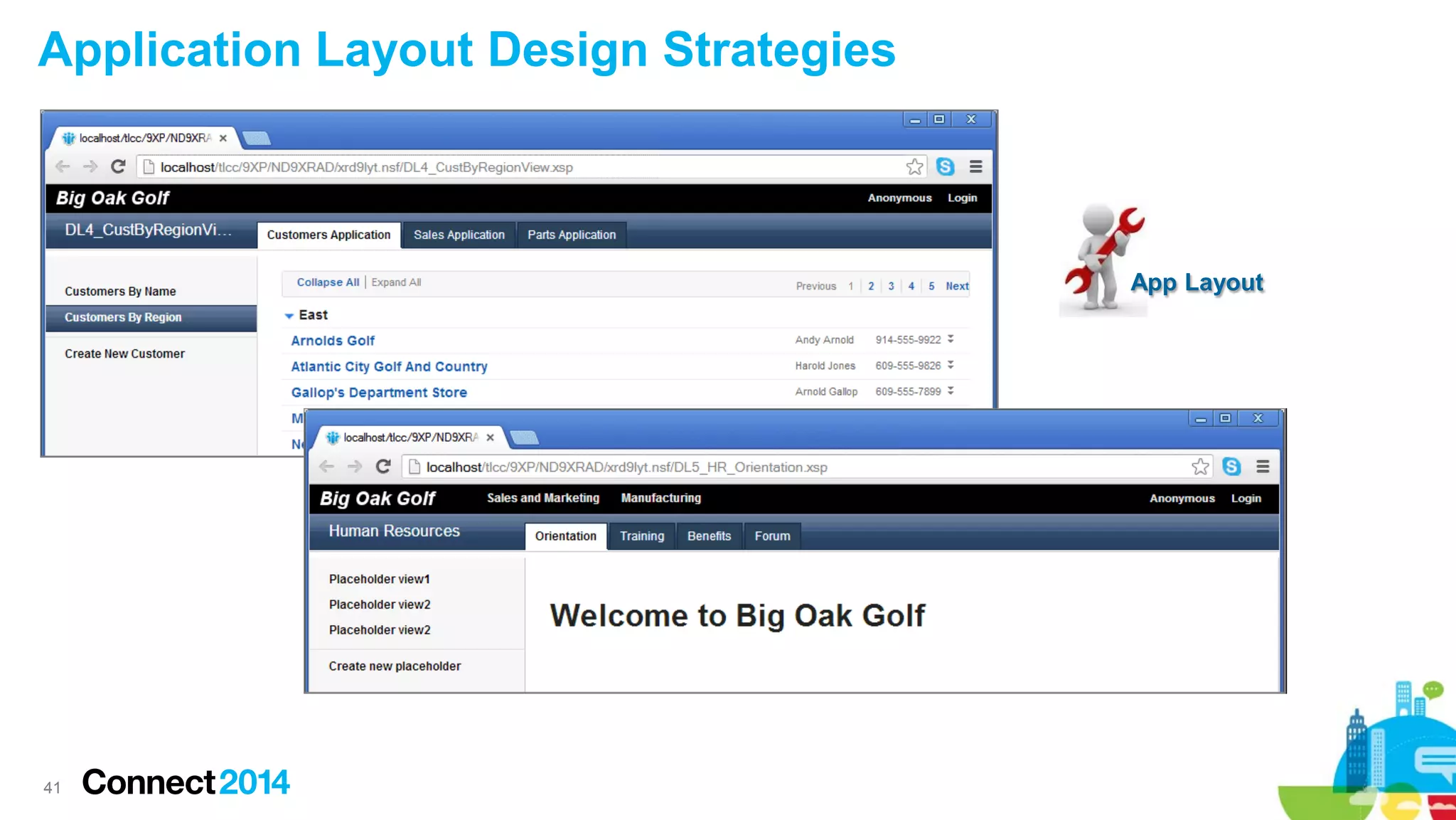

41. Application Layout Design Strategies
App Layout
41

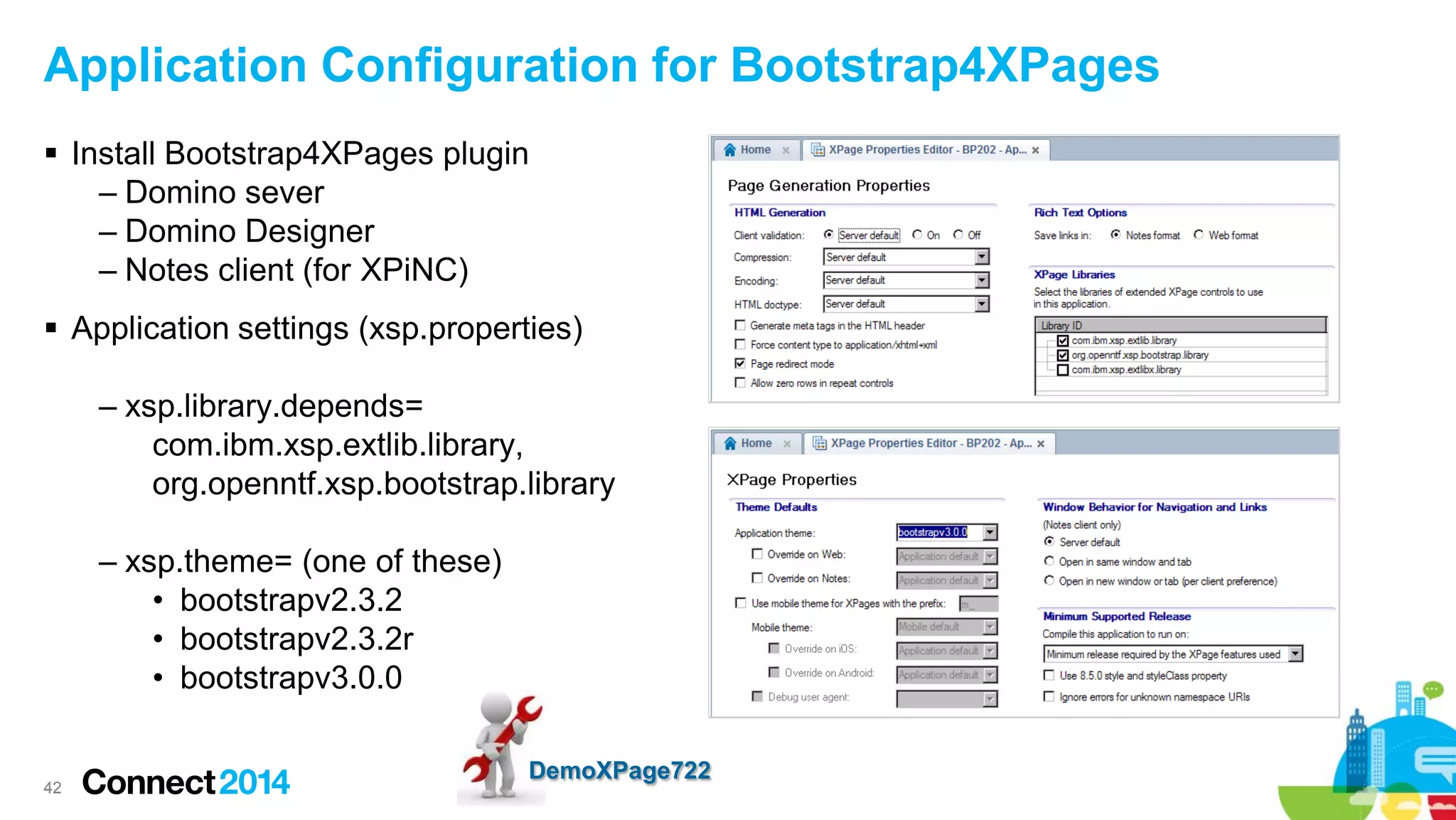

42. Application Configuration for Bootstrap4XPages
 Install Bootstrap4XPages plugin
– Domino sever
– Domino Designer
– Notes client (for XPiNC)
 Application settings (xsp.properties)
– xsp.library.depends=
com.ibm.xsp.extlib.library,
org.openntf.xsp.bootstrap.library
– xsp.theme= (one of these)
• bootstrapv2.3.2
• bootstrapv2.3.2r
• bootstrapv3.0.0
42
DemoXPage722

43.  Prerequisites & Configuration
 OneUI version 2.1 Themes
 Tree Nodes and Navigators
 Application Layout Design Framework
 Designing an Application Layout in a Custom Control
 Navigation and Context
 Application Layout Design strategies
 Wrap up
43

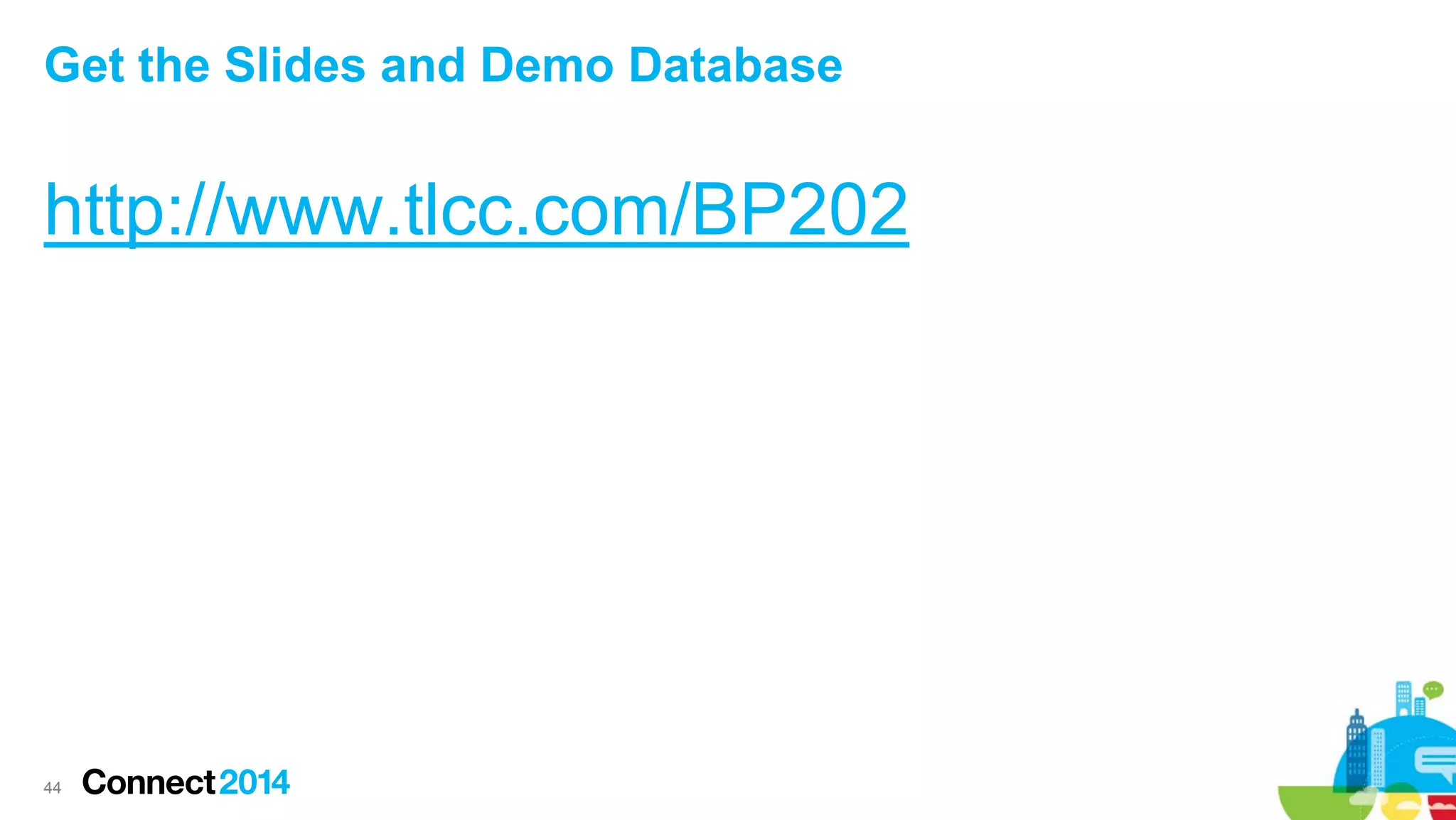

44. Get the Slides and Demo Database
http://www.tlcc.com/BP202
44

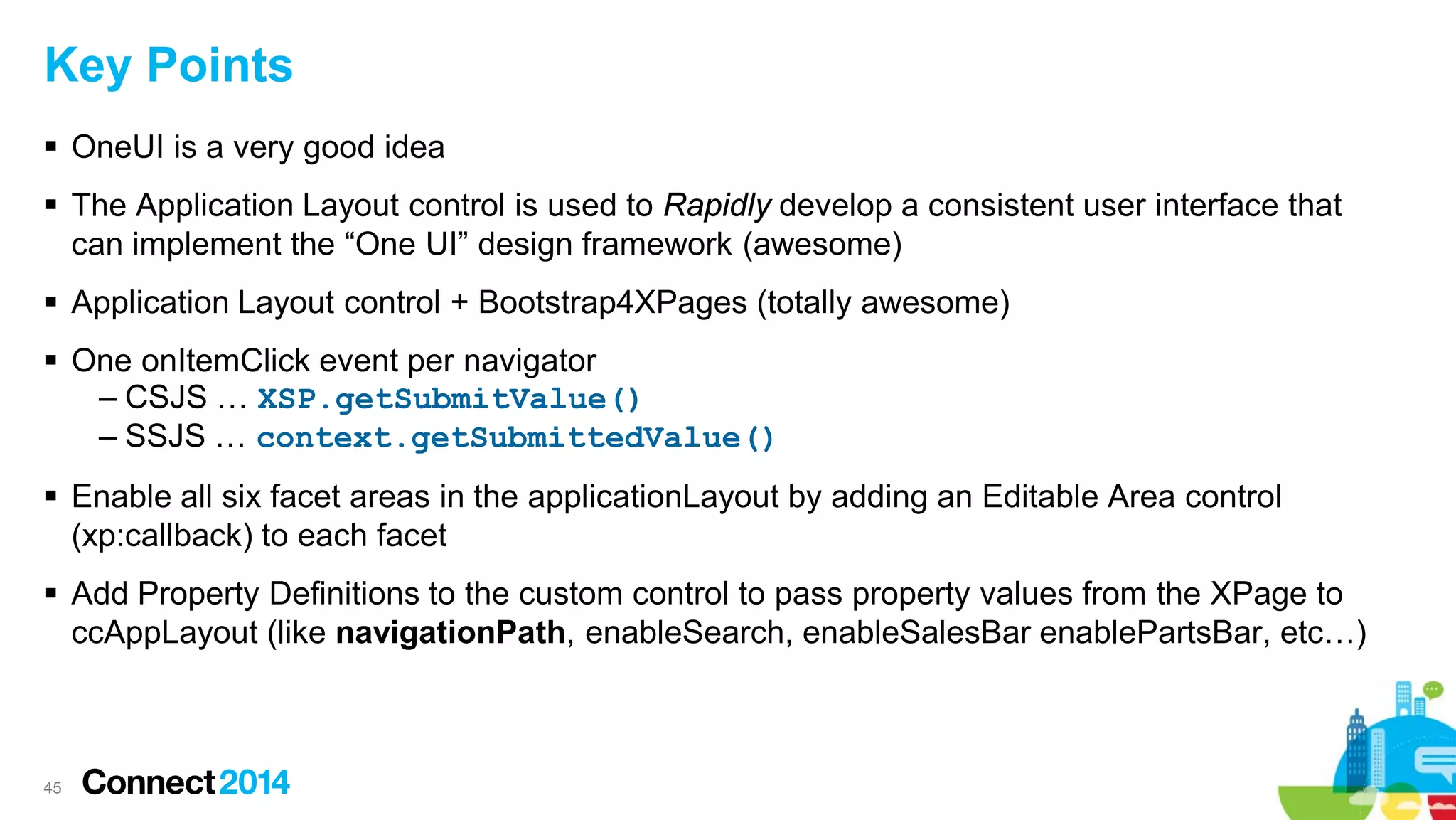

45. Key Points
 OneUI is a very good idea
 The Application Layout control is used to Rapidly develop a consistent user interface that
can implement the “One UI” design framework (awesome)
 Application Layout control + Bootstrap4XPages (totally awesome)
 One onItemClick event per navigator
– CSJS … XSP.getSubmitValue()
– SSJS … context.getSubmittedValue()
 Enable all six facet areas in the applicationLayout by adding an Editable Area control
(xp:callback) to each facet
 Add Property Definitions to the custom control to pass property values from the XPage to
ccAppLayout (like navigationPath, enableSearch, enableSalesBar enablePartsBar, etc…)
45
