This document summarizes an OpenNTF webinar about using the Flexible View Control with XPages. The webinar included an introduction by Howard Greenberg and Graham Acres, and a presentation by Michael G. Smith about the Flexible View Control. It provides instructions for downloading the code, configuring the control, and creating view definitions. The control allows dynamic display of view data in XPages without complex coding.

1. OPENNTF WEBINARS
October Webinar - XPages Flexible View Control with
Michael G. Smith

2. AGENDA
• Welcome – Howard Greenberg
• Michael Smith
• Questions – Graham Acres

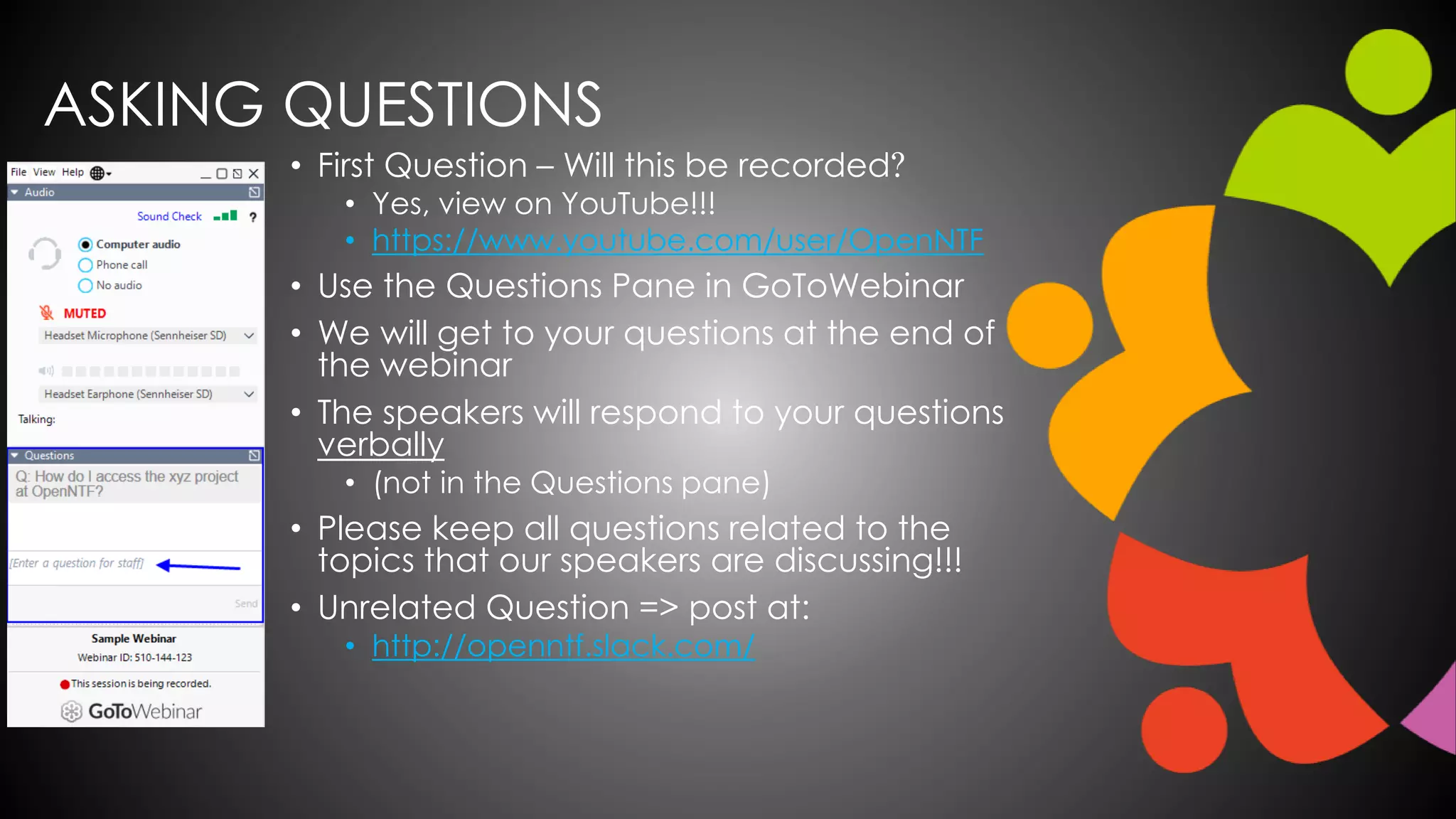

3. ASKING QUESTIONS
• First Question – Will this be recorded?
• Yes, view on YouTube!!!
• https://www.youtube.com/user/OpenNTF
• Use the Questions Pane in GoToWebinar
• We will get to your questions at the end of
the webinar
• The speakers will respond to your questions
verbally
• (not in the Questions pane)
• Please keep all questions related to the
topics that our speakers are discussing!!!
• Unrelated Question => post at:
• http://openntf.slack.com/

4. THANKS TO THE OPENNTF SPONSORS
• HCL made a significant contribution to help our
organization
• Funds these webinars!
• Contests like Hackathons
• Running the organization
• Prominic donates all IT related services
• Cloud Hosting for OpenNTF
• Infrastructure management for HCL Domino and Atlassian
Servers
• System Administration for day-to-day operation

5. THIS IS OUR COMMUNITY
• Join us and get involved!
• We are all volunteers
• No effort is too small
• If your idea is bigger than you can do on your own, we
can connect you to a team to work on it
• Test or help or modify an existing project
• Write guides or documentation
• Add reviews on projects / stars on Snippets

6. Flexible View
Control for XPages
OpenNTF Webinar
Michael G. Smith
October 22nd, 2020

7. HELLO!
I am Michael G. Smith
Senior Developer/Analyst
Mutual Boiler Re
Blog: Xpage.me
Twitter: @michaelgsmith
Email: smithmg@gmail.com
LinkedIn: linkedin.com/in/smithmichaelgarrett
2

8. What problem
are we trying
to solve?
3

9. “The Flexible View Control
was born out of frustration
with the out-of-the-box
tools available in XPages
for displaying View data.
4

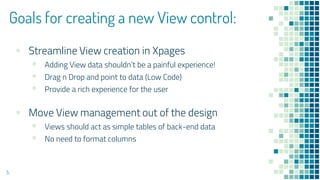

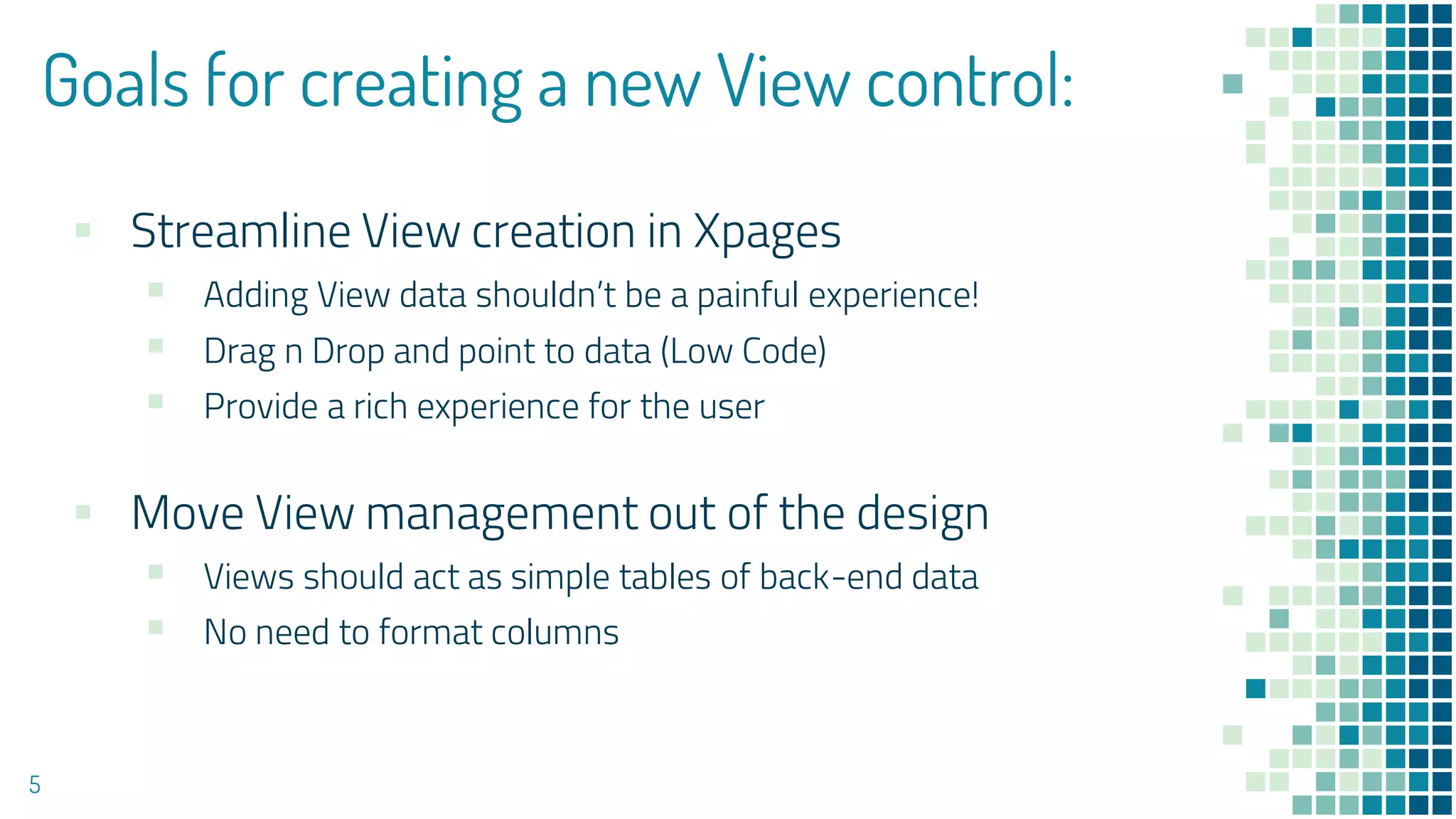

10. Goals for creating a new View control:
▪ Streamline View creation in Xpages
▪ Adding View data shouldn’t be a painful experience!
▪ Drag n Drop and point to data (Low Code)
▪ Provide a rich experience for the user
▪ Move View management out of the design
▪ Views should act as simple tables of back-end data
▪ No need to format columns
5

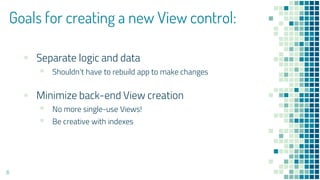

11. Goals for creating a new View control:
▪ Separate logic and data
▪ Shouldn’t have to rebuild app to make changes
▪ Minimize back-end View creation
▪ No more single-use Views!
▪ Be creative with indexes
6

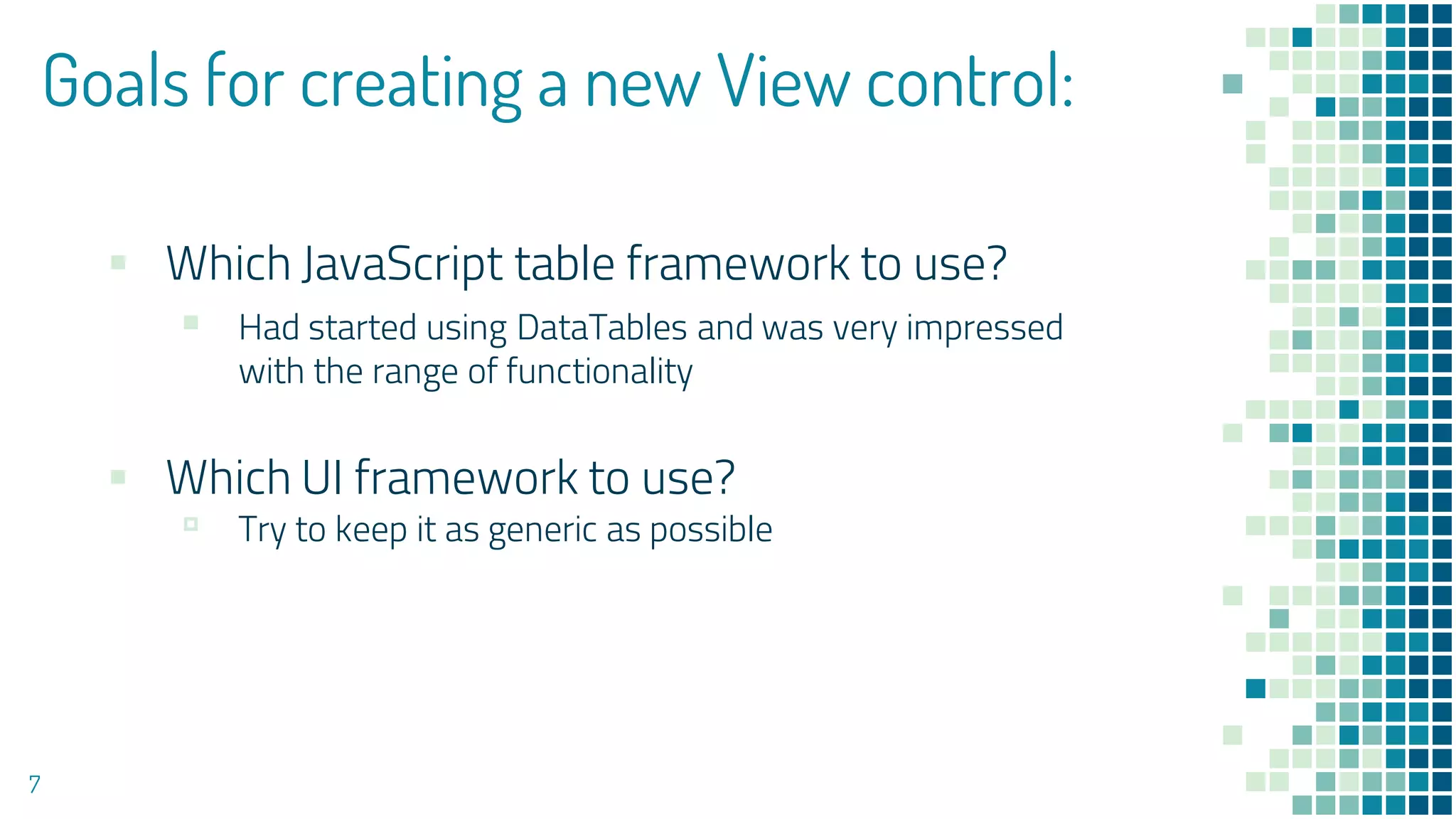

12. Goals for creating a new View control:
▪ Which JavaScript table framework to use?
▪ Had started using DataTables and was very impressed
with the range of functionality
▪ Which UI framework to use?
▫ Try to keep it as generic as possible
7

13. The Flexible View
Control for XPages
is the result.
8

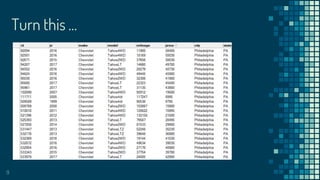

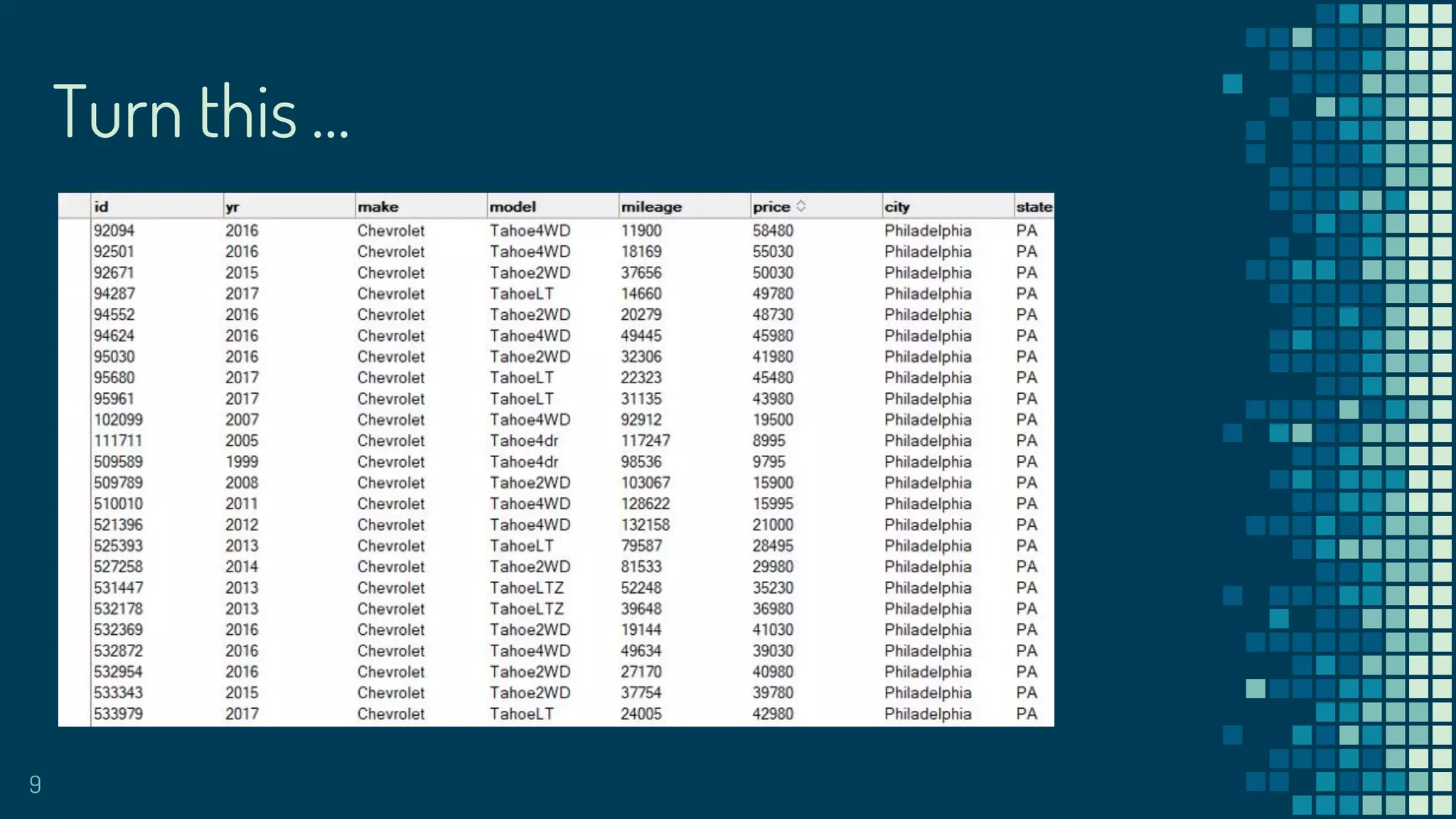

14. 9
Turn this …

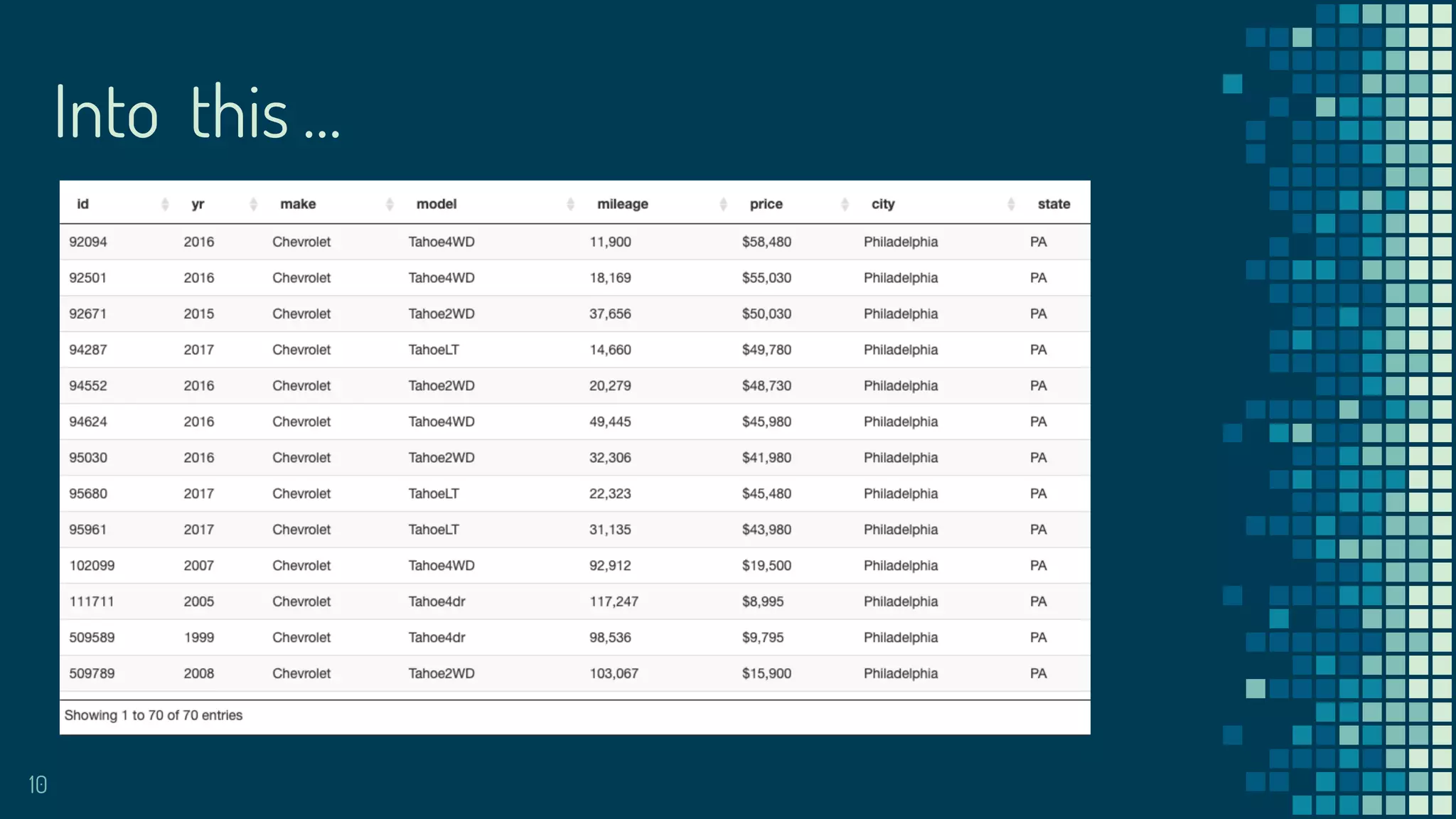

15. 10
Into this …

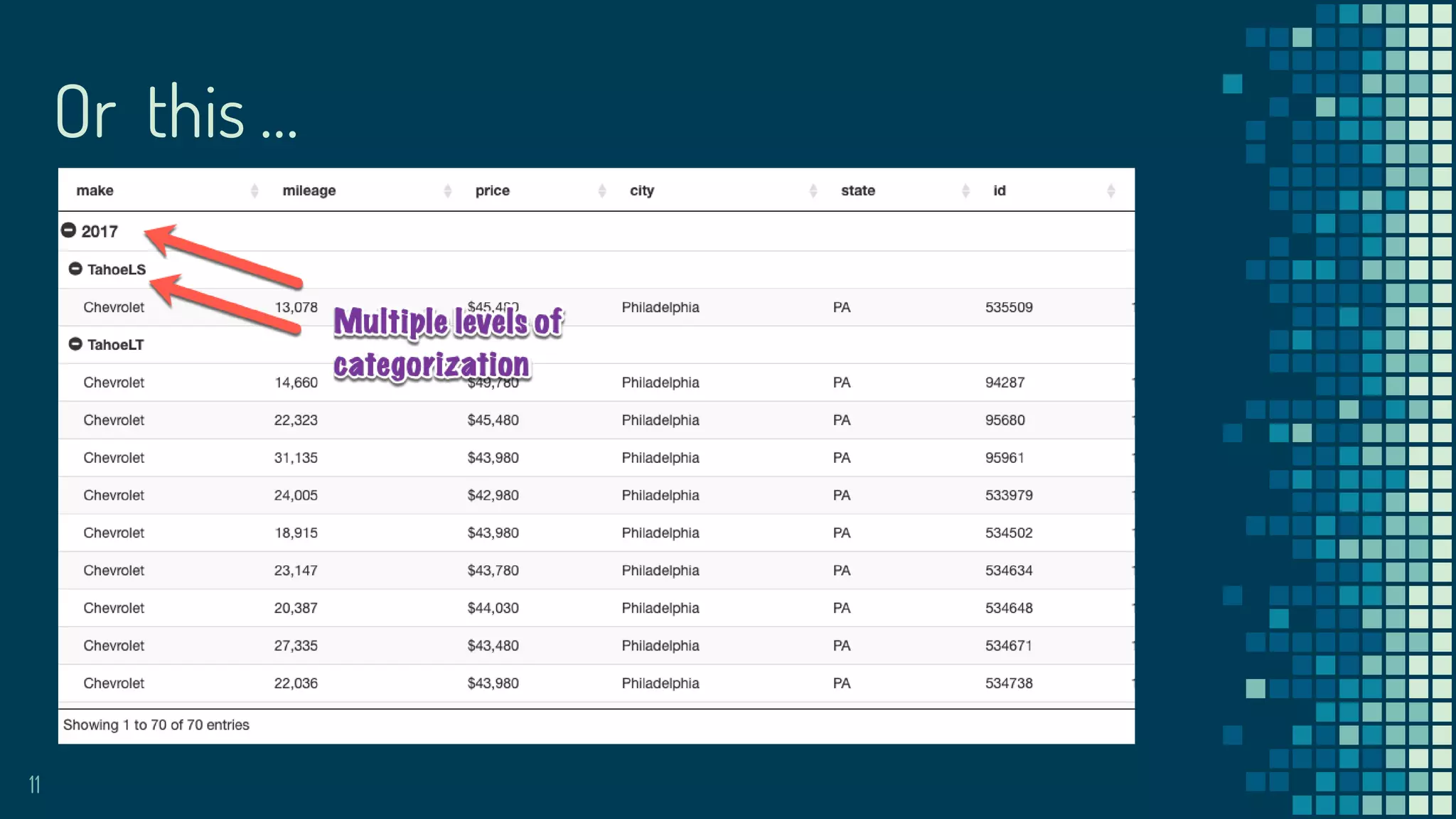

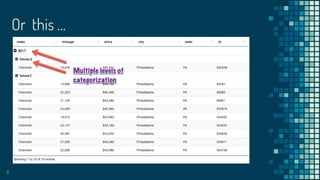

16. 11
Or this …

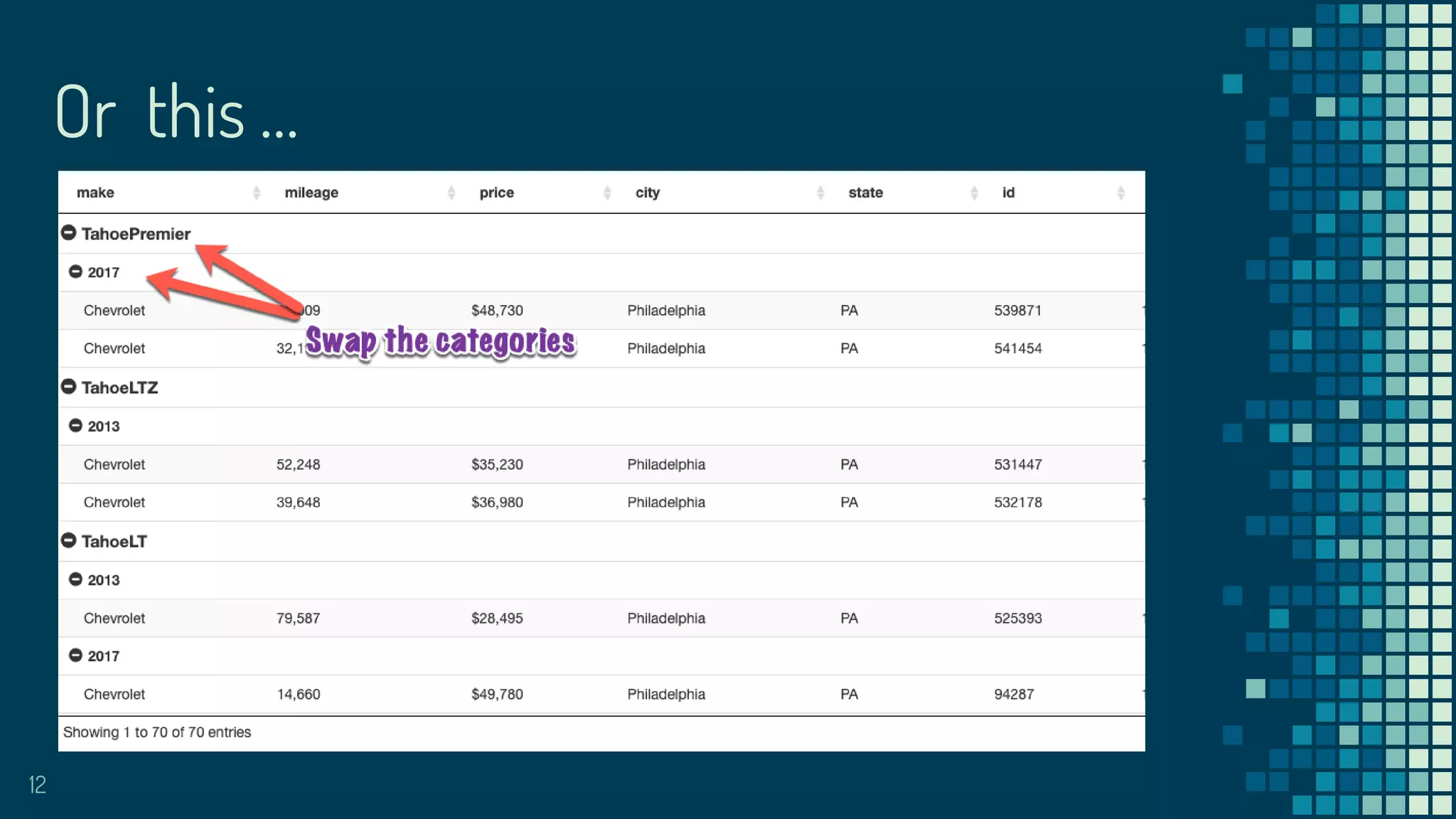

17. 12
Or this …

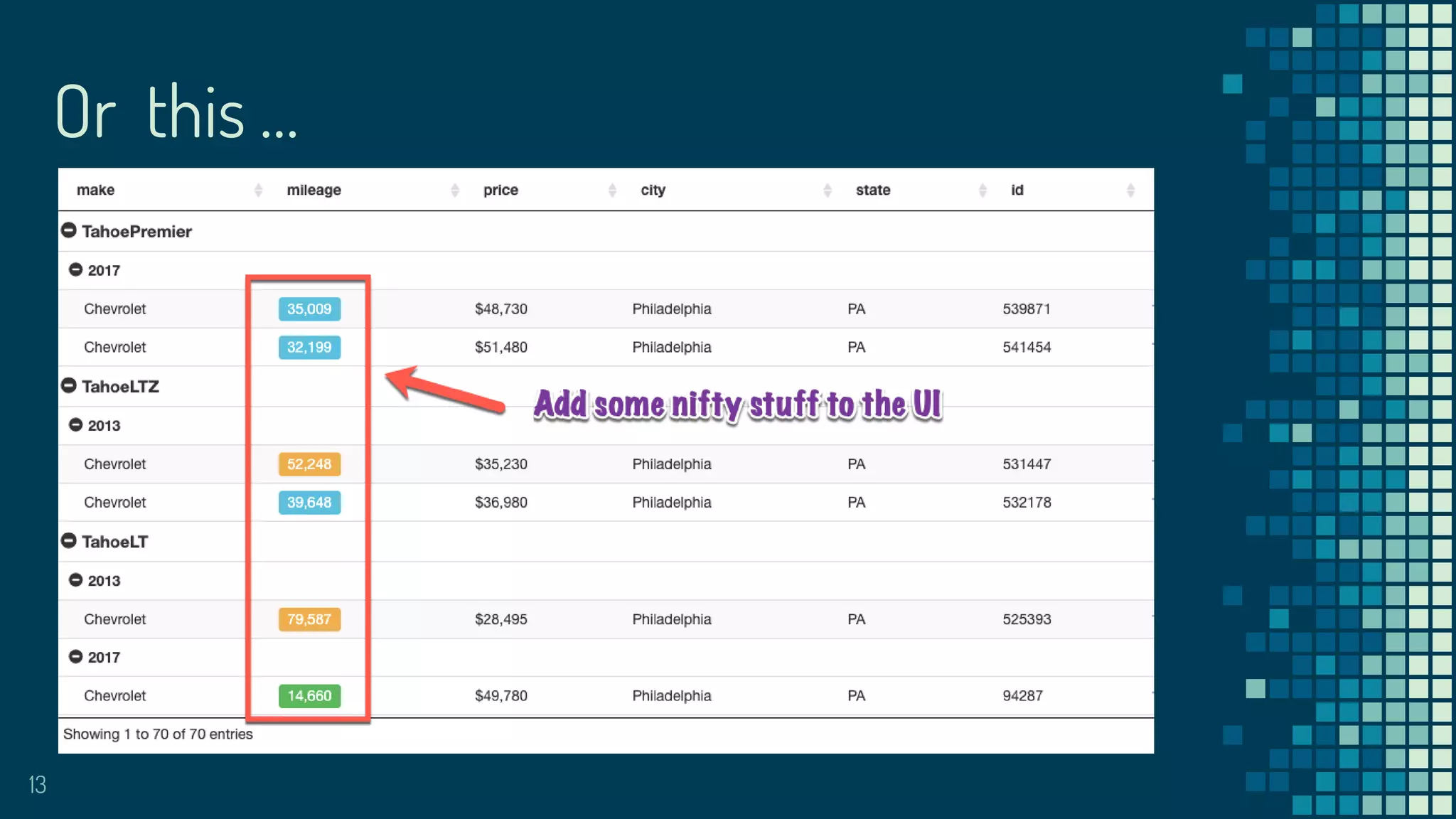

18. 13
Or this …

19. Getting Started
What is The Flexible View Control?

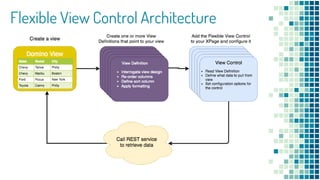

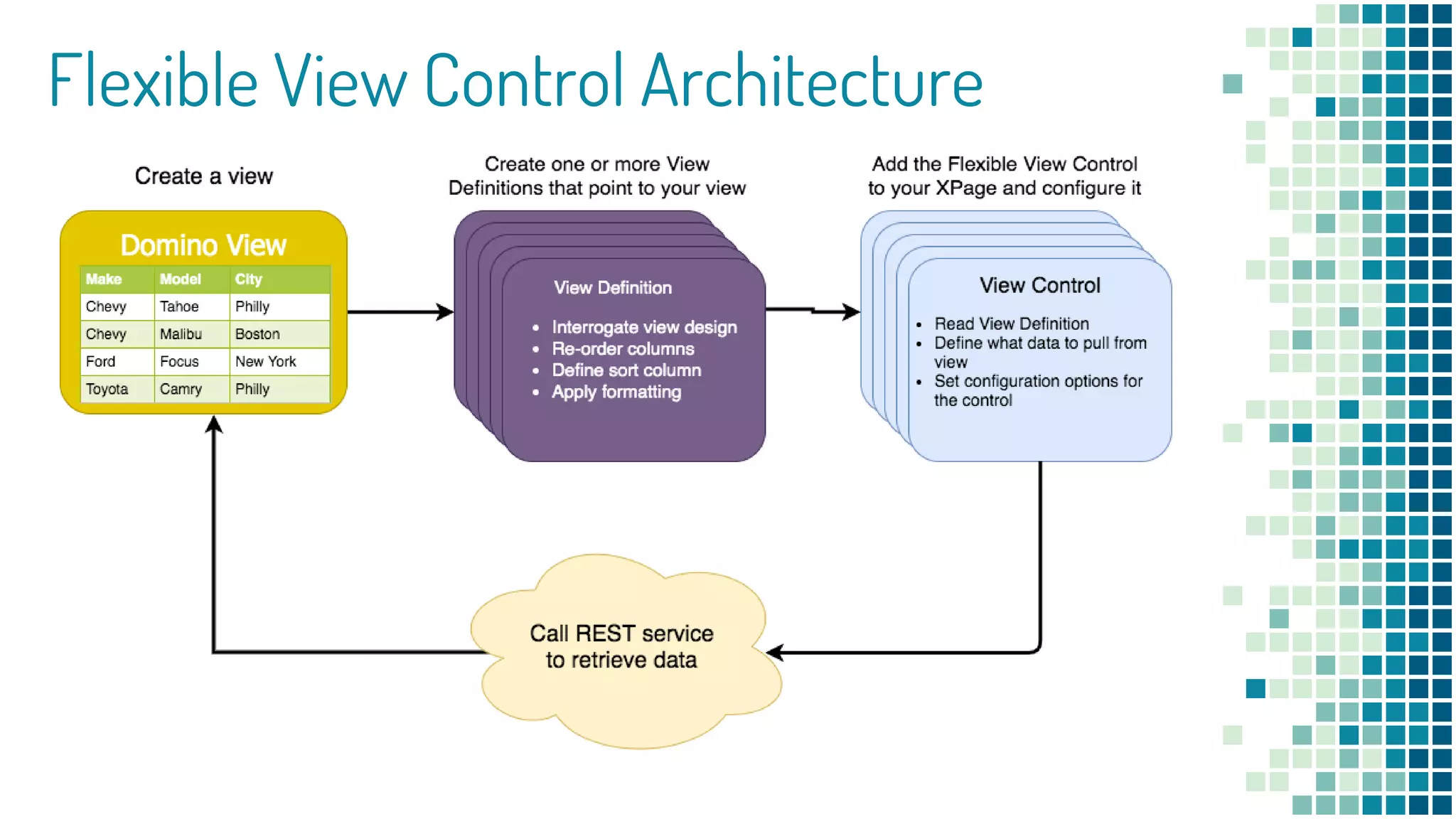

20. Flexible View Control Architecture

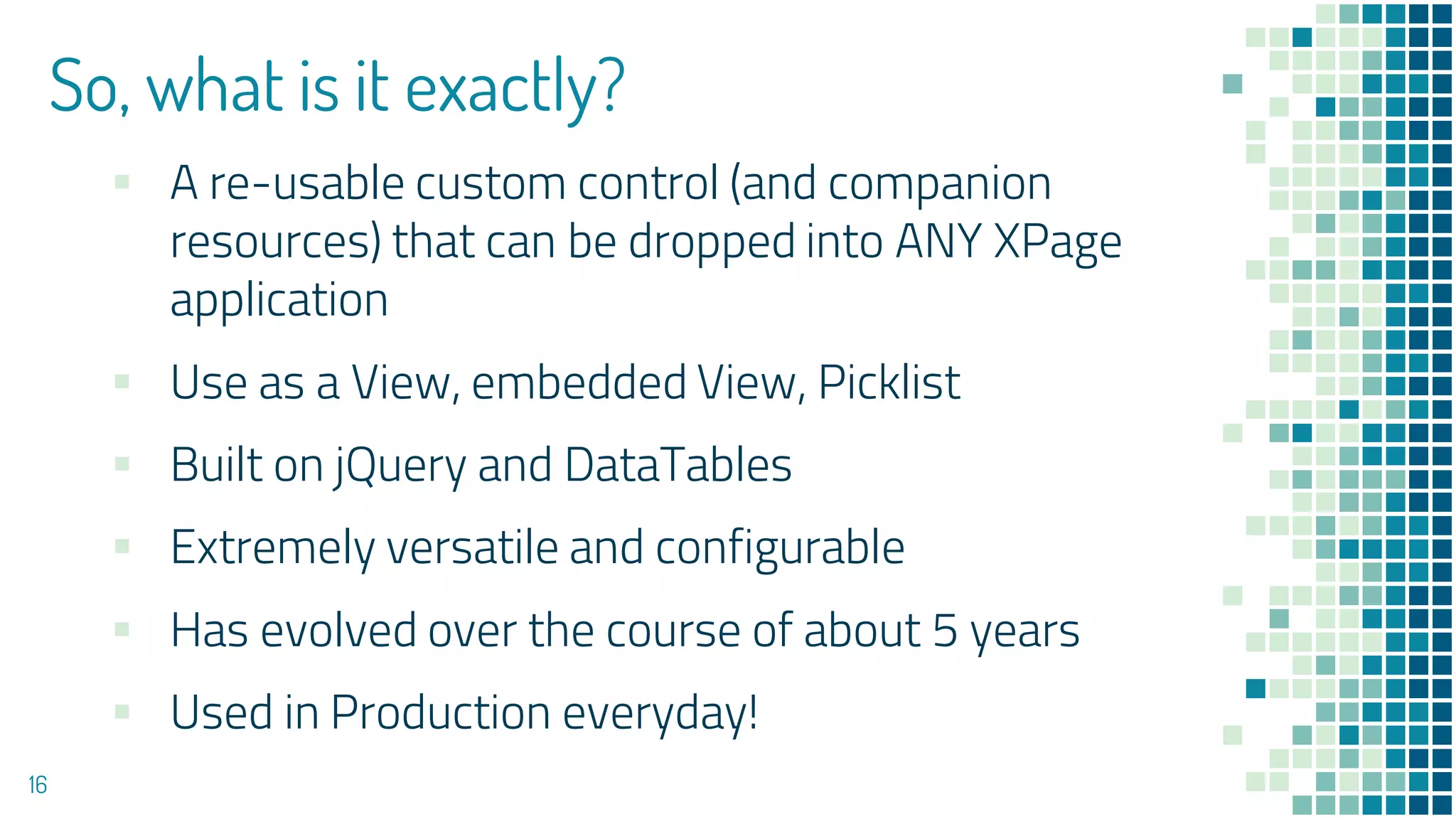

21. So, what is it exactly?
▪ A re-usable custom control (and companion
resources) that can be dropped into ANY XPage
application
▪ Use as a View, embedded View, Picklist
▪ Built on jQuery and DataTables
▪ Extremely versatile and configurable
▪ Has evolved over the course of about 5 years
▪ Used in Production everyday!
16

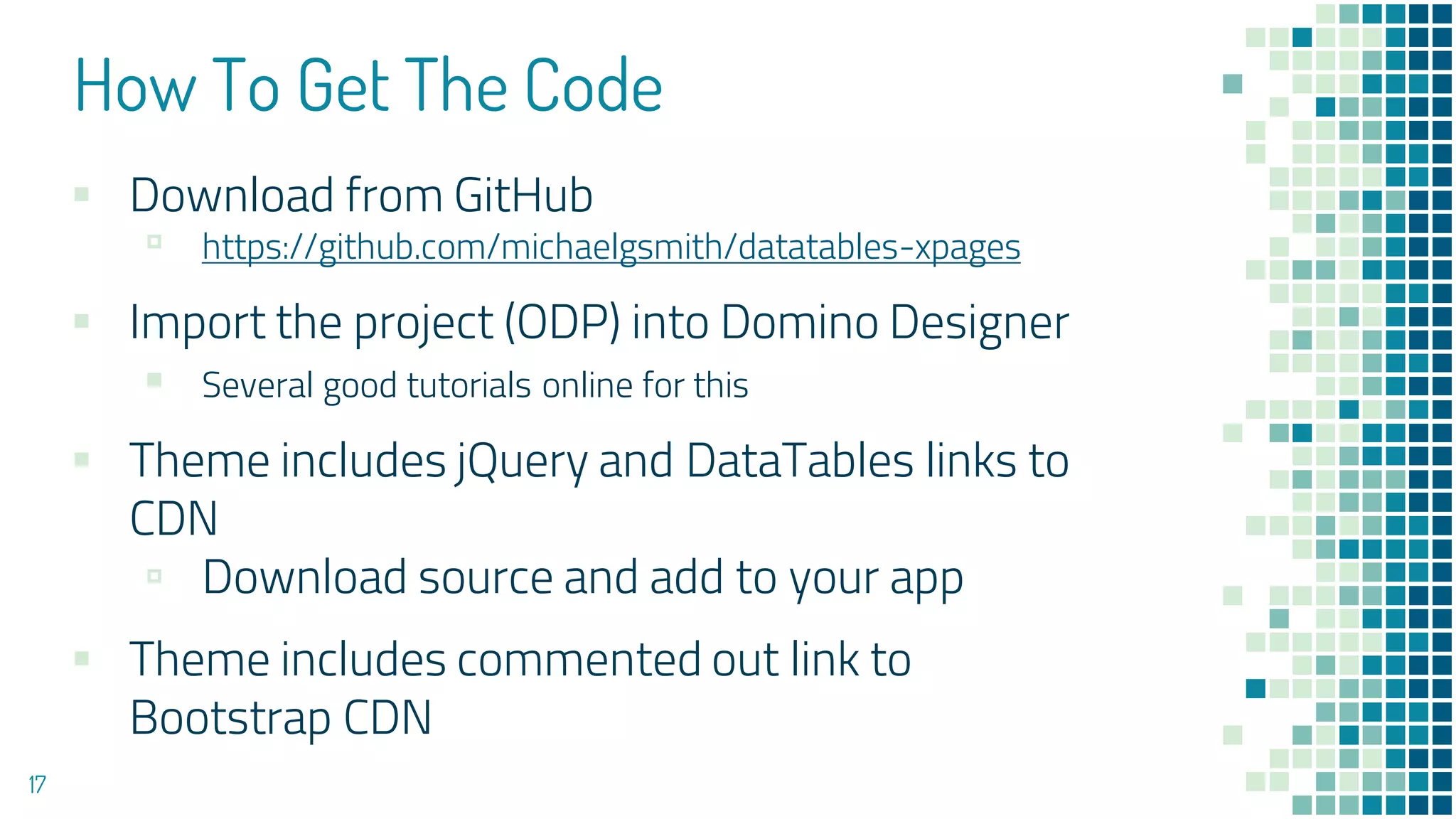

22. How To Get The Code
▪ Download from GitHub
▫ https://github.com/michaelgsmith/datatables-xpages
▪ Import the project (ODP) into Domino Designer
▪ Several good tutorials online for this
▪ Theme includes jQuery and DataTables links to
CDN
▫ Download source and add to your app
▪ Theme includes commented out link to
Bootstrap CDN
17

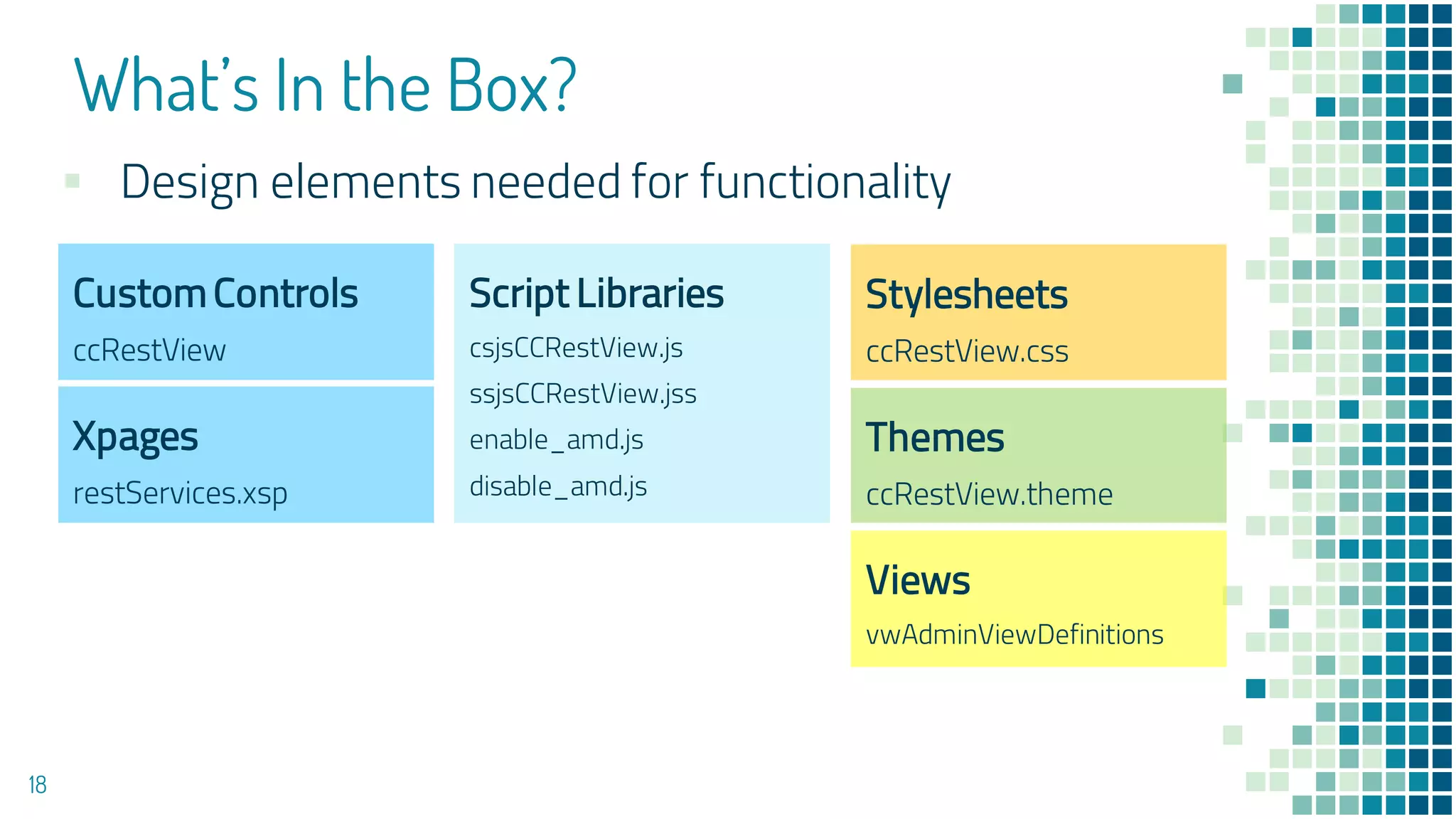

23. What’s In the Box?
18
CustomControls
ccRestView
Script Libraries
csjsCCRestView.js
ssjsCCRestView.jss
enable_amd.js
disable_amd.js
Stylesheets
ccRestView.css
Themes
ccRestView.theme
Xpages
restServices.xsp
Views
vwAdminViewDefinitions
▪ Design elements needed for functionality

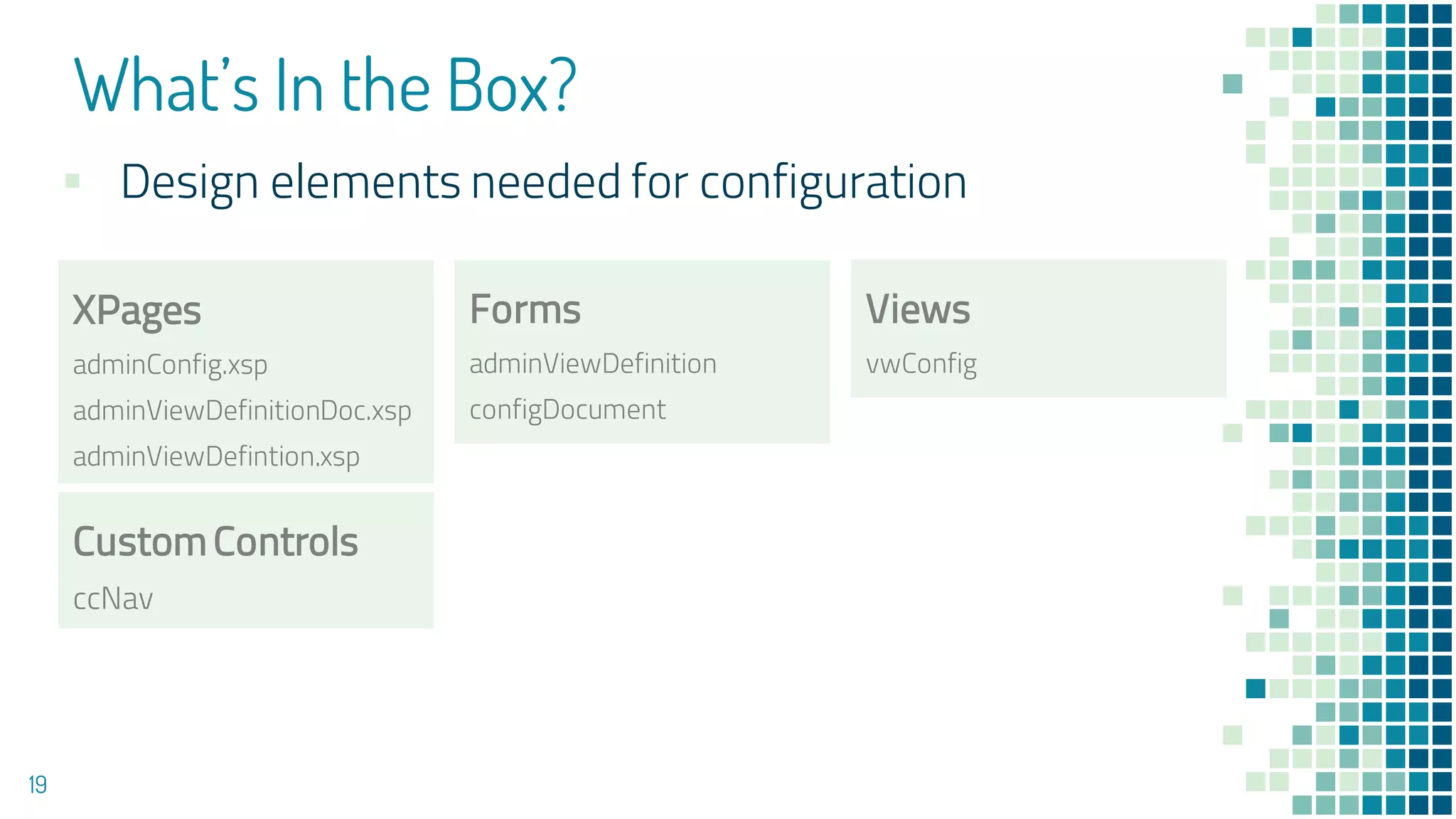

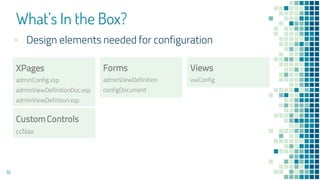

24. What’s In the Box?
19
XPages
adminConfig.xsp
adminViewDefinitionDoc.xsp
adminViewDefintion.xsp
Forms
adminViewDefinition
configDocument
Views
vwConfig
▪ Design elements needed for configuration
CustomControls
ccNav

25. Configuration
Import project into Designer and setup
the configuration parameters

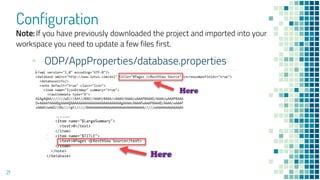

26. Configuration
21
▪ ODP/AppProperties/database.properties
Note: If you have previously downloaded the project and imported into your
workspace you need to update a few files first.

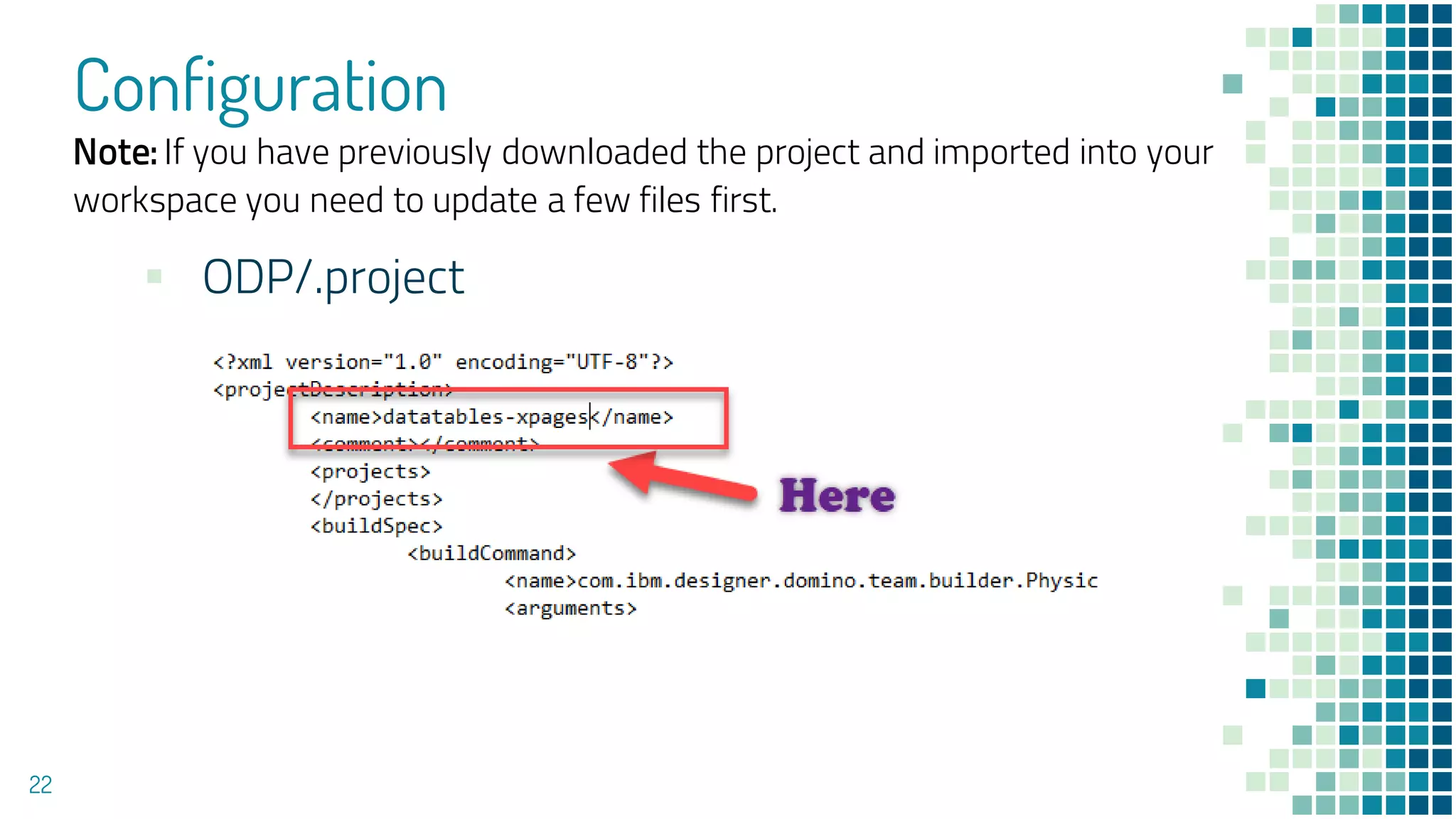

27. Configuration
22
▪ ODP/.project
Note: If you have previously downloaded the project and imported into your
workspace you need to update a few files first.

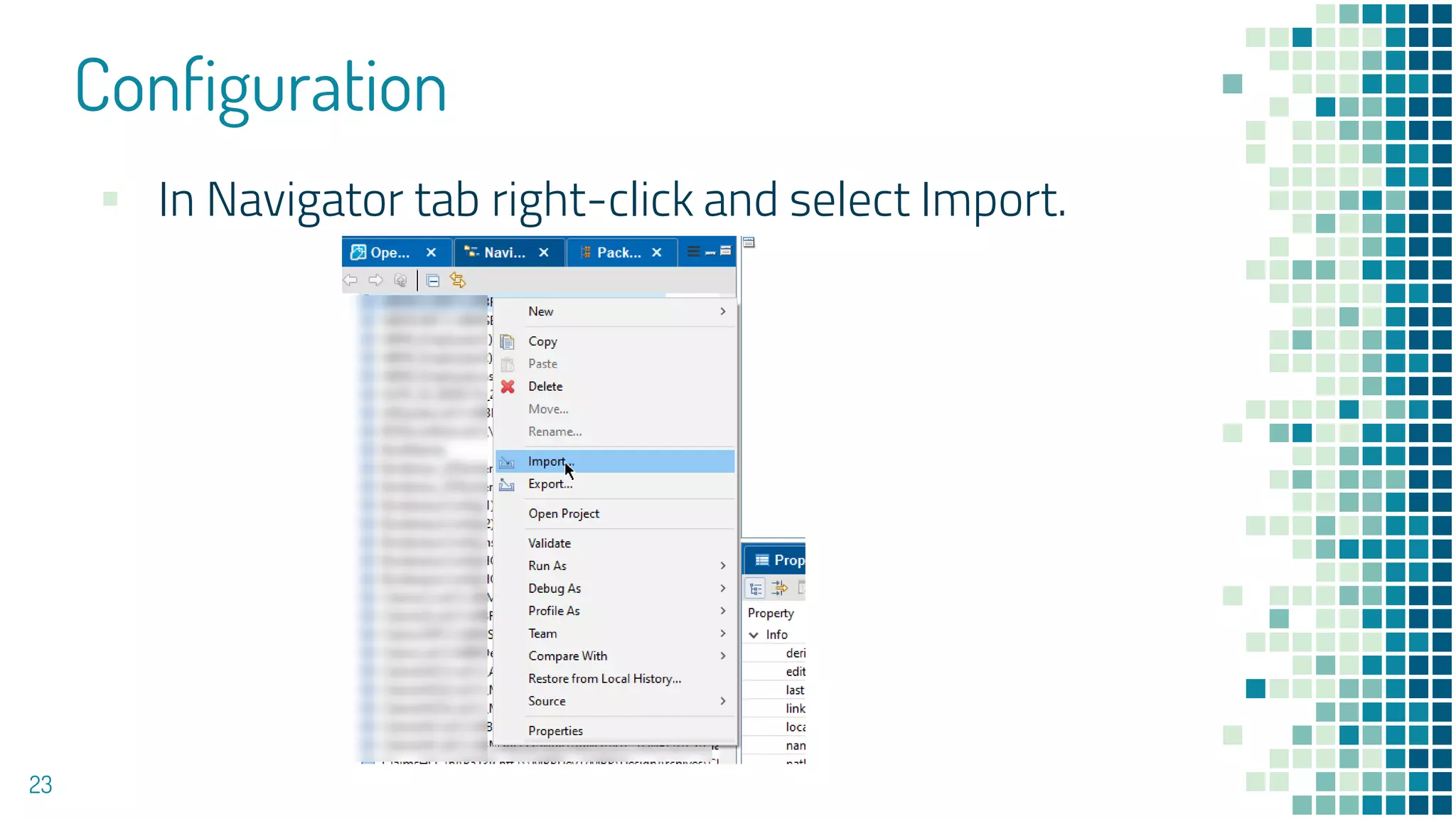

28. Configuration
23
▪ In Navigator tab right-click and select Import.

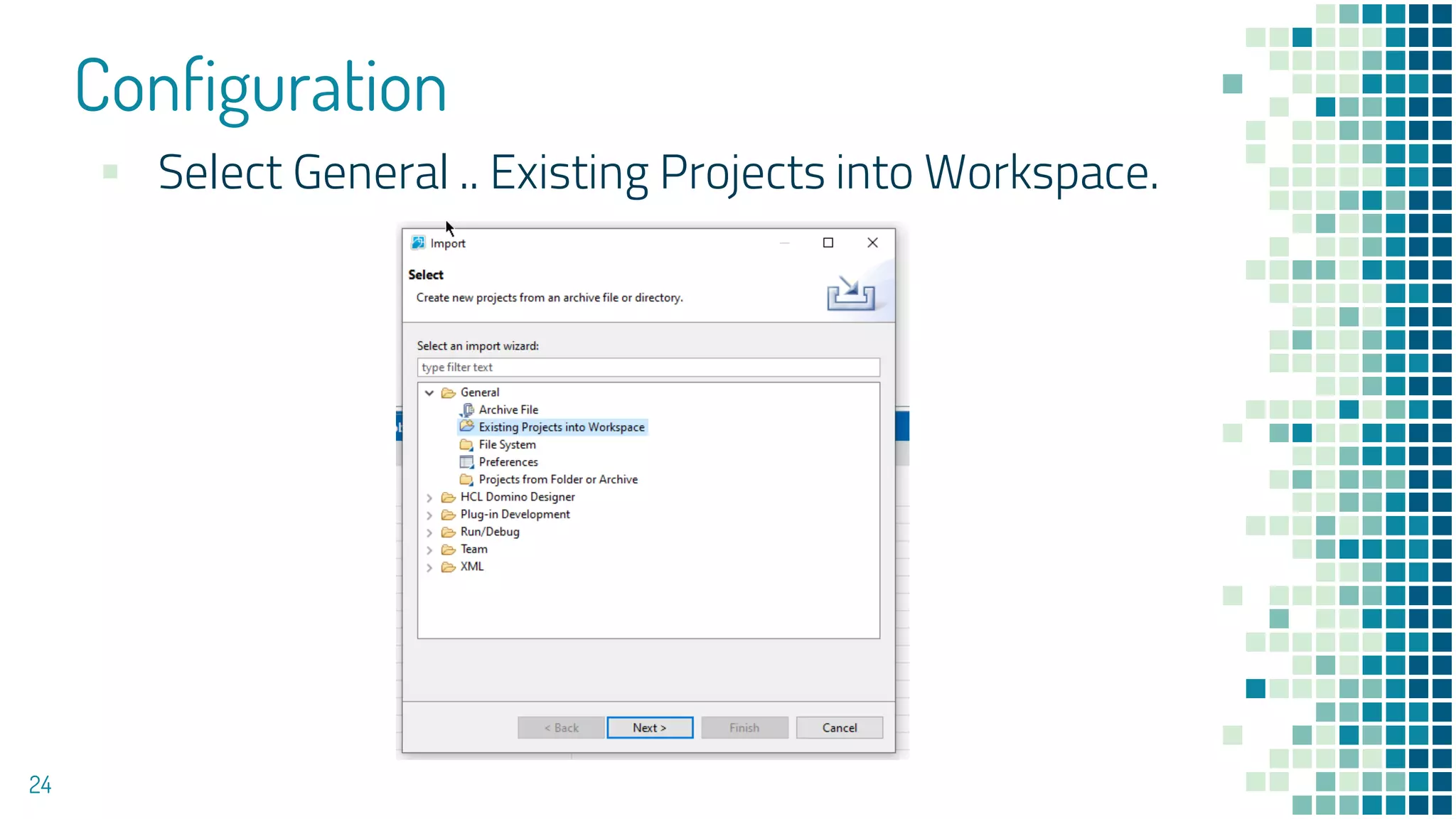

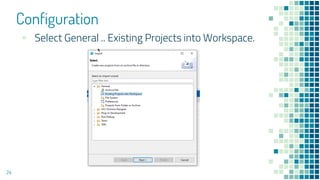

29. Configuration
24
▪ Select General .. Existing Projects into Workspace.

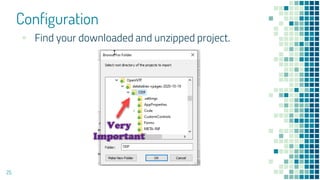

30. Configuration

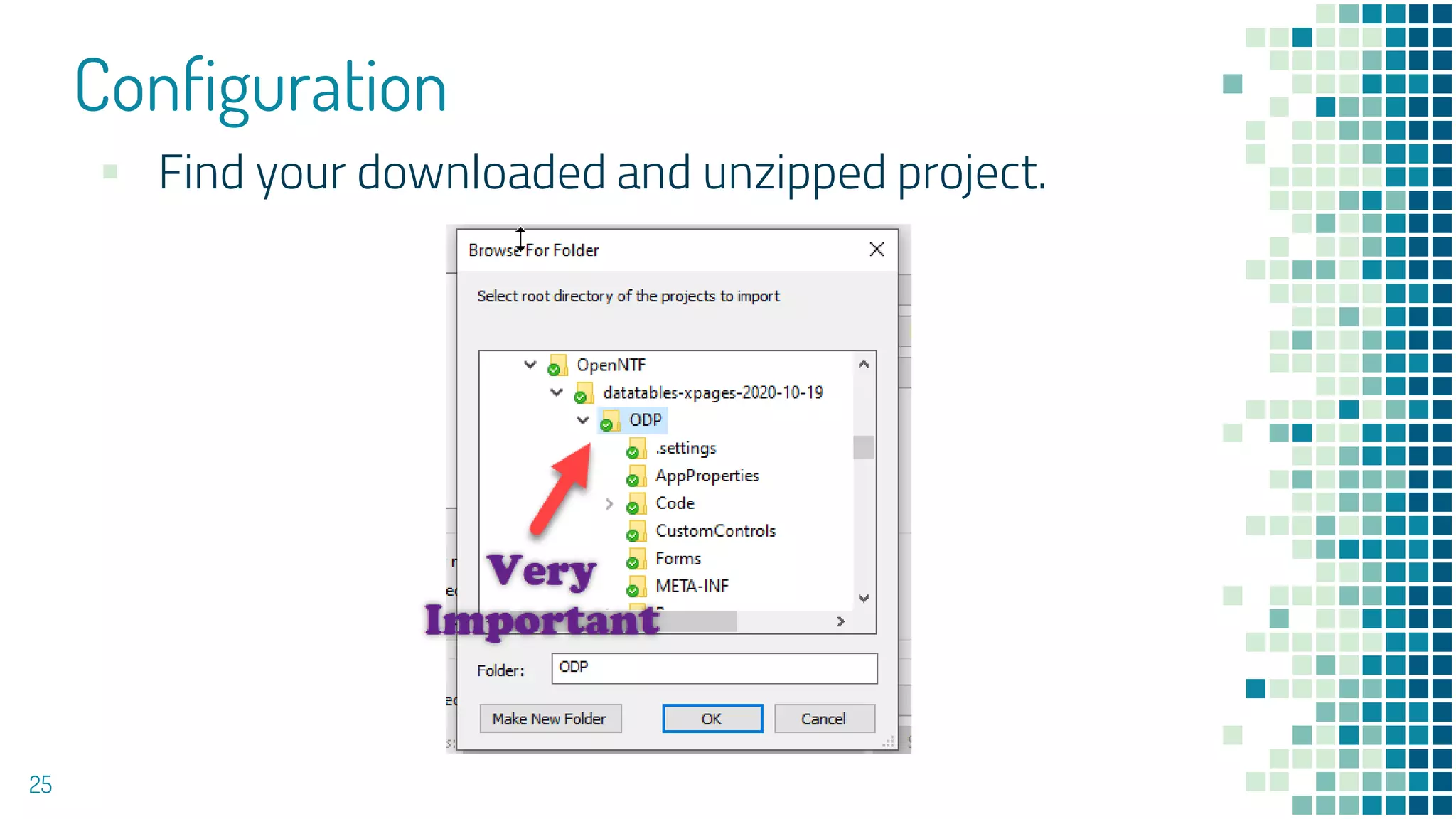

25
▪ Find your downloaded and unzipped project.

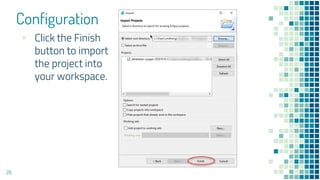

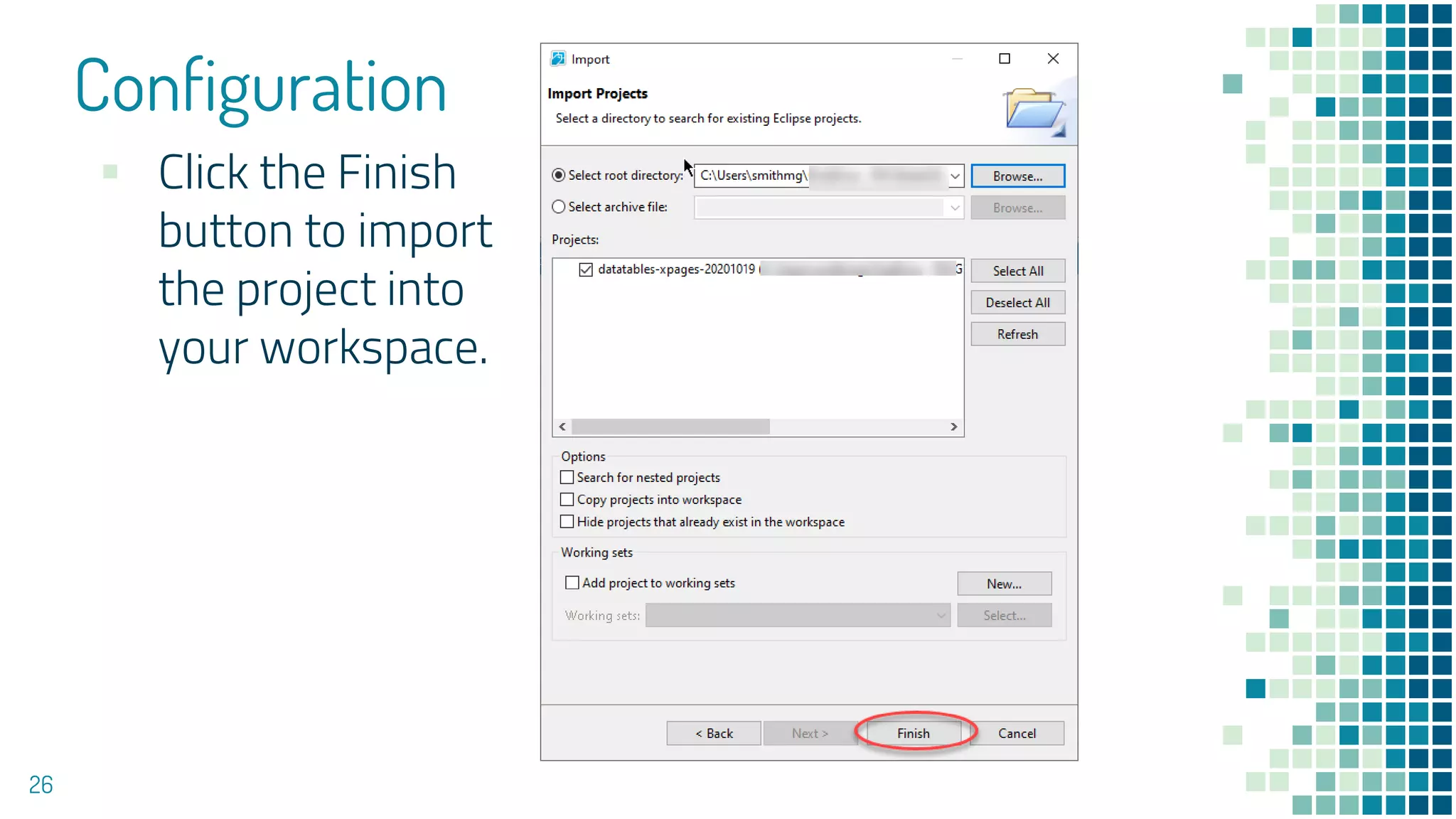

31. Configuration
26
▪ Click the Finish
button to import
the project into
your workspace.

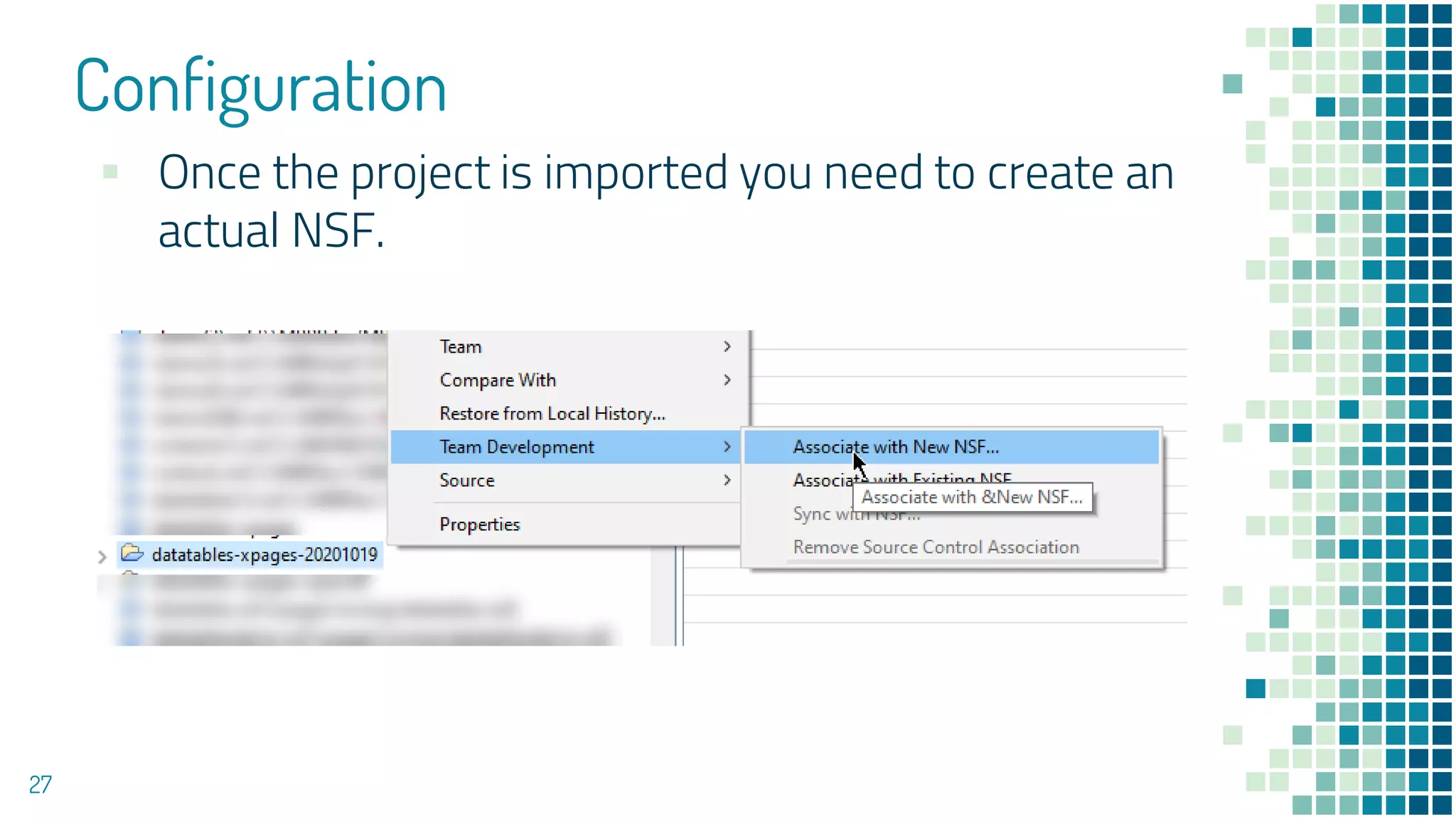

32. Configuration
27
▪ Once the project is imported you need to create an
actual NSF.

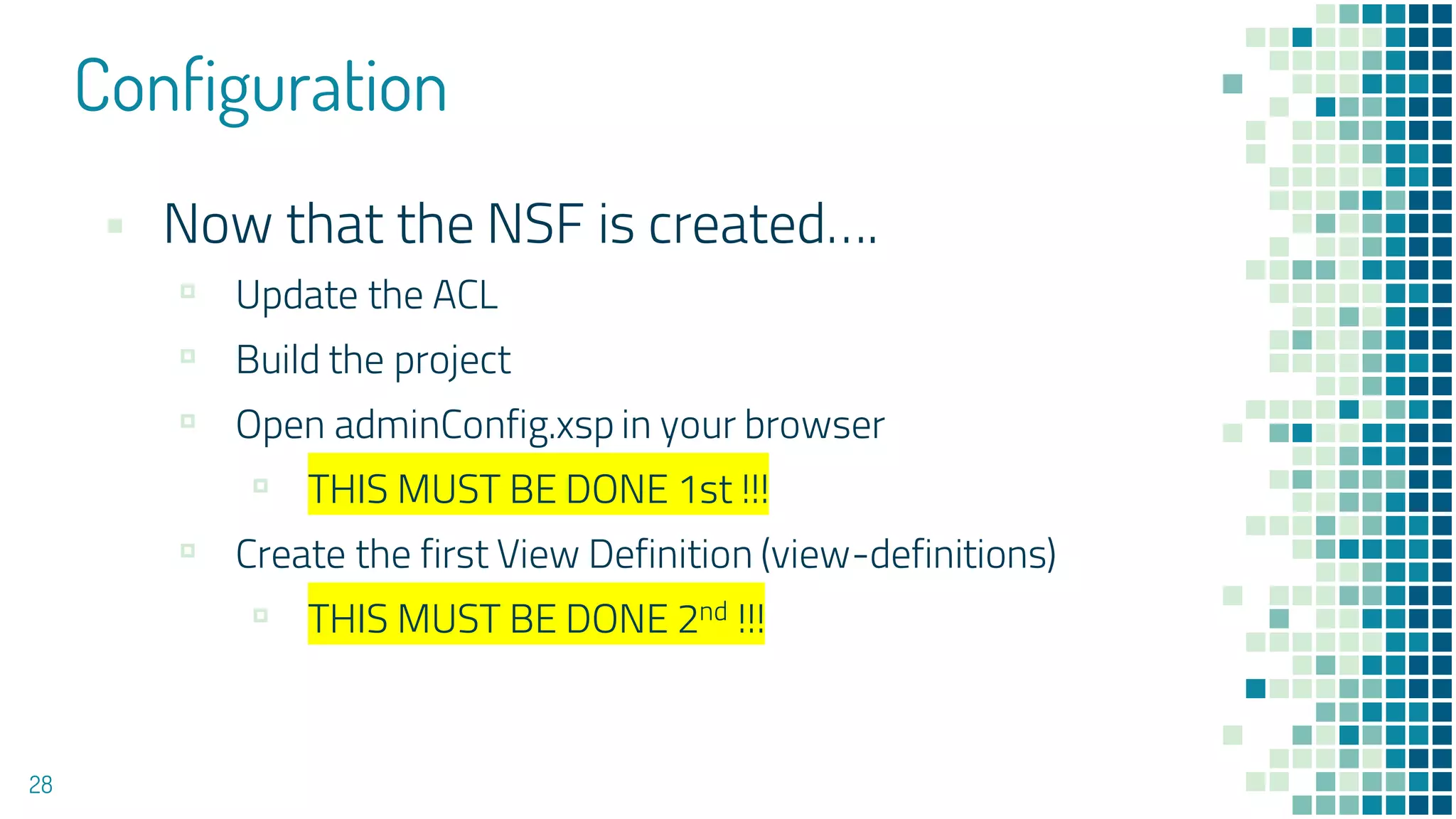

33. Configuration
28
▪ Now that the NSF is created….
▫ Update the ACL
▫ Build the project
▫ Open adminConfig.xsp in your browser
▫ THIS MUST BE DONE 1st !!!
▫ Create the first View Definition (view-definitions)
▫ THIS MUST BE DONE 2nd !!!

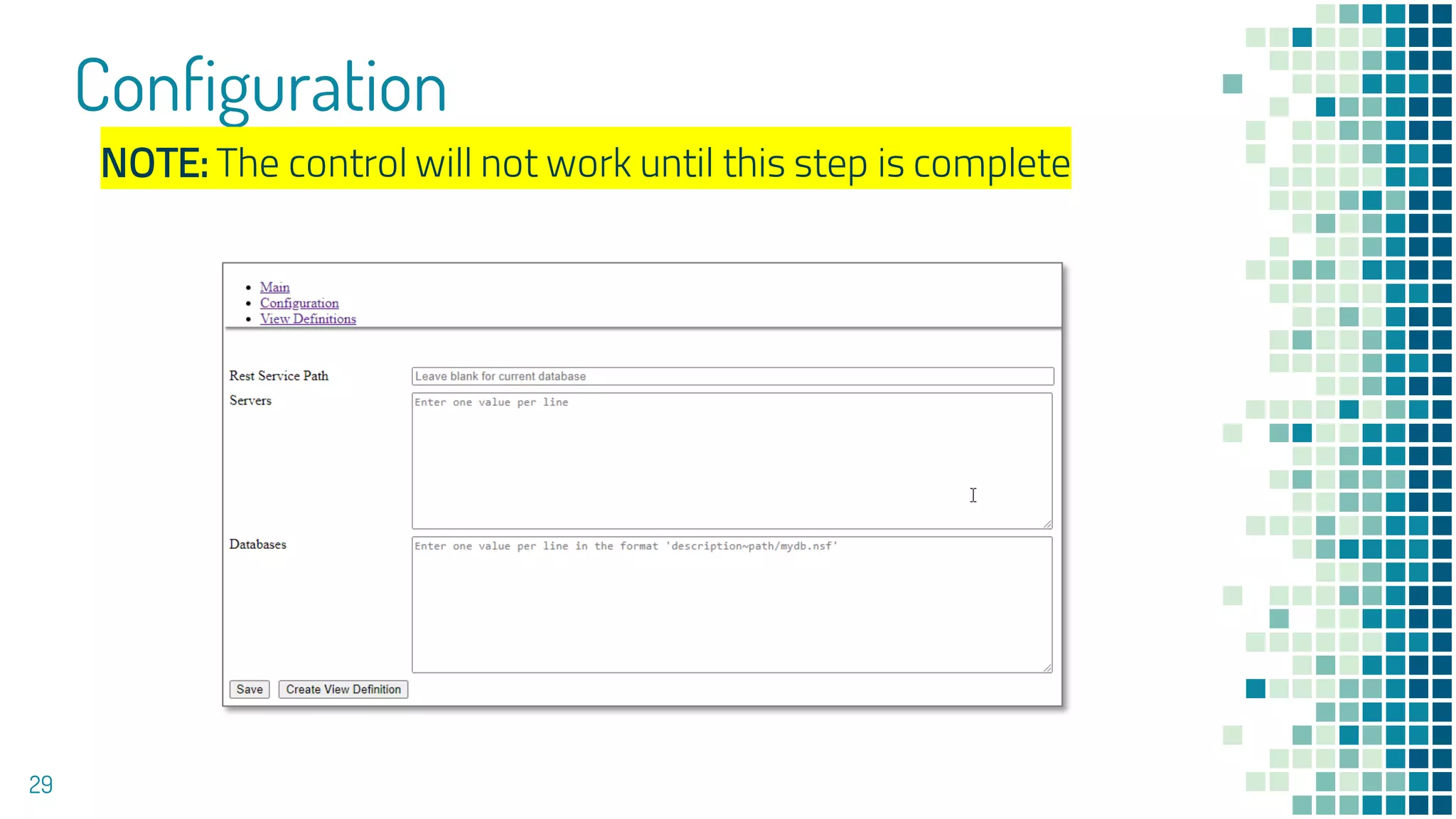

34. Configuration
29
NOTE: The control will not work until this step is complete

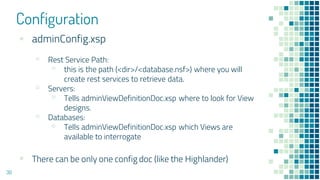

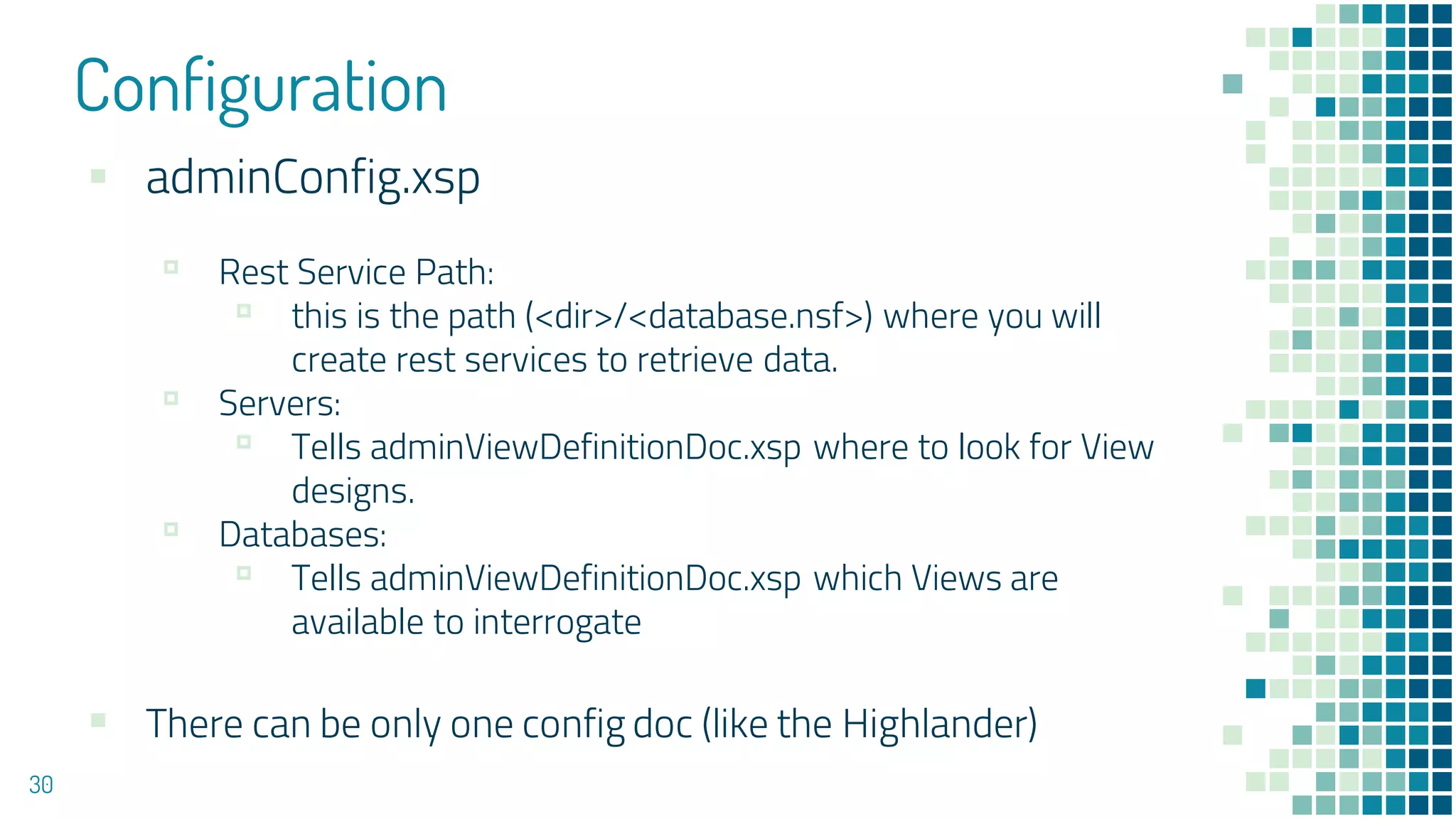

35. Configuration
30
▪ adminConfig.xsp
▫ Rest Service Path:
▫ this is the path (<dir>/<database.nsf>) where you will
create rest services to retrieve data.
▫ Servers:
▫ Tells adminViewDefinitionDoc.xsp where to look for View
designs.
▫ Databases:
▫ Tells adminViewDefinitionDoc.xsp which Views are
available to interrogate
▪ There can be only one config doc (like the Highlander)

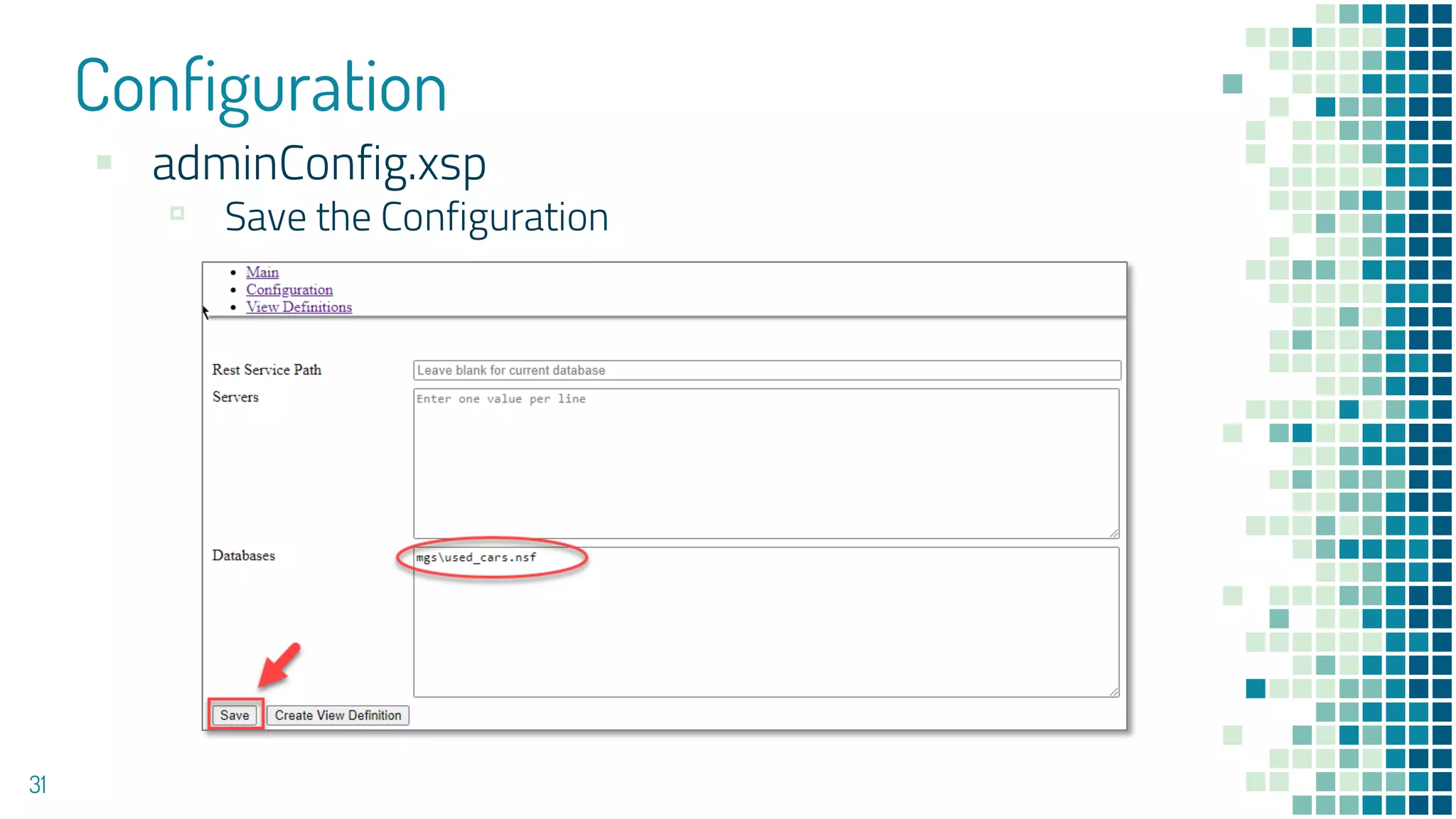

36. Configuration
31
▪ adminConfig.xsp
▫ Save the Configuration

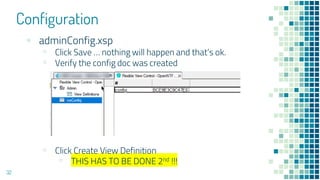

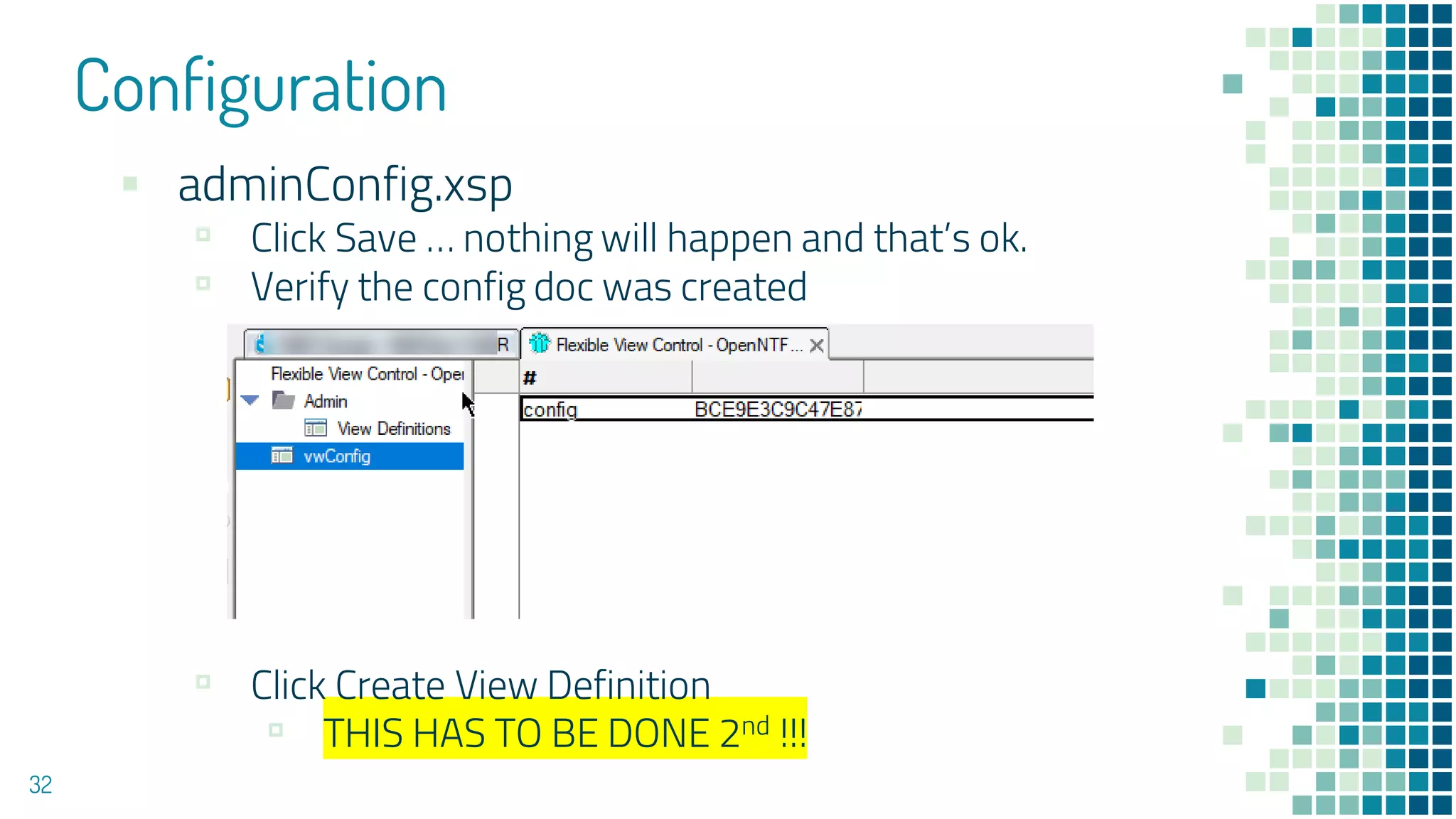

37. Configuration
32
▪ adminConfig.xsp
▫ Click Save … nothing will happen and that’s ok.
▫ Verify the config doc was created
▫ Click Create View Definition
▫ THIS HAS TO BE DONE 2nd !!!

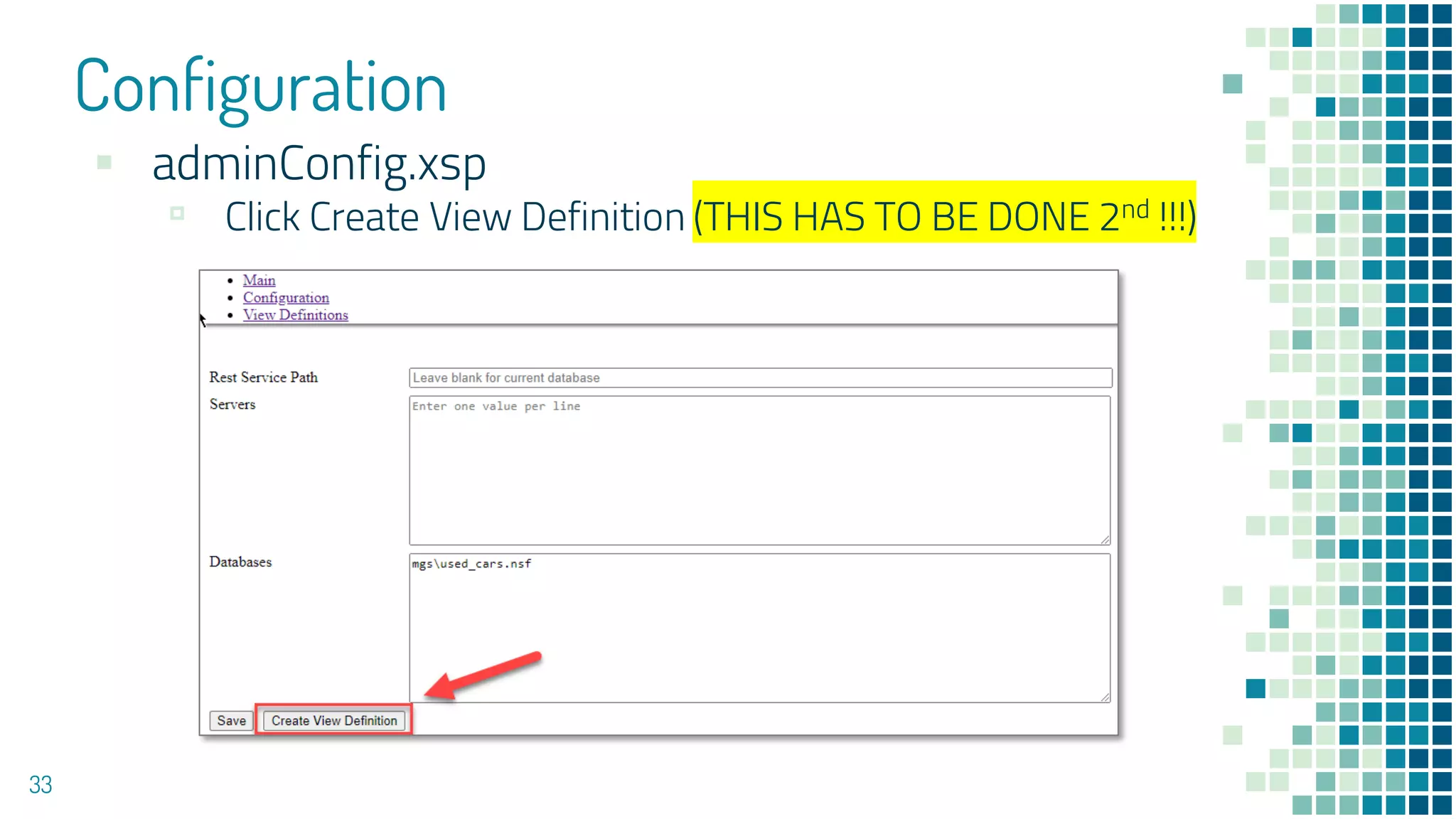

38. Configuration
33
▪ adminConfig.xsp
▫ Click Create View Definition (THIS HAS TO BE DONE 2nd !!!)

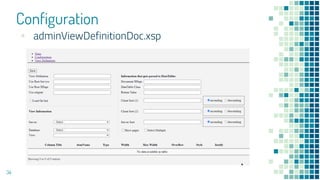

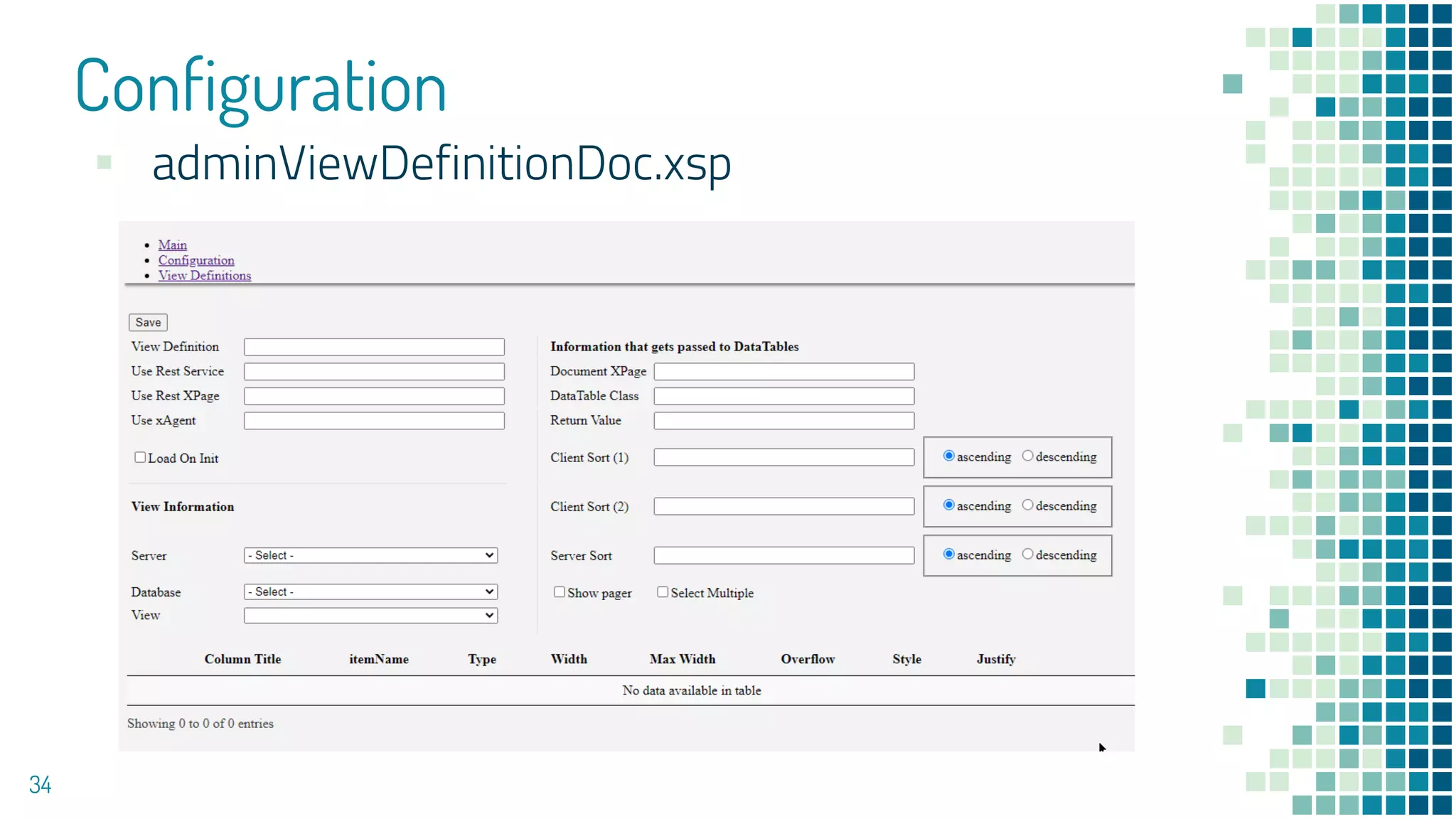

39. Configuration
34
▪ adminViewDefinitionDoc.xsp

40. View Definitions
Put the “Flexible” in Flexible View Control

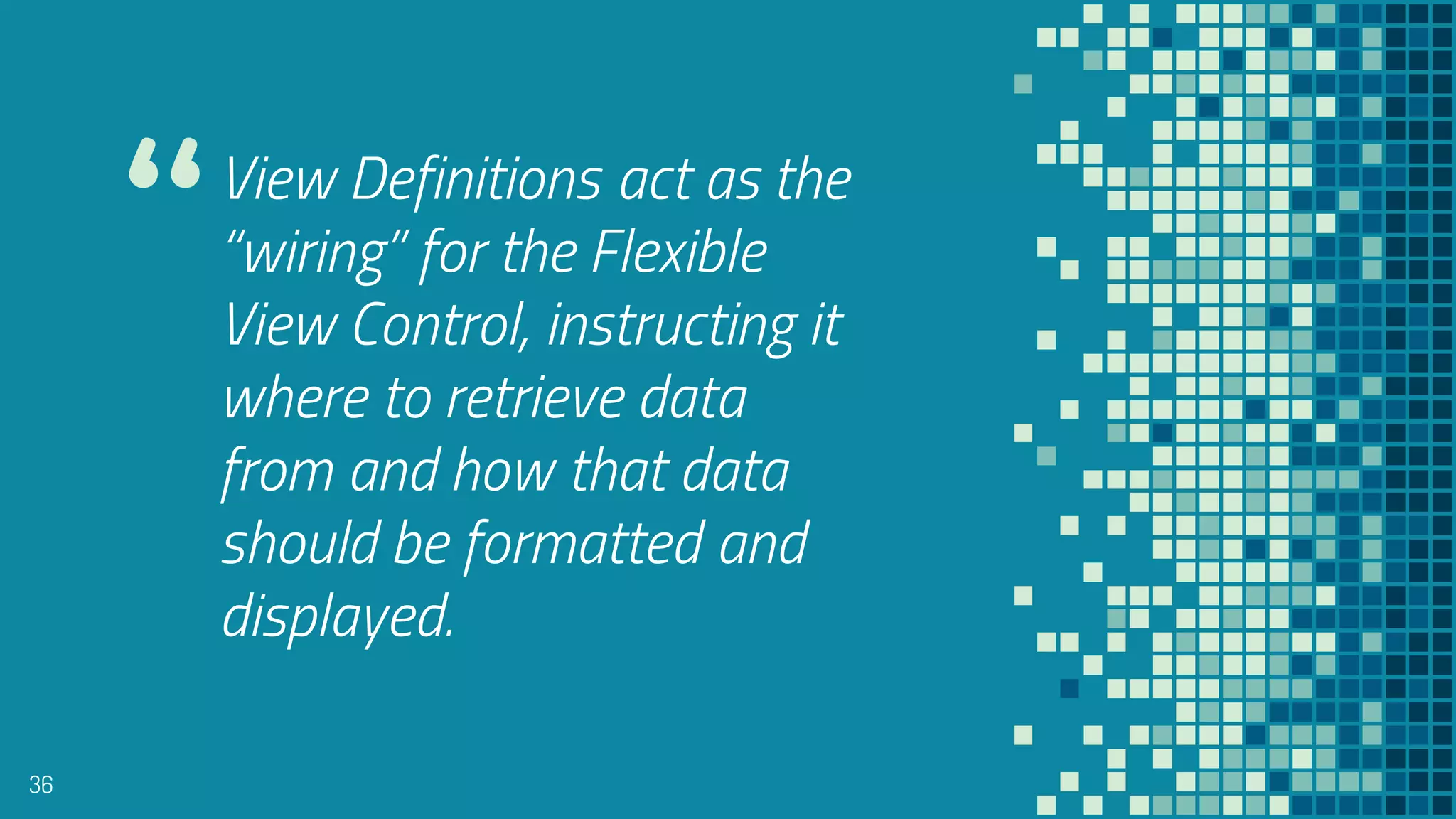

41. “View Definitions act as the
“wiring” for the Flexible
View Control, instructing it
where to retrieve data
from and how that data
should be formatted and
displayed.
36

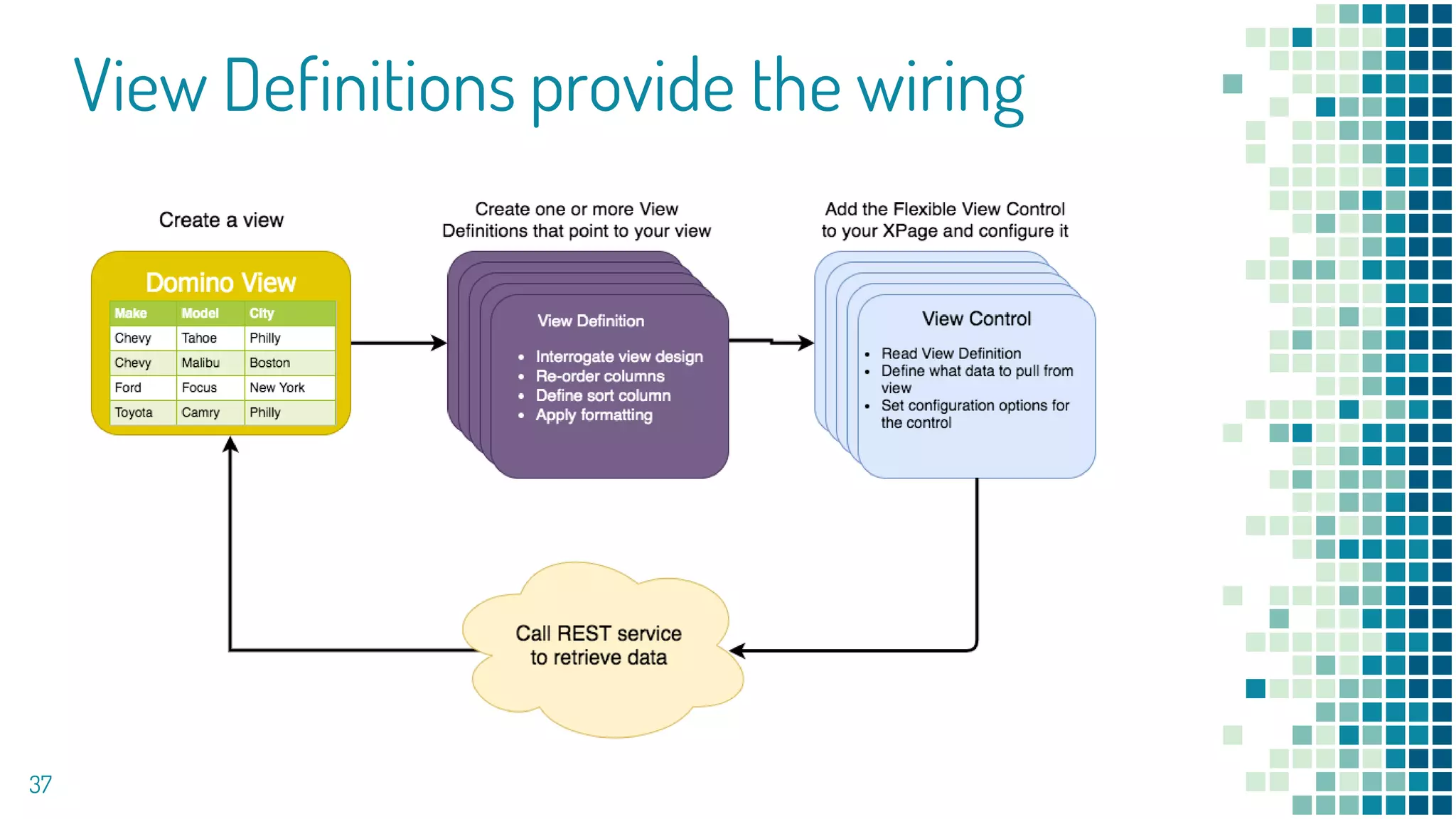

42. View Definitions provide the wiring
37

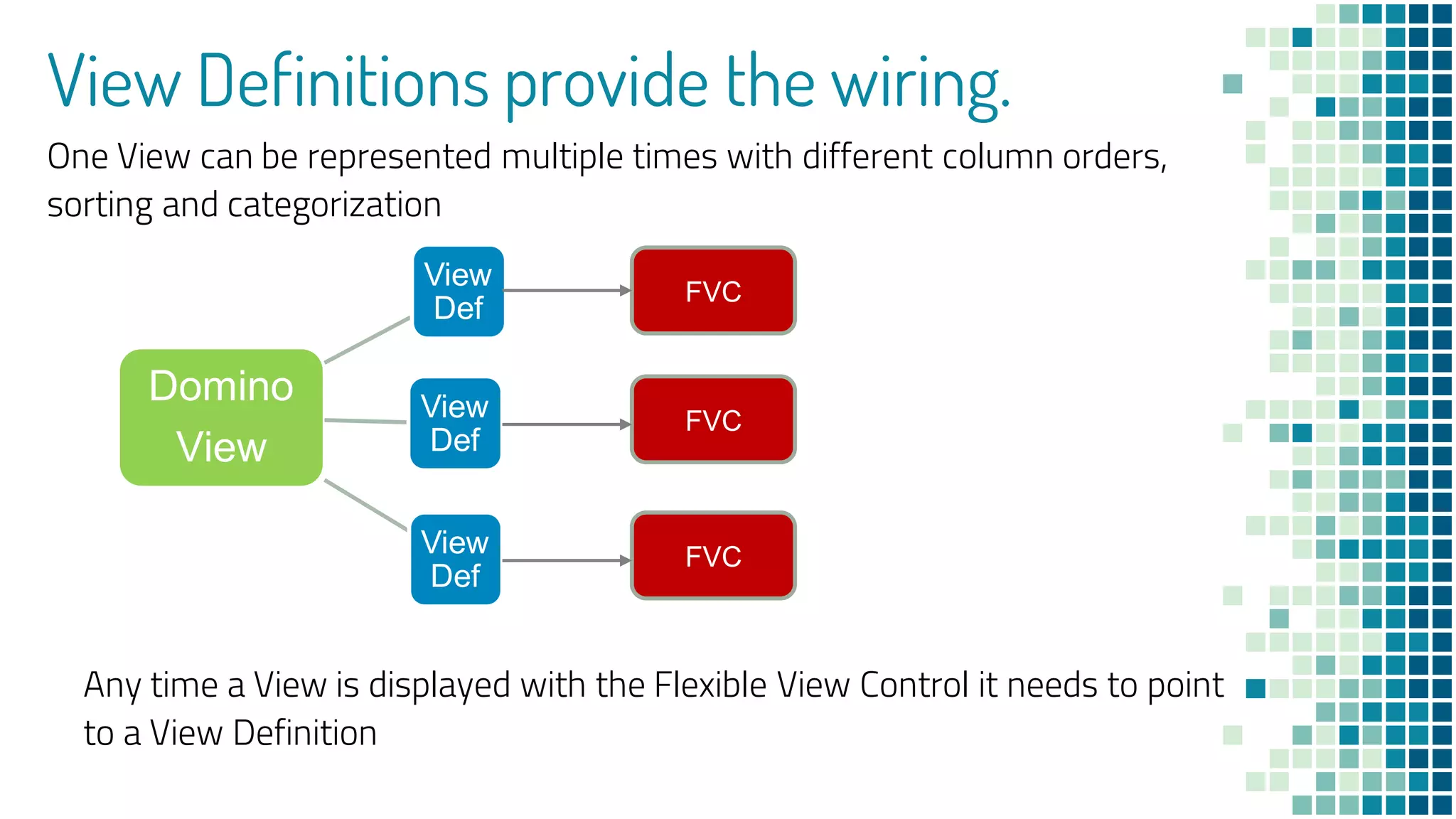

43. View Definitions provide the wiring.
Domino
View
View
Def
View
Def
View
Def
One View can be represented multiple times with different column orders,
sorting and categorization
Any time a View is displayed with the Flexible View Control it needs to point
to a View Definition
FVC
FVC
FVC

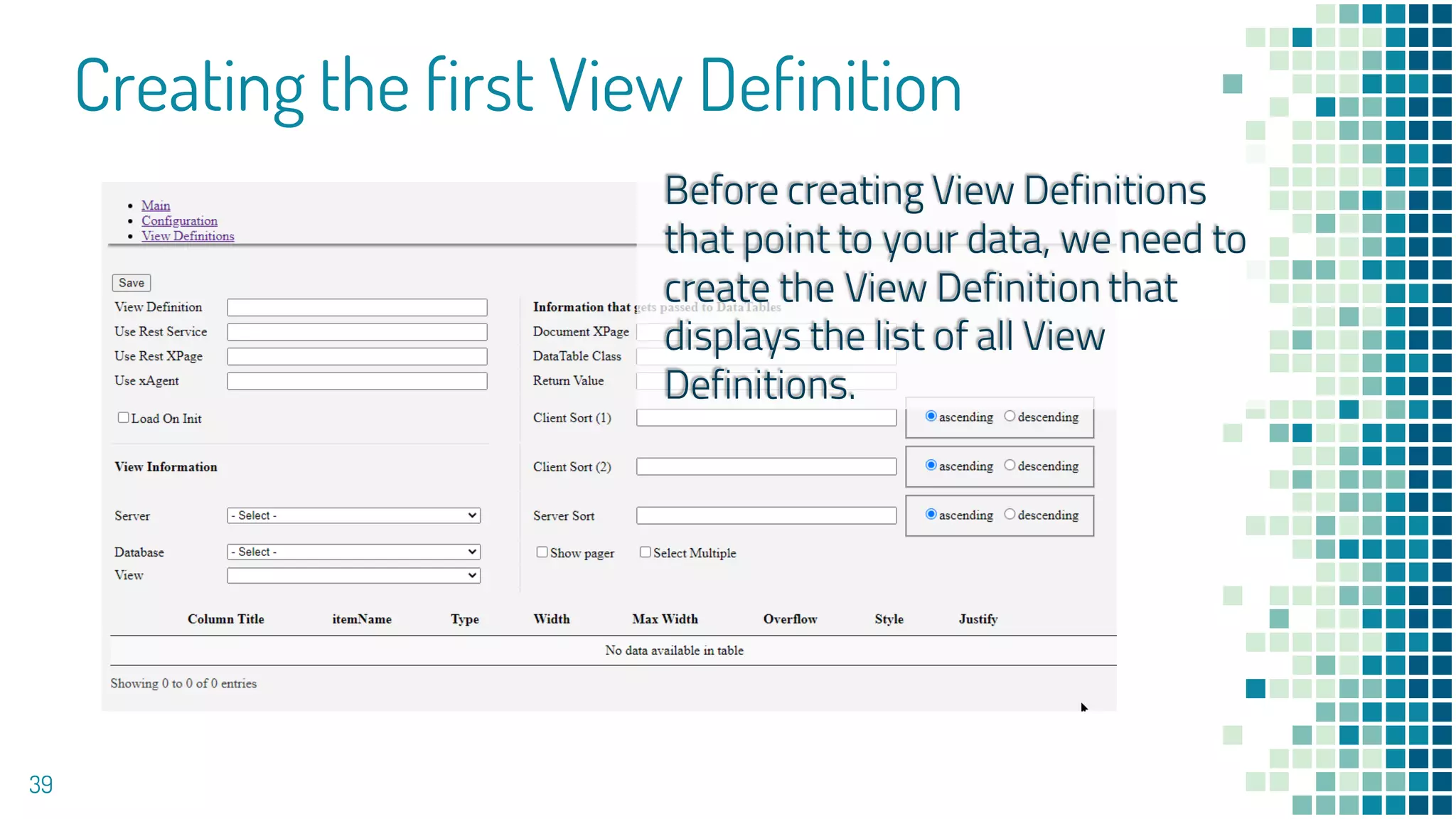

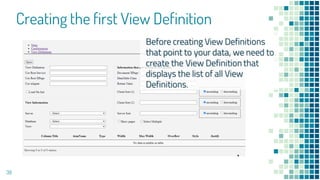

44. Creating the first View Definition
39
Before creating View Definitions
that point to your data, we need to
create the View Definition that
displays the list of all View
Definitions.

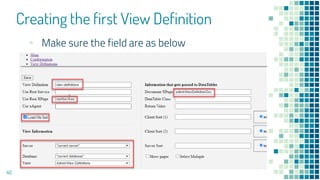

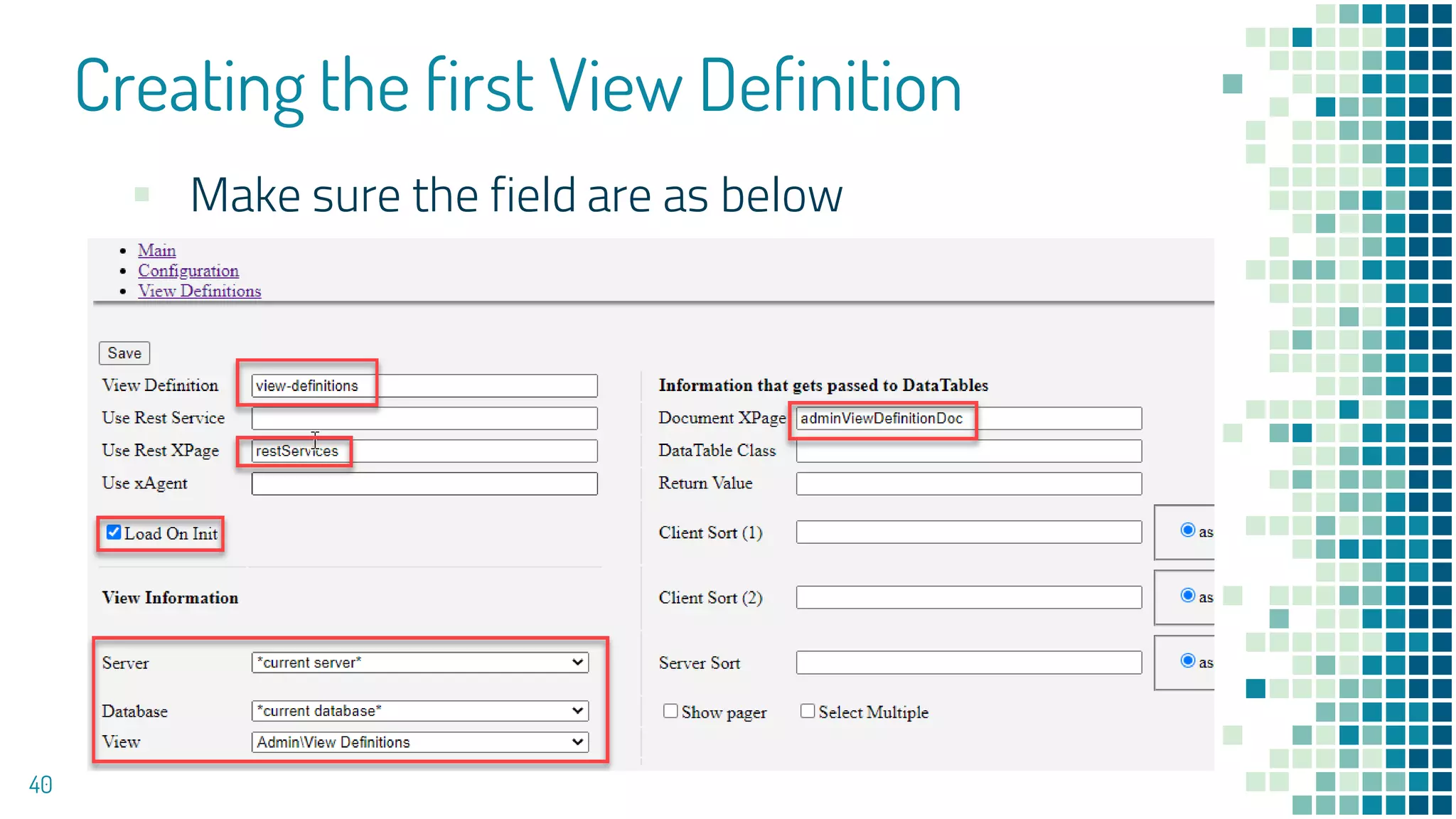

45. Creating the first View Definition
40
▪ Make sure the field are as below

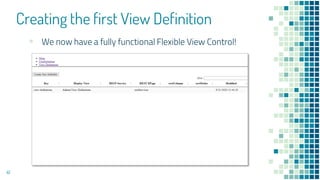

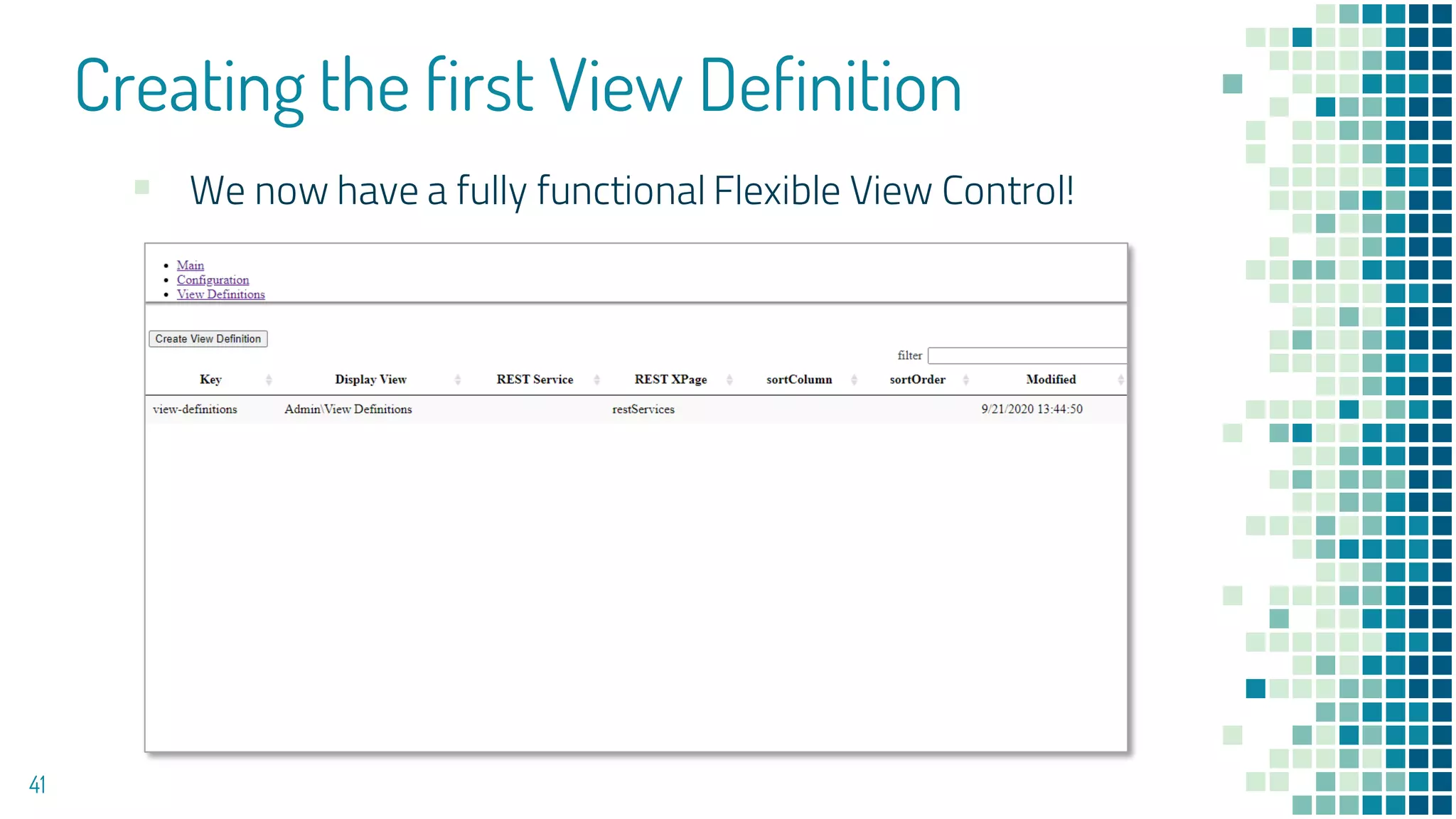

46. Creating the first View Definition
41
▪ We now have a fully functional Flexible View Control!

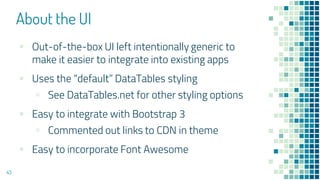

47. About the UI

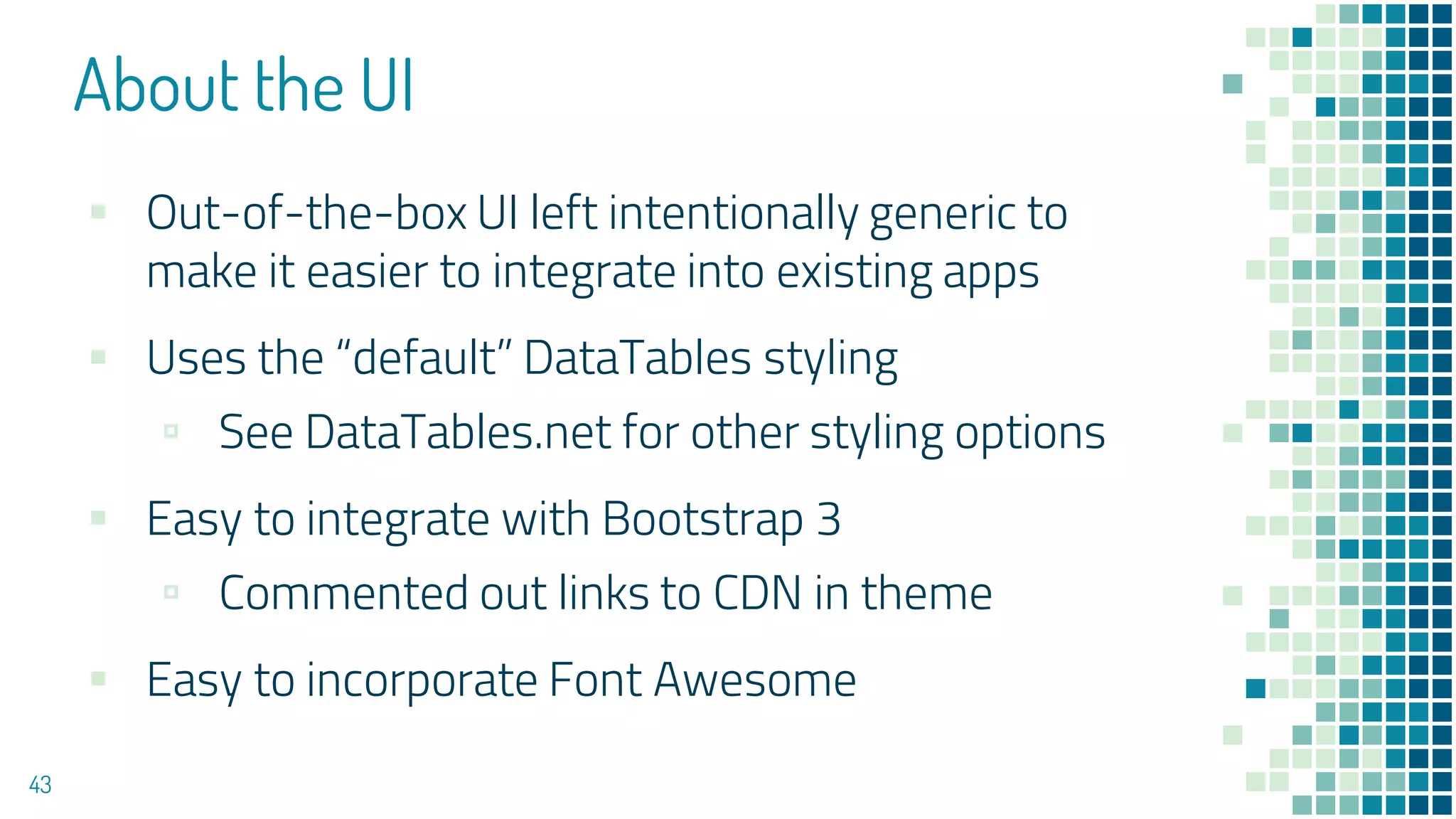

48. About the UI
43
▪ Out-of-the-box UI left intentionally generic to
make it easier to integrate into existing apps
▪ Uses the “default” DataTables styling
▫ See DataTables.net for other styling options
▪ Easy to integrate with Bootstrap 3
▫ Commented out links to CDN in theme
▪ Easy to incorporate Font Awesome

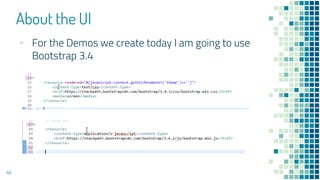

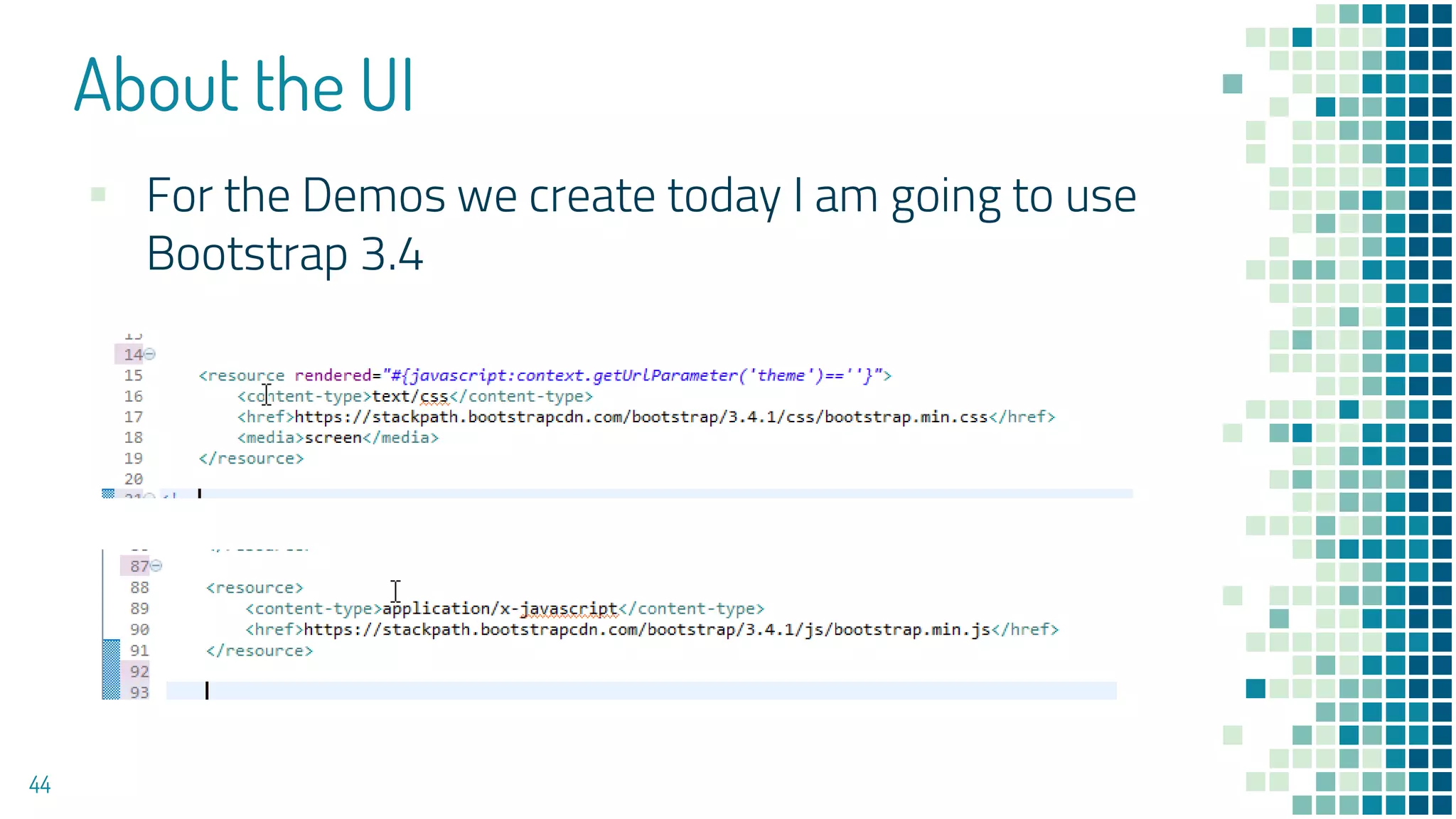

49. About the UI
44
▪ For the Demos we create today I am going to use
Bootstrap 3.4

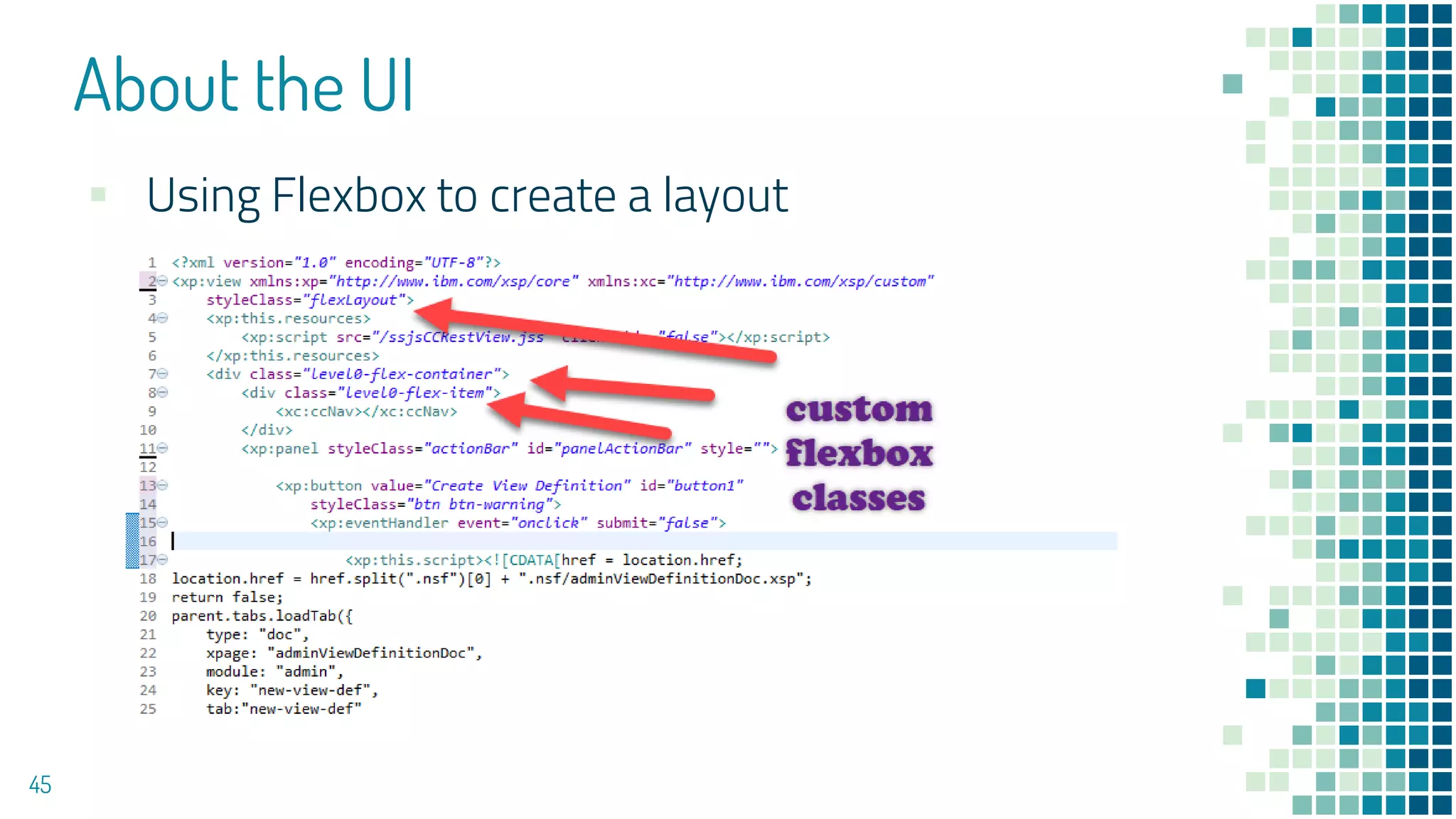

50. About the UI
45
▪ Using Flexbox to create a layout

51. About the UI

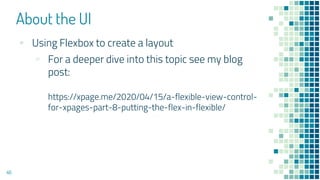

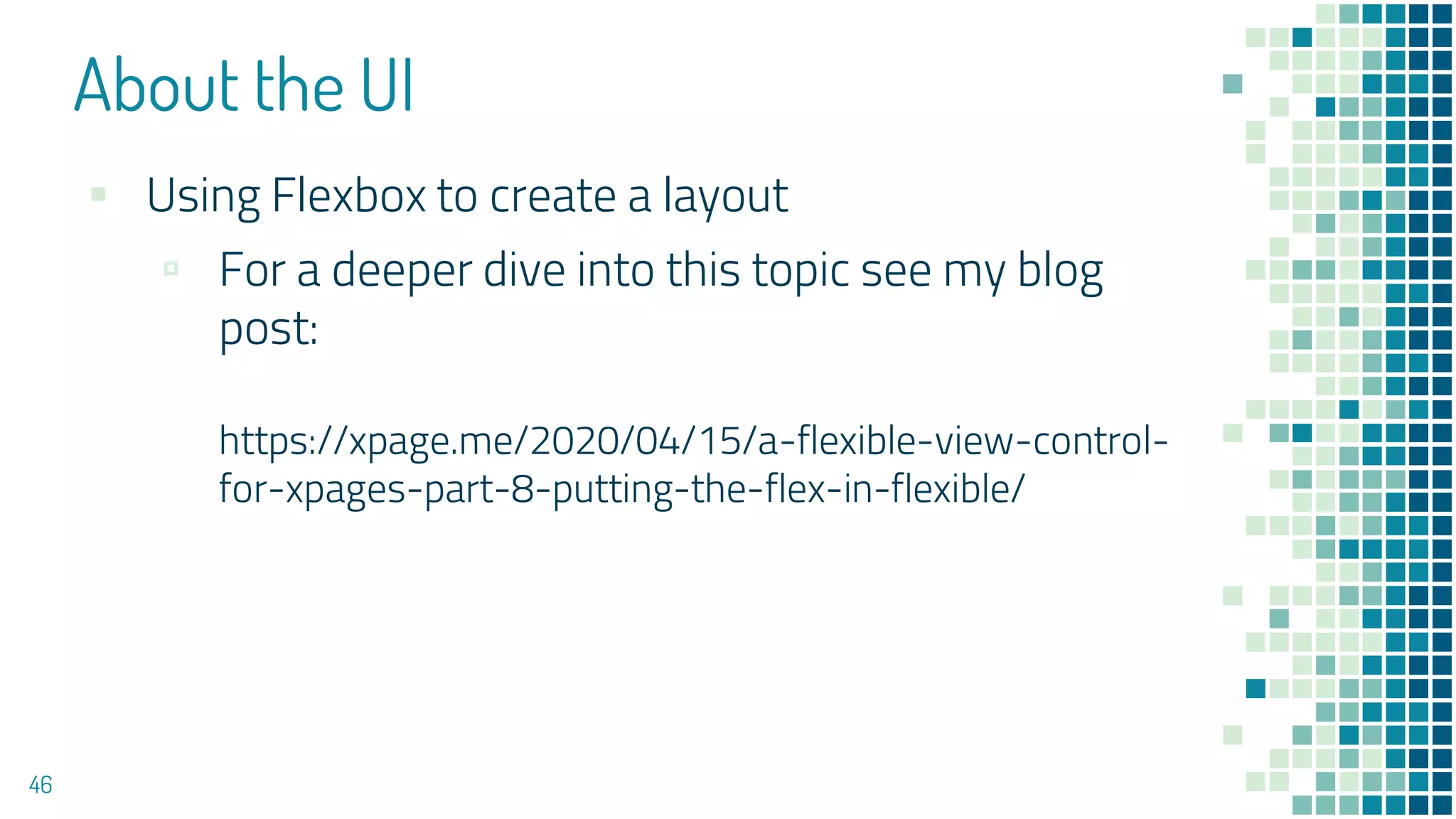

46
▪ Using Flexbox to create a layout
▫ For a deeper dive into this topic see my blog
post:
https://xpage.me/2020/04/15/a-flexible-view-control-
for-xpages-part-8-putting-the-flex-in-flexible/

52. How Does It Work?

53. How does it work?

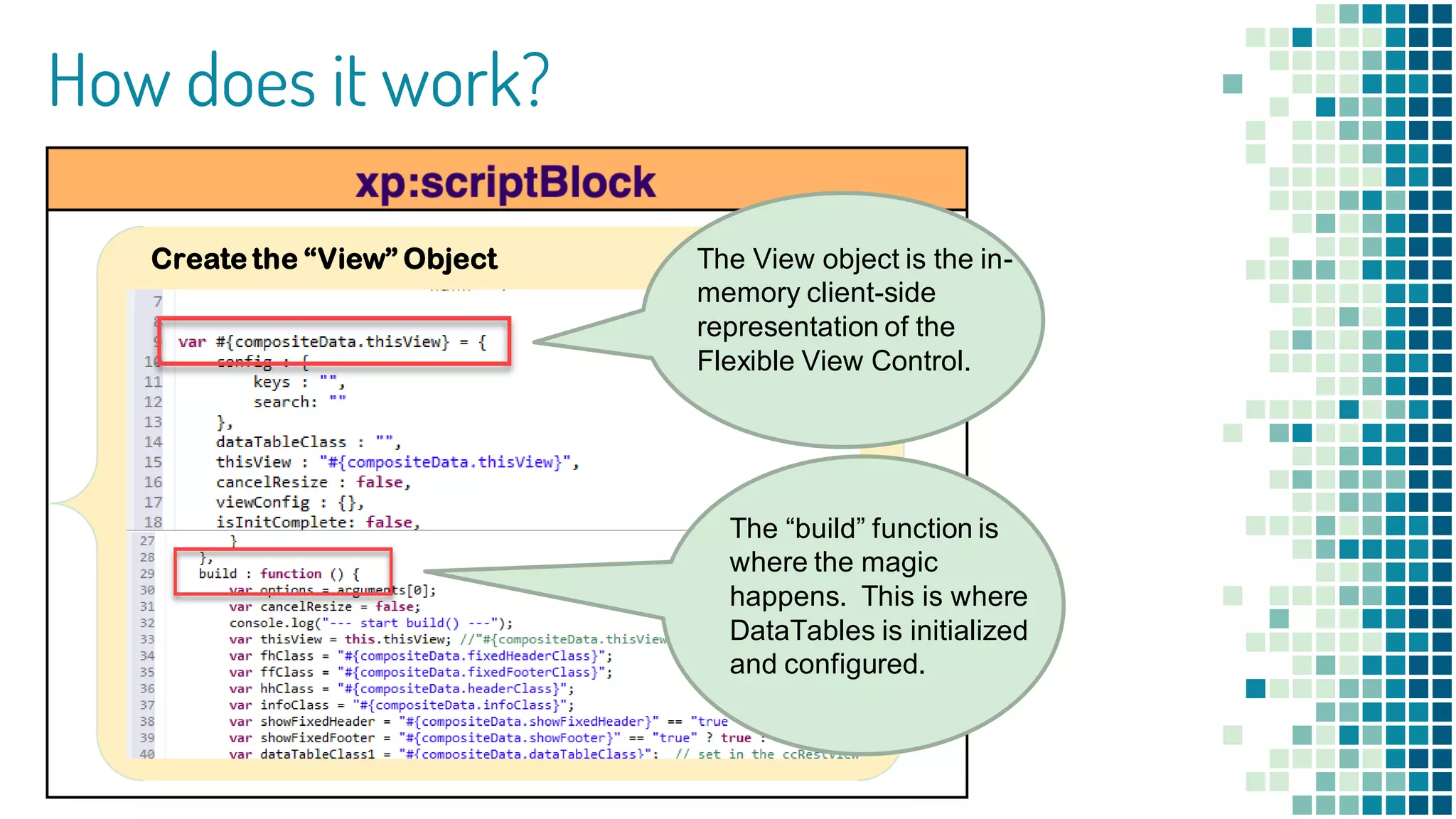

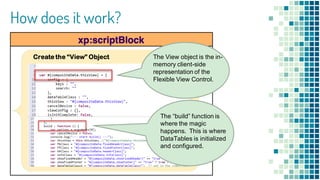

54. How does it work?
Create the “View” Object The View object is the in-
memory client-side
representation of the
Flexible View Control.
The “build” function is
where the magic
happens. This is where
DataTables is initialized
and configured.

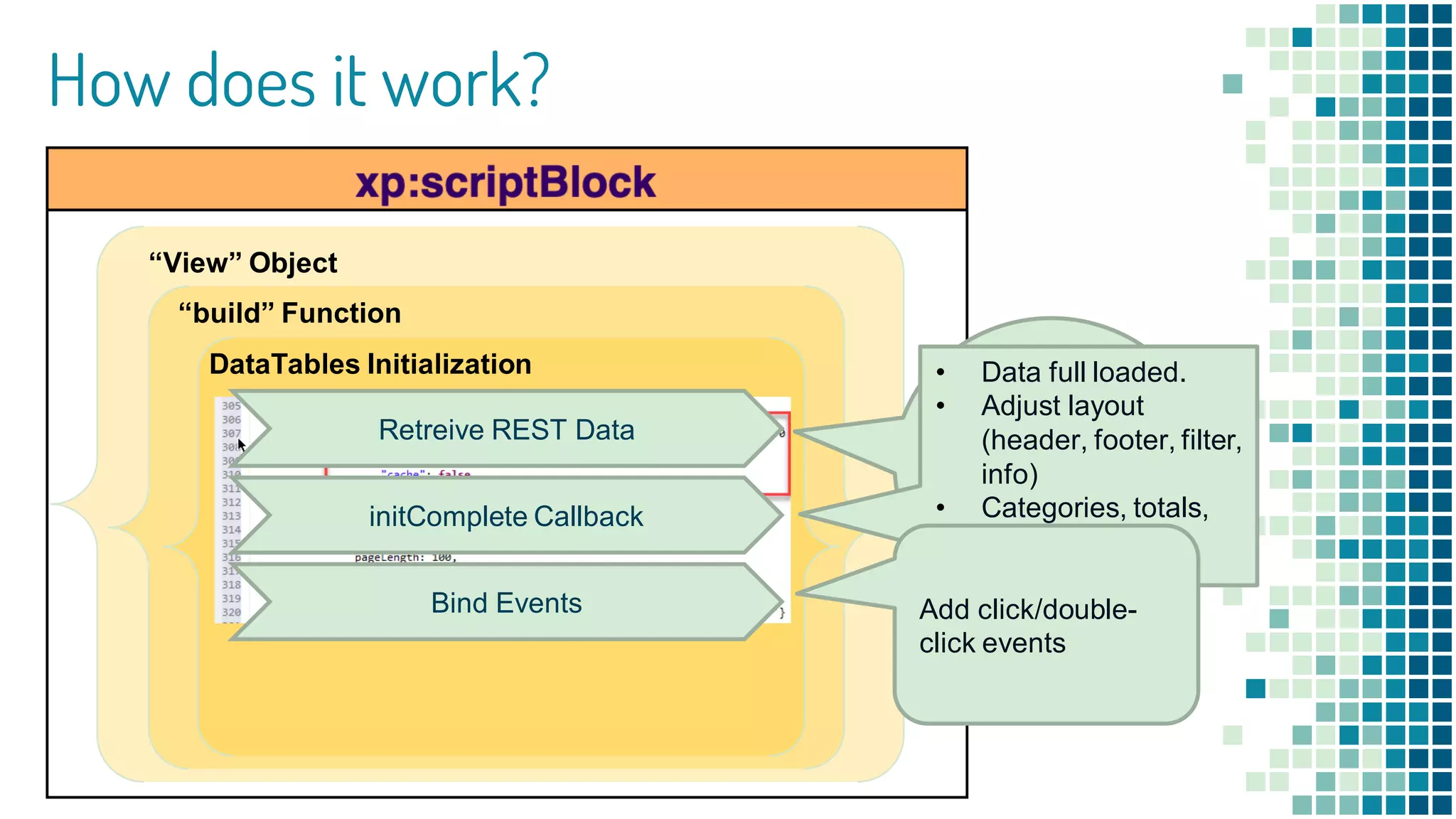

55. How does it work?
“View” Object
“build” Function
DataTables Initialization
Data retrieved
from Domino
REST Services
or XAgents
Retreive REST Data
initComplete Callback
Bind Events
• Data full loaded.
• Adjust layout
(header, footer, filter,
info)
• Categories, totals,
averages.
Add click/double-
click events

56. DataTables Primer

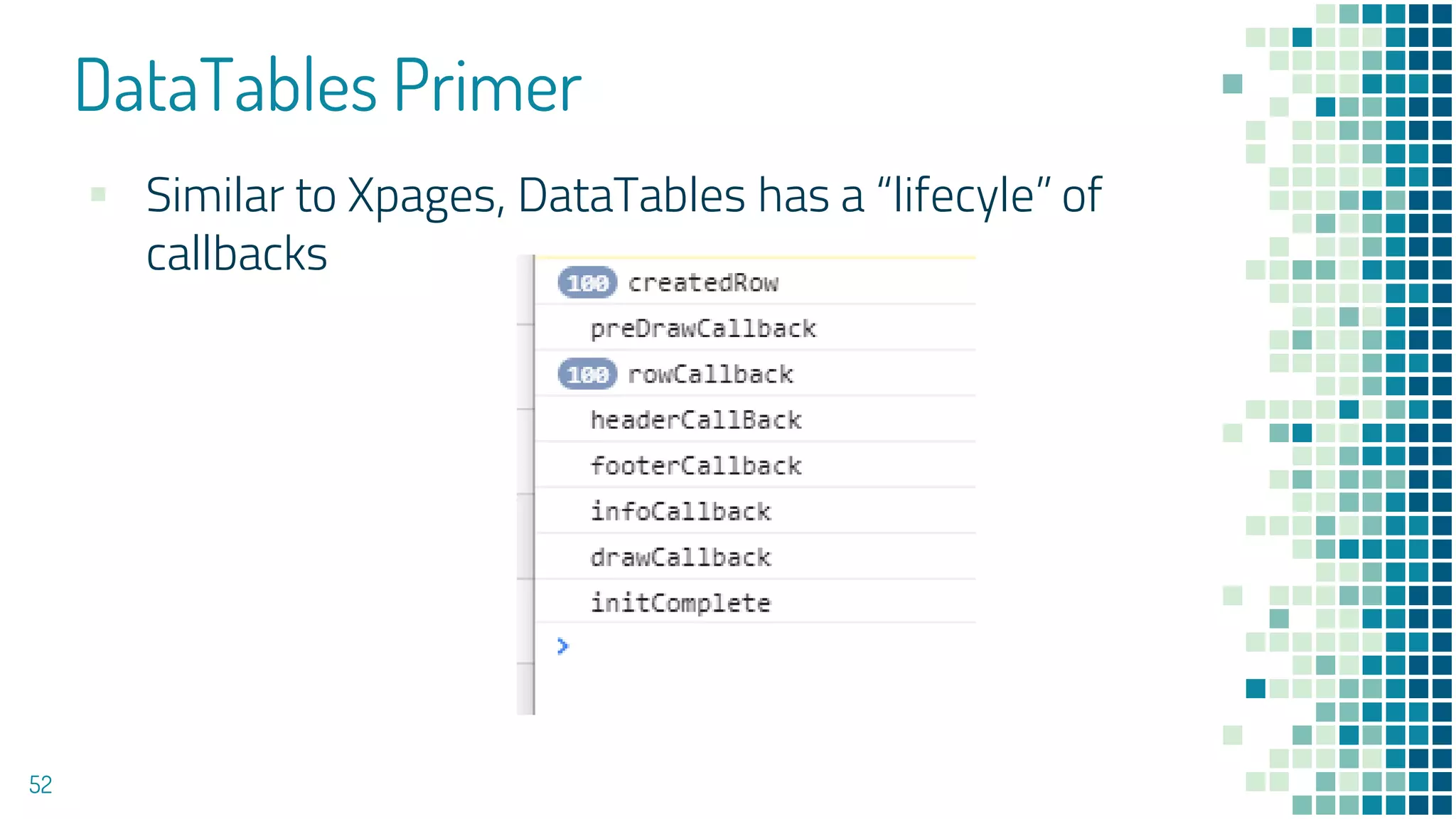

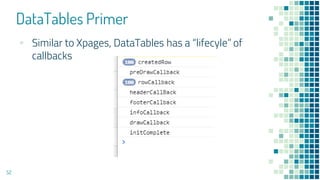

57. DataTables Primer
52
▪ Similar to Xpages, DataTables has a “lifecyle” of
callbacks

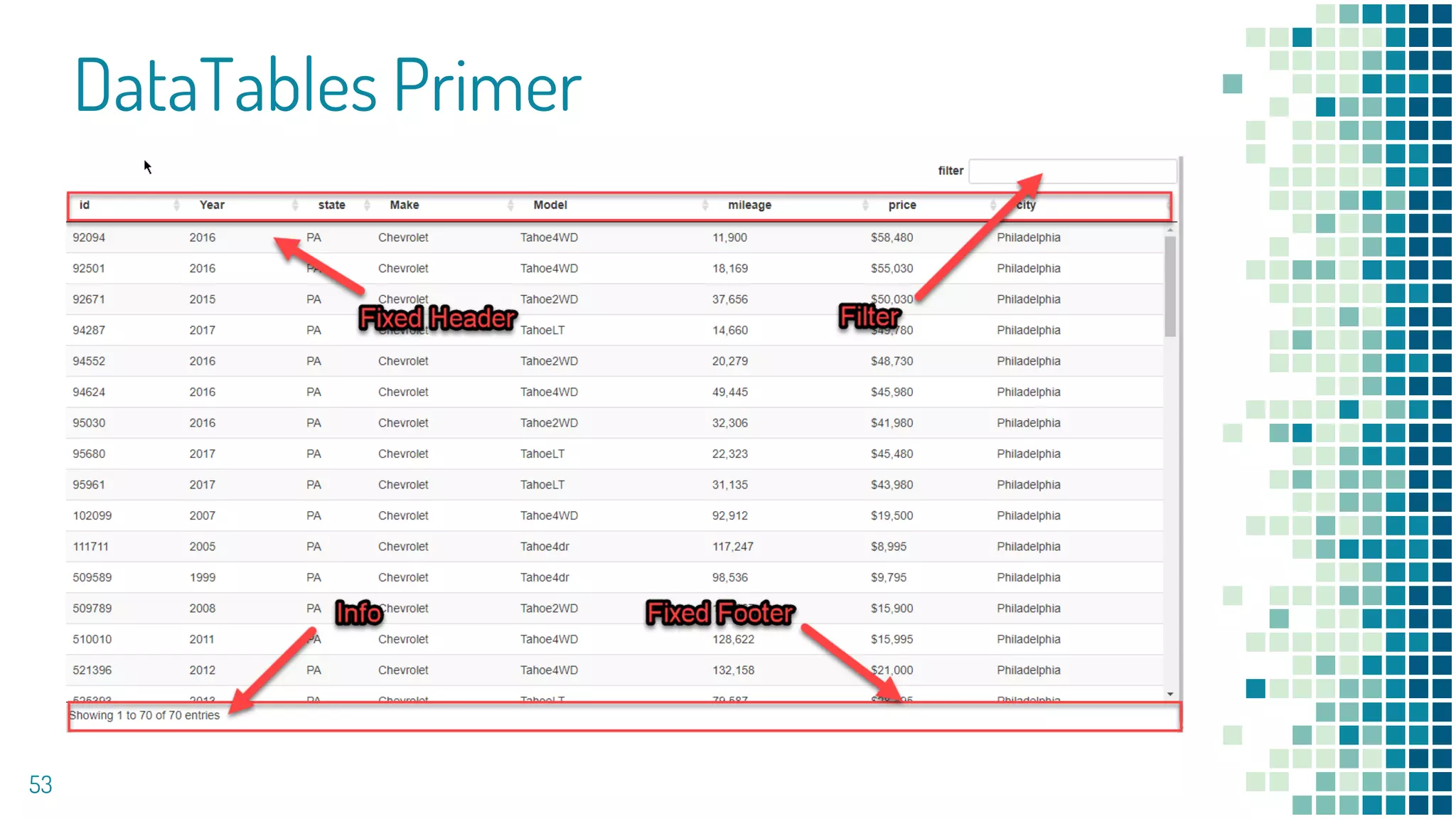

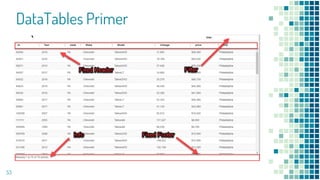

58. DataTables Primer
53

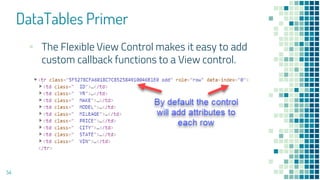

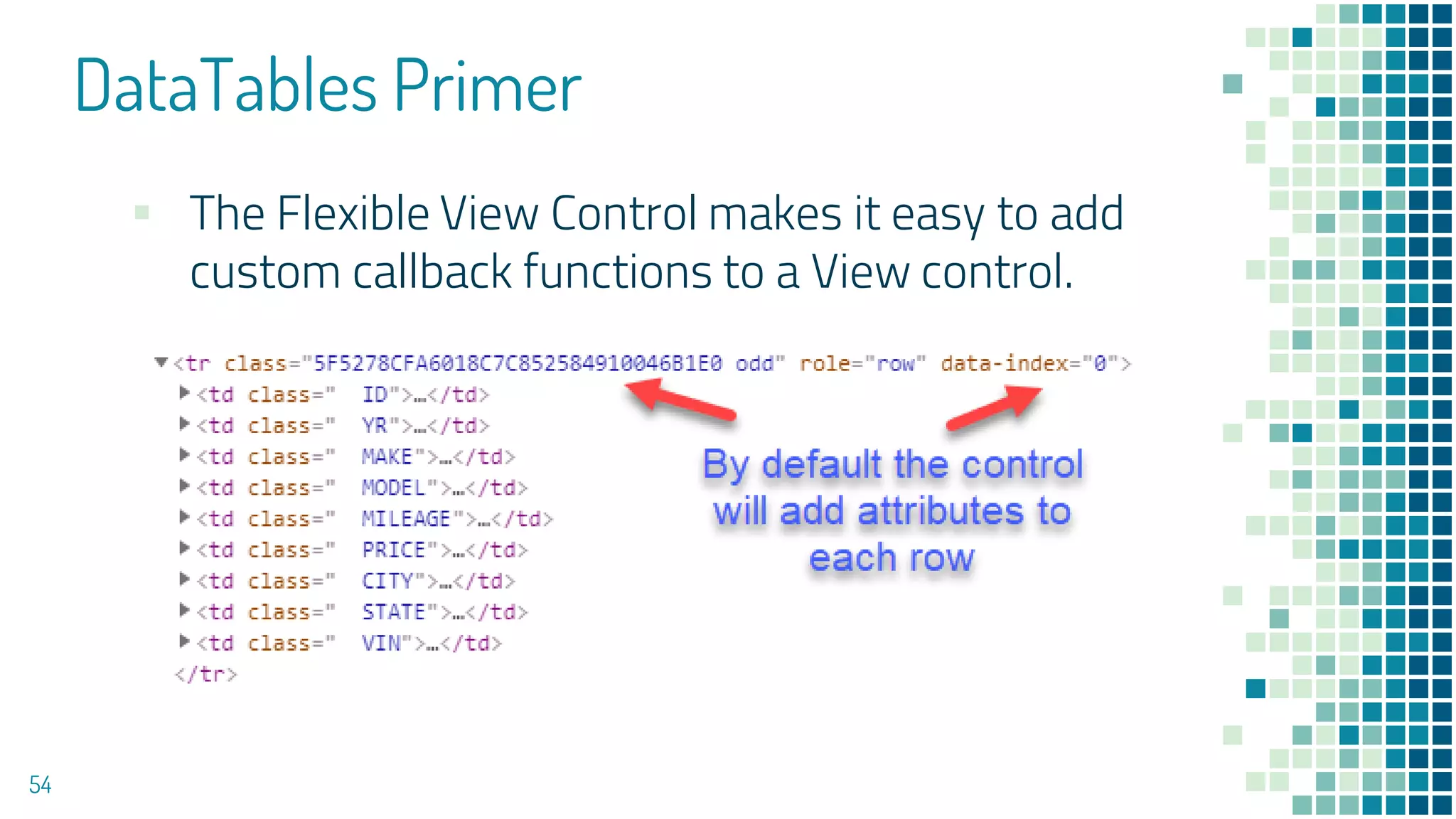

59. DataTables Primer
54
▪ The Flexible View Control makes it easy to add
custom callback functions to a View control.

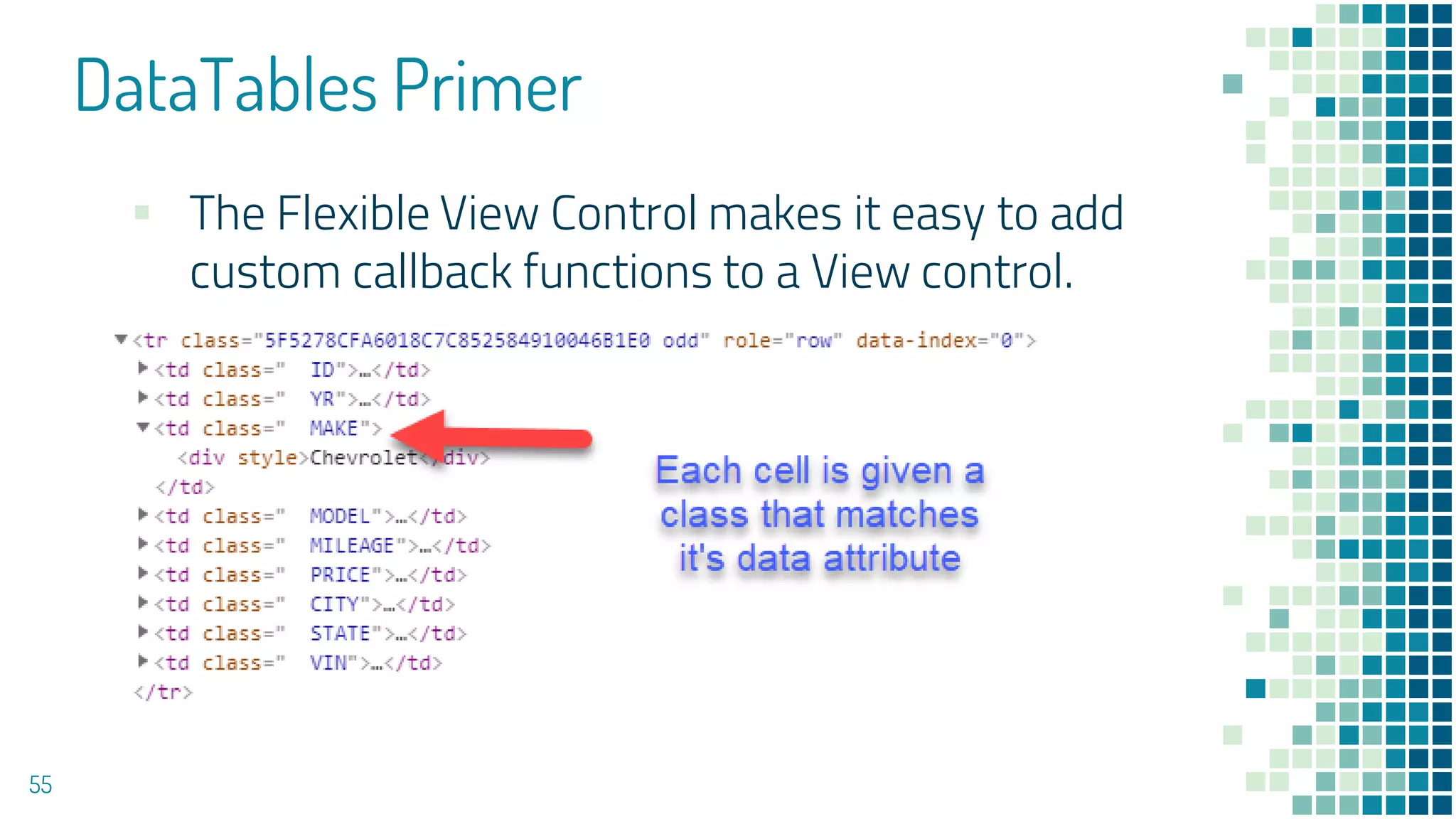

60. DataTables Primer
55
▪ The Flexible View Control makes it easy to add
custom callback functions to a View control.

61. Let’s Build Some Demos!
… and work with some real data

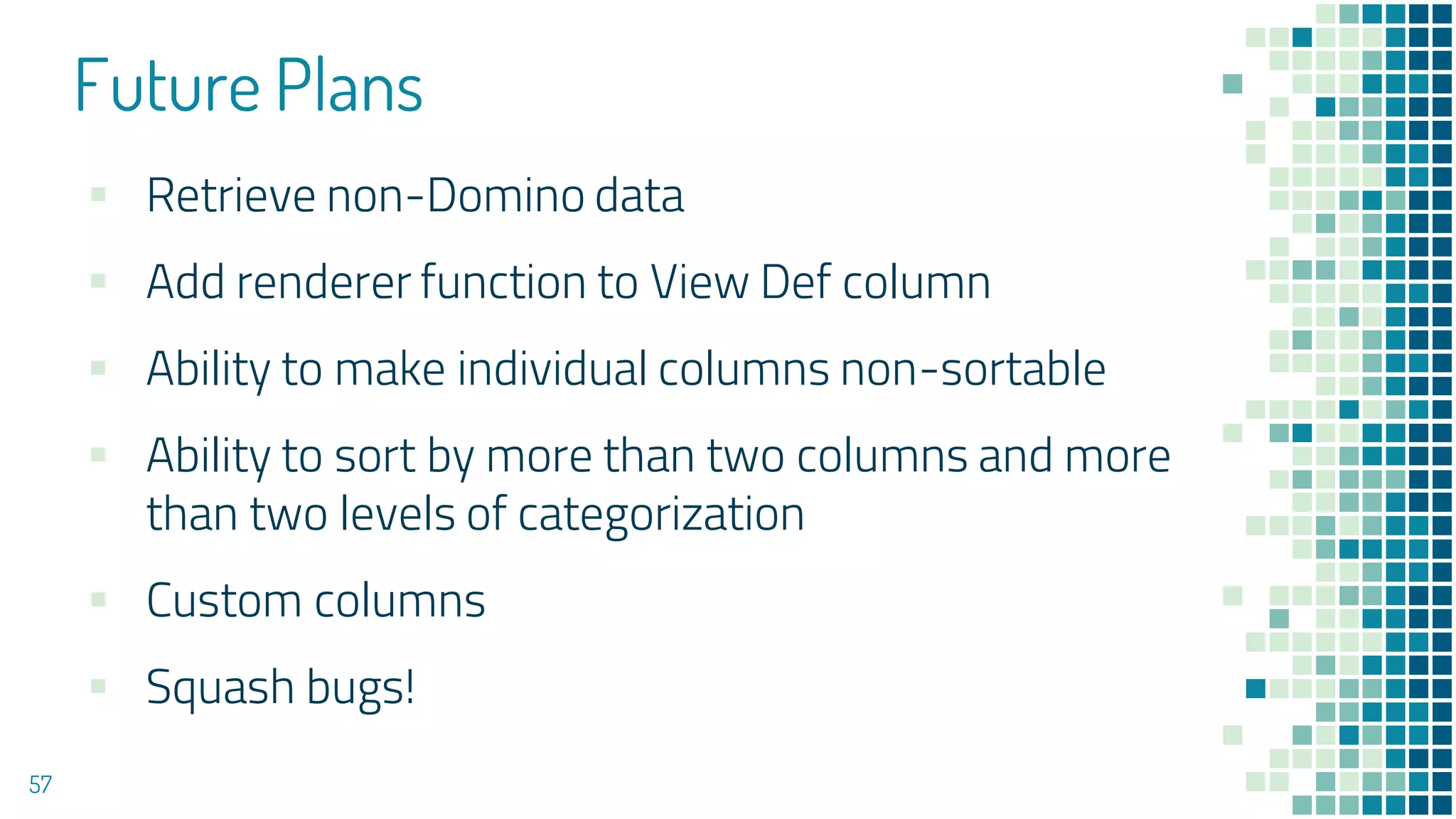

62. Future Plans
57
▪ Retrieve non-Domino data
▪ Add renderer function to View Def column
▪ Ability to make individual columns non-sortable
▪ Ability to sort by more than two columns and more
than two levels of categorization
▪ Custom columns
▪ Squash bugs!

63. Future Plans
58
▪ What would you like to see?

64. THANKS!
Any questions?
You can find me at:
Twitter: @michaelgsmith
Email: smithmg@gmail.com
LinkedIn: linkedin.com/in/smithmichaelgarrett
59

65. NEXT WEBINAR
• TBD
• Will be announced at https://openntf.org/webinars

66. UPCOMING EVENTS
• Collabsphere – October 27-29
• https://collabsphere.org/ug/cs2020.nsf/index.html
• DNUG – monthly online events
• https://dnug.de/en/dnug47online-2/
• HCL Digital Week – November 9-13 (APG is 12/1-4)
• https://www.hcltechsw.com/events/digital-week

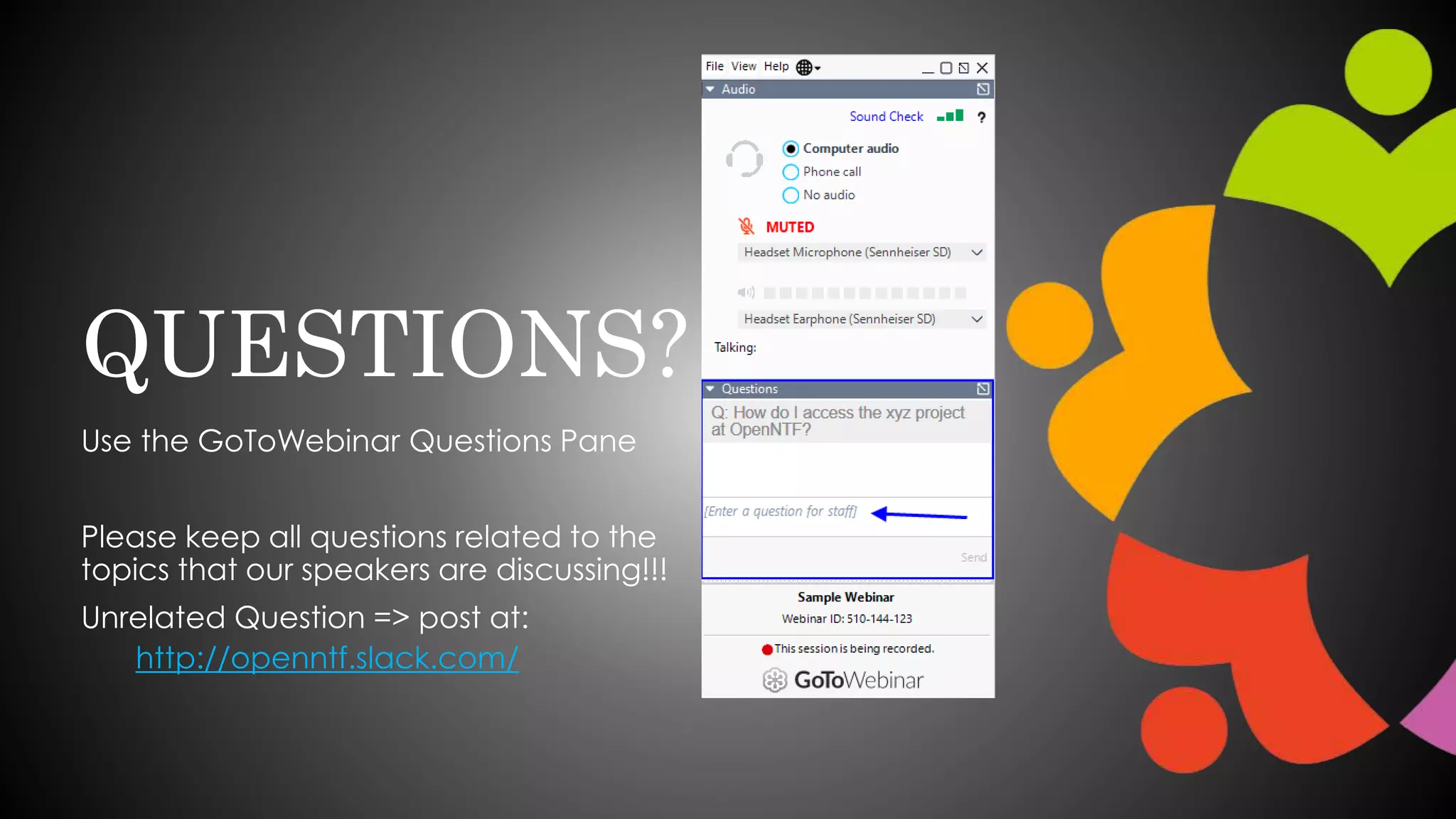

67. QUESTIONS?
