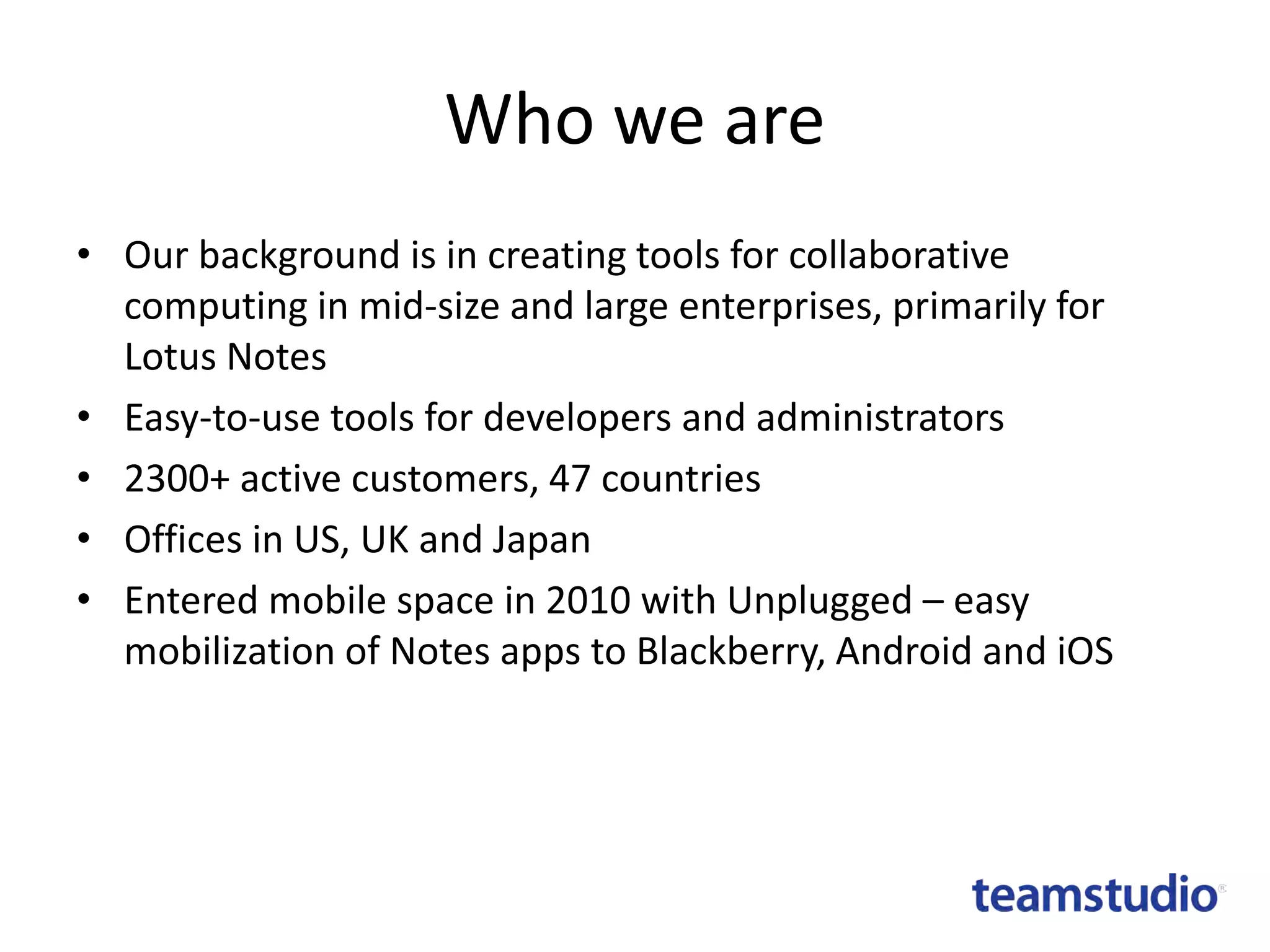

Who we are
• Our background is in creating tools for collaborative
computing in mid-size and large enterprises, primarily for
Lotus Notes
• Easy-to-use tools for developers and administrators
• 2300+ active customers, 47 countries
• Offices in US, UK and Japan
• Entered mobile space in 2010 with Unplugged – easy
mobilization of Notes apps to Blackberry, Android and iOS

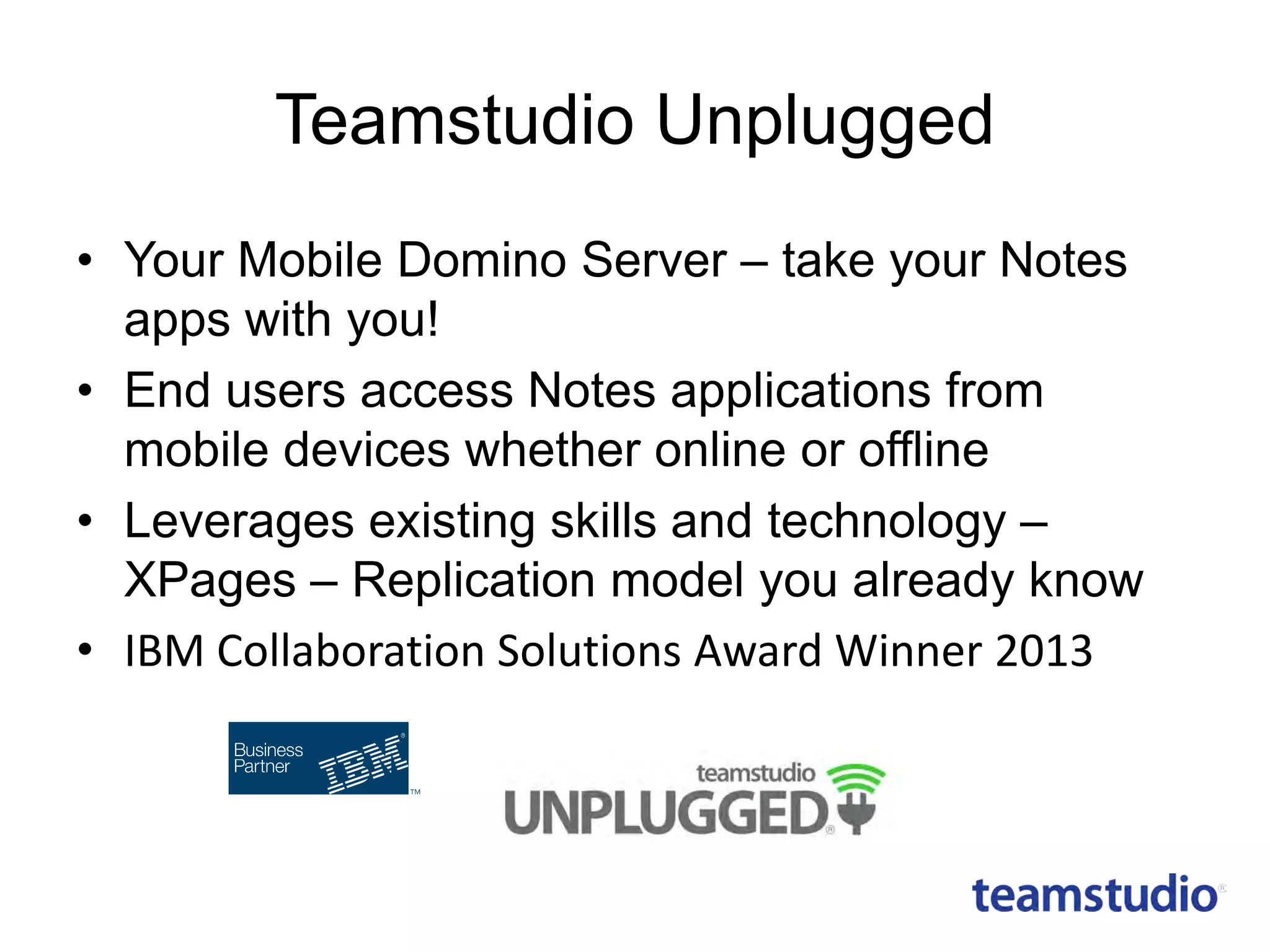

Teamstudio Unplugged
• Your Mobile Domino Server – take your Notes
apps with you!
• End users access Notes applications from
mobile devices whether online or offline
• Leverages existing skills and technology –
XPages – Replication model you already know
• IBM Collaboration Solutions Award Winner 2013

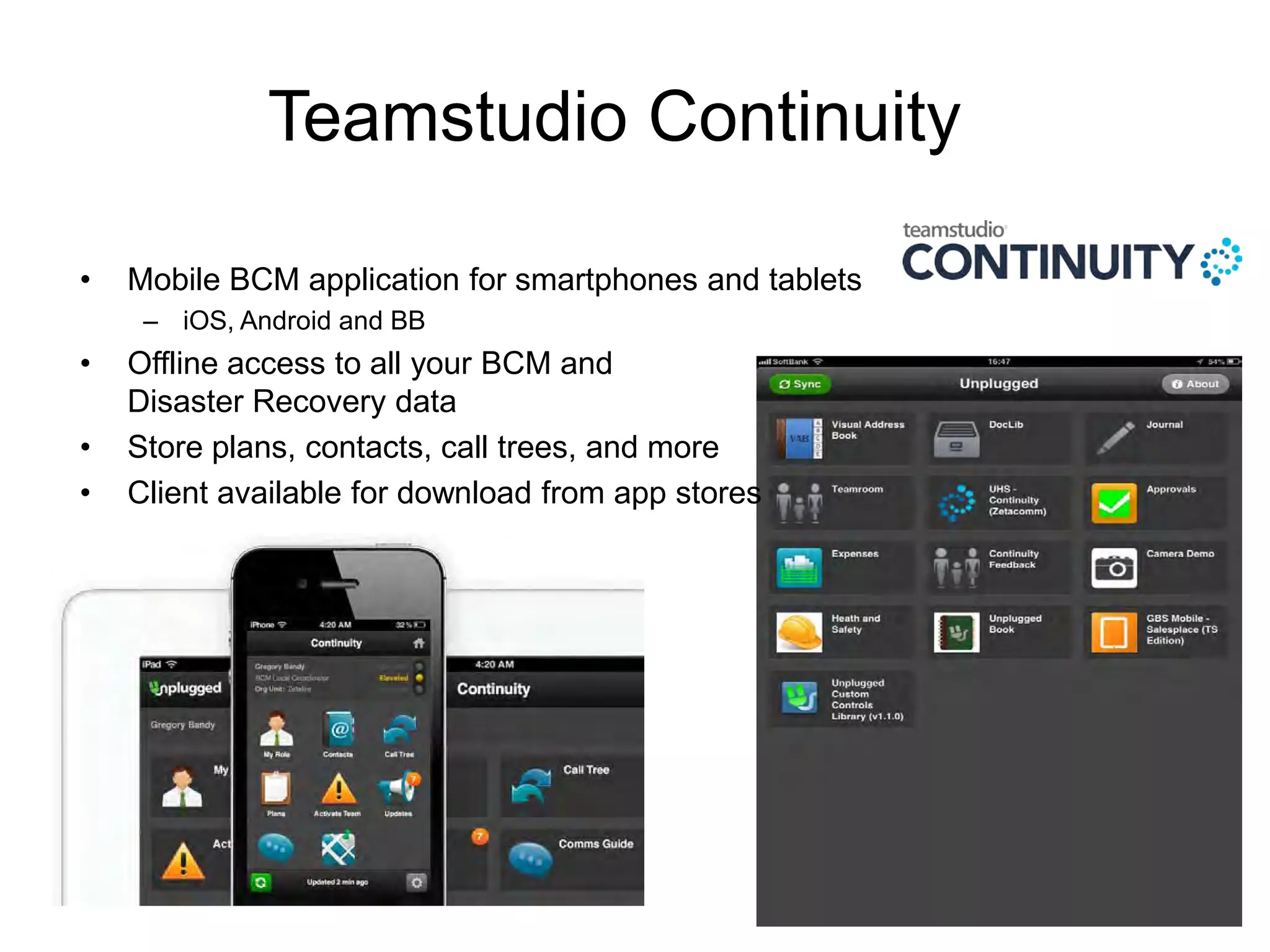

Teamstudio Continuity
•

Mobile BCM application for smartphones and tablets
– iOS, Android and BB

•
•
•

Offline access to all your BCM and
Disaster Recovery data
Store plans, contacts, call trees, and more
Client available for download from app stores

Teamstudio
• Next webinar November 19th
• DCLUG – October 24th
• BLUG All Things Mobile – October 29th
• Promotions:
– Chance to win an iPad mini when you get a demo of Teamstudio
Continuity

The Autobahn has no speed limit
- Your XPages shouldn't either!

Your Host Today:
Paul Della-Nebbia
TLCC
@PaulDN

#XPages
1

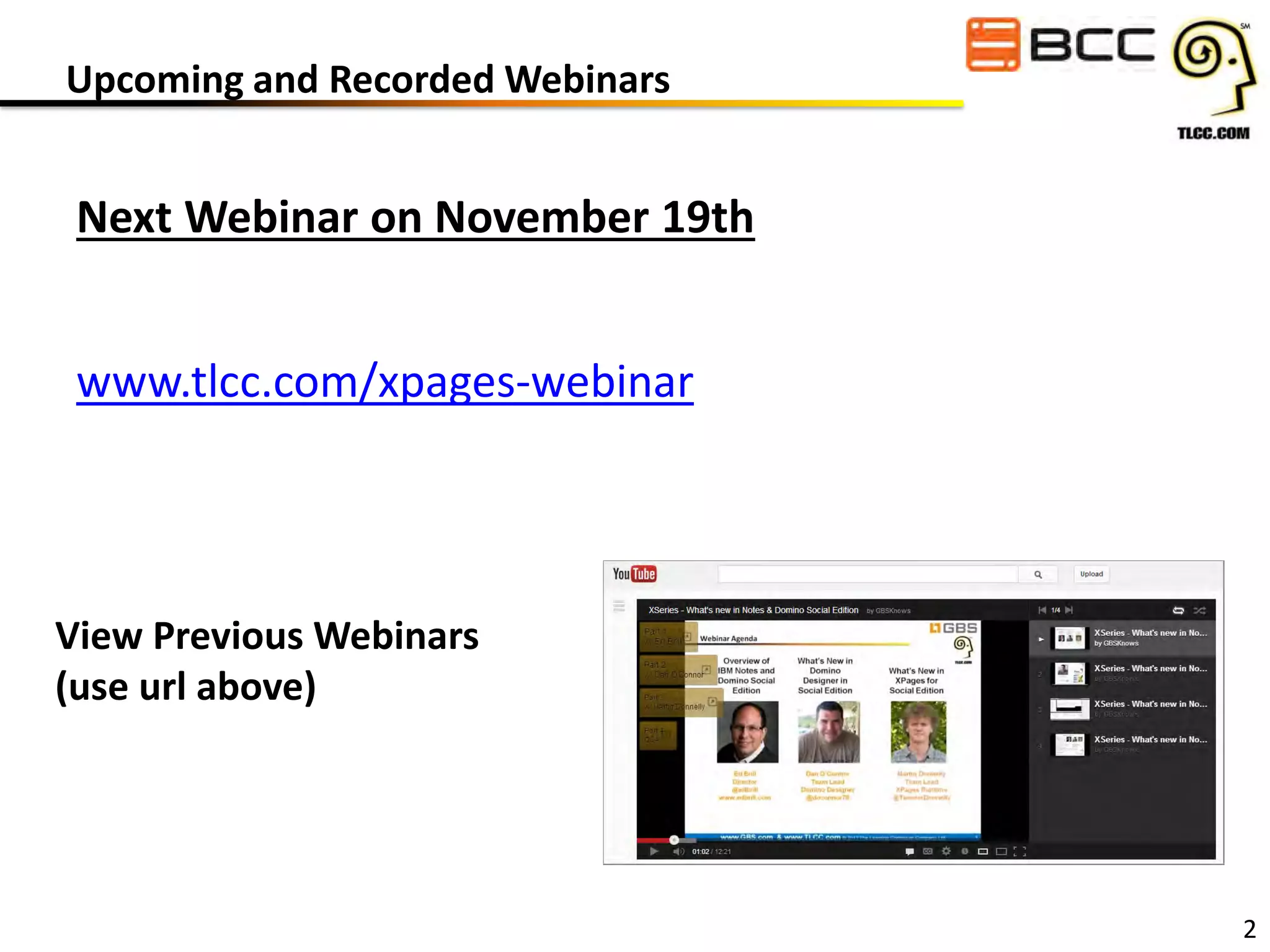

Upcoming and Recorded Webinars

Next Webinar on November 19th
www.tlcc.com/xpages-webinar

View Previous Webinars
(use url above)

2

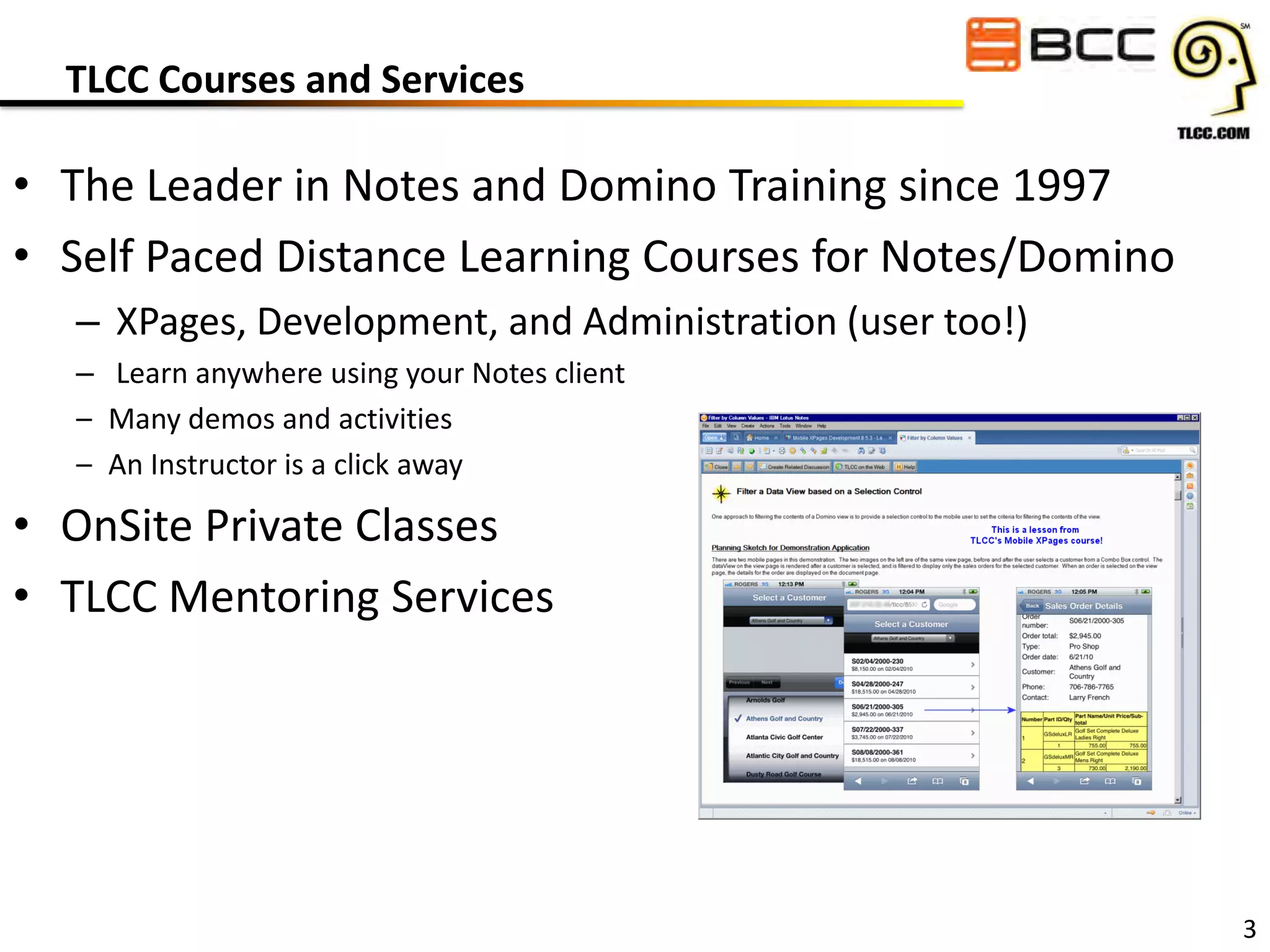

TLCC Courses and Services

• The Leader in Notes and Domino Training since 1997
• Self Paced Distance Learning Courses for Notes/Domino
– XPages, Development, and Administration (user too!)
– Learn anywhere using your Notes client
– Many demos and activities
– An Instructor is a click away

• OnSite Private Classes
• TLCC Mentoring Services

3

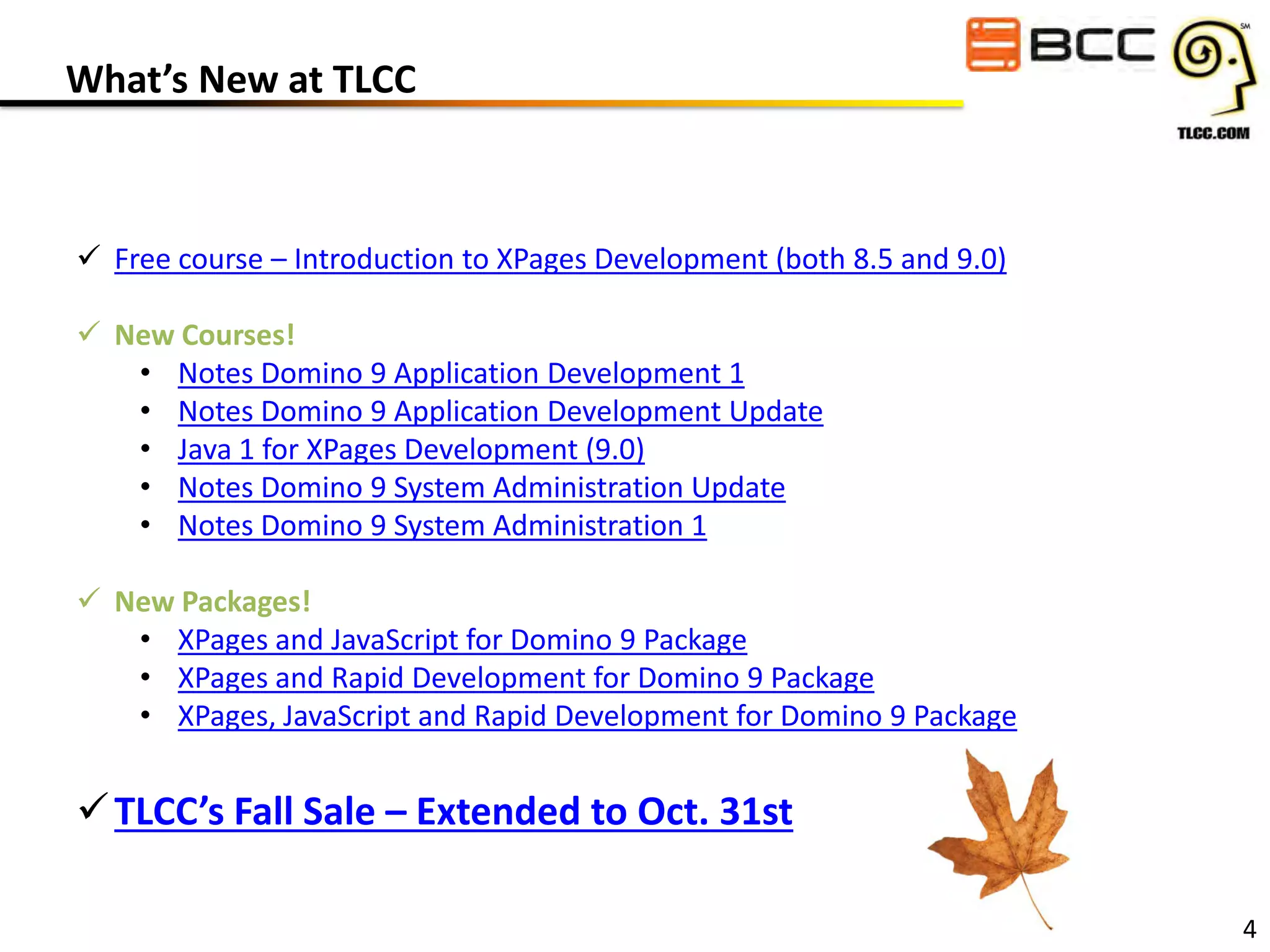

What’s New at TLCC

 Free course – Introduction to XPages Development (both 8.5 and 9.0)
 New Courses!
• Notes Domino 9 Application Development 1
• Notes Domino 9 Application Development Update
• Java 1 for XPages Development (9.0)
• Notes Domino 9 System Administration Update
• Notes Domino 9 System Administration 1
 New Packages!
• XPages and JavaScript for Domino 9 Package
• XPages and Rapid Development for Domino 9 Package
• XPages, JavaScript and Rapid Development for Domino 9 Package

 TLCC’s Fall Sale – Extended to Oct. 31st
4

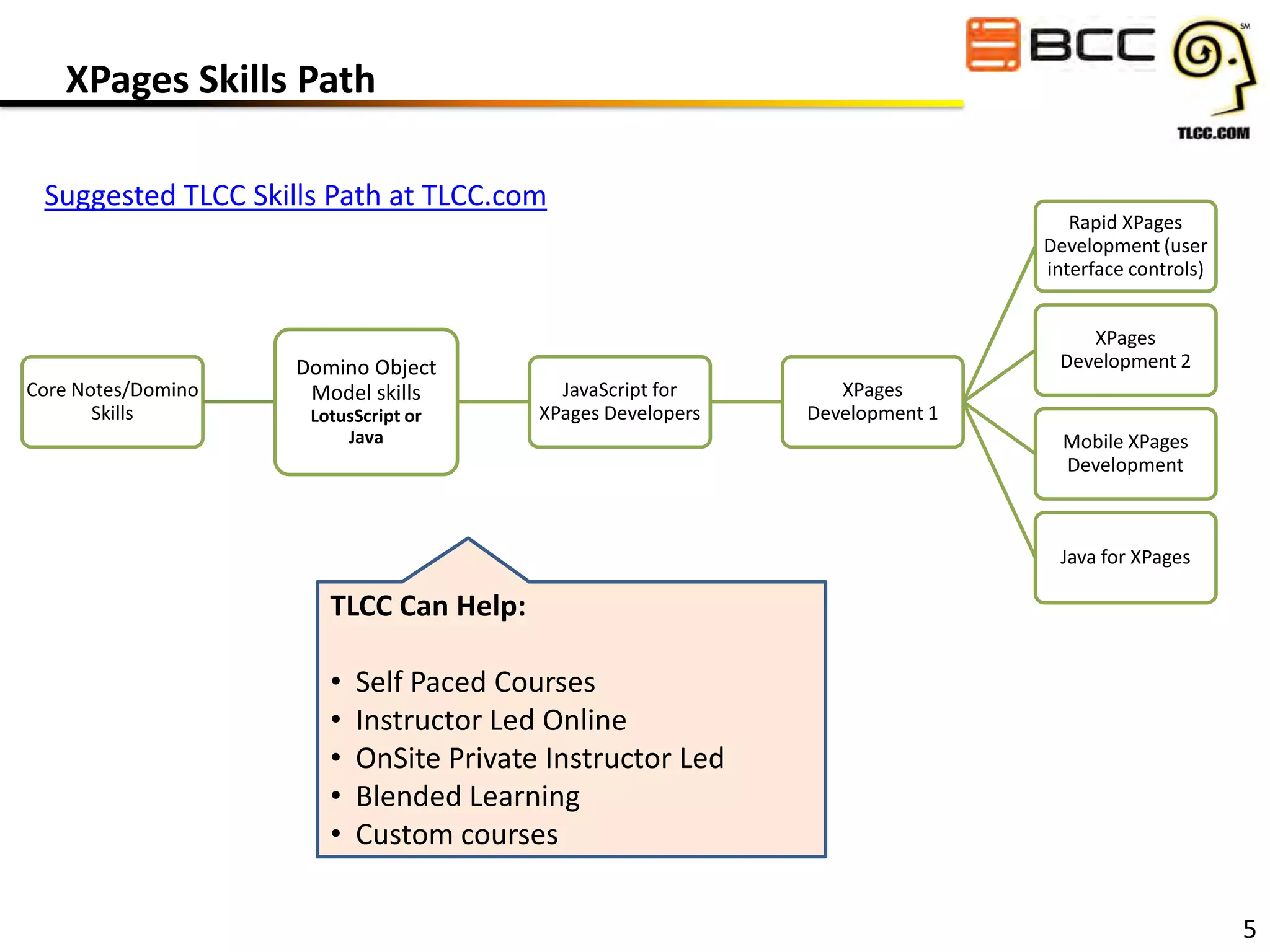

XPages Skills Path
Suggested TLCC Skills Path at TLCC.com

Core Notes/Domino
Skills

Domino Object
Model skills
LotusScript or
Java

Rapid XPages
Development (user
interface controls)
XPages
Development 2

JavaScript for
XPages Developers

XPages
Development 1
Mobile XPages
Development

Java for XPages

TLCC Can Help:
•
•
•
•
•

Self Paced Courses
Instructor Led Online
OnSite Private Instructor Led
Blended Learning
Custom courses
5

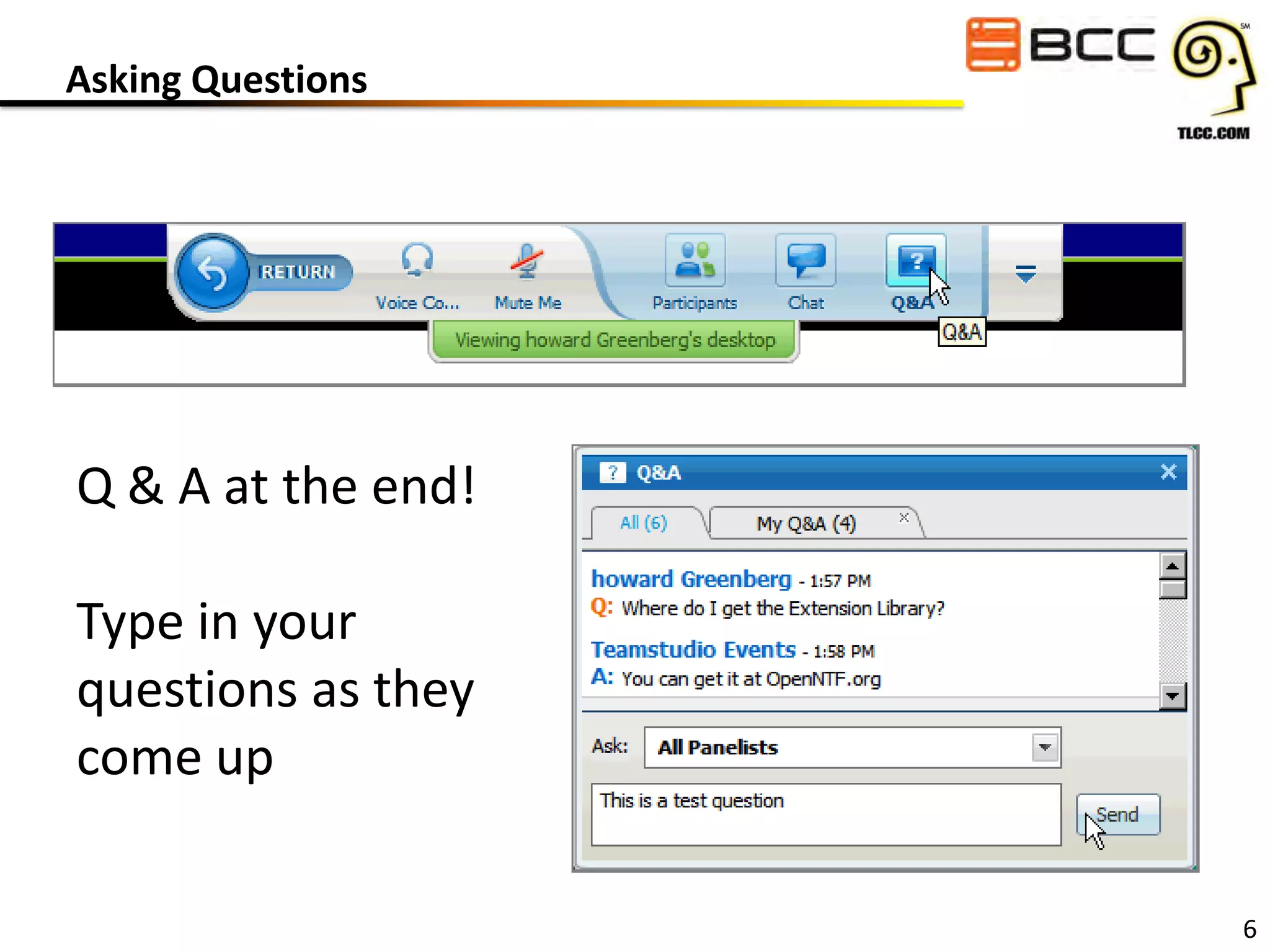

Asking Questions

Q & A at the end!
Type in your
questions as they
come up
6

Your Presenters Today:

Howard Greenberg
IBM Champion
Founding Partner
TLCC
@TLCCLtd

Ulrich Krause
IBM Champion
Senior Software Architect
BCC
@Eknori, @bccffm

#XPages
7

About: Ulrich Krause

• Administrator /Developer since 1993
• Senior Software Architect at BCC, Germany

• OpenNTF Contributor
• IBM Champion 2011/2012/2013
•
•
•
•
•

Blog http://www.eknori.de
Web http://www.bcc.biz
Forum (de) (http://www.atnotes.de)
Twitter @eknori
Mail ulrich.krause@eknori.de
8

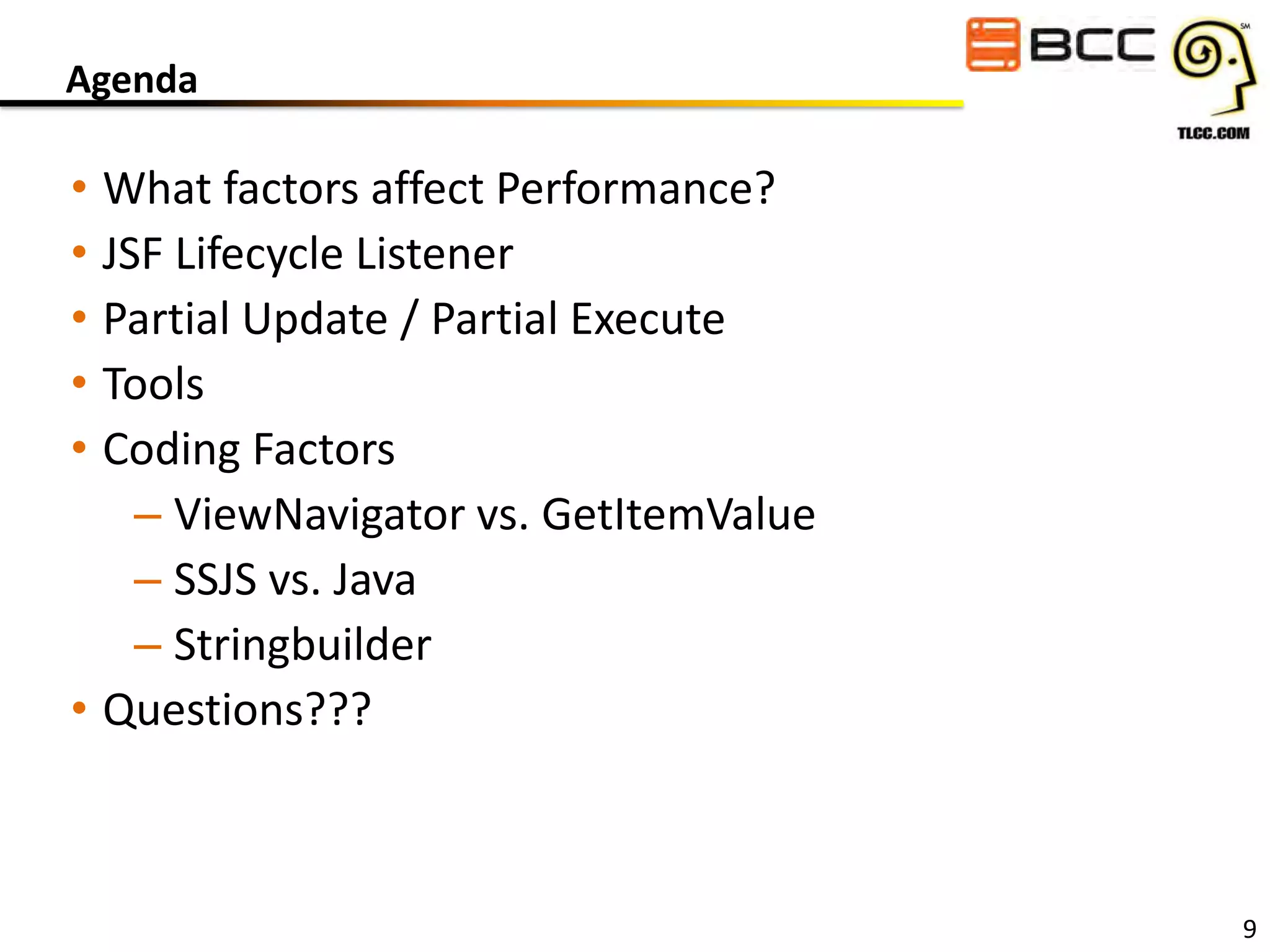

Agenda

• What factors affect Performance?
• JSF Lifecycle Listener
• Partial Update / Partial Execute
• Tools
• Coding Factors
– ViewNavigator vs. GetItemValue
– SSJS vs. Java
– Stringbuilder
• Questions???

9

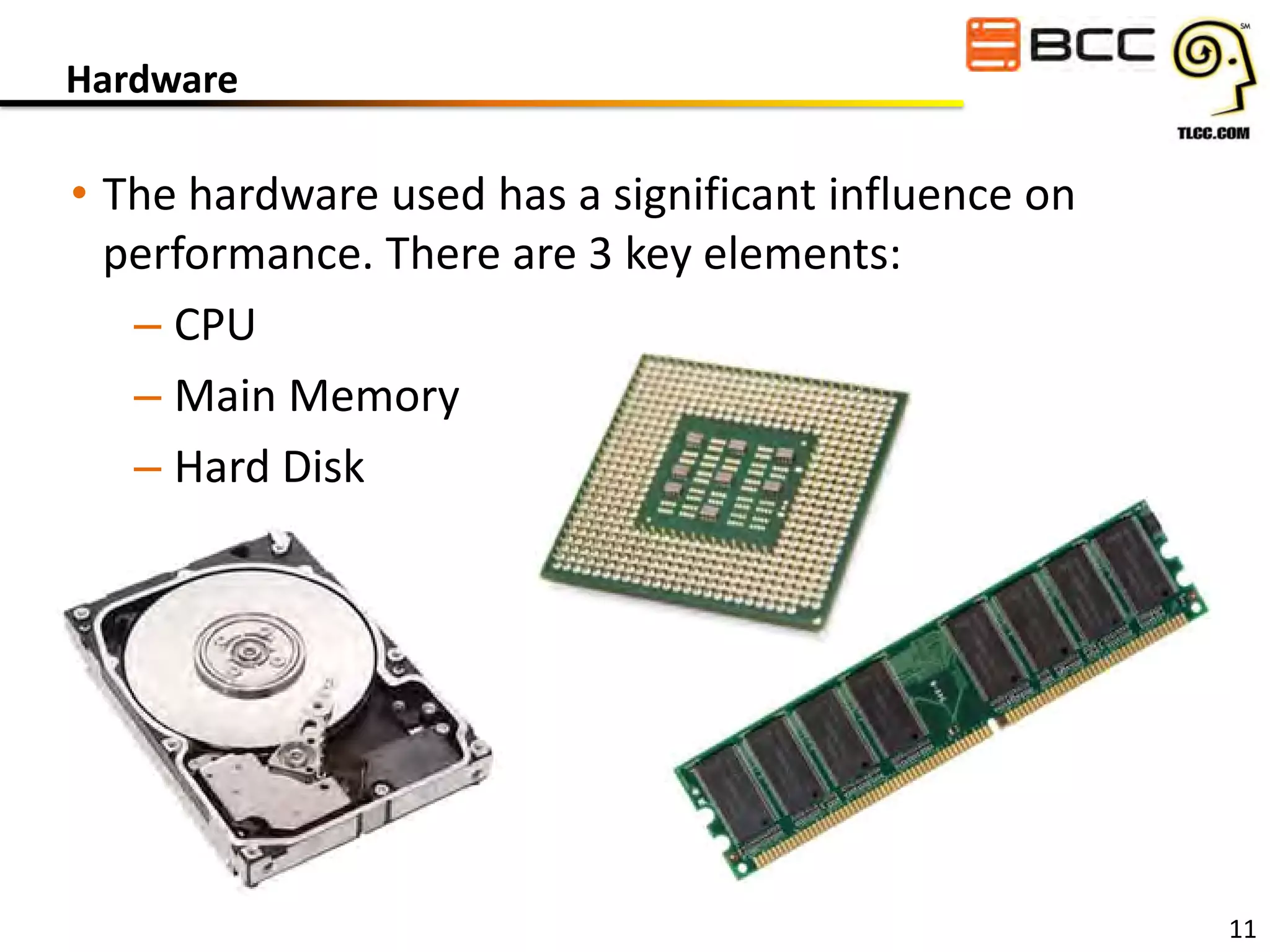

Hardware

• The hardware used has a significant influence on
performance. There are 3 key elements:
– CPU
– Main Memory
– Hard Disk

11

Hardware

• Main Memory
– Limit defined by the operating system
 Scalability
• CPU
– Cores / Clock / Cache
 Poor response time
• Weak CPU AND Low Memory
– Poor overall performance
– Poor response times
– Server "hangs"

12

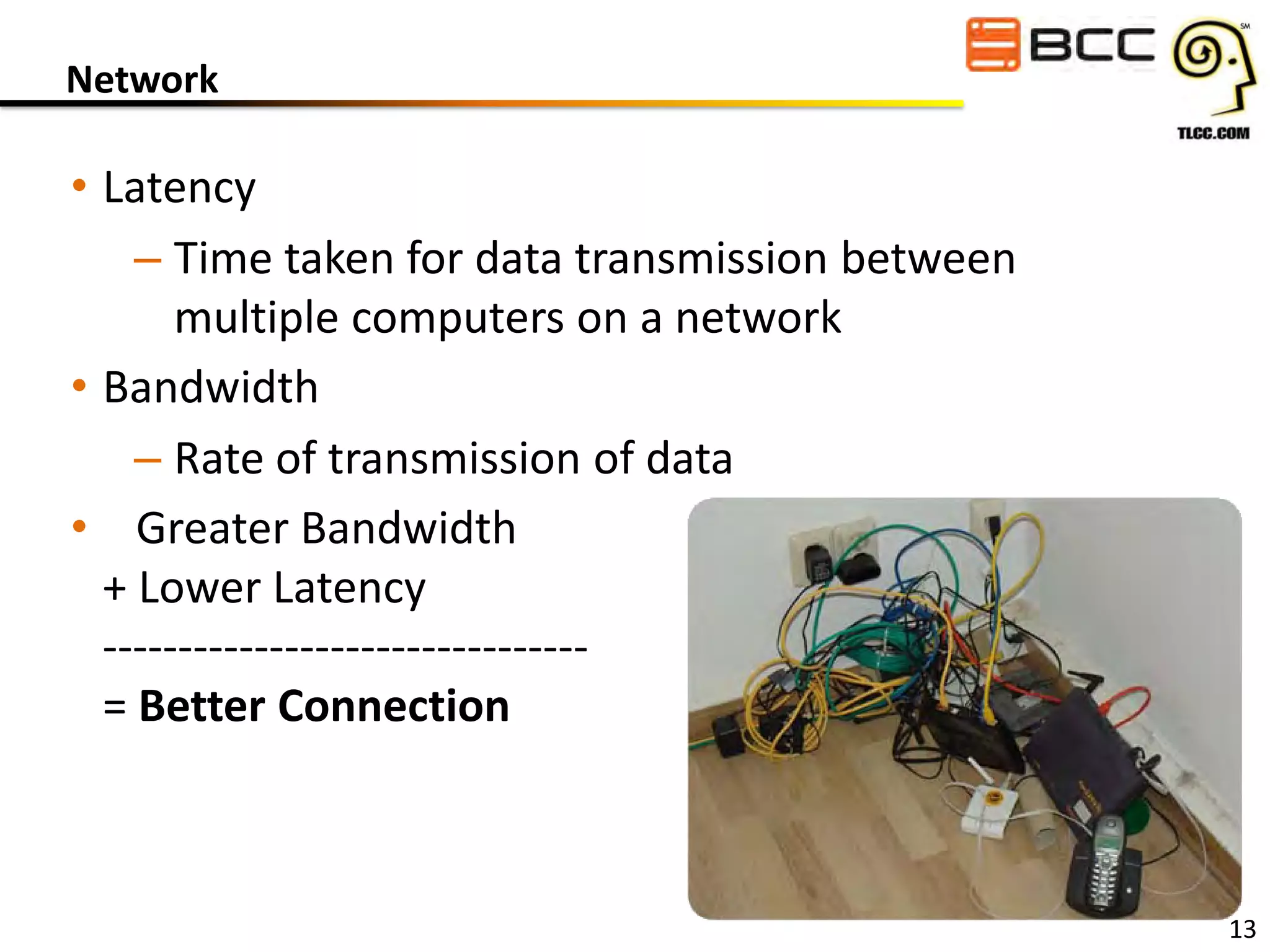

Network

• Latency
– Time taken for data transmission between
multiple computers on a network
• Bandwidth
– Rate of transmission of data
• Greater Bandwidth
+ Lower Latency
-------------------------------= Better Connection

13

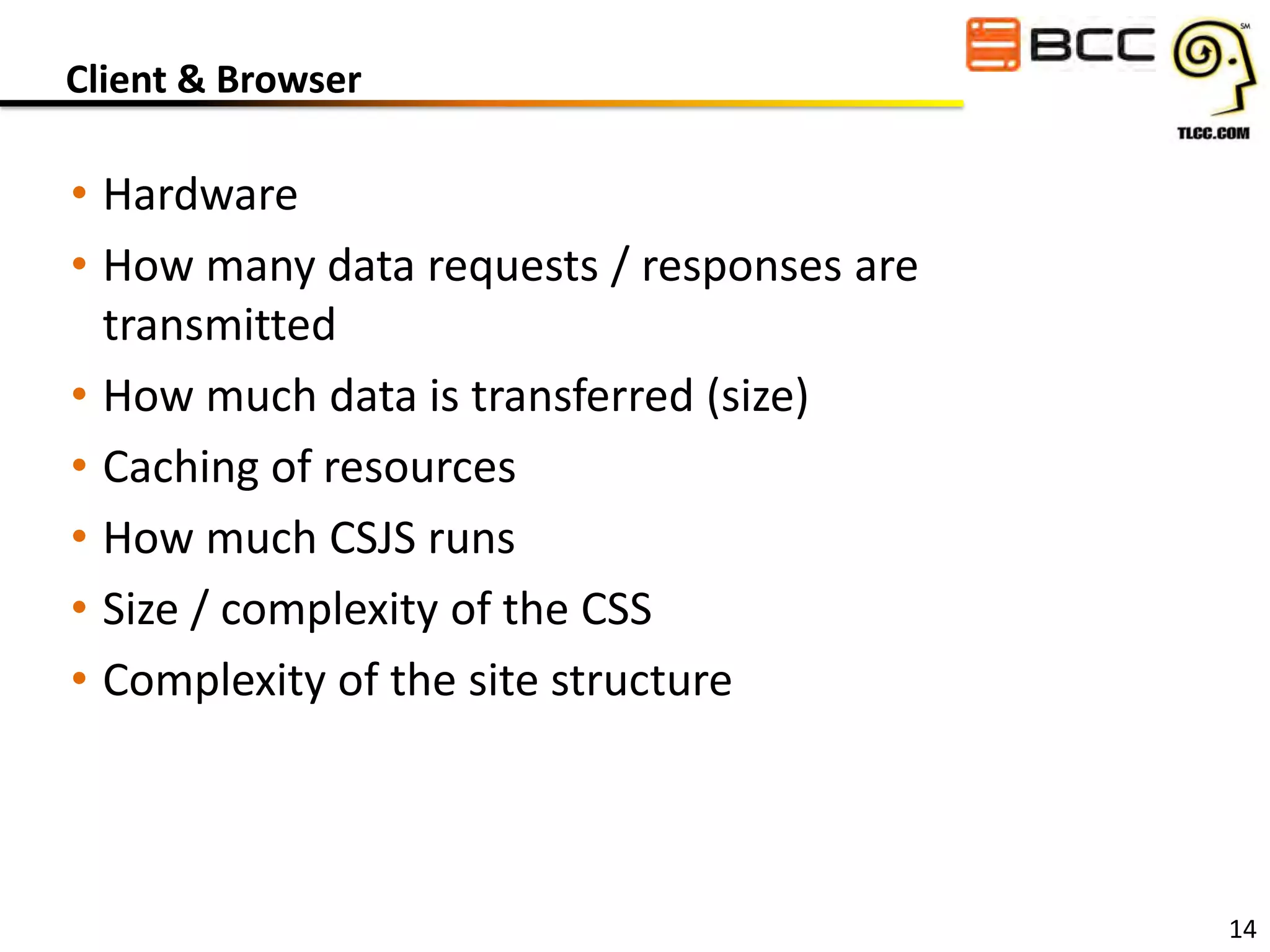

Client & Browser

• Hardware
• How many data requests / responses are
transmitted
• How much data is transferred (size)
• Caching of resources
• How much CSJS runs
• Size / complexity of the CSS
• Complexity of the site structure

14

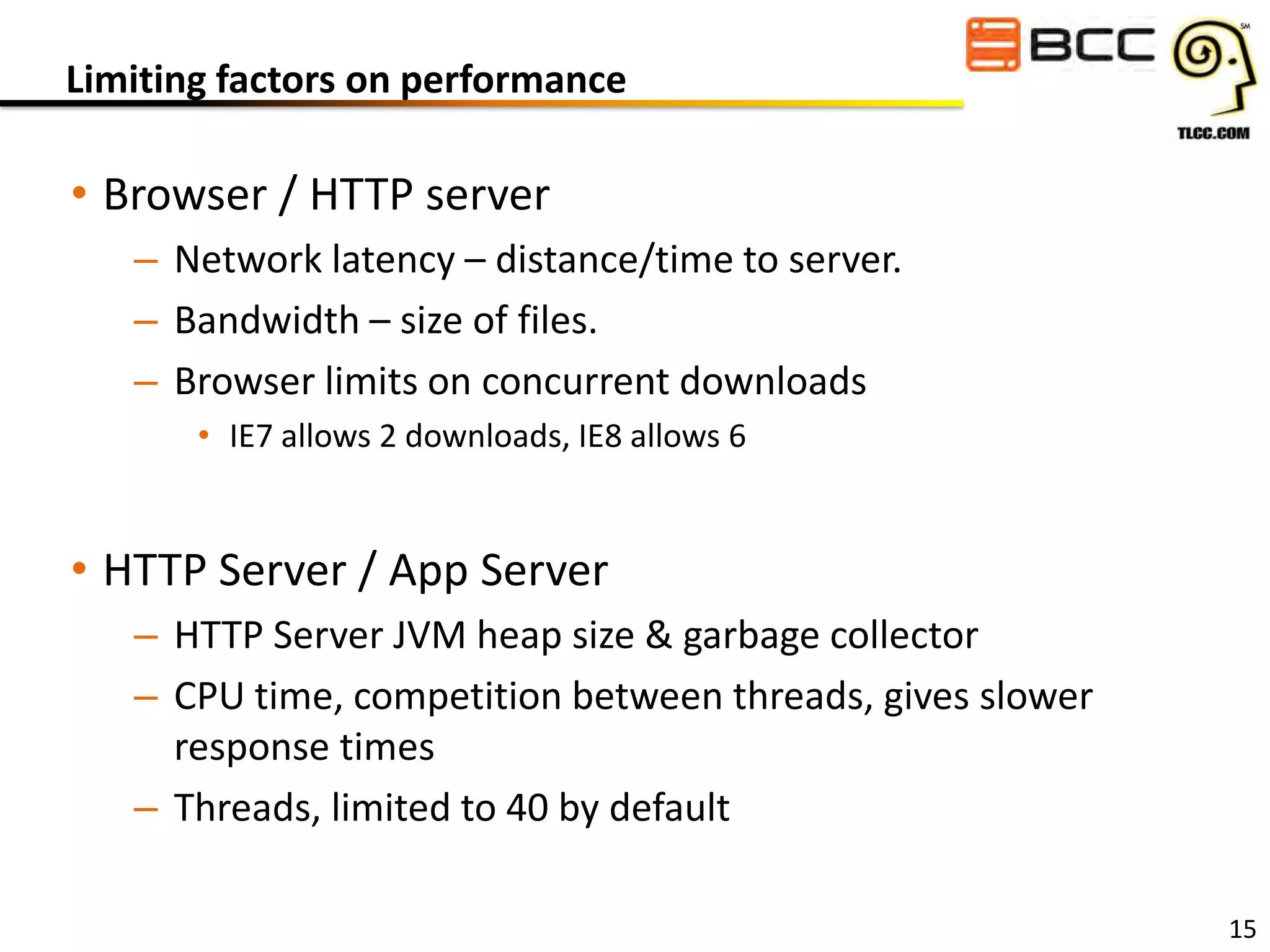

Limiting factors on performance

• Browser / HTTP server
– Network latency – distance/time to server.
– Bandwidth – size of files.
– Browser limits on concurrent downloads
• IE7 allows 2 downloads, IE8 allows 6

• HTTP Server / App Server
– HTTP Server JVM heap size & garbage collector
– CPU time, competition between threads, gives slower
response times
– Threads, limited to 40 by default
15

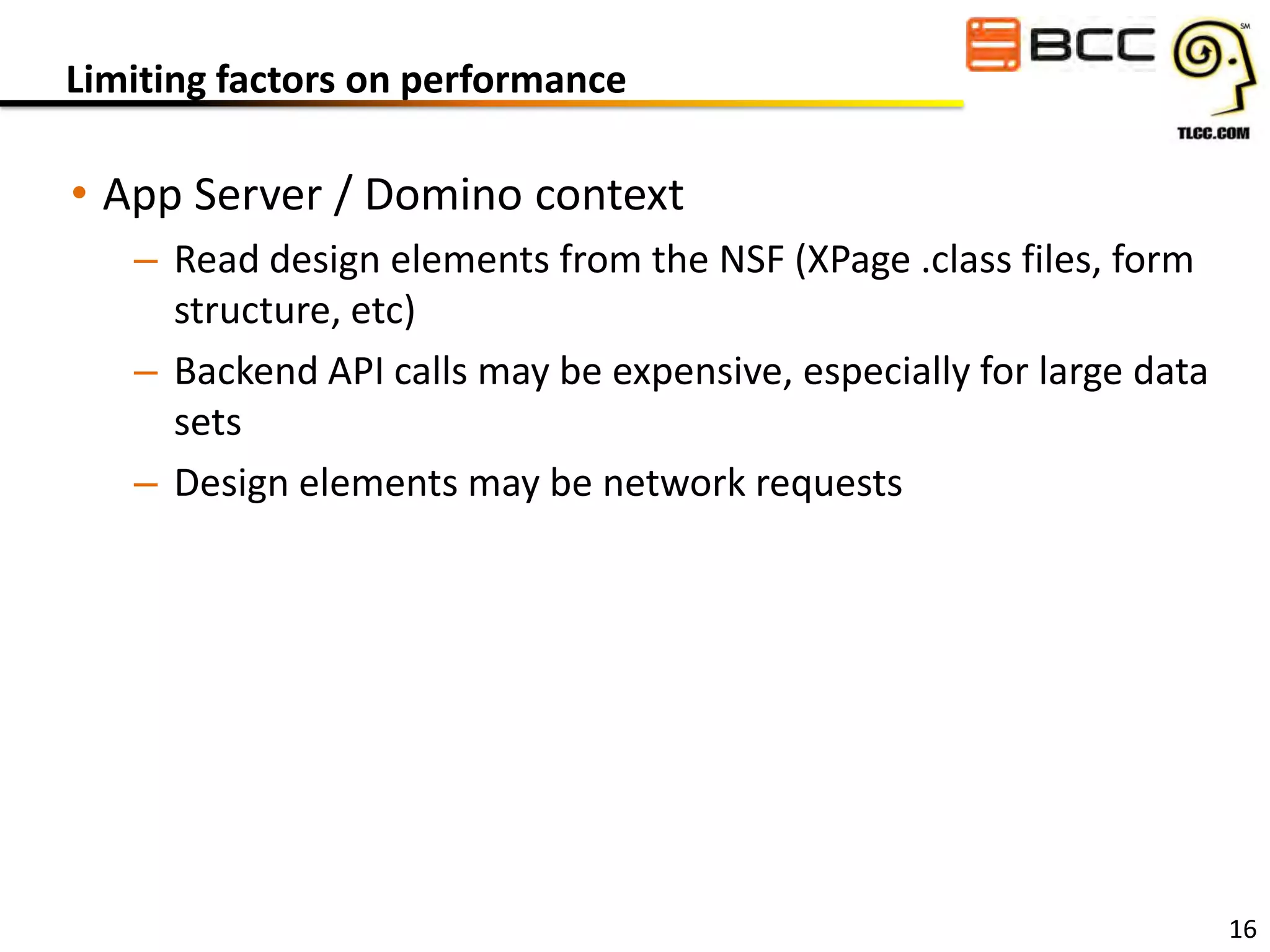

• App Server / Domino context
– Read design elements from the NSF (XPage .class files, form
structure, etc)
– Backend API calls may be expensive, especially for large data
sets
– Design elements may be network requests

16

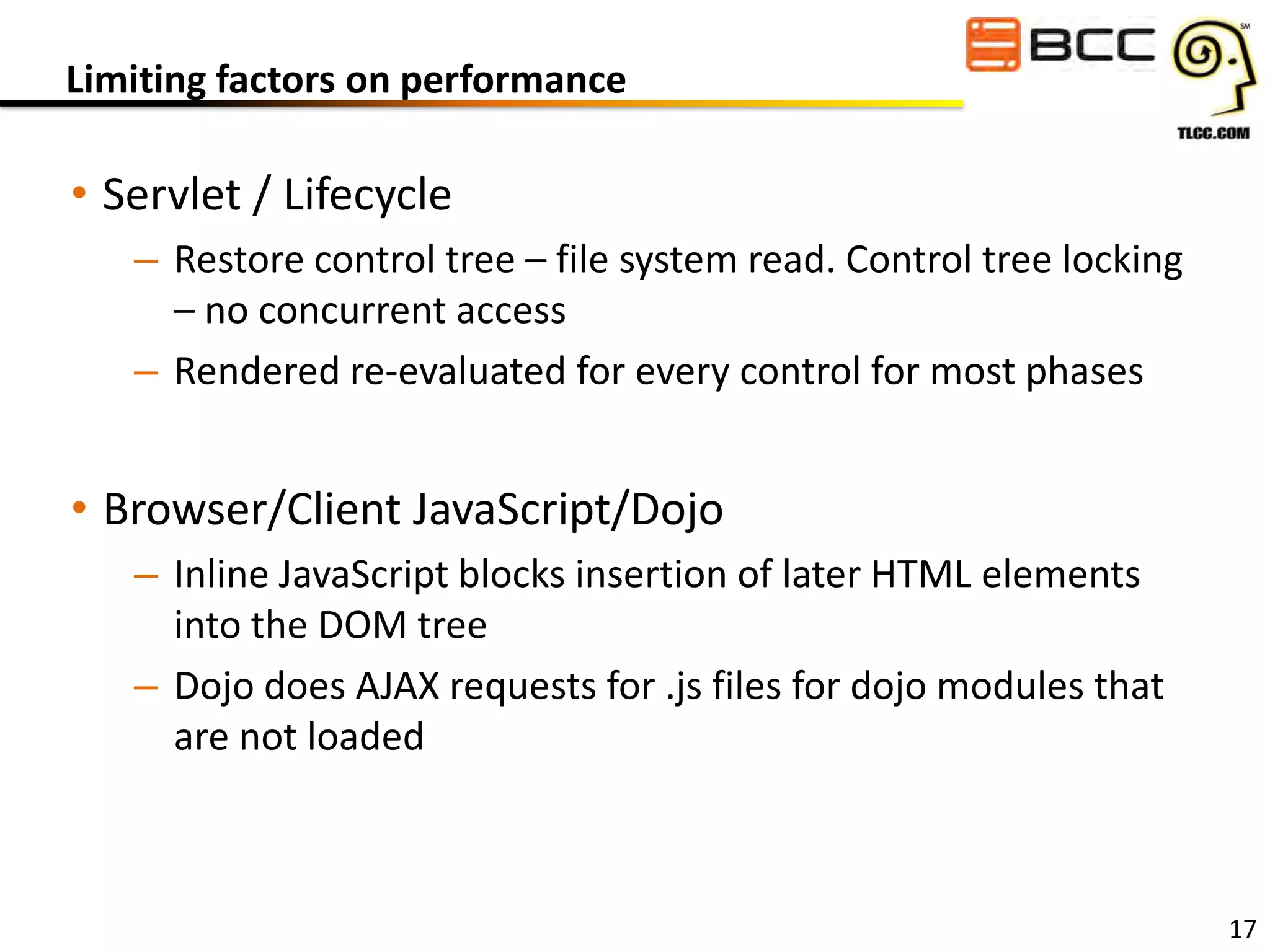

• Servlet / Lifecycle
– Restore control tree – file system read. Control tree locking
– no concurrent access
– Rendered re-evaluated for every control for most phases

• Browser/Client JavaScript/Dojo
– Inline JavaScript blocks insertion of later HTML elements
into the DOM tree
– Dojo does AJAX requests for .js files for dojo modules that
are not loaded

17

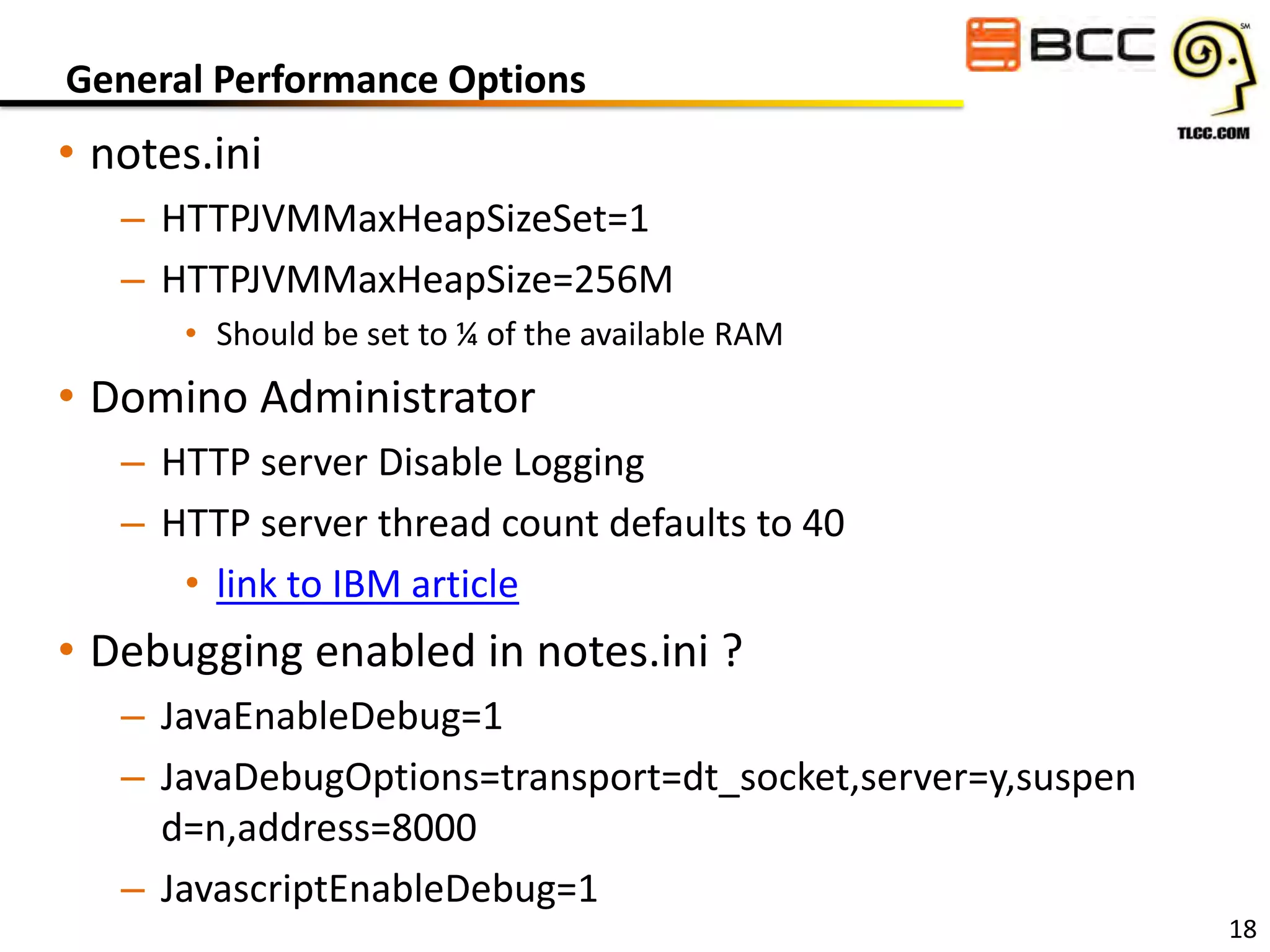

General Performance Options

• notes.ini
– HTTPJVMMaxHeapSizeSet=1
– HTTPJVMMaxHeapSize=256M
• Should be set to ¼ of the available RAM

• Domino Administrator
– HTTP server Disable Logging
– HTTP server thread count defaults to 40
• link to IBM article

• Debugging enabled in notes.ini ?
– JavaEnableDebug=1
– JavaDebugOptions=transport=dt_socket,server=y,suspen
d=n,address=8000
– JavascriptEnableDebug=1

18

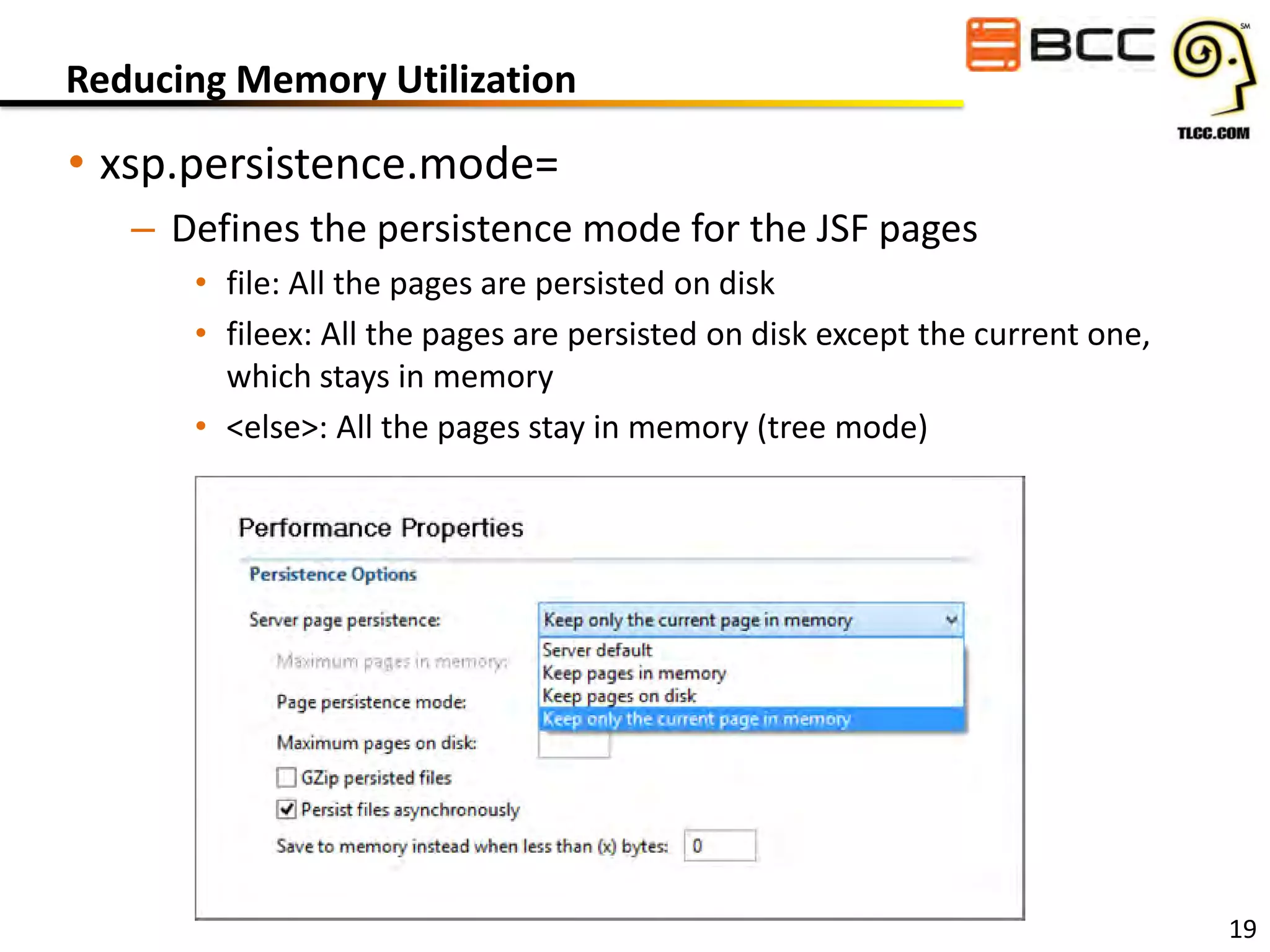

Reducing Memory Utilization

• xsp.persistence.mode=
– Defines the persistence mode for the JSF pages
• file: All the pages are persisted on disk
• fileex: All the pages are persisted on disk except the current one,
which stays in memory
• <else>: All the pages stay in memory (tree mode)

19

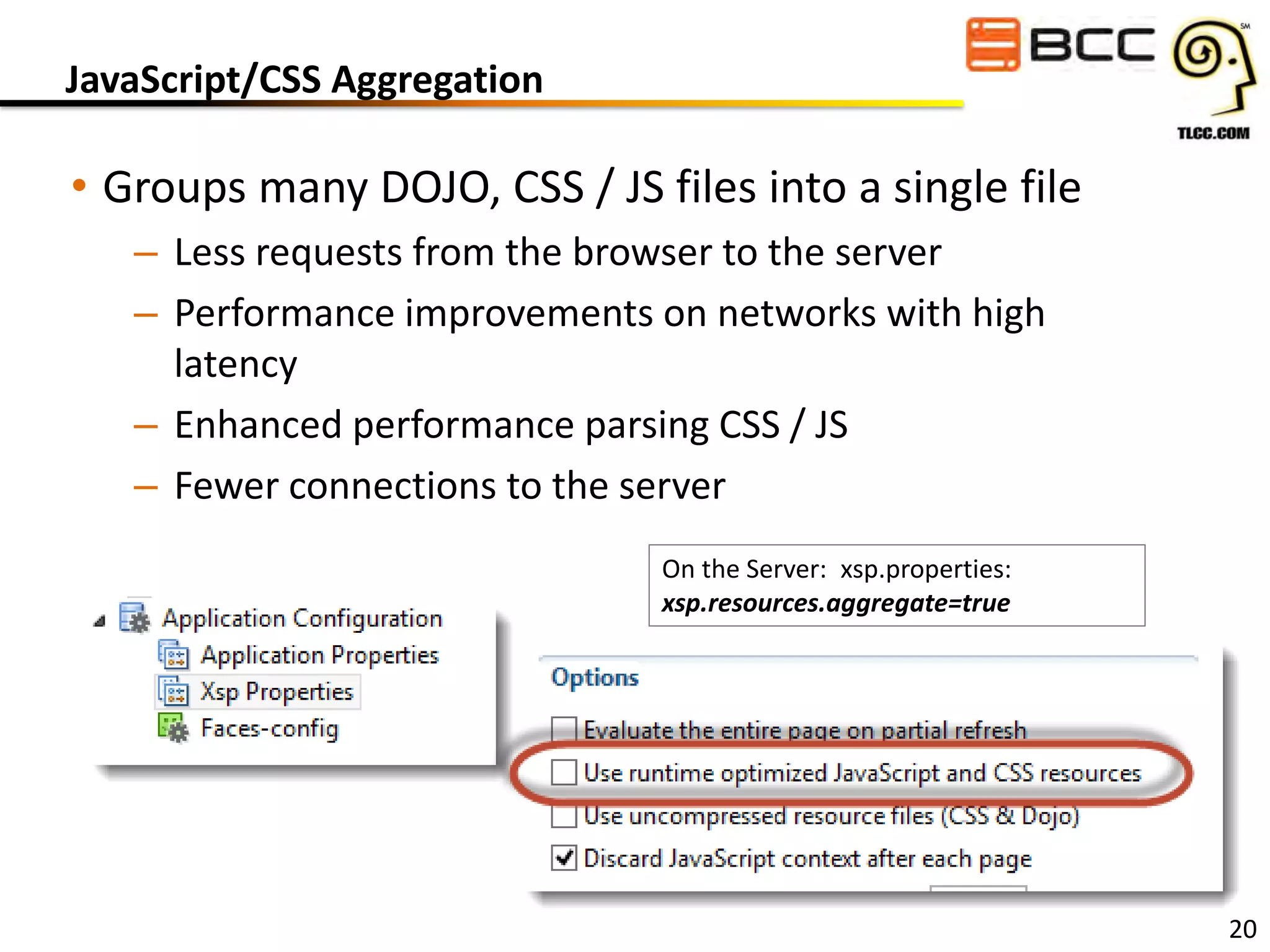

JavaScript/CSS Aggregation

• Groups many DOJO, CSS / JS files into a single file
– Less requests from the browser to the server
– Performance improvements on networks with high
latency
– Enhanced performance parsing CSS / JS
– Fewer connections to the server
On the Server: xsp.properties:
xsp.resources.aggregate=true

20

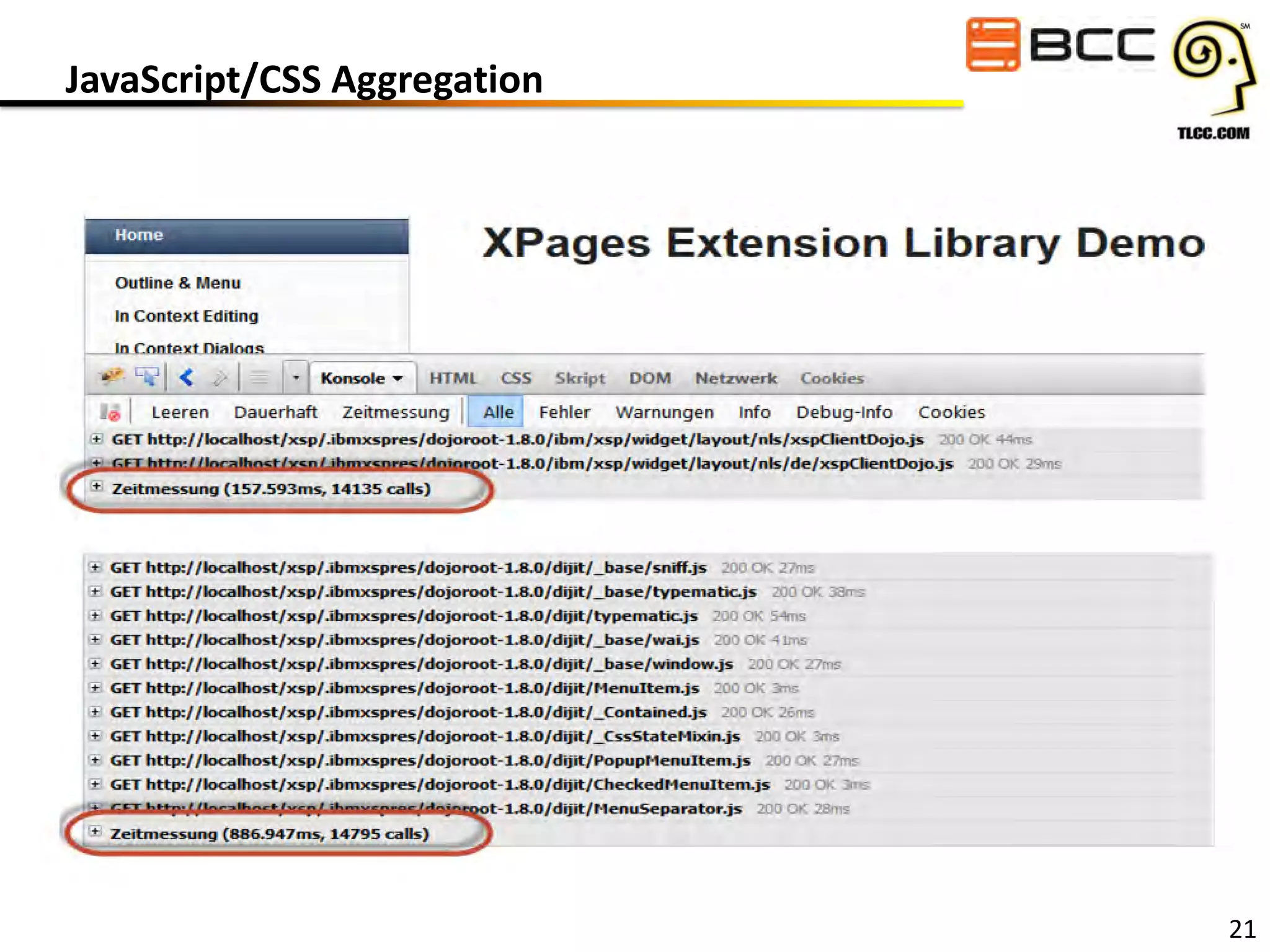

JavaScript/CSS Aggregation

21

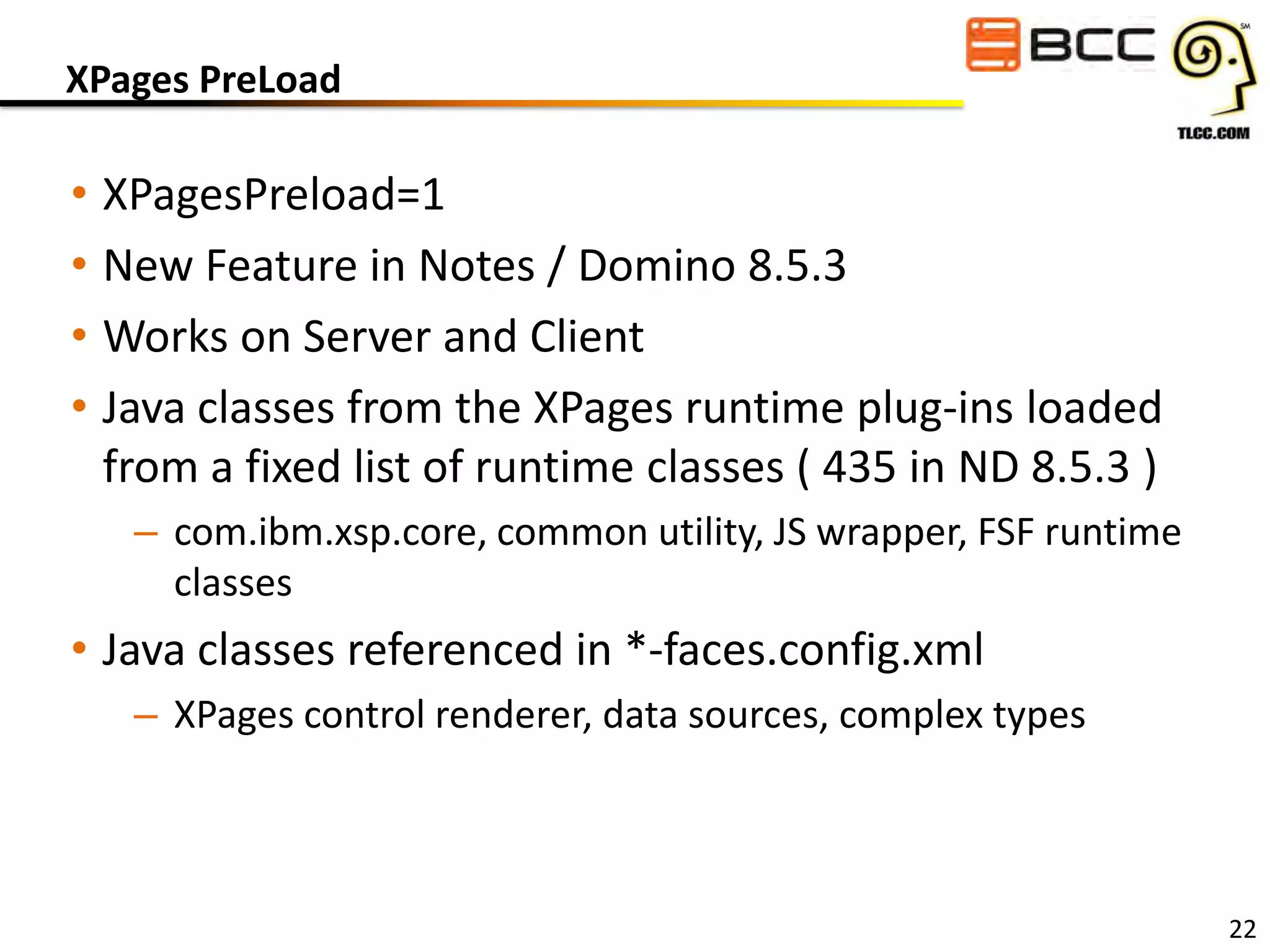

XPages PreLoad

• XPagesPreload=1
• New Feature in Notes / Domino 8.5.3
• Works on Server and Client
• Java classes from the XPages runtime plug-ins loaded
from a fixed list of runtime classes ( 435 in ND 8.5.3 )
– com.ibm.xsp.core, common utility, JS wrapper, FSF runtime
classes

• Java classes referenced in *-faces.config.xml
– XPages control renderer, data sources, complex types

22

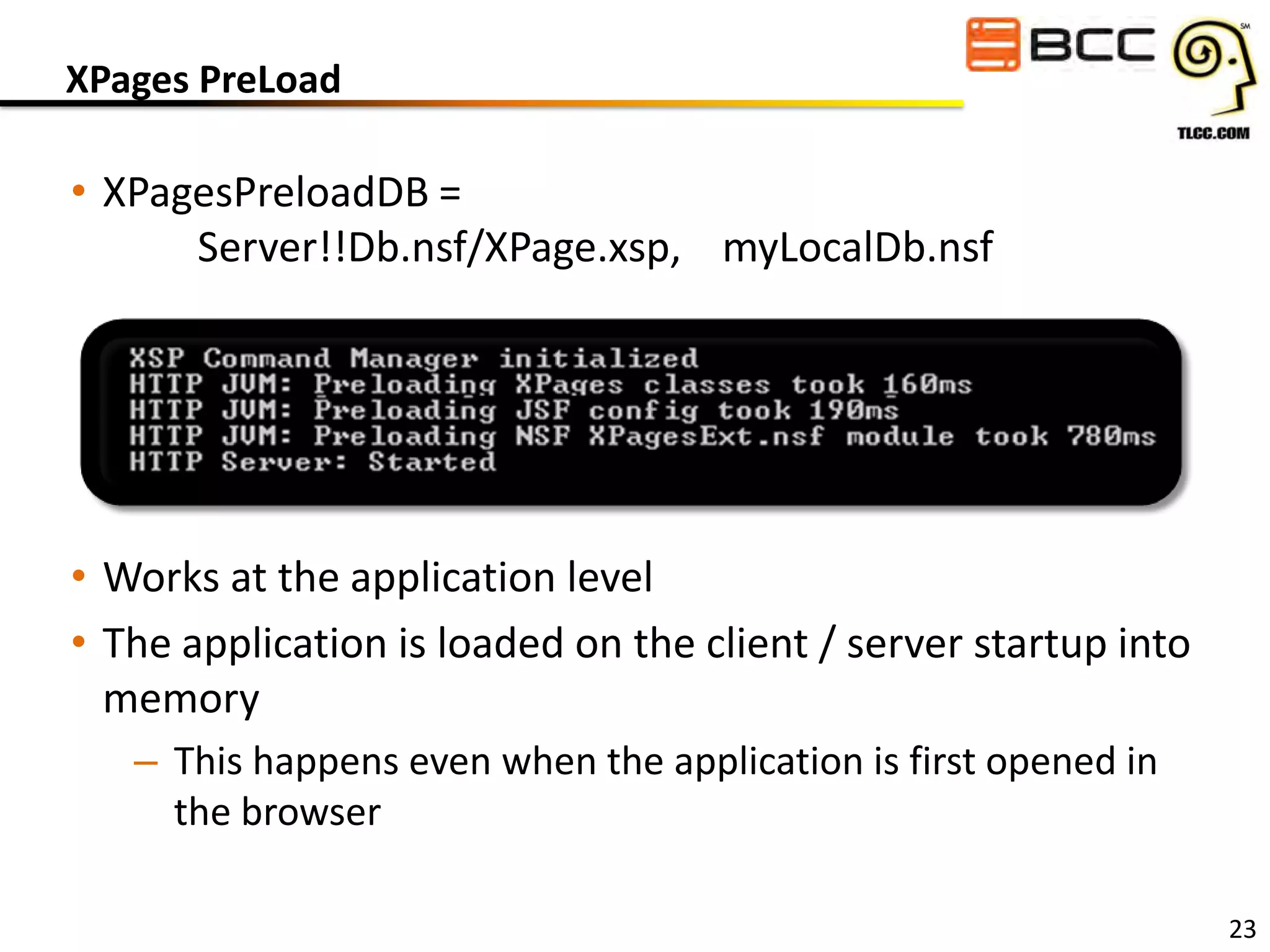

XPages PreLoad

• XPagesPreloadDB =
Server!!Db.nsf/XPage.xsp, myLocalDb.nsf

• Works at the application level
• The application is loaded on the client / server startup into
memory
– This happens even when the application is first opened in
the browser
23

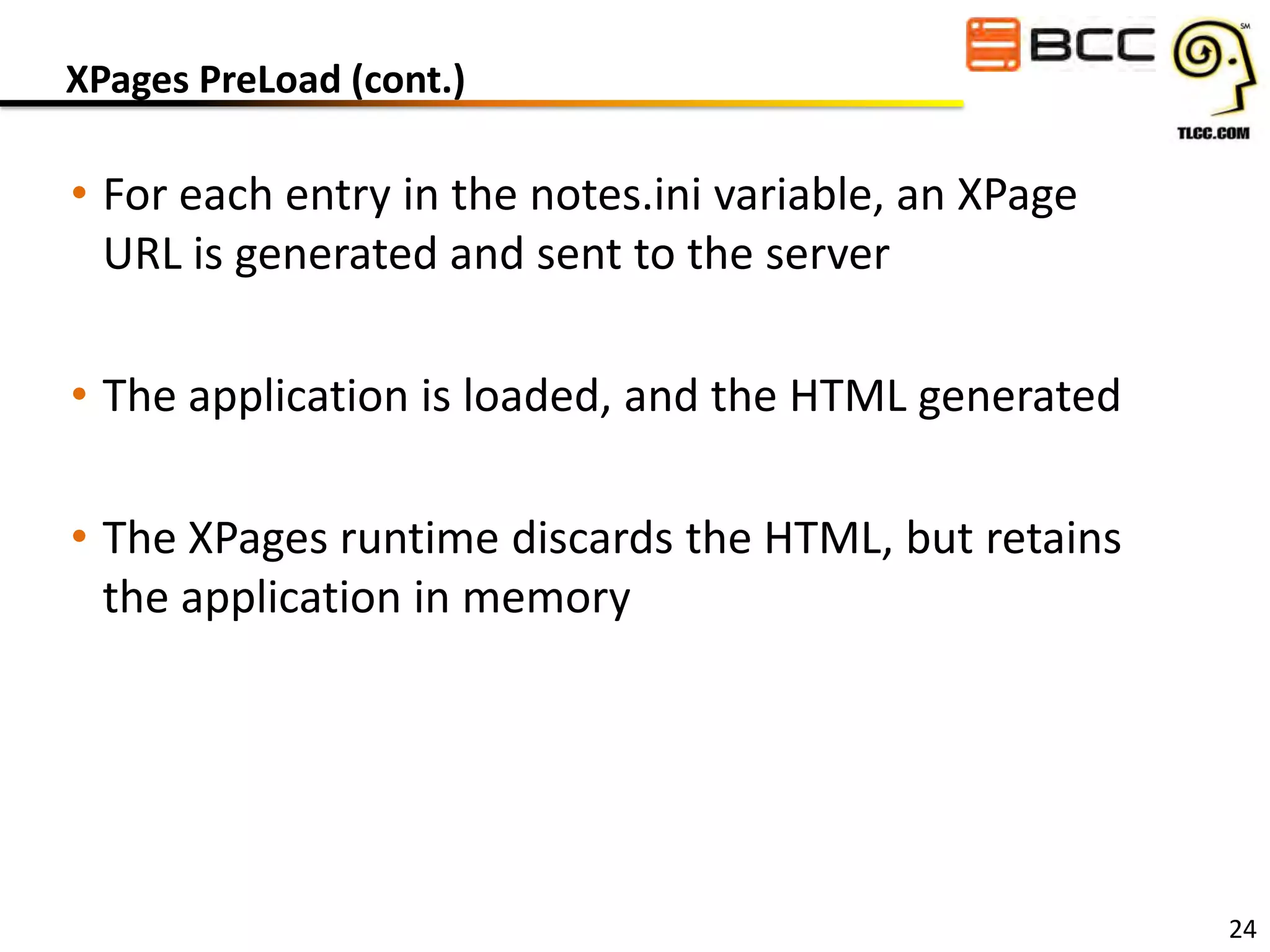

XPages PreLoad (cont.)

• For each entry in the notes.ini variable, an XPage
URL is generated and sent to the server
• The application is loaded, and the HTML generated
• The XPages runtime discards the HTML, but retains
the application in memory

24

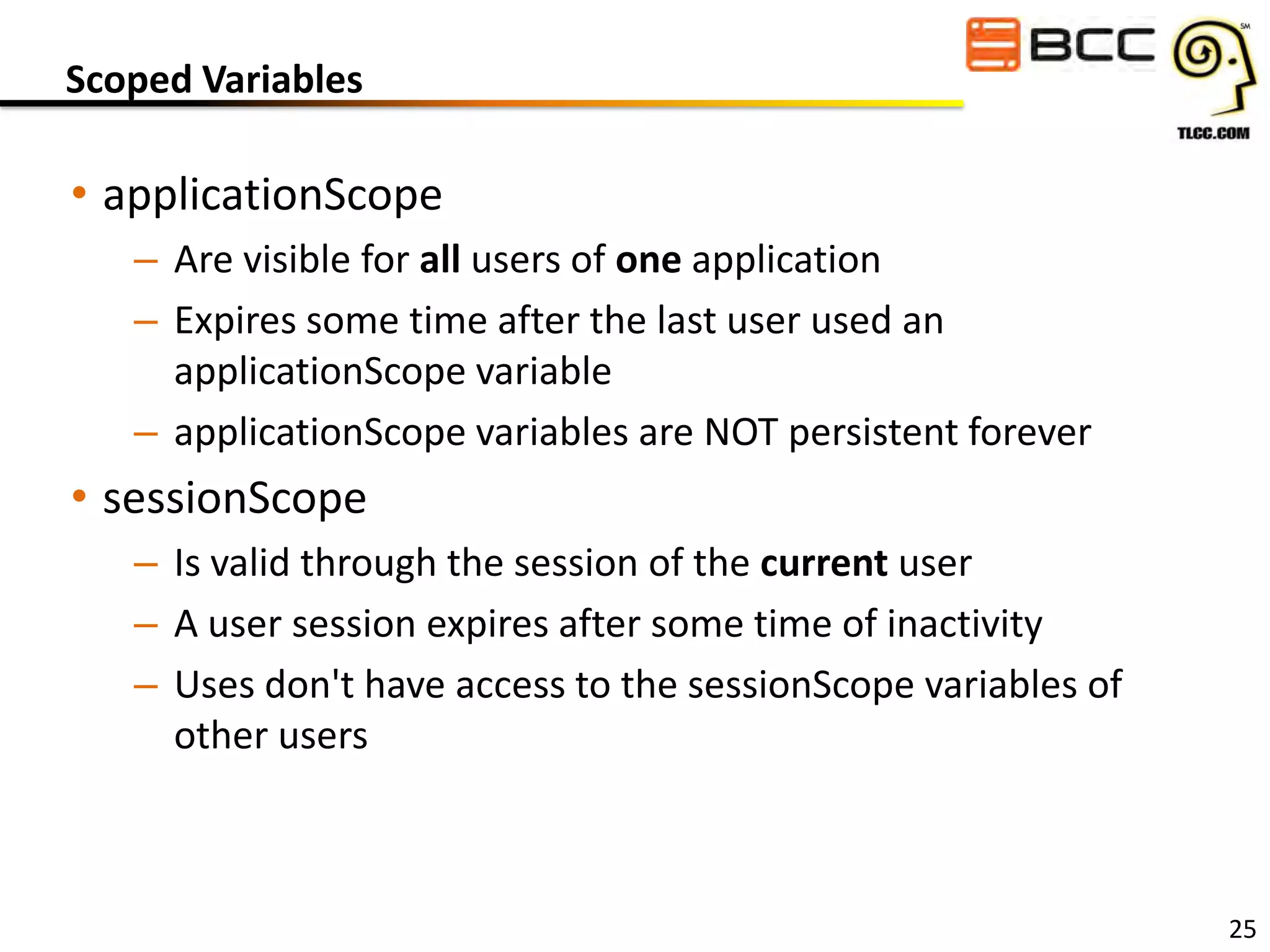

Scoped Variables

• applicationScope
– Are visible for all users of one application
– Expires some time after the last user used an
applicationScope variable
– applicationScope variables are NOT persistent forever

• sessionScope
– Is valid through the session of the current user
– A user session expires after some time of inactivity
– Uses don't have access to the sessionScope variables of
other users

25

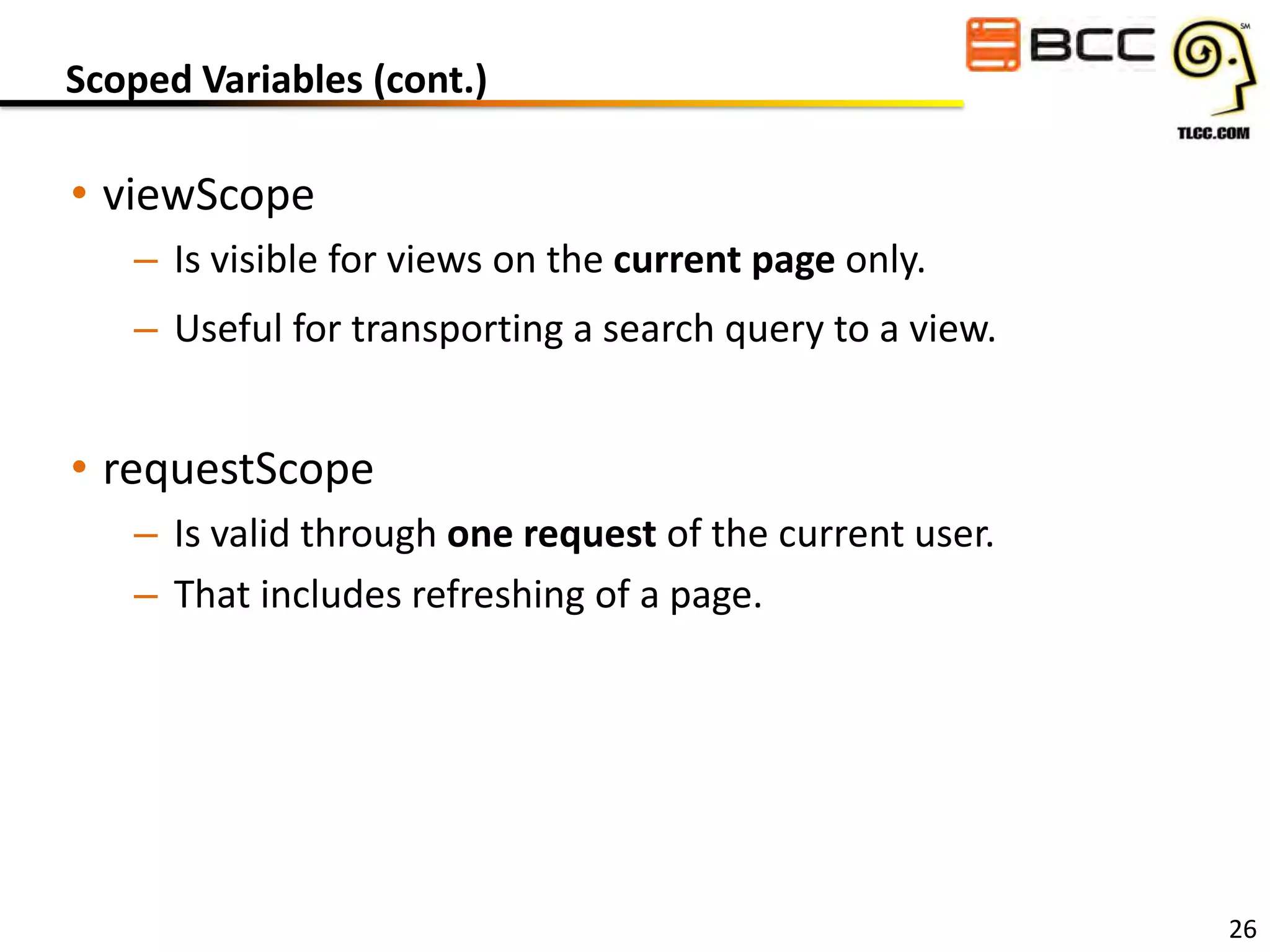

Scoped Variables (cont.)

• viewScope
– Is visible for views on the current page only.
– Useful for transporting a search query to a view.

• requestScope
– Is valid through one request of the current user.
– That includes refreshing of a page.

26

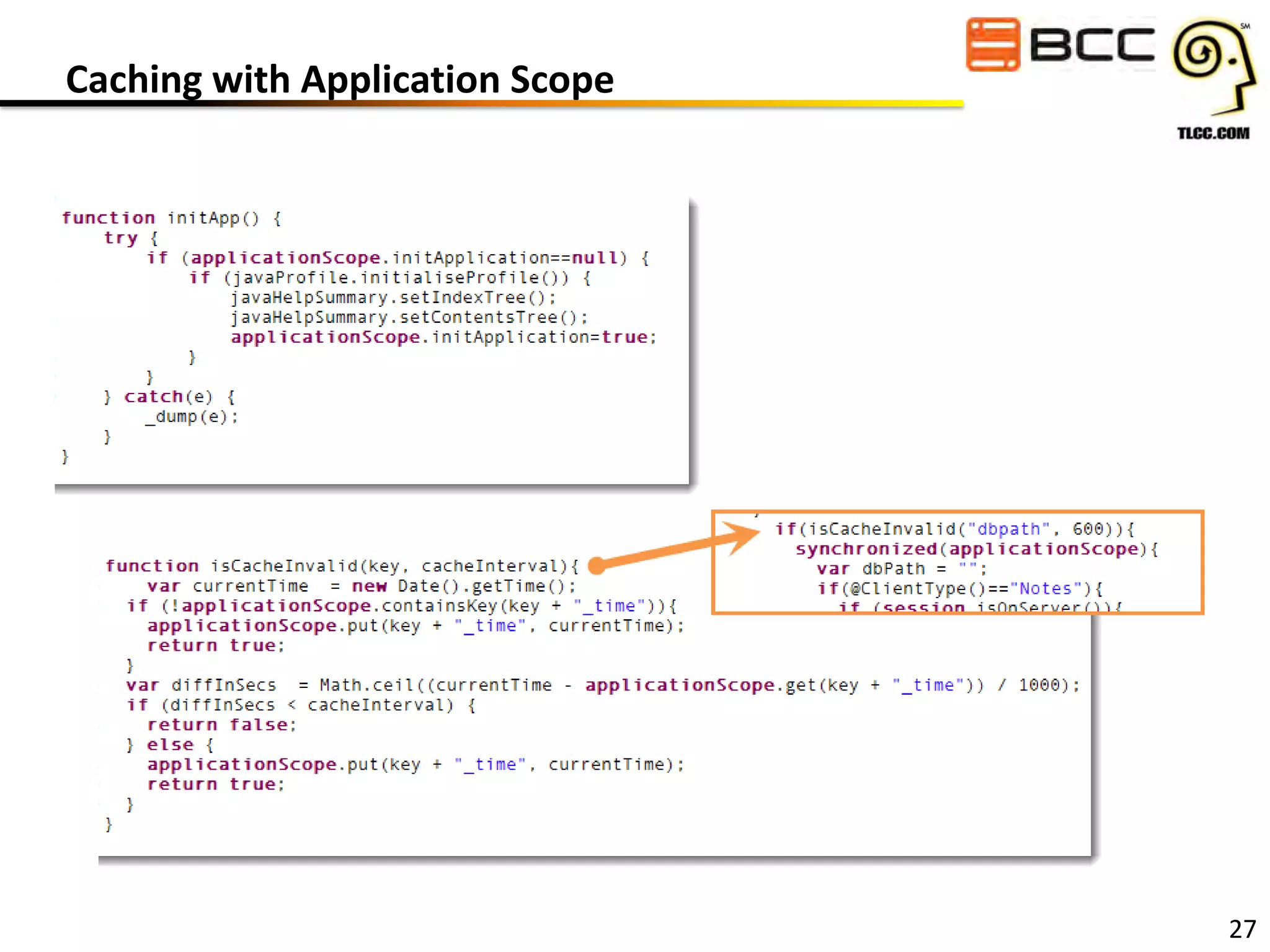

Caching with Application Scope

27

Next Up:

Howard Greenberg
IBM Champion
Founding Partner
TLCC
@TLCCLtd

#XPages
28

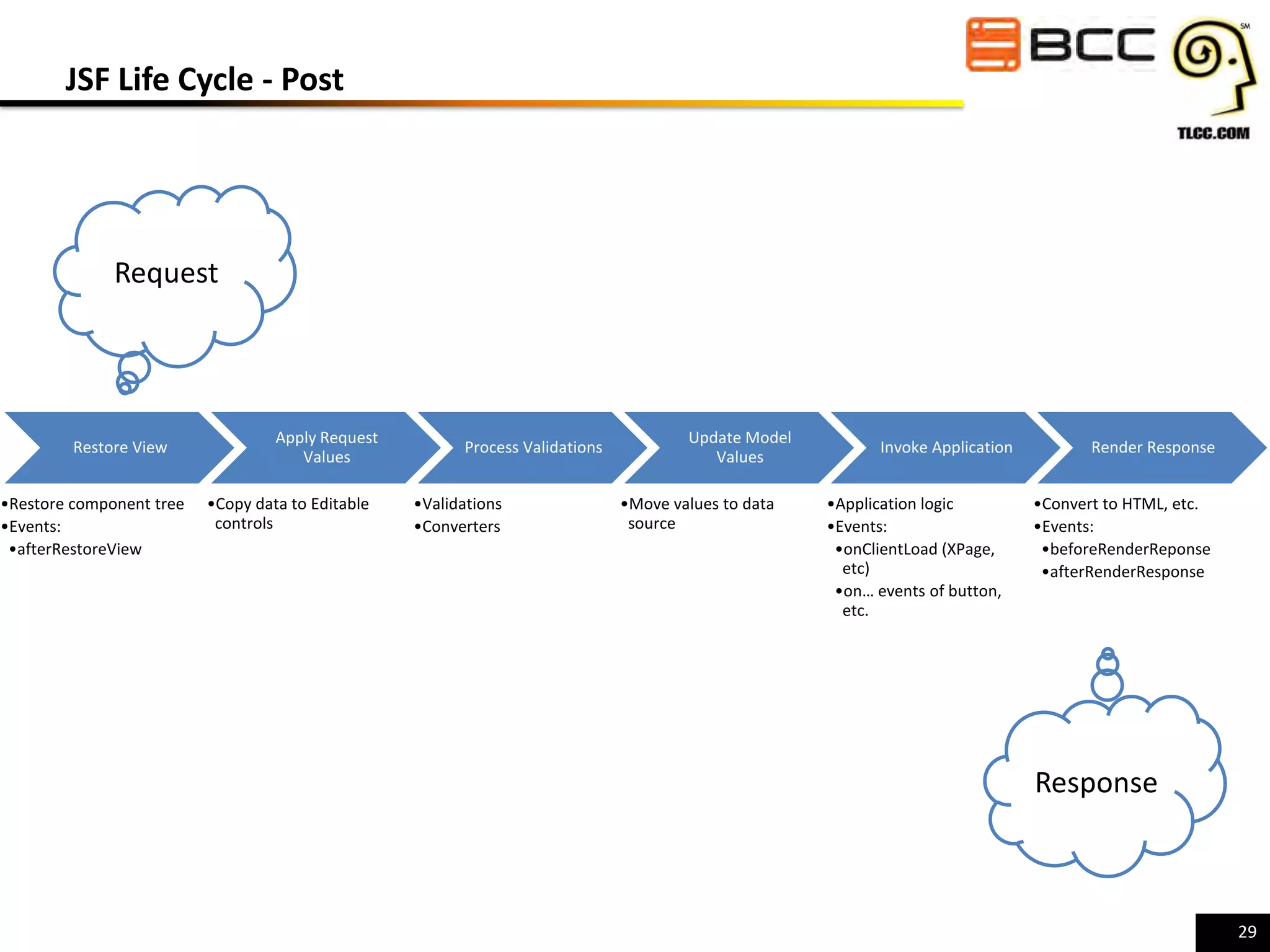

JSF Life Cycle - Post

Request

Restore View
•Restore component tree
•Events:
•afterRestoreView

Apply Request
Values
•Copy data to Editable
controls

Process Validations
•Validations
•Converters

Update Model
Values
•Move values to data
source

Invoke Application
•Application logic
•Events:
•onClientLoad (XPage,
etc)
•on… events of button,
etc.

Render Response
•Convert to HTML, etc.
•Events:
•beforeRenderReponse
•afterRenderResponse

Response

29

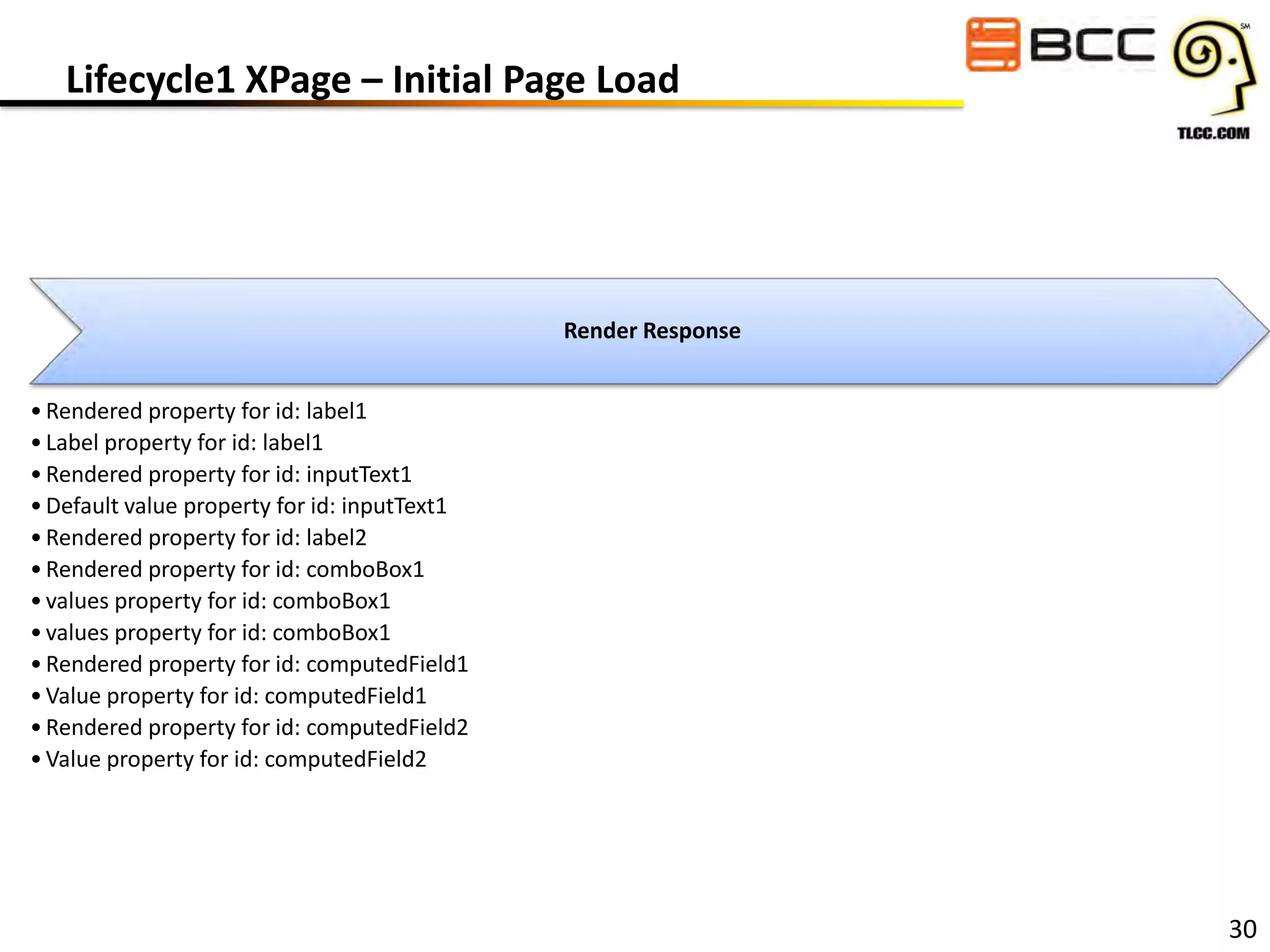

Lifecycle1 XPage – Initial Page Load

Render Response
• Rendered property for id: label1
• Label property for id: label1
• Rendered property for id: inputText1
• Default value property for id: inputText1
• Rendered property for id: label2
• Rendered property for id: comboBox1
• values property for id: comboBox1
• values property for id: comboBox1
• Rendered property for id: computedField1
• Value property for id: computedField1
• Rendered property for id: computedField2
• Value property for id: computedField2

30

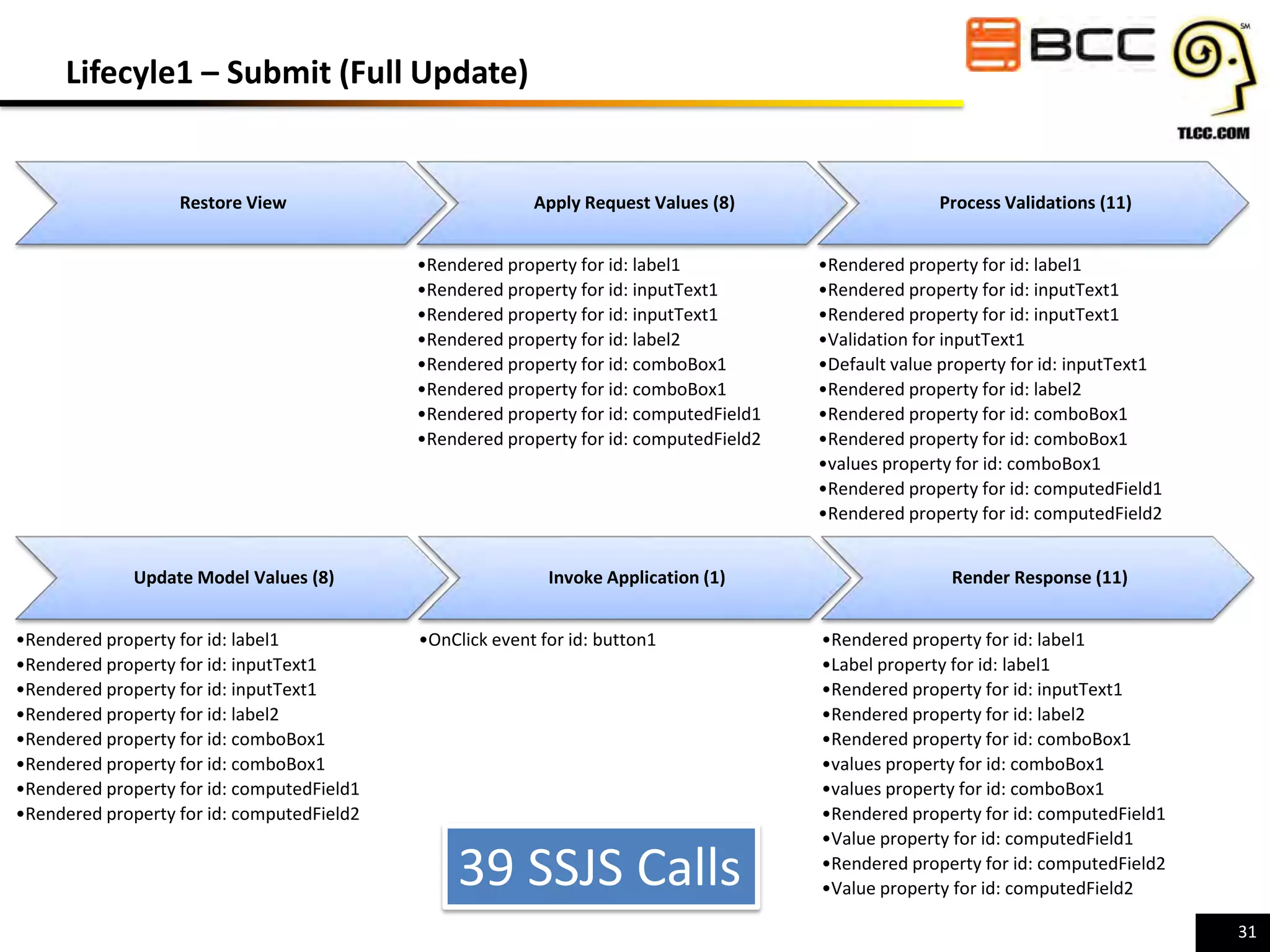

Lifecyle1 – Submit (Full Update)

Restore View

Apply Request Values (8)
•Rendered property for id: label1
•Rendered property for id: inputText1
•Rendered property for id: comboBox1
•Rendered property for id: computedField1

Update Model Values (8)

Invoke Application (1)
•OnClick event for id: button1

39 SSJS Calls

Process Validations (11)
•Validation for inputText1
•Default value property for id: inputText1
•values property for id: comboBox1
Render Response (11)
•Label property for id: label1
•Value property for id: computedField1
31

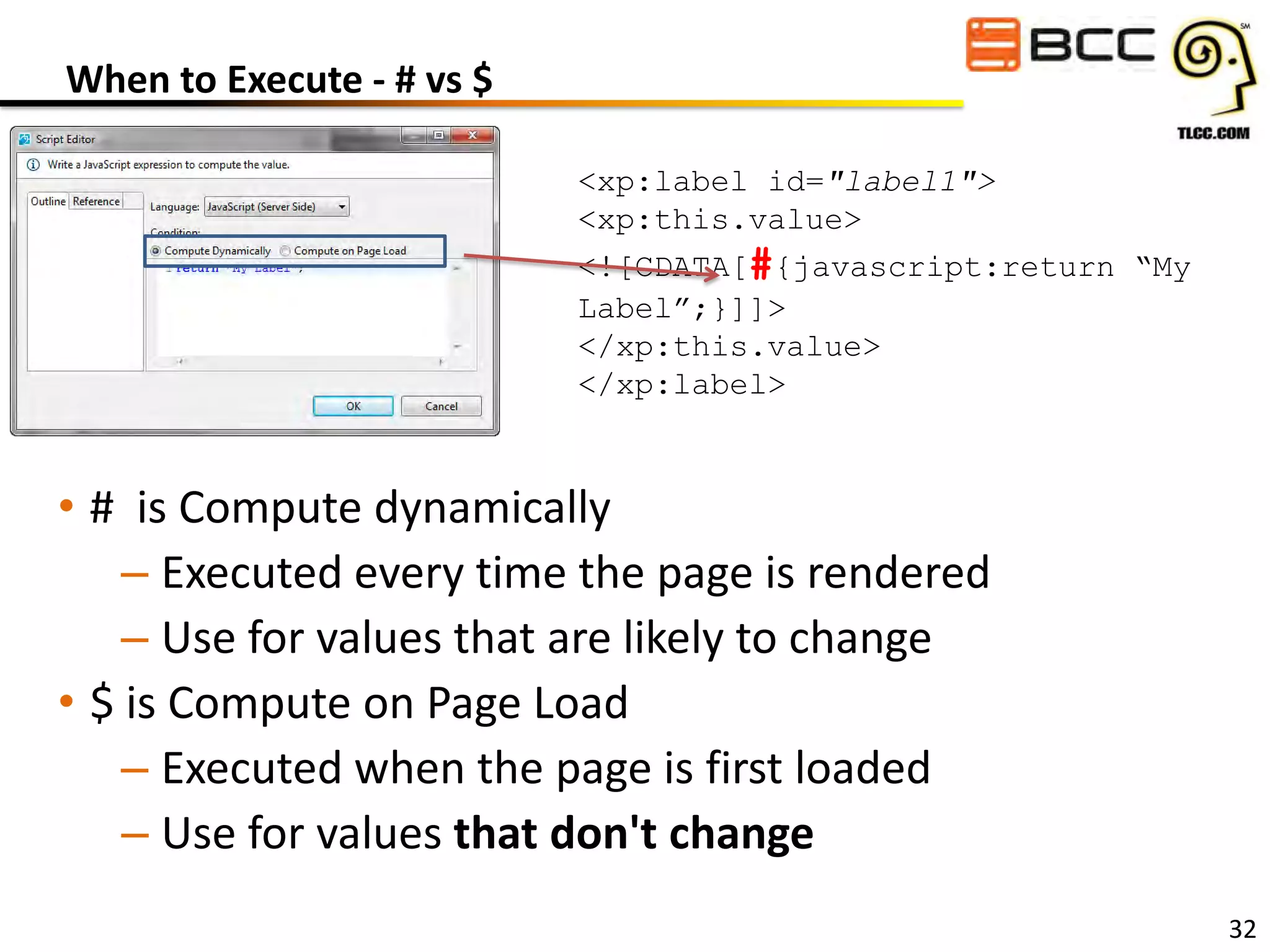

When to Execute - # vs $
<xp:label id="label1">
<xp:this.value>
<![CDATA[#{javascript:return “My
Label”;}]]>
</xp:this.value>
</xp:label>

• # is Compute dynamically
– Executed every time the page is rendered
– Use for values that are likely to change
• $ is Compute on Page Load
– Executed when the page is first loaded
– Use for values that don't change
32

Lifecyle2 – Submit (Full Update) - On Page Load

Restore View

Changed all Rendered and
Values (comboBox) to only
compute on Page Load

Update Model Values

Apply Request Values


6 SSJS Calls, saved 33

Render Response (3)
33

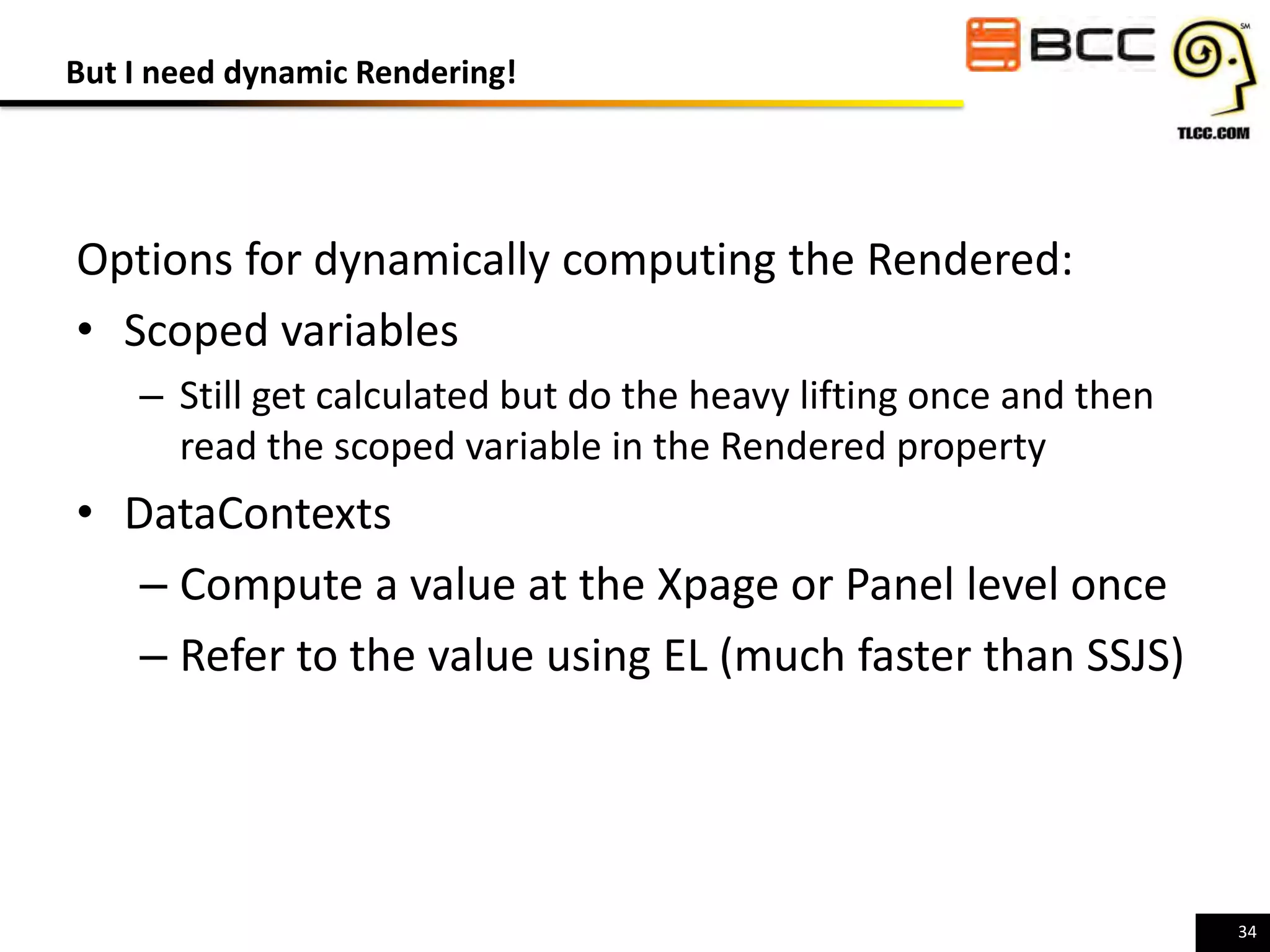

But I need dynamic Rendering!

Options for dynamically computing the Rendered:
• Scoped variables
– Still get calculated but do the heavy lifting once and then
read the scoped variable in the Rendered property

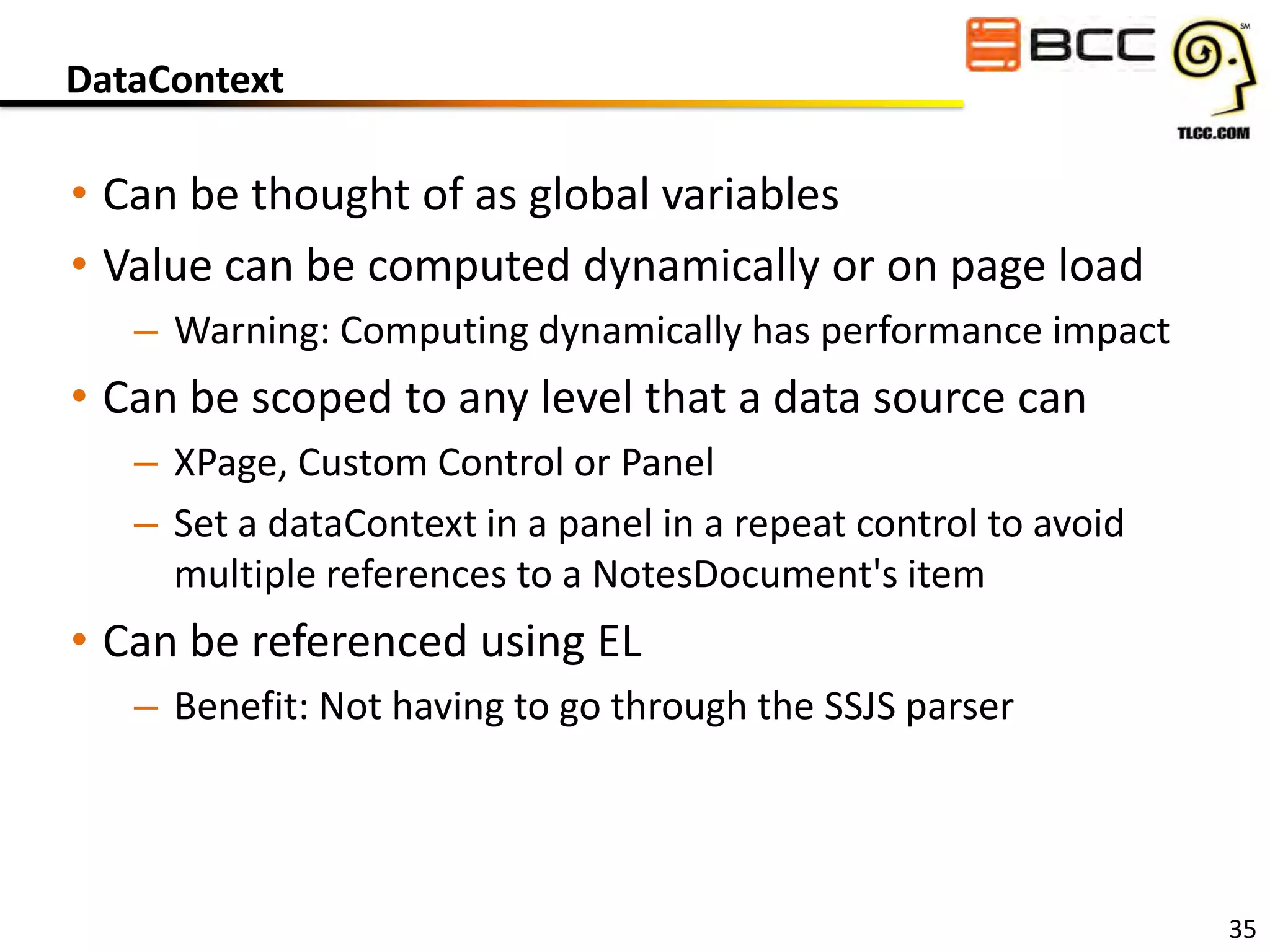

• DataContexts
– Compute a value at the Xpage or Panel level once
– Refer to the value using EL (much faster than SSJS)

34

DataContext

• Can be thought of as global variables
• Value can be computed dynamically or on page load
– Warning: Computing dynamically has performance impact

• Can be scoped to any level that a data source can
– XPage, Custom Control or Panel
– Set a dataContext in a panel in a repeat control to avoid
multiple references to a NotesDocument's item

• Can be referenced using EL
– Benefit: Not having to go through the SSJS parser

35

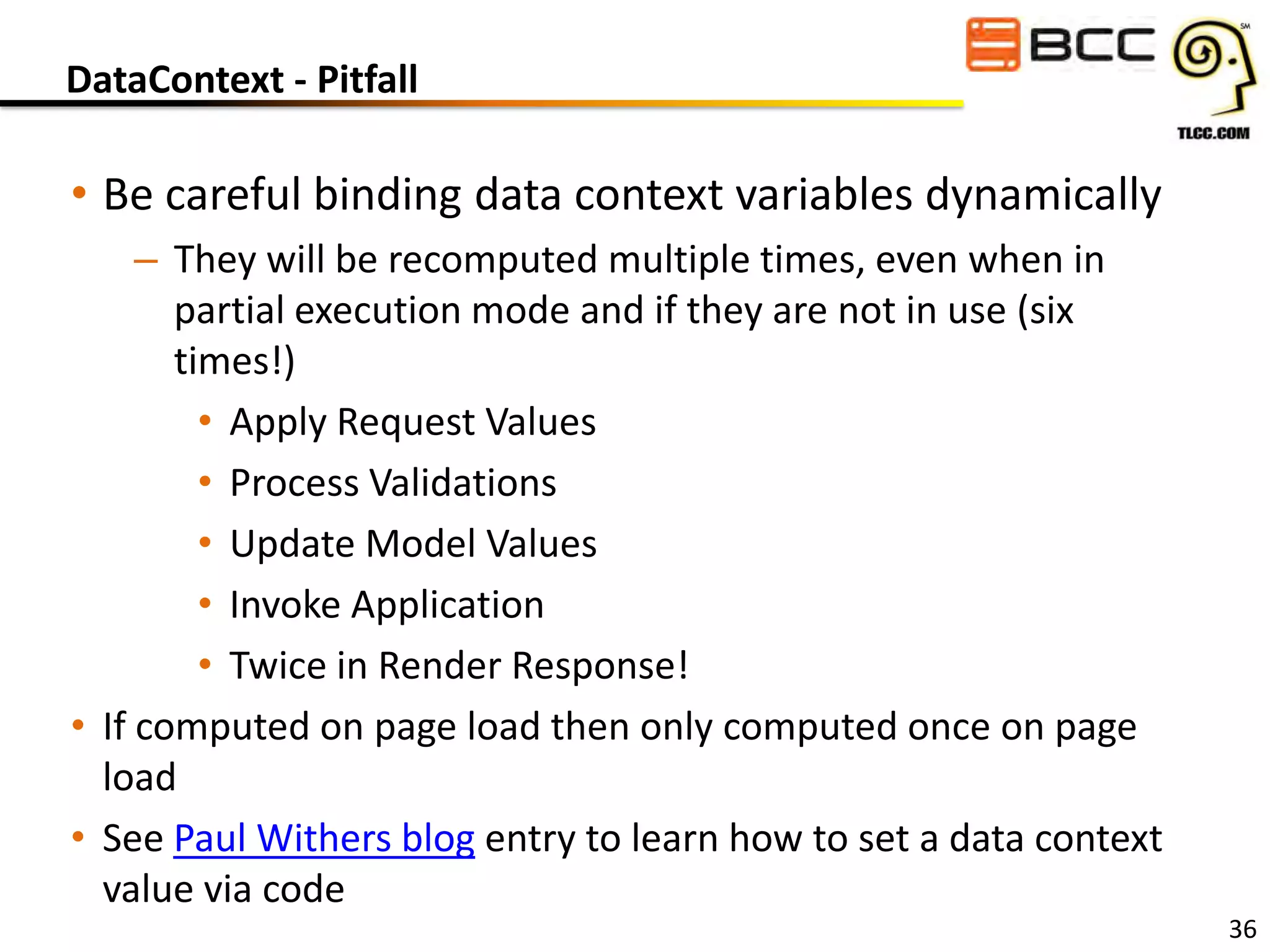

DataContext - Pitfall

• Be careful binding data context variables dynamically
– They will be recomputed multiple times, even when in
partial execution mode and if they are not in use (six
times!)
• Apply Request Values
• Process Validations
• Update Model Values
• Invoke Application
• Twice in Render Response!
• If computed on page load then only computed once on page
load
• See Paul Withers blog entry to learn how to set a data context
value via code

36

Partial Refresh vs. Partial Execution?

• Partial Refresh (Update)
– Computes entire XPage,
only sends back what is
in the partial refresh id
(refreshId)

• Partial Execution
– Only calculates what is in
the area specified
(execId)
37

Partial Refresh Demo - Results

Restore View




Only Savings
were here!

30 SSJS Calls, saved 9

Render Response (2)
38

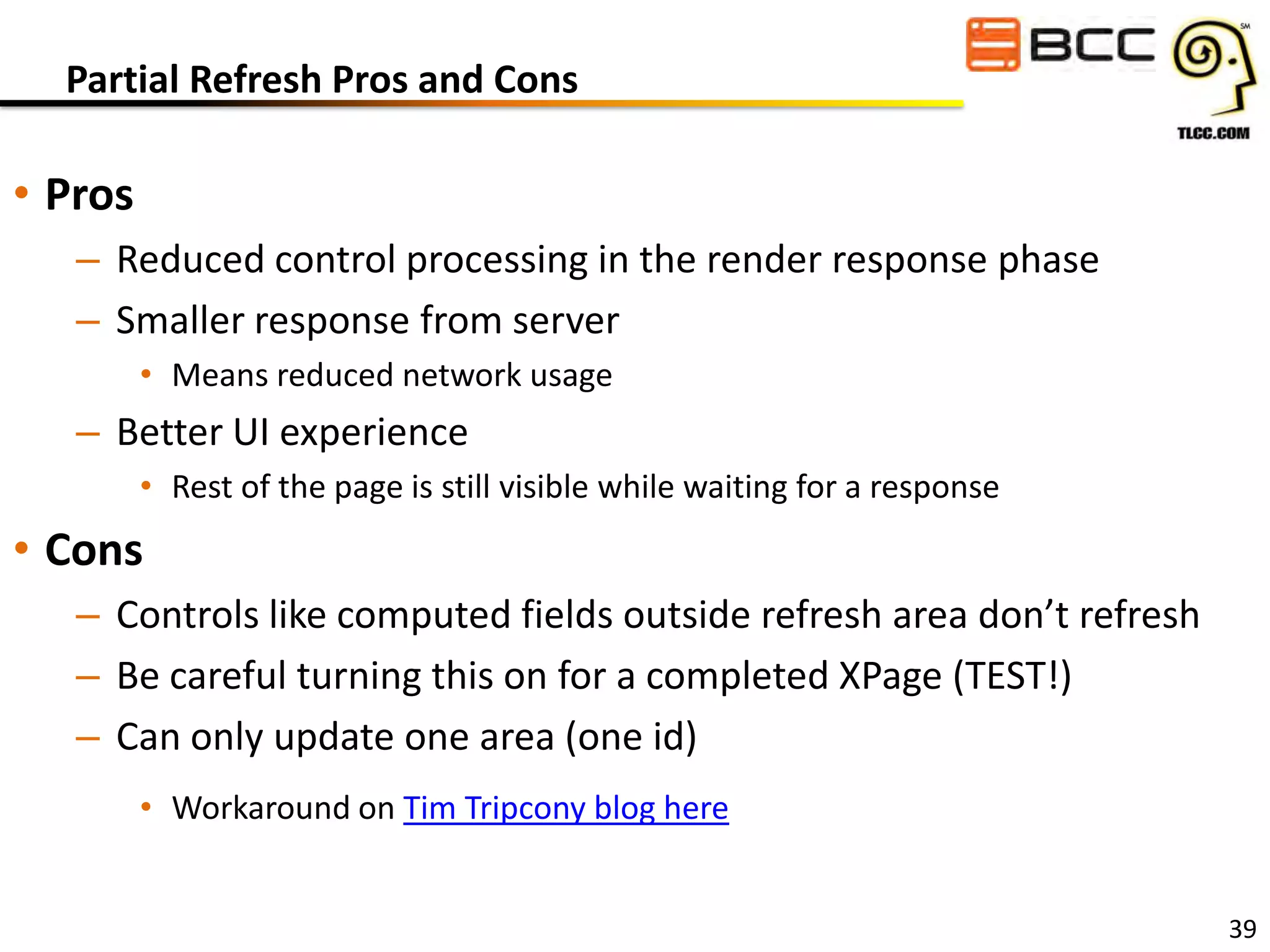

Partial Refresh Pros and Cons

• Pros
– Reduced control processing in the render response phase
– Smaller response from server
• Means reduced network usage

– Better UI experience
• Rest of the page is still visible while waiting for a response

• Cons
– Controls like computed fields outside refresh area don’t refresh
– Be careful turning this on for a completed XPage (TEST!)
– Can only update one area (one id)
• Workaround on Tim Tripcony blog here
39

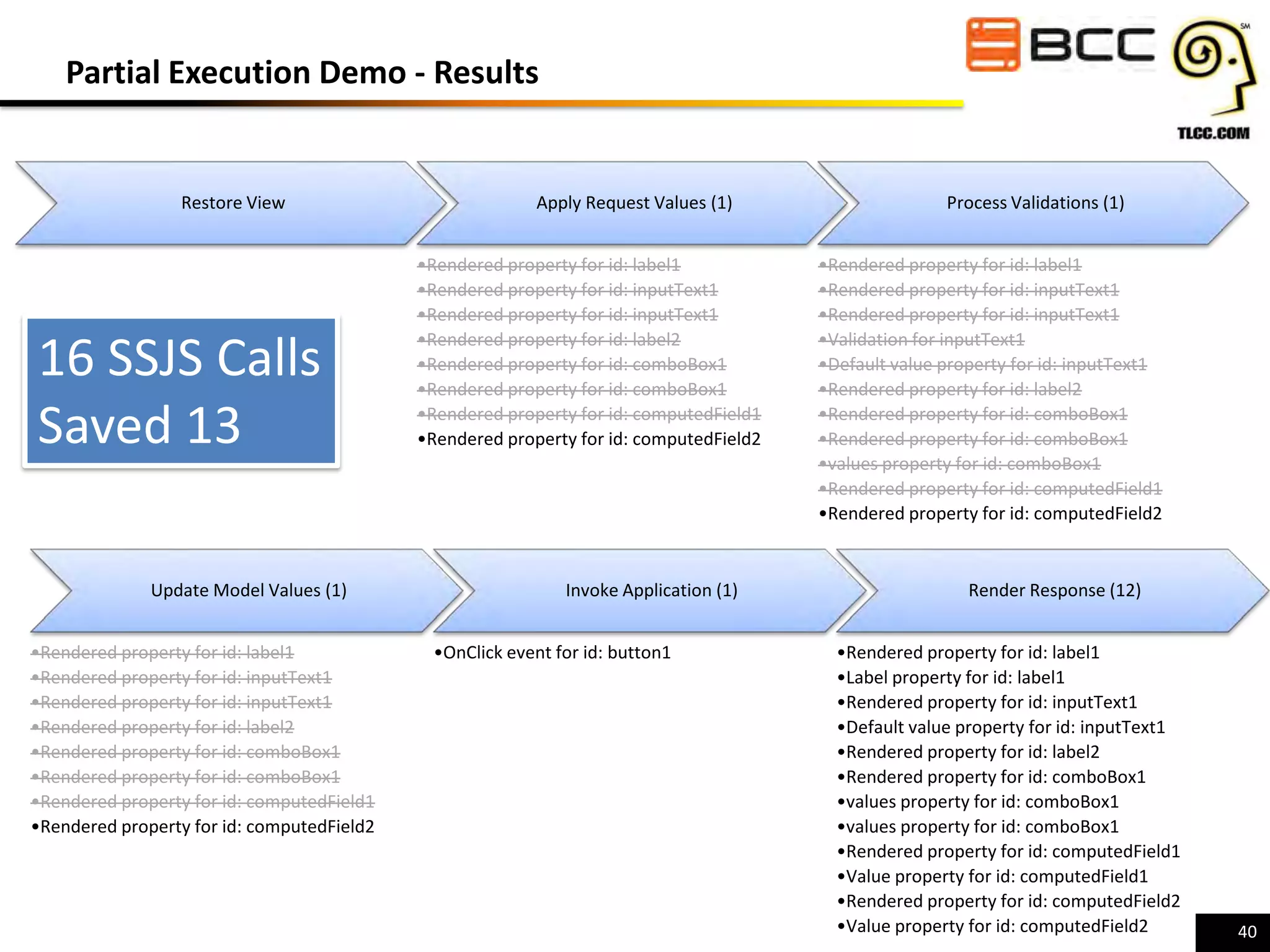

Partial Execution Demo - Results

Restore View

16 SSJS Calls
Saved 13




Render Response (12)

40

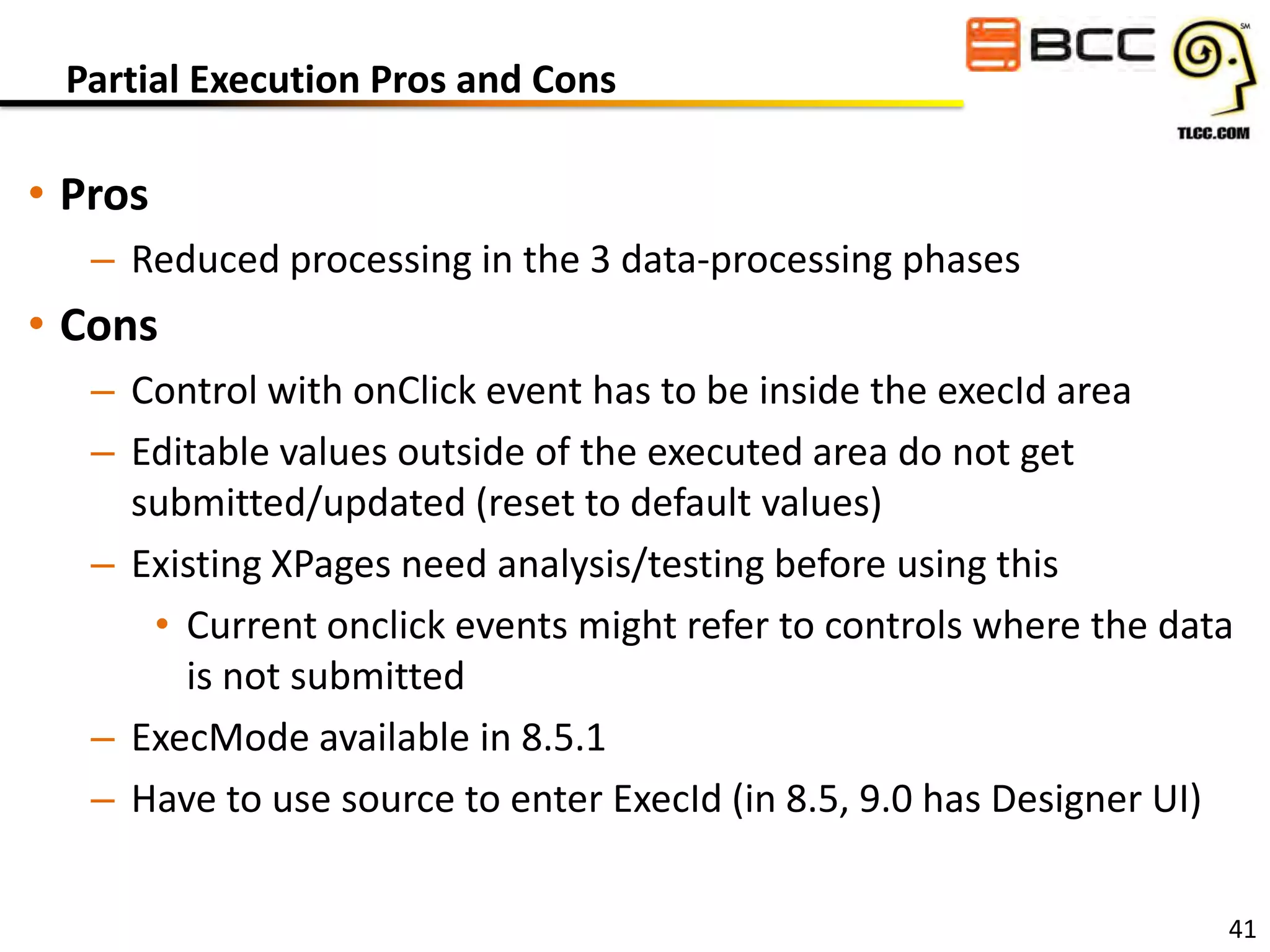

Partial Execution Pros and Cons

• Pros
– Reduced processing in the 3 data-processing phases

• Cons
– Control with onClick event has to be inside the execId area
– Editable values outside of the executed area do not get
submitted/updated (reset to default values)
– Existing XPages need analysis/testing before using this
• Current onclick events might refer to controls where the data
is not submitted
– ExecMode available in 8.5.1
– Have to use source to enter ExecId (in 8.5, 9.0 has Designer UI)
41

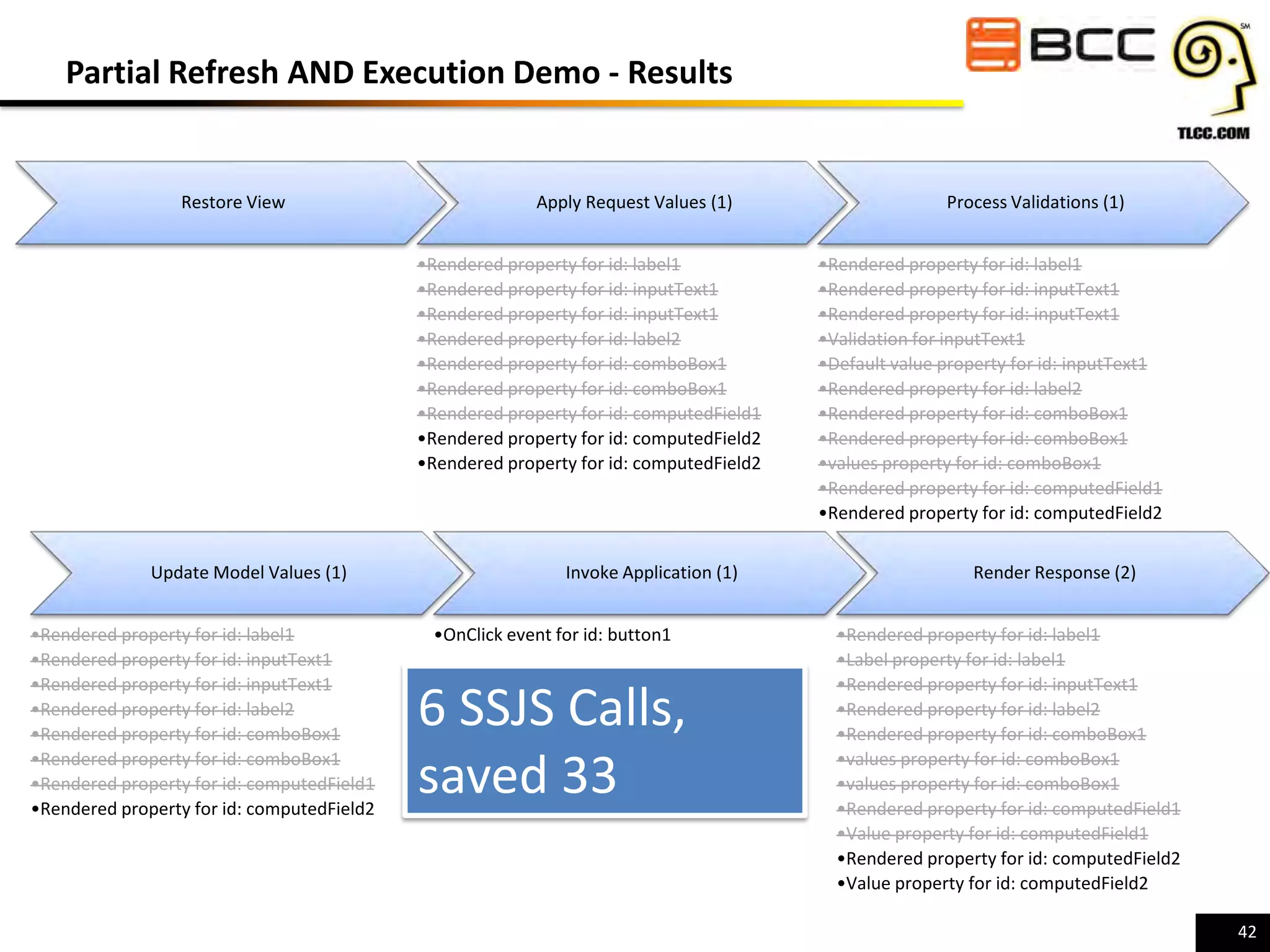

Partial Refresh AND Execution Demo - Results

Restore View




6 SSJS Calls,
saved 33

Render Response (2)
42

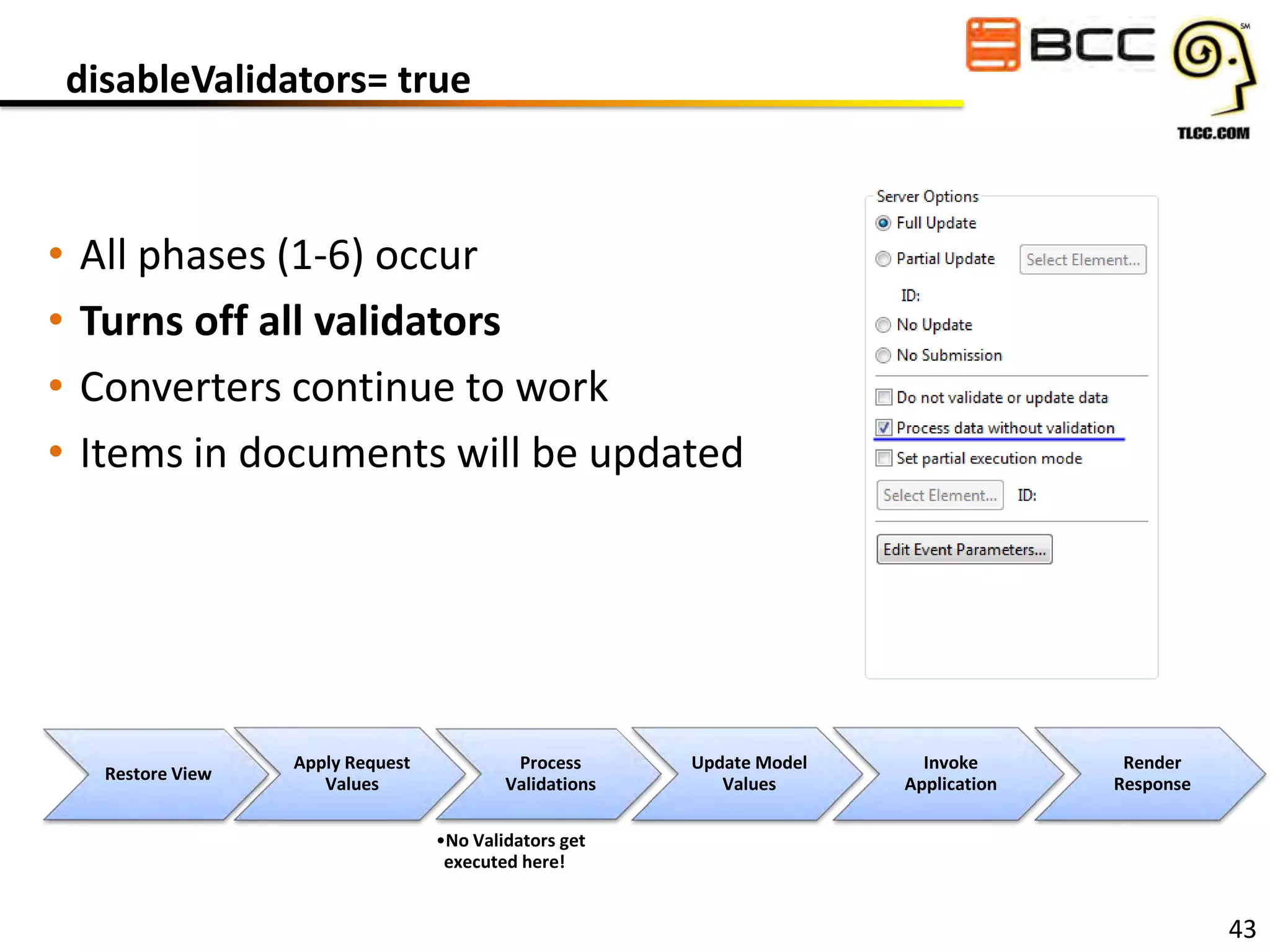

disableValidators= true

•
•
•
•

All phases (1-6) occur
Turns off all validators
Converters continue to work
Items in documents will be updated

Restore View

Apply Request
Values

Process
Validations

Update Model
Values

Invoke
Application

Render
Response

•No Validators get
executed here!

43

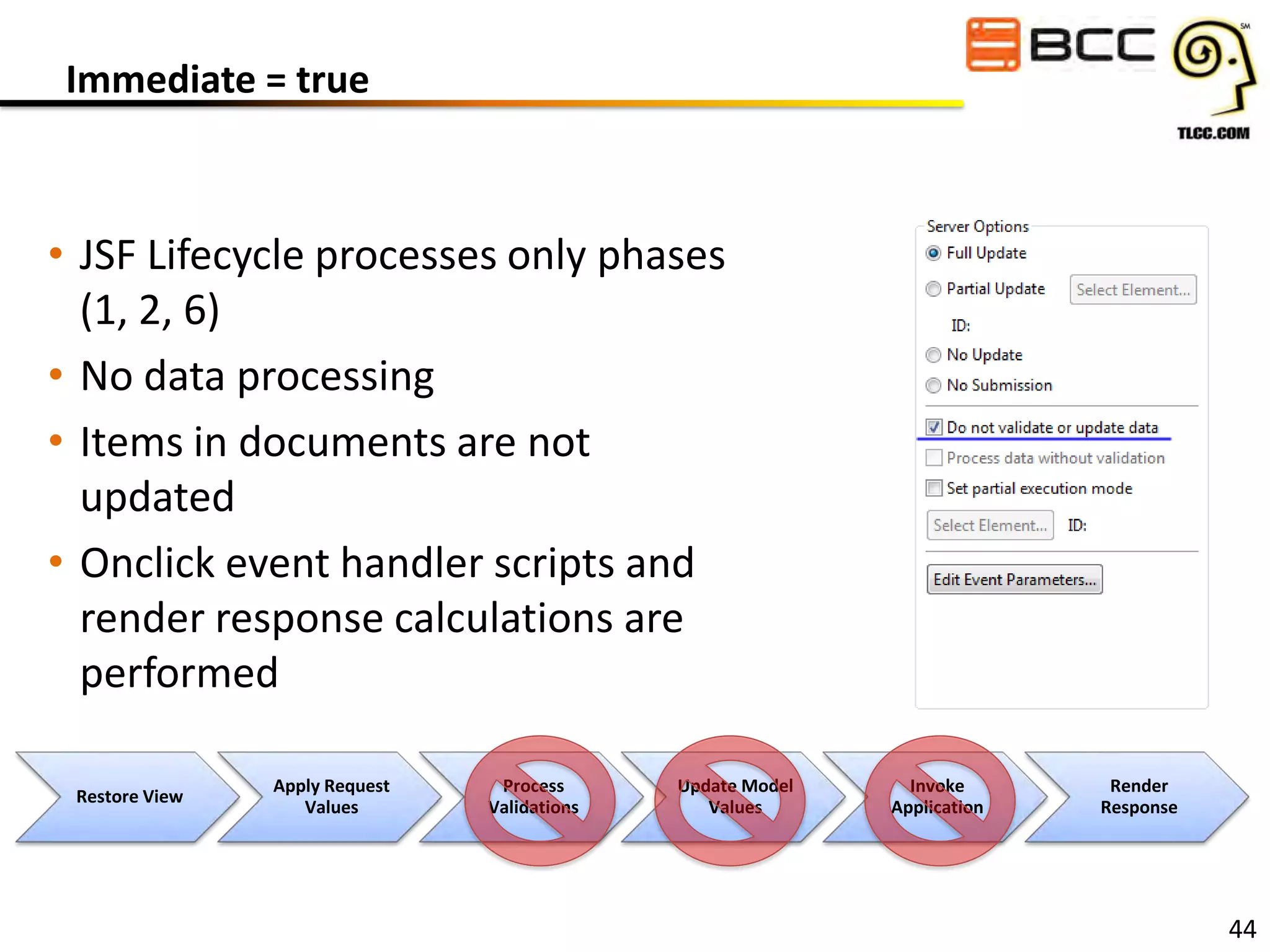

Immediate = true

• JSF Lifecycle processes only phases
(1, 2, 6)
• No data processing
• Items in documents are not
updated
• Onclick event handler scripts and
render response calculations are
performed
Restore View

Apply Request
Values

Process
Validations

Update Model
Values

Invoke
Application

Render
Response

44

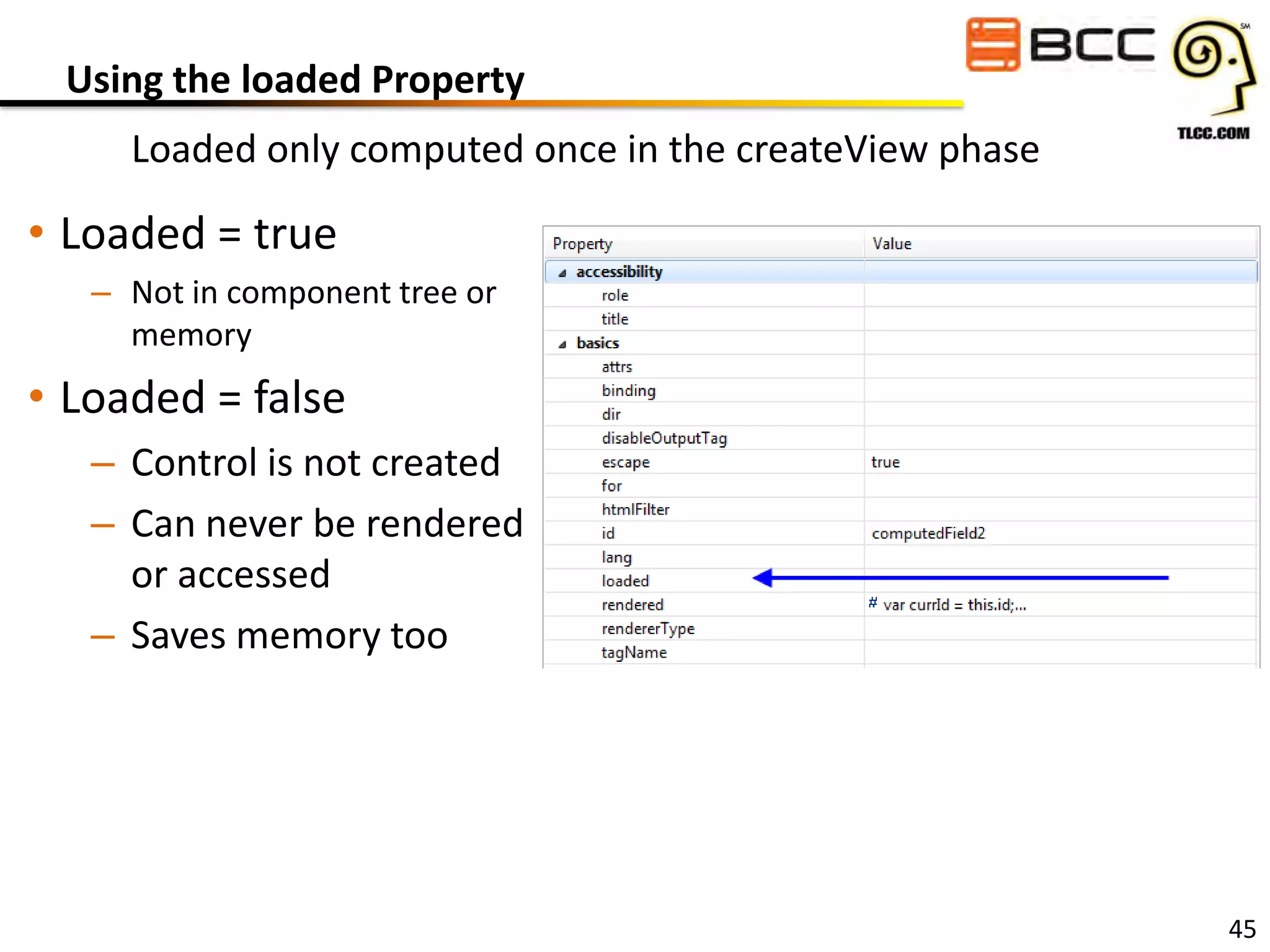

Using the loaded Property
Loaded only computed once in the createView phase

• Loaded = true
– Not in component tree or
memory

• Loaded = false
– Control is not created
– Can never be rendered
or accessed
– Saves memory too

45

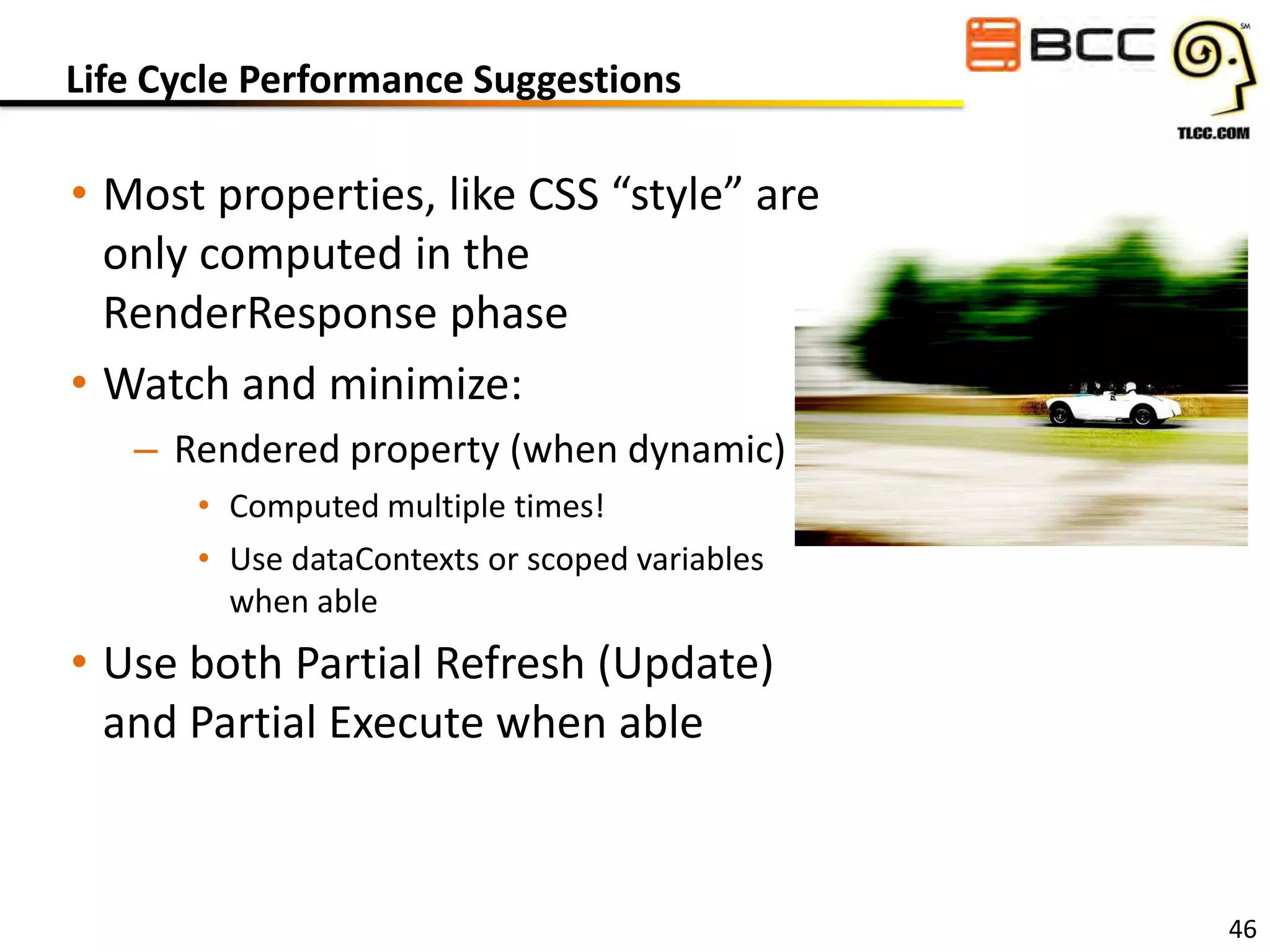

Life Cycle Performance Suggestions

• Most properties, like CSS “style” are
only computed in the
RenderResponse phase
• Watch and minimize:
– Rendered property (when dynamic)
• Computed multiple times!
• Use dataContexts or scoped variables
when able

• Use both Partial Refresh (Update)
and Partial Execute when able

46

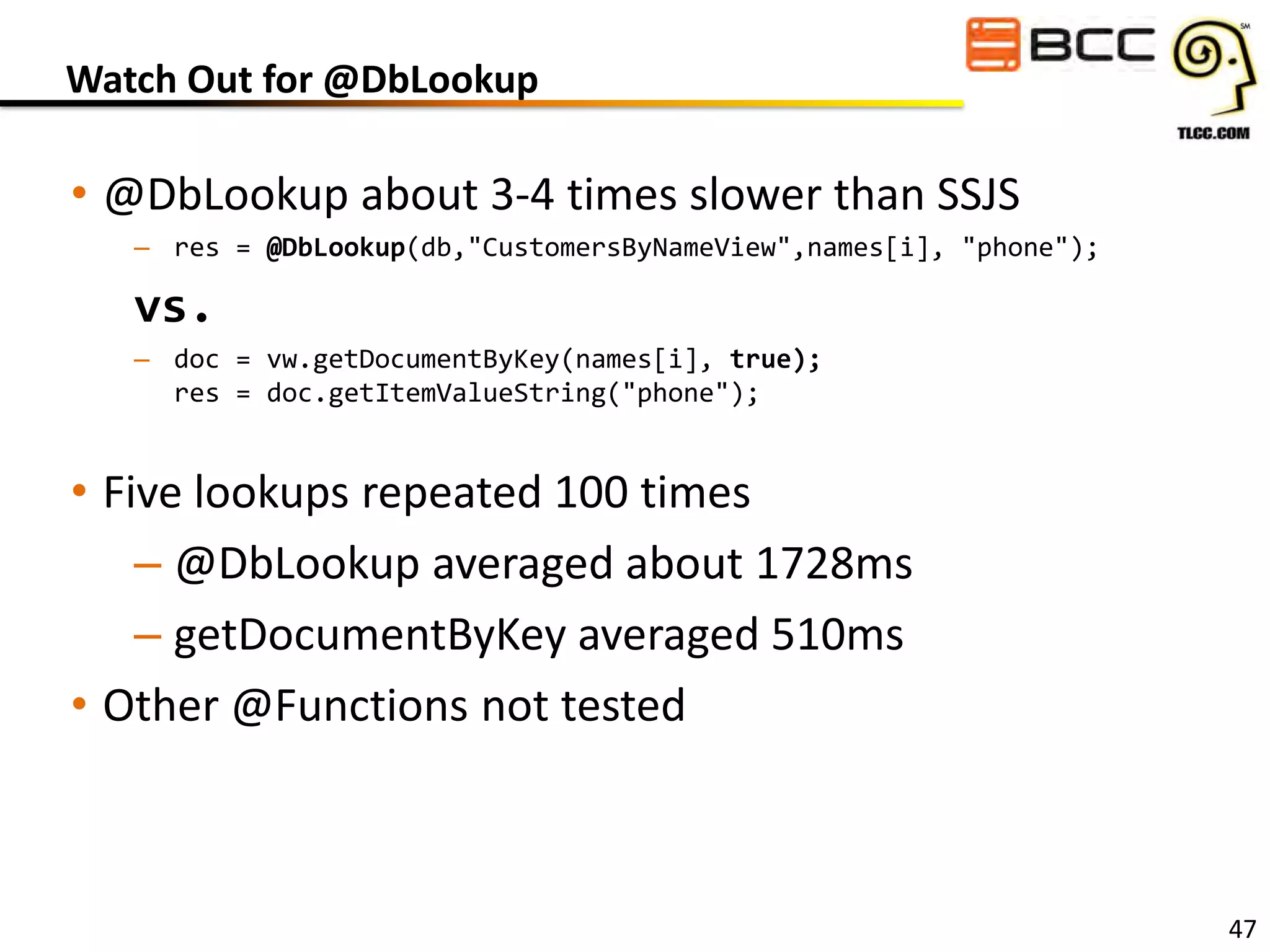

Watch Out for @DbLookup

• @DbLookup about 3-4 times slower than SSJS
– res = @DbLookup(db,"CustomersByNameView",names[i], "phone");

vs.
– doc = vw.getDocumentByKey(names[i], true);
res = doc.getItemValueString("phone");

• Five lookups repeated 100 times
– @DbLookup averaged about 1728ms
– getDocumentByKey averaged 510ms
• Other @Functions not tested

47

Next Up:

Ulrich Krause
IBM Champion
Senior Software
Architect
BCC
@Eknori, @BCCFFM

#XPages
48

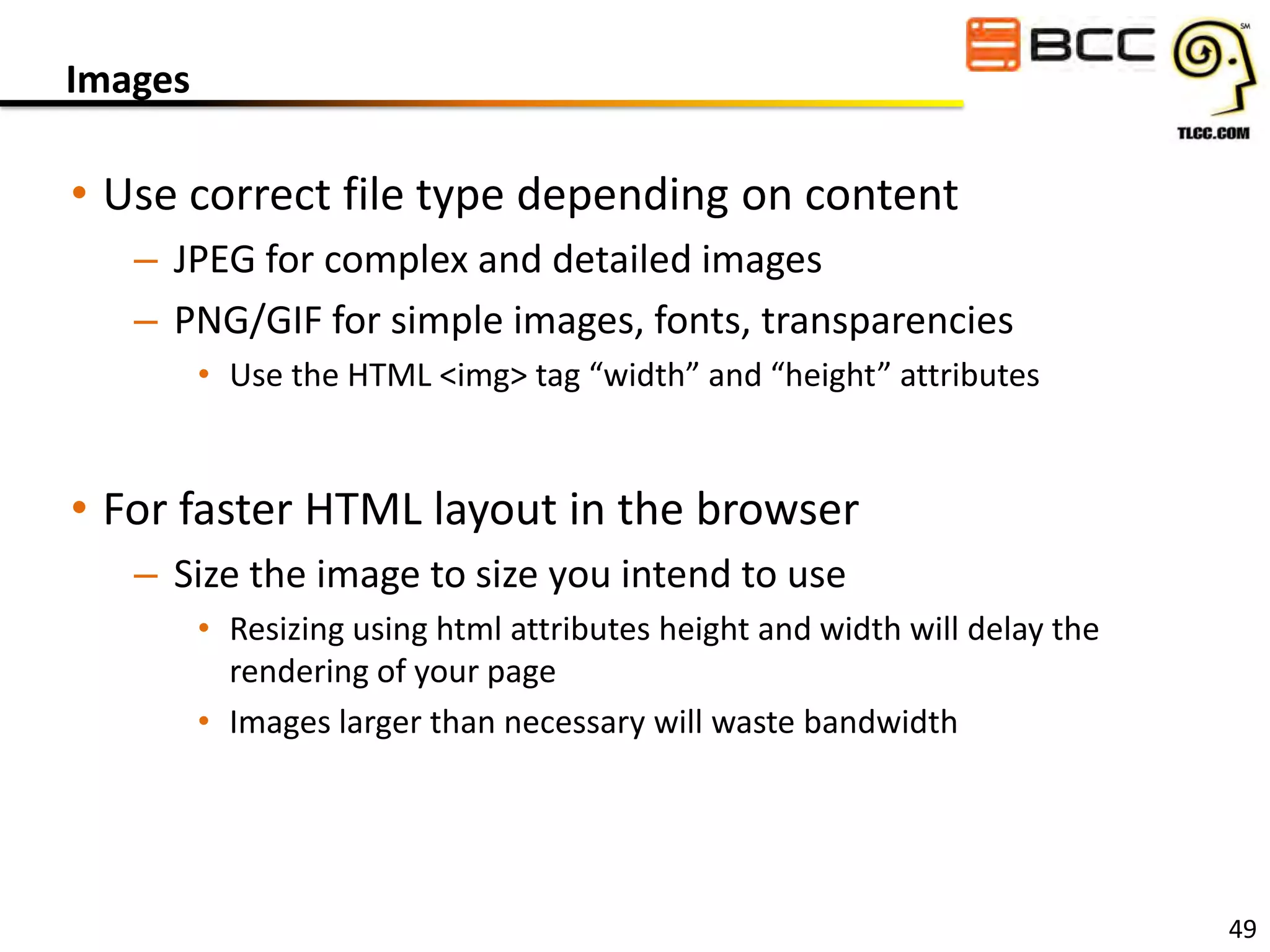

Images

• Use correct file type depending on content
– JPEG for complex and detailed images
– PNG/GIF for simple images, fonts, transparencies
• Use the HTML <img> tag “width” and “height” attributes

• For faster HTML layout in the browser
– Size the image to size you intend to use
• Resizing using html attributes height and width will delay the
rendering of your page
• Images larger than necessary will waste bandwidth

49

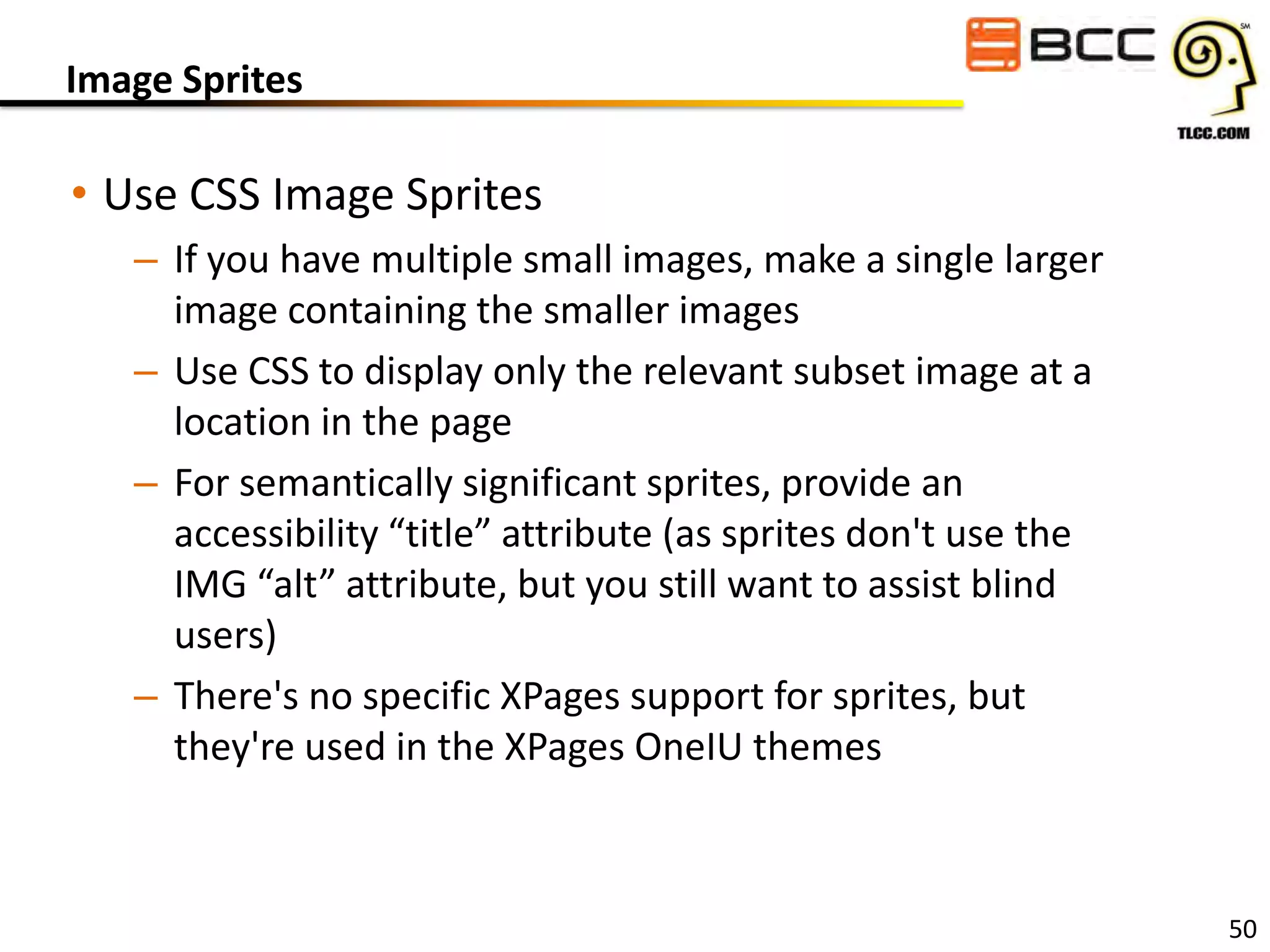

Image Sprites

• Use CSS Image Sprites
– If you have multiple small images, make a single larger
image containing the smaller images
– Use CSS to display only the relevant subset image at a
location in the page
– For semantically significant sprites, provide an
accessibility “title” attribute (as sprites don't use the
IMG “alt” attribute, but you still want to assist blind
users)
– There's no specific XPages support for sprites, but
they're used in the XPages OneIU themes

50

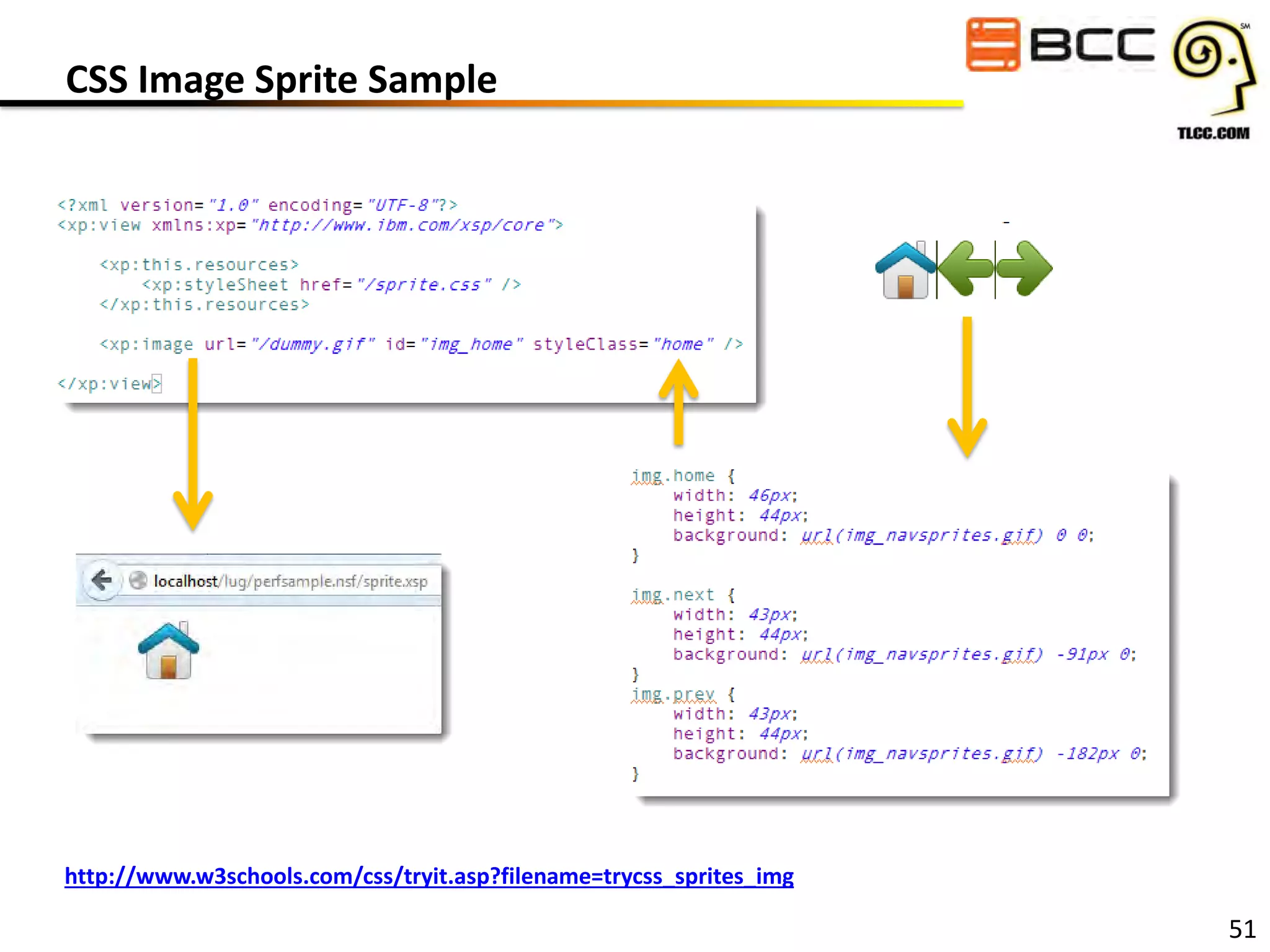

CSS Image Sprite Sample

http://www.w3schools.com/css/tryit.asp?filename=trycss_sprites_img

51

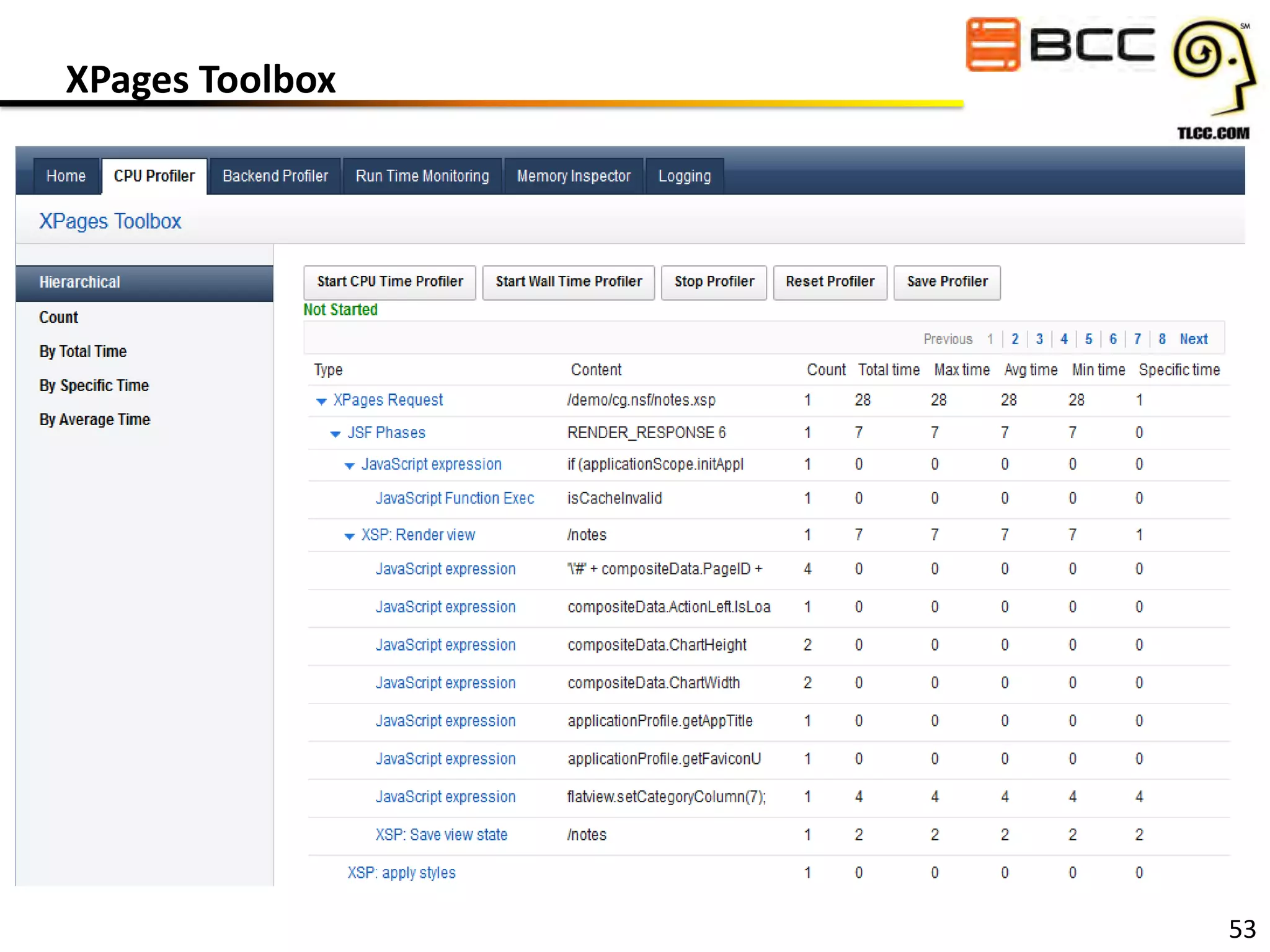

XPages Toolbox

• XPages based Application
– Runs on the Domino server or the Notes client
– An NSF needs to be installed on the server/Notes client
– A profiler jar file should be added to the JVM launch options

• Measures CPU performance and memory allocation
• Available from OpenNTF.org
– Free open source project
• http://www.openntf.org/internal/home.nsf/project.xsp?action=open
Document&name=XPages%20Toolbox

• Extended in 8.5.2 to support backend classes profiling

52

XPages Toolbox

• Generate a heap dump of the JVM running in the HTTP
task
– A button in the XPages profiler generates the heap dump
– From the Domino console
• tell http xsp heapdump (triggers com.ibm.jvm.Dump.HeapDump())
• tell http xsp javadump (triggers com.ibm.jvm.Dump.JavaDump())

• Analyze the heap dump using the Eclipse memory
analyzer
– http://www.eclipse.org/mat/
– http://www.ibm.com/developerworks/java/jdk/tools/dtfj.html

54

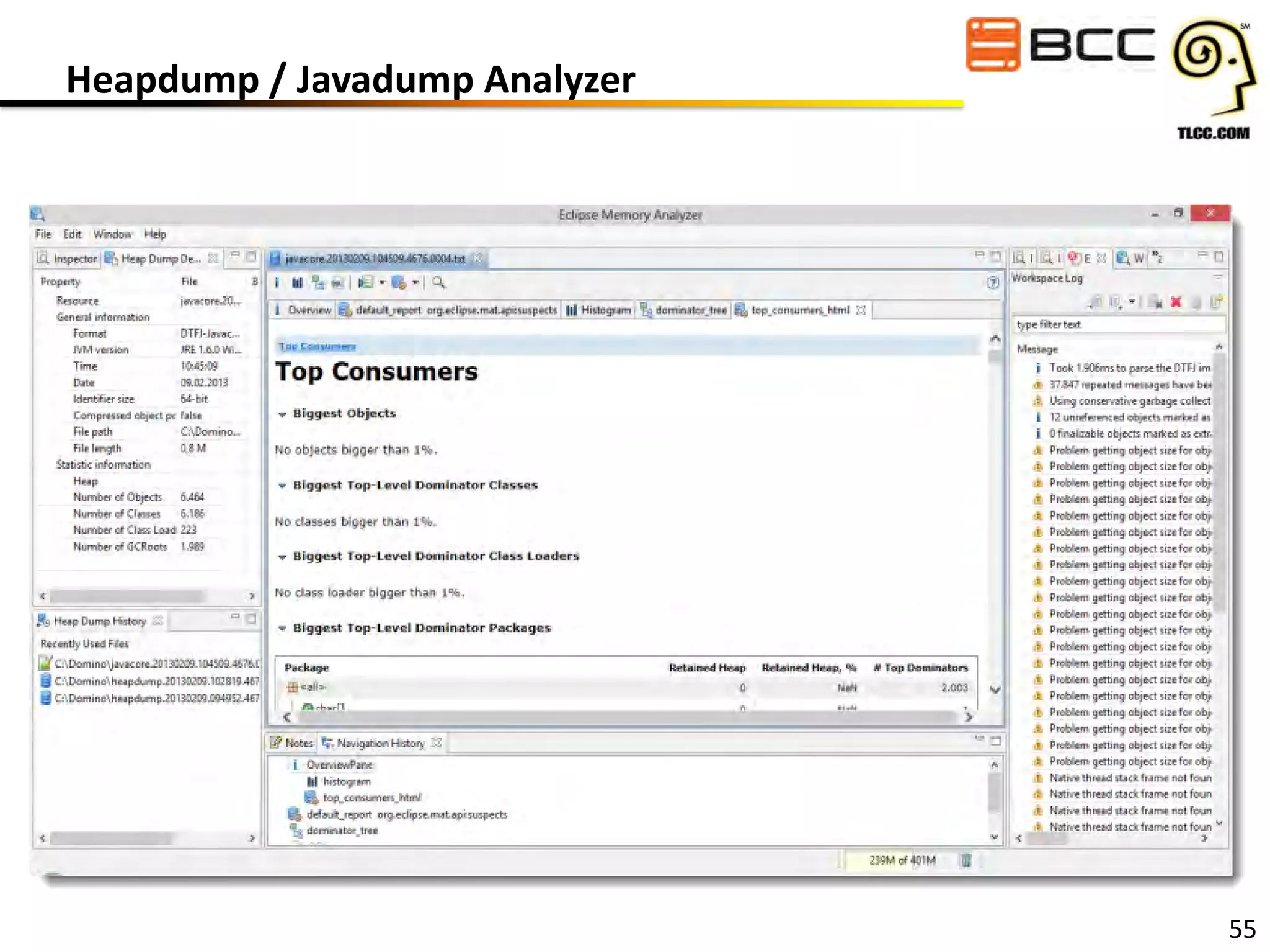

Heapdump / Javadump Analyzer

55

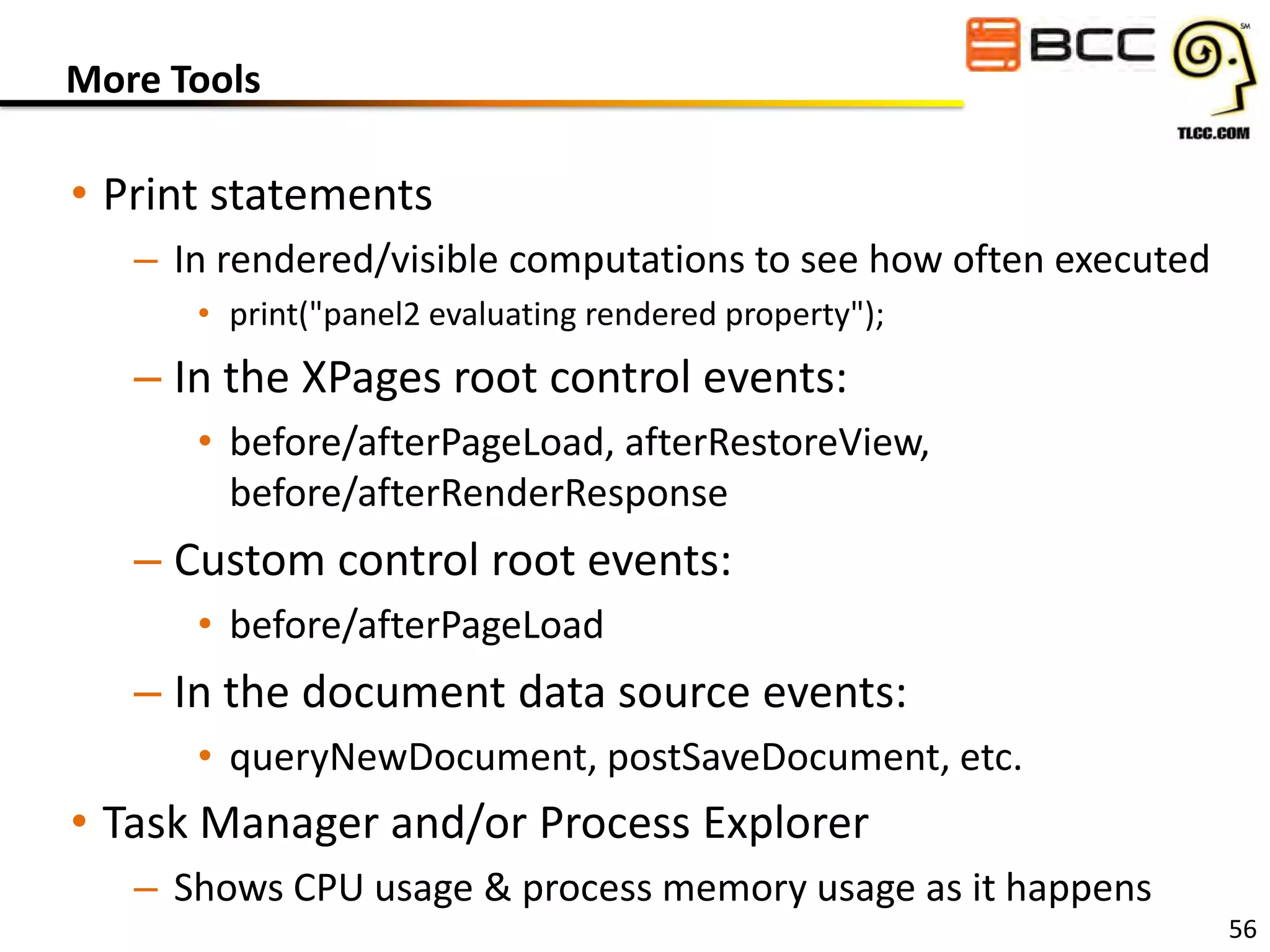

More Tools

• Print statements
– In rendered/visible computations to see how often executed
• print("panel2 evaluating rendered property");

– In the XPages root control events:
• before/afterPageLoad, afterRestoreView,
before/afterRenderResponse

– Custom control root events:
• before/afterPageLoad

– In the document data source events:
• queryNewDocument, postSaveDocument, etc.

• Task Manager and/or Process Explorer
– Shows CPU usage & process memory usage as it happens

56

More Tools

• Browser developer tools
– for watching network transactions, partial updates,
response times
– BROWSER: Firebug, Developer Tools
– XPiNC: FirebugLite from ExtLib

• Java / Javascript Debugging
– Degrades performance but can inspect objects
• Use the Eclipse Java debugger
– In Dominonotes.ini add these 2 options:
• JavaEnableDebug=1
• JavaDebugOptions=transport=dt_socket,server=y,suspend=n,add
ress=8000
57

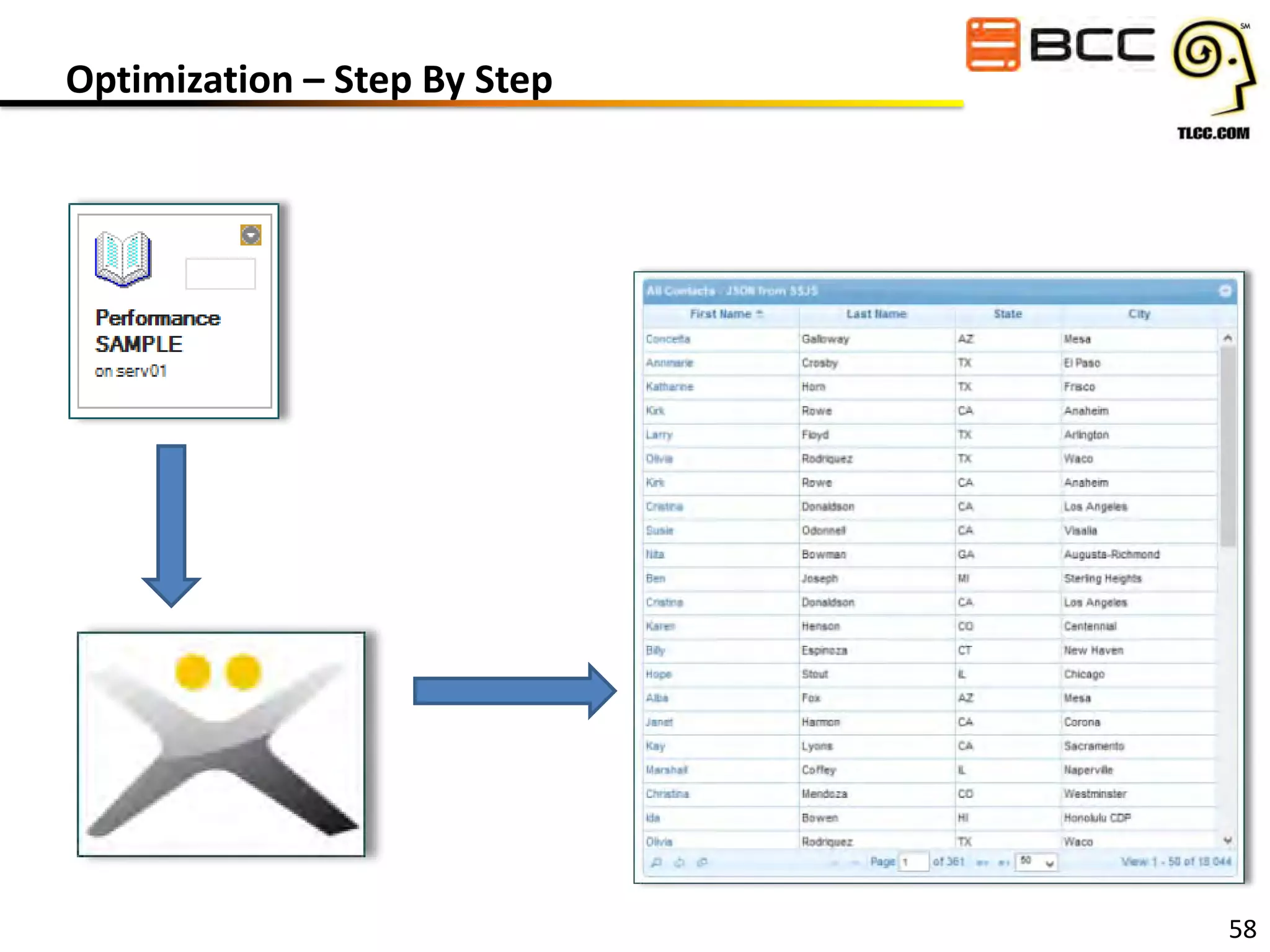

Optimization – Step By Step

58

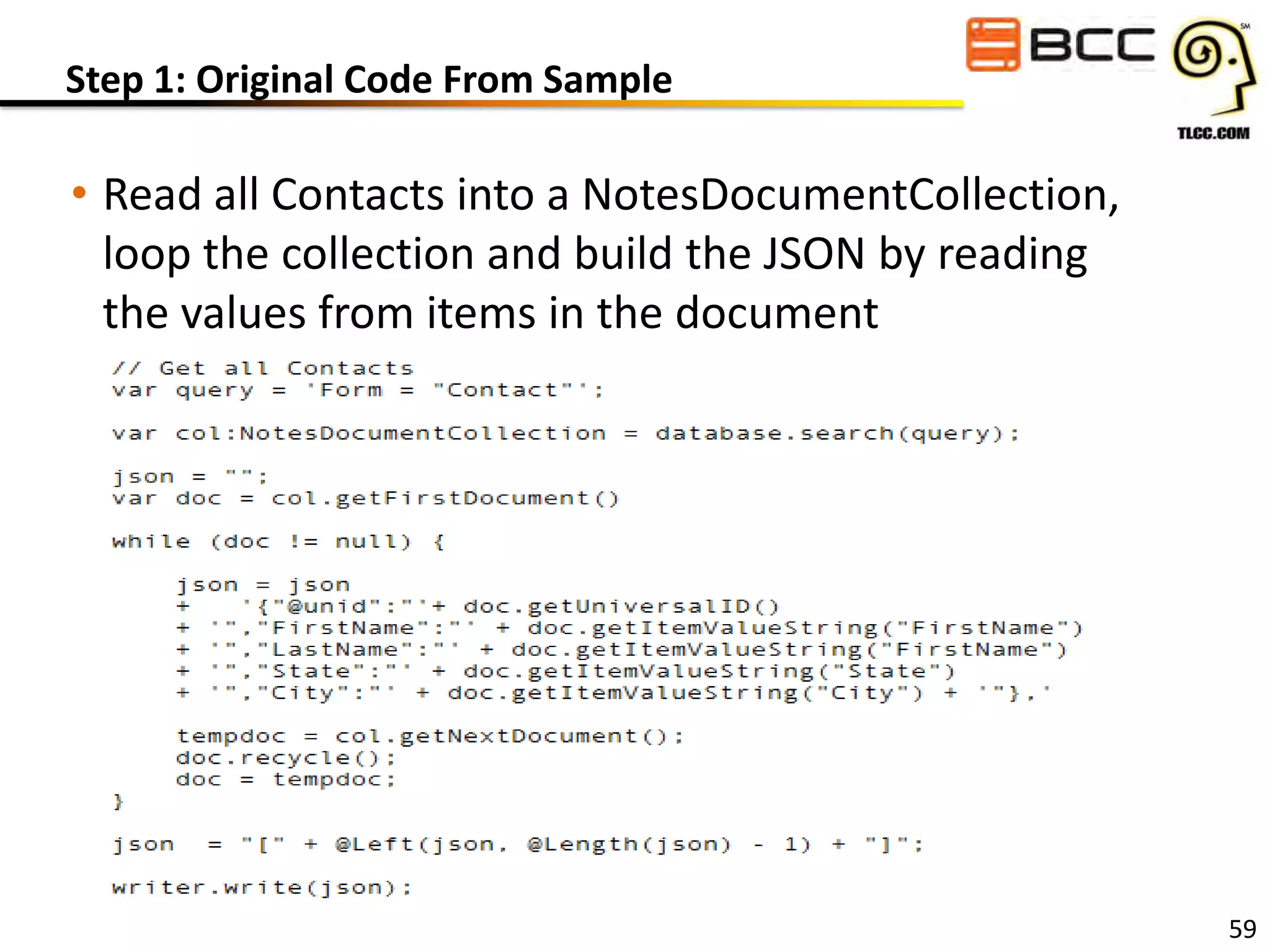

Step 1: Original Code From Sample

• Read all Contacts into a NotesDocumentCollection,
loop the collection and build the JSON by reading
the values from items in the document

59

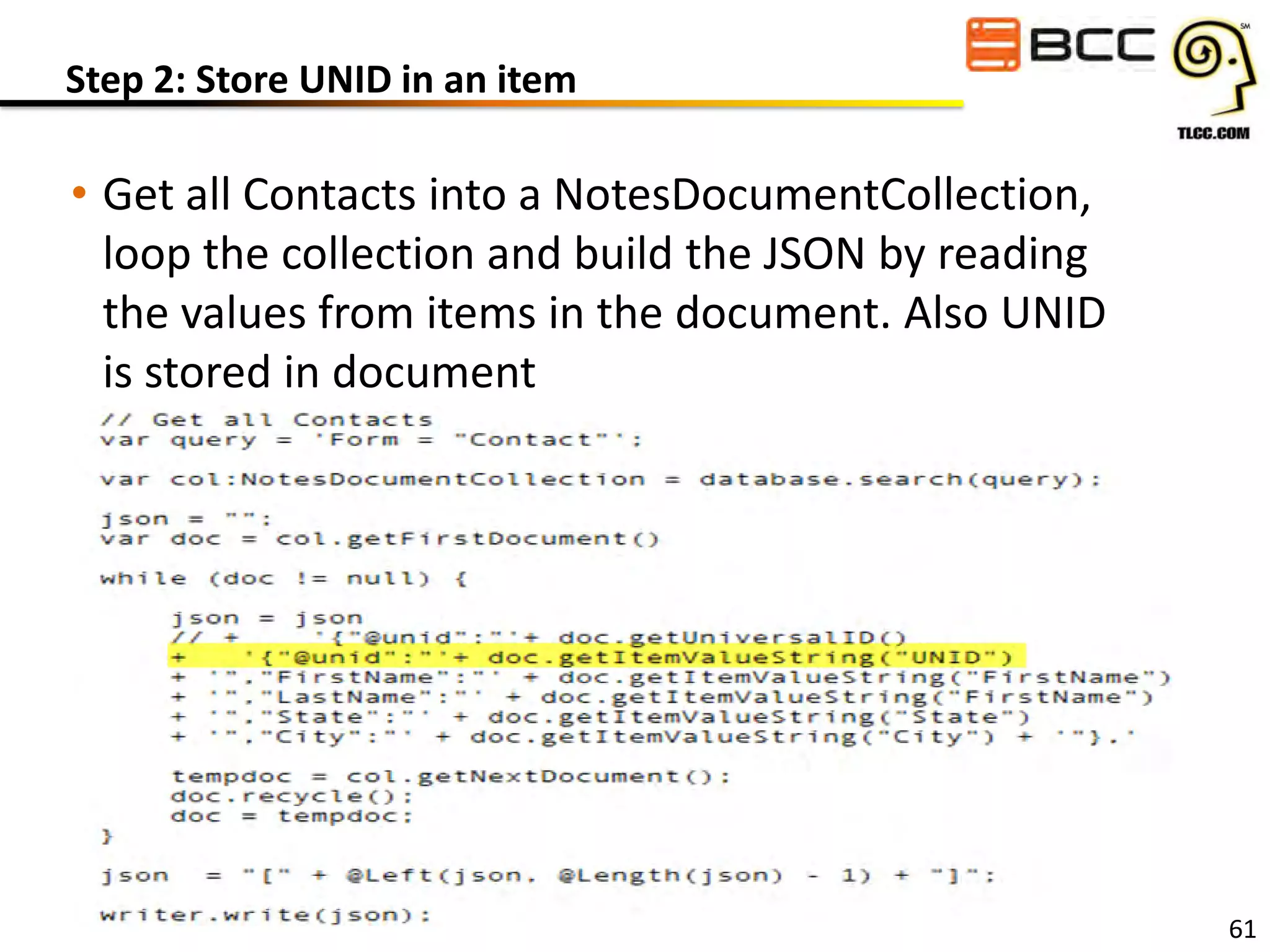

Step 2: Store UNID in an item

• Get all Contacts into a NotesDocumentCollection,
loop the collection and build the JSON by reading
the values from items in the document. Also UNID
is stored in document

61

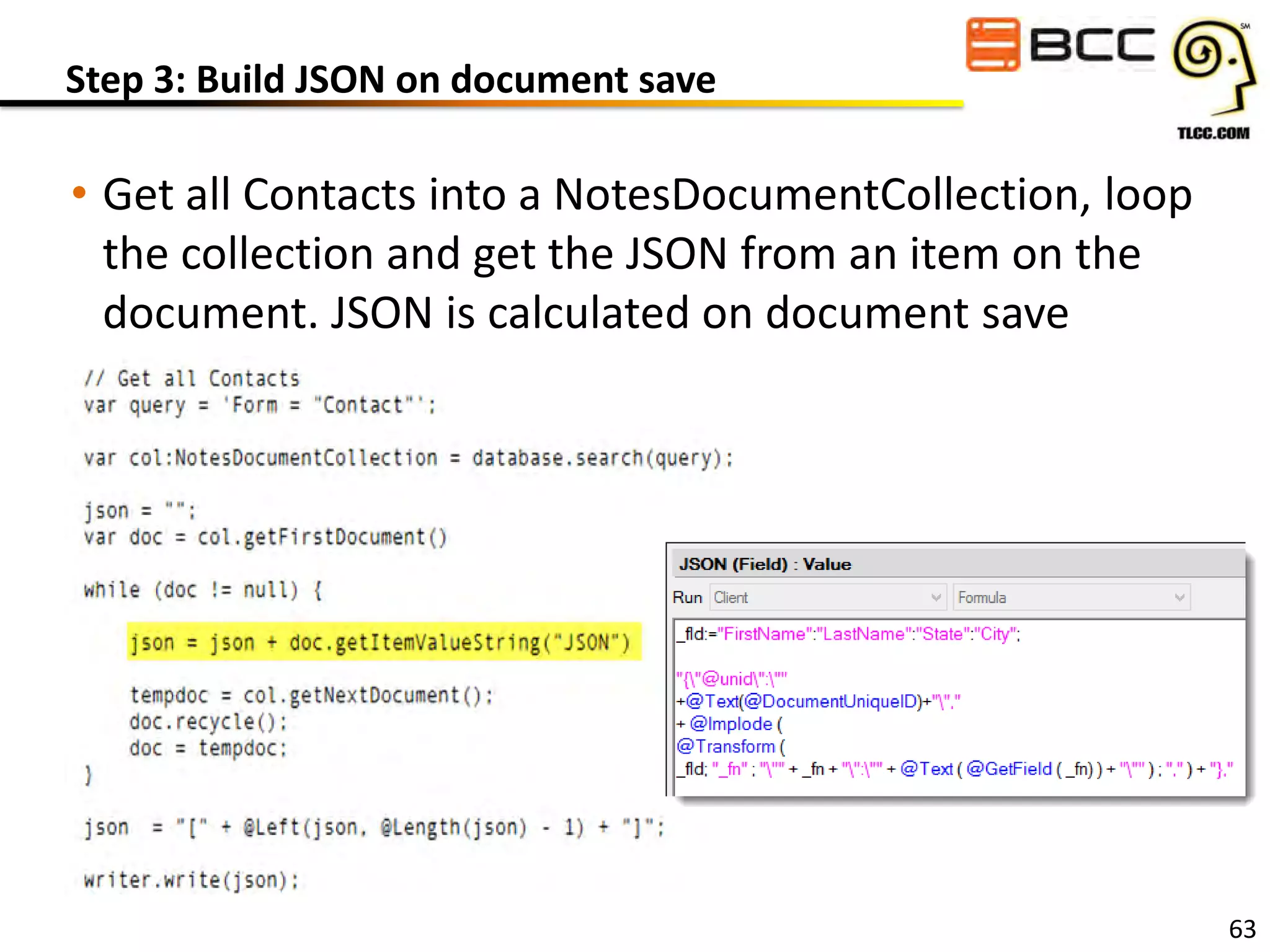

Step 3: Build JSON on document save

• Get all Contacts into a NotesDocumentCollection, loop
the collection and get the JSON from an item on the
document. JSON is calculated on document save

63

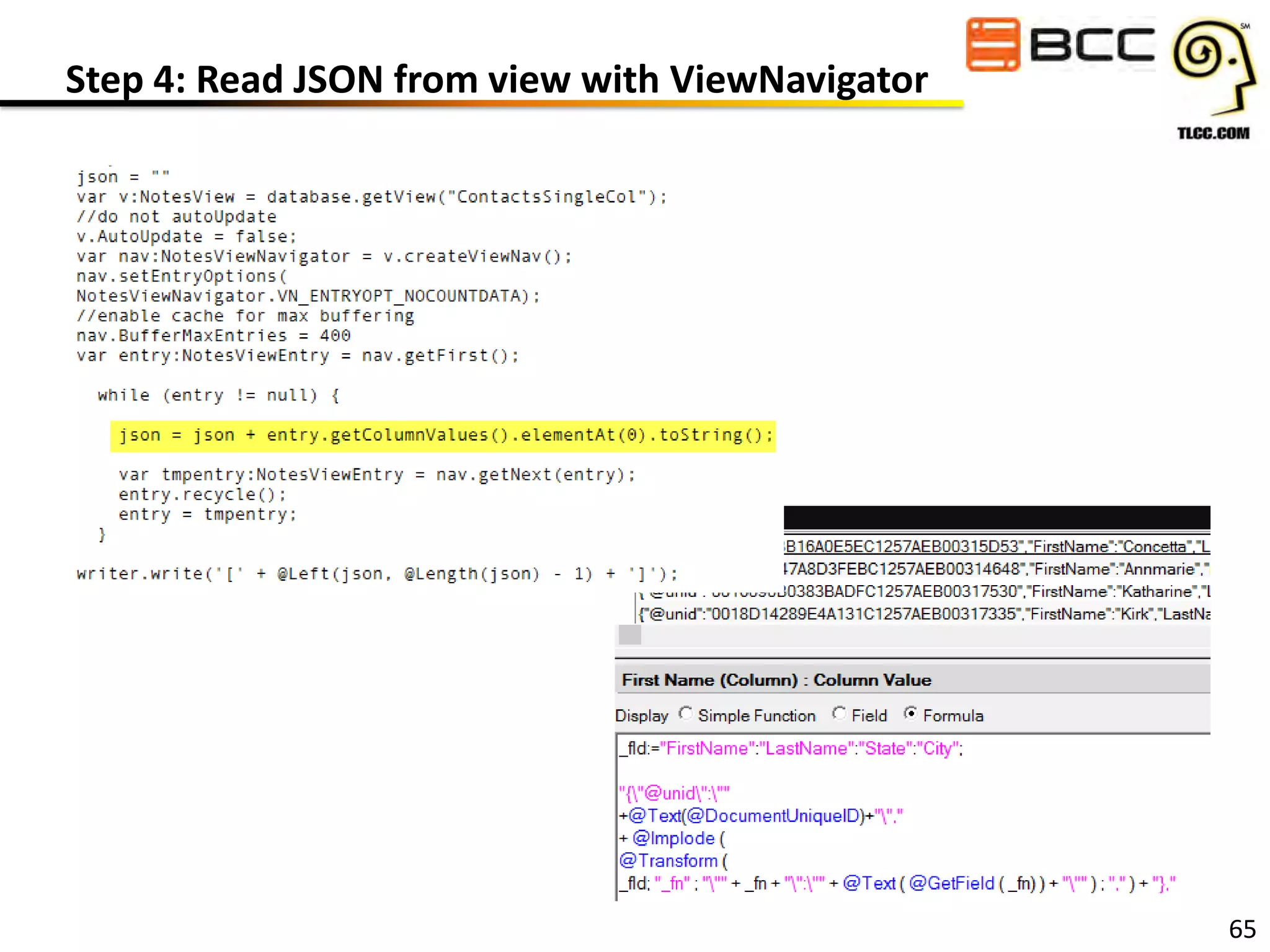

Step 4: Read JSON from view with ViewNavigator

65

StringBuilder vs String.concat

• Concatenation of Strings is very easy in Java - all you
need is a +
• Each time you append something via + (String.concat())
a new String is created, the old stuff is copied, the new
stuff is appended, and the old String is thrown away.
The bigger the String gets the longer it takes - there is
more to copy and more garbage is produced.
• Accordingly to Arno Unkrig the optimal strategy is to
use String.concat() for 2 or 3 operands, and
StringBuilder for 4 or more operands

67

StringBuilder vs String.concat

• Use StringBuilder whenever you assemble a String in a
loop
– Keep in mind that + isn't always a good idea

68

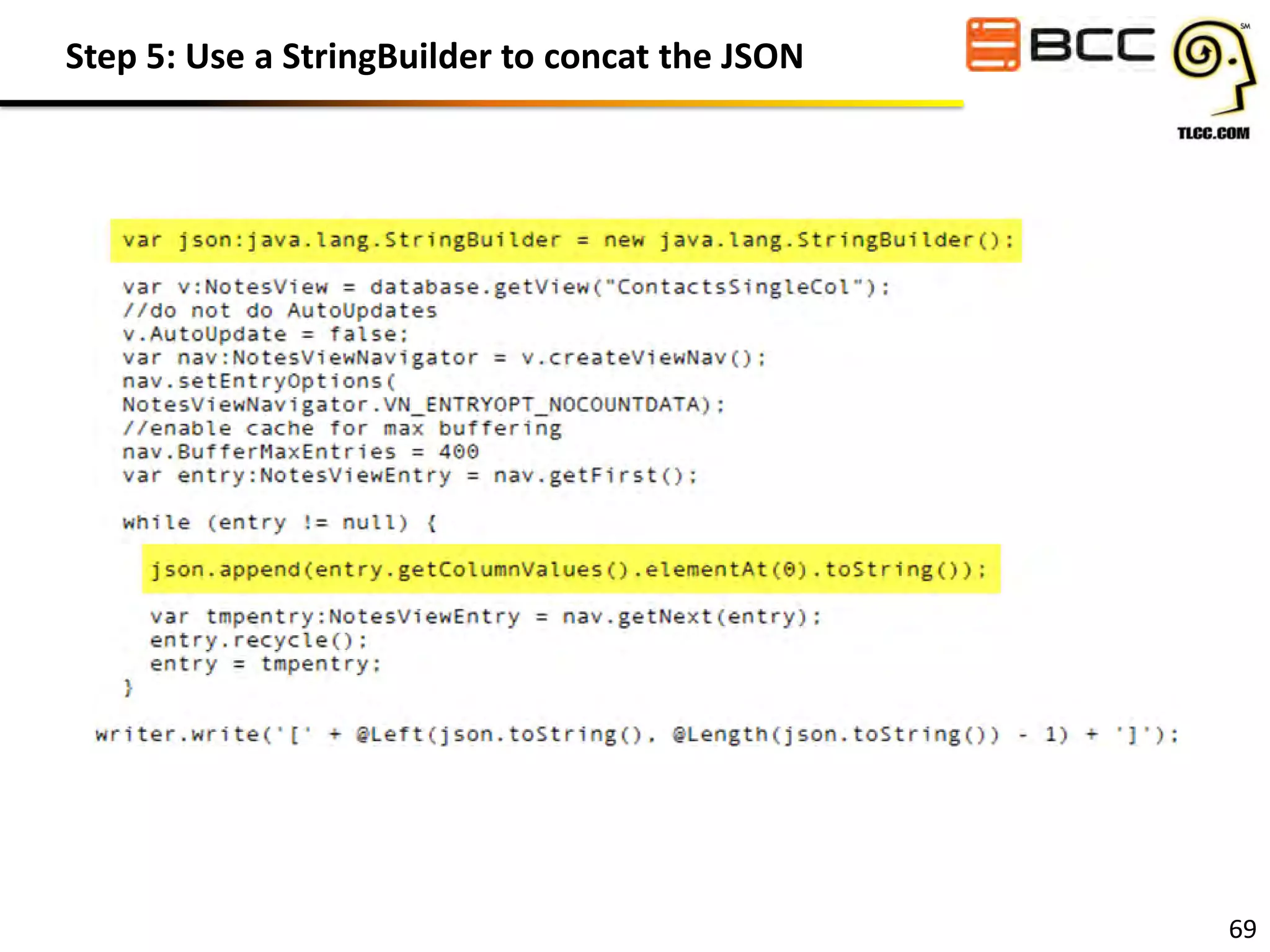

Step 5: Use a StringBuilder to concat the JSON

69

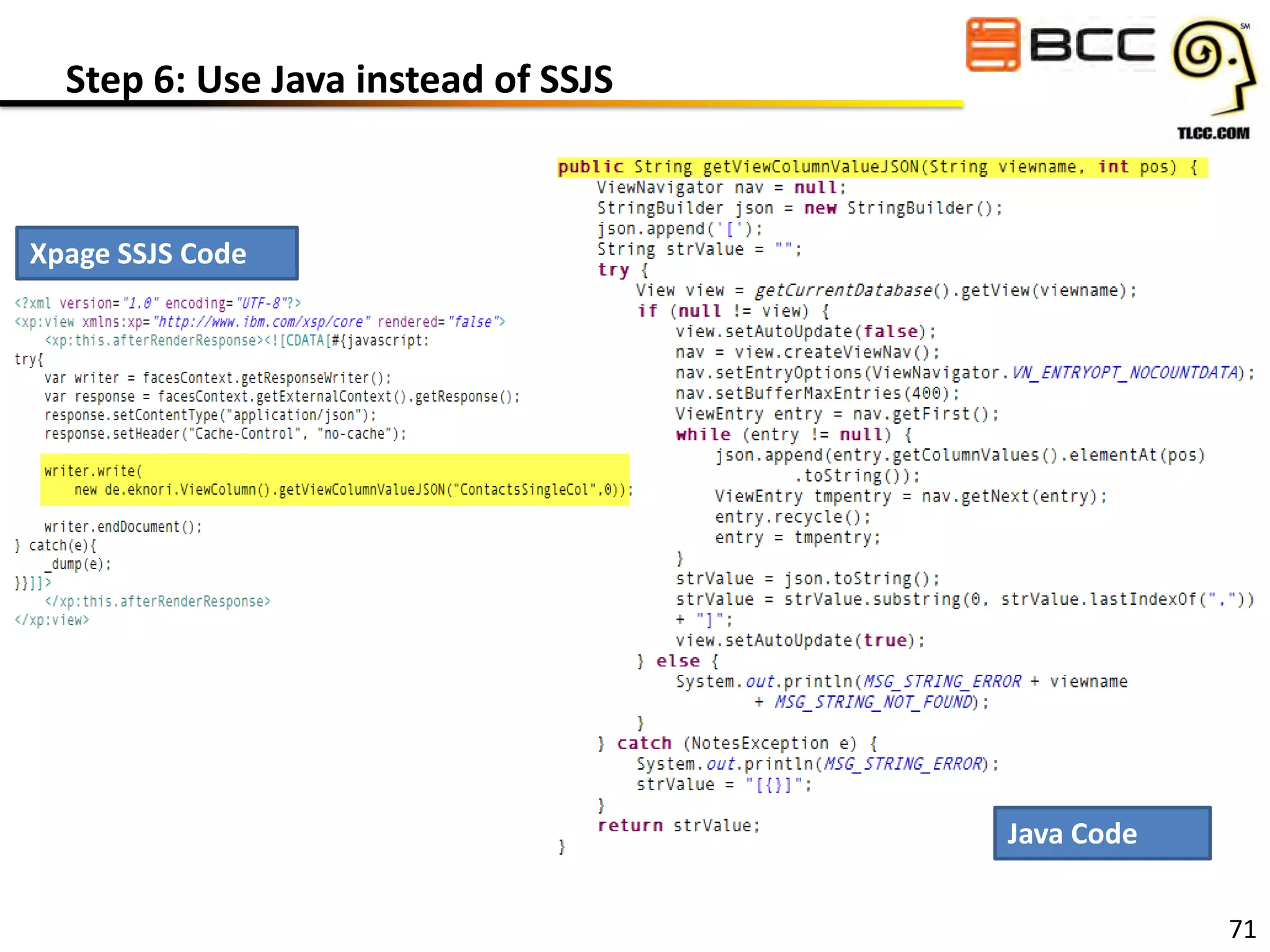

Step 6: Use Java instead of SSJS

Xpage SSJS Code

Java Code
71

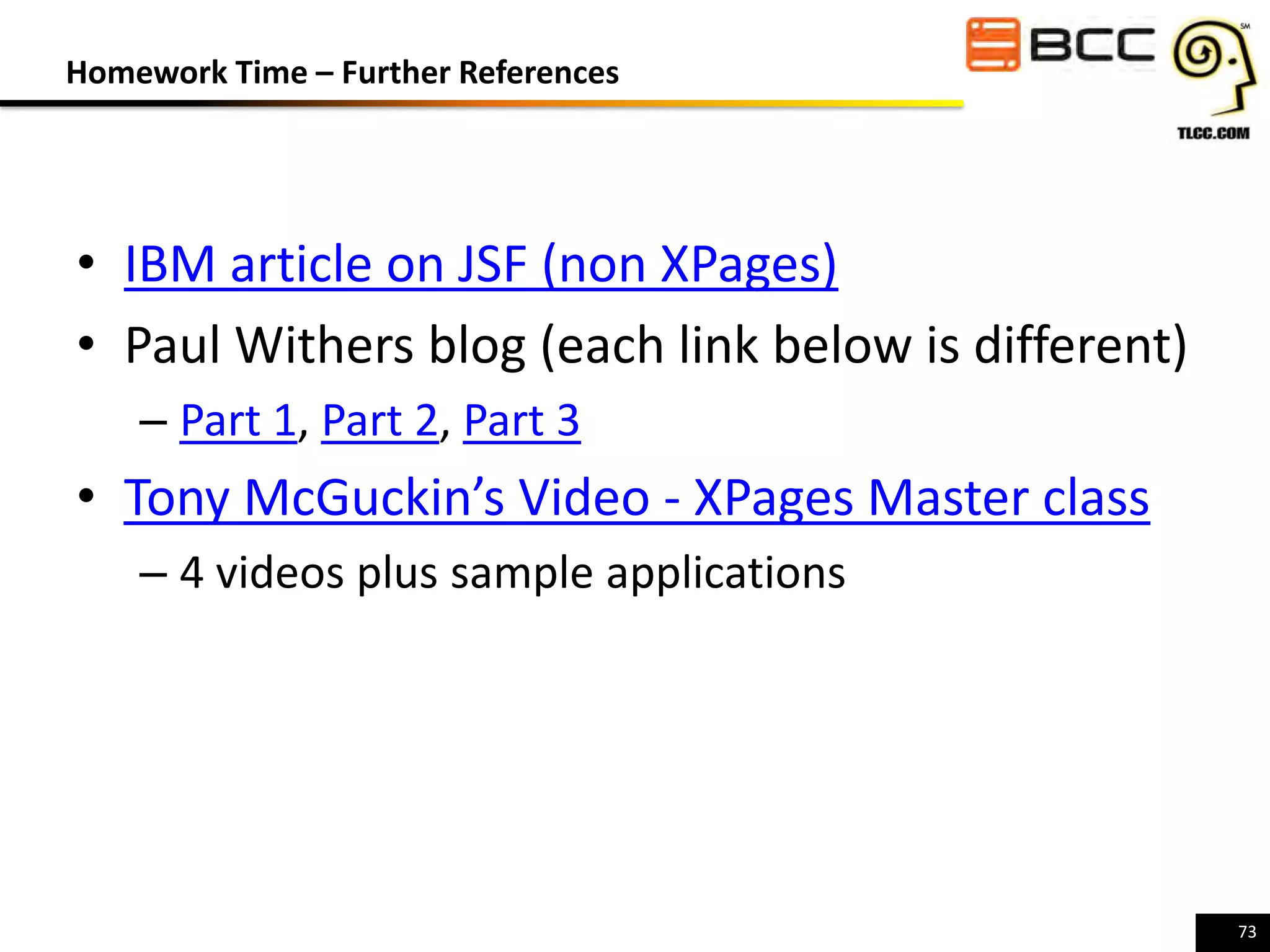

Homework Time – Further References

• IBM article on JSF (non XPages)
• Paul Withers blog (each link below is different)
– Part 1, Part 2, Part 3

• Tony McGuckin’s Video - XPages Master class
– 4 videos plus sample applications

73

Questions????

Use the Q&A pane in WebEx
to ask questions
We will answer your questions
verbally

74

Question and Answer Time!

Howard Greenberg

Ulrich Krause

Upcoming Events:
TLCC Fall Sale – ends 10/31
IBM Connect 2014 Registration is now open

Paul Della-Nebbia

Taline Badrikian
#XPages
@Eknori
@TLCCLtd

@Teamstudio
@PaulDN
@BCCFFM

TLCC Questions?
howardg@tlcc.com paul@tlcc.com
888-241-8522 or 561-953-0095

Teamstudio Questions?
contactus@teamstudio.com
877-228-6178
75

The Autobahn Has No Speed Limit - Your XPages Shouldn't Either!

More Related Content

What's hot

Similar to The Autobahn Has No Speed Limit - Your XPages Shouldn't Either!

More from Teamstudio

Recently uploaded

The Autobahn Has No Speed Limit - Your XPages Shouldn't Either!
