1. BP211 Lessons From the Worlds
Largest XPages Project
Andrew Barickman | Practice Leader, PSC Group LLC
Mark Roden | Senior Consultant, PSC Group LLC
© 2013 IBM Corporation

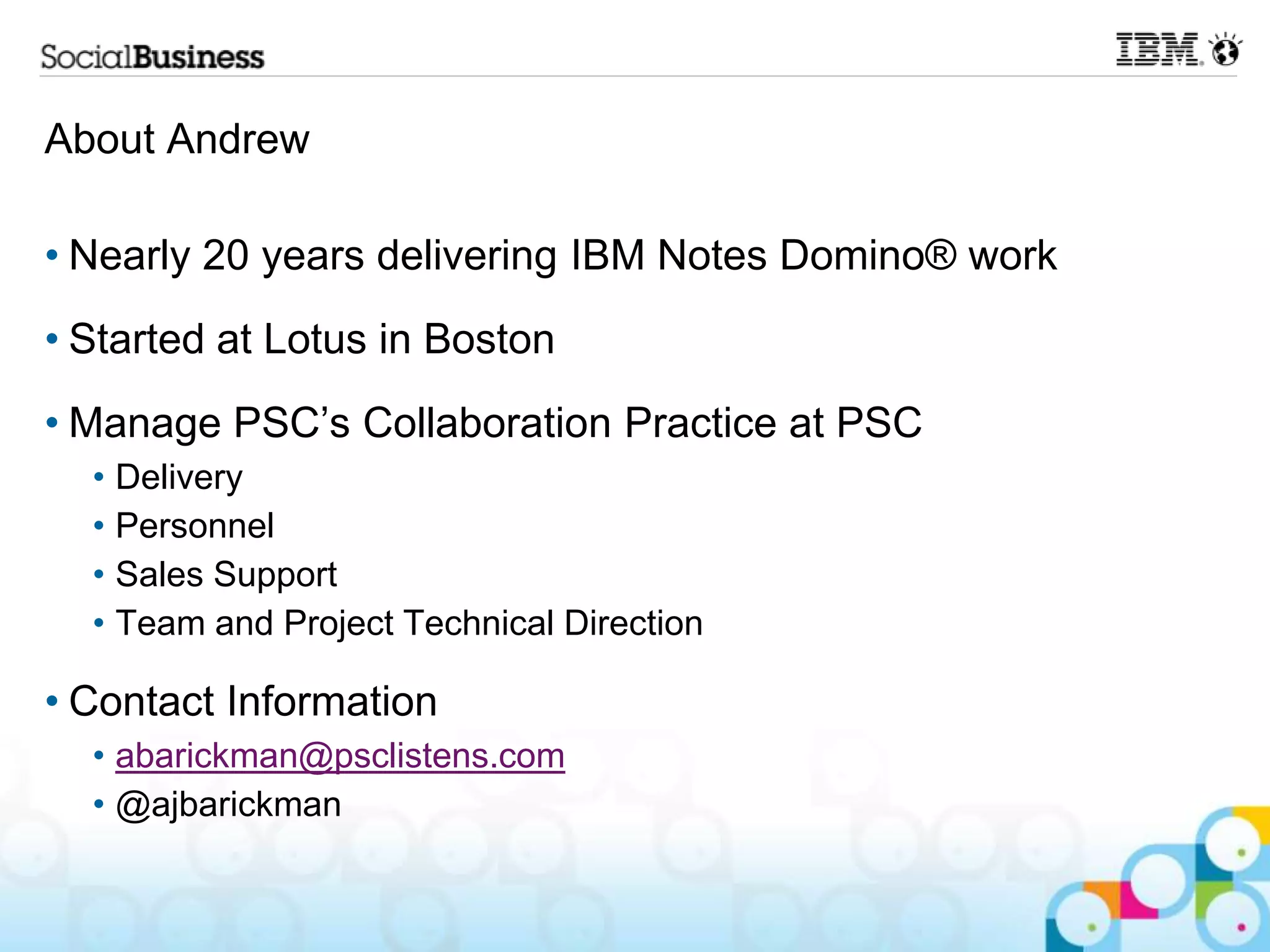

2. About Andrew
• Nearly 20 years delivering IBM Notes Domino® work
• Started at Lotus in Boston
• Manage PSC’s Collaboration Practice at PSC
• Delivery
• Personnel
• Sales Support
• Team and Project Technical Direction
• Contact Information
• abarickman@psclistens.com
• @ajbarickman

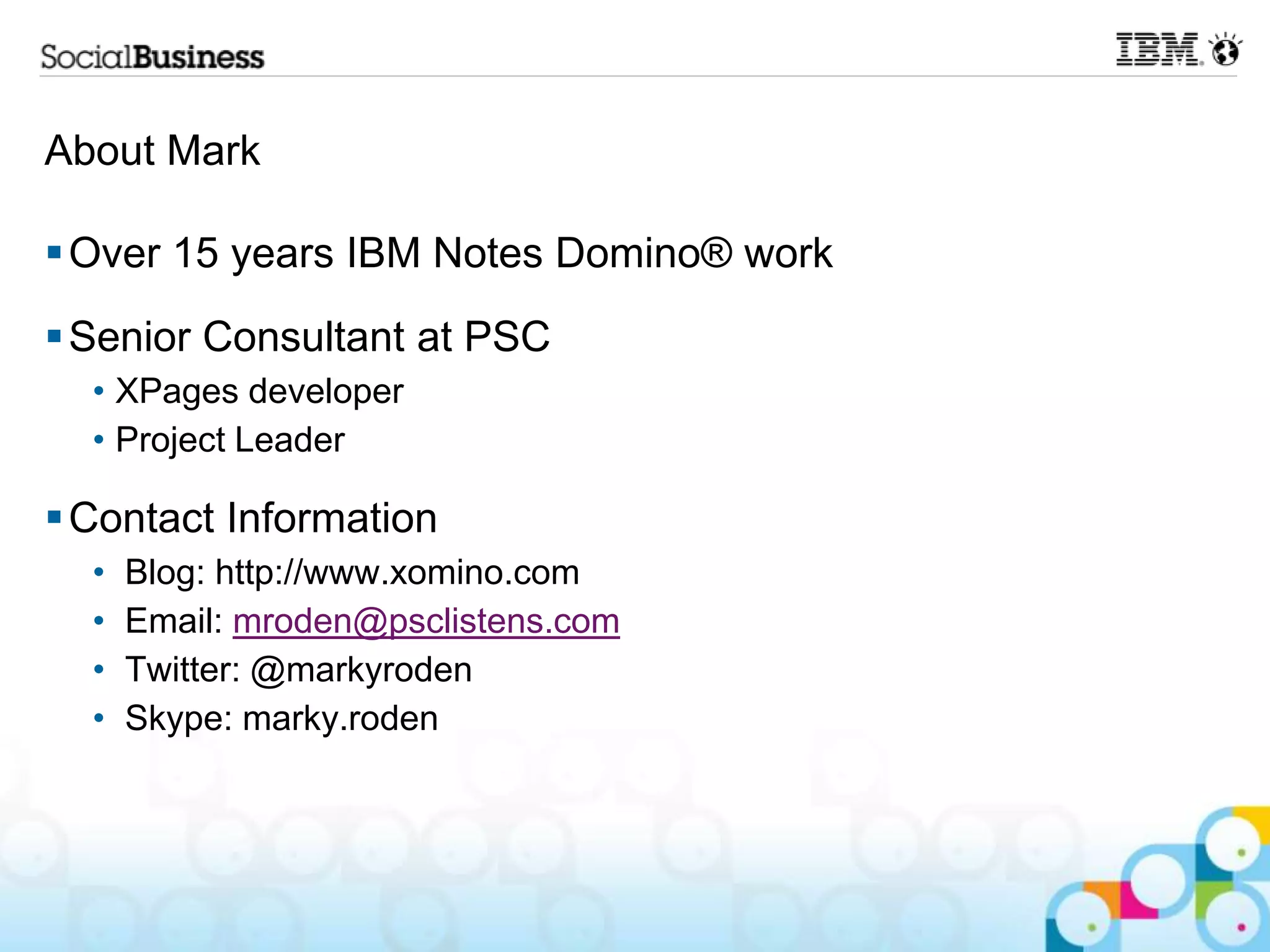

3. About Mark
 Over 15 years IBM Notes Domino® work
 Senior Consultant at PSC
• XPages developer
• Project Leader
 Contact Information
• Blog: http://www.xomino.com
• Email: mroden@psclistens.com
• Twitter: @markyroden
• Skype: marky.roden

4. www.psclistens.com @pscgroup

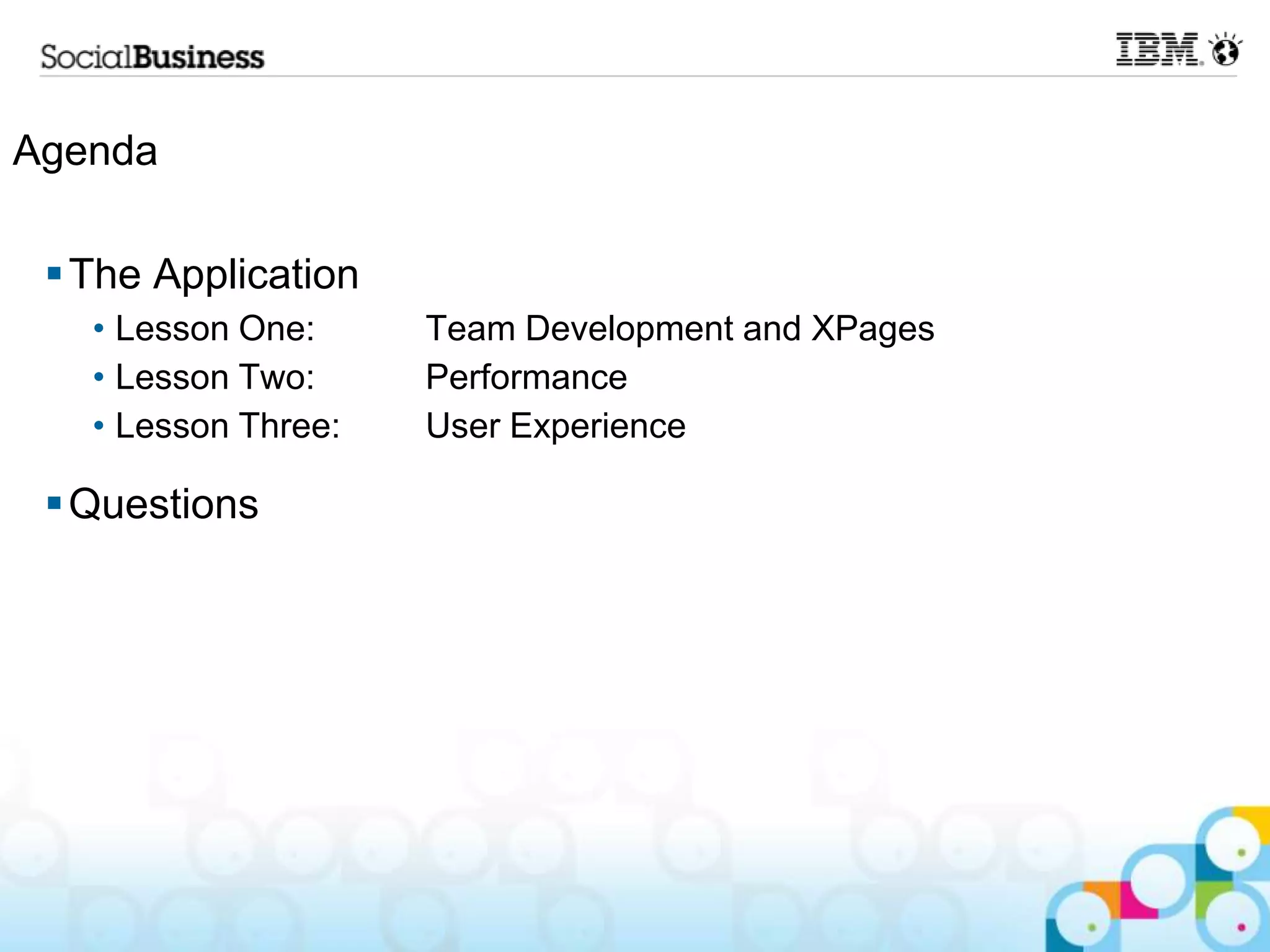

5. Agenda
 The Application
• Lesson One: Team Development and XPages
• Lesson Two: Performance
• Lesson Three: User Experience
 Questions

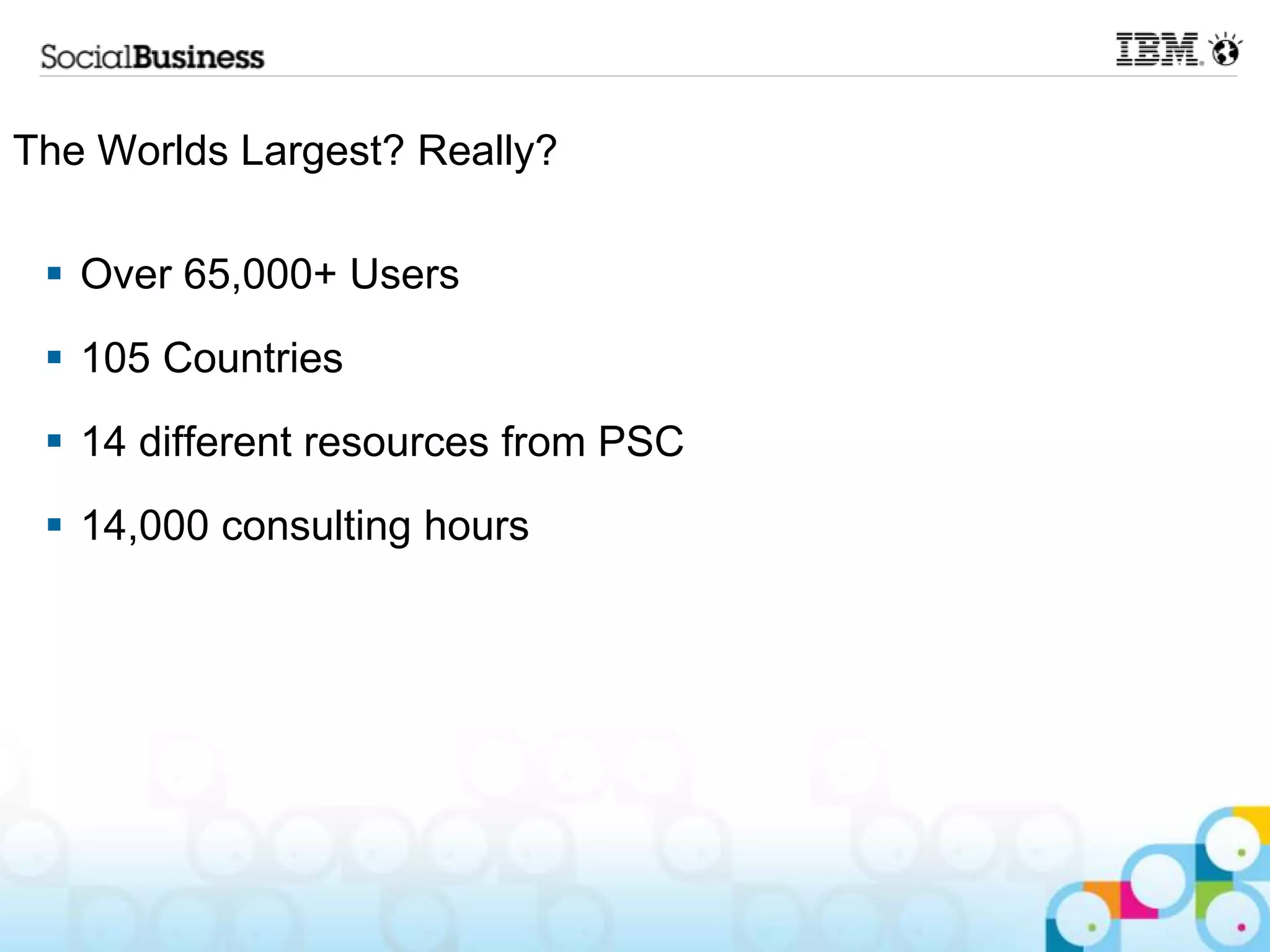

6. The Worlds Largest? Really?
 Over 65,000+ Users
 105 Countries
 14 different resources from PSC
 14,000 consulting hours

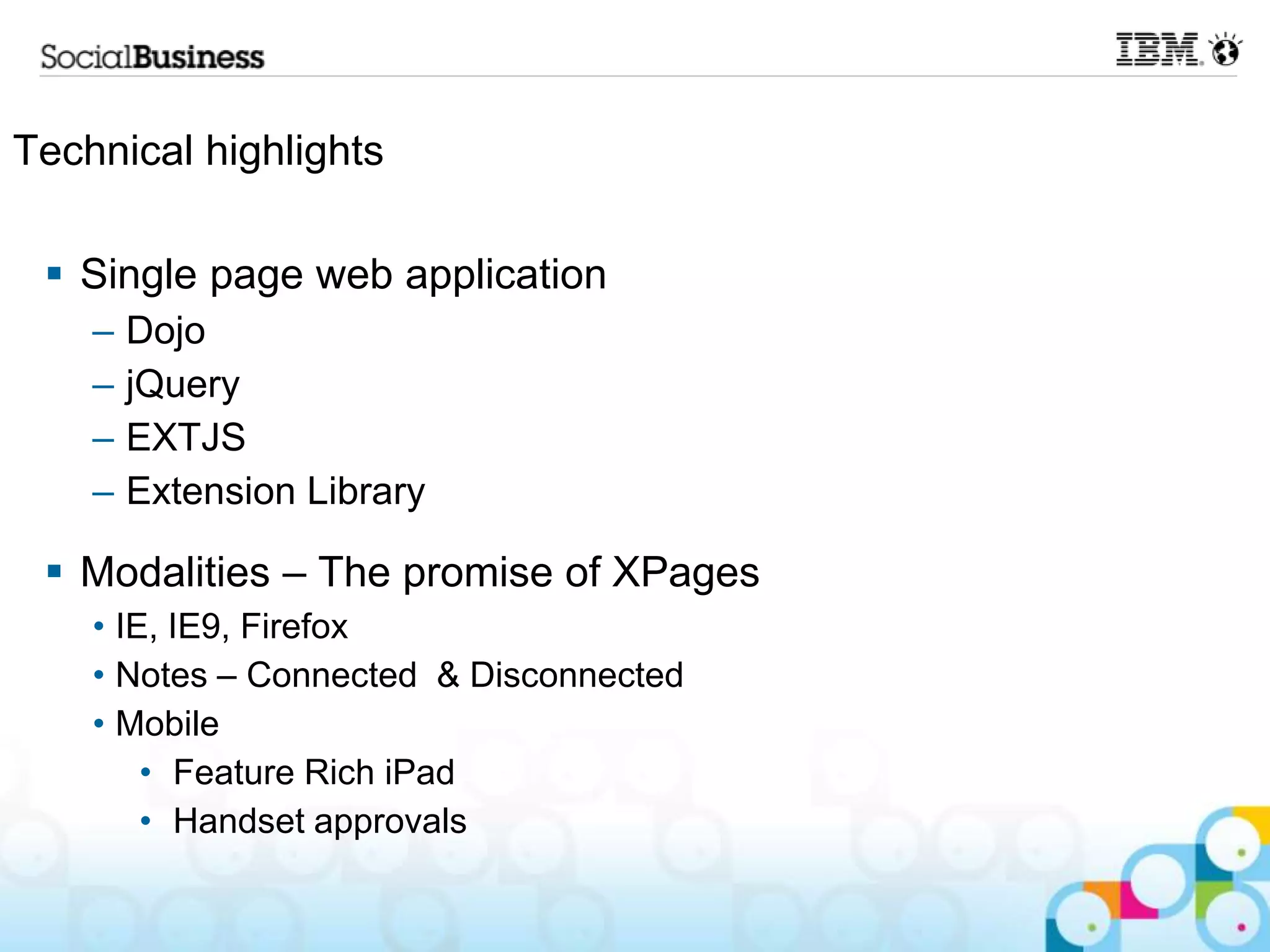

7. Technical highlights
 Single page web application
– Dojo
– jQuery
– EXTJS
– Extension Library
 Modalities – The promise of XPages
• IE, IE9, Firefox
• Notes – Connected & Disconnected
• Mobile
• Feature Rich iPad
• Handset approvals

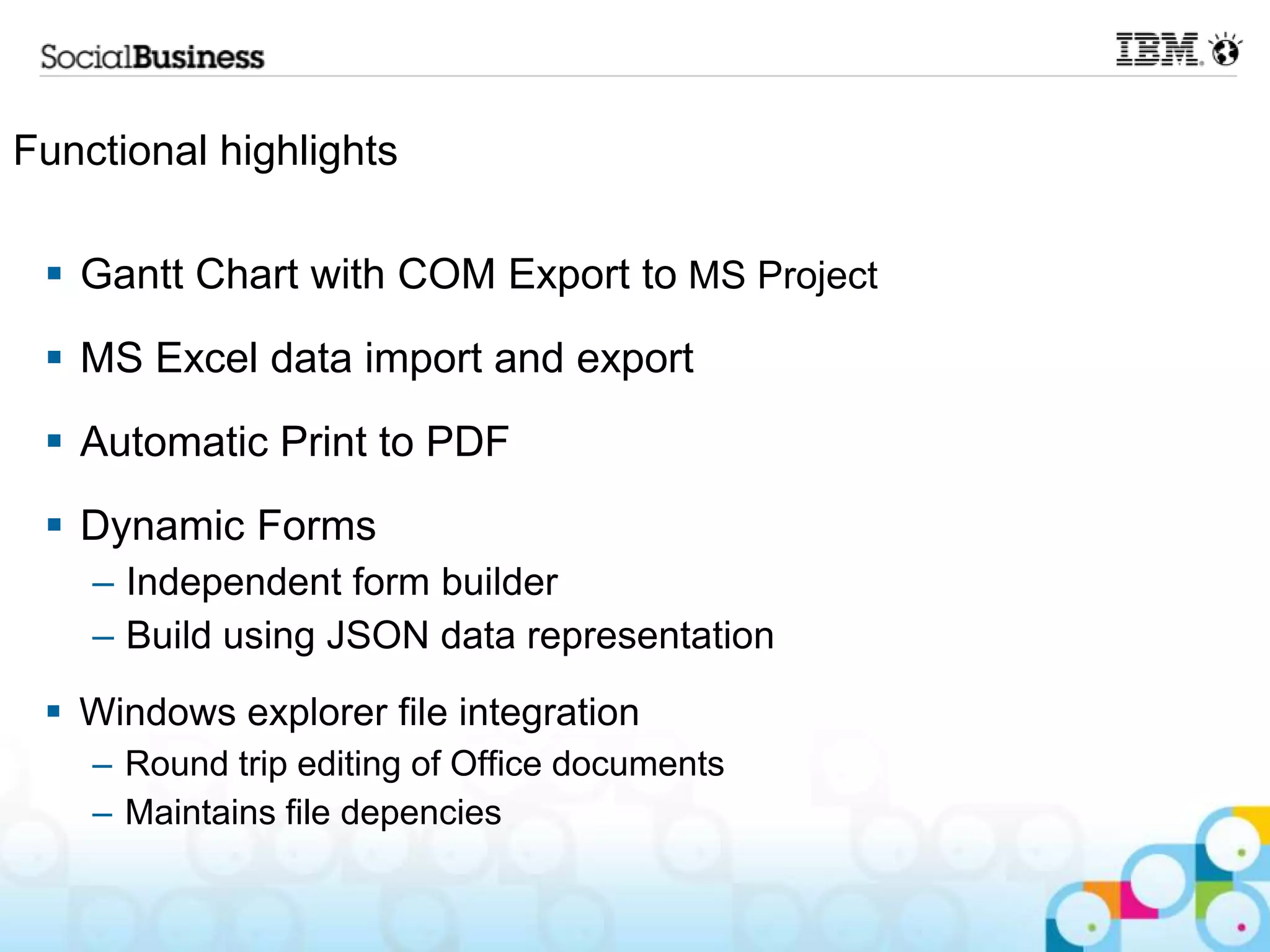

8. Functional highlights
 Gantt Chart with COM Export to MS Project
 MS Excel data import and export
 Automatic Print to PDF
 Dynamic Forms
– Independent form builder
– Build using JSON data representation
 Windows explorer file integration
– Round trip editing of Office documents
– Maintains file depencies

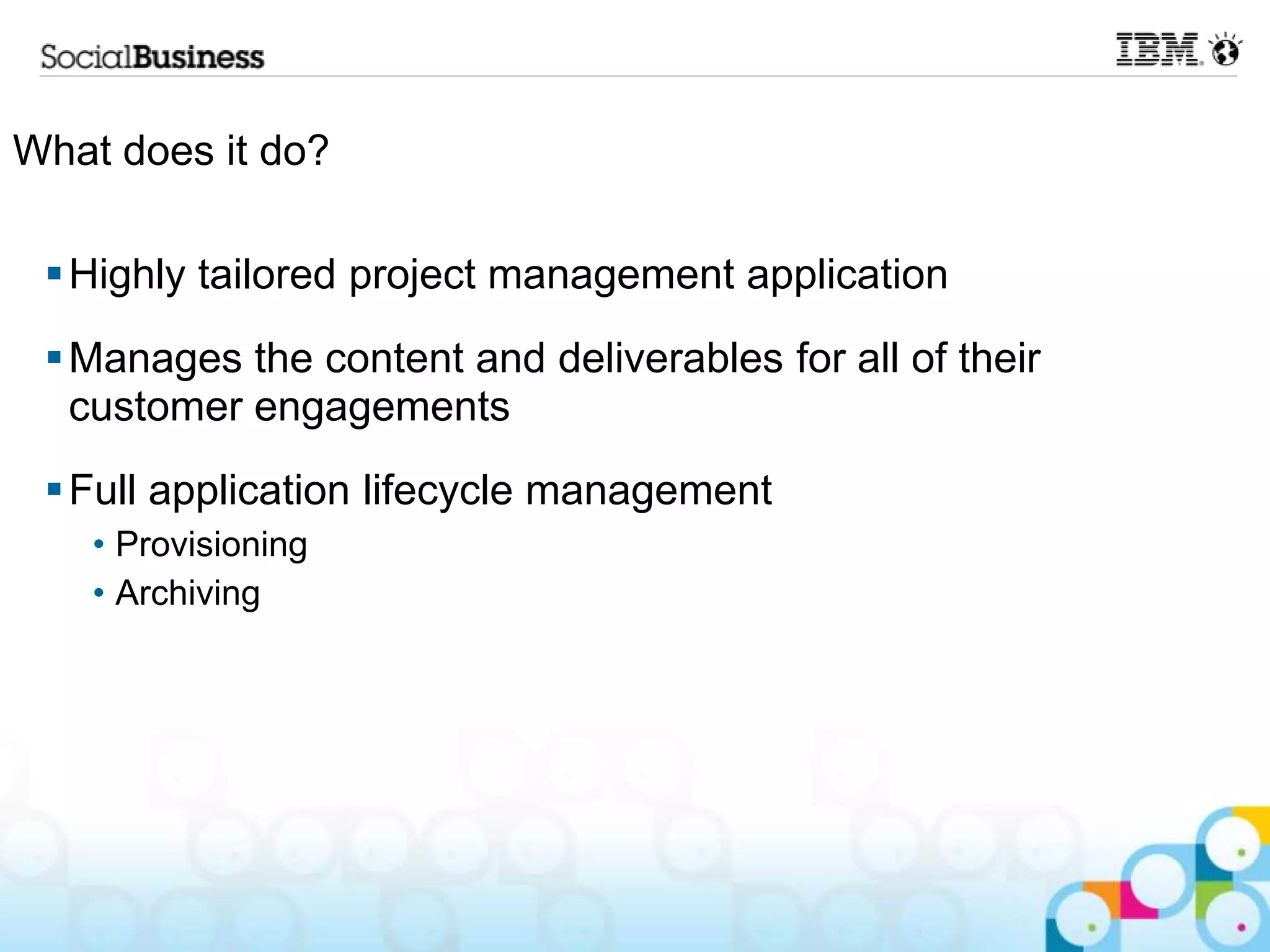

9. What does it do?
 Highly tailored project management application
 Manages the content and deliverables for all of their
customer engagements
 Full application lifecycle management
• Provisioning
• Archiving

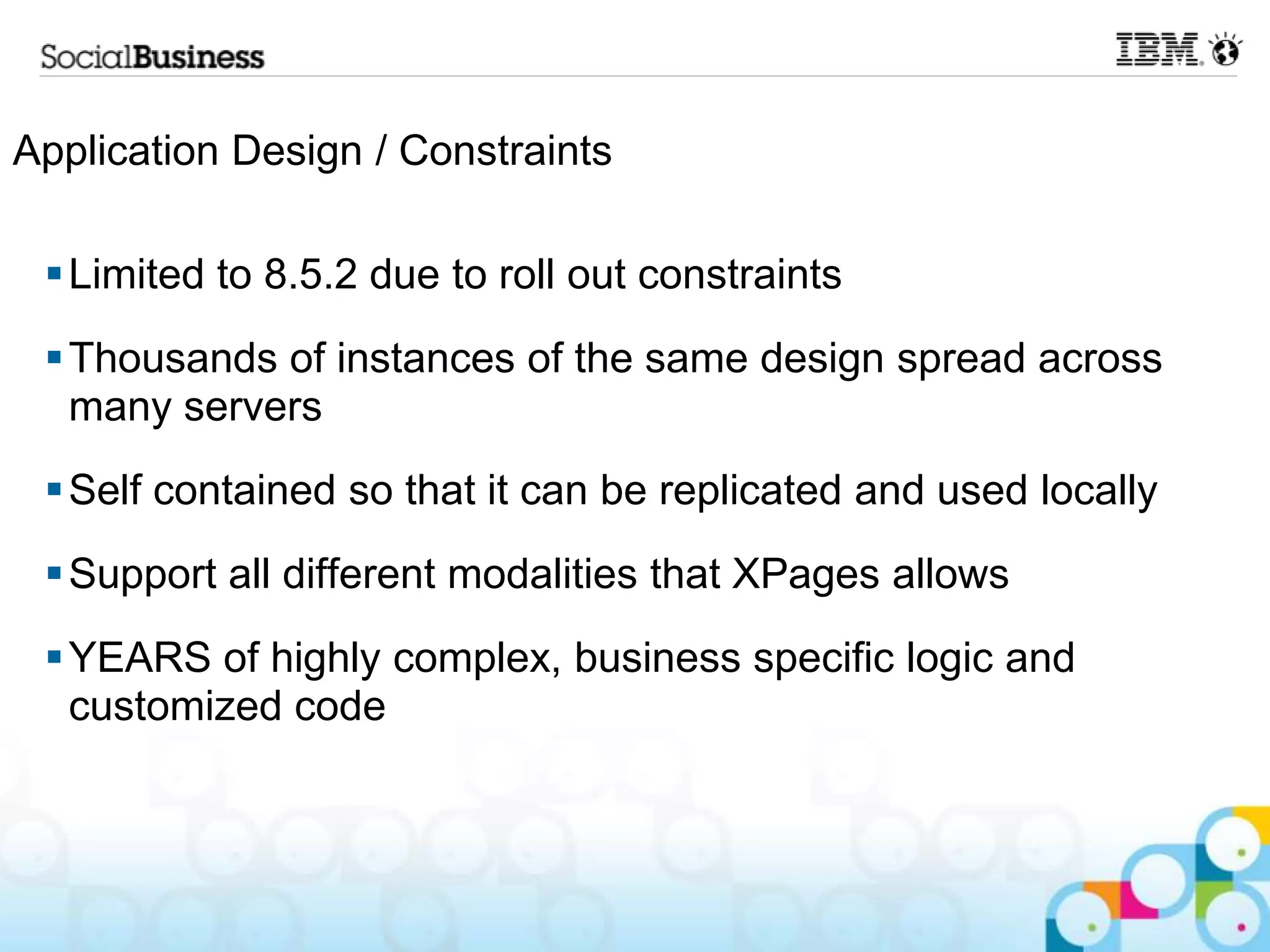

10. Application Design / Constraints
 Limited to 8.5.2 due to roll out constraints
 Thousands of instances of the same design spread across
many servers
 Self contained so that it can be replicated and used locally
 Support all different modalities that XPages allows
 YEARS of highly complex, business specific logic and
customized code

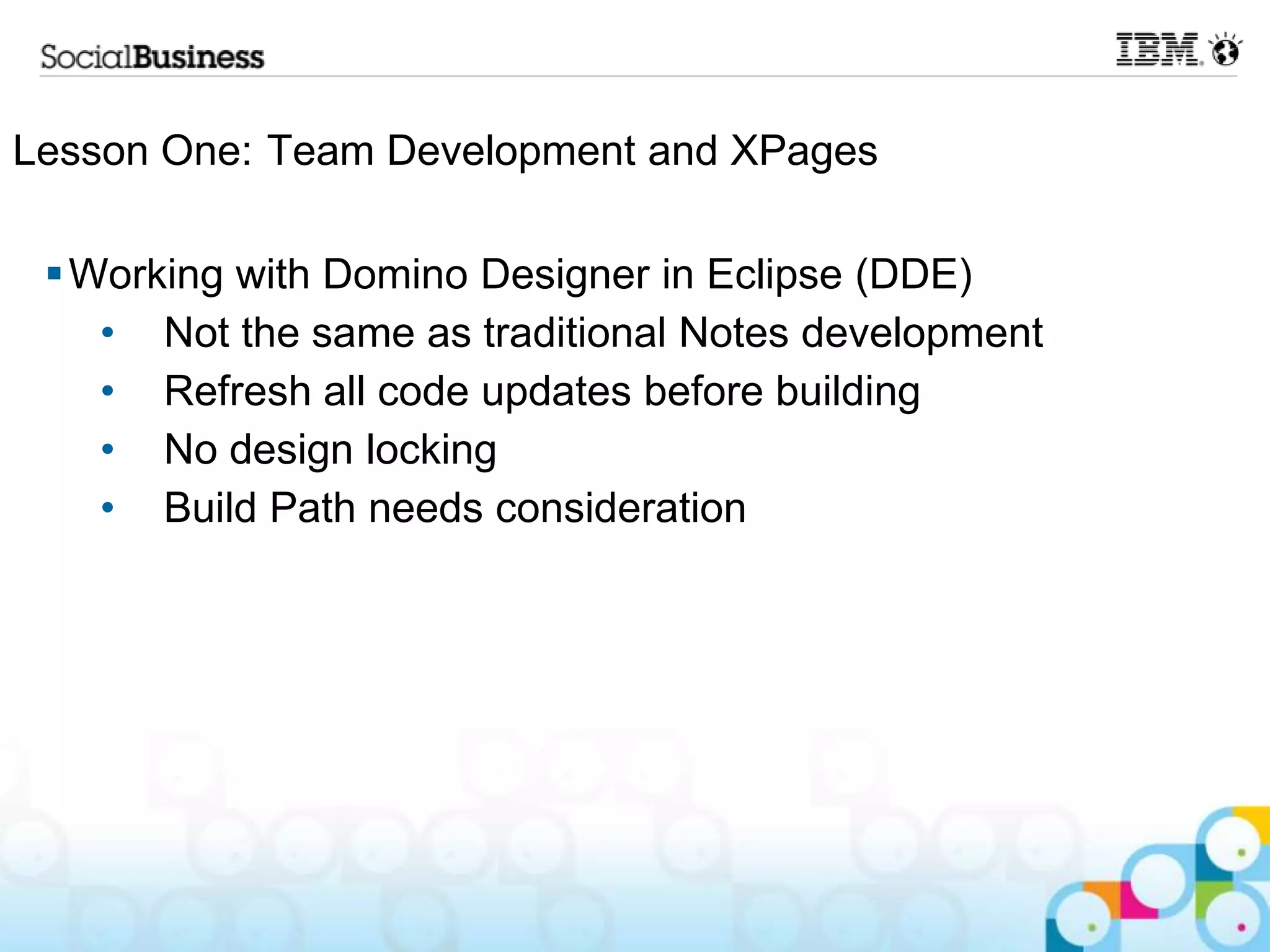

11. Lesson One: Team Development and XPages
 Working with Domino Designer in Eclipse (DDE)
• Not the same as traditional Notes development
• Refresh all code updates before building
• No design locking
• Build Path needs consideration

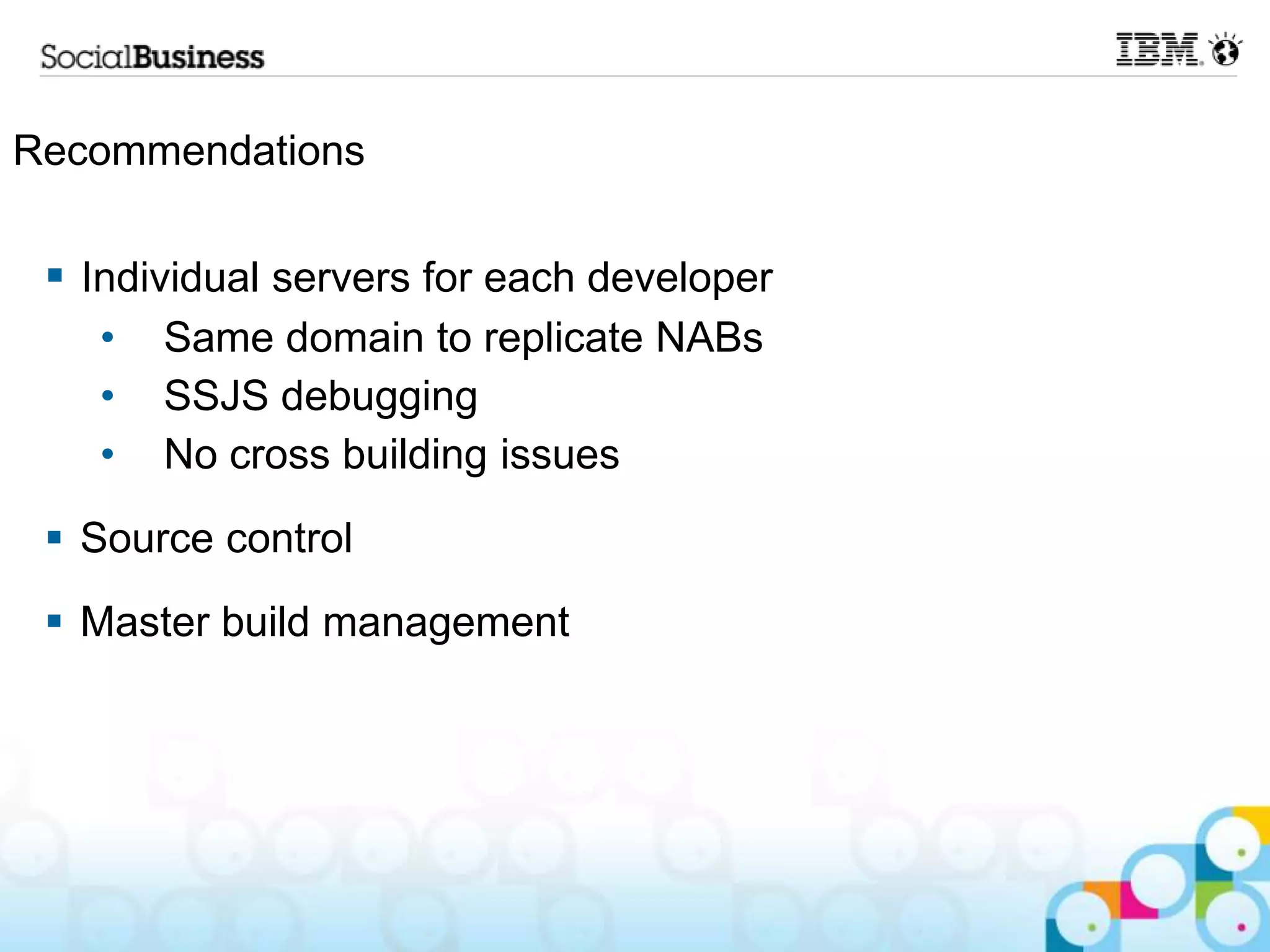

12. Recommendations
 Individual servers for each developer
• Same domain to replicate NABs
• SSJS debugging
• No cross building issues
 Source control
 Master build management

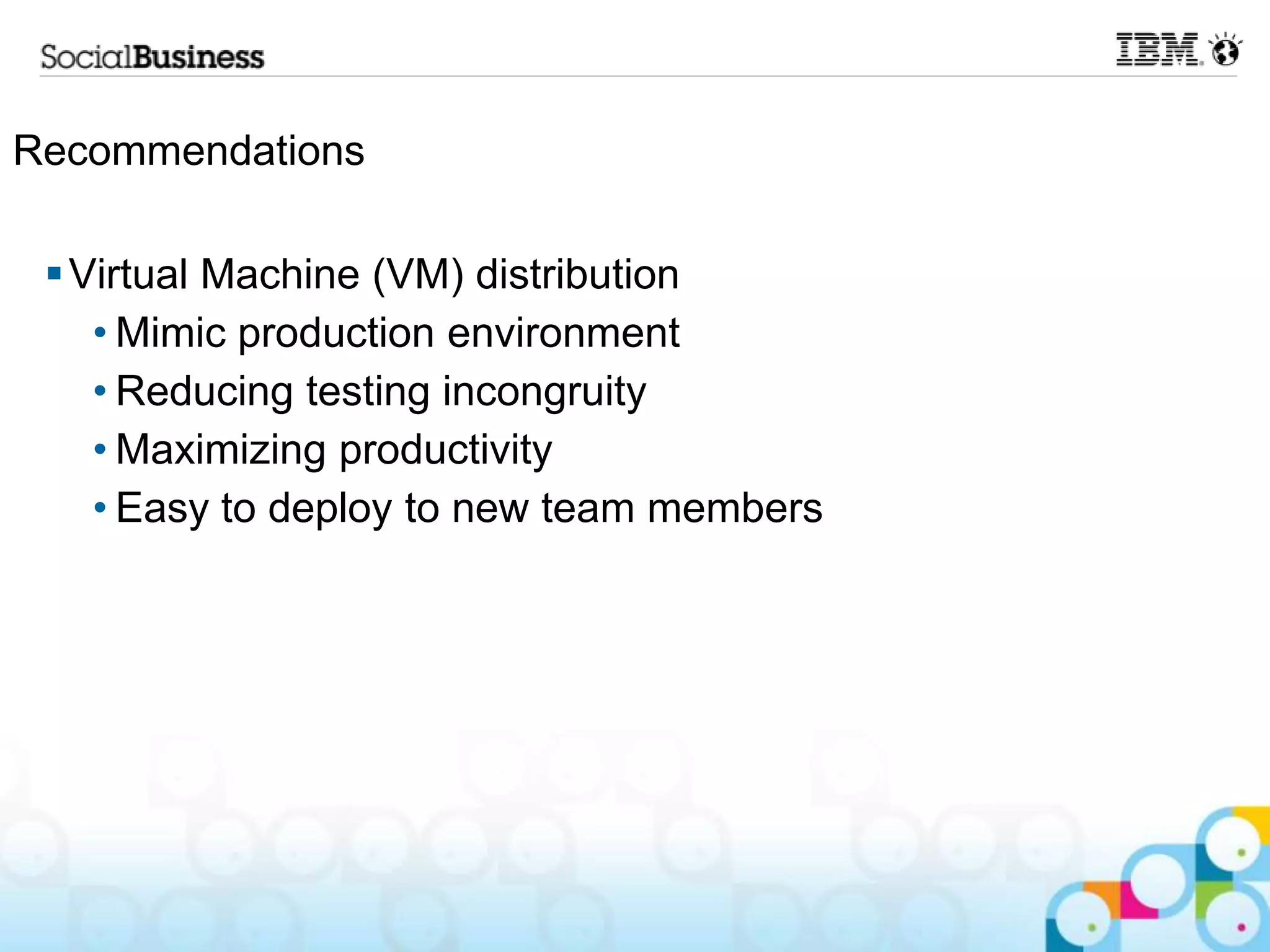

13. Recommendations
 Virtual Machine (VM) distribution
• Mimic production environment
• Reducing testing incongruity
• Maximizing productivity
• Easy to deploy to new team members

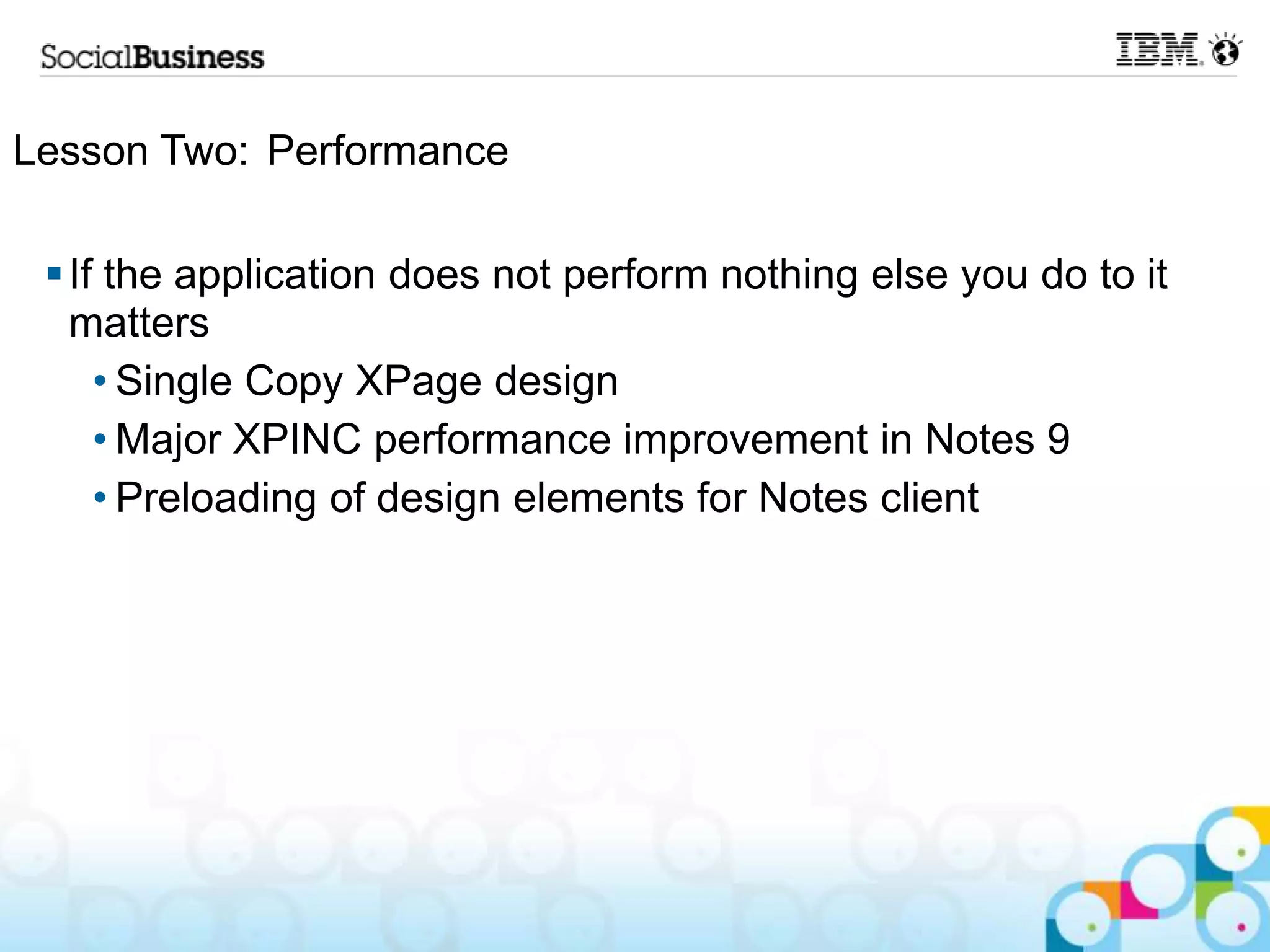

14. Lesson Two: Performance
 If the application does not perform nothing else you do to it
matters
• Single Copy XPage design
• Major XPINC performance improvement in Notes 9
• Preloading of design elements for Notes client

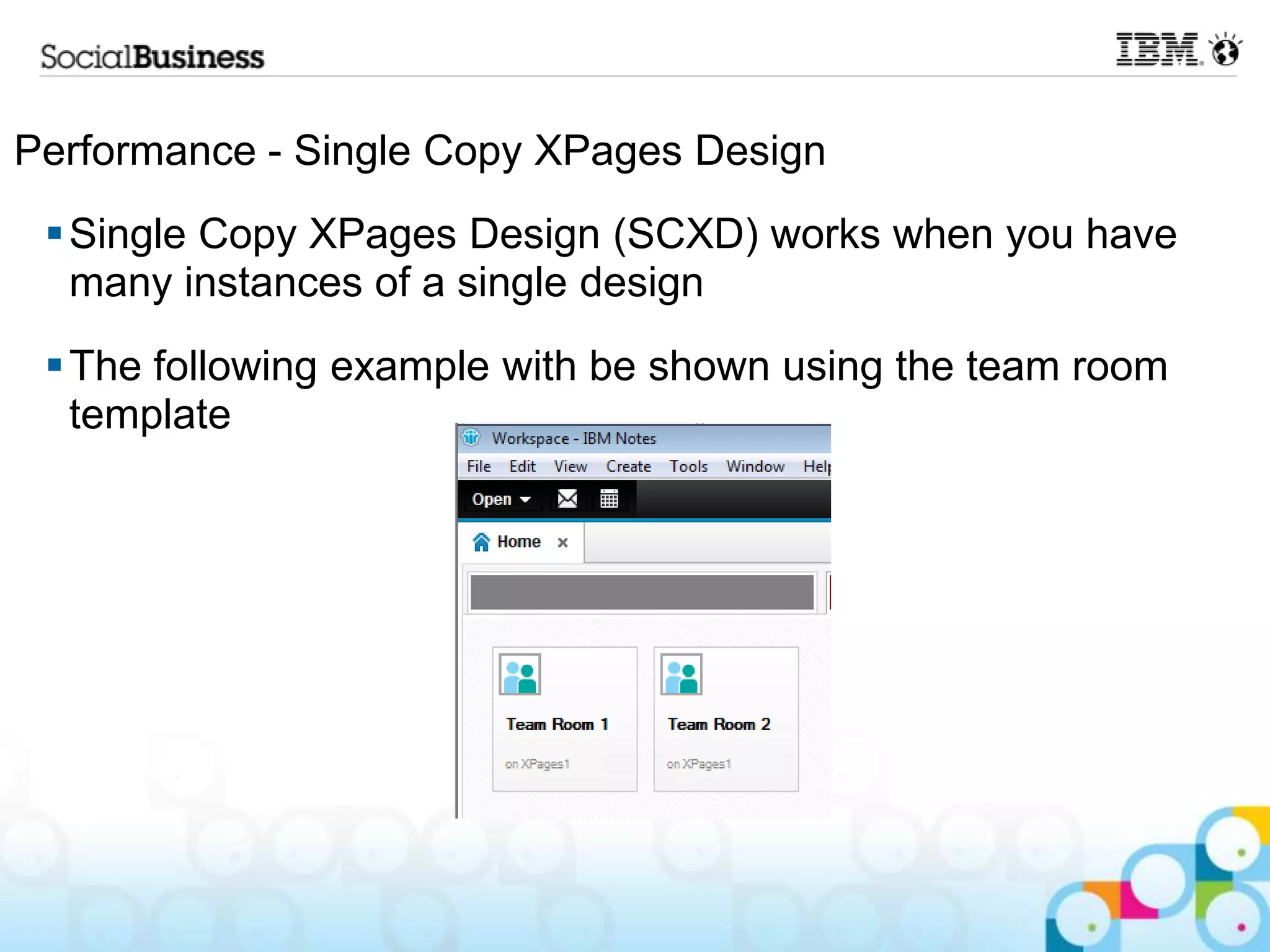

15. Performance - Single Copy XPages Design
 Single Copy XPages Design (SCXD) works when you have
many instances of a single design
 The following example with be shown using the team room
template

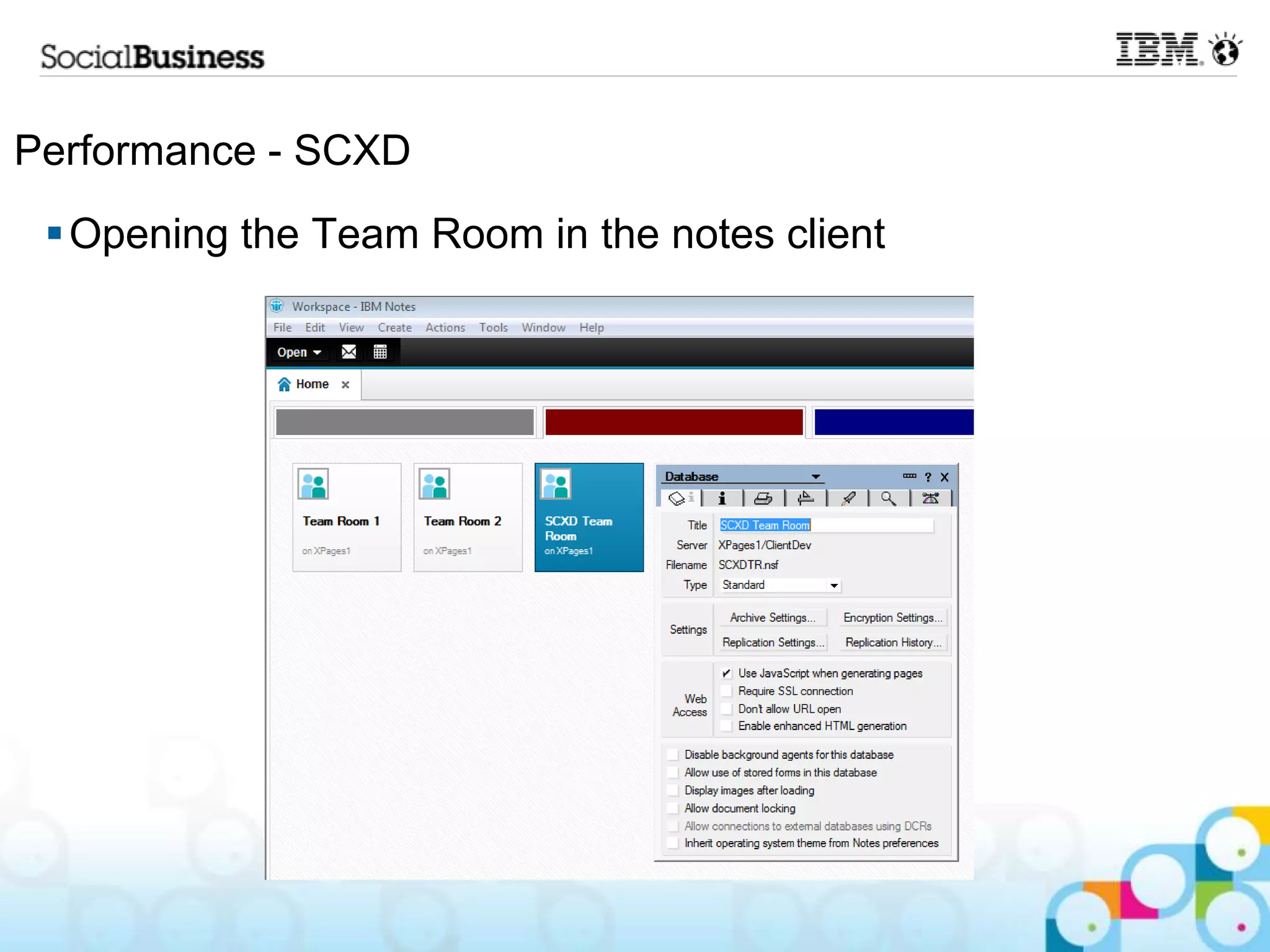

16. Performance - SCXD
 Opening the Team Room in the notes client

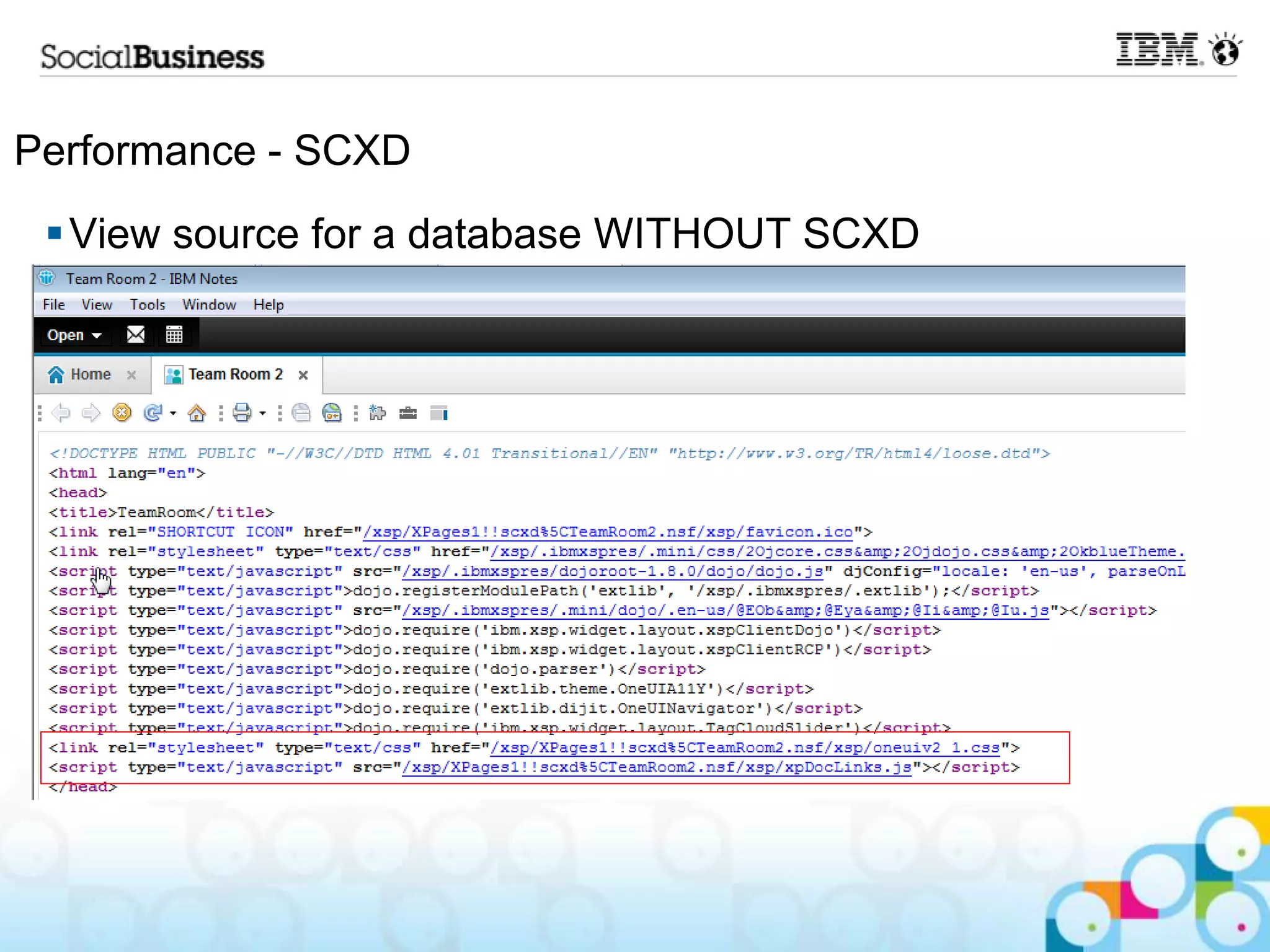

17. Performance - SCXD
 View source for a database WITHOUT SCXD

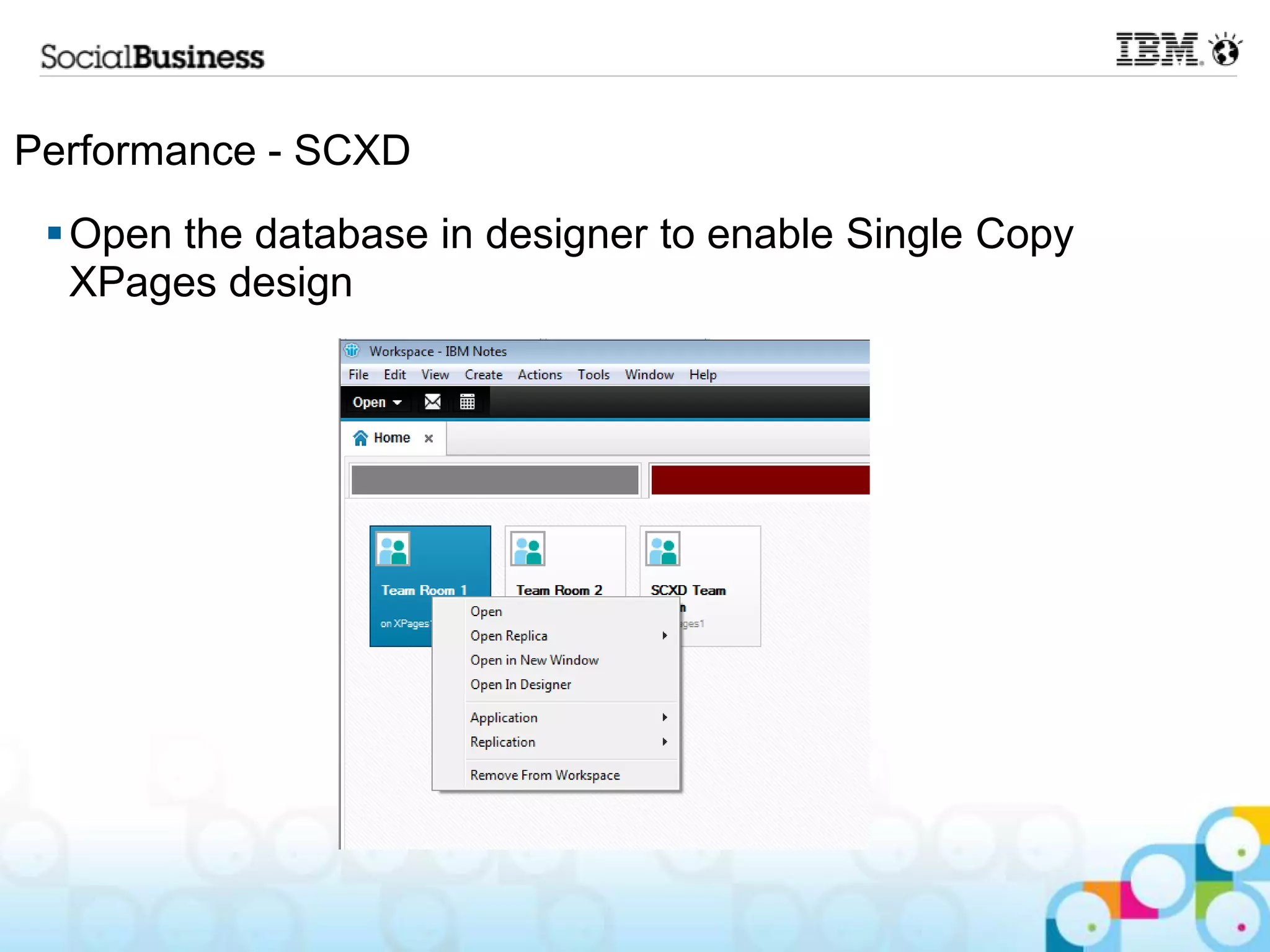

18. Performance - SCXD
 Open the database in designer to enable Single Copy
XPages design

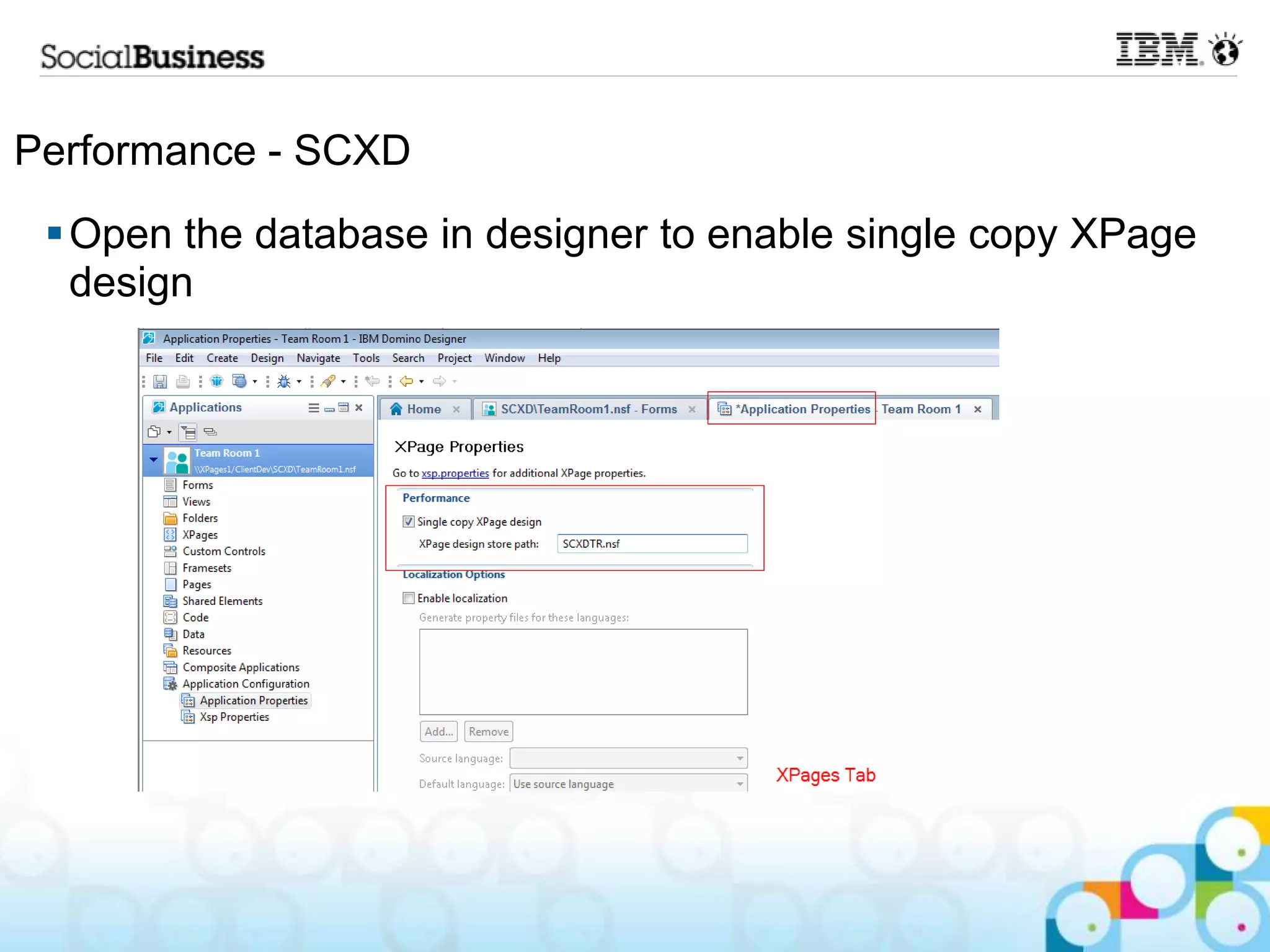

19. Performance - SCXD
 Open the database in designer to enable single copy XPage
design

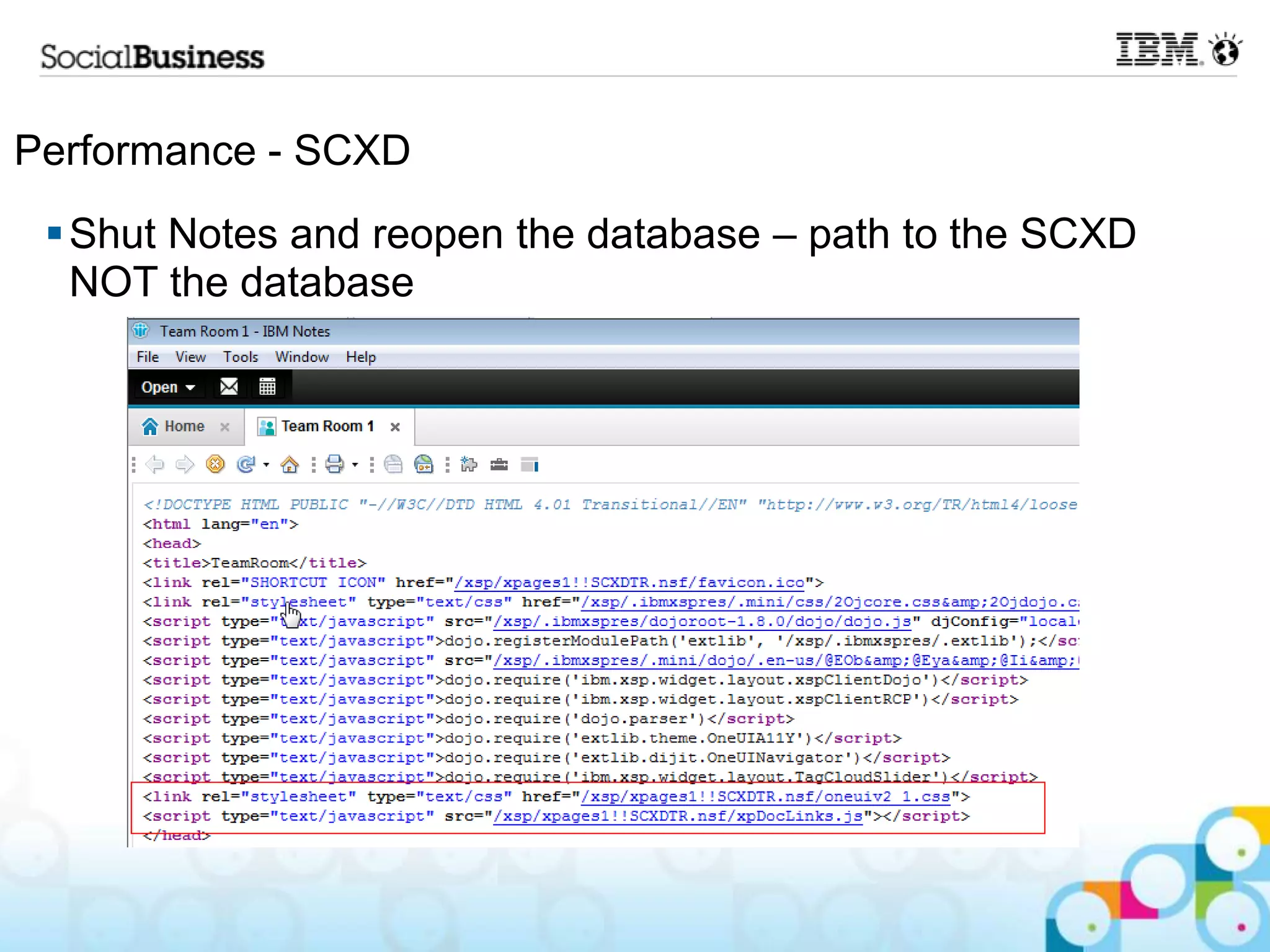

20. Performance - SCXD
 Shut Notes and reopen the database – path to the SCXD
NOT the database

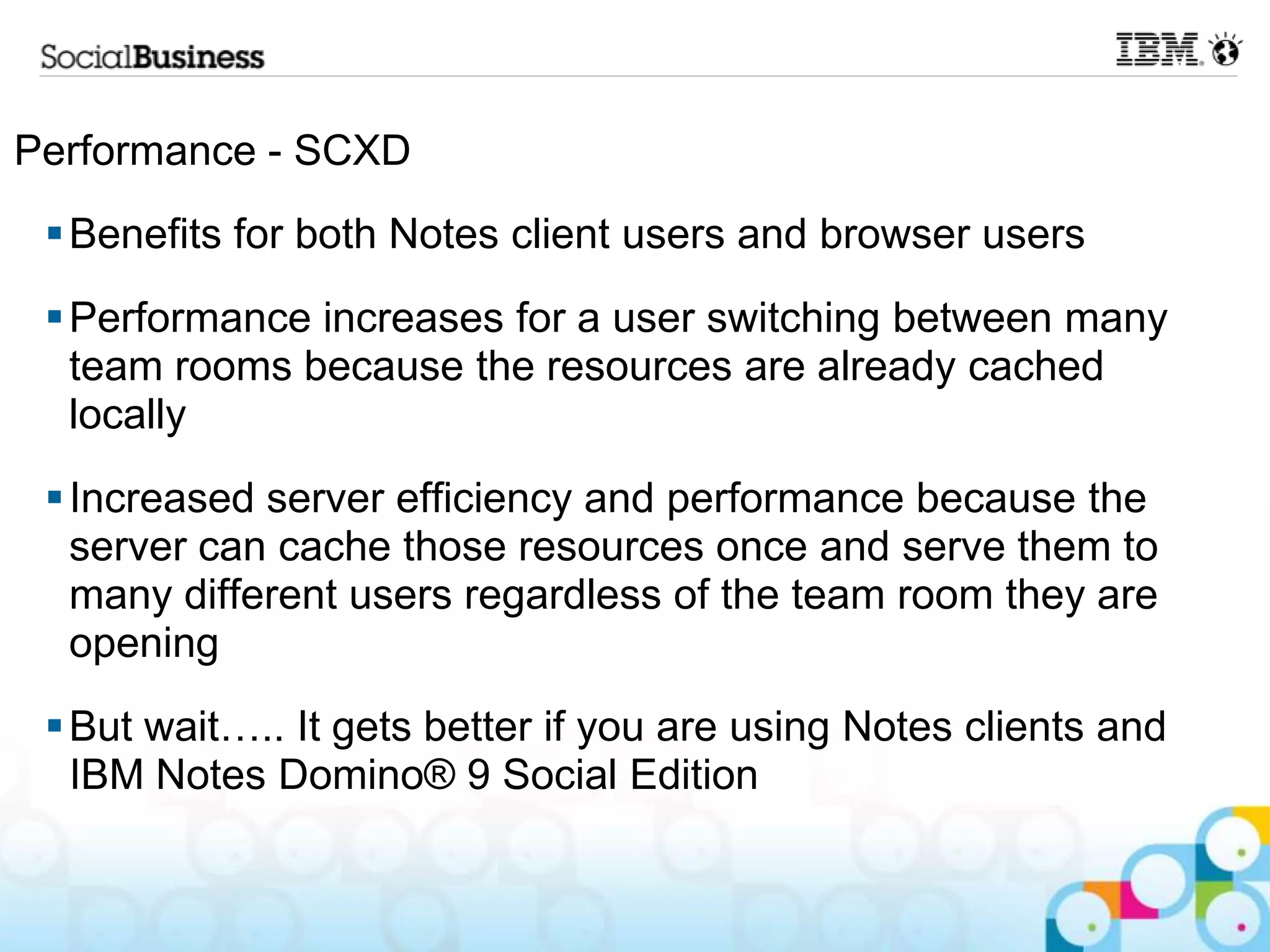

21. Performance - SCXD
 Benefits for both Notes client users and browser users
 Performance increases for a user switching between many
team rooms because the resources are already cached
locally
 Increased server efficiency and performance because the
server can cache those resources once and serve them to
many different users regardless of the team room they are
opening
 But wait….. It gets better if you are using Notes clients and
IBM Notes Domino® 9 Social Edition

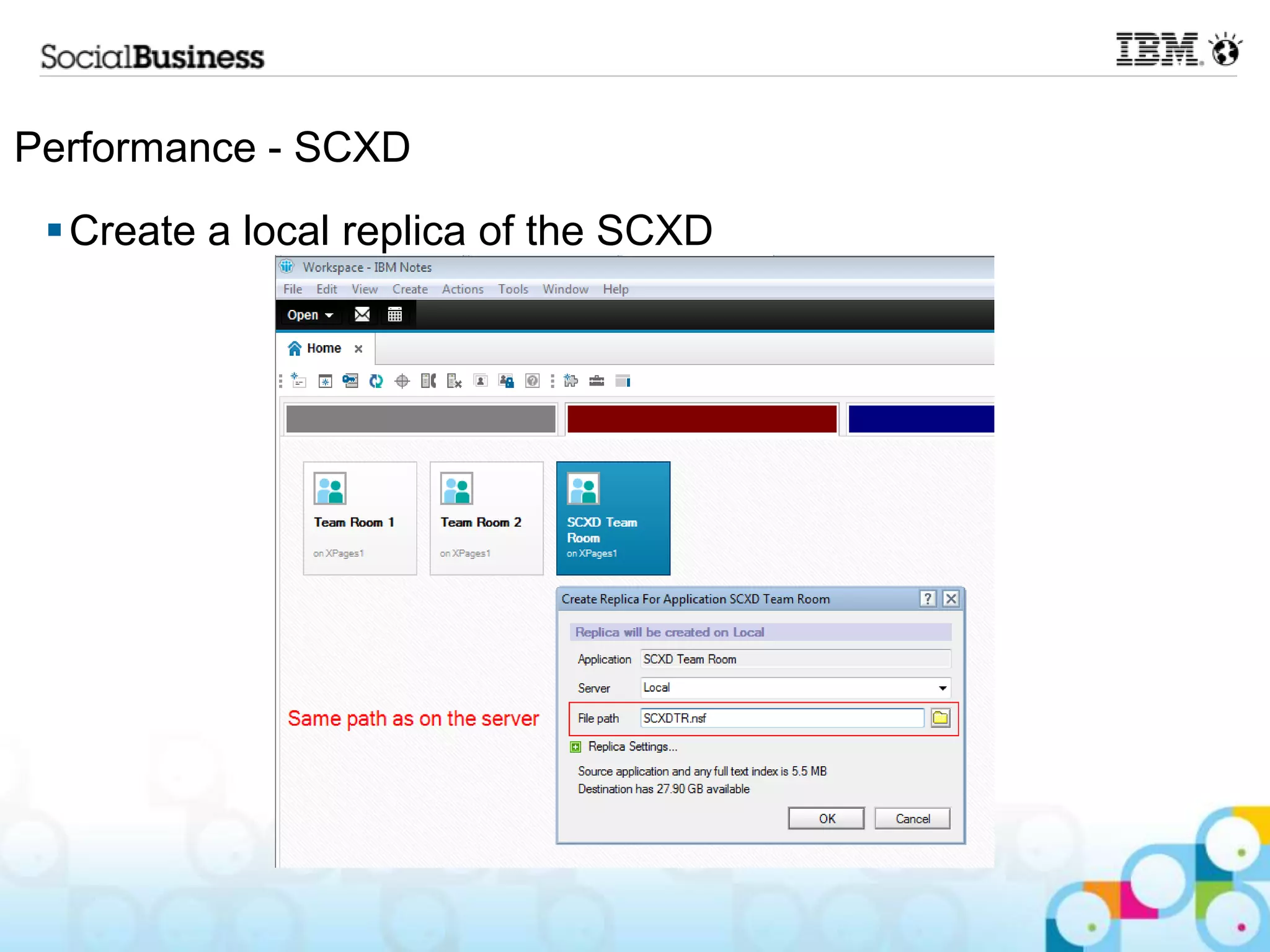

22. Performance - SCXD
 Create a local replica of the SCXD

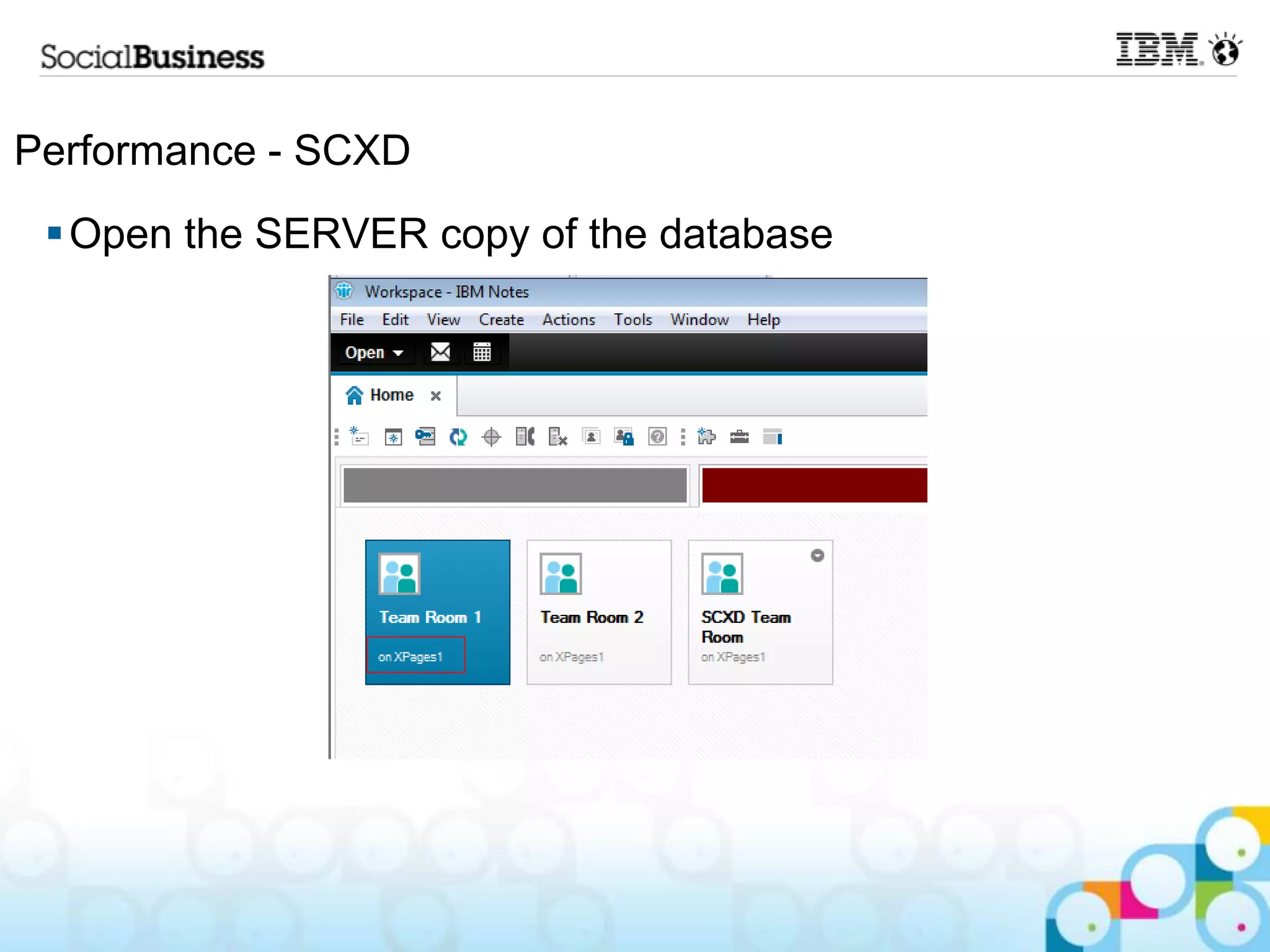

23. Performance - SCXD
 Open the SERVER copy of the database

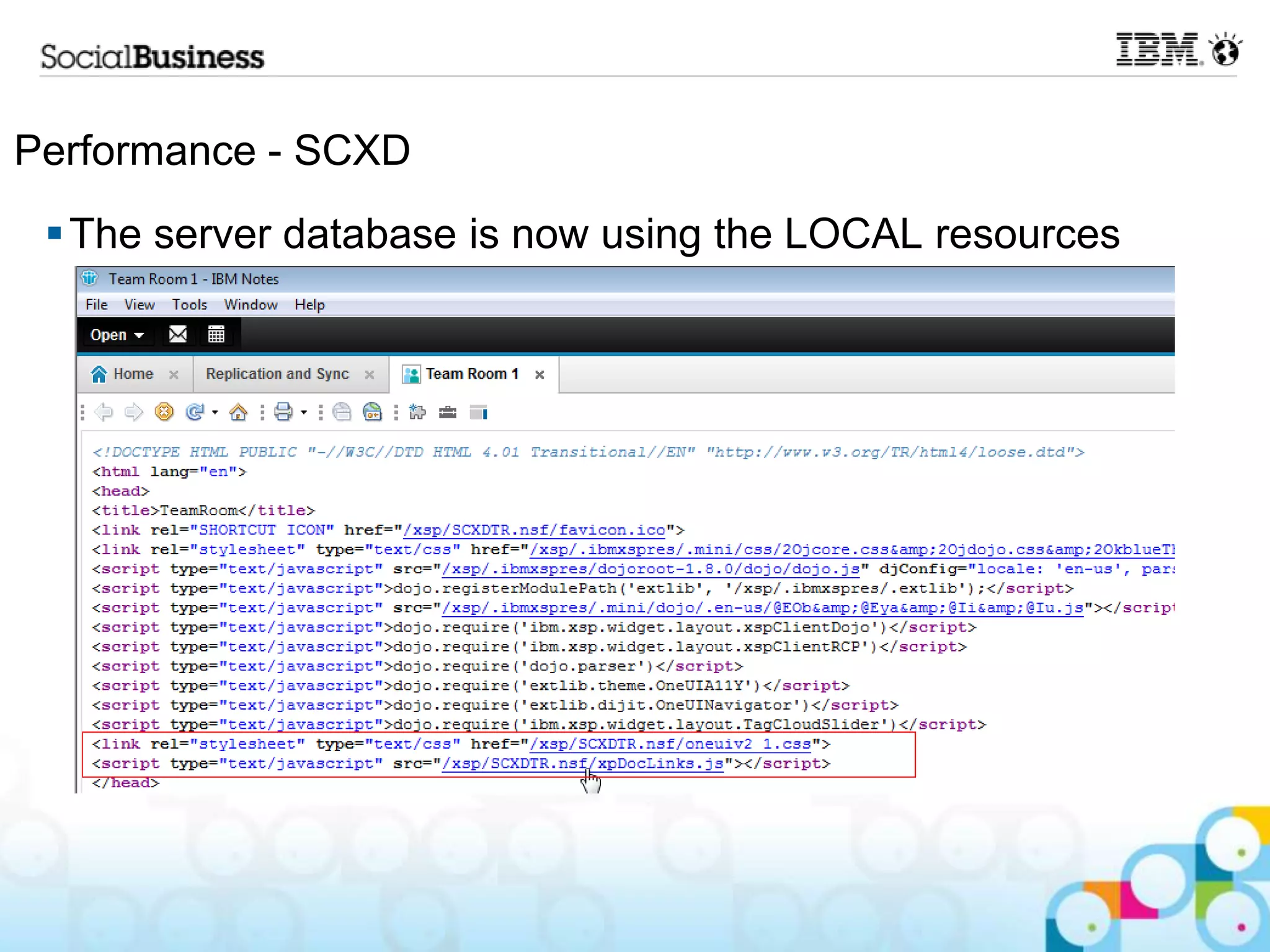

24. Performance - SCXD
 The server database is now using the LOCAL resources

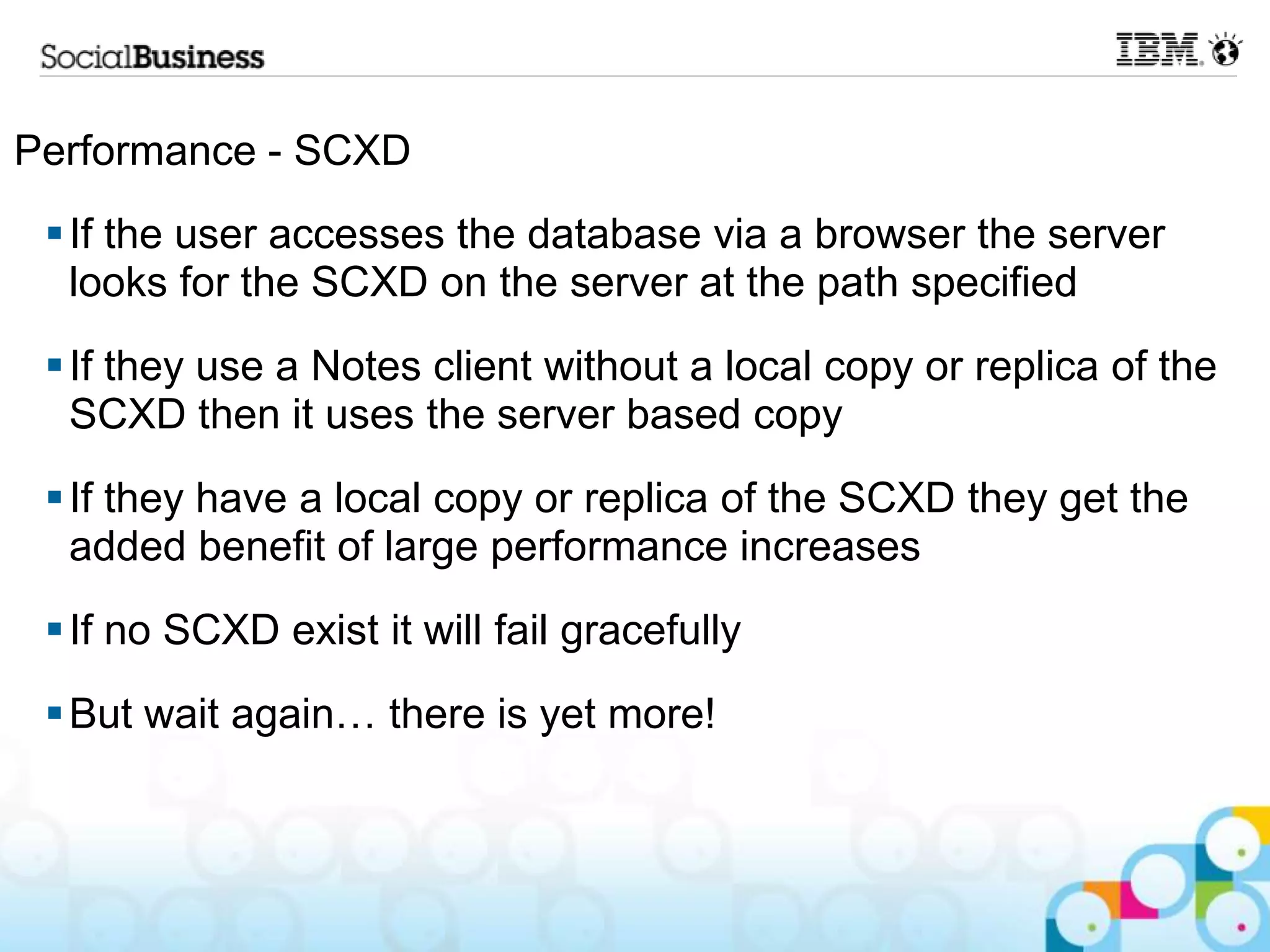

25. Performance - SCXD
 If the user accesses the database via a browser the server
looks for the SCXD on the server at the path specified
 If they use a Notes client without a local copy or replica of the
SCXD then it uses the server based copy
 If they have a local copy or replica of the SCXD they get the
added benefit of large performance increases
 If no SCXD exist it will fail gracefully
 But wait again… there is yet more!

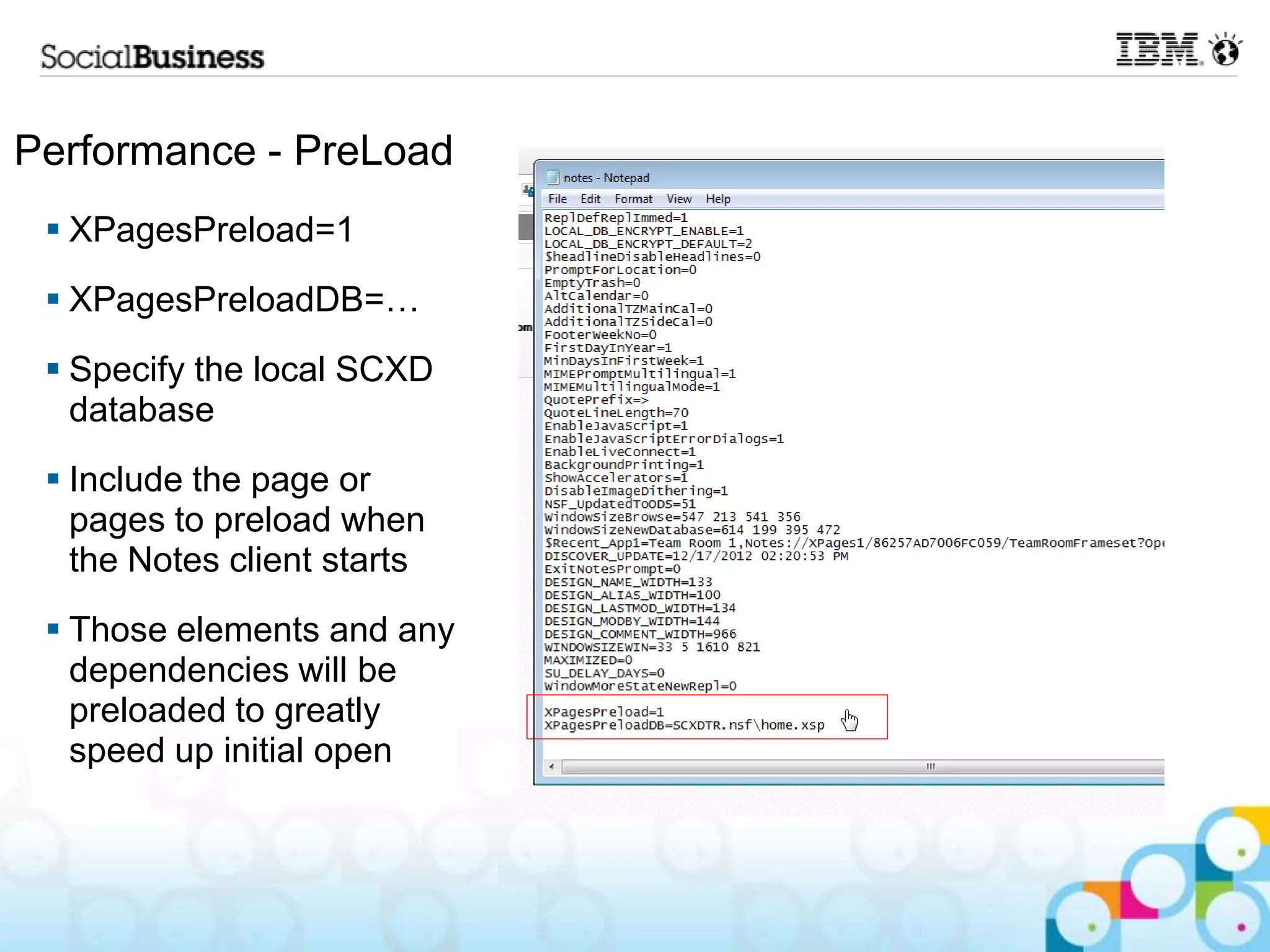

26. Performance - PreLoad
 XPagesPreload=1
 XPagesPreloadDB=…
 Specify the local SCXD
database
 Include the page or
pages to preload when
the Notes client starts
 Those elements and any
dependencies will be
preloaded to greatly
speed up initial open

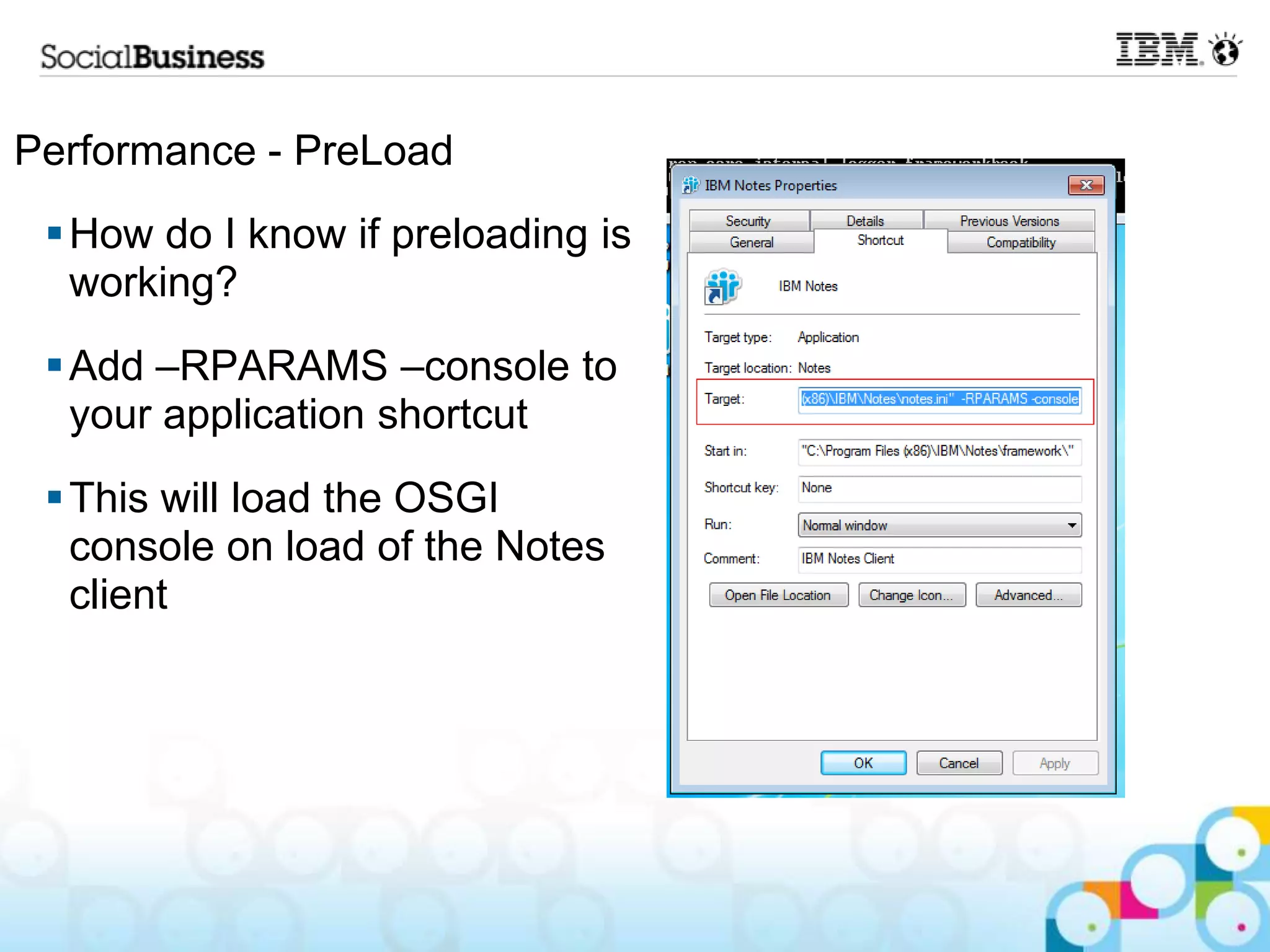

27. Performance - PreLoad
 How do I know if preloading is
working?
 Add –RPARAMS –console to
your application shortcut
 This will load the OSGI
console on load of the Notes
client

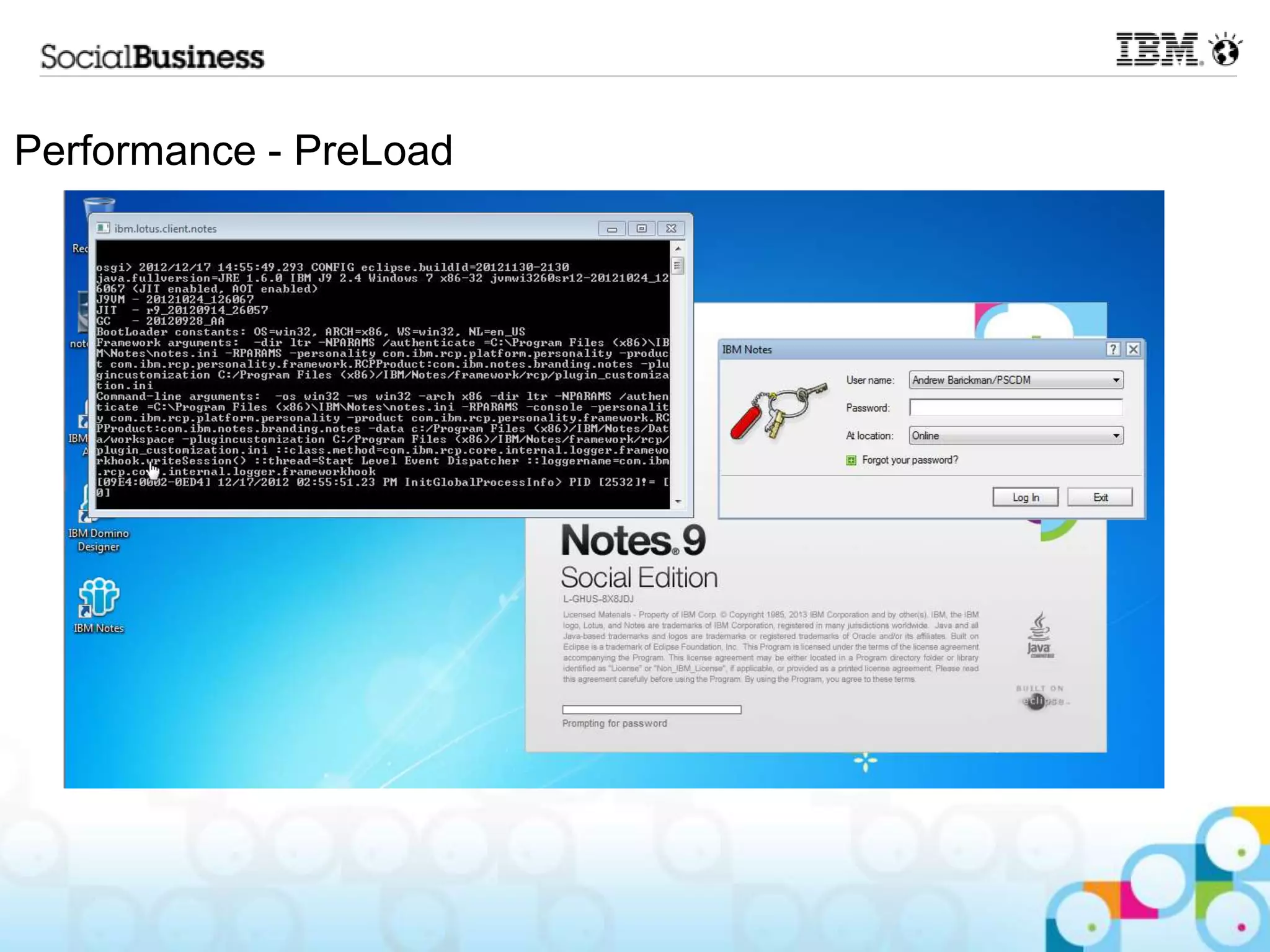

28. Performance - PreLoad

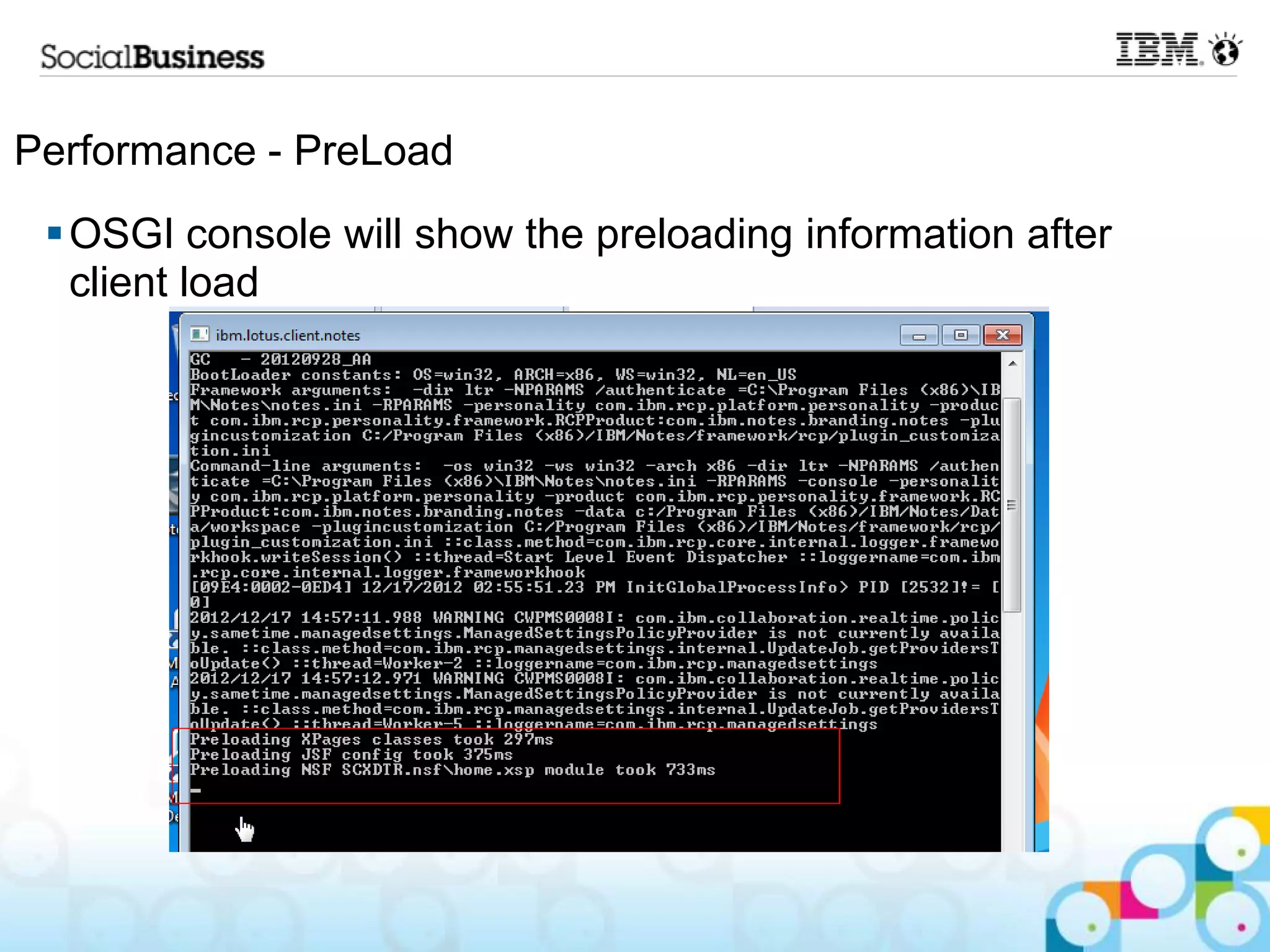

29. Performance - PreLoad
 OSGI console will show the preloading information after
client load

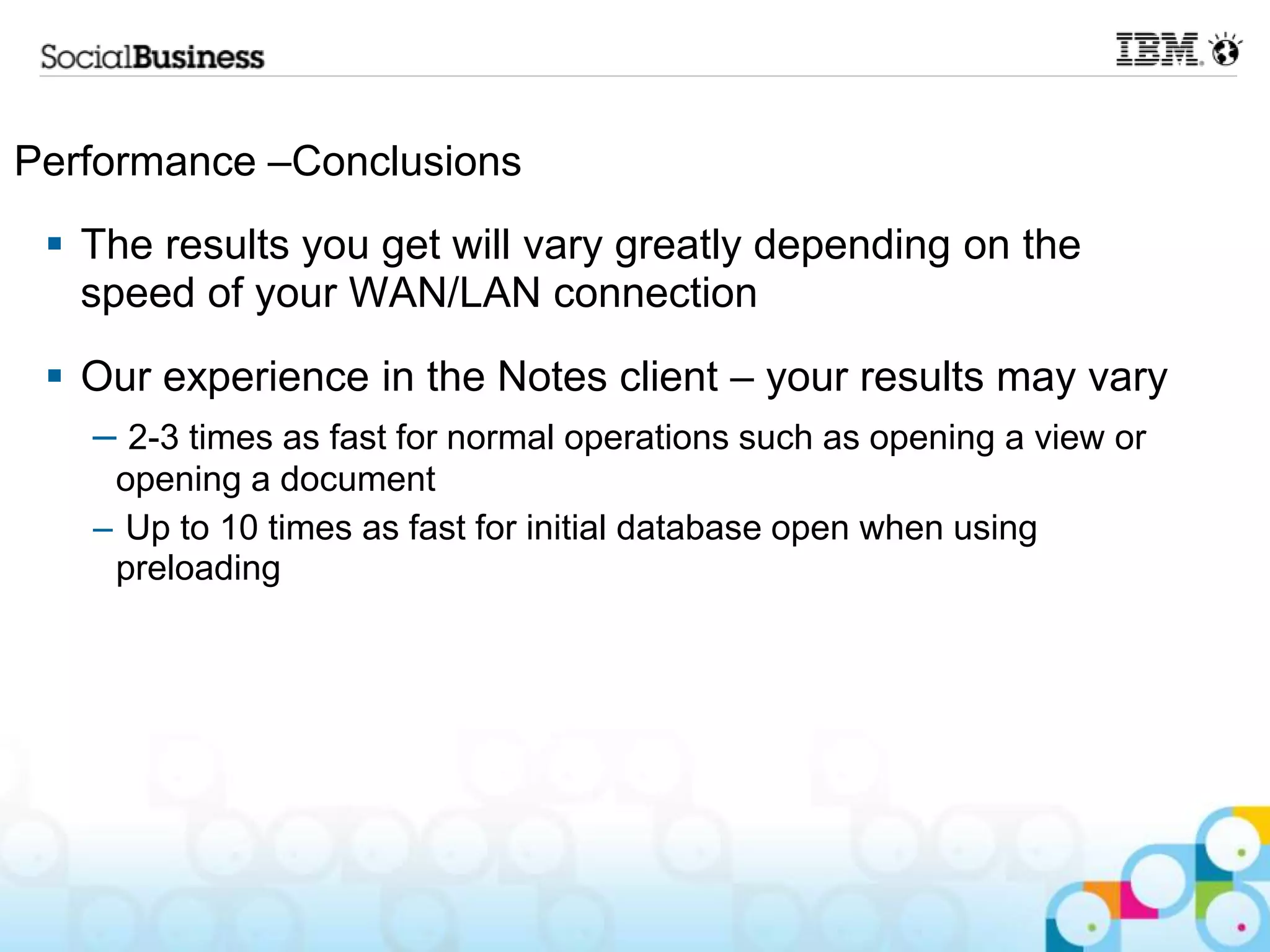

30. Performance –Conclusions
 The results you get will vary greatly depending on the
speed of your WAN/LAN connection
 Our experience in the Notes client – your results may vary
– 2-3 times as fast for normal operations such as opening a view or
opening a document
– Up to 10 times as fast for initial database open when using
preloading

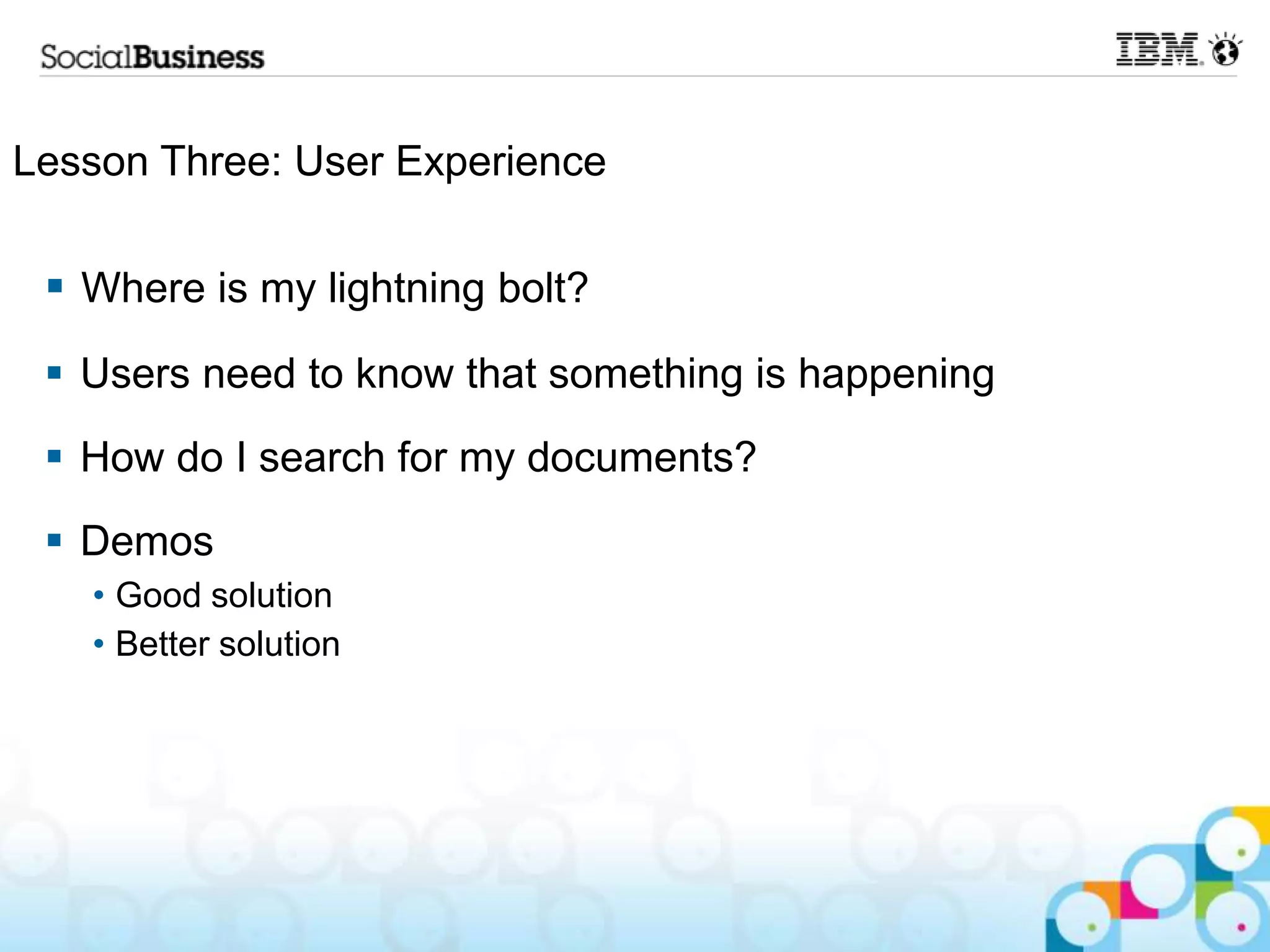

31. Lesson Three: User Experience
 Where is my lightning bolt?
 Users need to know that something is happening
 How do I search for my documents?
 Demos
• Good solution
• Better solution

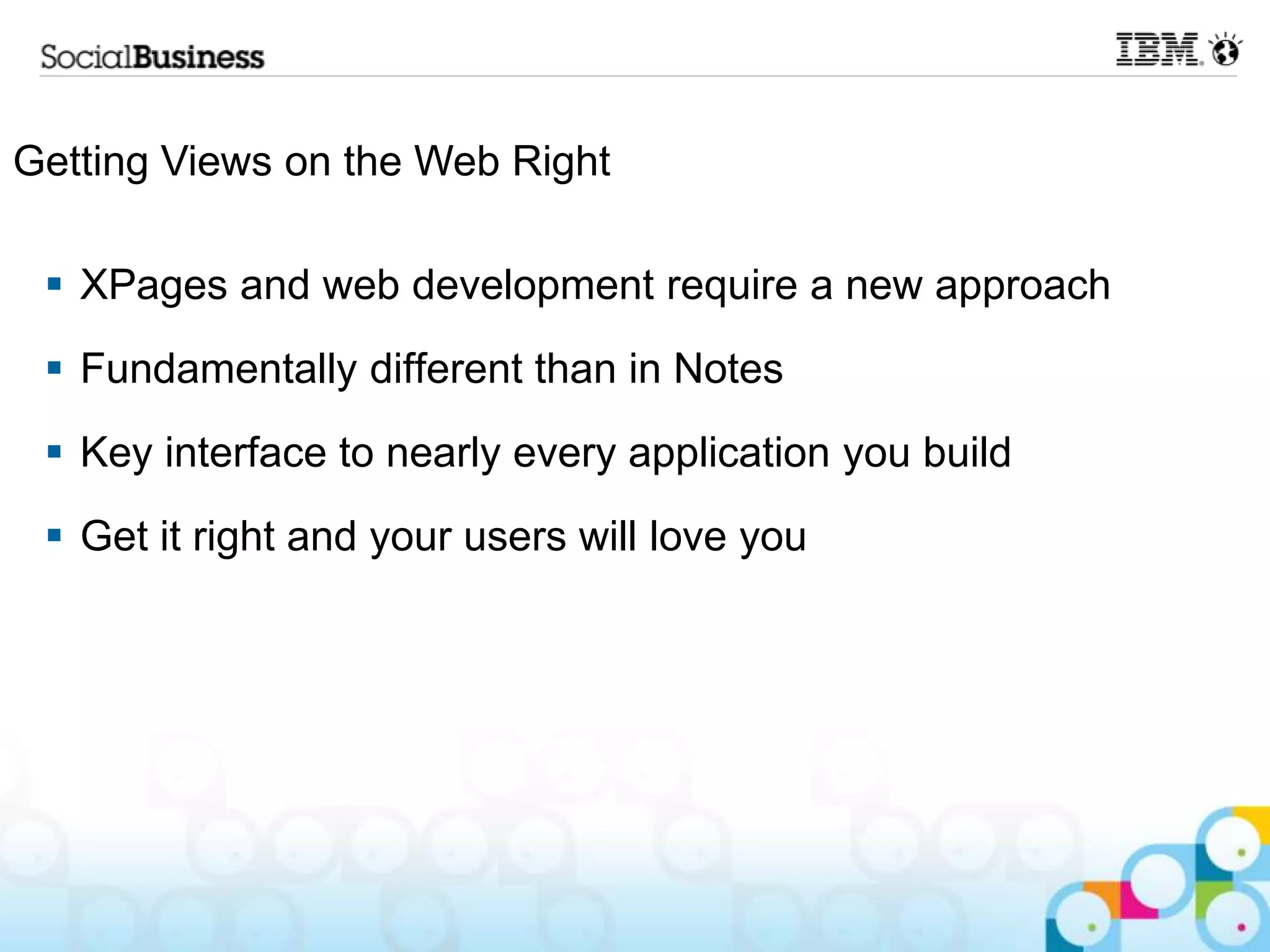

32. Getting Views on the Web Right
 XPages and web development require a new approach
 Fundamentally different than in Notes
 Key interface to nearly every application you build
 Get it right and your users will love you

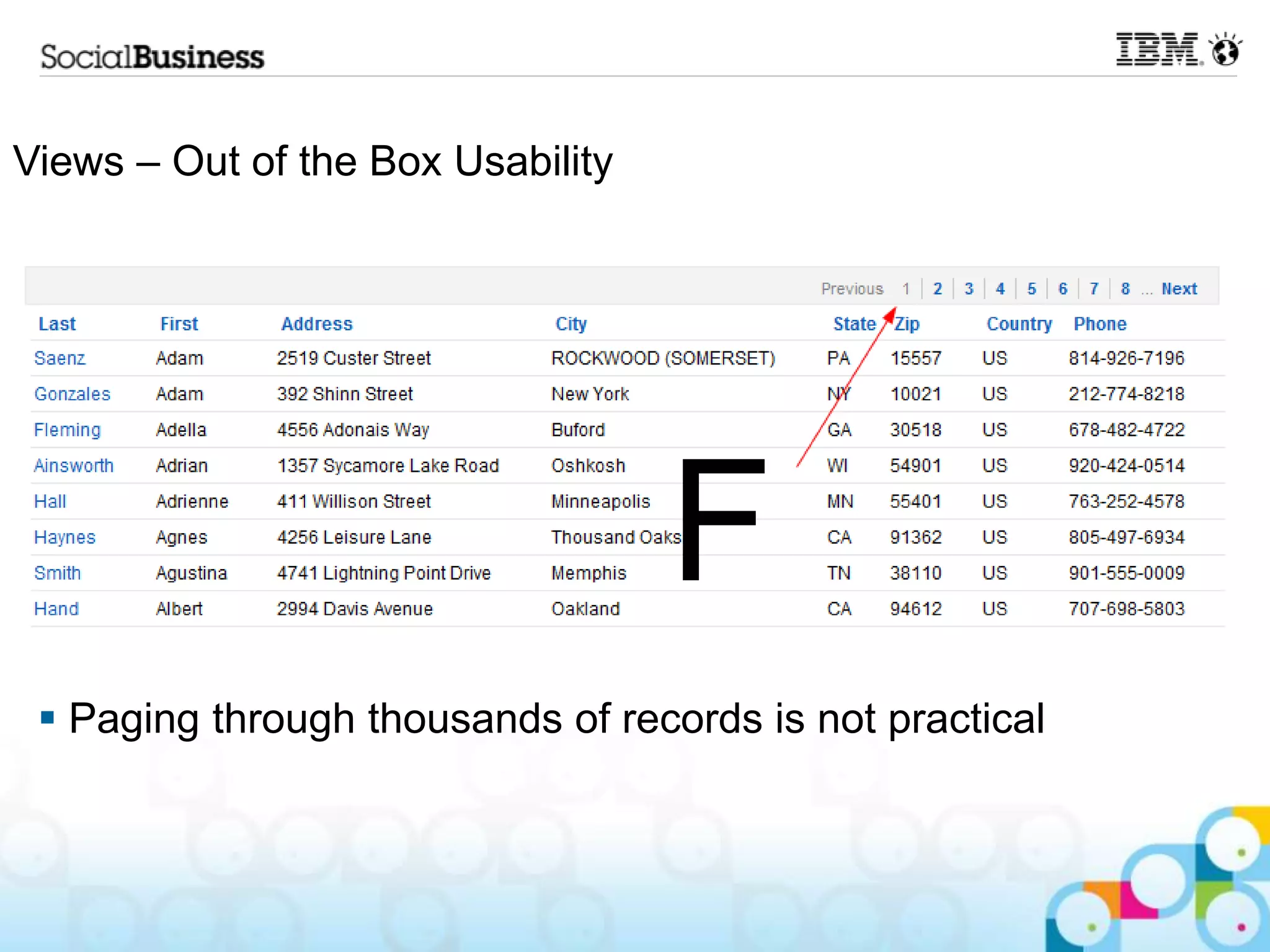

33. Views – Out of the Box Usability
F
 Paging through thousands of records is not practical

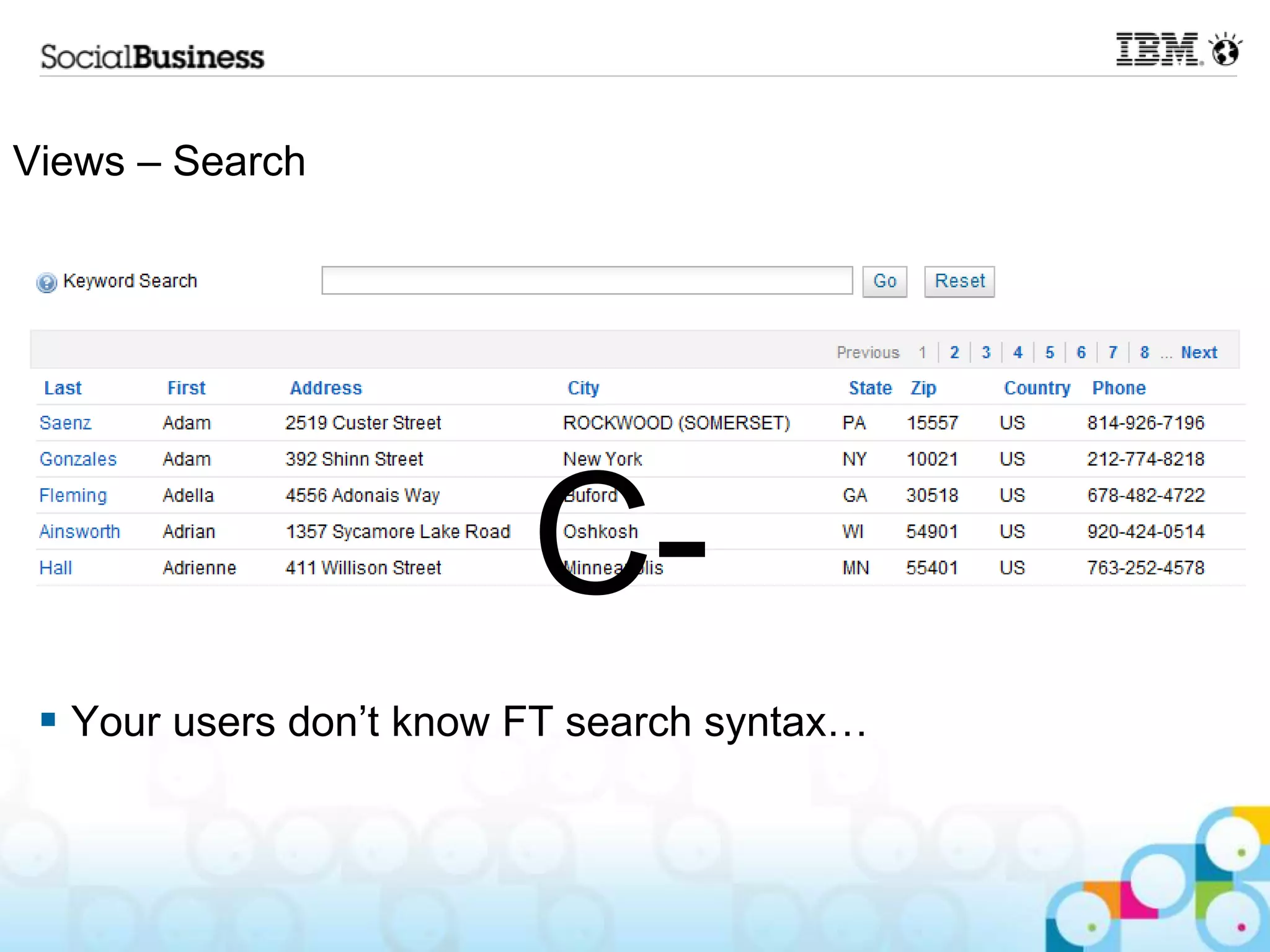

34. Views – Search
C-
 Your users don’t know FT search syntax…

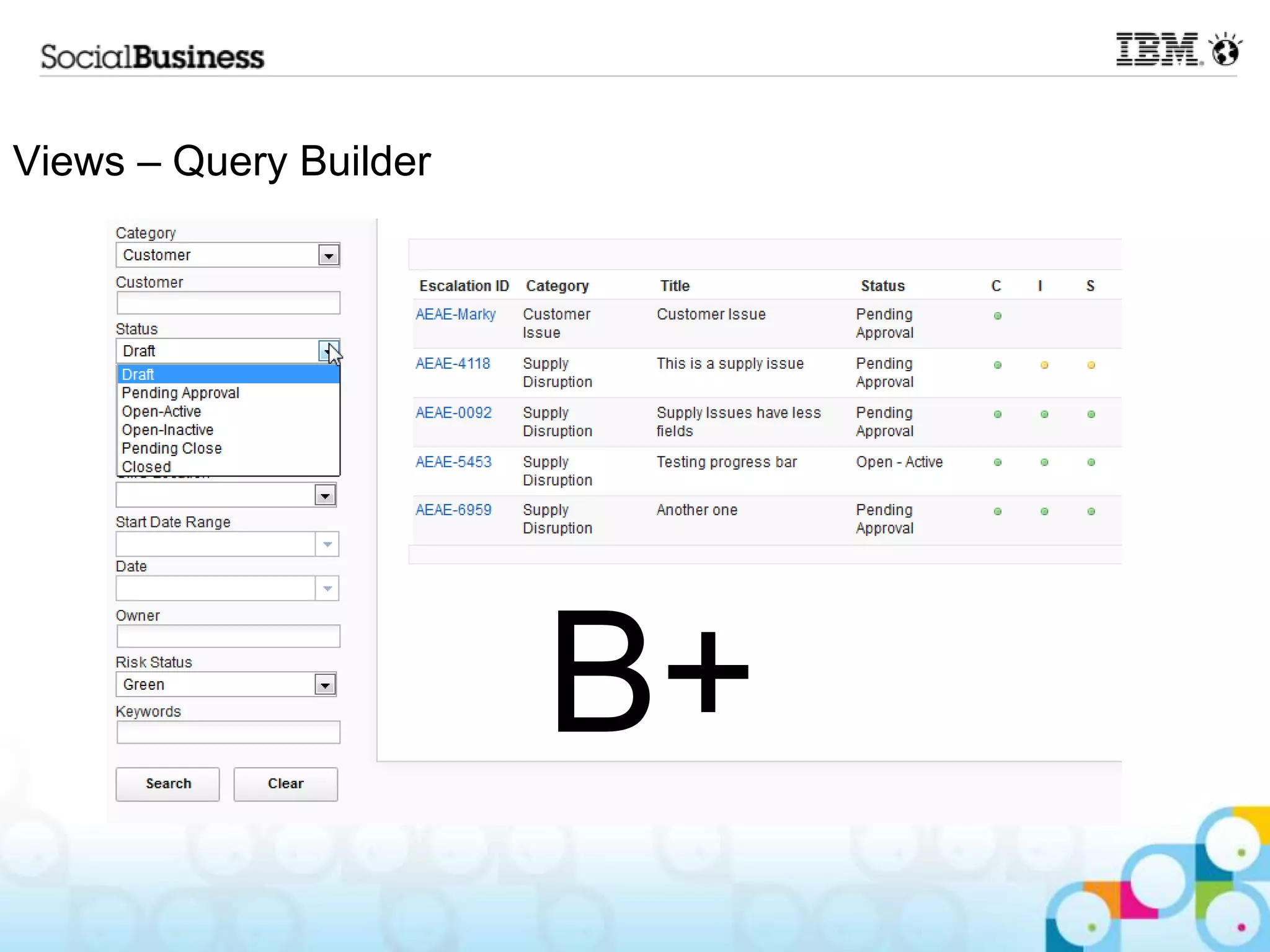

35. Views – Query Builder
B+

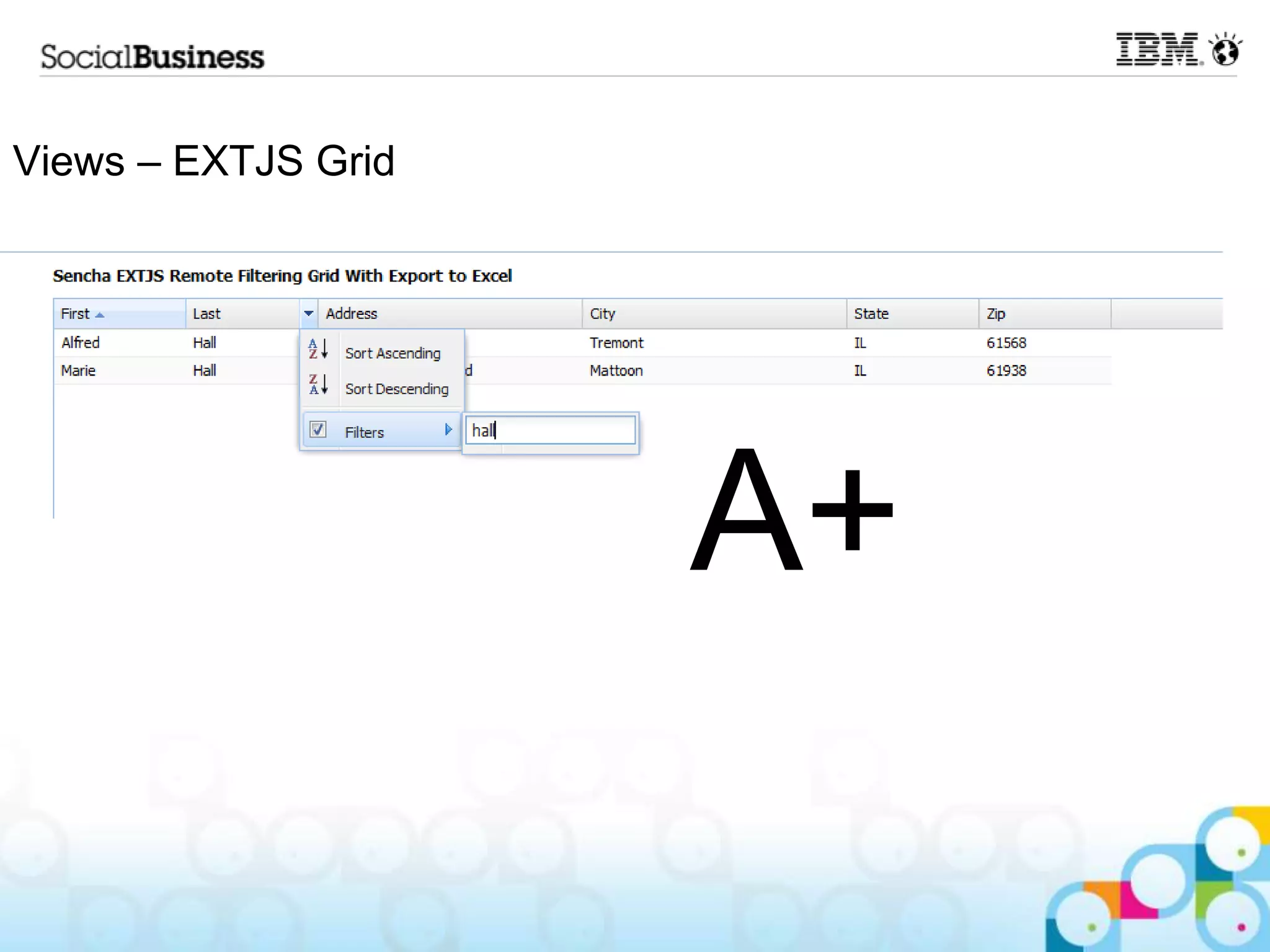

36. Views – EXTJS Grid
A+

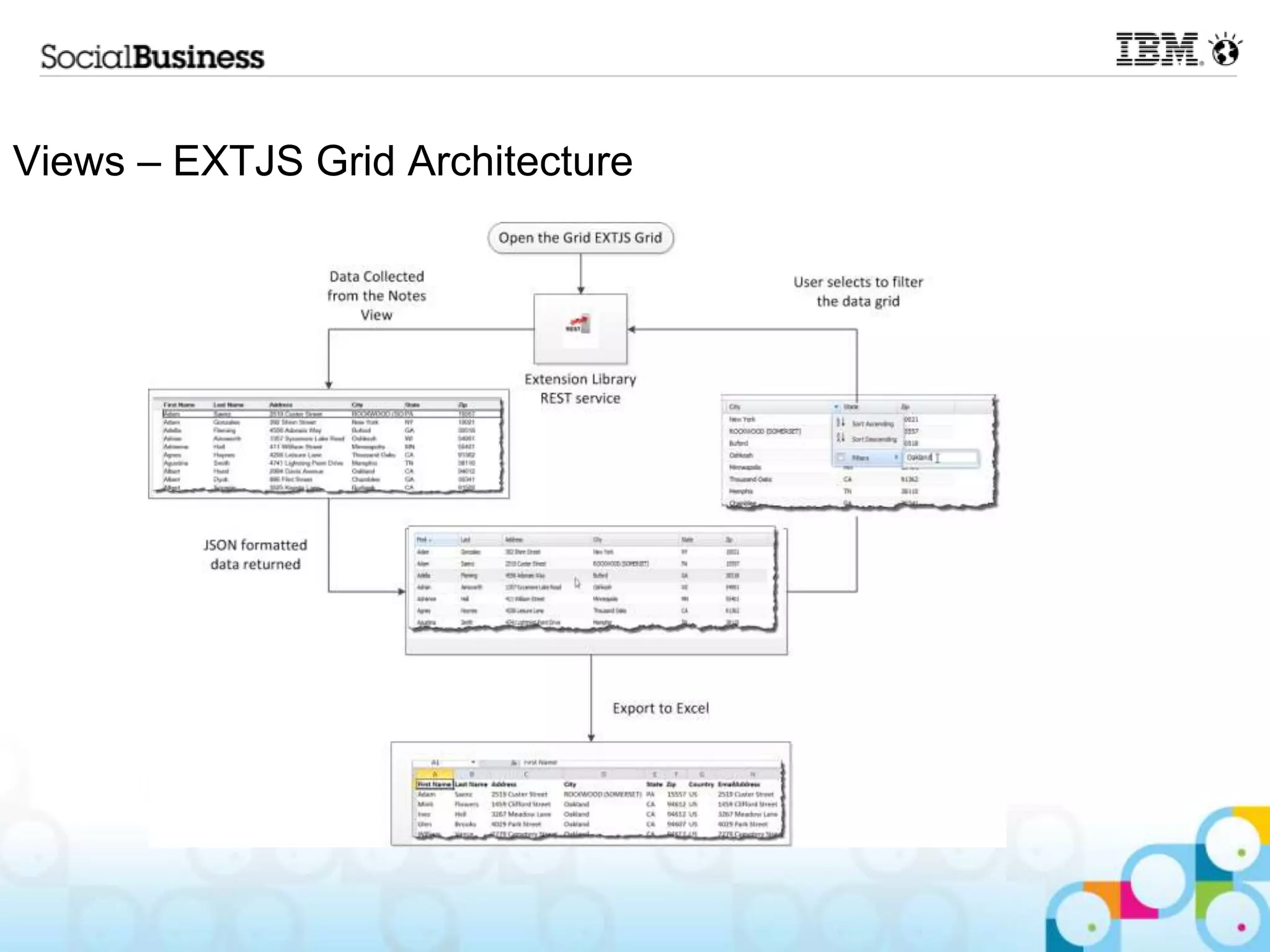

37. Views – EXTJS Grid Architecture

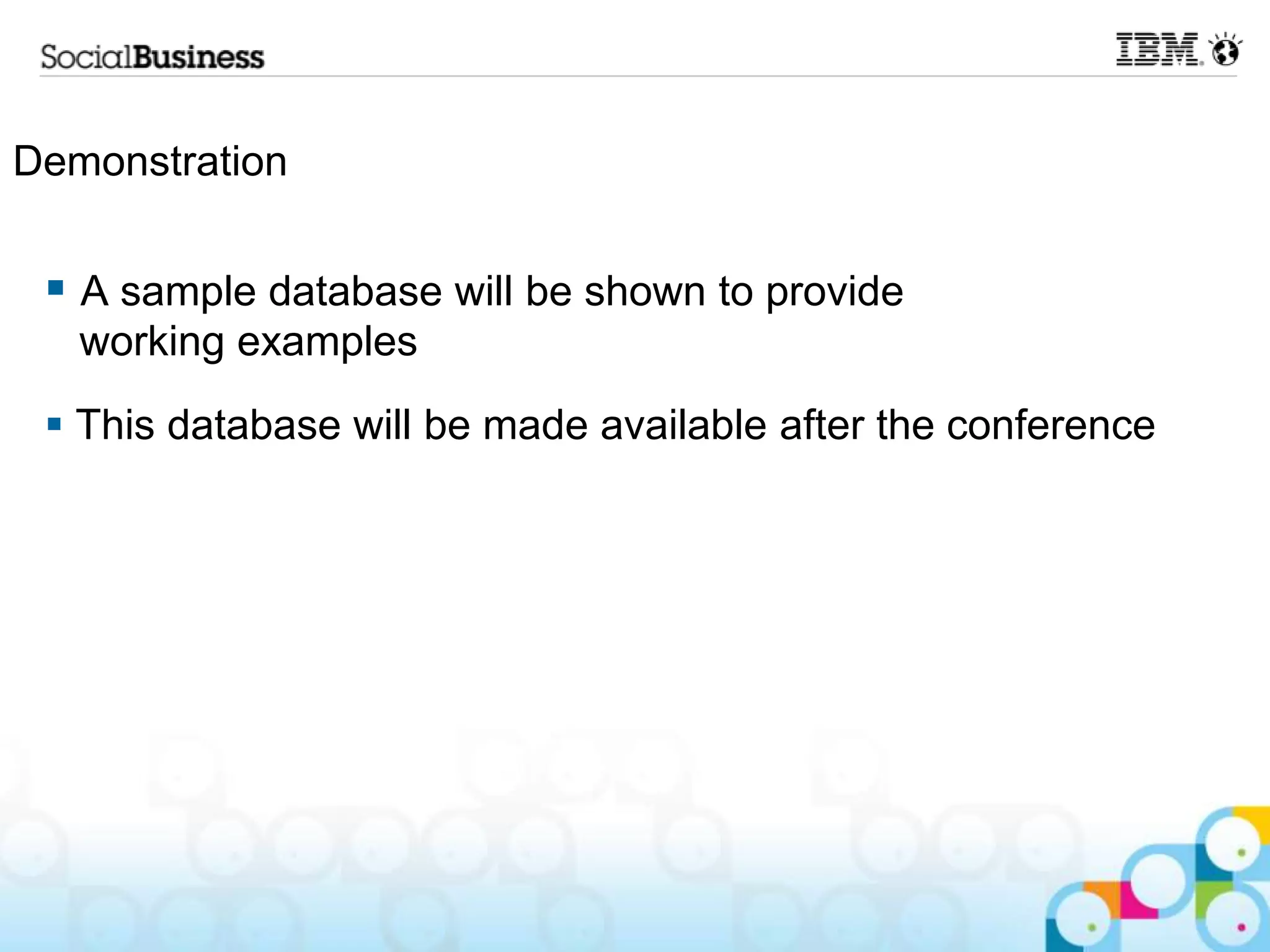

38. Demonstration
 A sample database will be shown to provide
working examples
 This database will be made available after the conference

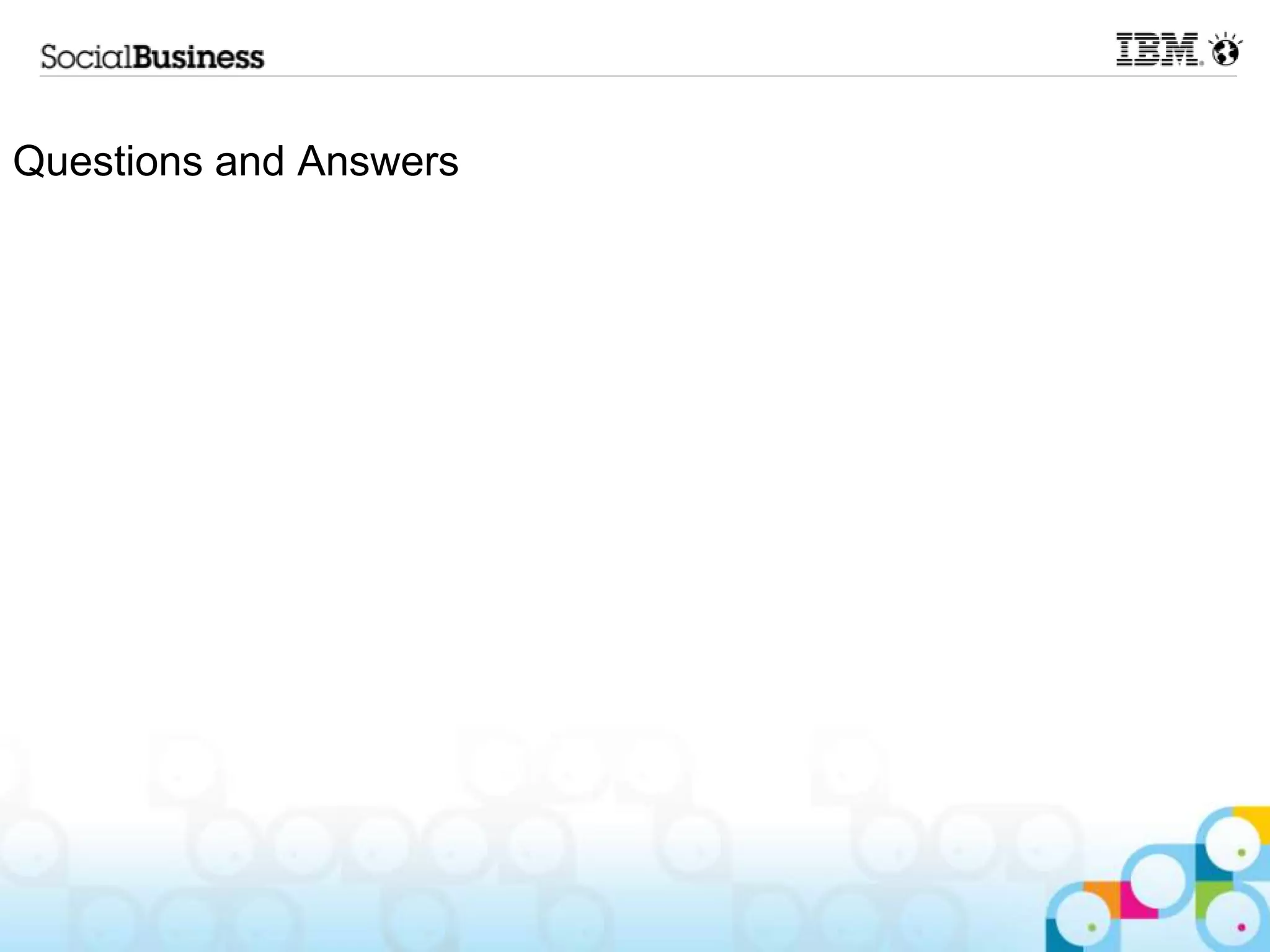

39. Questions and Answers

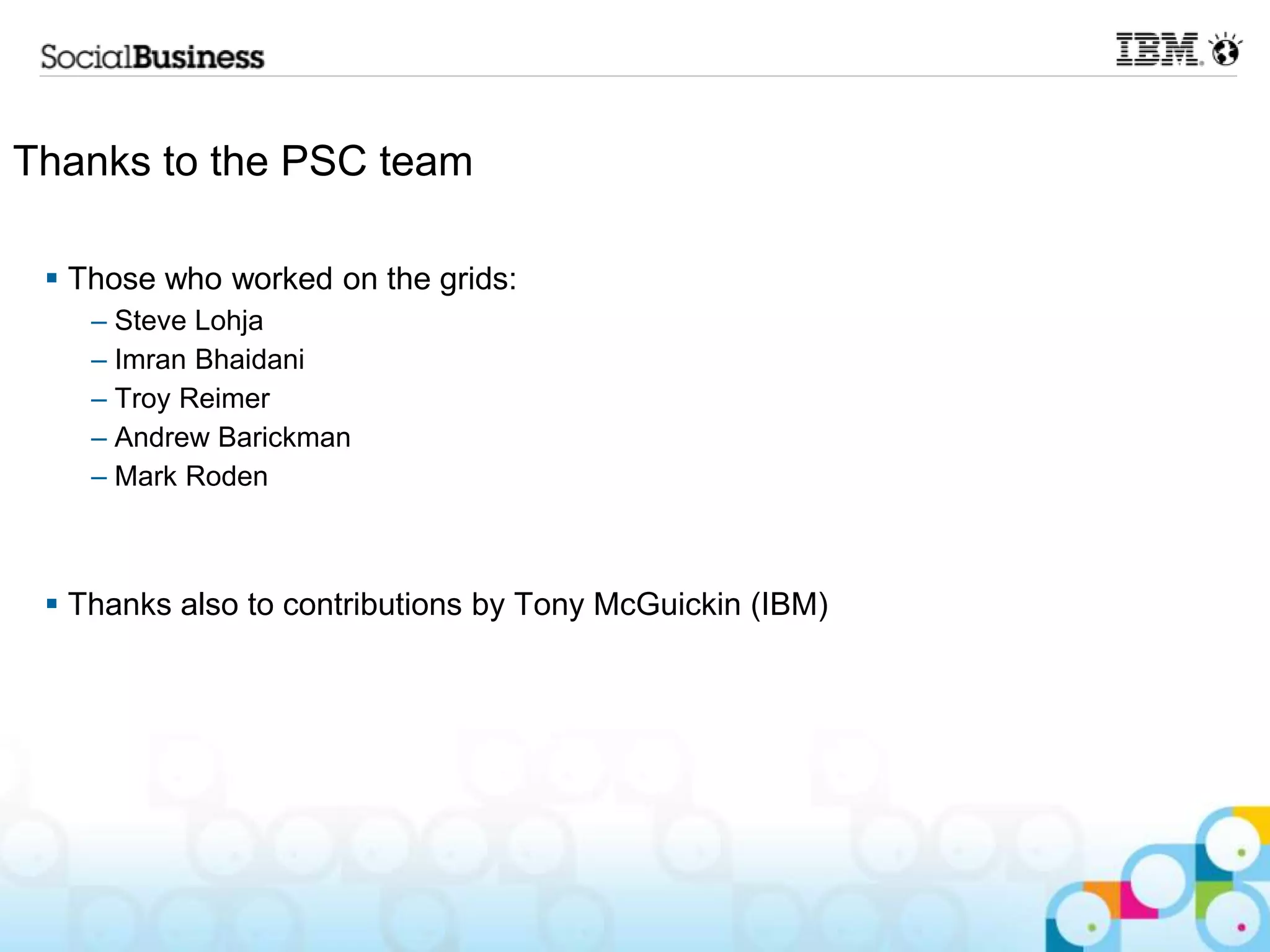

40. Thanks to the PSC team
 Those who worked on the grids:
– Steve Lohja
– Imran Bhaidani
– Troy Reimer
– Andrew Barickman
– Mark Roden
 Thanks also to contributions by Tony McGuickin (IBM)

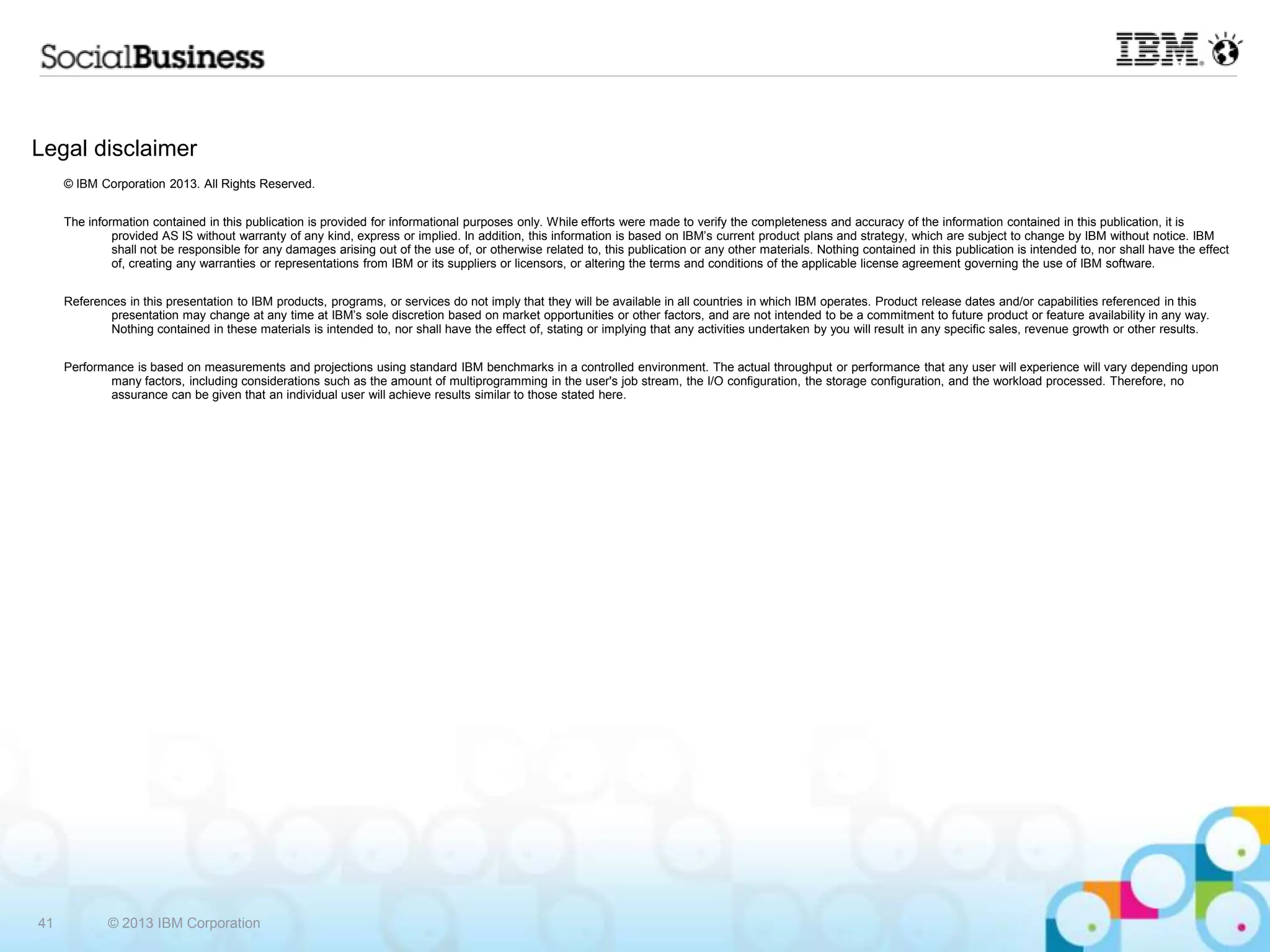

41. Legal disclaimer
