1. AD1542 –
Get Hands-On with XPages Apps for Bluemix
Martin Donnelly – IBM Ireland
Brian Gleeson – IBM Ireland

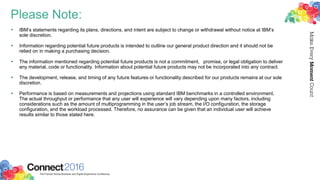

2. Please Note:
• IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s
sole discretion.
• Information regarding potential future products is intended to outline our general product direction and it should not be
relied on in making a purchasing decision.
• The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may not be incorporated into any contract.
• The development, release, and timing of any future features or functionality described for our products remains at our sole
discretion.
• Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment.
The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.

3. Introductions…
Martin Donnelly
Software Architect
@TweeterDonnelly
Brian Gleeson
Software Developer
@BGleesonIE

4. Agenda
• Introductions
• IBM XPages – The Road to Bluemix
• XPages/Domino Apps for Bluemix in Action
• A Look Under The Hood
• Architectural Summary
• XPages and Other Bluemix Services
• Summary & FAQs

5. IBM XPages: The Road to Bluemix
2H 2015
Experimental
 XPages runtime
 XPages NoSQL Database service
 XPages Web Starter boilerplate
 Domino Designer Bluemix extensions
GA
• All previous features +
• FP5 Update
• Full A11Y support
• Multi-language buildpack
Futures
• Bluemix Dedicated
• Bluemix Local
• XPages runtime updates
Beta
• Enhanced XPages runtime
• Hybrid Support -
Secure on-premises access to
• NSF data
• Domino directory
2Q 2016 & beyond…3Q 2015 Q1 2016

6. IBM XPages for Bluemix goes Beta !
Beta released on January 21st
• Build/Manage/Run XPages Apps on Bluemix bound to:
• Domino data on-cloud or on-premises
• RDBMS data, e.g. IBM DB2 on Cloud
• NoSQL Databases, e.g. IBM Cloudant
• Cognitive Services, e.g. one or more Watson offering
• Let’s take it for a ride !

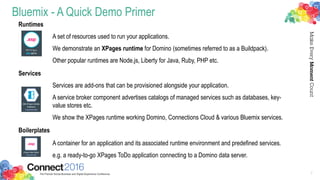

7. Bluemix - A Quick Demo Primer
Runtimes
A set of resources used to run your applications.
We demonstrate an XPages runtime for Domino (sometimes referred to as a Buildpack).
Other popular runtimes are Node.js, Liberty for Java, Ruby, PHP etc.
Services
Services are add-ons that can be provisioned alongside your application.
A service broker component advertises catalogs of managed services such as databases, key-
value stores etc.
We show the XPages runtime working Domino, Connections Cloud & various Bluemix services.
Boilerplates
A container for an application and its associated runtime environment and predefined services.
e.g. a ready-to-go XPages ToDo application connecting to a Domino data server.
7

8. Bluemix - A Quick Demo Primer
IBM Bluemix – Platform as a Service (PaaS)
 Bluemix applications are loosely-coupled
 App instances load in a runtime container and bind to services.
 The need for design and data separation is fundamental to the platform
 Some sample runtime and services combinations:
8

9. DEMO
IBM XPages & Domino for Bluemix

10. A Look Under The Hood
Main Use Case
XPages Apps bound to Domino data
• A Tale of Two NSFs
• 1 Design NSF with your XPages, CSS, JS code
• 1 Data NSF with your data
• Separation of Design and Data
• XPages sees docs and views via data sources

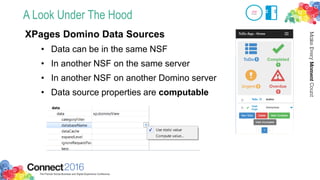

11. A Look Under The Hood
XPages Domino Data Sources
• Data can be in the same NSF
• In another NSF on the same server
• In another NSF on another Domino server
• Data source properties are computable

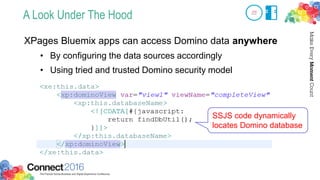

12. A Look Under The Hood
XPages Bluemix apps can access Domino data anywhere
• By configuring the data sources accordingly
• Using tried and trusted Domino security model
SSJS code dynamically
locates Domino database

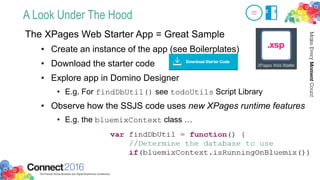

13. A Look Under The Hood
The XPages Web Starter App = Great Sample
• Create an instance of the app (see Boilerplates)
• Download the starter code
• Explore app in Domino Designer
• E.g. For findDbUtil() see todoUtils Script Library
• Observe how the SSJS code uses new XPages runtime features
• E.g. the bluemixContext class …

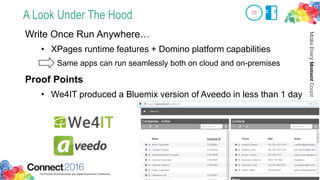

14. A Look Under The Hood
Write Once Run Anywhere…
• XPages runtime features + Domino platform capabilities
Same apps can run seamlessly both on cloud and on-premises
Proof Points
• We4IT produced a Bluemix version of Aveedo in less than 1 day

15. Architectural Summary

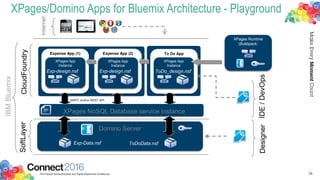

16. XPages Runtime
(Buildpack)
Domino Server
XPages NoSQL Database service instance
To Do AppExpense App (1) Expense App (2)
XPages App
Instance
XPages App
Instance
XPages App
Instance
NRPC and/or REST API
SoftLayer
Designer
Exp-Data.nsf ToDoData.nsf
Exp-design.nsf Exp-design.nsf ToDo_design.nsf
IDE/DevOps
XPages/Domino Apps for Bluemix Architecture - Playground
Internet
IBMBluemixIBMBluemixIBMBluemixIBMBluemix
CloudFoundry
16

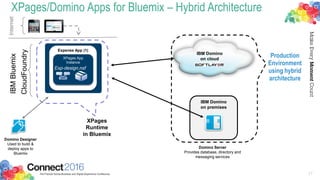

17. Expense App (1)
XPages App
Instance
Exp-design.nsf
InternetIBMBluemix
CloudFoundry
IBM Domino
on cloud
IBM Domino
on premises
Production
Environment
using hybrid
architecture
Bluemix Hybrid
Bluemix runtime securely
bound to external Domino
server
XPages/Domino Apps for Bluemix – Hybrid Architecture
XPages
Runtime
in Bluemix
Domino Designer
Used to build &
deploy apps to
Bluemix
Domino Server
Provides database, directory and
messaging services
17

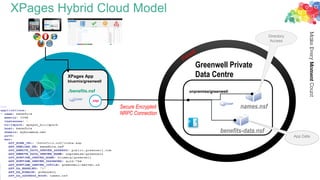

18. XPages Hybrid Cloud Model
Domino Server
onpremise/greenwell
XPages App
bluemix/greenwell
./benefits.nsf
Greenwell Private
Data Centre
Secure Encrypted
NRPC Connection
names.nsf
benefits-data.nsf
App Data
Directory
Access

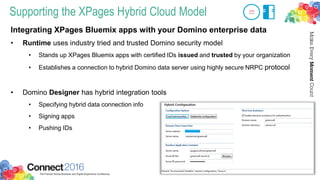

19. Supporting the XPages Hybrid Cloud Model
Integrating XPages Bluemix apps with your Domino enterprise data
• Runtime uses industry tried and trusted Domino security model
• Stands up XPages Bluemix apps with certified IDs issued and trusted by your organization
• Establishes a connection to hybrid Domino data server using highly secure NRPC protocol
• Domino Designer has hybrid integration tools
• Specifying hybrid data connection info
• Signing apps
• Pushing IDs

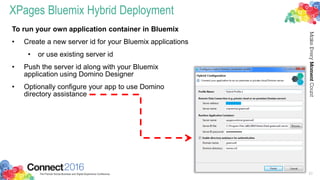

20. XPages Bluemix Hybrid Deployment
20
To run your own application container in Bluemix
• Create a new server id for your Bluemix applications
• or use existing server id
• Push the server id along with your Bluemix
application using Domino Designer
• Optionally configure your app to use Domino
directory assistance

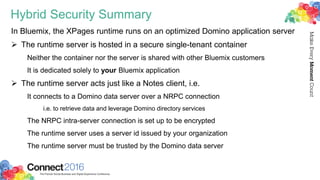

21. Hybrid Security Summary
In Bluemix, the XPages runtime runs on an optimized Domino application server
 The runtime server is hosted in a secure single-tenant container
Neither the container nor the server is shared with other Bluemix customers
It is dedicated solely to your Bluemix application
 The runtime server acts just like a Notes client, i.e.
It connects to a Domino data server over a NRPC connection
i.e. to retrieve data and leverage Domino directory services
The NRPC intra-server connection is set up to be encrypted
The runtime server uses a server id issued by your organization
The runtime server must be trusted by the Domino data server

22. XPages and Other Bluemix Services

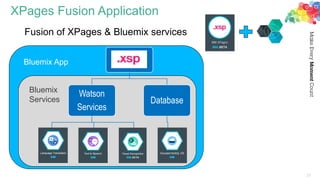

23. XPages Fusion Application
Fusion of XPages & Bluemix services
23
XPages
Watson
Services
L T VR
Database
C
Bluemix App
Bluemix
Services

24. DEMO
IBM XPages Fusion Application

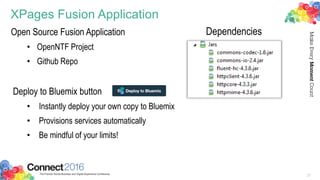

25. XPages Fusion Application
Open Source Fusion Application
• OpenNTF Project
• Github Repo
Deploy to Bluemix button
• Instantly deploy your own copy to Bluemix
• Provisions services automatically
• Be mindful of your limits!
25
Dependencies

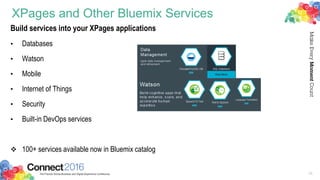

26. XPages and Other Bluemix Services
26
Build services into your XPages applications
• Databases
• Watson
• Mobile
• Internet of Things
• Security
• Built-in DevOps services
 100+ services available now in Bluemix catalog

27. XPages & IBM Connections Cloud
27
Integrate Connections into XPages
• Add Connections Navbar
• Add Social Business Toolkit
• Using shared-plugins folder
• Profiles APIs
• Files APIs
• Communities APIs
• Activities APIs
• and more…

28. DEMO
IBM XPages + Connections Cloud

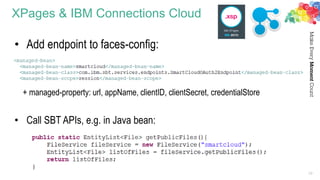

29. XPages & IBM Connections Cloud
29
• Add endpoint to faces-config:
+ managed-property: url, appName, clientID, clientSecret, credentialStore
• Call SBT APIs, e.g. in Java bean:

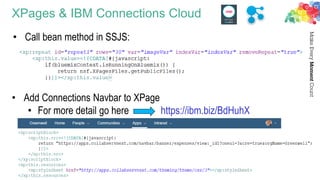

30. XPages & IBM Connections Cloud
30
• Add Connections Navbar to XPage
• For more detail go here https://ibm.biz/BdHuhX
• Call bean method in SSJS:

31. Summary & FAQs

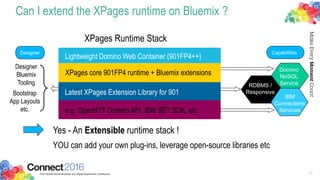

32. Latest XPages Extension Library for 901
XPages core 901FP4 runtime + Bluemix extensions
Lightweight Domino Web Container (901FP4++)
e.g. OpenNTF Domino API, IBM SBT SDK, etc
Can I extend the XPages runtime on Bluemix ?
XPages Runtime Stack
Yes - An Extensible runtime stack !
YOU can add your own plug-ins, leverage open-source libraries etc
Designer
Bluemix
Tooling
Bootstrap
App Layouts
etc.
Domino
NoSQL
ServiceRDBMS /
Responsive
IBM
Connections
Services
32
Designer Capabilities

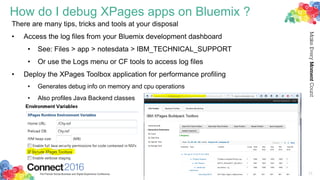

33. How do I debug XPages apps on Bluemix ?
There are many tips, tricks and tools at your disposal
• Access the log files from your Bluemix development dashboard
• See: Files > app > notesdata > IBM_TECHNICAL_SUPPORT
• Or use the Logs menu or CF tools to access log files
• Deploy the XPages Toolbox application for performance profiling
• Generates debug info on memory and cpu operations
• Also profiles Java Backend classes
33

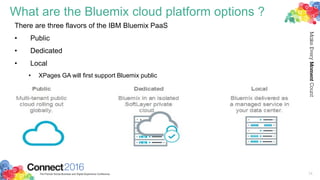

34. What are the Bluemix cloud platform options ?
There are three flavors of the IBM Bluemix PaaS
• Public
• Dedicated
• Local
• XPages GA will first support Bluemix public
34

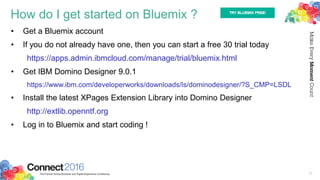

35. How do I get started on Bluemix ?
• Get a Bluemix account
• If you do not already have one, then you can start a free 30 trial today
https://apps.admin.ibmcloud.com/manage/trial/bluemix.html
• Get IBM Domino Designer 9.0.1
https://www.ibm.com/developerworks/downloads/ls/dominodesigner/?S_CMP=LSDL
• Install the latest XPages Extension Library into Domino Designer
http://extlib.openntf.org
• Log in to Bluemix and start coding !
35

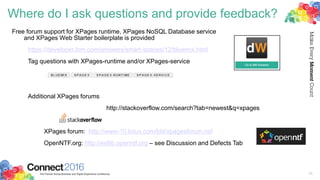

36. Where do I ask questions and provide feedback?
Free forum support for XPages runtime, XPages NoSQL Database service
and XPages Web Starter boilerplate is provided
https://developer.ibm.com/answers/smart-spaces/12/bluemix.html
Tag questions with XPages-runtime and/or XPages-service
Additional XPages forums
http://stackoverflow.com/search?tab=newest&q=xpages
XPages forum: http://www-10.lotus.com/ldd/xpagesforum.nsf
OpenNTF.org: http://extlib.openntf.org – see Discussion and Defects Tab
36

37. Upcoming Sessions from XPages team members
AD1545 – Extending the XPages Extension Library
Tuesday, February 2
04:00 PM - 05:00 PM, Orange G
AD1548 – Building Responsive Applications Using XPages
Wednesday, February 3, 2016
09:15 AM - 10:15 AM, Orange F

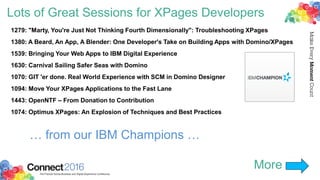

38. Lots of Great Sessions for XPages Developers
1279: "Marty, You're Just Not Thinking Fourth Dimensionally": Troubleshooting XPages
1380: A Beard, An App, A Blender: One Developer's Take on Building Apps with Domino/XPages
1539: Bringing Your Web Apps to IBM Digital Experience
1630: Carnival Sailing Safer Seas with Domino
1070: GIT 'er done. Real World Experience with SCM in Domino Designer
1094: Move Your XPages Applications to the Fast Lane
1443: OpenNTF – From Donation to Contribution
1074: Optimus XPages: An Explosion of Techniques and Best Practices
More
… from our IBM Champions …

39. … More Great Sessions for XPages Developers
1387: Outside The Box: Integrating with Non-Domino Apps Using XPages and Java
1238: REST Services in Domino - Key to Modern Web Applications
1077: Real-time Video Chat XPage Application Using Websocket and WebRTC Technologies
1617: Relational XPages!! Using XPages as the Presentation Layer for RDBMS Data
1207: The Grid, the Brad, and The Ugly: Using Grids to Improve Your Applications
1436: The Journey from Rapid Application Development to Continuous Delivery
1075: The XPages of Things: Integrate Bluemix with Your XPages Applications for a World of
Possibilities
1003: node.js for Domino Developers
… and community members !

40. Your Feedback Is Important!
Based upon your session attendance, a customized list of
surveys will be built for you.
Please complete your surveys via the conference kiosks or any
web enabled device at https://www.connectsurveys.com or
through IBM Event Connect.

41. Notices and Disclaimers
Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without
written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of
the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS
DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY
DAMAGE ARISING FROM THE USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF
PROFIT OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of the agreements under which they
are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how
those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating
environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in
all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All
materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any
individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification
and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to
comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance
with any law

42. Notices and Disclaimers cont.
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources.
IBM has not tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related
to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the
quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or
other intellectual property right.
•IBM, the IBM logo, ibm.com, Aspera®, Bluemix, Blueworks Live, CICS, Clearcase, Cognos®, DOORS®, Emptoris®, Enterprise Document Management
System™, FASP®, FileNet®, Global Business Services ®, Global Technology Services ®, IBM ExperienceOne™, IBM SmartCloud®, IBM Social Business®,
Information on Demand, ILOG, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®,
pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®,
Smarter Commerce®, SoDA, SPSS, Sterling Commerce®, StoredIQ, Tealeaf®, Tivoli®, Trusteer®, Unica®, urban{code}®, Watson, WebSphere®, Worklight®,
X-Force® and System z® Z/OS, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and
service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark
information" at: www.ibm.com/legal/copytrade.shtml.

43. Thank you
