IBM Domino 9.0.1 packs in new features for building XPages mobile apps including a single page application control, mobile theme configuration editor, and responsive rendering controls. The presentation demonstrates how to create a mobile app framework using a new single page application wizard and highlights capabilities for touch scrolling, photo uploads, and device detection. Future areas of focus are discussed like progressive enhancement, responsive design, and leveraging partner solutions.

1. AD503: XPages Mobile
Development in IBM Domino
9.0.1 and Beyond
Eamon Muldoon, IBM
Tony McGuckin, IBM
© 2014 IBM Corporation

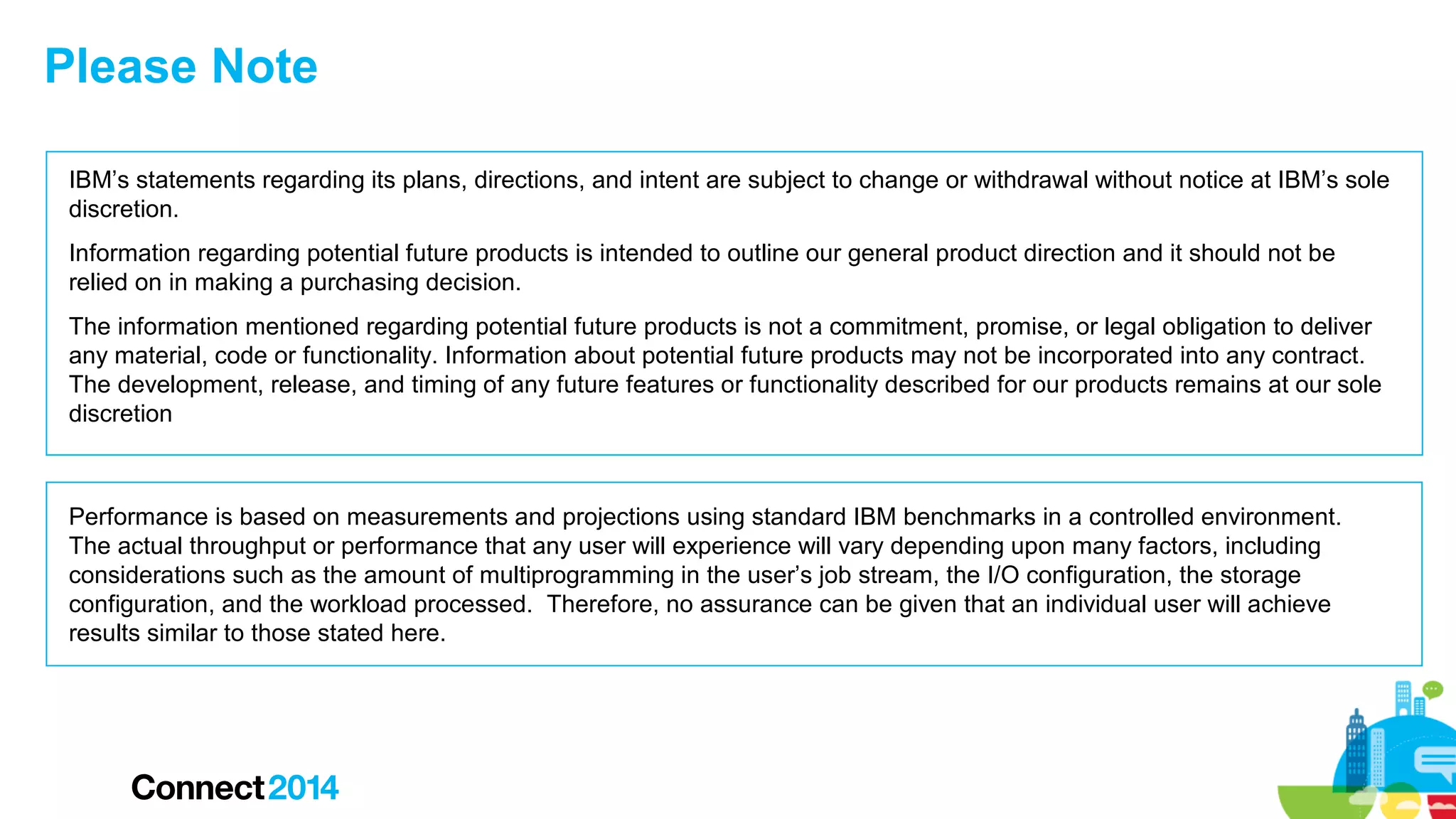

2. Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole
discretion.
Information regarding potential future products is intended to outline our general product direction and it should not be
relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may not be incorporated into any contract.
The development, release, and timing of any future features or functionality described for our products remains at our sole
discretion
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment.
The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.

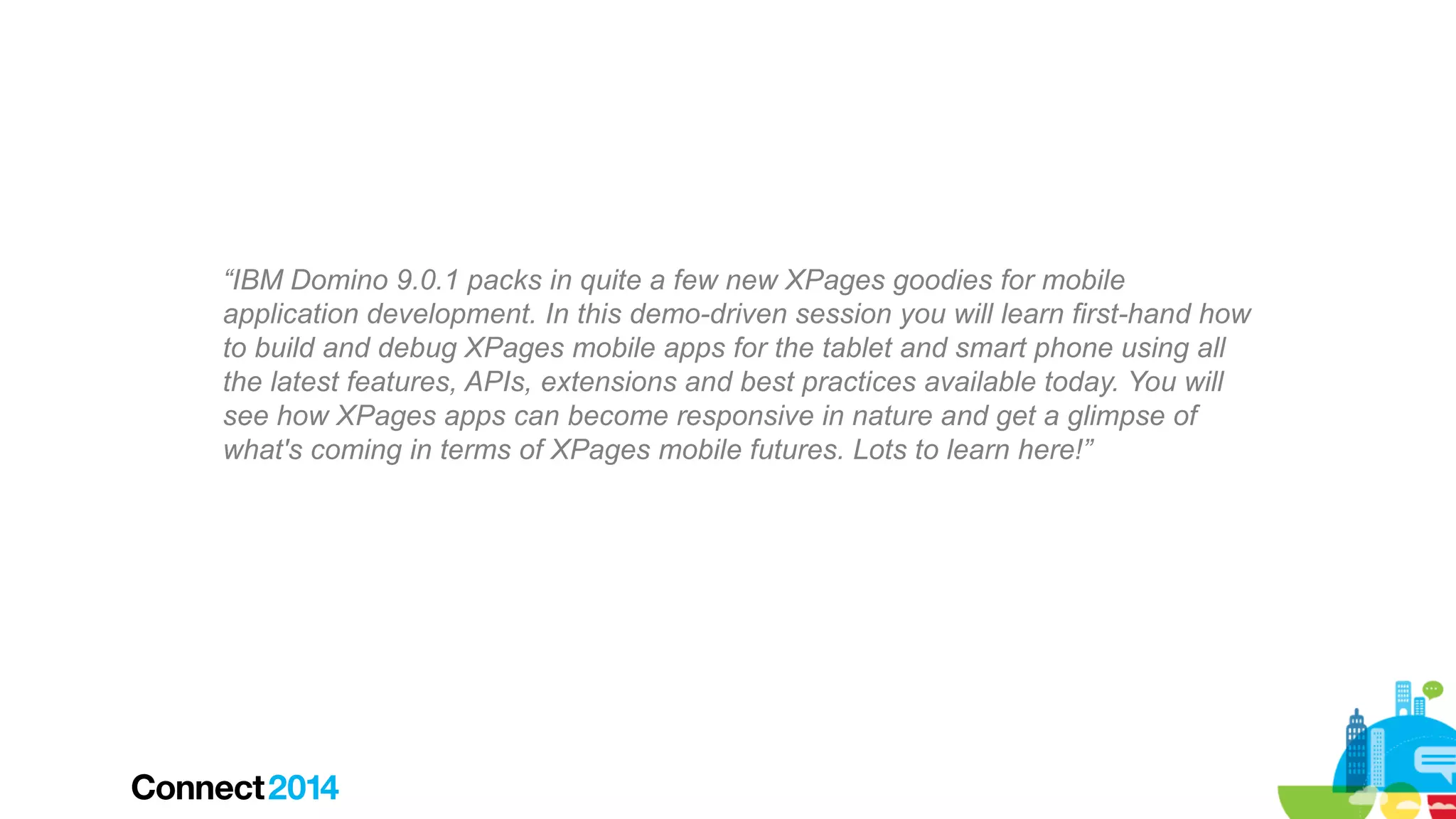

3. “IBM Domino 9.0.1 packs in quite a few new XPages goodies for mobile
application development. In this demo-driven session you will learn first-hand how
to build and debug XPages mobile apps for the tablet and smart phone using all
the latest features, APIs, extensions and best practices available today. You will
see how XPages apps can become responsive in nature and get a glimpse of
what's coming in terms of XPages mobile futures. Lots to learn here!”

4. Good Morning!
Welcome to AD503…
Eamon Muldoon
Development Manager
Ireland Software Labs
@eamonmuldoon
Tony McGuckin
Senior Software Engineer
Ireland Software Labs
@tonymcguckin

5. This Mornings Agenda…
XPages Mobile Introduction
XPages Mobile Development in 9.0.1
Beyond Domino 9.0.1
Q&A

6. XPages Mobile
Introduction

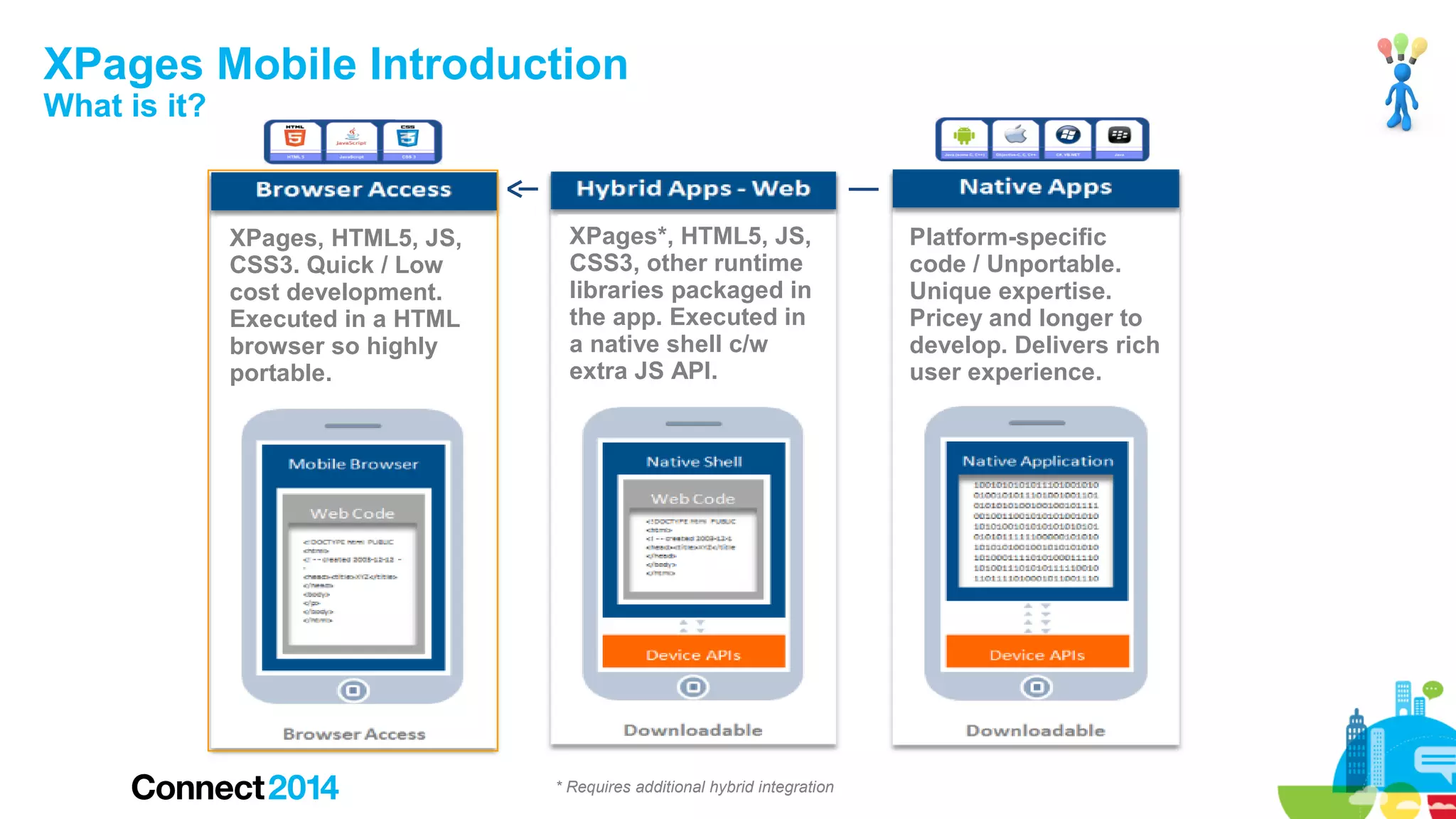

7. XPages Mobile Introduction
What is it?
XPages, HTML5, JS,
CSS3. Quick / Low
cost development.
Executed in a HTML
browser so highly
portable.
XPages*, HTML5, JS,
CSS3, other runtime
libraries packaged in
the app. Executed in
a native shell c/w
extra JS API.
* Requires additional hybrid integration
Platform-specific
code / Unportable.
Unique expertise.
Pricey and longer to
develop. Delivers rich
user experience.

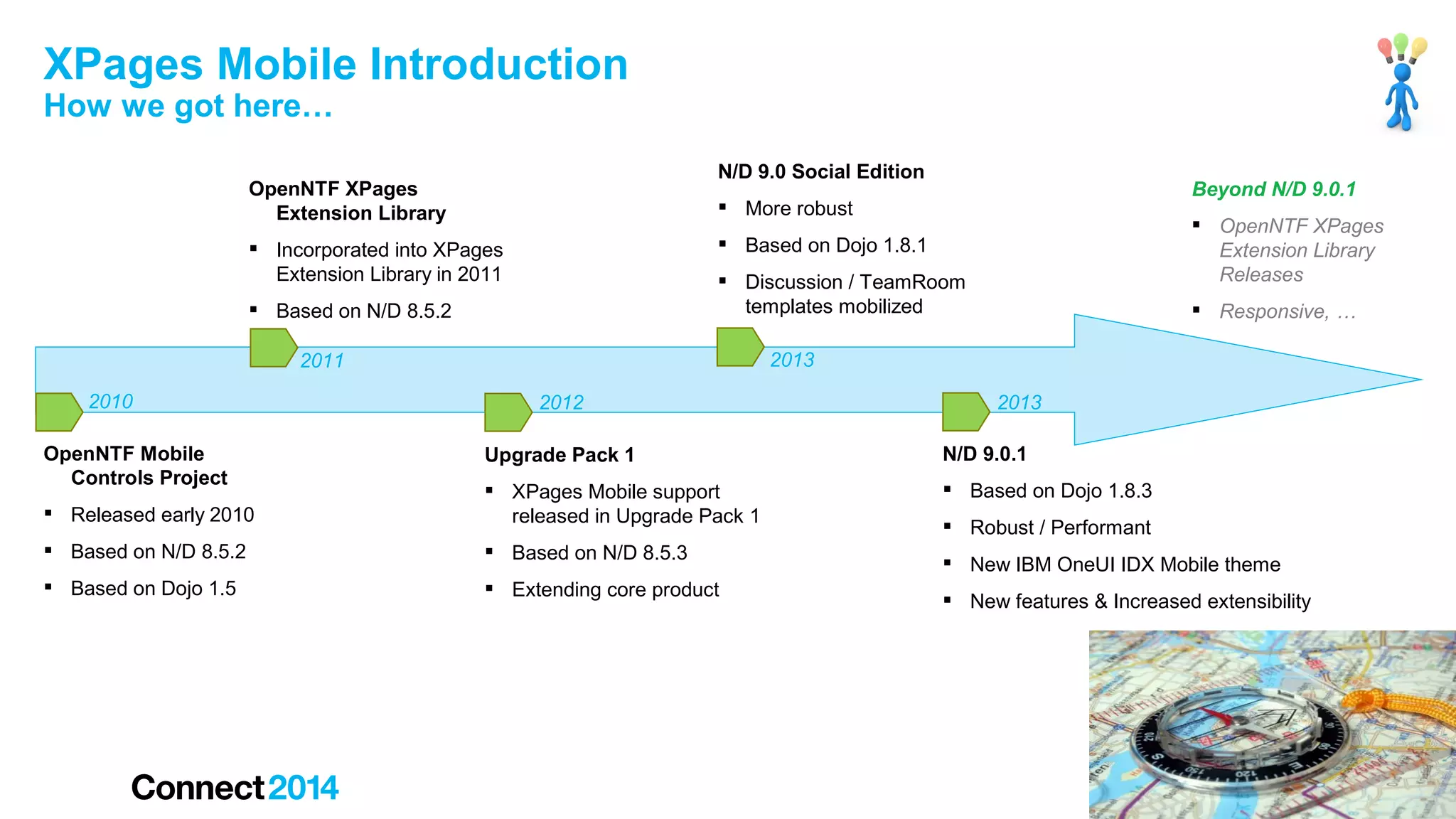

8. XPages Mobile Introduction
How we got here…
N/D 9.0 Social Edition
OpenNTF XPages
Extension Library
 Discussion / TeamRoom
templates mobilized
 Based on N/D 8.5.2
 Responsive, …
2013
2011
OpenNTF Mobile
Controls Project
 OpenNTF XPages
Extension Library
Releases
 Based on Dojo 1.8.1
 Incorporated into XPages
Extension Library in 2011
2010
Beyond N/D 9.0.1
 More robust
2012
2013
Upgrade Pack 1
N/D 9.0.1
 XPages Mobile support
released in Upgrade Pack 1
 Based on Dojo 1.8.3
 Released early 2010
 Based on N/D 8.5.2
 Based on N/D 8.5.3
 Based on Dojo 1.5
 Extending core product
 Robust / Performant
 New IBM OneUI IDX Mobile theme
 New features & Increased extensibility

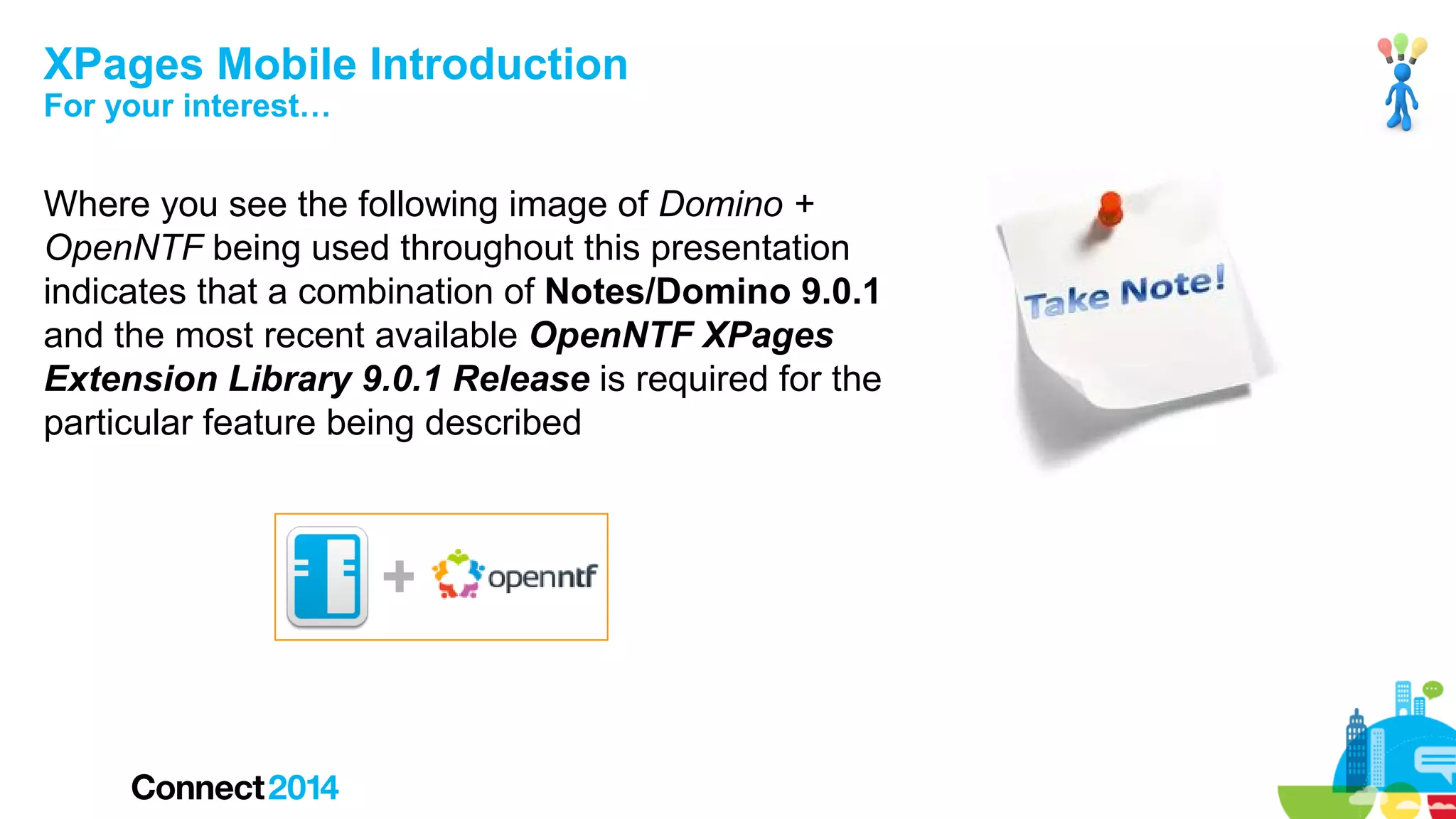

9. XPages Mobile Introduction
For your interest…
Where you see the following image of Domino +
OpenNTF being used throughout this presentation
indicates that a combination of Notes/Domino 9.0.1
and the most recent available OpenNTF XPages
Extension Library 9.0.1 Release is required for the
particular feature being described
+

10. XPages Mobile Development
in Domino 9.0.1

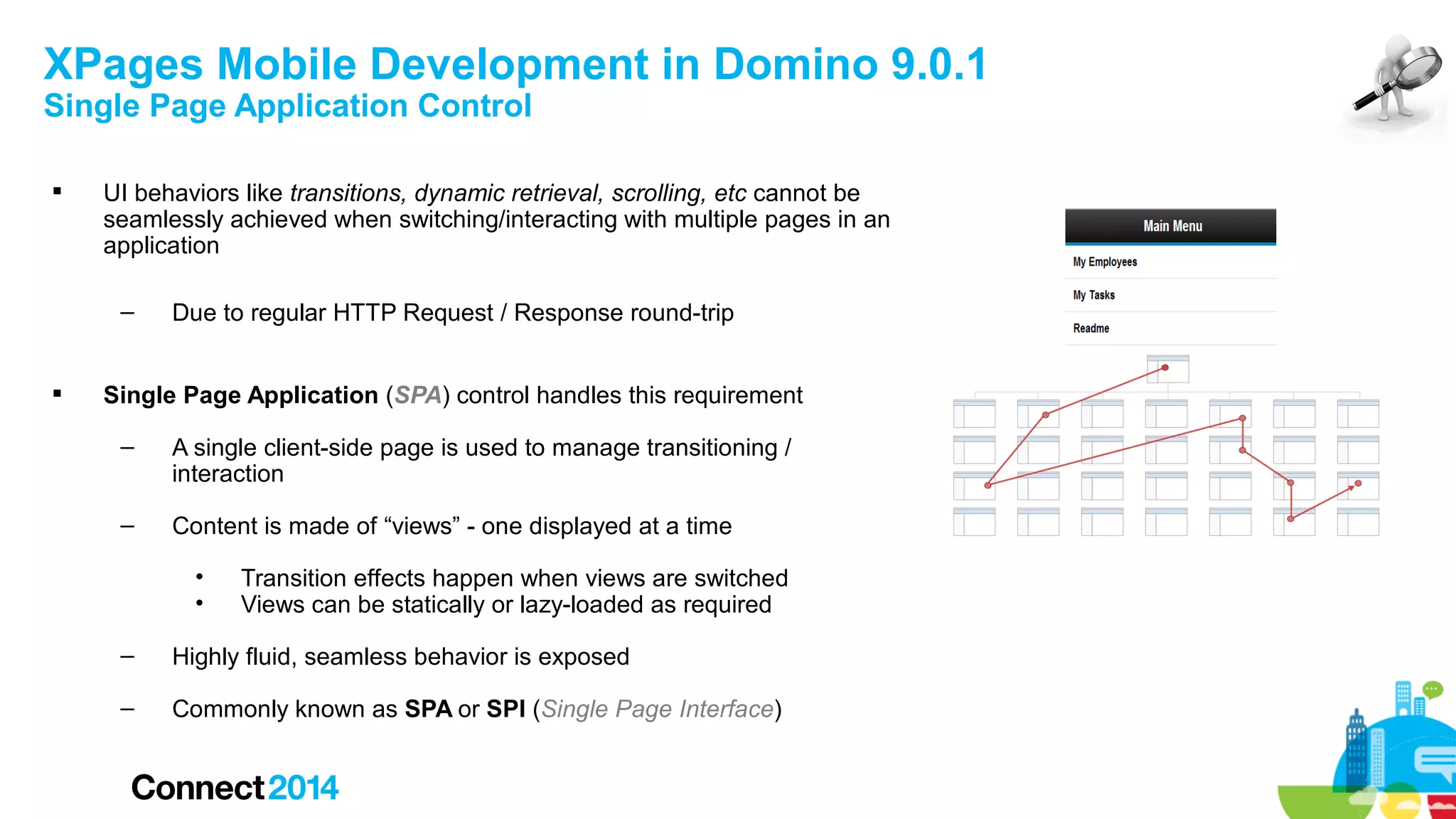

11. XPages Mobile Development in Domino 9.0.1
Single Page Application Control

UI behaviors like transitions, dynamic retrieval, scrolling, etc cannot be
seamlessly achieved when switching/interacting with multiple pages in an
application
–

Due to regular HTTP Request / Response round-trip
Single Page Application (SPA) control handles this requirement
–
A single client-side page is used to manage transitioning /
interaction
–
Content is made of “views” - one displayed at a time
•
•
Transition effects happen when views are switched
Views can be statically or lazy-loaded as required
–
Highly fluid, seamless behavior is exposed
–
Commonly known as SPA or SPI (Single Page Interface)

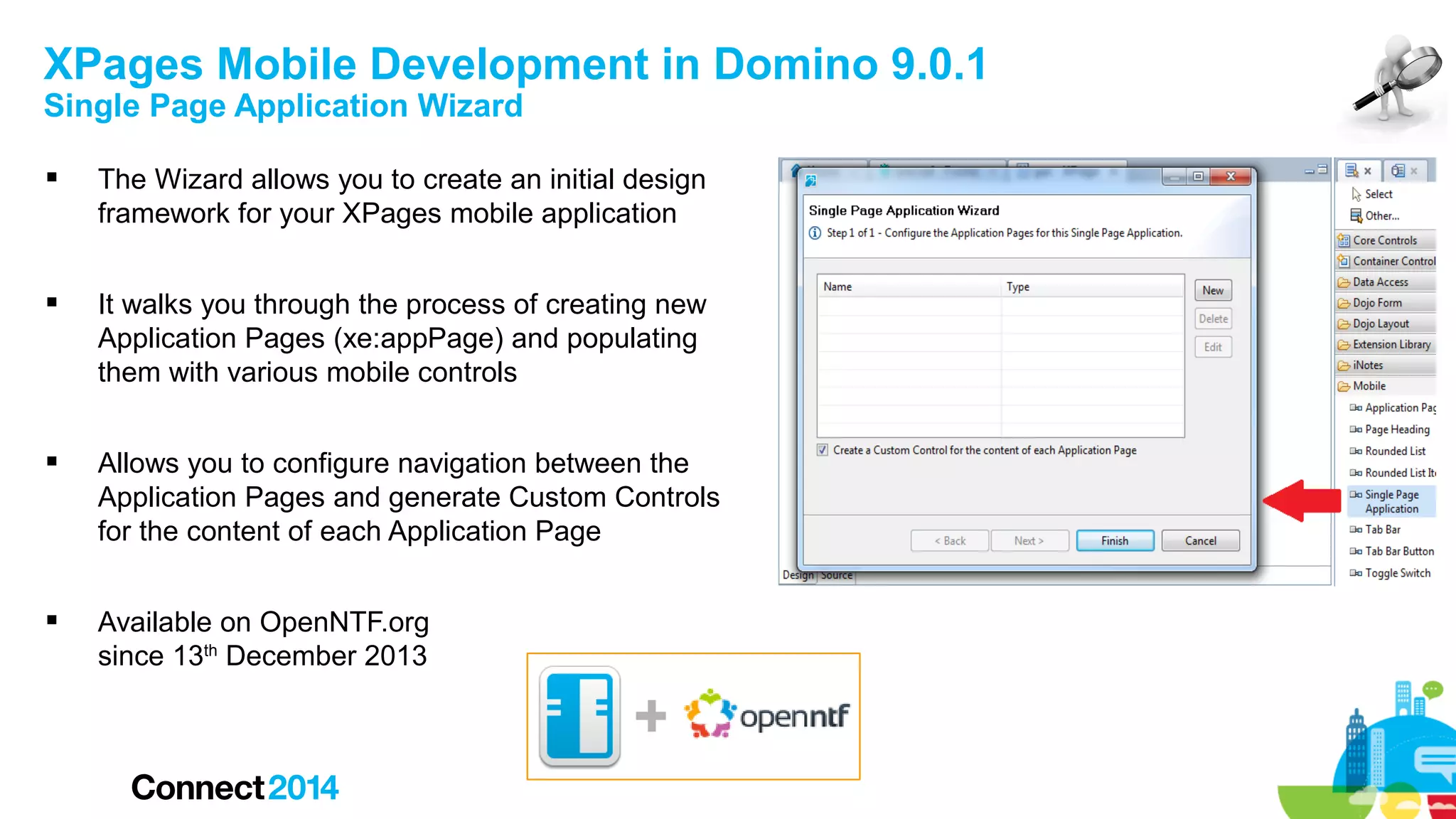

12. XPages Mobile Development in Domino 9.0.1
Single Page Application Wizard

The Wizard allows you to create an initial design
framework for your XPages mobile application

It walks you through the process of creating new
Application Pages (xe:appPage) and populating
them with various mobile controls

Allows you to configure navigation between the
Application Pages and generate Custom Controls
for the content of each Application Page

Available on OpenNTF.org
since 13th December 2013
+

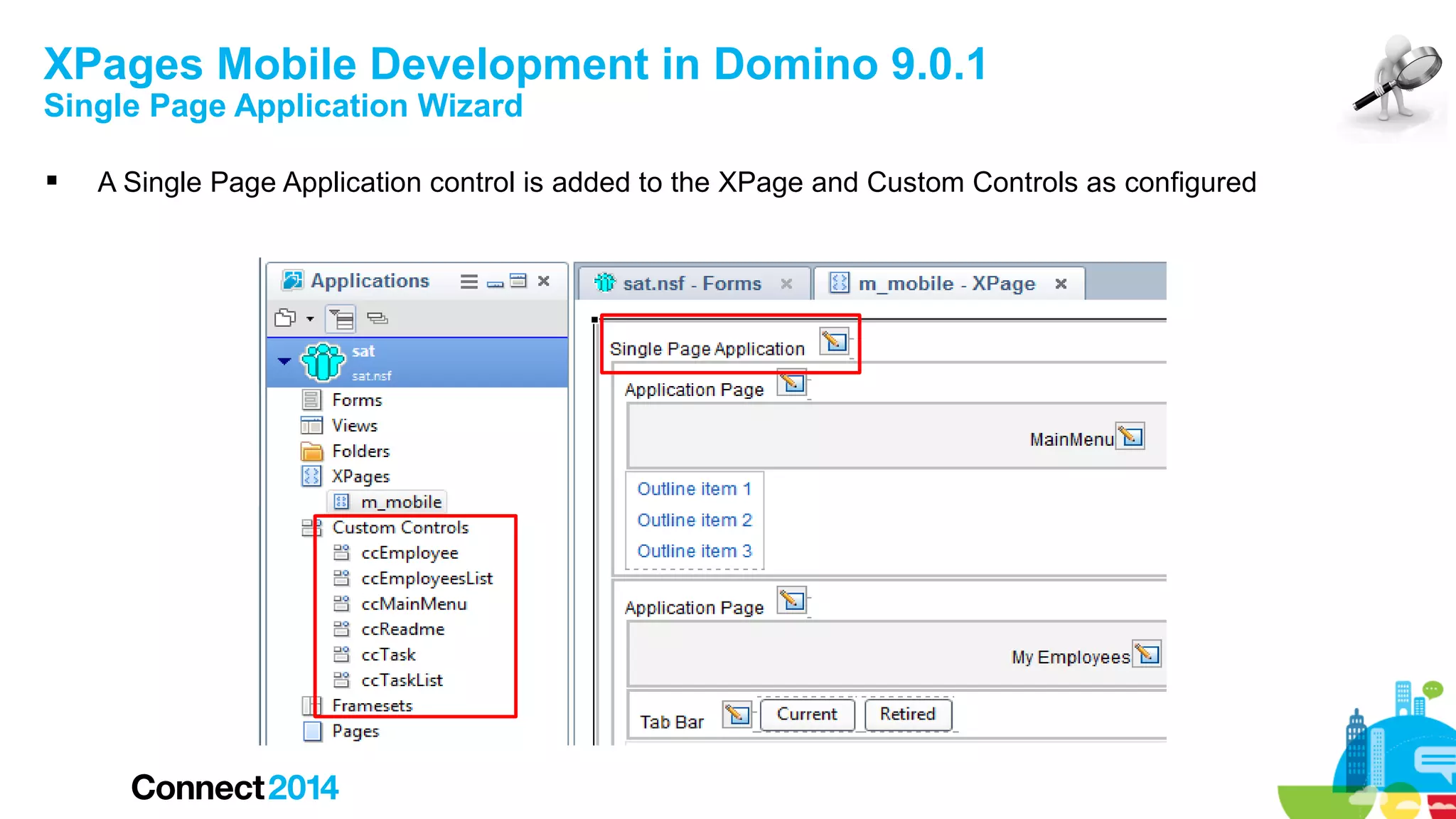

13. XPages Mobile Development in Domino 9.0.1
Single Page Application Wizard

A Single Page Application control is added to the XPage and Custom Controls as configured

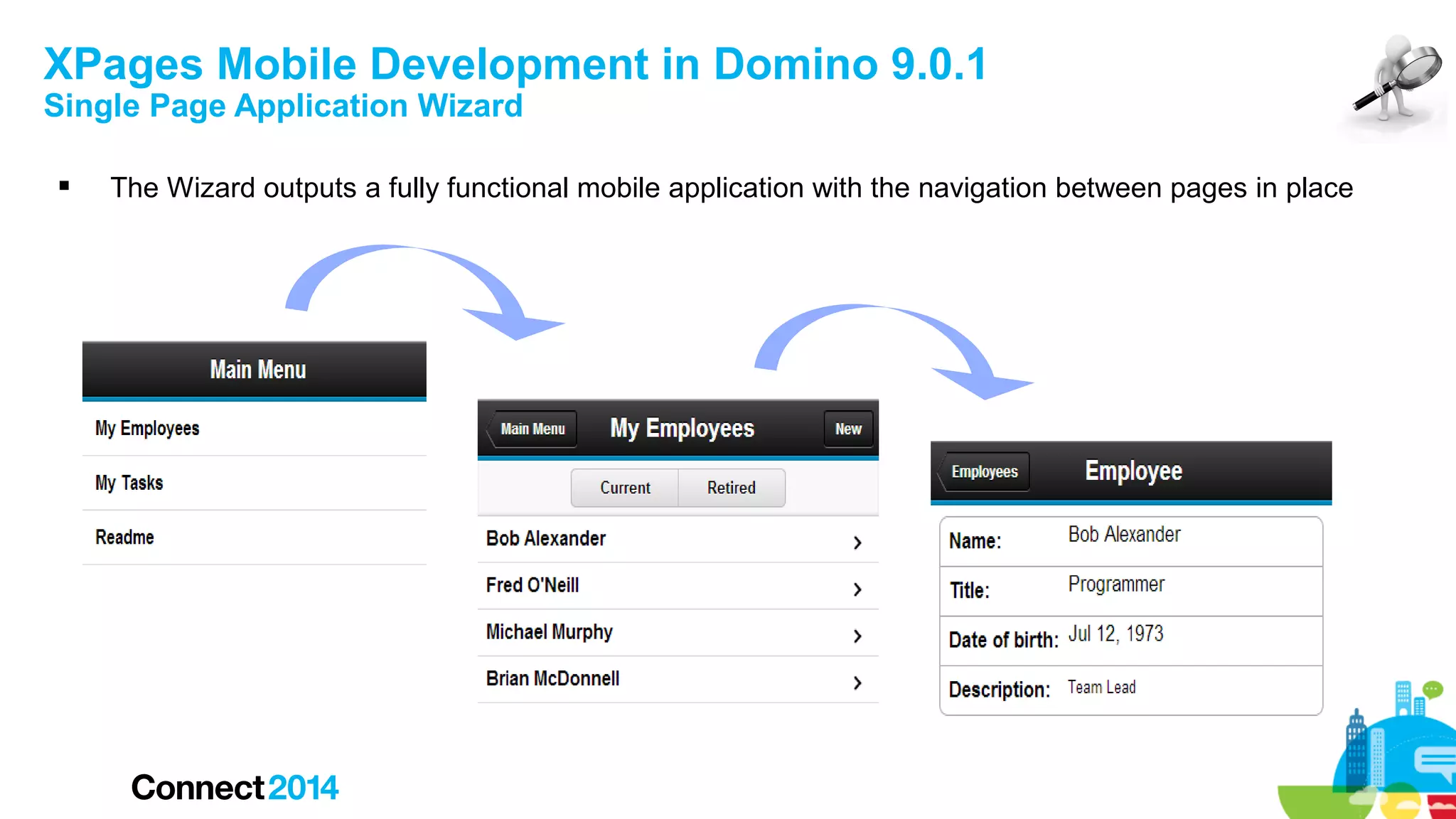

14. XPages Mobile Development in Domino 9.0.1
Single Page Application Wizard

The Wizard outputs a fully functional mobile application with the navigation between pages in place

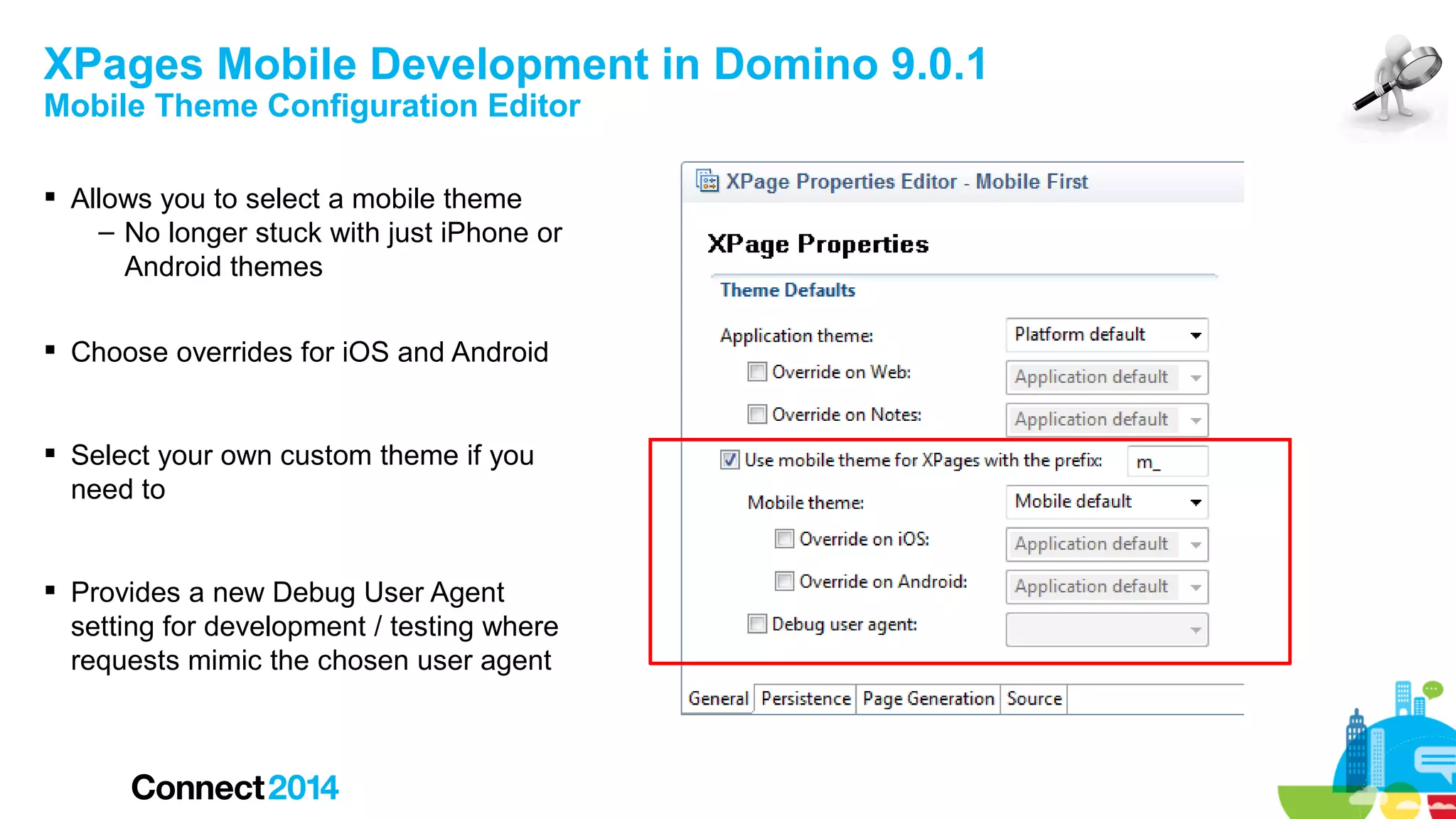

15. XPages Mobile Development in Domino 9.0.1
Mobile Theme Configuration Editor
 Allows you to select a mobile theme
– No longer stuck with just iPhone or
Android themes
 Choose overrides for iOS and Android
 Select your own custom theme if you
need to
 Provides a new Debug User Agent
setting for development / testing where
requests mimic the chosen user agent

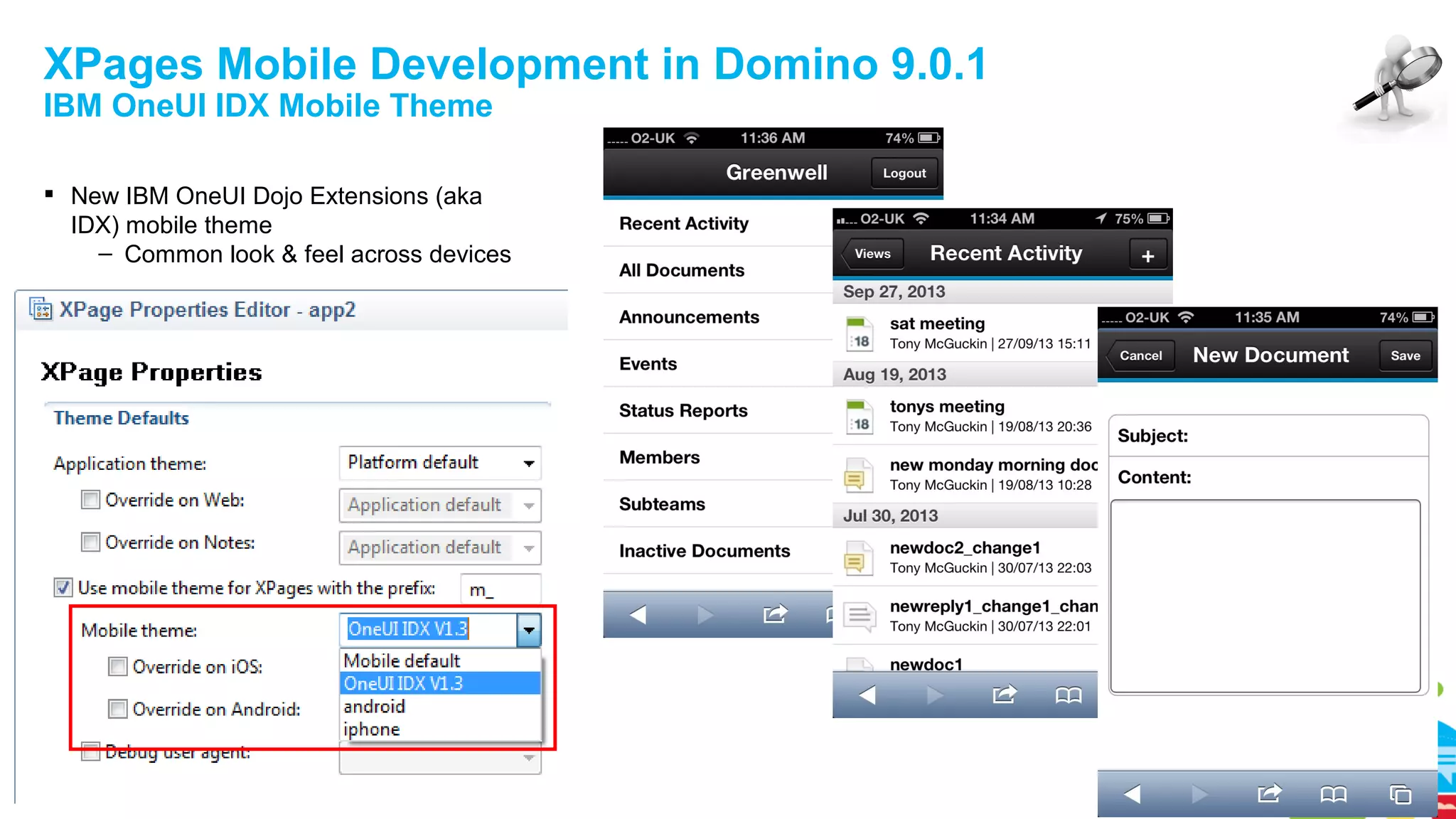

16. XPages Mobile Development in Domino 9.0.1
IBM OneUI IDX Mobile Theme
 New IBM OneUI Dojo Extensions (aka
IDX) mobile theme
– Common look & feel across devices

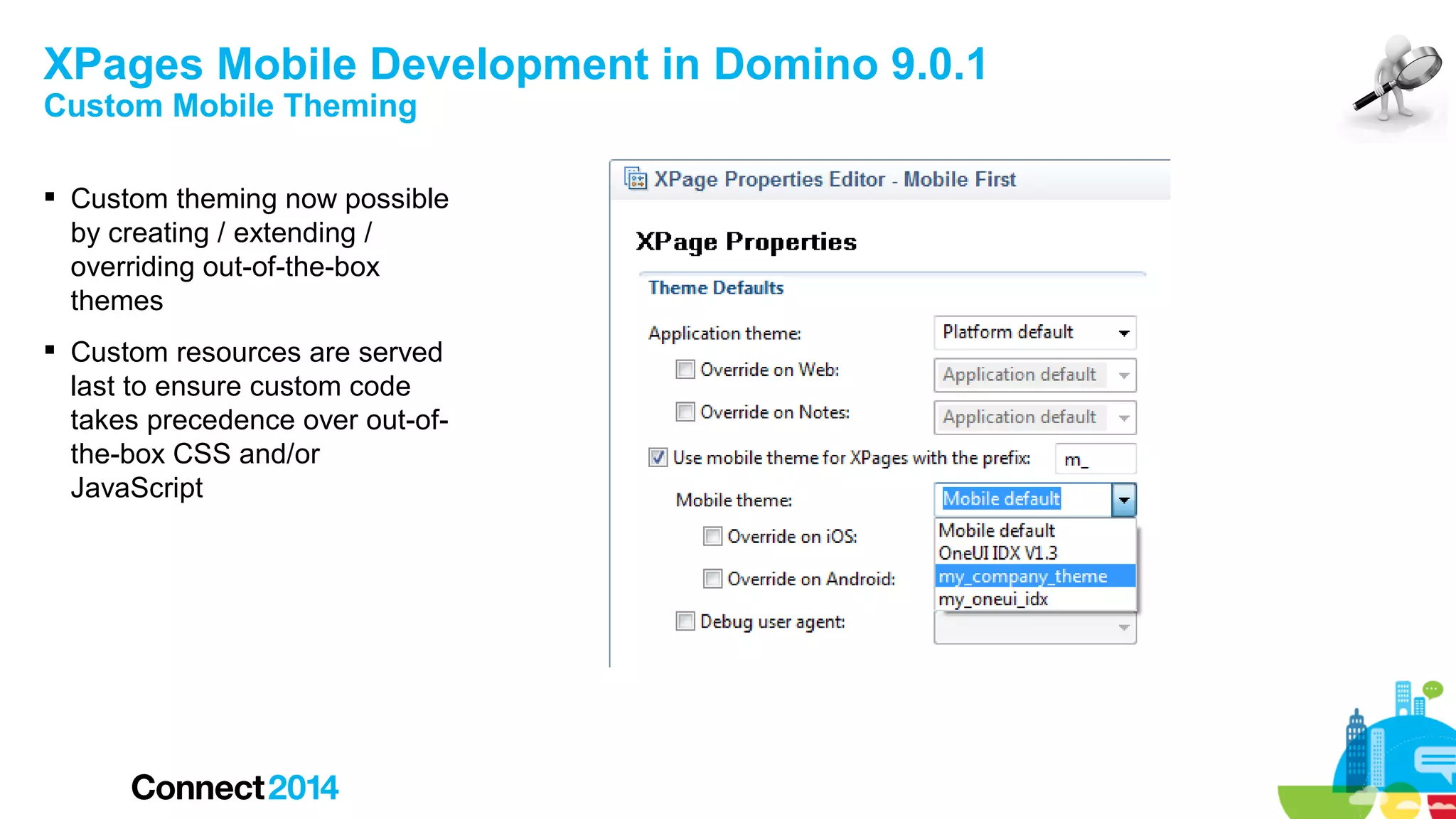

17. XPages Mobile Development in Domino 9.0.1
Custom Mobile Theming
 Custom theming now possible
by creating / extending /
overriding out-of-the-box
themes
 Custom resources are served
last to ensure custom code
takes precedence over out-ofthe-box CSS and/or
JavaScript

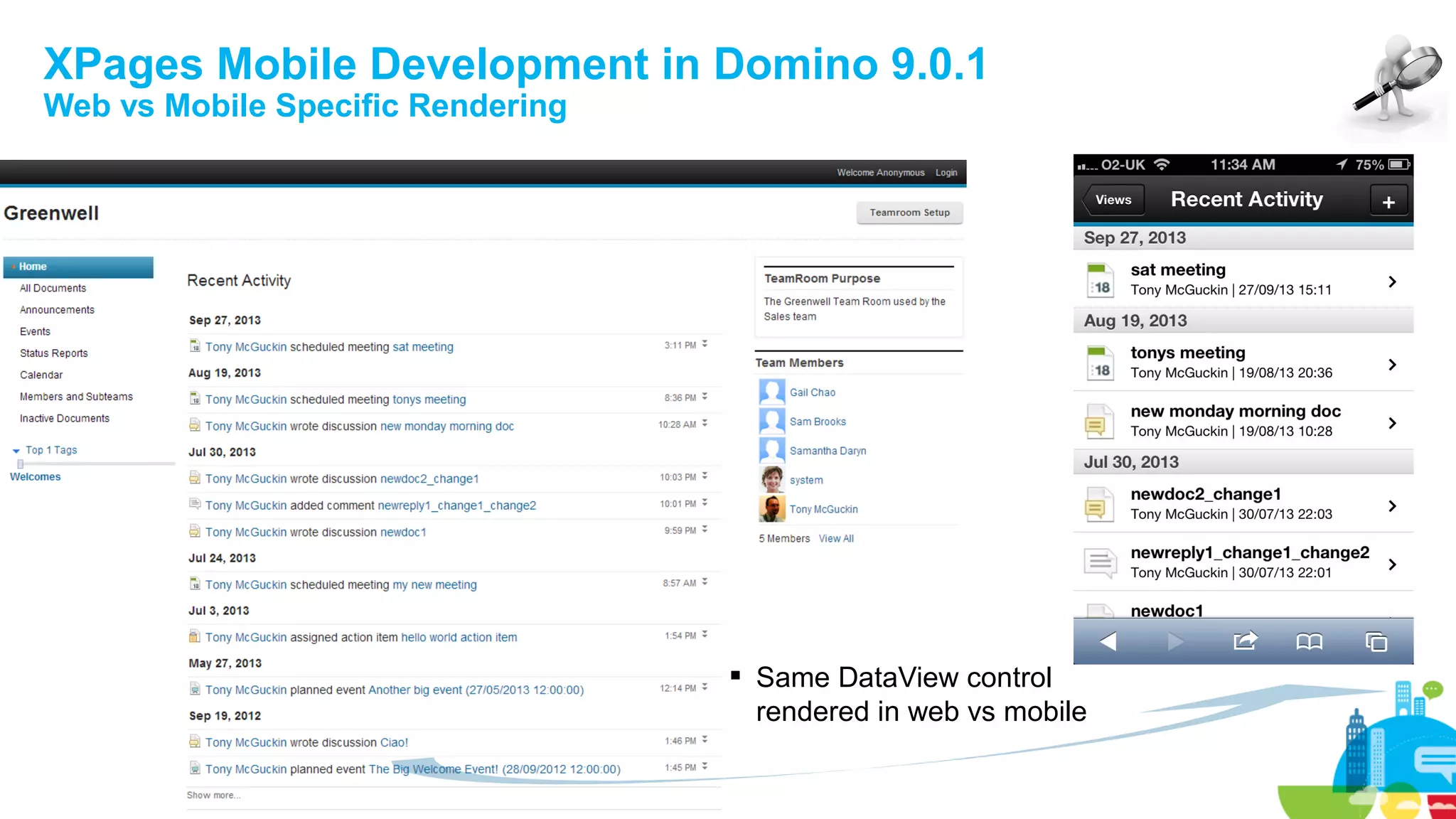

18. XPages Mobile Development in Domino 9.0.1
Web vs Mobile Specific Rendering
 Same DataView control
rendered in web vs mobile

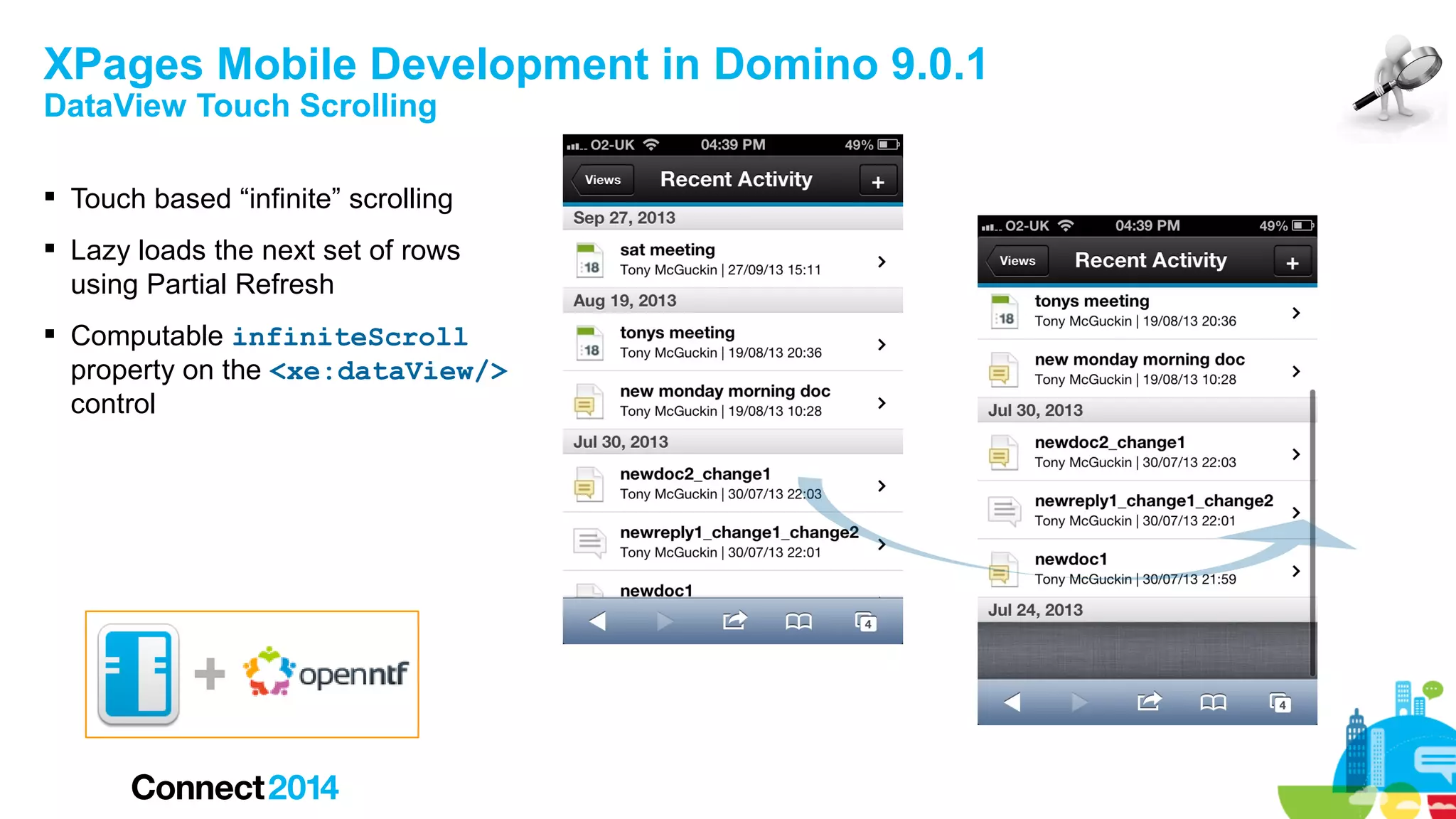

19. XPages Mobile Development in Domino 9.0.1
DataView Touch Scrolling
 Touch based “infinite” scrolling
 Lazy loads the next set of rows
using Partial Refresh
 Computable infiniteScroll
property on the <xe:dataView/>
control
+

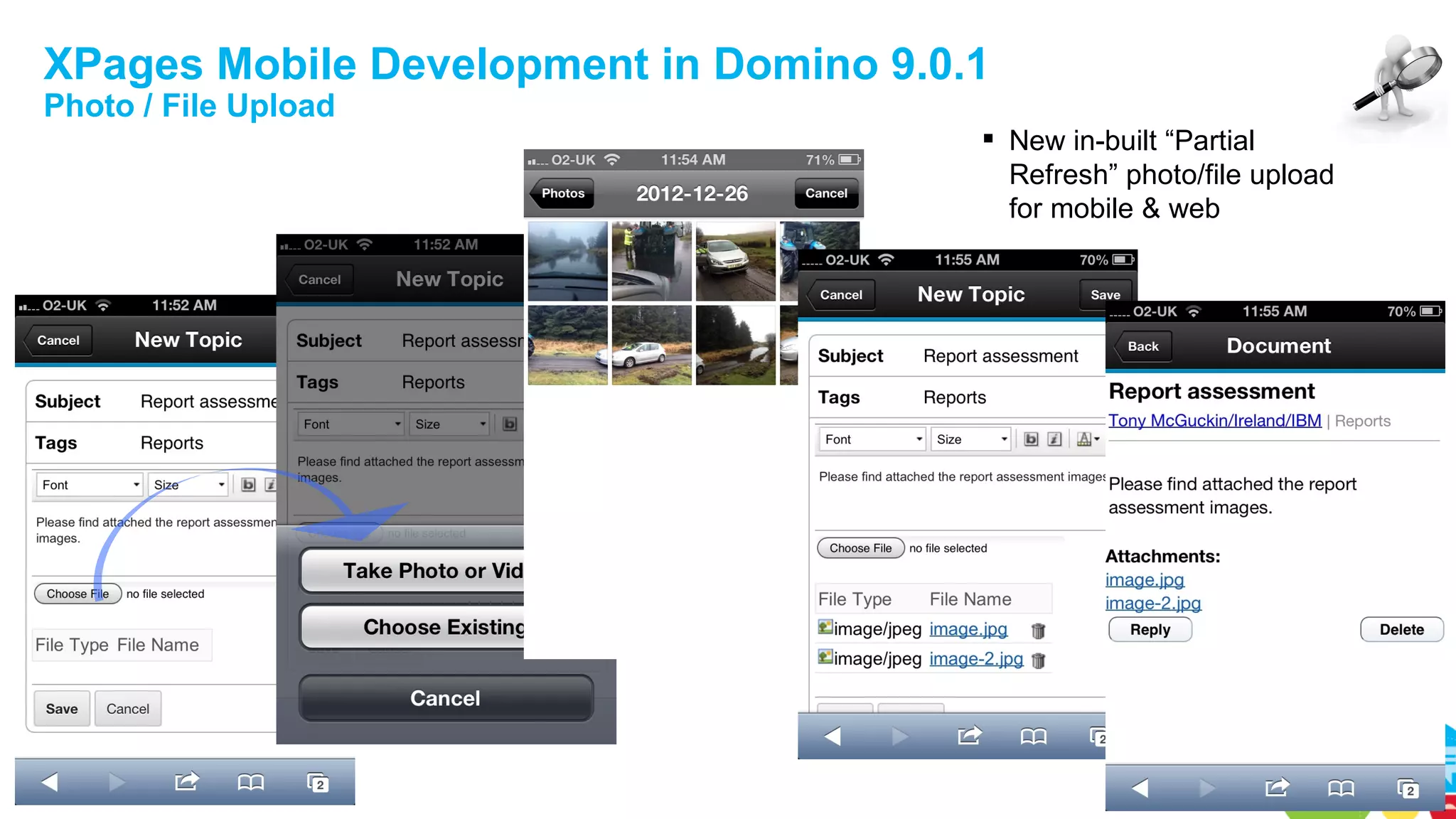

20. XPages Mobile Development in Domino 9.0.1
Photo / File Upload
 New in-built “Partial
Refresh” photo/file upload
for mobile & web

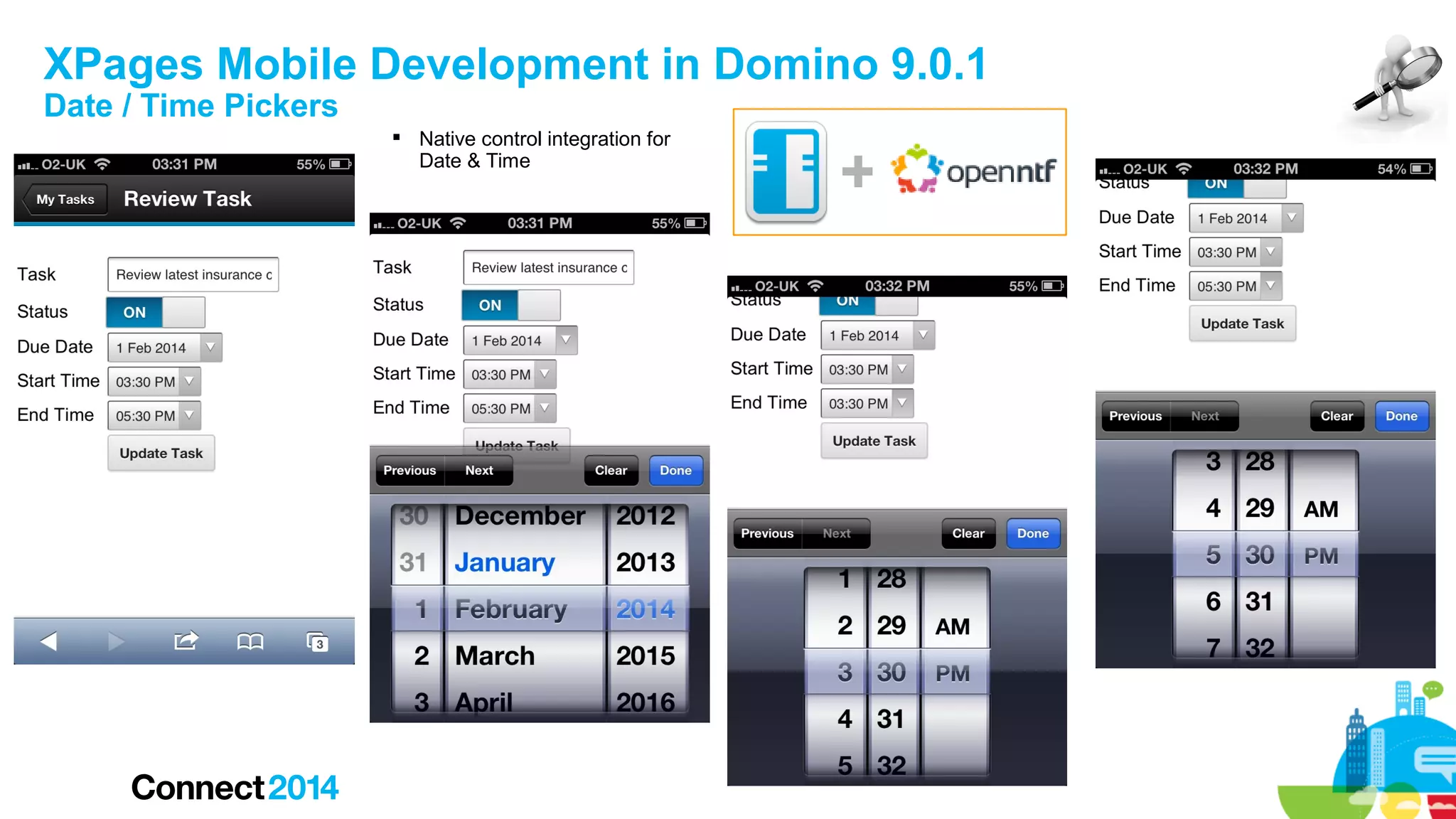

21. XPages Mobile Development in Domino 9.0.1
Date / Time Pickers
 Native control integration for
Date & Time
+

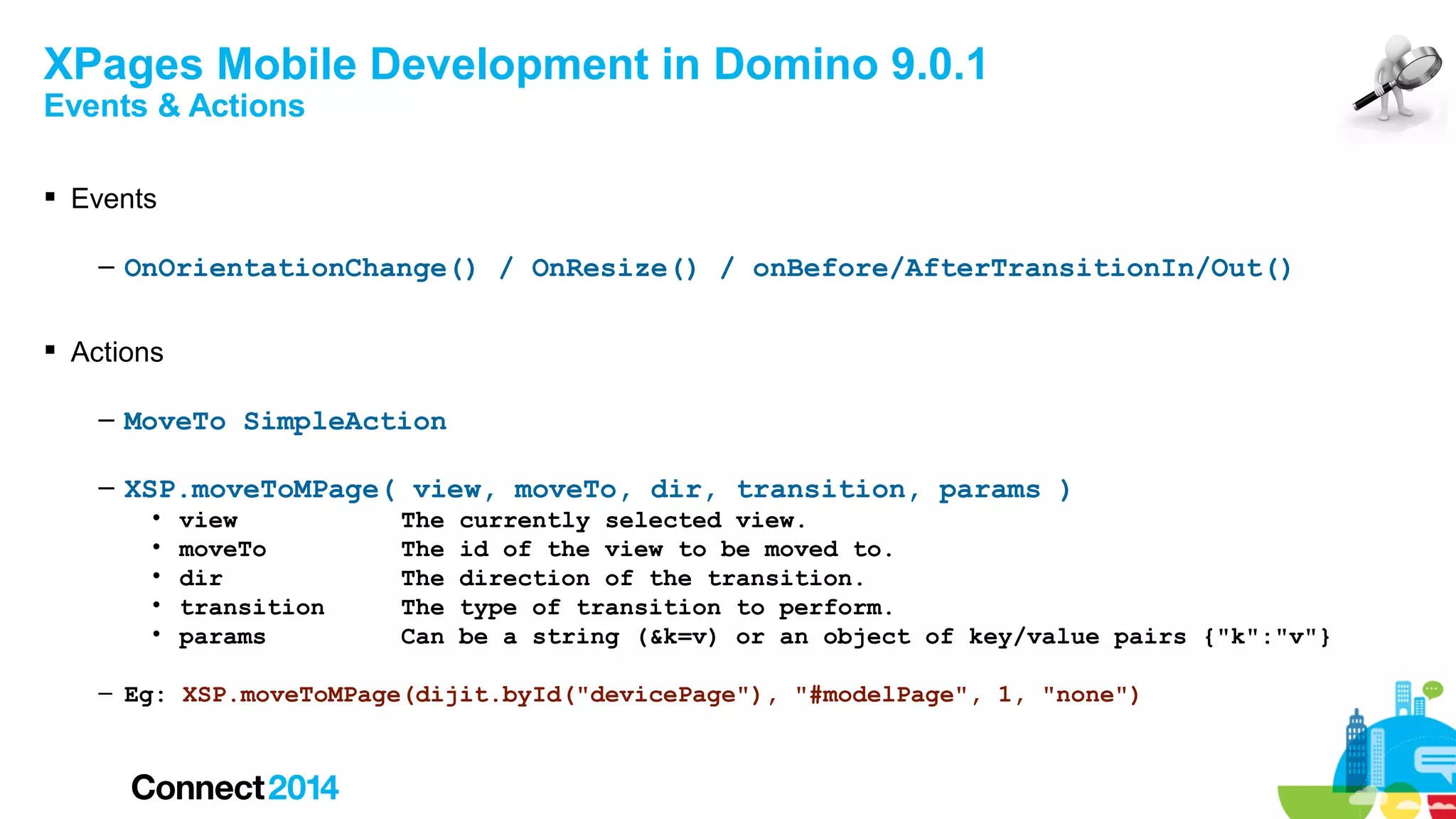

22. XPages Mobile Development in Domino 9.0.1
Events & Actions
 Events
– OnOrientationChange() / OnResize() / onBefore/AfterTransitionIn/Out()
 Actions
– MoveTo SimpleAction
– XSP.moveToMPage( view, moveTo, dir, transition, params )
•
•
•
•
•
view
moveTo
dir
transition
params
The
The
The
The
Can
currently selected view.
id of the view to be moved to.
direction of the transition.
type of transition to perform.
be a string (&k=v) or an object of key/value pairs {"k":"v"}
– Eg: XSP.moveToMPage(dijit.byId("devicePage"), "#modelPage", 1, "none")

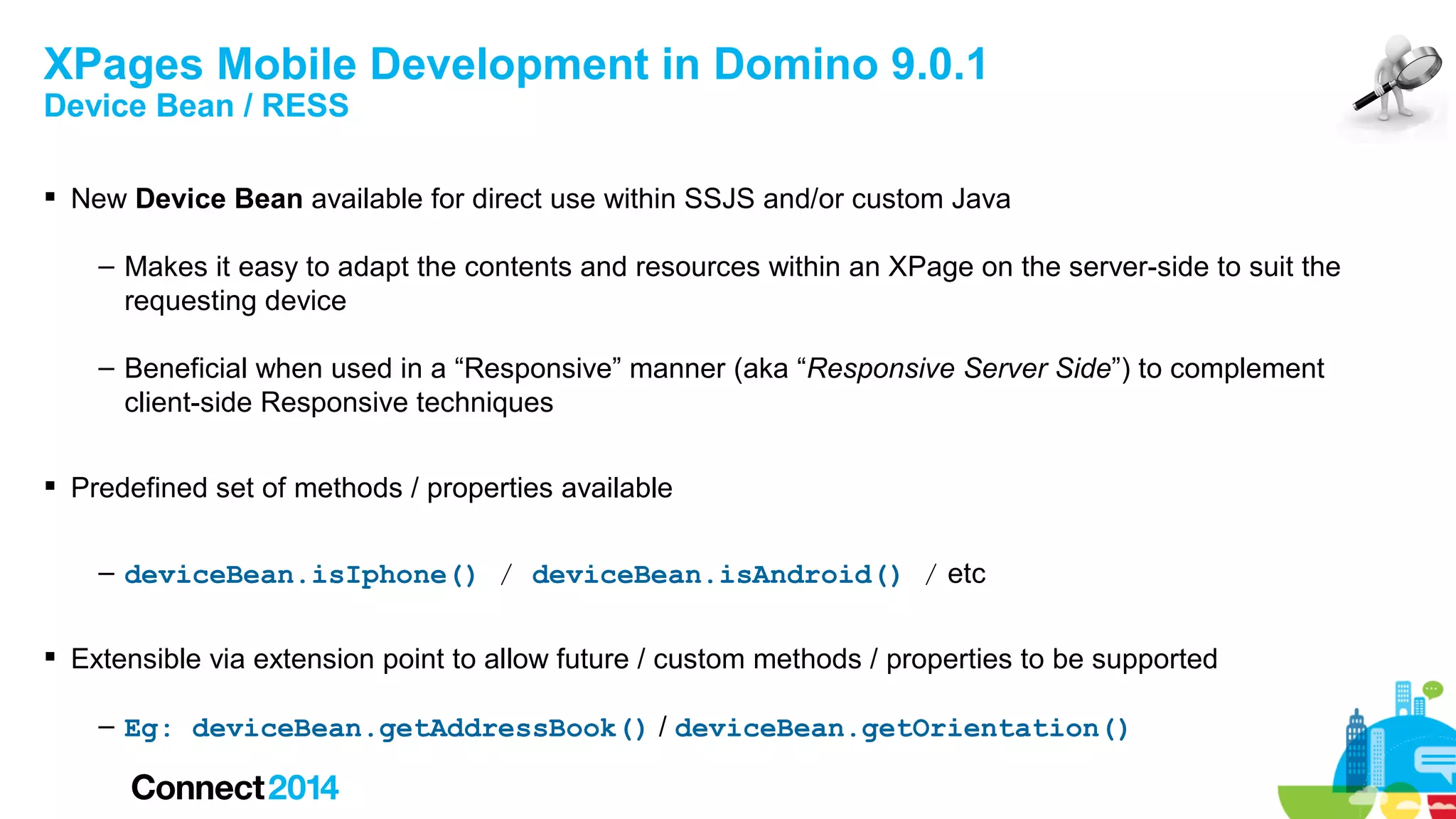

23. XPages Mobile Development in Domino 9.0.1
Device Bean / RESS
 New Device Bean available for direct use within SSJS and/or custom Java
– Makes it easy to adapt the contents and resources within an XPage on the server-side to suit the
requesting device
– Beneficial when used in a “Responsive” manner (aka “Responsive Server Side”) to complement
client-side Responsive techniques
 Predefined set of methods / properties available
– deviceBean.isIphone() / deviceBean.isAndroid() / etc
 Extensible via extension point to allow future / custom methods / properties to be supported
– Eg: deviceBean.getAddressBook() / deviceBean.getOrientation()

24. Beyond Domino 9.0.1

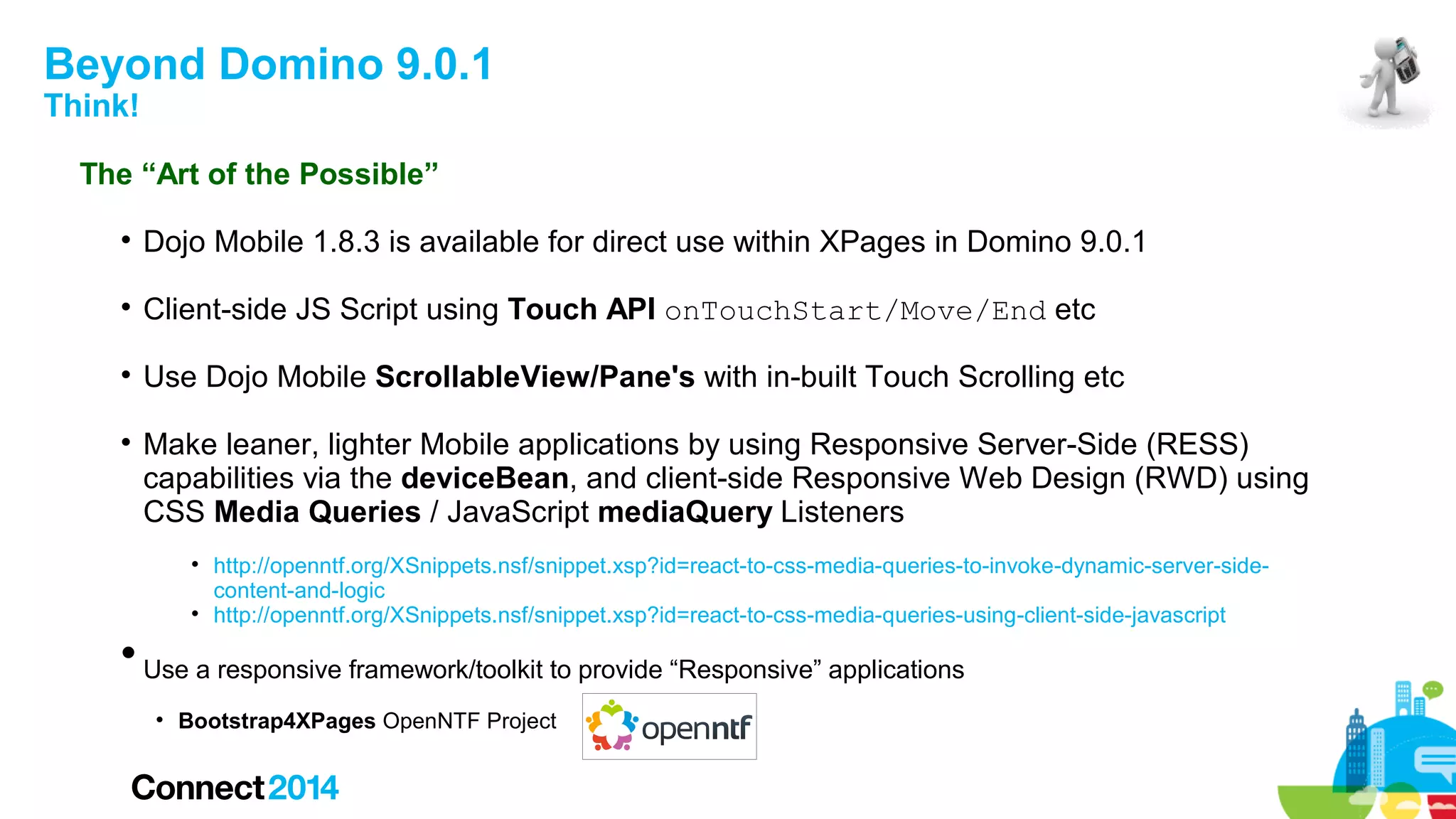

25. Beyond Domino 9.0.1
Think!
The “Art of the Possible”

Dojo Mobile 1.8.3 is available for direct use within XPages in Domino 9.0.1

Client-side JS Script using Touch API onTouchStart/Move/End etc

Use Dojo Mobile ScrollableView/Pane's with in-built Touch Scrolling etc

Make leaner, lighter Mobile applications by using Responsive Server-Side (RESS)
capabilities via the deviceBean, and client-side Responsive Web Design (RWD) using
CSS Media Queries / JavaScript mediaQuery Listeners



http://openntf.org/XSnippets.nsf/snippet.xsp?id=react-to-css-media-queries-to-invoke-dynamic-server-sidecontent-and-logic
http://openntf.org/XSnippets.nsf/snippet.xsp?id=react-to-css-media-queries-using-client-side-javascript
Use a responsive framework/toolkit to provide “Responsive” applications

Bootstrap4XPages OpenNTF Project

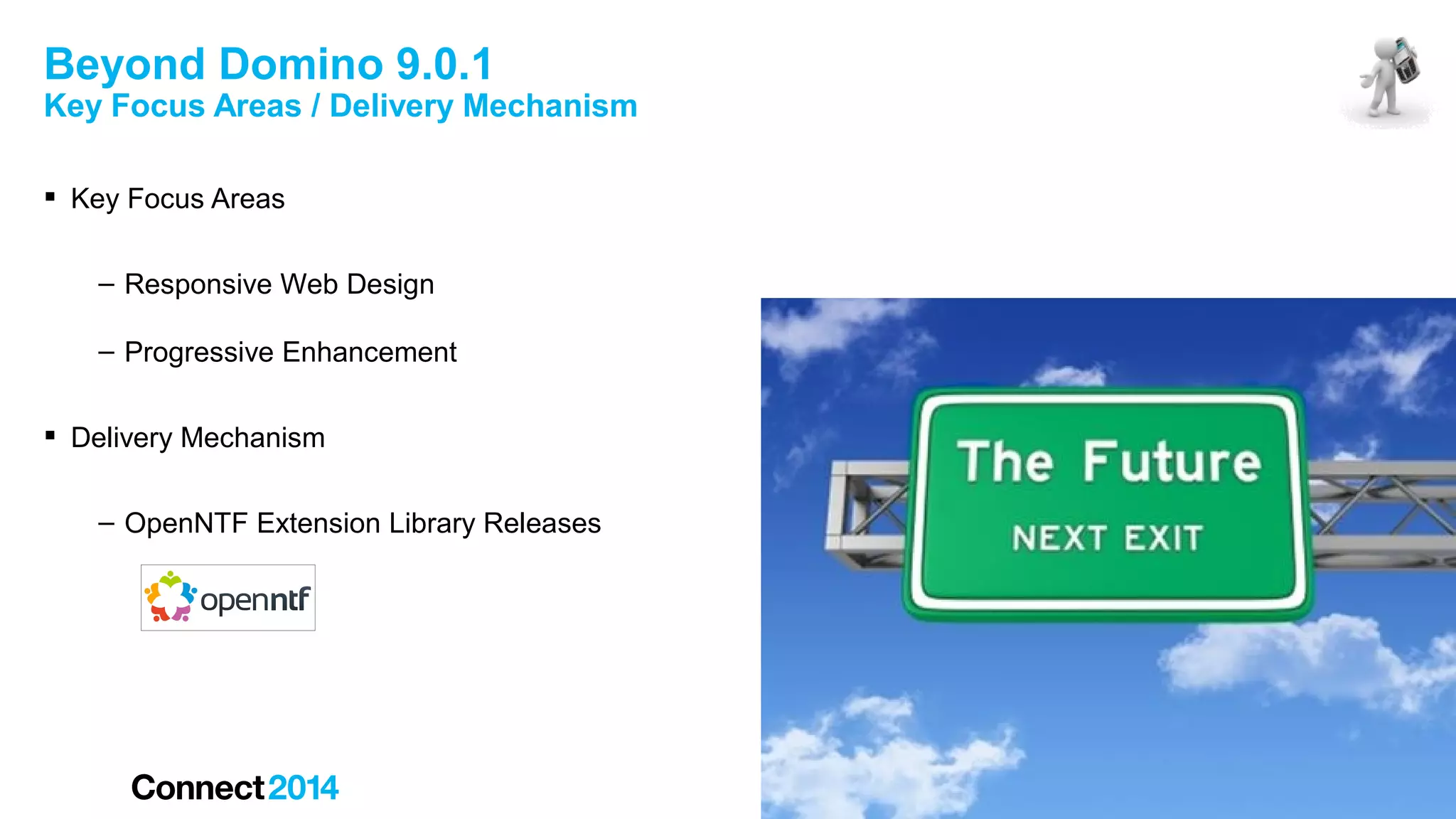

26. Beyond Domino 9.0.1
Key Focus Areas / Delivery Mechanism
 Key Focus Areas
– Responsive Web Design
– Progressive Enhancement
 Delivery Mechanism
– OpenNTF Extension Library Releases

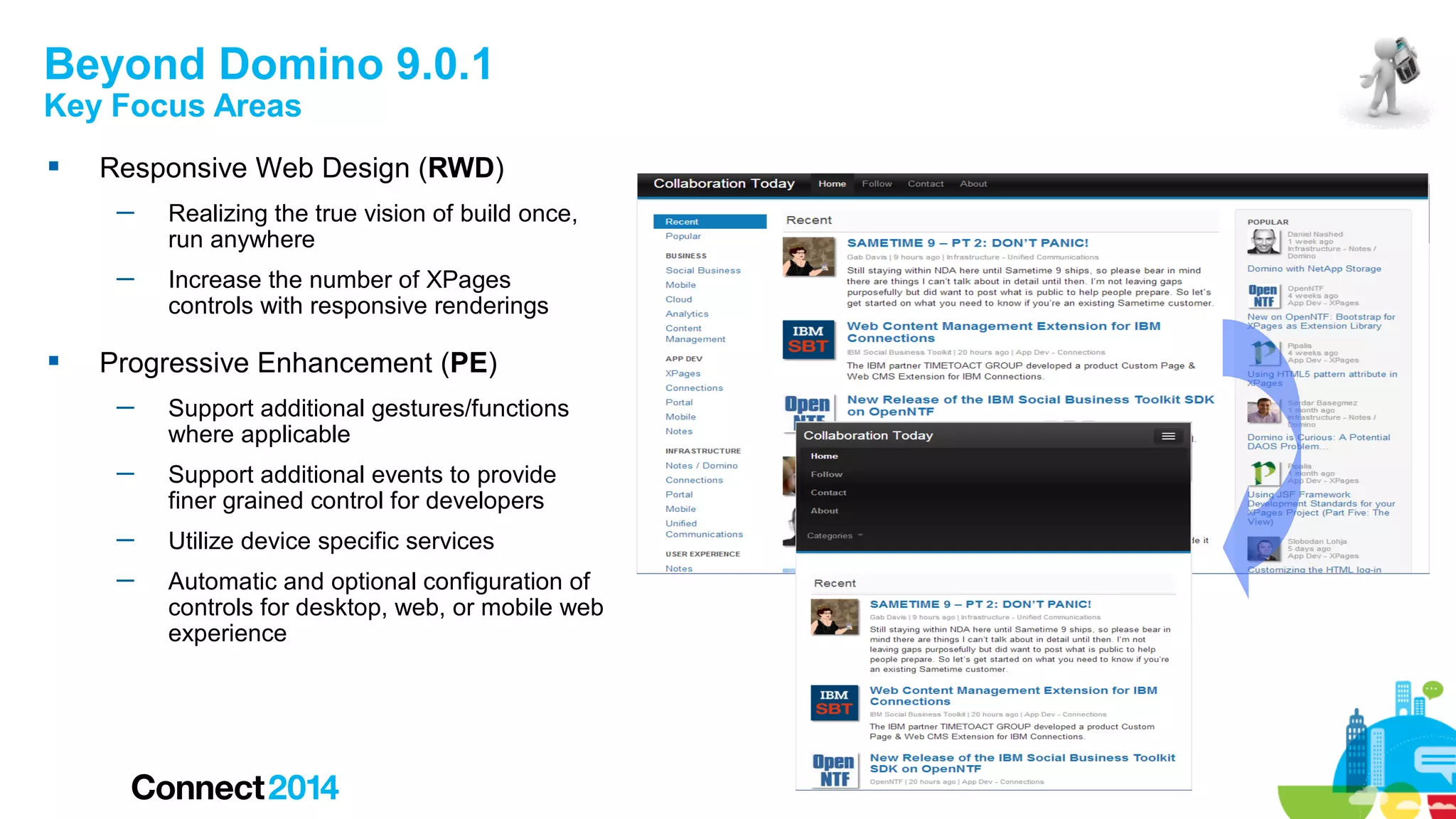

27. Beyond Domino 9.0.1
Key Focus Areas

Responsive Web Design (RWD)
─
─

Realizing the true vision of build once,
run anywhere
Increase the number of XPages
controls with responsive renderings
Progressive Enhancement (PE)
─
Support additional gestures/functions
where applicable
─
Support additional events to provide
finer grained control for developers
─
Utilize device specific services
─
Automatic and optional configuration of
controls for desktop, web, or mobile web
experience

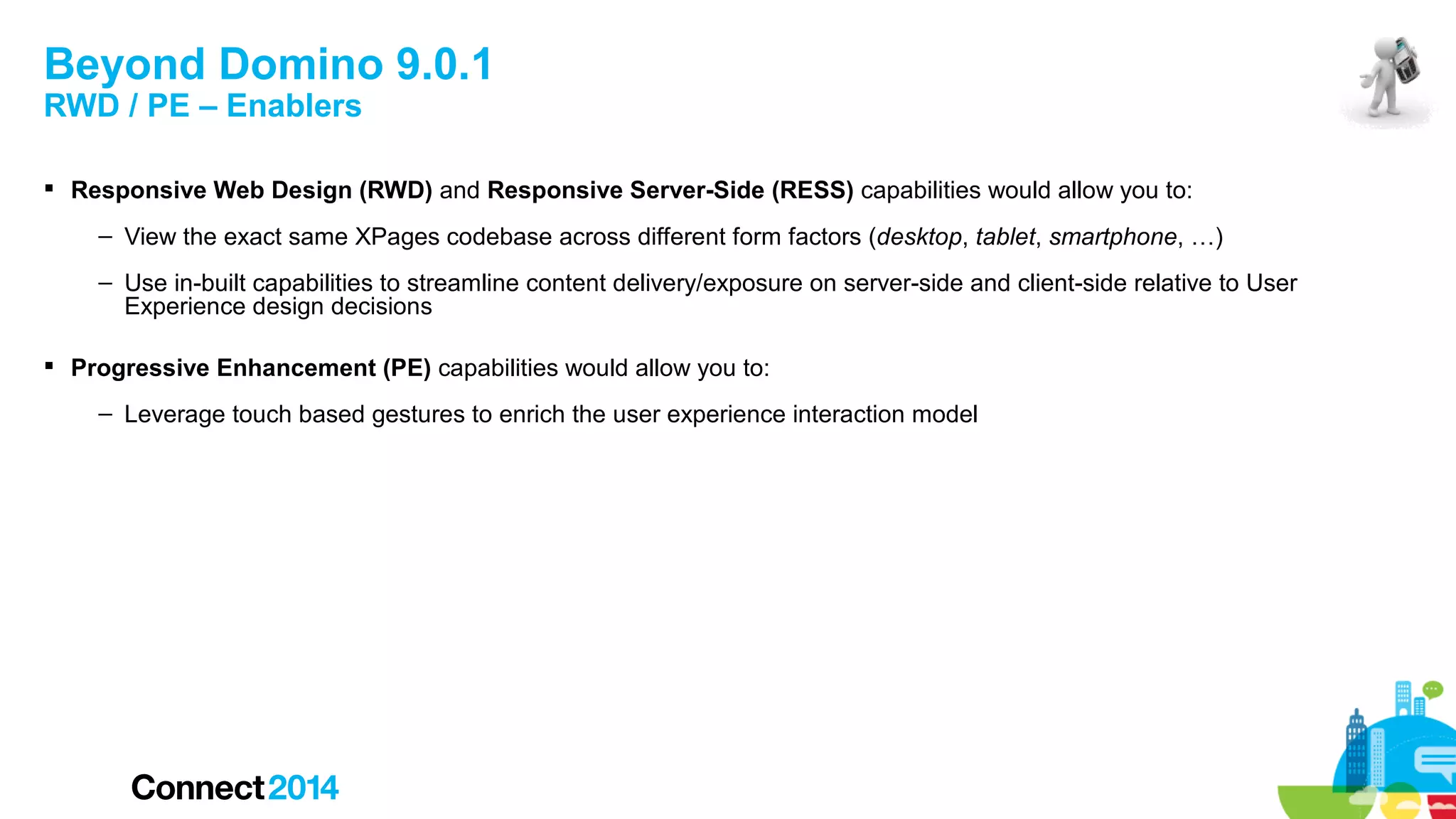

28. Beyond Domino 9.0.1
RWD / PE – Enablers
 Responsive Web Design (RWD) and Responsive Server-Side (RESS) capabilities would allow you to:
– View the exact same XPages codebase across different form factors (desktop, tablet, smartphone, …)
– Use in-built capabilities to streamline content delivery/exposure on server-side and client-side relative to User
Experience design decisions
 Progressive Enhancement (PE) capabilities would allow you to:
– Leverage touch based gestures to enrich the user experience interaction model

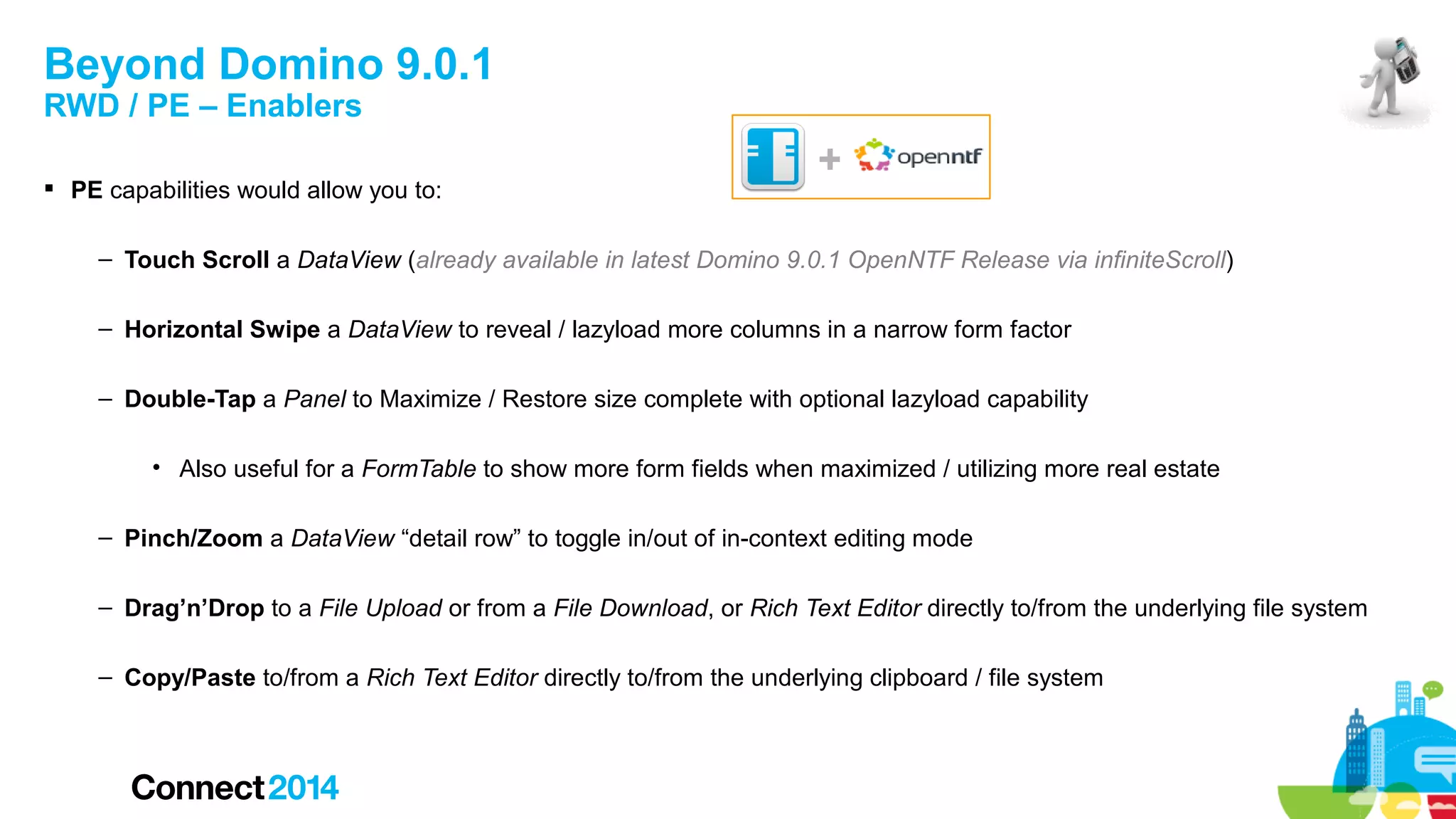

29. Beyond Domino 9.0.1
RWD / PE – Enablers
 PE capabilities would allow you to:
+
– Touch Scroll a DataView (already available in latest Domino 9.0.1 OpenNTF Release via infiniteScroll)
– Horizontal Swipe a DataView to reveal / lazyload more columns in a narrow form factor
– Double-Tap a Panel to Maximize / Restore size complete with optional lazyload capability
• Also useful for a FormTable to show more form fields when maximized / utilizing more real estate
– Pinch/Zoom a DataView “detail row” to toggle in/out of in-context editing mode
– Drag’n’Drop to a File Upload or from a File Download, or Rich Text Editor directly to/from the underlying file system
– Copy/Paste to/from a Rich Text Editor directly to/from the underlying clipboard / file system

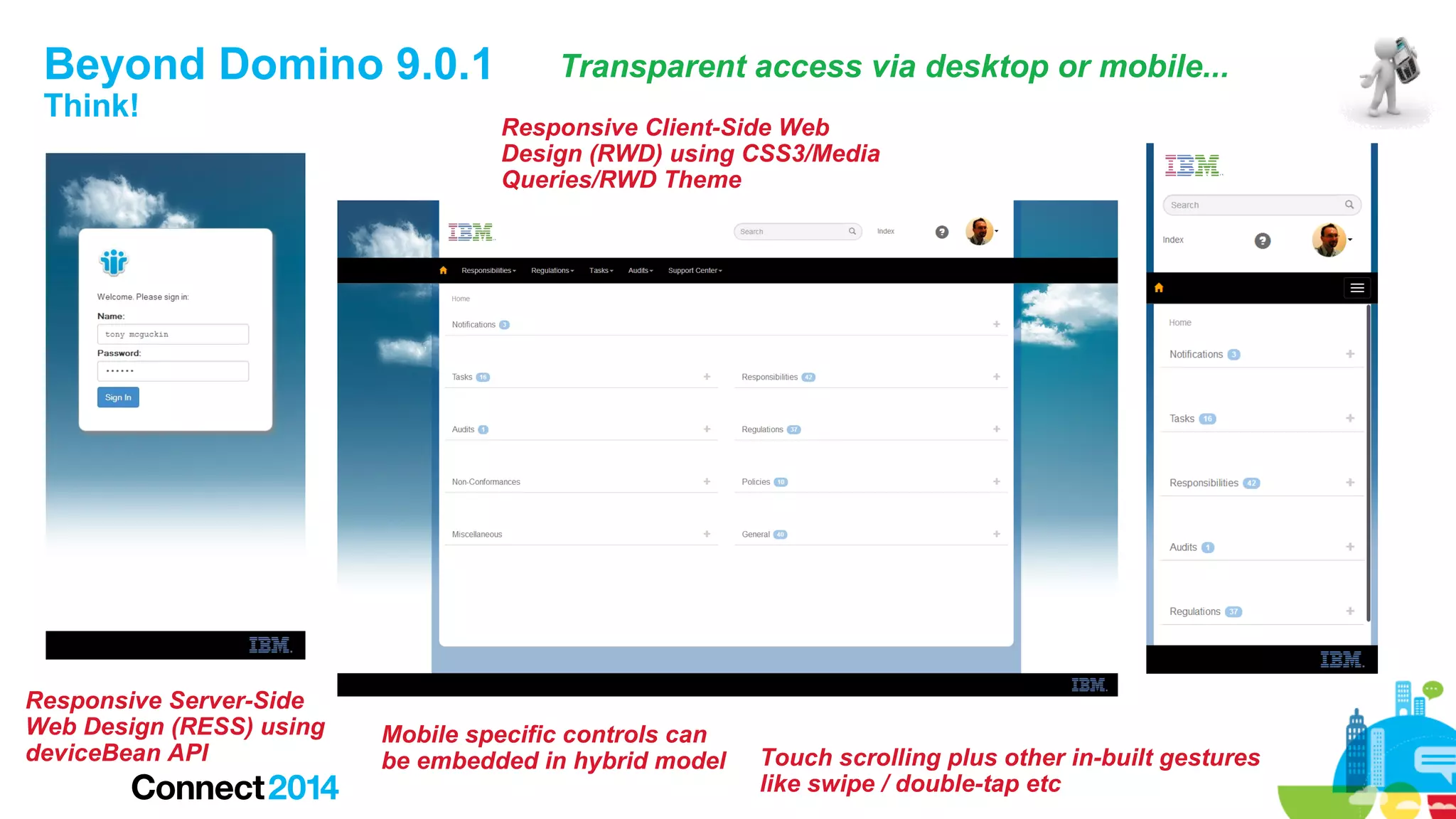

30. Beyond Domino 9.0.1
Think!
Responsive Server-Side
Web Design (RESS) using
deviceBean API
Transparent access via desktop or mobile...
Responsive Client-Side Web
Design (RWD) using CSS3/Media
Queries/RWD Theme
Mobile specific controls can
be embedded in hybrid model
Touch scrolling plus other in-built gestures
like swipe / double-tap etc

31. Partner Solutions
and Services

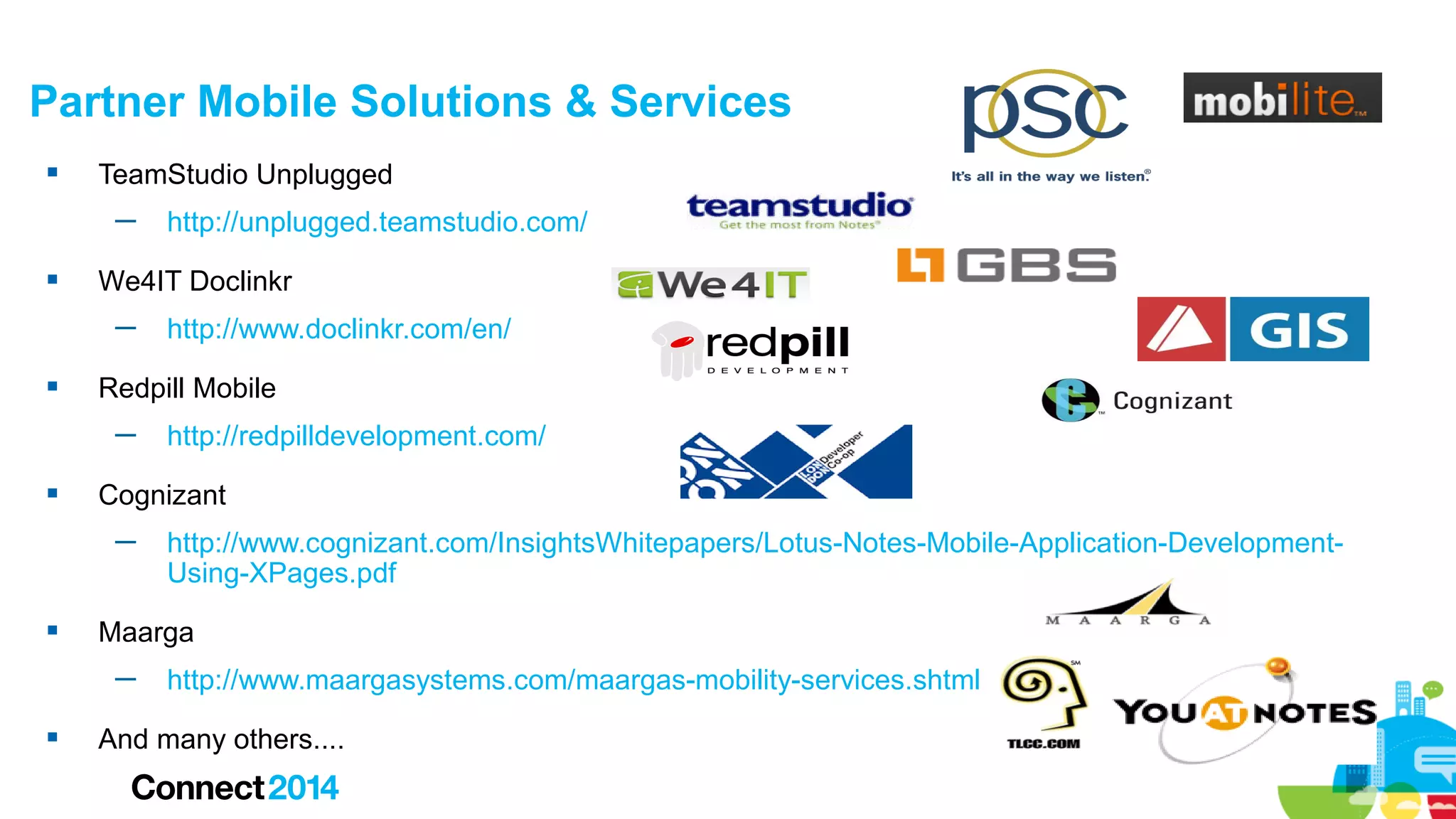

32. Partner Mobile Solutions & Services

TeamStudio Unplugged
─

We4IT Doclinkr
─

http://www.cognizant.com/InsightsWhitepapers/Lotus-Notes-Mobile-Application-DevelopmentUsing-XPages.pdf
Maarga
─

http://redpilldevelopment.com/
Cognizant
─

http://www.doclinkr.com/en/
Redpill Mobile
─

http://unplugged.teamstudio.com/
http://www.maargasystems.com/maargas-mobility-services.shtml
And many others....

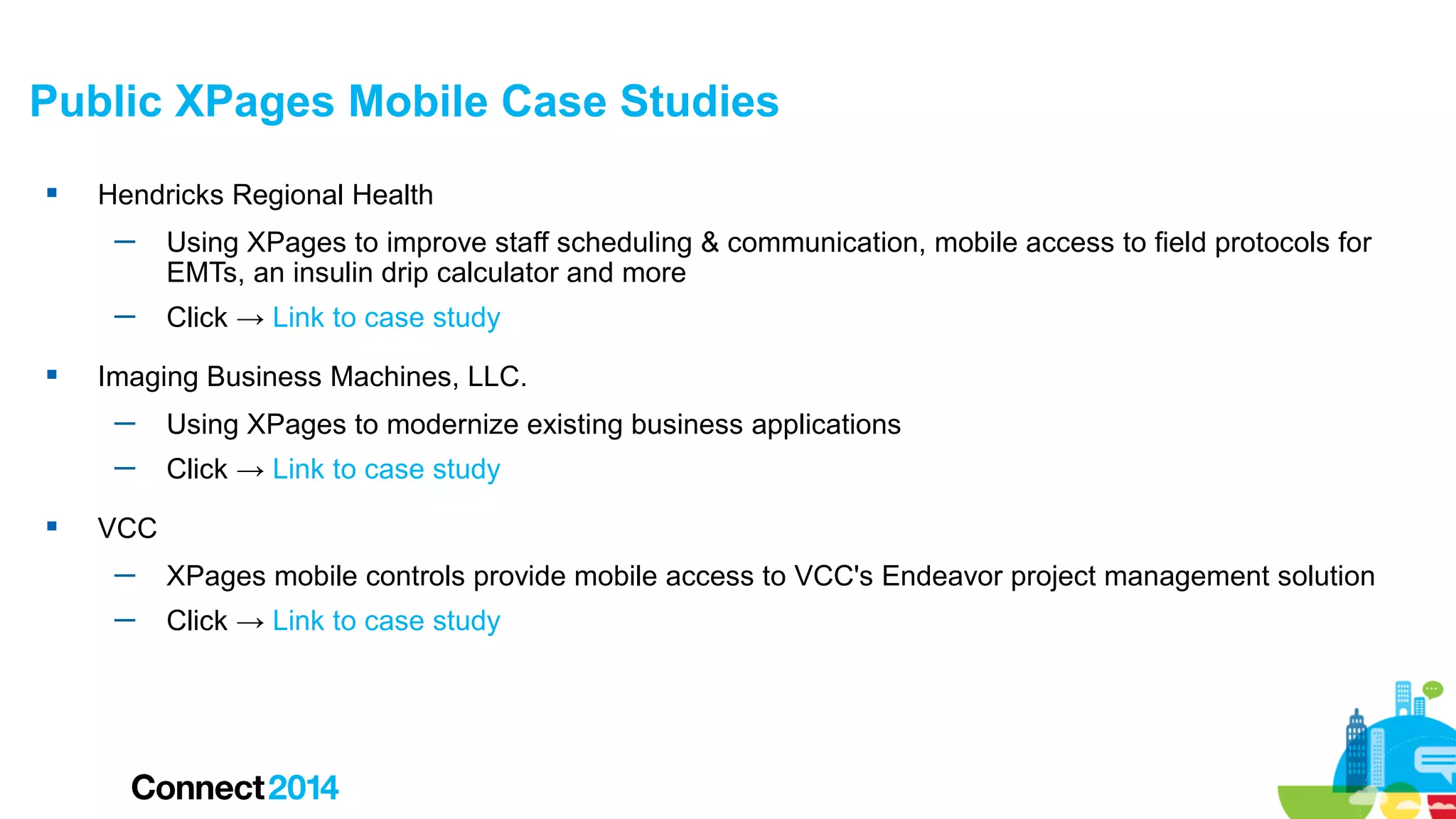

33. Public XPages Mobile Case Studies

Hendricks Regional Health
─
─

Using XPages to improve staff scheduling & communication, mobile access to field protocols for
EMTs, an insulin drip calculator and more
Click → Link to case study
Imaging Business Machines, LLC.
─
─

Using XPages to modernize existing business applications
Click → Link to case study
VCC
─
XPages mobile controls provide mobile access to VCC's Endeavor project management solution
─
Click → Link to case study

34. Q&A

36.  Access Connect Online to complete your session surveys using any:
– Web or mobile browser
– Connect Online kiosk onsite

37. Engage Online
 SocialBiz User Group socialbizug.org
– Join the epicenter of Notes and Collaboration user groups
 Follow us on Twitter
– @IBMConnect and @IBMSocialBiz
 LinkedIn http://bit.ly/SBComm
– Participate in the IBM Social Business group on LinkedIn:
 Facebook https://www.facebook.com/IBMSocialBiz
– Like IBM Social Business on Facebook
 Social Business Insights blog ibm.com/blogs/socialbusiness
– Read and engage with our bloggers

38. Acknowledgements and Disclaimers
Availability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational purposes only, and are neither
intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to verify the completeness and accuracy of the information
contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise
related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or
its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and
performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you
will result in any specific sales, revenue growth or other results.
© Copyright IBM Corporation 2014. All rights reserved.
 U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
 IBM, the IBM logo, ibm.com, Notes, Domino, and XPages are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries,
or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or
common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list
of IBM trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Other company, product, or service names may be trademarks or service marks of others.
