Did you know that Domino and XPages allows for the easy access of relational data? These exciting capabilities in the Extension Library can greatly enhance the capability of your applications and allow access to information beyond Domino. Howard and Paul will discuss what you need to get started, what controls allow access to relational data, and the new @Functions available to incorporate relational data in your Server Side JavaScript programming.

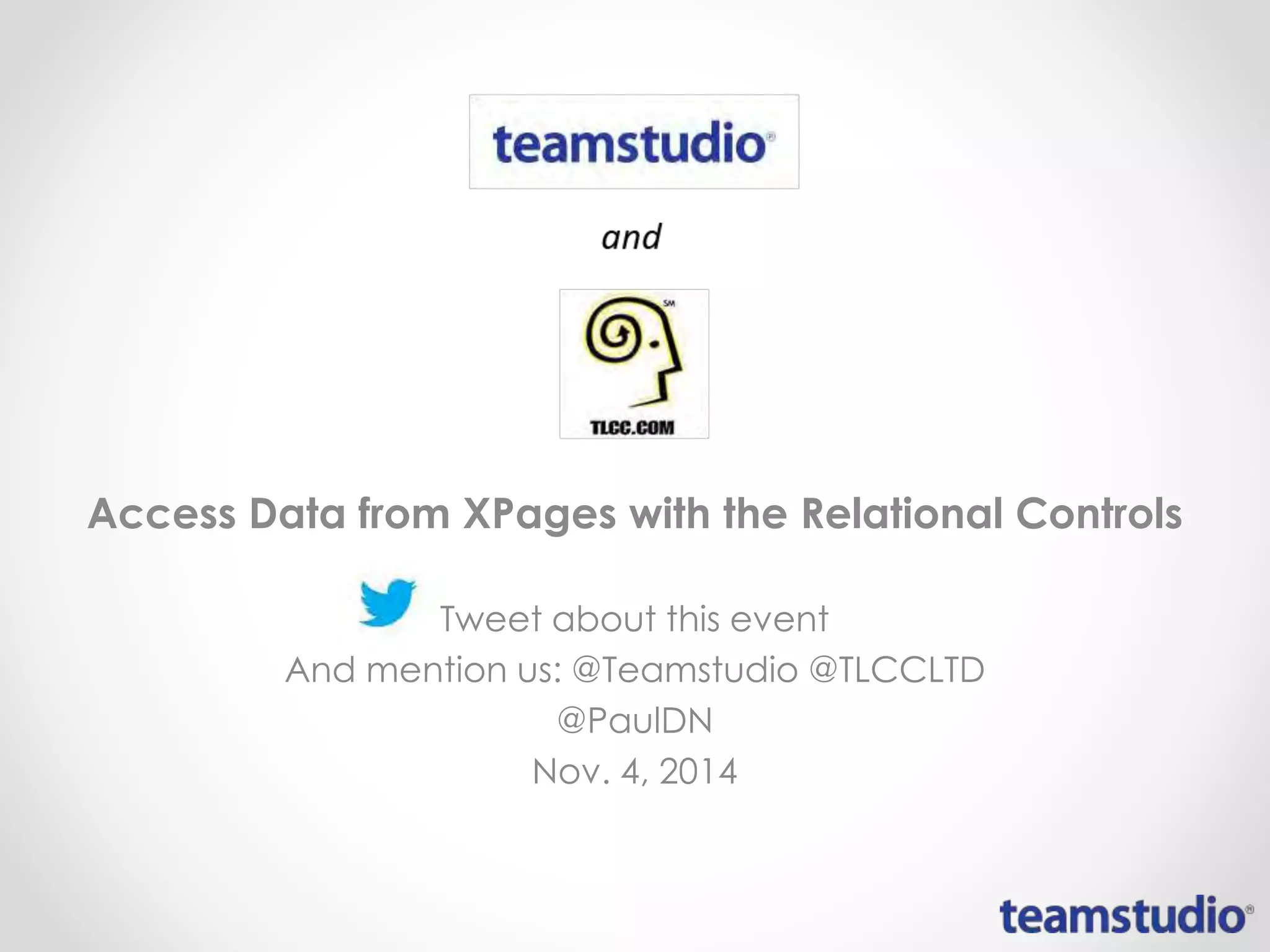

1. Access Data from XPages with the Relational Controls
Tweet about this event
And mention us: @Teamstudio @TLCCLTD
@PaulDN
Nov. 4, 2014

2. @Teamstudio
teamstudio.com
@TLCCLTD
tlcc.com
Courtney Carter
Inbound Marketing Specialist
Teamstudio

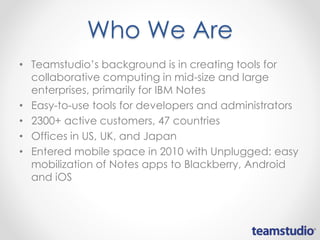

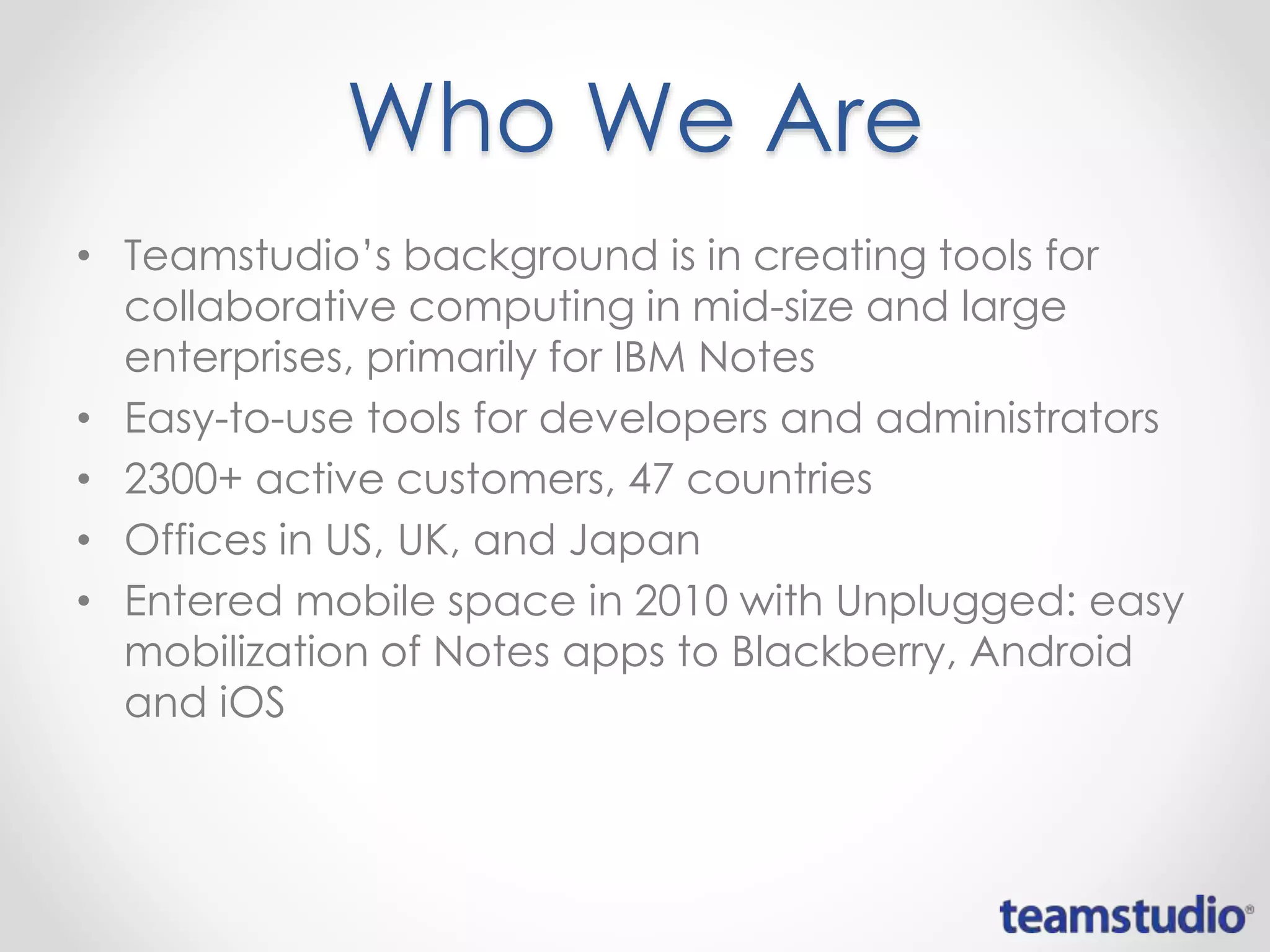

3. Who We Are
• Teamstudio’s background is in creating tools for
collaborative computing in mid-size and large
enterprises, primarily for IBM Notes
• Easy-to-use tools for developers and administrators
• 2300+ active customers, 47 countries
• Offices in US, UK, and Japan
• Entered mobile space in 2010 with Unplugged: easy
mobilization of Notes apps to Blackberry, Android
and iOS

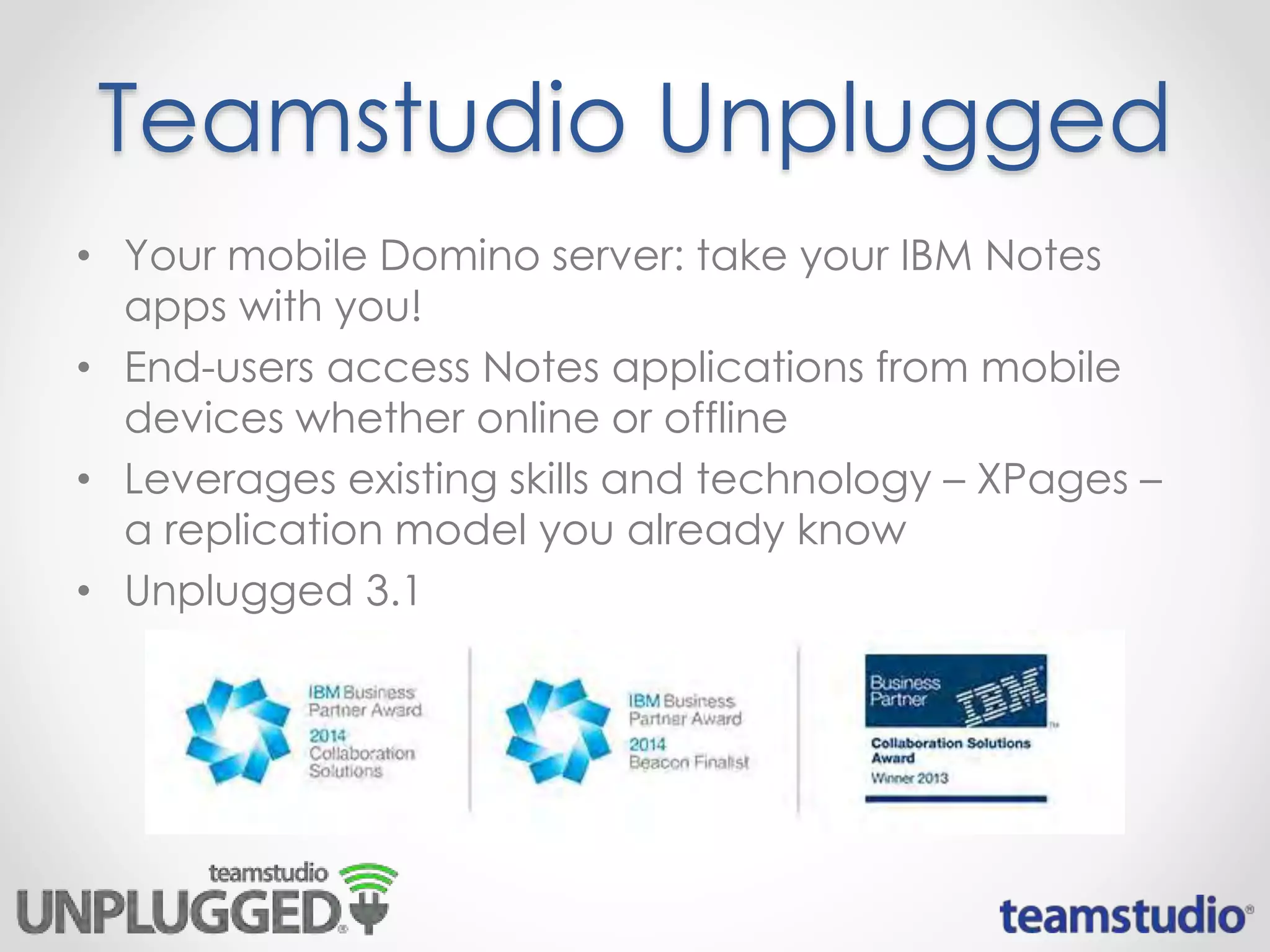

4. Teamstudio Unplugged
• Your mobile Domino server: take your IBM Notes
apps with you!
• End-users access Notes applications from mobile
devices whether online or offline
• Leverages existing skills and technology – XPages –
a replication model you already know
• Unplugged 3.1

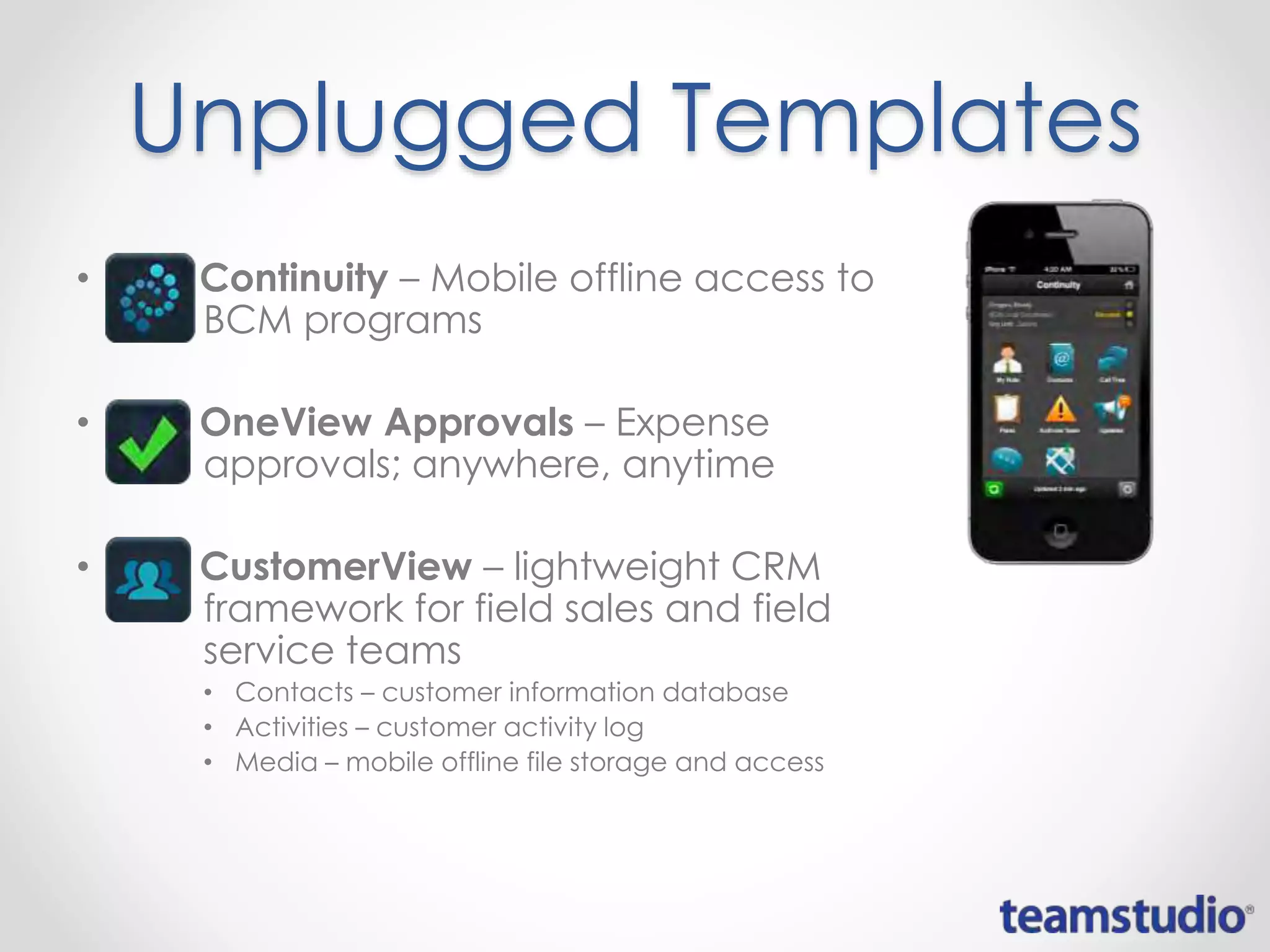

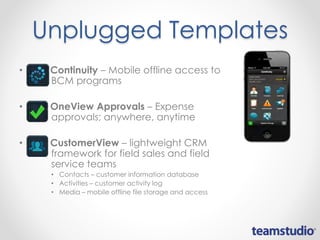

5. Unplugged Templates
• Continuity – Mobile offline access to
BCM programs
• OneView Approvals – Expense
approvals; anywhere, anytime
• CustomerView – lightweight CRM
framework for field sales and field
service teams
• Contacts – customer information database
• Activities – customer activity log
• Media – mobile offline file storage and access

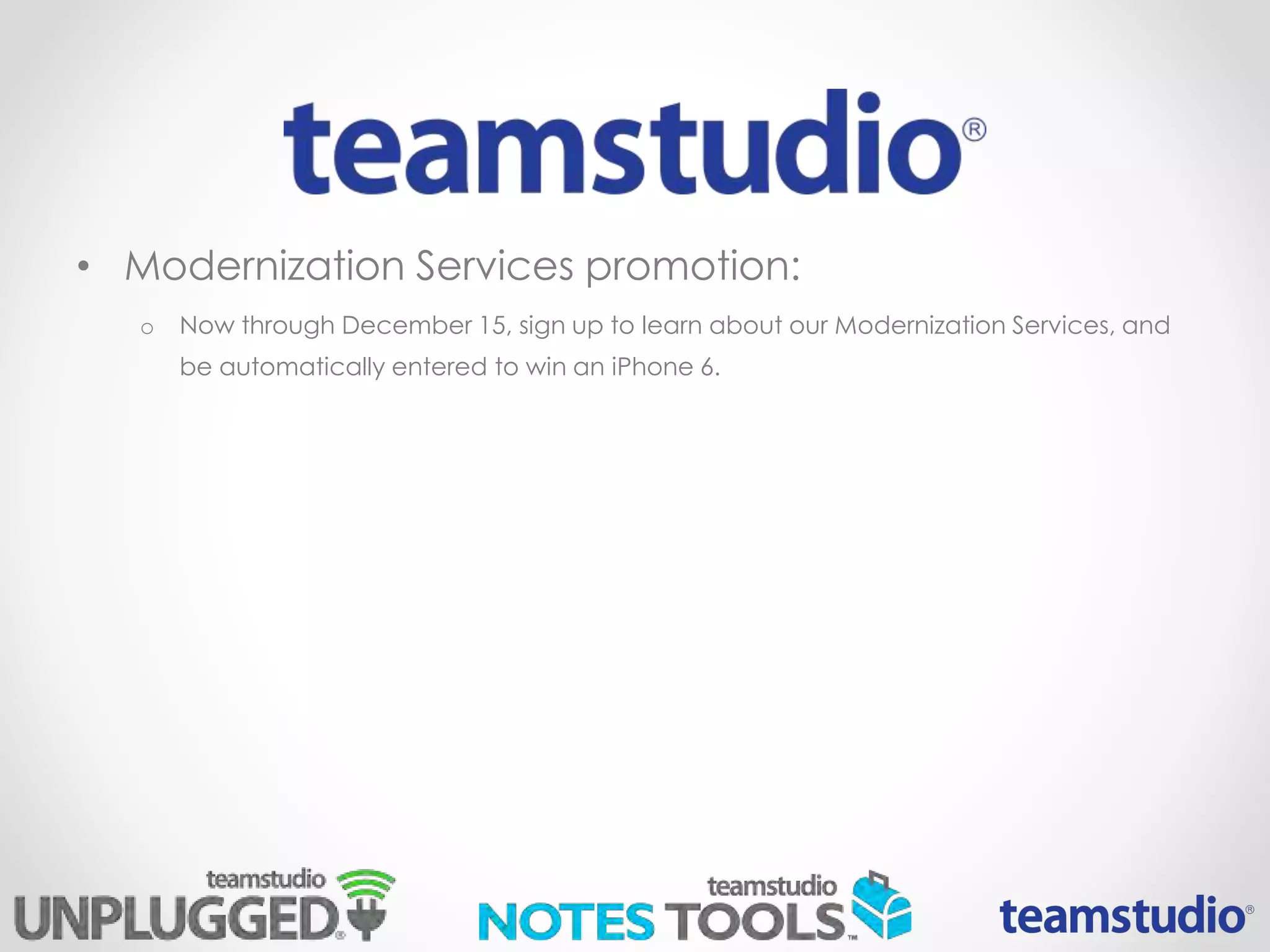

6. • Modernization Services promotion:
o Now through December 15, sign up to learn about our Modernization Services, and
be automatically entered to win an iPhone 6.

7. 1

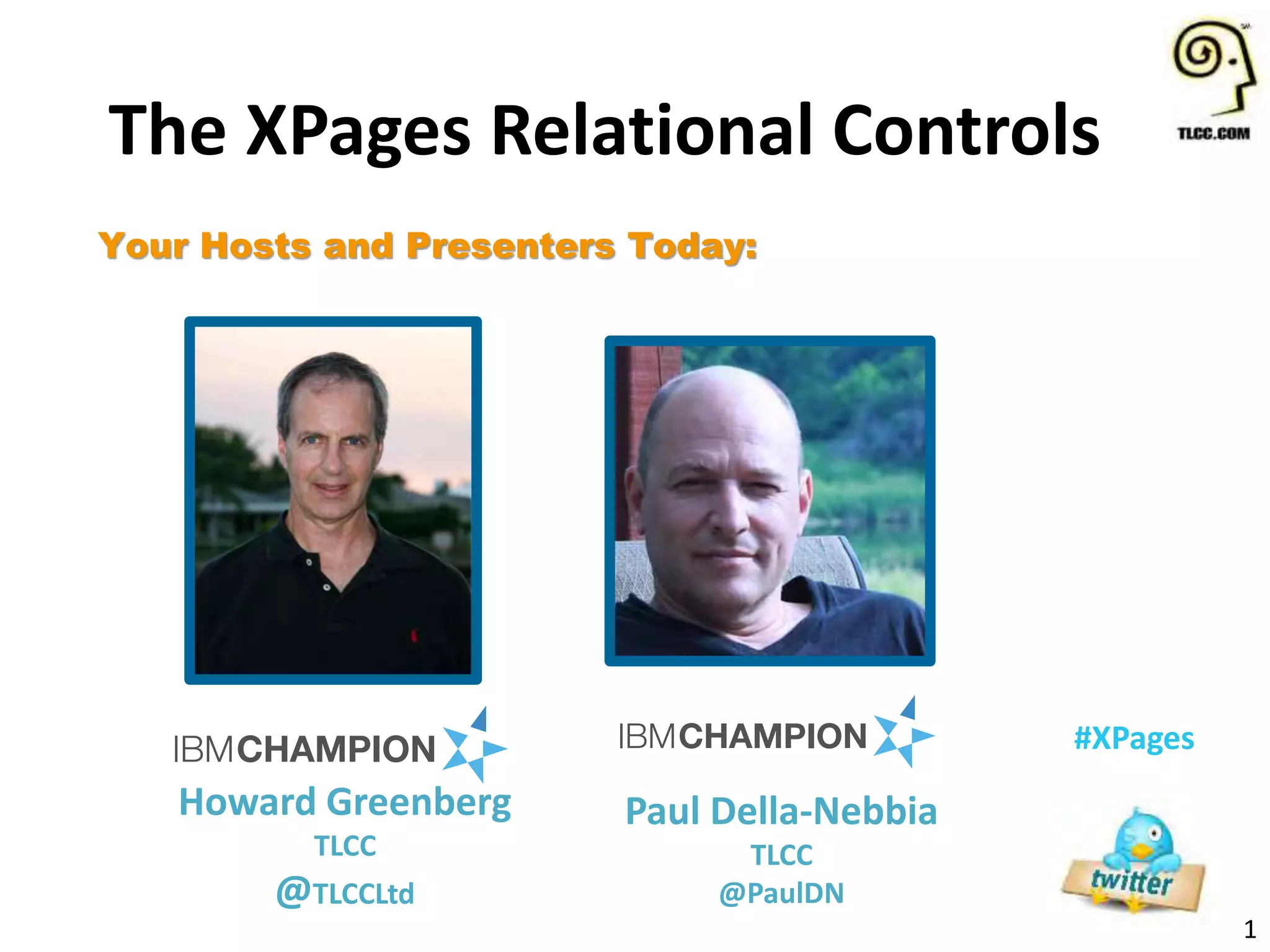

The XPages Relational Controls
#XPages
Your Hosts and Presenters Today:
Howard Greenberg
TLCC
@TLCCLtd
Paul Della-Nebbia
TLCC
@PaulDN

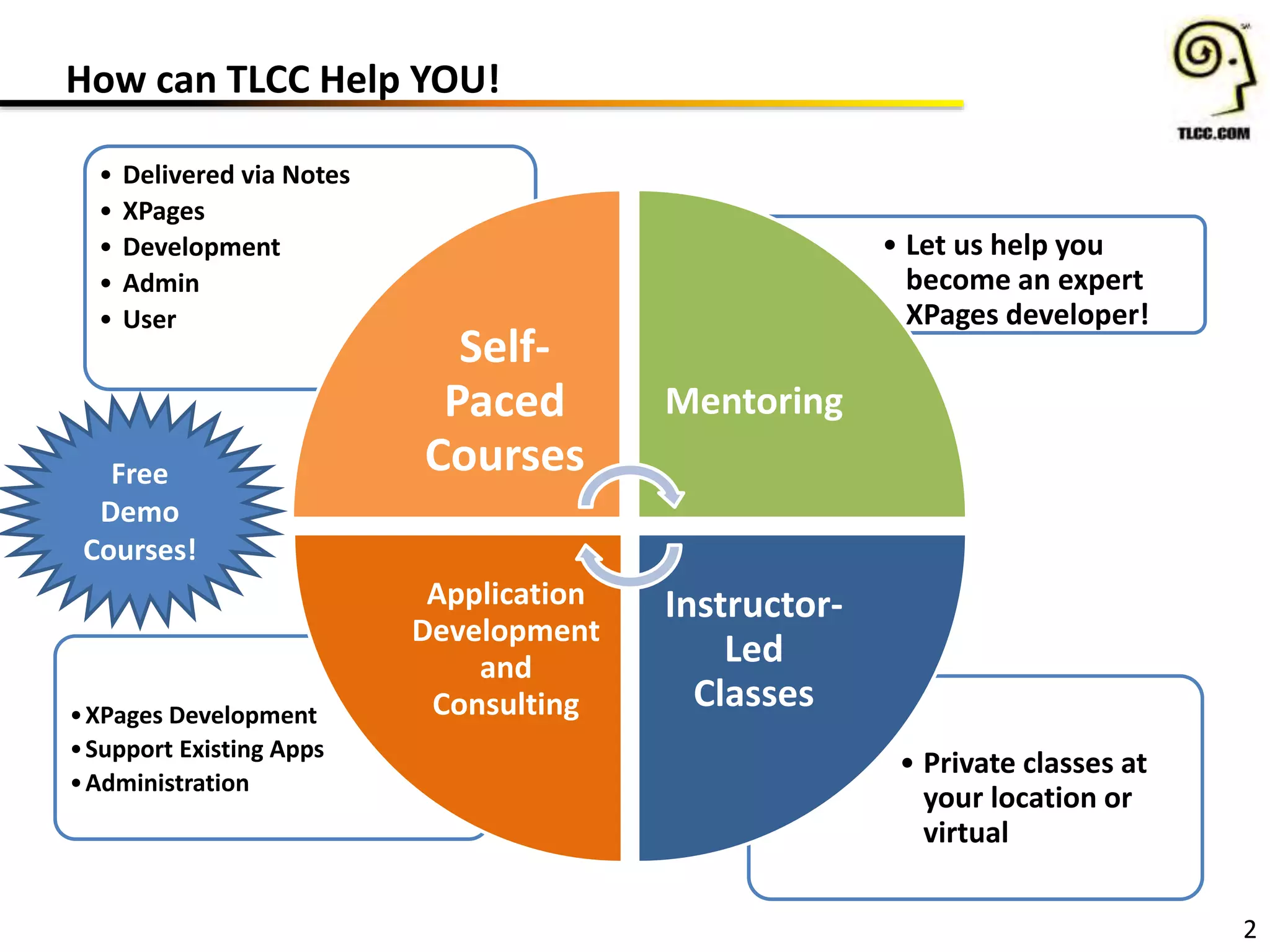

8. How can TLCC Help YOU!
2
• Private classes at
your location or
virtual
•XPages Development
•Support Existing Apps
•Administration
• Let us help you
become an expert
XPages developer!
• Delivered via Notes
• XPages
• Development
• Admin
• User
Self-
Paced
Courses
Mentoring
Instructor-
Led
Classes
Application
Development
and
Consulting
Free
Demo
Courses!

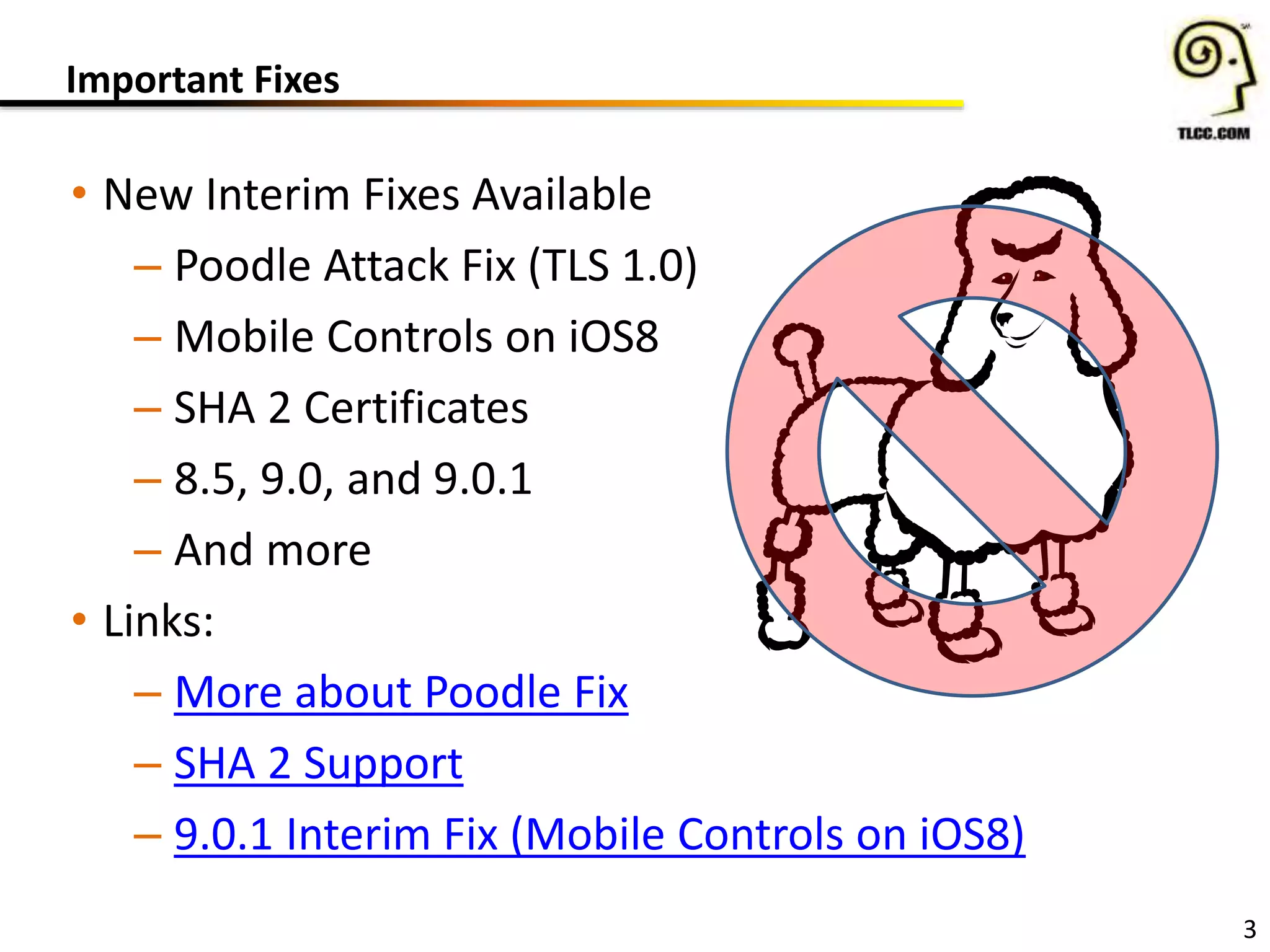

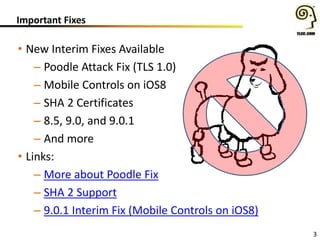

9. Important Fixes
• New Interim Fixes Available
– Poodle Attack Fix (TLS 1.0)
– Mobile Controls on iOS8
– SHA 2 Certificates
– 8.5, 9.0, and 9.0.1
– And more
• Links:
– More about Poodle Fix
– SHA 2 Support
– 9.0.1 Interim Fix (Mobile Controls on iOS8)
3

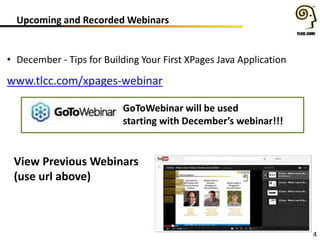

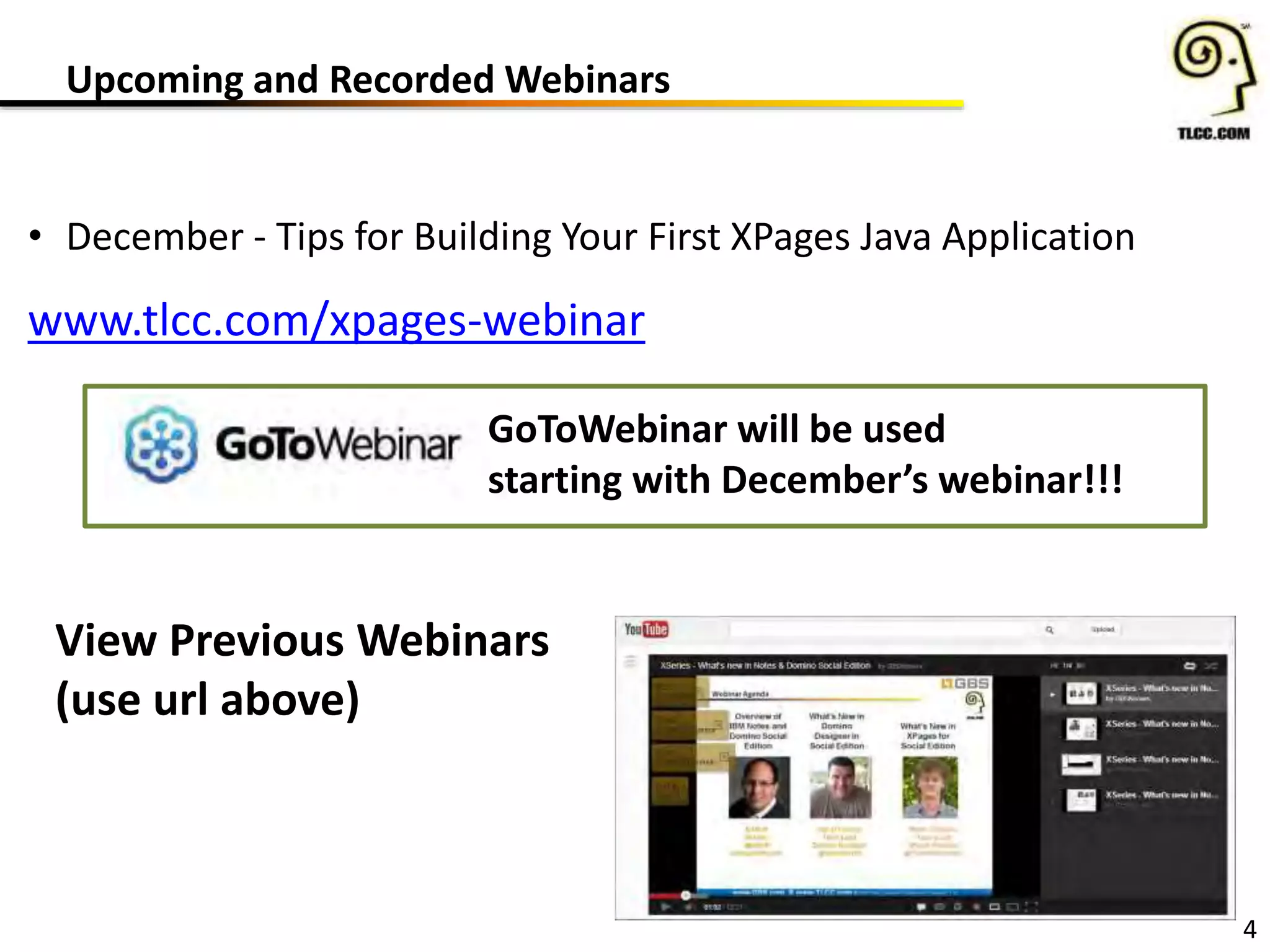

10. Upcoming and Recorded Webinars
4
• December - Tips for Building Your First XPages Java Application
www.tlcc.com/xpages-webinar
GoToWebinar will be used
starting with December’s webinar!!!
View Previous Webinars
(use url above)

11. Asking Questions – Q and A at the end
5

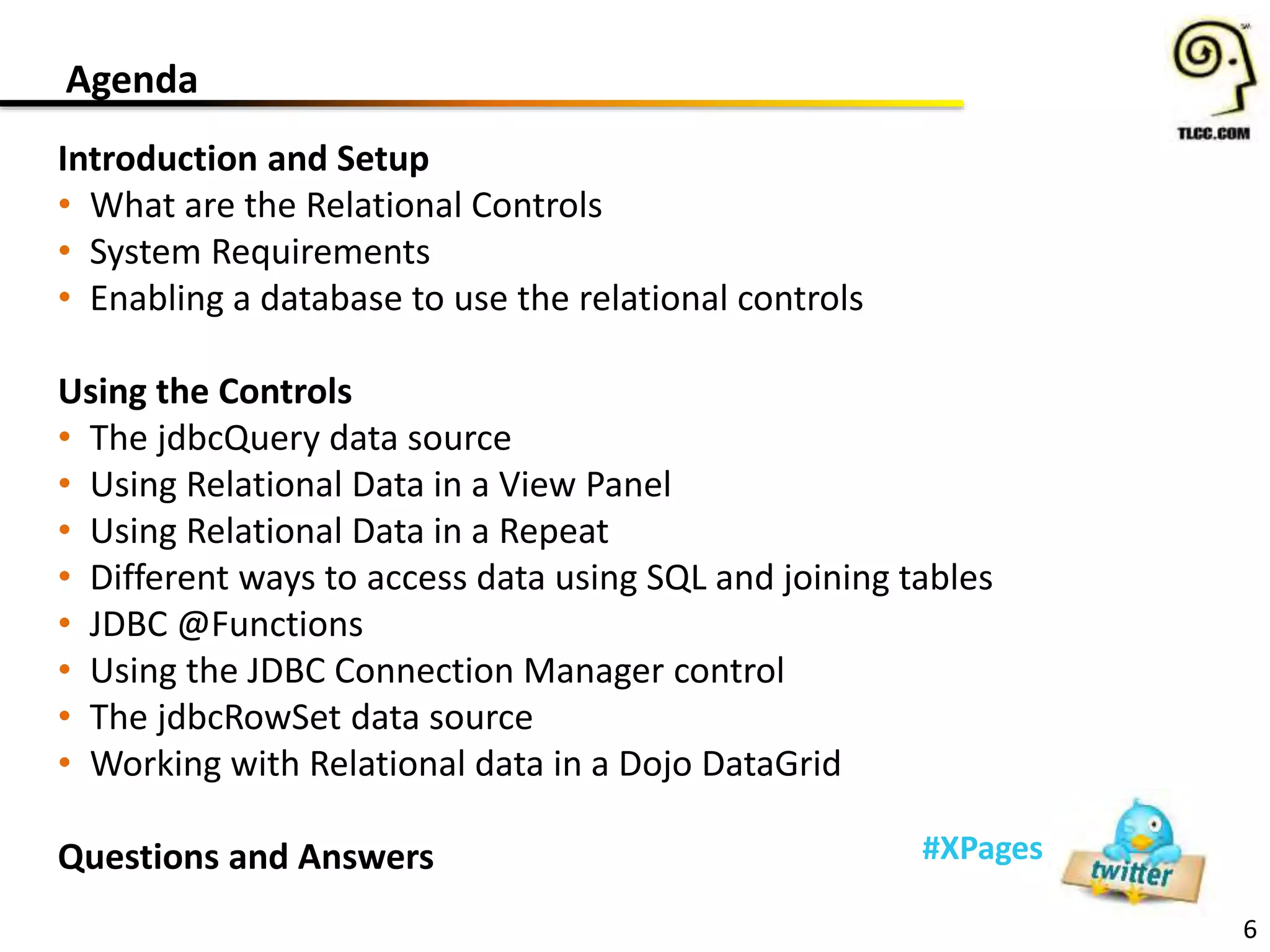

12. Agenda
Introduction and Setup
• What are the Relational Controls
• System Requirements
• Enabling a database to use the relational controls
Using the Controls
• The jdbcQuery data source
• Using Relational Data in a View Panel
• Using Relational Data in a Repeat
• Different ways to access data using SQL and joining tables
• JDBC @Functions
• Using the JDBC Connection Manager control
• The jdbcRowSet data source
• Working with Relational data in a Dojo DataGrid
Questions and Answers
6
#XPages

13. 7
#XPages
Paul Della-Nebbia
TLCC
@PaulDN

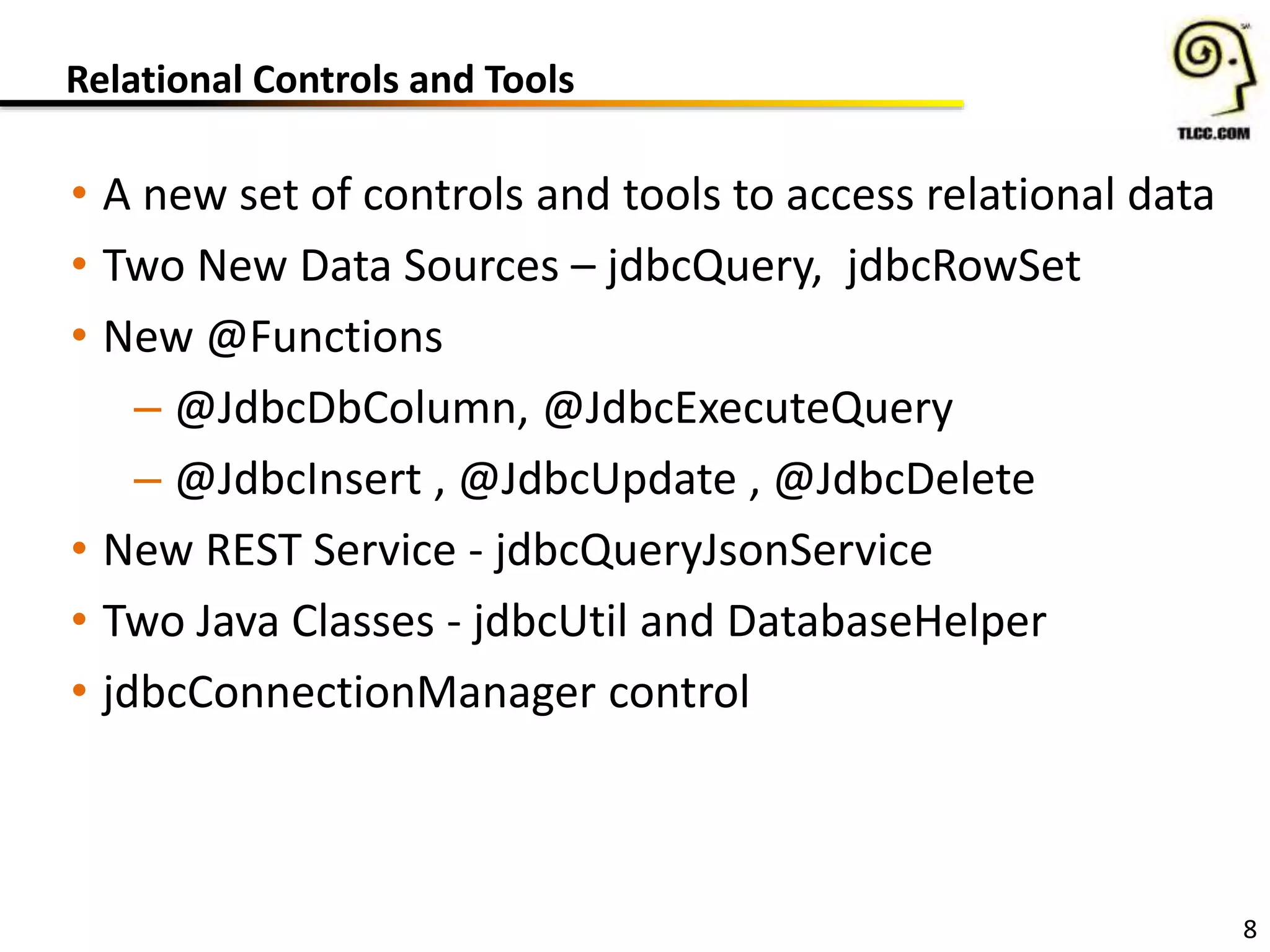

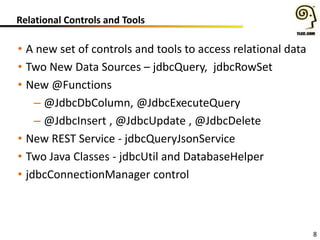

14. Relational Controls and Tools
• A new set of controls and tools to access relational data
• Two New Data Sources – jdbcQuery, jdbcRowSet
• New @Functions
– @JdbcDbColumn, @JdbcExecuteQuery
– @JdbcInsert , @JdbcUpdate , @JdbcDelete
• New REST Service - jdbcQueryJsonService
• Two Java Classes - jdbcUtil and DatabaseHelper
• jdbcConnectionManager control
8

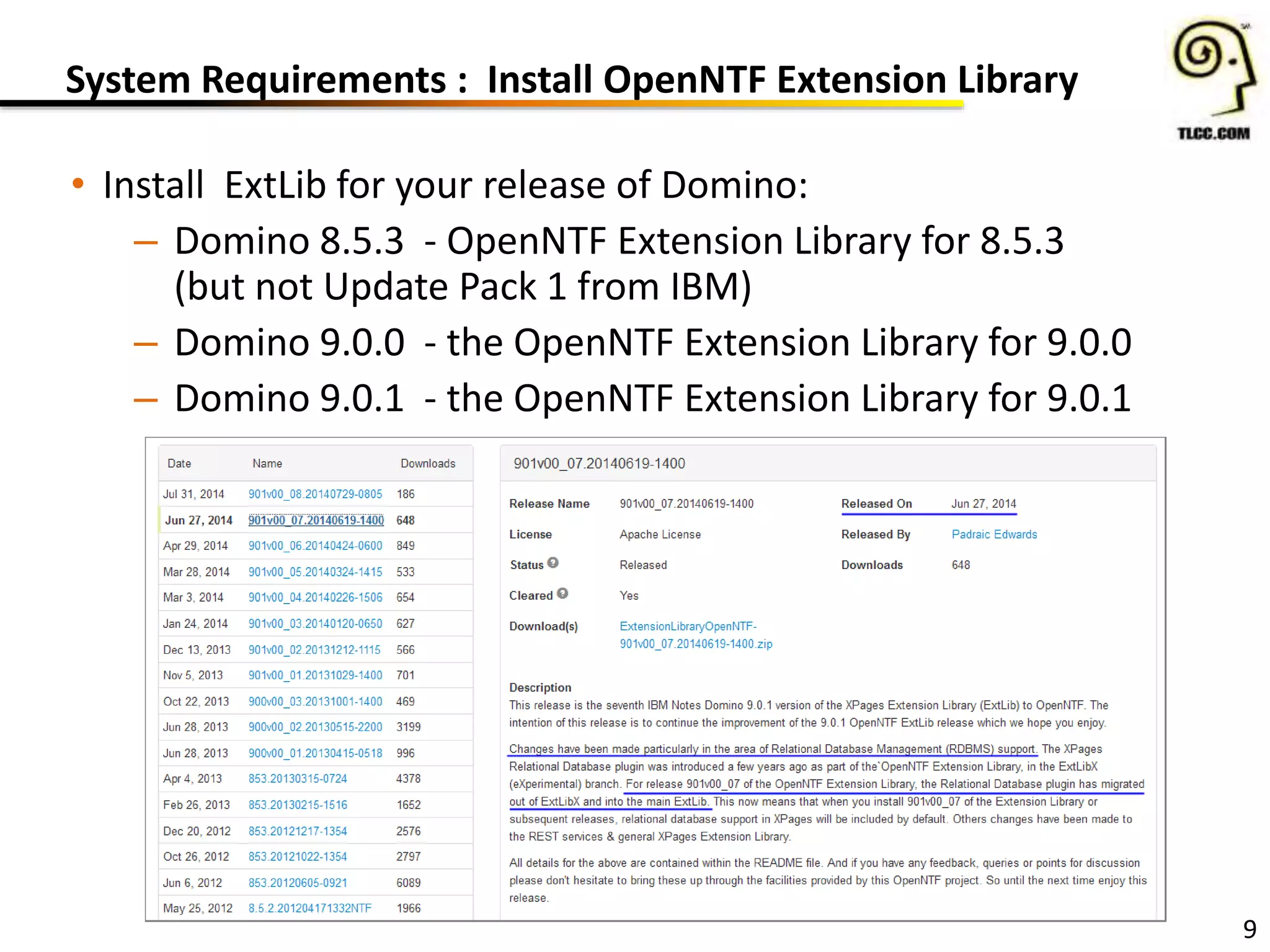

15. System Requirements : Install OpenNTF Extension Library
• Install ExtLib for your release of Domino:
– Domino 8.5.3 - OpenNTF Extension Library for 8.5.3
(but not Update Pack 1 from IBM)
– Domino 9.0.0 - the OpenNTF Extension Library for 9.0.0
– Domino 9.0.1 - the OpenNTF Extension Library for 9.0.1
9

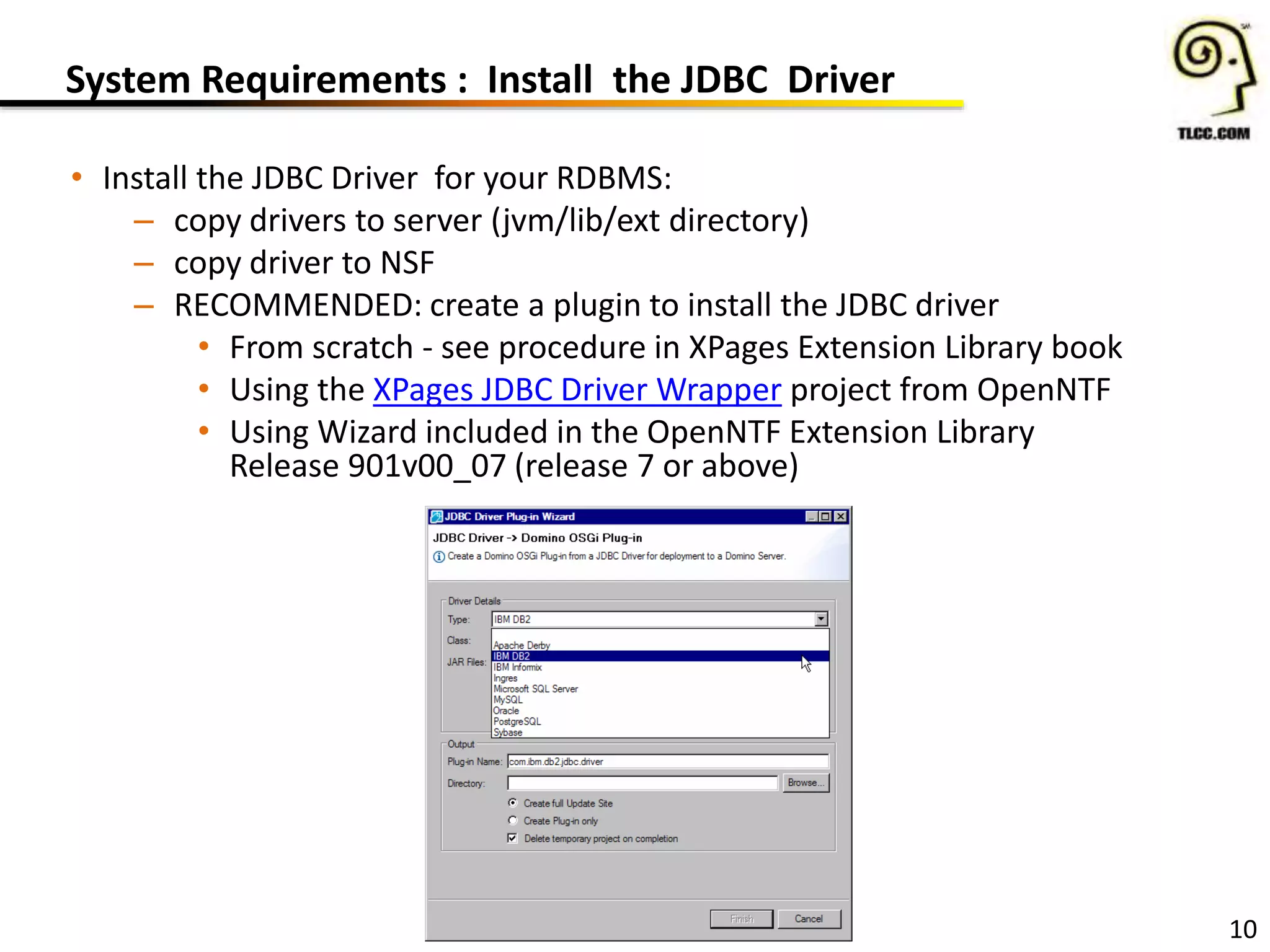

16. System Requirements : Install the JDBC Driver
• Install the JDBC Driver for your RDBMS:
– copy drivers to server (jvm/lib/ext directory)
– copy driver to NSF
– RECOMMENDED: create a plugin to install the JDBC driver
• From scratch - see procedure in XPages Extension Library book
• Using the XPages JDBC Driver Wrapper project from OpenNTF
• Using Wizard included in the OpenNTF Extension Library
Release 901v00_07 (release 7 or above)
10

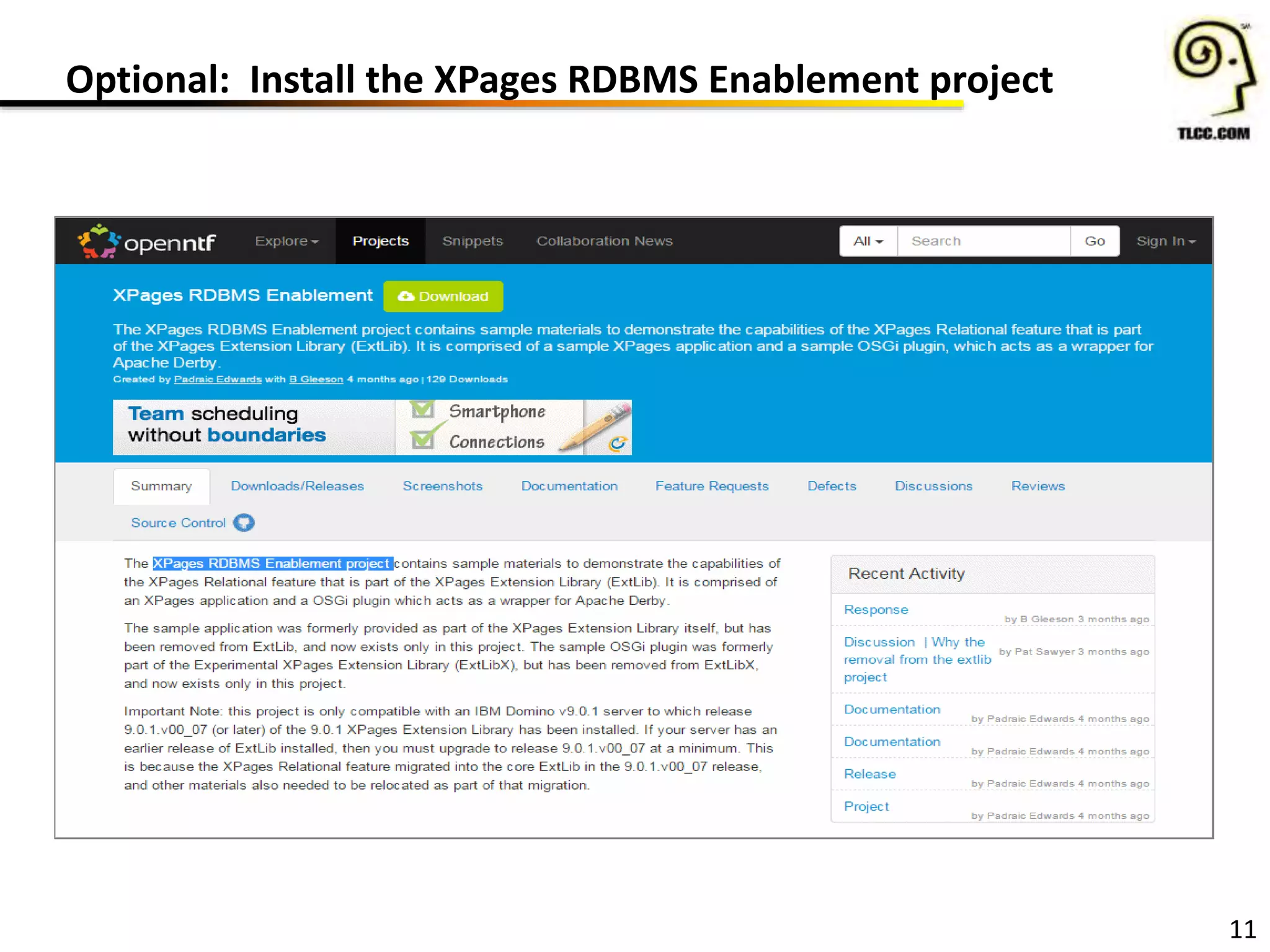

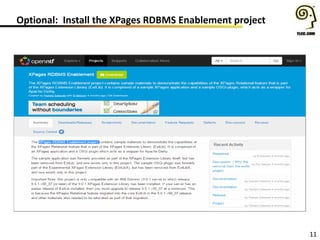

17. Optional: Install the XPages RDBMS Enablement project
11

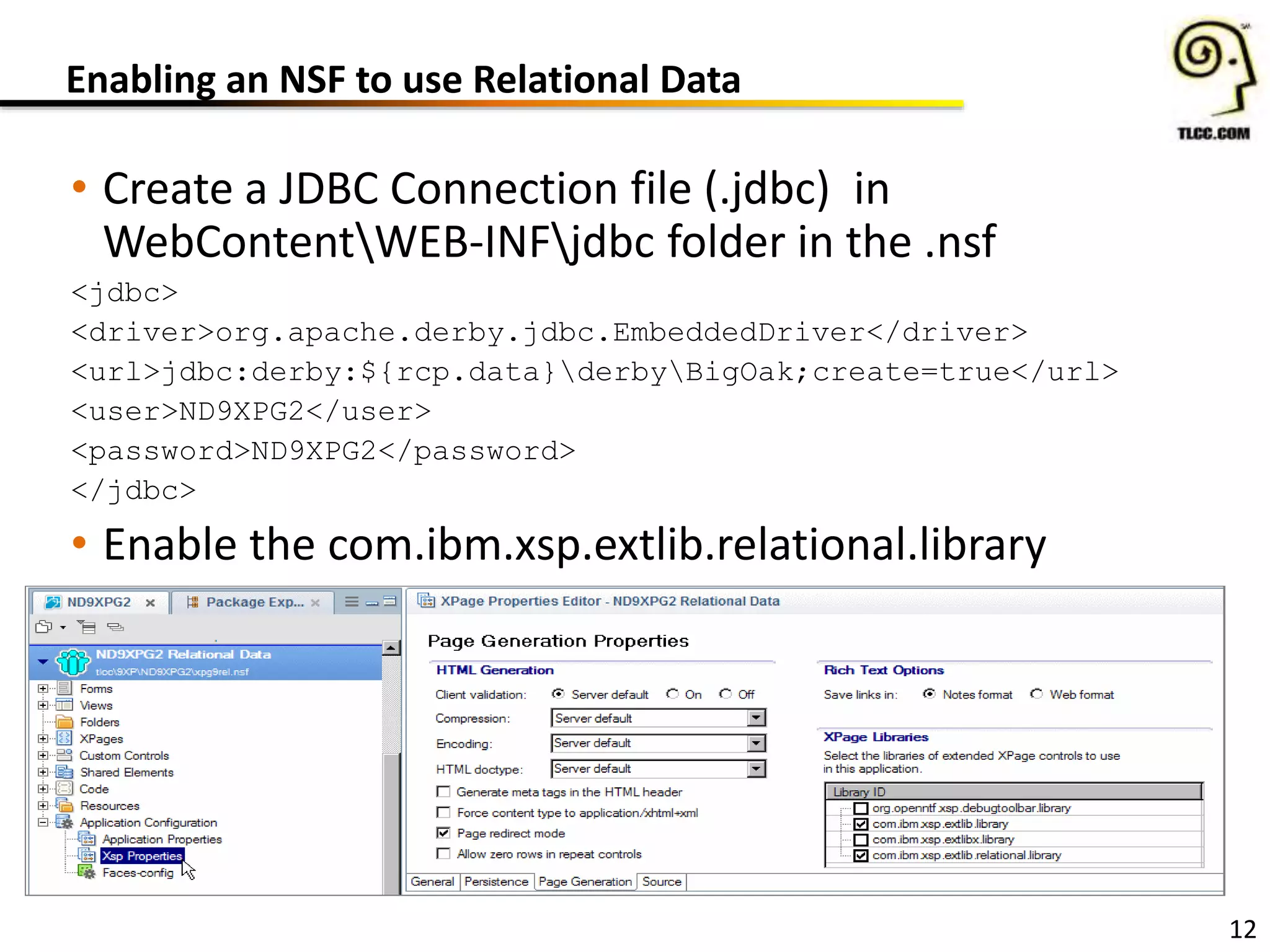

18. Enabling an NSF to use Relational Data
• Create a JDBC Connection file (.jdbc) in
WebContentWEB-INFjdbc folder in the .nsf
<jdbc>
<driver>org.apache.derby.jdbc.EmbeddedDriver</driver>
<url>jdbc:derby:${rcp.data}derbyBigOak;create=true</url>
<user>ND9XPG2</user>
<password>ND9XPG2</password>
</jdbc>
• Enable the com.ibm.xsp.extlib.relational.library
12

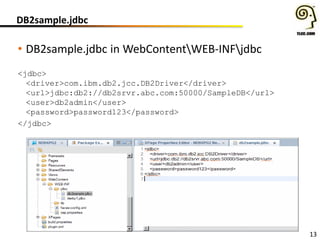

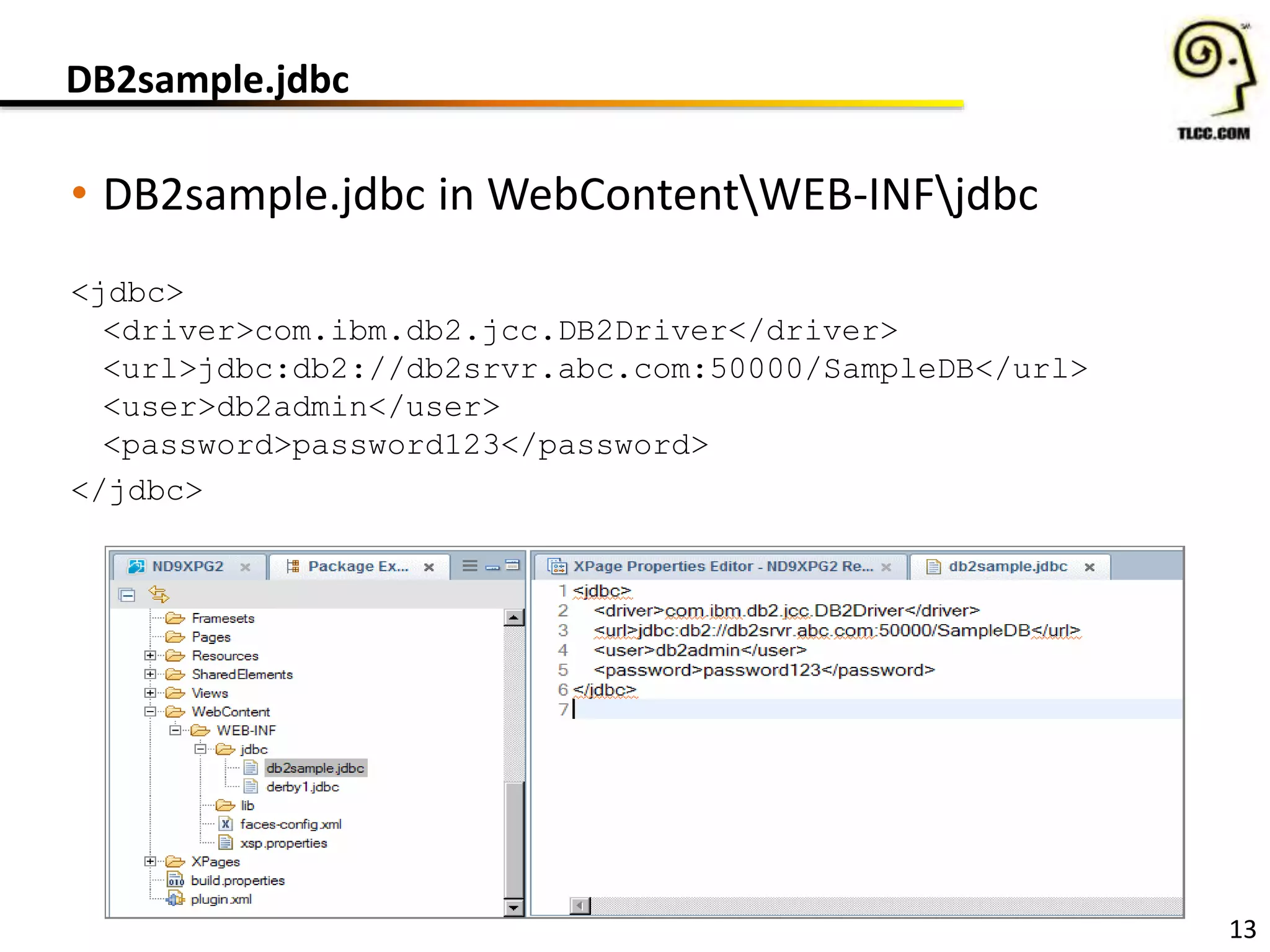

19. DB2sample.jdbc
• DB2sample.jdbc in WebContentWEB-INFjdbc
<jdbc>
<driver>com.ibm.db2.jcc.DB2Driver</driver>
<url>jdbc:db2://db2srvr.abc.com:50000/SampleDB</url>
<user>db2admin</user>
<password>password123</password>
</jdbc>
13

20. Demo – Examine the derby1.jdbc file
14

21. 15
#XPages
Howard Greenberg
TLCC
@TLCCLtd

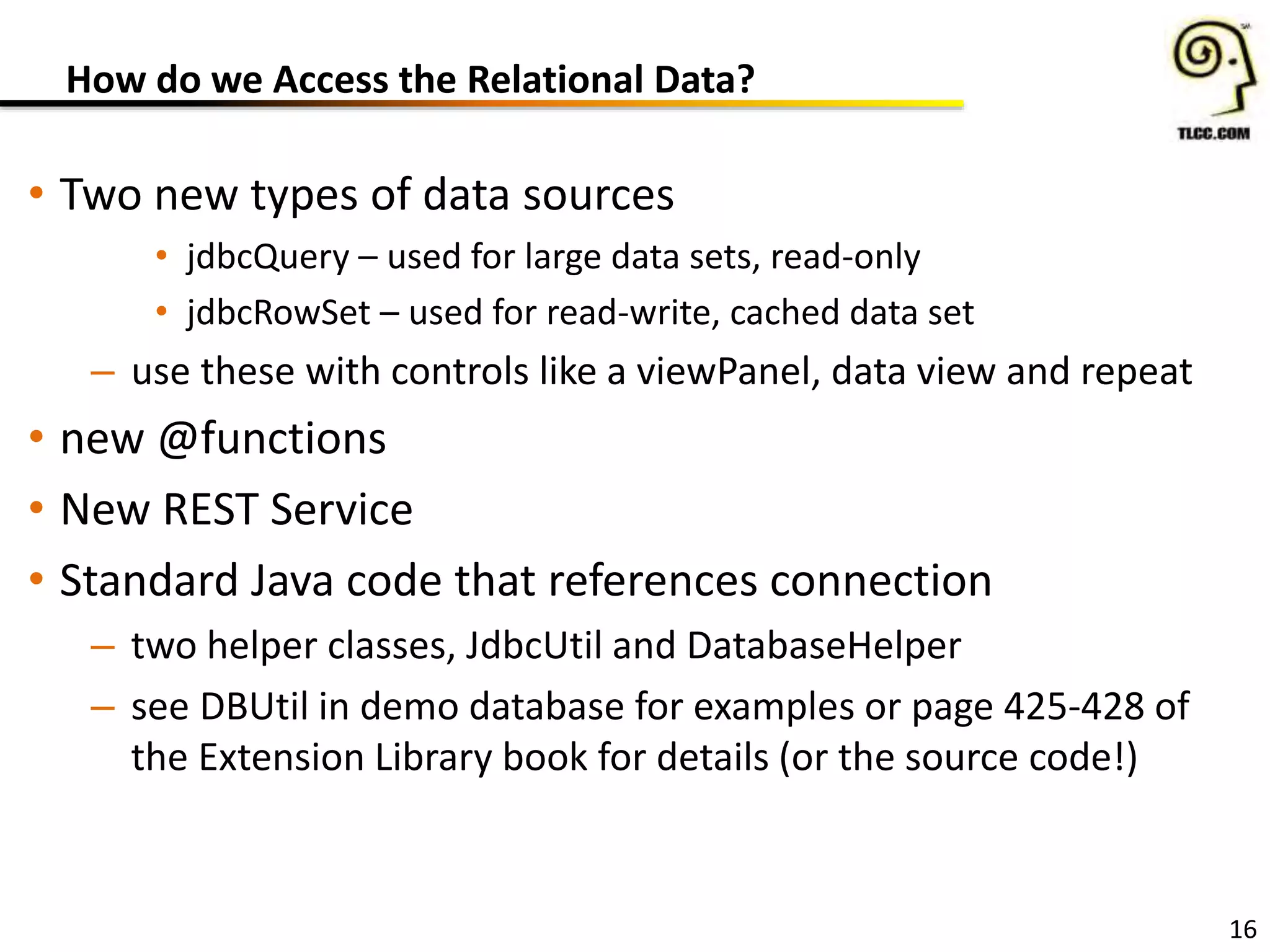

22. How do we Access the Relational Data?
• Two new types of data sources
• jdbcQuery – used for large data sets, read-only
• jdbcRowSet – used for read-write, cached data set
– use these with controls like a viewPanel, data view and repeat
• new @functions
• New REST Service
• Standard Java code that references connection
– two helper classes, JdbcUtil and DatabaseHelper
– see DBUtil in demo database for examples or page 425-428 of
the Extension Library book for details (or the source code!)
16

23. 17

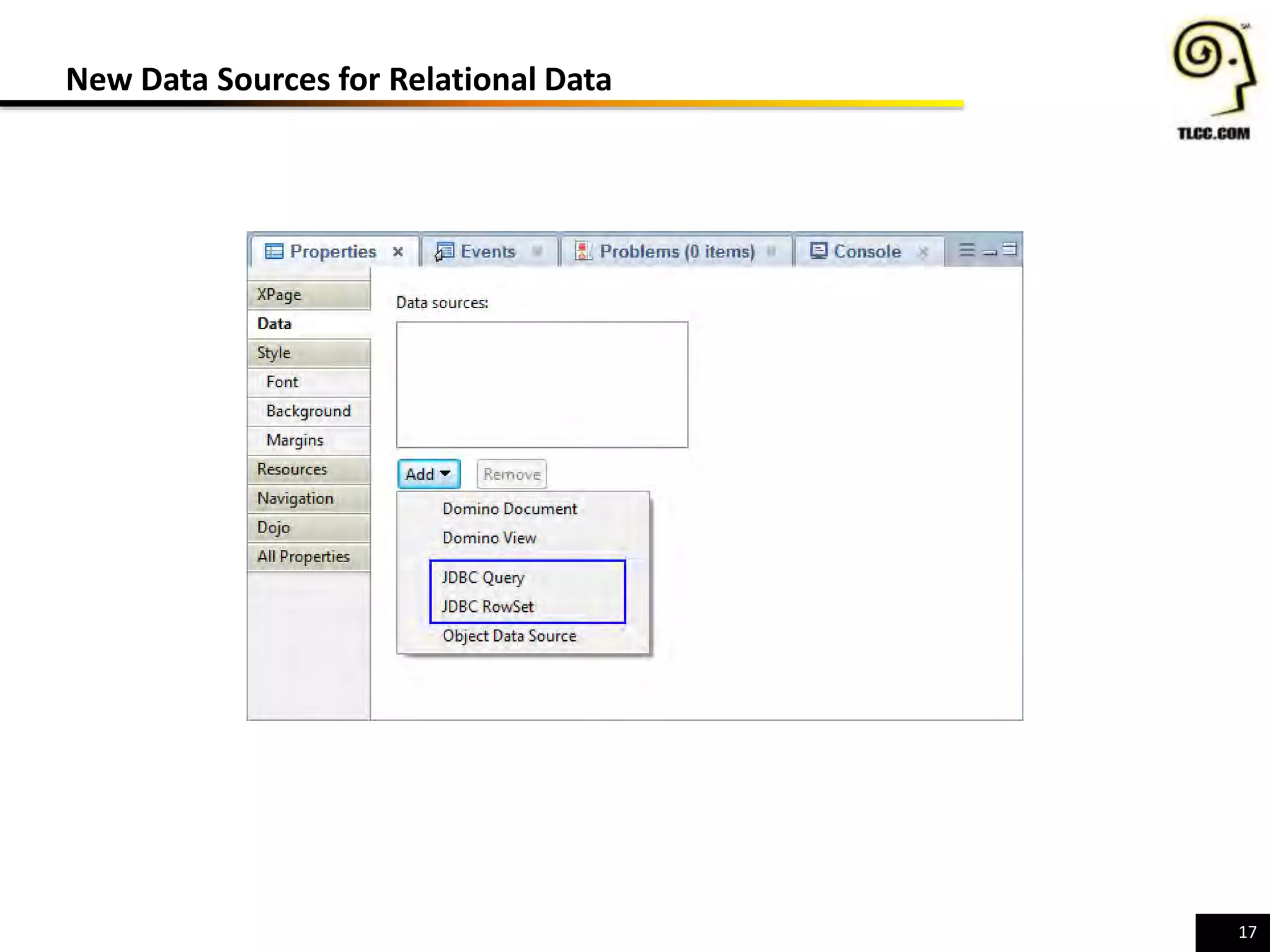

New Data Sources for Relational Data

24. 18

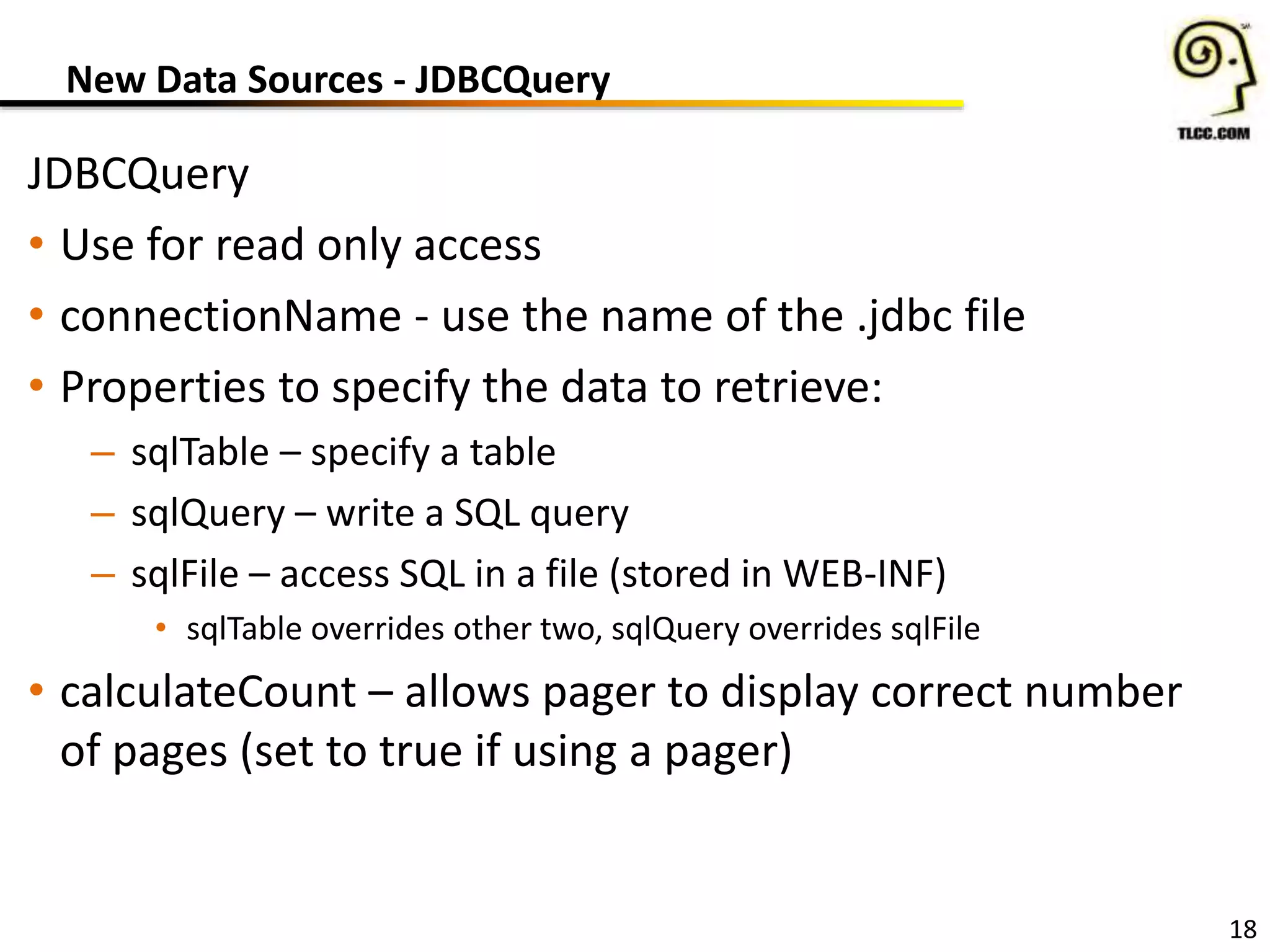

New Data Sources - JDBCQuery
JDBCQuery
• Use for read only access
• connectionName - use the name of the .jdbc file
• Properties to specify the data to retrieve:
– sqlTable – specify a table
– sqlQuery – write a SQL query
– sqlFile – access SQL in a file (stored in WEB-INF)
• sqlTable overrides other two, sqlQuery overrides sqlFile
• calculateCount – allows pager to display correct number
of pages (set to true if using a pager)

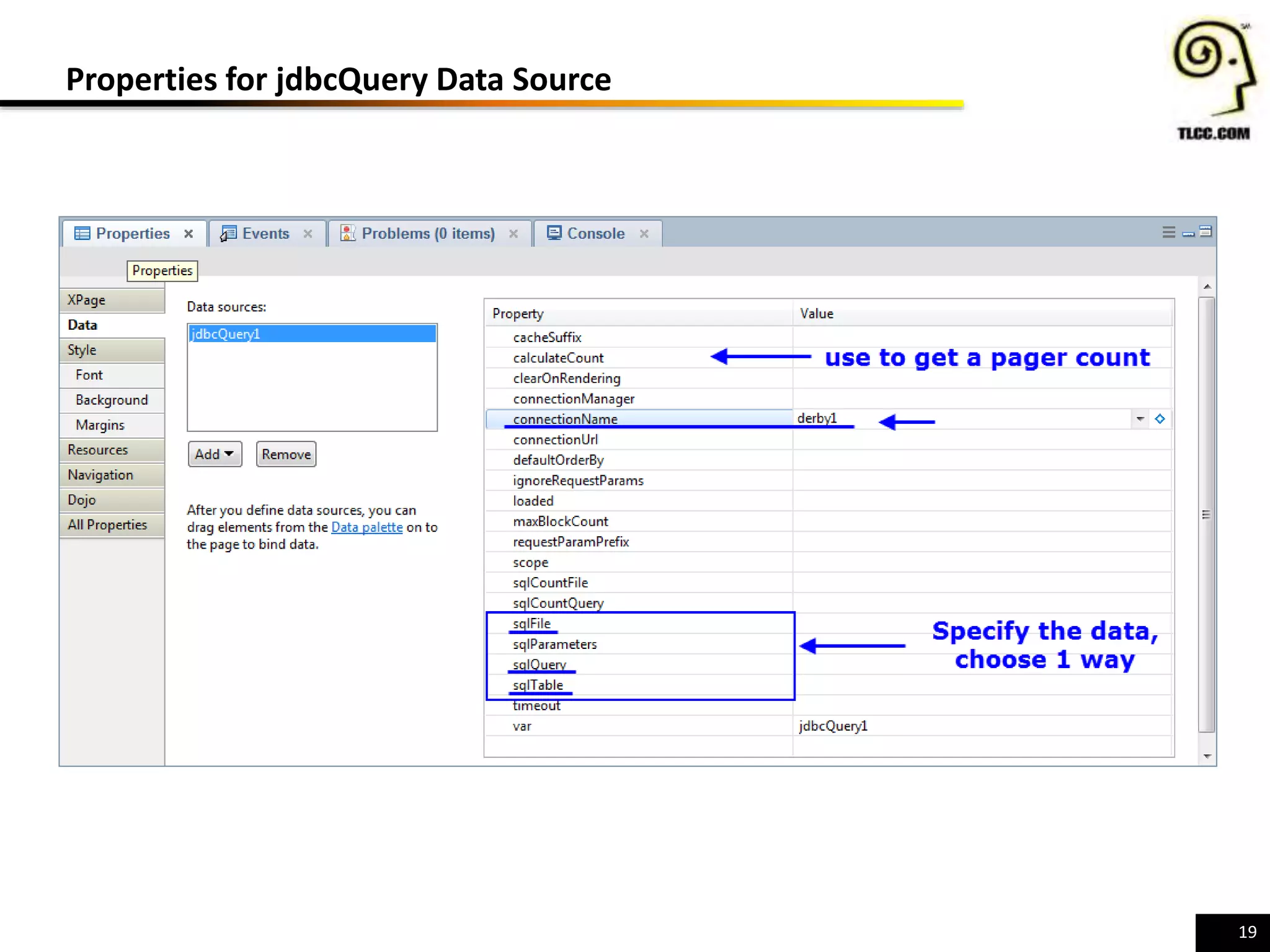

25. 19
Properties for jdbcQuery Data Source

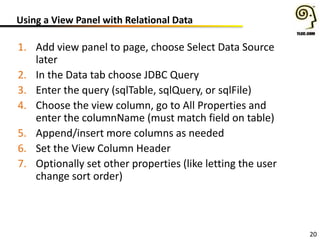

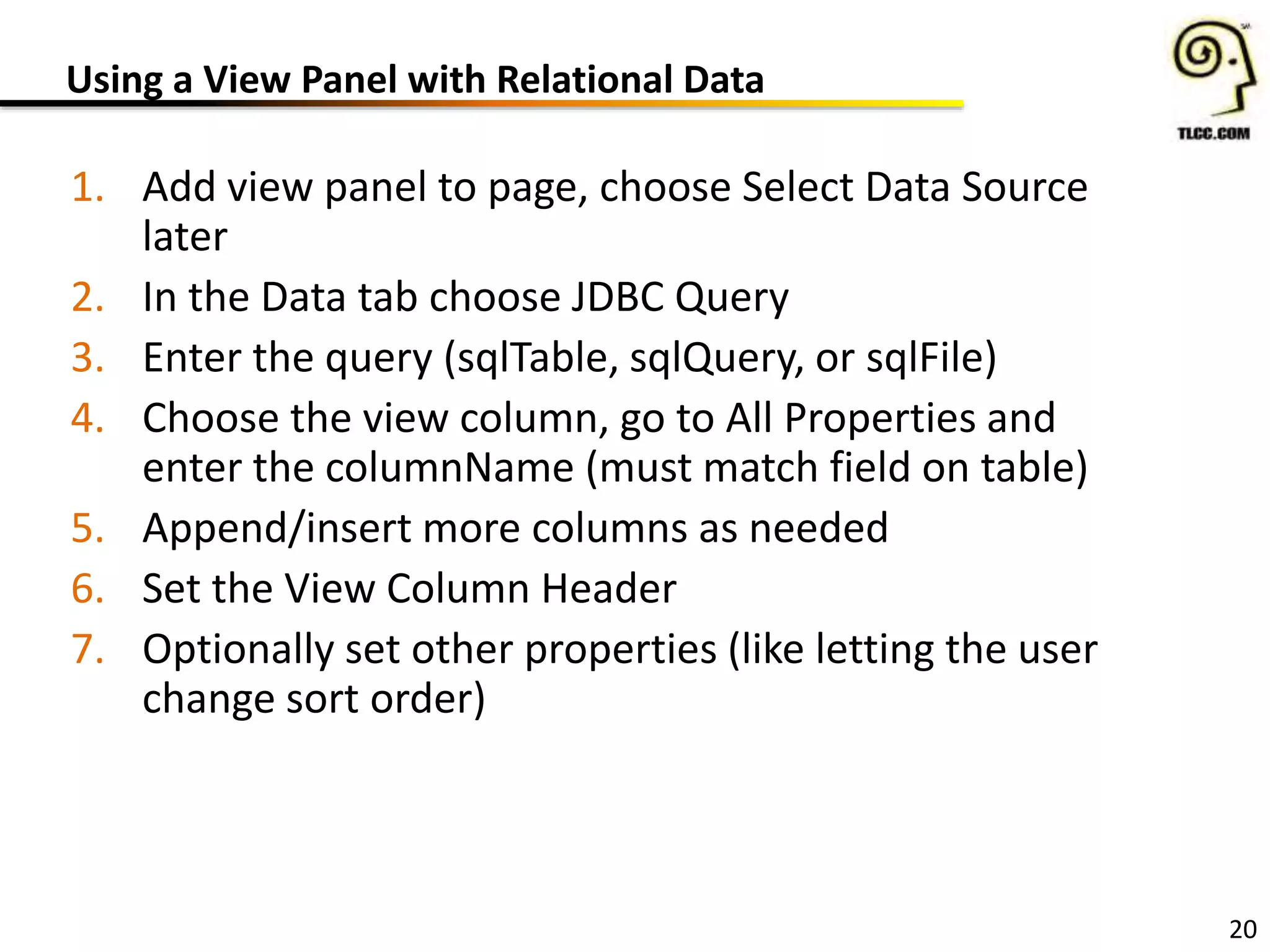

26. 20
Using a View Panel with Relational Data
1. Add view panel to page, choose Select Data Source
later
2. In the Data tab choose JDBC Query
3. Enter the query (sqlTable, sqlQuery, or sqlFile)
4. Choose the view column, go to All Properties and
enter the columnName (must match field on table)
5. Append/insert more columns as needed
6. Set the View Column Header
7. Optionally set other properties (like letting the user
change sort order)

27. 21

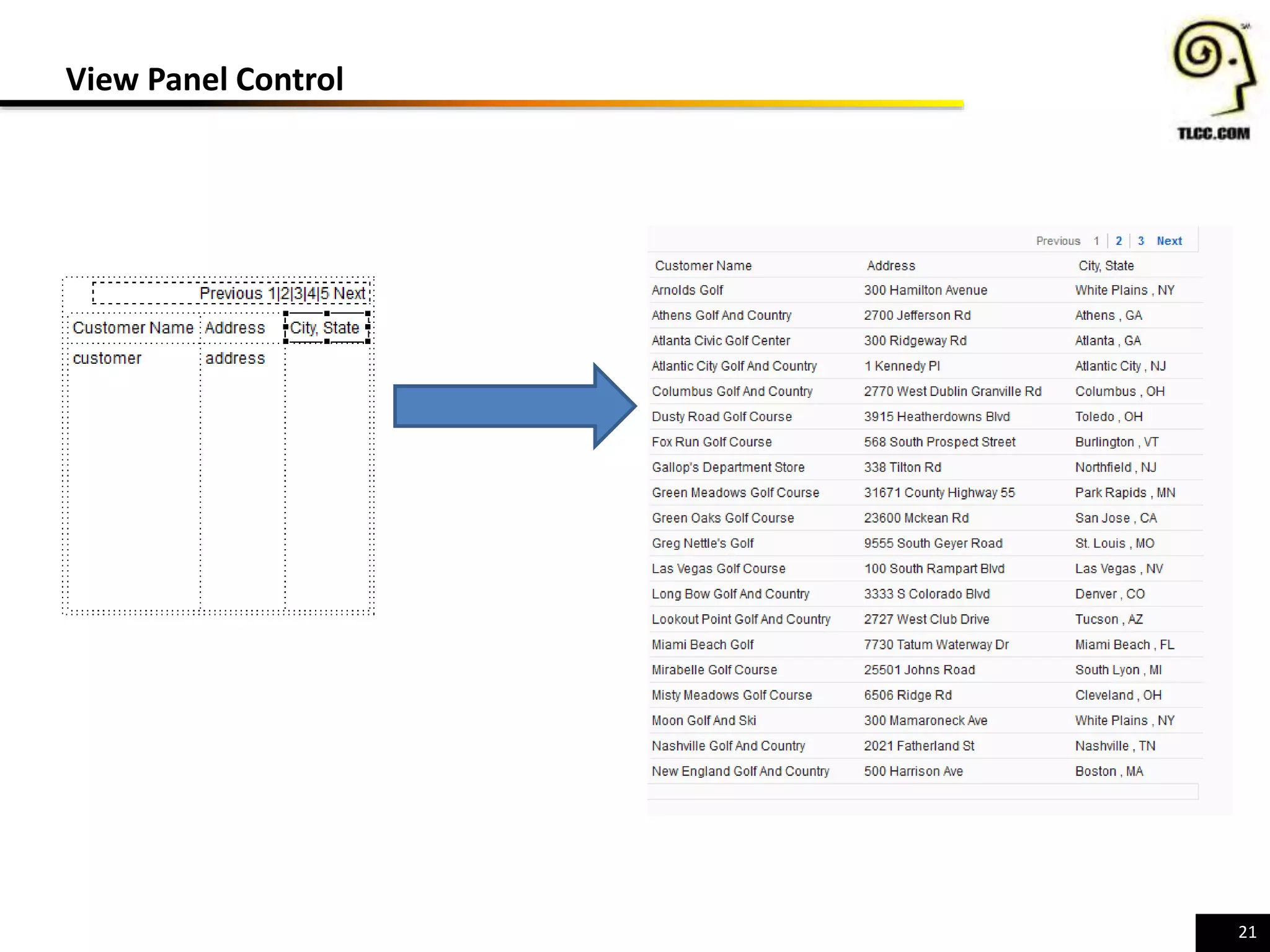

View Panel Control

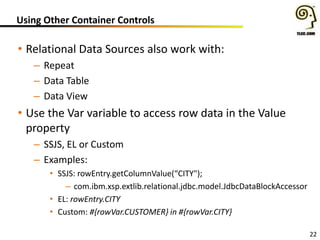

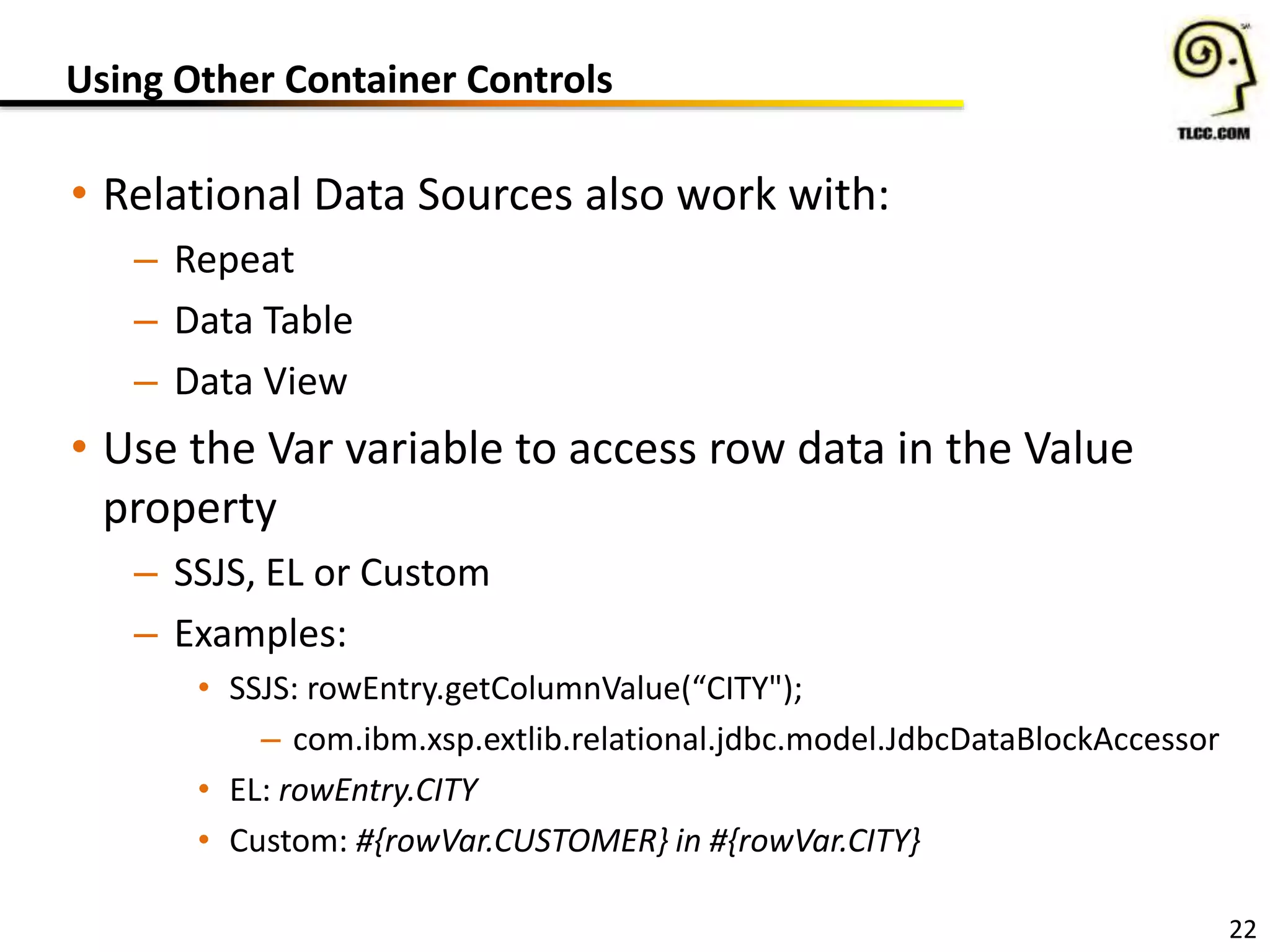

28. Using Other Container Controls
• Relational Data Sources also work with:
– Repeat
– Data Table
– Data View
• Use the Var variable to access row data in the Value
property
– SSJS, EL or Custom
– Examples:
• SSJS: rowEntry.getColumnValue(“CITY");
– com.ibm.xsp.extlib.relational.jdbc.model.JdbcDataBlockAccessor
• EL: rowEntry.CITY
• Custom: #{rowVar.CUSTOMER} in #{rowVar.CITY}
22

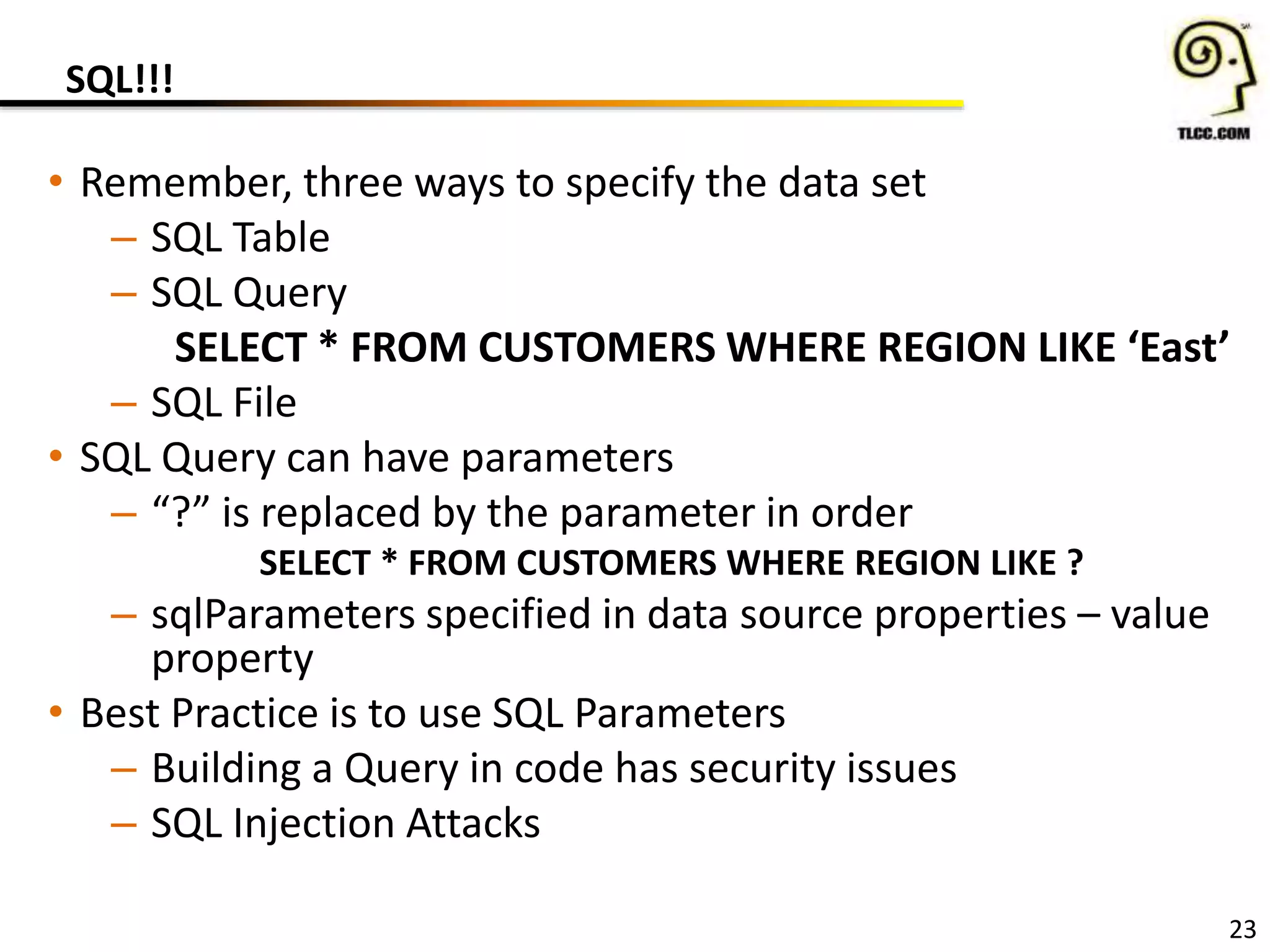

29. SQL!!!
• Remember, three ways to specify the data set
– SQL Table
– SQL Query
SELECT * FROM CUSTOMERS WHERE REGION LIKE ‘East’
– SQL File
• SQL Query can have parameters
– “?” is replaced by the parameter in order
SELECT * FROM CUSTOMERS WHERE REGION LIKE ?
– sqlParameters specified in data source properties – value
property
• Best Practice is to use SQL Parameters
– Building a Query in code has security issues
– SQL Injection Attacks
23

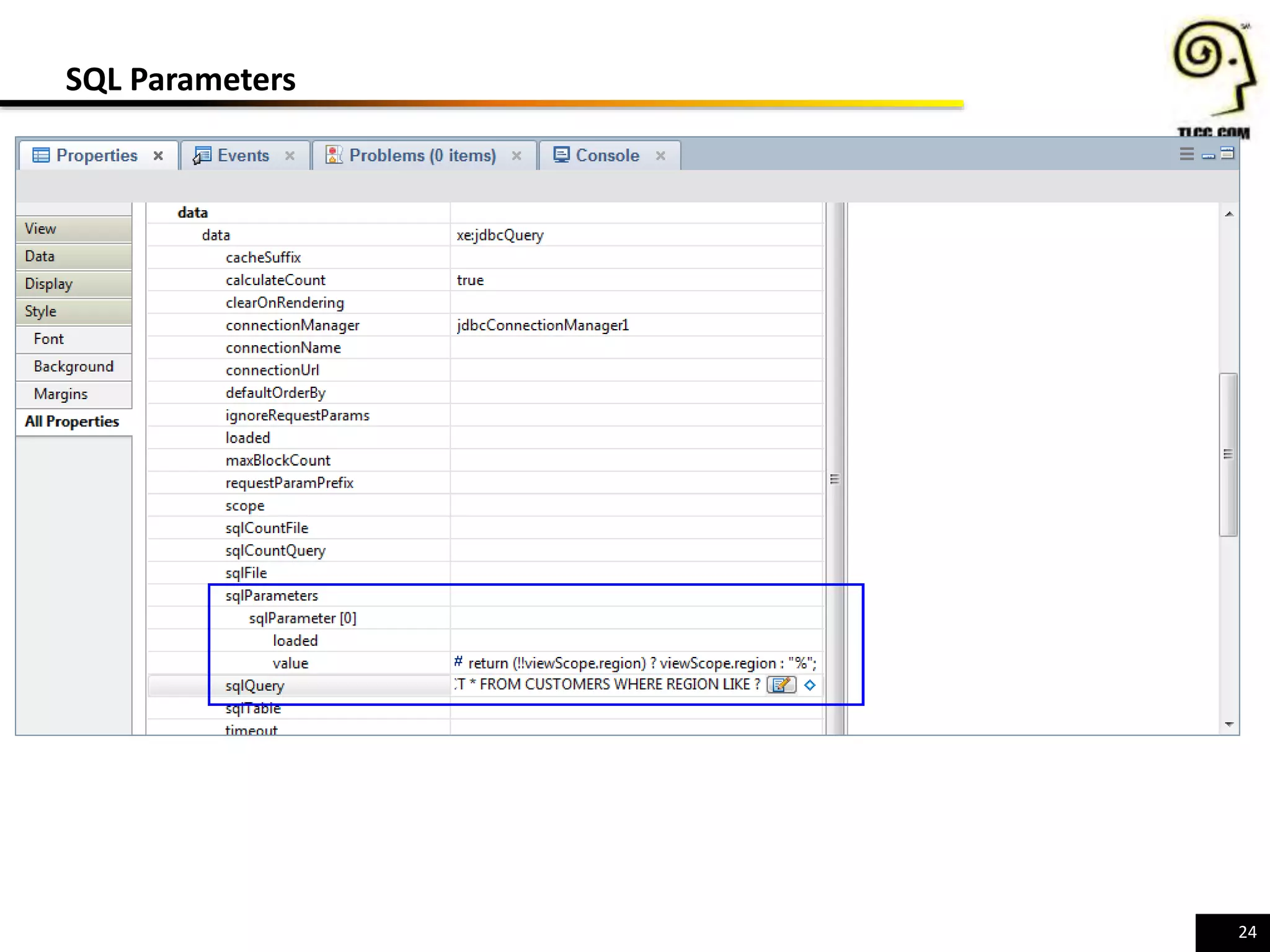

30. 24
SQL Parameters

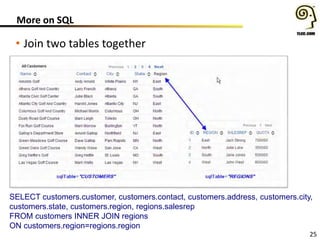

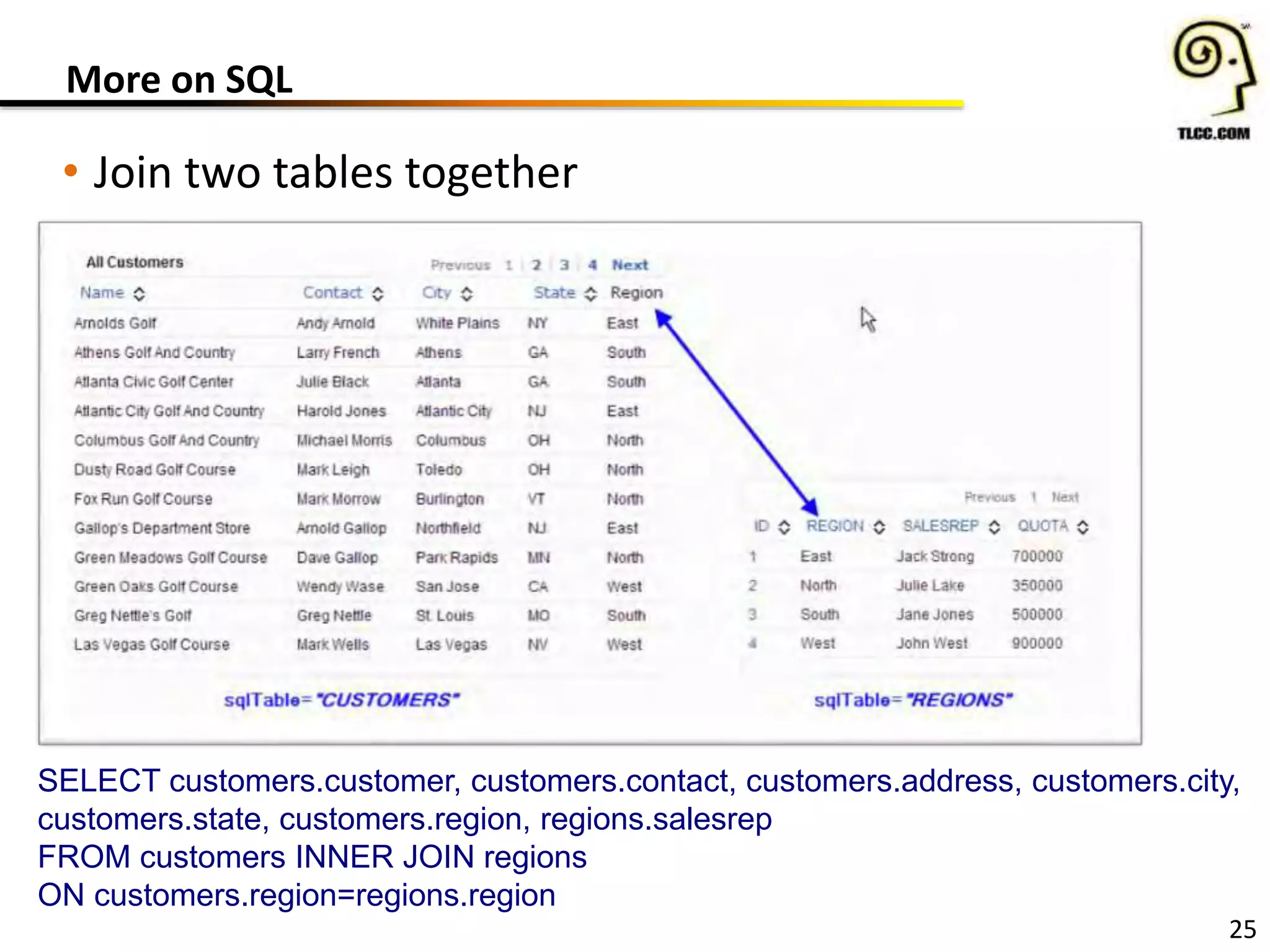

31. More on SQL
• Join two tables together
SELECT customers.customer, customers.contact, customers.address, customers.city,
customers.state, customers.region, regions.salesrep
FROM customers INNER JOIN regions
ON customers.region=regions.region
25

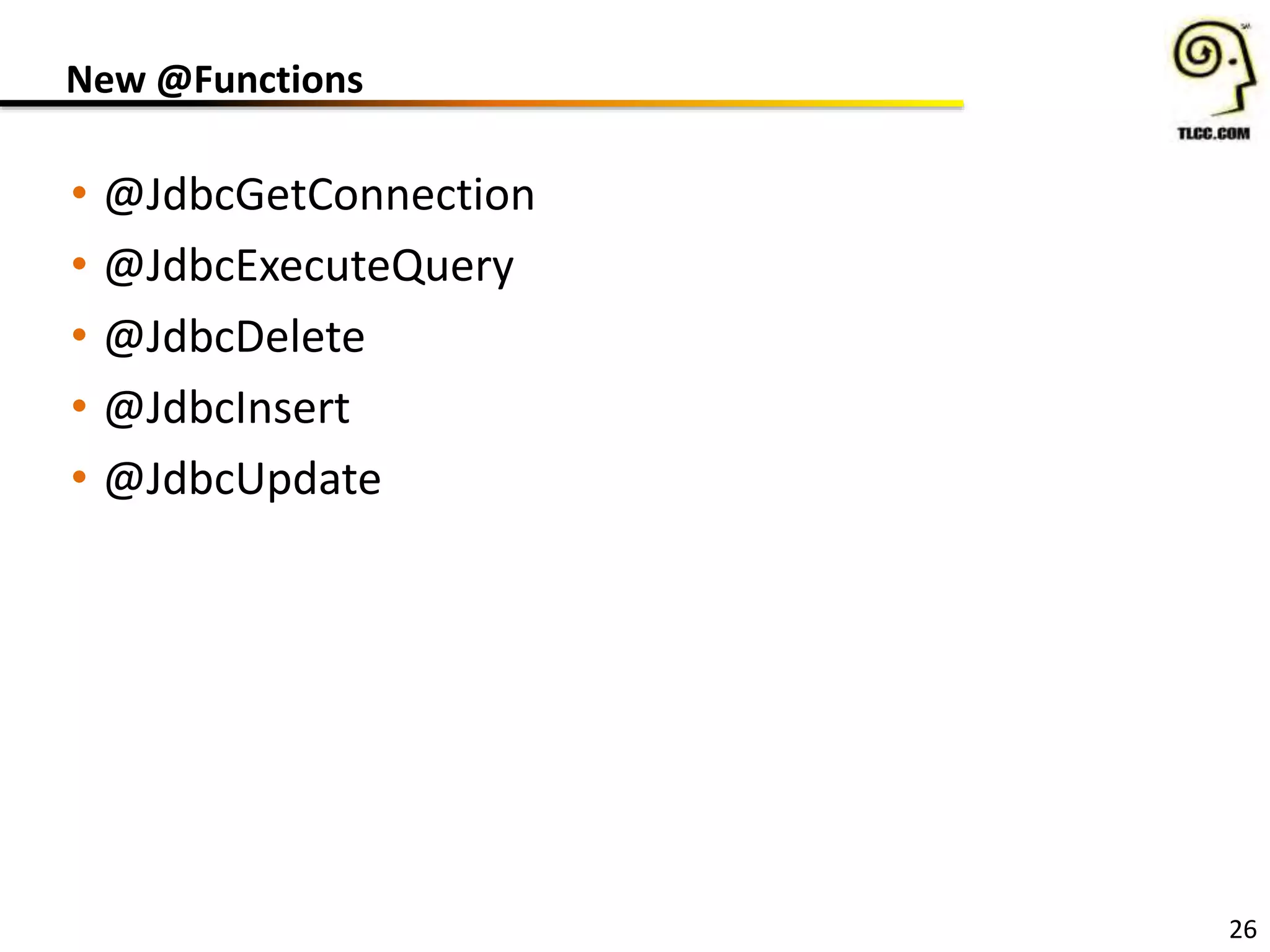

32. 26
New @Functions
• @JdbcGetConnection
• @JdbcExecuteQuery
• @JdbcDelete
• @JdbcInsert
• @JdbcUpdate

33. 27

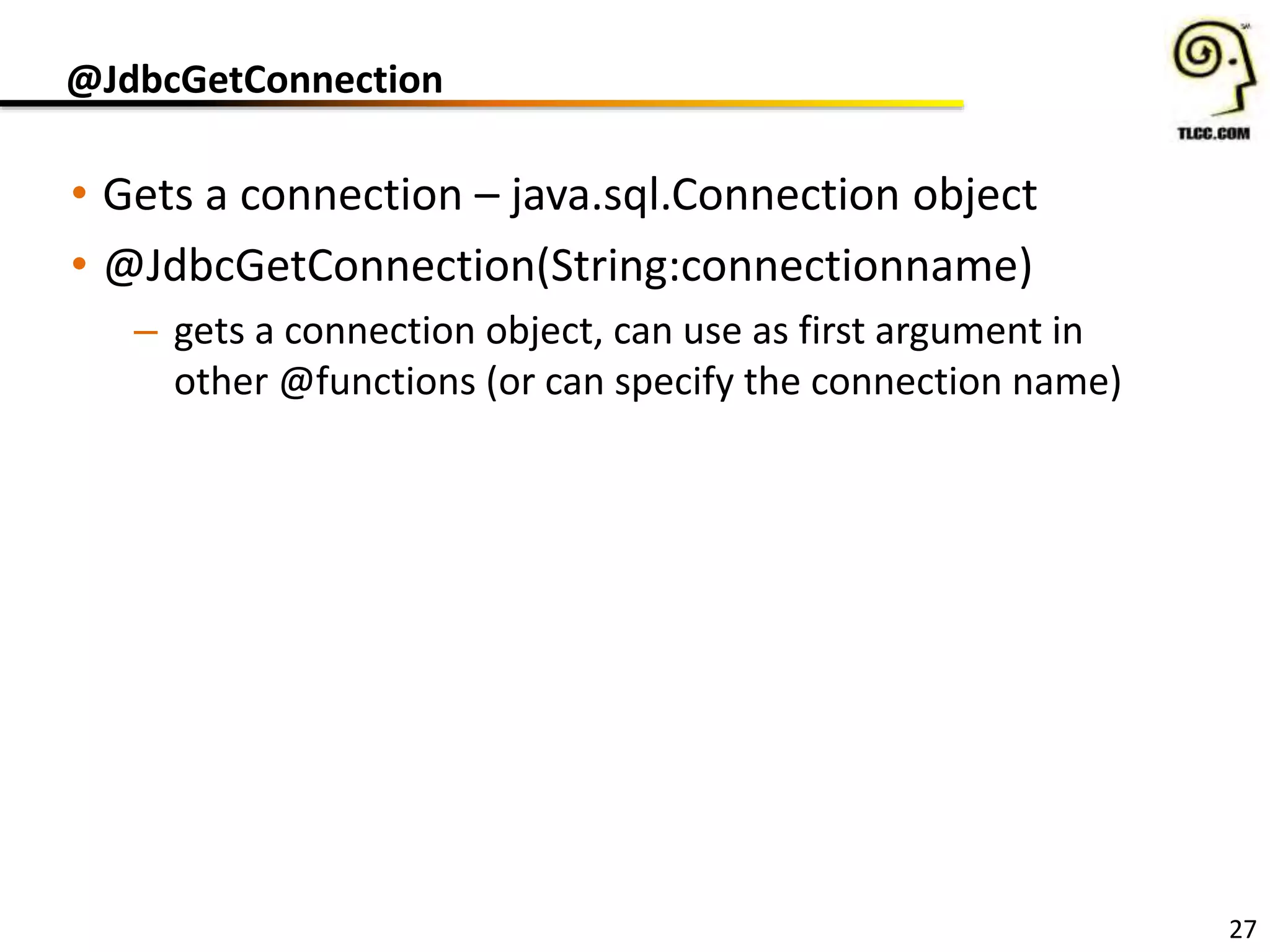

@JdbcGetConnection
• Gets a connection – java.sql.Connection object
• @JdbcGetConnection(String:connectionname)
– gets a connection object, can use as first argument in
other @functions (or can specify the connection name)

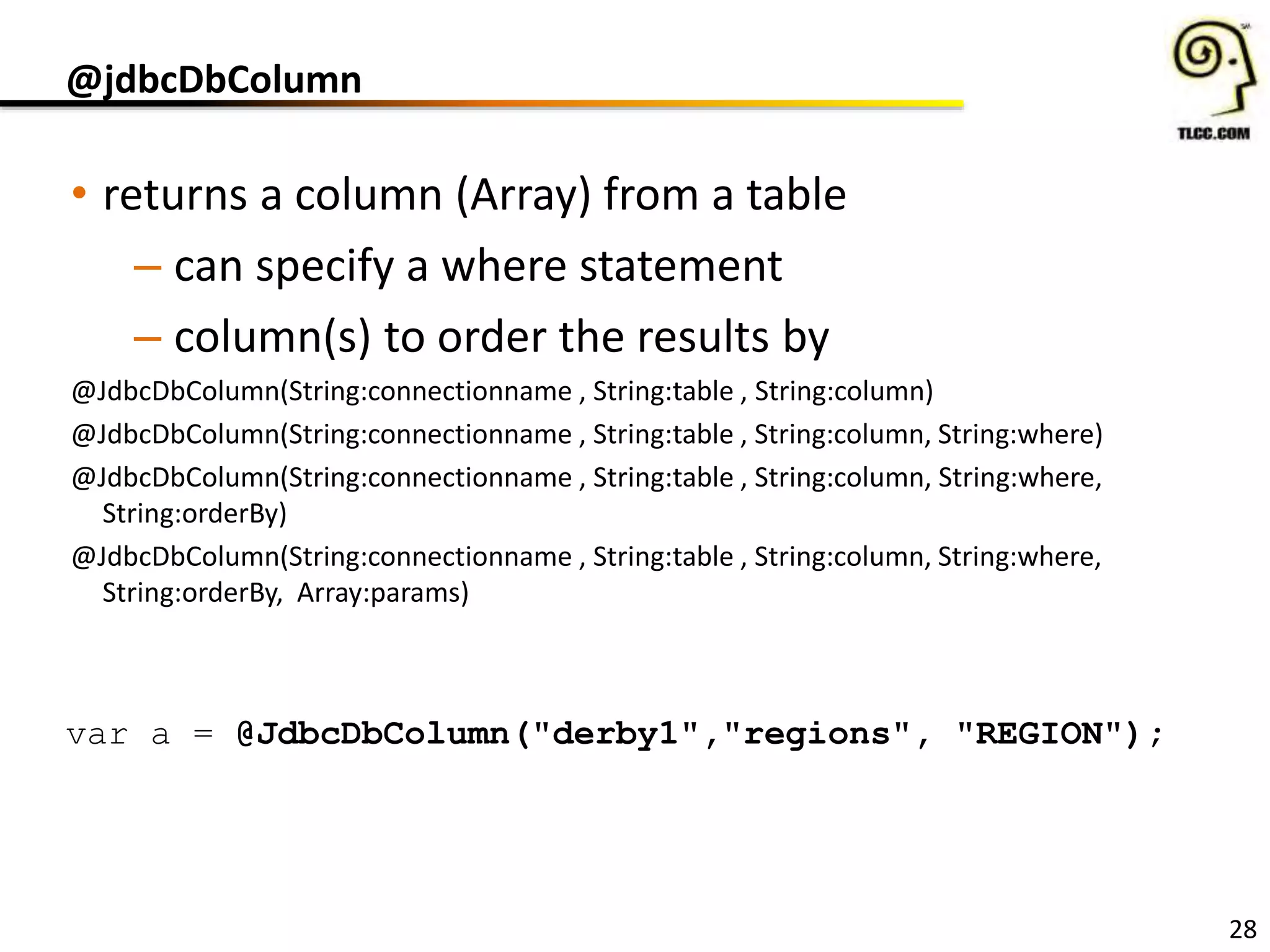

34. 28
@jdbcDbColumn
• returns a column (Array) from a table
– can specify a where statement
– column(s) to order the results by
@JdbcDbColumn(String:connectionname , String:table , String:column)
@JdbcDbColumn(String:connectionname , String:table , String:column, String:where)
@JdbcDbColumn(String:connectionname , String:table , String:column, String:where,
String:orderBy)
@JdbcDbColumn(String:connectionname , String:table , String:column, String:where,
String:orderBy, Array:params)
var a = @JdbcDbColumn("derby1","regions", "REGION");

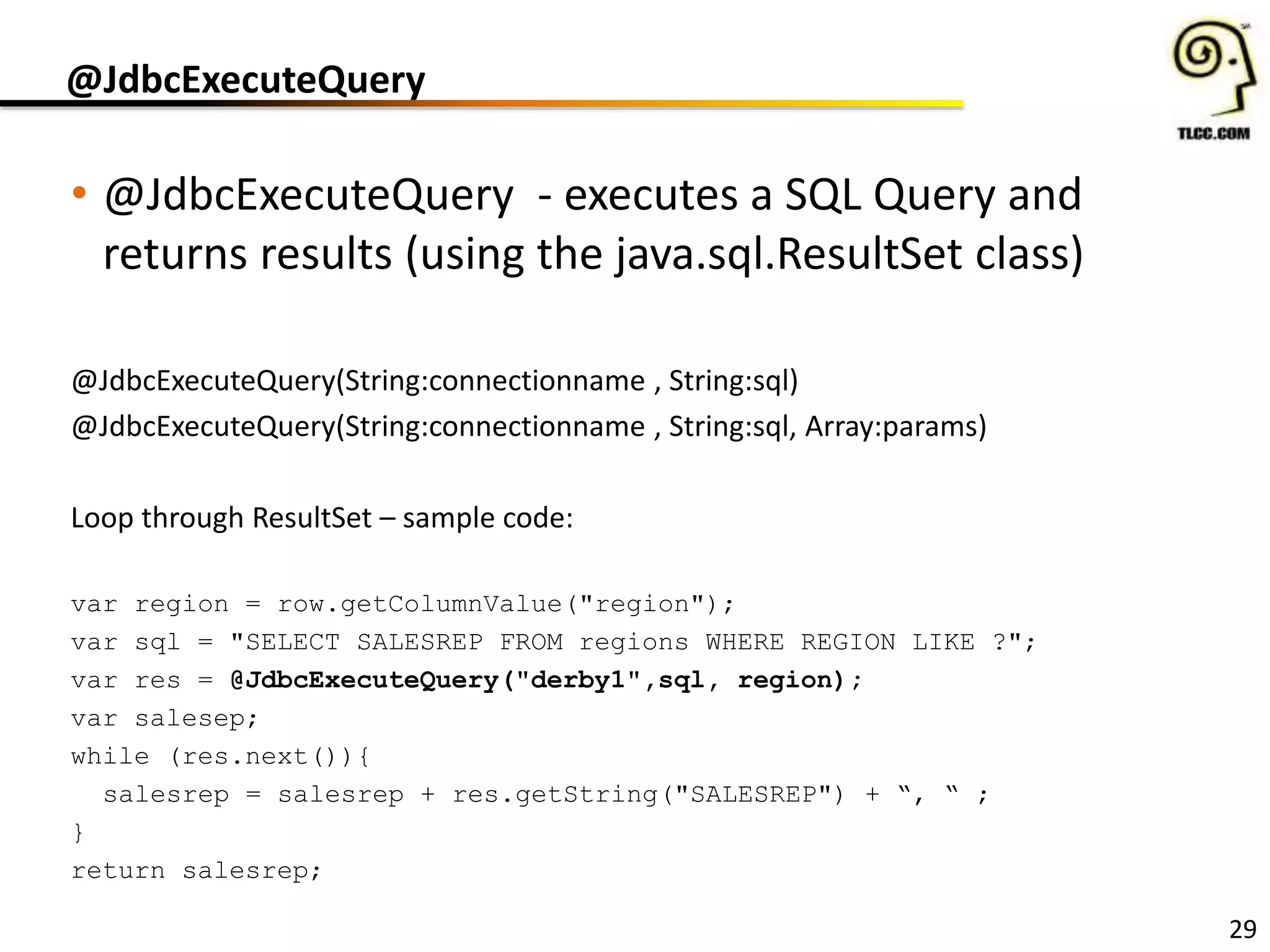

35. 29
@JdbcExecuteQuery
• @JdbcExecuteQuery - executes a SQL Query and
returns results (using the java.sql.ResultSet class)
@JdbcExecuteQuery(String:connectionname , String:sql)
@JdbcExecuteQuery(String:connectionname , String:sql, Array:params)
Loop through ResultSet – sample code:
var region = row.getColumnValue("region");
var sql = "SELECT SALESREP FROM regions WHERE REGION LIKE ?";
var res = @JdbcExecuteQuery("derby1",sql, region);
var salesep;
while (res.next()){
salesrep = salesrep + res.getString("SALESREP") + “, “ ;
}
return salesrep;

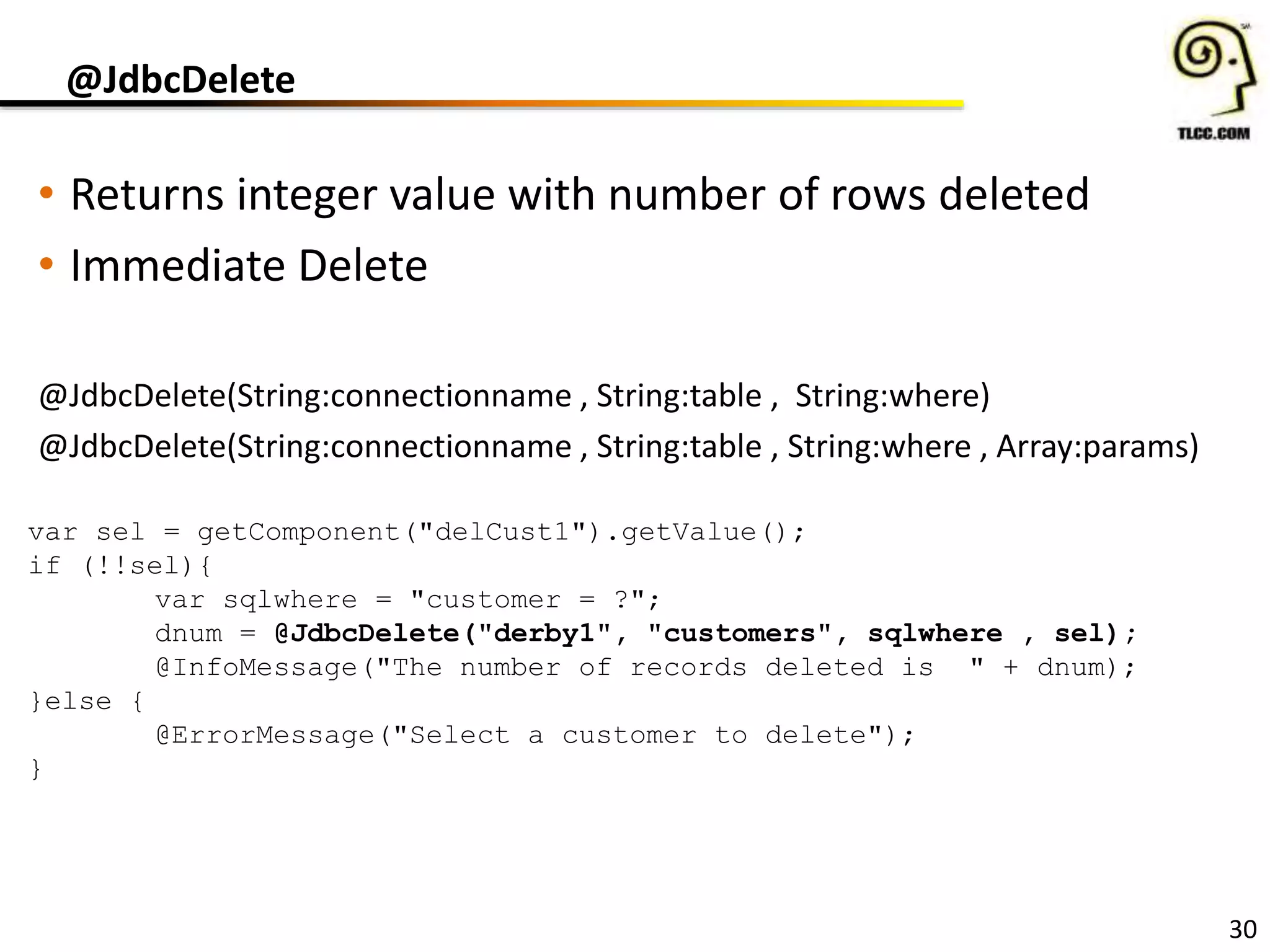

36. 30

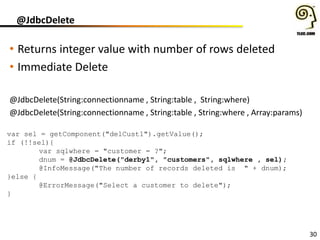

@JdbcDelete
• Returns integer value with number of rows deleted
• Immediate Delete
@JdbcDelete(String:connectionname , String:table , String:where)
@JdbcDelete(String:connectionname , String:table , String:where , Array:params)
var sel = getComponent("delCust1").getValue();
if (!!sel){
var sqlwhere = "customer = ?";
dnum = @JdbcDelete("derby1", "customers", sqlwhere , sel);
@InfoMessage("The number of records deleted is " + dnum);
}else {
@ErrorMessage("Select a customer to delete");
}

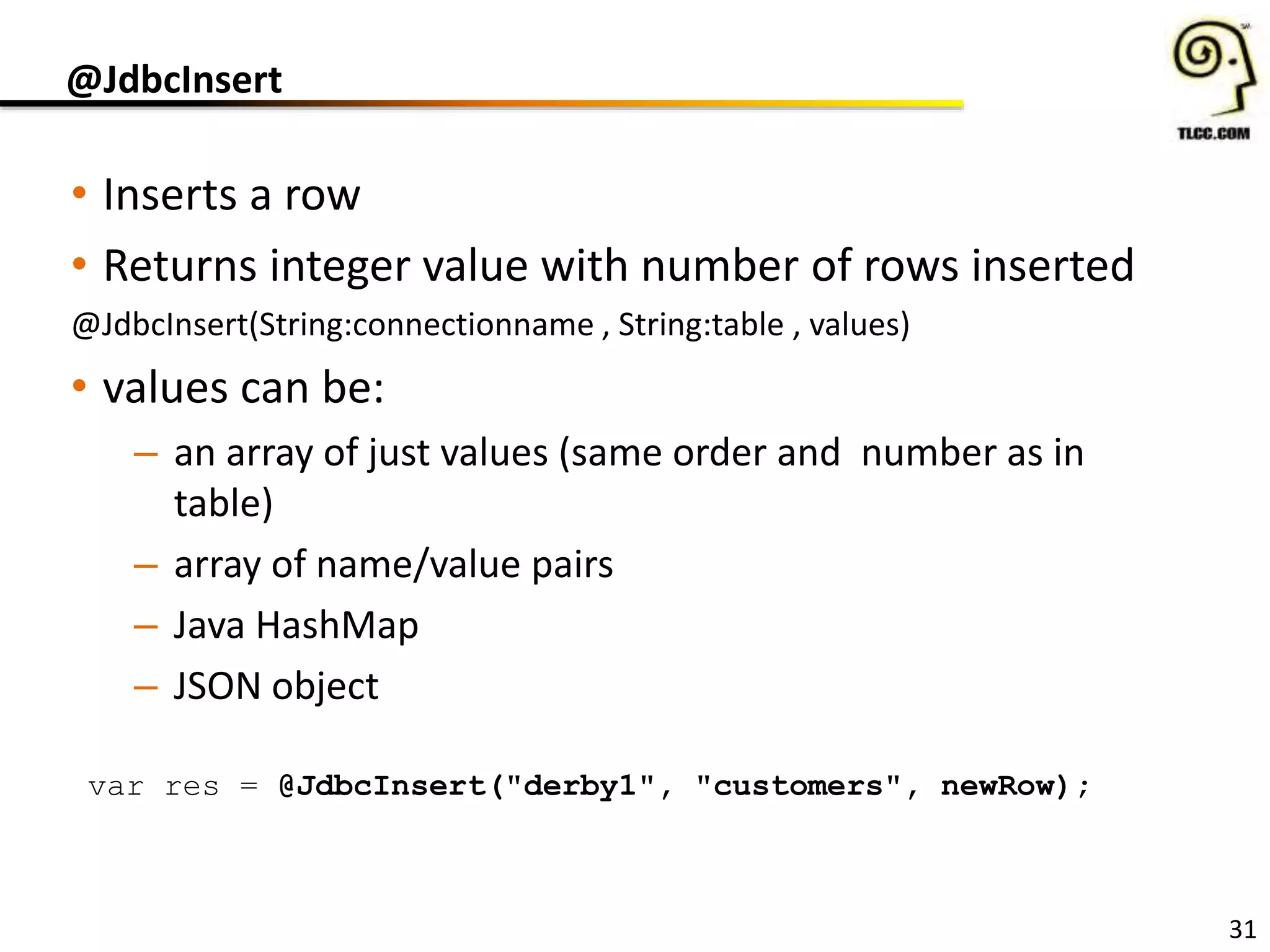

37. 31

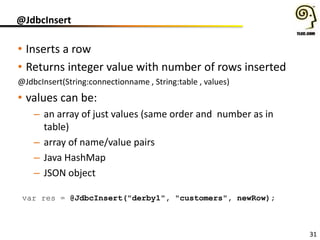

@JdbcInsert
• Inserts a row
• Returns integer value with number of rows inserted
@JdbcInsert(String:connectionname , String:table , values)
• values can be:
– an array of just values (same order and number as in
table)
– array of name/value pairs
– Java HashMap
– JSON object
var res = @JdbcInsert("derby1", "customers", newRow);

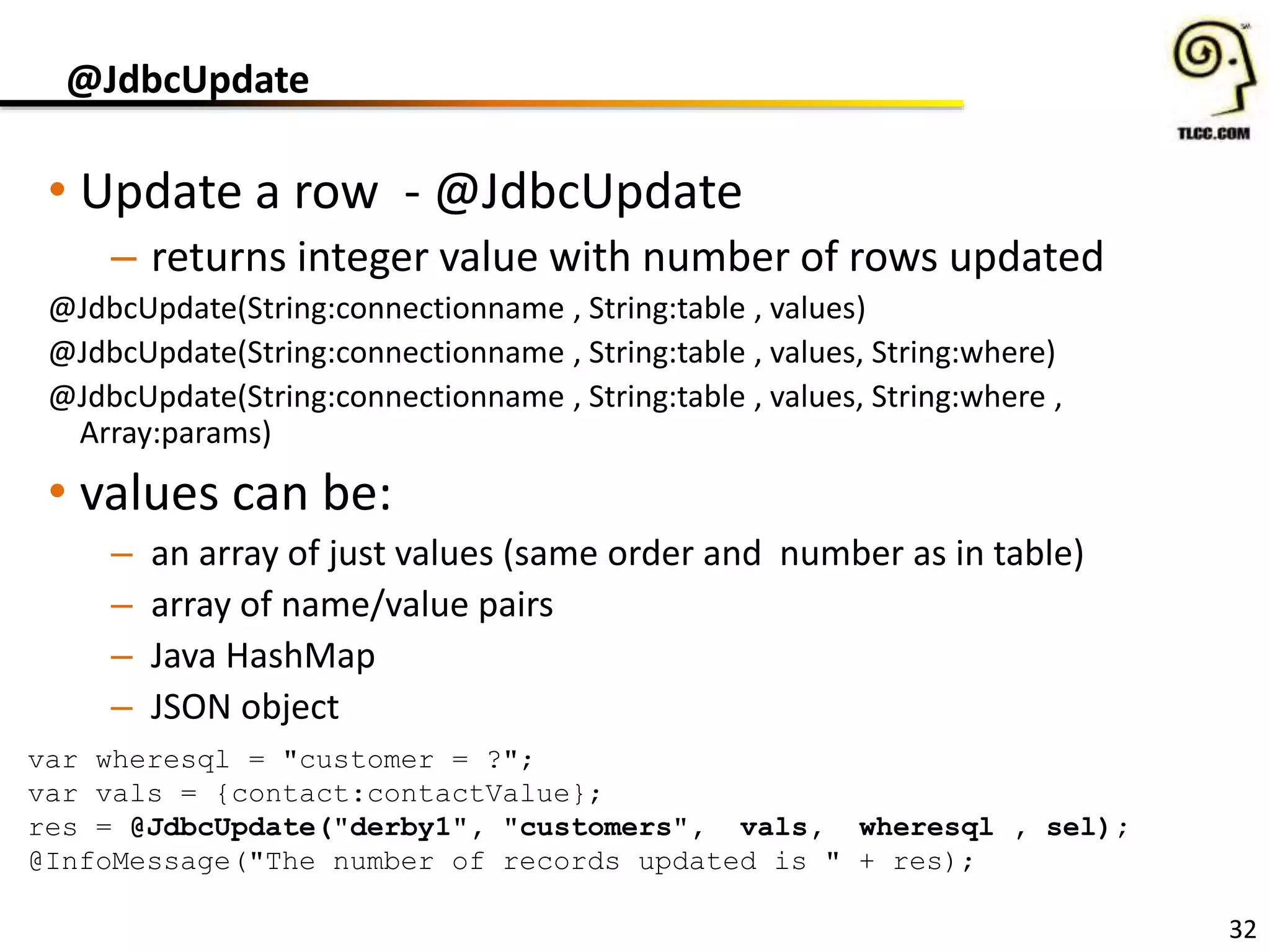

38. 32

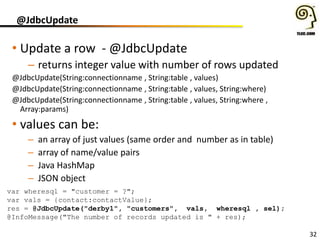

@JdbcUpdate
• Update a row - @JdbcUpdate
– returns integer value with number of rows updated
@JdbcUpdate(String:connectionname , String:table , values)
@JdbcUpdate(String:connectionname , String:table , values, String:where)
@JdbcUpdate(String:connectionname , String:table , values, String:where ,
Array:params)
• values can be:
– an array of just values (same order and number as in table)
– array of name/value pairs
– Java HashMap
– JSON object
var wheresql = "customer = ?";
var vals = {contact:contactValue};
res = @JdbcUpdate("derby1", "customers", vals, wheresql , sel);
@InfoMessage("The number of records updated is " + res);

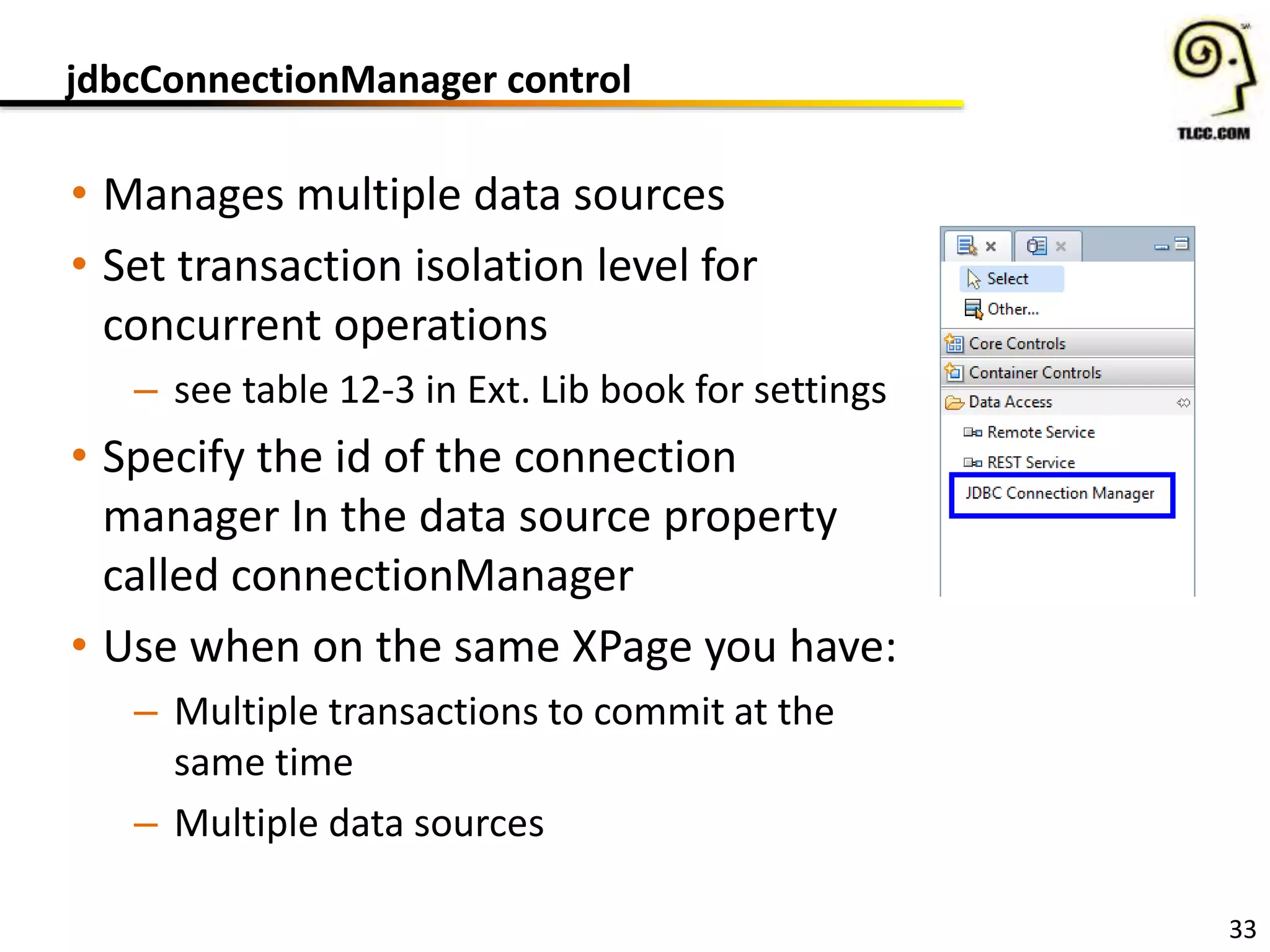

39. 33
jdbcConnectionManager control
• Manages multiple data sources
• Set transaction isolation level for
concurrent operations
– see table 12-3 in Ext. Lib book for settings
• Specify the id of the connection
manager In the data source property
called connectionManager
• Use when on the same XPage you have:
– Multiple transactions to commit at the
same time
– Multiple data sources

40. 34
Properties of the jdbcConnection Manager

41. Specifying the ConnectionManager in the Data Source
35

42. 36
#XPages
Paul Della-Nebbia
TLCC
@PaulDN

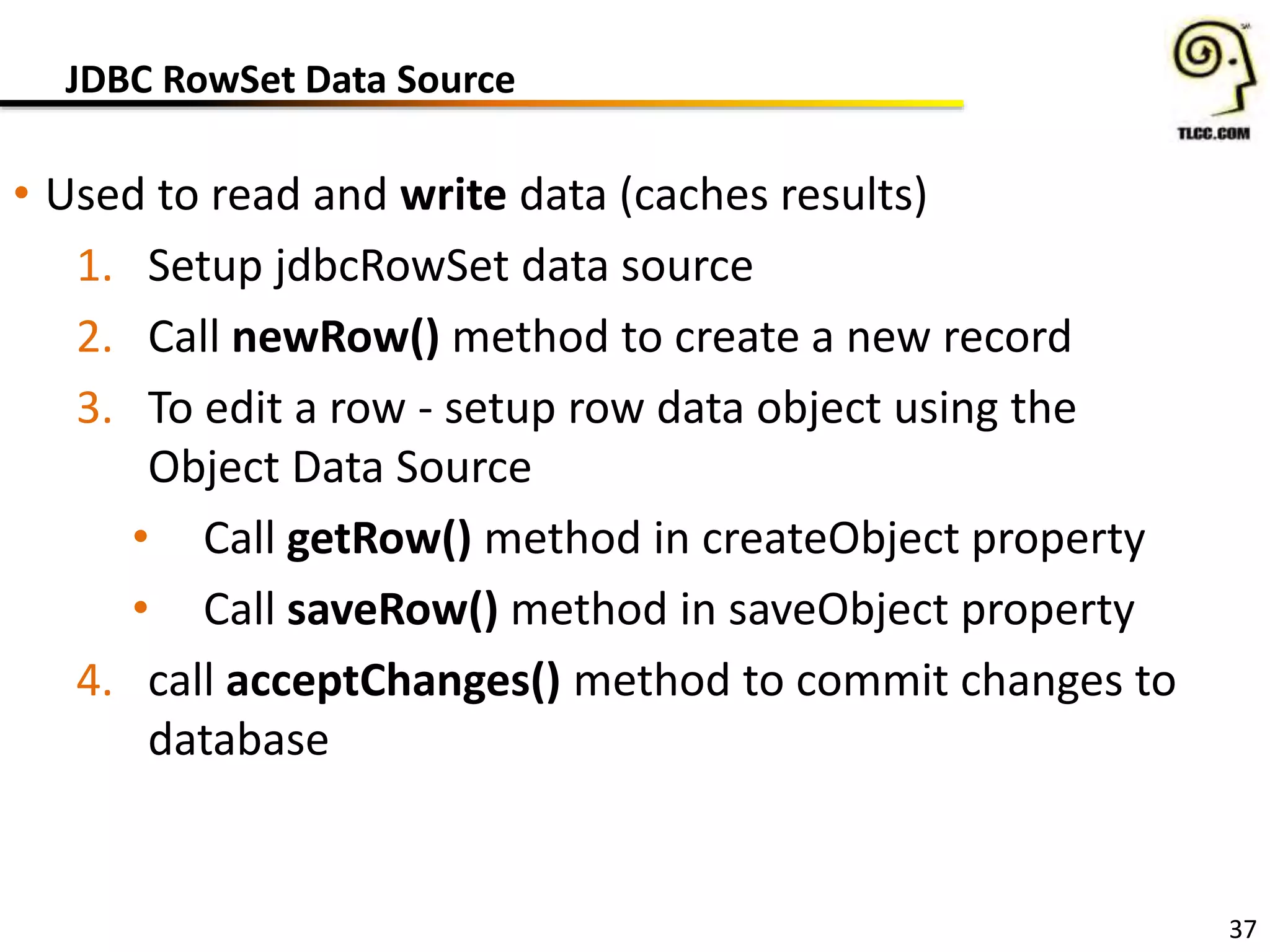

43. JDBC RowSet Data Source
• Used to read and write data (caches results)
1. Setup jdbcRowSet data source
2. Call newRow() method to create a new record
3. To edit a row - setup row data object using the
Object Data Source
• Call getRow() method in createObject property
• Call saveRow() method in saveObject property
4. call acceptChanges() method to commit changes to
database
37

44. DemoXPage771
38

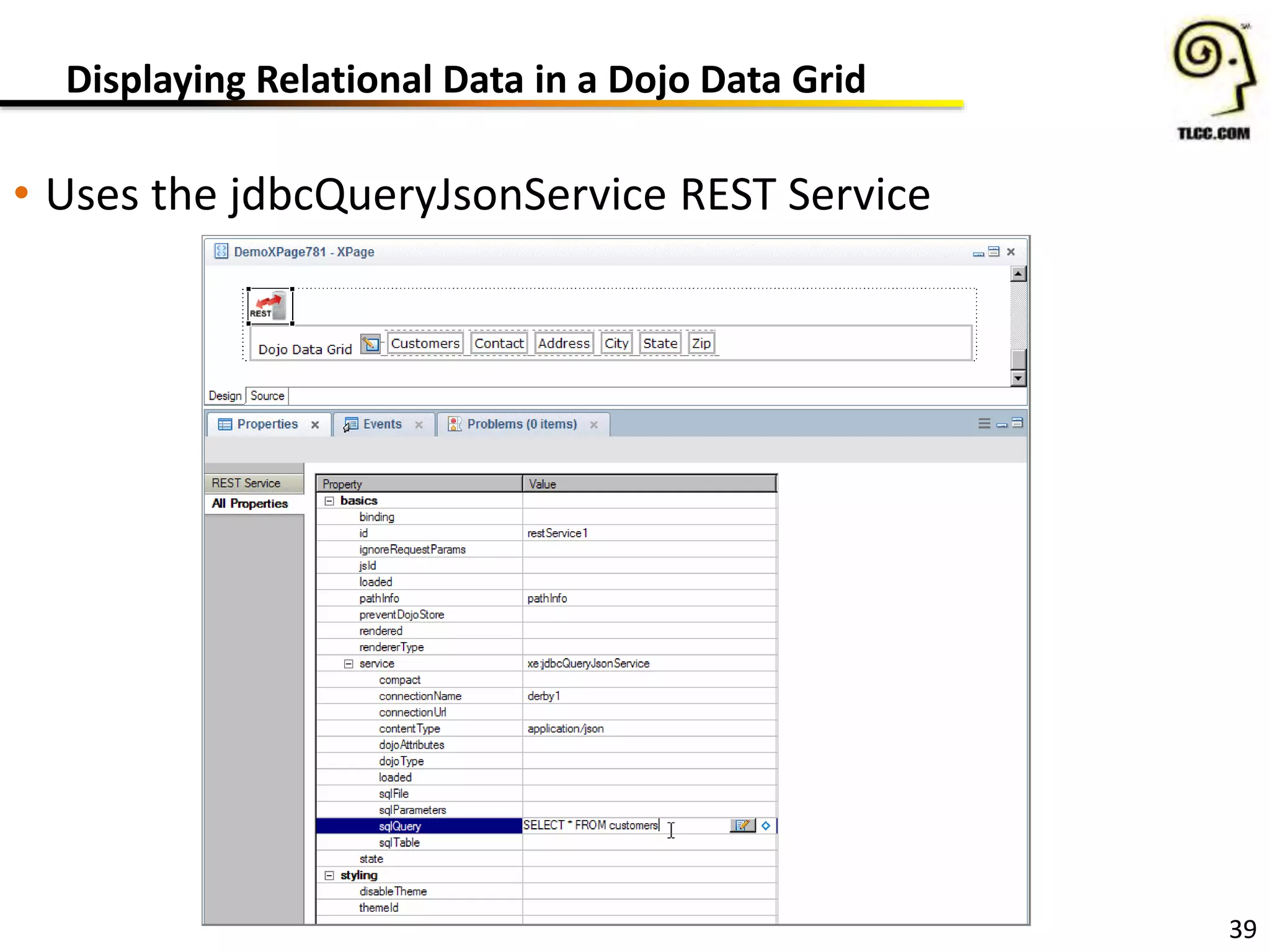

45. Displaying Relational Data in a Dojo Data Grid
• Uses the jdbcQueryJsonService REST Service
39

46. DemoXPage781
40

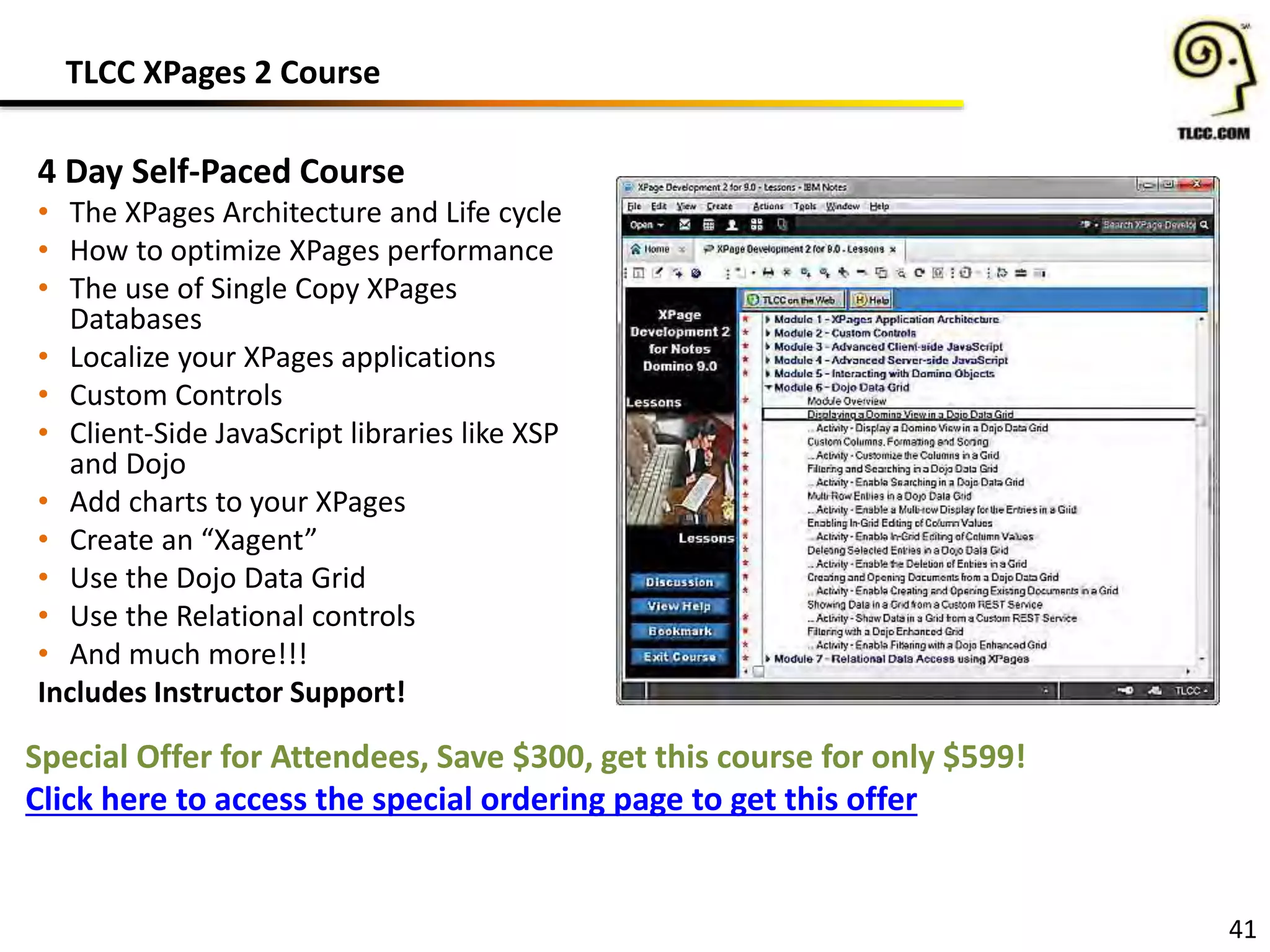

47. TLCC XPages 2 Course
41
4 Day Self-Paced Course
• The XPages Architecture and Life cycle
• How to optimize XPages performance
• The use of Single Copy XPages
Databases
• Localize your XPages applications
• Custom Controls
• Client-Side JavaScript libraries like XSP
and Dojo
• Add charts to your XPages
• Create an “Xagent”
• Use the Dojo Data Grid
• Use the Relational controls
• And much more!!!
Includes Instructor Support!
Special Offer for Attendees, Save $300, get this course for only $599!
Click here to access the special ordering page to get this offer

48. Questions????
42

49. Question and Answer Time!
Upcoming Events:
DNUG, Nov. 11/12 in Leipzig, Germany
Social Connections, November 13 in Stockholm
DanNotes, November 19 in Denmark
ConnectED, Orlando in January
Engage, March 30/31 in Ghent, Belgium
Teamstudio Questions?
contactus@teamstudio.com
877-228-6178
43
TLCC Questions?
howardg@tlcc.com paul@tlcc.com
888-241-8522 or 561-953-0095
Howard Greenberg
#XPages
@TLCCLtd
@Teamstudio
@PaulDN
Paul Della-Nebbia Courtney Carter
To learn more about the Relational Controls and other advanced topics:
Special offer for webinar attendees on TLCC’s XPages 2 course
