BIOREACTORS OR FERMENTERS
AND THEIR TYPES AND PARTS

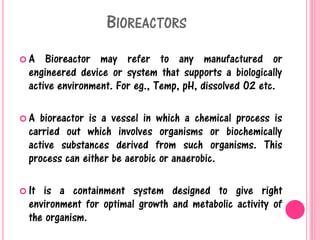

BIOREACTORS
 A Bioreactor may refer to any manufactured or
engineered device or system that supports a biologically
active environment. For eg., Temp, pH, dissolved O2 etc.
 A bioreactor is a vessel in which a chemical process is
carried out which involves organisms or biochemically
active substances derived from such organisms. This
process can either be aerobic or anaerobic.
 It is a containment system designed to give right
environment for optimal growth and metabolic activity of
the organism.

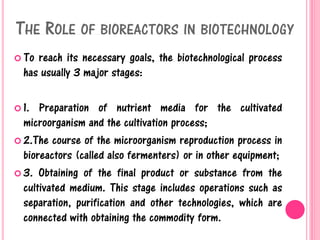

THE ROLE OF BIOREACTORS IN BIOTECHNOLOGY
 To reach its necessary goals, the biotechnological process
has usually 3 major stages:
 1. Preparation of nutrient media for the cultivated
microorganism and the cultivation process;
 2.The course of the microorganism reproduction process in
bioreactors (called also fermenters) or in other equipment;
 3. Obtaining of the final product or substance from the
cultivated medium. This stage includes operations such as
separation, purification and other technologies, which are
connected with obtaining the commodity form.

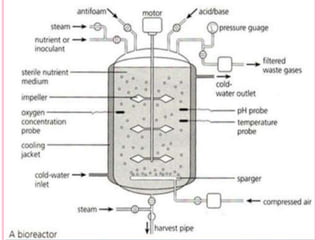

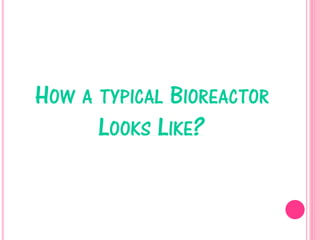

HOW A TYPICAL BIOREACTOR
LOOKS LIKE?

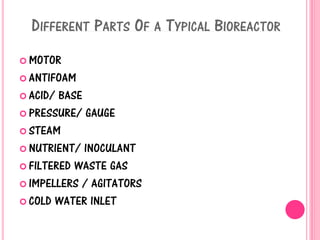

DIFFERENT PARTS OF A TYPICAL BIOREACTOR
 MOTOR
 ANTIFOAM
 ACID/ BASE
 PRESSURE/ GAUGE
 STEAM
 NUTRIENT/ INOCULANT
 FILTERED WASTE GAS
 IMPELLERS / AGITATORS

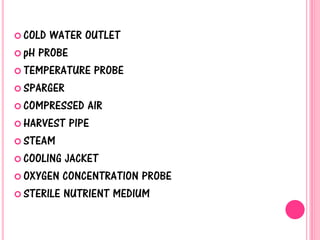

 COLD WATER INLET
 COLD WATER OUTLET
 pH PROBE
 TEMPERATURE PROBE
 SPARGER
 COMPRESSED AIR
 HARVEST PIPE
 STEAM
 COOLING JACKET
 OXYGEN CONCENTRATION PROBE
 STERILE NUTRIENT MEDIUM

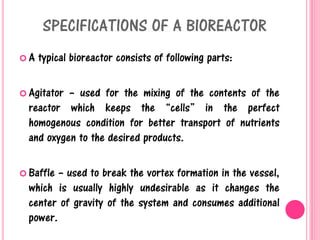

SPECIFICATIONS OF A BIOREACTOR
 A typical bioreactor consists of following parts:
 Agitator – used for the mixing of the contents of the
reactor which keeps the ―cells‖ in the perfect
homogenous condition for better transport of nutrients
and oxygen to the desired products.
 Baffle – used to break the vortex formation in the vessel,
which is usually highly undesirable as it changes the
center of gravity of the system and consumes additional
power.

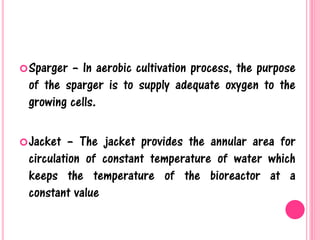

Sparger – In aerobic cultivation process, the purpose
of the sparger is to supply adequate oxygen to the
growing cells.
Jacket – The jacket provides the annular area for
circulation of constant temperature of water which
keeps the temperature of the bioreactor at a
constant value

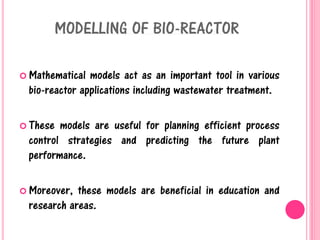

MODELLING OF BIO-REACTOR
 Mathematical models act as an important tool in various
bio-reactor applications including wastewater treatment.
 These models are useful for planning efficient process
control strategies and predicting the future plant
performance.
 Moreover, these models are beneficial in education and
research areas.

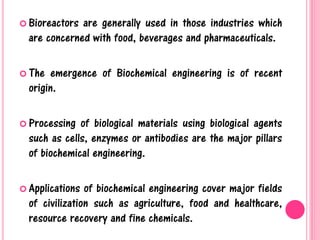

 Bioreactors are generally used in those industries which
are concerned with food, beverages and pharmaceuticals.
 The emergence of Biochemical engineering is of recent
origin.
 Processing of biological materials using biological agents
such as cells, enzymes or antibodies are the major pillars
of biochemical engineering.
 Applications of biochemical engineering cover major fields
of civilization such as agriculture, food and healthcare,
resource recovery and fine chemicals.

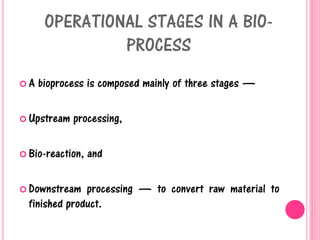

OPERATIONAL STAGES IN A BIO-
PROCESS
 A bioprocess is composed mainly of three stages —
 Upstream processing,
 Bio-reaction, and
 Downstream processing — to convert raw material to
finished product.
STEP – 1
 The raw material can be of biological or non-biological
origin.
 It is first converted to more suitable form for
processing.
 This is done in upstream processing step which involves
chemical hydrolysis, preparation of liquid medium,
separation of particulate, air purification and many other
preparatory operations.

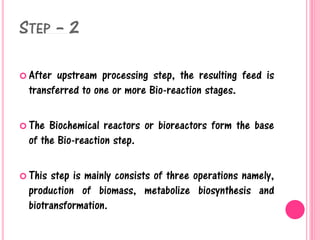

STEP – 2
 After upstream processing step, the resulting feed is
transferred to one or more Bio-reaction stages.
 The Biochemical reactors or bioreactors form the base
of the Bio-reaction step.
 This step is mainly consists of three operations namely,
production of biomass, metabolize biosynthesis and
biotransformation.

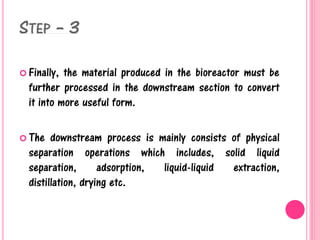

STEP – 3
 Finally, the material produced in the bioreactor must be
further processed in the downstream section to convert
it into more useful form.
 The downstream process is mainly consists of physical
separation operations which includes, solid liquid
separation, adsorption, liquid-liquid extraction,
distillation, drying etc.

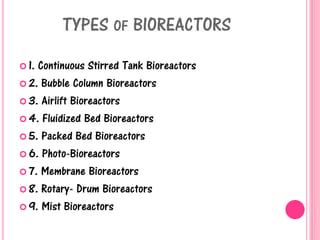

TYPES OF BIOREACTORS
 1. Continuous Stirred Tank Bioreactors
 2. Bubble Column Bioreactors
 3. Airlift Bioreactors

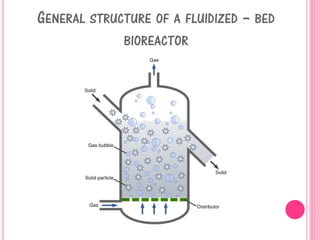

 4. Fluidized Bed Bioreactors
 5. Packed Bed Bioreactors

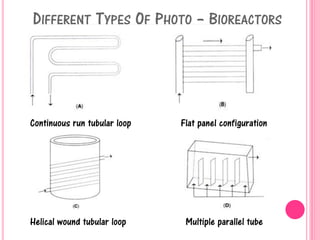

 6. Photo-Bioreactors

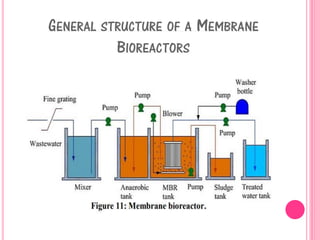

 7. Membrane Bioreactors

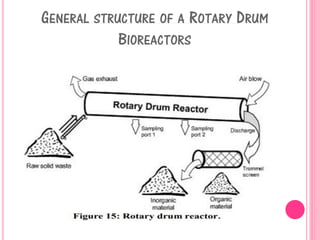

 8. Rotary- Drum Bioreactors

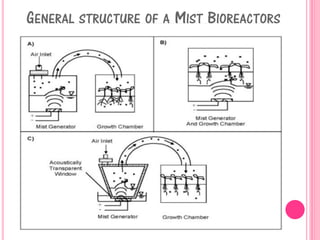

 9. Mist Bioreactors

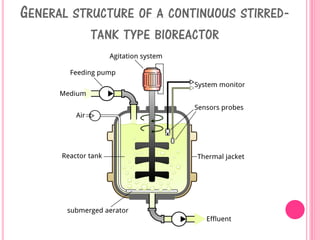

GENERAL STRUCTURE OF A CONTINUOUS STIRRED-
TANK TYPE BIOREACTOR

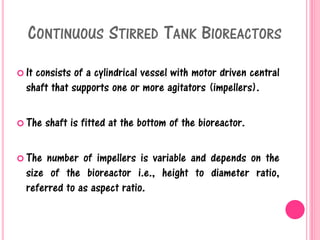

CONTINUOUS STIRRED TANK BIOREACTORS
 It consists of a cylindrical vessel with motor driven central
shaft that supports one or more agitators (impellers).
 The shaft is fitted at the bottom of the bioreactor.
 The number of impellers is variable and depends on the
size of the bioreactor i.e., height to diameter ratio,
referred to as aspect ratio.

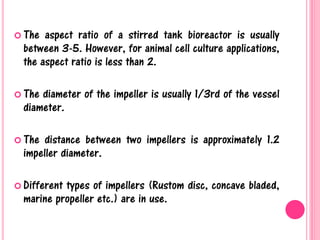

 The aspect ratio of a stirred tank bioreactor is usually
between 3-5. However, for animal cell culture applications,
the aspect ratio is less than 2.
 The diameter of the impeller is usually 1/3rd of the vessel
diameter.
 The distance between two impellers is approximately 1.2
impeller diameter.
 Different types of impellers (Rustom disc, concave bladed,
marine propeller etc.) are in use.

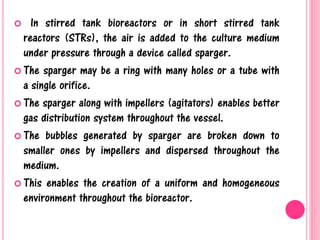

 In stirred tank bioreactors or in short stirred tank
reactors (STRs), the air is added to the culture medium
under pressure through a device called sparger.
 The sparger may be a ring with many holes or a tube with
a single orifice.
 The sparger along with impellers (agitators) enables better
gas distribution system throughout the vessel.
 The bubbles generated by sparger are broken down to
smaller ones by impellers and dispersed throughout the
medium.
 This enables the creation of a uniform and homogeneous
environment throughout the bioreactor.

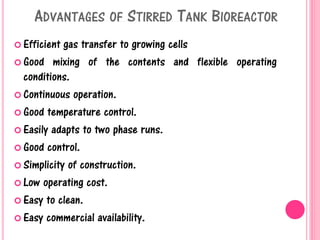

ADVANTAGES OF STIRRED TANK BIOREACTOR
 Efficient gas transfer to growing cells
 Good mixing of the contents and flexible operating
conditions.
 Continuous operation.
 Good temperature control.
 Easily adapts to two phase runs.
 Good control.
 Simplicity of construction.
 Low operating cost.
 Easy to clean.
 Easy commercial availability.

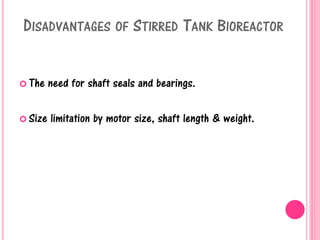

DISADVANTAGES OF STIRRED TANK BIOREACTOR
 The need for shaft seals and bearings.
 Size limitation by motor size, shaft length & weight.

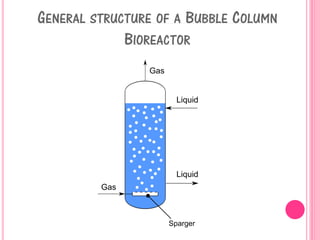

GENERAL STRUCTURE OF A BUBBLE COLUMN
BIOREACTOR

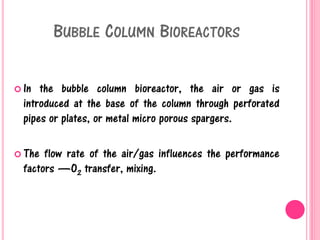

BUBBLE COLUMN BIOREACTORS
 In the bubble column bioreactor, the air or gas is
introduced at the base of the column through perforated
pipes or plates, or metal micro porous spargers.
 The flow rate of the air/gas influences the performance
factors —O2 transfer, mixing.

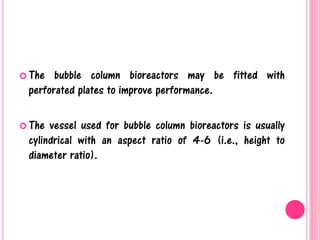

 The bubble column bioreactors may be fitted with
perforated plates to improve performance.
 The vessel used for bubble column bioreactors is usually
cylindrical with an aspect ratio of 4-6 (i.e., height to
diameter ratio).

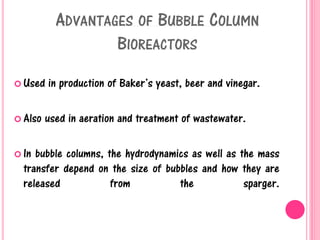

ADVANTAGES OF BUBBLE COLUMN
BIOREACTORS
 Used in production of Baker’s yeast, beer and vinegar.
 Also used in aeration and treatment of wastewater.
 In bubble columns, the hydrodynamics as well as the mass
transfer depend on the size of bubbles and how they are
released from the sparger.

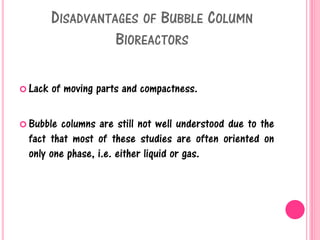

DISADVANTAGES OF BUBBLE COLUMN
BIOREACTORS
 Lack of moving parts and compactness.
 Bubble columns are still not well understood due to the
fact that most of these studies are often oriented on
only one phase, i.e. either liquid or gas.

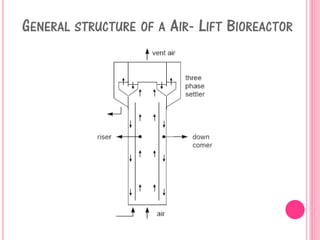

GENERAL STRUCTURE OF A AIR- LIFT BIOREACTOR

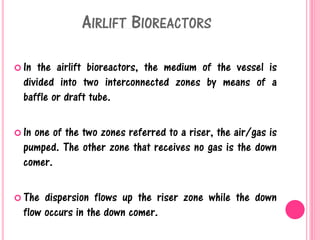

AIRLIFT BIOREACTORS
 In the airlift bioreactors, the medium of the vessel is
divided into two interconnected zones by means of a
baffle or draft tube.
 In one of the two zones referred to a riser, the air/gas is
pumped. The other zone that receives no gas is the down
comer.
 The dispersion flows up the riser zone while the down
flow occurs in the down comer.

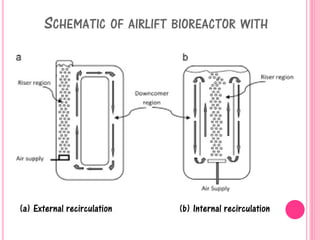

SCHEMATIC OF AIRLIFT BIOREACTOR WITH
(a) External recirculation (b) Internal recirculation

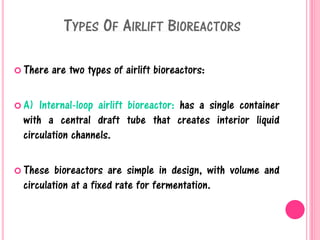

TYPES OF AIRLIFT BIOREACTORS
 There are two types of airlift bioreactors:
 A) Internal-loop airlift bioreactor: has a single container
with a central draft tube that creates interior liquid
circulation channels.
 These bioreactors are simple in design, with volume and
circulation at a fixed rate for fermentation.

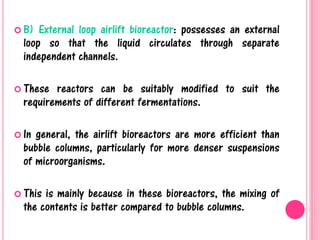

 B) External loop airlift bioreactor: possesses an external
loop so that the liquid circulates through separate
independent channels.
 These reactors can be suitably modified to suit the
requirements of different fermentations.
 In general, the airlift bioreactors are more efficient than
bubble columns, particularly for more denser suspensions
of microorganisms.
 This is mainly because in these bioreactors, the mixing of
the contents is better compared to bubble columns.

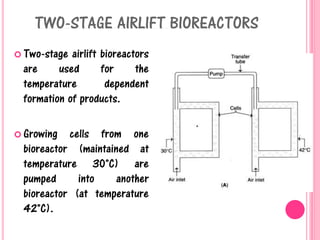

TWO-STAGE AIRLIFT BIOREACTORS
 Two-stage airlift bioreactors
are used for the
temperature dependent
formation of products.
 Growing cells from one
bioreactor (maintained at
temperature 30°C) are
pumped into another
bioreactor (at temperature
42°C).
 There is a necessity for the two-stage airlift bioreactor,
since it is very difficult to raise the temperature quickly
from 30°C to 42°C in the same vessel.
 Each one of the bioreactors is fitted with valves and
they are connected by a transfer tube and pump.
 The cells are grown in the first bioreactor and the
bioprocess proper takes place in the second reactor.

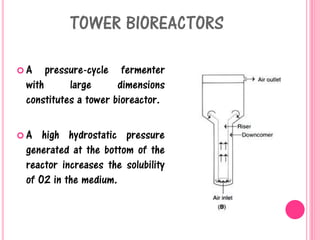

TOWER BIOREACTORS
 A pressure-cycle fermenter
with large dimensions
constitutes a tower bioreactor.
 A high hydrostatic pressure
generated at the bottom of the
reactor increases the solubility
of O2 in the medium.

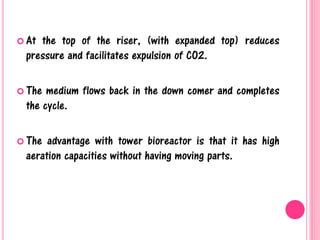

 At the top of the riser, (with expanded top) reduces
pressure and facilitates expulsion of CO2.
 The medium flows back in the down comer and completes
the cycle.
 The advantage with tower bioreactor is that it has high
aeration capacities without having moving parts.
AIRLIFT BIOREACTORS APPLICATION
 Airlift bioreactors are commonly employed for aerobic
bioprocessing technology.
 They ensure a controlled liquid flow in a recycle system by
pumping.
 Due to high efficiency, airlift bioreactors are sometimes
preferred e.g., methanol production, waste water
treatment, single-cell protein production.
 In general, the performance of the airlift bioreactors is
dependent on the pumping (injection) of air and the liquid
circulation.

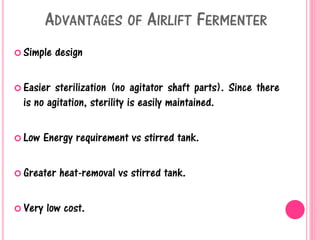

ADVANTAGES OF AIRLIFT FERMENTER
 Simple design
 Easier sterilization (no agitator shaft parts). Since there
is no agitation, sterility is easily maintained.
 Low Energy requirement vs stirred tank.
 Greater heat-removal vs stirred tank.
 Very low cost.

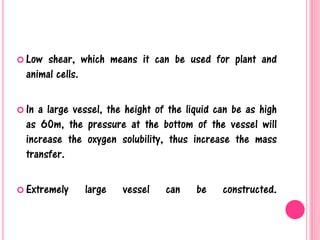

 Low shear, which means it can be used for plant and
animal cells.
 In a large vessel, the height of the liquid can be as high
as 60m, the pressure at the bottom of the vessel will
increase the oxygen solubility, thus increase the mass
transfer.
 Extremely large vessel can be constructed.

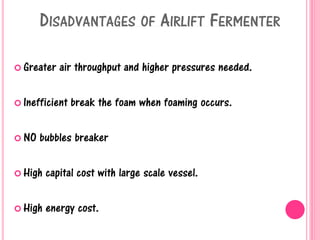

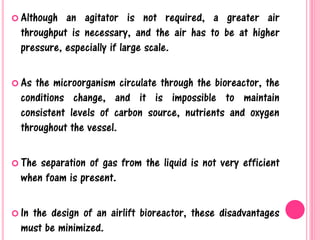

DISADVANTAGES OF AIRLIFT FERMENTER
 Greater air throughput and higher pressures needed.
 Inefficient break the foam when foaming occurs.
 NO bubbles breaker
 High capital cost with large scale vessel.
 High energy cost.
 Although an agitator is not required, a greater air
throughput is necessary, and the air has to be at higher
pressure, especially if large scale.
 As the microorganism circulate through the bioreactor, the
conditions change, and it is impossible to maintain
consistent levels of carbon source, nutrients and oxygen
throughout the vessel.
 The separation of gas from the liquid is not very efficient
when foam is present.
 In the design of an airlift bioreactor, these disadvantages
must be minimized.
GENERAL STRUCTURE OF A FLUIDIZED – BED
BIOREACTOR

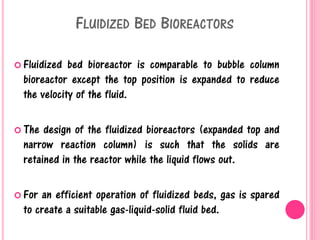

FLUIDIZED BED BIOREACTORS
 Fluidized bed bioreactor is comparable to bubble column
bioreactor except the top position is expanded to reduce
the velocity of the fluid.
 The design of the fluidized bioreactors (expanded top and
narrow reaction column) is such that the solids are
retained in the reactor while the liquid flows out.
 For an efficient operation of fluidized beds, gas is spared
to create a suitable gas-liquid-solid fluid bed.

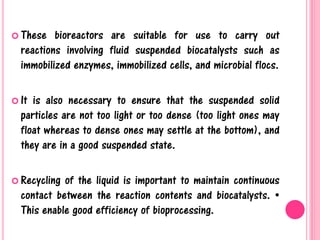

 These bioreactors are suitable for use to carry out
reactions involving fluid suspended biocatalysts such as
immobilized enzymes, immobilized cells, and microbial flocs.
 It is also necessary to ensure that the suspended solid
particles are not too light or too dense (too light ones may
float whereas to dense ones may settle at the bottom), and
they are in a good suspended state.
 Recycling of the liquid is important to maintain continuous
contact between the reaction contents and biocatalysts. •
This enable good efficiency of bioprocessing.

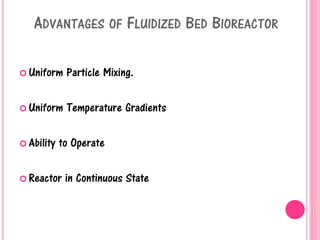

ADVANTAGES OF FLUIDIZED BED BIOREACTOR
 Uniform Particle Mixing.
 Uniform Temperature Gradients
 Ability to Operate
 Reactor in Continuous State
DISADVANTAGES OF FLUIDIZED BED REACTOR
 Increased Reactor Vessel Size
 Pumping Requirements and Pressure Drop
 Particle Entrainment
 Lack of Current Understanding
 Erosion of Internal Components
 Pressure Loss Scenarios

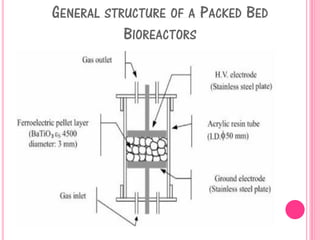

GENERAL STRUCTURE OF A PACKED BED
BIOREACTORS
PACKED BED BIOREACTORS
 A bed of solid particles, with biocatalysts on or within
the matrix of solids, packed in a column constitutes a
packed bed.
 The solids used may be porous or non- porous gels, and
they may be compressible or rigid in nature.
 A nutrient broth flows continuously over the immobilized
biocatalyst.

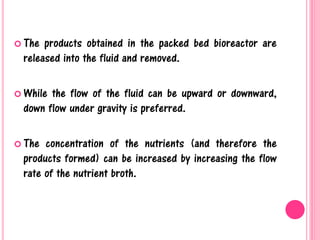

 The products obtained in the packed bed bioreactor are
released into the fluid and removed.
 While the flow of the fluid can be upward or downward,
down flow under gravity is preferred.
 The concentration of the nutrients (and therefore the
products formed) can be increased by increasing the flow
rate of the nutrient broth.
 Because of poor mixing, it is rather difficult to control the
pH of packed bed bioreactors by the addition of acid or
alkali.
 However, these bioreactors are preferred for
bioprocessing technology involving product-inhibited
reactions.
 The packed bed bioreactors do not allow accumulation of
the products to any significant extent.

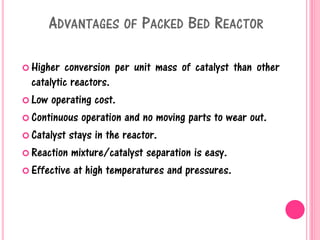

ADVANTAGES OF PACKED BED REACTOR
 Higher conversion per unit mass of catalyst than other
catalytic reactors.
 Low operating cost.
 Continuous operation and no moving parts to wear out.
 Catalyst stays in the reactor.
 Reaction mixture/catalyst separation is easy.
 Effective at high temperatures and pressures.

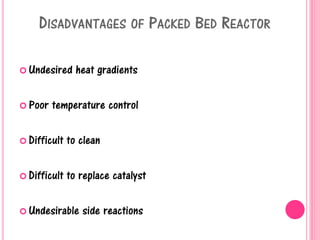

DISADVANTAGES OF PACKED BED REACTOR
 Undesired heat gradients
 Poor temperature control
 Difficult to clean
 Difficult to replace catalyst
 Undesirable side reactions

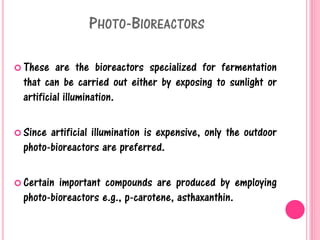

PHOTO-BIOREACTORS
 These are the bioreactors specialized for fermentation
that can be carried out either by exposing to sunlight or
artificial illumination.
 Since artificial illumination is expensive, only the outdoor
photo-bioreactors are preferred.
 Certain important compounds are produced by employing
photo-bioreactors e.g., p-carotene, asthaxanthin.
DIFFERENT TYPES OF PHOTO – BIOREACTORS
Continuous run tubular loop Flat panel configuration
Helical wound tubular loop Multiple parallel tube

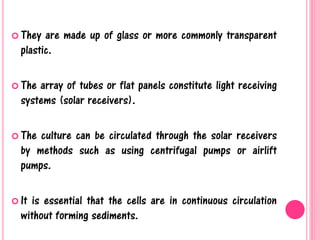

 They are made up of glass or more commonly transparent
plastic.
 The array of tubes or flat panels constitute light receiving
systems (solar receivers).
 The culture can be circulated through the solar receivers
by methods such as using centrifugal pumps or airlift
pumps.
 It is essential that the cells are in continuous circulation
without forming sediments.

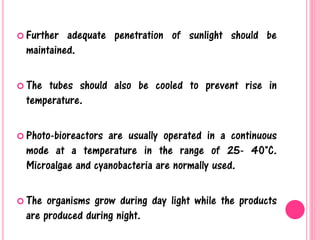

 Further adequate penetration of sunlight should be
maintained.
 The tubes should also be cooled to prevent rise in
temperature.
 Photo-bioreactors are usually operated in a continuous
mode at a temperature in the range of 25- 40°C.
Microalgae and cyanobacteria are normally used.
 The organisms grow during day light while the products
are produced during night.

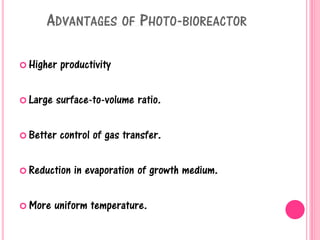

ADVANTAGES OF PHOTO-BIOREACTOR
 Higher productivity
 Large surface-to-volume ratio.
 Better control of gas transfer.
 Reduction in evaporation of growth medium.
 More uniform temperature.

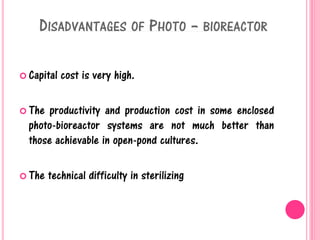

DISADVANTAGES OF PHOTO – BIOREACTOR
 Capital cost is very high.
 The productivity and production cost in some enclosed
photo-bioreactor systems are not much better than
those achievable in open-pond cultures.
 The technical difficulty in sterilizing
GENERAL STRUCTURE OF A MEMBRANE
BIOREACTORS
MEMBRANE BIOREACTORS
 A membrane reactor is a flow reactor within which
membranes are used to separate cells or enzymes from
the feed or product streams.
 Usually a continuous system.
 Products may also be removed continuously, but in some
applications they must be harvested intermittently or at
the end of the run.

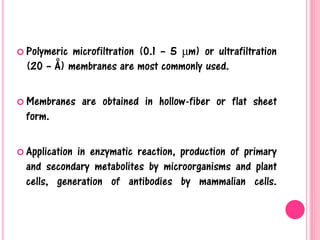

 Polymeric microfiltration (0.1 – 5 μm) or ultrafiltration
(20 – Å) membranes are most commonly used.
 Membranes are obtained in hollow-fiber or flat sheet
form.
 Application in enzymatic reaction, production of primary
and secondary metabolites by microorganisms and plant
cells, generation of antibodies by mammalian cells.

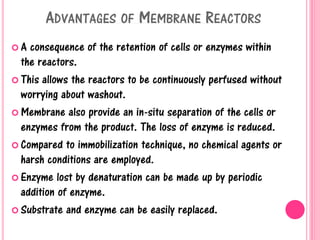

ADVANTAGES OF MEMBRANE REACTORS
 A consequence of the retention of cells or enzymes within
the reactors.
 This allows the reactors to be continuously perfused without
worrying about washout.
 Membrane also provide an in-situ separation of the cells or
enzymes from the product. The loss of enzyme is reduced.
 Compared to immobilization technique, no chemical agents or
harsh conditions are employed.
 Enzyme lost by denaturation can be made up by periodic
addition of enzyme.
 Substrate and enzyme can be easily replaced.

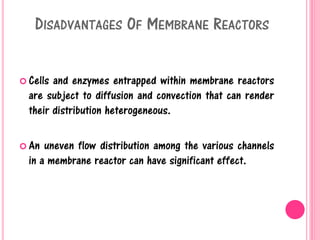

DISADVANTAGES OF MEMBRANE REACTORS
 Cells and enzymes entrapped within membrane reactors
are subject to diffusion and convection that can render
their distribution heterogeneous.
 An uneven flow distribution among the various channels
in a membrane reactor can have significant effect.
GENERAL STRUCTURE OF A ROTARY DRUM
BIOREACTORS

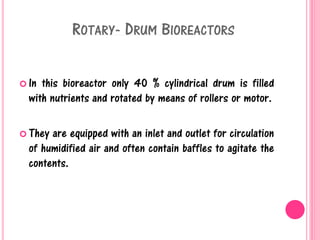

ROTARY- DRUM BIOREACTORS
 In this bioreactor only 40 % cylindrical drum is filled
with nutrients and rotated by means of rollers or motor.
 They are equipped with an inlet and outlet for circulation
of humidified air and often contain baffles to agitate the
contents.

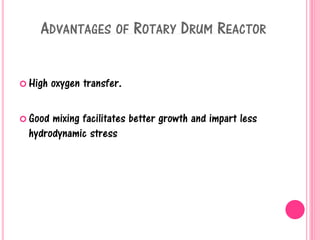

ADVANTAGES OF ROTARY DRUM REACTOR
 High oxygen transfer.
 Good mixing facilitates better growth and impart less
hydrodynamic stress
DISADVANTAGES OF ROTARY DRUM REACTOR
 Difficult to scale up.
GENERAL STRUCTURE OF A MIST BIOREACTORS

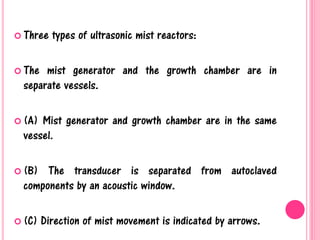

 Three types of ultrasonic mist reactors:
 The mist generator and the growth chamber are in
separate vessels.
 (A) Mist generator and growth chamber are in the same
vessel.
 (B) The transducer is separated from autoclaved
components by an acoustic window.
 (C) Direction of mist movement is indicated by arrows.
MIST BIOREACTORS
 Mist bioreactors is type of reactor that when liquid is
dispersed into the gas phase.
 Liquid dispersion can be achieved using a different
methods including a spinning disk, a compressed gas
atomizer, or an ultrasonic droplet generator.
 The mist bioreactor also use the ultrasonic transducer.

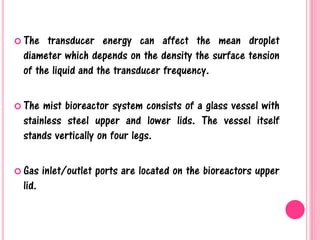

 The transducer energy can affect the mean droplet
diameter which depends on the density the surface tension
of the liquid and the transducer frequency.
 The mist bioreactor system consists of a glass vessel with
stainless steel upper and lower lids. The vessel itself
stands vertically on four legs.
 Gas inlet/outlet ports are located on the bioreactors upper
lid.

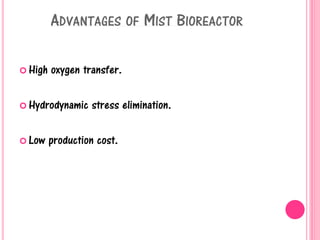

ADVANTAGES OF MIST BIOREACTOR
 High oxygen transfer.
 Hydrodynamic stress elimination.
 Low production cost.

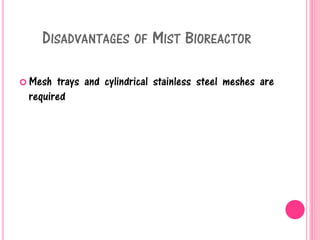

DISADVANTAGES OF MIST BIOREACTOR
 Mesh trays and cylindrical stainless steel meshes are
required
THANK YOU !

More Related Content

What's hot

Media for industrial fermentation
Media for industrial fermentationMedia for industrial fermentation
Media for industrial fermentation
NithyaNandapal

Bioreactor
BioreactorBioreactor
Bioreactor
bhawna singh

Upstream and down stream process
Upstream and down stream processUpstream and down stream process
Upstream and down stream process
Dr NEETHU ASOKAN

Air and media sterilisation
Air and media sterilisationAir and media sterilisation
Air and media sterilisation
Arunima Sur

Downstream processing
Downstream processing Downstream processing
Downstream processing
Sailee Gurav

submerged and solid state fermentation
submerged and solid state fermentationsubmerged and solid state fermentation
submerged and solid state fermentation
Pramod Rai

Airlift bioreactor ppt
Airlift bioreactor pptAirlift bioreactor ppt
Airlift bioreactor pptkhehkesha

Basic design of a fermenter
Basic design of a fermenterBasic design of a fermenter
Basic design of a fermenter
Mayur D. Chauhan

Downstream processing - industrial microbiology
Downstream processing - industrial microbiology Downstream processing - industrial microbiology
Downstream processing - industrial microbiology
Kiran Kumar

Airlift fermenter
Airlift fermenterAirlift fermenter
Airlift fermenter
parnavi kadam

strain improvement techniques
strain improvement techniquesstrain improvement techniques
strain improvement techniques
jeeva raj

Tower Fermernter
Tower FermernterTower Fermernter
Tower Fermernter
Dinesh S

Bioreactors
BioreactorsBioreactors
Screening
ScreeningScreening
Screening
Muskan Bhardwaj

Batch and Continuous Sterilization of Media in Fermentation Industry
Batch and Continuous Sterilization of Media in Fermentation Industry Batch and Continuous Sterilization of Media in Fermentation Industry
Batch and Continuous Sterilization of Media in Fermentation Industry
Dr. Pavan Kundur

Stirred tank bioreactor
Stirred tank bioreactorStirred tank bioreactor
Stirred tank bioreactor
Nizam Ashraf

Tubular Bioreactors
Tubular BioreactorsTubular Bioreactors
Tubular Bioreactors
RuchiRawal1

Cell disruption
Cell disruption Cell disruption
Cell disruption
saba naeem

bioreactor and its applications
bioreactor and its applications bioreactor and its applications
bioreactor and its applications
saba naeem

Growth kinetics
Growth kineticsGrowth kinetics
Growth kinetics
Jayashree Sethuraman


What's hot (20)

Media for industrial fermentation
Media for industrial fermentationMedia for industrial fermentation
Media for industrial fermentation

Bioreactor
BioreactorBioreactor
Bioreactor

Upstream and down stream process
Upstream and down stream processUpstream and down stream process
Upstream and down stream process

Air and media sterilisation
Air and media sterilisationAir and media sterilisation
Air and media sterilisation

Downstream processing
Downstream processing Downstream processing
Downstream processing

submerged and solid state fermentation
submerged and solid state fermentationsubmerged and solid state fermentation
submerged and solid state fermentation

Airlift bioreactor ppt
Airlift bioreactor pptAirlift bioreactor ppt
Airlift bioreactor ppt

Basic design of a fermenter
Basic design of a fermenterBasic design of a fermenter
Basic design of a fermenter

Downstream processing - industrial microbiology
Downstream processing - industrial microbiology Downstream processing - industrial microbiology
Downstream processing - industrial microbiology

Airlift fermenter
Airlift fermenterAirlift fermenter
Airlift fermenter

strain improvement techniques
strain improvement techniquesstrain improvement techniques
strain improvement techniques

Tower Fermernter
Tower FermernterTower Fermernter
Tower Fermernter

Bioreactors
BioreactorsBioreactors
Bioreactors

Screening
ScreeningScreening
Screening

Batch and Continuous Sterilization of Media in Fermentation Industry
Batch and Continuous Sterilization of Media in Fermentation Industry Batch and Continuous Sterilization of Media in Fermentation Industry
Batch and Continuous Sterilization of Media in Fermentation Industry

Stirred tank bioreactor
Stirred tank bioreactorStirred tank bioreactor
Stirred tank bioreactor

Tubular Bioreactors
Tubular BioreactorsTubular Bioreactors
Tubular Bioreactors

Cell disruption
Cell disruption Cell disruption
Cell disruption

bioreactor and its applications
bioreactor and its applications bioreactor and its applications
bioreactor and its applications

Growth kinetics
Growth kineticsGrowth kinetics
Growth kinetics


Similar to BIOREACTORS OR FERMENTERS

Bioreactor.pptx
Bioreactor.pptxBioreactor.pptx
Bioreactor.pptx
BinteHawah1

BioReactor.pptx
BioReactor.pptxBioReactor.pptx
BioReactor.pptx
MuhammadFaizan389

reactor
reactorreactor
reactor
ssuser03ab65

Fermenters and its types
Fermenters and its typesFermenters and its types
Fermenters and its types
Vipin Shukla

Bioreactors - Basic Designing and Types.pptx
Bioreactors - Basic Designing and Types.pptxBioreactors - Basic Designing and Types.pptx
Bioreactors - Basic Designing and Types.pptx
KaviKumar46

2nd class.pdf
2nd class.pdf2nd class.pdf
2nd class.pdf
SamuelMoses41

BIO REACTORS- FERMENTORS FOR ANTIBIOTICS
BIO REACTORS- FERMENTORS FOR ANTIBIOTICSBIO REACTORS- FERMENTORS FOR ANTIBIOTICS
BIO REACTORS- FERMENTORS FOR ANTIBIOTICS
sivan96

Bioreactors in fermentation technology .pptx
Bioreactors in fermentation technology .pptxBioreactors in fermentation technology .pptx
Bioreactors in fermentation technology .pptx
VivamariyaVarghese1

bioreactor AND fermentor 1.pptx
bioreactor AND fermentor 1.pptxbioreactor AND fermentor 1.pptx
bioreactor AND fermentor 1.pptx
Sivaram687158

bioreactor_design.Bioreactor related all things is here
bioreactor_design.Bioreactor related all things is herebioreactor_design.Bioreactor related all things is here
bioreactor_design.Bioreactor related all things is here
liponhossain927045

Bioreactors ppt atun
Bioreactors ppt atunBioreactors ppt atun
Bioreactors ppt atun
Er. Atun Roy Choudhury

Unit 3 bioreactors
Unit 3 bioreactorsUnit 3 bioreactors
Unit 3 bioreactors
Tsegaye Mekuria

bioprocess and industrial biotechnology.pptx
bioprocess and industrial biotechnology.pptxbioprocess and industrial biotechnology.pptx
bioprocess and industrial biotechnology.pptx
MelvinM11

Jyoti bioreactors
Jyoti bioreactorsJyoti bioreactors
Jyoti bioreactors
sachinhalladamani

Bioreactors
BioreactorsBioreactors
Bioreactors
Noman-Hafeez khosa

Fermenter.pptx
Fermenter.pptxFermenter.pptx
Fermenter.pptx
Balakumaran779282

Bioreactors_Design khbjwncmfkvnenvirgbbbbrybn
Bioreactors_Design khbjwncmfkvnenvirgbbbbrybnBioreactors_Design khbjwncmfkvnenvirgbbbbrybn
Bioreactors_Design khbjwncmfkvnenvirgbbbbrybn
MeeraSingh83

Bioreactors_Design_and_Analysis.pptx
Bioreactors_Design_and_Analysis.pptxBioreactors_Design_and_Analysis.pptx
Bioreactors_Design_and_Analysis.pptx
ssuser44c109

photo bioreactor types,advantage,disadvantage,contruction
photo bioreactor types,advantage,disadvantage,contructionphoto bioreactor types,advantage,disadvantage,contruction
photo bioreactor types,advantage,disadvantage,contruction
GaganKumarJanghel

Fermentation.ppt
Fermentation.pptFermentation.ppt
Fermentation.ppt
DrPramod7


Similar to BIOREACTORS OR FERMENTERS (20)

Bioreactor.pptx
Bioreactor.pptxBioreactor.pptx
Bioreactor.pptx

BioReactor.pptx
BioReactor.pptxBioReactor.pptx
BioReactor.pptx

reactor
reactorreactor
reactor

Fermenters and its types
Fermenters and its typesFermenters and its types
Fermenters and its types

Bioreactors - Basic Designing and Types.pptx
Bioreactors - Basic Designing and Types.pptxBioreactors - Basic Designing and Types.pptx
Bioreactors - Basic Designing and Types.pptx

2nd class.pdf
2nd class.pdf2nd class.pdf
2nd class.pdf

BIO REACTORS- FERMENTORS FOR ANTIBIOTICS
BIO REACTORS- FERMENTORS FOR ANTIBIOTICSBIO REACTORS- FERMENTORS FOR ANTIBIOTICS
BIO REACTORS- FERMENTORS FOR ANTIBIOTICS

Bioreactors in fermentation technology .pptx
Bioreactors in fermentation technology .pptxBioreactors in fermentation technology .pptx
Bioreactors in fermentation technology .pptx

bioreactor AND fermentor 1.pptx
bioreactor AND fermentor 1.pptxbioreactor AND fermentor 1.pptx
bioreactor AND fermentor 1.pptx

bioreactor_design.Bioreactor related all things is here
bioreactor_design.Bioreactor related all things is herebioreactor_design.Bioreactor related all things is here
bioreactor_design.Bioreactor related all things is here

Bioreactors ppt atun
Bioreactors ppt atunBioreactors ppt atun
Bioreactors ppt atun

Unit 3 bioreactors
Unit 3 bioreactorsUnit 3 bioreactors
Unit 3 bioreactors

bioprocess and industrial biotechnology.pptx
bioprocess and industrial biotechnology.pptxbioprocess and industrial biotechnology.pptx
bioprocess and industrial biotechnology.pptx

Jyoti bioreactors
Jyoti bioreactorsJyoti bioreactors
Jyoti bioreactors

Bioreactors
BioreactorsBioreactors
Bioreactors

Fermenter.pptx
Fermenter.pptxFermenter.pptx
Fermenter.pptx

Bioreactors_Design khbjwncmfkvnenvirgbbbbrybn
Bioreactors_Design khbjwncmfkvnenvirgbbbbrybnBioreactors_Design khbjwncmfkvnenvirgbbbbrybn
Bioreactors_Design khbjwncmfkvnenvirgbbbbrybn

Bioreactors_Design_and_Analysis.pptx
Bioreactors_Design_and_Analysis.pptxBioreactors_Design_and_Analysis.pptx
Bioreactors_Design_and_Analysis.pptx

photo bioreactor types,advantage,disadvantage,contruction
photo bioreactor types,advantage,disadvantage,contructionphoto bioreactor types,advantage,disadvantage,contruction
photo bioreactor types,advantage,disadvantage,contruction

Fermentation.ppt
Fermentation.pptFermentation.ppt
Fermentation.ppt


More from Archana Shaw

Production of acetic acid and ethanol
Production of acetic acid and ethanolProduction of acetic acid and ethanol
Production of acetic acid and ethanol
Archana Shaw

Knock out mice
Knock out miceKnock out mice
Knock out mice
Archana Shaw

Construction of genomic library in lambda
Construction of genomic library in lambdaConstruction of genomic library in lambda
Construction of genomic library in lambda
Archana Shaw

Telomerase replication
Telomerase replicationTelomerase replication
Telomerase replication
Archana Shaw

Pollination & Fertilization in Plants
Pollination & Fertilization in PlantsPollination & Fertilization in Plants
Pollination & Fertilization in Plants
Archana Shaw

Spirulina as a Feedstock for Health Supplements
Spirulina as a Feedstock for Health SupplementsSpirulina as a Feedstock for Health Supplements
Spirulina as a Feedstock for Health Supplements
Archana Shaw

Ultrastructure and characterstic features of bacteria.
Ultrastructure and characterstic features of bacteria.Ultrastructure and characterstic features of bacteria.
Ultrastructure and characterstic features of bacteria.
Archana Shaw

SINGLE CELL PROTEIN
SINGLE CELL PROTEIN SINGLE CELL PROTEIN
SINGLE CELL PROTEIN
Archana Shaw

Pox virus
Pox virusPox virus
Pox virus
Archana Shaw

Oxidative phosphorylation
Oxidative phosphorylationOxidative phosphorylation
Oxidative phosphorylation
Archana Shaw

BIOSYNTHESIS OF AMINOACIDS
BIOSYNTHESIS OF AMINOACIDSBIOSYNTHESIS OF AMINOACIDS
BIOSYNTHESIS OF AMINOACIDS
Archana Shaw

Dark reaction
Dark reactionDark reaction
Dark reaction
Archana Shaw

Chloroplast and light reaction
Chloroplast and light reactionChloroplast and light reaction
Chloroplast and light reaction
Archana Shaw


More from Archana Shaw (13)

Production of acetic acid and ethanol
Production of acetic acid and ethanolProduction of acetic acid and ethanol
Production of acetic acid and ethanol

Knock out mice
Knock out miceKnock out mice
Knock out mice

Construction of genomic library in lambda
Construction of genomic library in lambdaConstruction of genomic library in lambda
Construction of genomic library in lambda

Telomerase replication
Telomerase replicationTelomerase replication
Telomerase replication

Pollination & Fertilization in Plants
Pollination & Fertilization in PlantsPollination & Fertilization in Plants
Pollination & Fertilization in Plants

Spirulina as a Feedstock for Health Supplements
Spirulina as a Feedstock for Health SupplementsSpirulina as a Feedstock for Health Supplements
Spirulina as a Feedstock for Health Supplements

Ultrastructure and characterstic features of bacteria.
Ultrastructure and characterstic features of bacteria.Ultrastructure and characterstic features of bacteria.
Ultrastructure and characterstic features of bacteria.

SINGLE CELL PROTEIN
SINGLE CELL PROTEIN SINGLE CELL PROTEIN
SINGLE CELL PROTEIN

Pox virus
Pox virusPox virus
Pox virus

Oxidative phosphorylation
Oxidative phosphorylationOxidative phosphorylation
Oxidative phosphorylation

BIOSYNTHESIS OF AMINOACIDS
BIOSYNTHESIS OF AMINOACIDSBIOSYNTHESIS OF AMINOACIDS
BIOSYNTHESIS OF AMINOACIDS

Dark reaction
Dark reactionDark reaction
Dark reaction

Chloroplast and light reaction
Chloroplast and light reactionChloroplast and light reaction
Chloroplast and light reaction


Recently uploaded

Cancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate PathwayCancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate Pathway
AADYARAJPANDEY1

Richard's entangled aventures in wonderland
Richard's entangled aventures in wonderlandRichard's entangled aventures in wonderland
Richard's entangled aventures in wonderland
Richard Gill

Large scale production of streptomycin.pptx
Large scale production of streptomycin.pptxLarge scale production of streptomycin.pptx
Large scale production of streptomycin.pptx
Cherry

Multi-source connectivity as the driver of solar wind variability in the heli...
Multi-source connectivity as the driver of solar wind variability in the heli...Multi-source connectivity as the driver of solar wind variability in the heli...
Multi-source connectivity as the driver of solar wind variability in the heli...
Sérgio Sacani

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA
SAMIR PANDA

Citrus Greening Disease and its Management
Citrus Greening Disease and its ManagementCitrus Greening Disease and its Management
Citrus Greening Disease and its Management
subedisuryaofficial

plant biotechnology Lecture note ppt.pptx
plant biotechnology Lecture note ppt.pptxplant biotechnology Lecture note ppt.pptx
plant biotechnology Lecture note ppt.pptx
yusufzako14

The ASGCT Annual Meeting was packed with exciting progress in the field advan...
The ASGCT Annual Meeting was packed with exciting progress in the field advan...The ASGCT Annual Meeting was packed with exciting progress in the field advan...
The ASGCT Annual Meeting was packed with exciting progress in the field advan...
Health Advances

Viksit bharat till 2047 India@2047.pptx
Viksit bharat till 2047  India@2047.pptxViksit bharat till 2047  India@2047.pptx
Viksit bharat till 2047 India@2047.pptx
rakeshsharma20142015

GBSN - Biochemistry (Unit 5) Chemistry of Lipids
GBSN - Biochemistry (Unit 5) Chemistry of LipidsGBSN - Biochemistry (Unit 5) Chemistry of Lipids
GBSN - Biochemistry (Unit 5) Chemistry of Lipids
Areesha Ahmad

NuGOweek 2024 Ghent - programme - final version
NuGOweek 2024 Ghent - programme - final versionNuGOweek 2024 Ghent - programme - final version
NuGOweek 2024 Ghent - programme - final version
pablovgd

Comparative structure of adrenal gland in vertebrates
Comparative structure of adrenal gland in vertebratesComparative structure of adrenal gland in vertebrates
Comparative structure of adrenal gland in vertebrates
sachin783648

SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdfSCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SELF-EXPLANATORY

EY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptxEY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptx
AlguinaldoKong

Hemostasis_importance& clinical significance.pptx
Hemostasis_importance& clinical significance.pptxHemostasis_importance& clinical significance.pptx
Hemostasis_importance& clinical significance.pptx
muralinath2

Penicillin...........................pptx
Penicillin...........................pptxPenicillin...........................pptx
Penicillin...........................pptx
Cherry

filosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptxfilosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptx
IvanMallco1

ESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptxESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptx
muralinath2

Lab report on liquid viscosity of glycerin
Lab report on liquid viscosity of glycerinLab report on liquid viscosity of glycerin
Lab report on liquid viscosity of glycerin
ossaicprecious19

Lateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensiveLateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensive
silvermistyshot


Recently uploaded (20)

Cancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate PathwayCancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate Pathway

Richard's entangled aventures in wonderland
Richard's entangled aventures in wonderlandRichard's entangled aventures in wonderland
Richard's entangled aventures in wonderland

Large scale production of streptomycin.pptx
Large scale production of streptomycin.pptxLarge scale production of streptomycin.pptx
Large scale production of streptomycin.pptx

Multi-source connectivity as the driver of solar wind variability in the heli...
Multi-source connectivity as the driver of solar wind variability in the heli...Multi-source connectivity as the driver of solar wind variability in the heli...
Multi-source connectivity as the driver of solar wind variability in the heli...

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA

Citrus Greening Disease and its Management
Citrus Greening Disease and its ManagementCitrus Greening Disease and its Management
Citrus Greening Disease and its Management

plant biotechnology Lecture note ppt.pptx
plant biotechnology Lecture note ppt.pptxplant biotechnology Lecture note ppt.pptx
plant biotechnology Lecture note ppt.pptx

The ASGCT Annual Meeting was packed with exciting progress in the field advan...
The ASGCT Annual Meeting was packed with exciting progress in the field advan...The ASGCT Annual Meeting was packed with exciting progress in the field advan...
The ASGCT Annual Meeting was packed with exciting progress in the field advan...

Viksit bharat till 2047 India@2047.pptx
Viksit bharat till 2047  India@2047.pptxViksit bharat till 2047  India@2047.pptx
Viksit bharat till 2047 India@2047.pptx

GBSN - Biochemistry (Unit 5) Chemistry of Lipids
GBSN - Biochemistry (Unit 5) Chemistry of LipidsGBSN - Biochemistry (Unit 5) Chemistry of Lipids
GBSN - Biochemistry (Unit 5) Chemistry of Lipids

NuGOweek 2024 Ghent - programme - final version
NuGOweek 2024 Ghent - programme - final versionNuGOweek 2024 Ghent - programme - final version
NuGOweek 2024 Ghent - programme - final version

Comparative structure of adrenal gland in vertebrates
Comparative structure of adrenal gland in vertebratesComparative structure of adrenal gland in vertebrates
Comparative structure of adrenal gland in vertebrates

SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdfSCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdf

EY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptxEY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptx

Hemostasis_importance& clinical significance.pptx
Hemostasis_importance& clinical significance.pptxHemostasis_importance& clinical significance.pptx
Hemostasis_importance& clinical significance.pptx

Penicillin...........................pptx
Penicillin...........................pptxPenicillin...........................pptx
Penicillin...........................pptx

filosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptxfilosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptx

ESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptxESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptx

Lab report on liquid viscosity of glycerin
Lab report on liquid viscosity of glycerinLab report on liquid viscosity of glycerin
Lab report on liquid viscosity of glycerin

Lateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensiveLateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensive


BIOREACTORS OR FERMENTERS

  • 1. BIOREACTORS OR FERMENTERS AND THEIR TYPES AND PARTS
  • 2. BIOREACTORS  A Bioreactor may refer to any manufactured or engineered device or system that supports a biologically active environment. For eg., Temp, pH, dissolved O2 etc.  A bioreactor is a vessel in which a chemical process is carried out which involves organisms or biochemically active substances derived from such organisms. This process can either be aerobic or anaerobic.  It is a containment system designed to give right environment for optimal growth and metabolic activity of the organism.
  • 3. THE ROLE OF BIOREACTORS IN BIOTECHNOLOGY  To reach its necessary goals, the biotechnological process has usually 3 major stages:  1. Preparation of nutrient media for the cultivated microorganism and the cultivation process;  2.The course of the microorganism reproduction process in bioreactors (called also fermenters) or in other equipment;  3. Obtaining of the final product or substance from the cultivated medium. This stage includes operations such as separation, purification and other technologies, which are connected with obtaining the commodity form.
  • 4. HOW A TYPICAL BIOREACTOR LOOKS LIKE?
  • 5.
  • 6. DIFFERENT PARTS OF A TYPICAL BIOREACTOR  MOTOR  ANTIFOAM  ACID/ BASE  PRESSURE/ GAUGE  STEAM  NUTRIENT/ INOCULANT  FILTERED WASTE GAS  IMPELLERS / AGITATORS  COLD WATER INLET
  • 7.  COLD WATER OUTLET  pH PROBE  TEMPERATURE PROBE  SPARGER  COMPRESSED AIR  HARVEST PIPE  STEAM  COOLING JACKET  OXYGEN CONCENTRATION PROBE  STERILE NUTRIENT MEDIUM
  • 8. SPECIFICATIONS OF A BIOREACTOR  A typical bioreactor consists of following parts:  Agitator – used for the mixing of the contents of the reactor which keeps the ―cells‖ in the perfect homogenous condition for better transport of nutrients and oxygen to the desired products.  Baffle – used to break the vortex formation in the vessel, which is usually highly undesirable as it changes the center of gravity of the system and consumes additional power.
  • 9. Sparger – In aerobic cultivation process, the purpose of the sparger is to supply adequate oxygen to the growing cells. Jacket – The jacket provides the annular area for circulation of constant temperature of water which keeps the temperature of the bioreactor at a constant value
  • 10. MODELLING OF BIO-REACTOR  Mathematical models act as an important tool in various bio-reactor applications including wastewater treatment.  These models are useful for planning efficient process control strategies and predicting the future plant performance.  Moreover, these models are beneficial in education and research areas.
  • 11.  Bioreactors are generally used in those industries which are concerned with food, beverages and pharmaceuticals.  The emergence of Biochemical engineering is of recent origin.  Processing of biological materials using biological agents such as cells, enzymes or antibodies are the major pillars of biochemical engineering.  Applications of biochemical engineering cover major fields of civilization such as agriculture, food and healthcare, resource recovery and fine chemicals.
  • 12. OPERATIONAL STAGES IN A BIO- PROCESS  A bioprocess is composed mainly of three stages —  Upstream processing,  Bio-reaction, and  Downstream processing — to convert raw material to finished product.
  • 13. STEP – 1  The raw material can be of biological or non-biological origin.  It is first converted to more suitable form for processing.  This is done in upstream processing step which involves chemical hydrolysis, preparation of liquid medium, separation of particulate, air purification and many other preparatory operations.
  • 14. STEP – 2  After upstream processing step, the resulting feed is transferred to one or more Bio-reaction stages.  The Biochemical reactors or bioreactors form the base of the Bio-reaction step.  This step is mainly consists of three operations namely, production of biomass, metabolize biosynthesis and biotransformation.
  • 15. STEP – 3  Finally, the material produced in the bioreactor must be further processed in the downstream section to convert it into more useful form.  The downstream process is mainly consists of physical separation operations which includes, solid liquid separation, adsorption, liquid-liquid extraction, distillation, drying etc.
  • 16. TYPES OF BIOREACTORS  1. Continuous Stirred Tank Bioreactors  2. Bubble Column Bioreactors  3. Airlift Bioreactors  4. Fluidized Bed Bioreactors  5. Packed Bed Bioreactors  6. Photo-Bioreactors  7. Membrane Bioreactors  8. Rotary- Drum Bioreactors  9. Mist Bioreactors
  • 17. GENERAL STRUCTURE OF A CONTINUOUS STIRRED- TANK TYPE BIOREACTOR
  • 18. CONTINUOUS STIRRED TANK BIOREACTORS  It consists of a cylindrical vessel with motor driven central shaft that supports one or more agitators (impellers).  The shaft is fitted at the bottom of the bioreactor.  The number of impellers is variable and depends on the size of the bioreactor i.e., height to diameter ratio, referred to as aspect ratio.
  • 19.  The aspect ratio of a stirred tank bioreactor is usually between 3-5. However, for animal cell culture applications, the aspect ratio is less than 2.  The diameter of the impeller is usually 1/3rd of the vessel diameter.  The distance between two impellers is approximately 1.2 impeller diameter.  Different types of impellers (Rustom disc, concave bladed, marine propeller etc.) are in use.
  • 20.  In stirred tank bioreactors or in short stirred tank reactors (STRs), the air is added to the culture medium under pressure through a device called sparger.  The sparger may be a ring with many holes or a tube with a single orifice.  The sparger along with impellers (agitators) enables better gas distribution system throughout the vessel.  The bubbles generated by sparger are broken down to smaller ones by impellers and dispersed throughout the medium.  This enables the creation of a uniform and homogeneous environment throughout the bioreactor.
  • 21. ADVANTAGES OF STIRRED TANK BIOREACTOR  Efficient gas transfer to growing cells  Good mixing of the contents and flexible operating conditions.  Continuous operation.  Good temperature control.  Easily adapts to two phase runs.  Good control.  Simplicity of construction.  Low operating cost.  Easy to clean.  Easy commercial availability.
  • 22. DISADVANTAGES OF STIRRED TANK BIOREACTOR  The need for shaft seals and bearings.  Size limitation by motor size, shaft length & weight.
  • 23. GENERAL STRUCTURE OF A BUBBLE COLUMN BIOREACTOR
  • 24. BUBBLE COLUMN BIOREACTORS  In the bubble column bioreactor, the air or gas is introduced at the base of the column through perforated pipes or plates, or metal micro porous spargers.  The flow rate of the air/gas influences the performance factors —O2 transfer, mixing.
  • 25.  The bubble column bioreactors may be fitted with perforated plates to improve performance.  The vessel used for bubble column bioreactors is usually cylindrical with an aspect ratio of 4-6 (i.e., height to diameter ratio).
  • 26. ADVANTAGES OF BUBBLE COLUMN BIOREACTORS  Used in production of Baker’s yeast, beer and vinegar.  Also used in aeration and treatment of wastewater.  In bubble columns, the hydrodynamics as well as the mass transfer depend on the size of bubbles and how they are released from the sparger.
  • 27. DISADVANTAGES OF BUBBLE COLUMN BIOREACTORS  Lack of moving parts and compactness.  Bubble columns are still not well understood due to the fact that most of these studies are often oriented on only one phase, i.e. either liquid or gas.
  • 28. GENERAL STRUCTURE OF A AIR- LIFT BIOREACTOR
  • 29. AIRLIFT BIOREACTORS  In the airlift bioreactors, the medium of the vessel is divided into two interconnected zones by means of a baffle or draft tube.  In one of the two zones referred to a riser, the air/gas is pumped. The other zone that receives no gas is the down comer.  The dispersion flows up the riser zone while the down flow occurs in the down comer.
  • 30. SCHEMATIC OF AIRLIFT BIOREACTOR WITH (a) External recirculation (b) Internal recirculation
  • 31. TYPES OF AIRLIFT BIOREACTORS  There are two types of airlift bioreactors:  A) Internal-loop airlift bioreactor: has a single container with a central draft tube that creates interior liquid circulation channels.  These bioreactors are simple in design, with volume and circulation at a fixed rate for fermentation.
  • 32.  B) External loop airlift bioreactor: possesses an external loop so that the liquid circulates through separate independent channels.  These reactors can be suitably modified to suit the requirements of different fermentations.  In general, the airlift bioreactors are more efficient than bubble columns, particularly for more denser suspensions of microorganisms.  This is mainly because in these bioreactors, the mixing of the contents is better compared to bubble columns.
  • 33. TWO-STAGE AIRLIFT BIOREACTORS  Two-stage airlift bioreactors are used for the temperature dependent formation of products.  Growing cells from one bioreactor (maintained at temperature 30°C) are pumped into another bioreactor (at temperature 42°C).
  • 34.  There is a necessity for the two-stage airlift bioreactor, since it is very difficult to raise the temperature quickly from 30°C to 42°C in the same vessel.  Each one of the bioreactors is fitted with valves and they are connected by a transfer tube and pump.  The cells are grown in the first bioreactor and the bioprocess proper takes place in the second reactor.
  • 35. TOWER BIOREACTORS  A pressure-cycle fermenter with large dimensions constitutes a tower bioreactor.  A high hydrostatic pressure generated at the bottom of the reactor increases the solubility of O2 in the medium.
  • 36.  At the top of the riser, (with expanded top) reduces pressure and facilitates expulsion of CO2.  The medium flows back in the down comer and completes the cycle.  The advantage with tower bioreactor is that it has high aeration capacities without having moving parts.
  • 37. AIRLIFT BIOREACTORS APPLICATION  Airlift bioreactors are commonly employed for aerobic bioprocessing technology.  They ensure a controlled liquid flow in a recycle system by pumping.  Due to high efficiency, airlift bioreactors are sometimes preferred e.g., methanol production, waste water treatment, single-cell protein production.  In general, the performance of the airlift bioreactors is dependent on the pumping (injection) of air and the liquid circulation.
  • 38. ADVANTAGES OF AIRLIFT FERMENTER  Simple design  Easier sterilization (no agitator shaft parts). Since there is no agitation, sterility is easily maintained.  Low Energy requirement vs stirred tank.  Greater heat-removal vs stirred tank.  Very low cost.
  • 39.  Low shear, which means it can be used for plant and animal cells.  In a large vessel, the height of the liquid can be as high as 60m, the pressure at the bottom of the vessel will increase the oxygen solubility, thus increase the mass transfer.  Extremely large vessel can be constructed.
  • 40. DISADVANTAGES OF AIRLIFT FERMENTER  Greater air throughput and higher pressures needed.  Inefficient break the foam when foaming occurs.  NO bubbles breaker  High capital cost with large scale vessel.  High energy cost.
  • 41.  Although an agitator is not required, a greater air throughput is necessary, and the air has to be at higher pressure, especially if large scale.  As the microorganism circulate through the bioreactor, the conditions change, and it is impossible to maintain consistent levels of carbon source, nutrients and oxygen throughout the vessel.  The separation of gas from the liquid is not very efficient when foam is present.  In the design of an airlift bioreactor, these disadvantages must be minimized.
  • 42. GENERAL STRUCTURE OF A FLUIDIZED – BED BIOREACTOR
  • 43. FLUIDIZED BED BIOREACTORS  Fluidized bed bioreactor is comparable to bubble column bioreactor except the top position is expanded to reduce the velocity of the fluid.  The design of the fluidized bioreactors (expanded top and narrow reaction column) is such that the solids are retained in the reactor while the liquid flows out.  For an efficient operation of fluidized beds, gas is spared to create a suitable gas-liquid-solid fluid bed.
  • 44.  These bioreactors are suitable for use to carry out reactions involving fluid suspended biocatalysts such as immobilized enzymes, immobilized cells, and microbial flocs.  It is also necessary to ensure that the suspended solid particles are not too light or too dense (too light ones may float whereas to dense ones may settle at the bottom), and they are in a good suspended state.  Recycling of the liquid is important to maintain continuous contact between the reaction contents and biocatalysts. • This enable good efficiency of bioprocessing.
  • 45. ADVANTAGES OF FLUIDIZED BED BIOREACTOR  Uniform Particle Mixing.  Uniform Temperature Gradients  Ability to Operate  Reactor in Continuous State
  • 46. DISADVANTAGES OF FLUIDIZED BED REACTOR  Increased Reactor Vessel Size  Pumping Requirements and Pressure Drop  Particle Entrainment  Lack of Current Understanding  Erosion of Internal Components  Pressure Loss Scenarios
  • 47. GENERAL STRUCTURE OF A PACKED BED BIOREACTORS
  • 48. PACKED BED BIOREACTORS  A bed of solid particles, with biocatalysts on or within the matrix of solids, packed in a column constitutes a packed bed.  The solids used may be porous or non- porous gels, and they may be compressible or rigid in nature.  A nutrient broth flows continuously over the immobilized biocatalyst.
  • 49.  The products obtained in the packed bed bioreactor are released into the fluid and removed.  While the flow of the fluid can be upward or downward, down flow under gravity is preferred.  The concentration of the nutrients (and therefore the products formed) can be increased by increasing the flow rate of the nutrient broth.
  • 50.  Because of poor mixing, it is rather difficult to control the pH of packed bed bioreactors by the addition of acid or alkali.  However, these bioreactors are preferred for bioprocessing technology involving product-inhibited reactions.  The packed bed bioreactors do not allow accumulation of the products to any significant extent.
  • 51. ADVANTAGES OF PACKED BED REACTOR  Higher conversion per unit mass of catalyst than other catalytic reactors.  Low operating cost.  Continuous operation and no moving parts to wear out.  Catalyst stays in the reactor.  Reaction mixture/catalyst separation is easy.  Effective at high temperatures and pressures.
  • 52. DISADVANTAGES OF PACKED BED REACTOR  Undesired heat gradients  Poor temperature control  Difficult to clean  Difficult to replace catalyst  Undesirable side reactions
  • 53. PHOTO-BIOREACTORS  These are the bioreactors specialized for fermentation that can be carried out either by exposing to sunlight or artificial illumination.  Since artificial illumination is expensive, only the outdoor photo-bioreactors are preferred.  Certain important compounds are produced by employing photo-bioreactors e.g., p-carotene, asthaxanthin.
  • 54. DIFFERENT TYPES OF PHOTO – BIOREACTORS Continuous run tubular loop Flat panel configuration Helical wound tubular loop Multiple parallel tube
  • 55.  They are made up of glass or more commonly transparent plastic.  The array of tubes or flat panels constitute light receiving systems (solar receivers).  The culture can be circulated through the solar receivers by methods such as using centrifugal pumps or airlift pumps.  It is essential that the cells are in continuous circulation without forming sediments.
  • 56.  Further adequate penetration of sunlight should be maintained.  The tubes should also be cooled to prevent rise in temperature.  Photo-bioreactors are usually operated in a continuous mode at a temperature in the range of 25- 40°C. Microalgae and cyanobacteria are normally used.  The organisms grow during day light while the products are produced during night.
  • 57. ADVANTAGES OF PHOTO-BIOREACTOR  Higher productivity  Large surface-to-volume ratio.  Better control of gas transfer.  Reduction in evaporation of growth medium.  More uniform temperature.
  • 58. DISADVANTAGES OF PHOTO – BIOREACTOR  Capital cost is very high.  The productivity and production cost in some enclosed photo-bioreactor systems are not much better than those achievable in open-pond cultures.  The technical difficulty in sterilizing
  • 59. GENERAL STRUCTURE OF A MEMBRANE BIOREACTORS
  • 60. MEMBRANE BIOREACTORS  A membrane reactor is a flow reactor within which membranes are used to separate cells or enzymes from the feed or product streams.  Usually a continuous system.  Products may also be removed continuously, but in some applications they must be harvested intermittently or at the end of the run.
  • 61.  Polymeric microfiltration (0.1 – 5 μm) or ultrafiltration (20 – Å) membranes are most commonly used.  Membranes are obtained in hollow-fiber or flat sheet form.  Application in enzymatic reaction, production of primary and secondary metabolites by microorganisms and plant cells, generation of antibodies by mammalian cells.
  • 62. ADVANTAGES OF MEMBRANE REACTORS  A consequence of the retention of cells or enzymes within the reactors.  This allows the reactors to be continuously perfused without worrying about washout.  Membrane also provide an in-situ separation of the cells or enzymes from the product. The loss of enzyme is reduced.  Compared to immobilization technique, no chemical agents or harsh conditions are employed.  Enzyme lost by denaturation can be made up by periodic addition of enzyme.  Substrate and enzyme can be easily replaced.
  • 63. DISADVANTAGES OF MEMBRANE REACTORS  Cells and enzymes entrapped within membrane reactors are subject to diffusion and convection that can render their distribution heterogeneous.  An uneven flow distribution among the various channels in a membrane reactor can have significant effect.
  • 64. GENERAL STRUCTURE OF A ROTARY DRUM BIOREACTORS
  • 65. ROTARY- DRUM BIOREACTORS  In this bioreactor only 40 % cylindrical drum is filled with nutrients and rotated by means of rollers or motor.  They are equipped with an inlet and outlet for circulation of humidified air and often contain baffles to agitate the contents.
  • 66. ADVANTAGES OF ROTARY DRUM REACTOR  High oxygen transfer.  Good mixing facilitates better growth and impart less hydrodynamic stress
  • 67. DISADVANTAGES OF ROTARY DRUM REACTOR  Difficult to scale up.
  • 68. GENERAL STRUCTURE OF A MIST BIOREACTORS
  • 69.  Three types of ultrasonic mist reactors:  The mist generator and the growth chamber are in separate vessels.  (A) Mist generator and growth chamber are in the same vessel.  (B) The transducer is separated from autoclaved components by an acoustic window.  (C) Direction of mist movement is indicated by arrows.
  • 70. MIST BIOREACTORS  Mist bioreactors is type of reactor that when liquid is dispersed into the gas phase.  Liquid dispersion can be achieved using a different methods including a spinning disk, a compressed gas atomizer, or an ultrasonic droplet generator.  The mist bioreactor also use the ultrasonic transducer.
  • 71.  The transducer energy can affect the mean droplet diameter which depends on the density the surface tension of the liquid and the transducer frequency.  The mist bioreactor system consists of a glass vessel with stainless steel upper and lower lids. The vessel itself stands vertically on four legs.  Gas inlet/outlet ports are located on the bioreactors upper lid.
  • 72. ADVANTAGES OF MIST BIOREACTOR  High oxygen transfer.  Hydrodynamic stress elimination.  Low production cost.
  • 73. DISADVANTAGES OF MIST BIOREACTOR  Mesh trays and cylindrical stainless steel meshes are required
