1. TOPIC 2
BASICS RADIOBIOLOGY FOR
RADIOTHERAPY
(2 hours)
122/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

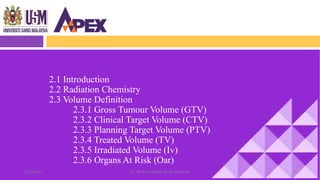

2. 2.1 Introduction
2.2 Radiation Chemistry
2.3 Volume Definition
2.3.1 Gross Tumour Volume (GTV)
2.3.2 Clinical Target Volume (CTV)
2.3.3 Planning Target Volume (PTV)
2.3.4 Treated Volume (TV)
2.3.5 Irradiated Volume (Iv)
2.3.6 Organs At Risk (Oar)
222/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

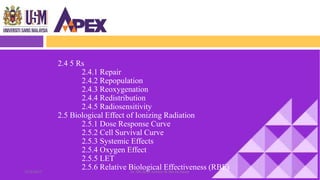

3. 2.4 5 Rs
2.4.1 Repair
2.4.2 Repopulation
2.4.3 Reoxygenation
2.4.4 Redistribution
2.4.5 Radiosensitivity

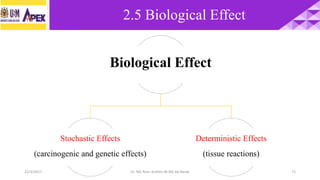

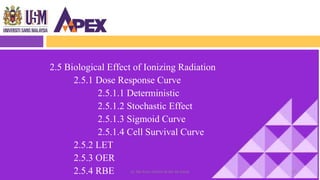

2.5 Biological Effect of Ionizing Radiation
2.5.1 Dose Response Curve
2.5.2 Cell Survival Curve
2.5.3 Systemic Effects

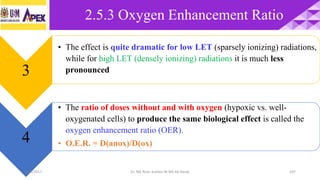

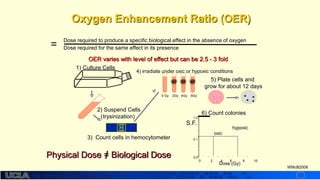

2.5.4 Oxygen Effect
2.5.5 LET

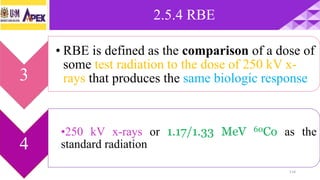

2.5.6 Relative Biological Effectiveness (RBE) 322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

4. 2.1 Introduction
422/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

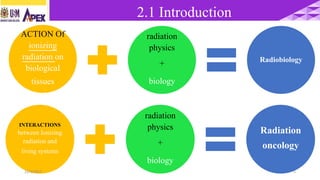

5. INTERACTIONS
between Ionizing
radiation and
living systems
radiation
physics
+
biology
Radiation
oncology
2.1 Introduction
522/3/2017
ACTION Of
ionizing
radiation on
biological
tissues
radiation
physics
+
biology
Radiobiology

6. 2.1 Introduction
622/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak
Radiobiology allows the
optimization of a radiotherapy
schedule for individual patients
in regards to:
Total dose and
number of fractions
Overall time of the
radiotherapy
course
Tumour control
probability (TCP) and
normal tissue
complication
probability (NTCP)

7. 2.2 Radiation Chemistry
722/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

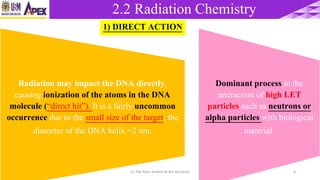

8. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 8
2.2 Radiation Chemistry

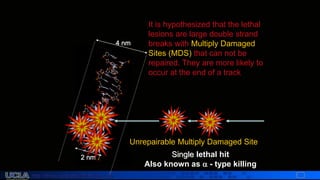

Radiation may impact the DNA directly,
causing ionization of the atoms in the DNA
molecule (“direct hit”). It is a fairly uncommon
occurrence due to the small size of the target; the
diameter of the DNA helix =2 nm.
Dominant process in the
interaction of high LET
particles such as neutrons or
alpha particles with biological
material.
1) DIRECT ACTION

9. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 9
2) INDIRECT ACTION
2.2 Radiation Chemistry
The radiation interacts
with non-critical target
atoms or molecules,
usually water.
This results in the
production of free
radicals, which are atoms
or molecules that have an
unpaired electron and
thus are highly reactive
These free radicals can
then attack critical targets
such as the DNA. Damage
from indirect action is
much more common than
damage from direct action

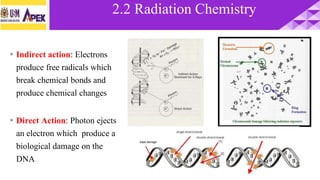

10. • Indirect action: Electrons
produce free radicals which
break chemical bonds and
produce chemical changes
• Direct Action: Photon ejects
an electron which produce a
biological damage on the
DNA
2.2 Radiation Chemistry

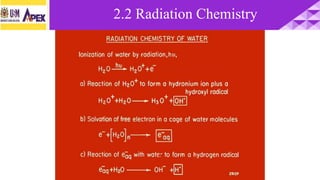

11. 2.2 Radiation Chemistry

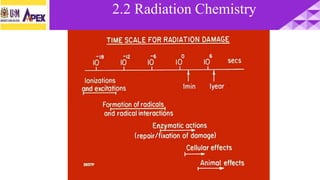

12. 2.2 Radiation Chemistry

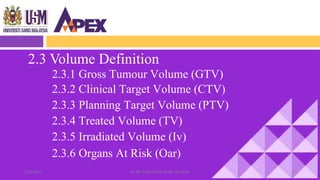

13. 2.3 Volume Definition
2.3.1 Gross Tumour Volume (GTV)
2.3.2 Clinical Target Volume (CTV)
2.3.3 Planning Target Volume (PTV)
2.3.4 Treated Volume (TV)
2.3.5 Irradiated Volume (Iv)
2.3.6 Organs At Risk (Oar)
1322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

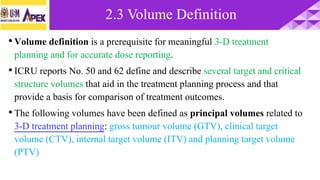

14. •Volume definition is a prerequisite for meaningful 3-D treatment
planning and for accurate dose reporting.
•ICRU reports No. 50 and 62 define and describe several target and critical
structure volumes that aid in the treatment planning process and that
provide a basis for comparison of treatment outcomes.
•The following volumes have been defined as principal volumes related to
3-D treatment planning: gross tumour volume (GTV), clinical target
volume (CTV), internal target volume (ITV) and planning target volume
(PTV)
2.3 Volume Definition

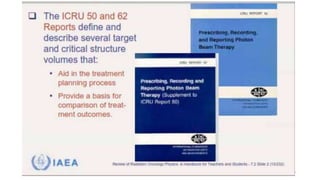

15. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 15

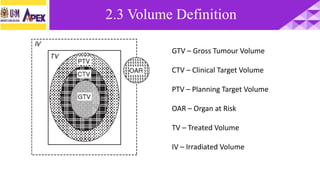

16. GTV – Gross Tumour Volume
CTV – Clinical Target Volume
PTV – Planning Target Volume
OAR – Organ at Risk
TV – Treated Volume
IV – Irradiated Volume
2.3 Volume Definition

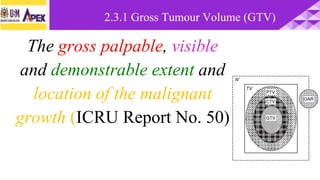

17. The gross palpable, visible
and demonstrable extent and
location of the malignant
growth (ICRU Report No. 50)
2.3.1 Gross Tumour Volume (GTV)

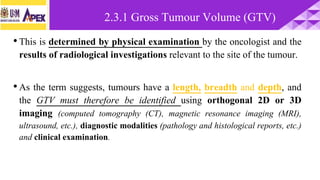

18. •This is determined by physical examination by the oncologist and the
results of radiological investigations relevant to the site of the tumour.
•As the term suggests, tumours have a length, breadth and depth, and
the GTV must therefore be identified using orthogonal 2D or 3D
imaging (computed tomography (CT), magnetic resonance imaging (MRI),
ultrasound, etc.), diagnostic modalities (pathology and histological reports, etc.)
and clinical examination.
2.3.1 Gross Tumour Volume (GTV)

19. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 19
Gross Tumour Volume (GTV)
– Gross palpable or visible/demonstrable
extent and location of tumour
GTV

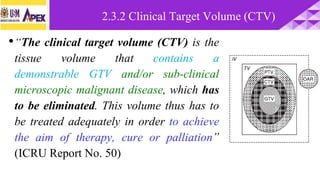

20. •“The clinical target volume (CTV) is the
tissue volume that contains a
demonstrable GTV and/or sub-clinical
microscopic malignant disease, which has
to be eliminated. This volume thus has to
be treated adequately in order to achieve
the aim of therapy, cure or palliation”
(ICRU Report No. 50)
2.3.2 Clinical Target Volume (CTV)

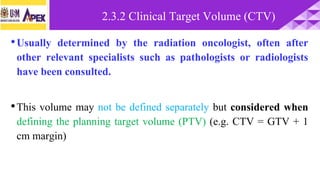

21. •Usually determined by the radiation oncologist, often after
other relevant specialists such as pathologists or radiologists
have been consulted.
•This volume may not be defined separately but considered when
defining the planning target volume (PTV) (e.g. CTV = GTV + 1
cm margin)
2.3.2 Clinical Target Volume (CTV)

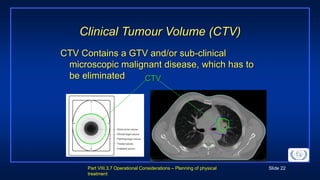

22. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 22
Clinical Tumour Volume (CTV)
CTV Contains a GTV and/or sub-clinical
microscopic malignant disease, which has to
be eliminated CTV

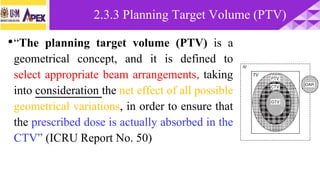

23. •“The planning target volume (PTV) is a
geometrical concept, and it is defined to
select appropriate beam arrangements, taking
into consideration the net effect of all possible
geometrical variations, in order to ensure that
the prescribed dose is actually absorbed in the
CTV” (ICRU Report No. 50)
2.3.3 Planning Target Volume (PTV)

24. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 24

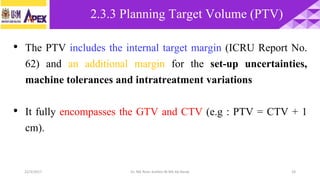

• The PTV includes the internal target margin (ICRU Report No.
62) and an additional margin for the set-up uncertainties,
machine tolerances and intratreatment variations
• It fully encompasses the GTV and CTV (e.g : PTV = CTV + 1
cm).
2.3.3 Planning Target Volume (PTV)

25. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 25

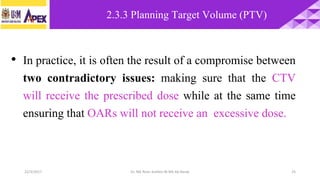

• In practice, it is often the result of a compromise between
two contradictory issues: making sure that the CTV
will receive the prescribed dose while at the same time
ensuring that OARs will not receive an excessive dose.
2.3.3 Planning Target Volume (PTV)

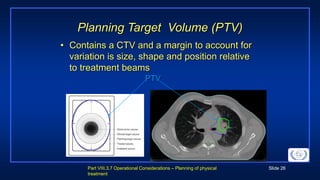

26. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 26
Planning Target Volume (PTV)
• Contains a CTV and a margin to account for
variation is size, shape and position relative
to treatment beams
PTV

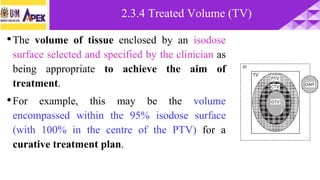

27. •The volume of tissue enclosed by an isodose
surface selected and specified by the clinician as
being appropriate to achieve the aim of
treatment.
•For example, this may be the volume
encompassed within the 95% isodose surface
(with 100% in the centre of the PTV) for a
curative treatment plan.
2.3.4 Treated Volume (TV)

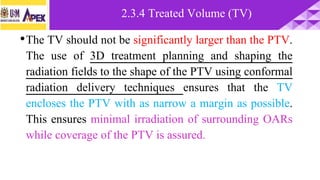

28. •The TV should not be significantly larger than the PTV.
The use of 3D treatment planning and shaping the
radiation fields to the shape of the PTV using conformal
radiation delivery techniques ensures that the TV
encloses the PTV with as narrow a margin as possible.
This ensures minimal irradiation of surrounding OARs
while coverage of the PTV is assured.
2.3.4 Treated Volume (TV)

29. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 29
Treated volume
Treated volume – Volume enclosed by an isodose
surface selected as appropriate to achieve purpose
of treatment
Treated Volume

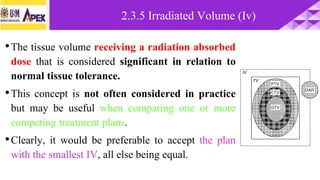

30. •The tissue volume receiving a radiation absorbed
dose that is considered significant in relation to
normal tissue tolerance.
•This concept is not often considered in practice
but may be useful when comparing one or more
competing treatment plans.
•Clearly, it would be preferable to accept the plan
with the smallest IV, all else being equal.
2.3.5 Irradiated Volume (Iv)

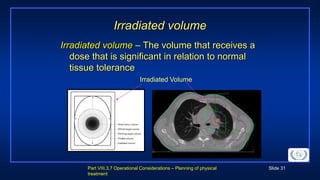

31. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 31
Irradiated volume
Irradiated volume – The volume that receives a
dose that is significant in relation to normal
tissue tolerance
Irradiated Volume

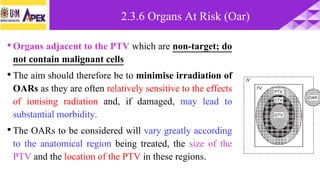

32. •Organs adjacent to the PTV which are non-target; do
not contain malignant cells
•The aim should therefore be to minimise irradiation of
OARs as they are often relatively sensitive to the effects
of ionising radiation and, if damaged, may lead to
substantial morbidity.
•The OARs to be considered will vary greatly according
to the anatomical region being treated, the size of the
PTV and the location of the PTV in these regions.
2.3.6 Organs At Risk (Oar)

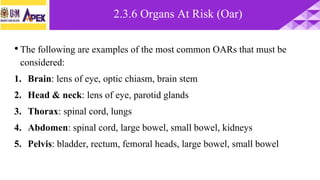

33. •The following are examples of the most common OARs that must be
considered:
1. Brain: lens of eye, optic chiasm, brain stem
2. Head & neck: lens of eye, parotid glands
3. Thorax: spinal cord, lungs
4. Abdomen: spinal cord, large bowel, small bowel, kidneys
5. Pelvis: bladder, rectum, femoral heads, large bowel, small bowel
2.3.6 Organs At Risk (Oar)

34. Part VIII.3.7 Operational Considerations – Planning of physical
treatment
Slide 34

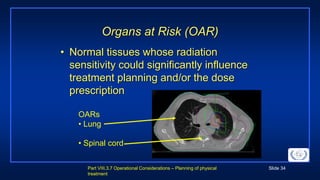

Organs at Risk (OAR)
• Normal tissues whose radiation
sensitivity could significantly influence
treatment planning and/or the dose
prescription
OARs
• Lung
• Spinal cord

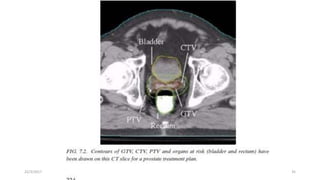

35. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 35

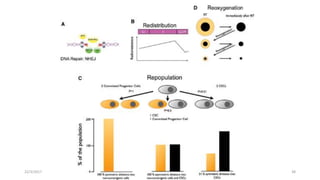

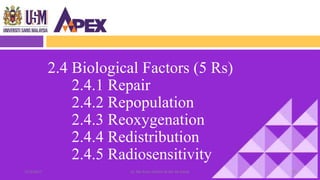

36. 2.4 Biological Factors (5 Rs)
2.4.1 Repair
2.4.2 Repopulation
2.4.3 Reoxygenation
2.4.4 Redistribution
2.4.5 Radiosensitivity
3622/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

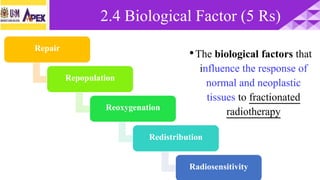

37. Repair
Repopulation
Reoxygenation
Redistribution
Radiosensitivity
•The biological factors that
influence the response of
normal and neoplastic
tissues to fractionated
radiotherapy
2.4 Biological Factor (5 Rs)

38. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 38

39. 2.4.1 Repair
3922/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

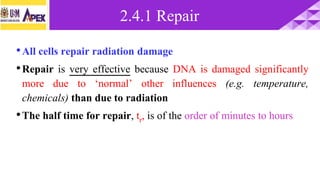

40. •All cells repair radiation damage
•Repair is very effective because DNA is damaged significantly
more due to ‘normal’ other influences (e.g. temperature,
chemicals) than due to radiation
•The half time for repair, tr, is of the order of minutes to hours
2.4.1 Repair

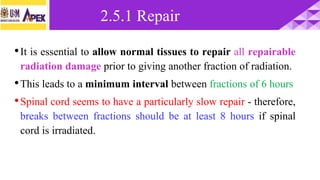

41. •It is essential to allow normal tissues to repair all repairable
radiation damage prior to giving another fraction of radiation.
•This leads to a minimum interval between fractions of 6 hours
•Spinal cord seems to have a particularly slow repair - therefore,
breaks between fractions should be at least 8 hours if spinal
cord is irradiated.
2.5.1 Repair

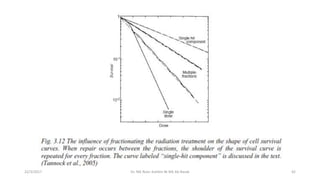

42. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 42

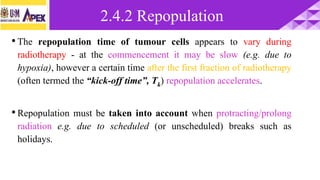

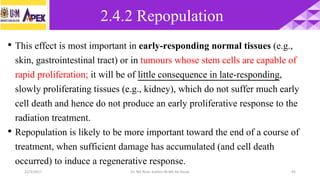

43. 2.4.2 Repopulation
4322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

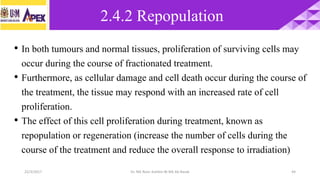

44. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 44
• In both tumours and normal tissues, proliferation of surviving cells may
occur during the course of fractionated treatment.
• Furthermore, as cellular damage and cell death occur during the course of
the treatment, the tissue may respond with an increased rate of cell
proliferation.
• The effect of this cell proliferation during treatment, known as
repopulation or regeneration (increase the number of cells during the
course of the treatment and reduce the overall response to irradiation)
2.4.2 Repopulation

45. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 45
• This effect is most important in early-responding normal tissues (e.g.,
skin, gastrointestinal tract) or in tumours whose stem cells are capable of
rapid proliferation; it will be of little consequence in late-responding,
slowly proliferating tissues (e.g., kidney), which do not suffer much early
cell death and hence do not produce an early proliferative response to the
radiation treatment.
• Repopulation is likely to be more important toward the end of a course of
treatment, when sufficient damage has accumulated (and cell death
occurred) to induce a regenerative response.
2.4.2 Repopulation

46. •The repopulation time of tumour cells appears to vary during
radiotherapy - at the commencement it may be slow (e.g. due to
hypoxia), however a certain time after the first fraction of radiotherapy
(often termed the “kick-off time”, Tk) repopulation accelerates.
•Repopulation must be taken into account when protracting/prolong
radiation e.g. due to scheduled (or unscheduled) breaks such as
holidays.
2.4.2 Repopulation

47. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 47

48. 2.4.3 Reoxygenation
4822/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

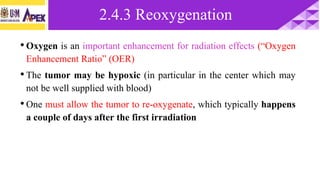

49. •Oxygen is an important enhancement for radiation effects (“Oxygen
Enhancement Ratio” (OER)
•The tumor may be hypoxic (in particular in the center which may
not be well supplied with blood)
•One must allow the tumor to re-oxygenate, which typically happens
a couple of days after the first irradiation
2.4.3 Reoxygenation

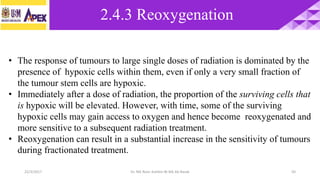

50. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 50
• The response of tumours to large single doses of radiation is dominated by the
presence of hypoxic cells within them, even if only a very small fraction of
the tumour stem cells are hypoxic.
• Immediately after a dose of radiation, the proportion of the surviving cells that
is hypoxic will be elevated. However, with time, some of the surviving
hypoxic cells may gain access to oxygen and hence become reoxygenated and
more sensitive to a subsequent radiation treatment.
• Reoxygenation can result in a substantial increase in the sensitivity of tumours
during fractionated treatment.
2.4.3 Reoxygenation

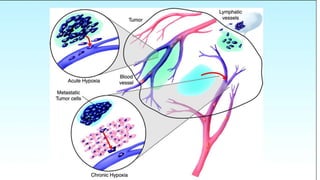

51. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 51

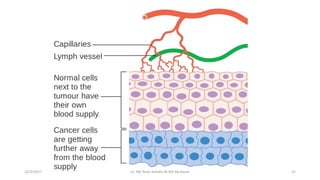

52. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 52

53. 2.4.4 Redistribution
5322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

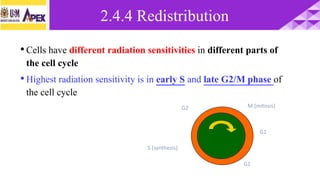

54. •Cells have different radiation sensitivities in different parts of
the cell cycle
•Highest radiation sensitivity is in early S and late G2/M phase of
the cell cycle
G1
G1
S (synthesis)
M (mitosis)G2
2.4.4 Redistribution

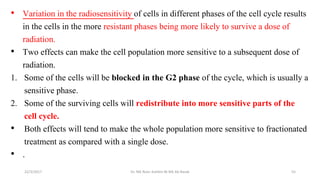

55. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 55
• Variation in the radiosensitivity of cells in different phases of the cell cycle results
in the cells in the more resistant phases being more likely to survive a dose of
radiation.
• Two effects can make the cell population more sensitive to a subsequent dose of
radiation.
1. Some of the cells will be blocked in the G2 phase of the cycle, which is usually a
sensitive phase.
2. Some of the surviving cells will redistribute into more sensitive parts of the
cell cycle.
• Both effects will tend to make the whole population more sensitive to fractionated
treatment as compared with a single dose.
• .

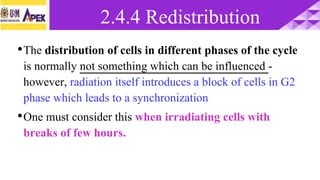

56. •The distribution of cells in different phases of the cycle
is normally not something which can be influenced -
however, radiation itself introduces a block of cells in G2
phase which leads to a synchronization
•One must consider this when irradiating cells with
breaks of few hours.
2.4.4 Redistribution

57. 2.4.5 Radiosensitivity
5722/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

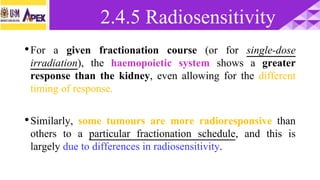

58. •For a given fractionation course (or for single-dose
irradiation), the haemopoietic system shows a greater
response than the kidney, even allowing for the different
timing of response.
•Similarly, some tumours are more radioresponsive than
others to a particular fractionation schedule, and this is
largely due to differences in radiosensitivity.
2.4.5 Radiosensitivity

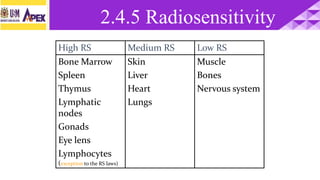

59. Muscle
Bones
Nervous system
Skin
Liver
Heart
Lungs
Bone Marrow
Spleen
Thymus
Lymphatic
nodes
Gonads
Eye lens
Lymphocytes
(exception to the RS laws)
Low RSMedium RSHigh RS
2.4.5 Radiosensitivity

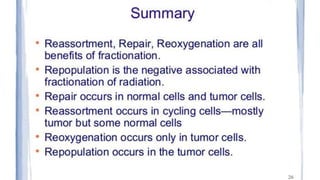

60. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 60

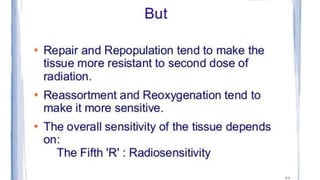

61. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 61

62. 2.5 Biological Effect of Ionizing Radiation
2.5.1 Dose Response Curve
2.5.1.1 Deterministic
2.5.1.2 Stochastic Effect
2.5.1.3 Sigmoid Curve
2.5.1.4 Cell Survival Curve
2.5.2 LET
2.5.3 OER
2.5.4 RBE 62Dr. Nik Noor Ashikin Bt Nik Ab Razak

63. 2.5 Biological Effect of Ionizing Radiation
6322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

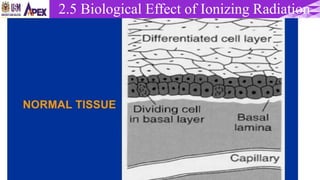

64. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 64
2.5 Biological Effect of Ionizing Radiation

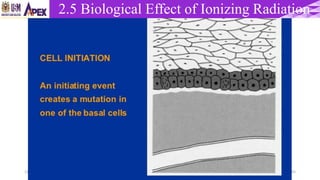

65. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 65
2.5 Biological Effect of Ionizing Radiation

66. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 66
2.5 Biological Effect of Ionizing Radiation

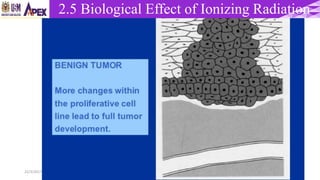

67. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 67
2.5 Biological Effect of Ionizing Radiation

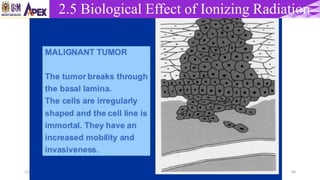

68. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 68
2.5 Biological Effect of Ionizing Radiation

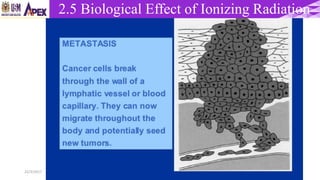

69. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 69
2.5 Biological Effect of Ionizing Radiation

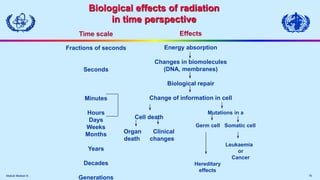

70. Module Medical IX. 70
Biological effects of radiation
in time perspective
Time scale
Fractions of seconds
Seconds
Minutes
Hours
Days
Weeks
Months
Years
Decades
Generations
Effects
Energy absorption
Changes in biomolecules
(DNA, membranes)
Biological repair
Change of information in cell
Cell death
Organ Clinical
death changes
Mutations in a
Germ cell Somatic cell
Leukaemia
or
Cancer
Hereditary
effects

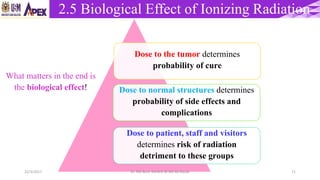

71. 2.5 Biological Effect of Ionizing Radiation
71
Dose to the tumor determines
probability of cure
Dose to normal structures determines
probability of side effects and
complications
Dose to patient, staff and visitors
determines risk of radiation
detriment to these groups
What matters in the end is
the biological effect!
22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak
2.5 Biological Effect of Ionizing Radiation

72. 2.5 Biological Effect
7222/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak
Biological Effect
Stochastic Effects
(carcinogenic and genetic effects)
Deterministic Effects
(tissue reactions)

73. 2.5.1 Dose Response Curve
7322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

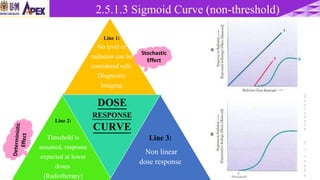

74. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 74
2.5.1.3 Sigmoid Curve (non-threshold)
DOSE
RESPONSE
CURVE
Line 3:
Non linear
dose response
Line 1:
No level of
radiation can be
considered safe.
Diagnostic
Imaging
Line 2:
Threshold is
assumed, response
expected at lower
doses.
(Radiotherapy)
Stochastic
Effect

75. 2.5.1.1 Deterministic Effect
7522/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

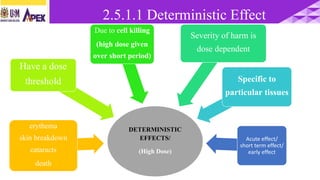

76. 2.5.1.1 Deterministic Effect
DETERMINISTIC
EFFECTS/
(High Dose)
erythema
skin breakdown
cataracts
death
Have a dose
threshold
Due to cell killing
(high dose given
over short period)
Severity of harm is
dose dependent
Specific to
particular tissues
Acute effect/
short term effect/
early effect

77. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 77

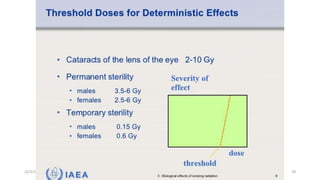

78. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 78

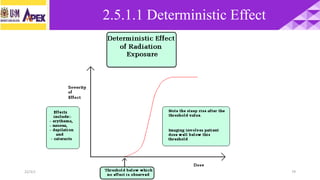

79. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 79
2.5.1.1 Deterministic Effect

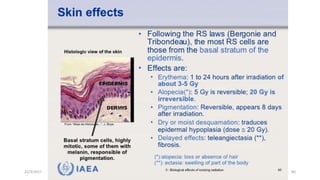

80. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 80

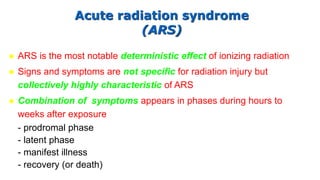

81. Acute radiation syndrome
(ARS)
 ARS is the most notable deterministic effect of ionizing radiation
 Signs and symptoms are not specific for radiation injury but
collectively highly characteristic of ARS
 Combination of symptoms appears in phases during hours to
weeks after exposure
- prodromal phase
- latent phase
- manifest illness
- recovery (or death)

82. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 82

83. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 83

84. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 84

85. 2.5.1.2 Stochastic Effect
8522/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

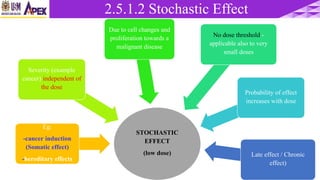

86. 2.5.1.2 Stochastic Effect
STOCHASTIC
EFFECT
(low dose)
Eg:
-cancer induction
(Somatic effect)
-hereditary effects
Severity (example
cancer) independent of
the dose
Due to cell changes and
proliferation towards a
malignant disease
No dose threshold -
applicable also to very
small doses
Probability of effect
increases with dose
Late effect / Chronic
effect)

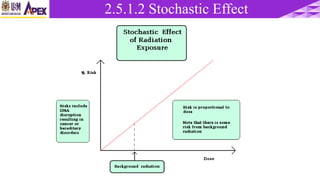

87. 2.5 Biological Effect2.5.1.2 Stochastic Effect

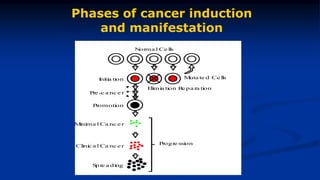

88. Phases of cancer induction
and manifestation
Initia tion Muta te d Cells
Elimia tion Re pa ra tion
Progre ssion
Pre-c a nce r
Norma l Cells
Promotion
Minima l Ca nc er
Clinic a l Ca ncer
Spre a ding

90. 2.5.1.3 Sigmoid Curve (non-threshold)
9022/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

91. Dose
Repairing cell
structures is still
possible
No repairing: a low dose
means a great damage
Practically all the cells are
dead
dose
2.5.1.3 Sigmoid Curve (non-threshold)

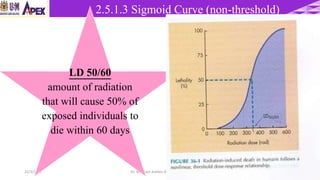

92. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 92
2.5.1.3 Sigmoid Curve (non-threshold)
LD 50/60
amount of radiation
that will cause 50% of
exposed individuals to
die within 60 days

93. 2.5.1.4 Cell Survival Curve
9322/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

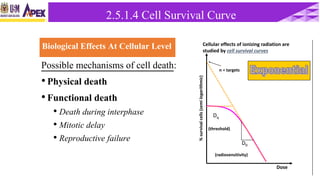

94. Biological Effects At Cellular Level
Possible mechanisms of cell death:
• Physical death
• Functional death
• Death during interphase
• Mitotic delay
• Reproductive failure
Cellular effects of ionizing radiation are
studied by cell survival curves
%survivalcells(semilogarithmic)
Dose
n = targets
Dq
D0
(threshold)
(radiosensitivity)
2.5.1.4 Cell Survival Curve

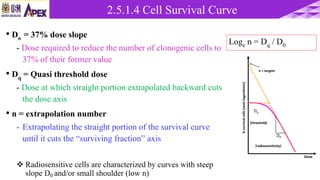

95. • Do = 37% dose slope
- Dose required to reduce the number of clonogenic cells to
37% of their former value
• Dq = Quasi threshold dose
- Dose at which straight portion extrapolated backward cuts
the dose axis
• n = extrapolation number
- Extrapolating the straight portion of the survival curve
until it cuts the “surviving fraction” axis
 Radiosensitive cells are characterized by curves with steep
slope D0 and/or small shoulder (low n)
Loge n = Dq / D0
%survivalcells(semilogarithmic)
Dose
n = targets
Dq
D0
(threshold)
(radiosensitivity)
2.5.1.4 Cell Survival Curve

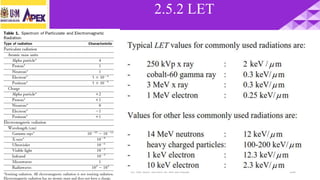

96. 2.5.2 LET
9622/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

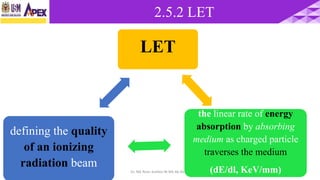

97. 2.5.2 LET
9722/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak
LET
the linear rate of energy
absorption by absorbing
medium as charged particle
traverses the medium
(dE/dl, KeV/mm)
defining the quality
of an ionizing
radiation beam

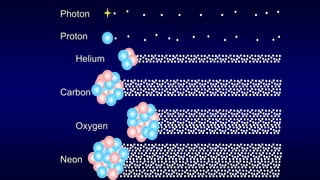

98. Photon
Proton
Helium
Carbon
Oxygen
Neon

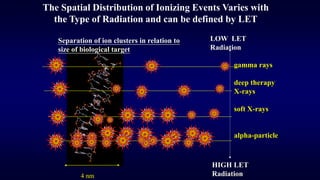

99. gamma rays
deep therapy
X-rays
soft X-rays
alpha-particle
HIGH LET
Radiation
LOW LET
Radiation
Separation of ion clusters in relation to
size of biological target
4 nm
The Spatial Distribution of Ionizing Events Varies with
the Type of Radiation and can be defined by LET

100. http://dmco.ucla.edu/McBride_Lab
WMcB2008

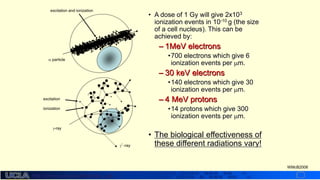

• A dose of 1 Gy will give 2x103
ionization events in 10-10 g (the size
of a cell nucleus). This can be
achieved by:
– 1MeV electrons
•700 electrons which give 6
ionization events per m.
– 30 keV electrons
•140 electrons which give 30
ionization events per m.
– 4 MeV protons
•14 protons which give 300
ionization events per m.
• The biological effectiveness of
these different radiations vary!
-ray
’-ray
excitation
ionization
 particle
excitation and ionization

101. http://dmco.ucla.edu/McBride_Lab
WMcB2008

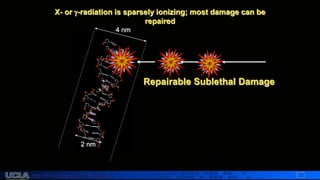

Repairable Sublethal Damage
X- or -radiation is sparsely ionizing; most damage can be
repaired
4 nm
2 nm

102. http://dmco.ucla.edu/McBride_Lab
WMcB2008
Single lethal hit
Also known as  - type killing
4 nm
2 nm
Unrepairable Multiply Damaged Site
It is hypothesized that the lethal
lesions are large double strand
breaks with Multiply Damaged
Sites (MDS) that can not be
repaired. They are more likely to
occur at the end of a track

103. http://dmco.ucla.edu/McBride_Lab
WMcB2008

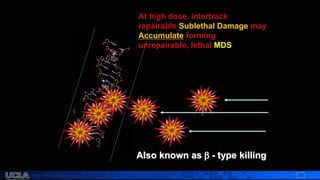

At high dose, intertrack
repairable Sublethal Damage may
Accumulate forming
unrepairable, lethal MDS
Also known as  - type killing

104. 22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak 104
2.5.2 LET

105. 2.5.3 Oxygen Enhancement Ratio
10522/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

106. 2.5.3 Oxygen Enhancement Ratio
106
1
• Oxygen is a powerful oxidizing agent and therefore acts as a
radiosensitizer if it is present at the time of irradiation (within msecs).
• Its effects are measured as the oxygen enhancement ratio (O.E.R.)
2
• The presence or absence of molecular oxygen within a cell influences
the biological effect of ionizing radiation: the larger the cell oxygenation
above anoxia, the larger is the biological effect until saturation of the
effect of oxygen occurs, especially for low LET radiations
22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

107. 2.5.3 Oxygen Enhancement Ratio
107
3
• The effect is quite dramatic for low LET (sparsely ionizing) radiations,
while for high LET (densely ionizing) radiations it is much less
pronounced
4
• The ratio of doses without and with oxygen (hypoxic vs. well-
oxygenated cells) to produce the same biological effect is called the
oxygen enhancement ratio (OER).
• O.E.R. = D(anox)/D(ox)
22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

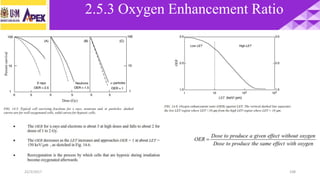

108. 22/3/2017 108
2.5.3 Oxygen Enhancement Ratio

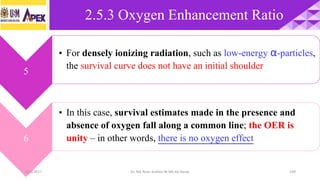

109. 2.5.3 Oxygen Enhancement Ratio
109
5
• For densely ionizing radiation, such as low-energy α-particles,
the survival curve does not have an initial shoulder
6
• In this case, survival estimates made in the presence and
absence of oxygen fall along a common line; the OER is
unity – in other words, there is no oxygen effect
22/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

110. http://dmco.ucla.edu/McBride_Lab
WMcB2008
Oxygen Enhancement Ratio (OER)
Dose required to produce a specific biological effect in the absence of oxygen
Dose required for the same effect in its presence=
OER varies with level of effect but can be 2.5 - 3 fold
1) Culture Cells
(
3) Count cells in hemocytometer
4) irradiate under oxic or hypoxic conditions
0 Gy 2Gy 4Gy 6Gy
5) Plate cells and
grow for about 12 days
. . .
.
.
.. .
6) Count colonies
Dose (Gy)
S.F.
0 2 4 6 8 10
1.0
0.1
0.01
oxic
hypoxic
Physical Dose = Biological Dose
2) Suspend Cells
trysinization)

111. http://dmco.ucla.edu/McBride_Lab
WMcB2008

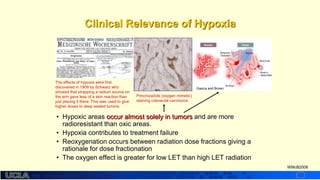

• Hypoxic areas occur almost solely in tumors and are more
radioresistant than oxic areas.
• Hypoxia contributes to treatment failure
• Reoxygenation occurs between radiation dose fractions giving a
rationale for dose fractionation
• The oxygen effect is greater for low LET than high LET radiation
Giacca and Brown
Pimonizadole (oxygen mimetic)
staining colorectal carcinoma
The effects of hypoxia were first
discovered in 1909 by Schwarz who
showed that strapping a radium source on
the arm gave less of a skin reaction than
just placing it there. This was used to give
higher doses to deep seated tumors.
Clinical Relevance of Hypoxia

112. 2.5.4 Relative Biological Effectiveness (RBE)
11222/3/2017 Dr. Nik Noor Ashikin Bt Nik Ab Razak

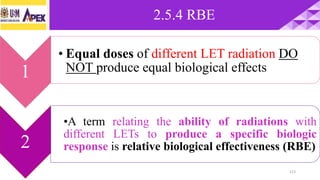

113. 2.5.4 RBE
113
1
• Equal doses of different LET radiation DO
NOT produce equal biological effects
2
•A term relating the ability of radiations with
different LETs to produce a specific biologic
response is relative biological effectiveness (RBE)

114. 2.5.4 RBE
114
3
• RBE is defined as the comparison of a dose of
some test radiation to the dose of 250 kV x-
rays that produces the same biologic response
4
•250 kV x-rays or 1.17/1.33 MeV 60Co as the
standard radiation

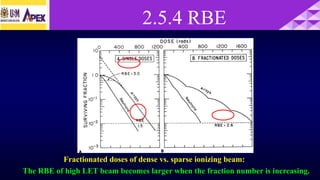

115. RBE is end-point dependent
Fractionated doses of dense vs. sparse ionizing beam:
The RBE of high LET beam becomes larger when the fraction number is increasing.
2.5.4 RBE

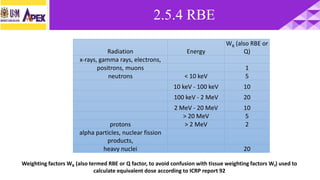

116. The ICRP 1991 standard values for
relative effectiveness
Radiation Energy
WR (also RBE or
Q)
x-rays, gamma rays, electrons,
positrons, muons 1
neutrons < 10 keV 5
10 keV - 100 keV 10
100 keV - 2 MeV 20
2 MeV - 20 MeV 10
> 20 MeV 5
protons > 2 MeV 2
alpha particles, nuclear fission
products,
heavy nuclei 20
Weighting factors WR (also termed RBE or Q factor, to avoid confusion with tissue weighting factors Wf) used to
calculate equivalent dose according to ICRP report 92
2.5.4 RBE

117. http://dmco.ucla.edu/McBride_Lab
WMcB2008

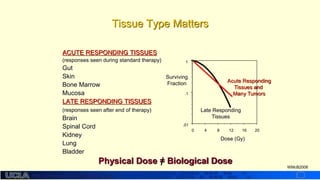

ACUTE RESPONDING TISSUES
(responses seen during standard therapy)
Gut
Skin
Bone Marrow
Mucosa
LATE RESPONDING TISSUES
(responses seen after end of therapy)
Brain
Spinal Cord
Kidney
Lung
Bladder
Tissue Type Matters
Dose (Gy)
Surviving
Fraction
2016128400
.01
.1
1
Late Responding
Tissues
Acute Responding
Tissues and
Many Tumors
Physical Dose = Biological Dose

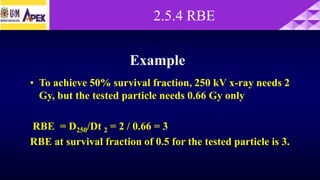

118. Example
• To achieve 50% survival fraction, 250 kV x-ray needs 2
Gy, but the tested particle needs 0.66 Gy only
RBE = D250/Dt 2 = 2 / 0.66 = 3
RBE at survival fraction of 0.5 for the tested particle is 3.
2.5.4 RBE

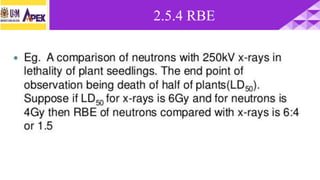

119. 2.5.4 RBE

120. http://dmco.ucla.edu/McBride_Lab
WMcB2008
Questions on
Interaction of Radiation with Biological Matter:
what is biological dose?
Bill McBride
Dept. Radiation Oncology
David Geffen School Medicine
UCLA, Los Angeles, Ca.
wmcbride@mednet.ucla.edu

121. http://dmco.ucla.edu/McBride_Lab
WMcB2008

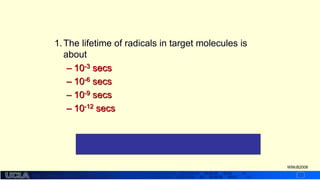

1.The lifetime of radicals in target molecules is
about
– 10-3 secs
– 10-6 secs
– 10-9 secs
– 10-12 secs
#2 – free radicals are highly unstable and reactive

122. http://dmco.ucla.edu/McBride_Lab
WMcB2008

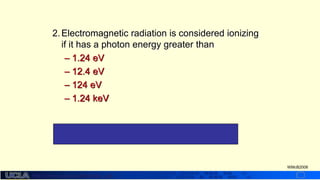

2.Electromagnetic radiation is considered ionizing
if it has a photon energy greater than
– 1.24 eV
– 12.4 eV
– 124 eV
– 1.24 keV
#3 – this is sufficient to break bonds in biological
molecules

123. http://dmco.ucla.edu/McBride_Lab
WMcB2008
3.The S.I. unit of absorbed dose is
– Becquerel
– Sievert
– Gray
– Roentgen
#3 The International System (IS) unit is the Gray, named
after the radiobiologist Louis “Hal” Gray who was based
in London

124. http://dmco.ucla.edu/McBride_Lab
WMcB2008
4.Which of the following are not charged
particles?
– Electrons
– Neutrons
– Protons
– Heavy ions
– Alpha particles
#2 – which is why they are called NEUTRons

125. http://dmco.ucla.edu/McBride_Lab
WMcB2008

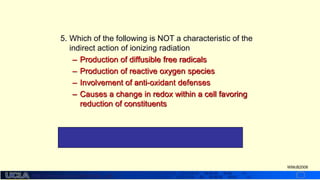

5. Which of the following is NOT a characteristic of the
indirect action of ionizing radiation
– Production of diffusible free radicals
– Production of reactive oxygen species
– Involvement of anti-oxidant defenses
– Causes a change in redox within a cell favoring
reduction of constituents
#4 the free radicals produced makes ionizing
radiation an oxidative stress overall

126. http://dmco.ucla.edu/McBride_Lab
WMcB2008

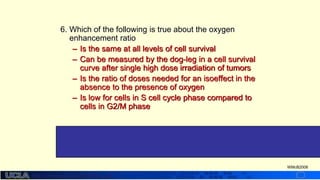

6. Which of the following is true about the oxygen
enhancement ratio
– Is the same at all levels of cell survival
– Can be measured by the dog-leg in a cell survival
curve after single high dose irradiation of tumors
– Is the ratio of doses needed for an isoeffect in the
absence to the presence of oxygen
– Is low for cells in S cell cycle phase compared to
cells in G2/M phase
#3 responses should be compared by the doses
needed for a particular isoeffect. The OER varies with
the level of effect eg survival

127. http://dmco.ucla.edu/McBride_Lab
WMcB2008

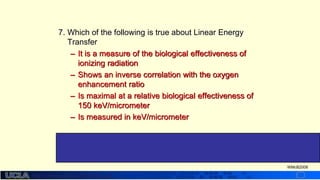

7. Which of the following is true about Linear Energy
Transfer
– It is a measure of the biological effectiveness of
ionizing radiation
– Shows an inverse correlation with the oxygen
enhancement ratio
– Is maximal at a relative biological effectiveness of
150 keV/micrometer
– Is measured in keV/micrometer
#4 LET is an average value imparted per unit path length.
Because the radiations vary in energy, the LET is not
biologically very useful

128. http://dmco.ucla.edu/McBride_Lab
WMcB2008
8.The Relative Biological Effectiveness of a
radiation is
– Assessed by the dose required for to
produce the same effect as 250kVp X-rays
– Is the ratio of the dose required of 250 kVp
X-rays to that of the test radiation for a given
isoeffect
– Is directly related to Linear Energy Transfer
– Is about 3 for alpha particle radiation
#2 - again, measured by isoeffective doses – classically
relative to 250kVp x-rays, but often more recently 60Co
has been used

129. http://dmco.ucla.edu/McBride_Lab
WMcB2008

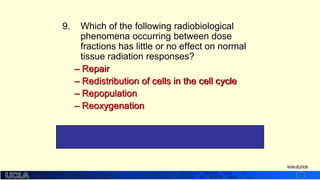

9. Which of the following radiobiological
phenomena occurring between dose
fractions has little or no effect on normal
tissue radiation responses?
– Repair
– Redistribution of cells in the cell cycle
– Repopulation
– Reoxygenation
#4 – Normal tissues are generally considered to be well
oxygenated
