1. Data structures
& algorithms
Basics: Part I
By Daniel Gomez-Prado
Sept 2012
Disclaimer: This tutorial may contain
errors, use it at your own discretion.
The slides were prepared for a class
review on basic data structures at
University of Massachusetts, Amherst.
http://www.dgomezpr.com

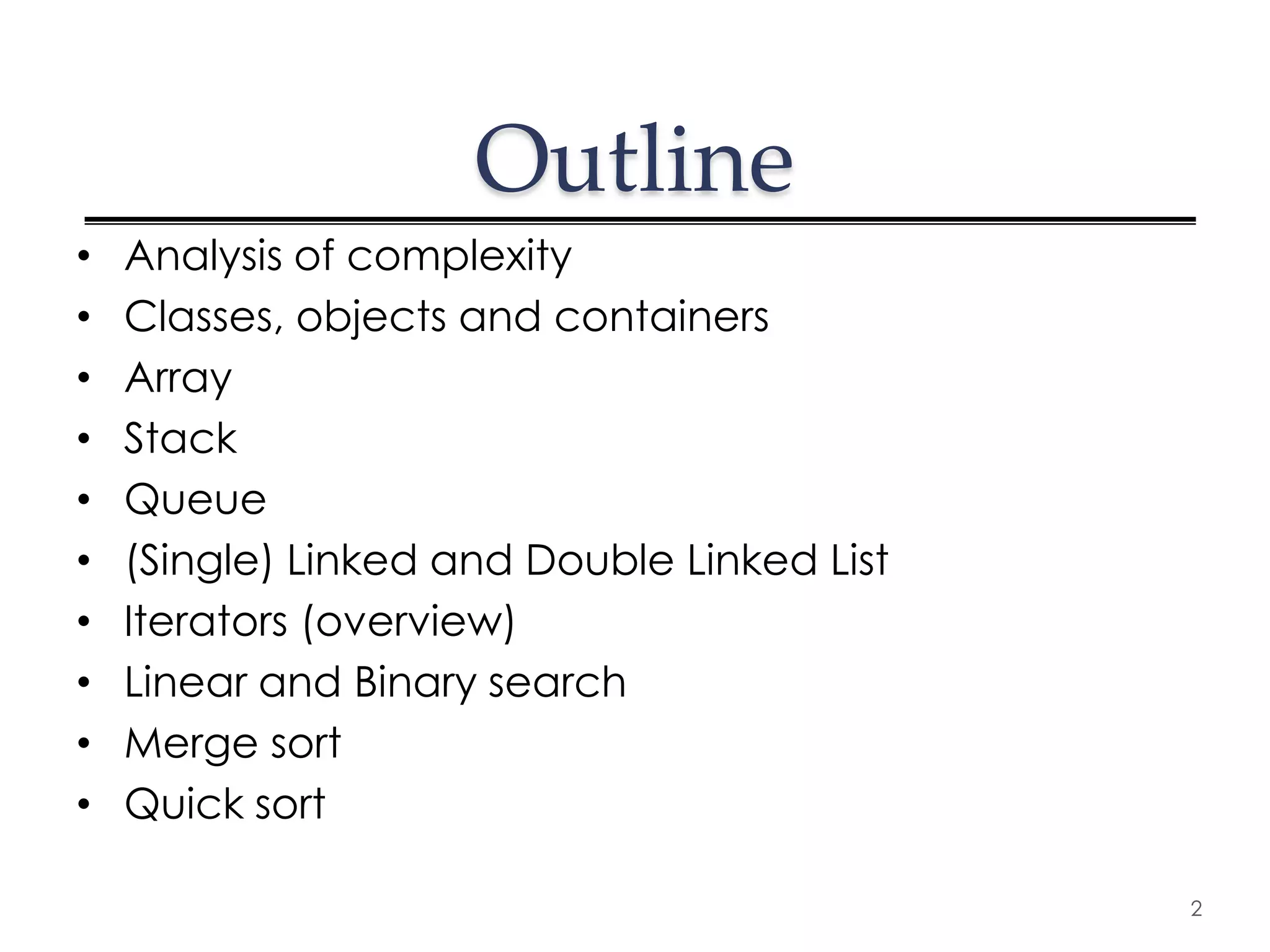

2. Outline
• Analysis of complexity
• Classes, objects and containers
• Array
• Stack
• Queue
• (Single) Linked and Double Linked List
• Iterators (overview)
• Linear and Binary search
• Merge sort
• Quick sort
2

3. Analysis big-Oh
Random access memory
Your program Memory
Import java.util.*
class review {
Static public main() {
// this is a review
// for ECE242 exam
}
}
• Assumptions:
o Unlimited memory
o All memory accesses takes 1 unit time
3

4. Analysis big-Oh
Random access memory
Your program Memory
Import java.util.*
class review {
Static public main() {
// this is a review
// for ECE242 exam
}
}
• Assumptions:
o Unlimited memory We have what we need: 1 Gb or 1,000 Tb
o All memory accesses takes 1 unit time
4

5. Analysis big-Oh
Random access memory
Your program Memory
Import java.util.*
class review {
Static public main() {
// this is a review
// for ECE242 exam
}
}
• Assumptions:
o Unlimited memory We have what we need: 1 Gb or 1,000 Tb
No hierarchical memory,
o All memory accesses takes 1 unit time
Cache, L1, L2, hard drive
5

6. Analysis big-Oh
Running time
PROGRAM OPERATIONS STEPS
int sum = 0; 1 assignment 1
for (i=0;i<128;i=++) i =1, 2, 3, 4 … 128 128
for (j = 128; j>0; j=j/2) j = 128,64,32,16,8,4,2,1 log2128+1
sum = sum + a[i][j]; 1 addition, 1 assignment 2
6

7. Analysis big-Oh
Running time
PROGRAM OPERATIONS STEPS
int sum = 0; 1 assignment 1
for (i=0;i<128;i=++) i =1, 2, 3, 4 … 128 128
for (j = 128; j>0; j=j/2) j = 128,64,32,16,8,4,2,1 log2128+1
sum = sum + a[i][j]; 1 addition, 1 assignment 2
1+128*(log2128+1)*2
7

8. Analysis big-Oh
Running time
PROGRAM OPERATIONS STEPS
int sum = 0; 1 assignment 1
for (i=0;i<128;i=++) i =1, 2, 3, 4 … 128 128
for (j = 128; j>0; j=j/2) j = 128,64,32,16,8,4,2,1 log2128+1
sum = sum + a[i][j]; 1 addition, 1 assignment 2
1+128*(log2128+1)*2
In general we have an arbitrary number “n” instead of 128, in that case:
1+n*(log2n+1)*2
1+2n+2n*log2n
8

9. Analysis big-Oh
Running time
PROGRAM OPERATIONS STEPS
int sum = 0; 1 assignment 1
for (i=0;i<128;i=++) i =1, 2, 3, 4 … 128 128
for (j = 128; j>0; j=j/2) j = 128,64,32,16,8,4,2,1 log2128+1
sum = sum + a[i][j]; 1 addition, 1 assignment 2
1+128*(log2128+1)*2
n could be the size of the stack, queue, list or the dimension of a matrix, etc.
In general we have an arbitrary number “n” instead of 128, in that case:
1+n*(log2n+1)*2 can we simplify the expression?
1+2n+2n*log2n YES!, By using big-Oh notation
we can specify the asymptotic
complexity of the algorithm
9

10. Analysis big-Oh
Definition
• Given functions f(n) and g(n):
o f(n) is said to be O(g(n))
o if and only if
• there are (exist) 2 positive constants, C>0 and N>0
o such that
• f(n) ≤ Cg(n) for every n>N
10

11. Analysis big-Oh
Example of definition usage
11

12. Analysis big-Oh
Example of definition usage
Relationship between C & n
12

13. Analysis big-Oh
Example of definition usage
Relationship between C & n
13

14. Analysis big-Oh
Example of definition usage
Relationship between C & n
O(n*log2n) is true
for C=3 and n≥32 14

15. Analysis big-Oh
Example of definition usage
keywords
Relationship between C & n
O(n*log2n) is true
for C=3 and n≥32 15

16. Analysis big-Oh
Example of definition usage
keywords
f(n) is given g(n) is given
Relationship between C & n
O(n*log2n) is true
for C=3 and n≥32 16

17. Analysis big-Oh
Example 1
State the asymptotic complexity of:
i. Print out middle element of an array of size n
17

18. Analysis big-Oh
Example 1
State the asymptotic complexity of:
big-Oh
i. Print out middle element of an array of size n
18

19. Analysis big-Oh
Example 1
State the asymptotic complexity of:
big-Oh
i. Print out middle element of an array of size n
arrays allow access to
any position randomly
19

20. Analysis big-Oh
Example 1
State the asymptotic complexity of:
big-Oh
i. Print out middle element of an array of size n
arrays allow access to
any position randomly
20

21. Analysis big-Oh
Example 1
State the asymptotic complexity of:
big-Oh
i. Print out middle element of an array of size n
arrays allow access to
any position randomly
recall
Your program Memory
o All memory accesses takes 1
unit time
21

22. Analysis big-Oh
Example 1
State the asymptotic complexity of:
big-Oh
i. Print out middle element of an array of size n
arrays allow access to
any position randomly
recall
Your program Memory
Solution is:
O(1)
o All memory accesses takes 1
unit time
22

23. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
23

24. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
recall a linked list
24

25. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
head tail
next next next next
object object object object
25

26. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
head tail
next next next next
object object object object
26

27. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
head tail
next next next next
n/2
object object object memory object
locations
27

28. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
head tail
next next next next
n/2
object object object memory object
locations
28

29. Analysis big-Oh
Example 1
ii. Print out the middle element of a linked list of size n
head tail
next next next next
n/2
object object object memory object
locations
f(n) = n/2
Solution is: the asymptotic complexity is O(n)
29

30. Analysis big-Oh
Example 1
iii. Print out the odd elements of an array of size n
f(n) = n/2
Solution: the asymptotic complexity is O(n)
iv. Pop 10 elements from a stack that is implemented
with an array. Assume that the stacks contains n
elements and n > 10.
When in doubt, ASK! is n = 11 or is n > 1000 ?
f(n) = 10
Solution: the asymptotic complexity is O(1)
30

31. Classes and
objects
• The goal of a “class” (in object-oriented language)
o Encapsulate state and behavior
• A class is a blueprint that has
o a constructor to initialize its data members
o a destructor to tear down the object
o A coherent interface to interact with the object (public methods)
o Private methods unreachable from the outside
o The possibility to extend and inherit members from other classes
• An object is an instant of a class
• What are the benefits:
o Through inheritance, extensions, packages allows to structure a program
o Exposes behavior that could be reused
o Alleviates the problem of understanding somebody else code
31

32. ADT
(Abstract Data Type)
• ADTs are containers
• ADTs are primarily concern in:
o Aggregation of data
o Access of data
o Efficiency of memory is used
o Efficiency of the container access
32

33. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
33

34. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
int size
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
34

35. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
0 511
35

36. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
ObjectY size
0 511
36

37. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
In Java memory
management is
o ObjectY[] object_y_array = new ObjectY[512]; taken care for you.
ObjectY size
0 511
37

38. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
1,934,218
ObjectX 0 511 0 ObjectZ
… …
38

39. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
1,934,218
ObjectX 0 511 0 ObjectZ
… …
39

40. Arrays
• Contiguous blocks of memory of a data type
o Any position can be randomly access
• Example
o Int[] integer_array = new int[1024];
0 1023
o ObjectY[] object_y_array = new ObjectY[512];
1,934,218
ObjectX 0 511 0 ObjectZ
… …
512 ObjectsY
fixed boundary 40

41. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023
0 41

42. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023
peek push
push
0 0 push 42

43. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023 1023
peek push pop
pop
peek
push
0 0 push 0 43

44. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false
peek push pop
pop
peek
push
0 0 push 0 44

45. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false
peek push pop
pop
peek index
push
0 0 push 0 45

46. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false
peek push pop
pop
peek index
push
0 0 push 0 46

47. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false
peek push pop
pop status
peek index
push
0 0 push 0 47

48. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1024
1023
Recall what a class encapsulates isEmpty
o Status & false
o Behavior
pop
peek index
0 48
-1

49. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1024
1023
Recall what a class encapsulates isEmpty
o Status & false
o Behavior
pop
Does it mean we are always safe
o index = -1,
stack is empty, good
o index = 1024, peek index
o refuse to push objects
o overflow, runtime exception
0 49
-1

50. Stacks
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
1024
1023
Recall what a class encapsulates isEmpty
o Status & false
o Behavior
pop
Does it mean we are always safe
o index = -1,
stack is empty, good
o index = 1024, peek index
o refuse to push objects
o overflow, runtime exception
0 50
-1

51. Stacks
…
ObjectZ
• Enforce a LIFO behavior (last in, first out)
o It is based on an array
o It overrides the random access of an array by a LIFO access
0 1024
1023
Recall what a class encapsulates isEmpty
o Status & false
o Behavior
pop
Does it mean we are always safe
o index = -1,
stack is empty, good
o index = 1024, peek index
o refuse to push objects
o overflow, runtime exception
0 51
-1

52. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023
0 52

53. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023 1023
peek enqueue
enqueue
0 0 enqueue 53

54. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023 1023 1023
peek enqueue peek
dequeue
enqueue
0 0 enqueue 0 dequeue 54

55. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false
peek enqueue peek
dequeue
enqueue
0 0 enqueue 0 dequeue 55

56. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023 1023 1023
isEmpty isEmpty isEmpty
true false false status
peek enqueue peek index1
index2
dequeue
enqueue
0 0 enqueue 0 dequeue 56

57. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023
Recall what a class encapsulates isEmpty
o Status & false status
o Behavior
peek index1
index2
dequeue
0 dequeue 57

58. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023
Recall what a class encapsulates isEmpty
o Status & false status
o Behavior
peek index1
Does it mean we are always safe
o index1 = index2,
stack is empty, good index2
o index1 or index2 = 1024, dequeue
o rewind to 0
o test condition
o Increment using mod 1024
o What if index2 > index1 0 dequeue 58

59. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023
Recall what a class encapsulates isEmpty
o Status & false status
o Behavior
peek index1
Does it mean we are always safe >
o index1 = index2,
stack is empty, good index2
o index1 or index2 = 1024, dequeue
o rewind to 0
o test condition
o Increment using mod 1024
o What if index2 > index1 0 dequeue 59

60. Queues
• Enforce a FIFO behavior (first in, first out)
o It is based on an array
o It overrides the random access of an array by a FIFO access
1023 1023
status
index2 status
peek index1
> >
index2
peek index1 dequeue
0 0 dequeue 60

61. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
• Let’s use another construct
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
61

62. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
• Let’s use another construct
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
62

63. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
63

64. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
64

65. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
65

66. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
next
object
66

67. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
next
head
object
67

68. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
prev next
head
object
68

69. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
prev next
Node head
object
69

70. Is everything an Array?
can we use something else?
beginning end
• Recall an array
o Contiguous memory ObjectX 0
ObjectY N-1 0 ObjectZ
… …
o Fixed bound size
fixed boundary
o Random access
How do we know in this container?
• Let’s use another construct o the beginning, the end
o which element is next
o Non contiguous memory
o Unlimited size ObjectX ObjectY ObjectZ
…
o Sequential access only
…
head next
edges
prev next
Node head
object
70

71. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
71

72. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
push next
object
72

73. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
push next
object
73

74. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
push next
object
74

75. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
next
pop
object
75

76. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
next
pop
object
76

77. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
next
pop
object
77

78. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
next
pop
object
78

79. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
pop
79

80. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
peek
80

81. Linked List
• Use the prior construct (node and edge)
head
next next next next
…
object object object
peek
81

82. Double linked List
• Use the prior construct (node and edge)
head
prev next prev next prev next … prev next
object object object
82

83. Quick Questions
Can we do:
• a linked list or double linked list from an array
o Yes
• a queue with nodes and edges
o Why not.
• a stack with nodes and edges
o Sure
83

84. Iterators encapsulate
container traversals
• we have two implementations of a stack
1023
pop prev next
prev next
head
prev next prev 4 next
peek index
1 2 3 4
prev 3 next
prev 2 next
0 push
prev 1 next 84

85. Iterators encapsulate
container traversals
• we have two implementations of a stack
1023
pop prev next
prev next
head
prev next prev 4 next
peek index
1 2 3 4
prev 3 next
prev 2 next
0 push
prev 1 next 85

86. Iterators encapsulate
container traversals
• we have two implementations of a stack
1023
peek push pop
pop prev next
prev next
head
prev next prev 4 next
peek index
1 2 3 4
prev 3 next
prev 2 next
0 push
prev 1 next 86

87. Iterators encapsulate
container traversals
• we have two implementations of a stack
1023
prev next
head
prev next prev 5 next
peek index
1 2 3 4 5
prev 4 next
prev 3 next
prev 2 next
0 push
prev 1 next 87

88. Iterators encapsulate
container traversals
• we have two implementations of a stack
1023
update next
update prev prev next
increment by 1 head
decrement by 1 prev next prev 5 next
peek index
1 2 3 4 5
prev 4 next
prev 3 next
prev 2 next
0 push
prev 1 next 88

89. Iterators encapsulate
container traversals
• we have two implementations of a stack
Traverse container
1023 according to container rules
update next
update prev prev next
increment by 1 head
decrement by 1 prev next prev 5 next
peek index
1 2 3 4 5
prev 4 next
prev 3 next
prev 2 next
0 push
prev 1 next 89

90. Iterators encapsulate
container traversals
• we have two implementations of a stack
Traverse container behavior
1023 according to container rules
state
update next
update prev prev next
increment by 1 head
decrement by 1 prev next prev 5 next
peek index
1 2 3 4 5
prev 4 next
prev 3 next
prev 2 next
0 push
prev 1 next 90

91. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
a x z b n m l j i b c u
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
91

92. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
92

93. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
93

94. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
a b b c i j l n m u x z
94

95. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
a b b c i j l n m u x z
Looking for u
95

96. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
a b b c i j l n m u x z
Looking for u
96

97. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
a b b c i j l n m u x z
Looking for u
97

98. Searching
Linear vs Binary
• If you make no assumptions
o iterate (traverse) all elements to find an existing element
o iterate (traverse) all elements to realize you don’t have an element
Looking for u worst case all elements
a x z b n m l j i b c u are visited. O(n)
• If you assume the container is already order
(according to certain rule)
o Iterate back/forth skipping some elements to speed up the process
worst case there are log(n)+1
a b b c i j l n m u x z element visited. O(log(n))
Looking for u
98

99. So binary search is faster
but the assumption is…
• The container is already order, so
o how do we sort a container
o how do insert elements in a sorted container
o How do we remove elements in a sorted container
• What is more expensive (big-Oh)
o A linear search
o Order a container and then a binary search
o Maintain a container sorted and then a binary search
99

100. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
100

101. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
101

102. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45
102

103. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
103

104. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
85 24
104

105. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
85 24 63 45
105

106. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
24 85 63 45
106

107. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
24 85 45 63
107

108. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
24 45 63 85 19 37 91 56
24 85 45 63
108

109. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
109

110. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
110

111. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
24 85
45 63
111

112. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
take the min
24 85
45 63
112

113. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
85 85
24
24
45 63
113

114. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
take the min
85 85
24
24
45 63
114

115. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
85 85
24
24 45
24
63 63
45
115

116. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
Wait, what? 24 45 63 85 19 37 91 56
24 85 45 63
take the min
85 85
24
24 45
24
63 63
45
116

117. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
24 45 63 85 19 37 91 56
24 85 45 63
117

118. Sorting a container
Merge sort
• Use the divide and conquer approach
o Divide the problem into 2 subsets (unless you have a base case)
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 45 19 37 91 56
DIVIDE
24 45 63 85 19 37 91 56
CONQUER RECUR
24 85 45 63
118

119. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
85 24 63 45
24 85
24 45
45 63
119

120. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
85 24 63 45 19 37 91 56
85 24 63 45
24 85
24 45
45 63
120

121. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
2f(n/2) 85 24 63 45 19 37 91 56
85 24 63 45
24 85
24 45
45 63
121

122. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
2f(n/2) 85 24 63 45 19 37 91 56
4f(n/4) 85 24 63 45
log2(n)
24 85
24 45
45 63
122

123. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
2f(n/2) 85 24 63 45 19 37 91 56
4f(n/4) 85 24 63 45
log2(n)
24 85 x elements
24 45
45 63 y elements
123

124. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
2f(n/2) 85 24 63 45 19 37 91 56
4f(n/4) 85 24 63 45
log2(n)
24 85 x elements
O(x+y) 24 45
45 63 y elements
124

125. Sorting a container
Merge sort
• What is the complexity of merge sort
o Divide the problem into 2 subsets (2 times half the problem)
o Recursively solve each subset (keep subdividing the problem)
o Conquer: Solve the sub-problem and merge (the merge running time)
f(n) 85 24 63 45 19 37 91 56
2f(n/2) 85 24 63 45 19 37 91 56
4f(n/4) 85 24 63 45
log2(n)
24 85
O(x+y) 24 45
45 63
125

126. Sorting a container
Merge sort
O(nlogn)
126

127. Sorting a container
Merge sort
O(nlogn)
127

128. Sorting a container
Merge sort
O(nlogn)
128

129. Sorting a container
Merge sort
O(nlogn)
129

130. Sorting a container
Merge sort
• Drawback of merge sort algorithm
o The merge is not in place
take the min
Additional memory
85
24 45
63
• The merge could be modified to be in place, but
the overhead will slow down the running time.
130

131. Sorting a container
Quick sort
• Use the divide and conquer approach
o Divide the problem into 3 subsets (unless you have a base case)
• A (random) pivot x
• A subset with numbers lower than x
• A subset with numbers greater than x
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 19 37 91 56 45
24 37 19 85 63 91 56
24 37
131

132. Sorting a container
Quick sort
• Use the divide and conquer approach
o Divide the problem into 3 subsets (unless you have a base case)
• A (random) pivot x
• A subset with numbers lower than x
• A subset with numbers greater than x
o Recursively solve each subset
o Conquer: Solve the sub-problem and merge them into a solution
85 24 63 19 37 91 56 45
24 37 19 85 63 91 56
In place sorting,
24 37
it does not require additional memory
132

133. Sorting a container
Quick sort
• Complexity
o Quick sort (with random pivot) is O(nlogn)
• Drawback
o No replicated element allowed in the container
* The pivot is randomly chosen,
* if an element occurs twice, in different divisions
* then the merging mechanism won’t work
133

134. Arrays
Example 2
Accept 2 integer Arrays: A and B. And find the number of
common elements in both assuming no duplicates in each array.
o Brute force A, n elements
O(nm)
B, m elements
o Merge-sort modified
C, n+m elements
Instead of merging compare and increment count when equal
O( (n+m)log(n+m) )
134

135. Arrays
Example 2
Accept 2 integer Arrays: A and B. And find the number of
common elements in both assuming no duplicates in each array.
o Brute force A, n elements
O(nm)
B, m elements
o Merge-sort modified
C, n+m elements
Instead of merging compare and increment count when equal
O( (n+m)log(n+m) )
135

136. Stacks and Queues
Example 3
Write a reverse_Queue method using only stacks and
queues
in
a b c d e f g h
out
Queue
FIFO
136

137. Stacks and Queues
Example 3
Write a reverse_Queue method using only stacks and
queues
in in out in
a b c d e f g h
a b c d e f g h
h g f e d c b a
O(n)
out out
Queue Stack Queue
FIFO LIFO FIFO
137

138. Stacks and Queues
Example 4
Write a method cut_Queue that adds an element to the head of
the queue using only stacks and queues
N
in
a b c d e f g h
out
Queue
FIFO
138

139. Stacks and Queues
Example 4
Write a method cut_Queue that adds an element to the head of
the queue using only stacks and queues
N O(n)
in in out in out in
h g f e d c b a N
a b c d e f g h
N a b c d e f g h
N a b c d e f g h
out
out
Queue
FIFO Stack Stack Queue
LIFO LIFO FIFO 139

140. List
Example 5
Write a method is_Sorted_Ascedent to check if a
single linked list is sorted in non-decreasing order
head
next next next … next
Java pseudo code while ( node.next ) {
if (node.next.key < node.key)
return false;
node = node.next;
}
return true;
140

141. List
Example 6
Write a method compress to remove duplicated
elements in a single linked list
head
next next next … next
Java pseudo code while ( node.next ) {
if ( node.key == node.next.key) ) {
node.next = node.next.next;
} else {
node = node.next;
}
}
141
