1. Intereg Project
Biomedical Informatics
Ljiljana Majnarić Trtica
II. Basic course on computer-based methods

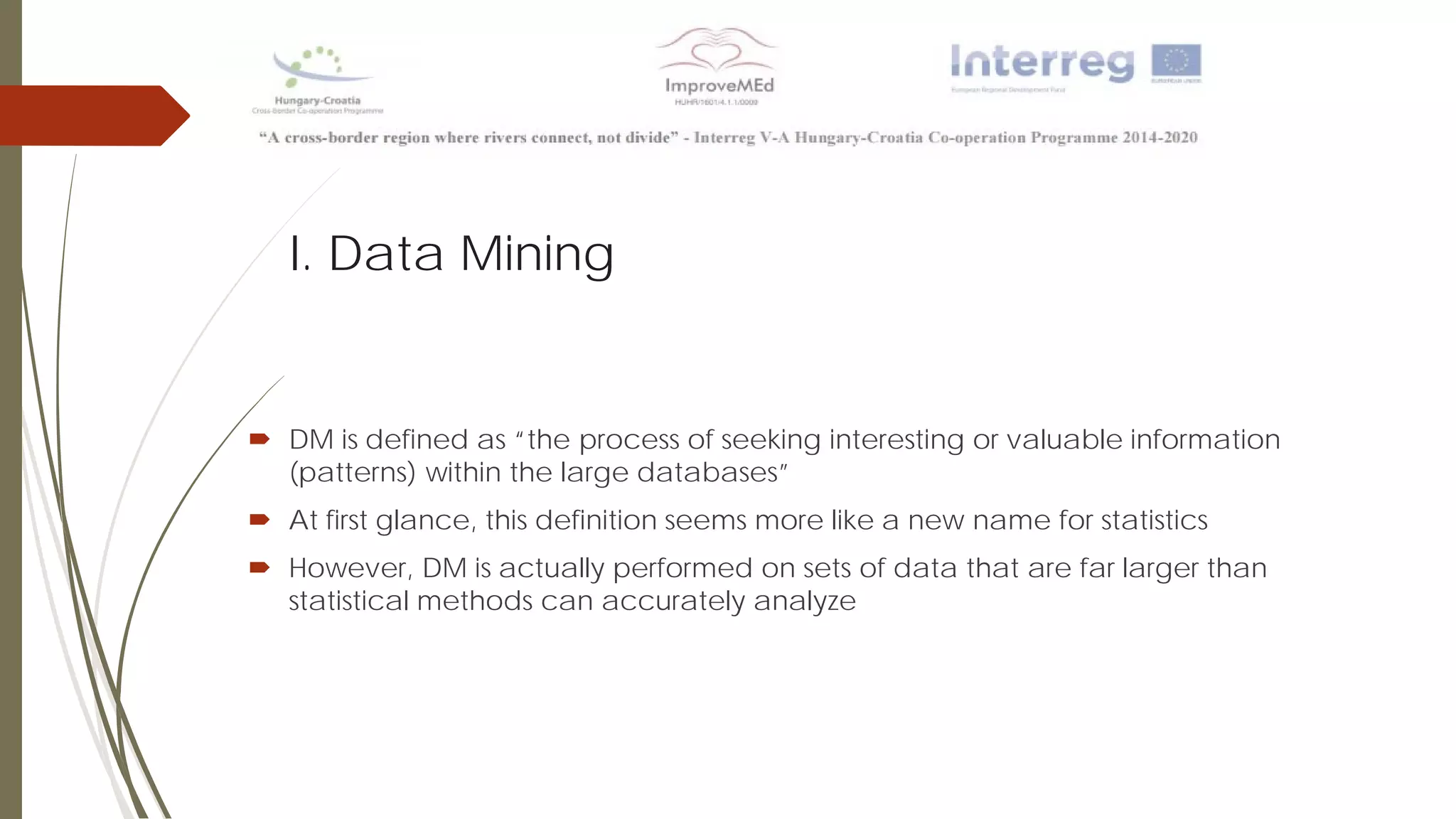

2. I. Data Mining
 DM is defined as “the process of seeking interesting or valuable information
(patterns) within the large databases”
 At first glance, this definition seems more like a new name for statistics
 However, DM is actually performed on sets of data that are far larger than
statistical methods can accurately analyze

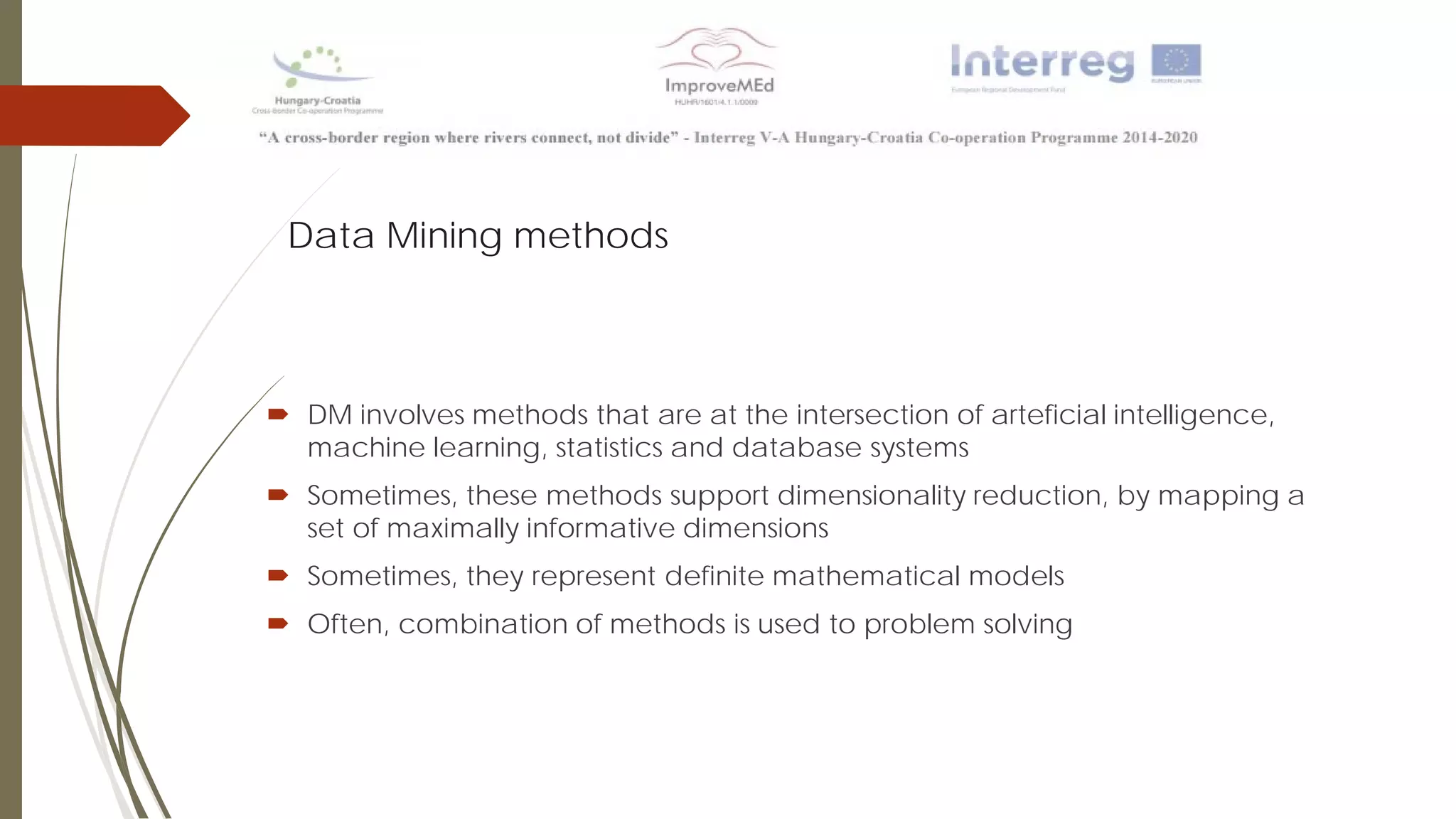

3. Data Mining methods
 DM involves methods that are at the intersection of arteficial intelligence,
machine learning, statistics and database systems
 Sometimes, these methods support dimensionality reduction, by mapping a
set of maximally informative dimensions
 Sometimes, they represent definite mathematical models
 Often, combination of methods is used to problem solving

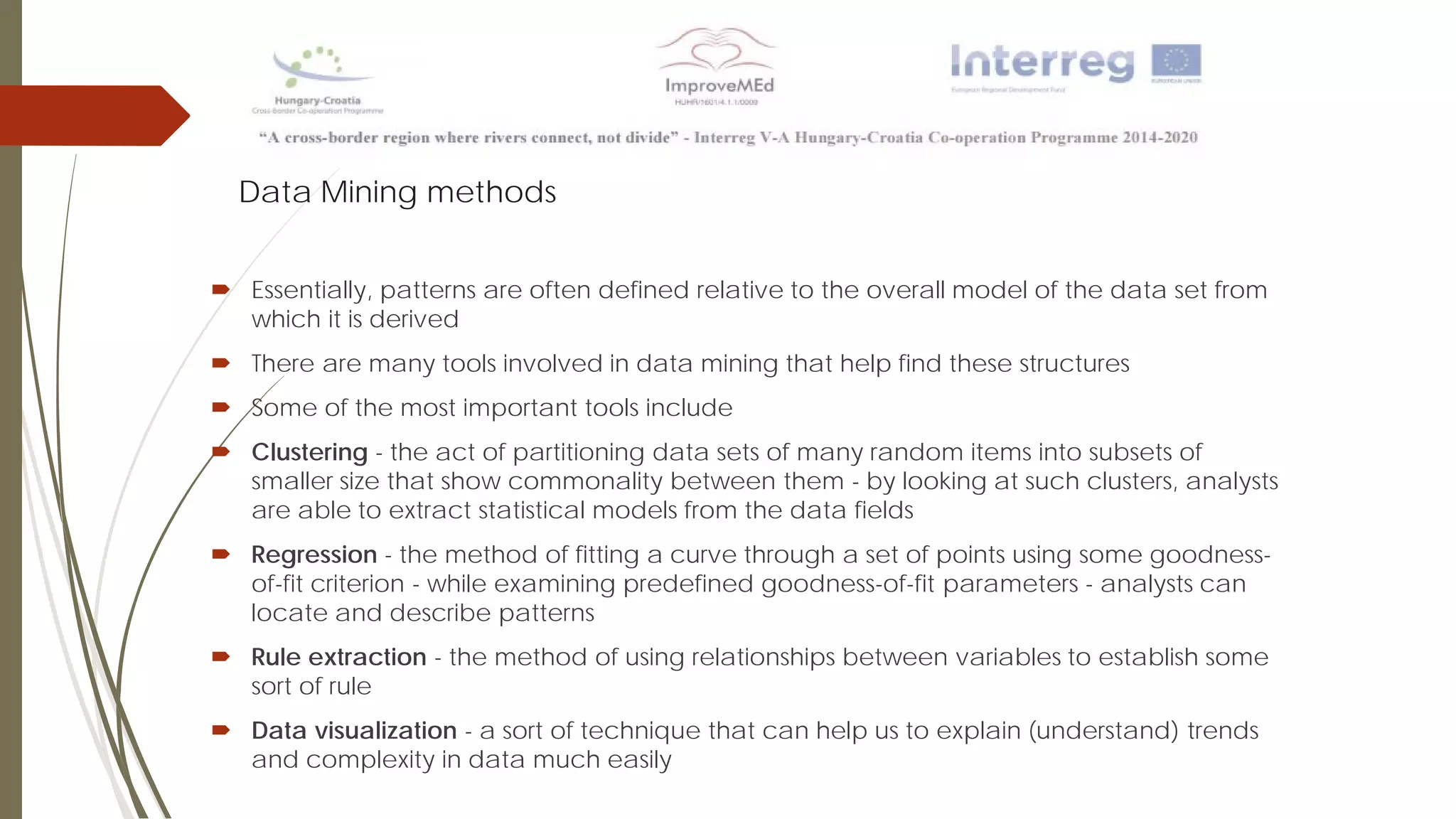

4. Data Mining methods
 Essentially, patterns are often defined relative to the overall model of the data set from
which it is derived
 There are many tools involved in data mining that help find these structures
 Some of the most important tools include
 Clustering - the act of partitioning data sets of many random items into subsets of
smaller size that show commonality between them - by looking at such clusters, analysts
are able to extract statistical models from the data fields
 Regression - the method of fitting a curve through a set of points using some goodness-
of-fit criterion - while examining predefined goodness-of-fit parameters - analysts can
locate and describe patterns
 Rule extraction - the method of using relationships between variables to establish some
sort of rule
 Data visualization - a sort of technique that can help us to explain (understand) trends
and complexity in data much easily

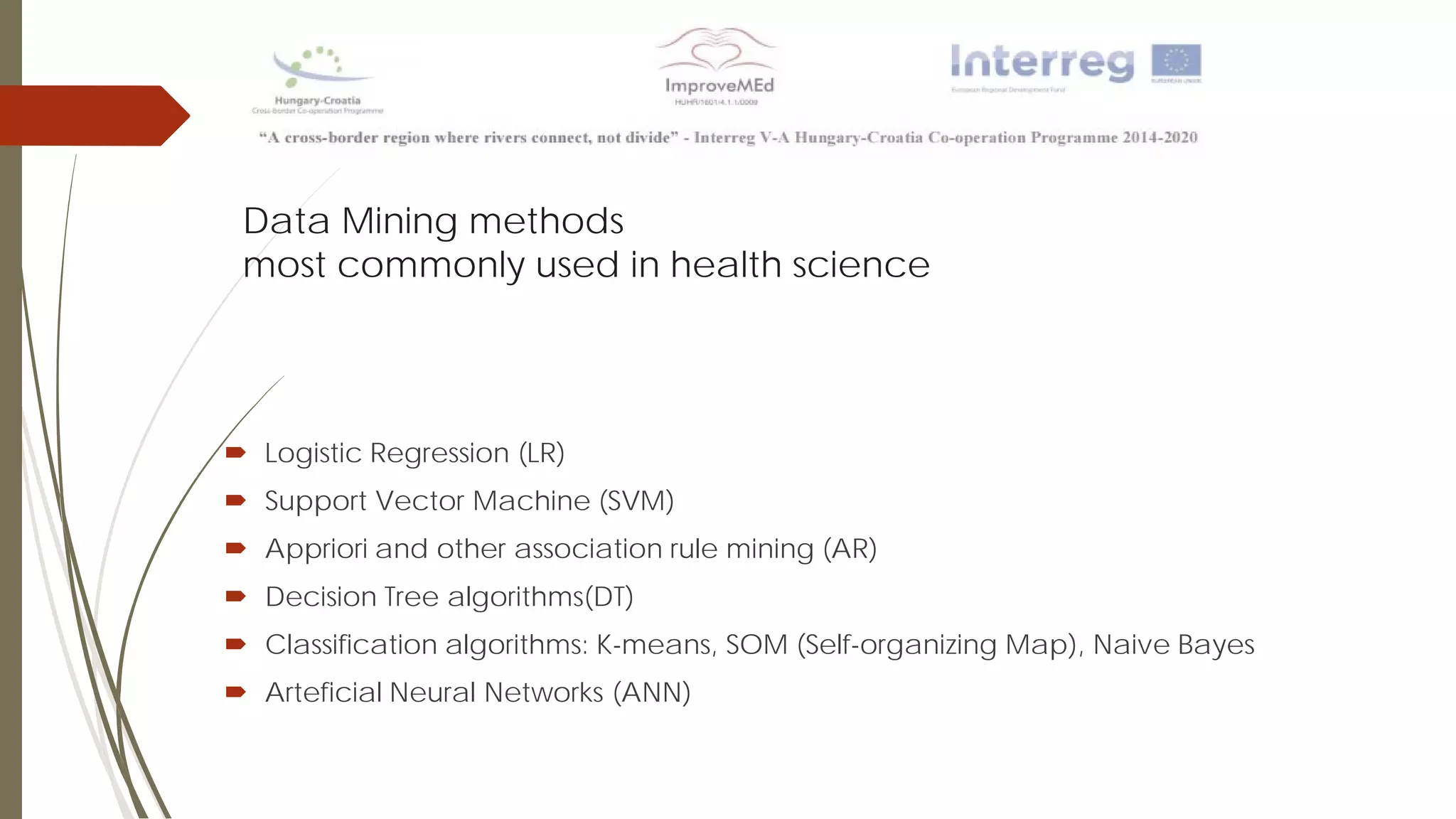

5. Data Mining methods
most commonly used in health science
 Logistic Regression (LR)
 Support Vector Machine (SVM)
 Appriori and other association rule mining (AR)
 Decision Tree algorithms(DT)
 Classification algorithms: K-means, SOM (Self-organizing Map), Naive Bayes
 Arteficial Neural Networks (ANN)

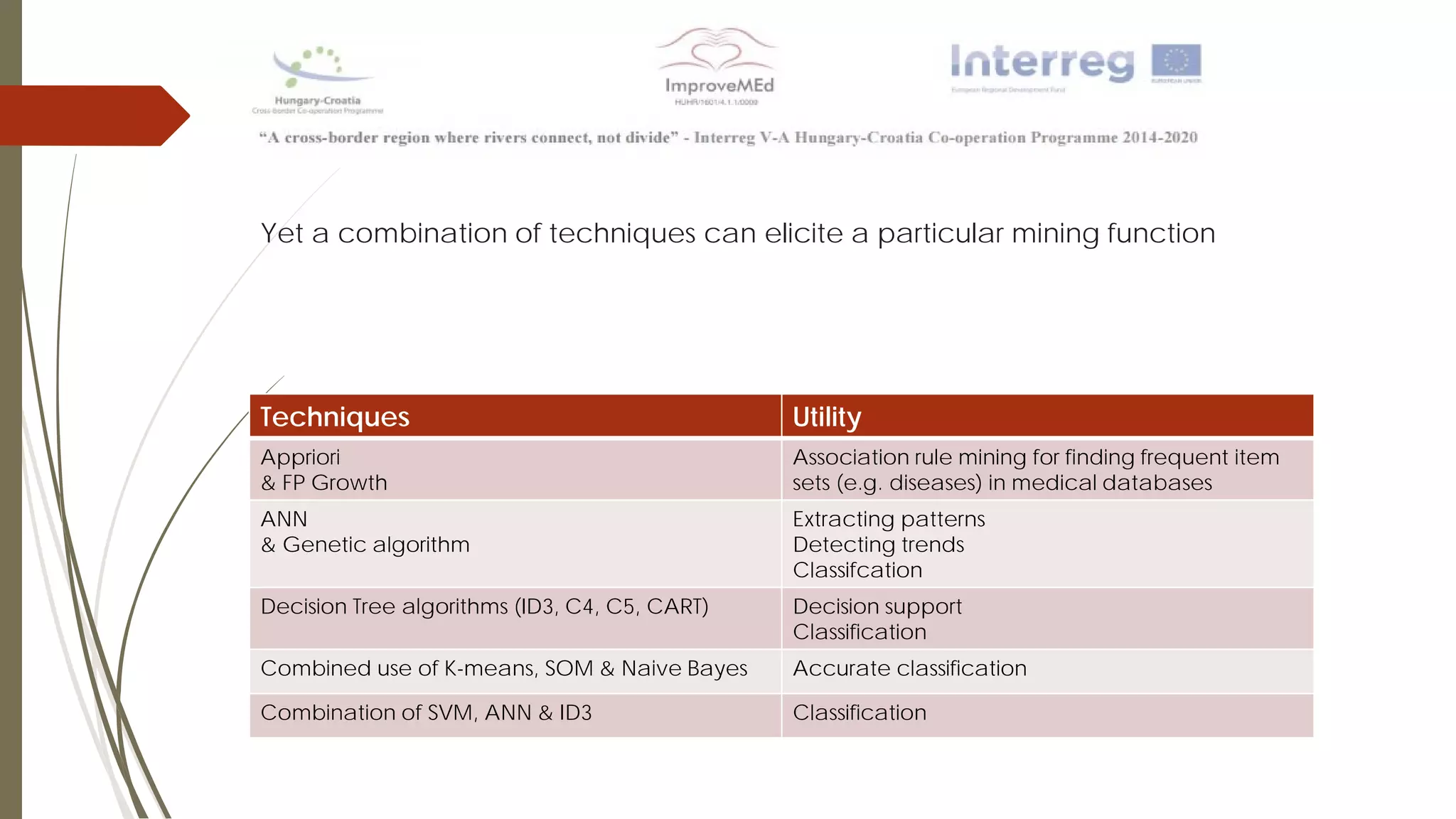

6. Yet a combination of techniques can elicite a particular mining function
Techniques Utility
Appriori
& FP Growth
Association rule mining for finding frequent item
sets (e.g. diseases) in medical databases
ANN
& Genetic algorithm
Extracting patterns
Detecting trends
Classifcation
Decision Tree algorithms (ID3, C4, C5, CART) Decision support
Classification
Combined use of K-means, SOM & Naive Bayes Accurate classification
Combination of SVM, ANN & ID3 Classification

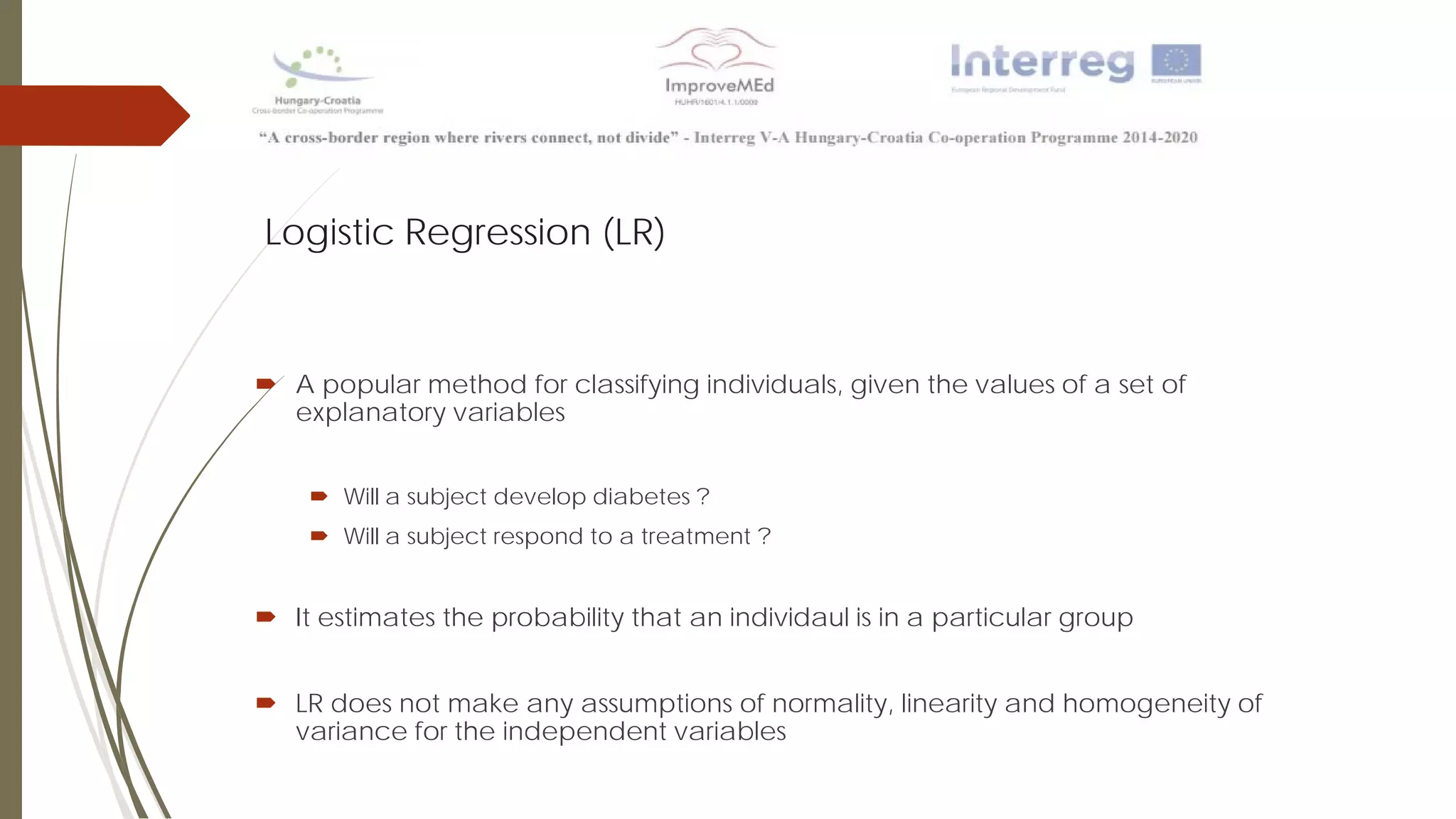

7. Logistic Regression (LR)
 A popular method for classifying individuals, given the values of a set of
explanatory variables
 Will a subject develop diabetes ?
 Will a subject respond to a treatment ?
 It estimates the probability that an individaul is in a particular group
 LR does not make any assumptions of normality, linearity and homogeneity of
variance for the independent variables

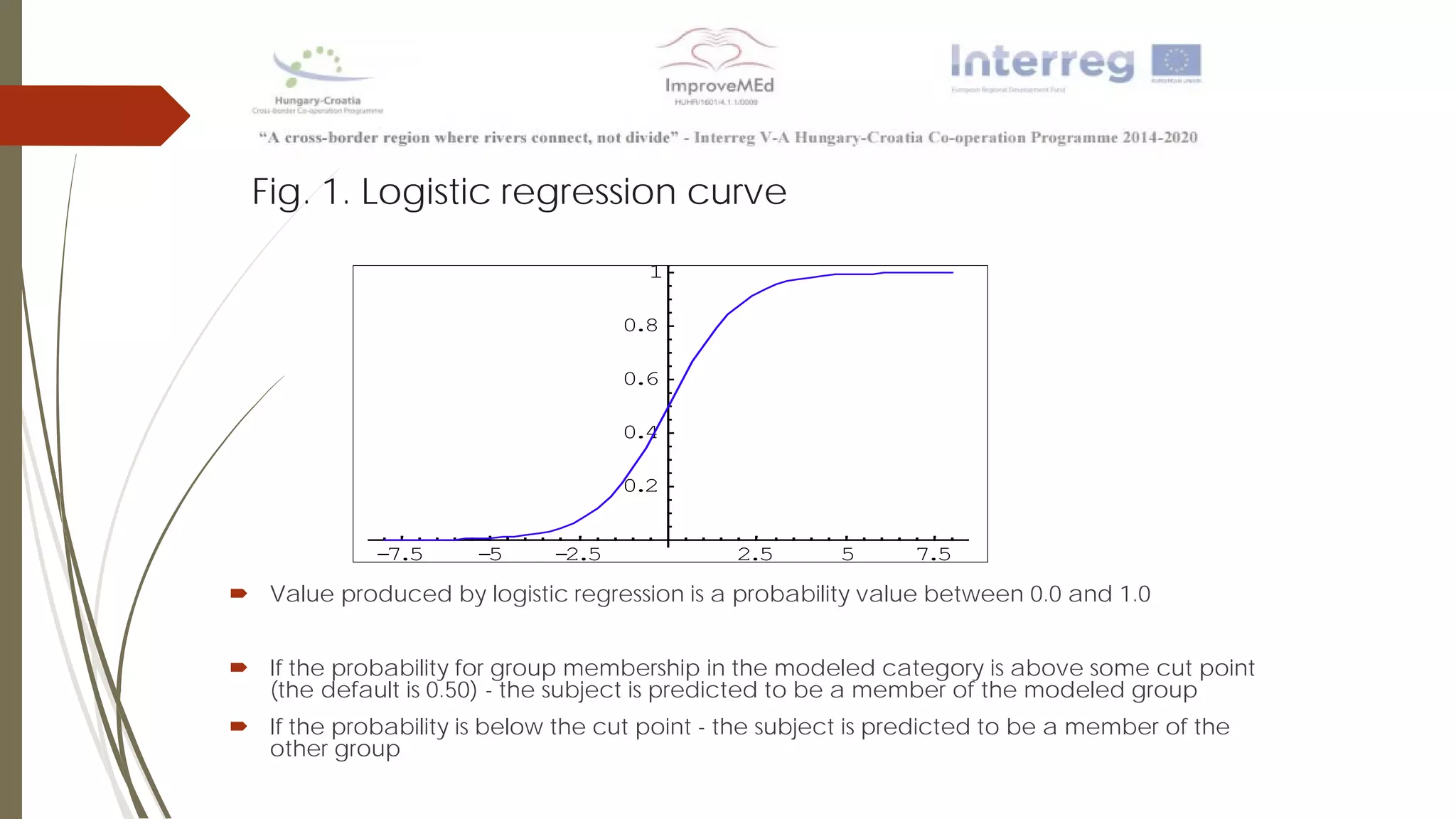

8. Fig. 1. Logistic regression curve
 Value produced by logistic regression is a probability value between 0.0 and 1.0
 If the probability for group membership in the modeled category is above some cut point
(the default is 0.50) - the subject is predicted to be a member of the modeled group
 If the probability is below the cut point - the subject is predicted to be a member of the
other group
-7.5 -5 -2.5 2.5 5 7.5
0.2
0.4
0.6
0.8
1

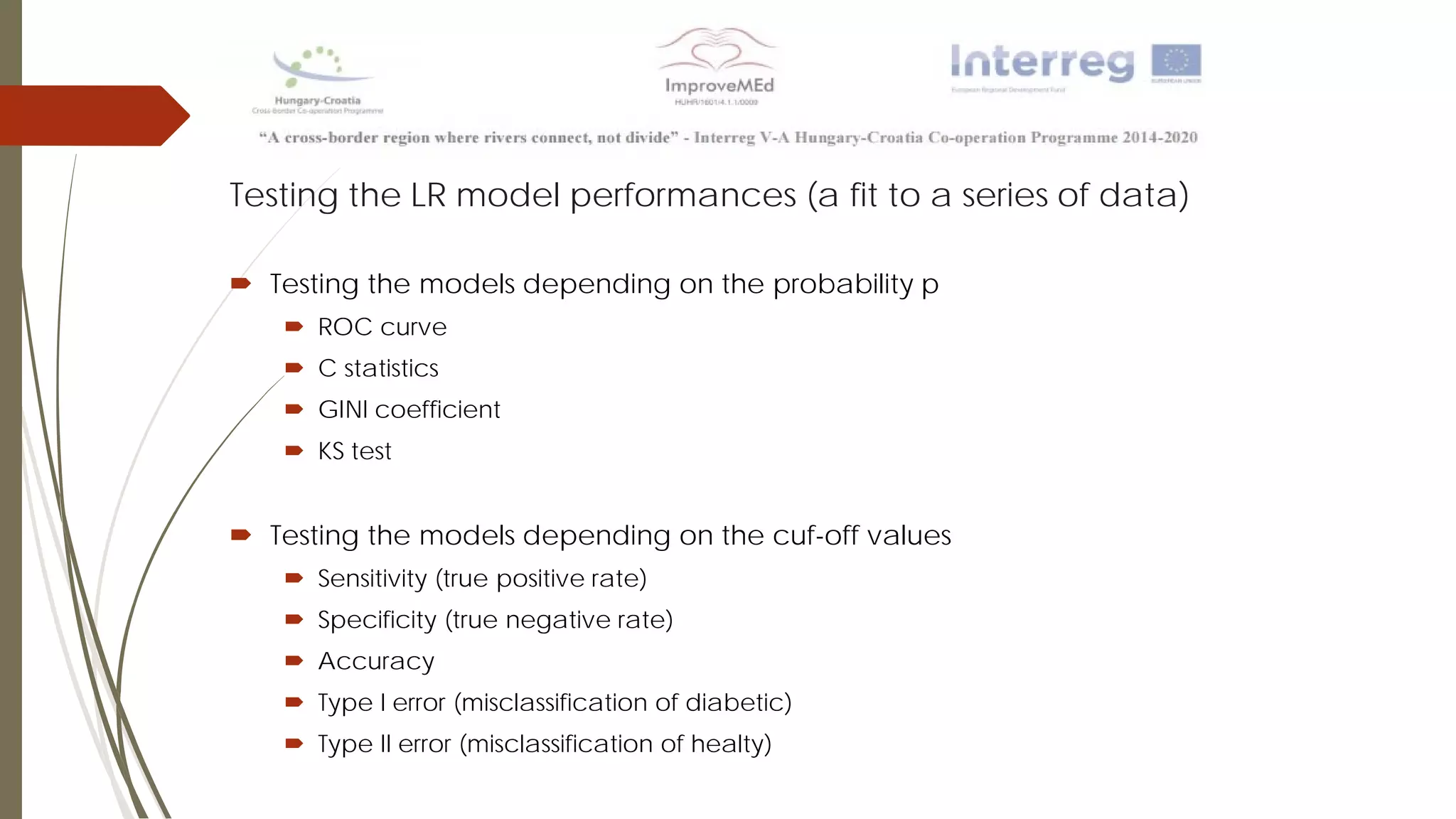

9. Testing the LR model performances (a fit to a series of data)
 Testing the models depending on the probability p
 ROC curve
 C statistics
 GINI coefficient
 KS test
 Testing the models depending on the cuf-off values
 Sensitivity (true positive rate)
 Specificity (true negative rate)
 Accuracy
 Type I error (misclassification of diabetic)
 Type II error (misclassification of healty)

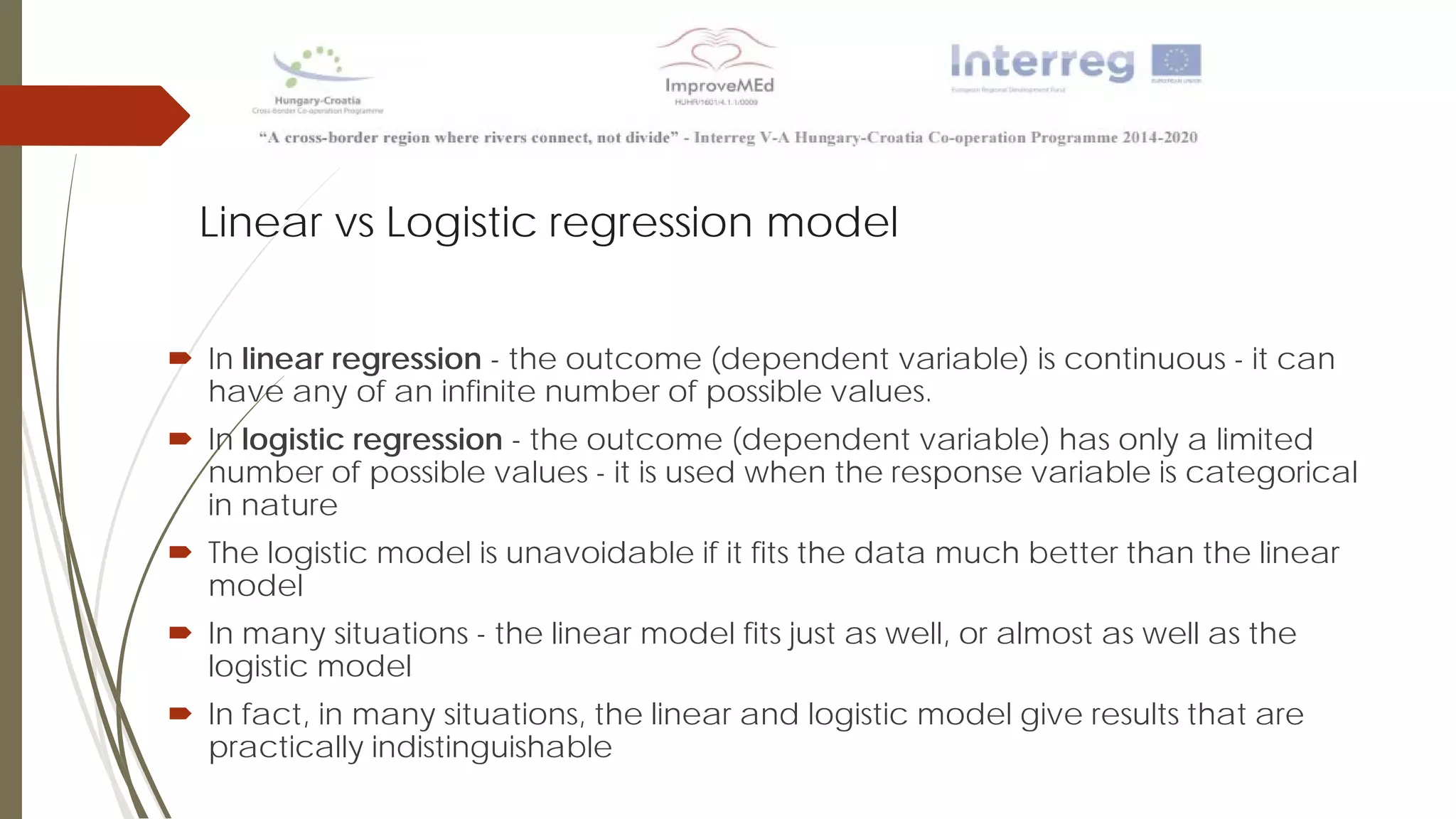

10. Linear vs Logistic regression model
 In linear regression - the outcome (dependent variable) is continuous - it can
have any of an infinite number of possible values.
 In logistic regression - the outcome (dependent variable) has only a limited
number of possible values - it is used when the response variable is categorical
in nature
 The logistic model is unavoidable if it fits the data much better than the linear
model
 In many situations - the linear model fits just as well, or almost as well as the
logistic model
 In fact, in many situations, the linear and logistic model give results that are
practically indistinguishable

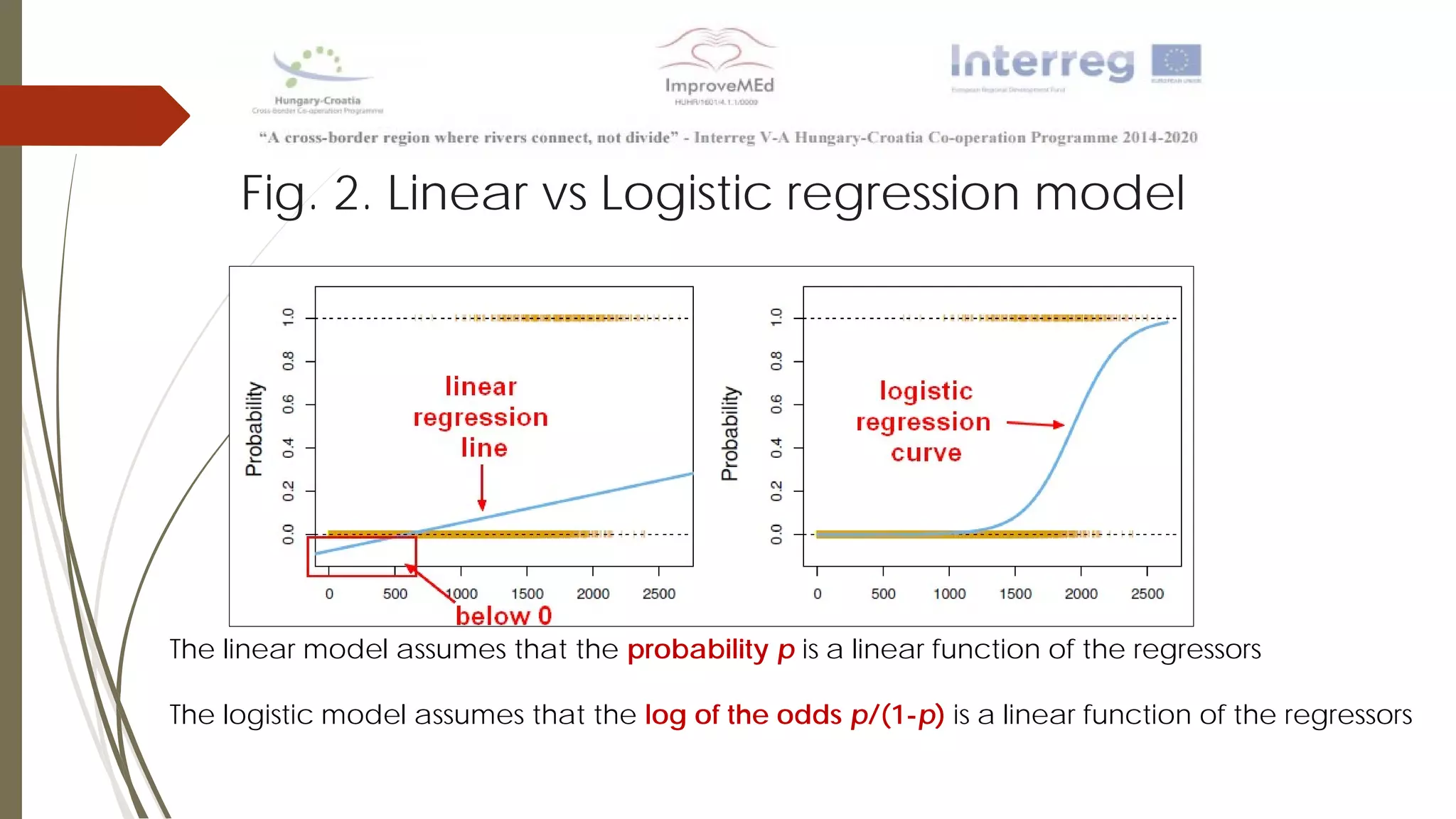

11. Fig. 2. Linear vs Logistic regression model
The linear model assumes that the probability p is a linear function of the regressors
The logistic model assumes that the log of the odds p/(1-p) is a linear function of the regressors

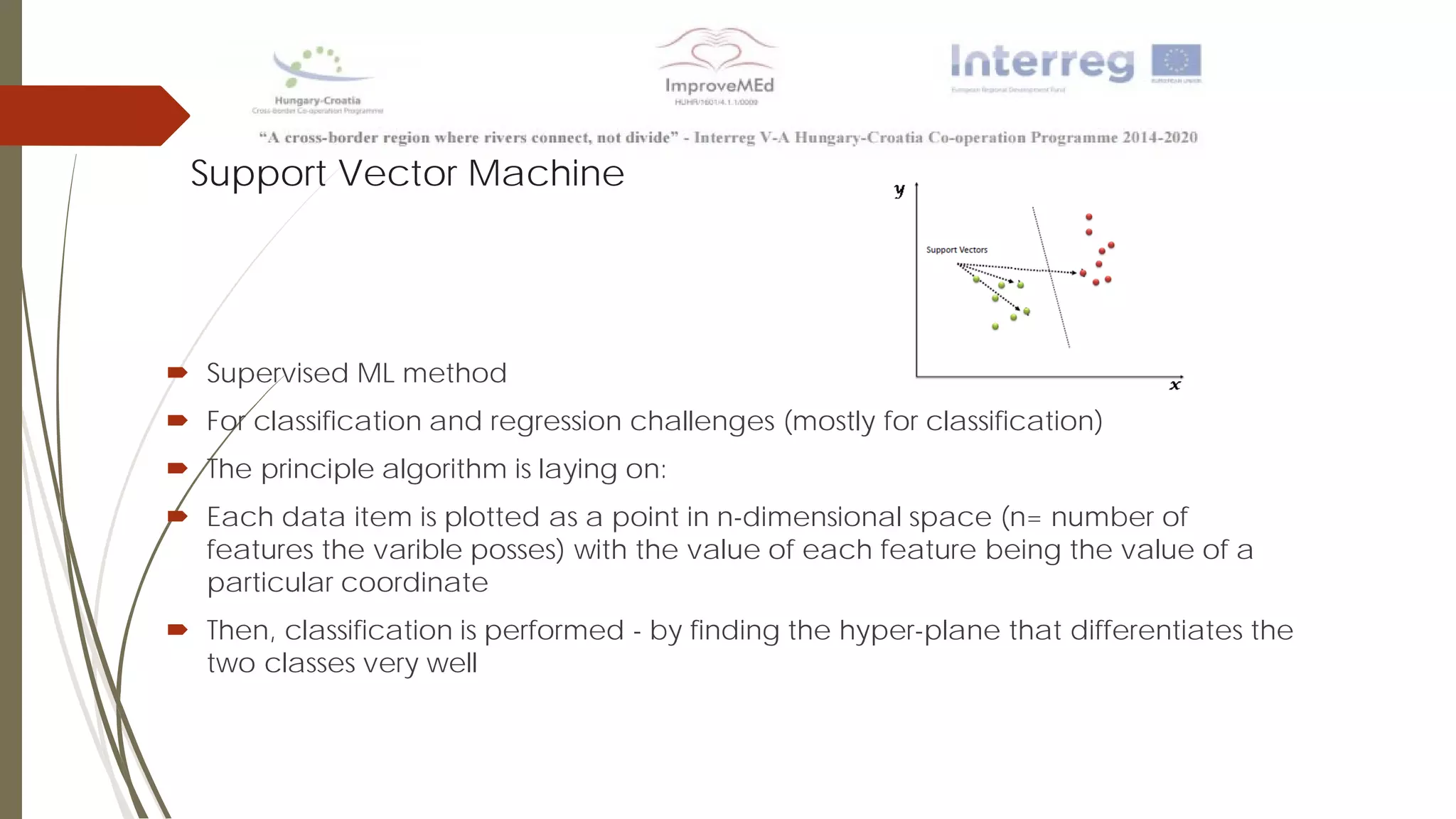

12. Support Vector Machine
 Supervised ML method
 For classification and regression challenges (mostly for classification)
 The principle algorithm is laying on:
 Each data item is plotted as a point in n-dimensional space (n= number of
features the varible posses) with the value of each feature being the value of a
particular coordinate
 Then, classification is performed - by finding the hyper-plane that differentiates the
two classes very well

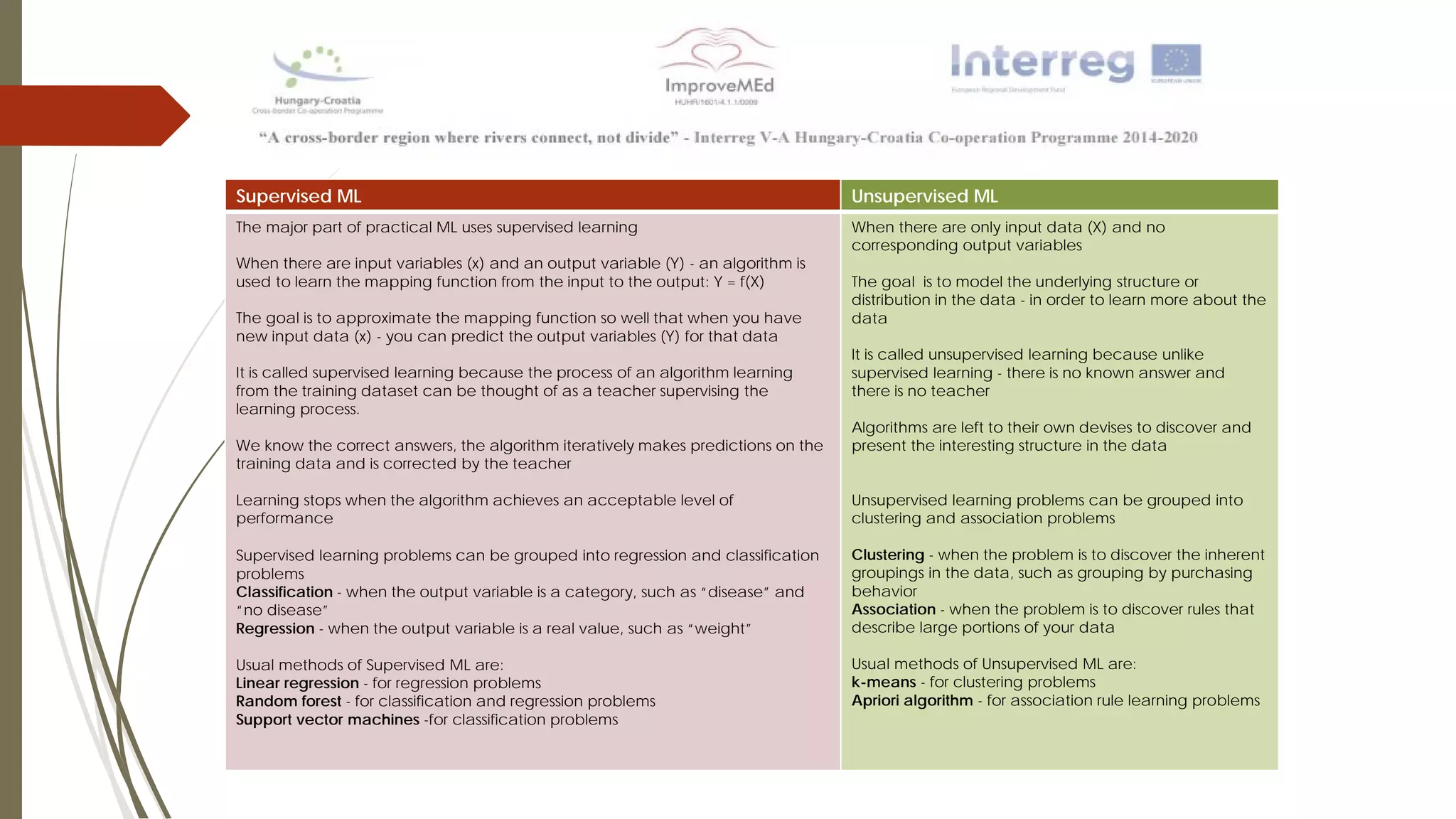

13. Supervised ML Unsupervised ML
The major part of practical ML uses supervised learning
When there are input variables (x) and an output variable (Y) - an algorithm is
used to learn the mapping function from the input to the output: Y = f(X)
The goal is to approximate the mapping function so well that when you have
new input data (x) - you can predict the output variables (Y) for that data
It is called supervised learning because the process of an algorithm learning
from the training dataset can be thought of as a teacher supervising the
learning process.
We know the correct answers, the algorithm iteratively makes predictions on the
training data and is corrected by the teacher
Learning stops when the algorithm achieves an acceptable level of
performance
Supervised learning problems can be grouped into regression and classification
problems
Classification - when the output variable is a category, such as “disease” and
“no disease”
Regression - when the output variable is a real value, such as “weight”
Usual methods of Supervised ML are:
Linear regression - for regression problems
Random forest - for classification and regression problems
Support vector machines -for classification problems
When there are only input data (X) and no
corresponding output variables
The goal is to model the underlying structure or
distribution in the data - in order to learn more about the
data
It is called unsupervised learning because unlike
supervised learning - there is no known answer and
there is no teacher
Algorithms are left to their own devises to discover and
present the interesting structure in the data
Unsupervised learning problems can be grouped into
clustering and association problems
Clustering - when the problem is to discover the inherent
groupings in the data, such as grouping by purchasing
behavior
Association - when the problem is to discover rules that
describe large portions of your data
Usual methods of Unsupervised ML are:
k-means - for clustering problems
Apriori algorithm - for association rule learning problems

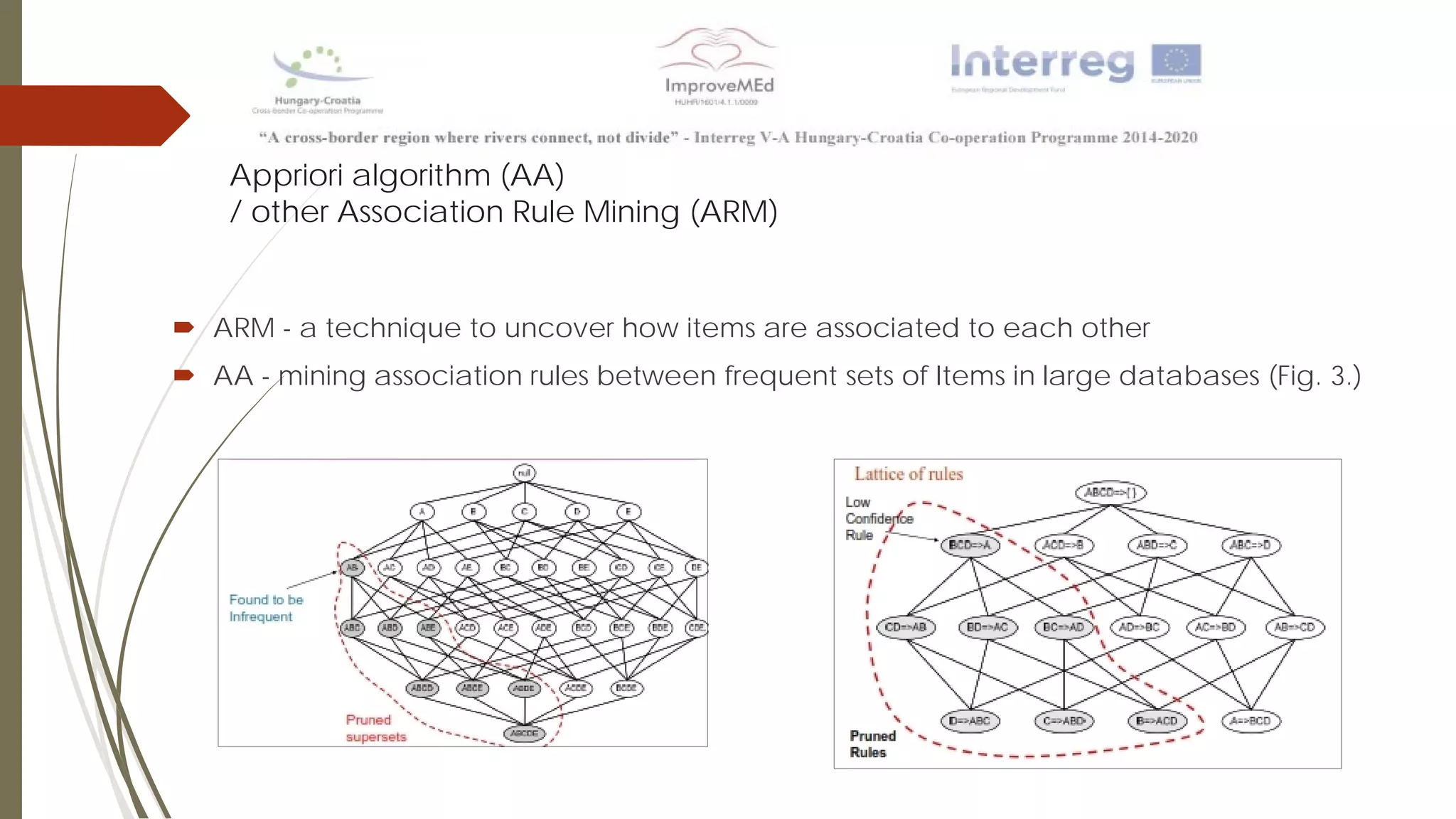

14. Appriori algorithm (AA)
/ other Association Rule Mining (ARM)
 ARM - a technique to uncover how items are associated to each other
 AA - mining association rules between frequent sets of Items in large databases (Fig. 3.)

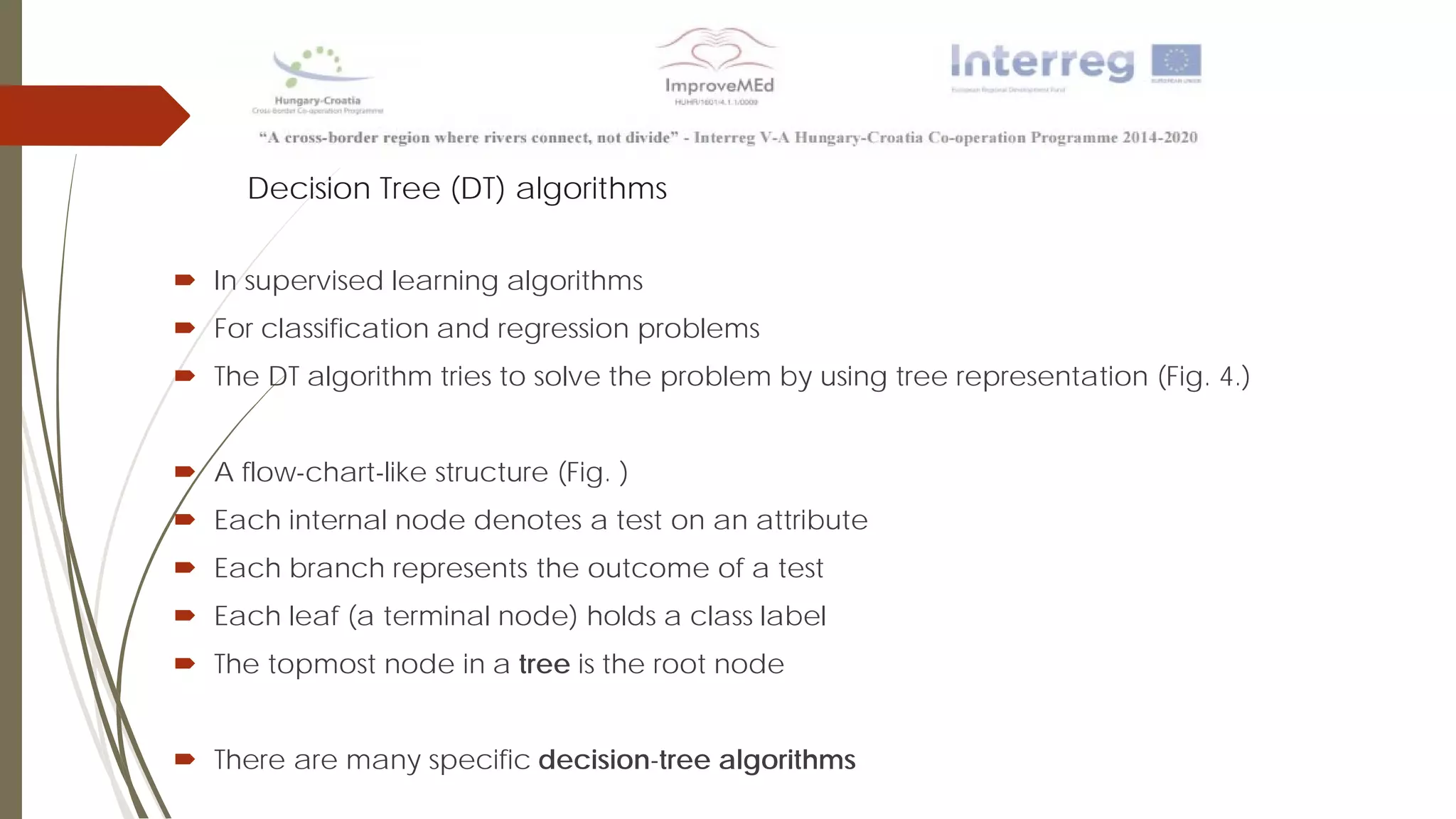

15. Decision Tree (DT) algorithms
 In supervised learning algorithms
 For classification and regression problems
 The DT algorithm tries to solve the problem by using tree representation (Fig. 4.)
 A flow-chart-like structure (Fig. )
 Each internal node denotes a test on an attribute
 Each branch represents the outcome of a test
 Each leaf (a terminal node) holds a class label
 The topmost node in a tree is the root node
 There are many specific decision-tree algorithms

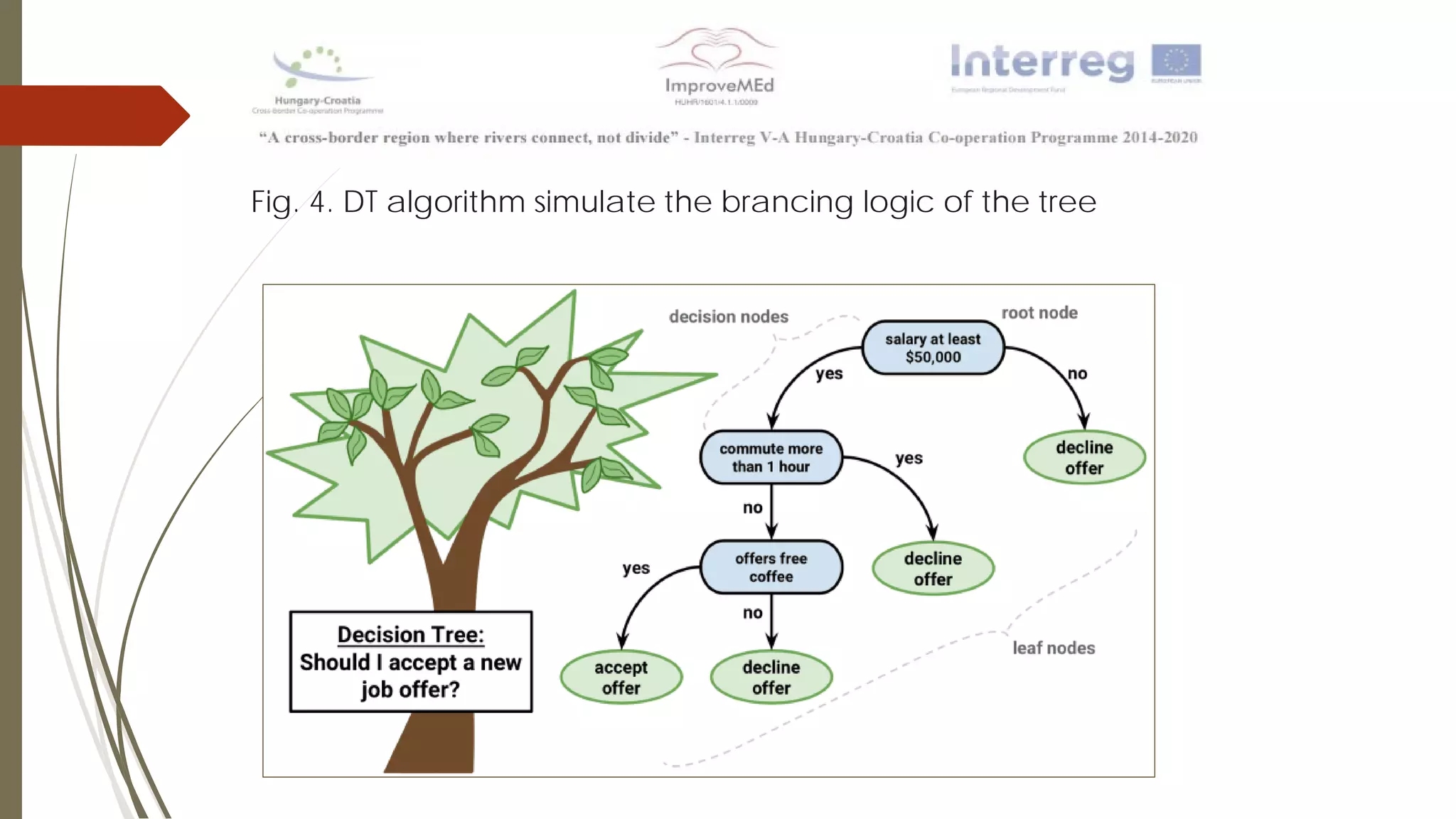

16. Fig. 4. DT algorithm simulate the brancing logic of the tree

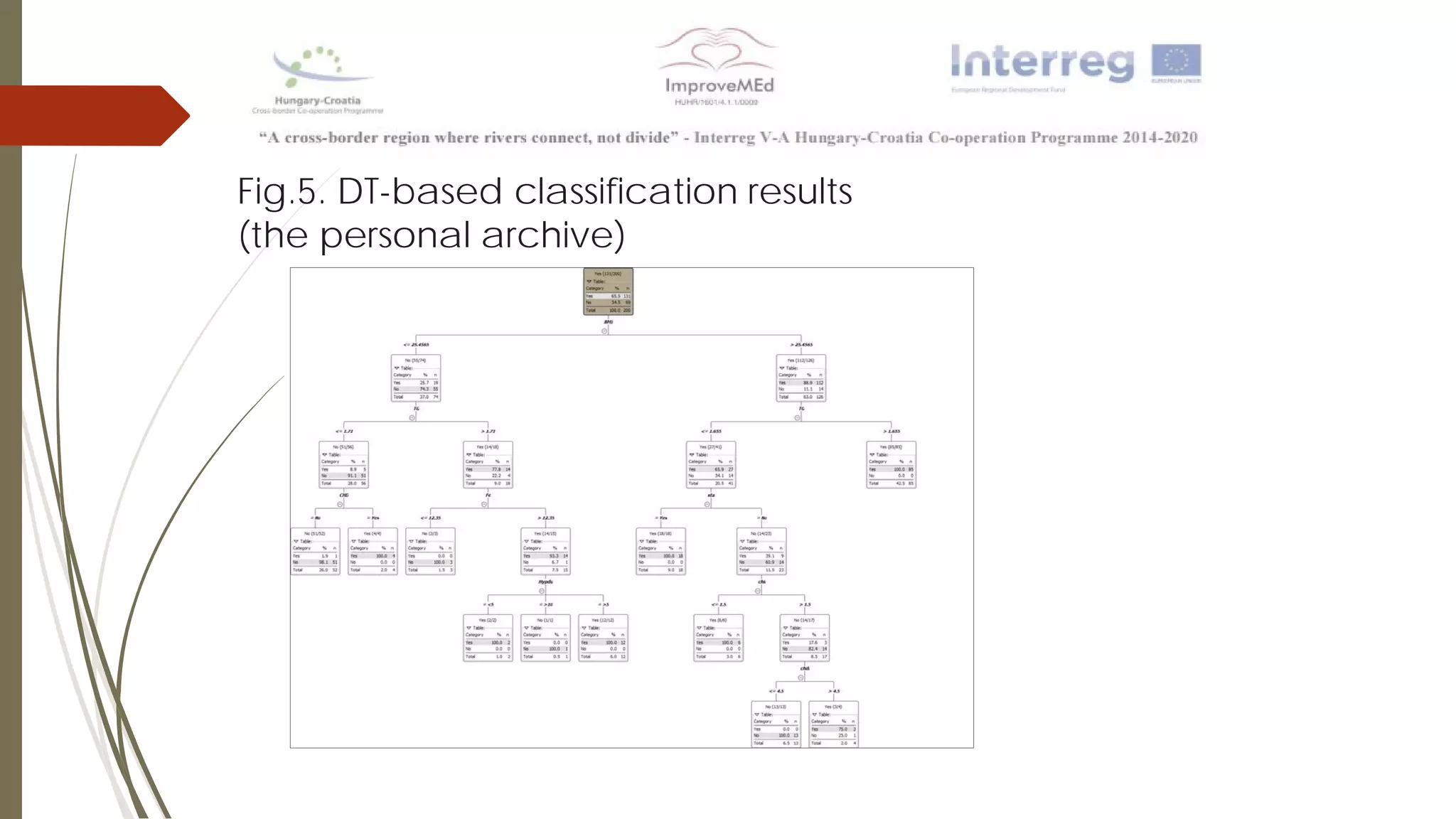

17. Fig.5. DT-based classification results
(the personal archive)

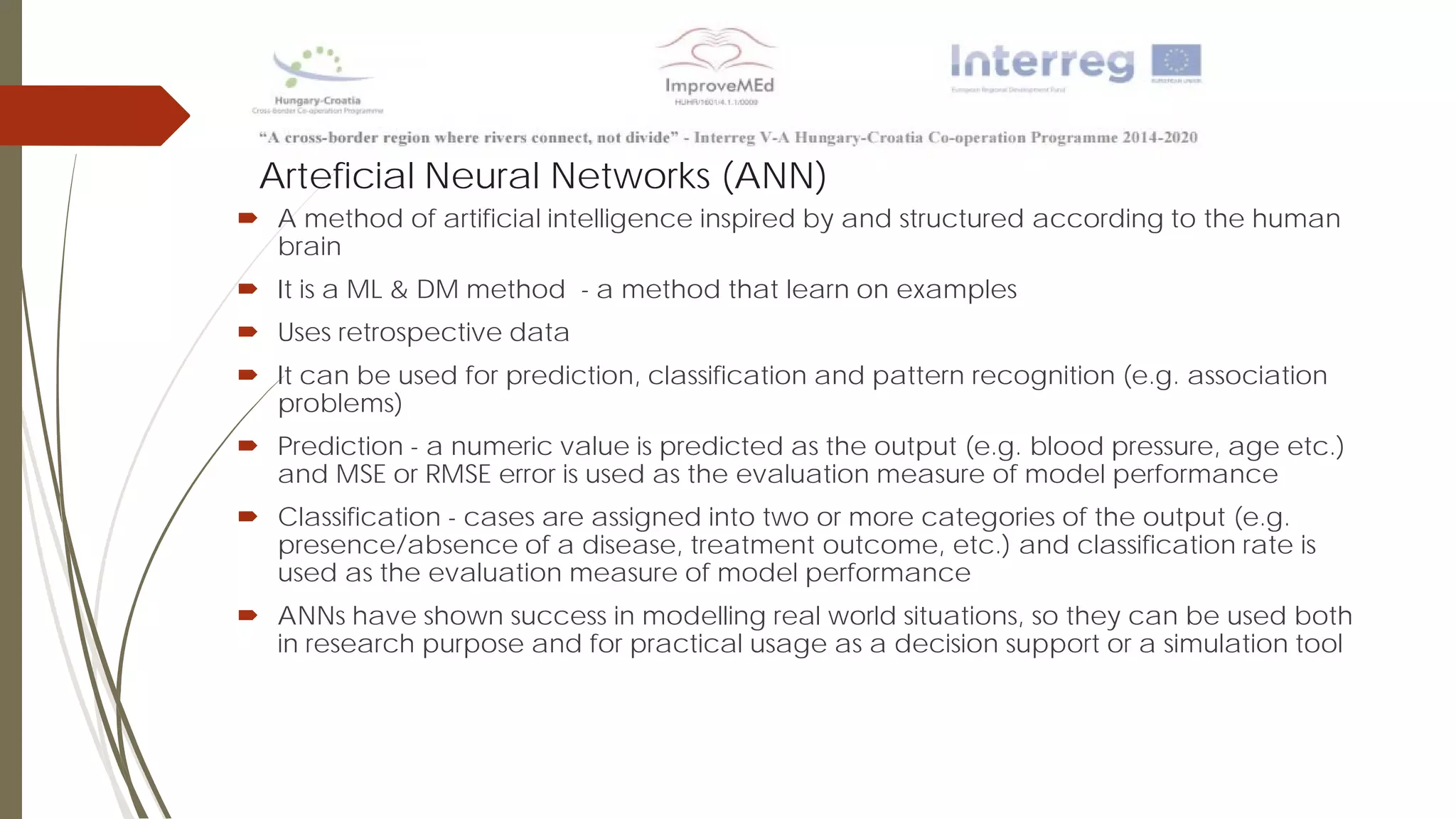

18. Arteficial Neural Networks (ANN)
 A method of artificial intelligence inspired by and structured according to the human
brain
 It is a ML & DM method - a method that learn on examples
 Uses retrospective data
 It can be used for prediction, classification and pattern recognition (e.g. association
problems)
 Prediction - a numeric value is predicted as the output (e.g. blood pressure, age etc.)
and MSE or RMSE error is used as the evaluation measure of model performance
 Classification - cases are assigned into two or more categories of the output (e.g.
presence/absence of a disease, treatment outcome, etc.) and classification rate is
used as the evaluation measure of model performance
 ANNs have shown success in modelling real world situations, so they can be used both
in research purpose and for practical usage as a decision support or a simulation tool

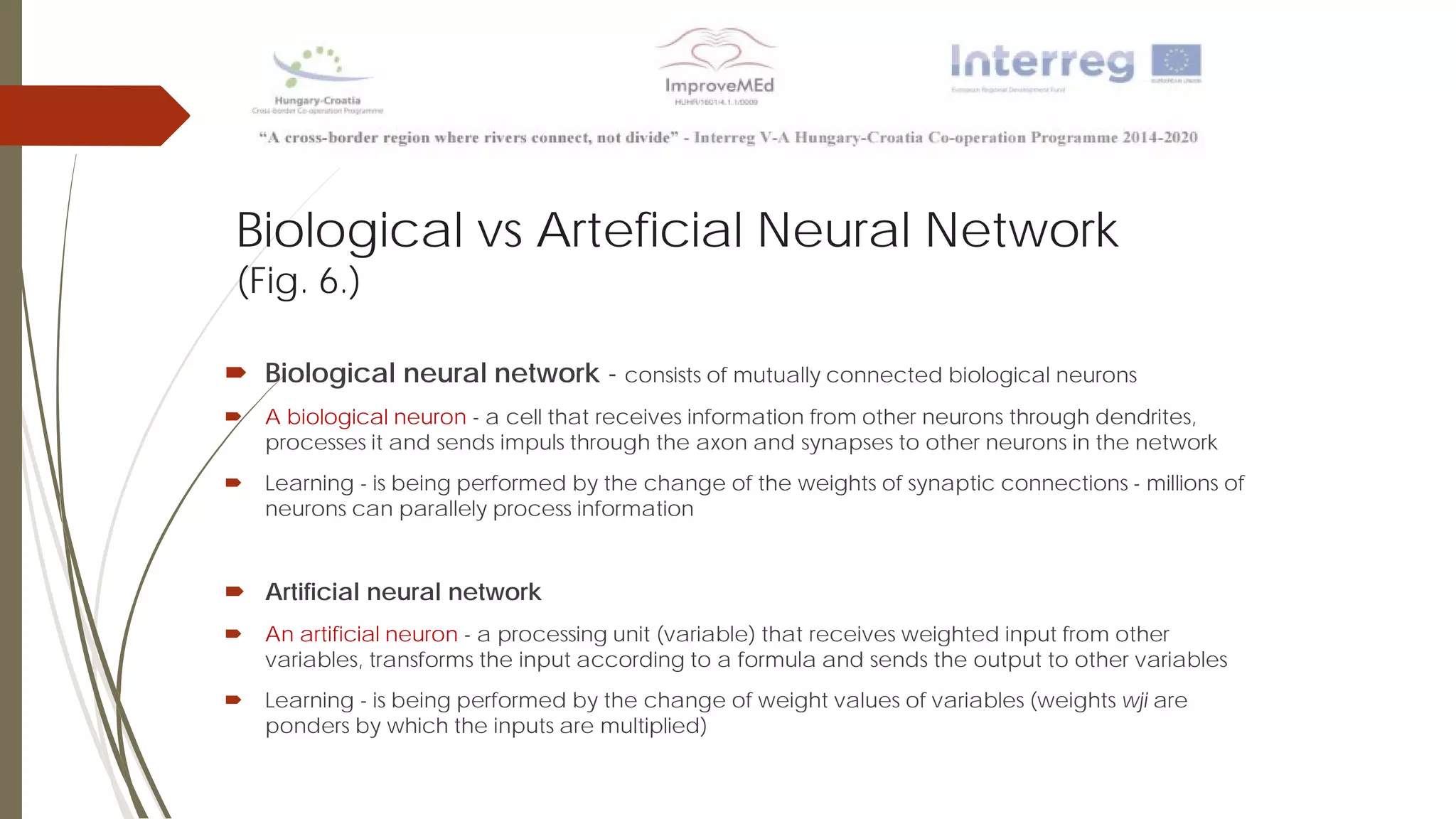

19. Biological vs Arteficial Neural Network
(Fig. 6.)
 Biological neural network - consists of mutually connected biological neurons
 A biological neuron - a cell that receives information from other neurons through dendrites,
processes it and sends impuls through the axon and synapses to other neurons in the network
 Learning - is being performed by the change of the weights of synaptic connections - millions of
neurons can parallely process information
 Artificial neural network
 An artificial neuron - a processing unit (variable) that receives weighted input from other
variables, transforms the input according to a formula and sends the output to other variables
 Learning - is being performed by the change of weight values of variables (weights wji are
ponders by which the inputs are multiplied)

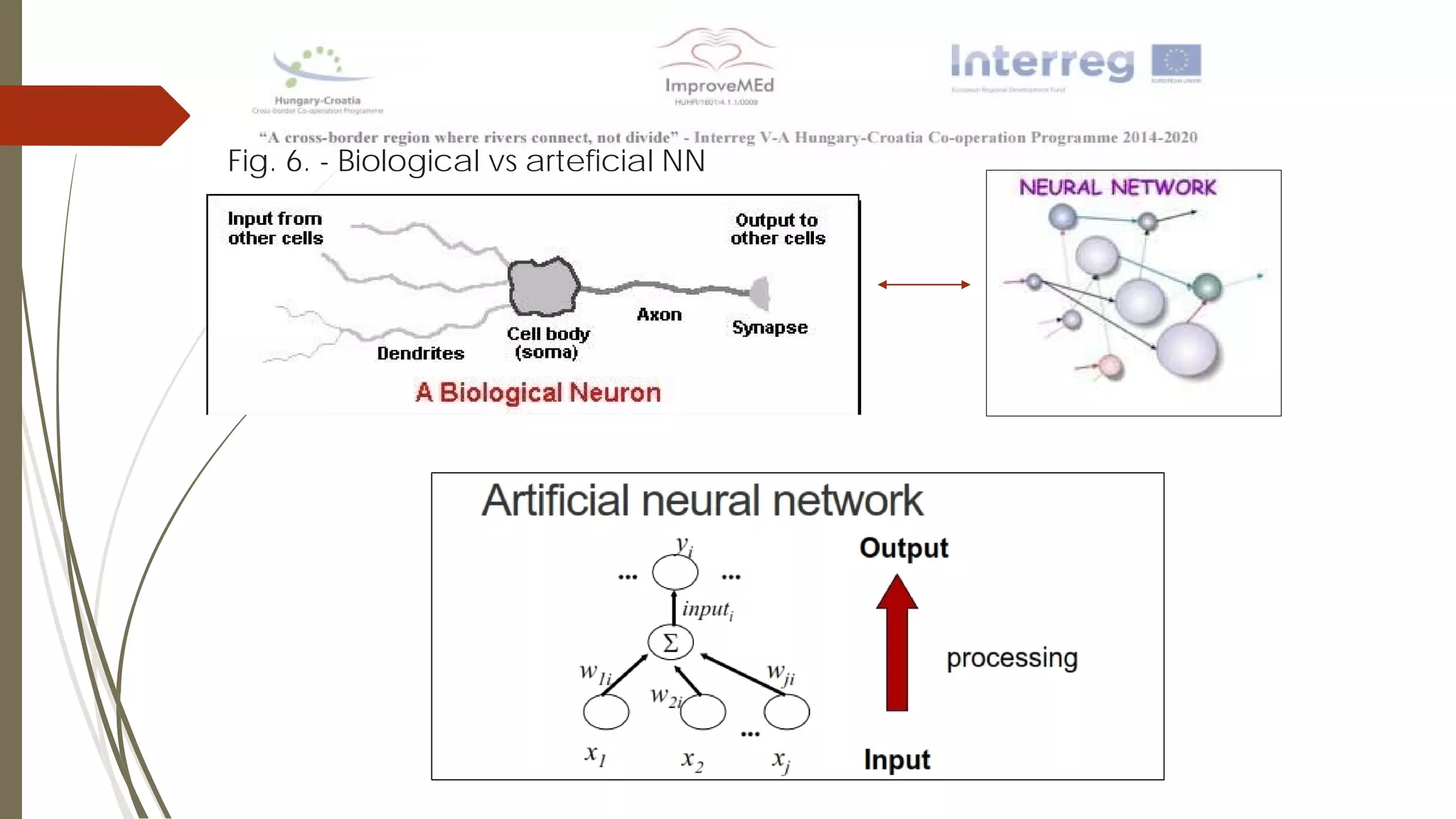

20. Fig. 6. - Biological vs arteficial NN

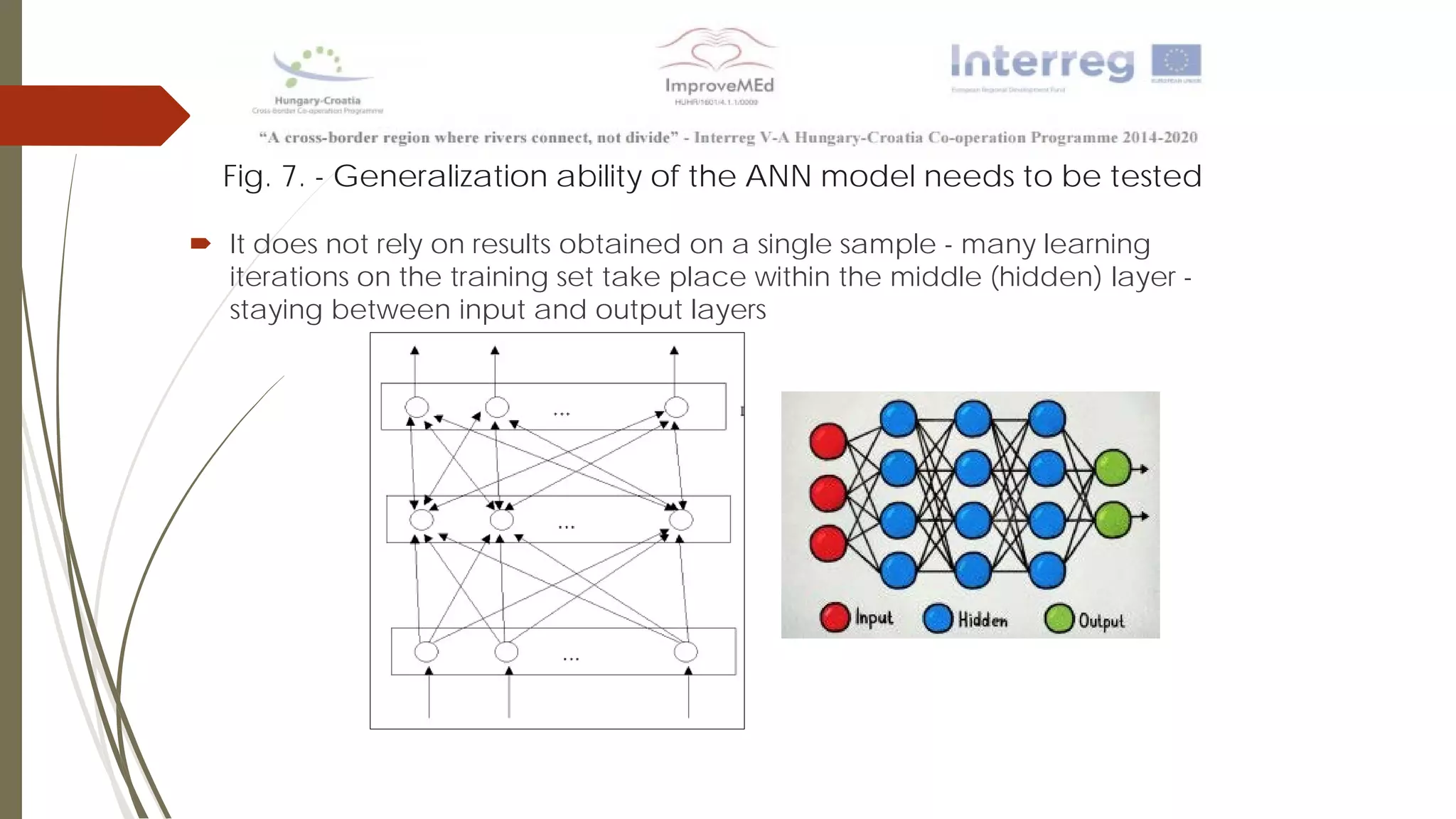

21. Fig. 7. - Generalization ability of the ANN model needs to be tested
 It does not rely on results obtained on a single sample - many learning
iterations on the training set take place within the middle (hidden) layer -
staying between input and output layers

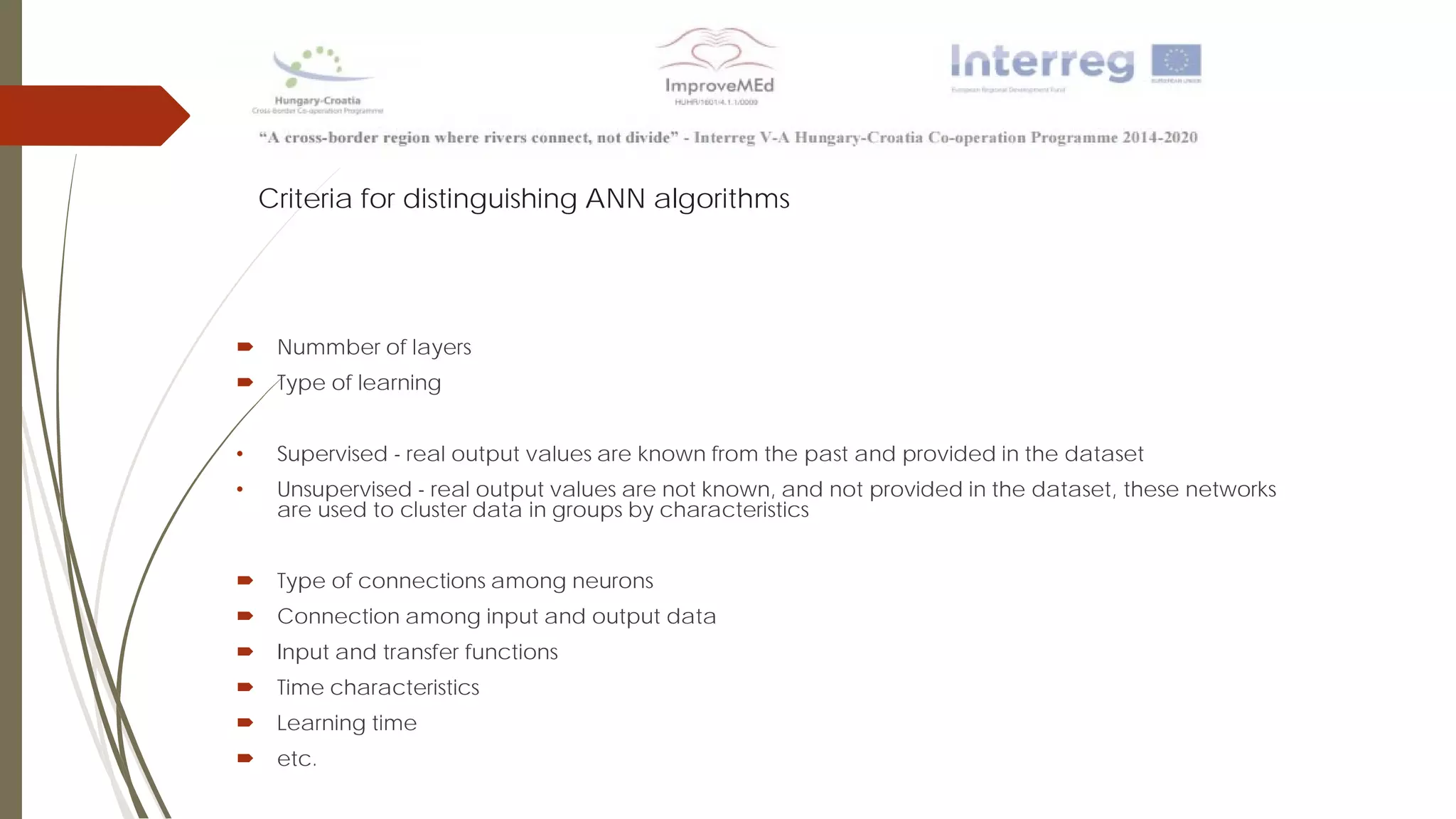

22. Criteria for distinguishing ANN algorithms
 Nummber of layers
 Type of learning
• Supervised - real output values are known from the past and provided in the dataset
• Unsupervised - real output values are not known, and not provided in the dataset, these networks
are used to cluster data in groups by characteristics
 Type of connections among neurons
 Connection among input and output data
 Input and transfer functions
 Time characteristics
 Learning time
 etc.

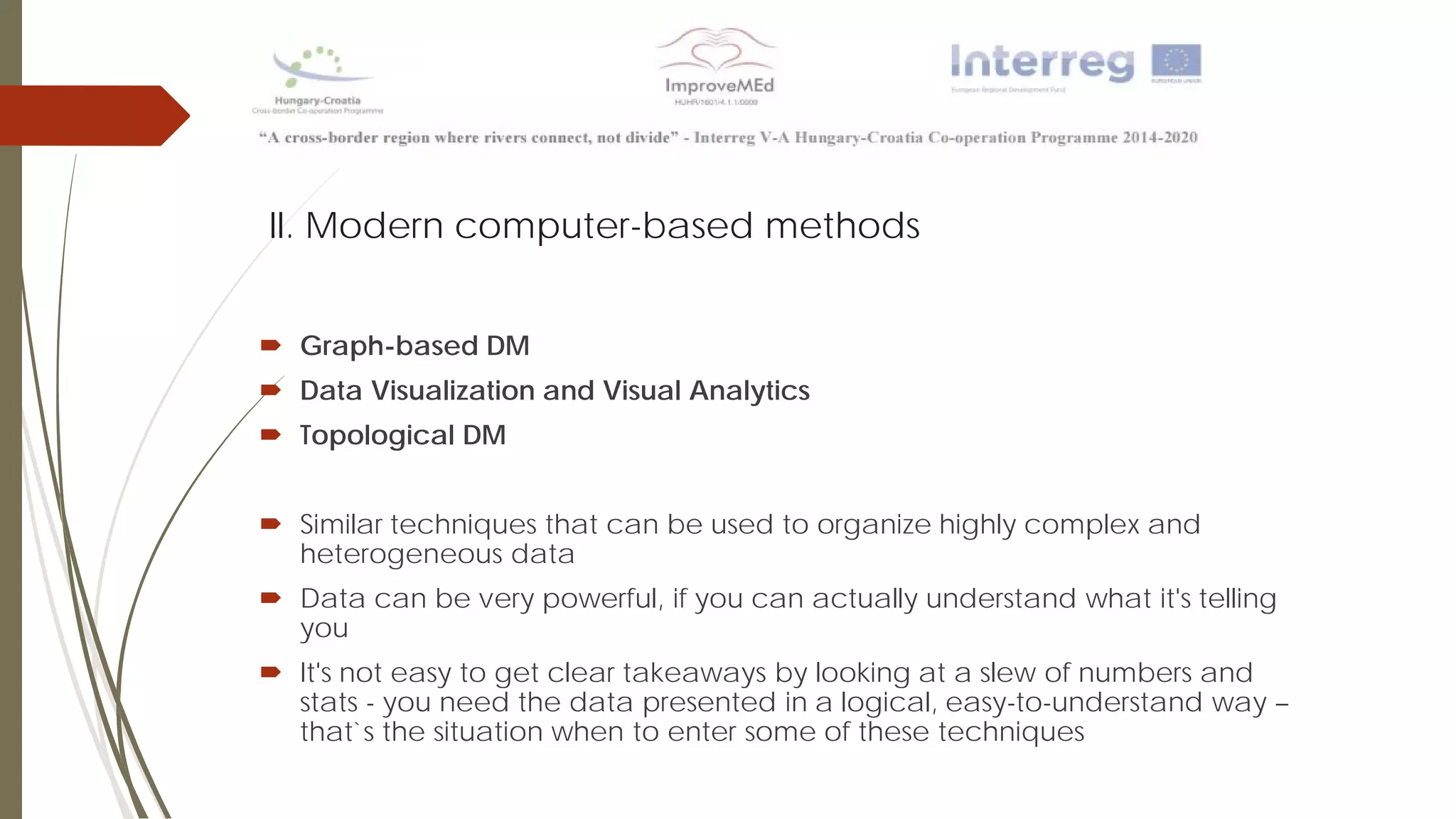

23. II. Modern computer-based methods
 Graph-based DM
 Data Visualization and Visual Analytics

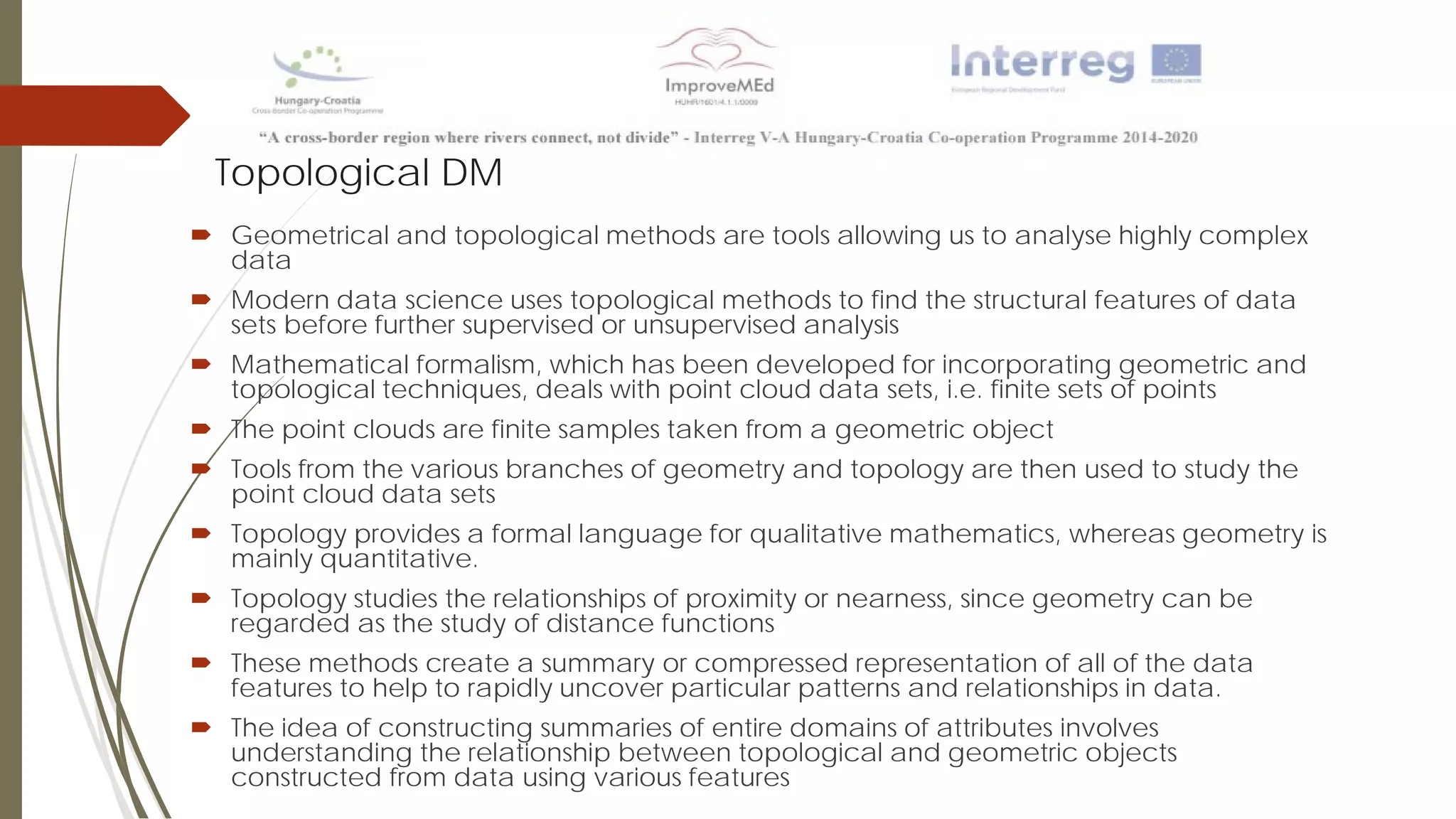

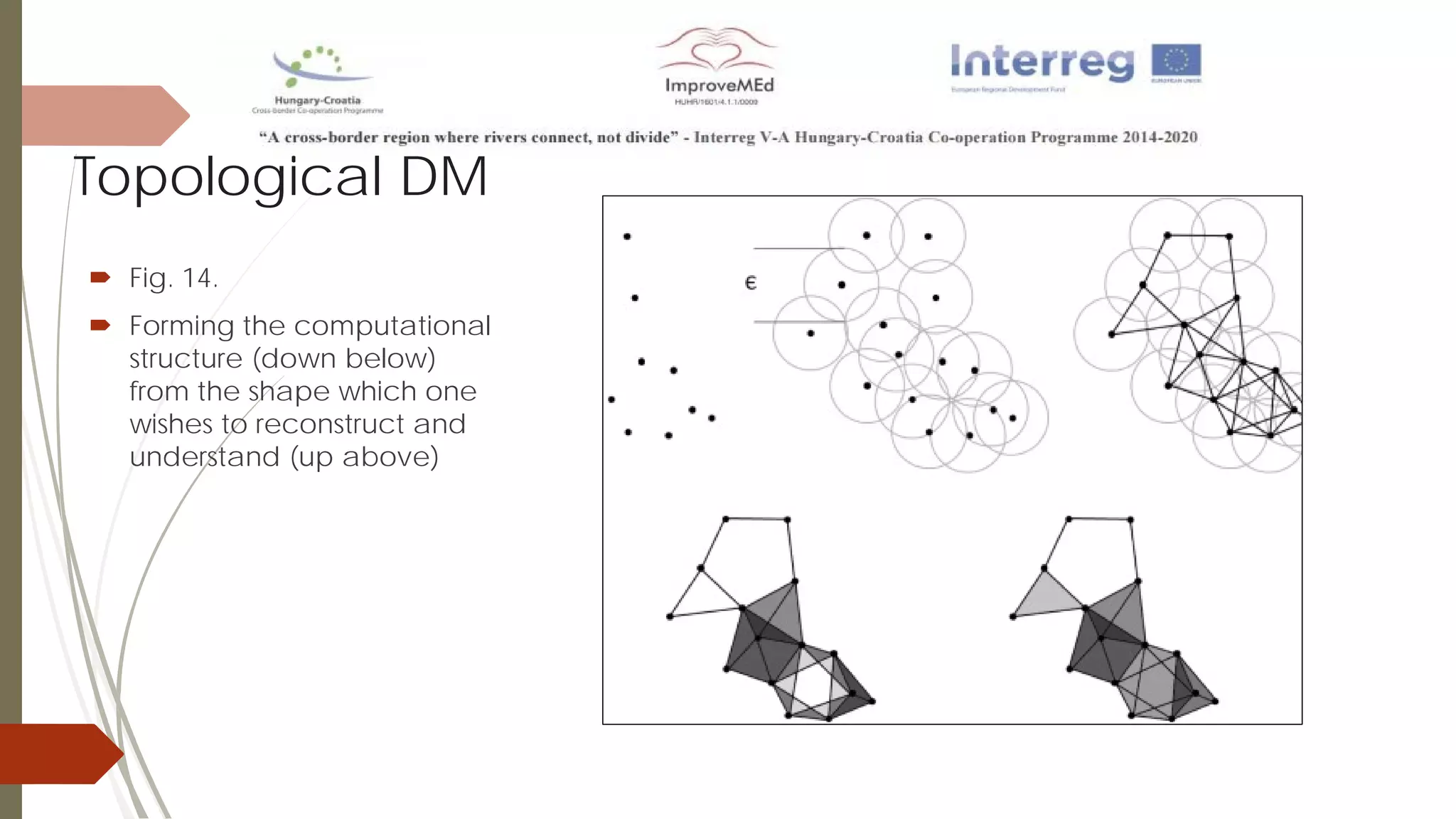

 Topological DM
 Similar techniques that can be used to organize highly complex and
heterogeneous data
 Data can be very powerful, if you can actually understand what it's telling
you
 It's not easy to get clear takeaways by looking at a slew of numbers and
stats - you need the data presented in a logical, easy-to-understand way –
that`s the situation when to enter some of these techniques

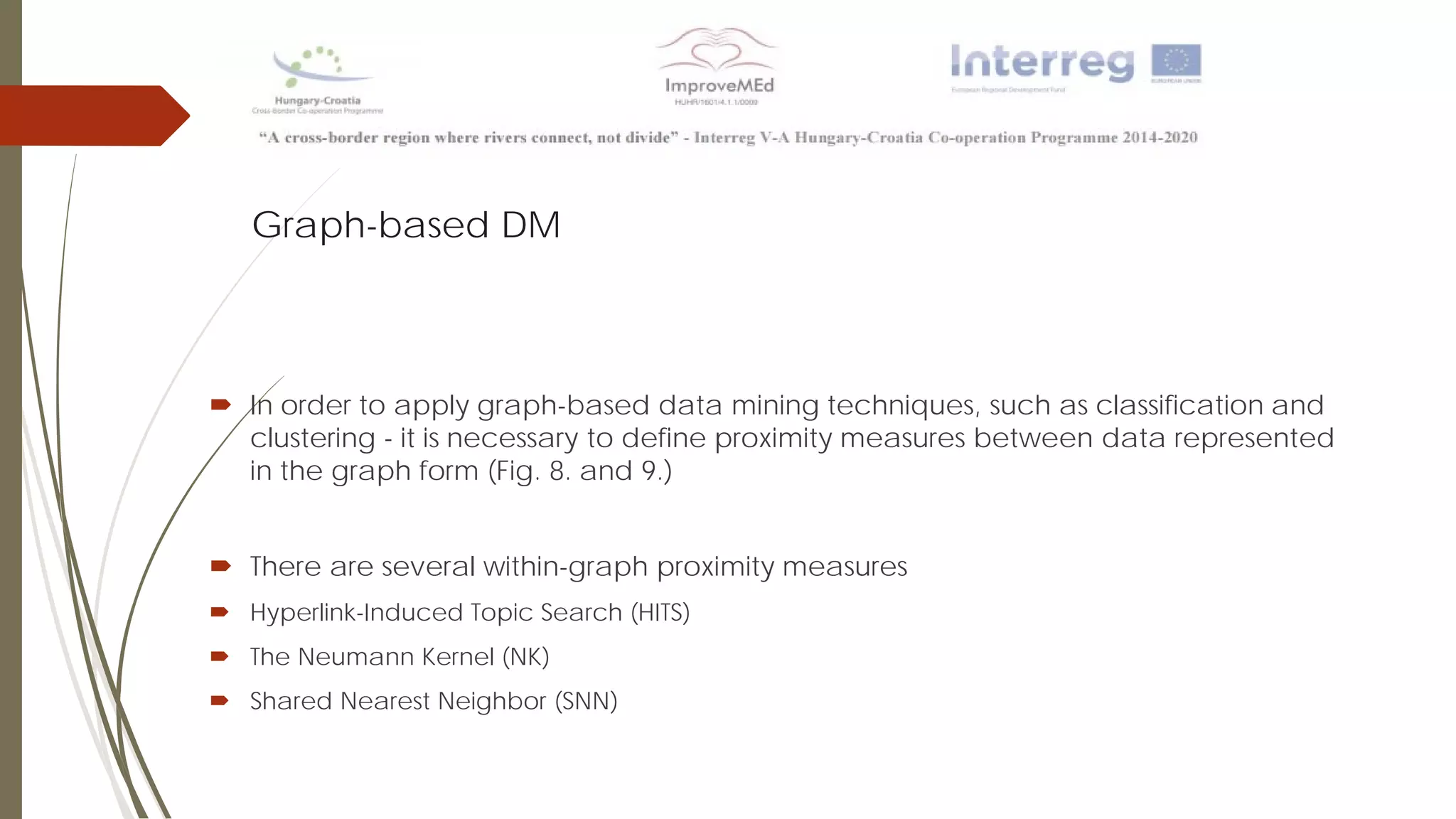

24. Graph-based DM
 In order to apply graph-based data mining techniques, such as classification and
clustering - it is necessary to define proximity measures between data represented
in the graph form (Fig. 8. and 9.)
 There are several within-graph proximity measures
 Hyperlink-Induced Topic Search (HITS)
 The Neumann Kernel (NK)
 Shared Nearest Neighbor (SNN)

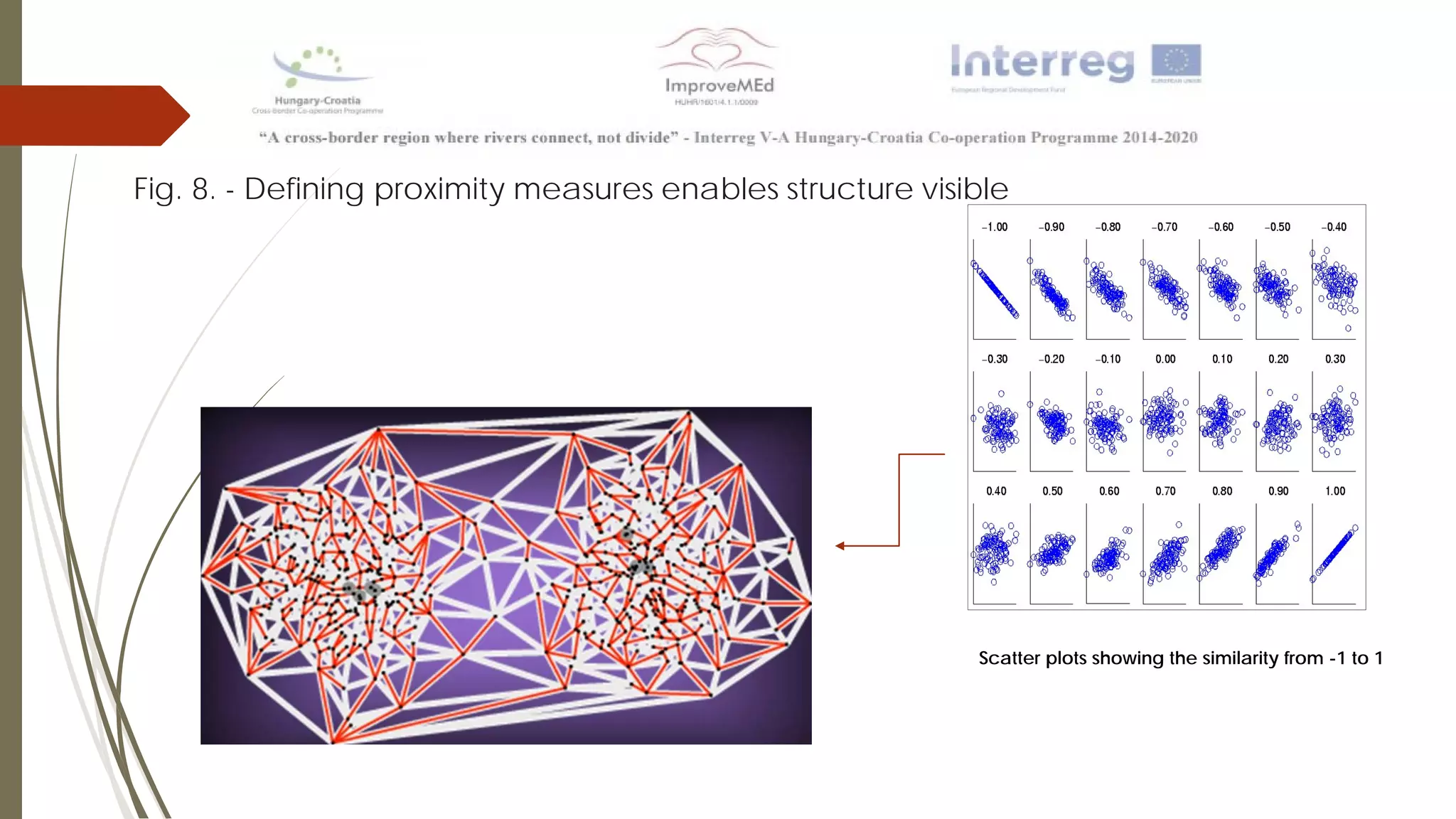

25. Fig. 8. - Defining proximity measures enables structure visible
Scatter plots showing the similarity from -1 to 1

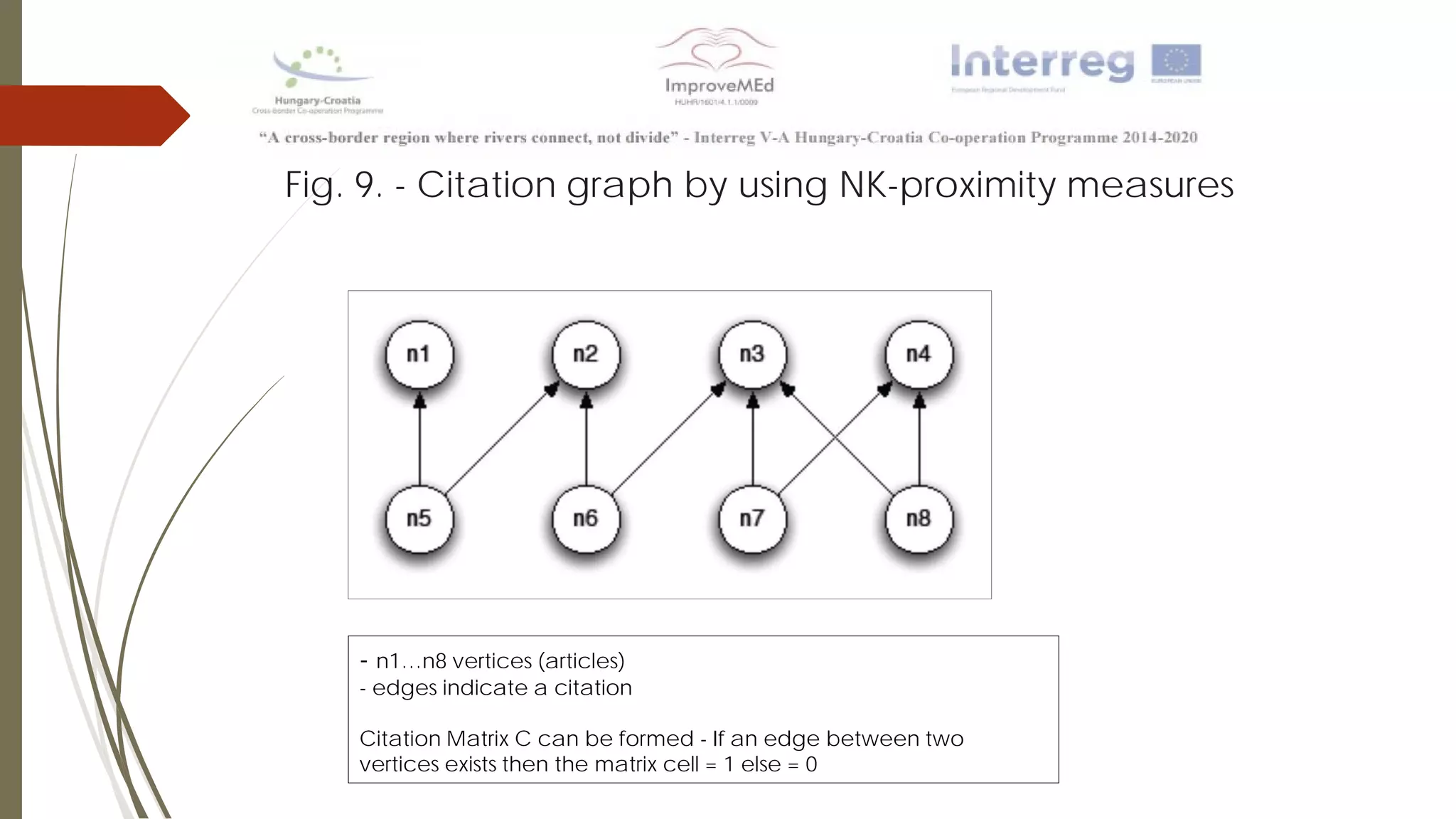

26. Fig. 9. - Citation graph by using NK-proximity measures
- n1…n8 vertices (articles)
- edges indicate a citation
Citation Matrix C can be formed - If an edge between two
vertices exists then the matrix cell = 1 else = 0

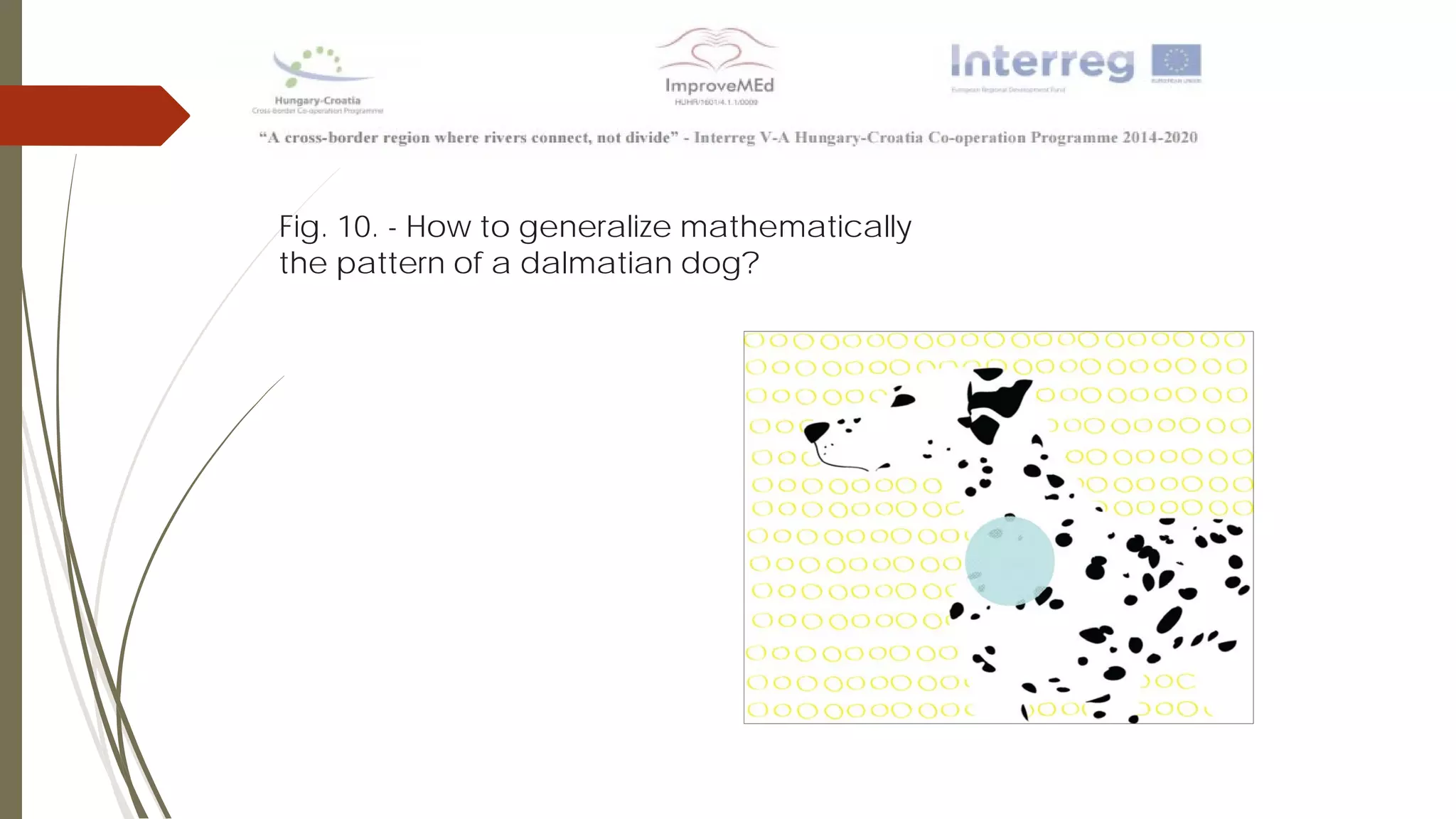

27. Fig. 10. - How to generalize mathematically
the pattern of a dalmatian dog?

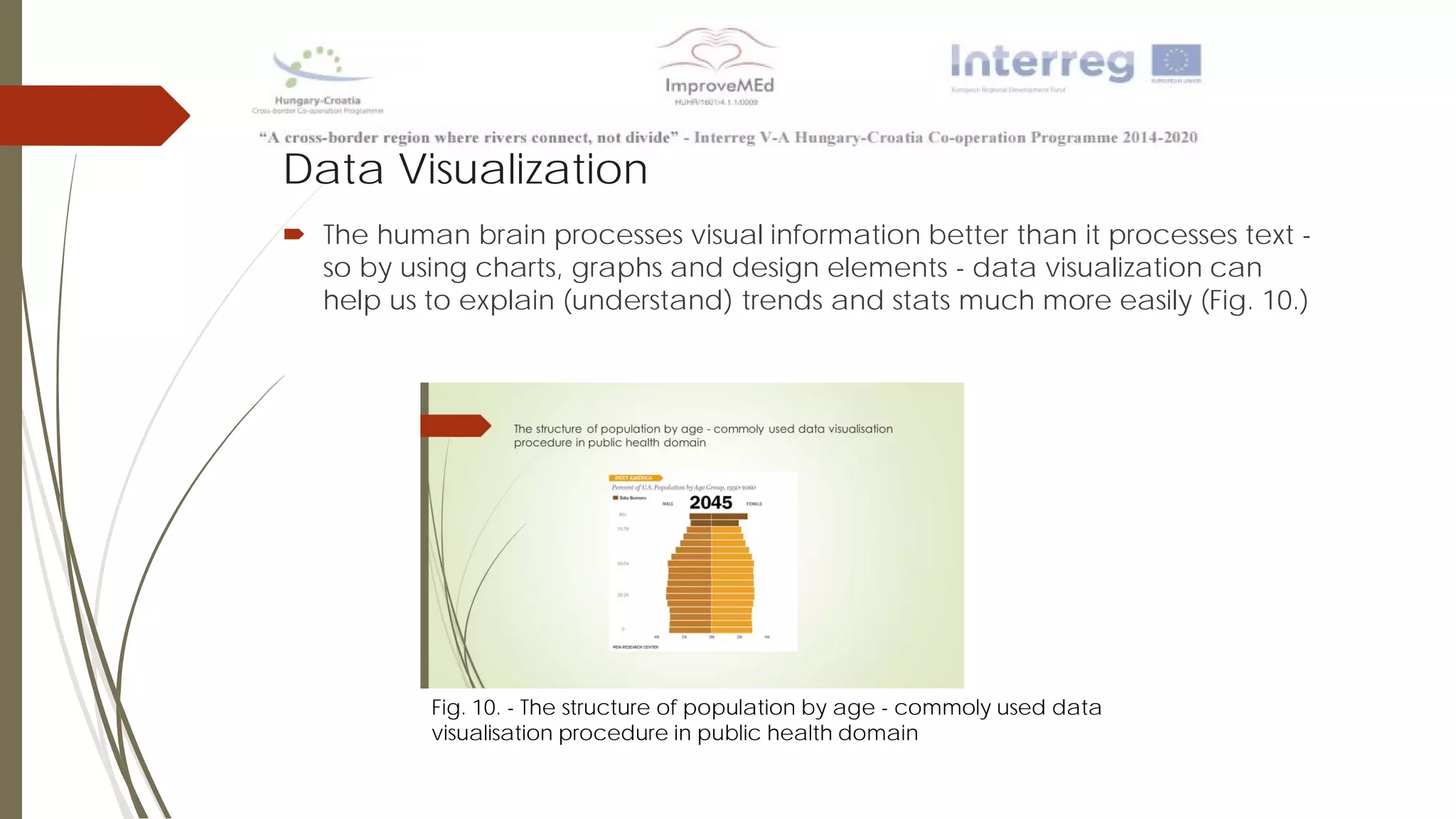

28. Data Visualization
 The human brain processes visual information better than it processes text -
so by using charts, graphs and design elements - data visualization can
help us to explain (understand) trends and stats much more easily (Fig. 10.)
Fig. 10. - The structure of population by age - commoly used data
visualisation procedure in public health domain

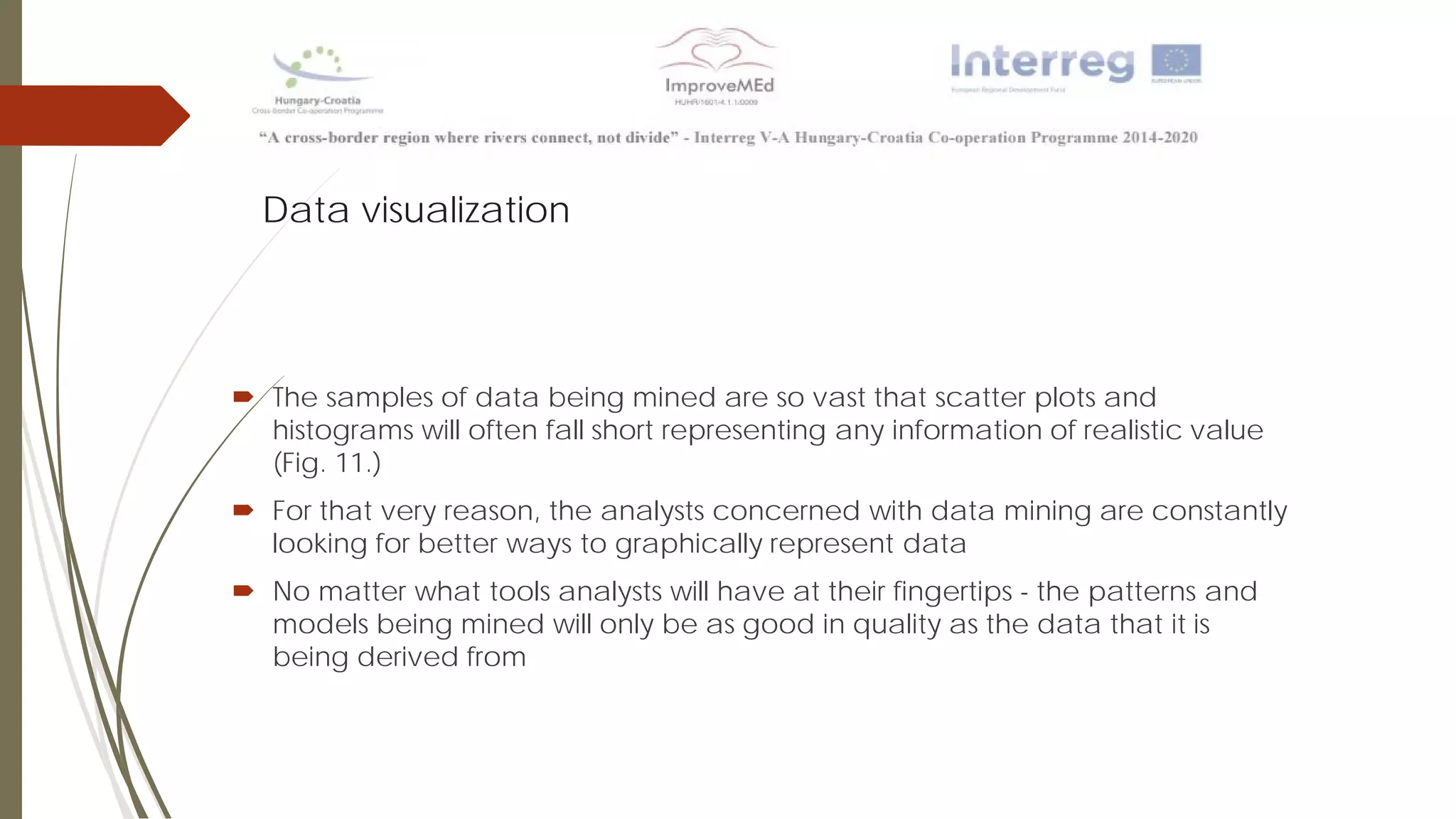

29. Data visualization
 The samples of data being mined are so vast that scatter plots and
histograms will often fall short representing any information of realistic value
(Fig. 11.)
 For that very reason, the analysts concerned with data mining are constantly
looking for better ways to graphically represent data
 No matter what tools analysts will have at their fingertips - the patterns and
models being mined will only be as good in quality as the data that it is
being derived from

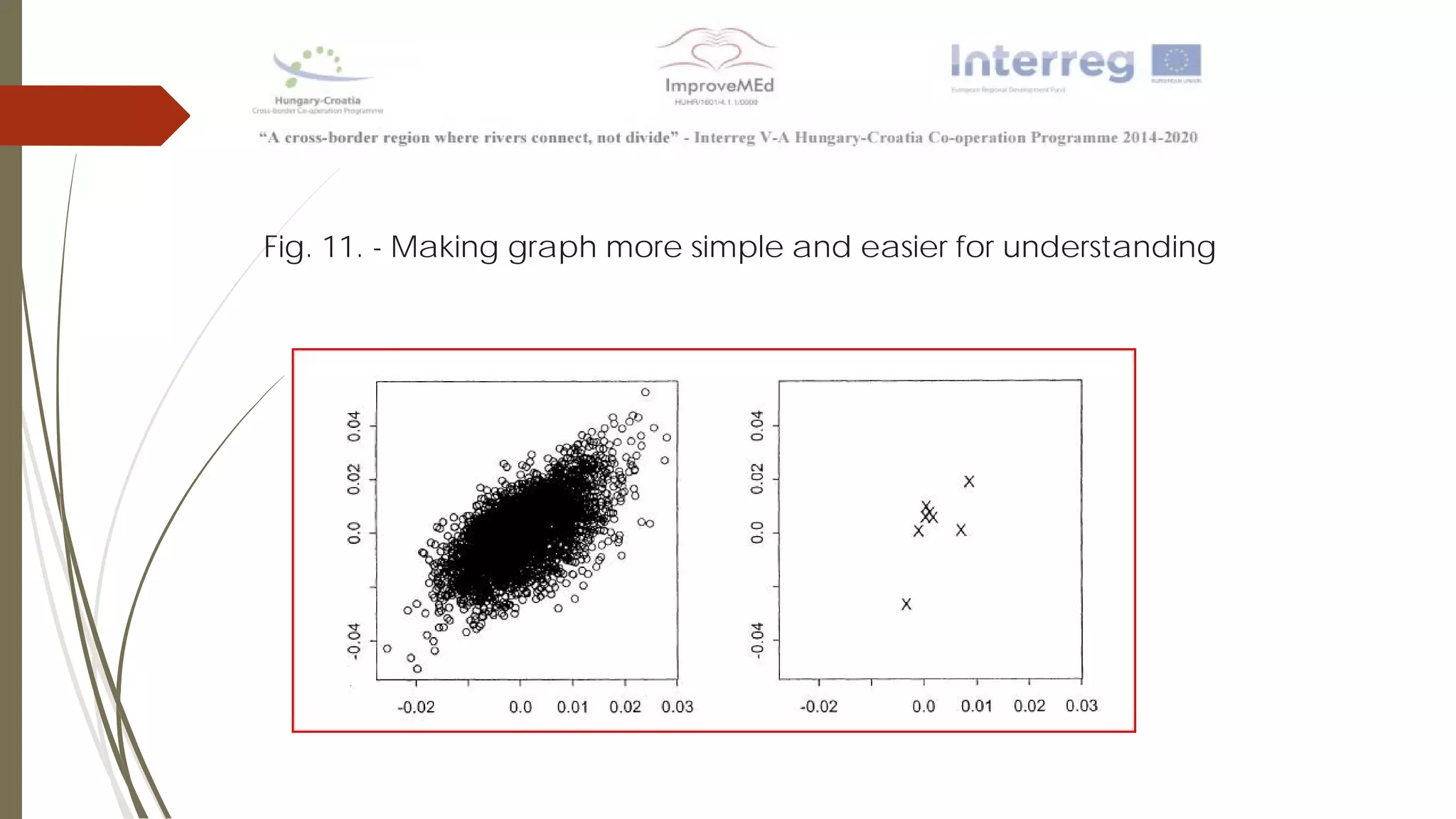

30. Fig. 11. - Making graph more simple and easier for understanding

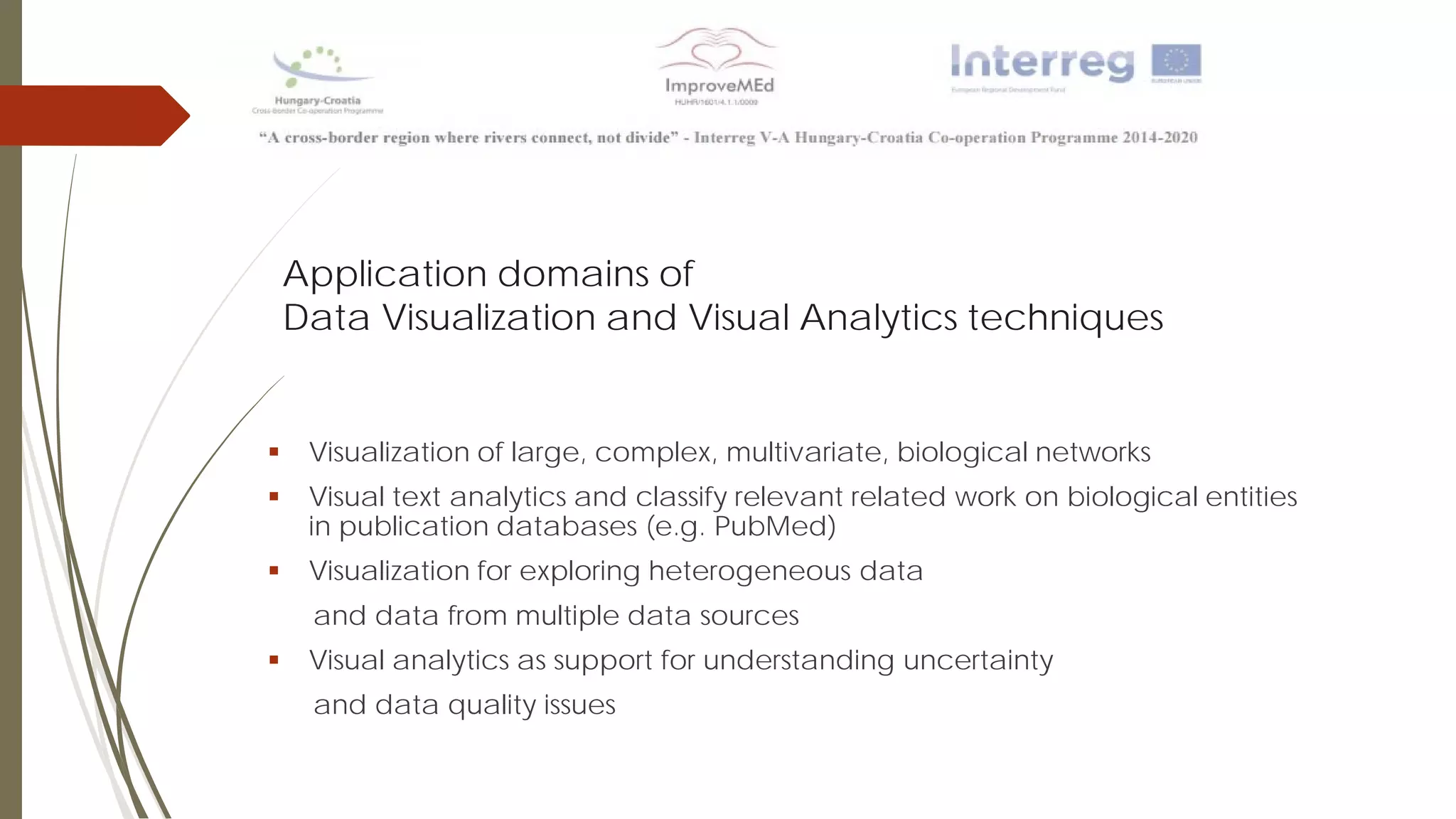

31. Application domains of
Data Visualization and Visual Analytics techniques
 Visualization of large, complex, multivariate, biological networks
 Visual text analytics and classify relevant related work on biological entities
in publication databases (e.g. PubMed)
 Visualization for exploring heterogeneous data
and data from multiple data sources
 Visual analytics as support for understanding uncertainty
and data quality issues

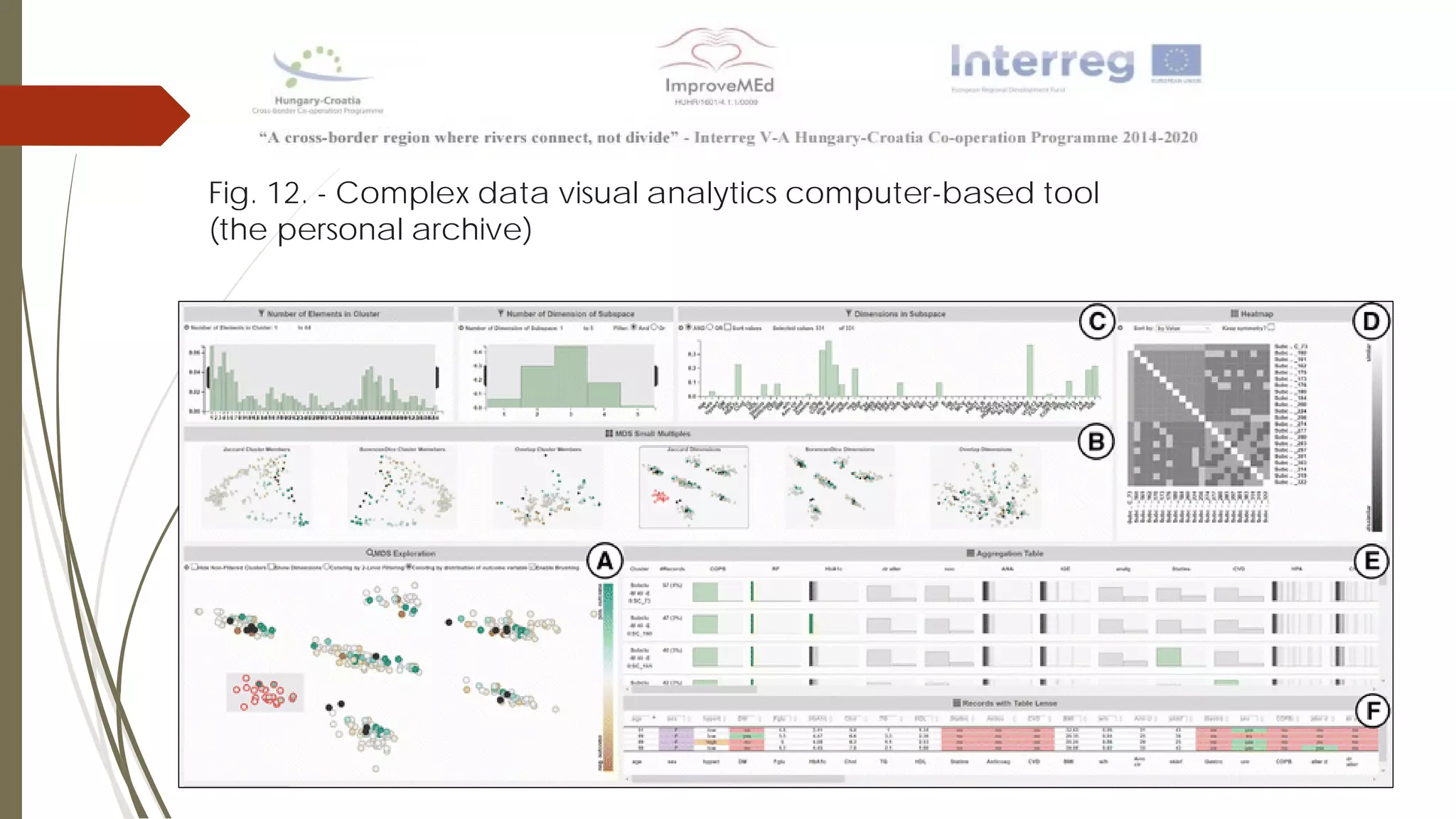

32. Fig. 12. - Complex data visual analytics computer-based tool
(the personal archive)

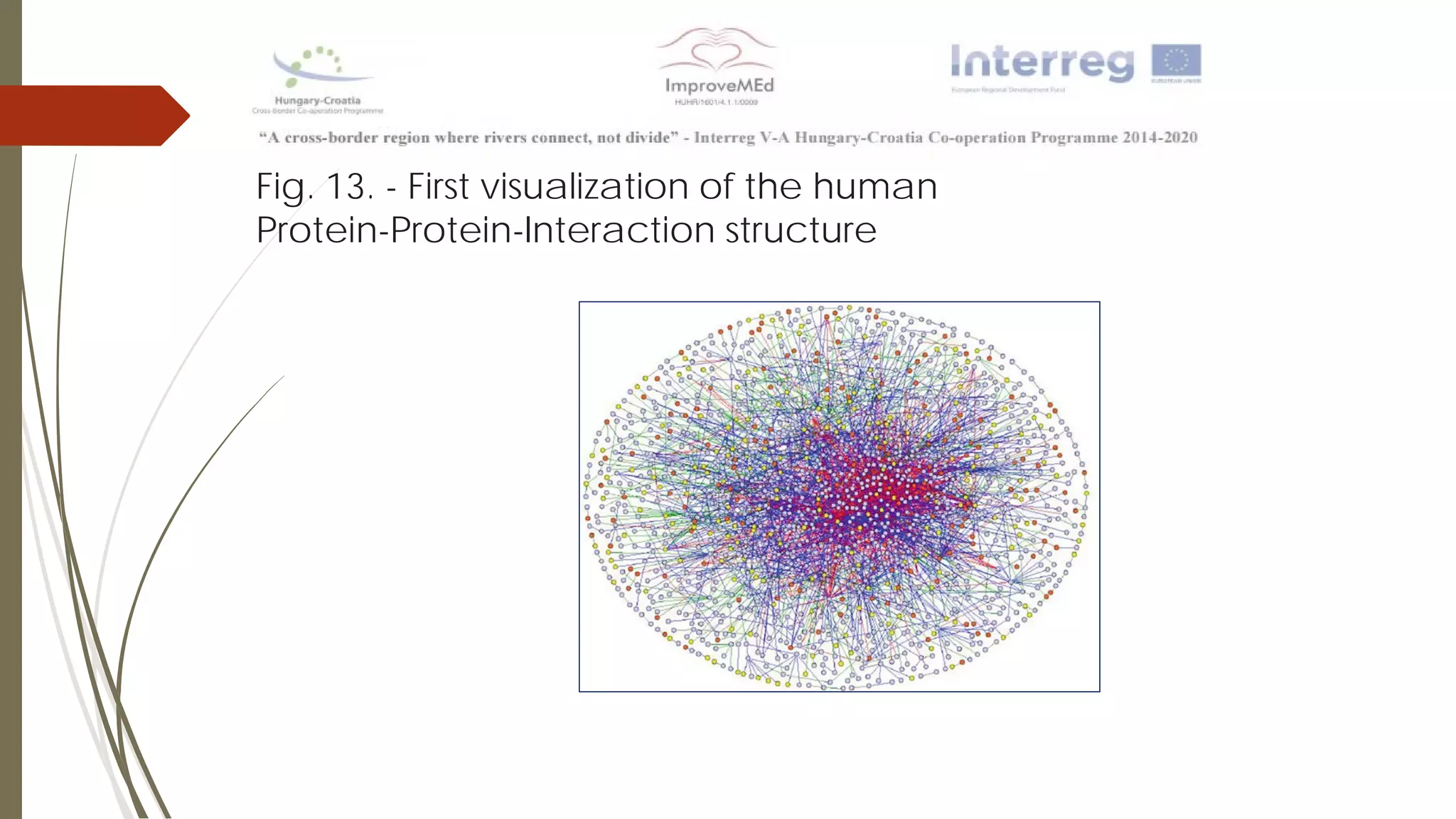

33. Fig. 13. - First visualization of the human
Protein-Protein-Interaction structure

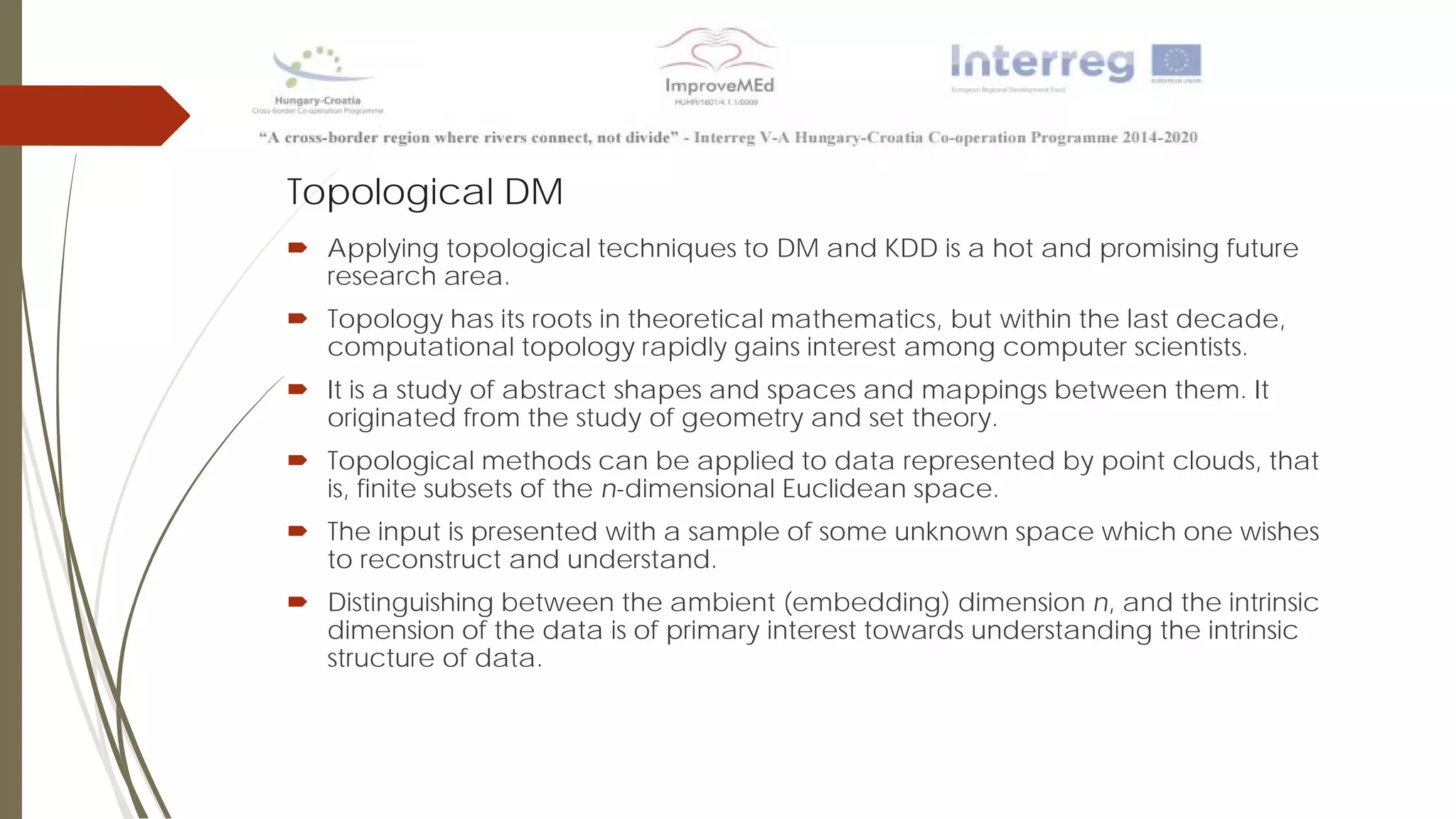

34. Topological DM
 Applying topological techniques to DM and KDD is a hot and promising future
research area.
 Topology has its roots in theoretical mathematics, but within the last decade,
computational topology rapidly gains interest among computer scientists.
 It is a study of abstract shapes and spaces and mappings between them. It
originated from the study of geometry and set theory.
 Topological methods can be applied to data represented by point clouds, that
is, finite subsets of the n-dimensional Euclidean space.
 The input is presented with a sample of some unknown space which one wishes
to reconstruct and understand.
 Distinguishing between the ambient (embedding) dimension n, and the intrinsic
dimension of the data is of primary interest towards understanding the intrinsic
structure of data.

35. Topological DM
 Geometrical and topological methods are tools allowing us to analyse highly complex
data
 Modern data science uses topological methods to find the structural features of data
sets before further supervised or unsupervised analysis
 Mathematical formalism, which has been developed for incorporating geometric and
topological techniques, deals with point cloud data sets, i.e. finite sets of points
 The point clouds are finite samples taken from a geometric object
 Tools from the various branches of geometry and topology are then used to study the
point cloud data sets
 Topology provides a formal language for qualitative mathematics, whereas geometry is
mainly quantitative.
 Topology studies the relationships of proximity or nearness, since geometry can be
regarded as the study of distance functions
 These methods create a summary or compressed representation of all of the data
features to help to rapidly uncover particular patterns and relationships in data.
 The idea of constructing summaries of entire domains of attributes involves
understanding the relationship between topological and geometric objects
constructed from data using various features

36. Topological DM
 Fig. 14.
 Forming the computational
structure (down below)
from the shape which one
wishes to reconstruct and
understand (up above)
