1. Case Study:
Lucidchart's Migration to VPC
by Matthew Barlocker
www.lucidchart.com/jobs

2. “The Barlocker”
•
•
•
•
•
Chief Architect at Lucid Software
Inc since 2011
Bachelors in CS from BYU
Managed data center,
Rackspace and AWS
deployments
Love to play board games, go 4wheeling, wrestle my sons, and
fly airplanes
nineofclouds.blogspot.com
www.lucidchart.com/jobs

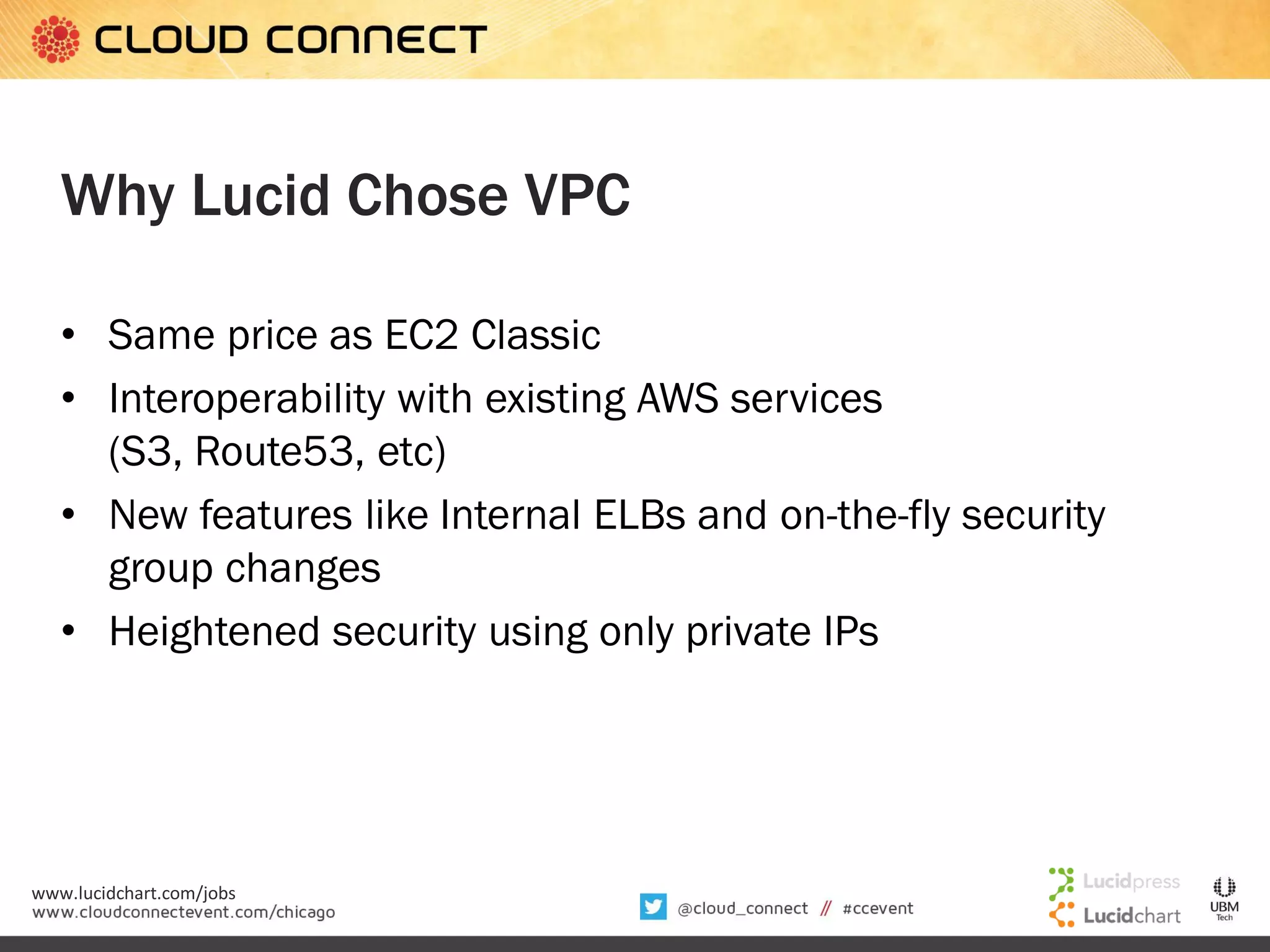

3. Why Lucid Chose VPC
• Same price as EC2 Classic
• Interoperability with existing AWS services
(S3, Route53, etc)
• New features like Internal ELBs and on-the-fly security
group changes
• Heightened security using only private IPs
www.lucidchart.com/jobs

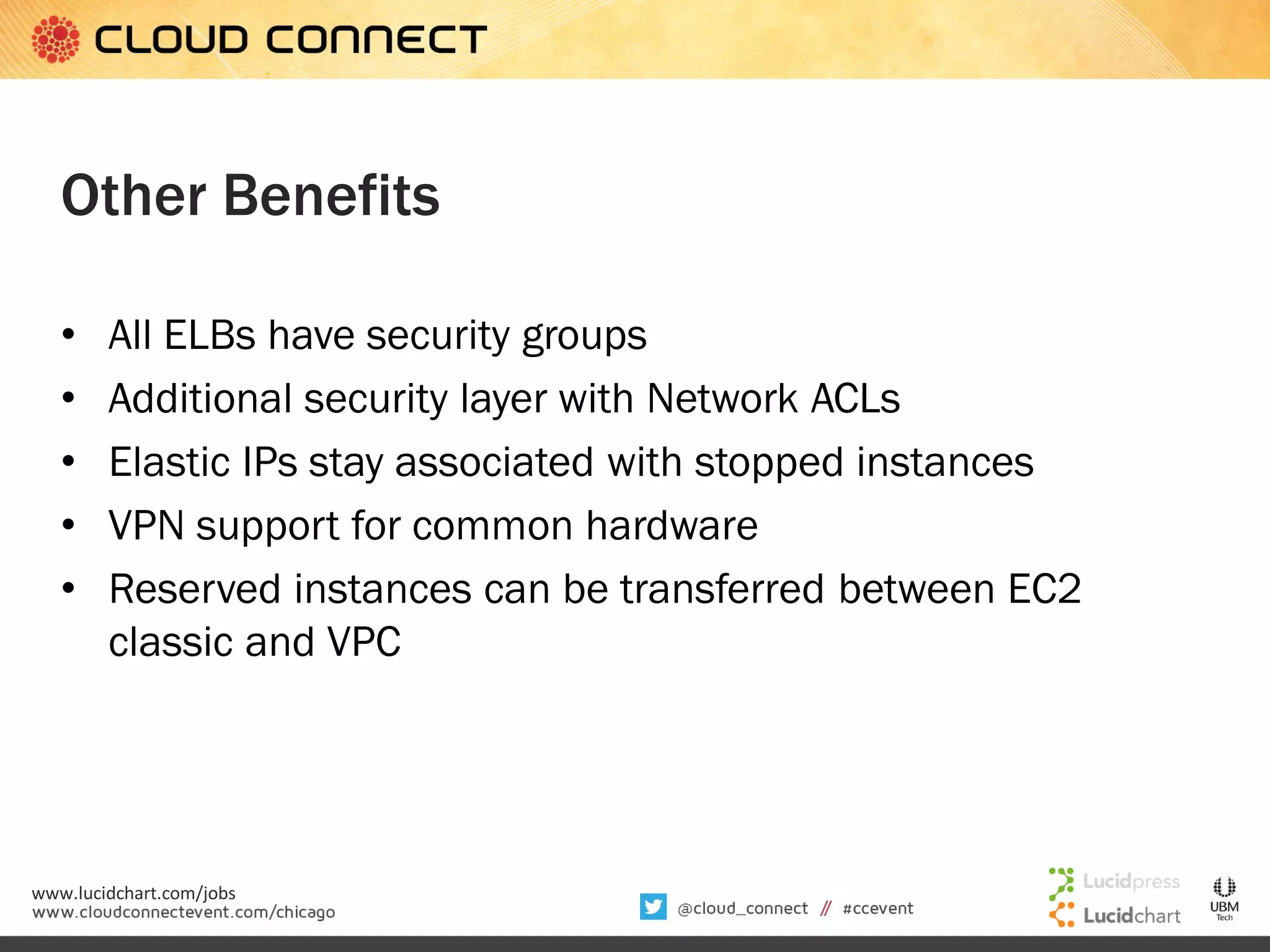

4. Other Benefits
•
•
•
•
•
All ELBs have security groups
Additional security layer with Network ACLs
Elastic IPs stay associated with stopped instances
VPN support for common hardware
Reserved instances can be transferred between EC2
classic and VPC
www.lucidchart.com/jobs

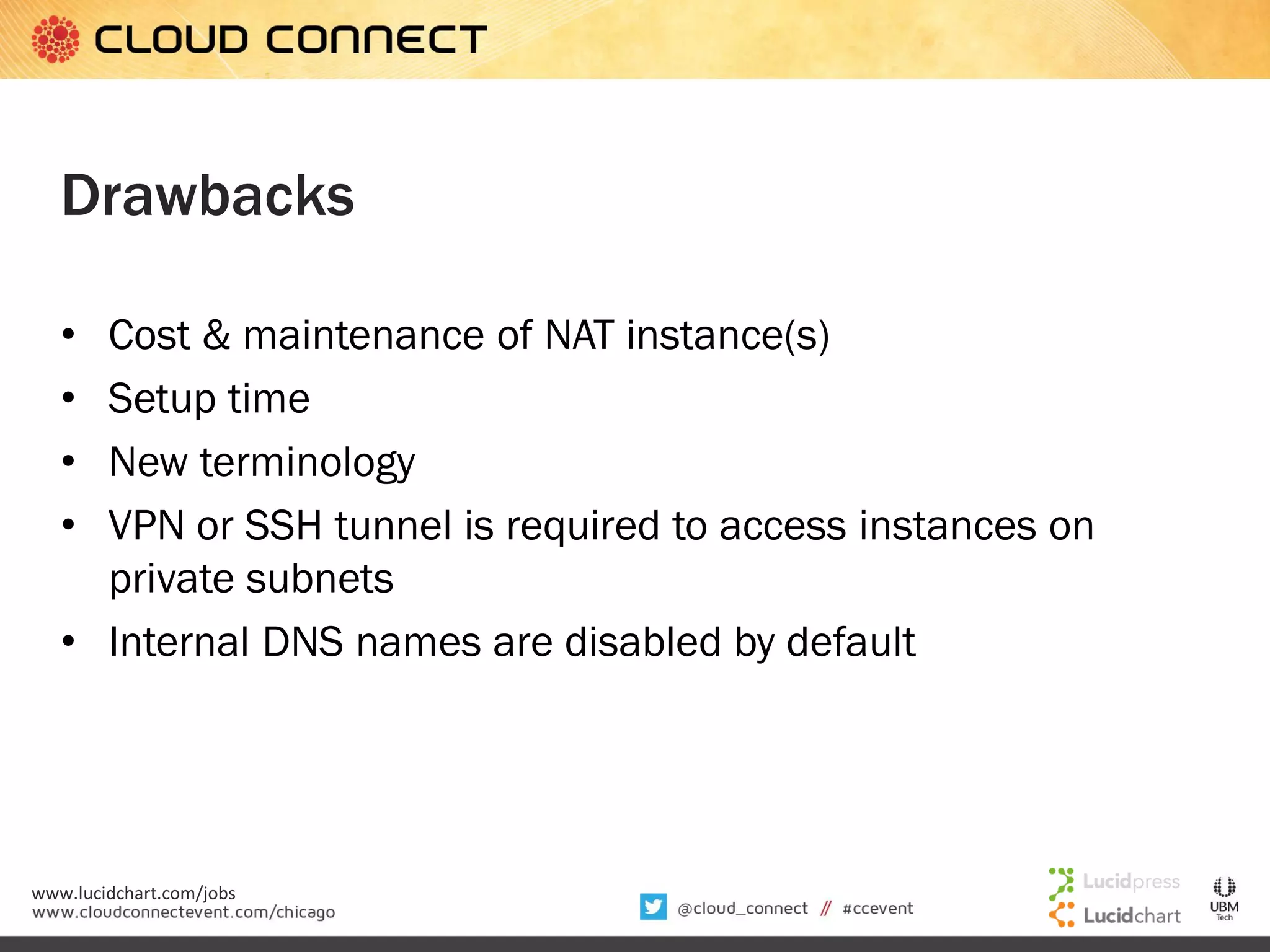

5. Drawbacks
Cost & maintenance of NAT instance(s)
Setup time
New terminology
VPN or SSH tunnel is required to access instances on
private subnets
• Internal DNS names are disabled by default
•
•
•
•
www.lucidchart.com/jobs

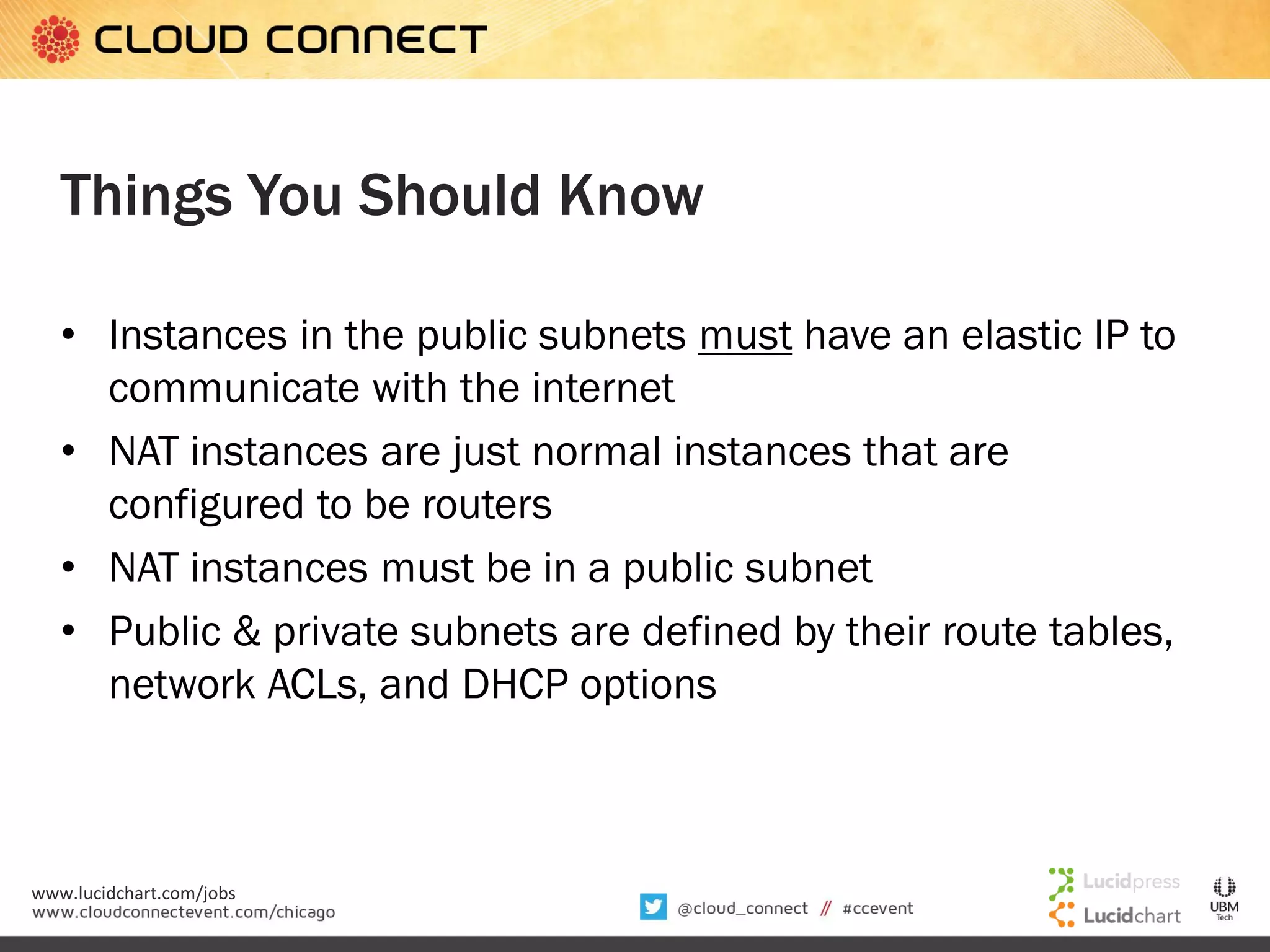

6. Things You Should Know
• Instances in the public subnets must have an elastic IP to
communicate with the internet
• NAT instances are just normal instances that are
configured to be routers
• NAT instances must be in a public subnet
• Public & private subnets are defined by their route tables,
network ACLs, and DHCP options
www.lucidchart.com/jobs

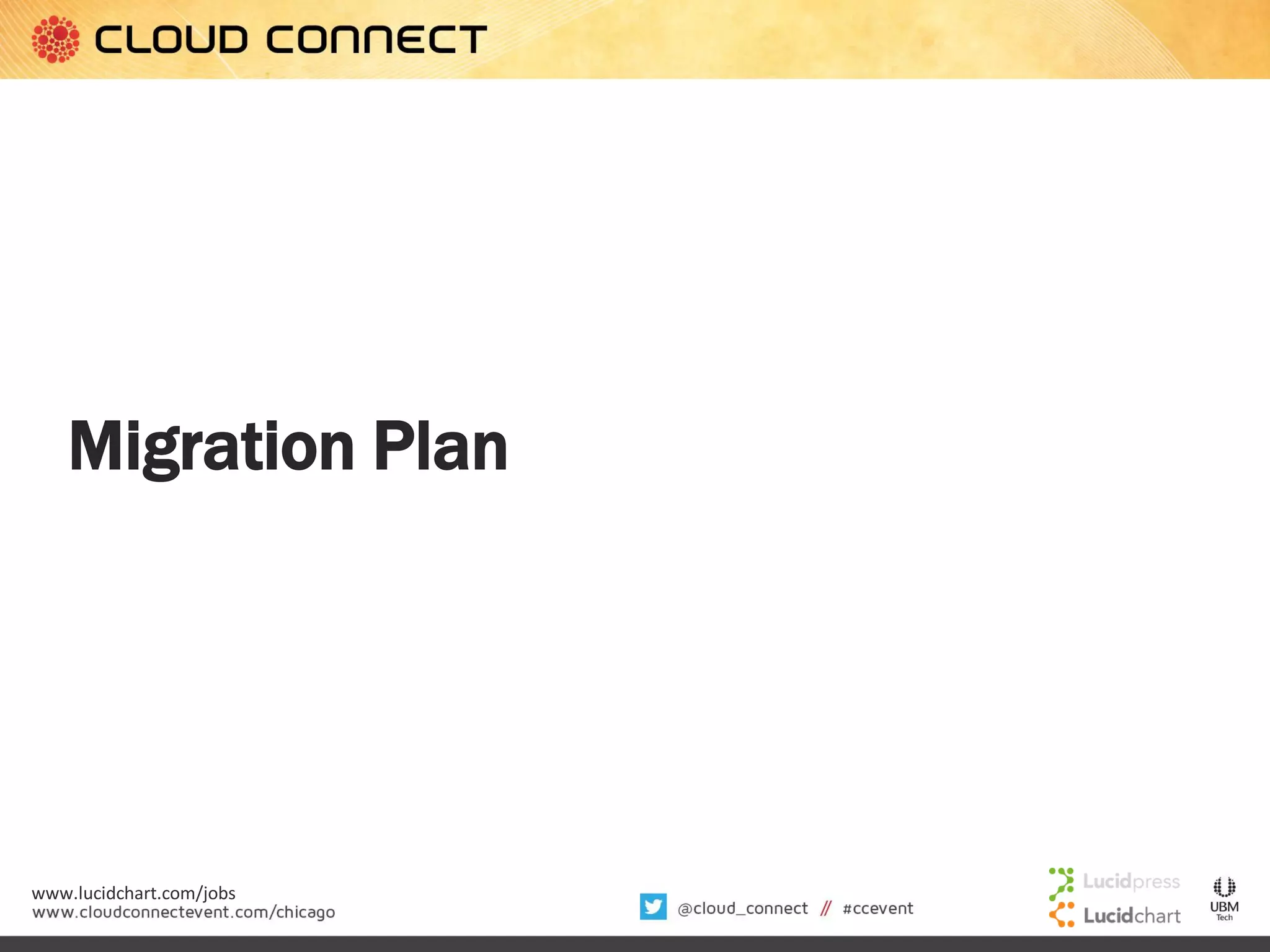

7. Migration Plan
www.lucidchart.com/jobs

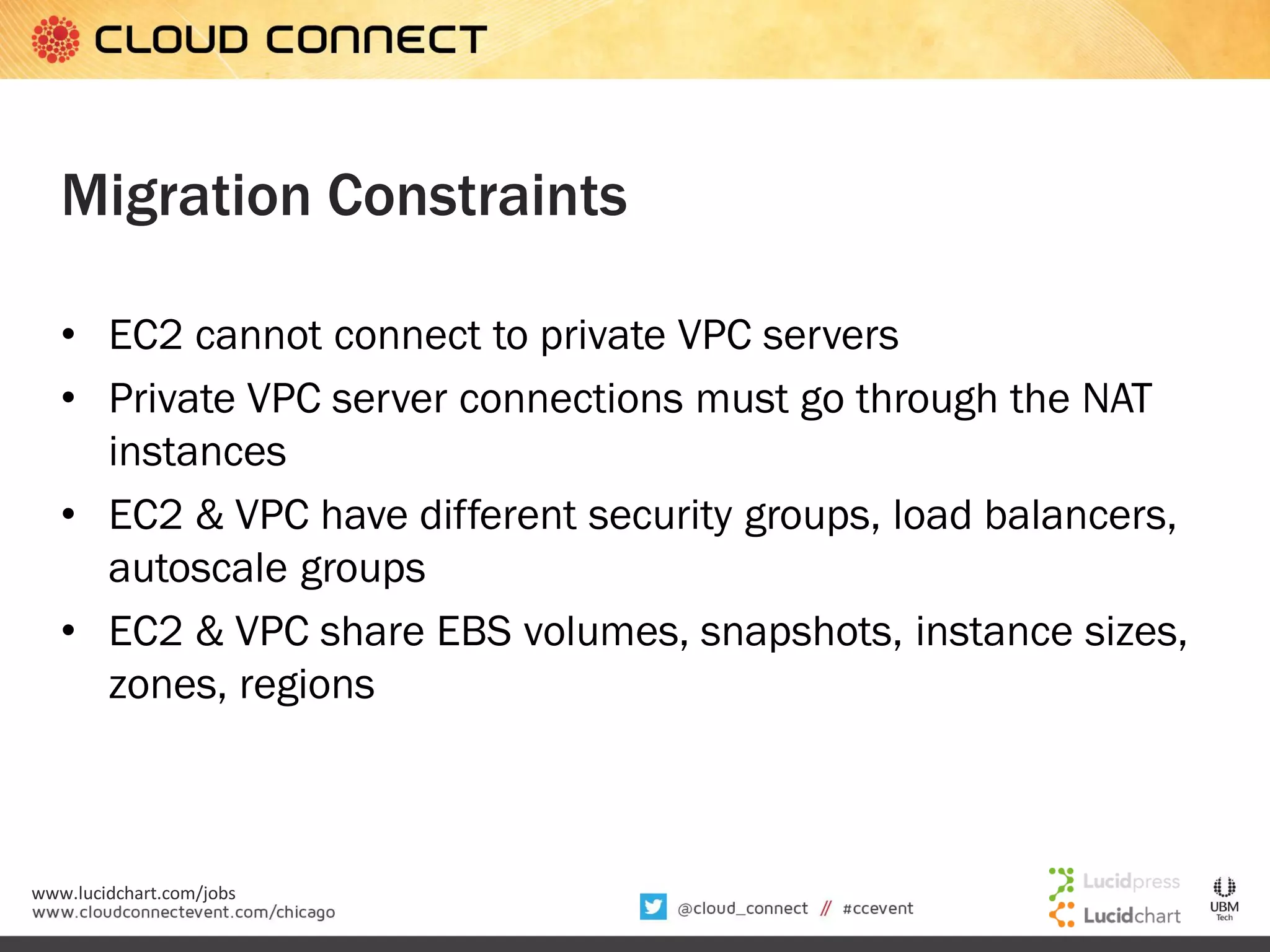

8. Migration Constraints
• EC2 cannot connect to private VPC servers
• Private VPC server connections must go through the NAT
instances
• EC2 & VPC have different security groups, load balancers,
autoscale groups
• EC2 & VPC share EBS volumes, snapshots, instance sizes,
zones, regions
www.lucidchart.com/jobs

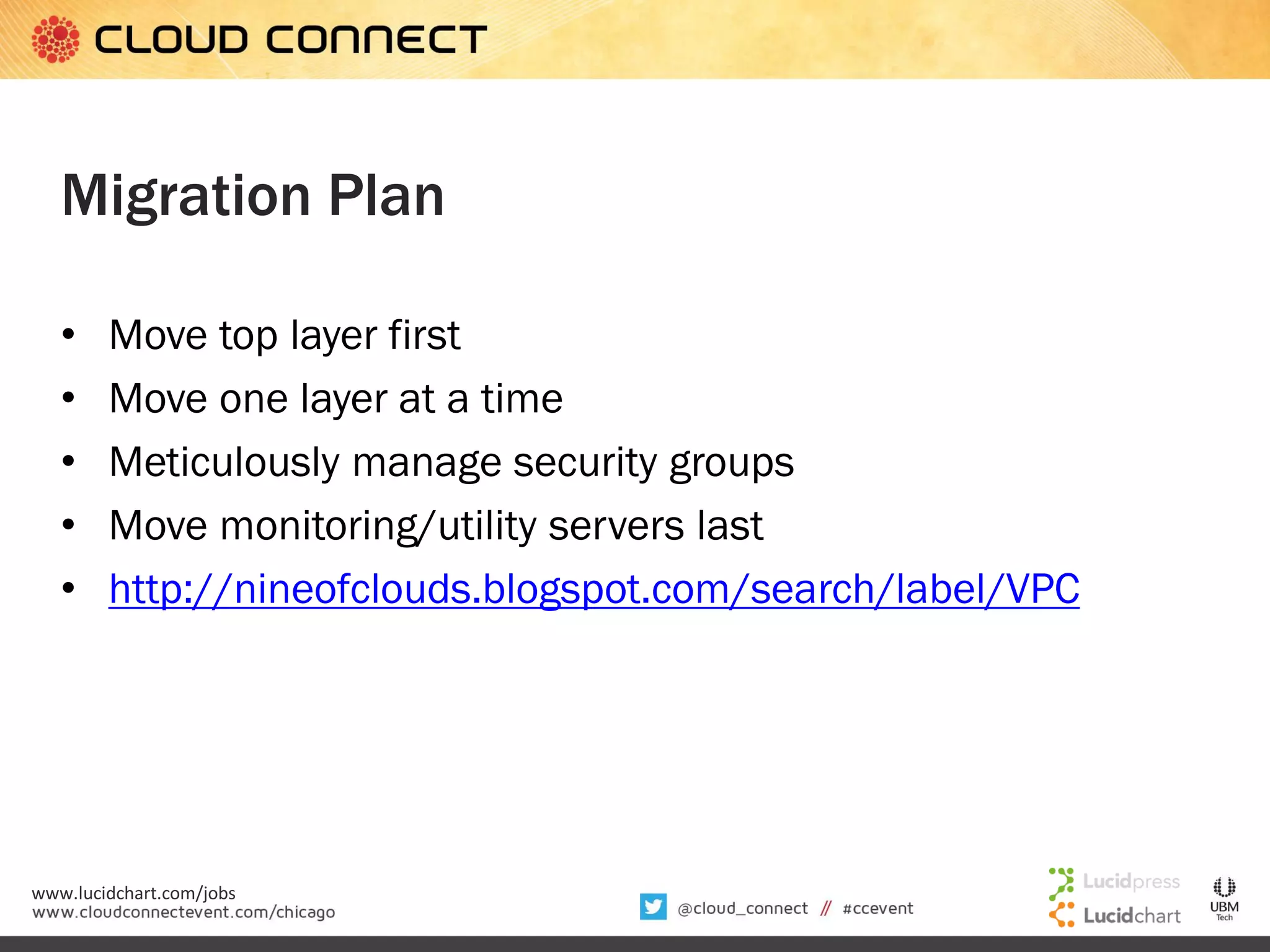

9. Migration Plan
•
•
•
•
•
Move top layer first
Move one layer at a time
Meticulously manage security groups
Move monitoring/utility servers last
http://nineofclouds.blogspot.com/search/label/VPC
www.lucidchart.com/jobs

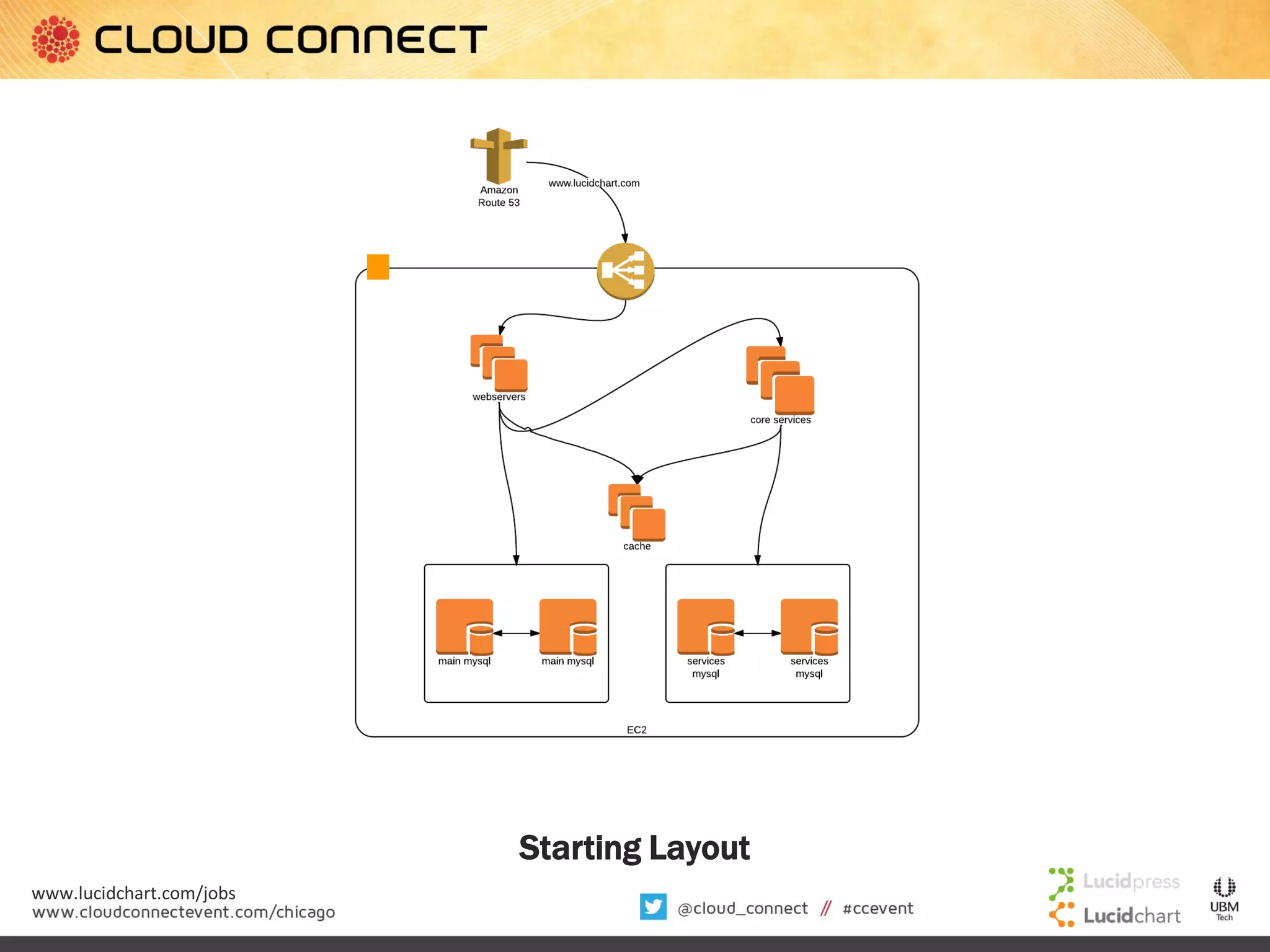

10. Starting Layout
www.lucidchart.com/jobs

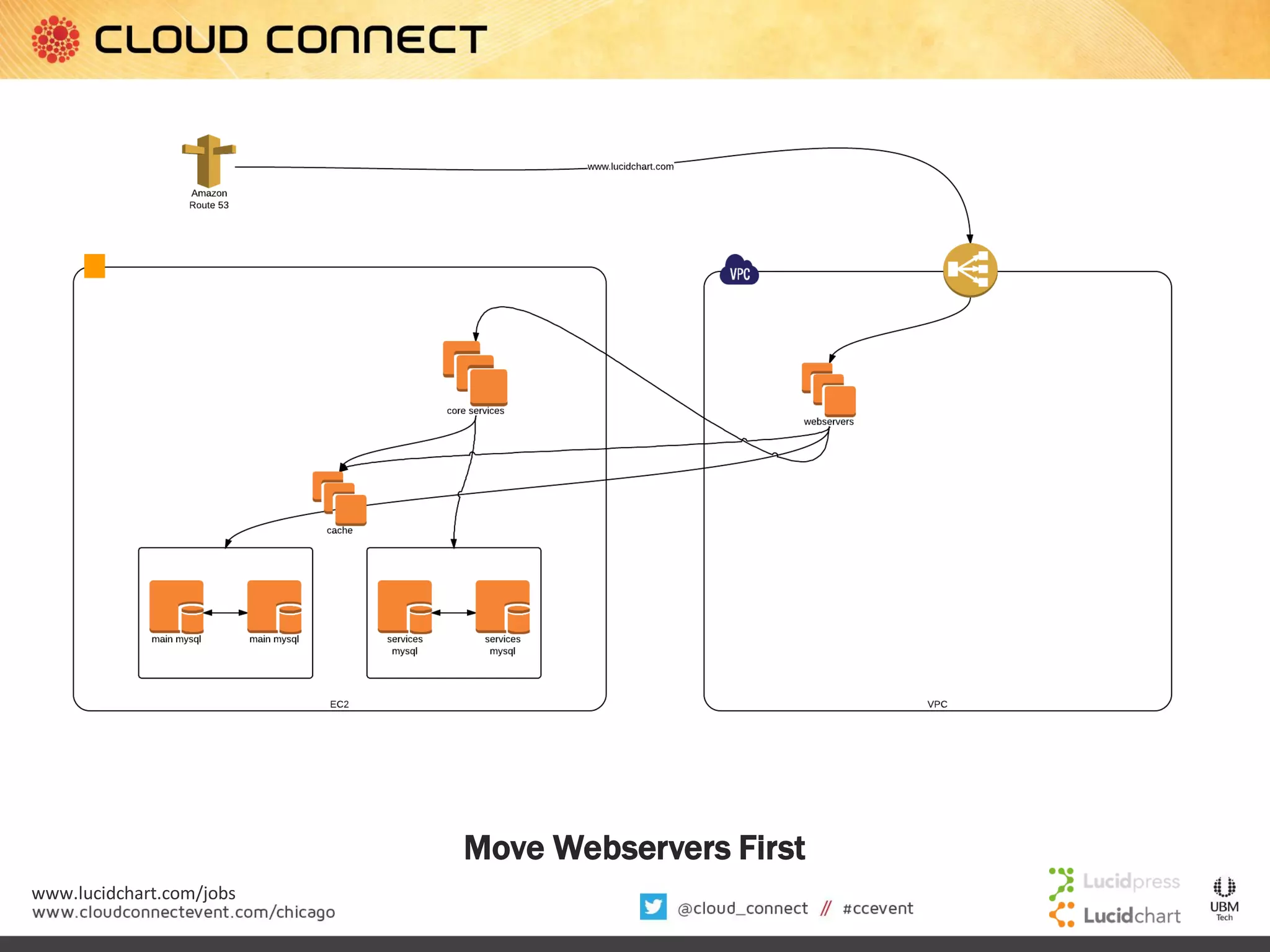

11. Move Webservers First
www.lucidchart.com/jobs

12. Move Next Layer

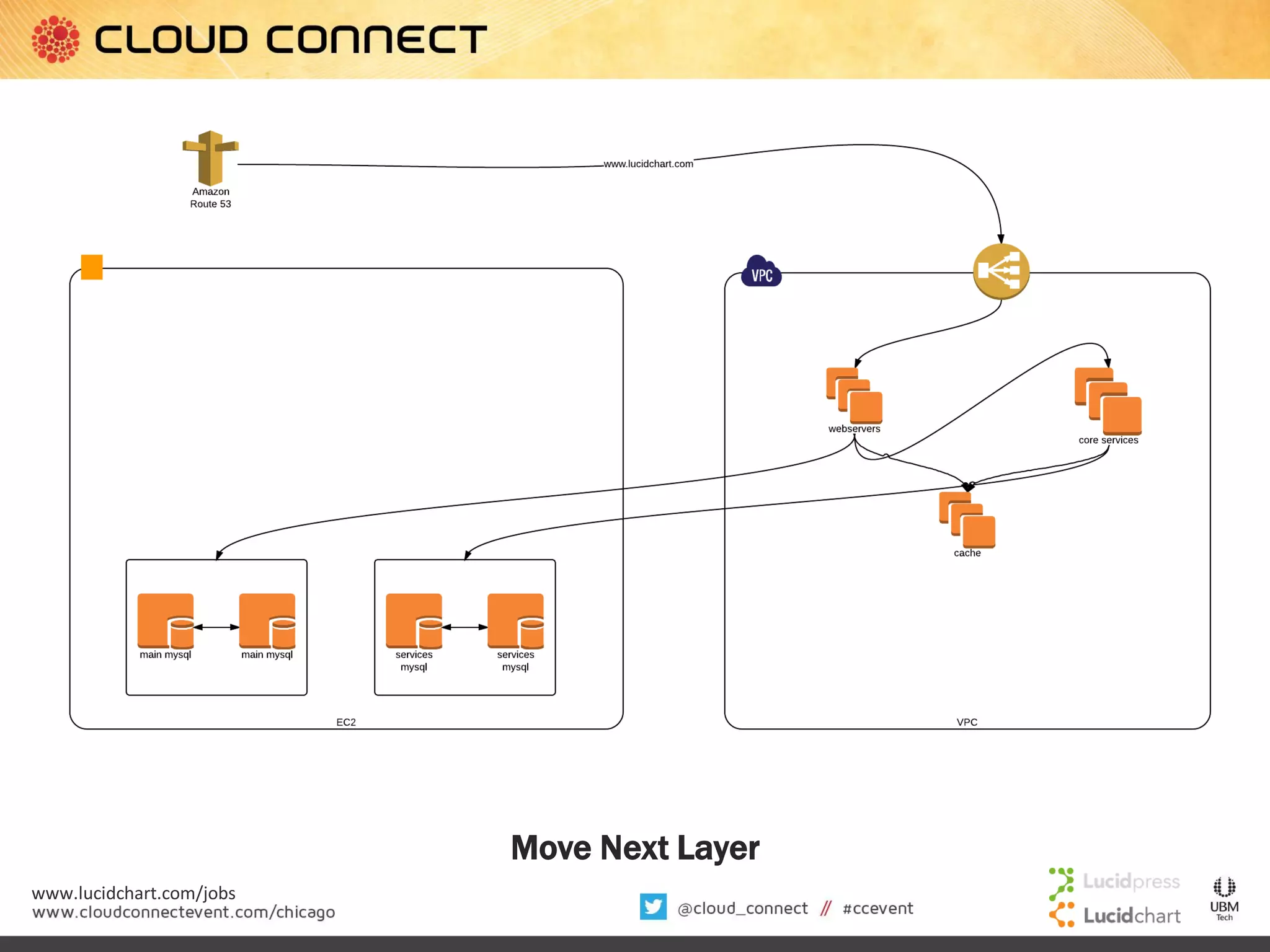

www.lucidchart.com/jobs

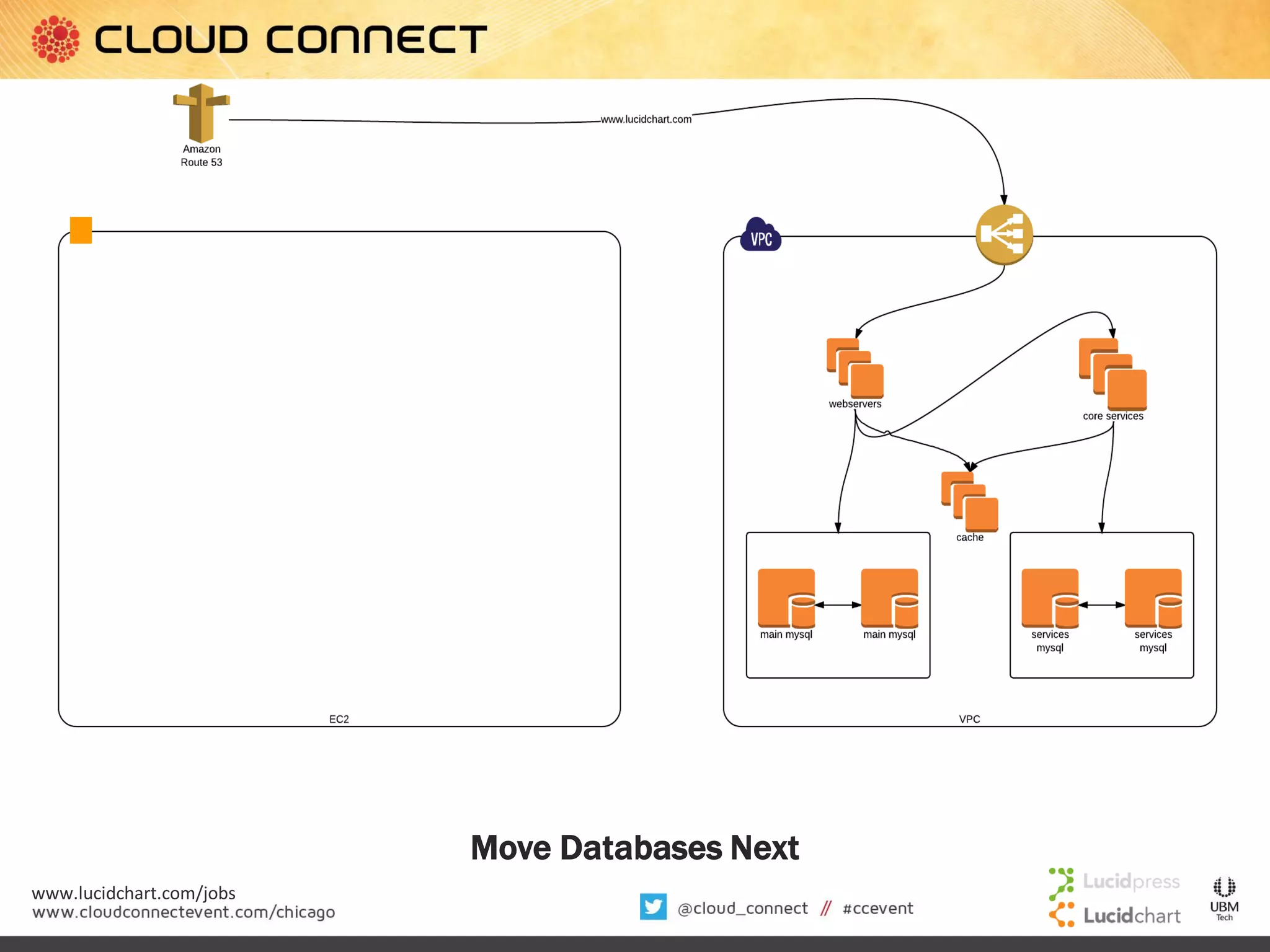

13. Move Databases Next
www.lucidchart.com/jobs

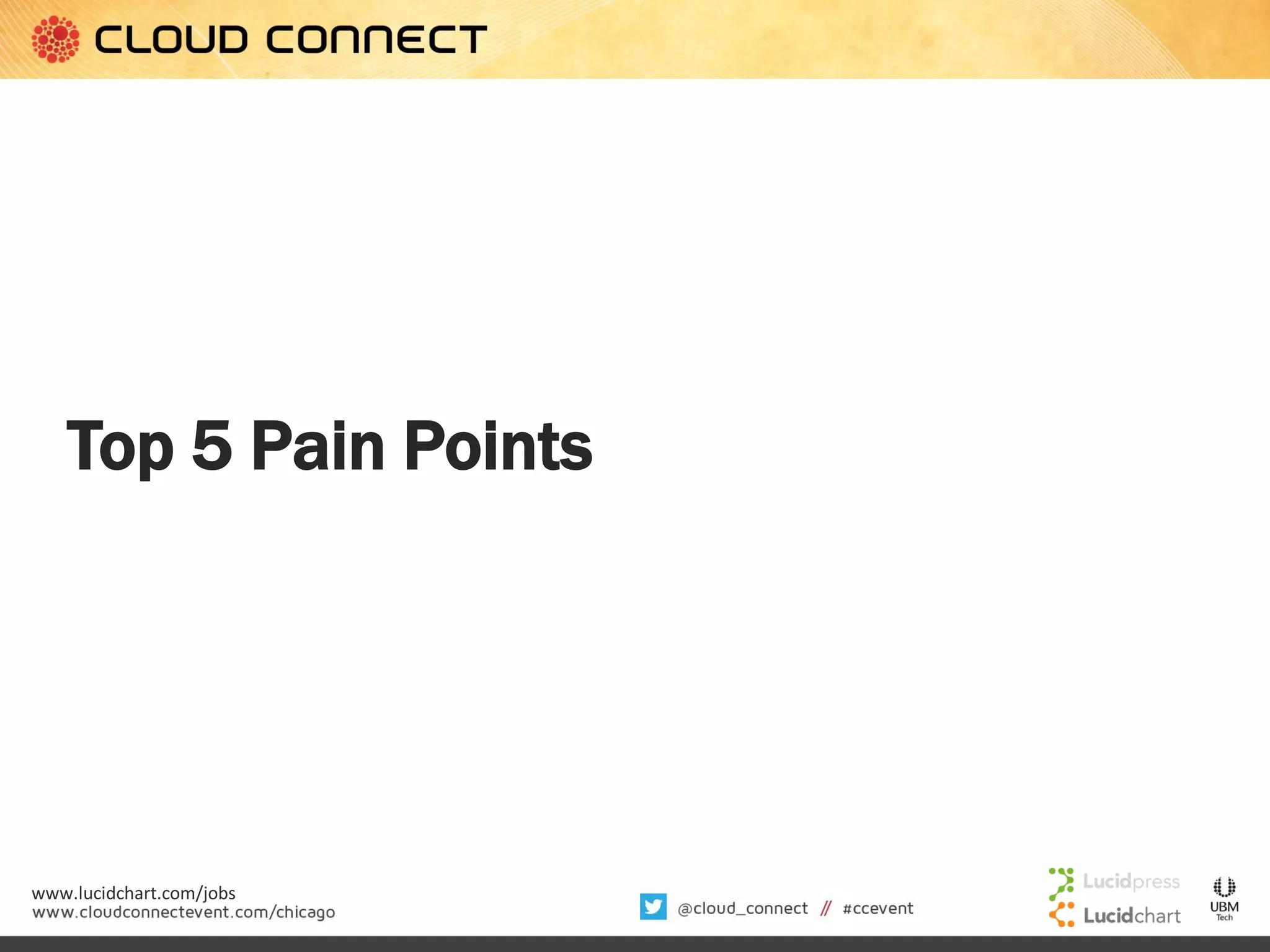

14. Top 5 Pain Points
www.lucidchart.com/jobs

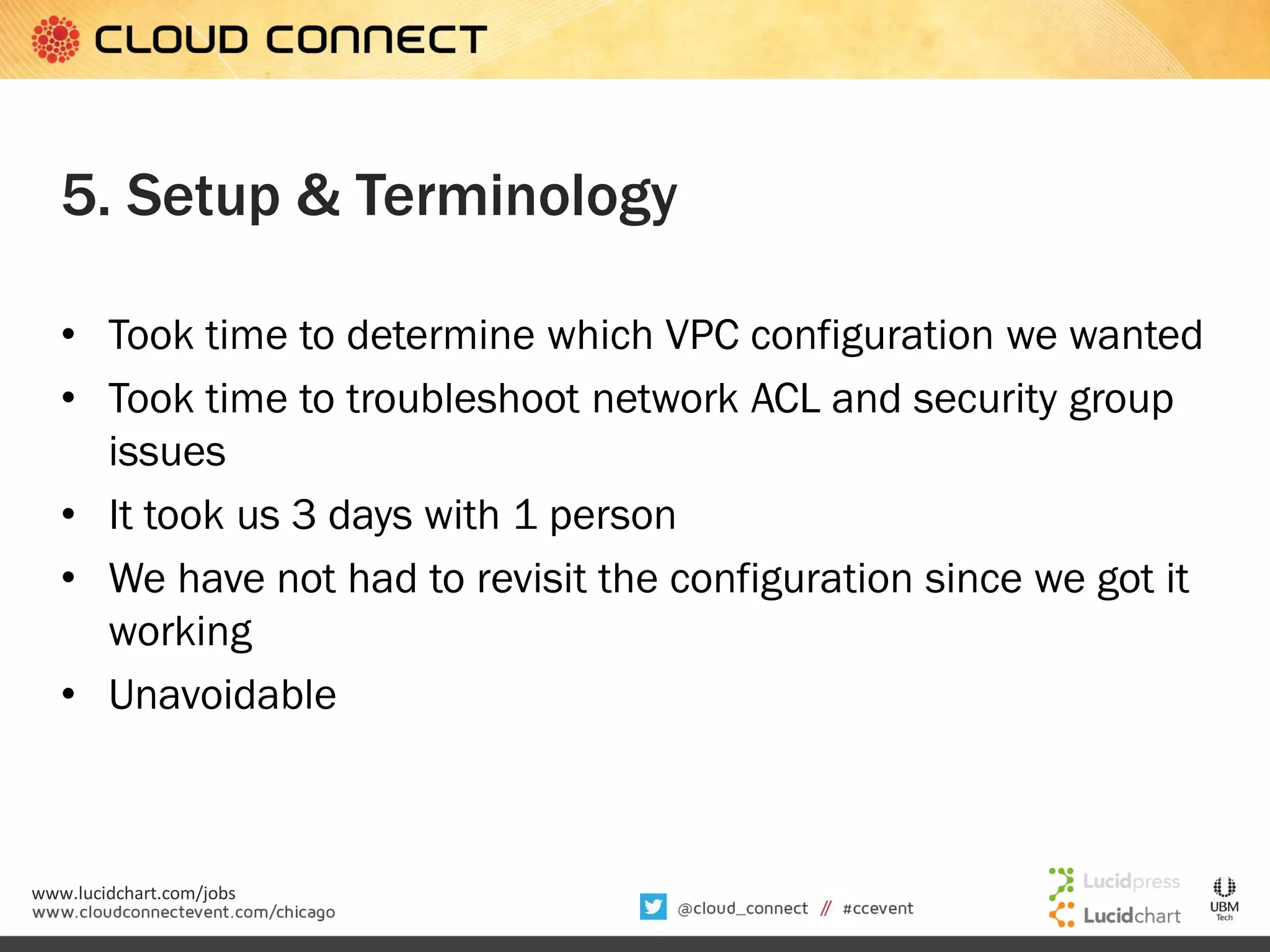

15. 5. Setup & Terminology
• Took time to determine which VPC configuration we wanted
• Took time to troubleshoot network ACL and security group
issues
• It took us 3 days with 1 person
• We have not had to revisit the configuration since we got it
working
• Unavoidable
www.lucidchart.com/jobs

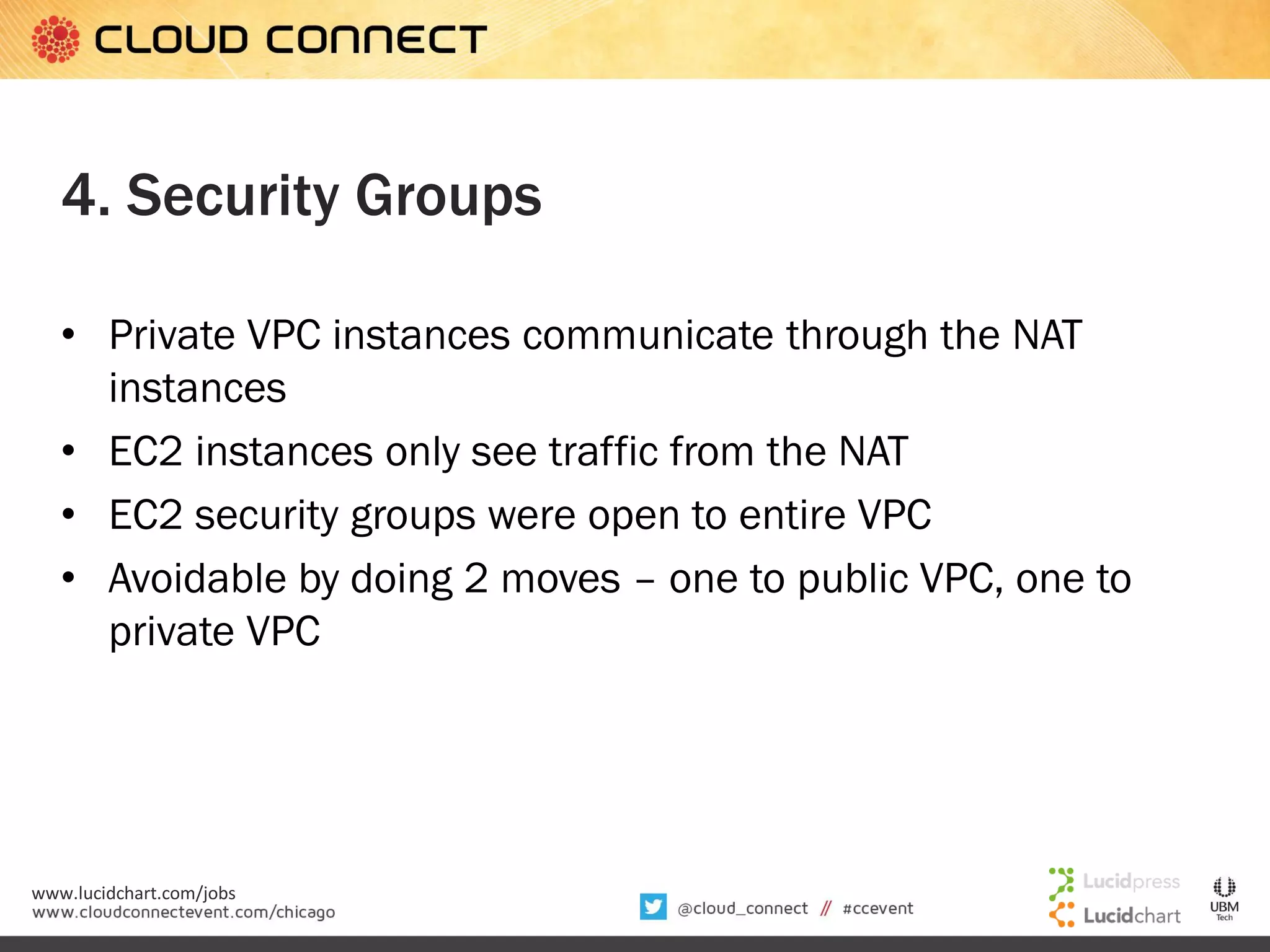

16. 4. Security Groups
• Private VPC instances communicate through the NAT
instances
• EC2 instances only see traffic from the NAT
• EC2 security groups were open to entire VPC
• Avoidable by doing 2 moves – one to public VPC, one to
private VPC
www.lucidchart.com/jobs

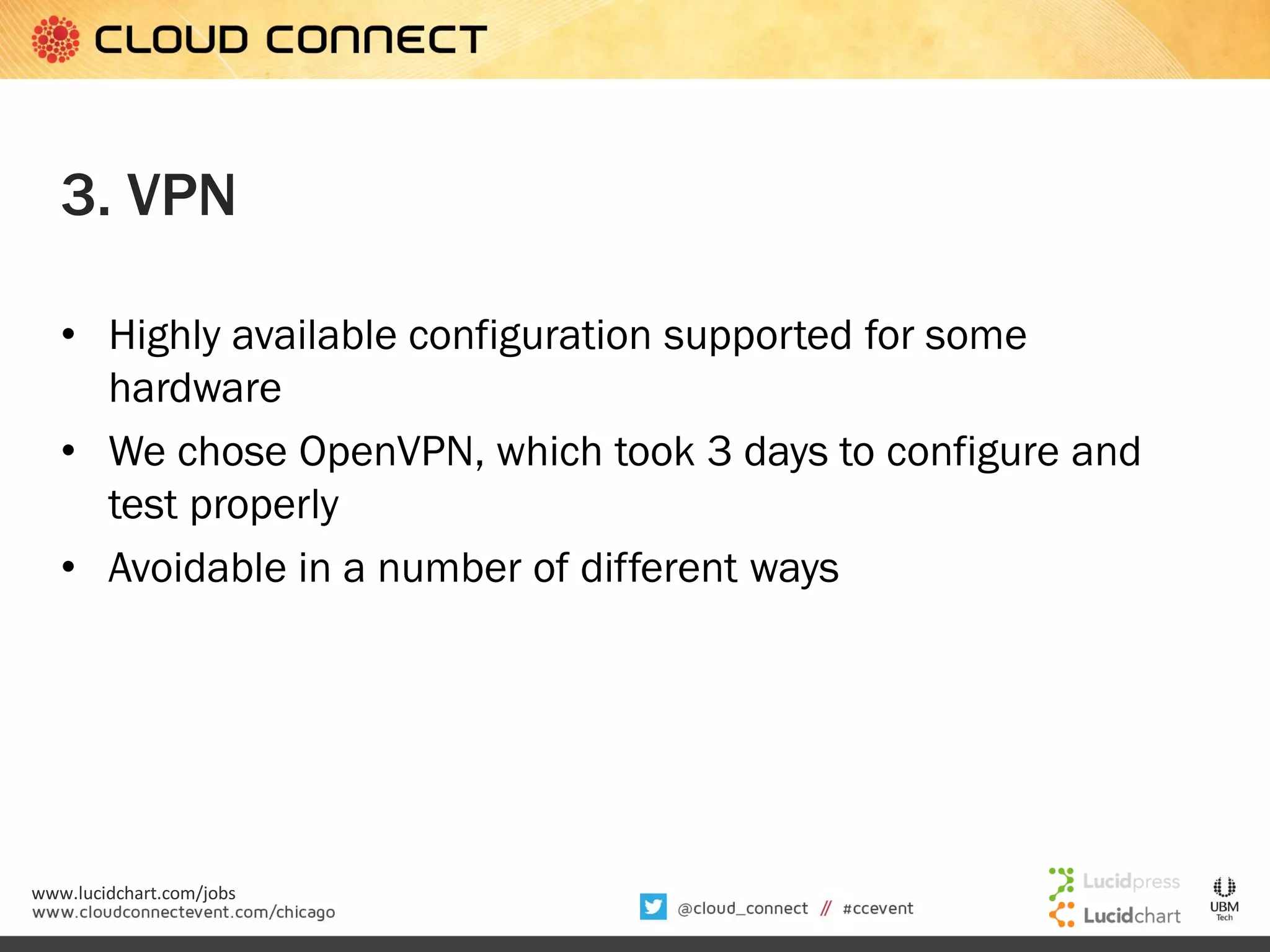

17. 3. VPN
• Highly available configuration supported for some
hardware
• We chose OpenVPN, which took 3 days to configure and
test properly
• Avoidable in a number of different ways
www.lucidchart.com/jobs

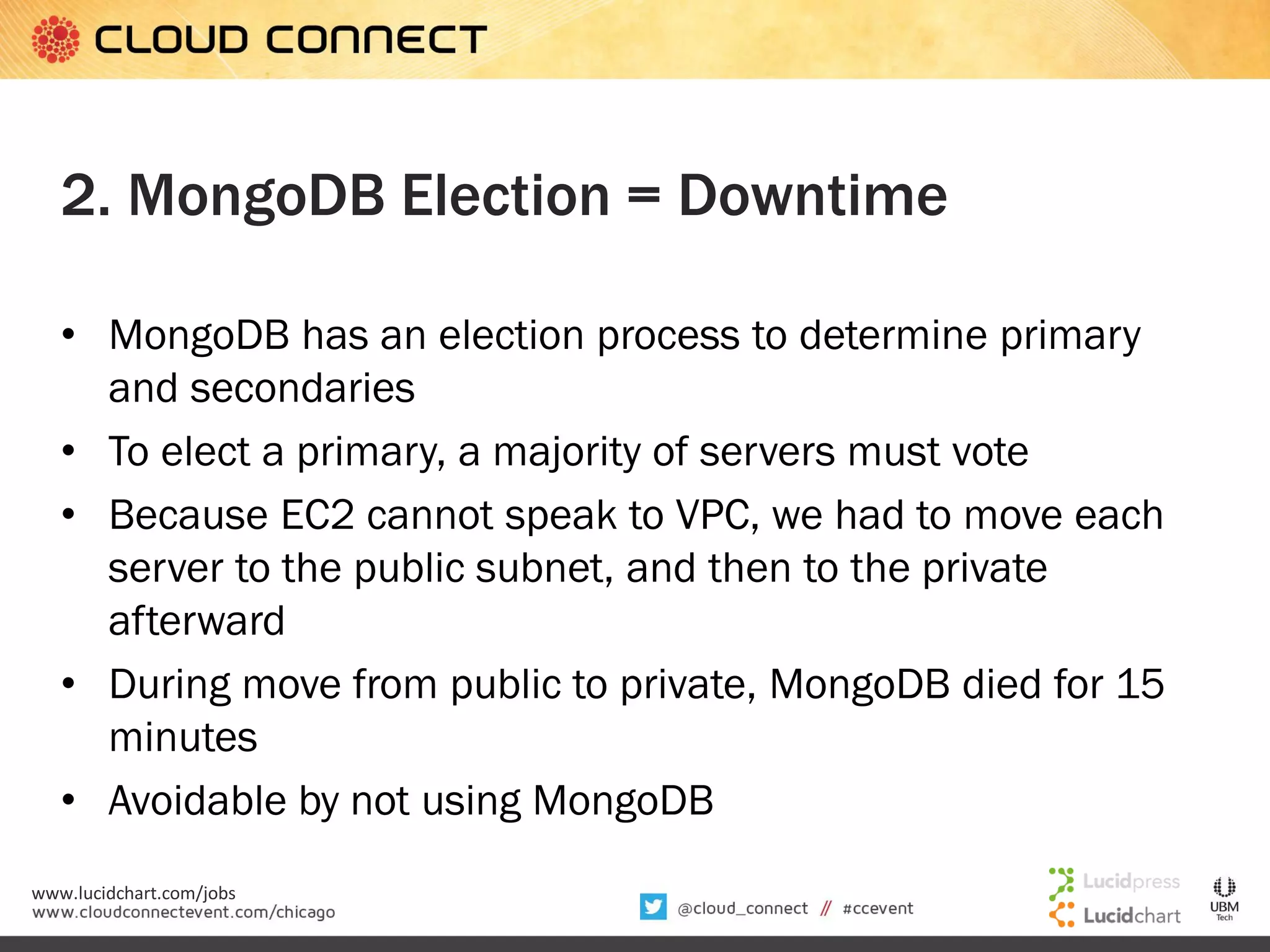

18. 2. MongoDB Election = Downtime
• MongoDB has an election process to determine primary
and secondaries
• To elect a primary, a majority of servers must vote
• Because EC2 cannot speak to VPC, we had to move each
server to the public subnet, and then to the private
afterward
• During move from public to private, MongoDB died for 15
minutes
• Avoidable by not using MongoDB
www.lucidchart.com/jobs

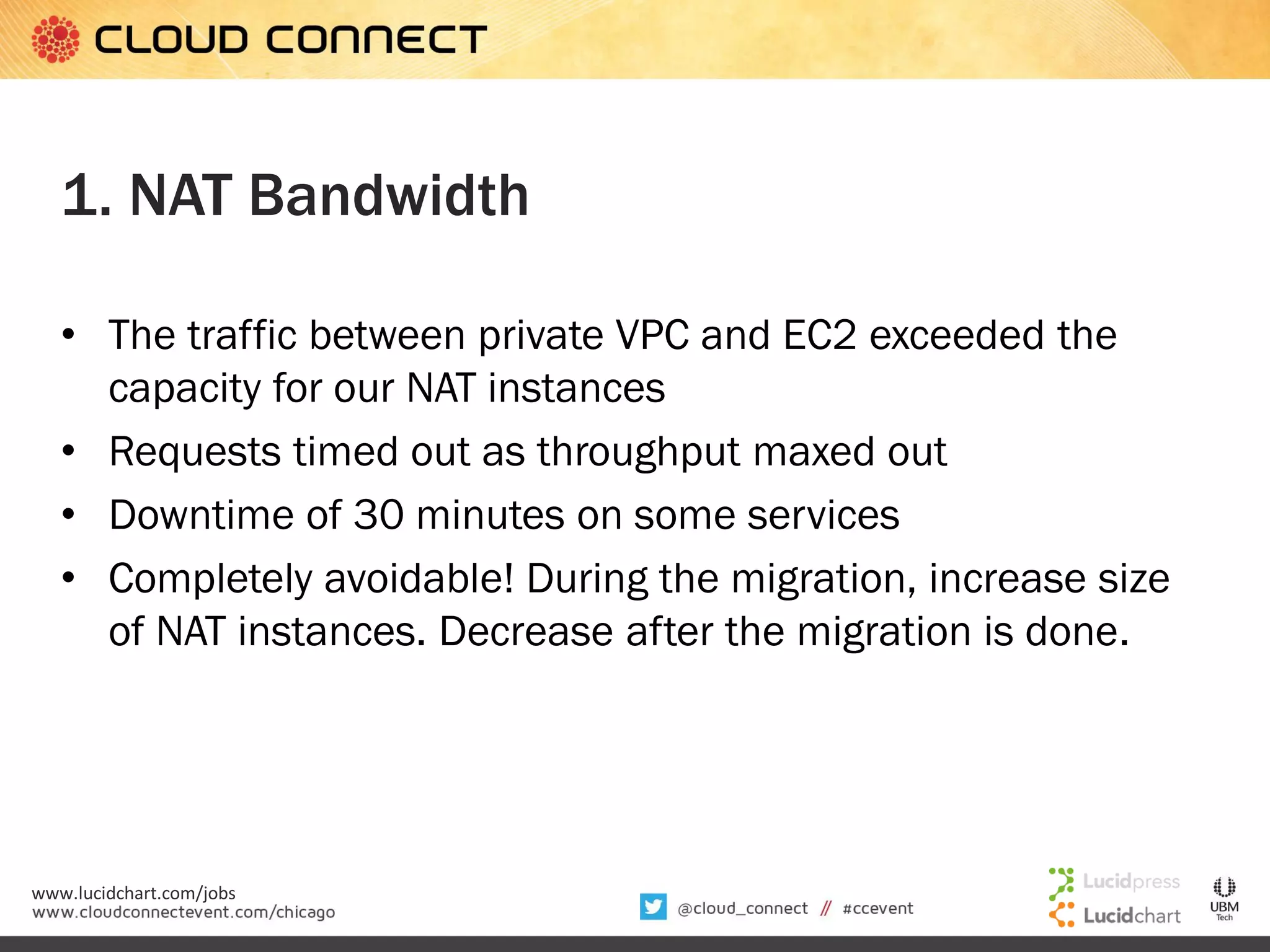

19. 1. NAT Bandwidth
• The traffic between private VPC and EC2 exceeded the
capacity for our NAT instances
• Requests timed out as throughput maxed out
• Downtime of 30 minutes on some services
• Completely avoidable! During the migration, increase size
of NAT instances. Decrease after the migration is done.
www.lucidchart.com/jobs

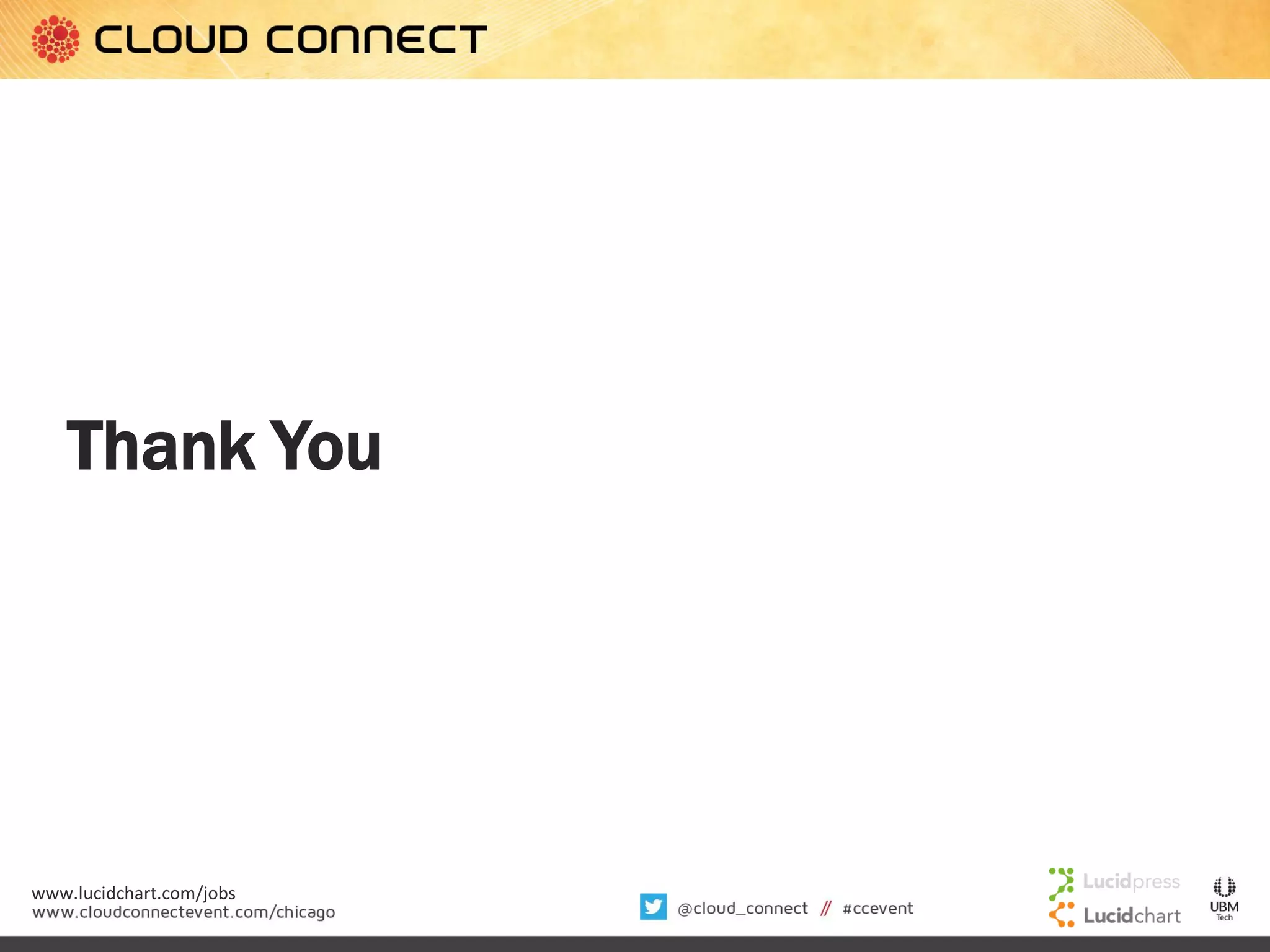

20. Thank You
