1. From VMs to Containers
Decompose and Migrate
Old Legacy Java EE Applications

2. The Evolution Doesn’t Stay

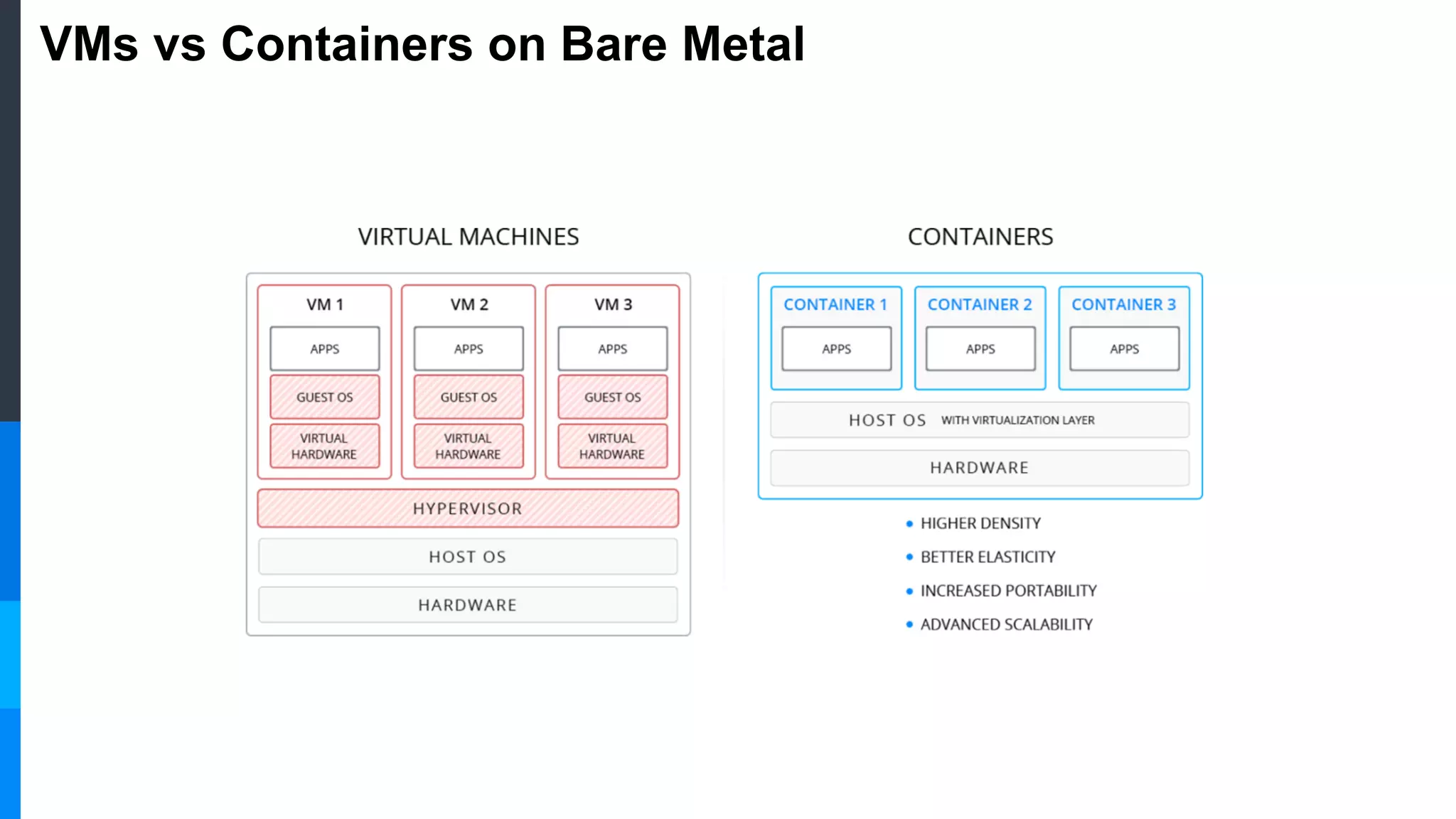

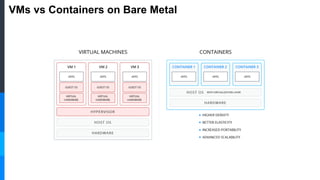

3. VMs vs Containers on Bare Metal

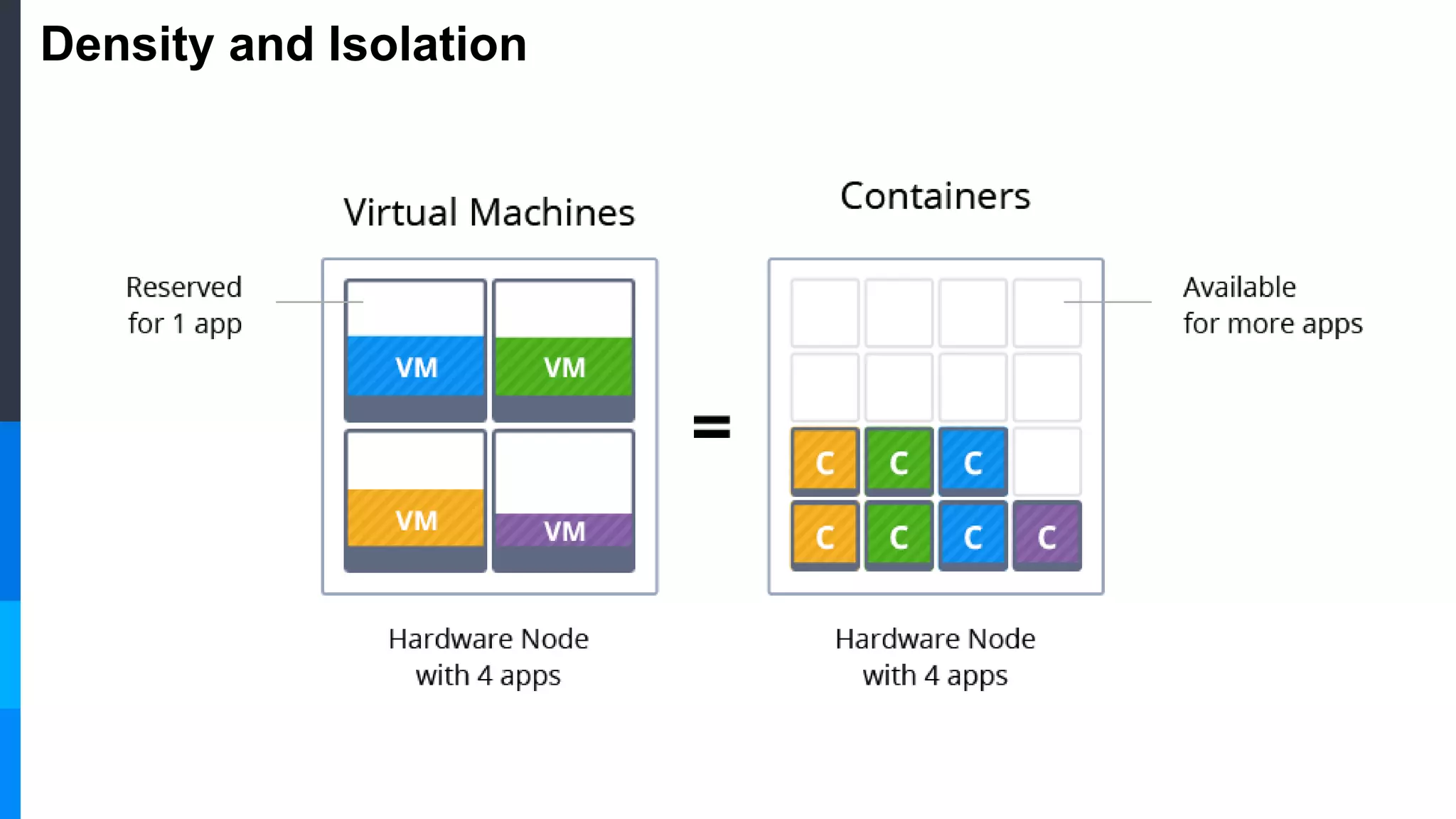

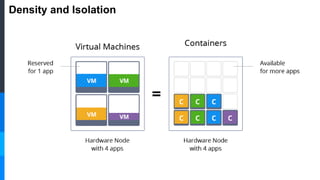

4. Density and Isolation

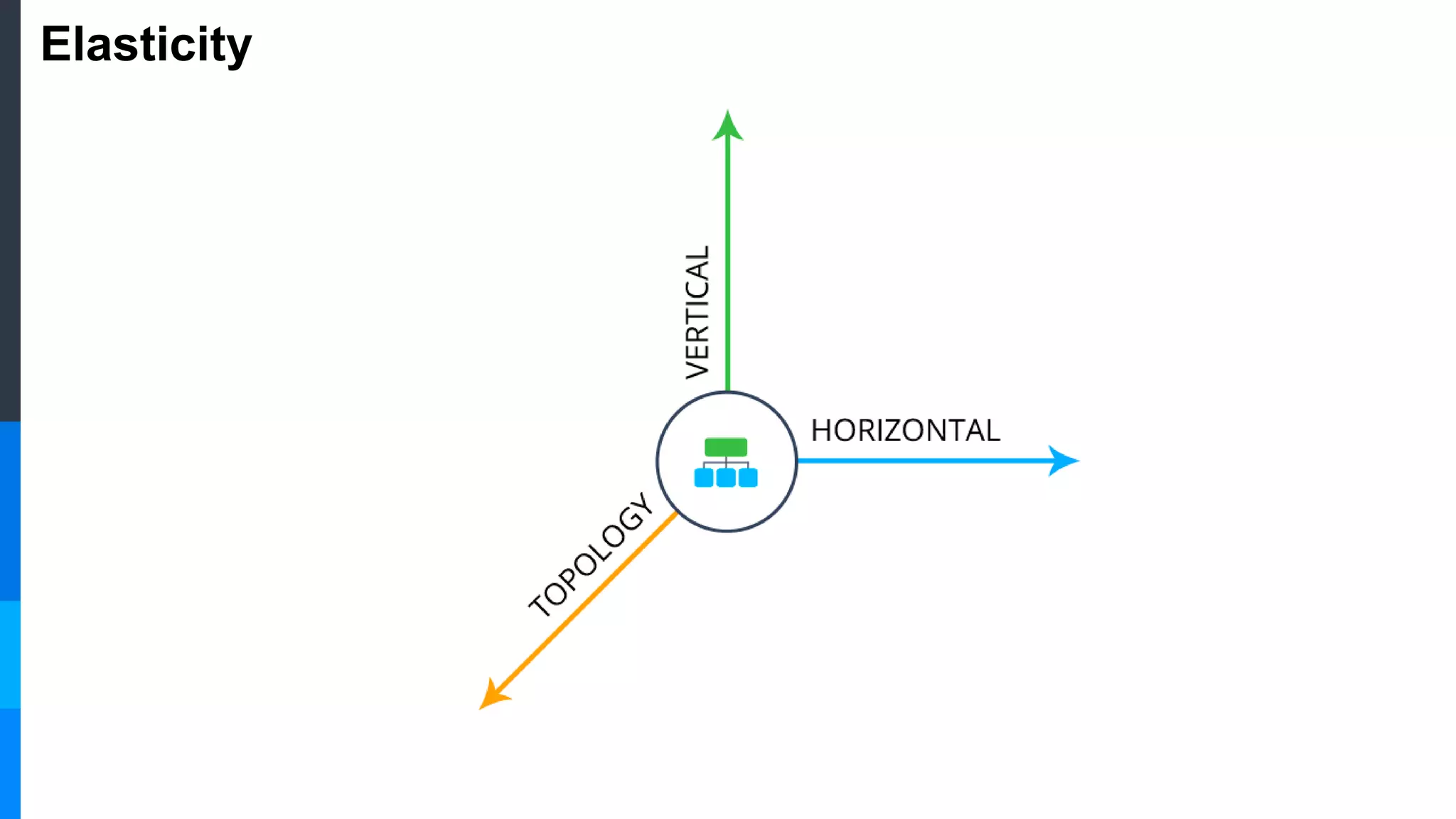

5. Elasticity

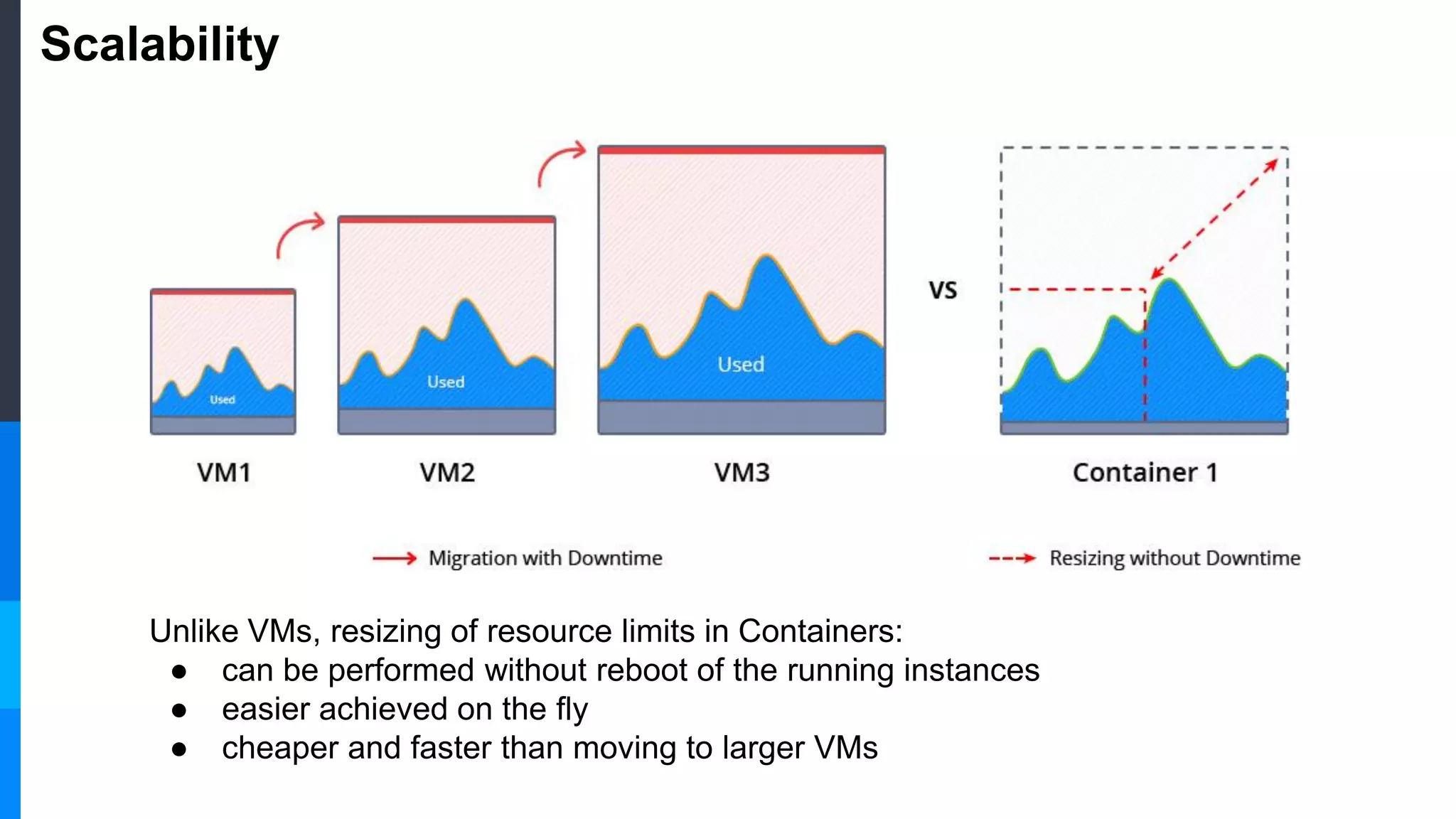

6. Scalability
Unlike VMs, resizing of resource limits in Containers:
● can be performed without reboot of the running instances
● easier achieved on the fly
● cheaper and faster than moving to larger VMs

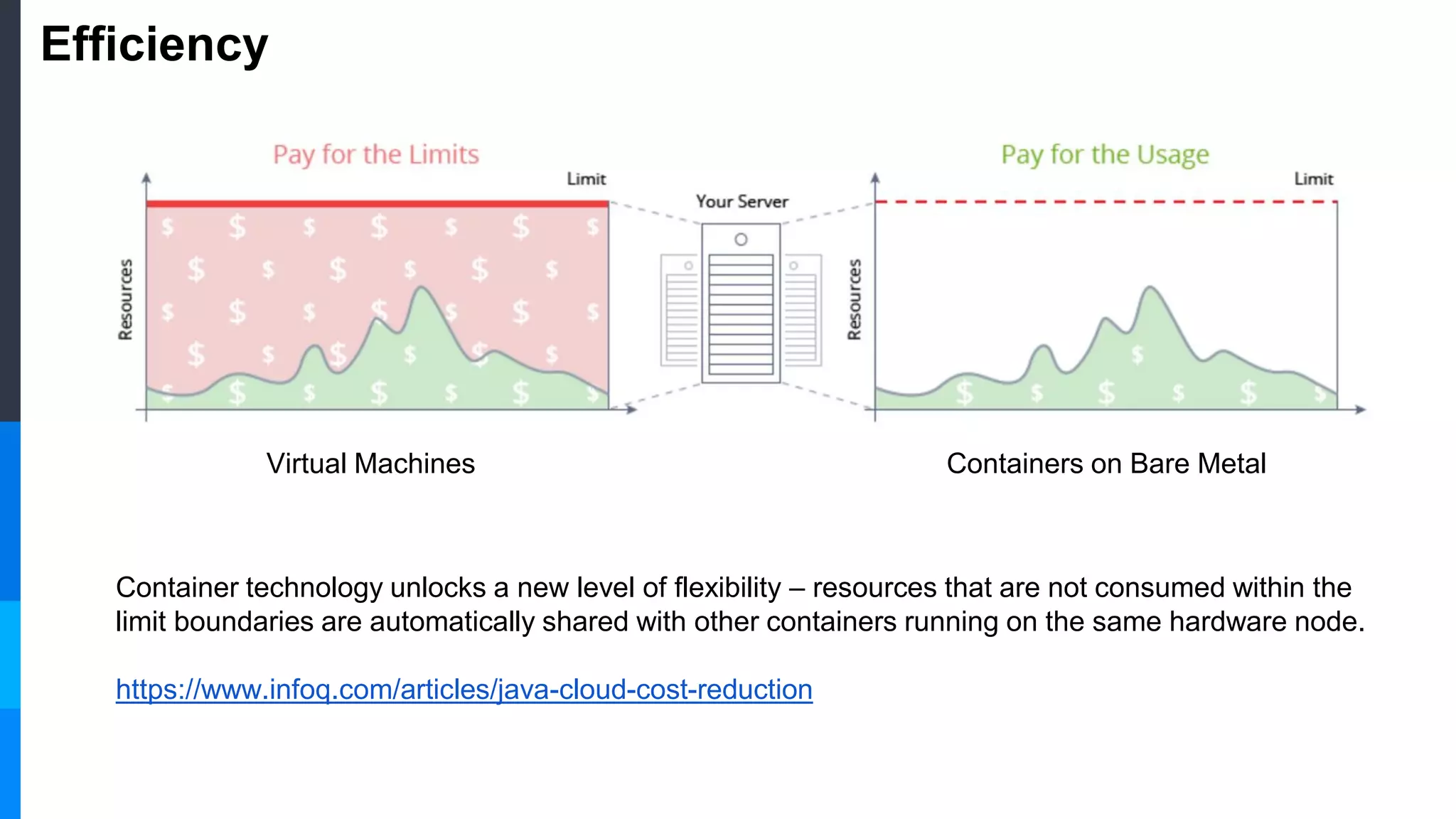

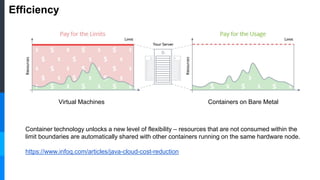

7. Efficiency
Virtual Machines Containers on Bare Metal
Container technology unlocks a new level of flexibility – resources that are not consumed within the
limit boundaries are automatically shared with other containers running on the same hardware node.
https://www.infoq.com/articles/java-cloud-cost-reduction

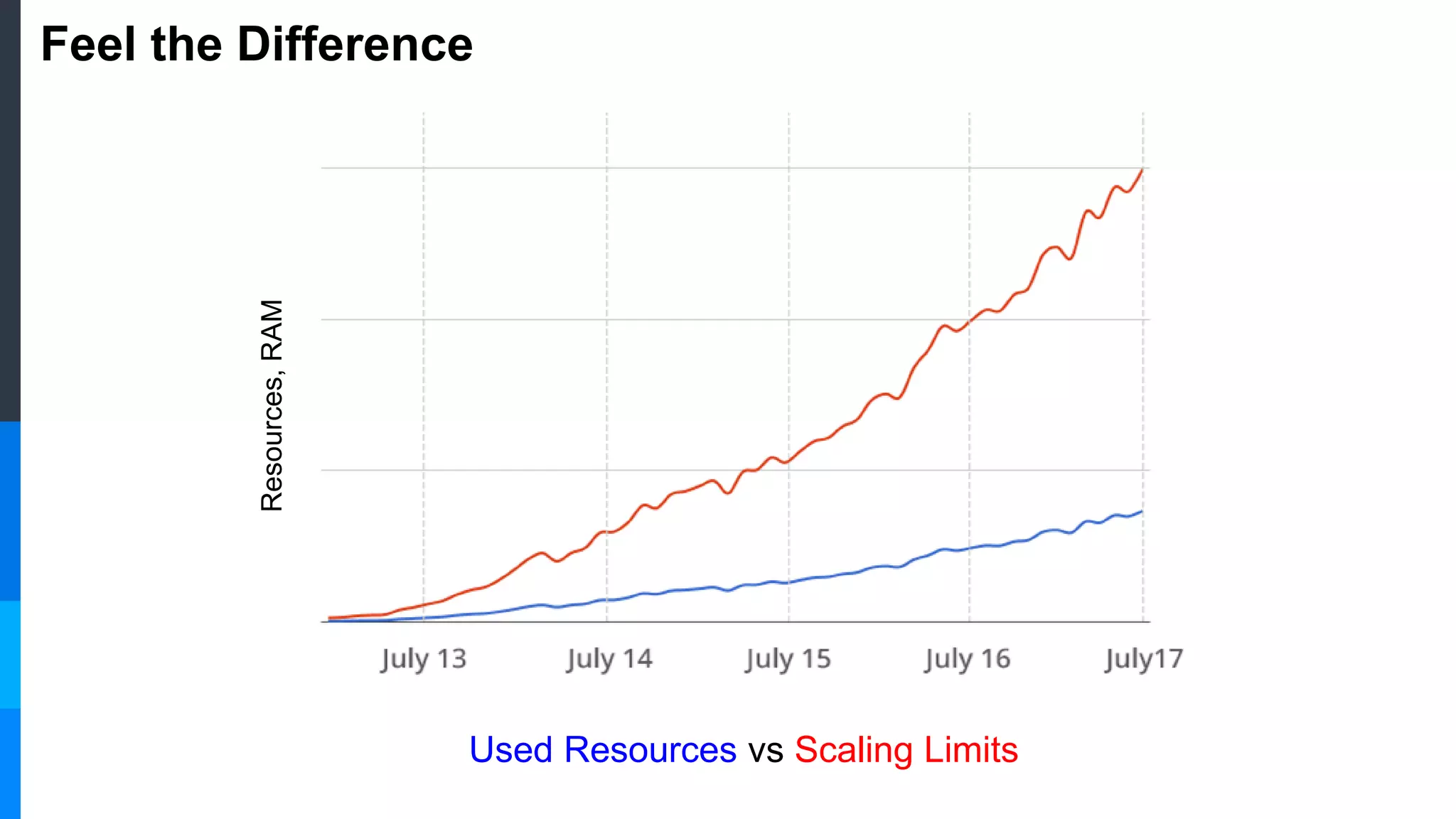

8. Feel the Difference
Resources,RAM
Used Resources vs Scaling Limits

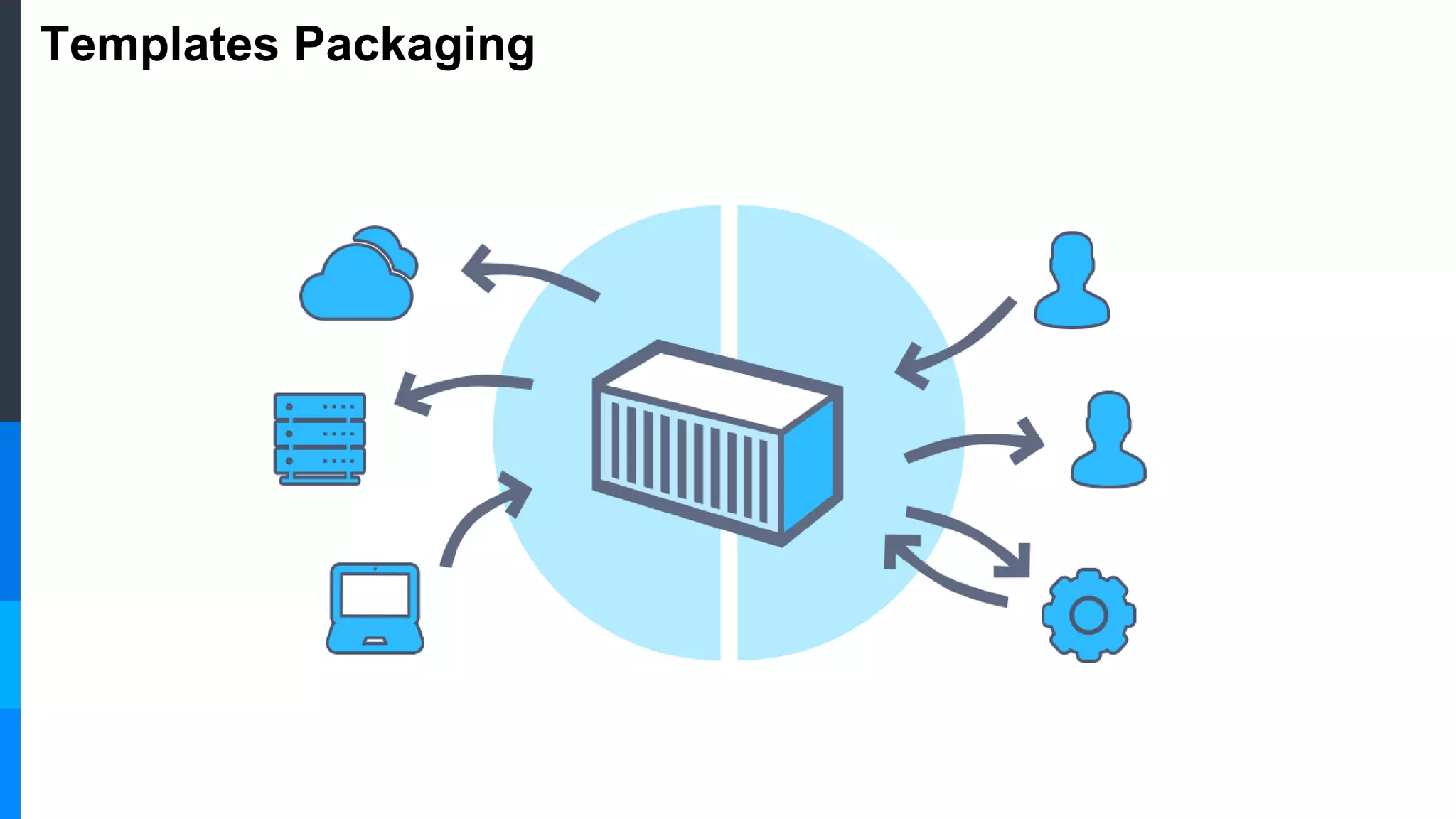

9. Templates Packaging

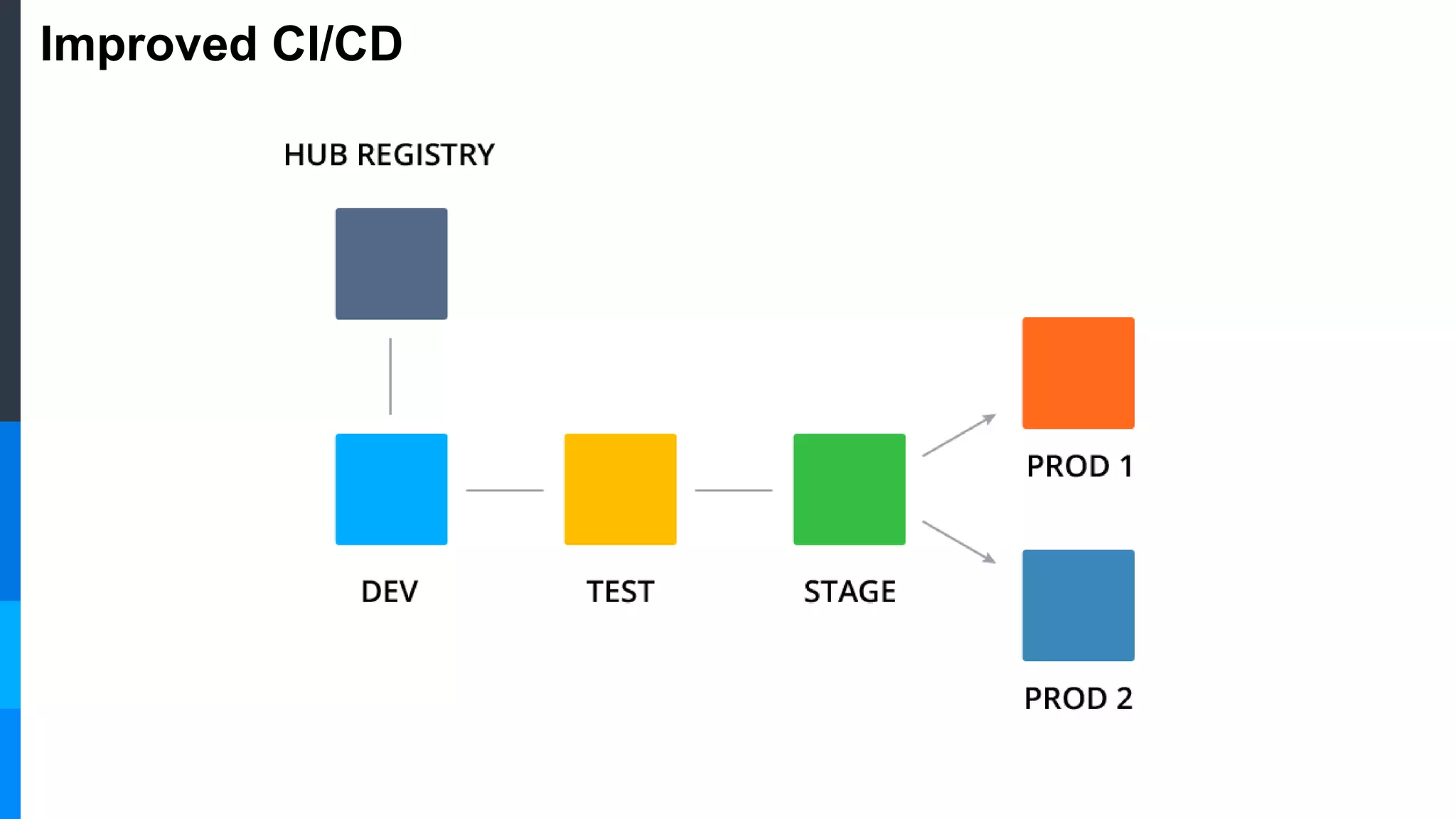

10. Improved CI/CD

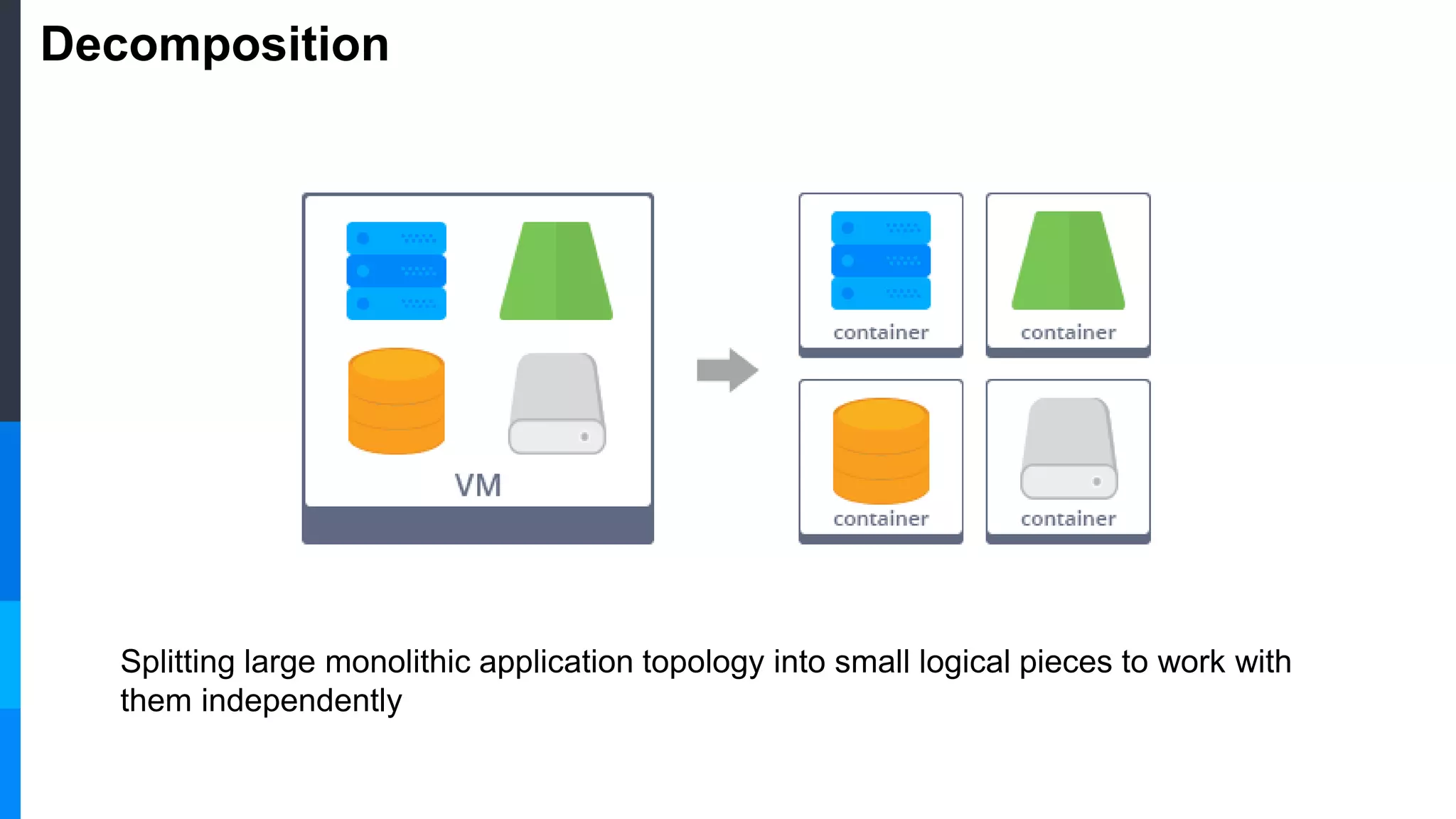

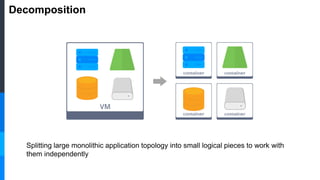

11. Decomposition
Splitting large monolithic application topology into small logical pieces to work with
them independently

12. Can Seem Problematic with Legacy Applications
Picture by Daniel Story

13. But Reachable with the Right Plan and Tools
Tame Your
Legacy Software
Dragon!

14. Let’s See How This Works with GlassFish

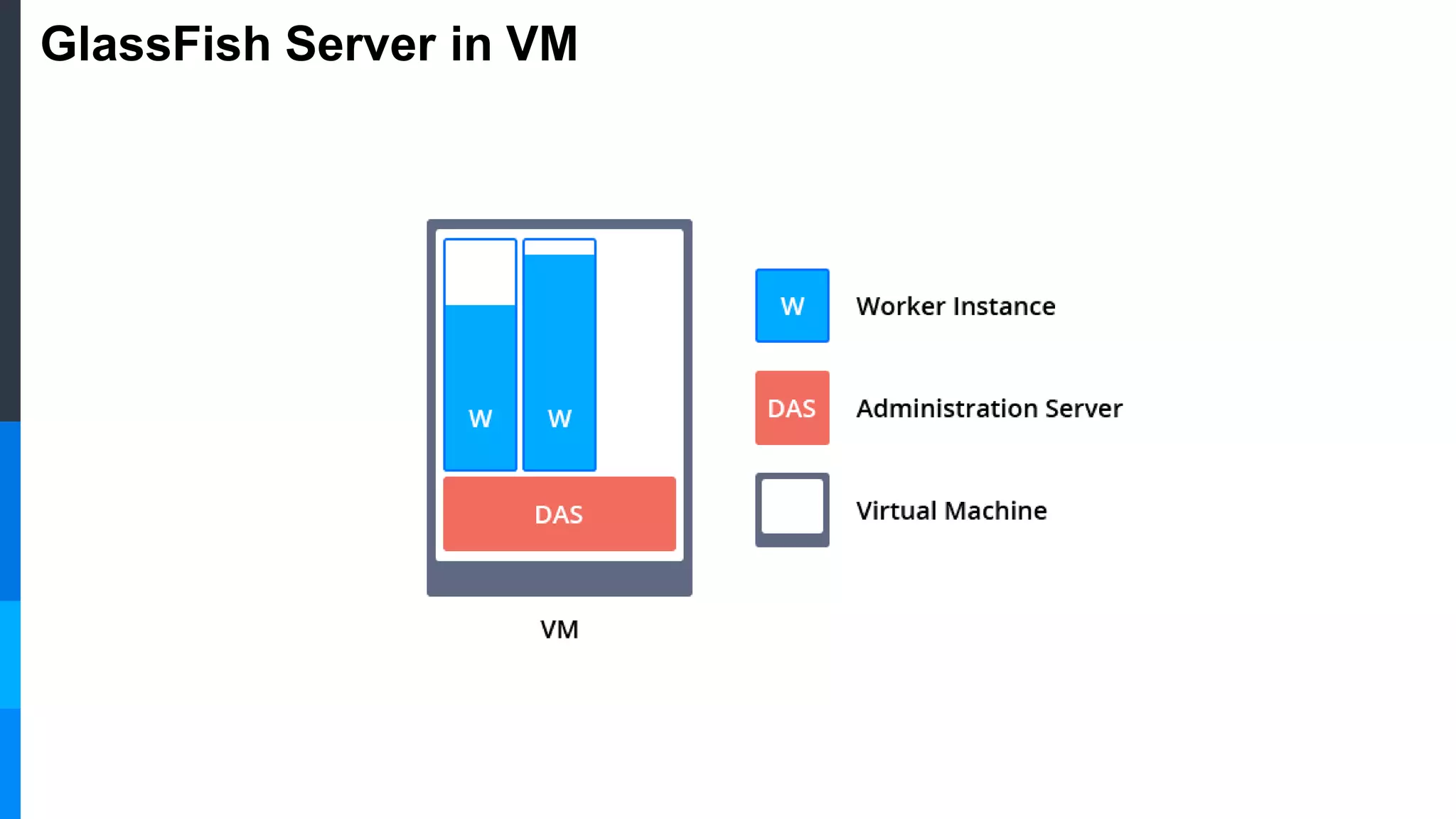

15. GlassFish Server in VM

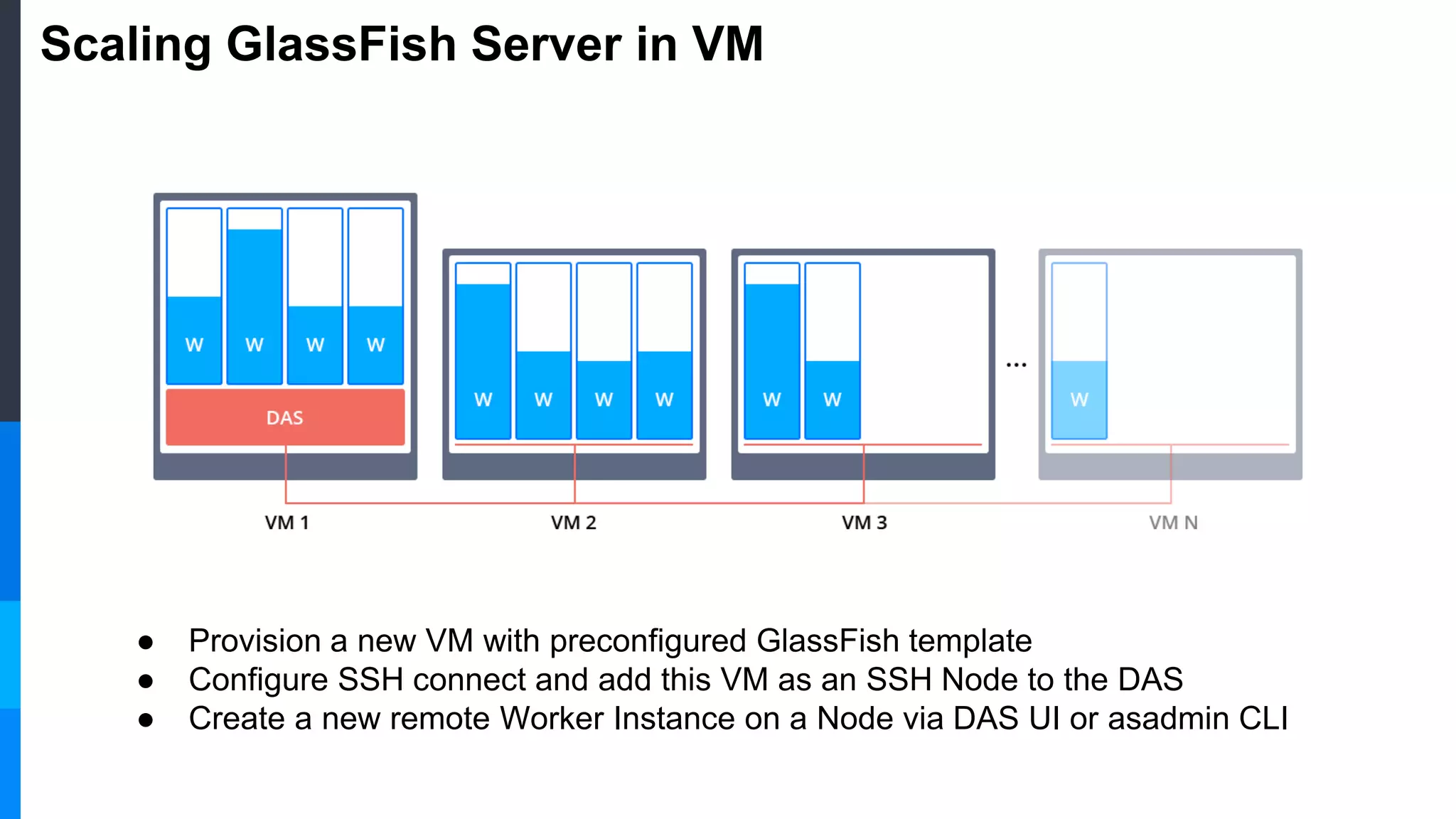

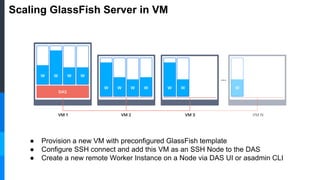

16. Scaling GlassFish Server in VM
● Provision a new VM with preconfigured GlassFish template
● Configure SSH connect and add this VM as an SSH Node to the DAS
● Create a new remote Worker Instance on a Node via DAS UI or asadmin CLI

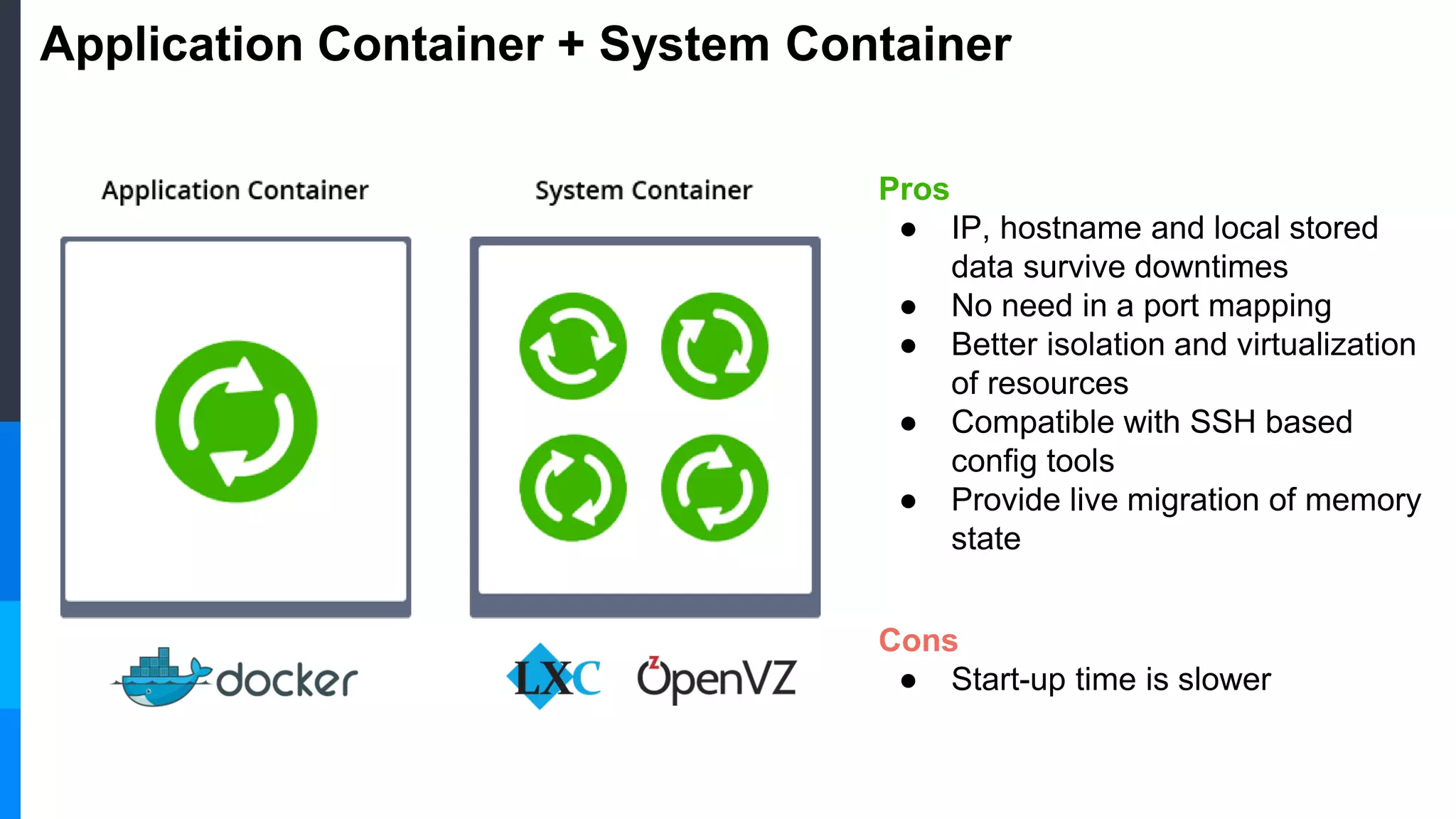

17. Application Container + System Container
Pros
● IP, hostname and local stored
data survive downtimes
● No need in a port mapping
● Better isolation and virtualization
of resources
● Compatible with SSH based
config tools
● Provide live migration of memory
state
Cons
● Start-up time is slower

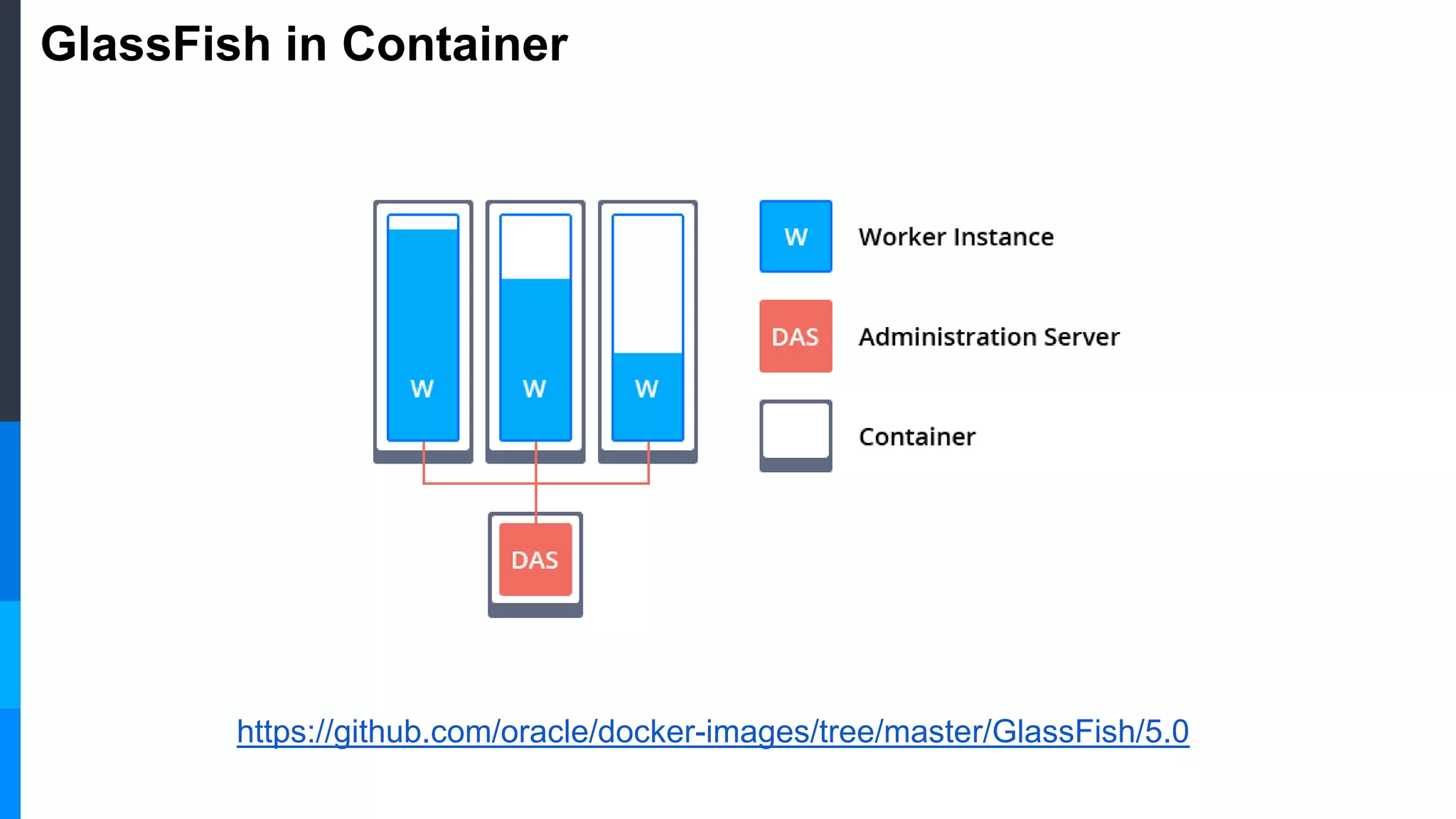

18. GlassFish in Container
https://github.com/oracle/docker-images/tree/master/GlassFish/5.0

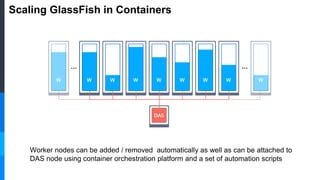

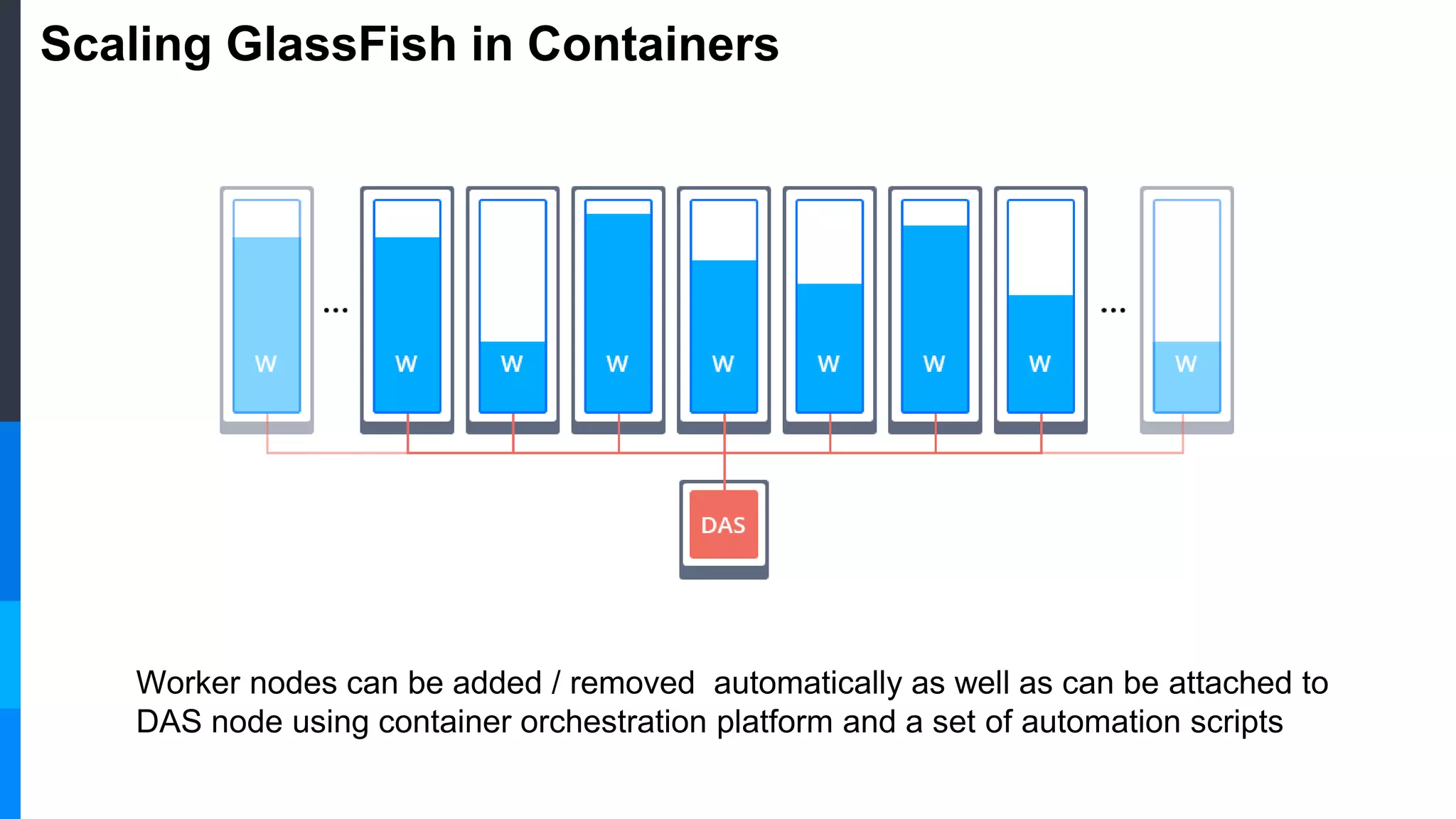

19. Scaling GlassFish in Containers
Worker nodes can be added / removed automatically as well as can be attached to
DAS node using container orchestration platform and a set of automation scripts

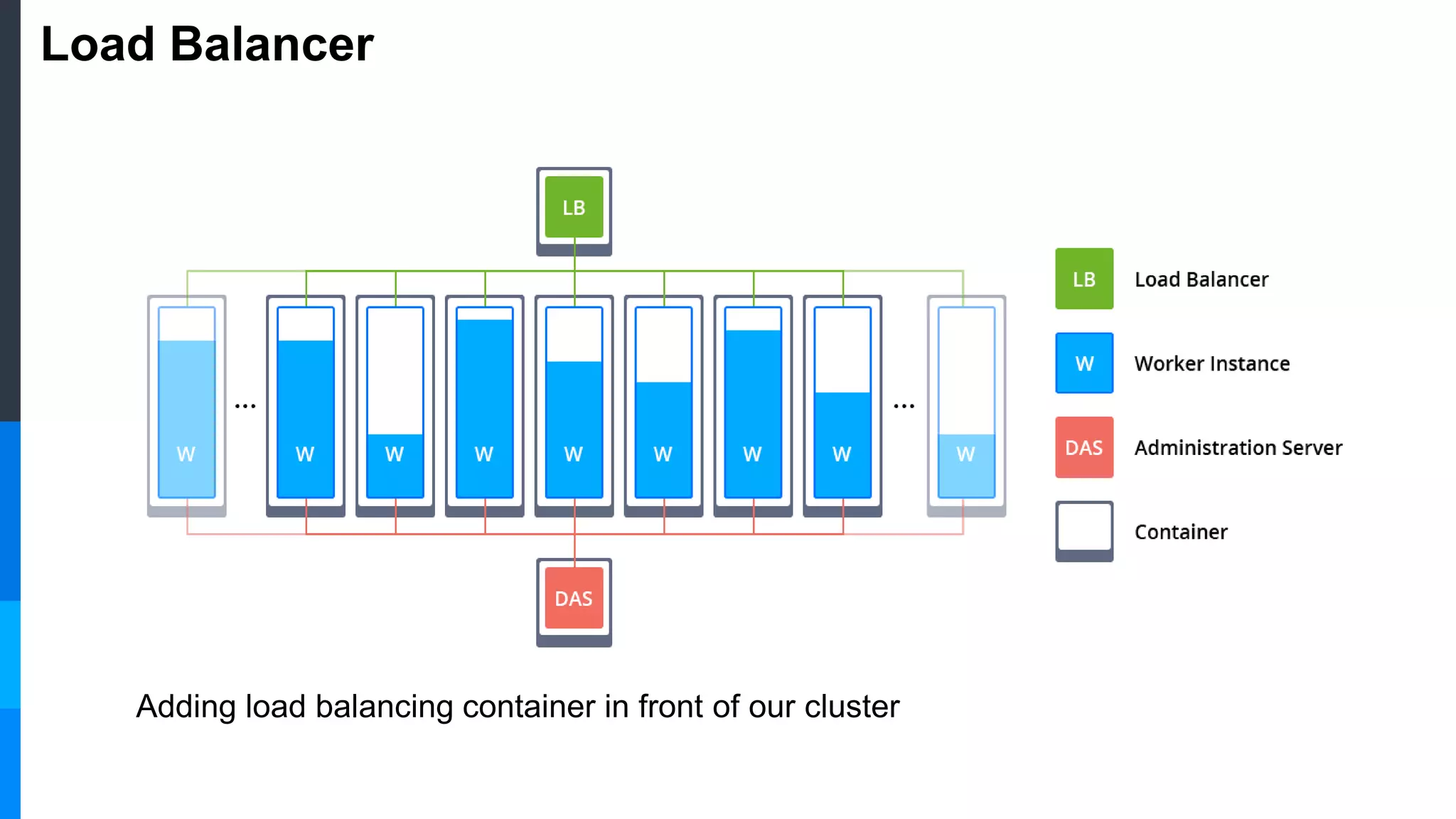

20. Load Balancer
Adding load balancing container in front of our cluster

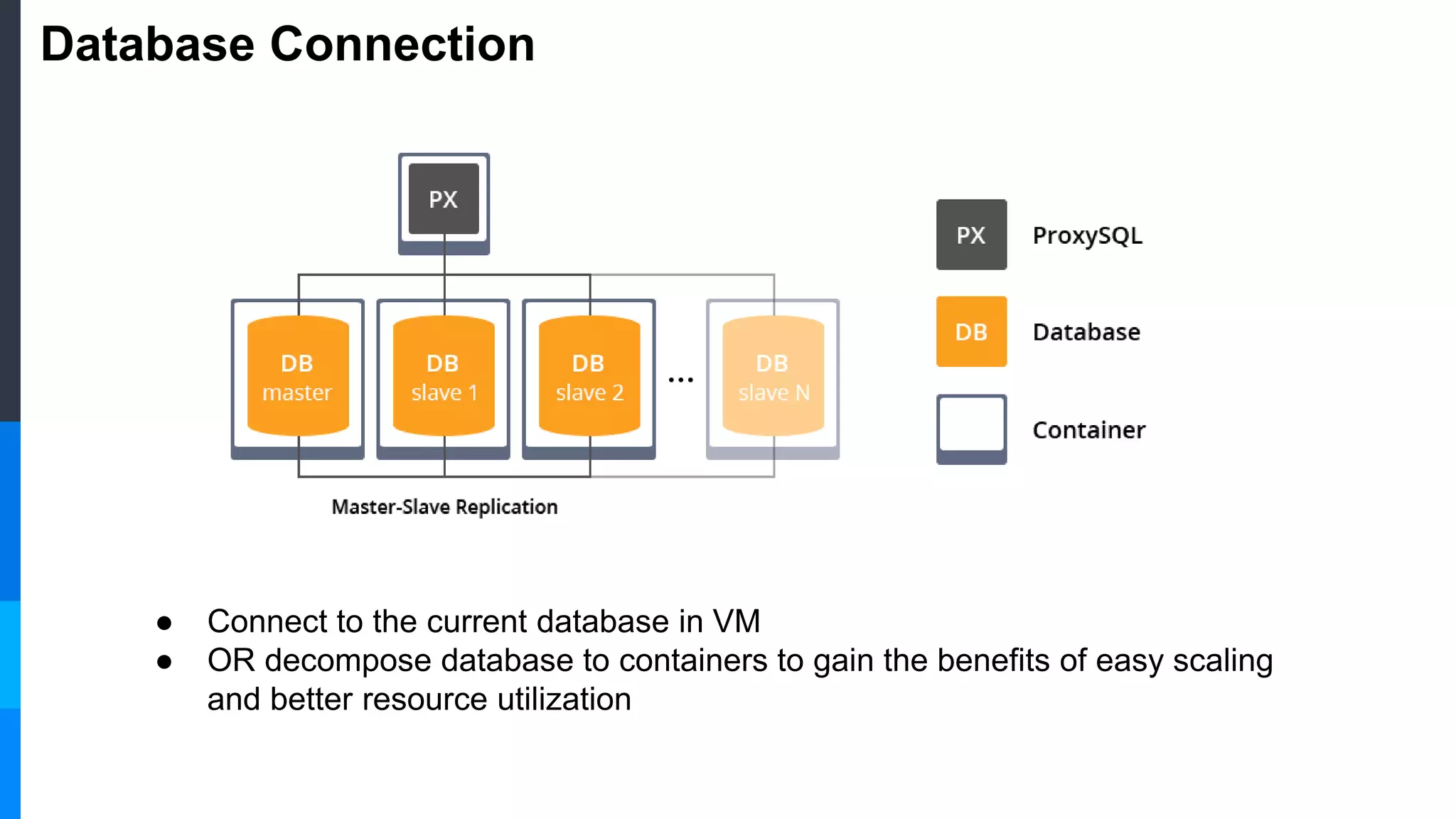

21. Database Connection
● Connect to the current database in VM
● OR decompose database to containers to gain the benefits of easy scaling
and better resource utilization

22. DEMO

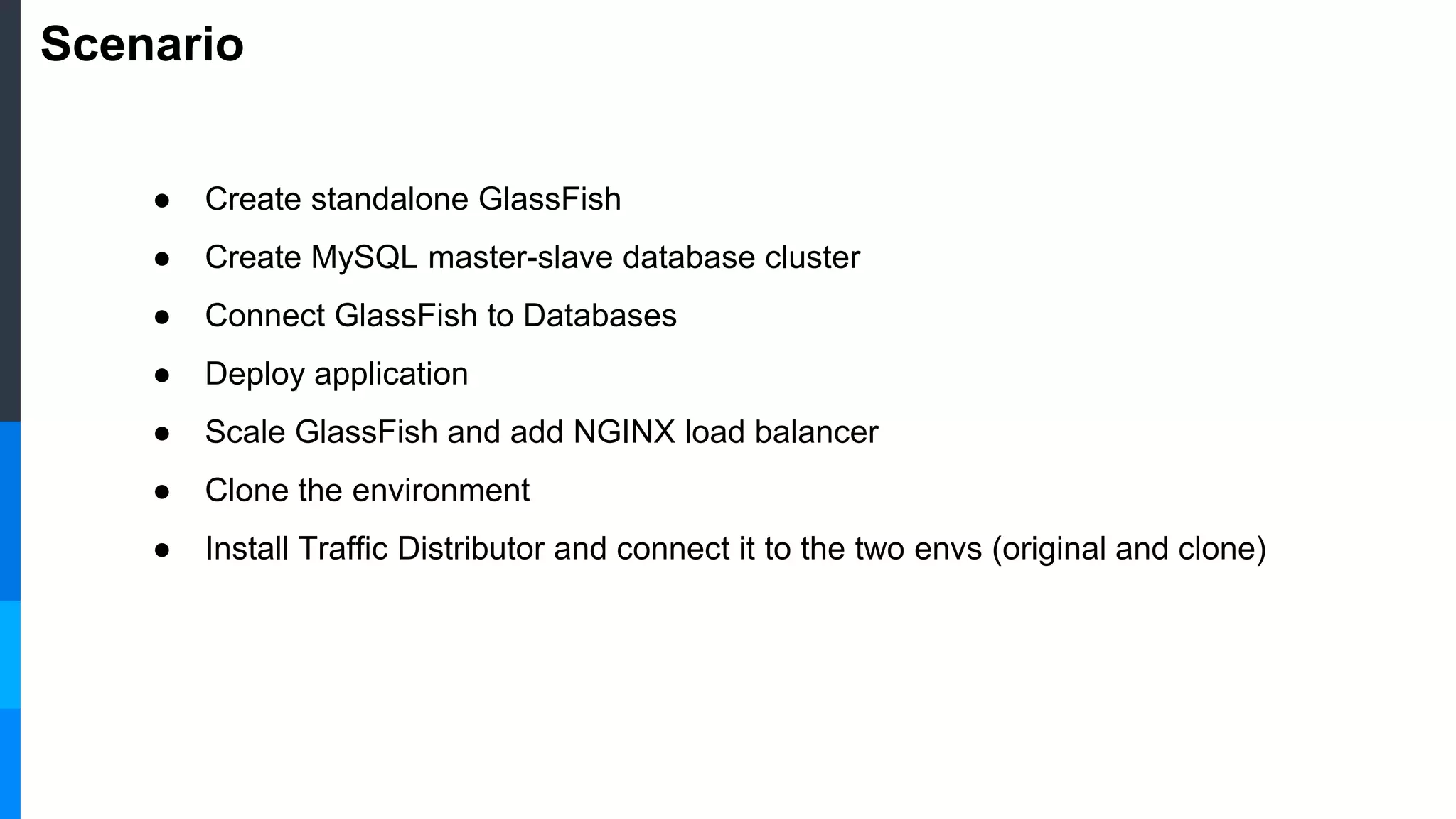

23. Scenario
● Create standalone GlassFish
● Create MySQL master-slave database cluster
● Connect GlassFish to Databases
● Deploy application
● Scale GlassFish and add NGINX load balancer
● Clone the environment
● Install Traffic Distributor and connect it to the two envs (original and clone)

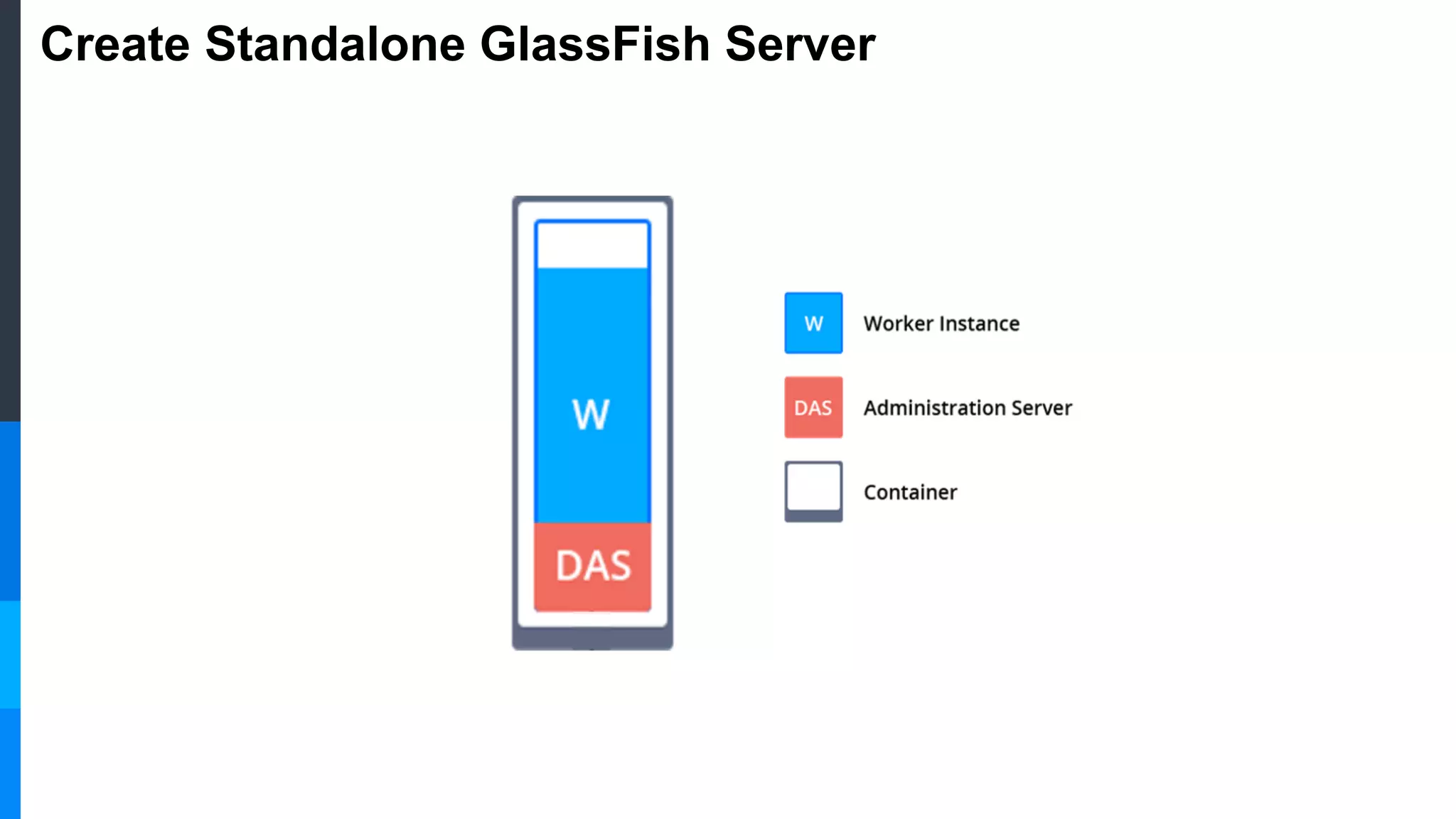

24. Create Standalone GlassFish Server

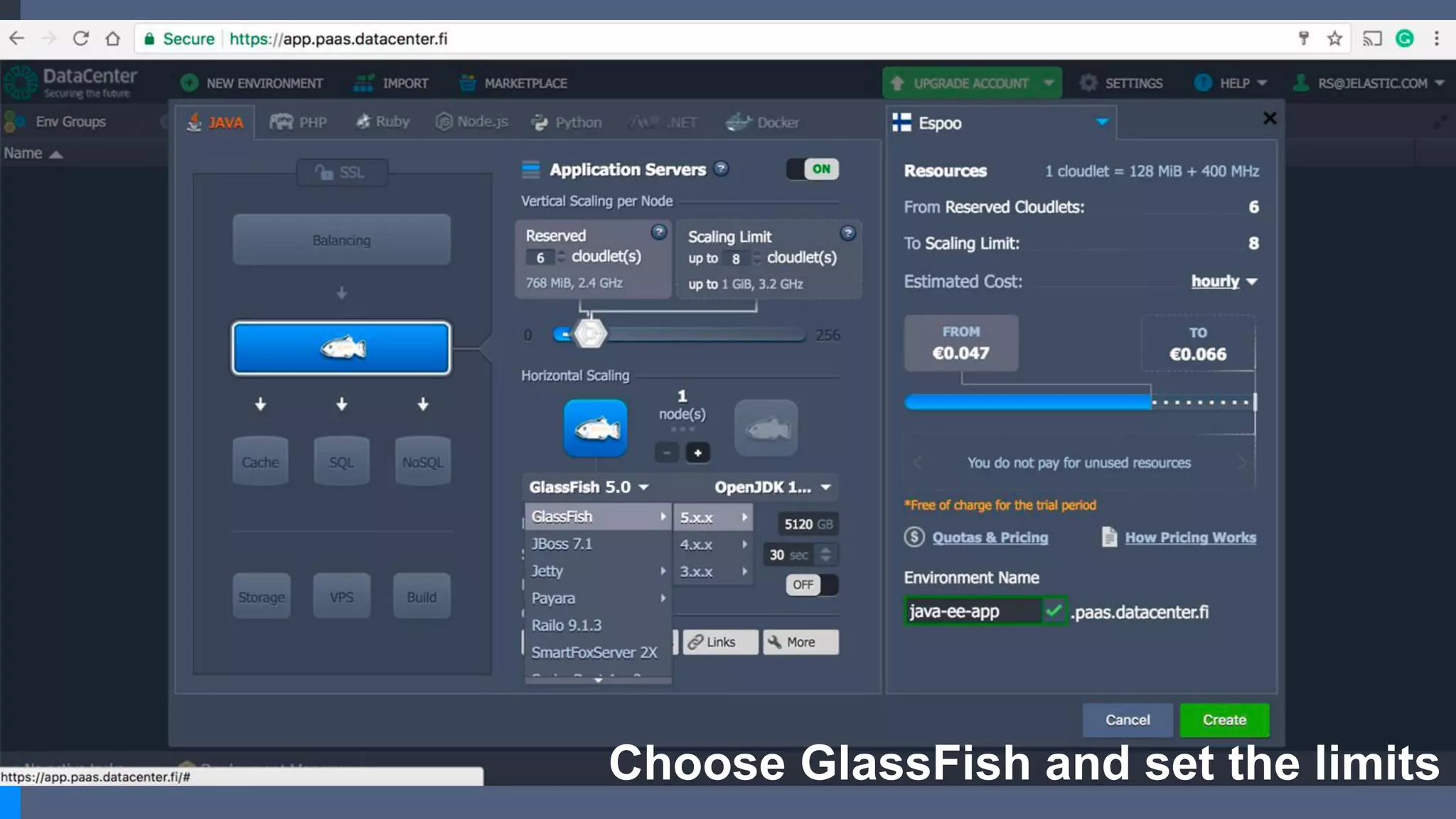

25. Choose GlassFish and set the limits

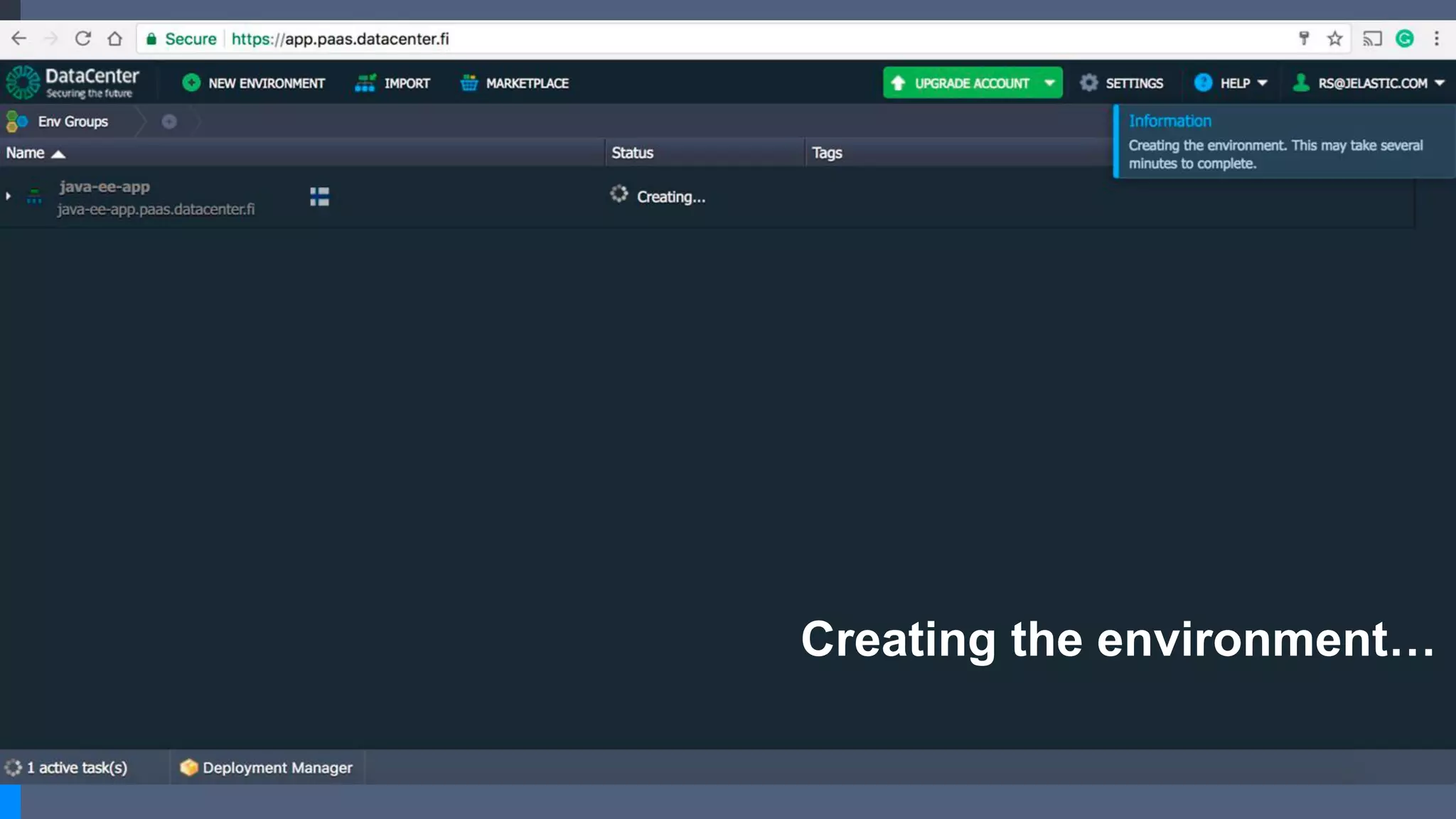

26. Creating the environment…

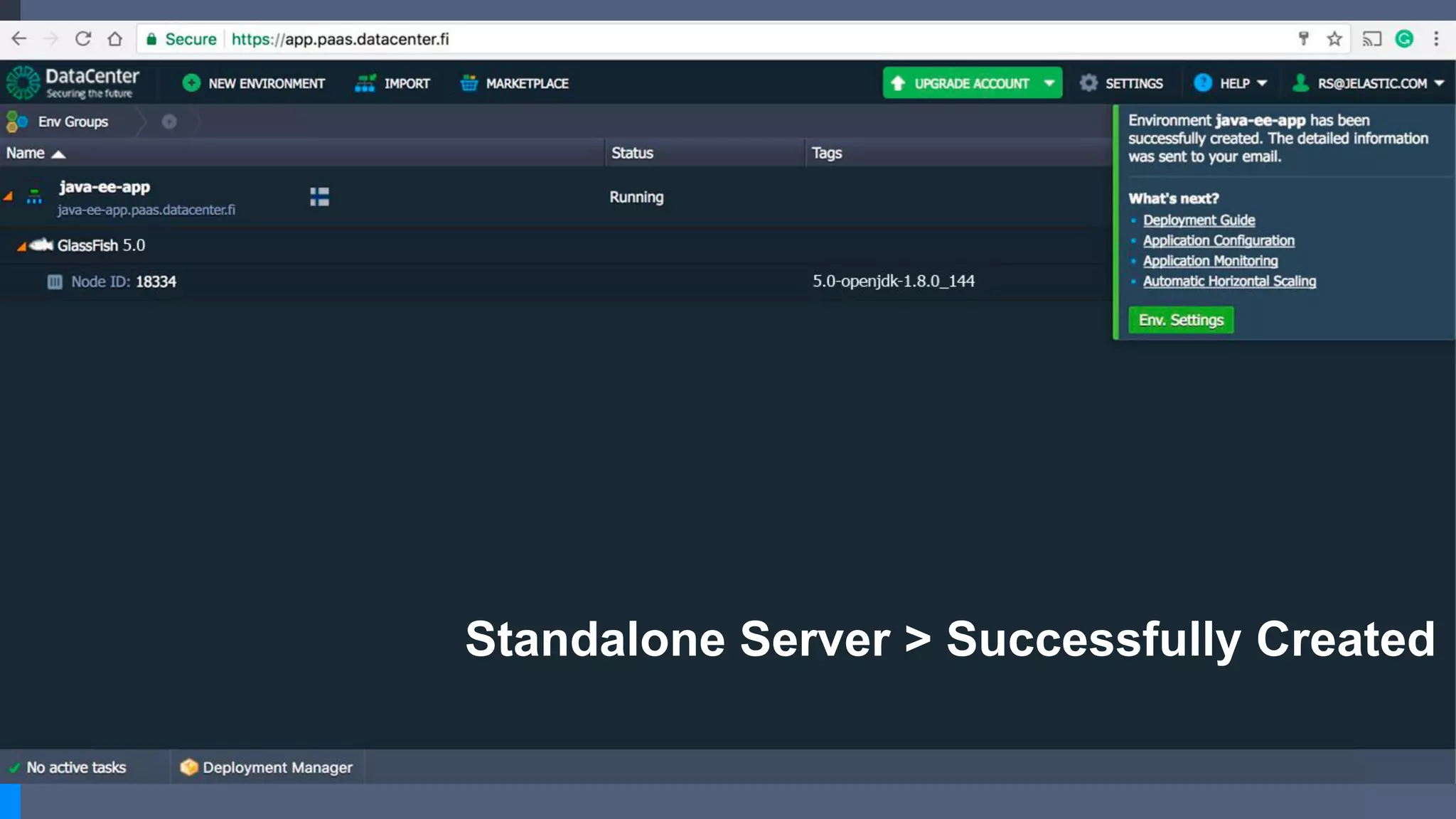

27. Standalone Server > Successfully Created

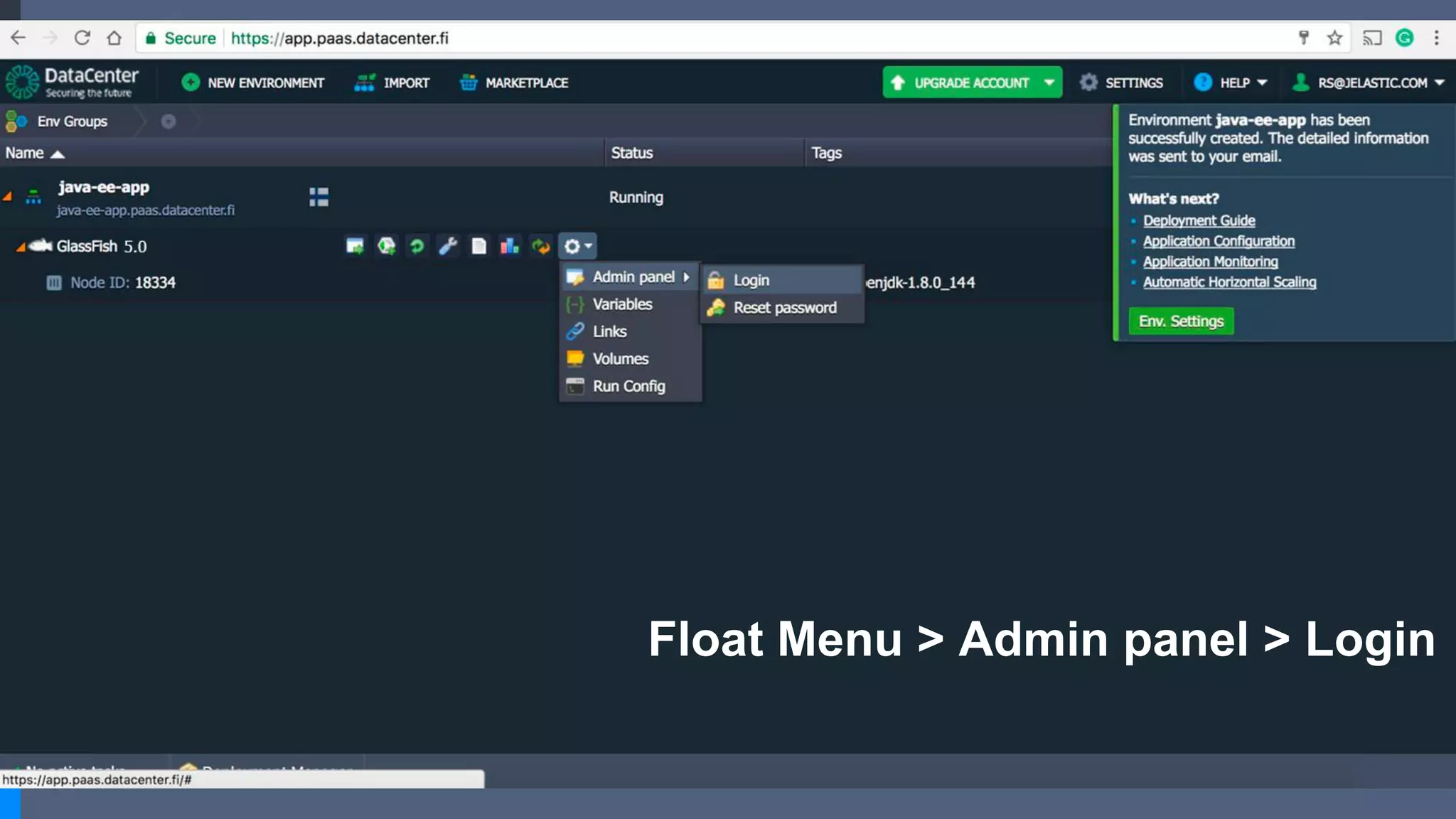

28. Float Menu > Admin panel > Login

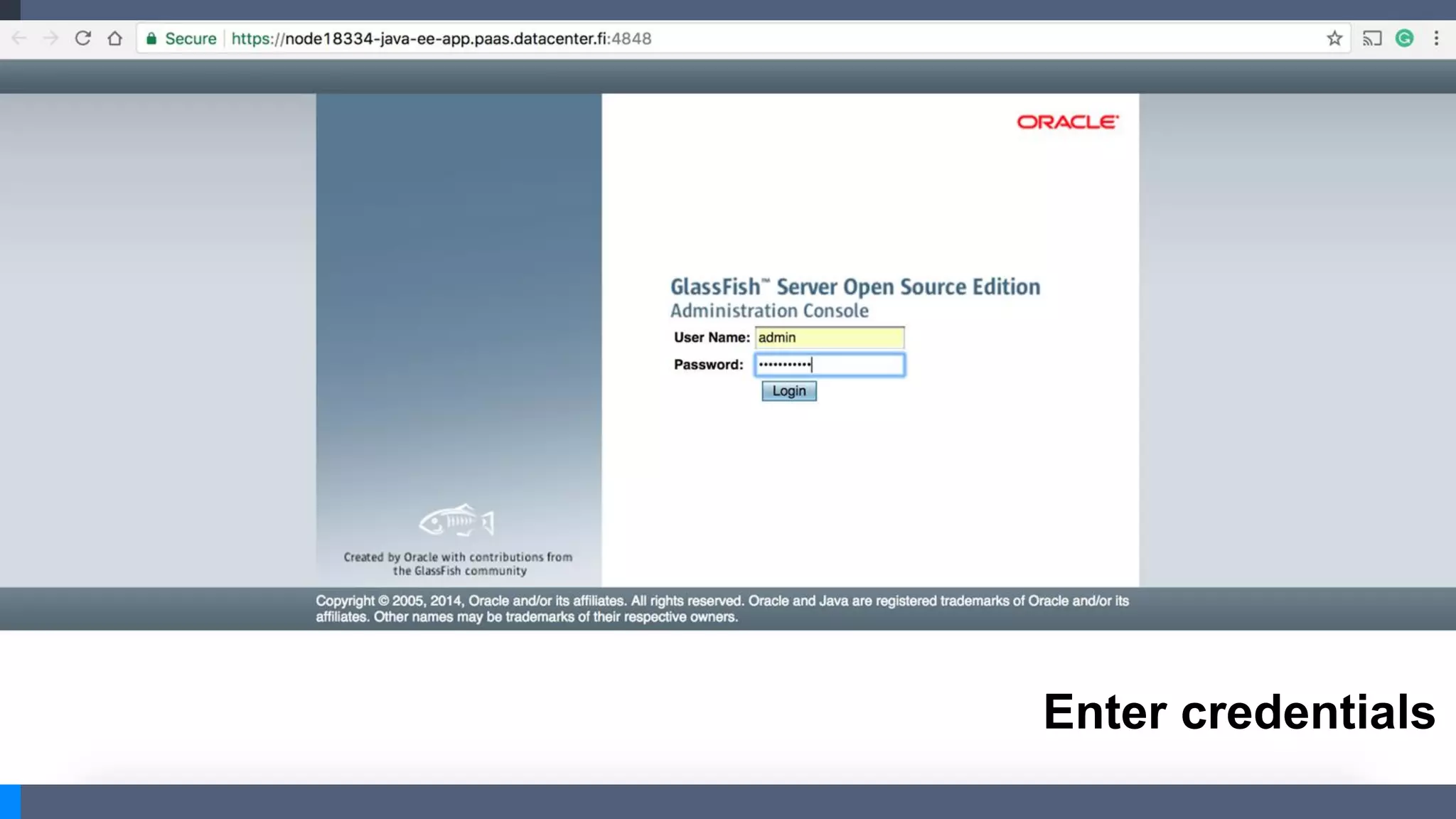

29. Enter credentials

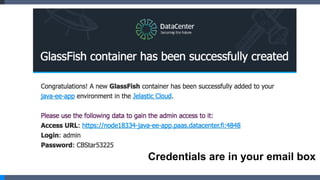

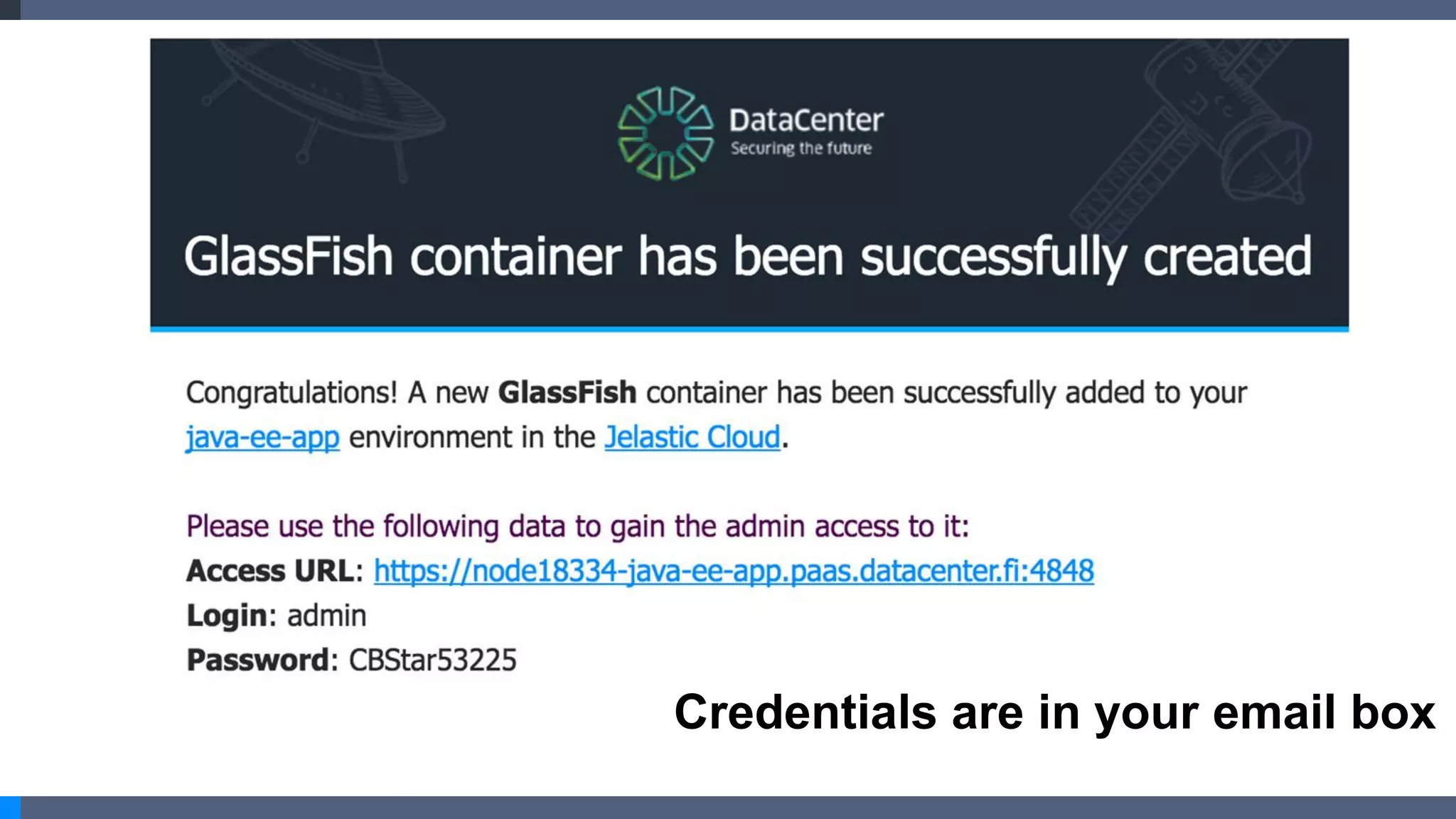

30. Credentials are in your email box

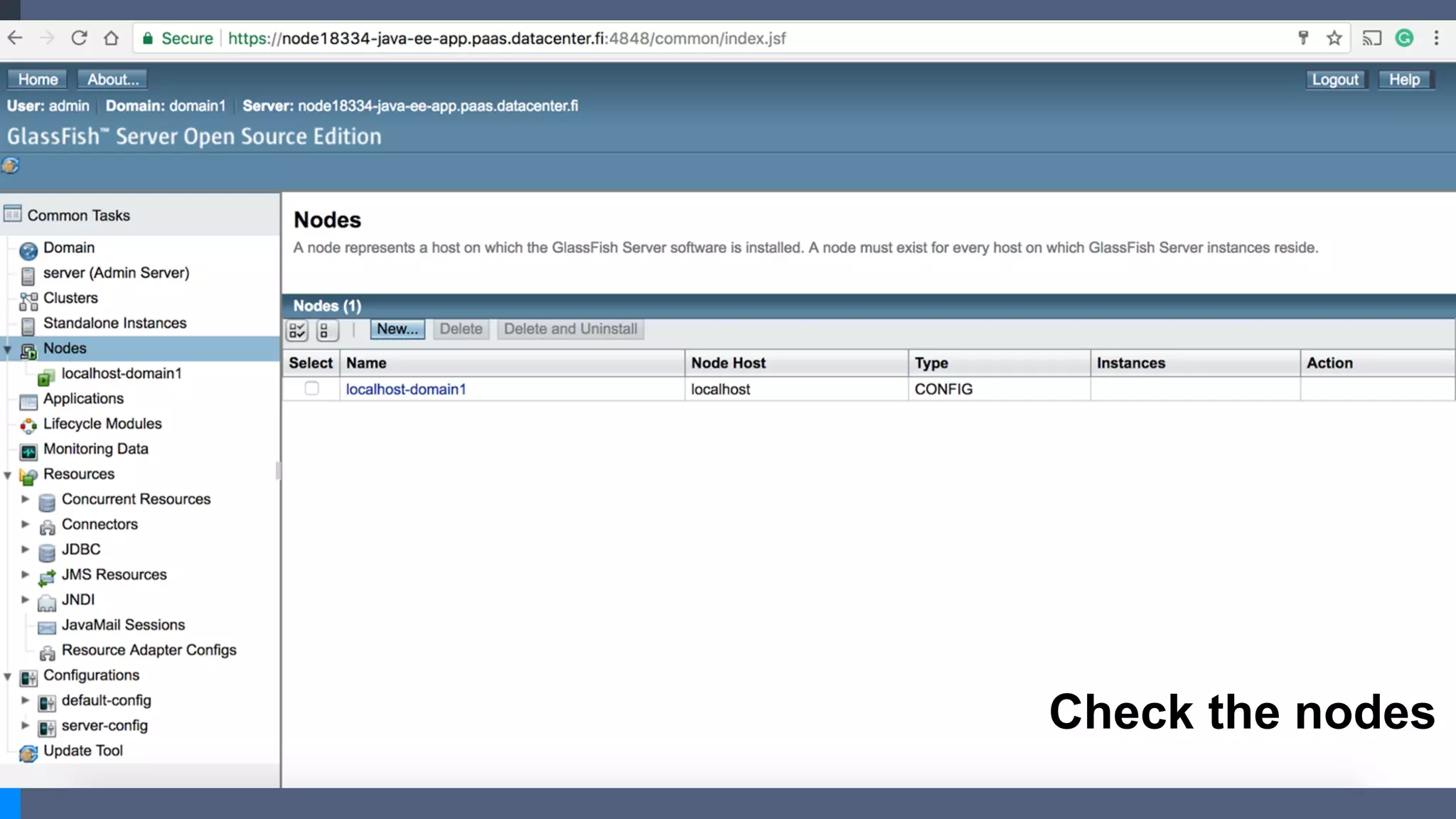

31. Check the nodes

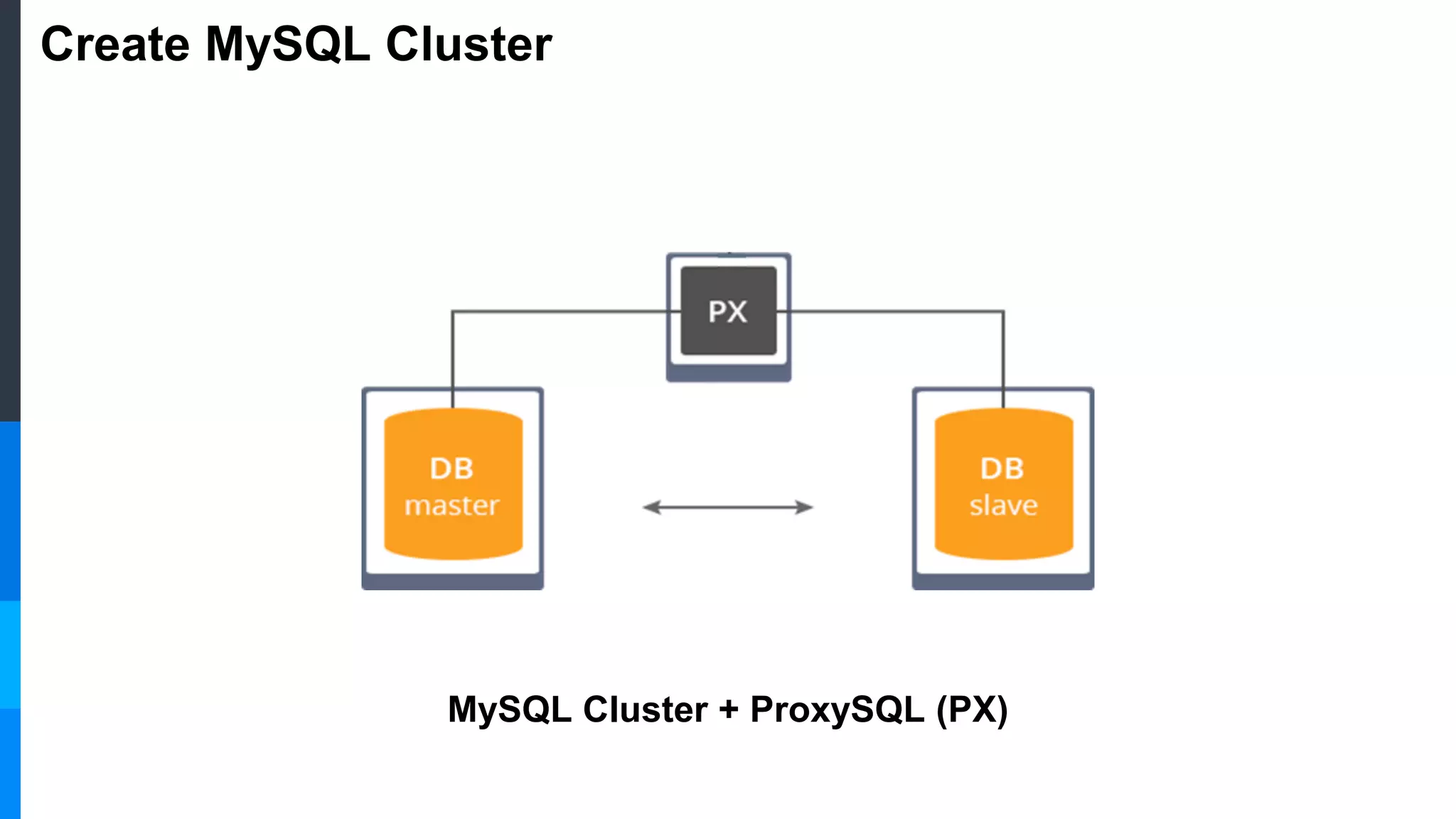

32. Create MySQL Cluster
MySQL Cluster + ProxySQL (PX)

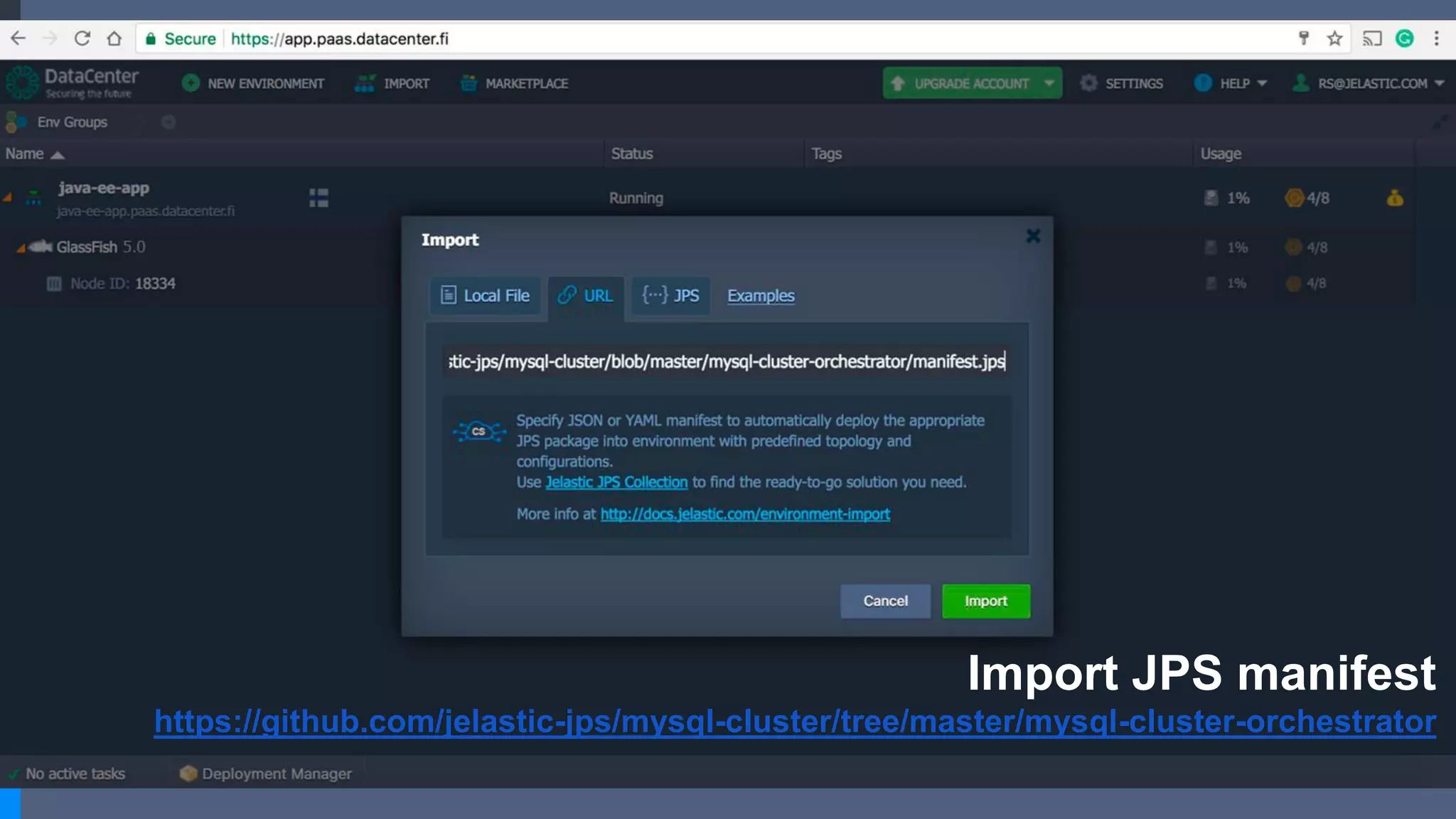

33. Import JPS manifest
https://github.com/jelastic-jps/mysql-cluster/tree/master/mysql-cluster-orchestrator

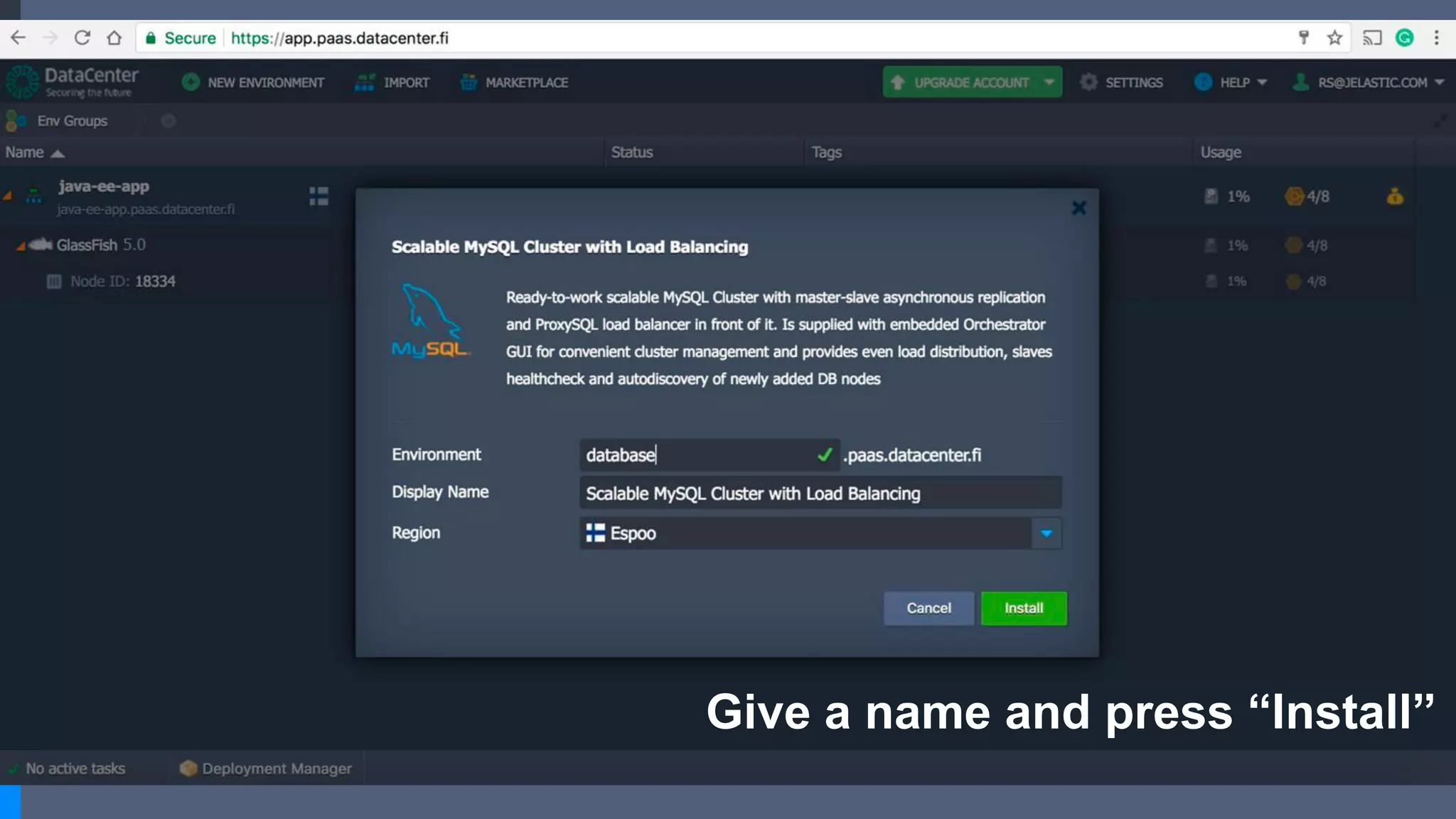

34. Give a name and press “Install”

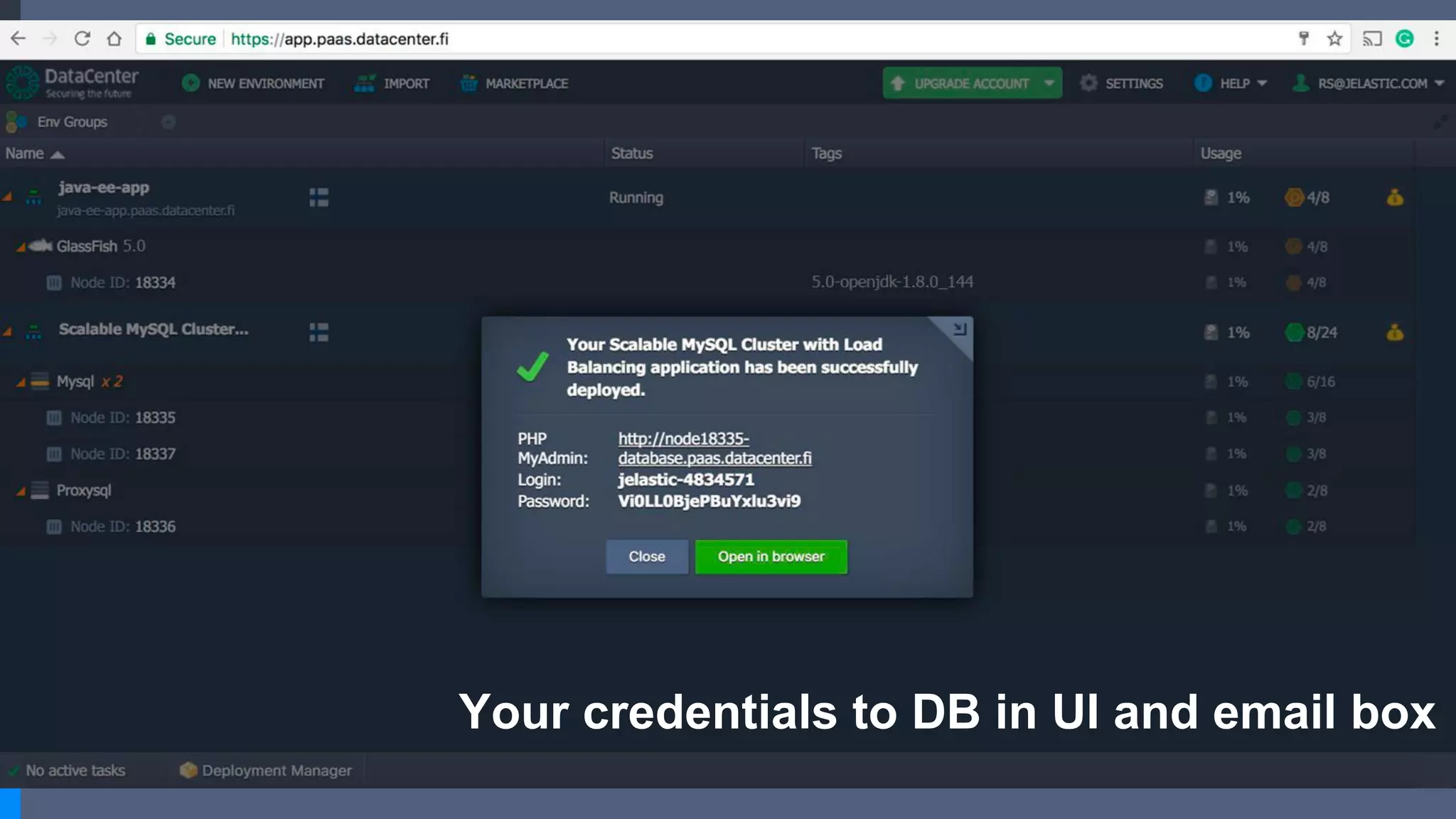

35. Your credentials to DB in UI and email box

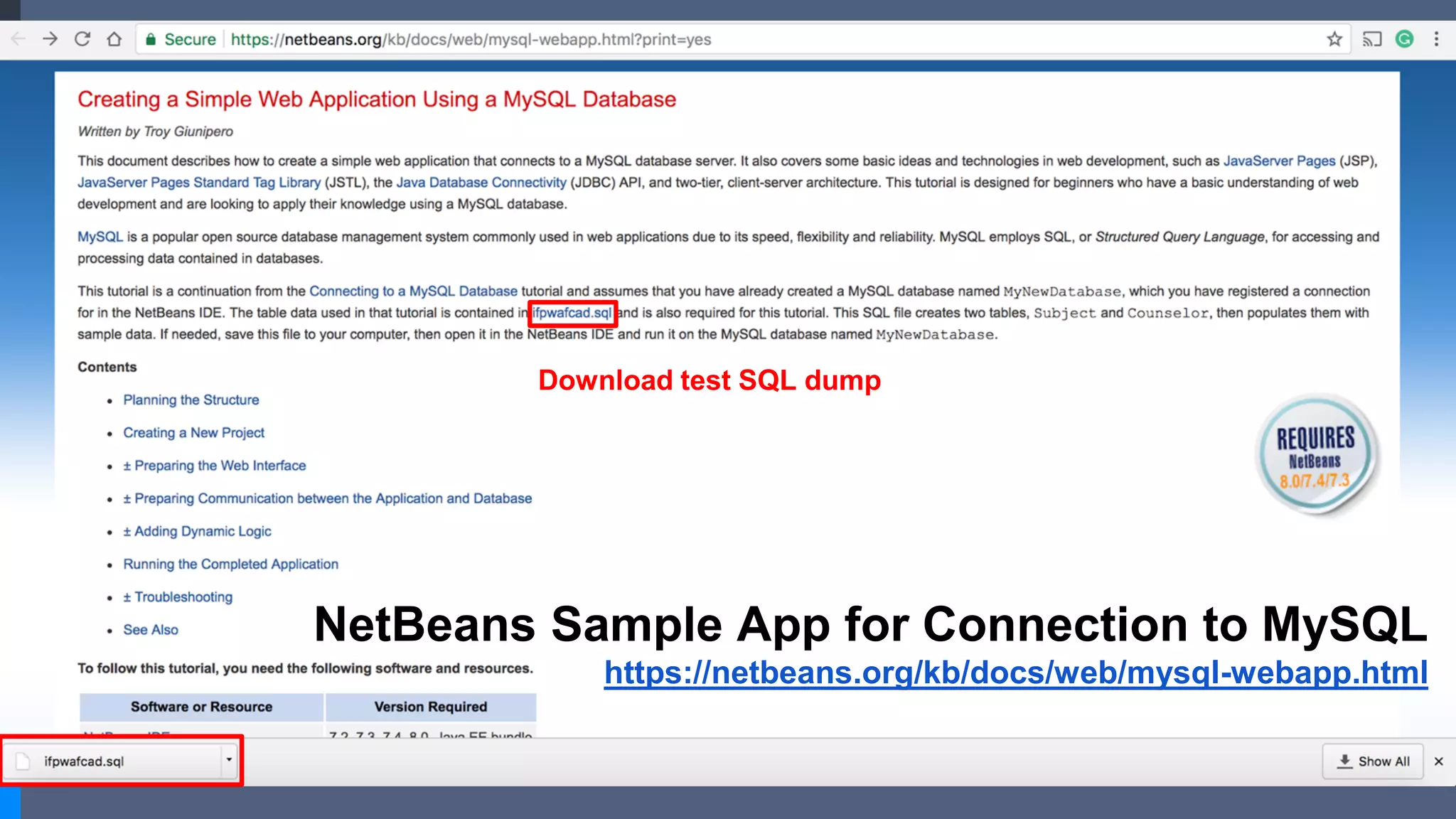

36. Download test SQL dump
NetBeans Sample App for Connection to MySQL
https://netbeans.org/kb/docs/web/mysql-webapp.html

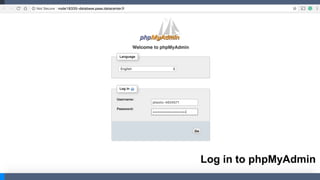

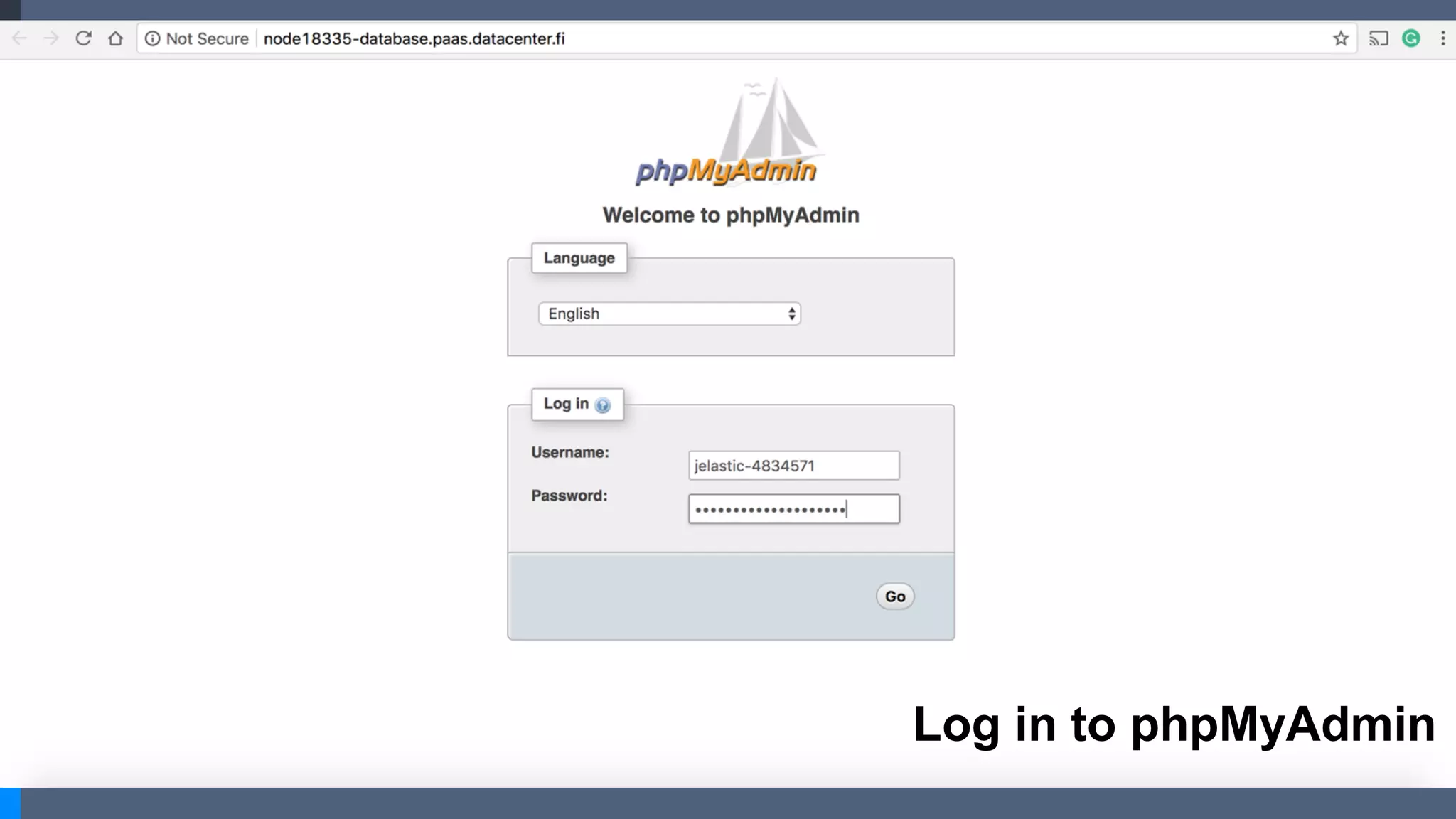

37. Log in to phpMyAdmin

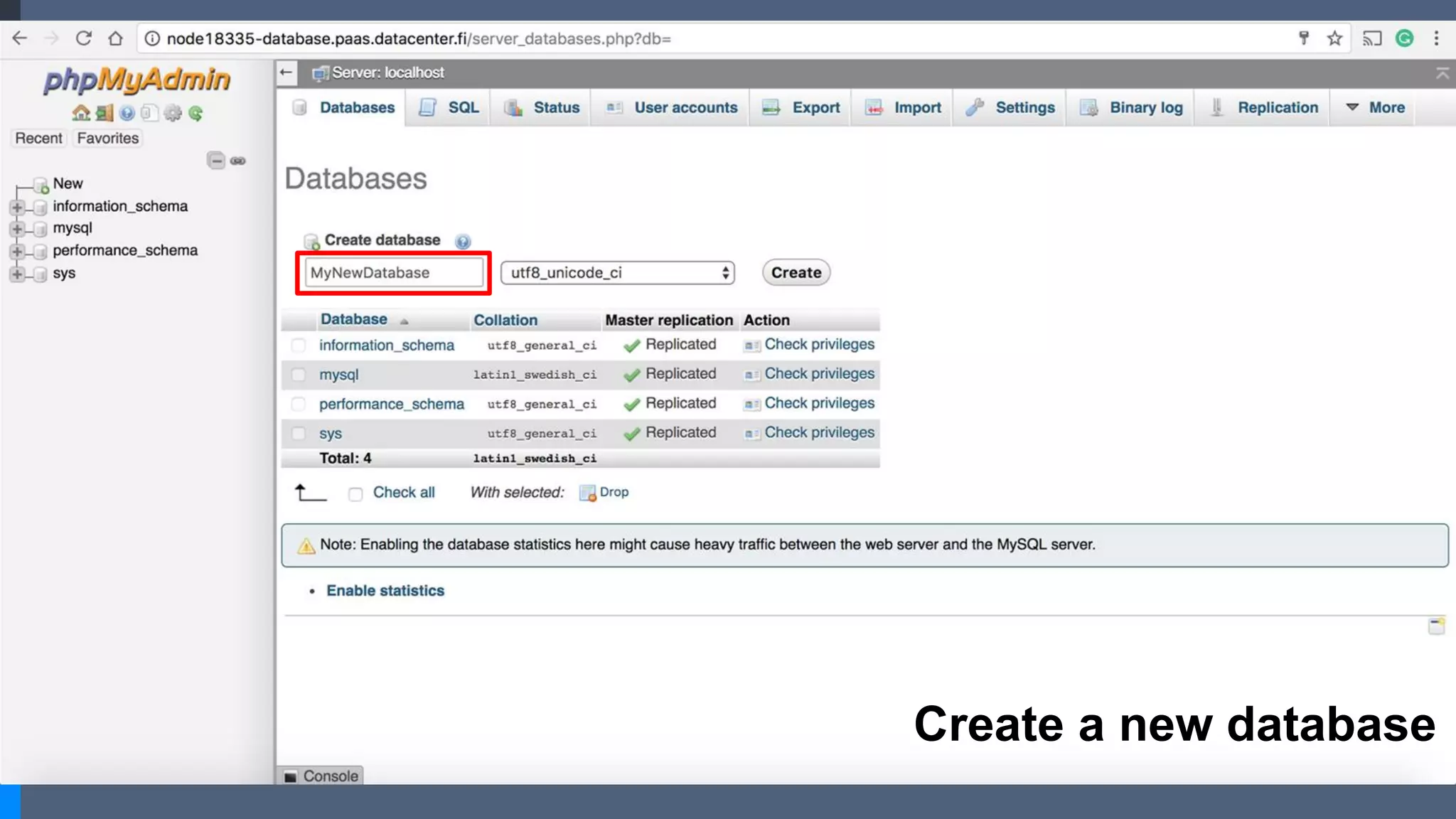

38. Create a new database

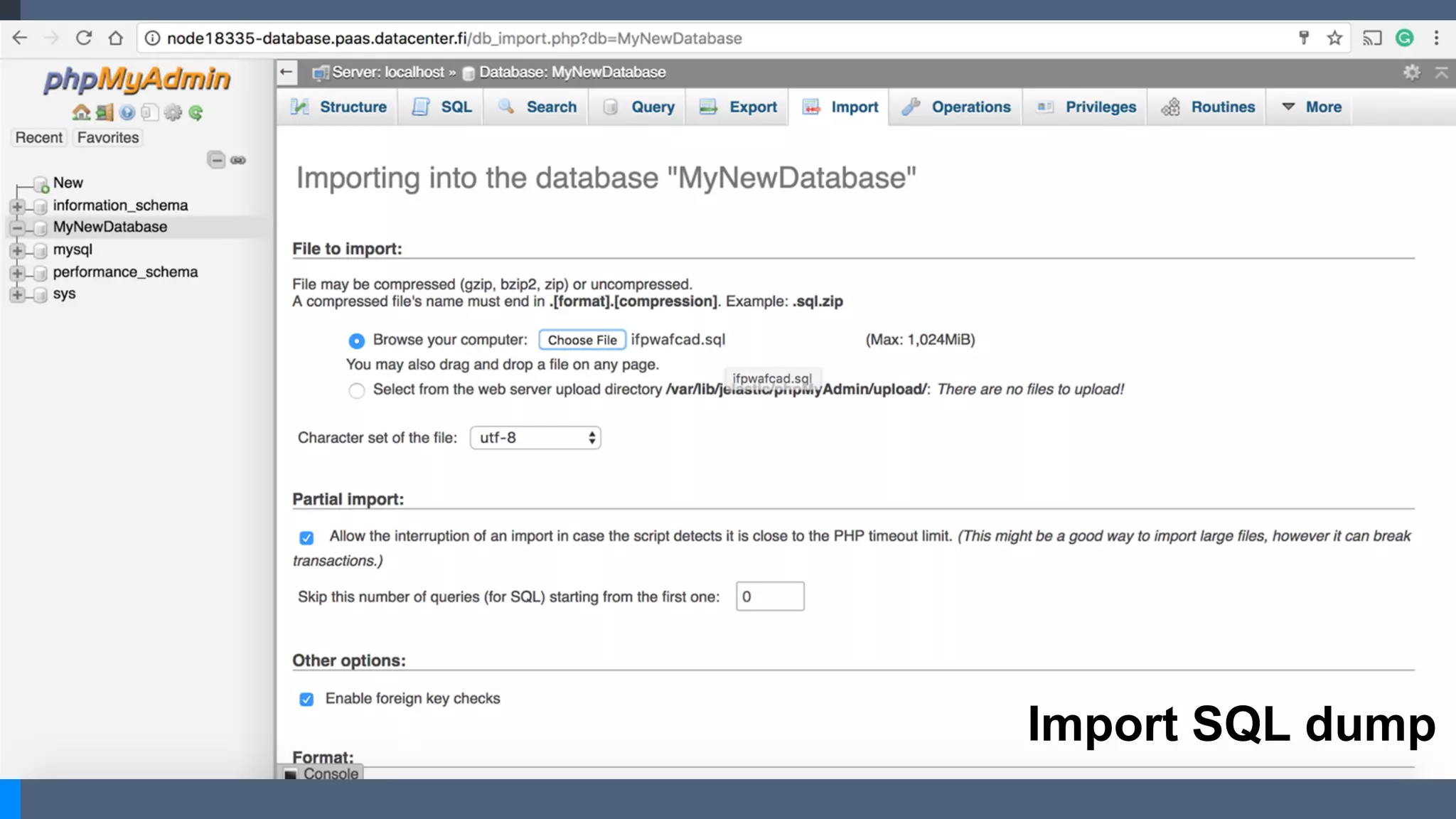

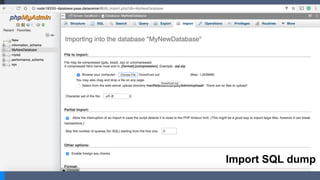

39. Import SQL dump

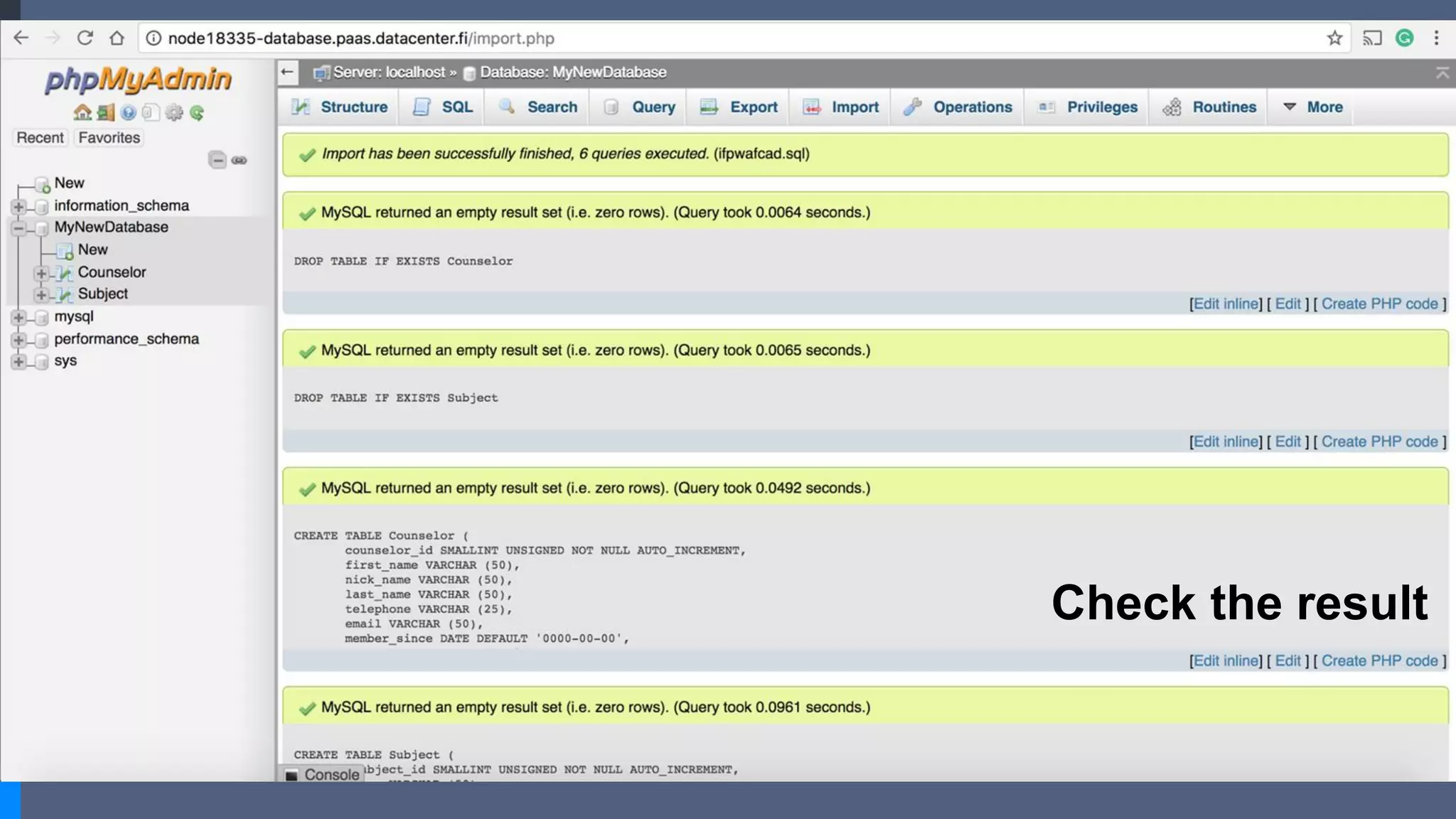

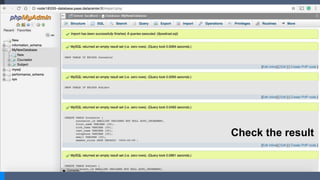

40. Check the result

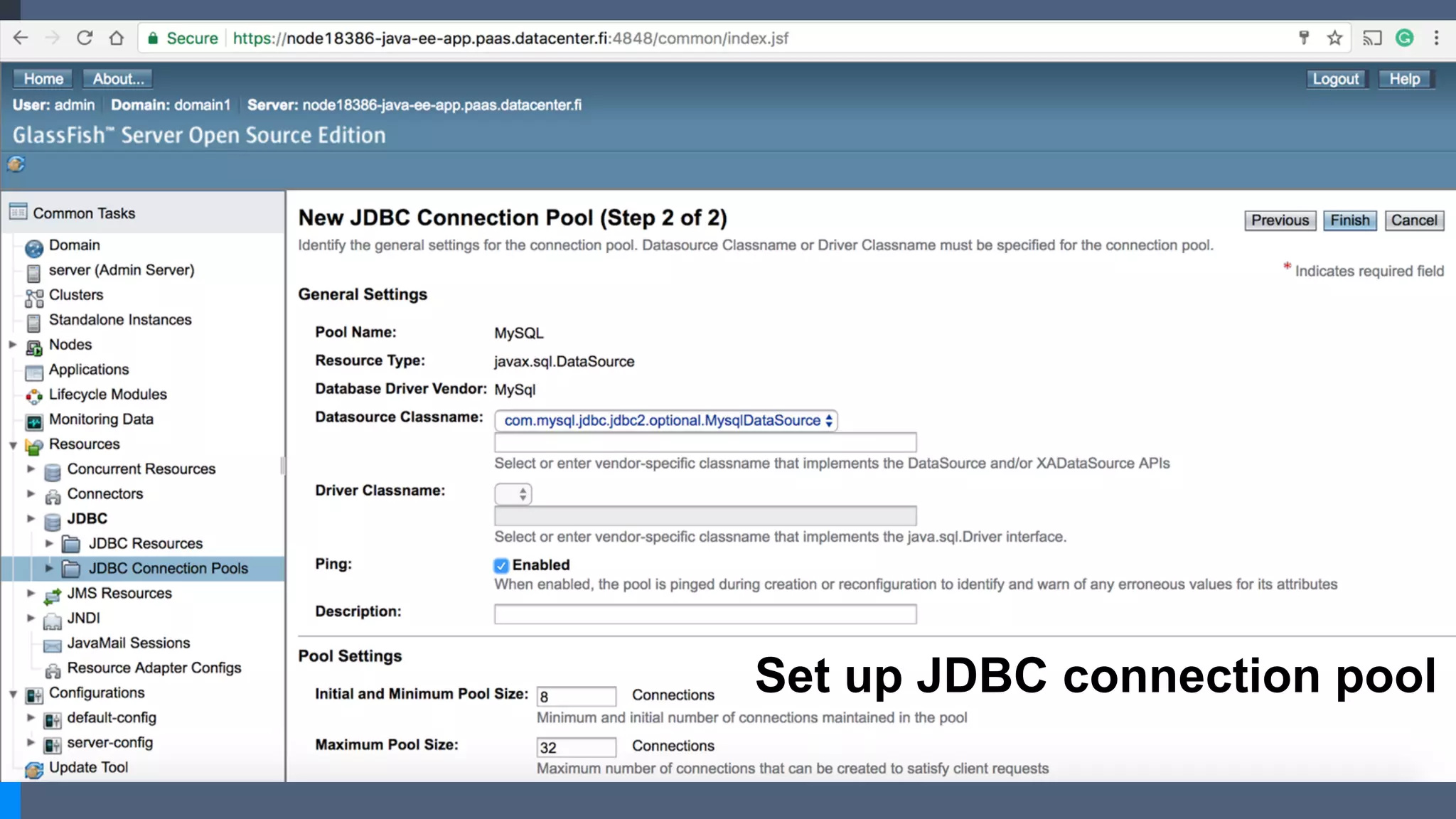

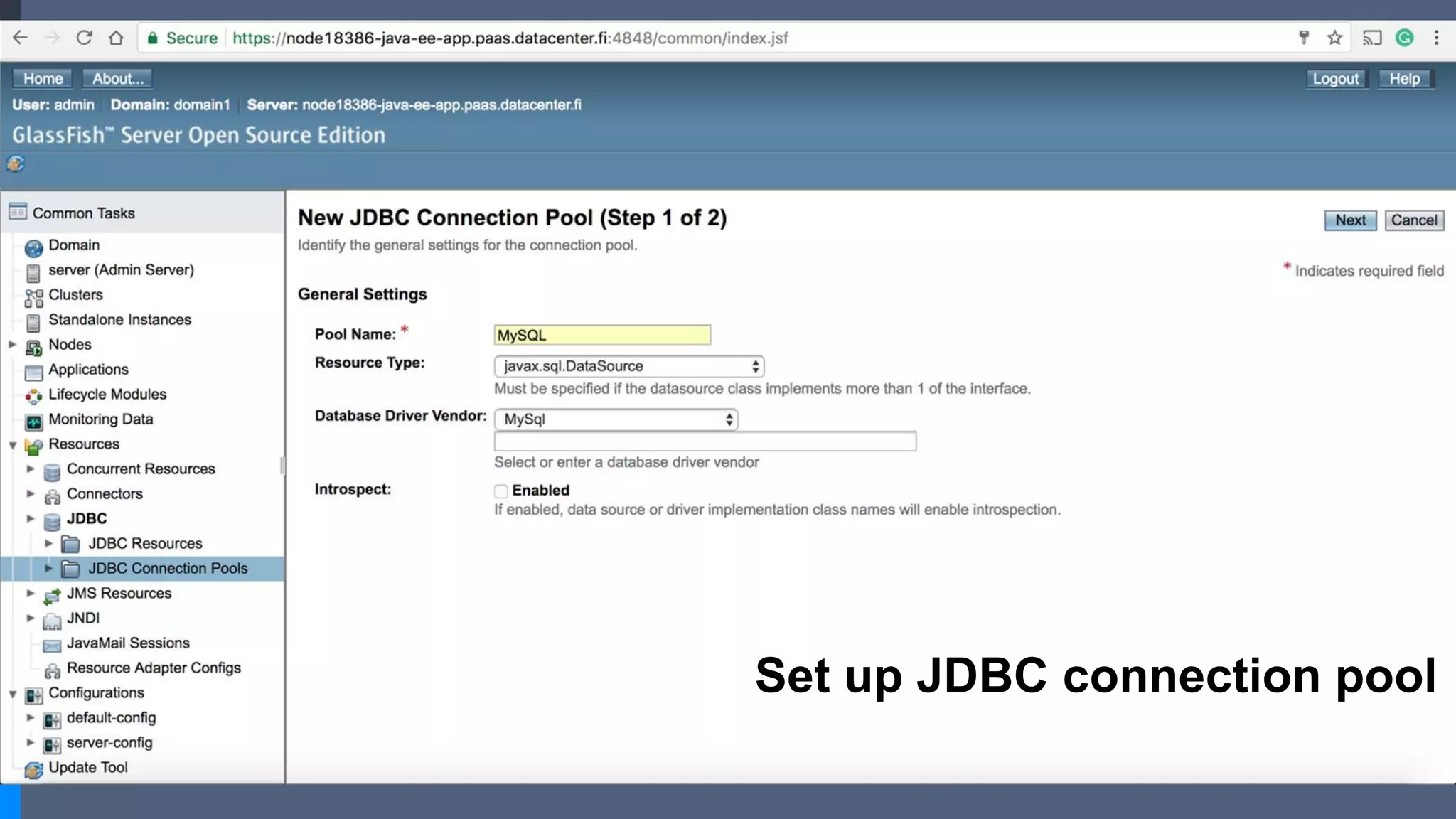

41. Set up JDBC connection pool

42. Set up JDBC connection pool

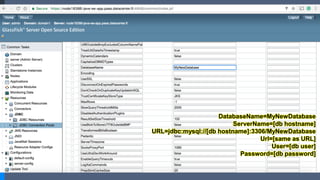

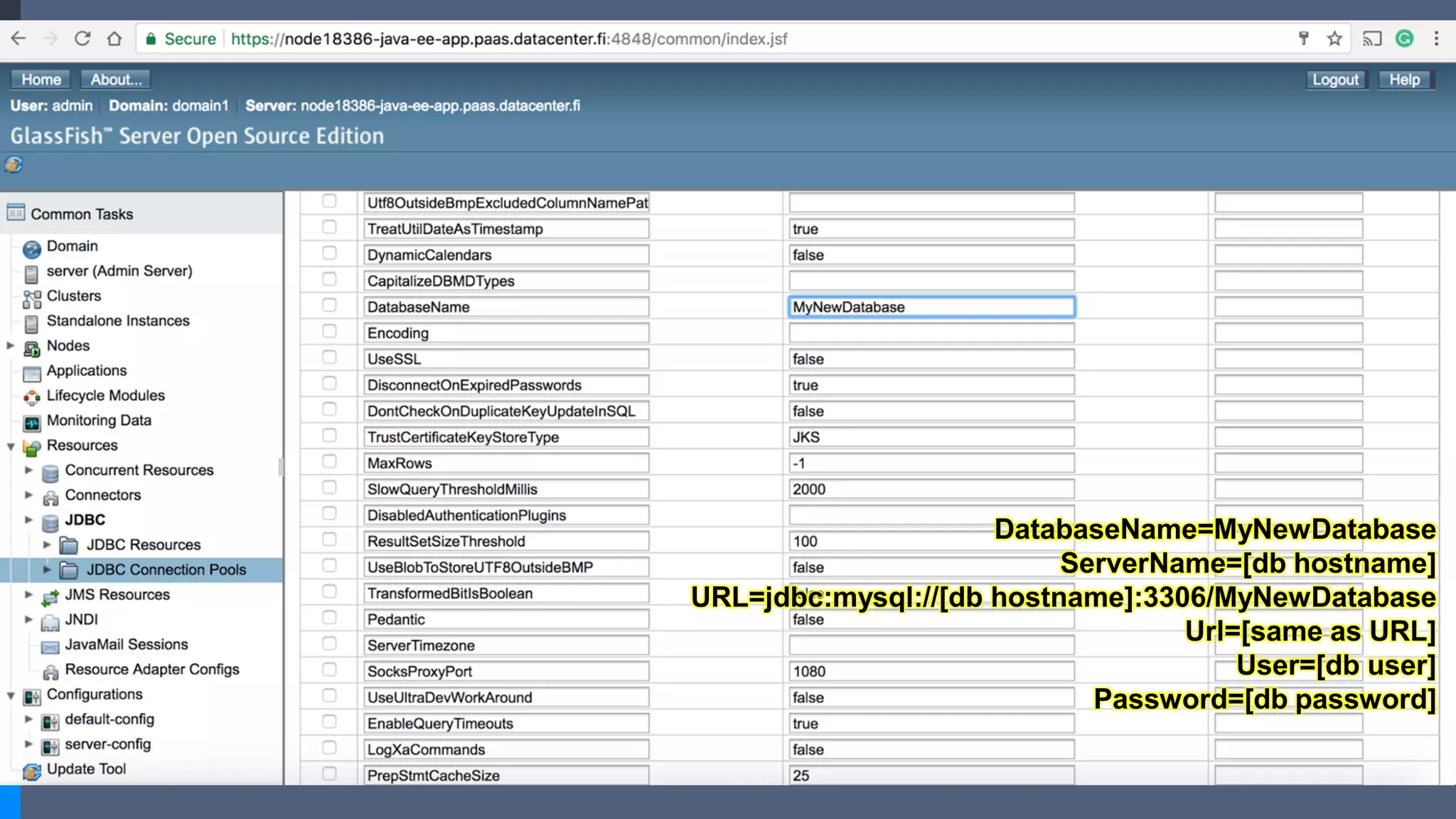

43. DatabaseName=MyNewDatabase
ServerName=[db hostname]
URL=jdbc:mysql://[db hostname]:3306/MyNewDatabase
Url=[same as URL]
User=[db user]
Password=[db password]

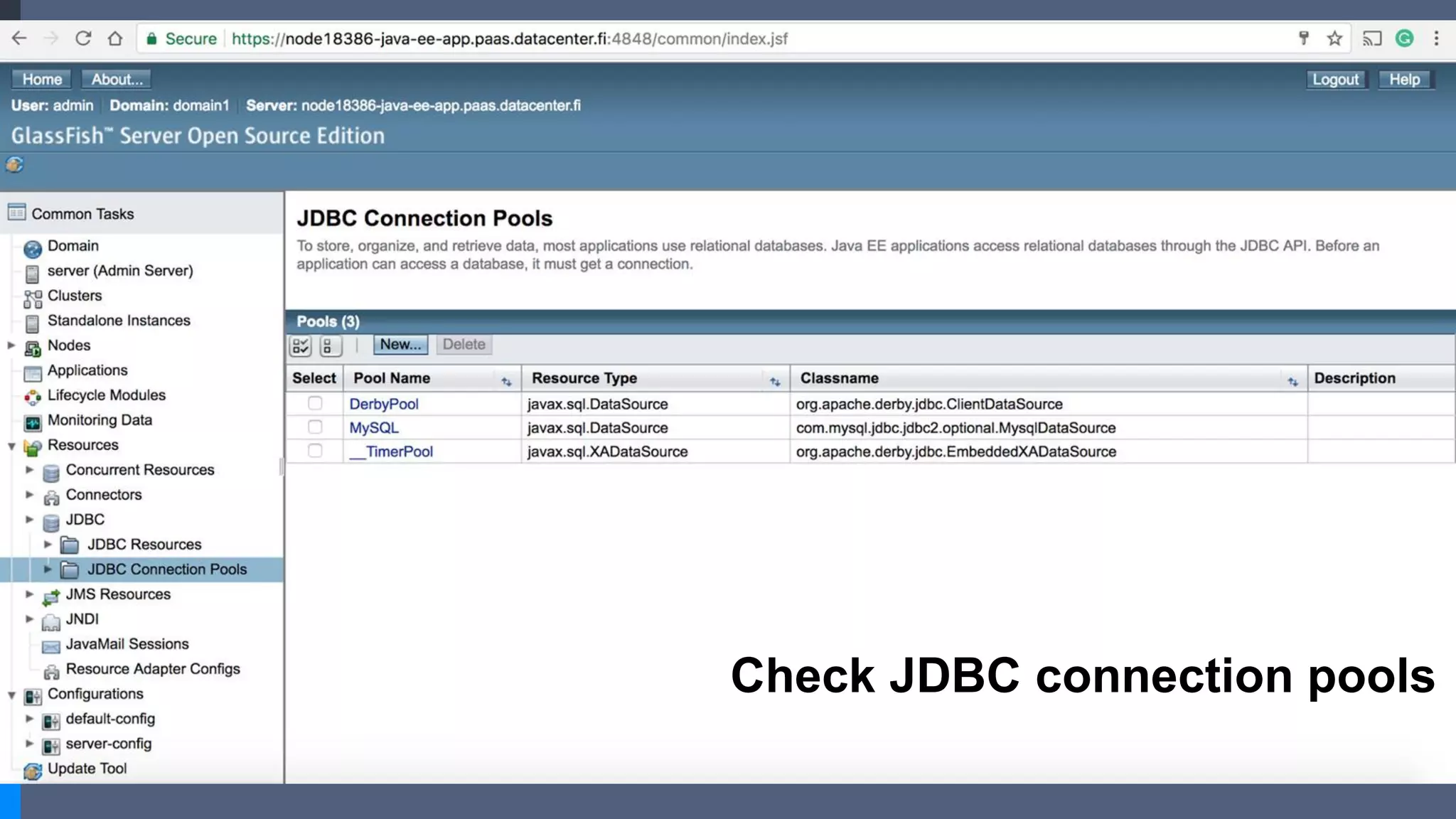

44. Check JDBC connection pools

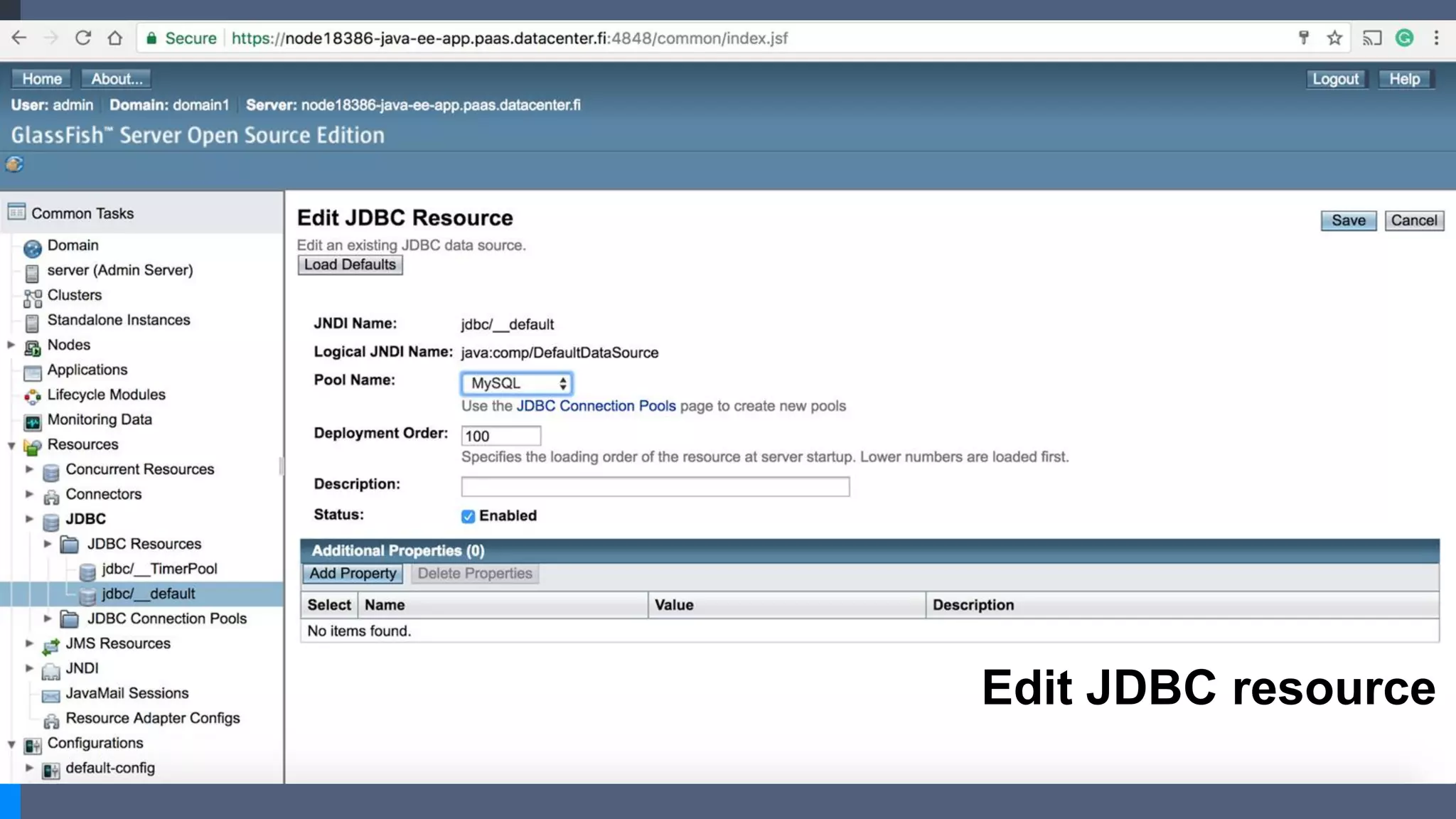

45. Edit JDBC resource

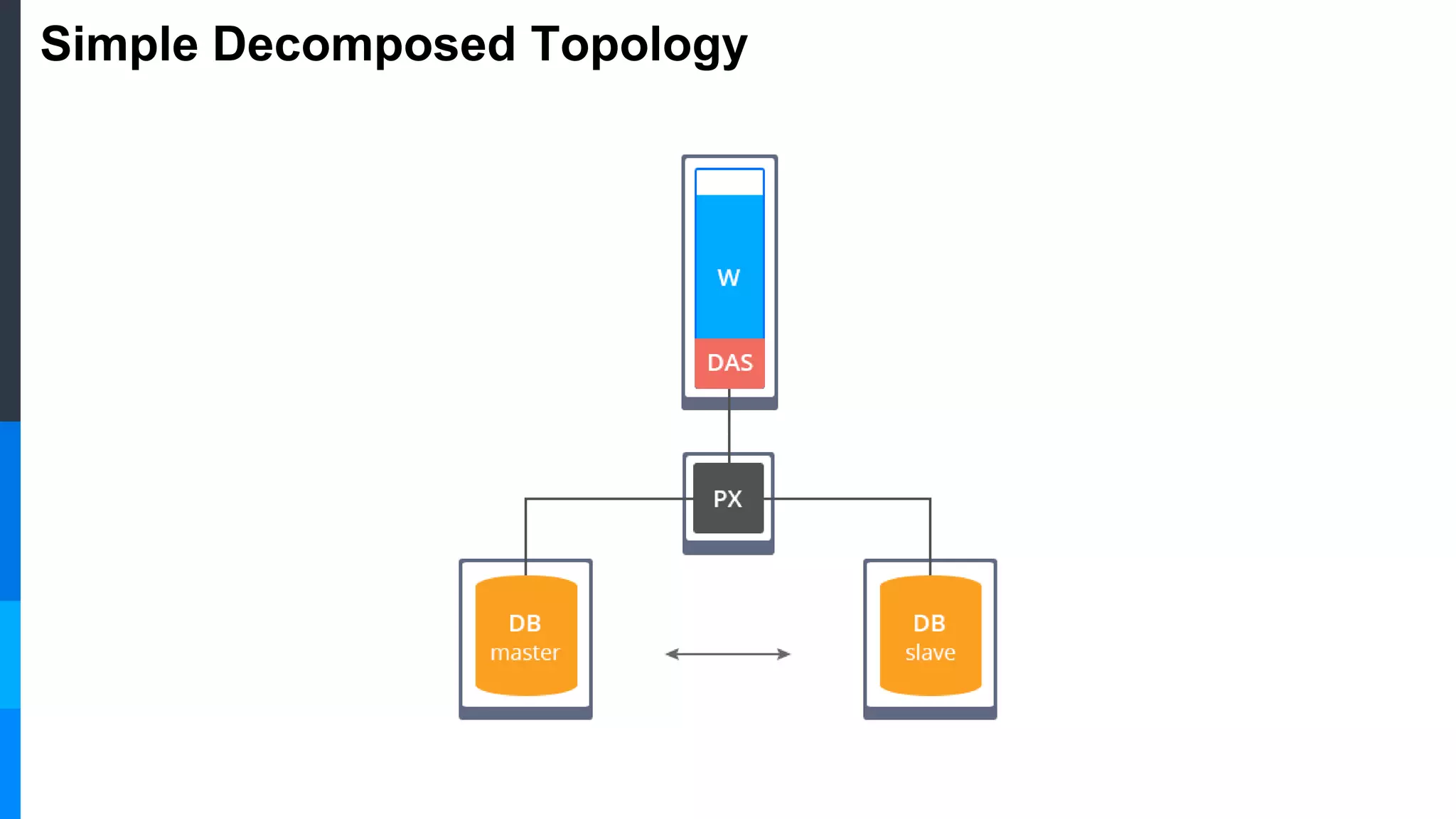

46. Simple Decomposed Topology

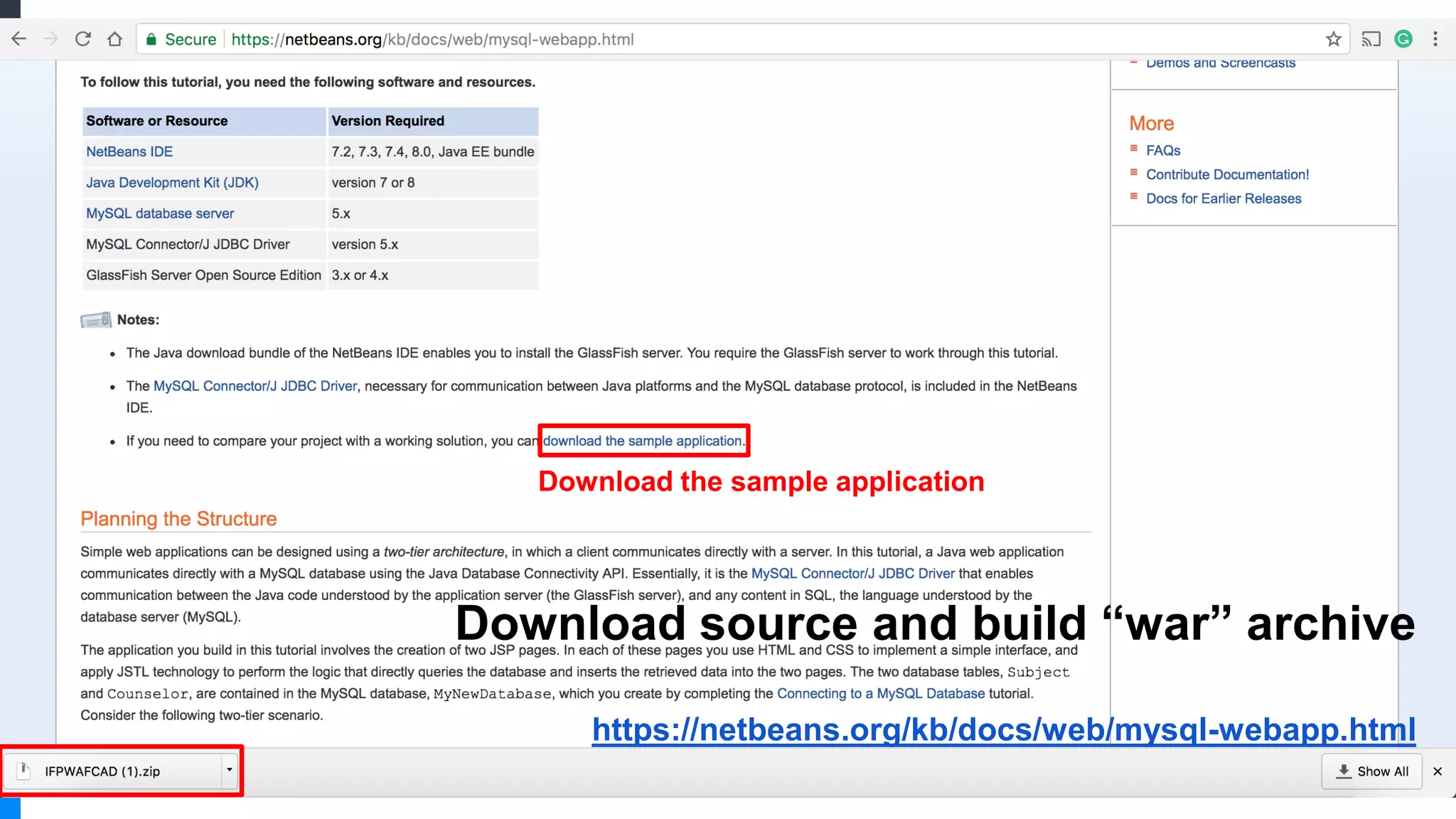

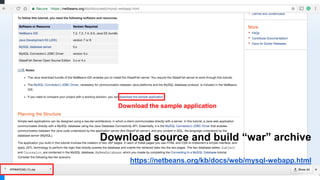

47. Download the sample application
Download source and build “war” archive
https://netbeans.org/kb/docs/web/mysql-webapp.html

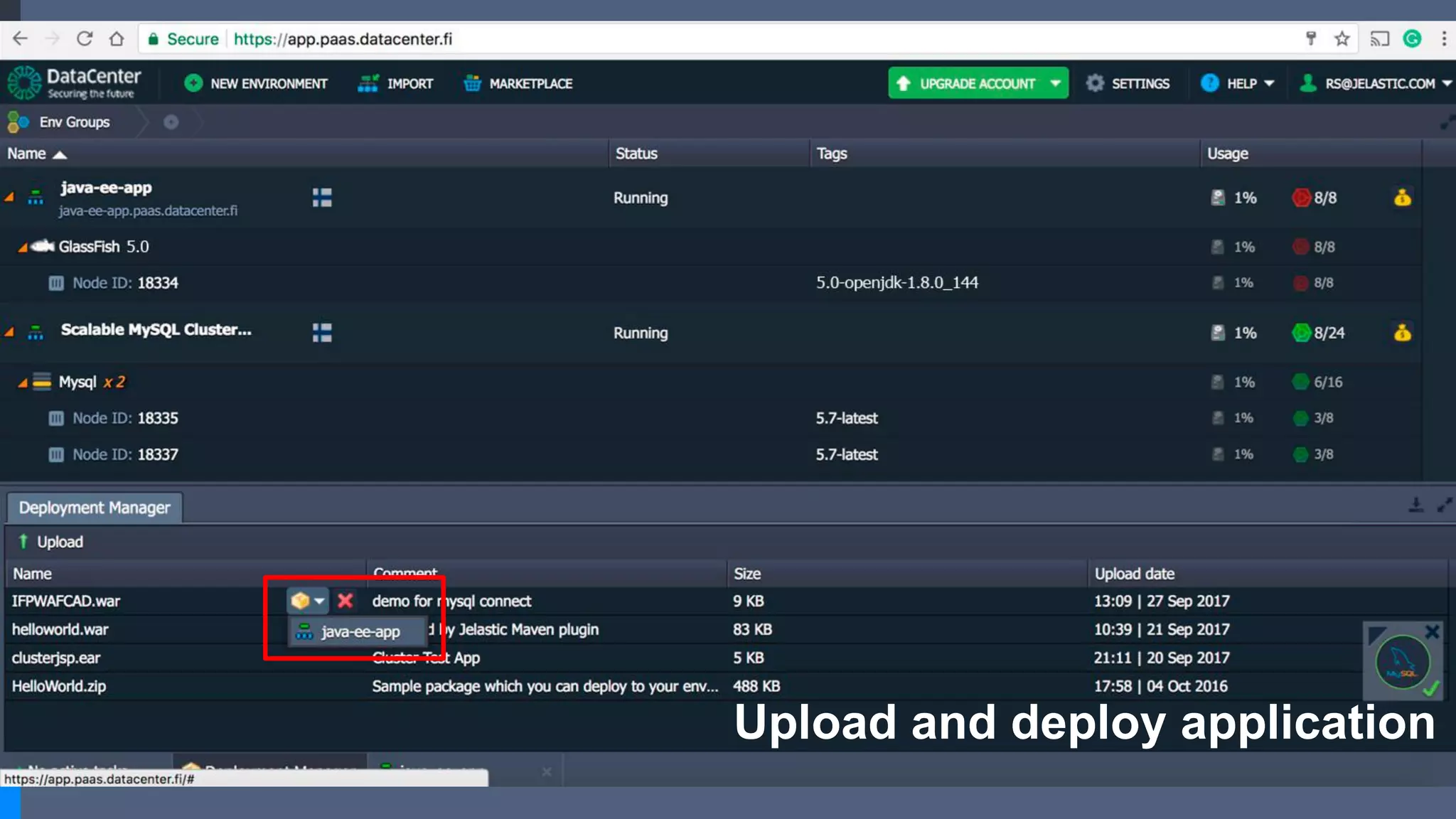

48. Upload and deploy application

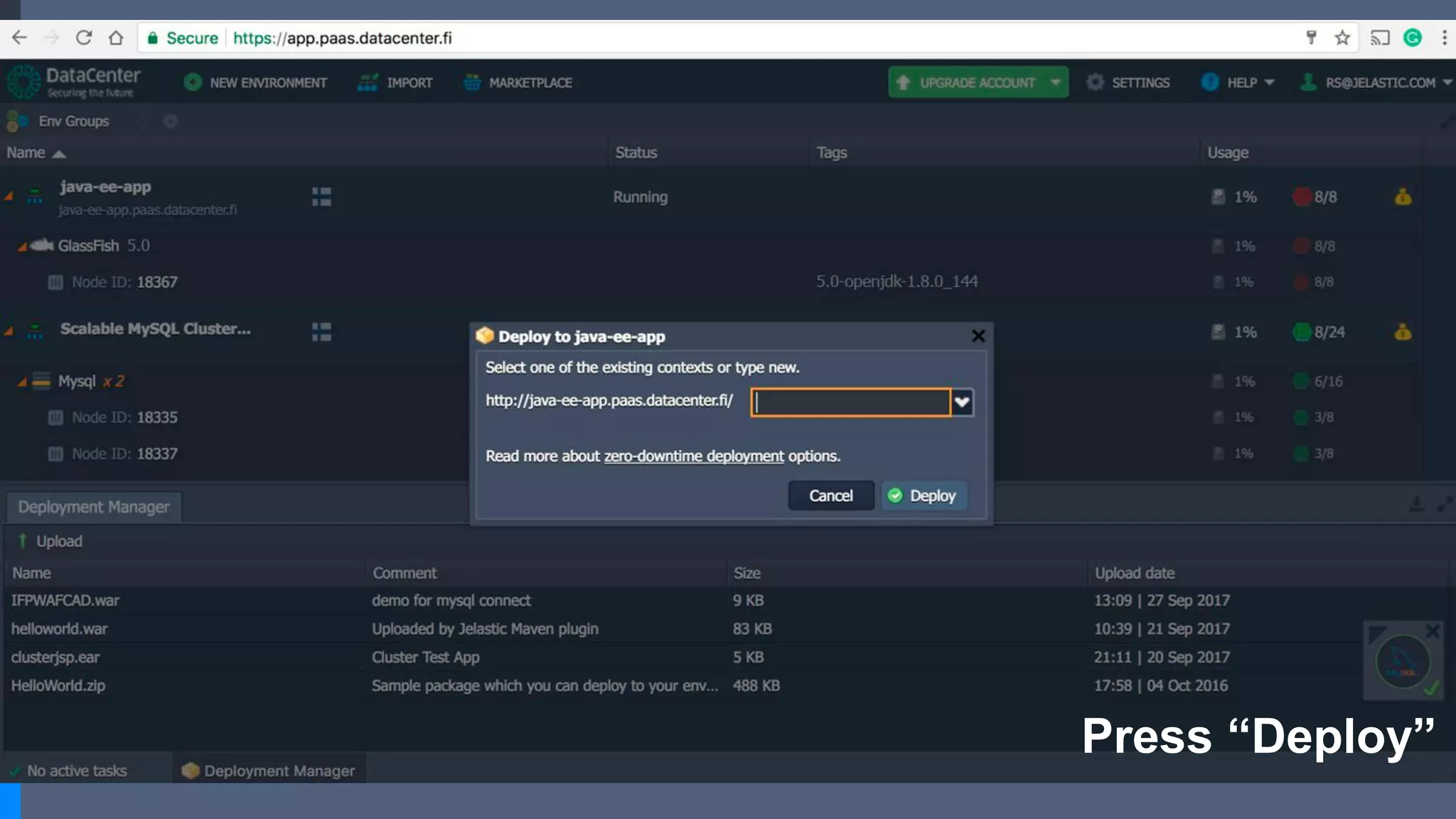

49. Press “Deploy”

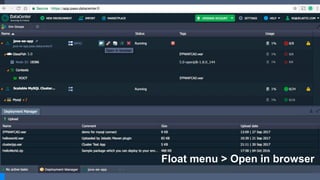

50. Float menu > Open in browser

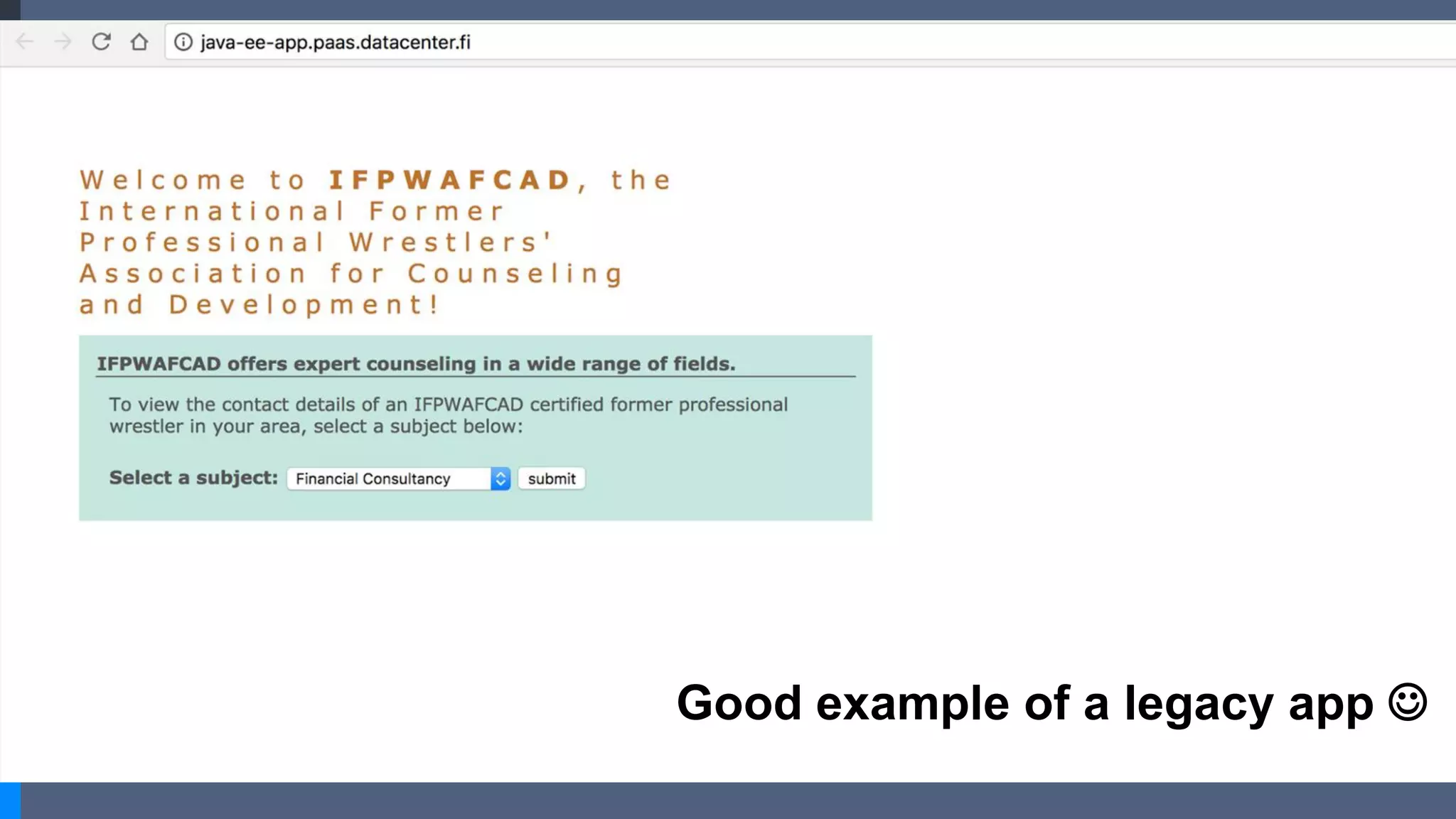

51. Good example of a legacy app 

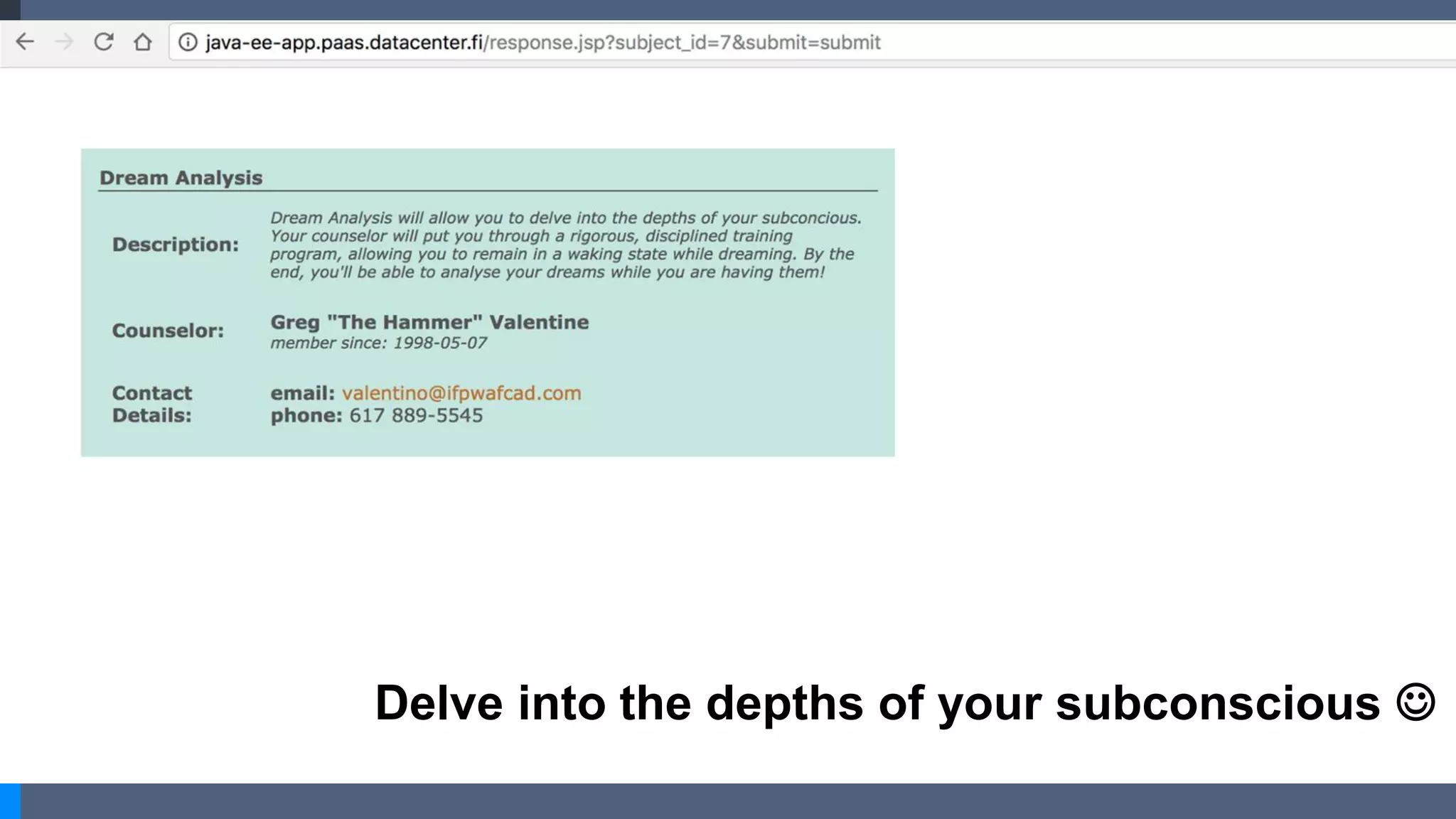

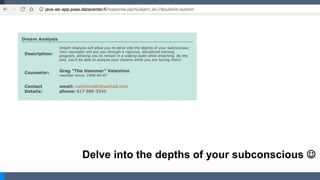

52. Delve into the depths of your subconscious 

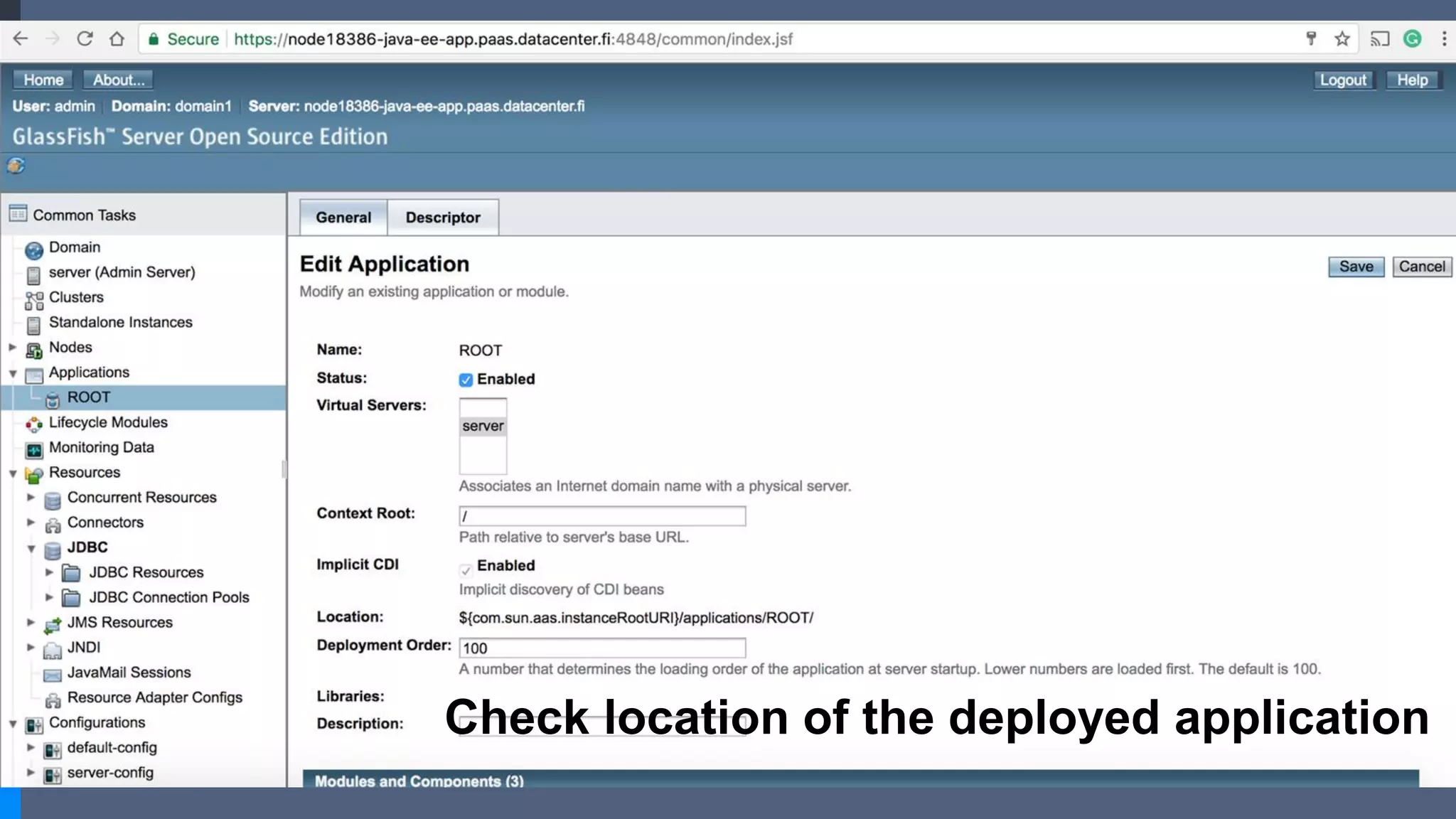

53. Check location of the deployed application

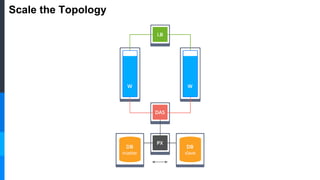

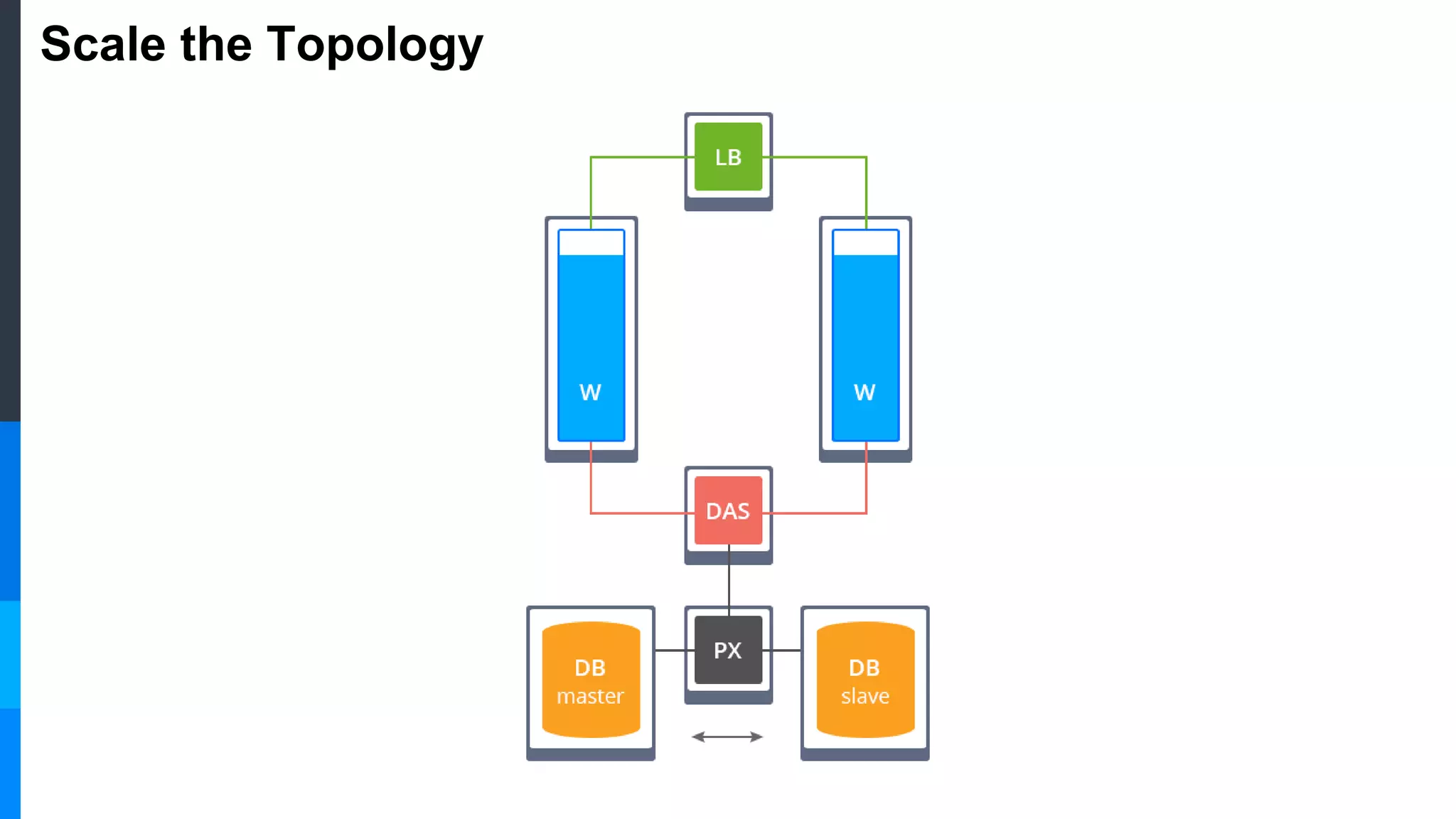

54. Scale the Topology

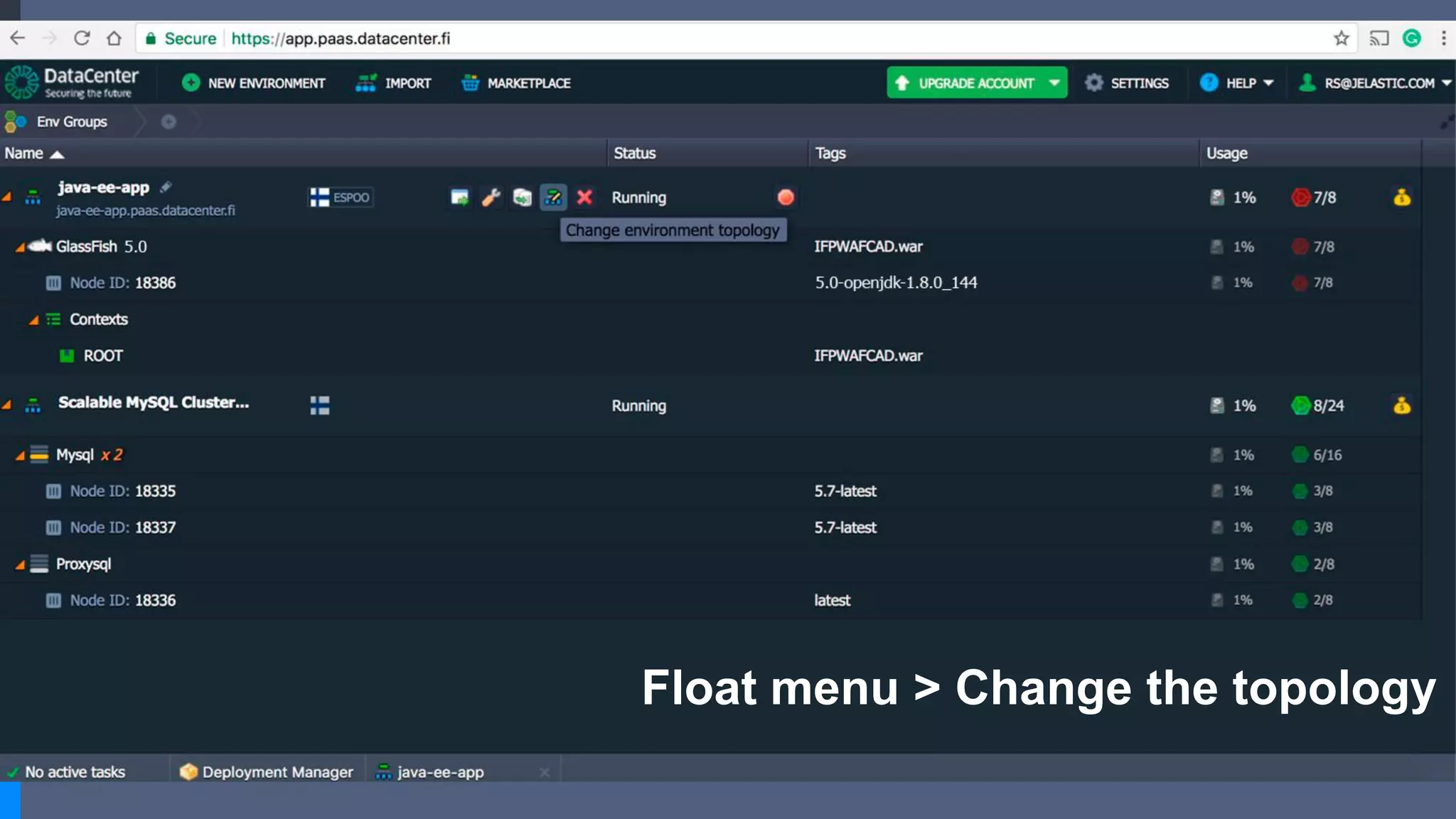

55. Float menu > Change the topology

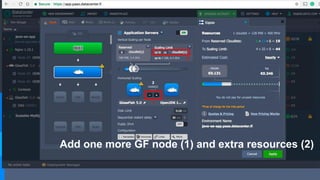

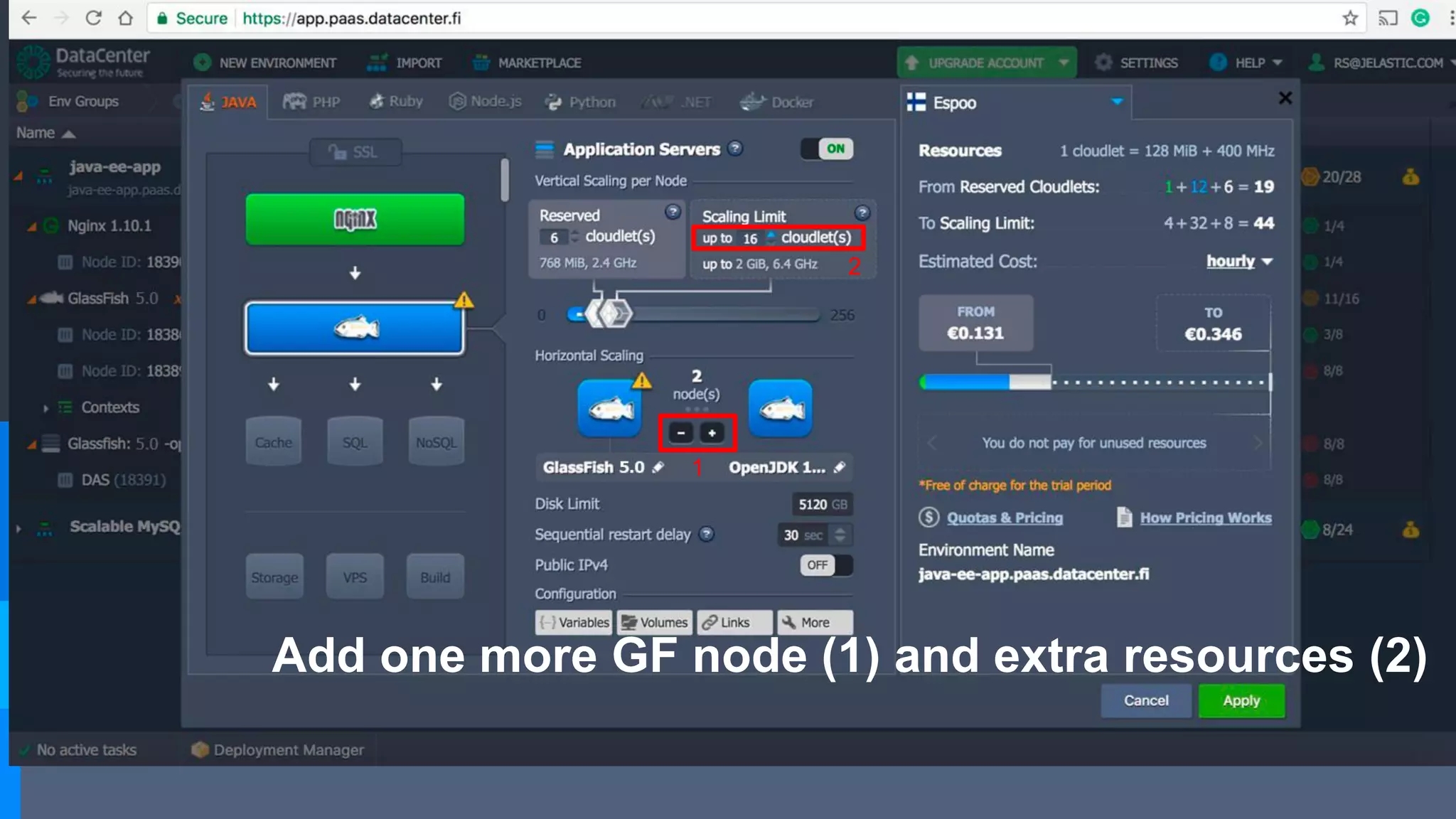

56. Add one more GF node (1) and extra resources (2)
1
2

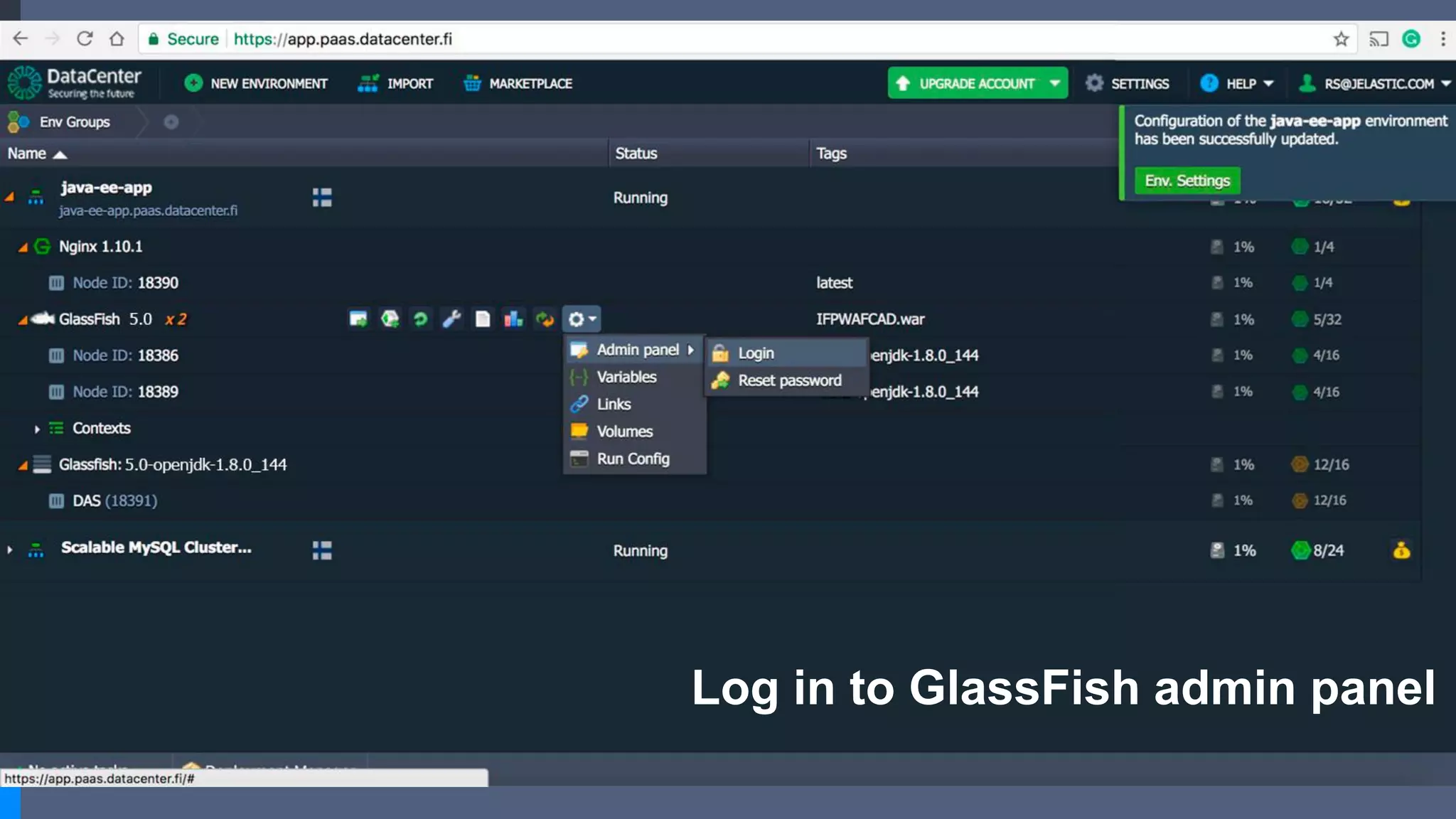

57. Log in to GlassFish admin panel

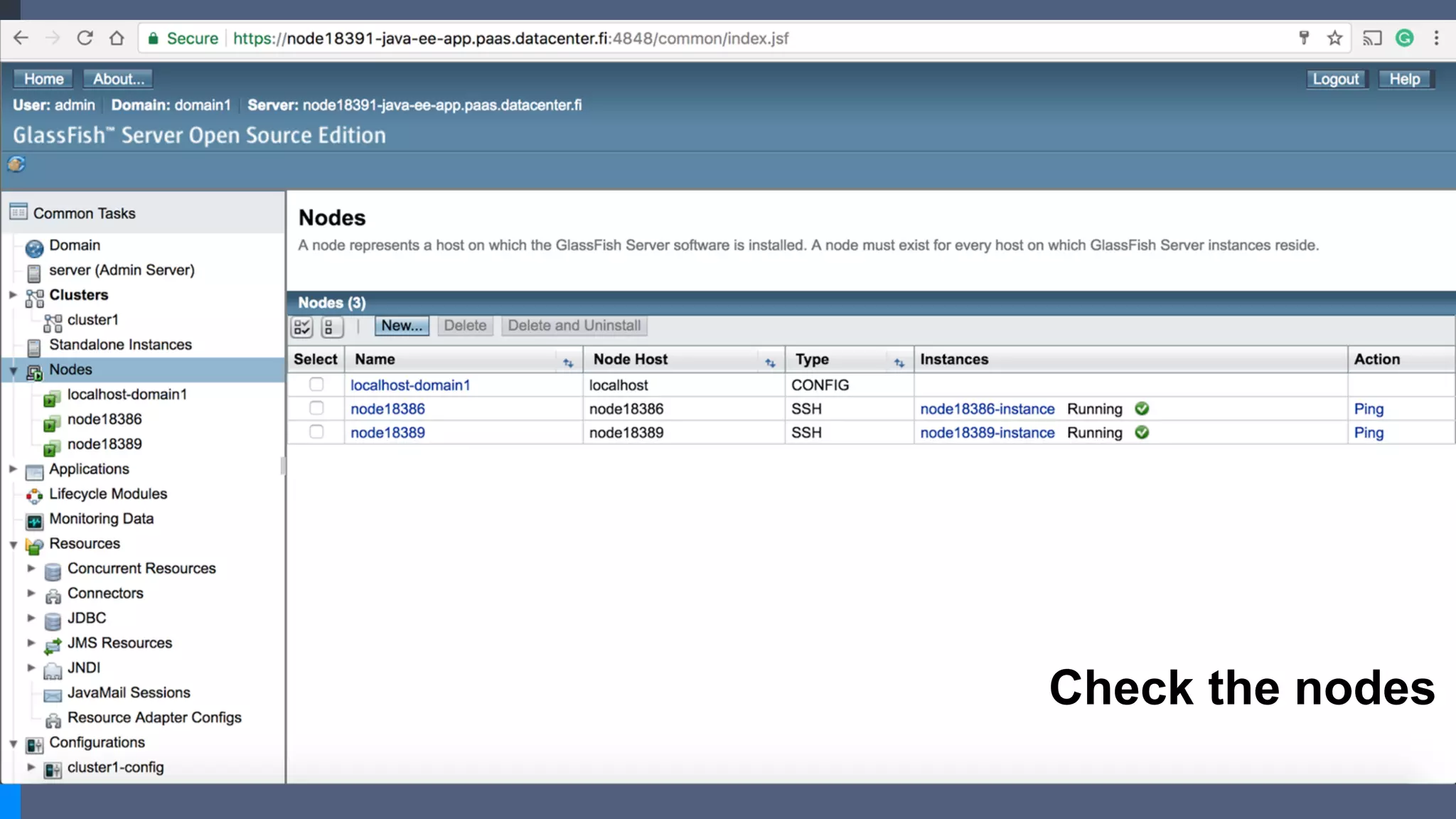

58. Check the nodes

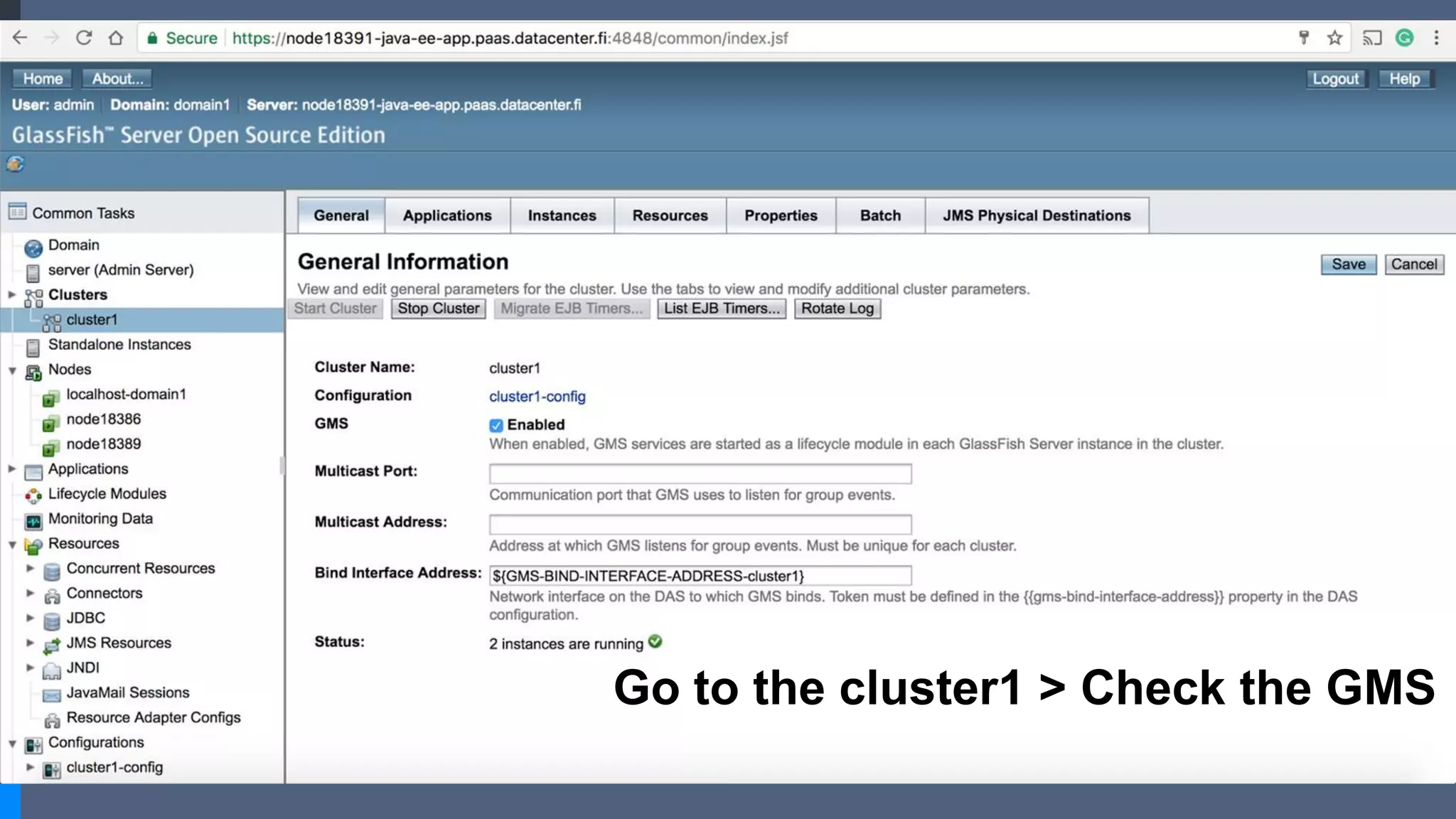

59. Go to the cluster1 > Check the GMS

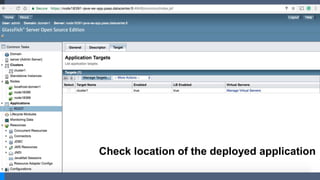

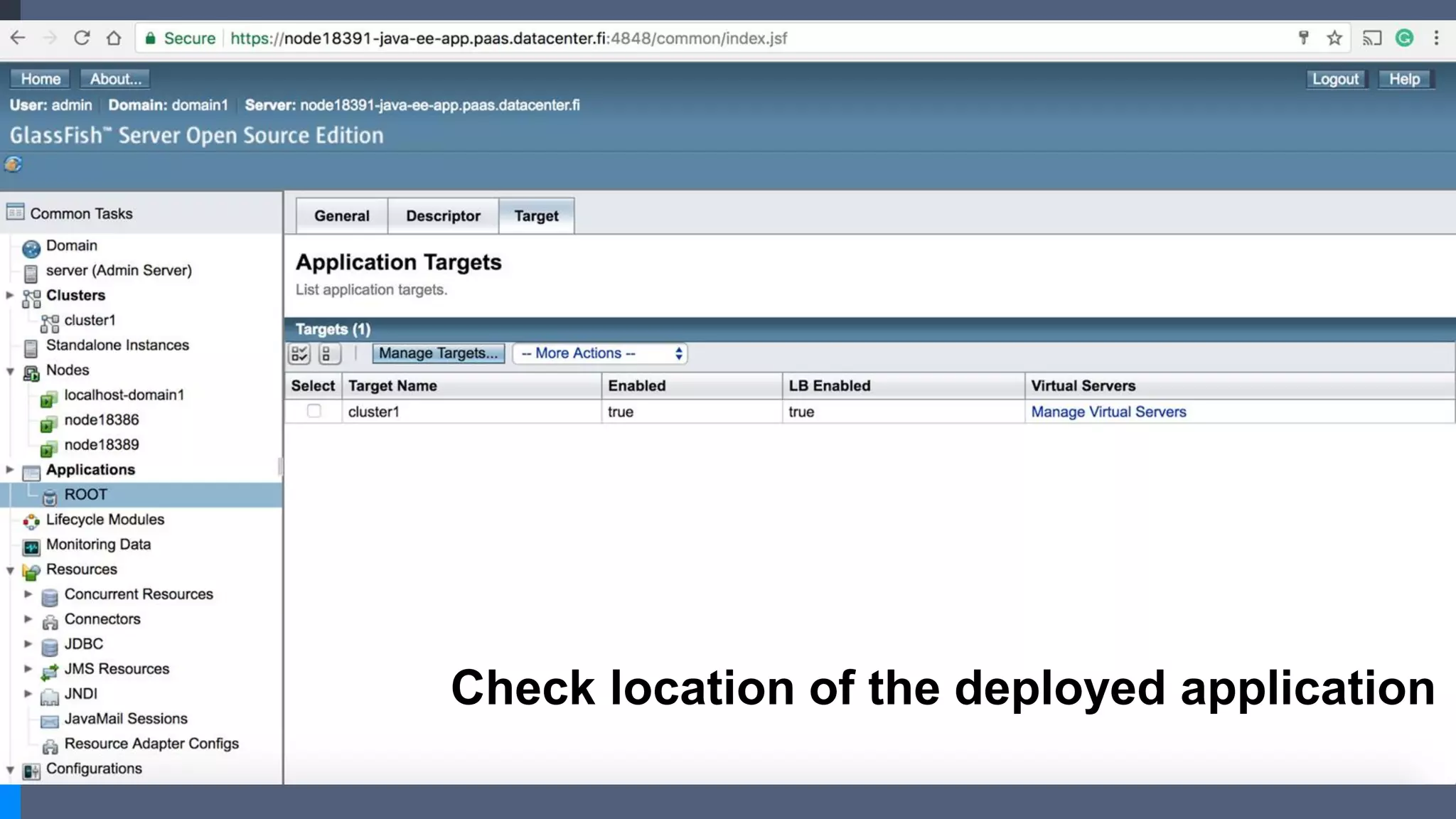

60. Check location of the deployed application

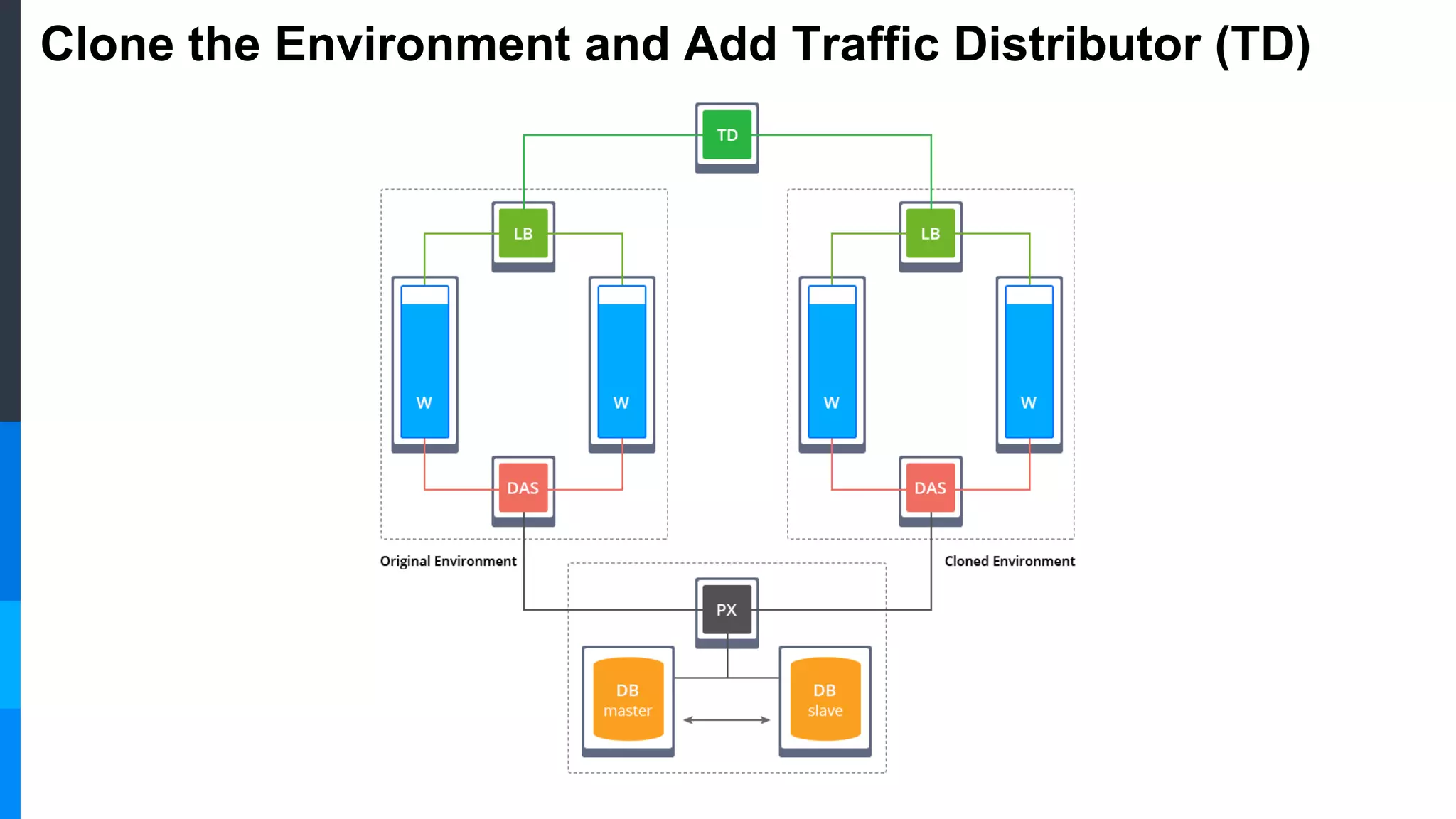

61. Clone the Environment and Add Traffic Distributor (TD)

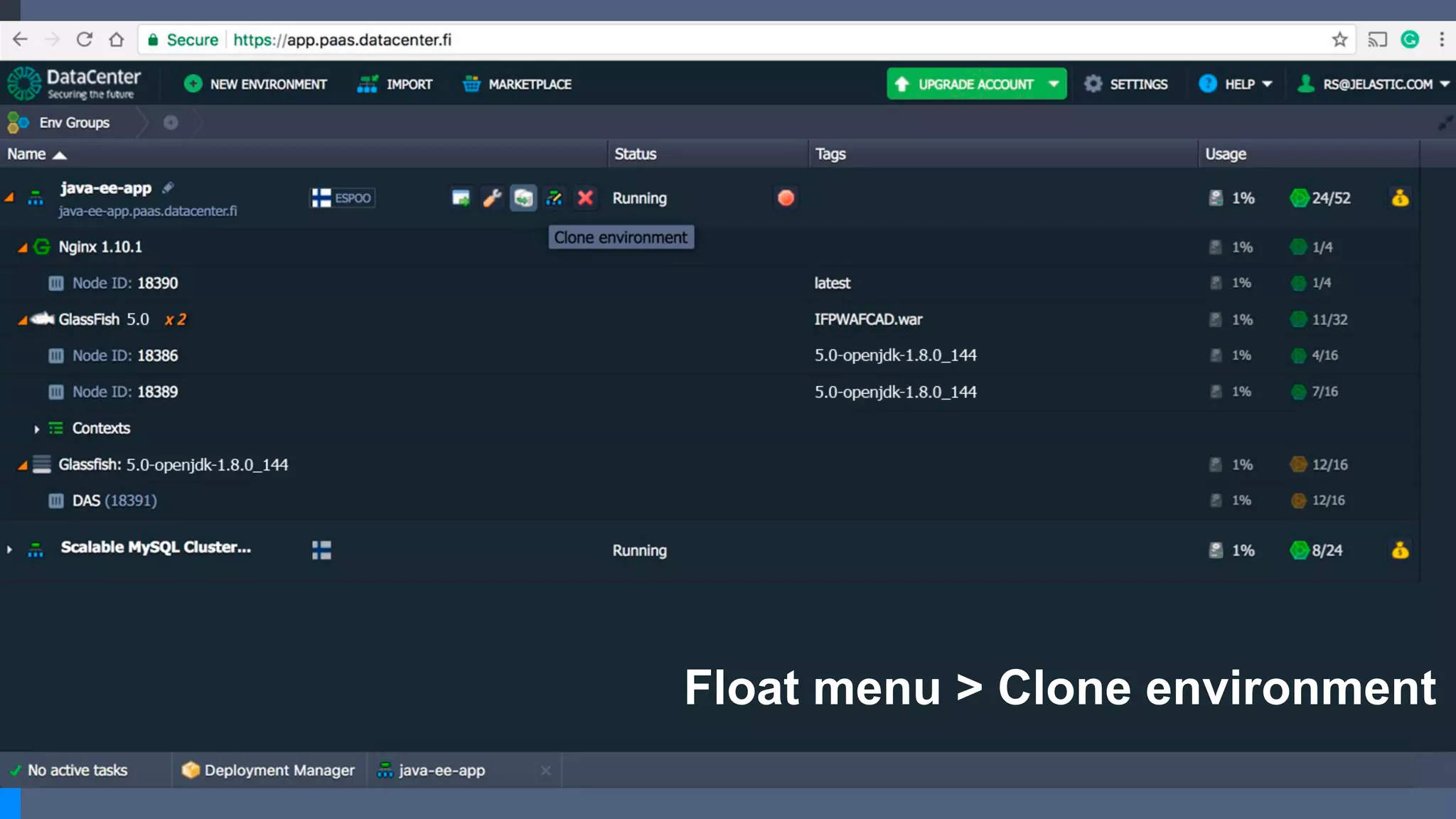

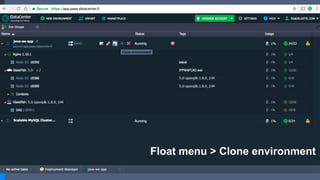

62. Float menu > Clone environment

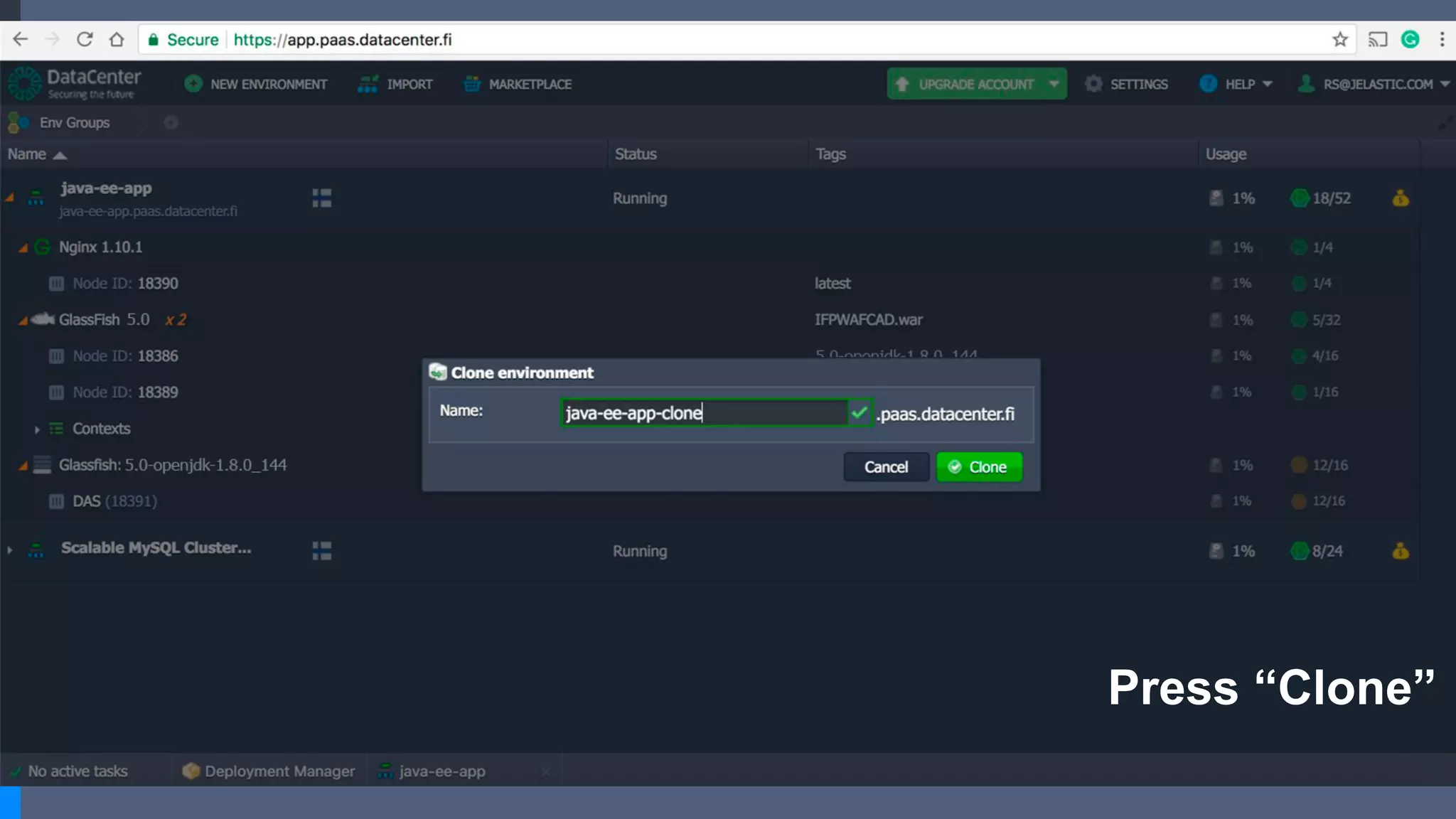

63. Press “Clone”

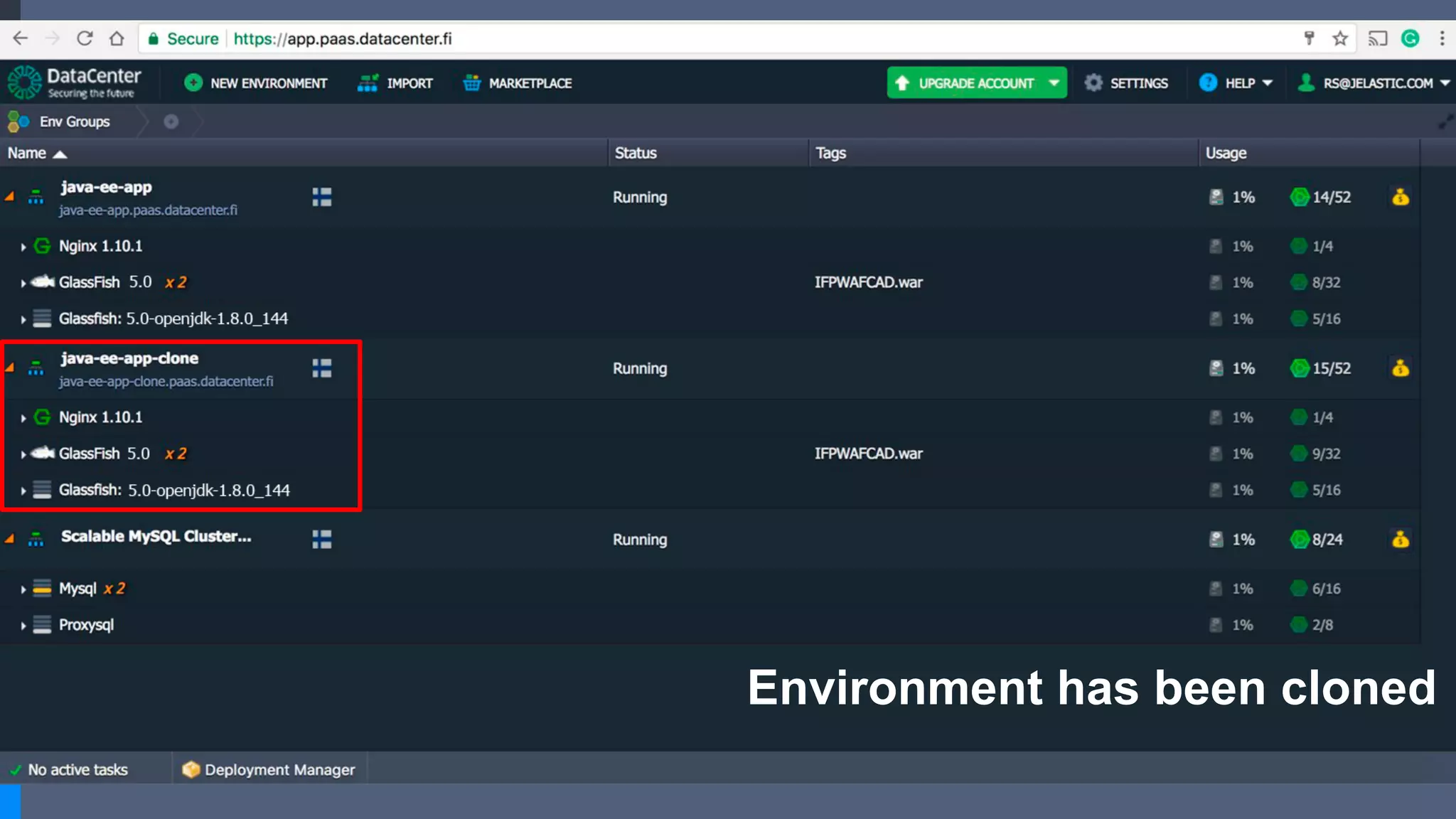

64. Environment has been cloned

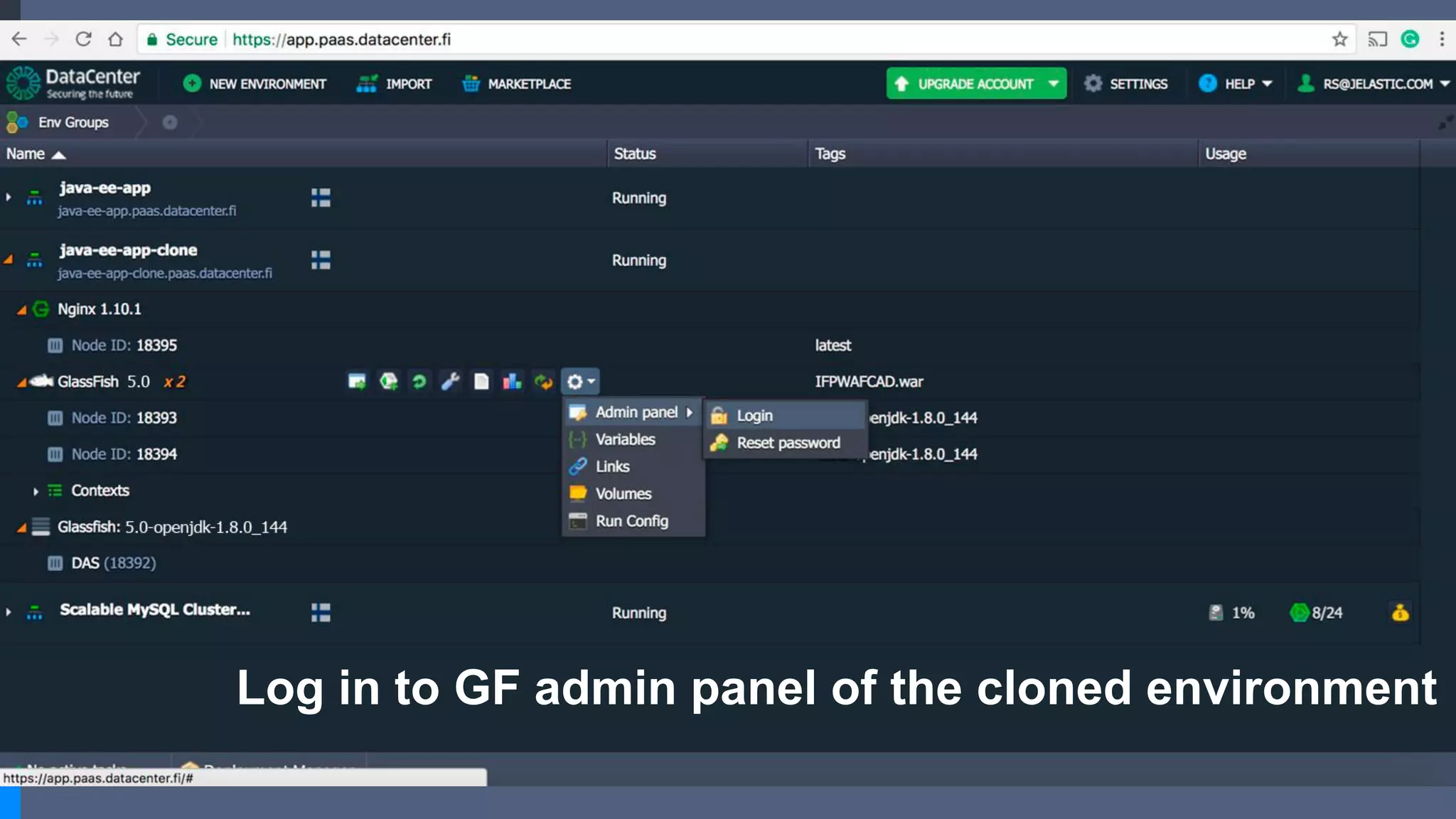

65. Log in to GF admin panel of the cloned environment

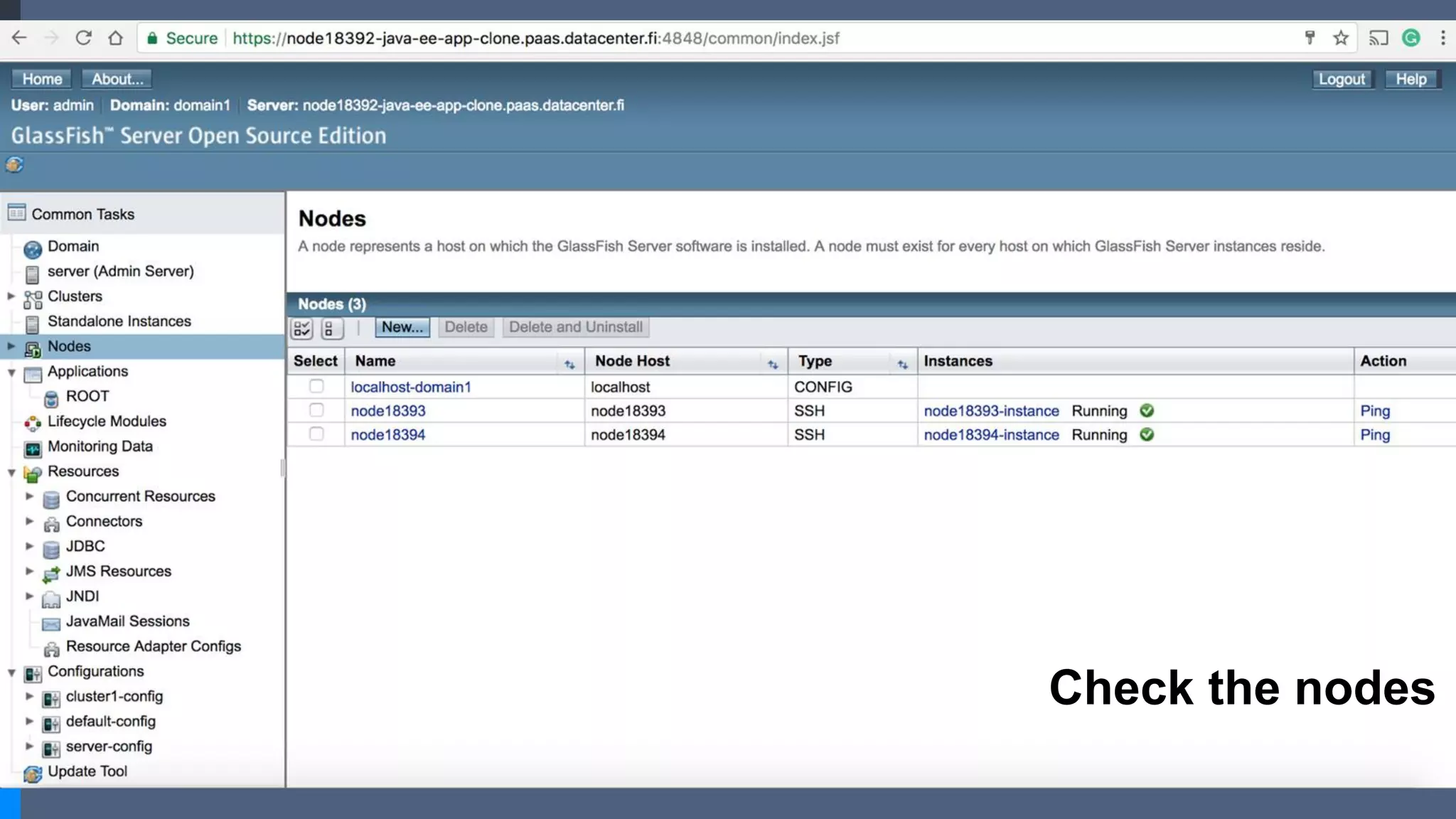

66. Check the nodes

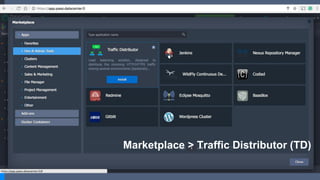

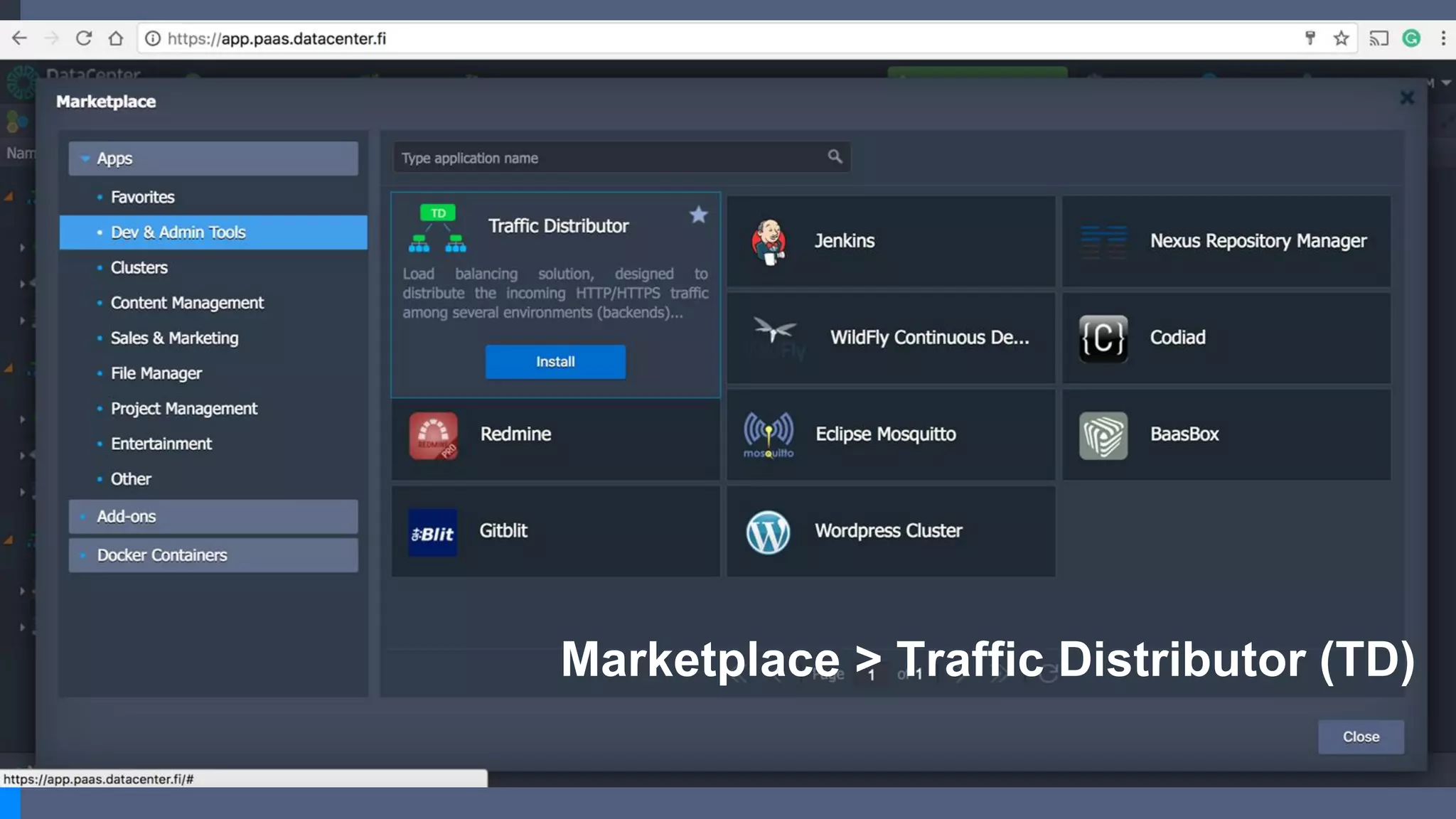

67. Marketplace > Traffic Distributor (TD)

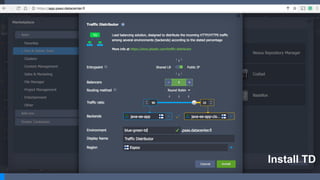

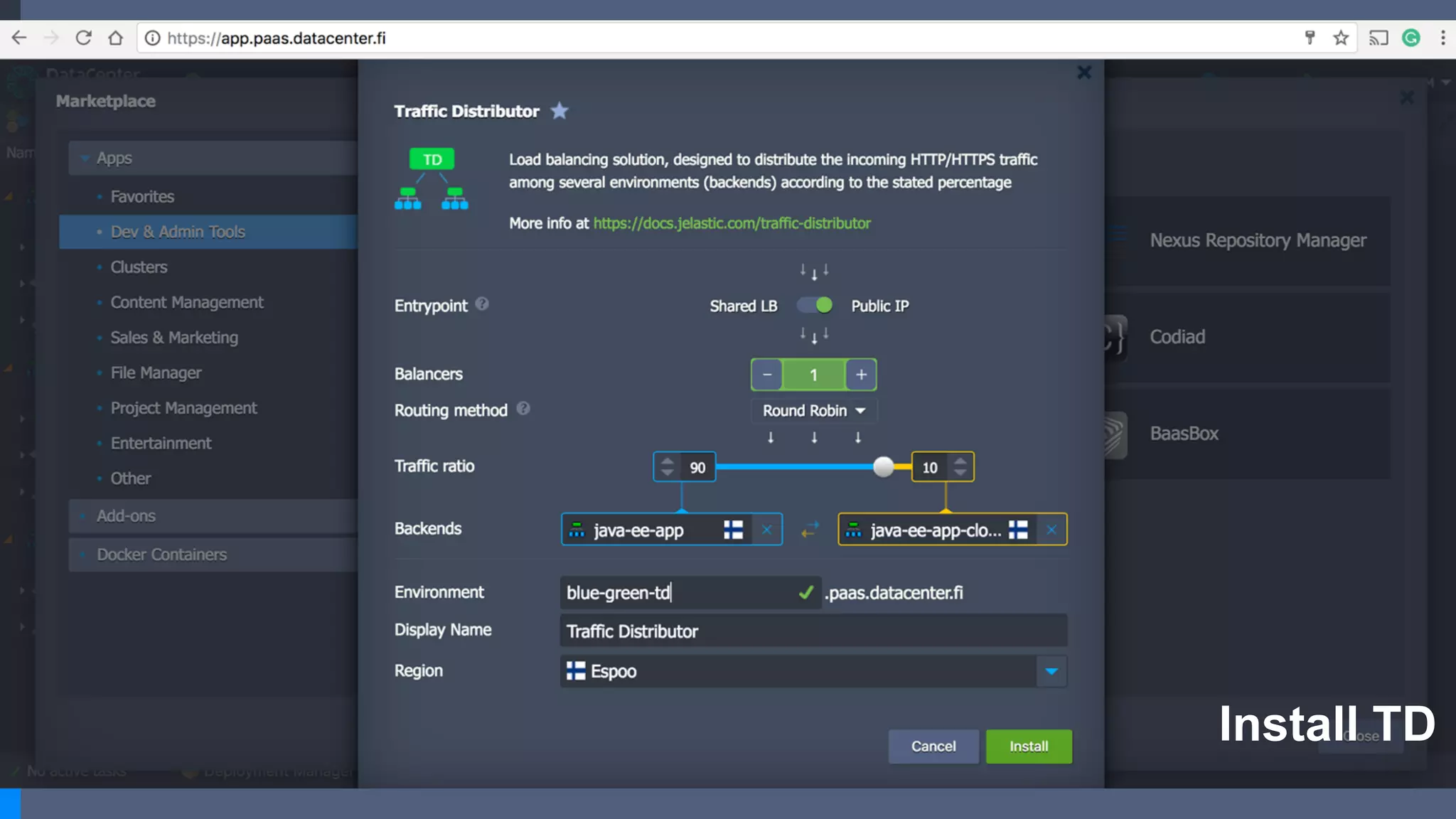

68. Install TD

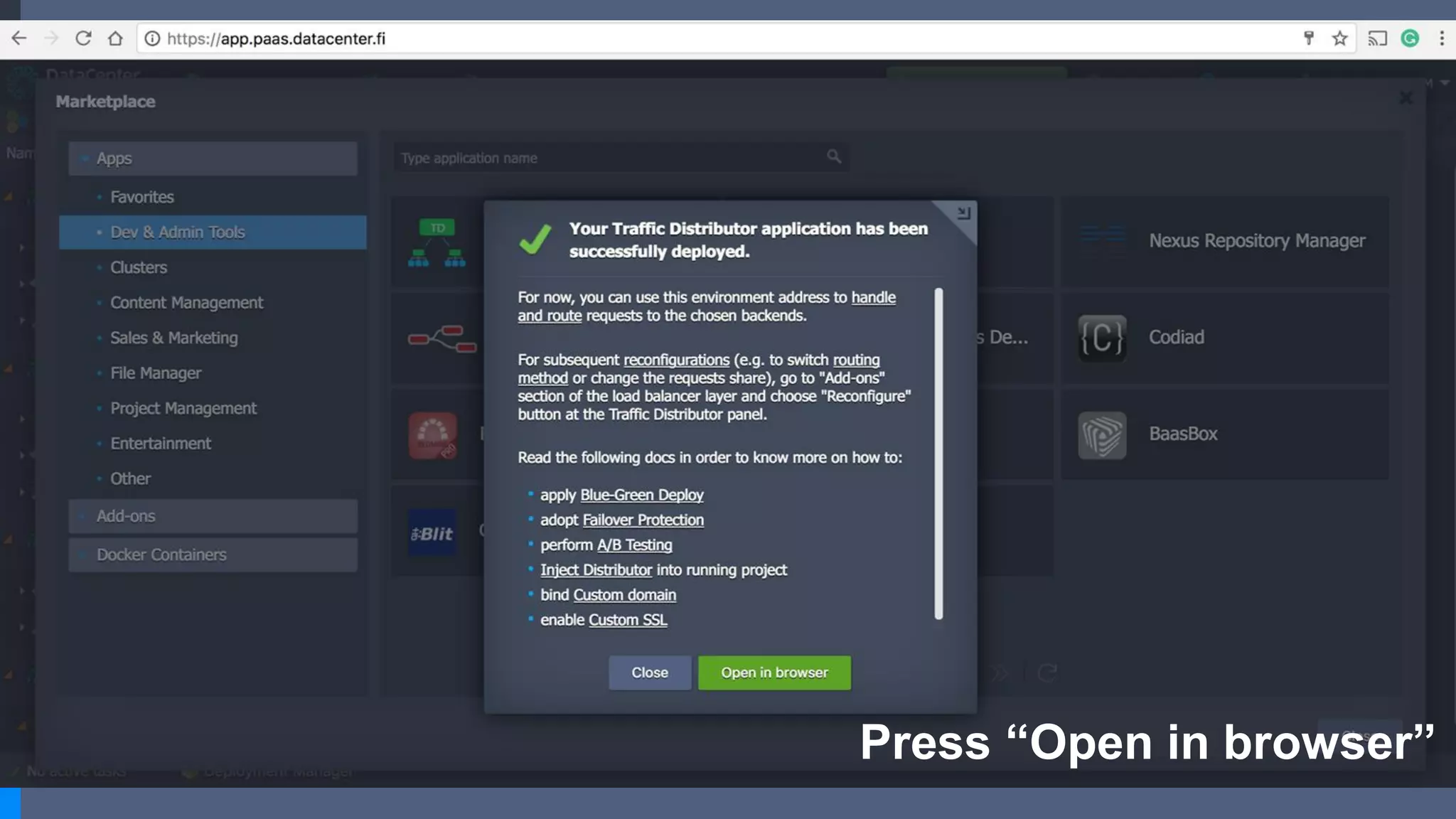

69. Press “Open in browser”

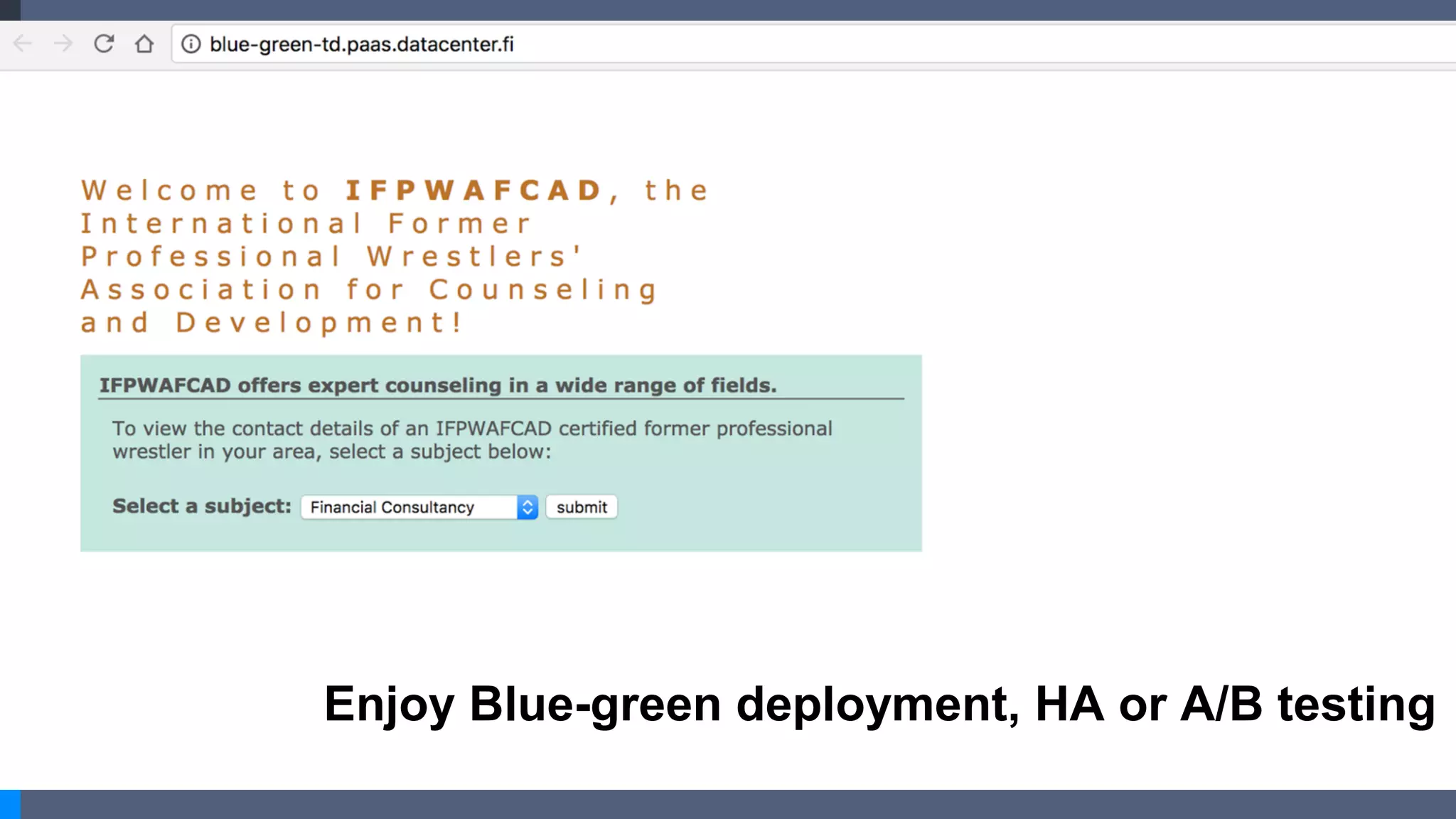

70. Enjoy Blue-green deployment, HA or A/B testing

72. Get in touch to find out more
@siruslan
@Jelastic
